In-Plant Intervention Validation of a Novel Ozone Generation Technology (Bio-Safe) Compared to Lactic Acid in Variety Meats

by
David A. Vargas
1,
Diego E. Casas
1,
Daniela R. Chávez-Velado
1,
Reagan L. Jiménez
1,
Gabriela K. Betancourt-Barszcz
1,
Emile Randazzo
2,
Dan Lynn
3,
Alejandro Echeverry
1,
Mindy M. Brashears
1,
Marcos X. Sánchez-Plata
1,* and
Markus F. Miller
1
1
International Center for Food Industry Excellence, Department of Animal and Food Sciences, Texas Tech University, Lubbock, TX 79409, USA
2
Nebraska Beef Ltd., Omaha, NE 68107, USA
3
BioSecurity Technology, Omaha, NE 68144, USA
*
Author to whom correspondence should be addressed.
Foods 2021, 10(9), 2106; https://doi.org/10.3390/foods10092106
Submission received: 6 August 2021 / Revised: 23 August 2021 / Accepted: 31 August 2021 / Published: 6 September 2021
(This article belongs to the Special Issue Quality and Safety of Meat and Meat Products)

Abstract

:
The objective of this experiment was to compare the antimicrobial efficacy of an aqueous ozone intervention and a lactic acid solution on natural microbiota of variety meats in a commercial beef processing plant. EZ-Reach™ swabs were used to collect 100 cm2 area samples before and after ozone and lactic acid intervention application for three different offals (head, heart, and liver). Each repetition included 54 samples per variety meat and antimicrobial for a total of 162 samples per repetition. Enumeration of total aerobic bacteria (APC) and Escherichia coli (EC) was performed on each sample. Microbial counts for both microorganisms evaluated were significantly reduced (p < 0.001) after lactic acid immersion (2–5%) and ozone intervention for all variety meats, with the exception of ozone intervention in EC counts of the heart samples. APC after lactic acid intervention was reduced on average by 1.73, 1.66, and 1.50 Log CFU/sample in the head, heart, and liver, respectively, while after ozone intervention, counts were reduced on average by 1.66, 0.52, and 1.20 Log CFU/sample. EC counts after lactic acid intervention were reduced on average by 0.96, 0.79, and 1.00 Log CFU/sample in the head, heart, and liver, respectively, while after ozone intervention, counts were reduced on average by 0.75, 0.62, and 1.25 Log CFU/sample. The aqueous ozone antimicrobial scheme proved to be a promising intervention for the in-plant reduction of indicator levels in variety meats, specifically heads, hearts, and livers.

1. Introduction

In 2019, the United States produced almost 27.16 billion pounds of beef, including variety meats, of which 14.1% were exported [1,2]. Edible bovine by-products, also called variety meats or offal, consist of edible internal organs such as head, heart, liver, and tripe, which can comprise up to 12% of the live weight of cattle, and which are an important source of beef protein for key consumer sectors in countries like Japan, China, Taiwan, Kenya, and Mexico [2]. In these countries, some variety meats are considered delicacies and are included as the main ingredient in some of the most important traditional dishes [3]. In countries like Japan, cow tongues are considered an expensive protein source, in Mexico dishes such as menudo (tripe soup) or lengua (tongue) use variety meats as main ingredients, while in other countries they are consumed as an inexpensive source of high-quality protein and nutrition [3]. While most offal is exported, many of the variety meats are incorporated into ground products, such as the chopped beef, ground beef, beef patties, hamburgers, and processed meats that are locally consumed in the United States. Indeed, heart is an important source of protein in processed meats due to its high functionality in sausage and canned meats. Moreover, novel ideas in the use of variety meats can be found in the literature, including beef tongue powder, which was developed as a multipurpose food ingredient with the use of a spray dryer with the claim that it retained both protein and fat content from the actual raw tongue [4]. Therefore, it is important that the edible offal used or incorporated into these types of products are treated with interventions that control the possible presence of pathogens to prevent illnesses and recalls due to contamination.
Multiple studies have characterized the microbial population of variety meats, suggesting the need for decontamination technologies [5,6,7]. Abd-El Malek et.al. [8] examined multiple edible bovine by-products (intestine, lung, rumen, head, heart, kidney, and liver) and determined the incidence of Escherichia coli O157:H7, Salmonella enteritidis, and Salmonella typhimurium. McLauchlin et al. [9] investigated the microbiological quality of liver pâté and observed that from 870 samples, 9% were unsatisfactory, with the most common causes being elevated counts of aerobic bacteria (6%), high Enterobacteriaceae counts (4%), or elevated counts of Escherichia coli, Bacillus cereus, and Listeria monocytogenes. Oblinger et al. [10] identified and isolated bacteria from fresh and temperature-abused variety meats (livers, kidneys, hearts, tongues, and pork livers) and from 1555 isolates obtained, Micrococcus spp. was the most common gram-positive bacterium in fresh variety meats, while Escherichia coli was the predominant gram-negative bacterium; in abused variety meats, Pseudomonas strains were predominant, except in vacuum packaging, where Lactobacillus spp. were predominately isolated. Few studies have evaluated the use of antimicrobials in order to decontaminate variety meats. Delmore et al. [11] examined the use of multiple interventions to reduce microbiological contamination of beef variety meats and determined that interventions already used to decontaminate beef carcasses can also be used for decontamination on variety meats, always considering an in-plant pre-validation of the intervention before relying on it in commercial settings. Also, the effectiveness of electrolyzed oxidizing water, hot water, and ozonated water was determined on bovine heads for the reduction of Escherichia coli O157:H7, resulting in optimistic results for controlling the foodborne pathogen [12].
BioSecurity Technology novel ozone intervention (BiosafeTM cleaning solution) has been proven to decontaminate carcasses and trim in a commercial beef processing facility [13]. According to an in-plant study were carcasses and trim were intervened with ozone, a 1.29 Log CFU/cm2 and 0.67 Log CFU/500 cm2 reduction was observed in Escherichia coli counts for carcasses and trim, respectively [13]. Although contradictory results have been observed with ozone as an intervention on meat [14,15], novel ozone technologies based their differences on new ways to introduce ozone in an aqueous solution in order to avoid instability and reactivity before contact with the meat surface. Moreover, FSIS Directive 7120.1 asserts that ozone is safe for use in all meat products and no labeling requirements are needed, as it is considered a processing aid under the FDA definition, which specifies that a processing aid can be any substance that can be added to the food during processing but later it is either removed or its residual effects do not have any technical effect on the final product [16]. Meat by-products are normally discarded due to palate preferences in most countries [17,18]. The United States exports most organs, including hearts, tongues, livers, and heads, while blood and bones are incorporated as protein sources in animal feed or pet food. Variety meats are a high-quality source of protein, minerals, and vitamins, making them highly important products to help assure food security around the world [19].
Because increased levels of microbial populations and potential pathogens have been found in variety meats, and little information about interventions to reduce microbial contamination on variety meats is found in the literature on these highly important contributor products for food security, the objective of this study was to evaluate the efficacy of a novel ozone intervention on heads, hearts, and livers for reducing indicator microorganisms naturally present in variety meats in a commercial beef processing facility.

2. Materials and Methods

2.1. Intervention Parameters

Lactic acid intervention parameters included a spray intervention with a temperature of 43–55 °C at 2–4% lactic acid concentration, and spray pressure at ≥15 psi with 10 s contact time. Bio-safe ozone intervention parameters included proprietary ozone generators which utilize oxygen molecules (O2) split by a corona field, forming single atoms of oxygen (O1). These single atoms then are combined with O2 molecules forming a O3 molecule (ozone). The aqueous ozone intervention spray had a concentration 1.5–2.3 ppm, an oxidation-reduction potential (ORP) between 700 and 900 mV, spray pressure of ≥20 psi, and an incoming water source maintained at 10–24 °C. The ozone intervention consisted of one cabinet with 44 nozzles delivering 12.8 gpm of the solution with 18 s contact time. The plant processes around 2000 animals per day with just one shift from Monday to Saturday.

2.2. Variety Meat Samples

EZ-ReachTM buffer peptone water (BPW) pre-hydrated 25 mL swabs (World Bioproducts, Mundelein, IL, USA) were taken using a 3MTM cattle 100 cm2 template (3M, Saint Paul, MN, USA) before and after interventions in variety meats (head, heart, and liver). Each repetition included 54 samples (27 before and 27 after intervention) per variety meat for a total of 162 samples per repetition. A total of 6 repetitions were conducted throughout the experiment at different days and different times of the day in order to assure coverage and effect of time of the day and microbial accumulation in the processing facility, as well as to account for process variations that can be caused by operational and logistical issues in the plant.

2.3. Swab Processing

Pre-hydrated swabs were immediately chilled and shipped overnight to the ICFIE Food Microbiology Texas Tech University laboratory for microbiological analysis. Swab samples were homogenized in a stomacher (Model 400 circulator, Seward, West Sussex, UK) at 230 rpm for one minute. Then, samples were serially diluted in 9 mL BPW (Millipore Sigma, Danvers, MA, USA) tubes and plated to determine total aerobic plate counts (APC), and Escherichia coli counts (EC). This project was designed as a longitudinal experiment in which the beef processing plant changed their interventions as a program of continuous improvement at the processing line; therefore, the samples taken with lactic acid intervention were taken one year apart with the ozone samples. Samples taken before and after lactic acid intervention were enumerated using 3MTM PetrifilmTM (3M, Saint Paul, MN, USA) plates, while samples taken before and after ozone intervention were enumerated using the TEMPO system (BioMérieux, Paris, France) due to the separation in time at the moment of sampling both interventions. This study compares the microbial performance of year-to-year differences under modified antimicrobial schemes. For APC in Petrifilms, the Association of Official Agricultural Chemists 990.12 (AOAC) official method was used. Aerobic plate count petrifilms were incubated for 48 ± 3 h at 35 ± 1 °C. For Escherichia coli, the AOAC 991.14 official method was used. Escherichia coli petrifilms were incubated for 48 ± 3 h at 35 ± 1 °C. Enumeration was conducted at 48 h for Escherichia coli and APC. For APC and Escherichia coli in TEMPO®, the standard method was used, where TEMPO cards were incubated for 22–28 h at 35 ± 1 °C for both microorganisms following AOAC 121,204 for APC and AOAC 080,603 for Escherichia coli. This study also provides data to support the relationship between TEMPO® and 3MTM PetrifilmTM enumeration technologies to support the validity of this study being conducted at different time periods and using different, but validated and comparable, microbial enumeration methods for the findings described in this study about the application of different interventions on variety meats in commercial processing facilities.

2.4. Tempo and Petrifilm Enumeration

A cocktail of five different strains of Salmonella (Salmonella enterica subsp. enterica ser. Typhimurium (BAA 712), Salmonella enterica subsp. enterica ser. Enteritidis (ATCC 31194), Salmonella enterica subsp. enterica ser. Infantis (BAA 1675), Salmonella enterica subsp. enterica ser. Newport (ATCC 6962), Salmonella enterica subsp. enterica ser. Senftenberg (ATCC 43845)) was used for quantification analysis. Microorganisms were obtained from the freezer where they were kept at −80 °C in a solution with 20% glycerol. Selected microorganisms were aseptically streaked for isolation on brain heart infusion (BHI) agar plates (Millipore Sigma, Danvers, MA, USA) and incubated for 24 h at 37 ± 1 °C. A single well-isolated colony from the BHI agar plate was regrown in another BHI plate and incubated for 24 h at 37 ± 1 °C. A single well-isolated colony of each serotype was suspended in 5 mL of sterile phosphate buffered saline water (PBS) (Sigma-Aldrich, MO, USA) and its concentration was verified using a Thermo Scientific™ Sensititre™ Nephelometer (Thermo fisher, MA, USA), calibrated to 0.5 McFarland turbidity, to obtain a concentration of 1~2 × 108 CFU/mL. All the tubes with the different strains were mixed in a 15 mL conical tube to create the cocktail. The cocktail was serially diluted in buffer peptone water (BPW) tubes (Millipore Sigma, Danvers, MA, USA). Eight tubes containing a concentration ranging from 1 × 101 to 1 × 108 were treated as independent samples. Each tube was diluted for testing the measurements by the commercial procedures of bacterial enumeration of: (1) Direct plating using drop plating and micro dilution on Trypic Soy Agar (TSA) plates (Millipore Sigma, Danvers, MA, USA), (2) APC 3MTM PetrifilmTM, (3) and most probable number (MPN) using TEMPO® system AC. Four repetitions were conducted throughout the whole study.
(1)
Direct plating. For each independent tube, 10-fold dilution in buffered peptone water was performed, 10 and 100 µL for drop and spread plating, respectively, were plated on TSA according to each dilution. After the drops were absorbed on the agar, plates were incubated and enumerated after 17–20 h at 35 ± 1 °C.
(2)
3M™ Petrifilm™. For APC in Petrifilms, the Association of Official Agricultural Chemists 990.12 (AOAC) official method was used. Aerobic plate count petrifilms were incubated for 48 ± 3 h at 35 ± 1 °C.
(3)
TEMPO®. The Biomérieux TEMPO® system was utilized to enumerate total counts of AC. For this method, samples were diluted based on the expected counts of each respective organism. This dilution was formulated within the provided TEMPO® media vials and then loaded into a TEMPO® card, which mimics a traditional 16 tube MPN method. These cards were then incubated for 22–28 h at 35 ± 1 °C following AOAC 121,204 for APC. After incubation, the cards were inserted into the TEMPO® reader and enumerative values were calculated by the system.

2.5. Statistical Analysis

All data were analyzed using R (Version 4.0.4) statistical analysis software to evaluate the reduction of microbial loads after each intervention for all variety meats tested (head, heart, and liver). Counts were transformed into Log CFU/sample and a one-way ANOVA was performed, comparing before and after counts on each of the different interventions in the plant, followed by pairwise multiple comparison T-tests adjusted by the Benjamin and Hochber method. If parametric assumptions were not met, the Kruskal–Wallis Test was used as a non-parametric alternative for the ANOVA, followed by a pairwise multiple comparison Wilcoxon’s Test adjusted by the Benjamin and Hochber method. A p-value of 0.05 or less was selected prior to the analysis to determine significant differences.
For the 3M™ Petrifilm™ and TEMPO® correlation experiments, all data were analyzed using R (Version 4.04) statistical analysis software to evaluate the relationship between the use of the two alternative enumeration technologies with the standard method. A linear model was calculated for each alternative enumeration method (3M™ Petrifilm™ and TEMPO®) where log10 counts from each of the alternative enumeration methods were considered as the dependent variable, while log10 counts obtained from direct plating (standard method) were considered as the independent variable.

3. Results

Aerobic plate counts (Figure 1) and Escherichia coli counts (Figure 2) were transformed to Log CFU/sample for statistical analysis, as counts were considerably low when analyzed on a Log CFU/cm2 basis (detection limit = 0.002 CFU/cm2). For all variety meats, both aerobic plate counts, and Escherichia coli counts were below 1 CFU/cm2, resulting in negative values when transformed to Log CFU/cm2, thus making analysis and visualization problematic and hard to interpret. Counts reported by Log CFU/sample were achieved by multiplying the CFU/cm2 counts by 100 cm2 of area sampled and then log10 converted, resulting in Log CFU/100 cm2 measurements, which were equivalent to Log CFU/sample.
Both the lactic acid and ozone interventions significantly reduced (p < 0.001) aerobic plate counts when applied to variety meats (Figure 1), (Table 1). Aerobic plate counts after lactic acid intervention were significantly reduced on average by 1.73, 1.66, and 1.50 Log CFU/sample in the head, heart, and liver, respectively. Likewise, samples collected under the ozone intervention scheme showed counts significantly reduced on average by 1.66, 0.52, and 1.20 Log CFU/sample in the head, heart, and liver, respectively. In the head and liver variety meats, for aerobic plate counts, there were no significant differences (p = 0.98) in microbial initial populations between the lactic acid and ozone interventions. Heart microbial initial populations were significantly different (p = 0.006) between the lactic acid and ozone interventions.
For Escherichia coli counts, a non-parametric approach test was used for analysis as these types of tests do not assume any specific distribution, as parametric tests do. The distribution of the data, especially after intervention, suggests a non-normal distribution due to the consistently observed lower counts. When assumptions were not met for performing ANOVA, a Kruskal–Wallis test was preferred to find differences between interventions. Both the lactic acid and the ozone interventions significantly reduced (p < 0.001) Escherichia coli counts in variety meats, with the exception of ozone intervention in heart samples (Figure 2) (Table 2). Escherichia coli counts after lactic acid intervention were significantly reduced on average by 0.96, 0.79, and 1.00 Log CFU/sample in the head, heart, and liver, respectively. Likewise, Escherichia coli counts after ozone intervention were reduced on average by 0.75, 0.62, and 1.25 Log CFU/sample in the head, heart, and liver, respectively. In head and heart samples, Escherichia coli microbial initial populations were significantly different between the lactic acid and ozone interventions (p < 0.001). No difference was observed (p = 0.15) in microbial populations between the two interventions in the liver samples.
For the correlation experiment between 3M™ Petrifilm™ and TEMPO® with the standard method (direct plating), counts were log10 transformed and then analyzed. A linear model was created comparing each of the alternative enumeration methods with the standard method. The slope of the linear models represents the rate of change in bacterial counts in the alternative methods due to an increment of 1 unit in the standard method. It is ideally desired that the slope is one, meaning that for each 1 Log CFU/mL of increase in one of the alternative methods the standard method will increase 1 Log CFU/mL, making them comparable. The intercept represents the similarity in the total magnitude read by the compared methods. The slopes for both alternative enumeration methods when compared with direct plating were 1.02 with an adjusted r-squared of 1.00 for the 3M™ Petrifilm™ and 0.98 for the TEMPO® system (Figure 3). The intercept value was −0.031 for the 3M™ Petrifilm™ and −0.0401 for the TEMPO® system. Both intercepts were not statistically different from zero (p = 0.555 and p = 739), (Table 3).

4. Discussion

Aqueous ozone has been previously used as an antimicrobial intervention in beef. In a study where aqueous ozone was used as a spray chill intervention to reduce bacteria on surfaces of fresh beef, a significant reduction of 0.99 and 1.46 Log CFU/cm2 was achieved in aerobic bacteria and Escherichia coli O157:H7, respectively [20]. Moreover, in an in-plant validation study where aqueous ozone was used as an intervention on beef carcasses and trim, aerobic bacteria were reduced 3.26 Log CFU/cm2 and 0.74 Log CFU/500 cm2 for both carcasses and trim. Also, a reduction of 1.29 Log CFU/cm2 and 0.67 Log CFU/500 cm2 was reported for Escherichia coli in both carcasses and trim with a 75.5% reduction in the presence of presumptive Escherichia coli O157:H7 positives over a 1-year period [13]. For both studies, different but enhanced ozone technologies were used, as in this experiment, in order to increase the reactivity of ozone in an aqueous solution such that it may increase the efficacy of ozone intervention in beef.
Multiple experiments have observed significant reductions on microbial populations in meat samples [21,22,23]. In these studies, the results are extended to conclusions about beef variety meats. Aqueous ozone interventions have not been extensively reported in variety meats; however, in this experiment, there was a reduction of 1.73, 1.66, and 1.50 Log CFU/sample in the head, heart, and liver for aerobic bacteria and of 0.75, 0.62, and 1.25 Log CFU/sample in Escherichia coli. When comparing the reduction obtained by ozone intervention against lactic acid intervention, the values were equivalent in magnitude in this experiment, as well as in other studies where reductions in variety meats were between 0.7 to 1.7 Log CFU/g for aerobic bacteria and 0.1 to 1.1 Log CFU/g for Escherichia coli [11]. Lactic acid interventions are known for not only having an immediate reduction on the microbial populations of bacteria, but also for their potential residual effect in the reduction of microbial loads [24]. By contrast, ozone has no attributed residual effect due to high reactivity; furthermore, it is known to be unstable and to react with organic materials, easily suggesting an increased immediate reduction of microbial populations of bacteria in variety meats. Shelf-life studies should be conducted in order to assess the possible differences between both interventions over longer periods of storage time for heads, hearts, and livers, as well as the use of surrogates that simulate the survival of pathogens in an in-plant environment, thus testing the real efficacy of an intervention during meat processing in a commercial processing facility.
Since the implementation of the HACCP rule in 1996, the U.S beef packaging industry started to investigate and implement multiple interventions intended to reduce the microbial population on carcasses and to reduce the presence of foodborne pathogens on sub-primal cuts and trimmings [25]. Limited information about performance standards on variety meats are found in the U.S., however, variety meat processors also need to comply with food safety requirements, as these meats can be incorporated into ground beef. A comprehensive literature search for guidelines outside the U.S. only returned limited publications on microbiological criteria for hearts, heads, and livers by the Kenyan Bureau of Standards and the Gulf Cooperation Countries Standardization Organization standards, establishing a limit for aerobic colony counts of 6 Log CFU/g, 2 Log CFU/g for Escherichia coli, and Salmonella absence [26,27] in this type of offal. In this experiment, on average, Escherichia coli counts were below 1 CFU/cm2 after intervention with lactic acid or ozone, thus the facility can demonstrate appropriate process control while using lactic acid or ozone on most of the variety meats evaluated in this experiment. Also, it is worth mentioning that these three tested variety meats were chosen by the plant to be tested as a worst-case scenario. The plant used historical data to determine that these three variety meats were those with greater microbial loads following their slaughter process, and the study was designed to support continuous improvement process control.
Ozone is well known to be an effective antimicrobial agent with high reactivity, penetrability, and decomposition to a non-toxic product [28]. Its mechanism of disinfection includes direct oxidation and lysis of the cell wall, reactions with radical by-product of ozone decomposition and possible DNA damage (nucleic acids) [29]. Ozone applications in the food industry are mostly related to disinfection of surfaces, water treatment, and inactivation of contaminant flora on vegetables and dry foods. For many years, studies of ozone interventions on meat and poultry have been contradictory, with the results obtained being project related and dependent on the delivery mechanisms of active ozone to the treated surfaces. However, novel technologies to incorporate highly reactive ozone in an aqueous solution are giving promising results for the meat and poultry industry, which has sought alternative interventions for decades.
As mentioned above, this project was designed as a longitudinal experiment where the beef processing plant changed their interventions as a program of continuous improvement at the processing line. Because of this and the space in between the sampling points, different, but standardized, enumeration technologies were used in order to test the effects of lactic acid and ozone in variety meats. In order to support the accuracy of the results of this experiment, a correlation experiment between the quantifications using 3M™ Petrifilm™ and TEMPO® in comparison with the standard method (direct plating) was performed. The estimated slopes for both alternative enumeration methods were 1.02 Log CFU/mL, suggesting that for 1 Log CFU/mL increase in counts using the standard method, a 1.02 Log CFU/mL increase in counts will be obtained using both alternative quantification methods. The 95% confidence interval of the slopes contain the value of 1 for both enumeration methods, which means that the slope values were not statistically different from 1, suggesting that the differences observed were just due to normal experimental error (Table 2). The similarity in the total magnitude read by the methods is an important parameter that is represented by the intercept of the linear models. The estimated intercepts for both alternative enumeration methods were not statistically different from zero, suggesting that the magnitudes of both methods were similar when compared to the standard method (direct plating).
The significance of this study lies in the importance of using validated decontamination technologies on variety meats due the natural microbiota found in these meat products, as well as their value in some countries as a low-cost source of protein that contributes to food security. Furthermore, little information can be found on the literature about in-plant validation studies for the decontamination of variety meats. The importance of testing decontamination technologies in commercial beef processing facilities should be imperative as the efficacy of a decontamination technology can be addressed in real conditions, thus giving reliable results. Moreover, the limited information found about baseline microbial data on variety meats and regulations or performance standards associated with either the variety meats themselves or their production is something that should be considered, as most of these products are added as functional ingredients to processed meats, ground to produce ground beef or exported to countries where they are consumed as delicacies or as an important source of protein.

5. Conclusions

The aqueous ozone antimicrobial scheme proved to be promising as an intervention for the reduction of microbial indicator levels in variety meats. These findings suggest that bio-safe ozone intervention could play a competitive role with equivalent reductions obtained with lactic acid applications on reducing bacterial loads on variety meats, thus contributing to food quality, and potentially be used as safety control tool. The validation of the technology in a commercial beef processing plant gives additional support for feasibility and effectiveness of the technology on reducing microbial counts on variety meats.

Author Contributions

Conceptualization, M.F.M., M.M.B., M.X.S.-P., D.L., E.R. and A.E.; methodology, M.X.S.-P., D.A.V., D.E.C., D.R.C.-V., R.L.J., G.K.B.-B. and M.F.M.; validation, D.A.V., M.X.S.-P., D.L., E.R. and D.E.C.; formal analysis, D.A.V. and D.E.C.; investigation, M.F.M., D.E.C., D.R.C.-V., R.L.J., G.K.B.-B., D.A.V., E.R. and D.E.C.; resources, M.M.B., M.F.M., E.R. and A.E.; data curation, D.A.V., D.E.C., D.R.C.-V., R.L.J. and G.K.B.-B.; writing—original draft preparation, D.A.V.; writing—review and editing, D.A.V., M.X.S.-P., A.E., M.F.M. and D.E.C.; supervision, A.E., M.M.B. and M.F.M.; project administration, D.A.V., D.E.C. and M.F.M.; funding acquisition, M.M.B., E.R., M.F.M. and A.E. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded through the collaboration of the International Center for Food Industry Excellence at Texas Tech University and our industry partner.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data available on request from the corresponding author. The data are not publicly available due to privacy from the beef processing partner that allowed the project to be conducted within their beef processing environment.

Acknowledgments

We would like to acknowledge the help of all ICFIE Food microbiology personnel that helped inside the laboratory in processing of samples.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. United States Department of Agriculture. Total Beef Production in the United States from 2000–2021. Available online: https://www.statista.com/statistics/194687/us-total-beef-production-since-2000/ (accessed on 15 July 2021).
  2. United States Meat Export Federation. FAQ Sheet 2019. Available online: https://www.usmef.org/about-usmef/faq/#:~:text=In%202019%2C%20beef%20and%20beef,production%20was%20exported%20in%202019.3 (accessed on 13 July 2021).
  3. Marti, D.L.; Johnson, R.J. Where’s the Not Meat? By-Products from Beef and Pork Production. J. Curr. Issues Glob. 2011, 5, 397. [Google Scholar]
  4. Long, J.M.; Mohan, A. Development of meat powder from beef byproduct as value-added food ingredient. LWT 2021, 146, 111460. [Google Scholar] [CrossRef]
  5. Stern, N.J. Isolation of Potentially Virulent Yersinia enterocolitica from Variety Meats. J. Food Sci. 1981, 46, 41–51. [Google Scholar] [CrossRef]
  6. Hanna, M.O.; Smith, G.C.; Savell, J.W.; McKeith, F.K.; Vanderzant, C. Effects of Packaging Methods on the Microbial Flora of Livers and Kidneys from Beef or Pork. J. Food Prot. 1982, 45, 74–81. [Google Scholar] [CrossRef]
  7. Sinell, H.-J.; Klingbeil, H.; Benner, M. Microflora of Edible Offal with Particular Reference to Salmonella. J. Food Prot. 1984, 47, 481–484. [Google Scholar] [CrossRef] [PubMed]
  8. Abd-El-Malek, A.M.; El-Khateib, T. Microbiological Evaluation of Some Edible Bovine By-products. Int. J. Curr. Microbiol. Appl. Sci. 2018, 7, 3449–3458. [Google Scholar] [CrossRef] [Green Version]
  9. McLauchlin, J.; Jørgensen, F.; Aird, H.; Charlett, A.; Elviss, N.; Fenelon, D.; Fox, A.; Willis, C.; Amar, C.F.L. An assessment of the microbiological quality of liver-based pâté in England 2012–13: Comparison of samples collected at retail and from catering businesses. Epidemiol. Infect. 2017, 145, 1545–1556. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Oblinger, J.L.; Kennedy, J.E.; Rothenberg, C.A.; Berry, B.W.; Stern, N.J. Identification of Bacteria Isolated from Fresh and Temperature Abused Variety Meats1. J. Food Prot. 1982, 45, 650–654. [Google Scholar] [CrossRef]
  11. Delmore, R.; Sofos, J.; Schmidt, K.; Belk, K.; Lloyd, W.; Smith, G. Interventions to Reduce Microbiological Contramination of Beef Varieties. J. Food Prot. 2000, 63, 44–50. [Google Scholar] [CrossRef]
  12. Kalchayanand, N.; Arthur, T.M.; Bosilevac, J.M.; Brichta-Harhay, D.M.; Guerini, M.N.; Wheeler, T.L.; Koohmaraie, M. Evaluation of various antimicrobial interventions for the reduction of Escherichia coli O157:H7 on bovine heads during processing. J. Food Prot. 2008, 71, 621–624. [Google Scholar] [CrossRef]
  13. Casas, D.E.; Vargas, D.A.; Randazzo, E.; Lynn, D.; Echeverry, A.; Brashears, M.M.; Sanchez-Plata, M.X.; Miller, M.F. In-Plant Validation of Novel On-Site Ozone Generation Technology (Bio-Safe) Compared to Lactic Acid Beef Carcasses and Trim Using Natural Microbiota and Salmonella and E. coli O157:H7 Surrogate Enumeration. Foods 2021, 10, 1002. [Google Scholar] [CrossRef]
  14. Castillo, A.; McKenzie, K.S.; Lucia, L.M.; Acuff, G.R. Ozone treatment for reduction of Escherichia coli O157:H7 and Salmonella serotype Typhimurium on beef carcass surfaces. J. Food Prot. 2003, 66, 775–779. [Google Scholar] [CrossRef] [PubMed]
  15. Gorman, B.M.; Sofos, J.N.; Morgan, J.B.; Schmidt, G.R.; Smith, G.C. Evaluation of hand-trimming, various sanitizing agents, and hot water spray-washing as decontamination interventions for beef brisket adipose tissue. J. Food Prot. 1995, 58, 899–907. [Google Scholar] [CrossRef] [PubMed]
  16. FSIS Directive 7120.1. Revision 55. Safe and Suitable Ingredients used in the Production of Meat, Poultry, and Egg Products; Food Safety and Inspection Service (USA): Athens, GA, USA, 2021; pp. 1–13.
  17. Akhtar, J. Extruded Pet Food Development from Meat Byproducts using Extrusion Processing and its Quality Evaluation. J. Food Process. Technol. 2016, 07, 1–5. [Google Scholar] [CrossRef]
  18. Biel, W.; Czerniawska-Piątkowska, E.; Kowalczyk, A. Offal chemical composition from veal, beef, and lamb maintained in organic production systems. Animals 2019, 9, 968. [Google Scholar] [CrossRef] [Green Version]
  19. Toldrá, F.; Mora, L.; Reig, M. New insights into meat by-product utilization. Meat Sci. 2016, 120, 54–59. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Kalchayanand, N.; Worlie, D.; Wheeler, T. A Novel Aqueous Ozone Treatment as a Spray Chill Intervention against Escherichia coli O157:H7 on Surfaces of Fresh Beef. J. Food Prot. 2019, 82, 1874–1878. [Google Scholar] [CrossRef]
  21. Casas, D.E.; Manishimwe, R.; Forgey, S.J.; Hanlon, K.E.; Miller, M.F.; Brashears, M.M.; Sanchez-Plata, M.X. Biomapping of Microbial Indicators on Beef Subprimals Subjected to Spray or Dry Chilling over Prolonged Refrigerated Storage. Foods 2021, 10, 1403. [Google Scholar] [CrossRef]
  22. Vargas, D.A.; Miller, M.F.; Woerner, D.R.; Echeverry, A. Microbial growth study on pork loins as influenced by the application of different antimicrobials. Foods 2021, 10, 968. [Google Scholar] [CrossRef] [PubMed]
  23. Signorini, M.; Costa, M.; Teitelbaum, D.; Restovich, V.; Brasesco, H.; García, D.; Superno, V.; Petroli, S.; Bruzzone, M.; Arduini, V. Evaluation of decontamination efficacy of commonly used antimicrobial interventions for beef carcasses against Shiga toxin-producing Escherichia coli. Meat Sci. 2018, 142, 44–51. [Google Scholar] [CrossRef] [PubMed]
  24. Dickson, J.S.; Acuff, G.R. Maintaining the safety and quality of beef carcass meat. In Ensuring Safety and Quality in the Production of Beef. Volume 1: Safety; Burleigh Dodds Science Publishing: Cambridge, UK, 2017; pp. 145–168. [Google Scholar] [CrossRef] [Green Version]
  25. Pathogen Reduction, Hazard Analysis and Critical Control Point (HACCP) Systems; Food Safety and Inspection Service: Athens, GA, USA, 1996; Volume 61, p. 38839.
  26. Kenya Bureaue Standards. Offal Specification. 2017. Available online: https://members.wto.org/crnattachments/2018/TBT/KEN/18_0310_00_e.pdf (accessed on 19 July 2021).
  27. Gulf Cooperation Countries Standardization Organization Standards. Microbiological Criteria for Foodstuffs GSO/FDS 1016/ 2014 Final Draft. Riyadh, Saudi Arabia. 2014. Available online: http://www.puntofocal.gov.ar/notific_otros_miembros/kwt105_t.pdf (accessed on 25 July 2021).
  28. Kim, J.G.; Yousef, A.E.; Dave, S. Application of ozone for enhancing the microbiological safety and quality of foods: A review. J. Food Prot. 1999, 62, 1071–1087. [Google Scholar] [CrossRef] [PubMed]
  29. Environmental Protection Agency. Wastewater Technology Fact Sheet Ozone Disinfection; Office of Water: Washington, DC, USA, 1999.

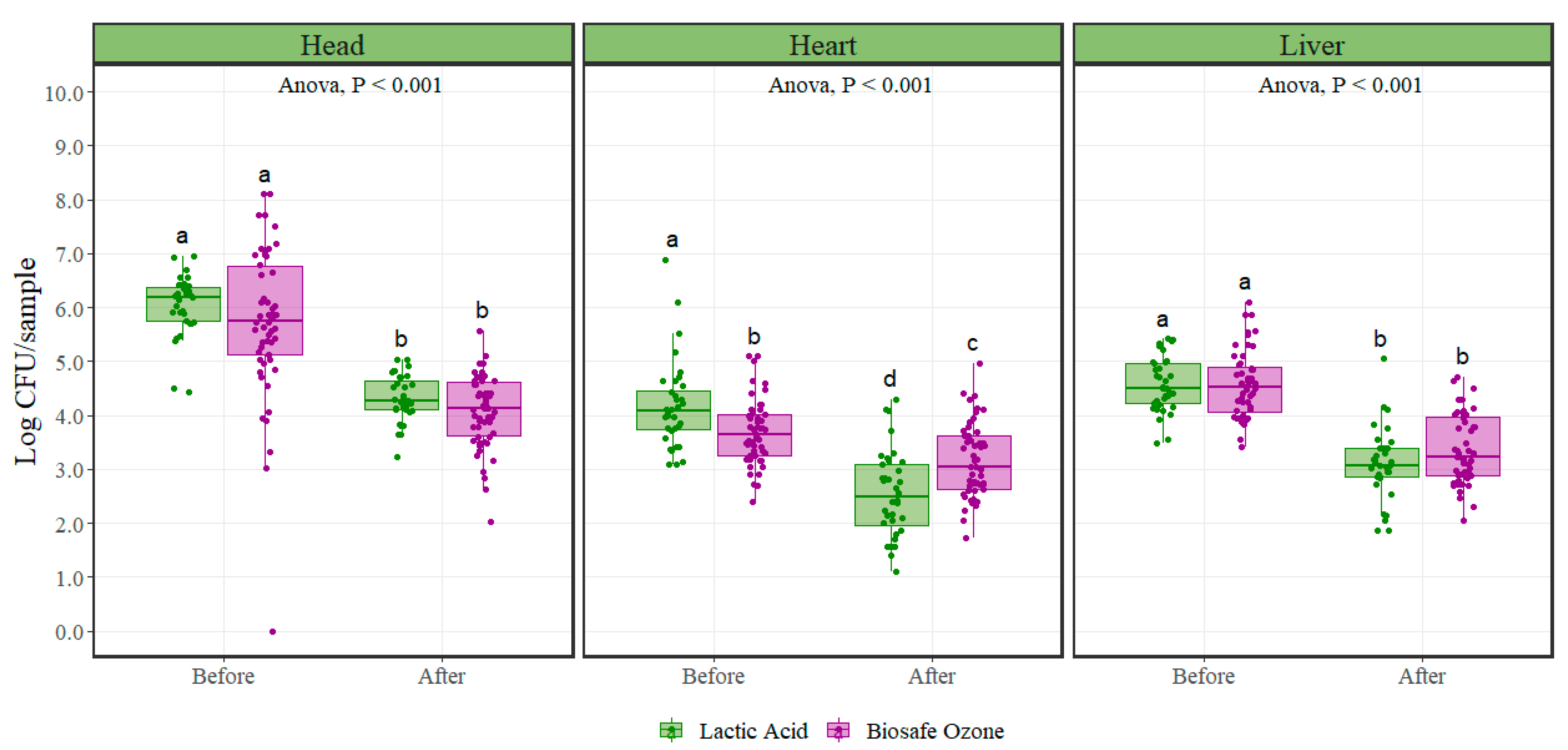

Figure 1. Mesophilic aerobic plate counts (Log CFU/sample; equivalent to Log CFU/100 cm2) before and after lactic acid and ozone interventions on variety meats (n = 54 per treatment). In each boxplot, the horizontal line crossing the box represents the median, the bottom and top of the box are the lower and upper quartiles, the vertical top line represents 1.5 times the interquartile range, and the vertical bottom line represents 1.5 times the lower interquartile range. a–d For each individual variety meat, boxes with different letters are significantly different according to ANOVA analysis followed by a pairwise comparison T-test at p < 0.05. The points represent the actual data points.
Figure 1. Mesophilic aerobic plate counts (Log CFU/sample; equivalent to Log CFU/100 cm2) before and after lactic acid and ozone interventions on variety meats (n = 54 per treatment). In each boxplot, the horizontal line crossing the box represents the median, the bottom and top of the box are the lower and upper quartiles, the vertical top line represents 1.5 times the interquartile range, and the vertical bottom line represents 1.5 times the lower interquartile range. a–d For each individual variety meat, boxes with different letters are significantly different according to ANOVA analysis followed by a pairwise comparison T-test at p < 0.05. The points represent the actual data points.
Foods 10 02106 g001

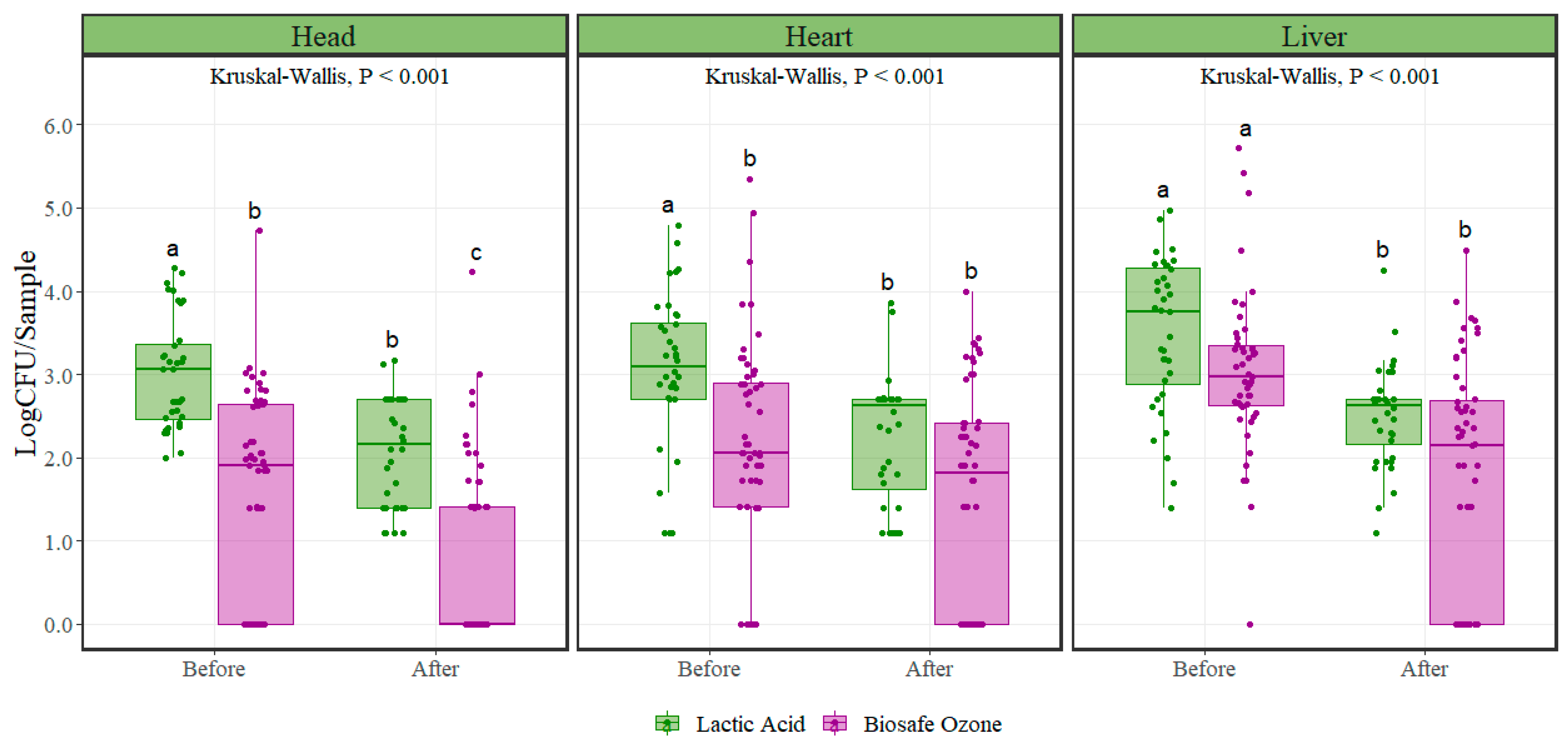

Figure 2. Escherichia coli counts (Log CFU/sample; equivalent to Log CFU/100 cm2) before and after lactic acid and ozone intervention on variety meats (n = 54 per treatment). In each boxplot, the horizontal line crossing the box represents the median, the bottom and top of the box are the lower and upper quartiles, the vertical top line represents 1.5 times the interquartile range, and the vertical bottom line represents 1.5 times the lower interquartile range. a–c For each individual variety meat, boxes with different letters are significantly different according to Kruskal–Wallis analysis followed by pairwise comparison Wilcoxon’s test at p < 0.05. The points represent the actual data points.
Figure 2. Escherichia coli counts (Log CFU/sample; equivalent to Log CFU/100 cm2) before and after lactic acid and ozone intervention on variety meats (n = 54 per treatment). In each boxplot, the horizontal line crossing the box represents the median, the bottom and top of the box are the lower and upper quartiles, the vertical top line represents 1.5 times the interquartile range, and the vertical bottom line represents 1.5 times the lower interquartile range. a–c For each individual variety meat, boxes with different letters are significantly different according to Kruskal–Wallis analysis followed by pairwise comparison Wilcoxon’s test at p < 0.05. The points represent the actual data points.
Foods 10 02106 g002

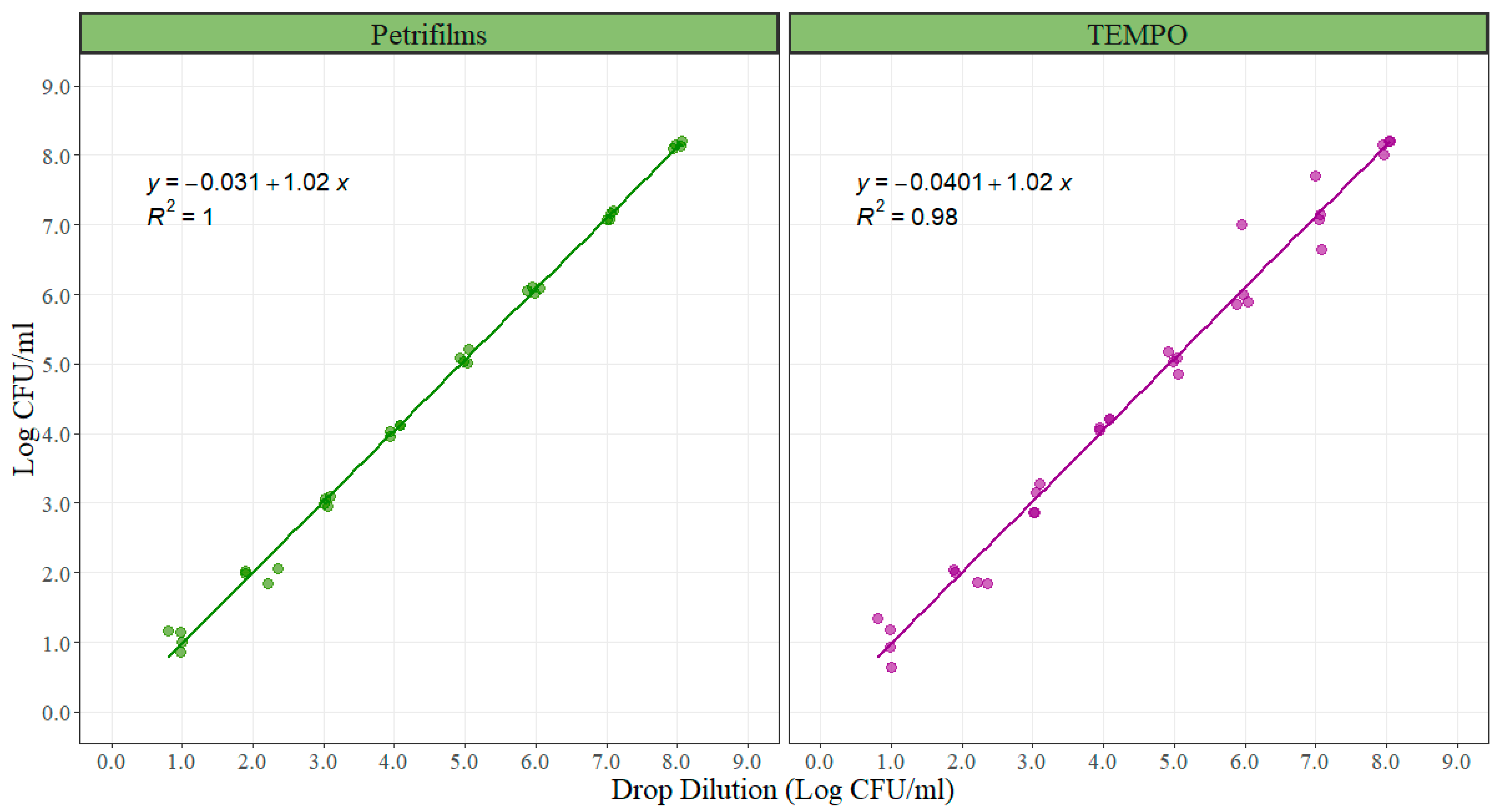

Figure 3. Graphic representation of the linear correlation between the bacterial counts of the alternative methods (3M™ Petrifilm™ and TEMPO® system) when compared with the standard method (direct plating), (n = 32 per method).
Figure 3. Graphic representation of the linear correlation between the bacterial counts of the alternative methods (3M™ Petrifilm™ and TEMPO® system) when compared with the standard method (direct plating), (n = 32 per method).
Foods 10 02106 g003
Table 1. Summary table of aerobic plate counts in all variety meats before and after lactic acid and biosafe ozone interventions.
Table 1. Summary table of aerobic plate counts in all variety meats before and after lactic acid and biosafe ozone interventions.
Variety MeatInterventionAerobic Plate Counts
(Log CFU/Sample 1 ± SE 2)
p-Value
BeforeAfter
HeadLactic Acid6.04 ± 0.10 a4.31 ± 0.07 b<0.001
Biosafe Ozone5.75 ± 0.19 a4.09 ± 0.09 b
HeartLactic Acid4.19 ± 0.13 a2.53 ± 0.14 d<0.001
Biosafe Ozone3.68 ± 0.08 b3.16 ± 0.10 c
LiverLactic Acid4.57 ± 0.08 a3.07 ± 0.11 b<0.001
Biosafe Ozone4.57 ± 0.09 a3.37 ± 0.09 b
1 Log CFU/sample is equivalent to Log CFU/100 cm2; 2 Standard error of the mean; a–d For each individual variety meat, values with different letters are significantly different according to Kruskal–Wallis analysis followed by pairwise comparison Wilcoxon’s test at p < 0.05.
Table 2. Summary table of Escherichia coli counts in all variety meats before and after lactic acid and biosafe ozone interventions.
Table 2. Summary table of Escherichia coli counts in all variety meats before and after lactic acid and biosafe ozone interventions.
Variety MeatInterventionEscherichia coli
(Log CFU/Sample 1 ± SE 2)
p-Value
BeforeAfter
HeadLactic Acid3.02 ± 0.11 a2.06 ± 0.11 b<0.001
Biosafe Ozone1.55 ± 0.17 b0.80 ± 0.15 c
HeartLactic Acid3.04 ± 0.16 a2.25 ± 0.12 b<0.001
Biosafe Ozone2.12 ± 0.18 b1.50 ± 0.18 b
LiverLactic Acid3.50 ± 0.15 a2.50 ± 0.10 b<0.001
Biosafe Ozone3.03 ± 0.14 a1.78 ± 0.19 b
1 Log CFU/sample is equivalent to Log CFU/100 cm2; 2 Standard error of the mean; a,b For each individual variety meat, values with different letters are significantly different according to Kruskal–Wallis analysis followed by pairwise comparison Wilcoxon’s test at p < 0.05.
Table 3. Summary table of linear models using the least squares regression method predicting the bacterial counts of 3M™ Petrifilm™ and TEMPO® when compared with with the standard method (direct plating).
Table 3. Summary table of linear models using the least squares regression method predicting the bacterial counts of 3M™ Petrifilm™ and TEMPO® when compared with with the standard method (direct plating).
Enumeration MethodCoefficientEstimateStandard Errorp-Value95% Confidence Intervals
Lower (2.5%)Upper (97.5%)
TEMPO®Intercept−0.0400.1190.739−0.2730.193
Slope1.0230.024<0.0010.9761.070
3M™ Petrifilm™Intercept−0.0310.0520.555−0.1330.071
Slope1.0180.010<0.0010.9981.038
