Optimization of Ultrasound-Assisted Extraction via Sonotrode of Phenolic Compounds from Orange By-Products

María del Carmen Razola-Díaz
Eduardo Jesús Guerra-Hernández
Celia Rodríguez-Pérez
Ana María Gómez-Caravaca
Belén García-Villanova
1 and
Vito Verardo
Department of Nutrition and Food Science, Campus of Cartuja, University of Granada, 18011 Granada, Spain
Department of Nutrition and Food Science, University of Granada, C/ Santander, 52005 Melilla, Spain
Biomedical Research Centre, Institute of Nutrition and Food Technology ‘José Mataix’, University of Granada, Avda del Conocimiento sn, 18100 Granada, Spain
Instituto de Investigación Biosanitaria ibs.GRANADA, 18071 Granada, Spain
Department of Analytical Chemistry, University of Granada, Avda Fuentenueva, 18071 Granada, Spain
Author to whom correspondence should be addressed.
Foods 2021, 10(5), 1120;
Submission received: 20 April 2021 / Revised: 6 May 2021 / Accepted: 13 May 2021 / Published: 18 May 2021


Orange peel is the main by-product from orange juice industry. It is a known source of bioactive compounds, mostly phenolic compounds, and it has been widely studied for its healthy activities. Thus, this research focuses on the establishment of ultrasound-assisted extraction of phenolic compounds in orange peel using a sonotrode. For this purpose, a Box–Behnken design of 27 experiments was carried out with four independent factors—ratio ethanol/water (v/v), time (min), amplitude (%), and pulse (%). Quantitative analyses of phenolic compounds were performed and the antioxidant activity was measured by ABTS and DPPH methods. The validity of the experimental design was confirmed by ANOVA and the optimal sonotrode extraction conditions were obtained by response surface methodology (RSM). The extracts obtained in the established conditions were analyzed by High Performance Liquid Chromatography (HPLC) coupled to mass spectrometer detector and 74 polar compounds were identified. The highest phenolic content and antioxidant activity were obtained using 45/55 ethanol/water (v/v), 35 min, amplitude 90% (110 W), and pulse 100%. The established method allows an increment of phenolics recovery up to 60% higher than a conventional extraction. Moreover, the effect of drying on phenolic content was also evaluated.

1. Introduction

Orange is the second most produced fruit in the European Union, mainly in the countries of the Mediterranean basin where it supposes 6 million tons, almost 10% of the world production. Increasingly, citrus juices have gained great popularity, representing more than 50% of the juices available in international trade. From them, orange juice is the main product processed by the beverage industry and consumed throughout the world due to its high nutritional value and desirable sensory characteristics. Orange fruit processing to obtain juices or citrus-based beverages generates large amounts of waste by-products, such as peels, which are a rich source of soluble sugars, phenolic compounds, flavonoids, dietary fibers (cellulose, hemicelluloses, and pectin), vitamins, enzymes, and essential oils [1,2,3,4,5], which can be used for the production of nutritional dietary supplements [6]. Recently, several authors successfully used the orange by-products as ingredients with rheological and functional properties for the formulation of biscuits [7] and jams [8], and as fat replacer [9]. The orange peels have been reported to have antioxidant [10], anti-inflammatory [11], anti-cancer [12], anti-rheumatic [13], anti-diabetic [14], and cardioprotective activities [15], mainly attributed to its content in phenolic compounds. However, orange by-product, due to its high moisture content, is easily spoiled. By this way, the drying step is essential for decreasing the moisture content up to a level that inactivate the oxidant, enzymatic, and microbial degradation, ensuring a longer preservation among the time. It also could let to reduce the transport costs in an industrial level. Several drying techniques have been applied to the dehydration of citrus by-products, such as sun drying, hot air drying, freezing drying, microwave drying, etc. Between them, the best one referred to costs and yields and that can be scaled has been demonstrated to be oven-controlled drying [16]. After them, traditionally methods based on maceration and thermal extraction with different solvents such as hexane, acetone, methanol, etc., have been used to recover nutritionally valuable compounds from this type of fruit wastes [17]. According to this approach, the aim of this work is to establish the best ultrasound-assisted extraction via sonotrode to recover the phenolic compounds from orange by-products using food-grade solvents. The antioxidant activity of the extracts was also evaluated by DPPH (2,2-difenil-1-picrylhydrazyl) and ABTS (2,2′-Azino-bis (3-ethylbenzothiazoline-6-sulfonic acid) diammonium salt) assays. Moreover, the effect of drying on the phenolic composition was also evaluated.

2. Materials and Methods

2.1. Chemicals and Samples

Gallic acid, DPPH and ABTS were purchased from Sigma-Aldrich (St. Louis, MO, USA). Na2CO3 was purchased from BDH AnalaR (Poole, England). Water was purified using a Milli-Q system (Millipore, Bedford, MA, USA). Vanillic acid, chlorogenic acid, ferulic acid, quercetin, and rutin were also acquired from Sigma-Aldrich (St. Louis, MO, USA). HPLC-grade water, Folin–Ciocalteu reagent and other reagents were purchased from Merck KGaA (Darmstadt, Germany).
Orange by-products (var. Navelina) were obtained after juice production. The resulting by-product was composed by the albedo, flavedo and rests of pulp of the orange with a humidity of 70 ± 1.5%. For the model the samples were dried at 60 °C according to Garau et al. [18]. Dried and fresh samples of by-products were grinded and frozen at −18 °C until the analyses.

2.2. Experimental Design

The conditions for obtaining the highest recovery of phenolic compounds and antioxidant activity from the orange by-products were optimized by using a Box–Behnken design and response surface methodology (RSM). The design was composed by 27 experiments structured in three blocks with three levels (−1, 0, +1). Each experiment was carried out in duplicate. The independent variables were ratio ethanol/water (0:100, 50:50, 100:0 v/v), time (5, 25, 45 min), amplitude (20%, 60%, 100%), and pulse (10%, 50%, 100%). The dependent variables were adjusted to a second order polynomial model equation (Equation (1)), where Υ represents the response variable, the total phenolic compounds (TPC) or the antioxidant assays ABTS or DPPH, Xi and Xj are the independent factors that affect the response, and β0, βi, βii and βij are the regression coefficients of the model (interception, linear, quadratic and interaction terms). Statistica 7.0 package (StatSoft, Tulsa, OK, USA) was used for the mathematical operations and simulations.
Equation (1). Second order polynomial equation.
Υ =   β 0 + i = 0 4 β i X i + i = 0 4 β ii X ii 2 + i = 0 4 j = 0 4 β ii X i X j
ANOVA assay was performed in order to evaluate the adjustment of the models having into account the regression coefficients, the p-values of the regressions and the lacks of fit. The optimum conditions were established using RSM.

2.3. Extraction of Phenolic Compounds from Orange By-Products by Sonotrode Ultrasonic Extraction

Orange by-products (0.5 g) were extracted with an ethanol/water solution (v/v) (100 mL) by a sonotrode (UP400St ultrasonic processor, Hielscher, Germany) according to the parameters showed in Table 1. After the extraction, the samples were centrifuged at 3500 rpm for 15 min and the supernatant was stored at −18 °C until the analyses.

2.4. Conventional Extraction of Phenolic Compounds from Orange By-Products

The conventional extraction was carried out according to Abdurrahman et al. [19] with slightly modifications. Briefly, 0.5 g of orange by-products was added of 100 mL of ethanol/water (45/55 v/v) and it was agitated by a magnetic stirrer during 35 min at 35 °C. The samples were centrifuged at 3500 rpm for 15 min and the supernatant were collected and stored at −18 °C until the analyses.

2.5. Determination of Total Phenolic Compounds by Folin–Ciocalteu Assay

Total phenolic compounds were determined by Folin–Ciocalteu spectrophotometric method [20]. Thus, 100 µL of the extract was added of 500 µL of Folin–Ciocalteu reagent and 6 mL of MilliQ water. The flask was agitated for a minute. After that, 2 mL of 15% (w/v) Na2CO3 was added and made up to 10 mL with MilliQ water, and stored at dark conditions. The measures were carried out after 2 h at 750 nm and 25 °C with a UV–Visible spectrophotometer (Spectrophotometer 300 Array, UV–Vis, single beam, Shimadzu, Duisburg, Germany). The results were compared to a standard curve of gallic acid (1, 5, 10, 25, 50, 100, 250 ppm) to calculate the TPC. Results are expressed as mg gallic acid equivalents (GAE)/g dry weight (d.w.).

2.6. Determination of Phenolic Compounds from Orange By-Products by HPLC-ESI-TOF-MS

The analyses of the orange by-products using the optimized conditions obtained with the Box–Behnken design were carried out in duplicate on an ACQUITY Ultra Performance LC system (Waters Corporation, Milford, MA, USA) coupled to an electrospray ionization (ESI) source operating in the negative mode and a time-of-flight (TOF) mass detector (Waters Corporation, Milford, MA, USA). The compounds of interest were separated on an ACQUITY UPLC BEH Shield RP18 column (1.7 µm, 2.1 mm × 100 mm; Waters Corporation, Milford, MA, USA) at 40 °C using a gradient previously stated by Verni et al. [21] using water containing 1% acetic acid as mobile phase A and acetonitrile as mobile phase B. The data were elaborated using MassLynx 4.1 software (Waters Corporation, Milford, MA, USA).

2.7. Antioxidant Assays DPPH and ABTS

The antioxidant capacity was evaluated in the 27 orange by-products extracts by two different methods. The first one was the developed by Re at al. [22] in which the monocation ABTS•+ is generated by oxidation of the ABTS with potassium persulfate in the dark at room temperature for 12–24 h. For each extract, it was added 1 mL of this ABTS solution to 0.01 mL of extract and it was measured the detriment of absorbance during 10 min at 734 nm. The results were compared with a standard curve of Trolox (1, 10, 20, 50, 80, 100, 150, 200 ppm). DPPH radical scavenging activity was assayed with a method proposed by several authors [23,24]. Then, 100 µL of each extract was added of 2.9 mL of DPPH, and after rapid stirring, the bleaching power of the extract was observed in a time interval from 0 to 30 min at 517 nm. The results were compared with a standard curve of Trolox in methanol/water (4:1, v/v) (1, 10, 20, 50, 80, 100, 150, 200 ppm). Results for both assays are expressed as mg Trolox equivalents (TE)/g d.w.

3. Results and Discussion

3.1. Determination of Total Phenolic Compounds and Antioxidant Capacity in Orange By-Products

The Box–Behnken model coupled to response surface methodology was used to optimize the extraction of the extract with the highest TPC and the highest antioxidant capacity (Table 1).
For TPC, the observed values ranged between 8.7 and 29.7 mg GAE/g d.w. The lowest value corresponds to the conditions 100% ethanol, 25 min, 20% amplitude, and 50% pulse, and the highest one to ethanol/water (50: 50, v/v), 25 min, 100% amplitude, and 100% pulse.
For the antioxidant assays, values ranged from 9.5 to 26.4 mg TE/g d.w. with the DPPH technique, and from 11.5–40.5 mg TE/g d.w. with the ABTS one. The minimum value with both methods was obtained using only ethanol (100%), whereas the highest ones were observed by using a mixture of 50% ethanol and 50% water, similarly to the results described for TPC.

3.2. Fitting the Model

The experimental data was analyzed adjusting it to a second order polynomial equation, a regression model that, using the least squares method, provides the lowest residual value (Equation (1)). All the regression coefficients are shown in Table 2.
The non-significant terms with a significance level of p < 0.05 were discarded, and the model was recalculated only with significant terms. For the three response variables, the individual linear factors ratio ethanol/water (β1), time (β2) and pulse (β4) showed significant effects. For the TPC and DPPH, the crossed interaction β12 was significant, and the crossed interactions β23 and β34 were significant for TPC and ABTS. Moreover, the quadratic term β11 was significant for the three response variables; meanwhile, β22 was significant for ABTS and DPPH, and β44 only for TPC. The amplitude (β3) and the rest of interactions did not have significant effect in the meanings chosen. In addition, for the three responses it was revealed a high correlation between the factors and the response variable (R2 = 0.9564, 0.9286, and 0.8694 for TPC, ABTS and DPPH, respectively). The validity of the model was tested with ANOVA, which showed that, the models can be statistically accepted because the regression model p values are lower than 0.05 and the lacks of fit for the three variables are non-significant (p > 0.05).

3.3. Confirmation of the Optimal Extraction Parameters by Sonotrode

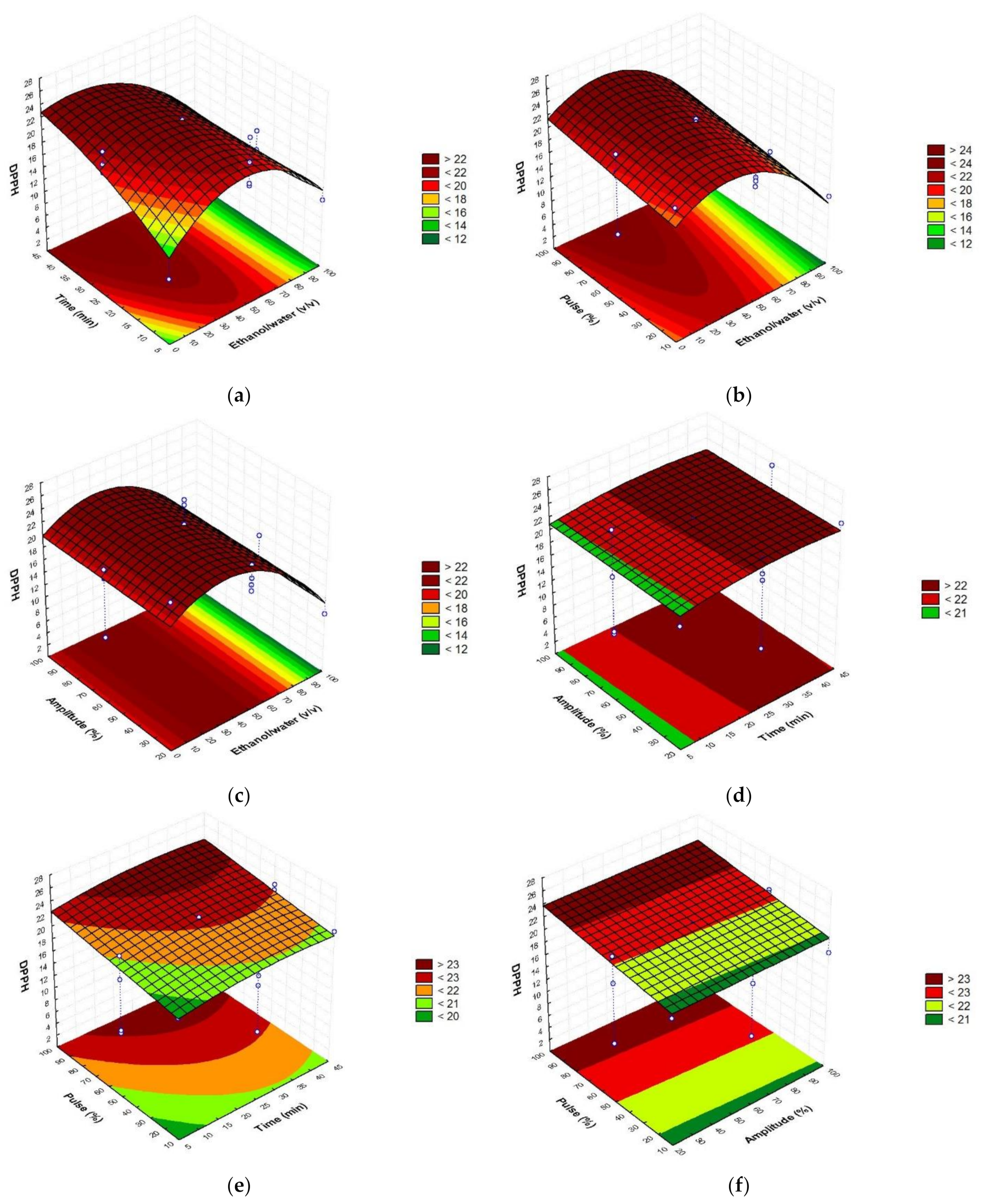

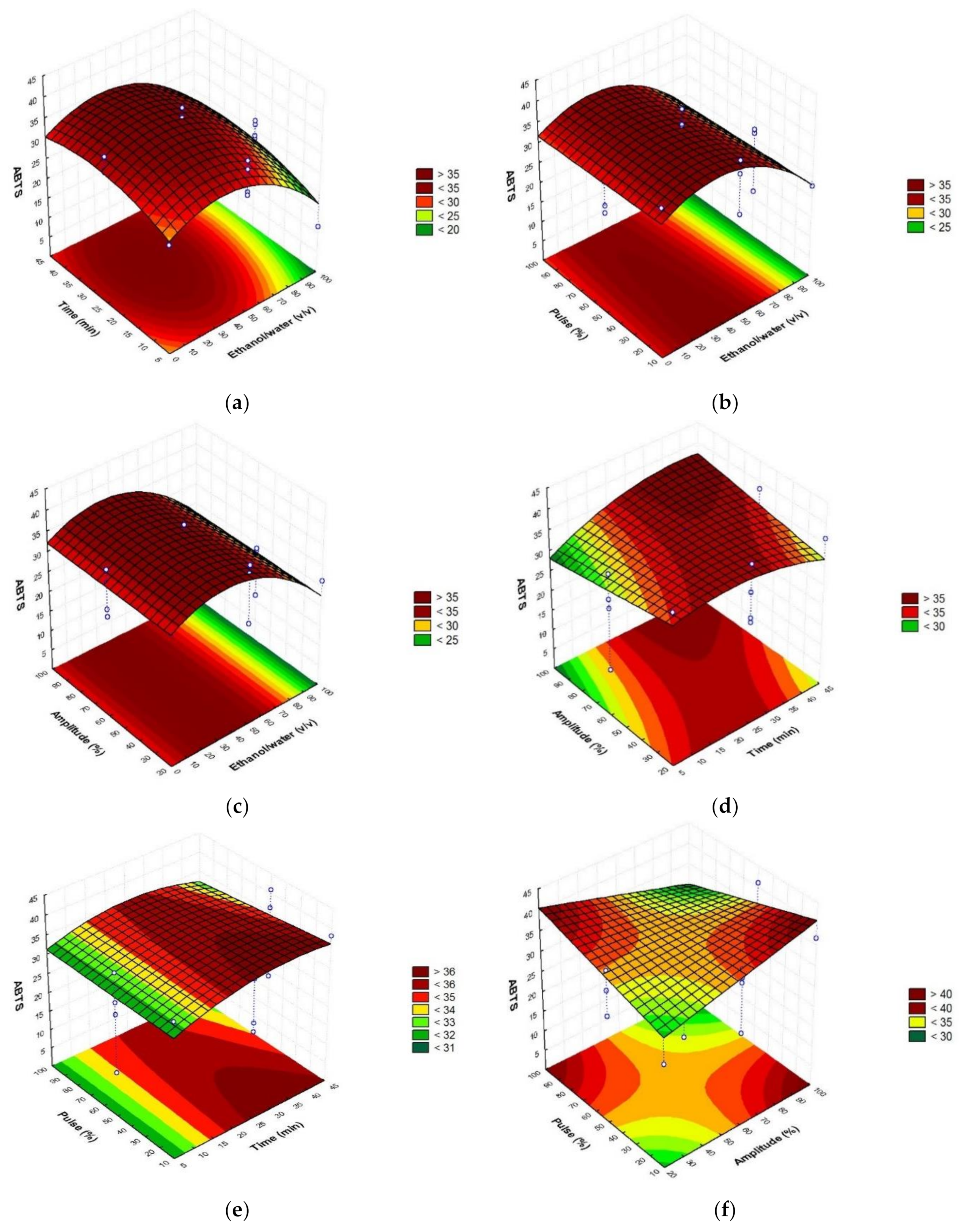

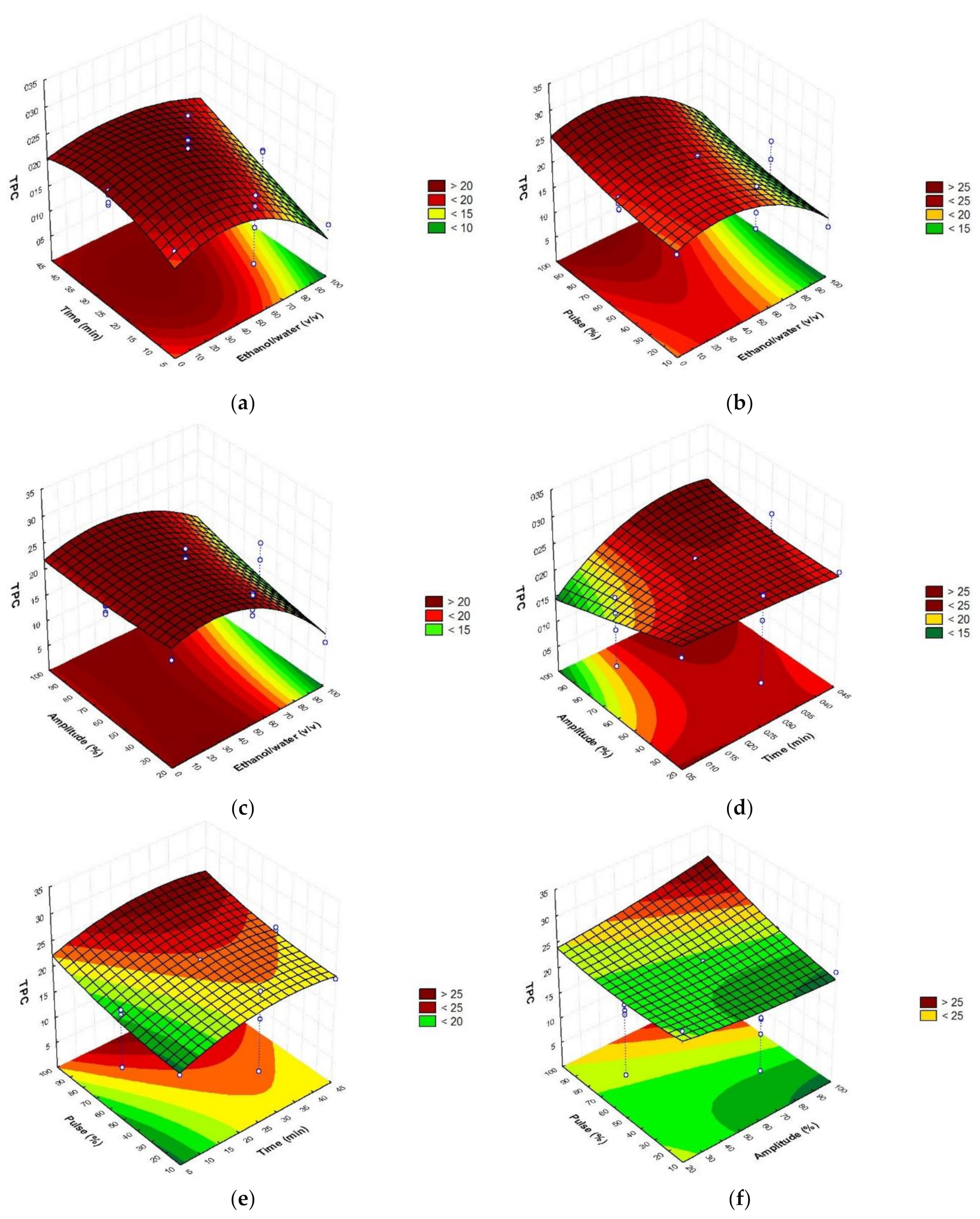

To establish the optimal conditions of extraction, the obtained response surfaces (Figure 1, Figure 2 and Figure 3) were studied.
As can be seen in the figures, the major content of phenolic compounds with the highest antioxidant activity could be obtained with the highest amplitude and pulse values and the intermedium ethanol/water ratio and time values.
Briefly, optimal sonotrode extraction conditions were 45% ethanol/water (v/v), 35 min, amplitude 90% (110 W), and pulse 100% (Table 3). Verifying the accuracy of the mathematical model, the obtained values did not report significant differences with the predicted values, showing coefficients of variation <1 in the case of the total phenolic compounds, and the antioxidant assays (DPPH and ABTS). According to the results, ethanol was not an efficient solvent when used pure, showing better results when it was combined with water in a proportion equal or minor to 50%. This occurs due to the increased solvation provided by the presence of water. Additionally, the optimum time was chosen as lower as possible in order to develop a quick procedure. The highest values of amplitude and pulse are necessary in order to reach higher powers and finally obtain better performances.

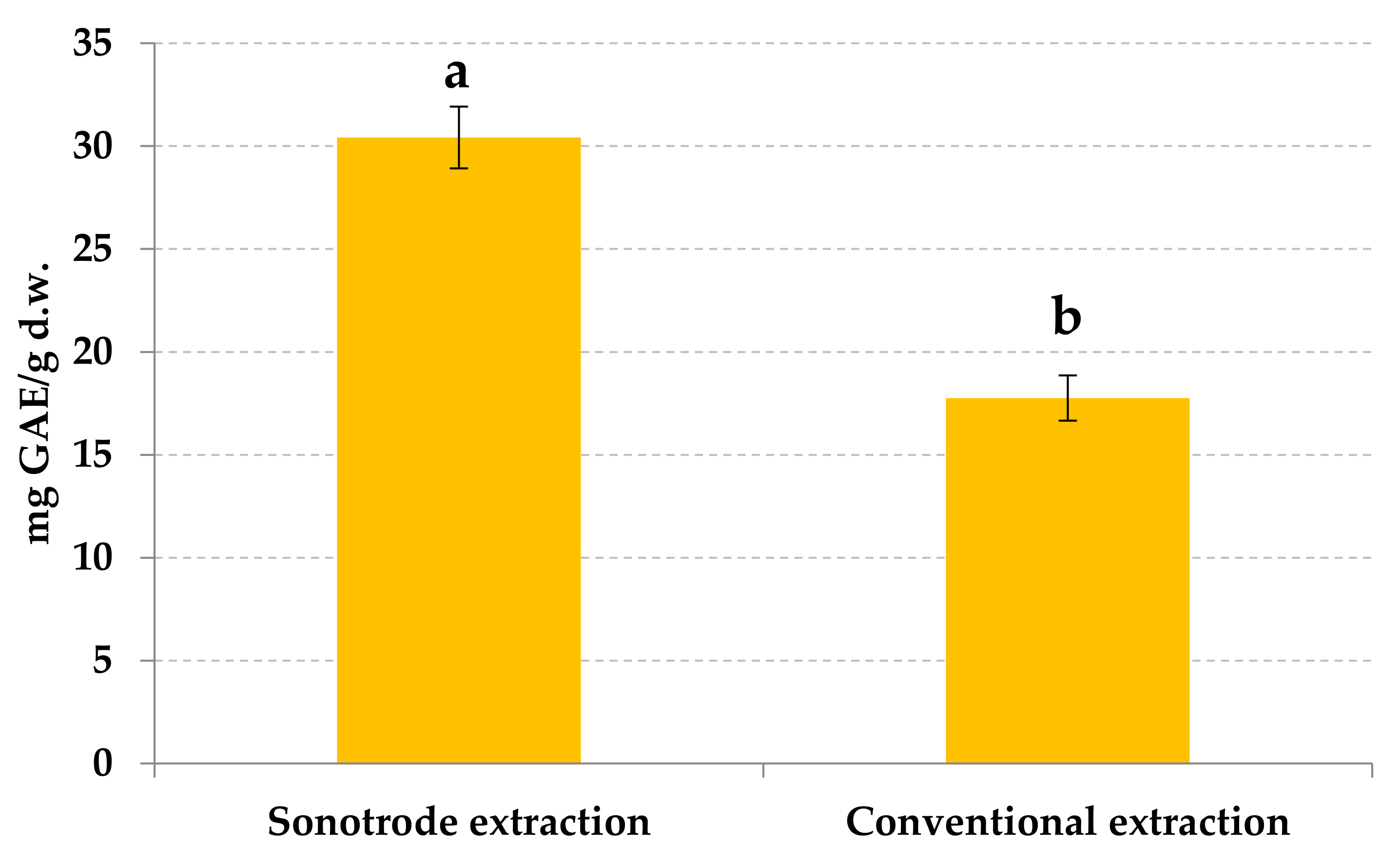

The value of TPC obtained by sonotrode was compared with the same values of the extract obtained by the conventional extraction. The recovery of phenolic compounds by the proposed extraction using sonotrode was 60% higher than obtained with the conventional one (Figure 4).
Victor et al. [25] and Lagha-Benamrouche et al. [26] reached similar results than the reported in this study but using higher times of extraction. Other authors optimized the phenolic extraction from the orange peel by other methods as high voltage electrical discharges [6], microwave-assisted extraction [27], and pressurized liquid extraction [3], but they noticed lower yields compared to our results (Table 4). The ultrasound-assisted extraction of phenolic compounds from orange peel using ultrasonic bath has been performed by several authors using ethanol [3,28,29] or acetone [27], obtaining extraction times quite similar to our optimum one. In addition, some pre-treatments have been performed by other authors in orange by-products for enhancing the extraction of phenolic compounds. On the one hand, Shahram et al. [30] improved the usual ultrasonic bath extraction combining it with an enzymatic process. However, the TPC seemed to be lower than the previous studies without enzymes. Overall, it required longer times because of the lower pH. In addition, pectinases are vegetal cells, and the ultrasonic waves can damage them, making them to lose their potential effect. In spite of the fact that they did not achieve a high yield, it could be had into account for future studies making slightly modifications. On the other hand, Luengo et al. [31] studied for the first time the use of pulsed electric fields as pretreatment, obtaining an increment of 23% in the yield in front of the samples directly submitted to pressing extraction. Another interesting pre-treatment was the one carried out in orange peel by El-Kantar et al. [32], who achieved an improvement of extraction about 47% using infrared radiation previously to the conventional water extraction. Although the final results obtained were not satisfactory, these two pre-treatments also ought to be had into account for future studies combining with this optimized sonotrode-assisted extraction.
Bringing into account the antioxidant assays, the optimal results obtained were 26.37 ± 1.6 and 35.62 ± 2.1 mg TE/g d.w. for the DPPH and ABTS, respectively. DPPH technique has been mostly used in bibliography in this kind of matrix. Comparing results, the optimal value obtained for DPPH is higher than those obtained by Hernández-Carranza et al. [33] (8.94 mg TE/g d.w.) and Barrales et al. [3] (4.30 mg TE/g d.w.). However, Lachos-Pérez et al. [35] got an optimal result slightly higher (26.78 mg TE/g d.w.) but with a time of extraction of 2 h, much higher that the optimized value obtained in this study.

3.4. Analytical Parameters of the Method

Five calibration curves were made in order to quantify the phenolic compounds identified in the orange by-product. The curves were made of vanillic acid, chlorogenic acid, ferulic acid, quercetin, and rutin. In Table 5 are contained the standards used, the calibration ranges and curves, the regression coefficients, and the limits of detection (LOD) and of quantification (LOQ).
The calibration curves were elaborated by using the peak areas of each standard measured by HPLC at different concentrations. Calibration ranges were determined previously according to the LOQ values. The regression coefficients were >0.99 in all cases which means that all calibration curves had good linearity. LOD ranged between 0.04 and 0.47 µg/mL, and LOQ between 0.14 and 1.57 µg/mL.

3.5. Identification of Phenolic Compounds by HPLC-ESI-TOF-MS

The optimal conditions of extractions were applied to extract the phenolic compounds from fresh and dried orange by-products in order to evaluate the effect of the drying step. The extracts were characterized by HPLC-MS and a total of seventy-four compounds were identified; forty-four were flavonoids, fourteen phenolic acids, fourteen terpenoids, and two other polar compounds.
All the identified compounds are described in Table 6 with their retention time, molecular formula, experimental and calculated m/z, score and error (ppm). For ensuring the mass accuracy, the tolerances chosen had a score higher than 85% and error lower than 5 ppm. To identify the compounds the generated molecular formula and some in source fragments were checked and studied comparing also with different databases such as PUBCHEM, Phenol-Explorer and literature.
Phenolic acids. Thirteen hydroxycinnamic acids and one hydroxybenzoic acid have been found.
Five caffeic acid derivates (peaks 1, 7, 13, 14, and 23) have been detected in this study. Two of them, at m/z 251 (peaks 1 and 3), have been tentatively identified as caffeoylglycolic acid methyl esters isomers a and b. This compound was first reported in leaves of Parthenocissus tricuspidate by Saleem et al. [36]. Another two derivatives at m/z 295 are named as caffeoylmalic acids isomers corresponding to peaks 14 and 23 described previously in plants by Hahn et al. [37], being the major source the lettuce. Moreover, the last derivate of caffeic acid that correspond to the compound found at peak 7 has been assigned to caffeic acid 3-O-glucuronide according to Tang et al. [38], who found the compound in hops extracts. To our knowledge, there are not previous references of these compounds found in citrus neither in orange matrixes; however, caffeic acid is a well-known compound found in orange peel by some authors [39,40].
Peaks 5, 6, and 10, with molecular formula C16H18O11, were identified as 2-(E)-O-feruloyl-D-galactaric acids isomers a, b and c first identified in orange peel extracts by Risch et al. [41].
Derivatives of ferulic and sinapic acids have been identified in the peaks 9 and 12, tentatively named as ferulic acid O-glucoside and sinapic acid O-glucoside, respectively. It seems to be in concordance with Lu et al. [42] who identified in orange pulp a mixture of ferulic acid and sinapic acid glucosides. In addition, both acids have been previously described in orange peel by other authors [27], but not these glucoside derivatives.
At time 6.545 (peak 15) another hydroxycinnamic acid has been tentatively identified as a sinapinic acid derivate according with Anagnostopoulou et al. [43] and Bocco et al. [44] namely as sinapinic acid-O-glucuronide described in orange peels.
The compounds found at peaks 11 and 16 with molecular formula C16H16O10, have been identified as feruloyl isocitric acid isomers, described previously in plants by Masike et al. [45], and never described before in orange peel extracts. However, isocitric acid has been previously found in citrus peel matrices [46]. Furthermore, the ratio citric/isocitric acids usually is used for quality control in the orange juice; in fact, a ratio higher than 130 usually suggests that the beverage has been correcting by adding citric acid [47].
Finally, a hydroxybenzoic acid has been identified at time 3.806 min (peak 2). According with Nazir et al. [48] it was tentatively named as norbergenin. They identified this compound from Bergenia stracheyi, but there are no references in citrus matrices.
Flavonoids. As a majoritarian group, forty-four flavonoids have been identified in the orange peel.
Peaks 28, 37, 42, 51, 52 and 62 were assigned to flavanone compounds corresponding to eriocitrin, narirutin, hesperidin, neohesperidin, didymin, and naringenin, respectively. Moreover, rutin isomers have been found at m/z 609 (peaks 17 and 40). These compounds are in agreement with several authors who identified them in orange peel [39,49,50,51,52,53,54,55,56].
With a molecular formula C21H22O10 (peak 20), the flavonoid prunin has been identified in concordance with Berhow et al. [57] and Castillo et al. [58], who found it for the first times as a precursor of neohesperidin and naringin in citrus matrices.
According with Oboh et al. [54] and Omoba et al. [56] the compound found at time 8.676 min (peak 27) was identified as quercitrin, found in orange’s juices and peels, respectively.
Two flavonoid isomers with m/z 563 and molecular formula C26H28O14 have been found (peaks 30 and 33) and they were assigned to vitexin-O-pentoside according to Fayek et al. [59] who found this compound in Citrus reticulata peel. It also could be an apigenin derivate called apigenin 6-C-glucoside 8-C-arabinoside in concordance with Lu et al. [42] who found a similar compound (apigenin-6,8-di-C-glucoside) in an orange variety.
At retention time 16.524 min (peak 73), and according with Gattuso et al. [60], it has been identified the flavonoid as isosakuranetin, previously found in orange juice. This compound has been found for the first time in Citrus reticulata peel by Fayek et al. [59], and they named it as dihydroxy-methoxyflavanone, so it is the first time this compound is identified in orange by-products.
Two nobiletin derivates has been found at times 13.88 and 16.57 min (peaks 60 and 74). According with Goh et al. [61], they were tentatively identified as demethylnobiletin and 3′,4′-didemethylnobiletin, respectively, described in the orange peel.
A hesperidin derivate, alpha-glucosyl hesperidin, previously found in the orange peel by several authors [62,63,64,65,66] has been identified at time 8.481 min (peak 25). In addition, a naringin derivate found at peak 34 was assigned to naringin hydrate according with Iglesias-Carres et al. [55] and Fayek et al. [59].
Isorhamnetin-3-O-rutinoside isomers were identified (peaks 21, 22 and 48) with m/z 623. At 7.194 min (peak 18), the detected signal was identified as dihydroisorhamnetin-7-rutinoside. In addition, the compounds found at times 12.693 and 13.814 min (peaks 54 and 59), were identified as apigenin-7-O-neohesperidoside and quercetin-3-O-rutinoside-7-O-glucoside, respectively. The present data is in agreement with Abad-García et al. [67] who identified fifty-eight new compounds in citrus juices.
Compounds 19, 31, 35, 36, and 47 presented the same mass (593) and molecular formula (C27H30O15), and could be identified as apigenin-di-C-hexoside (Vicenin-2) according with Fayek et al. [59] who found this compound in Citrus sinensis peel and identified it according with Brito et al. [68], who previously detected vicenin-2 in Citrus aurantiifolia.
The compounds with molecular formula C26H28O15 (peaks 24 and 26) can be identified as luteolin-C-hexoside-C-pentoside isomers characterized for the first time by Fayek et al. [59] in Citrus sinensis peel according to Roriz et al. [69] who described the compound in Cymbopogon citratus.
Six kaempferol derivates were found. The first one kaempferol derivate with a formula C39H32O13 (peak 43), was tentatively named as kaempferol 3-O-[3″,6″-di-O-(E)-cinnamoyl]-β-d-glucopyranoside. The second one with m/z 813 (peaks 45 and 46) was tentatively named as kaempferol-3-[2″-glucosyl-6″-acetyl-galactoside]-7-glucoside. Previously, this compound had been detected only in herbs and spices, but not quantified [70]. The third and fourth ones (peaks 57 and 58) with m/z 635.1617 and 709.1987 are kaempferol 3-O-(6″-O-acetyl) glucoside-7-O-rhamnoside, and kaempferol 3-apiosyl-(1->4)-rhamnoside-7-rhamnoside, respectively. The fifth derivate is kaempferol-3-O-sinapoyl-caffeoyl-sophoroside-7-O-glucoside with molecular formula C53H56O28 (peaks 63 and 64 respectively). The sixth one was found at time 14.786 min (peak 67) and is kaempferol-3-O-feruloyl-caffeoyl-sophoroside-7-O-glucoside. All this compounds have been tentatively identified based on other kaempferol derivates found in other plant sources [71,72]. Although kaempferol derivates are known to be present in citrus peels, no previous references have been found, neither in orange peel.
With a mass (m/z) 443 (peak 4), this flavonoid has never been described in the orange peel, nor in the citrus family so far. However, according to Zanzer et al. [73], this compound was characterized before in black pepper, so it has been tentatively identified as cynaroside A.
The flavonoid with formula C27H30O17 (peak 32) was tentatively identified as quercetin-O-dihexoside as Fayek et al. [59] found it previously in Citrus reticulata and Citrus sinensis peels.
With a mass of 651, at 11.613 min (peak 49) the flavonoid found can be named as kaempferol-dihexosyl acetate according to Fayek et al. [59], who recently found it from Citrus aurantiifolia peel for the first time.
At time 10.074 min and with a mass of 561 (peak 38), a controversial compound was identified. According with Fayek et al. [59], this compound could be an unknown flavonoid, as they found it in Citrus paradisi peel. Although no other references have been found in citrus matrixes, for the context this affirmation can be accepted.
The compound naringin 6″-malonate (peak 56) was tentatively identified according with Berhow et al. [74] who found this compound and other malonic acid ester derivatives of naringin for the first time in grapefruit. Kanes et al. [75] found this compound in some rutaceae citrus species, but no references has been found related to orange peel.
With a molecular formula C17H14O6 (peak 71) this compound has been assigned to pectolinarigenin according with Cheriet et al. [76] who described it in several plants and fruits as oranges. However, this compound has been previously named in Citrus sinensis peel by Fayek et al. [59] as dihydroxy-dimethoxyflavone, previously identified in Citrus reticulata peel by Yang et al. [77].
Terpenoids. Talking about the terpenoids, 13 limonoids have been identified. They have been identified according with Gualdani et al. [78] and Shi et al. [79], who characterized limonoids from several citrus species and matrixes including orange peel. The compounds found are named limonin 17-β-d-glucopyranoside, 6-keto-7-β-deacetylnomilol 17-O-β-d-glucopyranoside, deacetylnomilinic acid-17-β-d-glucoside, isoobacunoic acid 17-β-d-glucoside, nomilin 17-O-β-d-glucopyranoside, nomilinic acid 17-β-d-glucoside, obacunone 17-β-d-glucoside, deacetylnomilin acid, limonol, epilimonin, limonin, nomilinic acid, and deoxylimonin (peaks 29, 39, 41, 44, 50, 53, 55 65, 66, 68, 69, 70 and 72, respectively). Another terpene different from those, a sesquiterpene, has been found at 5.7 min (peak 8). According to Umehara et al. [80], it was tentatively identified as citroside. They found this compound from leaves of Citrus unshiu.
Other polar compounds. Finally, other two polar compounds have been found in the orange by-product. The ion found at m/z 191.0198 (peak 3) at 4.278 min, is well known as citric acid, and according to Liew et al. [81], it has been previously identified in orange peel extracts. Meanwhile the other compound (peak 61) with the molecular formula C35H40O20 was only found match with the compound methyl 2-[(2S,4R,5S,6R)-4-acetyloxy-6-(acetyloxymethyl)-5-[(2R,4R,5S,6R)-4,5-diacetyloxy-6-(acetyloxymethyl) oxan-2-yl] oxyoxan-2-yl] oxy-3,4,5-trihydroxy-6-oxobenzo [7] annulene-8-carboxylate that no has previous references.

3.6. Quantification of Phenolic Compounds in Orange Peel Extracts

A total of 14 phenolic acids and 44 flavonoids were quantified in orange by-product optimal extracts (Table 7).
Phenolic acids represented the 61% of the total phenolic compounds found in the dry orange by-product being 48% of those found in the fresh by-product. The most concentrated phenolic acid in fresh and dry by-products were 2-(E)-O-feruloyl-d-galactaric acid isomers b and c, accounting for 18.6 and 19.5%, respectively. 2-(E)-O-feruloyl-D-galactaric acid isomers were approximately, 40–50% of the phenolic acids present in orange by-products. After those compounds, norbergenin accounted for 12% of the phenolic acids in both by-products. The major caffeic acid derivatives were caffeoylglycolic acid methyl ester isomers a and b, accounting for the 18% and 16% in the fresh and dry by-products, respectively.
The total amount of flavonoids found in the dry and fresh samples represented the 39% and 52% of the total phenolic compounds, respectively. The two most concentrated flavonoids, both, in the fresh and dry by-products were hesperidin and narirutin. However, in the fresh sample, they account for 45% of the present flavonoids, whereas in the dry one they were the 35%. A study which optimized the extraction of these two compounds from the orange peel by subcritical water extraction, obtained an extract in which both compounds were approximately 21% of the total amount of flavonoids, a smaller value than the obtained with this optimized technique [35]. Other studies agree with us about the major compound found, hesperidin. Using an ultrasonic bath, Khan et al. found hesperidin as major compound getting an amount of 146.73 µg/g d.w. [29]. Barrales et al. obtained an extract mainly composed by hesperidin (160 µg/g d.w.) and narirutin (120 µg/g d.w.) [3] with ultrasound bath technology. Despite not being the principal aim of this study, hesperidin and narirutin content was higher than the described in previous studies that used ultrasound technology applied to orange by-products.
The fourth most abundant flavonoid was apigenin-di-C-hexoside (Vicenin-2) isomer a, being around 17.5% of the flavonoids in both samples. For the dry by-product the fifth and sixth most abundant compounds were an unknown flavonoid (6.8%) and vitexin-O-pentoside isomer b (5.1%), whereas for the fresh one they are didymin (4.5%), and prunin (3.8%).

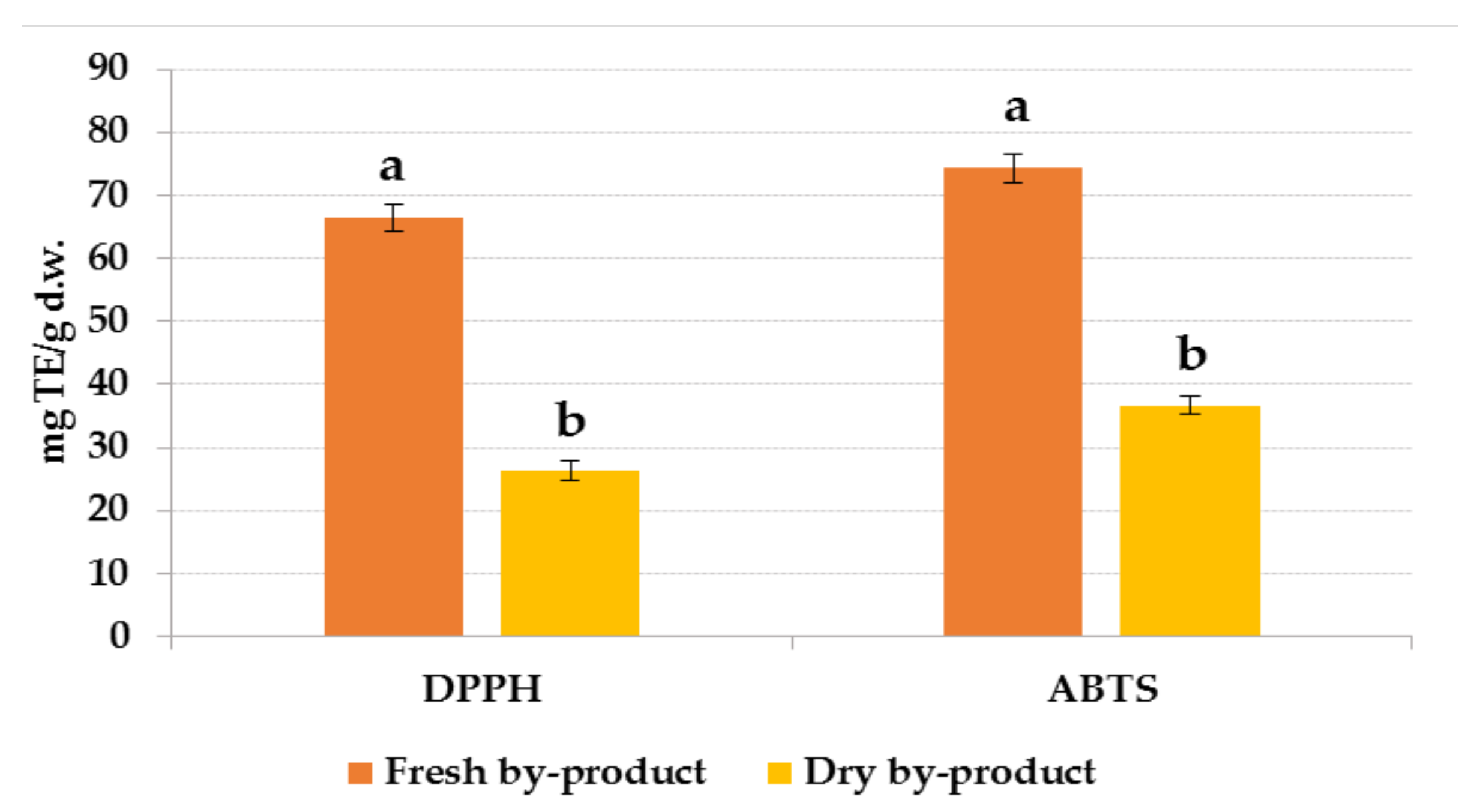

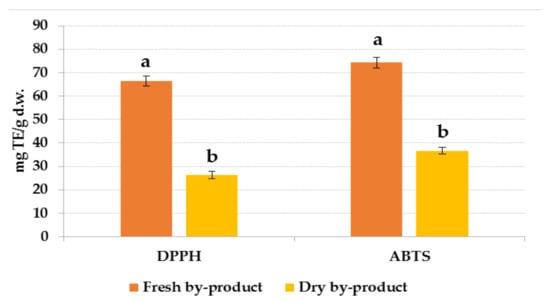

Taking into account the antioxidant activity, the fresh orange by-product has been found to have a higher activity than the dry one, with values of 66.39 and 74.32 mg TE/g d.w. for the DPPH and ABTS assays, respectively (Figure 5).
This can be explained because the fresh by-product has a higher amount of total phenolic compounds than the dry one. The loss is around 25% of the total phenolic compounds which means the loss of 43% of the flavonoids, 6% of the phenolic acids and consequently the loss of 50–60% of the antioxidant activity.

4. Conclusions

An extraction based on ultrasound-assisted extraction by sonotrode has been optimized for obtaining the higher amounts of phenolic compounds with high antioxidant activity from the orange by-products. The results of this study have shown that applying the sonotrode extraction is possible to increase 60% more the phenolic recovery compared to a conventional extraction procedure as maceration. Moreover, sonotrode extraction has demonstrated to be faster than the conventional ones. In addition, the extracts have been exhaustively characterized identifying a total of 74 compounds in orange peels being 32 of them tentatively identified in orange by-products for the first time. The distribution of the phenolic compounds is mainly phenolic acids and flavonoids, especially flavonoid glycosides. The effect of drying was also evaluated and, as expected, it caused the loss of 25% of phenolic compounds; perhaps, an optimization of the drying conditions should be carried out in order to limit the phenolic degradation. Finally, the sonotrode ultrasound technology could be scaled-up to pilot and industrial scale in order to obtain orange by-products extracts that could be used as functional ingredients for food, feed and cosmeceutical scopes. However, to corroborate the potential (bio)-activity of the extracts, further in vitro and in vivo assays should be done.

Author Contributions

Conceptualization, V.V. and E.J.G.-H.; investigation, M.d.C.R.-D.; data curation, M.d.C.R.-D., A.M.G.-C. and C.R.-P.; writing—original draft preparation, M.d.C.R.-D.; writing—review and editing, V.V., E.J.G.-H., B.G.-V., A.M.G.-C. and C.R.-P.; supervision, V.V. and E.J.G.-H.; funding acquisition, V.V. All authors have read and agreed to the published version of the manuscript.


This study is part of the SHEALTHY project that has received funding from European Union’s Horizon 2020 research and innovation program under grant agreement No 817936. Celia Rodríguez-Pérez thanks the University of Granada for the PPJIA2019-04 project.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.


Vito Verardo thanks the Spanish Ministry of Economy and Competitiveness (MINECO) for “Ramon y Cajal” contract (RYC-2015-18795).

Conflicts of Interest

The authors declare no conflict of interest.
