Review

New Trends in Nanoclay-Modified Sensors

by
Esperanza Pavón
1,2,*,
Rosa Martín-Rodríguez
3,4,
Ana C. Perdigón
3,4 and
María D. Alba
1
1
Instituto Ciencia de los Materiales de Sevilla, CSIC-Universidad de Sevilla, Avda. Américo Vespucio, 49. 41092 Seville, Spain
2
Departamento Física de la Materia Condensada, Universidad de Sevilla, Av. Reina Mercedes s/n, 41012 Seville, Spain
3
Departamento QUIPRE, Universidad de Cantabria, Avda. de Los Castros 46, 39005 Santander, Spain
4
Grupo de Nanomedicina, IDIVAL, Avda. Cardenal Herrera Oria s/n, 39011 Santander, Spain
*
Author to whom correspondence should be addressed.
Inorganics 2021, 9(6), 43; https://doi.org/10.3390/inorganics9060043 (registering DOI)
Submission received: 11 May 2021 / Revised: 28 May 2021 / Accepted: 28 May 2021 / Published: 2 June 2021
(This article belongs to the Special Issue Inorganic Nanostructures)

Abstract

:
Nanoclays are widespread materials characterized by a layered structure in the nano-scale range. They have multiple applications in diverse scientific and industrial areas, mainly due to their swelling capacity, cation exchange capacity, and plasticity. Due to the cation exchange capacity, nanoclays can serve as host matrices for the stabilization of several molecules and, thus, they can be used as sensors by incorporating electroactive ions, biomolecules as enzymes, or fluorescence probes. In this review, the most recent applications as bioanalyte sensors are addressed, focusing on two main detection systems: electrochemical and optical methods. Particularly, the application of electrochemical sensors with clay-modified electrodes (CLME) for pesticide detection is described. Moreover, recent advances of both electrochemical and optical sensors based on nanoclays for diverse bioanalytes’ detection such as glucose, H2O2, organic acids, proteins, or bacteria are also discussed. As it can be seen from this review, nanoclays can become a key factor in sensors’ development, creating an emerging technology for the detection of bioanalytes, with application in both environmental and biomedical fields.

Graphical Abstract

1. Introduction

1.1. Nanoclays: Definition and Classification

Nanomaterials’ definition is still controversial, and scientists have not unanimously settled on a precise denotation, although there is consensus that they are partially characterized by their tiny size, in the range of nanometers. In 2011, in order to clarify this debate, the EU adopted the following definition for a nanomaterial: “a natural, incidental or manufactured material containing particles, in an unbound state or as an aggregate or as an agglomerate and where, for 50% or more of the particles in the number size distribution, one or more external dimensions is in the size range 1 nm–100 nm” [1]. Among the first natural nanomaterials known, according to this definition, are nanoclays, which have been used since historical times.

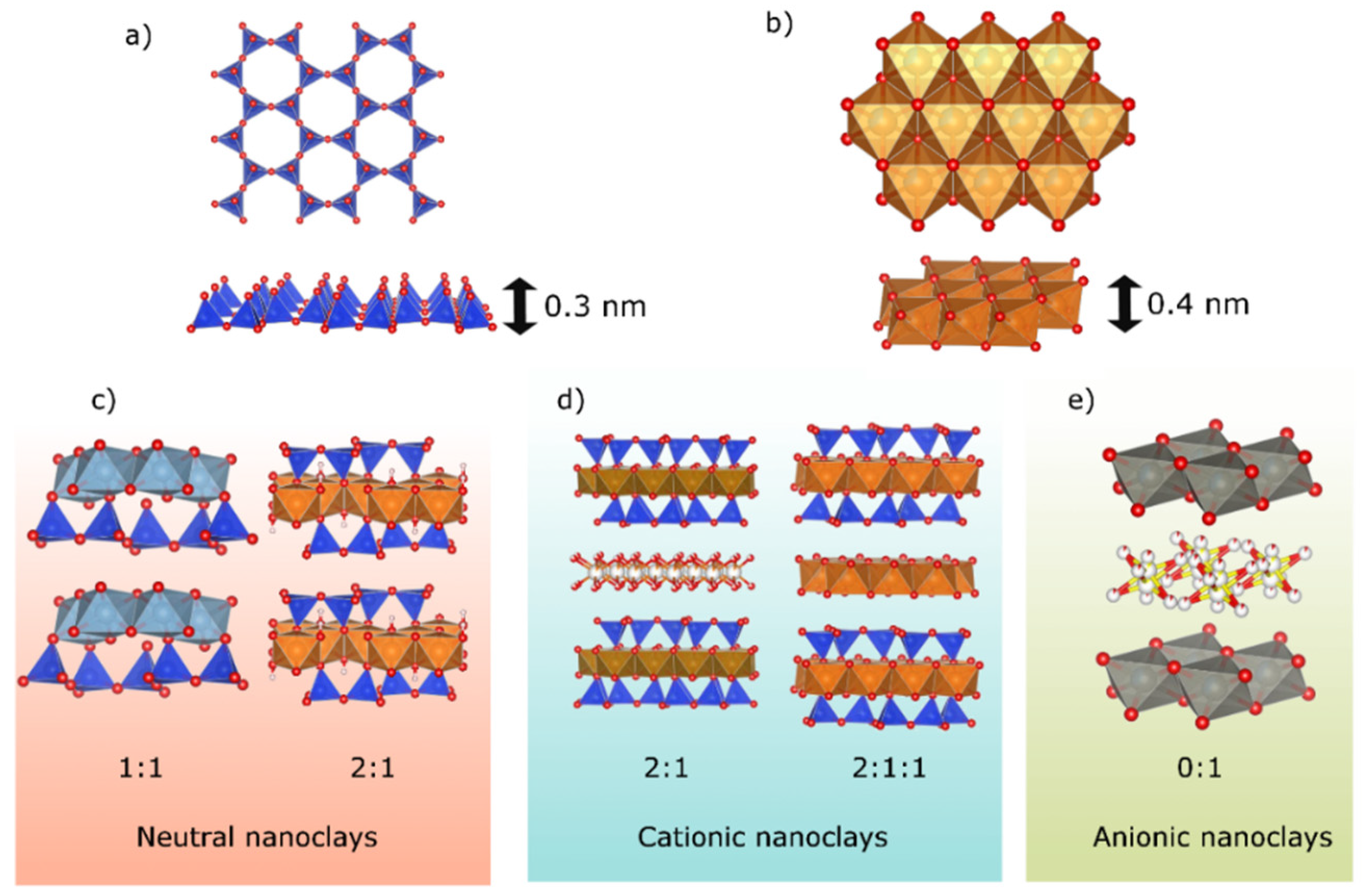

Nanoclays are a broad class of natural or synthetic clay minerals with at least one dimension in the nano-range order, as defined by the EU [1] and characterized by a layered structure. They can be divided into three main classes, according to their electrochemical charge (Table 1 and Figure 1).
  • Neutral nanoclays do not possess any charge in their layers. Commonly, their layers are formed by two tetrahedral sheets that sandwich one octahedral sheet (2:1 nanoclay, pyrophyllite, and talc group) or by a tetrahedral sheet confronted with an octahedral sheet (1:1 nanoclays, kaolinite, and serpentine group). Tetrahedral sheets are formed by [SiO4]−4 ions while octahedral sheets are formed by Mg+2 or Al+3 complex.
  • Cationic nanoclays have negatively charged layers. Two main groups can be found into this category, 2:1 and 2:1:1 nanoclays. The first one is formed by the same sheet configuration previously described for neutral 2:1 nanoclays. The most common minerals on the Earth’s surface can be found in this group: smectites, vermiculites, micas, and brittle micas. The second group is formed by stacking an octahedral sheet between a 2:1-layer configuration, forming the chlorite group. Negative layer charge is originated by the isomorphous substitutions that occur either in the tetrahedral (Si+4 by Al+3) or octahedral sheet (Al+3/Mg+2 by Mg+2/Li+, respectively, for example). Electrical neutrality is ensured by inorganic or organic ions in the interlayer space balancing the charge generated. When organic cations are introduced in the interlayer space, organo-nanoclays are created.
  • Anionic clays are positively charged hydroxide layers, also known as layered double hydroxides (LDHs). Their layer structure (Figure 1) is based in divalent metal ions (such as Mg+2), forming an octahedral sheet. Commonly, these divalent cations are substituted by trivalent cations (such as Al+3), creating a positive charge for each aluminum substituted by magnesium ion. To maintain the electrical neutrality, anions such as CO3−2, NO3, and Cl are located in the interlayer galleries.
In all cases, tetrahedral or octahedral sheets have thicknesses of 0.3 nm and 0.4 nm, respectively (Figure 1).
Swelling capacity, cation exchange capacity, and plasticity are the main properties derived from the layer charge and interlayer cations that make nanoclays so useful for many applications. In fact, nanoclays, especially cationic ones, have been used for centuries in architecture, industry, and agriculture. Because they are environmentally friendly and readily available in large quantities at relatively low cost, they are nowadays applied in medical, food, and environmental fields [2].
Due to the cation exchange capacity, nanoclays can serve as host matrices for the stabilization of several molecules and, thus, they can be used as sensors by incorporating electroactive ions, biomolecules as enzymes, or fluorescence probes. The resulting nanoclay-modified electrodes (CLME) and optical sensors can be used for their electro-catalytic properties or analytical applications [3,4].

1.2. Sensors

A sensor is a device containing a recognition element that interacts with an analyte, leading to a chemical or physical change, which a transducer converts into a detectable signal [5]. They can be classified into several categories based on the transduction process (electrochemical, optical, piezoelectric, and thermal sensors) or according to the receptor type (enzymatic biosensors, microbial, biosensors, genosensors, or immunosensors) [6]. There is current interest in the development of different sensing systems for biomedical and environmental applications. Results in biology are usually complex, non-linear, and non-reproducible. Thus, the development of sensors with improved sensitivity and reproducibility represents an increasingly important area of research [7,8]. In the areas of agriculture and environment, sensors have been widely developed for the determination of pesticides, herbicides, and heavy metals in the soil and ground water, opening a new strategy for active prevention of forecast contamination.
Different types of sensing techniques can be distinguished and are addressed in this review. Firstly, electrochemical sensors are defined as integrated systems that provide quantitative or semi-quantitative analytical response thorough interactions between biochemical receptors and electrochemical transduction elements [9]. Electrochemical signal transduction can occur through the measurement of current, potential, conductance, or field effect, giving rise to voltammetry, conductometry, or impedance spectroscopy techniques. A variety of electrode materials, namely, noble metals, glassy carbon (GC), semiconductors such as indium tin oxide (ITO), or conductive polymers are available to enable specific sensing applications [5]. Electrochemical sensors have been used for detection of many different analytes that can readily be subjected to or coupled with electrochemical reactions. Several challenges must be considered in the development of sensors based on electrochemical methods. (1) The electrochemical response is usually sensitive to electrode fabrication procedures and environmental contamination, which causes non-reproducibility. (2) The use of bare electrodes usually involves slow kinetics, which limits the sensitivity. (3) The overlapping of the target analyte and concomitant compounds’ signals may prevent accurate detection and selectivity [10]. Chemical modification of the bare electrodes’ surface holds great potential to overcome these problems [11]. Several studies have previously reported an increase in sensitivity and selectivity toward specific target molecules by electrode modification with nanomaterials enhancing surface conductivity, such as metal nanoparticles (NPs) [12], carbon-based materials [13], organic polymers [14], or ionic liquids [15]. Electrochemical sensors are most desirable among all sensors due to their high sensitivity, experimental simplicity, and low-cost production [16].
The electrode surface modification has strong influence on the sensing performance of the electrochemical sensor [17]. Nanoclays have been applied as surface modification materials to improve the sensing performance and, since the 1990s, CLME have been extensively studied, principally, their electron transfers’ phenomenon [18,19,20,21]. For example, the recent review by Goda et al. summarized the works on halloysite nanotubes’ (HNTs’) surface engineering and application as electrochemical sensor [22]. HNTs have been applied for several bioanalytes’ identification, namely’ hydrogen peroxide, glucose, nitrite, ascorbic acid, amines, hydrazine, dopamine, or uric acid.
Among electrochemical sensors, those based on enzymatic receptor have attracted wide attention in the biomedical and environmental fields. They can be defined as an analytical device that works on the basis of detecting an electric signal having an enzyme as a bioreceptor. They are usually named biosensors. Enzymes are biological macromolecules, proteins with catalytic activity, characterized by a high selectivity and specificity. However, the low stability of enzymes in organic solvents at widely elevated temperatures has frequently hampered the development of enzymatic biosensors [23]. To overcome this issue, the immobilization of enzymes onto organic or inorganic solid matrices has been suggested. Enzyme immobilization onto organic supports, such as polymer or organogels, has been demonstrated to satisfactorily maintain the high activity of the enzymes, but they present low thermal and chemical stability [24]. On the contrary, immobilization of enzymes on inorganic solids, such as zeolites, activated carbon, carbon nanotubes, silica mesoporous materials, and two-dimensional, layered clays, among others, results in improved activity, stability, and recyclability of the enzyme in a broader working pH and temperature range than the isolated enzyme [25,26].
The performance of an enzymatic biosensor depends also on maintaining its catalytic action. A reduction in the dimensions of the enzyme support material generally improves the biocatalytic efficiency [27]. In this sense, due to the tiny size of their particles, large specific surface area, good absorbance ability, and high cationic exchange capacity, nanoclays are one of the most relevant material for enzyme immobilization [28], promoting greater interaction with the enzyme and reducing diffusional limitations [27]. Most clay minerals used in clay-based biosensors are smectites (laponite, montmorillonite, nontronite) and have been applied in analytical applications [16].
Nanoclays have been widely exploited for biosensor design due to their mechanical and thermal stabilities, chemical inertness, and ion exchange properties, becoming versatile and non-expensive matrices. For example, montmorillonite, a naturally occurring cationic nanoclay, is applied in a variety of electrochemical studies as CLME. By functionalization of these clay minerals with specific organic groups like amines, the resulting organic–inorganic hybrid materials show better selectivity or sensitivity. In this review, we will expose the latest electrochemical sensors based on nanoclays, used in the determination of both harmful substances to the environment, such as pesticides, and diverse biological analytes.
Secondly, optical sensors are composed of a light source, the sensing material that interacts with the analyte, and a light detector. Specifically, optical sensors based on fluorescence parameters, such as luminescence and excitation spectra, emission lifetime, or Stokes shift, can provide high flexibility and sensitivity, although the experimental apparatus might be expensive [29]. The sensing element containing the fluorescent probe must interact with the analyte and subsequently report on such interactions by the change of an optical property. Different kinds of fluorescence probes based on organic dye molecules [30], trivalent lanthanides [31], gold NPs, or semiconductor quantum dots [32] have been developed. Organic dyes usually show poor chemical stability, while quantum dots, composed of heavy metals, present toxicity and environmental hazards, which limit practical applications. On the contrary, lanthanide-based fluorescent probes present better performance, due to their low toxicity and better stability. In addition, lanthanide cations, particularly trivalent europium, Eu3+, show sharp-line emission bands, large Stokes shift, long lifetimes, and high resistance to photo-bleaching [33]. Additionally, magnetic resonance contrast agents have been the subject of extensive research in the past decade, with Gd3+ ions being the most commonly used ions for T1-based magnetic resonance contrast enhancement [34]. In particular, colorimetric methods have recently gained attention due to their fast operation, low cost, and simplicity. They are based on the visual color change during interaction with the analytes and, thus, allow detection by immediate observation by the naked eye, without any expensive or sophisticated instrumentation.

2. Nanoclay-Based Sensors for Environmental Applications

Since 1960, several types of pesticides have been widely used in agriculture due to their high activity against fungi, insects, and weeds [35]. As a result, non-target organisms are inevitably exposed to these toxic compounds that can cause damages to human health and to ecosystems [36,37]. During the past decade, works devoted to the development of electrochemical devices suitable for the detection of pesticides have gained growing interest as innovative alternatives in terms of on-site detection, sensitivity, rapid response, miniature size, and low cost. Most reported papers have been devoted to the development of CLME for the detection of herbicides (such as mesotrione, glyphosate, phenyl urea herbicides, and paraquat) [3,20,38,39,40,41] and fungicides (such as propineb, chlorpyrifos, or carbendazim) [42,43,44].
Raw nanoclays [20,38,40] and modified nanoclays with metallic cations such as Cu2+ [42] or organic cations have been tested as CLME. Among the possible organic molecules intercalated in the nanoclay interlayer, cetyltrimethylammonium (SaCTA) [20], didodecyldimethyl ammonium (SaDDA) [20], acetylcholinesterase (AChE) [43], or methyl viologen (MV) [38] are the most common ones. Moreover, nanoclays grafted with silane molecules have also been proposed as CLME [39,44]. In this case, several strategies have been employed and the properties of the grafted nanoclays depended on the nature of the solvents and the silane molecule. For example, Mbokana et al. [39] successfully modified the internal and external surface of a smectite by triethoxyoctylsilane to prepare CLME for the electroanalysis of glyphosate. The material was first submitted to a soft acid pre-treatment to provide abundant and available hydroxyl groups capable of reacting with the silane. They found that silane grafting was more effective in ethylene glycol (swelling) as solvent compared to toluene (non-swelling). Also, Yanke et al. [44] investigated the effect of these two solvents on the grafting of an organophilic silane (octyltriethoxisilane) onto a smectitic clay to evaluate their abilities for electrochemical detection of organophilic pesticide. There, the grafting occurred exclusively on the edges of the clay particles without intercalation. In both cases, the material functionalized in ethylene glycol was found to be the most efficient, due to the combined effect of the characteristics of the pristine clay and the grafted silane. Those sensors provided a very reproducible response and their abilities for electrochemical detection of organophilic pollutants reached the trace levels.
Table 2 summarizes the behavior of several CLME toward fungicide determination, mainly propineb, carbendazim, and chlorpyrifos [21,42,43,44,45]. A broad range of CLME configuration was observed, ranging from the application of raw nanoclays to advanced nanoclay composites with mainly carbon nanotubes and metal NPs. Moreover, the analysis of the results was even more complicated as several detection techniques were applied to characterize the electrochemical sensors. In general, a wide linear range was observed for all sensors; however, it was different for each specific configuration, as expected. As well, the limit of detection (LOD) was quite small for all of them, specifically for the detection of chlorpyrifos. A special case was the CLME with Cu+2-montmorillonite for propineb detection. It presented the highest linear range observed for all the electrodes (5.0–30 µM). However, its LOD was the highest observed, and ca. 100–1000 times higher than those previously reported for classical electrochemical sensors.
The same situation was observed for the determination of carbendazim by Na-montmorillonite [45], showing a LOD considerably higher than the rest of the nanoclay sensors shown in Table 2. This drawback can be overcome with the montmorillonite organofunctionalization (Octyltriethoxisilane-Mt/CPE and Heteropolyacid Mt/GCE), which produces a decrease in the LOD in one order of magnitude [21,44].
The best performance was observed for the detection of chlorpyrifos. In this case, double-layered hydroxides loaded with acetylcholinesterase (AChE) were employed and this CLME exhibited a good response for the chlorpyrifos’ detection in the different configurations probed [43].
Herbicide detection has also been studied with CLME (Table 3) [20,21,38,39,40,45,46,47]. Diverse electrode configuration has been tested, with paraquat being the most common analyte detected. In general, the best performance was obtained when organonano-nanoclays were used. An example is the use of DDA-Saponite (SaDDA/GCE) vs. Na-Saponite (SaNa/GCE) for mesotrione detection [20] or organomontmorillonite film vs. sodium montmorillonite film/GCE for phenyl urea herbicide detection [21,45]. A particular case is the use of CLME for paraquat detection, where the use of raw smectites in the CLME resulted in good LOD and linear range [38,46,47].
The LOD of glyphosate by electrochemical electrodes based in carbon is higher than those based in metallic particle but they provided a wider concentration of range of detection [39].
As stated in the introduction, biosensors are special electrochemical sensors, defined as an analytical device in which a biological response is converted into a signal that can be quantified and processed [48]. Enzymatic biosensors based on CLME can be used for the determination of pesticides through their inhibitory action on enzyme activity. In the last decade, the main studies have been centered in the determination of glyphosate and chlorpyriphos (see Table 4) [49,50,51].
For example, a biosensor based on atemoya peroxidase immobilized into a modified nanoclay (montmorillonite containing 0.5–5 wt.% aminopropyltriethoxysilane and 15–35 wt.% octadecylamine) was developed [49]. The linear range of this biosensor for the detection of glyphosate was satisfactory. It was constructed using graphite powder, multiwalled carbon nanotubes, peroxidase immobilized on nanoclay, and mineral oil. The best performance was obtained using a 0.1 mol·L−1 phosphate buffer solution (pH 7.0), 1.9 × 10−4 mol·L−1 hydrogen peroxide, a frequency of 30 Hz, a pulse amplitude of 50 mV, and a scan increment of 4 mV. This biosensor remained stable for a period of 8 weeks.
For the detection of chlorpyriphos, several nanoclays functionalized with chitosan [50] or metallic NPs [52] were employed for the fabrication of enzymatic biosensors via immobilization of acetylcholinesterase (AChE) [50,51].

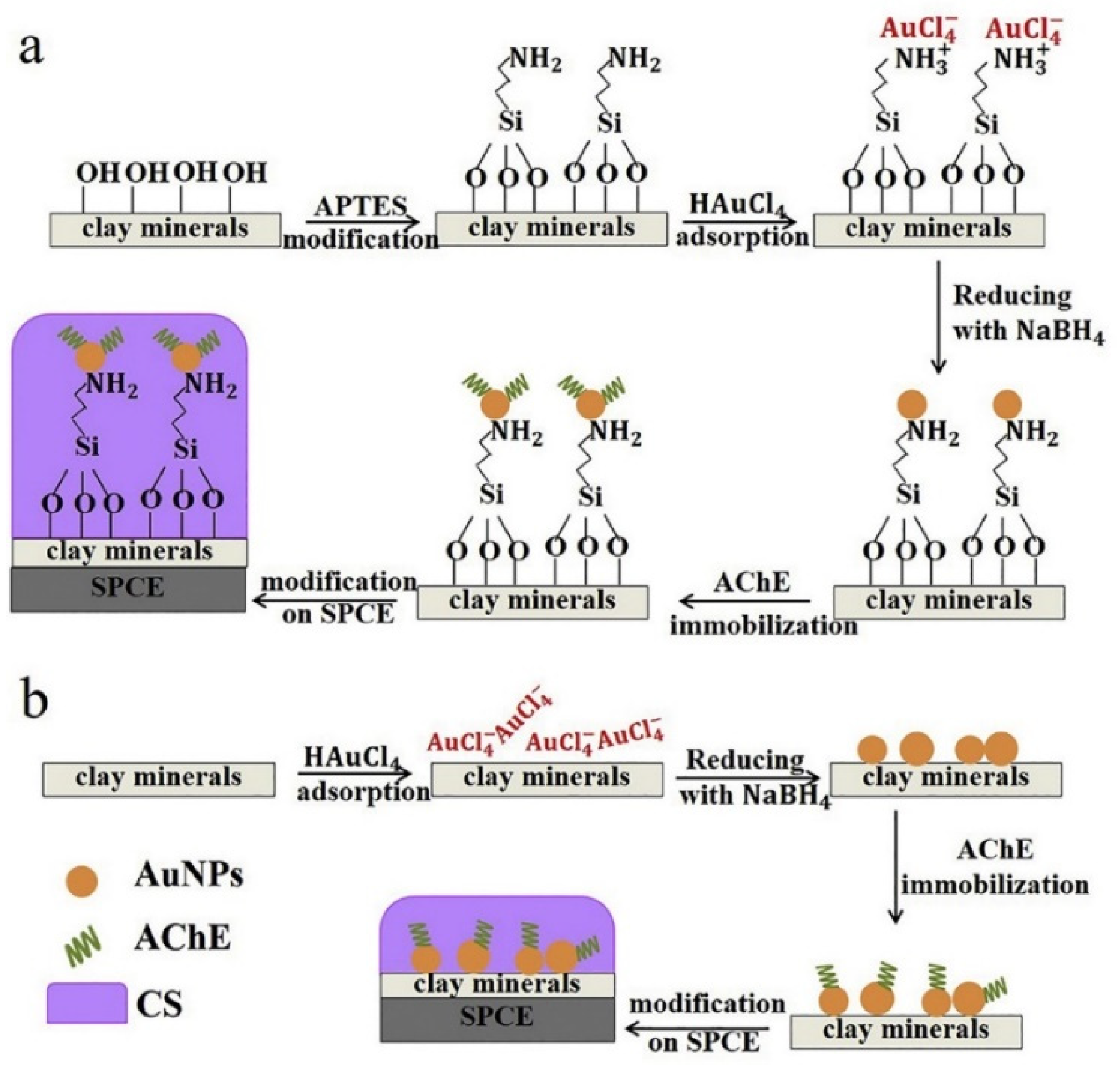

The hybridization of nanoclays and Au NPs provided remarkable composite materials with high electrochemical conductivity, high surface-to-volume ratio, high chemical reactivity, and chemisorption capacity of various types of molecules [53]. Phongphut et al. [51] found that Montmorillonite with Au NPs (Mt/Au NPs) was the best support for AChE loading, showing residual activities due to its high specific surface area and weak electrostatic interaction with the immobilized enzyme (Figure 2). However, when kaolinite was used as supported material for the Au NPs (Kaol/AuNPs), a lowest detection limit resulted, presumably due to the strong hydrophobic surface that helped to concentrate the nonpolar pesticide to the vicinity of the immobilized enzyme. Unfortunately, the highest electrostatic repulsion between the Kaol/AuNPs and AChE and the dehydrated kaolinite surface resulted in the lowest storage stability of the AChE pesticide sensors. Overall, Mt/AuNPs showed the highest potential as the AChE carrier and the modified electrode material for chlorpyrifos’ determination.

3. Nanoclay-Based Sensors for Biomedical Applications

The development of diverse strategies for detection of bioanalytes shows great importance in biomedicine, clinical diagnosis, and treatment. Determination of small metabolic molecules, mainly glucose, hydrogen peroxide (H2O2), and dopamine, in biological fluids at low concentrations is fundamental for the early diagnosis of several diseases [54,55]. Two main sensors’ groups can be found related to this topic. The first one is classical electrochemical electrodes modified by the inclusion of nanoclays. In this group, special recognition to nanoclay-based biosensors will be given in this section. The second one corresponds to optical sensors based on the adsorption of a fluorophore molecule in nanoclays. In the following paragraphs, a description of the recent nanoclay-based sensors for the detection of several bioanalytes is presented, divided in terms of the bioanalyte detected and type of nanoclay sensor (electrochemical, biosensor, and optical).

3.1. Nanoclay-Based Electrochemical Sensors

3.1.1. Glucose Determination

Unbalanced glucose levels in blood are used as an evidence of several chronic metabolic disorders, diabetes being the most common disease [56]. Elevated glucose levels in blood are also associated with other serious endocrine disorders, certain infections, and nervous, ocular, and cardiac diseases. Therefore, an inexpensive, sensitive, and fast method for monitoring glucose is needed at physiological concentrations of approximately 3–8 mM. Enzymatic glucose biosensors based on nanoclays have recently acquired attention due to their good performance in terms of detection limit, stability, sensibility, and selectivity for in vitro glucose determination from human biological fluids [57,58,59]. Several authors have applied raw and functionalized clays in biosensors’ preparation for glucose detection, as stated in Table 5 [60,61,62,63,64,65,66,67,68,69,70,71,72].

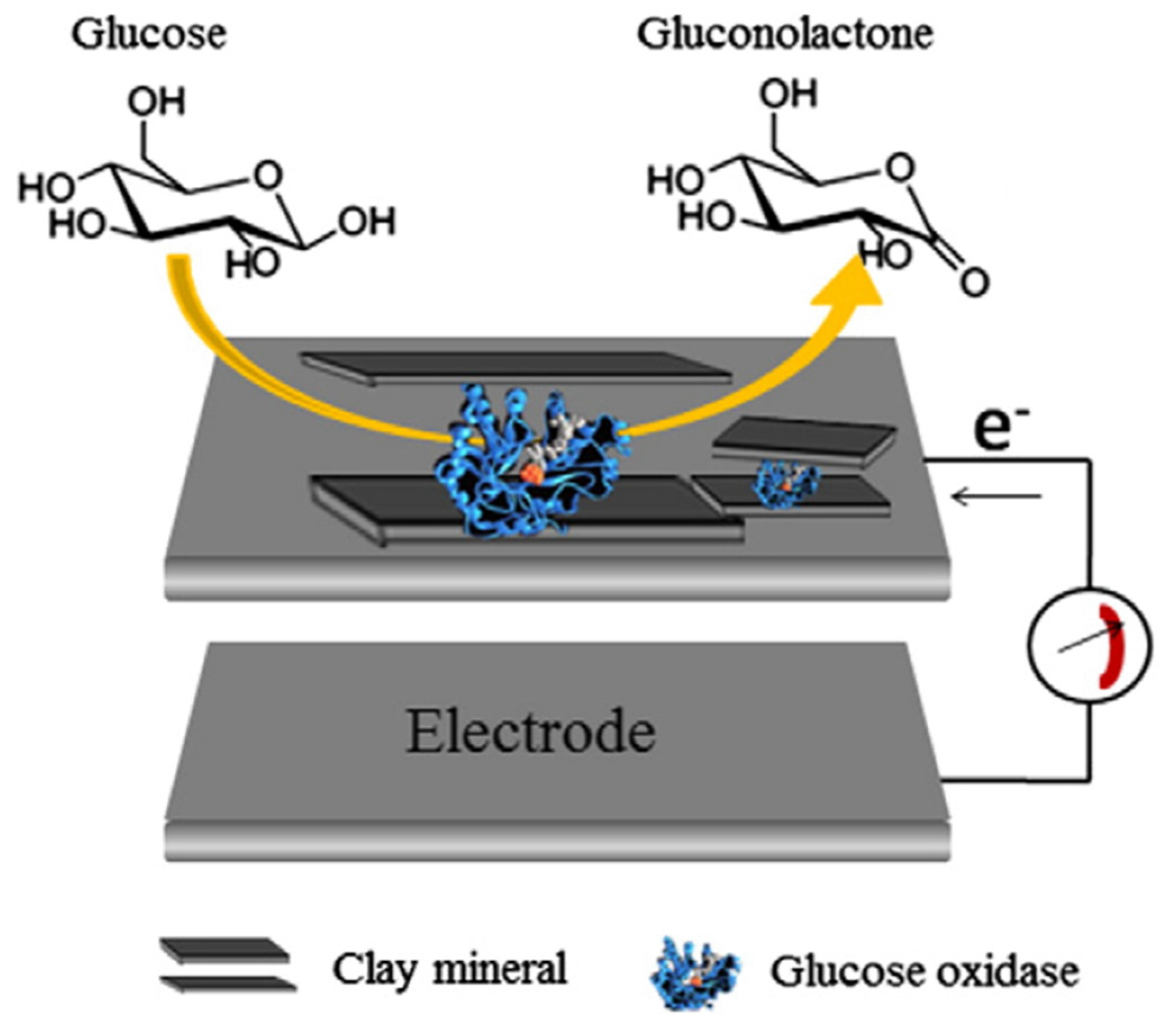

A schematic representation of an enzyme biosensor based on electrode with nanoclay for glucose determination is shown in Figure 3 [23]. In these biosensors, glucose is oxidized and gluconic acid is generated. The electrical signal is produced by a mediator that produces a redox reaction with the adenine dinucleotide (FAD), a component of glucose oxidase (GOx), the most common enzyme used in enzyme electrodes [23]. The reactions are depicted as follows:
GOx(FAD) + Glucose → GOx(FADH2) + Gluconic acid
GOx(FADH2) + Medox → GOx(FAD) + Medred
Seleci et al. [60] described a simple and accurate electrochemical method using methyl- and dimethylamine-exchanged montmorillonite as an immobilization matrix. GOx was chosen as a model enzyme in the presence of bovine serum albumin (BSA) and glutaraldehyde, and they were immobilized on the clay-modified glassy carbon electrodes (GCE). In order to optimize the biosensor, the influence of the working pH, enzyme amount, and reproducibility of biosensor fabrication was characterized in detail. The optimized biosensor showed a very good linearity between 0.05 mM and 1.0 mM, a 7 s response time, and a LOD to glucose of 0.038 mM. Kinetic parameters and stabilities were also determined.
Following the same approach, Han et al. [61] used dendritic macromolecules, in particular poly-amydoamine (PAMAM), to modify the electrode surface. PAMAM is able to prevent NPs’ aggregation and to increase the concentration of hydrophobic molecules at the surface. To improve the electron-transfer efficiency of the enzyme with the inorganic material, platinum NPs were encapsulated in the PAMAM polymer (Pt-DENs). Positively charged Pt-DENs were subsequently hybridized with negatively charged montmorillonite particles through electrostatic interaction. GOx was immobilized in this hybrid and used to modify a GCE to obtain an enzymatic glucose biosensor. The nanohybrid material and the sensor were characterized by cyclic voltammetry and amperometry. The biosensor had a response time below 3 s and a LOD as low as 4 µM.
Demir et al. extensively worked on the development of clay-based biosensors for glucose determination. First, they used glycine- (Gly), lysine- (Lys), and glutamic acid- (Glu) modified clay mineral matrices in the biosensors [65]. GOx was selected as the model enzyme. After immobilizing the enzyme with amino acid-modified montmorillonite onto a GCE, working conditions like pH and modifier type were optimized. The linear range of optimum sensor design was 0.1–1.0 mM. Later, they proposed an innovative Gluconobacter oxydans cells’ immobilization strategy on trimethylamine-functionalized montmorillonite [64]. The usage of microbial cells provided several advantages. Enzymes inside cells do not need to be purified and can be regenerated in natural conditions since cofactors and coenzymes are already in the cell. Since Gluconobacter oxydans (G. oxydans) is an obligate aerobe, it has a fast and high oxidation efficiency. Hence, the G. oxydans genus is regarded as an ideal component for the fabrication of whole-cell biosensing systems. Measurements concerning analytical characteristics, operational stability, repeatability, and substrate specificity, depending on the carbon source, were investigated in a flow injection analysis (FIA) system. Linear ranges were found between 0.15 and 5.0 mM for the batch mode and 0.1 and 5.0 mM for the FIA system, respectively.
By changing the inorganic material, Dellite (a commercial nanoclay derived from bentonite) instead of montmorillonite, and by using quaternary ammonium cations as organic, Maiga et al. [66] presented a novel support material for enzyme immobilization based on cetyltrimethylammonium bromide- (CTAB) modified Dellite (CTAB-Del). In this case, the use of inorganic matrix was proposed as an alternative to organic polymers for immobilization of biomolecules. Then, pyranose oxidase (PyOx) was immobilized onto the GCE, via glutaraldehyde cross-linking, and Chronoamperometric measurements were carried out using three electrodes’ configurations, at a constant potential of −0.7 V in working buffer, under stirring, with successive addition of glucose. The biosensor presented a good linearity, in a range from 0.01 to 0.50 mM, and the LOD for glucose was calculated to be 0.081 µM. Additionally, its in vitro antimicrobial activity was also tested by means of the disc diffusion susceptibility test, selecting three different Gram-positive and five different Gram-negative bacteria. The obtained results showed a moderate antibacterial activity of CTAB-Del against Gram-positive bacteria.
Polymer molecules have been extensively used to immobilize biomolecules in biosensors, as was introduced above. In this sense, Luo et al. [67] synthesized a novel biosensor for glucose detection based on Palygorskite-poly(o-phenylenediamine) nanocomposite. Palygorskite is a clay mineral characterized by a fibrous morphology and it is presented here as a promising material for enzyme immobilization. The combination of palygorskite with the conducting polymer poly(o-phenylenediamine) was exploited as a matrix for the immobilization of GOx using glutaraldehyde as cross-linker. This novel glucose biosensor presents a good detection answer under amperometric measurements for the detection of glucose, by holding the potential at the electrode at 0.6 V for the oxidation of H2O2 generated in the enzymatic reaction. The proposed biosensor exhibited a wide linear range, a low detection limit, a good reproducibility, and accepted stability.
Under a similar strategy, Unal et al. [68] prepared a polymer/clay nanocomposite based on natural silicate montmorillonite (Mt) and a biodegradable polymer polyglycolide (PGA). Then, the resulting matrix was used as a fixation matrix for pyranose oxidase (PyOx), which was selected as a model enzyme. The bioactive layer was fabricated by the immobilization of PyOx on GCE by means of PGA-Mt and BSA. This biosensor revealed a good linear range from 0.01 to 0.5 mM glucose with a LOD of 1.2 μM. Most recently, Yilmaz et al. [69] explored an organic–inorganic hybrid material formed by 4-aminothiophenol-intercalated montmorillonite (4ATP-Mt) as an immobilization layer for the pyranose oxidase (PyOx) enzyme on a GCE. The 4-aminothiphenol or p-mercaptoaniline is an organic compound that has been previously used to form self-assembled layers on gold electrodes. The 4ATP-Mt/PyOx biosensor exhibited a wide linear concentration range, between 0.01 and 0.5 nM (LOD:1.0 µM), for glucose.
Hydrogel polymer-nanoclays have also been explored as a biosensor platform. An accurate quantification of glucose with a quick and easy method has driven the search for new procedures of analysis. In this regard, glucose biosensors have been significantly developed in recent years, as exposed previously. However, scientific advances have not been accompanied by corresponding technological improvements and their application in health and general industry areas is very limited. In particular, Paz Zanini et al. [70] proposed the enzyme immobilization using hydrogel films made of the synthetic nanoclay laponite as a very suitable method that satisfies most of the following requirements: specificity, portability, quickness, and comparative low cost. Here, laponite has been extensively used in combination with polycations for the formation of hydrogel films on a suitable electrode and entrapping an active enzyme for bioelectrochemical sensing. As mentioned above, the incorporation of polycation molecules into the hydrogel film improves both the mechanical stability and the electrical conductivity of the interface, increasing the low conductivity of the anionic clay. Moreover, this procedure helps retain the active enzyme in the hydrogel film. In this work, a series of Thymine-based polymers inspired by DNA made of vinylbenzyl thymine (VBT) and vinylbenzyl triethylammonium chloride (VBA) were used in combination with laponite for the immobilization of GOx onto GCE. The enzymatic reaction was conducted using the natural mediator of the enzyme (O2) and also an artificial mediator, ferrocenemethanol (FcMe), allowing the electrochemical detection of glucose at two ranges of very different working potentials. They showed that the optimized hydrogel biosensor presented almost two orders of magnitude larger than other laponite-immobilized GOx bioelectrodes reported elsewhere [73,74,75].
Emre et al. [71] proposed a polymer-laponite nanocomposite made of polymethylmethacrylate (PMMA) as biosensor platform for glucose sensing. Layered silicate nanocomposites were prepared by in situ suspension polymerization by grafting PMMA with laponite using a suitable grafting agent. A conducting polymer (poly(4-(2,3-dihydrothieno[3,4-b][1,4]dioxin-5-yl)-7-(2,3-dihydrothieno[3,4-b][1,4]dioxin-7-yl)-2-benzyl-1H-benzo[d]imidazole) (poly(BIPE))) and a PMMA clay nanocomposite with 2-(methacryloyloxy) ethyltrimethylammonium chloride (MTMA) modifier was examined as a platform for biomolecule deposition. GOx was chosen as the model enzyme to prepare a scaffold for glucose sensing. Three different sensing strategies were analyzed and their biosensor performances were discussed. Among the different biosensors examined, the one formed with PMMA-clay nanocomposite and poly(BIPE) exhibited the best performance for glucose sensing. It served as a proper immobilization platform for enzyme molecules, achieving superior biosensor performance than the other combination tested. Moreover, a more proper enzyme deposition and proficient surface chemistry was achieved. By this way, electrochemical signal for glucose detection was amplified and an improved biosensor was achieved.
Electrospinning was proposed as an innovative technique for generating nanofiber assemblies [72]. The engineering of the nanofiber provides enhanced surface area platforms for immobilization of biomolecules and can improve the transduction process, leading to high biosensor efficiency. Apetrei et al. [72] proposed the use of a promising composite nanofiber material incorporating montmorillonite K10 as nanoclay and a common electrospinning polymer, polyacrylonitrile (PAN), as biosensing matrices for amperometric detection of glucose by cross-linking of GOx. Mt acts as a suitable immobilization platform for biocatalysts and allows functionalization through intercalation with the organic molecules, dioctadecyl dimethyl ammonium chloride and methylene blue. The former is able to change the chemical properties of the clay from hydrophilic to organophilic, whereas the latter is a known redox mediator. As result, both PAN/Montmorillonite and PAN/functionalized montmorillonite improved the performance of the constructed biosensors, increasing the linearity, which extended up to 15 × 10−3 M within two linear ranges (1.0 × 10−5–2.45 × 10−3 M and 2.45 × 10−3–15 × 10−3 M), and improving the sensitivity. The LOD was also lowered from 4.2 to 2.4 µM and the operational stability was enhanced up to 85% as result of incorporation of the ammonium ions.
Under a similar context, Unal et al. [62] suggested a good alternative to immobilize biomolecules in electrospun nanofibers. Electrospun nanocomposite nanofibers are prepared by using clay and various types of polymers. In this work, montmorillonite was modified with PAMAM G2 dendrimers, which provided free amine groups that were used for the covalent immobilization of pyranose oxidase enzyme in order to prepare stabile enzyme biosensors. Then, PVA/PAMAM-Mt electrospun nanofibers were formed on the surface of GCE using PVA as the supporting polymer. The linear response for glucose was from 0.005 mM to 0.25 mM using PVA/Mt/PyOx and PVA/PAMAM-Mt/PyOx biosensors. LOD was 0.7 mM glucose with PVA/PAMAM-Mt/PyOx biosensor.
Sonmez et al. [63] reported the synthesis, characterization, and application of calixarene (Calix)-modified montmorillonite as a platform for biomolecule immobilization and biosensing. This modification enhanced the biomolecule immobilization capability of Mt. For the biosensor construction, Calix-NH2-modified Mt (Calix-NH2/Mt), BSA, glutaraldehyde (GA), and pyranose oxidase were immobilized on the surface of GCE. After optimization of the enzyme amount and pH, analytical characteristics were investigated in detail.
LDHs, hydrotalcite-like compounds, have been widely used in the last two decades as electrochemical biosensing platform and biomarker determination for early disease diagnoses. An extensive descriptive analysis of recent development of LDHs sensor in in vitro determination of small biomarkers can be found in several reviews [76,77,78]. A smart example presented by Gualandi et al. [79] consisted of the development of a new composite material with electrochemical features combining LDHs with graphene and/or carbon nanotubes. Many LDHs’ applications are restricted because of their low electrical conductivity decay during device operation due to the volume change associated with a variation of the redox state of the material. These weak points can be overcome by combining LDHs with carbon nanotubes and graphene. The aim of the work was the development of an electrosynthesis protocol that allows the preparation of nanostructure films by the deposition of a Ni/Al-based LDHs on carbon nanomaterial film to produce a new electrochemical interface that takes advantage of the unique properties of both materials. The materials were tested for glucose electro-oxidation, which was exploited for the fabrication of a sensor with high sensitivity and low LOD (0.6 μM for the best device) of glucose. In a similar way, Wang et al. [80] described a GC electrode modified with a graphene-doped film of LDHs for selectively sensing of dopamine.

3.1.2. H2O2 Detection

H2O2 plays an important role in various applications such as medical diagnostics, clinical research, and industrial sectors. For example, it is involved in metabolic activities and it is a crucial biomarker in monitoring various diseases and disorders including diabetes and cancer [81]. Further, H2O2 is used for sterilizing various medical equipment, and residual H2O2 levels need to be monitored to ensure that the equipment is safe to use [82]. Therefore, the sensitive detection of H2O2 is an important task. There are a variety of methods to detect and quantify H2O2 that have been in use for many years, including titration, chromatography, light detection, and electrochemical sensors [83]. Nanoclays can be applied in the direct determination of H2O2 using two different mechanisms: either with an electrochemical sensing platform or by a colorimetric method. The first one will be exposed in this section, whereas the optical sensors will be exposed later on.
Nanoclays’ minerals are used in electrochemical devices for H2O2 detection due to their ability to stabilize metal NPs and metal oxide NPs. In fact, Cu, CuO, Cu2O, Ag, Au, and Pt NPs have been incorporated in anionic and cationic nanoclays to develop CLME with an effective response to H2O2 detection [84,85,86,87,88,89,90,91,92,93]. A list of several devices found in the last decade in the literature concerning CLME for detecting H2O2 can be found in Table 6.
The smallest detection limit was obtained in hallosyte-based CLME, that is, at least 1 order of magnitude smaller than in the rest of the sensors studied. Moreover, on these sensors, excellent sensing behavior was detected, as a wide, linear range detection limit was observed [84,85,86,87]. LDH samples exhibited, by far, the highest sensitivity, probably due to the 2D hierarchical porous structure of the LDH-carboxymethyl chitosan (CMC) support, associated with sufficient active sites that provide a biocompatible micro-environment for enzyme adsorption and a pathway for H2O2 diffusion [91,92].
Many natural clays have iron incorporated in their structures and this element can affect the CLME response in the H2O2 detection, as studied by Charradi et al. [93]. Their results confirmed that nanoclays (both natural and synthetic) containing Fe(III), specifically Mt, can mediate electron transfer via the contained electrochemically active iron species in their octahedral lattice. In fact, they also studied a saponite with Fe ions in the tetrahedral sheet that did not show any electroactivity. They concluded that iron-rich CLME offer the possibility of developing very sensitive analytical methods for H2O2. Moreover, in these cases, the adsorption of an organic dye (methyl viologen, MV2+) or a biomolecule as hemoglobin (Hb) in the clay layers considerably improved the sensor performance, as shown in Table 6 [93].

3.1.3. Other Organic Biomedical Compounds’ Detection

The rapid and sensitive detection of salicylic acid has also great importance in organic synthesis and medicine. Electrochemistry presents some problems for detection of salicylic acid with ordinary electrodes (Pt, Au, carbon paste, and graphite). Gualandi et al. [94] presented a Pt electrode modified with a Co/Al-based hydrotalcite for salicylic acid determination by both differential pulse voltammetry and chronoamperometry. The linearity analytical ranges and the LOD values were measured to be 10−5 to 5 × 10−4 and 5 × 10−7 to 10−4 M, as well as 6 × 10−6 and 2 × 10−7 M, for both techniques, respectively.
Niclosamide has been widely used as anthelmintic medicine. However, its prolonged use produces extensive residues in water that can involve toxicity, and a simple detection system for niclosamide is highly desirable. Zhao et al. [17] reported the preparation of carbon NPs-decorated HNTs’ nanocomposite, which was successfully applied to modify a carbon electrode for niclosamide determination. This sensor exhibited excellent performance with a relatively low LOD of 3.28 nM in the 0.01–1 µM linear range. Additionally, cefotaxime is a broad spectrum antibiotic widely used to treat bacterial respiratory and urinary infections, because of its activity against Gram-positive and Gram-negative bacteria. Dehdashtian et al. [95] described a sensitive and selective sensor based on carbon paste electrode modified by montmorillonite/graphene oxide composite developed for the electrochemical determination of Cefotaxime. This modified electrode exhibited a linear response over two different linear concentration ranges, from 0.5 to 40 nM and 40 to 2400 nM, with a LOD of 0.1 nM.
Finally, Joshi et al. [96] also developed electrodes based on laponite and montmorillonite clays and imidazolium chloride-based ionic liquids. These electrodes were used for detection of diverse bioanalytes, namely, ascorbic, oxalic, and citric acid, as well as urea, glucose, or cholesterol.
Table 7 summarizes the behavior of several CLME toward organic compounds’ detection.

3.2. Nanoclay-Based Optical Sensors

Optical sensors rely on the changes of absorption or emission properties of a fluorophore upon interaction with a bioanalyte and provide high sensitivity [29]. Typically, organic molecules, gold NPs, and transition metal or lanthanide cations have been used as chromophores. In particular, the sharp-line Eu3+ luminescence is an ideal spectroscopic probe, since both the fine structure, the relative intensity of different f–f transitions, and the lifetime are highly dependent on the local environment of Eu3+ ions [33]. In addition, colorimetric methods, which allow immediate detection by qualitative color change observed by the naked eye, have recently gained attention due to faster operation, low cost, and simplicity. A summary of the performance of different optical sensors based on fluorophores incorporated in nanoclays, such as laponite [97,98,99,100,101], montmorillonite [102,103,104,105,106,107,108] or LDH [109], is presented in Table 8. They can be classified as a function of the type of the detected bioanalyte, as exposed in the following paragraphs.
Felbeck et al. developed a sensor based on two fluorescent probes incorporated in laponite hybrids to detect BSA and β-lactoglobulin by optical spectroscopy [97]. In particular, laponite hybrids were loaded with the fluorescent dye Nile Red, previously used for both proteins’ analysis, and with the Eu3+ complex Eu(ttfa)3(topo)2, which has been successfully incorporated into silica hybrids. They demonstrated that, while addition of BSA or β-lactoglobulin to the surface of Nile Red-doped laponite led to a blue shift of the emission band and an increase in the luminescence intensity, the Eu3+-loaded nanoclays displayed a quenching of the Eu3+ emission, ascribed to substitution of a ttfa ligand by an amino acid of the protein.
A nano-hybrid luminescence sensor of surfactants in aqueous solution based on Eu3+-β-diketonate complexes and laponite was developed by Yang et al. [98]. Their results revealed that the Eu3+-2-Thenoyltrifluoroacetone@laponite system showed a fast, highly sensitive and selective detection for cationic surfactants. In particular, they showed that the Eu3+ luminescence intensity gradually increased for higher concentrations of CTAB, reaching its maximum for a concentration of CTAB of 5.5 mM. The estimated that the LOD for CTAB is 3.8 nM. In addition to the emission intensity, the I(5D07F2)/I(5D07F1) intensity ratio also increased as the concentration of CTAB increased. Finally, the decay time increased from 0.31 ms to 0.50 ms as the concentrations of CTAB increased from 0 to 2.7 mM, due to a reduction of the coordination of water molecules, and an enhancement of the quantum yield from 13.4 to 36.5% was observed.
Similarly, Felbeck et al. [99] presented an exhaustive study of the optical properties of the Nile Red dye incorporated in laponite, in the absence and presence of the CTAB cationic surfactant. They demonstrated that, since the Nile Red optical properties are different for dispersions of both the unmodified and the CTAB-modified laponite, they can be employed as an optical probe in aqueous dispersion. Specifically, the shifts in the absorption and emission bands observed in the CTAB system compared to the original Nile Red-doped laponite was assigned to a less polar dye environment in the case of the CTAB-modified laponite.
Glutathione is an essential peptide that plays a significant role in several biological disorders such as Alzheimer or cardiovascular disease. Recently, a large body of research dealing with sensors able to distinguish glutathione from cysteine and homocysteine has emerged. Chen et al. [100] proposed the use of a hybrid material based on laponite and Eu3+ coordinated by pyridine-2, 6-dicarboxylic acid (DPA), denoted Eu(DPA)@Lapo, for selective detection of glutathione both in solution and within hydrogels. Briefly, since the Eu(DPA)@Lapo system shows intense luminescence, which is efficiently quenched upon addition of Cu2+ ions, they demonstrated that the presence of glutathione, which induces the removal of Cu2+ from the Eu(DPA)@Lapo, resulted in fluorescence recovery. The proposed assay demonstrated high selectivity toward glutathione and showed a detection limit of 162 nM within a linear range of 0.5–30 µM.
Ascorbic acid also plays an essential role in many biochemical processes and it is considered to effectively scavenge reactive species to prevent oxidative damage. Chen et al. [101] proposed a nano-hybrid based on laponite and Eu and Gd DPA complexes, Gd(DPA)@Lapo and Eu(DPA)/Gd(DPA)@Lapo, as a bimodal sensor with both magnetic resonance and fluorescence functionality (Figure 4). Firstly, regarding the application as magnetic resonance contrast agents, the calculated longitudinal relaxation rate was 12.36 mM−1s−1 for Gd(DPA)@Lapo and 8.41 mM−1s−1 for Eu(DPA)/Gd(DPA)@Lapo, which was higher than that from commercial agent Gd−DTPA, 4.63 mM−1s−1, at the same concentration. They demonstrated a linear dependence of the longitudinal relaxation time with the concentration of ascorbic acid in the 0.5 to 20 µM range, with a LOD of 0.2 µM. Secondly, the fluorescence response of Eu(DPA)/Gd(DPA)@Lapo was also investigated. The relationship between the Eu3+ luminescence intensity and the ascorbic acid concentration showed a good linear correlation from 0.5 to 20 µM, and the LOD was calculated to be 0.1 µM.

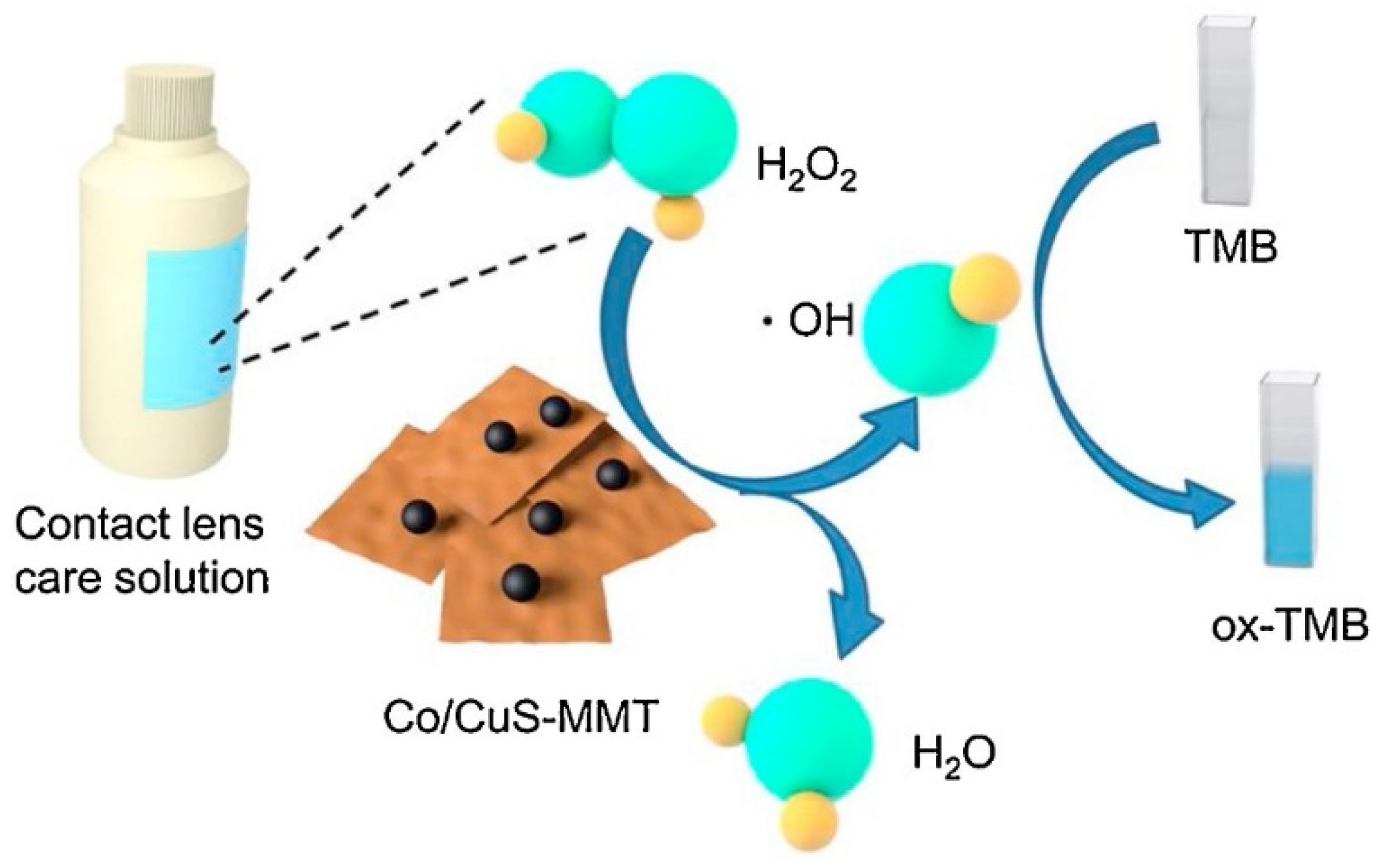

Nanoclays, mainly montmorillonite, modified with different metal NPs or compounds have also been tested for H2O2 detection by colorimetric methods, as stated in Table 8 [104,105,106,107,108]. The response time for all these optical sensors was equal to or less than 30 s, demonstrating the fast response to H2O2 detection of these nanoclay-based sensors. The detection limit was diverse and depended on the medium and metal used. In general, these values were higher than those observed with electrochemical sensors (see Table 6). LDH-based sensor exhibited by far the highest detection limit. In Figure 5, the schematic representation of a colorimetric sensing of H2O2 catalyzed by Co-doped CuS-montmorillonite is represented [107].
Recently, a large body of research has also focused on the development of new sensors to replace conventional methods for bacteria detection. In particular, the possibility of combining synergistic detection, antibacterial activity, and recyclability has gained attention. Robby et al. designed a fluorescent sensor with antibacterial activity by a two-step process involving (1) incorporation of an alkaline phosphatase-sensitive polymer dot, containing β-cyclodextrin, in montmorillonite, and (2) immobilization of magnetic iron oxide (Fe3O4) and NIR-responsive cesium tungsten oxide (CsWO3) [102]. This nanocomposite exhibited intense luminescence, which was quenched in the presence of bacterial alkaline phosphatase due to hydrolysis of p-nitrophenyl phosphate in the hydrophobic site of β-cyclodextrin. Additionally, the nanocomposite allowed detection of both Gram-negative Escherichia coli and Gram-positive Staphylococcus aureus in the range of 10–107 CFU/mL, with a LOD of 5.09 and 4.62 CFU/mL, respectively, and showed high bacterial damage by inducing heat under NIR irradiation. This material also demonstrated recyclability via magnetic field exposure due to the presence of Fe3O4.
Silicate nanoplatelets derived from natural montmorillonite clay were used by Lin et al. as a platform to detect both Escherichia coli and Staphylococcus aureus bacteria [103]. Specifically, the silicate nanoplatelets were modified with hydrophilic poly(2-hydroxyethyl methacrylate) (PHEMA) hydrogels, widely used for biomedical applications. In this study, atom transfer radical polymerization was used to grow the PHEMA chains. Then the nathphalimide-type fluorescent 6-(1,3-dioxo-1H-benzo[de]- isoquinolin-2(3H)-yl)hexanoic acid was bonded for sensing applications.
In addition, several studies of cationic p-phenylene ethynylenes’ oligomers have shown both antimicrobial activity and strong photophysical changes upon aggregation with potential use for sensing bacteria. Hill et al. [110] analyzed the adsorption of these oligomers on laponite and their results suggested that they induce aggregation of both oligomers and laponite discs, leading to changes of their optical properties and interactions with bacteria. Specifically, the formation of molecular aggregates on laponite induced a slight red shift of the main absorption band from 325 nm to 335 nm and the appearance of a new absorption band at 360 nm, together with a red shift of the luminescence band from 370 nm to 430 nm. Additionally, solid oligomers-laponite films were shown to have fair resistance to dissolution in aqueous solution compared with laponite alone, and adhesion and minor killing of both Gram-negative and Gram-positive bacteria on the surface was observed. The results of this study are useful for development of sensors and biocides involving laponite as a scaffold.

4. Conclusions

Nanoclays represent an important type of nanomaterials with unique layered structure and ion exchange capacity, and they hold great potential for new and existing applications, in particular for the development of new nanoclay-based sensors.
Regarding electrochemical detection methods, CLME have improved stability, linear response range, and sensitivity compared to existing electrodes. Moreover, the inclusion of organic molecules has opened new opportunities in the development of advanced electrodes. Particularly, biosensors based on the incorporation of enzymes into the nanoclay structure is destined to be an emerging technology for the detection of small metabolic molecules, mainly glucose. Additionally, optical detection methods using nanoclay-based sensors have increased in the latest years. In this sense, nanoclays have proven to be an optimal matrix for the incorporation of fluorophores’ molecules with expecting applications to be found. However, a deeper analysis of the nanoclay role in the optical response would be desirable in order to design a specific optical sensor for a particular bioanalyte target.
Thus, nanoclays have shown that they can become a key factor in emerging technologies for sensor development, with application in both environmental and biomedical fields.

Author Contributions

All authors equally contributed to the conceptualization, bibliographic search, writing, reviewing, and editing of this manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

Pavón thanks University of Seville for the financial support of her current contract from VI PPIT-US program.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

4-ATP4-aminothiophenol
AChEacetylcholinesterase
BentBentonite
BSAbovine serum albumin
Calixcalixarene
CH-MtChitosan- montmorillonite
CLDHCu-Mg-Al calcined layered double hydroxide
CLME Nanoclay modified electrodes
CMCcarboxymethyl chitosan
CTABcetyltrimethylammonium bromide
CVCyclic voltammetry
DDAdidodecyldimethyl ammonium
DDAXdioctadecyl dimethyl ammonium chloride
DMdimethylamine
DPAPyridine-2, 6-dicarboxylic acid
DPVdifferential pulse voltammetry
EISelectrochemical impedance spectroscopy
FcMeferrocenemethanol
FIAflow injection analysis
GCEGlassy carbon electrode
Gluglutamic acid
Glyglycine
GOxGlucose oxidase
Hbhemoglobin
HNTsHallosyte nanotubes
ITOindium tin oxide
KaolKaolinite
LapLaponite
LDHLayered double hydroxides
LODLimit of detection
Lyslysine
MMethylamine
MBmethylene blue.
Mt Montmorillonite
MTMA2-(methacryloyloxy) ethyltrimethylammonium chloride
MVmethyl viologen
NCsNanoclays
NPsNanoparticles
PalPalygorskite
PAMAMPoly(amidoamine)
PANpolyacrylonitrile
PANpolyacrylonitrile
PGApolyglycolide
PHEMApoly(2-hydroxyethyl methacrylate)
PMMApolymethylmethacrylate
PoPDPoly (o-phenyledediamine)
PVApoly(vinyl) alcohol
PyOxpyranose oxidase
SaCTAcetyltrimethylammonium
SaDDAdidodecyldimethyl ammonium
SepSepiolite
SWV:Square wave voltammetry
VBAvinylbenzyl triethylammonium chloride
VBTvinylbenzyl thymine

References

  1. Official Journal of the European Union. Commission Recommendations; The European Commission: Brussels, Belgium, 2011; Volume 2011/696/E. [Google Scholar]
  2. Bergaya, F.; Lagaly, G. Chapter 1—General Introduction: Clays, Clay Minerals, and Clay Science. In Handbook of Clay Science; Bergaya, F., Lagaly, G.B.T.-D., Eds.; Elsevier: Amsterdam, The Netherlands, 2013; Volume 5, pp. 1–19. ISBN 1572-4352. [Google Scholar]
  3. Mousty, C. Sensors and biosensors based on clay-modified electrodes—New trends. Appl. Clay Sci. 2004, 27, 159–177. [Google Scholar] [CrossRef]
  4. Gianfreda, L.; Rao, M.A.; Sannino, F.; Saccomandi, F.; Violante, A. Enzymes in soil: Properties, behavior and potential applications. In Soil Mineral-Organic Matter-Microorganism Interactions and Ecosystem Health; Violante, A., Huang, P.M., Bollag, J.-M., Gianfreda, L.B.T.-D., Eds.; Elsevier: Amsterdam, The Netherlands, 2002; Volume 28, pp. 301–327. ISBN 0166-2481. [Google Scholar]
  5. Wongkaew, N.; Simsek, M.; Griesche, C.; Baeumner, A.J. Functional Nanomaterials and Nanostructures Enhancing Electrochemical Biosensors and Lab-on-a-Chip Performances: Recent Progress, Applications, and Future Perspective. Chem. Rev. 2019, 119, 120–194. [Google Scholar] [CrossRef]
  6. Karunakaran, C.; Madasamy, T.; Sethy, N.K. Chapter 3—Enzymatic Biosensors. In Biosensors and Bioelectronics; Karunakaran, C., Bhargava, K., Benjamin, R.B.T.-B., Eds.; Elsevier: Amsterdam, The Netherlands, 2015; pp. 133–204. ISBN 978-0-12-803100-1. [Google Scholar]
  7. Suhito, I.R.; Koo, K.M.; Kim, T.H. Recent advances in electrochemical sensors for the detection of biomolecules and whole cells. Biomedicines 2021, 9, 15. [Google Scholar] [CrossRef] [PubMed]
  8. Gao, L.L.; Gao, E.Q. Metal–organic frameworks for electrochemical sensors of neurotransmitters. Coord. Chem. Rev. 2021, 434, 213784. [Google Scholar] [CrossRef]
  9. Zhou, Y.; Fang, Y.; Ramasamy, R. Non-Covalent Functionalization of Carbon Nanotubes for Electrochemical Biosensor Development. Sensors 2019, 19, 392. [Google Scholar] [CrossRef] [Green Version]
  10. Huang, J.; Liu, Y.; Hou, H.; You, T. Simultaneous electrochemical determination of dopamine, uric acid and ascorbic acid using palladium nanoparticle-loaded carbon nanofibers modified electrode. Biosens. Bioelectron. 2008, 24, 632–637. [Google Scholar] [CrossRef]
  11. Sajid, M.; Nazal, M.K.; Mansha, M.; Alsharaa, A.; Jillani, S.M.S.; Basheer, C. Chemically modified electrodes for electrochemical detection of dopamine in the presence of uric acid and ascorbic acid: A review. TrAC Trends Anal. Chem. 2016, 76, 15–29. [Google Scholar] [CrossRef]
  12. Calò, S.; Curulli, A.; Zane, D.; Caschera, D.; Ingo, G.M.; Padeletti, G. Single Walled Carbon Nanotubes (SWCNTs)/Gold Nanoparticles (AuNps) Nanocomposites for Enhancing Electrochemical Response to Detect Neurotransmitters. ECS Trans. 2019, 25, 33–41. [Google Scholar] [CrossRef]
  13. Zestos, A.G.; Jacobs, C.B.; Trikantzopoulos, E.; Ross, A.E.; Venton, B.J. Polyethylenimine carbon nanotube fiber electrodes for enhanced detection of neurotransmitters. Anal. Chem. 2014, 86, 8568–8575. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Bouchta, D.; Izaoumen, N.; Zejli, H.; El Kaoutit, M.; Temsamani, K.R. Electroanalytical properties of a novel PPY/γcyclodextrin coated electrode. Anal. Lett. 2005, 38, 1019–1036. [Google Scholar] [CrossRef]
  15. Kaur, B.; Srivastava, R. Synthesis of ionic liquids coated nanocrystalline zeolite materials and their application in the simultaneous determination of adenine, cytosine, guanine, and thymine. Electrochim. Acta 2014, 133, 428–439. [Google Scholar] [CrossRef]
  16. Ghadiri, M.; Chrzanowski, W.; Rohanizadeh, R. Biomedical applications of cationic clay minerals. RSC Adv. 2015, 5, 29467–29481. [Google Scholar] [CrossRef]
  17. Zhao, H.; Chang, Y.; Liu, R.; Li, B.; Li, F.; Zhang, F.; Shi, M.; Zhou, L.; Li, X. Facile synthesis of Vulcan XC-72 nanoparticles-decorated halloysite nanotubes for the highly sensitive electrochemical determination of niclosamide. Food Chem. 2021, 343, 128484. [Google Scholar] [CrossRef]
  18. de Mello Ferreira Guimarães, A.; Ciminelli, V.S.T.; Vasconcelos, W.L. Surface modification of synthetic clay aimed at biomolecule adsorption: Synthesis and characterization. Mater. Res. 2007, 10, 37–41. [Google Scholar] [CrossRef] [Green Version]
  19. El Kasmi, S.; Lahrich, S.; Farahi, A.; Zriouil, M.; Ahmamou, M.; Bakasse, M.; El Mhammedi, M.A. Electrochemical determination of paraquat in potato, lemon, orange and natural water samples using sensitive-rich clay carbon electrode. J. Taiwan Inst. Chem. Eng. 2016, 58, 165–172. [Google Scholar] [CrossRef]
  20. Wagheu, J.K.; Forano, C.; Besse-Hoggan, P.; Tonle, I.K.; Ngameni, E.; Mousty, C. Electrochemical determination of mesotrione at organoclay modified glassy carbon electrodes. Talanta 2013, 103, 337–343. [Google Scholar] [CrossRef] [PubMed]
  21. Manisankar, P.; Selvanathan, G.; Vedhi, C. Determination of pesticides using heteropolyacid montmorillonite clay-modified electrode with surfactant. Talanta 2006, 68, 686–692. [Google Scholar] [CrossRef] [PubMed]
  22. Goda, E.S.; Gab-Allah, M.A.; Singu, B.S.; Yoon, K.R. Halloysite nanotubes based electrochemical sensors: A review. Microchem. J. 2019, 147, 1083–1096. [Google Scholar] [CrossRef]
  23. An, N.; Zhou, C.H.; Zhuang, X.Y.; Tong, D.S.; Yu, W.H. Immobilization of enzymes on clay minerals for biocatalysts and biosensors. Appl. Clay Sci. 2015, 114, 283–296. [Google Scholar] [CrossRef]
  24. Zoumpanioti, M.; Stamatis, H.; Xenakis, A. Microemulsion-based organogels as matrices for lipase immobilization. Biotechnol. Adv. 2010, 28, 395–406. [Google Scholar] [CrossRef] [PubMed]
  25. Zhou, Z.; Hartmann, M. Progress in enzyme immobilization in ordered mesoporous materials and related applications. Chem. Soc. Rev. 2013, 42, 3894–3912. [Google Scholar] [CrossRef]
  26. Holzinger, M.; Le Goff, A.; Cosnier, S. Carbon nanotube/enzyme biofuel cells. Electrochim. Acta 2012, 82, 179–190. [Google Scholar] [CrossRef]
  27. Serefoglou, E.; Litina, K.; Gournis, D.; Kalogeris, E.; Tzialla, A.A.; Pavlidis, I.V.; Stamatis, H.; Maccallini, E.; Lubomska, M.; Rudolf, P. Smectite clays as solid supports for immobilization of β-glucosidase: Synthesis, characterization, and biochemical properties. Chem. Mater. 2008, 20, 4106–4115. [Google Scholar] [CrossRef] [Green Version]
  28. Tzialla, A.A.; Pavlidis, I.V.; Felicissimo, M.P.; Rudolf, P.; Gournis, D.; Stamatis, H. Lipase immobilization on smectite nanoclays: Characterization and application to the epoxidation of α-pinene. Bioresour. Technol. 2010, 101, 1587–1594. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Askim, J.R.; Suslick, K.S. Colorimetric and Fluorometric Sensor Arrays for Molecular Recognition. In Comprehensive Supramolecular Chemistry II; Atwood, J.L., Ed.; Elsevier Inc.: Amsterdam, The Netherlands, 2017; Volume 8, pp. 37–88. ISBN 9780128031988. [Google Scholar]
  30. Wu, L.; Huang, C.; Emery, B.P.; Sedgwick, A.C.; Bull, S.D.; He, X.P.; Tian, H.; Yoon, J.; Sessler, J.L.; James, T.D. Förster resonance energy transfer (FRET)-based small-molecule sensors and imaging agents. Chem. Soc. Rev. 2020, 49, 5110–5139. [Google Scholar] [CrossRef] [PubMed]
  31. Qin, S.J.; Yan, B. Dual-emissive ratiometric fluorescent probe based on Eu3+/C-dots@MOF hybrids for the biomarker diaminotoluene sensing. Sens. Actuators B Chem. 2018, 272, 510–517. [Google Scholar] [CrossRef]
  32. Yang, G.; Zhao, J.; Yi, S.; Wan, X.; Tang, J. Biodegradable and photostable Nb2C MXene quantum dots as promising nanofluorophores for metal ions sensing and fluorescence imaging. Sens. Actuators B Chem. 2020, 309, 127735. [Google Scholar] [CrossRef]
  33. Binnemans, K. Interpretation of europium(III) spectra. Coord. Chem. Rev. 2015, 295, 1–45. [Google Scholar] [CrossRef] [Green Version]
  34. Zhang, X.; Jing, X.; Liu, T.; Han, G.; Li, H.; Duan, C. Dual-functional gadolinium-based copper(II) probe for selective magnetic resonance imaging and fluorescence sensing. Inorg. Chem. 2012, 51, 2325–2331. [Google Scholar] [CrossRef]
  35. Barbosa, P.F.P.; Vieira, E.G.; Cumba, L.R.; Paim, L.L.; Nakamura, A.P.R.; Andrade, R.D.A.; do Carmo, D.R. Voltammetric techniques for pesticides and herbicides detection- an overview. Int. J. Electrochem. Sci. 2019, 14, 3418–3433. [Google Scholar] [CrossRef]
  36. Van Der Werf, H.M.G. Assessing the impact of pesticides on the environment. Agric. Ecosyst. Environ. 1996, 60, 81–96. [Google Scholar] [CrossRef]
  37. Du, D.; Chen, S.; Cai, J.; Zhang, A. Electrochemical pesticide sensitivity test using acetylcholinesterase biosensor based on colloidal gold nanoparticle modified sol-gel interface. Talanta 2008, 74, 766–772. [Google Scholar] [CrossRef]
  38. Tchoumene, R.; Kenne Dedzo, G.; Ngameni, E. Preparation of Methyl Viologen-Kaolinite Intercalation Compound: Controlled Release and Electrochemical Applications. ACS Appl. Mater. Interfaces 2018, 10, 34534–34542. [Google Scholar] [CrossRef] [PubMed]
  39. Mbokana, J.G.Y.; Dedzo, G.K.; Ngameni, E. Grafting of organophilic silane in the interlayer space of acid-treated smectite: Application to the direct electrochemical detection of glyphosate. Appl. Clay Sci. 2020, 188, 105513. [Google Scholar] [CrossRef]
  40. Tcheumi, H.L.; Kameni Wendji, A.P.; Tonle, I.K.; Ngameni, E. A Low-Cost Layered Double Hydroxide (LDH) Based Amperometric Sensor for the Detection of Isoproturon in Water Using Carbon Paste Modified Electrode. J. Anal. Methods Chem. 2020, 2020. [Google Scholar] [CrossRef] [PubMed]
  41. Laghrib, F.; Bakasse, M.; Lahrich, S.; El Mhammedi, M.A. Electrochemical sensors for improved detection of paraquat in food samples: A review. Mater. Sci. Eng. C 2020, 107, 110349. [Google Scholar] [CrossRef] [PubMed]
  42. Abbaci, A.; Azzouz, N.; Bouznit, Y. A new copper doped montmorillonite modified carbon paste electrode for propineb detection. Appl. Clay Sci. 2014, 90, 130–134. [Google Scholar] [CrossRef]
  43. Zhai, C.; Guo, Y.; Sun, X.; Zheng, Y.; Wang, X. An acetylcholinesterase biosensor based on graphene-gold nanocomposite and calcined layered double hydroxide. Enzyme Microb. Technol. 2014, 58–59, 8–13. [Google Scholar] [CrossRef] [PubMed]
  44. Yanke, J.G.M.; Dedzo, G.K.; Ngameni, E. Solvent Effect on the Grafting of an Organophilic Silane Onto Smectite-type Clay: Application as Electrode Modifiers for Pesticide Detection. Electroanalysis 2017, 29, 1894–1902. [Google Scholar] [CrossRef]
  45. Manisankar, P.; Selvanathan, G.; Vedhi, C. Utilization of sodium montmorillonite clay-modified electrode for the determination of isoproturon and carbendazim in soil and water samples. Appl. Clay Sci. 2005, 29, 249–257. [Google Scholar] [CrossRef]
  46. Tcheumi, H.L.; Tonle, I.K.; Walcarius, A.; Ngameni, E. Electrocatalytic and Sensors Properties of Natural Smectite Type Clay towards the Detection of Paraquat Using a Film-Modified Electrode. Am. J. Anal. Chem. 2012, 03, 746–754. [Google Scholar] [CrossRef] [Green Version]
  47. Zhao, D.; Zhao, L.; Zhu, C.S.; Shen, X.; Zhang, X.; Sha, B. Comparative study of polymer containing β-cyclodextrin and -COOH for adsorption toward aniline, 1-naphthylamine and methylene blue. J. Hazard. Mater. 2009, 171, 241–246. [Google Scholar] [CrossRef] [PubMed]
  48. Grieshaber, D.; MacKenzie, R.; Vörös, J.; Reimhult, E. Electrochemical biosensors—Sensor principles and architectures. Sensors 2008, 8, 1400–1458. [Google Scholar] [CrossRef] [PubMed]
  49. Oliveira, G.C.; Moccelini, S.K.; Castilho, M.; Terezo, A.J.; Possavatz, J.; Magalhães, M.R.L.; Dores, E.F.G.C. Biosensor based on atemoya peroxidase immobilised on modified nanoclay for glyphosate biomonitoring. Talanta 2012, 98, 130–136. [Google Scholar] [CrossRef] [Green Version]
  50. Sarkar, T.; Narayanan, N.; Solanki, P.R. Polymer–Clay Nanocomposite-Based Acetylcholine esterase Biosensor for Organophosphorous Pesticide Detection. Int. J. Environ. Res. 2017, 11, 591–601. [Google Scholar] [CrossRef]
  51. Phongphut, A.; Chayasombat, B.; Cass, A.E.G.; Sirisuk, A.; Phisalaphong, M.; Prichanont, S.; Thanachayanont, C. Clay/au nanoparticle composites as acetylcholinesterase carriers and modified-electrode materials: A comparative study. Appl. Clay Sci. 2020, 194. [Google Scholar] [CrossRef]
  52. Flampouri, K.; Mavrikou, S.; Kintzios, S.; Miliadis, G.; Aplada-Sarlis, P. Development and validation of a cellular biosensor detecting pesticide residues in tomatoes. Talanta 2010, 80, 1799–1804. [Google Scholar] [CrossRef]
  53. Jlassi, K.; Zavahir, S.; Kasak, P.; Krupa, I.; Mohamed, A.A.; Chehimi, M.M. Emerging clay-aryl-gold nanohybrids for efficient electrocatalytic proton reduction. Energy Convers. Manag. 2018, 168, 170–177. [Google Scholar] [CrossRef]
  54. Dong, S.; Dao, A.Q.; Zheng, B.; Tan, Z.; Fu, C.; Liu, H.; Xiao, F. One-step electrochemical synthesis of three-dimensional graphene foam loaded nickel-cobalt hydroxides nanoflakes and its electrochemical properties. Electrochim. Acta 2015, 152, 195–201. [Google Scholar] [CrossRef]
  55. Wang, Z.; Gui, M.; Asif, M.; Yu, Y.; Dong, S.; Wang, H.; Wang, W.; Wang, F.; Xiao, F.; Liu, H. A facile modular approach to the 2D oriented assembly MOF electrode for non-enzymatic sweat biosensors. Nanoscale 2018, 10, 6629–6638. [Google Scholar] [CrossRef]
  56. Heller, A.; Feldman, B. Electrochemical Glucose Sensors and Their Applications in Diabetes Management. Chem. Rev. 2008, 108, 2482–2505. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Yao, S.; Yuan, S.; Xu, J.; Wang, Y.; Luo, J.; Hu, S. A hydrogen peroxide sensor based on colloidal MnO2/Na-montmorillonite. Appl. Clay Sci. 2006, 33, 35–42. [Google Scholar] [CrossRef]
  58. Sun, X.; Zhang, Y.; Shen, H.; Jia, N. Direct electrochemistry and electrocatalysis of horseradish peroxidase based on halloysite nanotubes/chitosan nanocomposite film. Electrochim. Acta 2010, 56, 700–705. [Google Scholar] [CrossRef]
  59. Songurtekin, D.; Yalcinkaya, E.E.; Ag, D.; Seleci, M.; Demirkol, D.O.; Timur, S. Histidine modified montmorillonite: Laccase immobilization and application to flow injection analysis of phenols. Appl. Clay Sci. 2013, 86, 64–69. [Google Scholar] [CrossRef]
  60. Seleci, M.; Ag, D.; Yalcinkaya, E.E.; Demirkol, D.O.; Guler, C.; Timur, S. Amine-intercalated montmorillonite matrices for enzyme immobilization and biosensing applications. RSC Adv. 2012, 2, 2112–2118. [Google Scholar] [CrossRef]
  61. Han, X.; Zhu, Y.; Yang, X.; Li, C. Amperometric glucose biosensor based on platinum nanoparticle encapsulated with a clay. Microchim. Acta 2010, 171, 233–239. [Google Scholar] [CrossRef]
  62. Unal, B.; Yalcinkaya, E.E.; Demirkol, D.O.; Timur, S. An electrospun nanofiber matrix based on organo-clay for biosensors: PVA/PAMAM-Montmorillonite. Appl. Surf. Sci. 2018, 444, 542–551. [Google Scholar] [CrossRef]
  63. Sonmez, B.; Sayin, S.; Yalcinkaya, E.E.; Seleci, D.A.; Yildiz, H.B.; Demirkol, D.O.; Timur, S. Calixarene modified montmorillonite: A novel design for biosensing applications. RSC Adv. 2014, 4, 62895–62902. [Google Scholar] [CrossRef]
  64. Demir, B.; Seleci, M.; Ag, D.; Cevik, S.; Yalcinkaya, E.E.; Demirkol, D.O.; Anik, U.; Timur, S. Amine intercalated clay surfaces for microbial cell immobilization and biosensing applications. RSC Adv. 2013, 3, 7513–7519. [Google Scholar] [CrossRef]
  65. Demir, F.; Demir, B.; Yalcinkaya, E.E.; Cevik, S.; Demirkol, D.O.; Anik, U.; Timur, S. Amino acid intercalated montmorillonite: Electrochemical biosensing applications. RSC Adv. 2014, 4, 50107–50113. [Google Scholar] [CrossRef]
  66. Maiga, M.; Yalcinkaya, E.E.; Sonmez, B.; Puglia, D.; Yavuz, M.; Demirkol, D.O.; Kenny, J.M.; Timur, S. CTAB modified dellite: A novel support for enzyme immobilization in bio-based electrochemical detection and its in vitro antimicrobial activity. Sens. Actuators B Chem. 2016, 235, 46–55. [Google Scholar] [CrossRef]
  67. Luo, S.; Chen, Y.; Zhou, M.; Yao, C.; Xi, H.; Kong, Y.; Deng, L. Palygorskite-poly(o-phenylenediamine) nanocomposite: An enhanced electrochemical platform for glucose biosensing. Appl. Clay Sci. 2013, 86, 59–63. [Google Scholar] [CrossRef]
  68. Unal, B.; Yalcinkaya, E.E.; Gumustas, S.; Sonmez, B.; Ozkan, M.; Balcan, M.; Demirkol, D.O.; Timur, S. Polyglycolide-montmorillonite as a novel nanocomposite platform for biosensing applications. New J. Chem. 2017, 41, 9371–9379. [Google Scholar] [CrossRef]
  69. Yilmaz, Y.Y.; Yalcinkaya, E.E.; Demirkol, D.O.; Timur, S. 4-aminothiophenol-intercalated montmorillonite: Organic-inorganic hybrid material as an immobilization support for biosensors. Sens. Actuators B Chem. 2020, 307, 127665. [Google Scholar] [CrossRef]
  70. Paz Zanini, V.I.; Gavilán, M.; López De Mishima, B.A.; Martino, D.M.; Borsarelli, C.D. A highly sensitive and stable glucose biosensor using thymine-based polycations into laponite hydrogel films. Talanta 2016, 150, 646–654. [Google Scholar] [CrossRef]
  71. Emre, F.B.; Kesik, M.; Kanik, F.E.; Akpinar, H.Z.; Aslan-Gurel, E.; Rossi, R.M.; Toppare, L. A benzimidazole-based conducting polymer and a PMMA-clay nanocomposite containing biosensor platform for glucose sensing. Synth. Met. 2015, 207, 102–109. [Google Scholar] [CrossRef]
  72. Apetrei, R.M.; Camurlu, P. The effect of montmorillonite functionalization on the performance of glucose biosensors based on composite montmorillonite/PAN nanofibers. Electrochim. Acta 2020, 353, 136484. [Google Scholar] [CrossRef]
  73. Shi, Q.; Li, Q.; Shan, D.; Fan, Q.; Xue, H. Biopolymer-clay nanoparticles composite system (Chitosan-laponite) for electrochemical sensing based on glucose oxidase. Mater. Sci. Eng. C 2008, 28, 1372–1375. [Google Scholar] [CrossRef]
  74. Coche-Guérente, L.; Desprez, V.; Labbé, P. Characterization of organosilasesquioxane-intercalated-laponite-clay modified electrodes and (bio)electrochemical applications. J. Electroanal. Chem. 1998, 458, 73–86. [Google Scholar] [CrossRef]
  75. Poyard, S.; Jaffrezic-Renault, N.; Martelet, C.; Cosnier, S.; Labbe, P.; Besombes, J.L. A new method for the controlled immobilization of enzyme in inorganic gels (laponite) for amperometric glucose biosensing. Sens. Actuators B Chem. 1996, 33, 44–49. [Google Scholar] [CrossRef]
  76. Asif, M.; Aziz, A.; Azeem, M.; Wang, Z.; Ashraf, G.; Xiao, F.; Chen, X.; Liu, H. A review on electrochemical biosensing platform based on layered double hydroxides for small molecule biomarkers determination. Adv. Colloid Interface Sci. 2018, 262, 21–38. [Google Scholar] [CrossRef] [PubMed]
  77. Taviot-Guého, C.; Prévot, V.; Forano, C.; Renaudin, G.; Mousty, C.; Leroux, F. Tailoring Hybrid Layered Double Hydroxides for the Development of Innovative Applications. Adv. Funct. Mater. 2018, 28, 1–33. [Google Scholar] [CrossRef]
  78. Tonelli, D.; Scavetta, E.; Giorgetti, M. Layered-double-hydroxide-modified electrodes: Electroanalytical applications. Anal. Bioanal. Chem. 2013, 405, 603–614. [Google Scholar] [CrossRef] [PubMed]
  79. Gualandi, I.; Vlamidis, Y.; Mazzei, L.; Musella, E.; Giorgetti, M.; Christian, M.; Morandi, V.; Scavetta, E.; Tonelli, D. Ni/Al Layered Double Hydroxide and Carbon Nanomaterial Composites for Glucose Sensing. ACS Appl. Nano Mater. 2019, 2, 143–155. [Google Scholar] [CrossRef]
  80. Wang, Y.; Peng, W.; Liu, L.; Tang, M.; Gao, F.; Li, M. Enhanced conductivity of a glassy carbon electrode modified with a graphene-doped film of layered double hydroxides for selectively sensing of dopamine. Microchim. Acta 2011, 174, 41–46. [Google Scholar] [CrossRef]
  81. Patel, V.; Kruse, P.; Selvaganapathy, P.R. Solid State Sensors for Hydrogen Peroxide Detection. Biosensors 2020, 11, 9. [Google Scholar] [CrossRef]
  82. Andersen, B.M.; Rasch, M.; Hochlin, K.; Jensen, F.-H.; Wismar, P.; Fredriksen, J.-E. Decontamination of rooms, medical equipment and ambulances using an aerosol of hydrogen peroxide disinfectant. J. Hosp. Infect. 2006, 62, 149–155. [Google Scholar] [CrossRef]
  83. Meier, J.; Hofferber, E.; Stapleton, J.A.; Iverson, N.M. Hydrogen peroxide sensors for biomedical applications. Chemosensors 2019, 7, 64. [Google Scholar] [CrossRef] [Green Version]
  84. Yang, Z.; Zheng, X.; Zheng, J. Non-enzymatic sensor based on a glassy carbon electrode modified with Ag nanoparticles/polyaniline/halloysite nanotube nanocomposites for hydrogen peroxide sensing. RSC Adv. 2016, 6, 58329–58335. [Google Scholar] [CrossRef]
  85. Zhang, S.; Sheng, Q.; Zheng, J. Synthesis of Ag-HNTs-MnO2 nanocomposites and their application for nonenzymatic hydrogen peroxide electrochemical sensing. RSC Adv. 2015, 5, 26878–26885. [Google Scholar] [CrossRef]
  86. Cao, H.; Sun, X.; Zhang, Y.; Jia, N. Electrochemical sensing based on gold nanoparticle-decorated halloysite nanotube composites. Anal. Biochem. 2012, 430, 111–115. [Google Scholar] [CrossRef] [PubMed]
  87. Sheng, Q.; Zhang, D.; Wu, Q.; Zheng, J.; Tang, H. Electrodeposition of Prussian blue nanoparticles on polyaniline coated halloysite nanotubes for nonenzymatic hydrogen peroxide sensing. Anal. Methods 2015, 7, 6896–6903. [Google Scholar] [CrossRef]
  88. Yadav, D.K.; Ganesan, V.; Gupta, R.; Yadav, M.; Sonkar, P.K.; Rastogi, P.K. Copper oxide immobilized clay nano architectures as an efficient electrochemical sensing platform for hydrogen peroxide. J. Chem. Sci. 2020, 132, 1–10. [Google Scholar] [CrossRef]
  89. Yadav, D.K.; Gupta, R.; Ganesan, V.; Sonkar, P.K.; Rastogi, P.K. Electrochemical sensing platform for hydrogen peroxide determination at low reduction potential using silver nanoparticle-incorporated bentonite clay. J. Appl. Electrochem. 2016, 46, 103–112. [Google Scholar] [CrossRef]
  90. Yan, P.; Zhong, L.; Wen, X.; Tang, A. Fabrication of Cu2O/TiO2/sepiolite electrode for effectively detecting of H2O2. J. Electroanal. Chem. 2018, 827, 1–9. [Google Scholar] [CrossRef]
  91. Heli, H.; Pishahang, J.; Amiri, H.B. Synthesis of hexagonal CoAl-layered double hydroxide nanoshales/carbon nanotubes composite for the non-enzymatic detection of hydrogen peroxide. J. Electroanal. Chem. 2016, 768, 134–144. [Google Scholar] [CrossRef] [Green Version]
  92. Yuan, J.; Xu, S.; Zeng, H.Y.; Cao, X.; Dan Pan, A.; Xiao, G.F.; Ding, P.X. Hydrogen peroxide biosensor based on chitosan/2D layered double hydroxide composite for the determination of H2O2. Bioelectrochemistry 2018, 123, 94–102. [Google Scholar] [CrossRef]
  93. Charradi, K.; Gondran, C.; Amara, A.B.H.; Prévot, V.; Mousty, C. H2O2 determination at iron-rich clay modified electrodes. Electrochim. Acta 2009, 54, 4237–4244. [Google Scholar] [CrossRef]
  94. Gualandi, I.; Scavetta, E.; Zappoli, S.; Tonelli, D. Electrocatalytic oxidation of salicylic acid by a cobalt hydrotalcite-like compound modified Pt electrode. Biosens. Bioelectron. 2011, 26, 3200–3206. [Google Scholar] [CrossRef]
  95. Dehdashtian, S.; Behbahani, M.; Noghrehabadi, A. Fabrication of a novel, sensitive and selective electrochemical sensor for antibiotic cefotaxime based on sodium montmorillonite nonoclay/electroreduced graphene oxide composite modified carbon paste electrode. J. Electroanal. Chem. 2017, 801, 450–458. [Google Scholar] [CrossRef]
  96. Joshi, N.; Sharma, A.; Rawat, K.; Asokan, K.; Solanki, P.R.; Lakshmi, G.B.V.S.; Kanjilal, D.; Bohidar, H.B. Comparative evaluation of enzyme-free nanoclay-ionic liquid based electrodes for detection of bioanalytes. RSC Adv. 2016, 6, 66120–66129. [Google Scholar] [CrossRef]
  97. Felbeck, T.; Lezhnina, M.M.; Resch-Genger, U.; Kynast, U.H. Red emissive nanoclay hybrids in transparent aqueous dispersion—Towards optical applications in biophotonics. J. Lumin. 2016, 169, 728–732. [Google Scholar] [CrossRef]
  98. Yang, D.; Wang, Y.; Wang, Y.; Li, H. A simple and effective luminescence sensor distinguishing cationic surfactants from other type of surfactants. Sens. Actuators B Chem. 2016, 235, 206–212. [Google Scholar] [CrossRef]
  99. Felbeck, T.; Behnke, T.; Hoffmann, K.; Grabolle, M.; Lezhnina, M.M.; Kynast, U.H.; Resch-Genger, U. Nile-red-nanoclay hybrids: Red emissive optical probes for use in aqueous dispersion. Langmuir 2013, 29, 11489–11497. [Google Scholar] [CrossRef] [PubMed]
  100. Chen, X.; Wang, Y.; Chai, R.; Xu, Y.; Li, H.; Liu, B. Luminescent Lanthanide-Based Organic/Inorganic Hybrid Materials for Discrimination of Glutathione in Solution and within Hydrogels. ACS Appl. Mater. Interfaces 2017, 9, 13554–13563. [Google Scholar] [CrossRef] [PubMed]
  101. Chen, X.; Xu, Y.; Li, H.; Liu, B. A nanoclay-based magnetic/fluorometric bimodal strategy for ascorbic acid detection. Sens. Actuators B Chem. 2017, 246, 344–351. [Google Scholar] [CrossRef]
  102. Robby, A.I.; Park, S.Y. Recyclable metal nanoparticle-immobilized polymer dot on montmorillonite for alkaline phosphatase-based colorimetric sensor with photothermal ablation of Bacteria. Anal. Chim. Acta 2019, 1082, 152–164. [Google Scholar] [CrossRef]
  103. Lin, H.C.; Lin, J.J.; Sheng, Y.J. Interaction of Novel Fluorescent Nanoscale Ionic Silicate Platelets with Biomaterials for Biosensors. ACS Appl. Mater. Interfaces 2015, 7, 10771–10778. [Google Scholar] [CrossRef] [PubMed]
  104. Sun, L.; Ding, Y.; Jiang, Y.; Liu, Q. Montmorillonite-loaded ceria nanocomposites with superior peroxidase-like activity for rapid colorimetric detection of H2O2. Sens. Actuators B Chem. 2017, 239, 848–856. [Google Scholar] [CrossRef]
  105. Zhang, L.; Chen, M.; Jiang, Y.; Chen, M.; Ding, Y.; Liu, Q. A facile preparation of montmorillonite-supported copper sulfide nanocomposites and their application in the detection of H2O2. Sens. Actuators B Chem. 2017, 239, 28–35. [Google Scholar] [CrossRef]
  106. Ding, Y.; Sun, L.; Jiang, Y.; Liu, S.; Chen, M.; Chen, M.; Ding, Y.; Liu, Q. A facile strategy for the preparation of ZnS nanoparticles deposited on montmorillonite and their higher catalytic activity for rapidly colorimetric detection of H2O2. Mater. Sci. Eng. C 2016, 67, 188–194. [Google Scholar] [CrossRef] [PubMed]
  107. Wu, K.; Li, W.; Zhao, S.; Chen, W.; Zhu, X.; Cui, G.; Liu, Z.; Liu, Q.; Zhang, X.; Zhang, X. Cobalt tuned copper sulfide on montmorillonite: Peroxidase-like activity, catalytic mechanism and colorimetric sensing of hydrogen peroxide. Colloids Surfaces A Physicochem. Eng. Asp. 2020, 602, 125063. [Google Scholar] [CrossRef]
  108. Lian, S.; Gao, L.; Chen, M.; Liu, Z.; Qiu, J.; Zhang, X.; Luo, X.; Zeng, R.; Liu, Q. Enhanced peroxidase-like activity of MMT-supported cuprous oxide nanocomposites toward rapid colorimetric estimation of H2O2. Appl. Organomet. Chem. 2019, 33, 1–10. [Google Scholar] [CrossRef]
  109. Cao, X.; Yang, H.; Wei, Q.; Yang, Y.; Liu, M.; Liu, Q.; Zhang, X. Fast colorimetric sensing of H2O2 and glutathione based on Pt deposited on NiCo layered double hydroxide with double peroxidase-/oxidase-like activity. Inorg. Chem. Commun. 2021, 123. [Google Scholar] [CrossRef]
  110. Hill, E.H.; Zhang, Y.; Whitten, D.G. Aggregation of cationic p-phenylene ethynylenes on Laponite clay in aqueous dispersions and solid films. J. Colloid Interface Sci. 2015, 449, 347–356. [Google Scholar] [CrossRef]
Figure 1. (a) Tetrahedral sheet; (b) octahedral sheet. Layered nanoclay structures: (c) neutral nanoclays (type 0:1 and 2:1), (d) cationic nanoclays (type 2:1 and 2:1:1), and (e) anionic nanoclays (type 0:1).
Figure 1. (a) Tetrahedral sheet; (b) octahedral sheet. Layered nanoclay structures: (c) neutral nanoclays (type 0:1 and 2:1), (d) cationic nanoclays (type 2:1 and 2:1:1), and (e) anionic nanoclays (type 0:1).
Inorganics 09 00043 g001
Figure 2. Schematic representation of clay/AuNPs synthesis, AChE immobilization, and SPCE modification with (a) successful APTES modification and (b) unsuccessful APTES modification. Reprinted with permission from ref. [51]. Copyright 2020 Elsevier.
Figure 2. Schematic representation of clay/AuNPs synthesis, AChE immobilization, and SPCE modification with (a) successful APTES modification and (b) unsuccessful APTES modification. Reprinted with permission from ref. [51]. Copyright 2020 Elsevier.
Inorganics 09 00043 g002
Figure 3. A schematic drawing of enzyme biosensor based on electrode with nanoclay hybrids. Reprinted with permission from ref. [23]. Copyright 2015 Elsevier.
Figure 3. A schematic drawing of enzyme biosensor based on electrode with nanoclay hybrids. Reprinted with permission from ref. [23]. Copyright 2015 Elsevier.
Inorganics 09 00043 g003

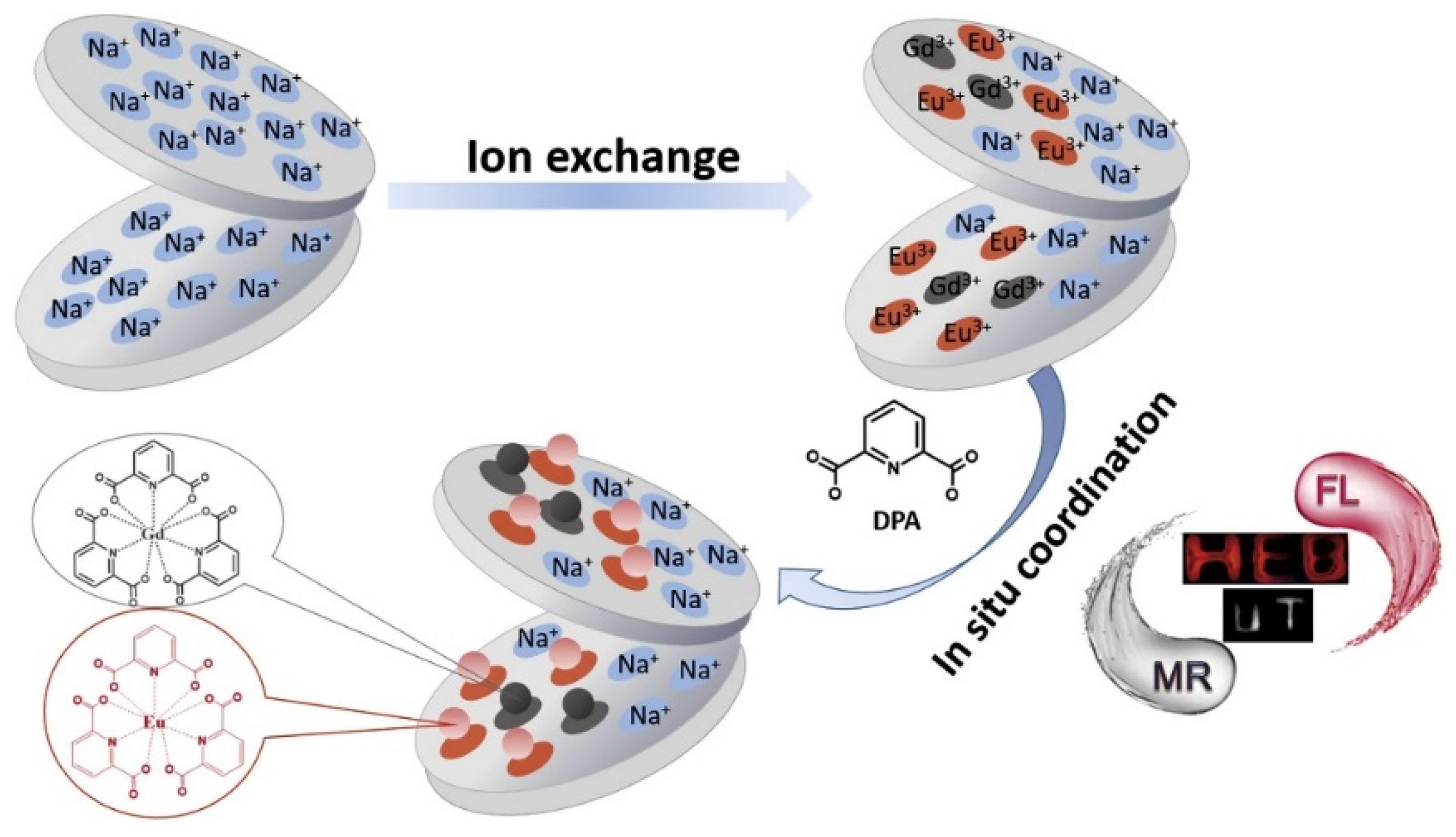

Figure 4. Schematic representation of the Eu(DPA)/Gd(DPA)@Lapo nanohybrid system. Reprinted with permission from ref. [101]. Copyright 2017 Elsevier.
Figure 4. Schematic representation of the Eu(DPA)/Gd(DPA)@Lapo nanohybrid system. Reprinted with permission from ref. [101]. Copyright 2017 Elsevier.
Inorganics 09 00043 g004
Figure 5. Schematic illustration of the colorimetric sensing of H2O2 catalyzed by Co-doped CuS-MMT. Reprinted with permission from [107]. Copyright 2020 Elsevier.
Figure 5. Schematic illustration of the colorimetric sensing of H2O2 catalyzed by Co-doped CuS-MMT. Reprinted with permission from [107]. Copyright 2020 Elsevier.
Inorganics 09 00043 g005
Table 1. Nanoclays’ classification.
Table 1. Nanoclays’ classification.
Type of Layer ChargeGroupLayer TypeLayer Charge O10(OH,F)2 Unit
NeutralKaolinite-serpentine1:1<0.01
Pyrophyllite-Talc2:10
CationicSmectite2:10.2 to 0.6
Vermiculite0.6 to 0.9
Micaca. 1
Brittle micaup to 2
Chlorite2:1:1variable
AnionicLayered double hydroxide (LDH)0:1variable
Table 2. Performances of several chemically modified electrodes toward fungicide determination.
Table 2. Performances of several chemically modified electrodes toward fungicide determination.
ClayModifierAnalyteDetection TechniqueAnalytical Range (µM)LOD
(µM)
Ref.
MontmorilloniteCu2+PropinebSWV5.0–301[42]
MontmorilloniteOctyltriethoxisilaneCarbendazimCV1–70.03[44]
Montmorillonite-DPV-0.96[45]
MontmorilloniteHeteropolyacidSWV0.052–2.6150.052[21]
CLDHAChEChlorpyrifosDPV1.43 × 10−4–0.431.43 × 10−4[43]
SWV: square wave voltammetry; DPV: differential pulse voltammetry; CV: cyclic voltammetry; CLDH: Cu-Mg-Al calcined-layered double hydroxide; AChE: acetylcholinesterase.
Table 3. Performances of several chemically modified electrodes toward herbicide determination.
Table 3. Performances of several chemically modified electrodes toward herbicide determination.
ClayModifierAnalyteDetection TechniqueAnalytical Range (µM)LOD
(µM)
Ref.
Cameroonian smectite-MesotrioneSWV5–19-[20]
Cameroonian smectiteCetyltrimethyl ammoniumSWV1.25–9.80-[20]
Cameroonian smectiteDDASWV0.25–2.240.26[20]
montmorilloniteTriethoxyoctylsilaneGlyphosateSWV10–1000.98[39]
NiAl-LDH-phenyl urea herbicidesCV0.02–0.180.001[40]
montmorillonite film-CV0.206–61.80.206[45]
montmorilloniteOrgano functionalizedSWV5 × 10−3–1.455 × 10−3[21]
montmorilloniteK+ParaquatCV0.03–0.40.14 × 10−3[38]
Smectite film-SWV1.6–2.83.8 × 10−3[46]
clay composite filmβ-cyclodextrinDPV0.099–1.992.8 × 10−3[47]
SWV: square wave voltammetry; DPV: differential pulse voltammetry; CV: cyclic voltammetry; NiAl-LDH: layered double hydroxide; DDA: didodecyldimethyl ammonium.
Table 4. Behavior of several enzymatic biosensors toward herbicide determination.
Table 4. Behavior of several enzymatic biosensors toward herbicide determination.
ClayEnzymeAnalyteDetection TechniqueAnalytical Range (mg/L)LOD
(mg/L)
Ref.
NanoclayAtemoya peroxidaseGlyphosateSWV100–455030[49]
CH-MtAChEChlorpyrifosCV0.5–10000.448[50]
KaolAChEEIS0.5–2000.28[51]
MtAChEEIS0.5–1000.48[51]
BentAChEEIS2–2000.65[51]
SepAChEEIS2–2000.71[51]
AChE: acetylcholinesterase; Kaol: kaolinite; Mt: montmorillonite; Bent: bentonite; Sep: sepiolite; CH-Mt = chitosan-montmorillonite; SWV: square wave voltammetry; CV: cyclic voltammetry; EIS: electrochemical impedance spectroscopy.
Table 5. Electrochemical nanoclay sensors for glucose detection.
Table 5. Electrochemical nanoclay sensors for glucose detection.
EnzymeClayFunctional MoleculeElectrodeAnalytical Ranges (mM)LOD (µM)Response Time (s)Ref.
GOxMtM/DMCarbon0.05–1.0387[60]
GOxMtPAMAM dendrimerCarbon0.01–164<3[61]
PyOxMtPVA/PAMAMCarbon0.005–0.250.7-[62]
PyOxMtCalixareneCarbon-0.520[63]
G. oxydansMttrimethylamineGCE0.1–5.0--[64]
GOxMtGly, Lys, GluCarbon0.1–1.0--[65]
PyOxDelliteCTABCarbon0.01–0.50.081-[66]
GOxPalPoPDPt disk0.05–3.70.06246[67]
PyOxMtPGACarbon0.01–0.5--[68]
PyOxMt4-ATPCarbon0.01–0.5--[69]
GOxLapVBT/VBACarbon---[70]
GOxLapPMMA/poly(BIPE)/Graphite---[71]
GOxMtPAN/DDAC/MB-0.01–2.45
2.45–15
2-[72]
GOx: glucose oxidase; PyOx: pyranose oxidase; Mt: montmorillonite; Pal: palygorskite; Lap: laponite; M: methylamine; DM: dimethylamine; PAMAM: Poly(amidoamine); PVA: poly(vinyl) alcohol; Gly: glycine; Lys: lysine; Glu: glutamic acid; CTAB: cetyltrimethylammonium bromide; PoPD: Poly (o-phenyledediamine); PGA: polyglycolide; 4-ATP: 4-aminothiophenol; VBT: vinylbenzyl thymine; VBA: vinylbenzyl triethylammonium chloride; PMMA: polymethylmethacrylate; PAN: polyacrylonitrile; DDAX: dioctadecyl dimethyl ammonium chloride; MB: methylene blue.
Table 6. Nanoclay-based electrochemical sensors for H2O2 detection.
Table 6. Nanoclay-based electrochemical sensors for H2O2 detection.
NanoclayFunctional MoleculeElectrodeLOD
(μM)
Analytical Range
(mM)
Sensitivity
(μA∙mM−1∙cm−2)
Ref.
HallosyteAgNP-PANIGCE0.35 × 10−4 to 4.774.8[84]
HallosyteAg-MnO2GCE0.72 × 10−3 to 4.7111.9[85]
HallosyteAuNPGCE1·10−35 × 10−3 to 0.25570[86]
Hallosyte GCE0.2264 × 10−3 to 1.0640.98[87]
BentoniteCuO NPGCE4.935 × 10−3 to 1060[88]
BentoniteAg NPsGCE9.11 × 10−3 to 5.04.7[89]
SepioliteCu2O NPGCE10.20.02–2.36665[90]
LDHCoAl NPsGCE10-118.0[91]
ZnAl-LDHcarboxymethyl chitosan (CMC)GCE12.40.02–6.0220.4[92]
Nontronite-GCE1090.63–2.450.23[93]
Nontronitemethyl viologen (MV+2)GCE100.01–5
12–40
9.4
54
[93]
NotroniteBovine hemoglobin (Hb)GCE-2–15132[93]
Montmorillonite synthetic (Fe III octahedral)-GCE2460.25–1.600.10[93]
Montmorillonite synthetic (Fe III octahedral)methyl viologen (MV+2)GCE100.01–4
5–40
53
132
[93]
Montmorillonite synthetic (Fe III octahedral)Bovine hemoglobin (Hb)GCE-2–1274[93]
Montmorillonite synthetic- non-iron impurities)Bovine hemoglobin (Hb)GCE-4–180.043[93]
PANI: polyaniline; GCE: glassy carbon electrode.
Table 7. Nanoclay-based electrochemical sensors for organic compounds’ detection.
Table 7. Nanoclay-based electrochemical sensors for organic compounds’ detection.
NanoclayElectrodeFunctional MoleculeAnalyteAnalytical Range (mM)LOD (µM)Ref.
Laponite and MontmorilloniteITOIonic liquidsOrganic acids, urea, glucose or cholesterol--[96]
Co/Al based hydrotalcitePt-Salicylic acid0.01 to 0.5 and 5 × 10−4 to 0.16
0.2
[94]
HNTsCarbonCarbonNiclosamide--[17]
MontmorilloniteCarbonGraphene oxideCefotaxime5 × 10−4 to 4 × 10−3
0.040 to 2.4
1 × 10−4[95]
Table 8. Summary of the different nanoclay-based optical sensors for H2O2, protein, organic compounds, and bacteria detection.
Table 8. Summary of the different nanoclay-based optical sensors for H2O2, protein, organic compounds, and bacteria detection.
NanoclayFunctional MoleculeFluorophoreAnalyteTimeDetection Limit
(μM)
Analytical Range
(mM)
Ref.
Laponite(ttfa)3(topo)2Eu3+
Nile Red
BSA
Β-lactoglobulin
---[97]
Laponite2-thenoyltrifluoroacetoneEu3+CTAB-0–1003.8× 10−6[98]
Laponite Nile RedCTAB---[99]
LaponiteDPAEu3+Glutathione-0.5–301.62× 10−4[100]
LaponiteDPAEu3+Ascorbic acid-0.5–201× 10−4[101]
Montmorillonite-Polymer dotE. coli and S. aureus bacteria-10–107 CFU/mL5.09–4.62 CFU/mL[102]
Montmorillonite-6-(1,3-dioxo-1H-benzo[de]- isoquinolin-2(3H)-yl) hexanoic acidE. coli and S. aureus bacteria---[103]
MontmorilloniteCeO2-H2O2<30 s7.89 × 10−3 to 0.5[104]
MontmorilloniteCuS-H2O230 s24.70.03 to 0.2[105]
MontmorilloniteZnS-H2O2<30 s10.480.07–06[106]
MontmorilloniteCuS/Co+2-H2O2 2.20.01–0.1[107]
MontmorilloniteCuO2-NP-H2O230 s2.3953 × 10−3 to 8 × 10−3[108]
LDHPt NP-H2O230 s76010–90[109]
DPA: pyridine-2, 6-dicarboxylic acid; CTAB: cetyltrimethylammonium bromide.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Pavón, E.; Martín-Rodríguez, R.; Perdigón, A.C.; Alba, M.D. New Trends in Nanoclay-Modified Sensors. Inorganics 2021, 9, 43. https://doi.org/10.3390/inorganics9060043

AMA Style

Pavón E, Martín-Rodríguez R, Perdigón AC, Alba MD. New Trends in Nanoclay-Modified Sensors. Inorganics. 2021; 9(6):43. https://doi.org/10.3390/inorganics9060043

Chicago/Turabian Style

Pavón, Esperanza, Rosa Martín-Rodríguez, Ana C. Perdigón, and María D. Alba. 2021. "New Trends in Nanoclay-Modified Sensors" Inorganics 9, no. 6: 43. https://doi.org/10.3390/inorganics9060043

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
