Synthesis and Thermochromic Luminescence of Ag(I) Complexes Based on 4,6-Bis(diphenylphosphino)-Pyrimidine

by
Alexander V. Artem’ev
*,
Maria P. Davydova
,
Alexey S. Berezin
and
Denis G. Samsonenko
Nikolaev Institute of Inorganic Chemistry, Siberian Branch of Russian Academy of Sciences, 3, Acad. Lavrentiev Ave., 630090 Novosibirsk, Russia
*
Author to whom correspondence should be addressed.
Inorganics 2020, 8(9), 46; https://doi.org/10.3390/inorganics8090046
Submission received: 6 August 2020 / Revised: 22 August 2020 / Accepted: 24 August 2020 / Published: 26 August 2020
(This article belongs to the Special Issue Functional Coordination Polymers and Metal–Organic Frameworks)

Abstract

:
Two Ag(I)-based metal-organic compounds have been synthesized exploiting 4,6-bis(diphenylphosphino)pyrimidine (L). The reaction of this ligand with AgNO3 and AgBF4 in acetonitrile produces dinuclear complex, [Ag2L2(MeCN)2(NO3)2] (1) and 1D coordination polymer, [Ag2L(MeCN)3]n(BF4)2n (2), respectively. In complex 1, µ2-P,P′-bridging coordination pattern of the ligand L is observed, whereas its µ4-P,N,N′,P′-coordination mode appears in 2. Both compounds exhibit pronounced thermochromic luminescence expressed by reversible changing of the emission chromaticity from a yellow at 300 K to an orange at 77 K. At room temperature, the emission lifetimes of 1 and 2 are 15.5 and 9.4 µs, the quantum efficiency being 18 and 56%, respectively. On account of temperature-dependent experimental data, the phenomenon was tentatively ascribed to alteration of the emission nature from thermally activated delayed fluorescence at 300 K to phosphoresce at 77 K.

1. Introduction

Recently, Ag(I)-based metal-organic compounds have attracted increased attention as promising antibacterial agents [1,2], luminescent sensorics [3,4], and potential emitters for lighting application [5,6,7]. The rich coordination abilities of Ag(I) ion coupled with easy accessibility of the organic ligands provide ample opportunities for the design of most diverse coordination architectures covering both simple molecules and sophisticated metal-organic frameworks [8,9,10,11,12,13]. The charge balancing anions (NO3, OAc, OTf, ClO4, BF4, PF6, halides, etc.) can also determine the structure of products, which are self-assembled via the reactions of Ag(I) precursors with organic ligands [14,15,16]. Remarkably, such giant structural diversity of the Ag(I) compounds provides various tools for tuning their functional properties. For instance, they can be regulated by adjusting the electronic properties of organic ligands. Not the least, of the factors are supramolecular interactions of Ag∙∙∙Ag, Ag∙∙∙π, and Ag∙∙∙X kind, which also can influence the properties of the Ag(I) compounds, e.g., luminescence [17,18,19,20,21].
Concerning luminescence of silver(I) metal-organic compounds, it was almost neglected for a long time, probably because of the preconception on photosensitivity of this class in principle. It was not until fairly recently the Ag(I) complexes were recognized as promising emitters, which can exhibit enhanced quantum efficiency coupled with short decay time [22,23,24,25,26,27]. Note that the luminescent properties of Ag(I) complexes primarily depend on the structure of the ligand environment. Compared to Cu(I) complexes showing a metal-to-ligand charge transfer (MLCT) luminescence [28,29], the Ag(I) analogues commonly emit metal-perturbed ligand-centered fluorescence [30,31,32], ligand-centered phosphorescence [33], or dual emission [34]. This stems from the fact that the MLCT excitation is hampered for Ag(I) complexes because of the higher ionization potential of Ag+ ion in comparison with the Cu+ one [35]. This restriction, however, can be overcome using highly electron-donating ligands (e.g., phosphines) coupled with π-acceptors (chelating diimines, azines, etc.). On account of highly electron-donating ligands, the silver d10 orbitals begin to contribute to HOMO and near-HOMO, while the π-acceptors facilitate charge transfer from the metal. As a result, (M + L’)LCT excited states can be generated, thereby inducing thermally activated delayed fluorescence (TADF) in Ag(I) compounds [22,23,24,25,26,27,36,37,38,39,40,41,42]. In the context of OLED application, it is relevant to note that the (M + L’)LCT emission of Ag(I) benefits over that of Cu(I) analogues since the former (i) is shorter in the lifetimes [36,41,42], and (ii) generally appears in the higher energy domain [36,37,39,43,44,45]. On the whole, Ag(I) compounds that emit apparent luminescence at ambient temperature, especially, that of TADF nature, are still rare.
Herein, we report on the synthesis and investigation of two Ag(I) compounds derived from 4,6-bis(diphenylphosphino)pyrimidine and AgNO3 or AgBF4. Both compounds manifest pronounced thermochromic luminescence, which appears as a reversible changing of the emission color from yellow at 300 K to orange/red at 77 K. It should be noted in this regard that the Ag(I) complexes endowed with such property are very limited in number [13,46,47,48,49].

2. Results and Discussion

Synthesis and Characterization

The starting ligand, 4,6-bis(diphenylphosphino)pyrimidine (L), has been synthesized by the treatment of 2,6-dichloropyrimidine with 2 equiv. of lithium diphenylphosphide [50]. The ligand has been tested in the reaction with AgNO3 and AgBF4 in acetonitrile using different reactant’s molar ratios. It has been revealed that the interaction of AgNO3 with ligand L in a 1:1 molar ratio affords dinuclear complex [Ag2L2(MeCN)2(NO3)2] (1) isolated as solvate 1·MeCN (Scheme 1). Meanwhile, using AgBF4 under similar conditions, the reaction provides cationic 1D coordination polymer (CP), [Ag2L(MeCN)3]n(BF4)2n (2) that also crystallizes as solvate 2·MeCN (Scheme 1). The preparative yields of products 1 and 2 are 69 and 91%, respectively.
The products obtained are off-white powders, which are well soluble in acetonitrile. Upon storage on air, both 1·MeCN and 2·MeCN easily lose acetonitrile molecules. Note that the desolvation is reversible: the recrystallization of the powders formed from acetonitrile leads again to the crystals of the above solvates. Both compounds have been characterized by single crystal X-ray diffractometry (sc-XRD), FT-IR, and UV-Vis abortion spectroscopy.
Complex 1·MeCN crystallizes in the monoclinic P21/n space group with one half molecule per asymmetric unit. As seen from Figure 1, the scaffold of 1 is formed by two Ag atoms bridged by two ligands L through phosphorus atoms so that the pyrimidine rings become coplanar. The latter are sandwiched in a “head-to-tail” manner with the distance between the average planes being 3.861 Å. The O atom of the NO3 group and acetonitrile N atom complete the coordination sphere of Ag1 and Ag2 atoms to the distorted {Ag@P2ON} tetrahedron. The bond lengths around metal atoms are comparable with those of most related Ag(I) complexes [51,52,53]. In the crystal, molecules of 1 are associated together and with MeCN molecules via weak C–H∙∙∙O and C–H∙∙∙C contacts forming 3D supramolecular structure.
CP 2·MeCN crystallizes in the orthorhombic P212121 space group, and its crystals contain zig-zag chains propagating along a axis. The chains are built up from alternating ligand molecules and [Ag2(MeCN)3] units, which are linked via Ag–N and Ag–P bonds (Figure 2). The metal atoms of the [Ag2(MeCN)3] units are bridged by two P,N-faces of the adjacent ligands L in a “head-to-tail” fashion. The formed eight-membered cycles feature short Ag···Ag contact of 3.3352(4) Å that is consistent with twice van der Waals radius of Ag atom (3.44 Å [54]). Both Ag1 and Ag2 atoms are ligated by one MeCN molecule (dAg–N ≈ 2.33 Å); besides, a second MeCN molecule is weakly associated (dAg–N ≈ 2.65 Å) with Ag1 atom. As a result, Ag1 atom adopts a T-shaped {Ag@N2P} geometry, while Ag2 center has a distorted see-saw {Ag@N3P} environment. The Ag–NL and Ag–P distances are nearly the same as those in 1·MeCN. The non-coordinated tetrafluoroborate anions and MeCN solvate molecules are associated with the [Ag2L(MeCN)3]n chains by means of van der Waals contacts such as C–H∙∙∙F, C–H∙∙∙N, Ag∙∙∙F, and C∙∙∙F.
FT-IR spectra of solid 1 and 2 are in agreement with sc-XRD data, showing characteristic vibrations of the ligand L along with stretching vibrations of the counter-ions (Figure S1). The N–O and B–F stretchings of the NO3 and BF4 groups appear as strong bands at 1380–1417 and 950–1200 cm–1, correspondingly. The solid state UV-Vis spectra of 1 and 2 (plotted as Kubelka-Munk function, Figure S2) display broad bands expanding from the far-UV edge and falling close at about 400 and 440 nm, respectively (Figure S2). Each absorption band has two pronounced shoulders. The high-energy (HE) shoulders, with λmax ≈ 280 nm, are nearly the same for both compounds, while the low-energy (LE) ones maximize at ≈350 nm for 1 and at ≈390 nm for 2. Considering the literature data [38], the HE absorption band can be attributed to intraligand π–π * and n–π * transitions. The LE band is likely associated with promotions of MLCT kind, which is typical for emissive Ag(I) complexes [22,23,24,25,26,27,36,37,38,39,40].
When UV-irradiated, solid compounds 1 and 2 exhibit yellow luminescence at ambient temperature. Upon cooling down to liquid nitrogen temperature, the luminescence strongly enhances, and its color changes to red-orange (for 1) or red (for 2) (Figure 3d and Figure 4d). The thermochromic luminescence found appears to be reversible: warming the samples to 300 K recovers the initial emission chromaticity. Inspirited by these noticeable findings, we have studied the emission properties of the titled compounds at 77–300 K range. Temperature-dependent emission and excitation spectra of 1 and 2 are plotted in Figure 3 and Figure 4, and the corresponding photophysical data are summarized in Table 1. As seen from the graphs, the emission spectra of 1 and 2 contain a broad band maximized at about 550 and 580 nm, accordingly. The corresponding emission colors on the CIE chromaticity diagram are consistent with those observed by the naked eye. The associated emission lifetimes (τobs) of 1 and 2 measured at 300 K are 15.5 and 9.4 µs, and the photoluminescence quantum yields (ΦPL) are 18 and 56%, respectively. The excitation profiles of 1 and 2 are presented by smooth bands that fall close at about 420 and 440 nm (Figure 3b and Figure 4b). The excitation curves, therefore, resemble the absorption patterns (Figure S2). Note that the compounds studied do not possess excitation-dependent properties, which are quite common for Ag(I) complexes [55,56,57]. When the temperature is gradually lowered to 77 K, the emission bands of 1 and 2 are red-shifted by 30 and 22 nm (Figure 3a and Figure 4a), thereby changing the emission color to red-orange and red, respectively (Figure 3c,d). Simultaneously, the lifetimes rise to 3970 µs (1) and 300 µs (2).
Taken together, these observations suggest that TADF is likely responsible for the room temperature emission of 1 and 2. The temperature dependence of the lifetimes, τobs(T), measured in 77–300 K window, supports this suggestion, following the equation intended for the TADF model [58]:
τ o b s ( T ) = ( 3 + exp ( Δ E ST k B T ) ) / ( 3 τ T + 1 τ S exp ( Δ E ST k B T ) )
wherein τ S and τ T are the lifetimes of prompt fluorescence and phosphorescence, respectively, Δ E S T is the energy gap between the respective excited states (S1 and T1), and k B is the Boltzmann constant. Applying this equation for fitting the datasets of Figure 5, the following values have been roughly estimated for 1: ΔE(S1−T1) = 750 cm−1, fluorescence lifetime τ(S1) = 400 ns, and phosphorescence lifetime τ(T1) = 4000 µs. Analogously, the following values have been estimated for 2: ΔE(S1−T1) = 1000 cm−1, τ(S1) = 35 ns, and τ(T1) = 300 µs. It should be emphasized that the given ΔE(S1−T1) values are purely evaluative because the Eq. 1 can be applied correctly when the emission quantum yields do not change much than the investigated temperature range [58]. Nevertheless, the estimated ΔE(S1−T1) magnitudes agree well with the common values for TADF-emitting Ag(I) and Cu(I) complexes, thus allowing to assume manifestation of TADF by 1 and 2.
As seen from Figure 5, the luminescence of both compounds at ambient temperature represents TADF because the τobs(T) curves attain the high-temperature plateau. The pure phosphorescence begins to appear when the τobs(T) curve reaches the low-temperature plateau. In the case of 2, it occurs below 120 K, while complex 1, possessing a narrower ΔE(S1−T1) gap, emits pure phosphorescence at 77 K and below. On the drop-down range of the τobs(T) curves, the contribution of the TADF gradually increases up to ~100% at 300 K, owing to the thermal population of the higher-lying S1 state from the T1 state. As a result, the emission energy shifts in the blue region upon warming from 77 to 300 K, resulting in thermochromic luminescence of 1 and 2. Considering the literature data on the related Ag(I) complexes exhibiting TADF [22,23,24,25,26,27,36,37,38,39,40,41,42], we believe that the S1 and T1 excited states of 1 and 2 are of MLCT or (M + L’)LCT nature. The DFT computations performed on complex 1 support this suggestion revealing that HOMO and near-HOMOs are contributed by silver d-orbitals and p-orbitals of nitrate oxygen atoms, while LUMO and near-LUMOs are pure pyrimidine π-orbitals (Figure S10). Note the previously reported Ag(I) complexes feature a similar HOMO/LUMO distribution pattern [22,23,24,25,26,27,36,37,38,39,40,41,42]. Thus, it can be assumed that the emissive excited state of 1 has a 1,3(M + L’)LCT character (L’ = NO3, and L = pyrimidyldiphosphine).

3. Materials and Methods

3.1. General

Synthesis of the ligand L was performed under argon atmosphere, while the compounds 1 and 2 were prepared under ambient conditions. AgNO3 (≥99.9%, Aldrich, St. Louis, Missouri, MO, USA), AgBF4 (≥99.9%, Aldrich), n-BuLi (2.5 M in hexanes, Aldrich), 4,6-dichloropyrimidine (97%, Aldrich), and diphenylphosphine (98%, Aldrich) were used as purchased. Prior to use, commercial tetrahydrofuran (THF, anhydrous, ≥99.9%, Aldrich) was purified by distillation over sodium/benzophenone under argon flow. Acetonitrile and dichloromethane were distilled over phosphorus pentoxide.
FT-IR spectra were measured on a Bruker Vertex 80 spectrometer (Bruker, Billerica, Massachusetts, MA, USA) at ambient temperature. The microanalyses were performed on a MICRO cube analyzer.
1H, 13C, and 31P{1H} NMR spectra were recorded using a Bruker AV-500 spectrometer at 500.13, 125.8 MHz and 202.46 MHz, respectively, with solvent peaks as reference. The 31P{1H} NMR shifts are expressed with respect to 85% H3PO4/D2O as an external standard.
The microanalyses were performed on a MICRO cube analyzer Photoluminescence spectra were recorded on a Fluorolog 3 spectrometer (Horiba Jobin Yvon, Kyoto, Japan) with a cooled PC177CE-010 photon detection module equipped with an R2658 photomultiplier. The luminescence decays (Figures S5 and S6) were measured on the same instrument. The absolute values of PLQYs were recorded using a Fluorolog 3 Quanta-phi device (Horiba Jobin Yvon). The luminescence quantum yield at 77 K was obtained relative to the quantum yield of the same sample at 300 K. Independently, these relative quantum yields were calibrated by using the absolute PLQY values measured at 77 K. Temperature dependences of luminescence were carried out using Optistat DN optical cryostats (Oxford Instruments, Abingdon, UK).
The solid-state reflectance spectra were recorded on a Shimadzu UV-3101 spectrophotometer (Shimadzu Corporation, Kyoto, Japan). Samples were prepared by a thorough grinding of a mixture of a complex (ca. 2 mol %) with BaSO4. The reflectance data were converted into a spectrum applying a Kubelka-Munk function using BaSO4 as a standard.
DFT computations of 1 were performed using the hybrid B3LYP functional [59] combined with the def2TZVP basis sets [60]. The calculations were performed for single point geometry taken from X-ray coordinates for non-hydrogen atoms. The computations were proceeded using Gaussian 09 suite [61].

3.2. Synthesis of 4,6-Bis(diphenylphosphino)pyrimidine (L)

n-BuLi in hexanes (2.5 M, 15 mL) was added dropwise to a solution of diphenylphosphine (6.139 g, 0.033 mol) in absolute THF (40 mL) at −20 °C. The mixture was kept at −20 °C and stirred for 1 h. Then, at the same temperature, suspension of 4,6-dichloropyrimidine (2.384 g, 0.016 mol) in THF (10 mL) was added dropwise. The resulting mixture was warmed to 40 °C and stirred for 4 h. After that H2O (50 mL) was added and the quenched mixture was extracted with CH2Cl2 (3 × 30 mL). The organic extracts were washed with H2O (3 × 10 mL), dried with Na2SO4, and evaporated in vacuum. The crude product obtained was recrystallized from MeOH/CH2Cl2 (10:1, v/v) to give colorless crystals of L. Yield: 4.087 g (57%). 1H NMR (500.13 MHz, CDCl3) δ 9.20 (s, 1H, C2–H in Pym), 7.35–7.31 (m, 20H in Ph), 6.69 (s, 1H, C5–H in Pym). 13C{1H} NMR (126 MHz, CDCl3) δ 174.4 (d, J = 7.0 Hz, C4 and C6 in Pym), 156.8 (t, J = 9.3 Hz, C2 in Pym), 134.4 (s, o-Ph), 134.3 (s, o-Ph), 133.6 (d, J = 8.8 Hz, i-Ph), 132.1 (d, J = 9.6 Hz, C5 in Pym), 129.7 (s, p-Ph), 128.9 (d, J = 7.8 Hz, m-Ph). 31P{1H} NMR δ (202.47 MHz, CDCl3) −2.62. FT-IR (KBr, cm−1): 424 (w), 434 (w), 444 (m), 463 (w), 484 (m), 500 (vs), 544 (w), 608 (w), 619 (w), 696 (vs), 743 (vs), 766 (m), 783 (w), 889 (w), 978 (w), 999 (m), 1026 (m), 1070 (w), 1097 (m), 1157 (w), 1184 (w), 1260 (s), 1310 (w), 1331 (w), 1435 (s), 1479 (s), 1535 (s), 1584 (w), 2984 (vw), 3049 (w), 3071 (vw).

3.3. [Ag2L2(NO3)2(MeCN)2]·MeCN (1·MeCN)

A solution of L (50 mg, 0.11 mmol) and AgNO3 (20 mg, 0.11 mmol) in CH3CN (1 mL) was stirred at room temperature for 30 min. The precipitated white powder of the 1·CH3CN was centrifuged and dried in air. White powder. Yield: 50 mg (69%). Single crystals of 1·CH3CN were grown by vapor diffusion of diethyl ether into the CH3CN solution for overnight. FT-IR (thin film, cm−1): 474 (m), 505 (s), 692 (vs), 746 (s), 997 (w), 1028 (w), 1099 (m), 1265 (m), 1288 (s), 1385 (s), 1420 (s), 1437 (vs), 1481 (m), 1495 (m), 1539 (vs), 2251 (w), 2294 (vw), 2921 (w), 2936 (vw), 2994 (vw), 3056 (w). Anal. Calcd: C56H44Ag2N6P4O6 (1236.62) C, 54.4; H, 3.6; N, 6.8. Found: C, 54.4; H, 3.4; N, 6.7. Since the solvate 1·CH3CN quickly loses the molecules of acetonitrile upon storage, the microanalysis was calculated on [Ag2(L)2(NO3)2].

3.4. [Ag2L(MeCN)3]n(BF4)2n·MeCN (2·MeCN)

A solution of L (50 mg, 0.11 mmol) and AgBF4 (43 mg, 0.22 mmol) in CH3CN (1 mL) was stirred at room temperature for 30 min. To the resulting solution, diethyl ether (5 mL) was then added and the precipitate formed was centrifuged and dried in air. White powder. Yield: 100 mg (91%). Single crystals of 2·CH3CN were grown by vapor diffusion of diethyl ether into the CH3CN solution for overnight. FT-IR (cm−1): 478 (w), 507 (m), 519 (m), 692 (S), 746 (m), 997 (m), 1063 (vs), 1084 (vs), 1097 (vs), 1163 (w), 1184 (w), 1287 (w), 1308 (w), 1437 (s), 1454 (w), 1481 (w), 1497 (w), 1560 (m), 1634 (w), 2253 (w), 2298 (w), 2388 (w), 2971 (w), 3009 (vw), 3063 (w). Anal. Calcd: C28H22Ag2B2F8N2P2 (837.78) C, 40.1; H, 2.6; N, 3.3. Found: C, 40.0; H, 2.6; N, 3.5. Since the solvate 2·CH3CN quickly loses the molecules of acetonitrile upon storage, the microanalysis was calculated on [Ag2L](BF4)2.

3.5. X-ray Crystallography

Single crystals of 1∙MeCN and 2·MeCN were grown by diffusion of diethyl ether vapors into a MeCN solutions at ambient temperature for overnight. The X-ray data and the details of the refinement are summarized in Table S1. Diffraction data were collected on an automated Agilent Xcalibur diffractometer equipped with an area AtlasS2 detector (graphite monochromator, λ (Mo Kα) = 0.71073 Å, ω-scans, Agilent, Santa Clara, California, CA, USA). Integration, absorption correction, and determination of unit cell parameters were performed using the CrysAlisPro program package [62]. The structures were solved by dual space algorithm (SHELXT [63]) and refined by the full-matrix least squares technique (SHELXL [64]) in the anisotropic approximation (except hydrogen atoms). Positions of hydrogen atoms of organic ligands were calculated geometrically and refined in the riding model.
The crystallographic data and details of the structure refinements are summarized in Table S1. CCDC 2020455 and 2020456 contain the supplementary crystallographic data for this paper. These data can be obtained free of charge from The Cambridge Crystallographic Data Center at http://www.ccdc.cam.ac.uk/data_request/cif.

4. Conclusions

Thus, two Ag(I) metal-organic compounds have been synthesized by the treatment of 4,6-bis(diphenylphosphino)pyrimidine (L) with AgNO3 and AgBF4 in acetonitrile. It has been revealed that the interaction with AgNO3 results in neutral dinuclear complex, [Ag2L2(MeCN)2(NO3)2], while the reaction with AgBF4 produces cationic 1D zig-zag polymer, [Ag2L(MeCN)3]n(BF4)2n. The structure of the complex is built up from two Ag(I) ions bridged by the two ligands in a µ2-P,P′-manner. The 1D chains of the polymer are assembled by alternating ligand (µ4-N,P,N′,P′) and [Ag2(MeCN)3] units, interconnected through Ag–N and Ag–P bonds. Both title compounds feature pronounced thermochromic luminescence, which appears as reversible yellow-to-orange changing of the emission color during the cooling-warming cycling (300–77 K). The detailed temperature-dependent photophysical study has shown that the ambient temperature photoluminescence of the above compounds may be tentatively ascribed to TADF. At 77 K, they certainly emit pure phosphorescence. The distinct thermochromic behavior of the complexes designed makes them promising materials for luminescent thermometry. From the fundamental viewpoint, the findings reported contribute to coordination chemistry and photophysics of Ag(I)-based metal-organic compounds.

Supplementary Materials

The following are available online at https://www.mdpi.com/2304-6740/8/9/46/s1, Figure S1: FT-IR spectra of 1 and 2 displayed in the fingerprint range; Figure S2: Solid state absorption spectra of 1 and 2 plotted as a Kubelka–Munk function; Figure S3: Temperature dependence of the integral intensity of the emission of 1ex = 365 nm); Figure S4: Temperature dependences of the integral intensity of the emission of 2 recorded at λex = 410 nm (left) and λex = 365 nm (right); Figure S5: Emission decay profiles of 1 recorded at different temperatures (λex = 385 nm, λem = 550 nm); Figure S6: Emission decay profiles of 2 recorded at different temperatures (λex = 410 nm, λem = 580 nm); Figure S7: 1H NMR spectrum of the ligand L (CDCl3); Figure S8: J-modulated 13C NMR spectrum of the ligand L (CDCl3); Figure S9: 31P{1H} NMR spectrum of the ligand L (CDCl3); Figure S10: Four lowest unoccupied and 4 highest occupied MOs (iso-value = 0.045) for the S0 state of the complex 1 calculated at the B3LYP/def2TZVP level; Table S1: X-Ray crystallographic data for 1∙CH3CN and 2·CH3CN; the CIF and the checkCIF output files are included in the Supplementary Materials.

Author Contributions

Project conceptualization, administration, supervision, writing—review and editing, and funding acquisition, A.V.A.; investigation, writing, data curation, visualization, M.P.D. and A.S.B.; crystallography, D.G.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Russian Science Foundation (Project 18-73-10086).

Acknowledgments

We thank Evgeniya Doronina (A.E. Favorsky Irkutsk Institute of Chemistry, Irkutsk, Russian Federation) for help with the DFT calculations.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Medici, S.; Peana, M.; Crisponi, G.; Nurchi, V.M.; Lachowicz, J.I.; Remelli, M.; Zoroddu, M.A. Silver coordination compounds: A new horizon in medicine. Coord. Chem. Rev. 2016, 327–328, 349–359. [Google Scholar] [CrossRef]
  2. Kulovi, S.; Dalbera, S.; Das, S.; Zangrando, E.; Puschmann, H.; Dalai, S. New silver(I) coordination polymers with hetero donor ligands: Synthesis, structure, luminescence study and photo-catalytic behavior. ChemistrySelect 2017, 2, 9029–9036. [Google Scholar] [CrossRef]
  3. Rawashdeh-Omary, M.A.; Rashdan, M.D.; Dharanipathi, S.; Elbjeirami, O.; Ramesh, P.; Rasika Dias, H.V. On/off luminescence vapochromic selective sensing of benzene and its methylated derivatives by a trinuclear silver(I) pyrazolate sensor. Chem. Commun. 2011, 47, 1160–1162. [Google Scholar] [CrossRef] [PubMed]
  4. Wang, Y.; Shi, Y.; Zou, X.; He, Y.; Wang, X. Pyridylphosphine supported Ag(I) and Cu(I) complexes for detection of alcohols and nitriles via structural transformations from 1D to 0D. CrystEngComm 2019, 21, 5595–5601. [Google Scholar] [CrossRef]
  5. Fresta, E.; Carbonell-Vilar, J.M.; Yu, J.; Armentano, D.; Cano, J.; Viciano-Chumillas, M.; Costa, R.D. Deciphering the electroluminescence behavior of silver(I)-complexes in light-emitting electrochemical cells: Limitations and solutions toward highly stable devices. Adv. Funct. Mater. 2019, 29, 1901797. [Google Scholar] [CrossRef]
  6. Moudam, O.; Tsipis, A.C.; Kommanaboyina, S.; Horton, P.N.; Coles, S.J. First light-emitting electrochemical cell with [Ag (I)(N^N)(P^P)] type complex. RSC Adv. 2015, 5, 95047–95053. [Google Scholar] [CrossRef]
  7. Lu, Z.; Cheng, Y.; Fan, W.; Yang, S.; Liu, X.; Qin, Y.; Zhao, R.; Zheng, L.; Zhang, H. A stable silver metallacage with solvatochromic and mechanochromic behavior for white LED fabrication. Chem. Commun. 2019, 55, 8474–8477. [Google Scholar] [CrossRef]
  8. Khlobystov, A.N.; Blake, A.J.; Champness, N.R.; Lemenovskii, D.A.; Majouga, A.G.; Zyk, N.V.; Schröder, M. Supramolecular design of one-dimensional coordination polymers based on silver(I) complexes of aromatic nitrogen-donor ligands. Coord. Chem. Rev. 2001, 222, 155–192. [Google Scholar] [CrossRef]
  9. Sharma, S.; Chakrahari, K.K.; Saillard, J.-Y.; Liu, C.W. Structurally precise dichalcogenolate-protected copper and silver superatomic nanoclusters and their alloys. Acc. Chem. Res. 2018, 51, 2475–2483. [Google Scholar] [CrossRef]
  10. Huang, R.; Wei, Y.; Dong, X.; Wu, X.-H.; Du, C.-X.; Zang, S.-Q.; Mak, T.C.W. Hypersensitive dual-function luminescence switching of a silver-chalcogenolate cluster-based metal–organic framework. Nat. Chem. 2017, 9, 689–697. [Google Scholar] [CrossRef]
  11. Jin, G.-X.; Zhu, G.-Y.; Sun, Y.-Y.; Shi, Q.-X.; Liang, L.-P.; Wang, H.-Y.; Wu, X.-W.; Ma, J.-P. [Ag–Ag]2+ unit-encapsulated trimetallic cages: One-pot syntheses and modulation of argentophilic interactions by the uncoordinated substituents. Inorg. Chem. 2019, 58, 2916–2920. [Google Scholar] [CrossRef]
  12. Chupina, A.V.; Mukhacheva, A.A.; Abramov, P.A.; Sokolov, M.N. Complexation and isomerization of [β-Mo8O26]4− in the presence of Ag+ and DMF. J. Struct. Chem. 2020, 61, 299–308. [Google Scholar] [CrossRef]
  13. Shmakova, A.A.; Berezin, A.S.; Abramov, P.A.; Sokolov, M.N. Self-assembly of Ag+/[PW11NbO40]4– complexes in nonaqueous solutions. Inorg. Chem. 2020, 59, 1853–1862. [Google Scholar] [CrossRef] [PubMed]
  14. Wu, J.-Y.; Chao, T.-C.; Zhong, M.-S. Influence of counteranions on the structural modulation of silver–di(3-pyridylmethyl)amine coordination polymers. Cryst. Growth Des. 2013, 13, 2953–2964. [Google Scholar] [CrossRef]
  15. Liu, F.-J.; Sun, D.; Hao, H.-J.; Huang, R.-B.; Zheng, L.-S. Anion-controlled assembly of silver(I)/aminobenzonitrile compounds: Syntheses, crystal structures, and photoluminescence properties. Cryst. Growth Des. 2012, 12, 354–361. [Google Scholar] [CrossRef]
  16. Seward, C.; Chan, J.; Song, D.; Wang, S. Anion dependent structures of luminescent silver(I) complexes. Inorg. Chem. 2003, 42, 1112–1120. [Google Scholar] [CrossRef] [PubMed]
  17. Che, C.-M.; Tse, M.-C.; Chan, M.C.W.; Cheung, K.-K.; Phillips, D.L.; Leung, K.-H. Spectroscopic evidence for argentophilicity in structurally characterized luminescent binuclear silver(I) complexes. J. Am. Chem. Soc. 2000, 122, 2464–2468. [Google Scholar] [CrossRef]
  18. Feazell, R.P.; Carson, C.E.; Klausmeyer, K.K. Variability in the structures of luminescent [2-(aminomethyl)pyridine] silver(I) complexes: Effect of ligand ratio, anion, hydrogen bonding, and π-stacking. Eur. J. Inorg. Chem. 2005, 2005, 3287–3297. [Google Scholar] [CrossRef]
  19. Matos, C.R.M.O.; Monteiro, F.G.A.; Miranda, F.S.; Pinheiro, C.B.; Bond, A.D.; Ronconi, C.M. Tuning Photoluminescent properties of silver(I)-based coordination networks through their supramolecular interactions. Cryst. Growth Des. 2017, 17, 5965–5974. [Google Scholar] [CrossRef]
  20. Zhan, S.-Z.; Song, H.-Q.; Guo, L.-J.; Sun, R.W.-Y.; Li, D. Structure- and temperature-dependent luminescence properties of threefold interpenetrated networks: Coordination polymers based on dinuclear gridlike silver(I) units. Eur. J. Inorg. Chem. 2017, 2017, 5127–5133. [Google Scholar] [CrossRef] [Green Version]
  21. Liu, S.Q.; Kuroda-Sowa, T.; Konaka, H.; Suenaga, Y.; Maekawa, M.; Mizutani, T.; Ning, G.L.; Munakata, M. Silver(I) coordination polymers of fluorescent oligo (phenylenevinylene) with π–π stackings:  luminescence and conductivity. Inorg. Chem. 2005, 44, 1031–1036. [Google Scholar] [CrossRef] [PubMed]
  22. Jia, J.-H.; Liang, D.; Yu, R.; Chen, X.-L.; Meng, L.; Chang, J.-F.; Liao, J.-Z.; Yang, M.; Li, X.-N.; Lu, C.-Z. Coordination-induced thermally activated delayed fluorescence: From non-TADF donor–acceptor-type ligand to TADF-active Ag-based complexes. Chem. Mater. 2020, 32, 620–629. [Google Scholar] [CrossRef]
  23. Chen, J.; Teng, T.; Kang, L.; Chen, X.-L.; Wu, X.-Y.; Yu, R.; Lu, C.-Z. Highly efficient thermally activated delayed fluorescence in dinuclear Ag(I) complexes with a bis-bidentate tetraphosphane bridging ligand. Inorg. Chem. 2016, 55, 9528–9536. [Google Scholar] [CrossRef] [PubMed]
  24. Gan, X.-M.; Yu, R.; Chen, X.-L.; Yang, M.; Lin, L.; Wu, X.-Y.; Lu, C.-Z. A unique tetranuclear Ag(I) complex emitting efficient thermally activated delayed fluorescence with a remarkably short decay time. Dalton Trans. 2018, 47, 5956–5960. [Google Scholar] [CrossRef]
  25. Shafikov, M.Z.; Suleymanova, A.F.; Czerwieniec, R.; Yersin, H. Thermally activated delayed fluorescence from Ag(I) complexes: A route to 100% quantum yield at unprecedentedly short decay time. Inorg. Chem. 2017, 56, 13274–13285. [Google Scholar] [CrossRef]
  26. Shafikov, M.Z.; Suleymanova, A.F.; Schinabeck, A.; Yersin, H. Dinuclear Ag(I) Complex designed for highly efficient thermally activated delayed fluorescence. J. Phys. Chem. Lett. 2018, 9, 702–709. [Google Scholar] [CrossRef]
  27. Shafikov, M.Z.; Suleymanova, A.F.; Czerwieniec, R.; Yersin, H. Design strategy for Ag(I)-Based thermally activated delayed fluorescence reaching an efficiency breakthrough. Chem. Mater. 2017, 29, 1708–1715. [Google Scholar] [CrossRef]
  28. Czerwieniec, R.; Leitl, M.J.; Homeier, H.H.H.; Yersin, H. Cu(I) complexes—Thermally activated delayed fluorescence. Photophysical approach and material design. Coord. Chem. Rev. 2016, 325, 2–28. [Google Scholar] [CrossRef]
  29. Moussa, M.S.; Khalil, A.M.; Evariste, S.; Wong, H.-L.; Delmas, V.; Le Guennic, B.; Calvez, G.; Costuas, K.; Yam, V.W.-W.; Lescop, C. Intramolecular rearrangements guided by adaptive coordination-driven reactions toward highly luminescent polynuclear Cu(I) assemblies. Inorg. Chem. Front. 2020, 7, 1334–1344. [Google Scholar] [CrossRef]
  30. Wei, Z.; Wu, X.-H.; Luo, P.; Wang, J.-Y.; Li, K.; Zang, S.-Q. Matrix coordination induced emission in a three-dimensional silver cluster-assembled material. Chem. Eur. J. 2019, 25, 2750–2756. [Google Scholar] [CrossRef] [Green Version]
  31. Du, L.-Y.; Shi, W.-J.; Hou, L.; Wang, Y.-Y.; Shi, Q.-Z.; Zhu, Z. Solvent or temperature induced diverse coordination polymers of silver(I) sulfate and bipyrazole systems: Syntheses, crystal structures, luminescence, and sorption properties. Inorg. Chem. 2013, 52, 14018–14027. [Google Scholar] [CrossRef]
  32. Durini, S.; Ardizzoia, G.A.; Therrien, B.; Brenna, S. Tuning the fluorescence emission in mononuclear heteroleptic trigonal silver(I) complexes. New J. Chem. 2017, 41, 3006–3014. [Google Scholar] [CrossRef]
  33. Shafikov, M.Z.; Czerwieniec, R.; Yersin, H. Ag(I) complex design affording intense phosphorescence with a landmark lifetime of over 100 milliseconds. Dalton Trans. 2019, 48, 2802–2806. [Google Scholar] [CrossRef] [PubMed]
  34. Xu, Q.-Q.; Dong, X.-Y.; Huang, R.-W.; Li, B.; Zang, S.-Q.; Mak, T.C.W. A thermochromic silver nanocluster exhibiting dual emission character. Nanoscale 2015, 7, 1650–1654. [Google Scholar] [CrossRef]
  35. Hsu, C.-W.; Lin, C.-C.; Chung, M.-W.; Chi, Y.; Lee, G.-H.; Chou, P.-T.; Chang, C.-H.; Chen, P.-Y. Systematic investigation of the metal-structure–photophysics relationship of emissive d10-complexes of group 11 elements: The prospect of application in organic light emitting devices. J. Am. Chem. Soc. 2011, 133, 12085–12099. [Google Scholar] [CrossRef] [PubMed]
  36. Yersin, H.; Leitl, M.J.; Czerwieniec, R. TADF for singlet harvesting: Next generation OLED materials based on brightly green and blue emitting Cu(I) and Ag(I) compounds. Proc. SPIE 2014, 9183, 91830N. [Google Scholar]
  37. Osawa, M.; Kawata, I.; Ishii, R.; Igawa, S.; Hashimoto, M.; Hoshino, M. Application of neutral d10 coinage metal complexes with an anionic bidentate ligand in delayed fluorescence-type organic light-emitting diodes. J. Mater. Chem. C 2013, 1, 4375–4383. [Google Scholar] [CrossRef]
  38. Artem’ev, A.V.; Shafikov, M.Z.; Schinabeck, A.; Antonova, O.V.; Berezin, A.S.; Bagryanskaya, I.Y.; Plusnin, P.E.; Yersin, H. Sky-blue thermally activated delayed fluorescence (TADF) based on Ag(I) complexes: Strong solvation-induced emission enhancement. Inorg. Chem. Front. 2019, 6, 3168–3176. [Google Scholar] [CrossRef]
  39. Osawa, M.; Hashimoto, M.; Kawata, I.; Hoshino, M. Photoluminescence properties of TADF-emitting three-coordinate silver(I) halide complexes with diphosphine ligands: A comparison study with copper(I) complexes. Dalton Trans. 2017, 46, 12446–12455. [Google Scholar] [CrossRef]
  40. Titov, A.A.; Filippov, O.A.; Smol’yakov, A.F.; Godovikov, I.A.; Shakirova, J.R.; Tunik, S.P.; Podkorytov, I.S.; Shubina, E.S. Luminescent complexes of the trinuclear silver(I) and copper(I) pyrazolates supported with bis(diphenylphosphino) methane. Inorg. Chem. 2019, 58, 8645–8656. [Google Scholar] [CrossRef] [PubMed]
  41. Hamze, R.; Shi, S.; Kapper, S.C.; Ravinson, D.S.M.; Estergreen, L.; Jung, M.-C.; Tadle, A.C.; Haiges, R.; Djurovich, P.I.; Peltier, J.L.; et al. “Quick-silver” from a systematic study of highly luminescent, two-coordinate, d10 coinage metal complexes. J. Am. Chem. Soc. 2019, 141, 8616–8626. [Google Scholar] [CrossRef]
  42. Chotard, F.; Sivchik, V.; Linnolahti, M.; Bochmann, M.; Romanov, A.S. Mono-versus bicyclic carbene metal amide photoemitters: Which design leads to the best performance? Chem. Mater. 2020, 32, 6114–6122. [Google Scholar] [CrossRef]
  43. Ruan, Z.-W.; Zhang, X.; Pang, A.-Y.; Dai, F.-R.; Chen, Z.-N. Blue luminescent silver(I) complexes constructed by 2-diphenylphosphinopyridine and dicyanamide or tricyanomethanide. Inorg. Chem. Commun. 2020, 116, 107916. [Google Scholar] [CrossRef]
  44. Kakizoe, D.; Nishikawa, M.; Degawa, T.; Tsubomura, T. Intense blue emission and a reversible hypsochromic shift of luminescence caused by grinding based on silver(I) complexes. Inorg. Chem. Front. 2016, 3, 1381–1387. [Google Scholar] [CrossRef]
  45. Yersin, H.; Czerwieniec, R.; Shafikov, M.Z.; Suleymanova, A.F. TADF material design: Photophysical background and case studies focusing on CuI and AgI complexes. ChemPhysChem 2017, 18, 3508–3535. [Google Scholar] [CrossRef] [PubMed]
  46. Chakkaradhari, G.; Eskelinen, T.; Degbe, C.; Belyaev, A.; Melnikov, A.S.; Grachova, E.V.; Tunik, S.P.; Hirva, P.; Koshevoy, I.O. Oligophosphine-thiocyanate copper(I) and silver(I) complexes and their borane derivatives showing delayed fluorescence. Inorg. Chem. 2019, 58, 3646–3660. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Crespo, O.; Gimeno, M.; Laguna, A.; Larraz, C. Luminescent silver(I) and copper(I) systems containing pyridyl phosphine bridges. Z. Naturforsch. B 2009, 64, 1525–1534. [Google Scholar] [CrossRef]
  48. Li, S.; Han, M.; Wu, B.; Wang, J.; Zhang, F.-Q.; Zhang, X.-M. Observation of contrary thermo-responsive trend for single crystal and powder samples in mechano-, thermo- and solvato-responsive luminescent cubane [Ag4I4L4] cluster. Sci. Rep. 2017, 7, 13058. [Google Scholar] [CrossRef] [Green Version]
  49. Dosen, M.; Kawada, Y.; Shibata, S.; Tsuge, K.; Sasaki, Y.; Kobayashi, A.; Kato, M.; Ishizaka, S.; Kitamura, N. Control of emissive excited states of silver(I) halogenido coordination polymers by a solid solution approach. Inorg. Chem. 2019, 58, 8419–8431. [Google Scholar] [CrossRef]
  50. Cui, H.-H.; Wu, N.-N.; Wang, J.-Y.; Hu, M.-Q.; Wen, H.-M.; Chen, C.-N. Pyridyl- and pyrimidyl-phosphine-substituted [FeFe]-hydrogenase mimics: Synthesis, characterization and properties. J. Organomet. Chem. 2014, 767, 46–53. [Google Scholar] [CrossRef]
  51. Miller, P.; Nieuwenhuyzen, M.; Charmant, J.P.H.; James, S.L. ROP relationships between coordination polymers and discrete complexes: Discrete bowl-shaped isomers of a 2-dimensional {M4L3}n polymer. CrystEngComm 2004, 6, 408–412. [Google Scholar] [CrossRef]
  52. Cingolani, A.; Effendy; Martini, D.; Pettinari, C.; Skelton, B.W.; White, A.H. Synthesis, spectroscopic and structural characterization of novel adducts of some silver(I) salts with the ambidentate donor PPh2py. Inorg. Chim. Acta 2006, 359, 2183–2193. [Google Scholar] [CrossRef]
  53. Kuang, S.-M.; Zhang, L.-M.; Zhang, Z.-Z.; Wu, B.-M.; Mak, T.C.W. Synthesis and structural characterization of binuclear silver(I) complexes bridged by three polydentate phosphine ligands. Inorg. Chim. Acta 1999, 284, 278–283. [Google Scholar] [CrossRef]
  54. Bondi, A. van der Waals volumes and radii. J. Phys. Chem. 1964, 68, 441–451. [Google Scholar] [CrossRef]
  55. Zheng, J.; Yu, Y.-D.; Liu, F.-F.; Liu, B.-Y.; Wei, G.; Huang, X.-C. Modulation of argentophilic interactions by bridging amine ligands: Photoluminescence tuneable by excitation energy or temperature. Chem. Commun. 2014, 50, 9000–9002. [Google Scholar] [CrossRef] [PubMed]
  56. Shekhovtsov, N.A.; Vinogradova, K.A.; Berezin, A.S.; Sukhikh, T.S.; Krivopalov, V.P.; Nikolaenkova, E.B.; Bushuev, M.B. Excitation wavelength dependent emission of silver(I) complexes with a pyrimidine ligand. Inorg. Chem. Front. 2020, 7, 2212–2223. [Google Scholar] [CrossRef]
  57. Rogovoy, M.I.; Frolova, T.S.; Samsonenko, D.G.; Berezin, A.S.; Bagryanskaya, I.Y.; Nedolya, N.A.; Tarasova, O.A.; Fedin, V.P.; Artem’ev, A.V. 0D to 3D coordination assemblies engineered on silver(I) salts and 2-(alkylsulfanyl)azine ligands: Crystal structures, dual luminescence, and cytotoxic activity. Eur. J. Inorg. Chem. 2020, 2020, 1635–1644. [Google Scholar] [CrossRef]
  58. Yersin, H. (Ed.) Highly Efficient OLEDs Materials Based on Thermally Activated Delayed Fluorescence; Wiley-VCH: Weinheim, Germany, 2019. [Google Scholar]
  59. Stephens, P.J.; Devlin, F.J.; Chabalowski, C.F.; Frisch, M.J. Relaxation dynamics in the B(1/2) and C(3/2) charge transfer states of XeF in solid Ar. J. Chem. Phys. 1994, 98, 11623–11627. [Google Scholar] [CrossRef]
  60. Weigend, F. Accurate Coulomb-fitting basis sets for H to Rn. Phys. Chem. Chem. Phys. 2006, 8, 1057–1065. [Google Scholar] [CrossRef]
  61. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.; Robb, M.; Cheeseman, J.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.; et al. Gaussian 09, Revision C.01; Gaussian Inc.: Wallingford, CT, USA, 2010. [Google Scholar]
  62. CrysAlisPro 1.171.38.46; Rigaku Oxford Diffraction: Tokyo, Japan, 2015.
  63. Sheldrick, G.M. SHELXT–Integrated space-group and crystal-structure determination. Acta Cryst. A 2015, 71, 3–8. [Google Scholar] [CrossRef] [Green Version]
  64. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Cryst. C 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]

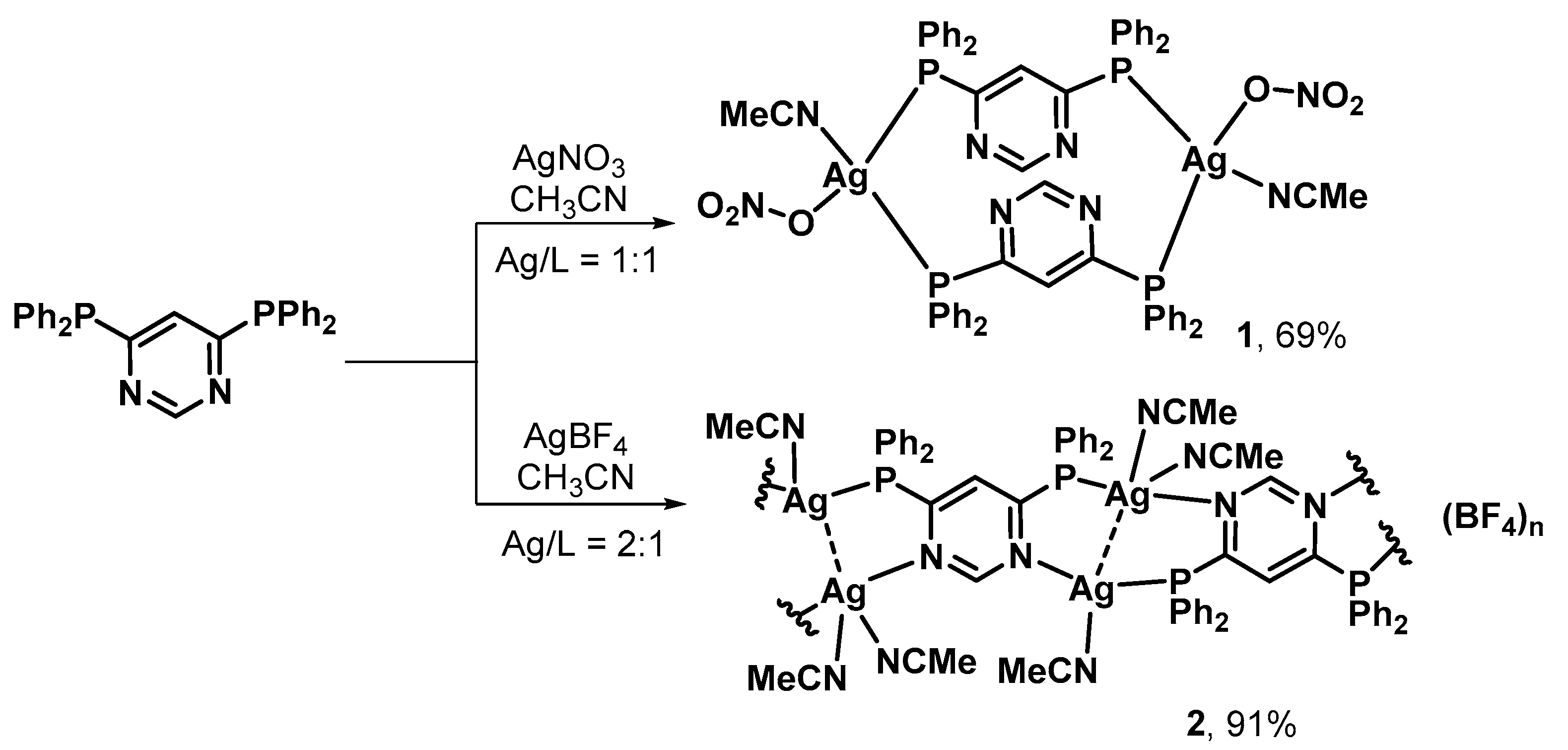

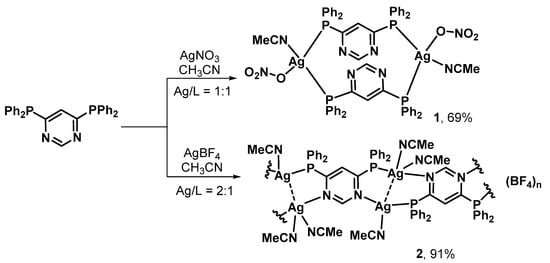

Scheme 1. Synthesis of compounds 1 and 2.
Scheme 1. Synthesis of compounds 1 and 2.
Inorganics 08 00046 sch001

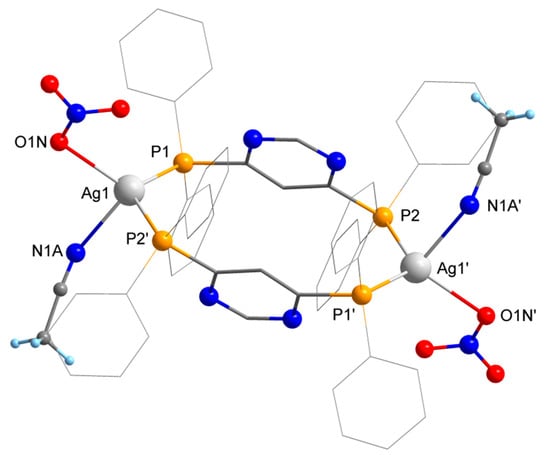

Figure 1. Molecular structure of 1·MeCN. The aromatic H atoms and solvate molecules are omitted. Selected bond lengths (Å) and angles (°): Ag1–P1 2.4224(13), Ag1–P2′ 2.4461(13), Ag1–O1N 2.273(9), Ag1–N1A 2.493(8); P1–Ag1–P2′ 118.48(4), P1–Ag1–O1N 123.4(4), P1–Ag1–N1A 107.0(3), P2′–Ag1–O1N 110.9(3), P2′–Ag1–N1A 96.8(3), O1N–Ag1–P1 134.1(3), O1N–Ag1–N1A 79.8(4). Symmetry code (‘): 1 − x, 1 − y, 1 − z.
Figure 1. Molecular structure of 1·MeCN. The aromatic H atoms and solvate molecules are omitted. Selected bond lengths (Å) and angles (°): Ag1–P1 2.4224(13), Ag1–P2′ 2.4461(13), Ag1–O1N 2.273(9), Ag1–N1A 2.493(8); P1–Ag1–P2′ 118.48(4), P1–Ag1–O1N 123.4(4), P1–Ag1–N1A 107.0(3), P2′–Ag1–O1N 110.9(3), P2′–Ag1–N1A 96.8(3), O1N–Ag1–P1 134.1(3), O1N–Ag1–N1A 79.8(4). Symmetry code (‘): 1 − x, 1 − y, 1 − z.
Inorganics 08 00046 g001

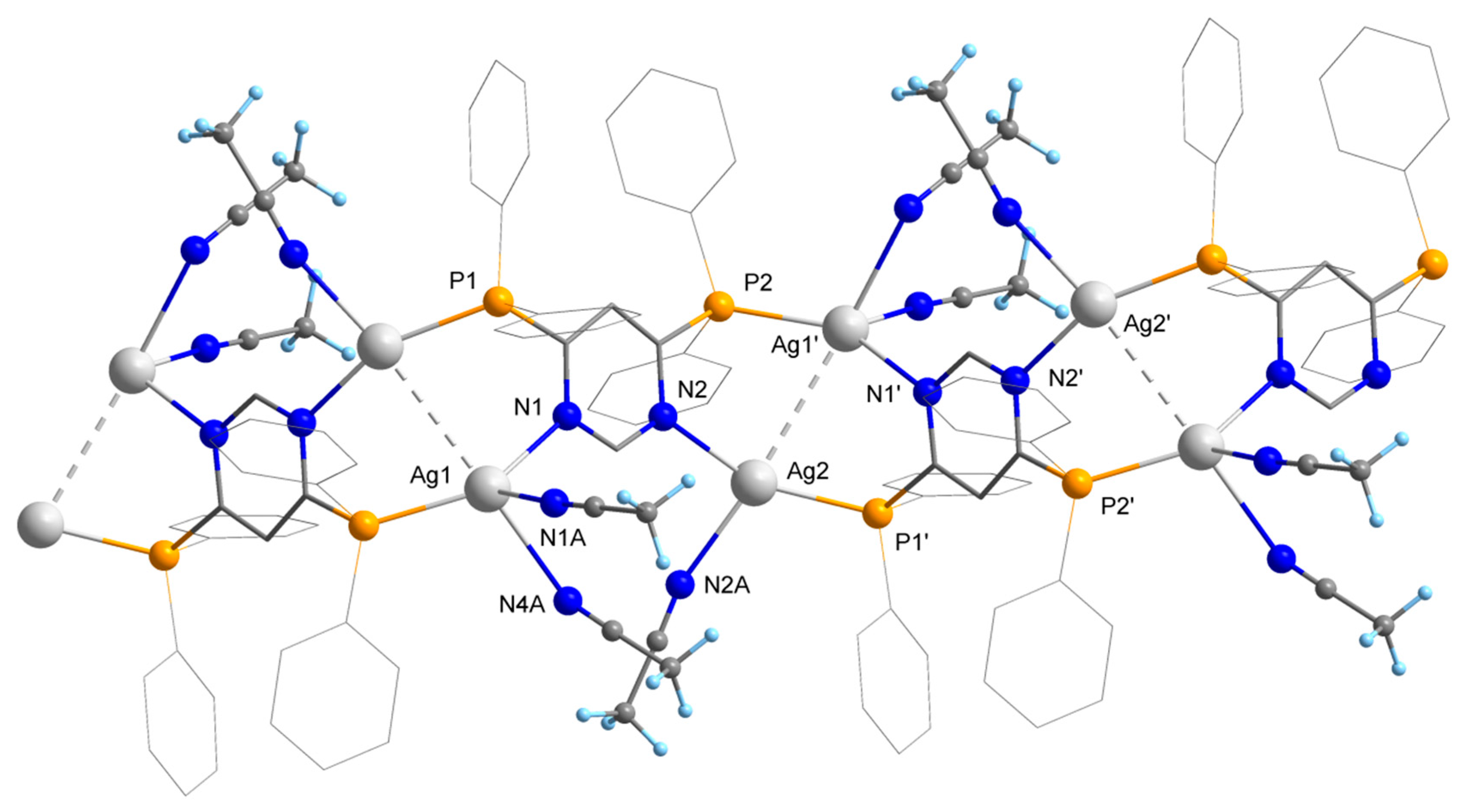

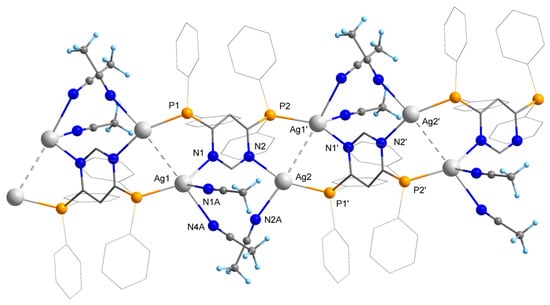

Figure 2. A fragment of the 1D chain of 2·MeCN. The aromatic H atoms, [BF4] counterions and solvate molecules are omitted. Selected bond lengths (Å) and angles (°): Ag1′···Ag2 3.3352(4), Ag1′–P2 2.3943(9), Ag1–N1 2.309(3), Ag1–N1A 2.320(4), Ag1–N4A 2.655(4), Ag2–P1′ 2.3622(9), Ag2–N2 2.242(3), Ag2–N2A 2.351(4); P2–Ag1′–Ag2 69.98(2), N1–Ag1–N1A 98.43(11), N1–Ag1–N4A 87.69(10), N1A–Ag1–N4A 81.28(13), P1′–Ag2–Ag1′ 72.95(2), N2–Ag2–Ag1′ 86.93(7), N2–Ag2–P1′ 152.18(7), N2–Ag2–N2A 92.88(12), N2A–Ag2–Ag1′ 165.92(12), N2A–Ag2–P1′ 111.31(9). Symmetry code (‘): 0.5 + x, 1.5 − y, 1 − z.
Figure 2. A fragment of the 1D chain of 2·MeCN. The aromatic H atoms, [BF4] counterions and solvate molecules are omitted. Selected bond lengths (Å) and angles (°): Ag1′···Ag2 3.3352(4), Ag1′–P2 2.3943(9), Ag1–N1 2.309(3), Ag1–N1A 2.320(4), Ag1–N4A 2.655(4), Ag2–P1′ 2.3622(9), Ag2–N2 2.242(3), Ag2–N2A 2.351(4); P2–Ag1′–Ag2 69.98(2), N1–Ag1–N1A 98.43(11), N1–Ag1–N4A 87.69(10), N1A–Ag1–N4A 81.28(13), P1′–Ag2–Ag1′ 72.95(2), N2–Ag2–Ag1′ 86.93(7), N2–Ag2–P1′ 152.18(7), N2–Ag2–N2A 92.88(12), N2A–Ag2–Ag1′ 165.92(12), N2A–Ag2–P1′ 111.31(9). Symmetry code (‘): 0.5 + x, 1.5 − y, 1 − z.
Inorganics 08 00046 g002

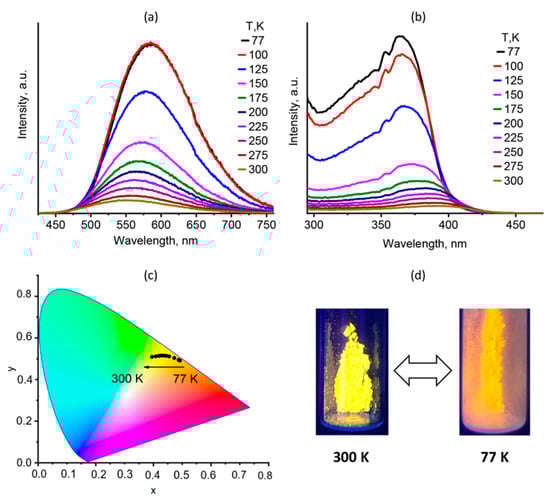

Figure 3. (a) Temperature-dependent emission spectra of 1ex = 385 nm); (b) temperature-dependent excitation spectra of 1em = 580 nm); (c) temperature dependence of the emission chromaticity of 1ex = 385 nm); (d) emission color of sample 1 at 300 and 77 K.
Figure 3. (a) Temperature-dependent emission spectra of 1ex = 385 nm); (b) temperature-dependent excitation spectra of 1em = 580 nm); (c) temperature dependence of the emission chromaticity of 1ex = 385 nm); (d) emission color of sample 1 at 300 and 77 K.
Inorganics 08 00046 g003

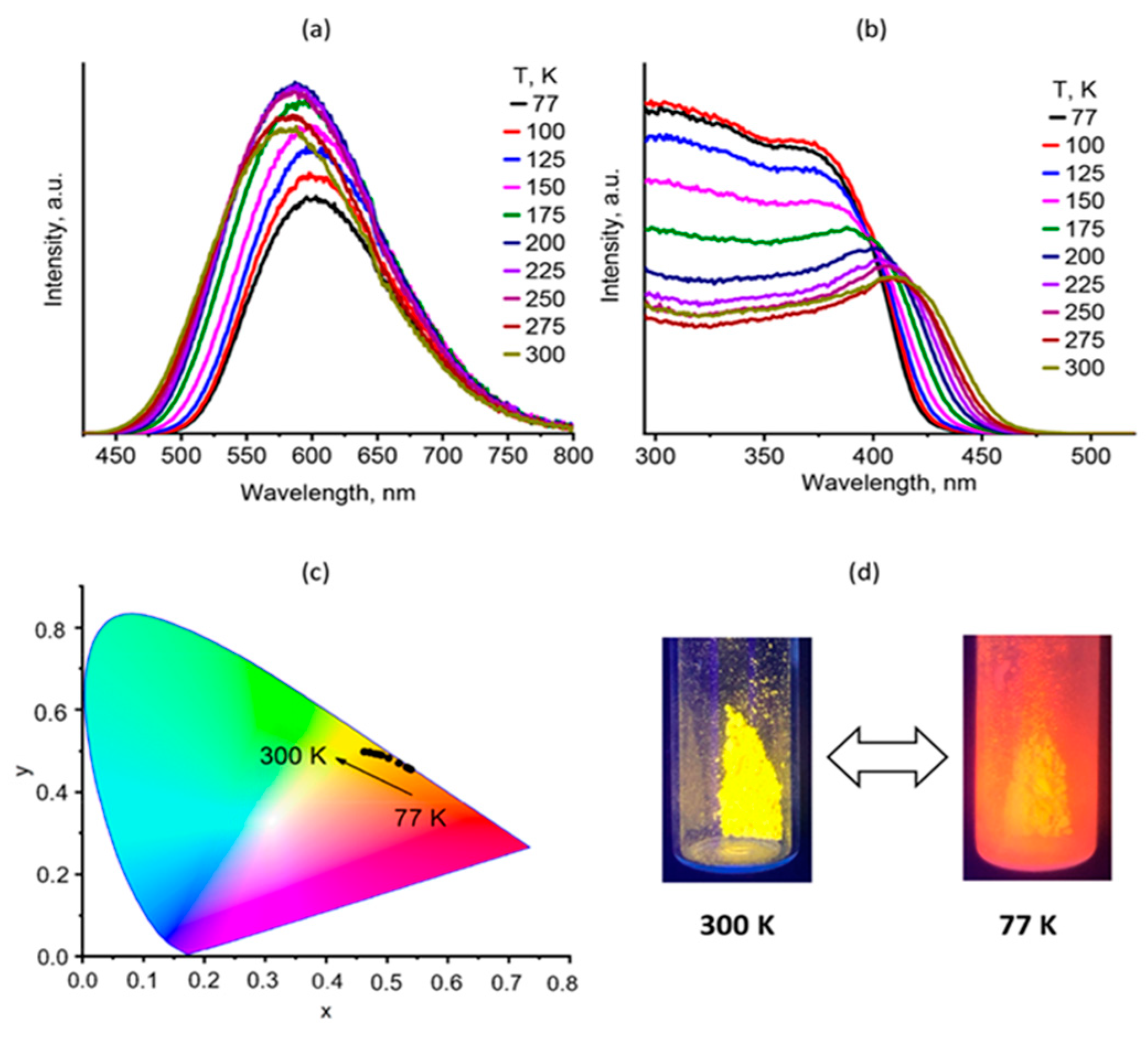

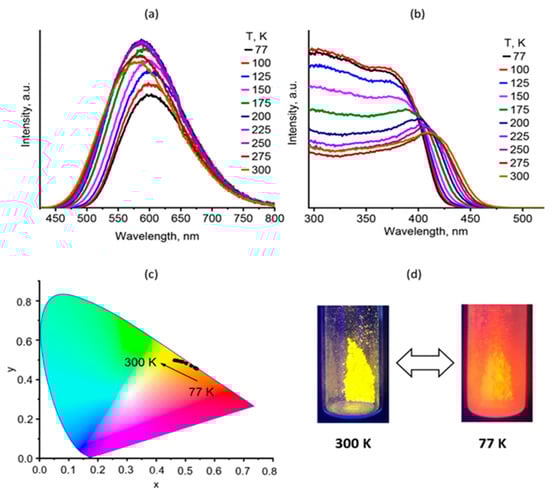

Figure 4. (a) Temperature-dependent emission spectra of 2ex = 410 nm); (b) temperature-dependent excitation spectra of 2em = 580 nm); (c) temperature dependence of the emission chromaticity of 2ex = 385 nm); (d) emission color of sample 2 at 300 and 77 K.
Figure 4. (a) Temperature-dependent emission spectra of 2ex = 410 nm); (b) temperature-dependent excitation spectra of 2em = 580 nm); (c) temperature dependence of the emission chromaticity of 2ex = 385 nm); (d) emission color of sample 2 at 300 and 77 K.
Inorganics 08 00046 g004

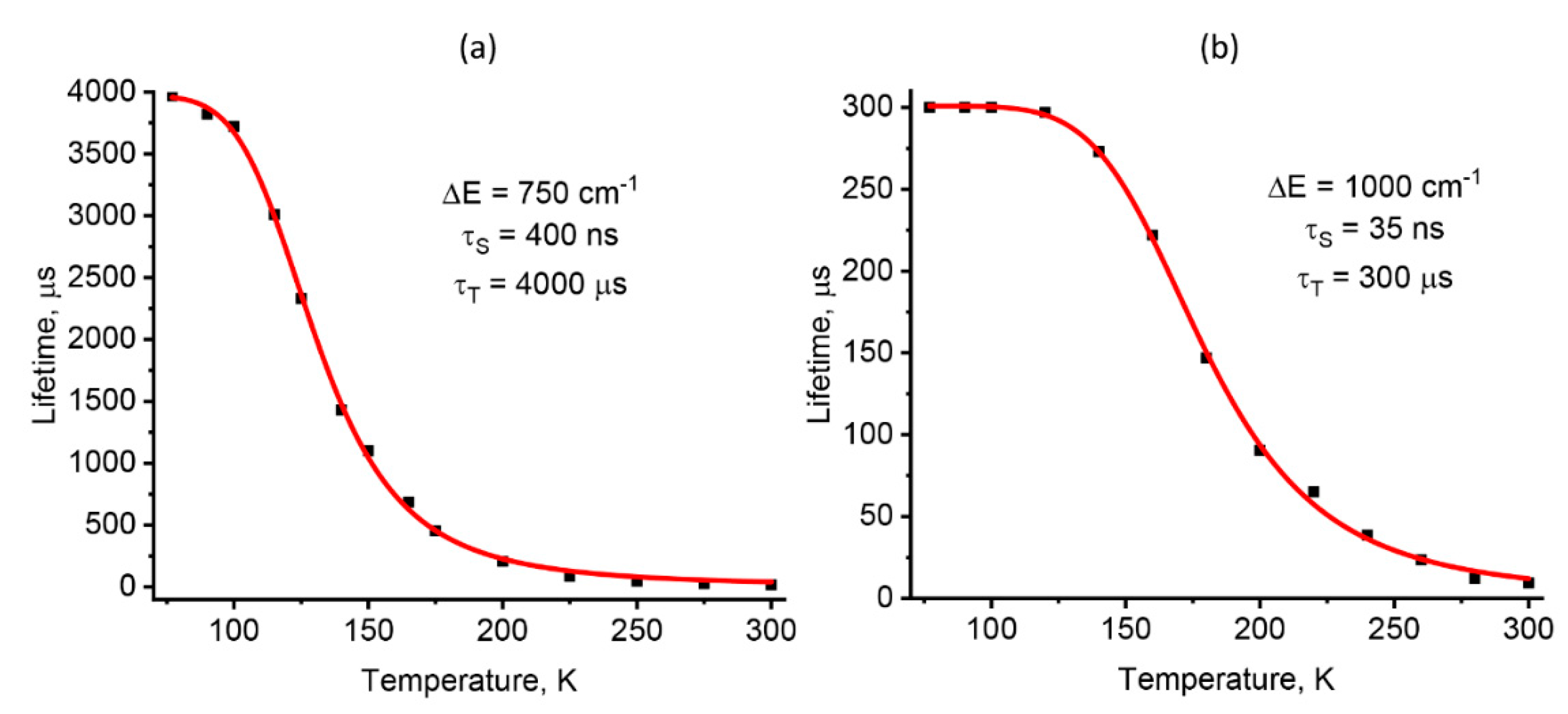

Figure 5. (a) Temperature dependence of the emission lifetimes for 1ex = 385 nm, λem = 550 nm), and (b) for 2ex = 410 nm, λem = 580 nm).
Figure 5. (a) Temperature dependence of the emission lifetimes for 1ex = 385 nm, λem = 550 nm), and (b) for 2ex = 410 nm, λem = 580 nm).
Inorganics 08 00046 g005
Table 1. Photophysical data for solid 1 and 2.
Table 1. Photophysical data for solid 1 and 2.
12
λmax (300 K) (nm)550580
ΦPL (300 K) (%)18 a56 b
τ (300 K) (µs)15.59.4
λmax (77 K) (nm)580602
τ (77 K) (µs)3970300
a λex = 365 nm; b λex = 410 nm.
