Inorganics 2019, 7(11), 136; https://doi.org/10.3390/inorganics7110136

Article
High-Pressure Synthesis, Crystal Structure, and Photoluminescence Properties of β-Y2B4O9:Eu3+
1
Institut für Allgemeine, Anorganische und Theoretische Chemie, Universität Innsbruck, Innrain 80–82, 6020 Innsbruck, Austria
2
Fachbereich Chemieingenieurwesen, FH Münster, Stegerwaldstraße 39, 48565 Steinfurt, Germany
*
Author to whom correspondence should be addressed.
Received: 14 October 2019 / Accepted: 9 November 2019 / Published: 12 November 2019

Abstract

:
A high-pressure/high-temperature experiment at 7.5 GPa and 1673 K led to the formation of the new compound β-Y2B4O9. In contrast to the already known polymorph α-Y2B4O9, which crystallizes in the space group C2/c, the reported structure could be solved via single-crystal X-ray diffraction in the triclinic space group P 1 ¯ (no. 2) and is isotypic to the already known lanthanide borates β-Dy2B4O9 and β-Gd2B4O9. Furthermore, the photoluminescence of an europium doped sample of β-Y2B4O9:Eu3+ (8%) was investigated.
Keywords:
crystal structure; europium; high-pressure chemistry; photoluminescence; yttrium borate

1. Introduction

In the system Y–B–O, only two modifications of YBO3 [1] (the low-temperature form π-YBO3 and the high-temperature form μ-YBO3) and the compound Y17.33(BO3)4(B2O5)2O16 [2] (revised formula of Y3BO6) were known until 2016. Through the implementation of high-pressure conditions as an additional reaction parameter, three new compositions β-Y(BO2)3 [3], α-Y2B4O9 [4], and YB7O12 [5] could be obtained by our group. As expected, all of the three latter compounds feature boron exclusively in a fourfold coordination by oxygen anions due to the applied high-pressure conditions. The anionic borate networks of these compounds are built up of corner-sharing and, in the case of α-Y2B4O9, also of edge-sharing BO4 tetrahedra. Not only the coordination number of boron is often increased under high-pressure conditions, but also the oxygen atoms can exhibit an increased coordination number, e.g., coordinated by three boron atoms (O[3]), which is the case, for example, in the borates β-Y(BO2)3 and YB7O12.
In the following, we report on the high-pressure synthesis of β-Y2B4O9, a hitherto missing polymorph of α-Y2B4O9. In contrast to the α-modification, which was synthesized at 12.3 GPa, the β-phase was obtained at a lower pressure of 7.5 GPa and does still contain planar BO3-groups and no edge-sharing BO4 tetrahedra. Furthermore, β-Y2B4O9 is isotypic to the already known compounds β-Dy2B4O9 [6] and β-Gd2B4O9 [7], which will be discussed in detail.
Rare earth borates have been known for their excellent properties as hosts for luminescent materials. They possess high quantum yields, an exceptional optical damage threshold, and a long lifetime, which makes them highly attractive for practical applications. The orthoborates (Y,Gd)BO3:Eu3+ and YBO3:Tb3+ are widely used, for example, in plasma display panels [8,9], but also co-doped inorganic phosphors like YBO3:Eu3+/Tb3+ [10] or YAl3(BO3)4:Eu3+/Tb3+ or Dy3+/Tm3+ [11,12] are applied. Research in this field is ongoing, as a recently published work on the complete solid solution of α-Y1−xEuxB5O9 shows [13]. In connection with these findings, we also investigated the photoluminescence properties of a β-Y2B4O9:Eu3+ sample.

2. Results and Discussion

2.1. Crystal Structure

β-Y2B4O9 crystallizes in the triclinic space group P 1 ¯ with the cell parameters a = 6.1463(2), b = 6.4053(2), c = 7.4642(2) Å, α = 102.59(2)°, β = 97.11(2)°, and γ = 102.46(2)°. The unit cell (V = 275.50(2) Å3) comprises Z = 2 formula units. All the relevant data of the structure refinement are shown in Table 1.
The crystal structure is built up of bands of BO4 tetrahedra, as well as planar BO3-groups. The bands run alongside the crystallographic a-axis (see Figure 1). Three BO4 tetrahedra form B3O9-rings, which are connected via two BO3-groups to form “sechser”-rings alongside the ab plane. Additionally, the B3O9-rings are interconnected via two common corners to form four-membered rings (Figure 2). The B–O distances range from 1.421 to 1.555 Å within the BO4 tetrahedra. The mean value of 1.474 Å corresponds very well with the average value of 1.476 Å reported by Zobetz [14]. The O–B–O angles lie in the rather wide range of 101.4–123.4°, which was also reported for the isotypic compounds β-Dy2B4O9 [6] and β-Gd2B4O9 [7]. The average value of 109.4° again is in good agreement with the reported value of 109.44° [14]. In the nearly planar BO3-group (Σ = 359.6°), the B–O bond lengths vary between 1.360 and 1.391 Å, while the O–B–O angles range from 114.9 to 122.7°. Both average values of 1.373 Å and 119.9° are in good agreement with the expected values, as the mean B–O distance for planar as well as non-planar BO3-groups is 1.37 Å [15] and the perfect angle in a planar BO3-group would be 120°. Similar results were found for β-Dy2B4O9 [6] and β-Gd2B4O9 [7] (1.376 Å/119.9°). The positional parameters, as well as the B–O distances and the O–B–O angles can be found in Table 2, Table 3 and Table 4.
The Y3+ cations are located in the voids between the anionic borate bands. There are two crystallographically independent yttrium atoms in the structure: The first one is coordinated by nine oxygen atoms, the second one by ten oxygen atoms (see Figure 3). The Y–O distances lie in the range from 2.256 to 2.645 Å and are displayed in Table 5. This conforms to the reported values of β-Dy2B4O9 (2.263–2.652 Å) and also to other high-pressure yttrium borates like β-Y(BO2)3 (2.383–2.419 Å) [3], α-Y2B4O9 (2.401–2.602 Å) [4], and YB7O12 (2.308–2.659 Å) [5].
The charge distributions and bond valences were calculated using both the bond-length/bond-strength (BLBS; ΣV) [16,17], and the CHARDI concept (ΣQ) [18]. The results are shown in Table 6 and they are in good agreement with the expected values of +3 for yttrium and boron and −2 for oxygen.
Further details of the crystal structure investigation may be obtained from The Cambridge Crystallographic Data Centre CCDC/FIZ Karlsruhe deposition service via www.ccdc.cam.ac.uk/structures on quoting the deposition number CCDC-1955299 for β-Y2B4O9. The cif- and checkcif-files are also available in the Supplementary Materials.

2.2. Elemental Analysis

The semiquantitative EDX measurements were performed to prove the presence of europium in the β-Y2B4O9 host. Figure 4 shows the resulting EDX spectrum, which clearly confirms that europium is present in the structure. The measured and averaged values from the measurements can be seen in Table 7. Additionally, small amounts of silicon were detected in three of the measurements, which most likely originates from the agate mortar that was used to homogenize the sample, which is well known for hard borates.

2.3. Photoluminescence Properties

The emission spectrum of a β-Y2B4O9:Eu3+ (8%) single-crystal, obtained upon excitation by a blue laser diode (λexc = 420 nm) is shown in Figure 5. The Eu3+ transitions can be assigned to the 5D07FJ (J = 0–4) transitions in the following way: the 5D07F0 transition corresponds to the single peak at 587 nm. The signals between 594 and 596 nm belong to the magnetic dipole transition (5D07F1), while the strongest bands in the spectrum from 610 to 623 nm can be assigned to the electric dipole transition (5D07F2). The 5D07F3 transitions occur as very weak signals in the range from 650 to 657 nm, and the signals between 684 and 705 nm belong to the 5D07F4 transitions [19]. The origin of the weak emission at 578–580 nm is the 5D07F1 transition, since 580 nm corresponds to an energy of 17.241 cm−1. For the assignment of the transition, which matches the energy, the Dieke diagram was used [20].
As can be seen in Figure 5, the so-called hypersensitive 5D07F2 transition exhibits the strongest bands in the spectrum. For perfect inversion symmetry, e.g., for Eu3+ located onto a regular octahedral site, the intensity of the 5D07F2 transition should be zero and thus the asymmetry ratio R should be zero too. However, since the 5D07F2 transition is hypersensitive, any tiny distortion of the inversion symmetry will result in an increase of its intensity and thus in the R value. It is not uncommon that the 5D07F2 transition is 10 times more intense than the 5D07F1 transition. However, the correlation is not simple and correlating the luminescence color or symmetry ratio with a particular site symmetry or deviation from inversion symmetry is rather difficult.
The factor R for the compound introduced in this paper has been calculated on the basis of the publication of K. Binnemans [19]. That leads to an integral of 9.4286 for the 5D07F2 transition (604–635 nm) and to an integral of 1.8115 for the 5D07F1 transition (589–604 nm). The R factor is calculated by I(5D07F2)/I(5D07F1) and leads to R = 5.2.

3. Experimental Section

3.1. Synthesis

β-Y2B4O9 was synthesized via a high-pressure/high-temperature experiment. For this synthesis, the starting materials Y2O3 (ChemPUR, Karlsruhe, Germany, 99.9%) and H3BO3 (Carl Roth, Karlsruhe, Germany, >99.8%) were ground together under ambient conditions in the stoichiometric ratio of 1:4.05, i.e., with a 5% excess of boric acid. The homogenized mixture was encapsulated in platinum foil, placed into a crucible made of α-BN and closed with a lid out of the same material (Henze Boron Nitride Products AG, Lauben, Germany). The crucible was placed into an 18/11 assembly, which was compressed and heated in a multianvil device based on a Walker-type module and a 1000 t downstroke press (both devices from Max Voggenreiter GmbH, Mainleus, Germany). A detailed description of the experimental setup can be found in the literature [21,22,23].
The sample was compressed to 7.5 GPa in 200 min, followed by a heating period of 10 min to 1673 K. This temperature was kept for 60 min, before the sample was slowly cooled down to room temperature in the following 240 min. Afterwards, the heating was switched off and the 600 min decompression process started. The recovered octahedral pressure medium was broken apart and the product carefully separated from the surrounding BN crucible and the platinum capsule. β-Y2B4O9 could be obtained as colorless, irregular shaped crystals beside a significant amount of white microcrystalline powder.
The synthesis of the europium doped sample was carried out under the same conditions with Y2O3, Eu2O3 (Smart Elements, Wien, Austria, 99.99%) and H3BO3 in the stoichiometric ratio of 0.46:0.04:2 as starting materials.
The X-ray powder diffraction data revealed that the reaction product is composed of β-Y2B4O9 (about 59%) and π-YBO3 as the main side phase. Attempts to synthesize a pure sample of β-Y2B4O9 were not successful, π-YBO3 always occurs as the main side product in the X-ray powder pattern.

3.2. Single-Crystal Structure Analysis

The intensity data of a β-Y2B4O9 single-crystal was collected using a Bruker D8 Quest Kappa diffractometer equipped with a Photon 100 CMOS detector. An Incoatec microfocus X-ray tube in multilayer optics generated the monochromatized Mo Kα radiation (λ = 0.7107 Å). A multiscan absorption correction of the intensity data with SADABS 2014/5 [24] was applied on the data. For the structure solution and parameter refinement, the software SHELXS/L-2013 [25,26], as implemented in the program WINGX-2013.3 [27], was employed. No systematic extinctions were observed, which led to the only possible space groups P1 and P 1 ¯ . During the refinement, the centrosymmetric space group was found to be correct, which is in agreement with the results from the isotypic compounds β-Dy2B4O9 and β-Gd2B4O9. All atoms could be refined with anisotropic displacement parameters.

3.3. Energy-Dispersive X-ray Spectroscopy (EDX)

A semiquantitative EDX measurement was performed in high vacuum on a Jeol JSM-6010LA scanning electron microscope (SEM) (Bruker, Billerica, MA, USA). The crystal was attached to a carbon tape and coated with carbon. The measurement was carried out under an acceleration voltage of 15 kV, a working distance of 14 mm, and a measurement time of 60 s. Five different spots on the crystal were selected, the measured chemical composition was averaged and normalized to 100%.

3.4. Luminescence Spectroscopy

The emission spectrum of a β-Y2B4O9 single-crystal was collected using a setup equipped with an AvaSpec2048 spectrometer (AVANTES, Apeldoorn, Netherlands). A blue laser diode (THORLABS, Newton, MA, USA) with 448 nm wavelength was used as excitation source. Prior to the experiments, a spectral radiance calibration of the setup was carried out using a tungsten-halogen calibration lamp. The software AVA AvaSoft full version 7 was employed for data handling. The emission spectrum was measured in the range of 200–1100 nm and was background-corrected.

4. Conclusions

The new compound β-Y2B4O9, which is isotypic to β-Dy2B4O9 and β-Gd2B4O9, was synthesized under the high-pressure/high-temperature conditions of 7.5 GPa and 1673 K using a Walker-type multianvil press. The structure was characterized via single-crystal X-ray analysis and it is built up of BO3 groups as well as BO4 tetrahedra, forming three-, four-, and six-membered rings.
The experiments to substitute yttrium with europium were successful, as proven by the EDX measurements of a β-Y2B4O9:Eu3+ (8%) crystal. Thus, the luminescence properties of the europium-substituted sample were investigated. The emission spectrum shows typical Eu3+ photoluminescence with the strongest peak originating from the 5D07F2 electric dipole transition.

Supplementary Materials

The following are available online at https://www.mdpi.com/2304-6740/7/11/136/s1, the CIF and the checkCIF output files.

Author Contributions

Conceptualization, B.F. and H.H.; Validation, B.F., F.S. and G.H.; Formal Analysis, B.F., F.S. and G.H.; Investigation, F.S.; Writing—Original Draft Preparation, B.F.; Writing—Review & Editing, all authors; Supervision, T.J. and H.H.

Funding

This research received no external funding.

Acknowledgments

We thank M. Tribus for the EDX measurements and OSRAM Opto Semiconductors GmbH for the support in the investigation of the luminescence properties.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Levin, E.M.; Roth, R.S.; Martin, J.B. Polymorphism of ABO3 type Rare Earth Borates. Am. Mineral. J. Earth Planet. Mater. 1961, 46, 1030–1055. [Google Scholar]
  2. Lin, J.H.; Zhou, S.; Yang, L.Q.; Yao, G.Q.; Su, M.Z.; You, L.P. Structure and Luminescent Properties of Y17.33(BO3)4(B2O5)2O16. J. Solid State Chem. 1997, 134, 158–163. [Google Scholar] [CrossRef]
  3. Schmitt, M.K.; Huppertz, H. β-Y(BO2)3—A new member of the β-Ln(BO2)3 (Ln = Nd, Sm, Gd–Lu) structure family. Z. Naturforsch. B 2017, 72, 983–988. [Google Scholar] [CrossRef]
  4. Schmitt, M.K.; Huppertz, H. High-pressure synthesis and crystal structure of α-Y2B4O9. Z. Naturforsch. B 2017, 72, 977–982. [Google Scholar] [CrossRef]
  5. Fuchs, B.; Schmitt, M.K.; Wurst, K.; Huppertz, H. High-Pressure Synthesis and Crystal Structure of the Highly Condensed Yttrium Borate YB7O12. Eur. J. Inorg. Chem. 2019, 2019, 271–276. [Google Scholar] [CrossRef]
  6. Huppertz, H.; Altmannshofer, S.; Heymann, G. High-pressure preparation, crystal structure, and properties of the new rare-earth oxoborate β-Dy2B4O9. J. Solid State Chem. 2003, 170, 320–329. [Google Scholar] [CrossRef]
  7. Emme, H.; Huppertz, H. High-pressure synthesis of the new rare-earth oxoborate β-Gd2B4O9. Acta Crystallogr. 2005, 61, i23–i24. [Google Scholar]
  8. Lin, J.; Sheptyakov, D.; Wang, Y.; Allenspach, P. Structures and Phase Transition of Vaterite-Type Rare Earth Orthoborates:  A Neutron Diffraction Study. Chem. Mater. 2004, 16, 2418–2424. [Google Scholar] [CrossRef]
  9. Pitscheider, A.; Kaindl, R.; Oeckler, O.; Huppertz, H. The crystal structure of pi-ErBO3: New single-crystal data for an old problem. J. Solid State Chem. 2011, 184, 149–153. [Google Scholar] [CrossRef]
  10. Zhang, X.; Zhao, Z.; Zhang, X.; Marathe, A.; Cordes, D.B.; Weeks, B.; Chaudhuri, J. Tunable photoluminescence and energy transfer of YBO3:Tb3+, Eu3+ for white light emitting diodes. J. Mater. Chem. 2013, 1, 7202–7207. [Google Scholar] [CrossRef]
  11. Lokeswara Reddy, G.V.; Rama Moorthy, L.; Chengaiah, T.; Bungala Chinna, J. Multi-color emission tunability and energy transfer studies of YAl3(BO3)4:Eu3+/Tb3+ phosphors. Ceram. Int. 2014, 40, 3399–3410. [Google Scholar] [CrossRef]
  12. Lokeswara Reddy, G.V.; Rama Moorthy, L.; Packiyaraj, P.; Jamalaiah, B.C. Optical characterization of YAl3(BO3)4:Dy3+–Tm3+ phosphors under near UV excitation. Opt. Mater. 2013, 35, 2138–2145. [Google Scholar] [CrossRef]
  13. Qi, Y.; Zhu, L.; Jiang, P.; Gao, W.; Cong, R.; Yang, T. Photoluminescence of complete solid solutions α-Y1−xEuxB5O9 by sol-gel synthesis and thermal decomposition from Y1−xEux[B6O9(OH)3]. J. Solid State Chem. 2019, 277, 731–737. [Google Scholar] [CrossRef]
  14. Zobetz, E. Geometrische Größen und einfache Modellrechnungen für BO4-Gruppen. Z. Kristallogr. 1990, 191, 45–57. [Google Scholar] [CrossRef]
  15. Hawthorne, F.C.; Burns, P.C.; Grice, J.D. Boron: Mineralogy, Petrology, and Geochemistry. In Reviews in Mineralogy; Anovitz, L.M., Grew, E.S., Eds.; Mineralogical Society of America: Washington, DC, USA, 1996; Volume 33. [Google Scholar]
  16. Brown, I.D.; Altermatt, D. Bond-Valence Parameters Obtained from a Systematic Analysis of the Inorganic Crystal Structure Database. Acta Crystallogr. 1985, 41, 244–247. [Google Scholar] [CrossRef]
  17. Brese, N.E.; O’Keeffe, M. Bond-Valence Parameters for Solids. Acta Crystallogr. 1991, 47, 192–197. [Google Scholar] [CrossRef]
  18. Hoppe, R.; Voigt, S.; Glaum, H.; Kissel, J.; Müller, H.P.; Bernet, K. A new route to charge distribution in ionic solids. J. Less-Common Met. 1989, 156, 105–122. [Google Scholar] [CrossRef]
  19. Binnemanns, K. Interpretation of europium(III) spectra. Coordin. Chem. Rev. 2015, 295, 1–45. [Google Scholar] [CrossRef]
  20. Dieke, G.H. Spectra and Energy Levels of Rare Earth Ions in Crystals; InterScience, Johan Wiley and Sons: New York, NY, USA, 1968. [Google Scholar]
  21. Walker, D.; Carpenter, M.A.; Hitch, C.M. Some simplifications to multianvil devoces for high pressure experiments. Am. Mineral. 1990, 75, 1020–1028. [Google Scholar]
  22. Walker, D. Lubrication, gasketing, and precision in multianvil exeriments. Am. Mineral. 1991, 76, 1092–1100. [Google Scholar]
  23. Huppertz, H. Multianvil high-pressure/high-temperature synthesis in solid state chemistry. Z. Kristallogr. 2004, 219, 330–338. [Google Scholar] [CrossRef]
  24. Sheldrick, G.M. SADABS, v2014/5; Bruker AXS Inc.: Madison, WI, USA, 2001. [Google Scholar]
  25. Sheldrick, G.M. A short history of SHELX. Acta Crystallogr. 2008, 64, 112–122. [Google Scholar] [CrossRef] [PubMed]
  26. Sheldrick, G.M. Crystal structure refinement with SHELX. Acta Crystallogr. 2015, 71, 3–8. [Google Scholar]
  27. Farrugia, L.J. WinGX and ORTEP for Windows: An update. J. Appl. Crystallogr. 2012, 45, 849–854. [Google Scholar] [CrossRef]

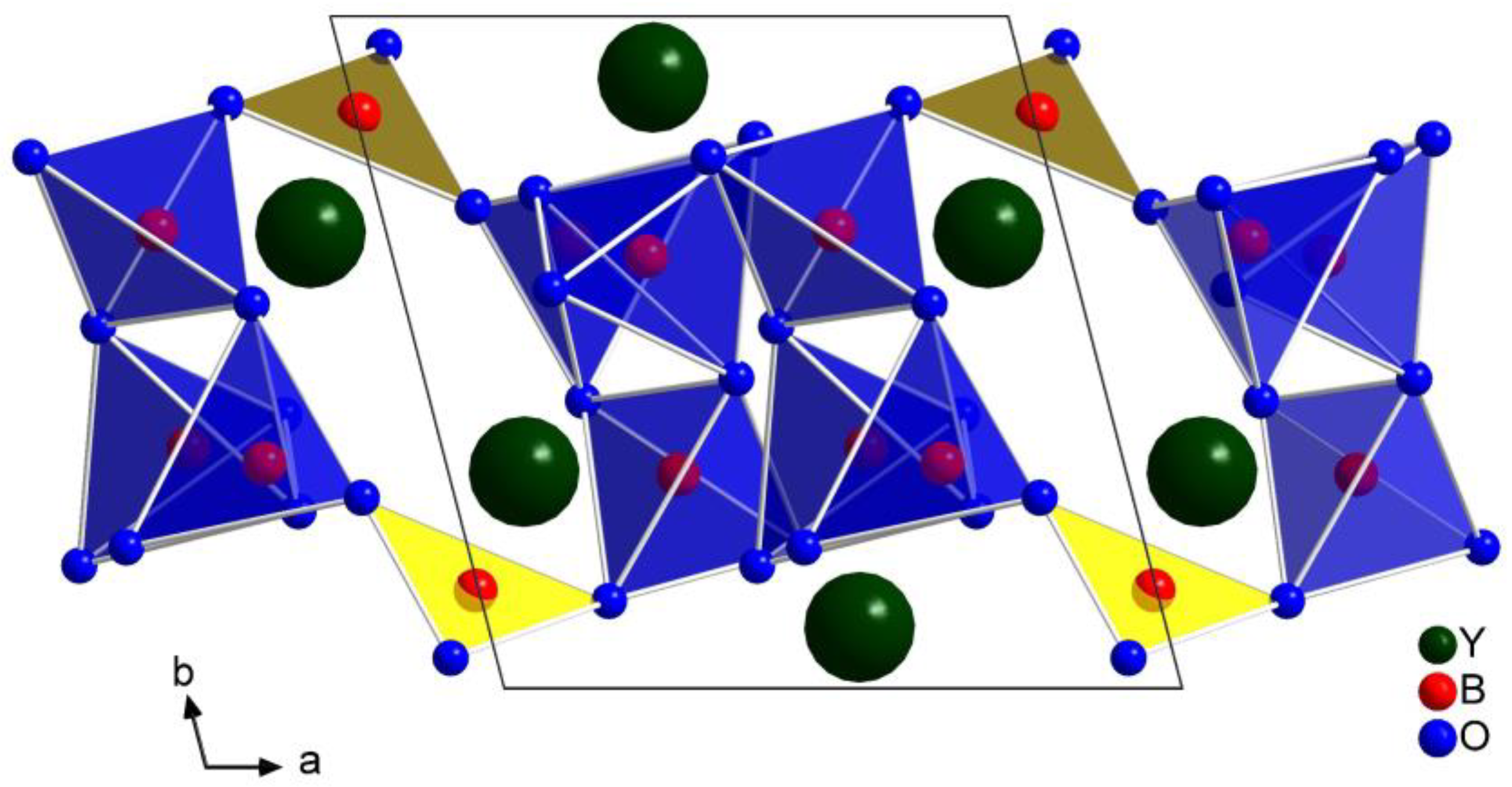

Figure 1. The interconnected BO4 tetrahedra and BO3 groups in β-Y2B4O9 form bands along the a-axis.
Figure 1. The interconnected BO4 tetrahedra and BO3 groups in β-Y2B4O9 form bands along the a-axis.
Inorganics 07 00136 g001

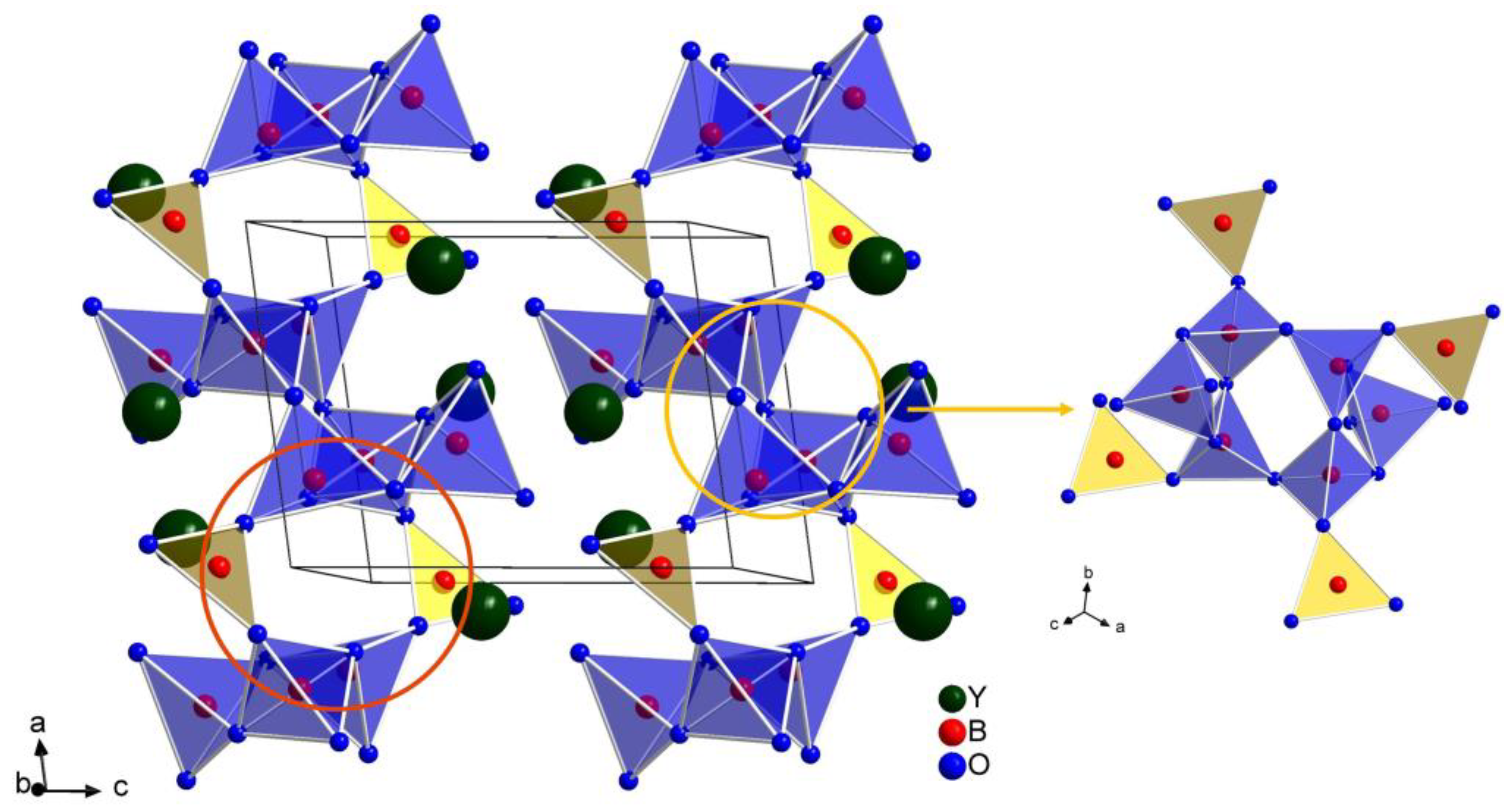

Figure 2. Crystal structure of β-Y2B4O9 forming six-membered rings (one encircled in orange) and four-membered rings (one encircled in yellow and shown individually on the right).
Figure 2. Crystal structure of β-Y2B4O9 forming six-membered rings (one encircled in orange) and four-membered rings (one encircled in yellow and shown individually on the right).
Inorganics 07 00136 g002

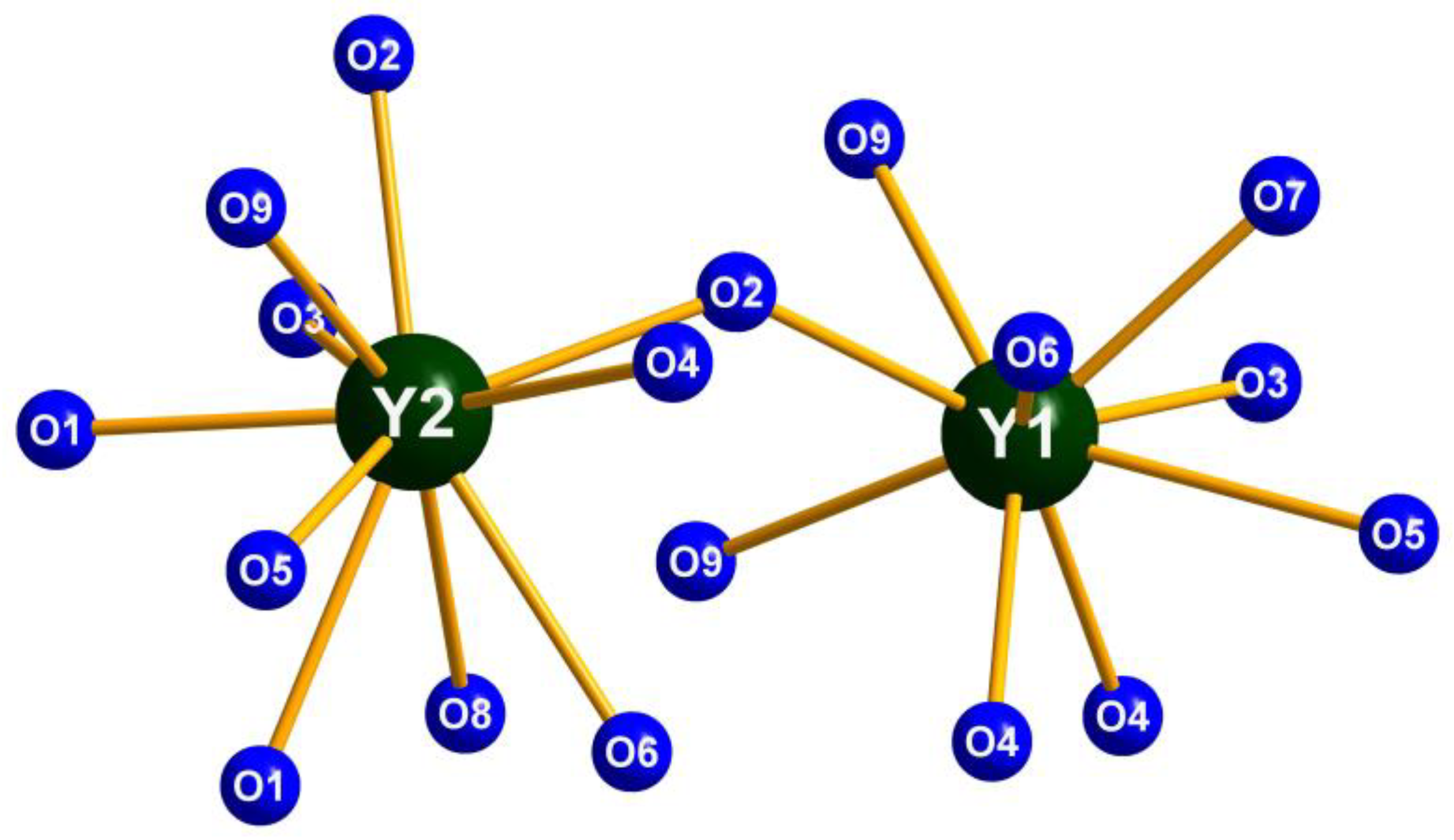

Figure 3. Coordination spheres of the two crystallographically independent yttrium sites in the crystal structure of β-Y2B4O9.
Figure 3. Coordination spheres of the two crystallographically independent yttrium sites in the crystal structure of β-Y2B4O9.
Inorganics 07 00136 g003

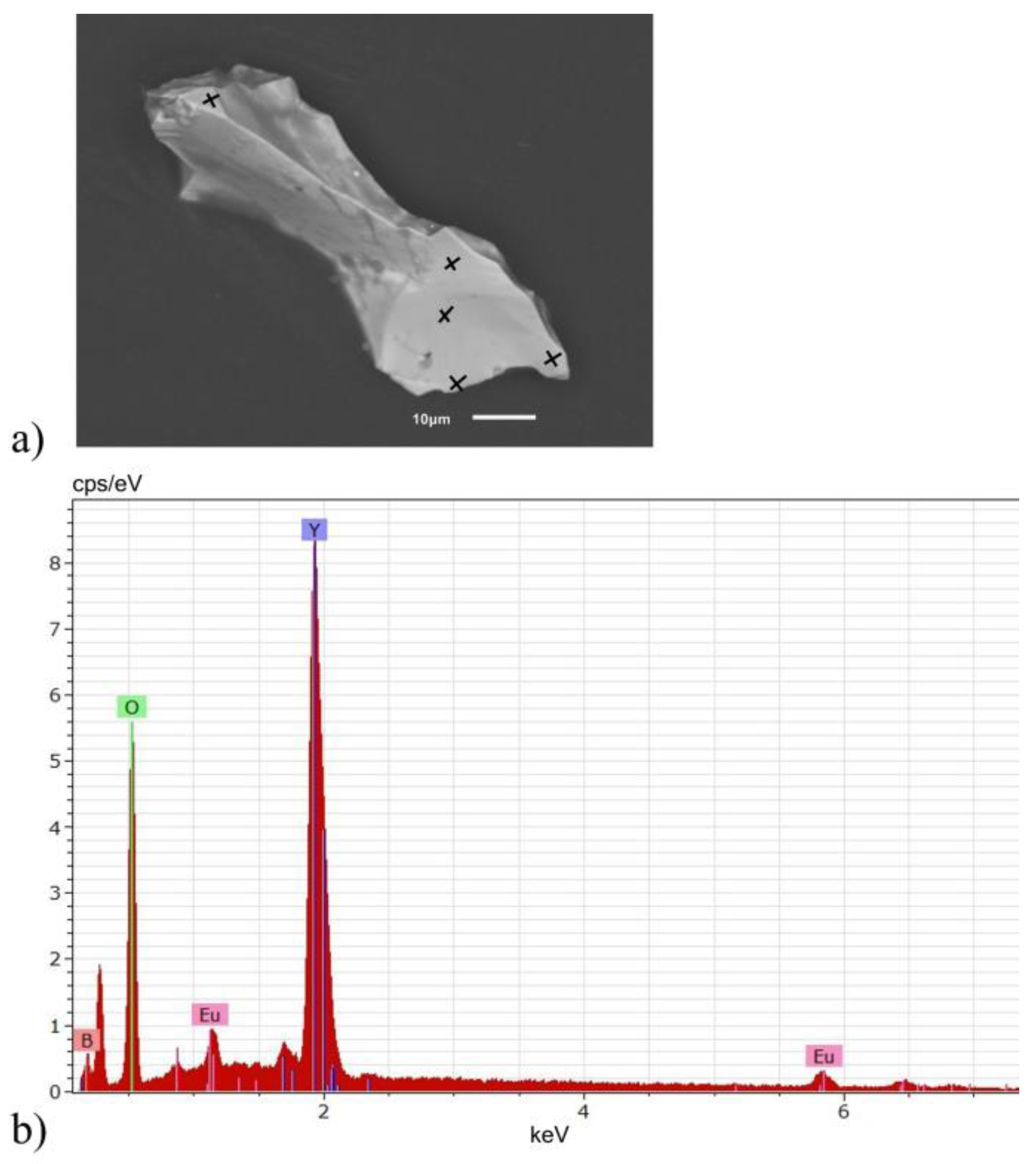

Figure 4. (a) Crystal used for the EDX measurement (crosses indicate the measured positions); (b) EDX spectrum of β-Y2B4O9:Eu3+ (8%). The unindexed peak at ~0.3 keV originates from carbon used for the sputtering process.
Figure 4. (a) Crystal used for the EDX measurement (crosses indicate the measured positions); (b) EDX spectrum of β-Y2B4O9:Eu3+ (8%). The unindexed peak at ~0.3 keV originates from carbon used for the sputtering process.
Inorganics 07 00136 g004

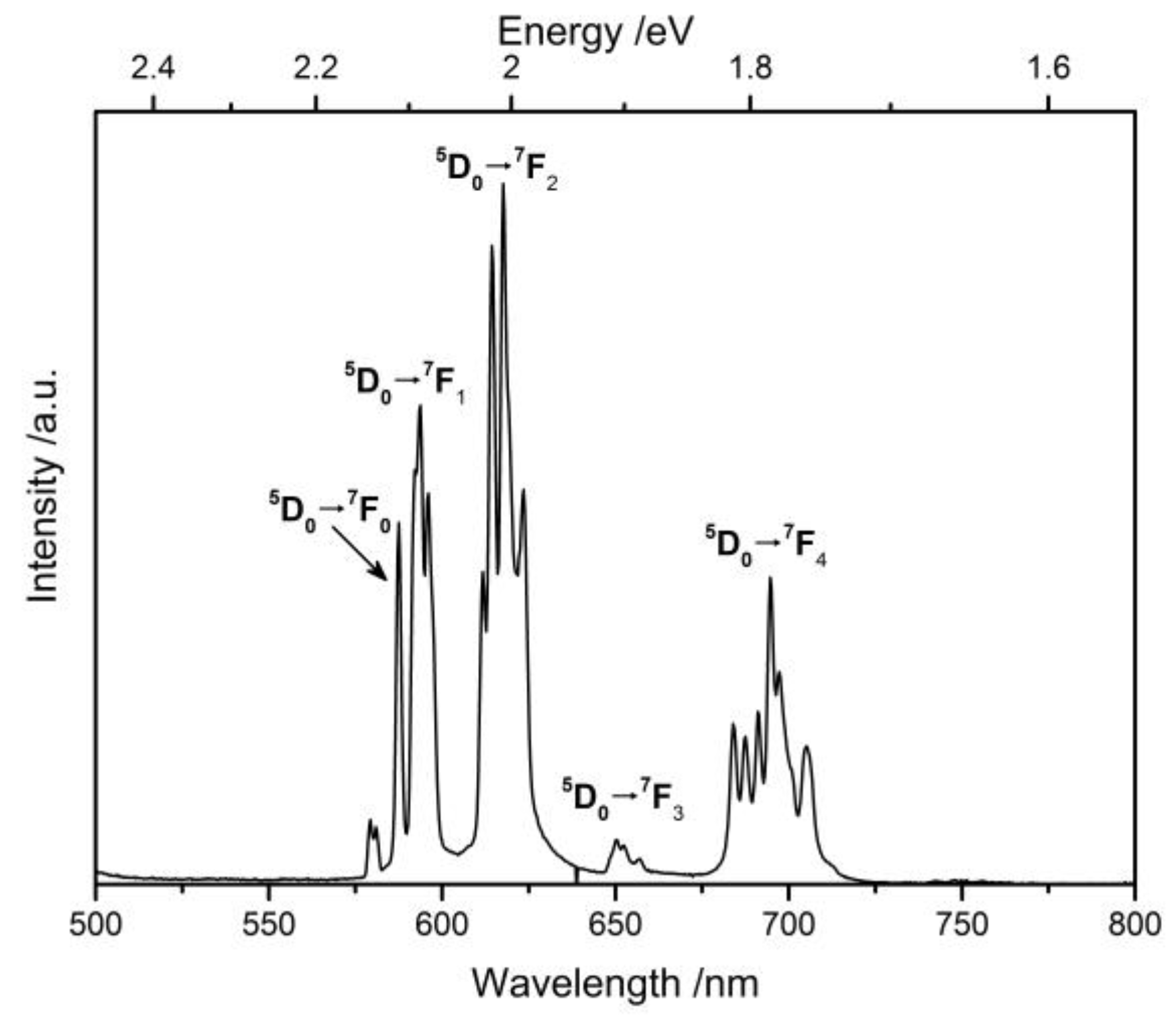

Figure 5. Emission spectrum of a β-Y2B4O9:Eu3+ (8%) single-crystal obtained upon excitation at 448 nm.
Figure 5. Emission spectrum of a β-Y2B4O9:Eu3+ (8%) single-crystal obtained upon excitation at 448 nm.
Inorganics 07 00136 g005
Table 1. Crystal data and structure refinement of β-Y2B4O9.
Table 1. Crystal data and structure refinement of β-Y2B4O9.
Empirical Formulaβ-Y2B4O9
Molar mass, g·mol−1 365.06
Crystal system triclinic
Space groupP 1 ¯ (no. 2)
Single-crystal data
T, K277(2)
RadiationMo Kα (λ = 71.07 pm)
a, Å6.1463(2)
b, Å6.4053(2)
c, Å7.4642(2)
α, °102.59(2)
β, °97.11(2)
γ, °102.46(2)
V, Å3257.50(2)
Z2
Calculated density, g·cm−34.401
Absorption coeff., mm−120.993
F(000)340
Crystal size, mm30.050 × 0.040 × 0.020
θ range, °2.8–41.3
Index ranges−11 ≤ h ≤11, −11 ≤ k ≤ 11, −13 ≤l ≤13
Reflections collected28267
Independent reflections3675 [Rint = 0.0398]
Refinement methodFull-matrix least-squares on F2
Data/restraints/parameters3675/0/137
Goodness-of-fit on F21.058
Final R1/wR2 indices [I ≥ 2σ(I)]0.0210/0.0414
Final R1/wR2 indices (all data)0.0286/0.0431
Largest diff. peak/hole, e Å−31.42/−0.90
Table 2. Atomic coordinates and equivalent isotropic displacement parameters Ueq2. Ueq is defined as one third of the trace of the orthogonalized Uij tensor (standard deviations in parentheses). All atoms are located on Wyckoff-site 2i.
Table 2. Atomic coordinates and equivalent isotropic displacement parameters Ueq2. Ueq is defined as one third of the trace of the orthogonalized Uij tensor (standard deviations in parentheses). All atoms are located on Wyckoff-site 2i.
AtomxyzUeq
Y10.8881(1)0.6775(1) 0.3598(1)0.0022(1)
Y20.5473(1)0.0910(1)0.2854(1)0.0030(1)
B10.7321(3)0.3347(3)0.9806(2)0.0052(2)
B20.6618(3)0.6822(3)0.9275(2)0.0053(2)
B30.6255(3)0.3572(3)0.6505(2)0.0056(2)
B40.0050(3)0.8543(3)0.8111(2)0.0064(2)
O10.5040(2)0.7902(2)0.0204(2)0.0057(2)
O20.4200(2)0.1827(2)0.5554(2)0.0064(2)
O30.2360(2)0.7364(2)0.2113(2)0.0060(2)
O40.7795(2)0.4063(2)0.5228(2)0.0064(2)
O50.1375(2)0.7163(2)0.8570(2)0.0069(2)
O60.5394(2)0.5388(2)0.7479(2)0.0065(2)
O70.7741(2)0.5720(2)0.0412(2)0.0058(2)
O80.8122(2)0.8700(2)0.8812(2)0.0072(2)
O90.0677(2)0.9547(2)0.6761(2)0.0077(2)
Table 3. Interatomic B–O distances/Å for β-Y2B4O9 (standard deviations in parentheses).
Table 3. Interatomic B–O distances/Å for β-Y2B4O9 (standard deviations in parentheses).
BondDistanceBondDistance
B1–O71.444(2)B2–O71.421(2)
–O31.457(2) –O61.457(2)
–O11.497(2) –O11.466(2)
–O51.505(2) –O81.483(2)
Ø1.476 Ø1.457
B3–O41.459(2)B4–O91.360(2)
–O61.468(2) –O81.367(2)
–O21.474(2) –O51.391(2)
–O31.555(2)
Ø1.489 Ø1.373
Table 4. Bond angles/° for β-Y2B4O9 (standard deviations in parentheses).
Table 4. Bond angles/° for β-Y2B4O9 (standard deviations in parentheses).
BondAngleBondAngle
O1–B1–O5101.4(2)O1–B2–O8101.7(2)
O7–B1–O5101.7(2)O6–B2–O8104.9(2)
O3–B1–O1104.0(2)O6–B2–O1108.3(2)
O7–B1–O3111.6(2)O7–B2–O1112.6(2)
O7–B1–O1114.9(2)O7–B2–O6113.6(2) 119.1(5)
O3–B1–O5123.4(2)O7–B2–O8114.8(2)
Ø109.5Ø109.3
O4–B3–O3103.2(2)O9–B4–O5114.9(2)
O6–B3–O2104.3(2)O9–B4–O8122.1(2)
O2–B3–O3107.8(2)O8–B4–O5122.7(2)
O4–B3–O2112.0(2)
O6–B3–O3112.0(2)
O4–B3–O6117.4(2)
Ø109.5Ø119.9
Table 5. Interatomic Y–O distances/Å for β-Y2B4O9 (standard deviations in parentheses).
Table 5. Interatomic Y–O distances/Å for β-Y2B4O9 (standard deviations in parentheses).
BondDistanceBondDistance
Y1–O72.299(2)Y2–O22.256(2)
–O42.338(2) –O22.351(2)
–O42.359(2) –O12.384(2)
–O22.359(2) –O42.414(2)
–O92.390(2) –O92.436(2)
–O32.523(2) –O82.487(2)
–O92.573(2) –O32.538(2)
–O62.625(2) –O52.541(2)
–O52.645(2) –O12.563(2)
–O62.596(2)
Ø2.457 Ø2.457
Table 6. Charge distributions according to both, the bond-length/bond-strength (∑V) and the CHARDI (∑Q) concept.
Table 6. Charge distributions according to both, the bond-length/bond-strength (∑V) and the CHARDI (∑Q) concept.
MethodY1Y2B1B2B3B4
V+2.92+3.19+3.02+3.18+2.92+2.99
Q+2.97+3.01+3.00+2.97+3.03+3.03
O1O2O3O4O5O6O7O8O9
V−2.09−2.09−1.90−1.95−2.07−1.97−2.16−2.03−1.94
Q−1.98−2.05−1.86−2.03−1.99−1.95−2.18−1.97−1.99
Table 7. Measured composition (normalized to 100%) of β-Y2B4O9:Eu3+ (8%) (wt %). Accuracy for all measured values ±3%.
Table 7. Measured composition (normalized to 100%) of β-Y2B4O9:Eu3+ (8%) (wt %). Accuracy for all measured values ±3%.
ElementYBOEuSi
M145.015.536.13.00.4
M241.213.033.212.50.1
M343.414.034.18.60.0
M442.115.334.97.70.1
M542.513.634.19.80.0
average42.8(3)14.3(2)34.5(2)8.3(7)0.1
expected46.111.738.93.3
