Towards 99mTc- and Re-Based Multifunctional Silica Platforms for Theranostic Applications
Abstract

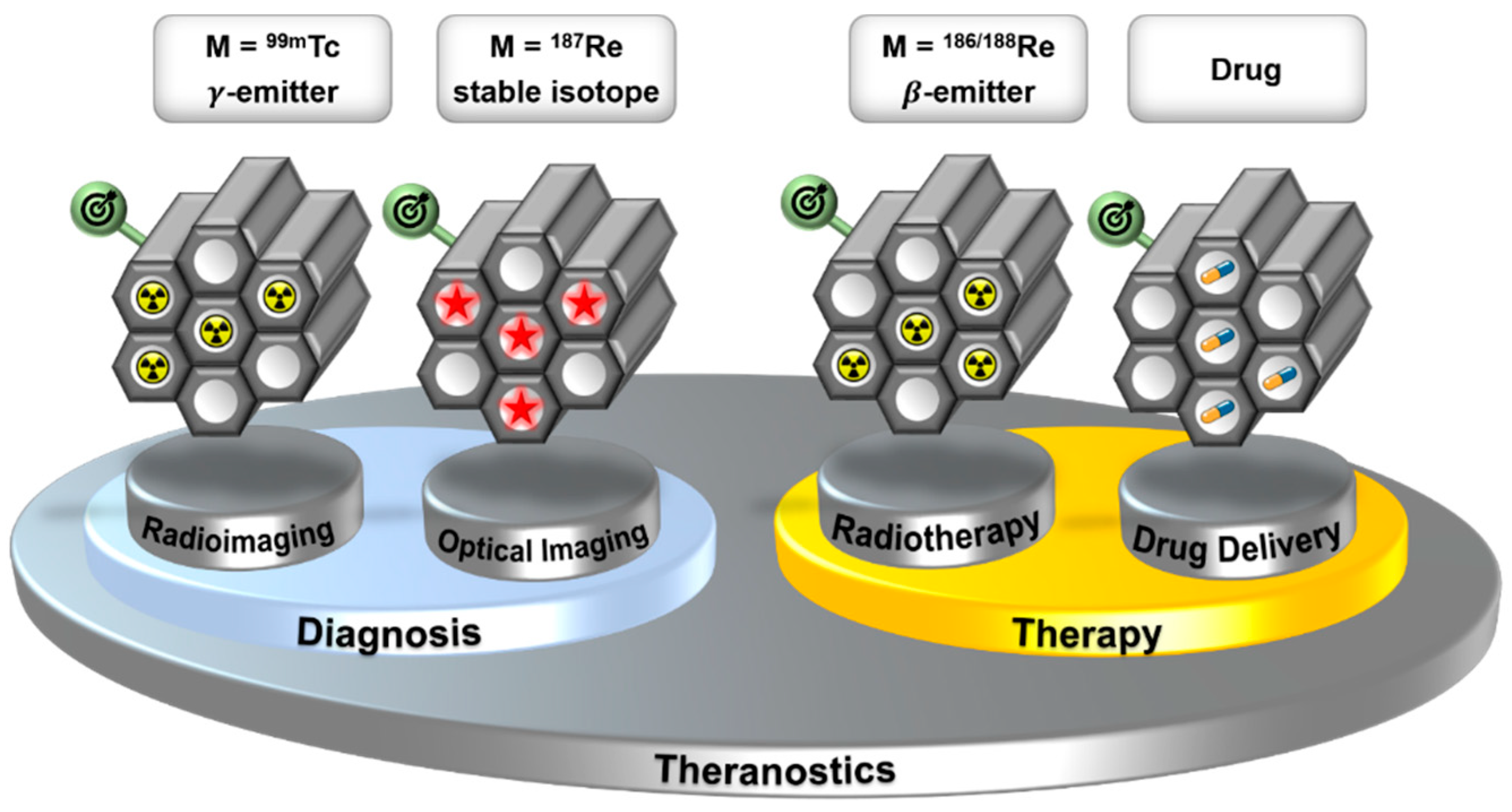

1. Introduction
2. Results and Discussion

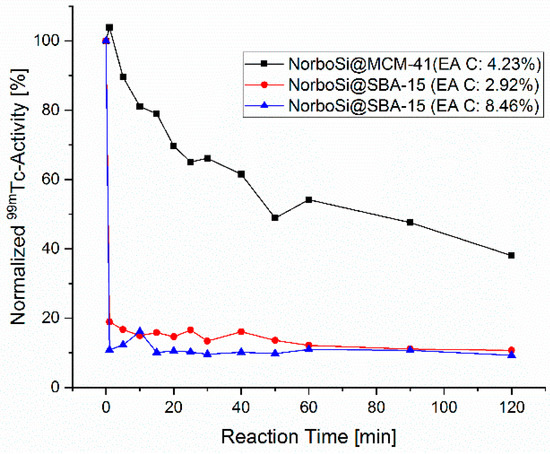

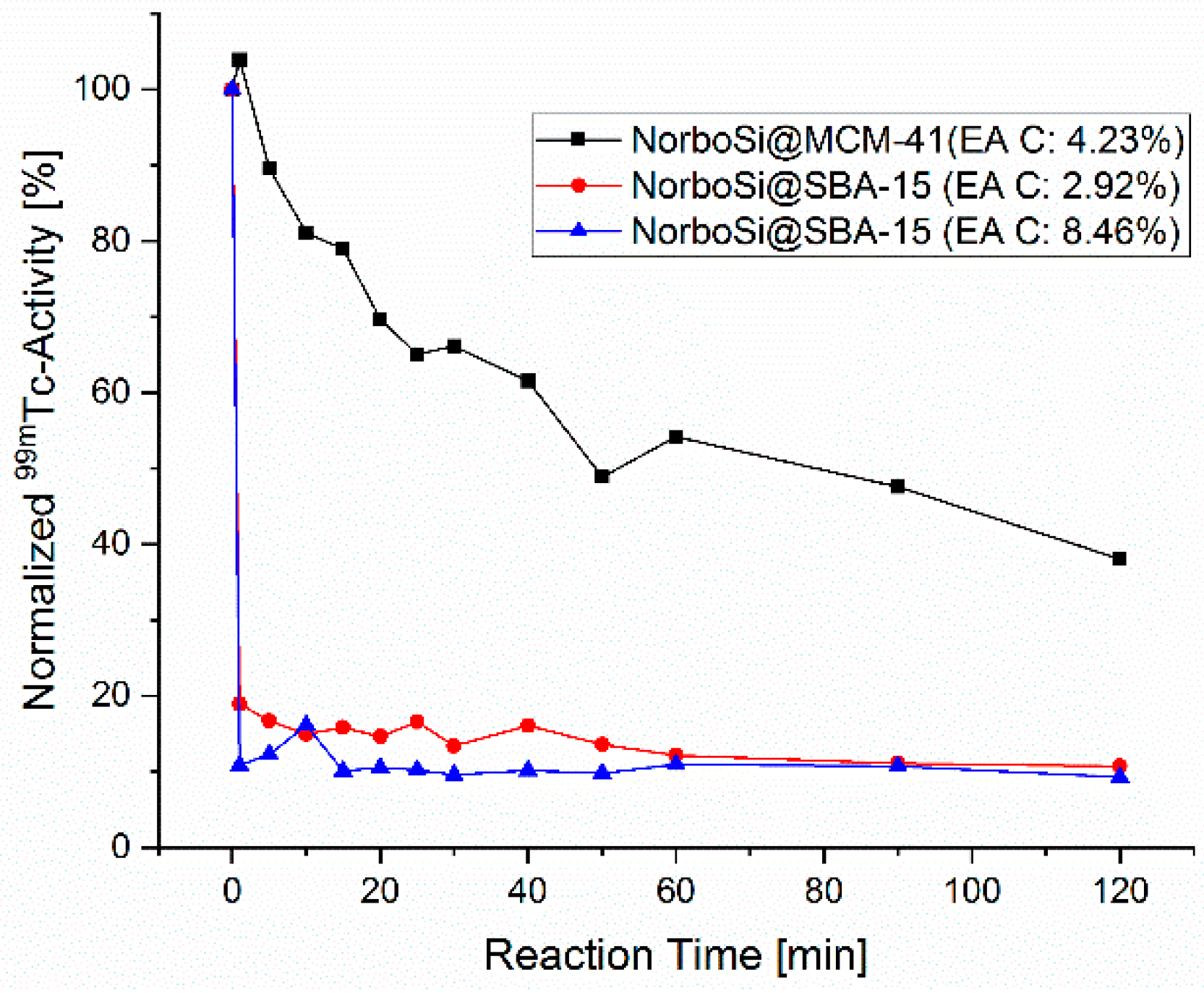

2.1. Evaluation of Mesoporous Silica Particles

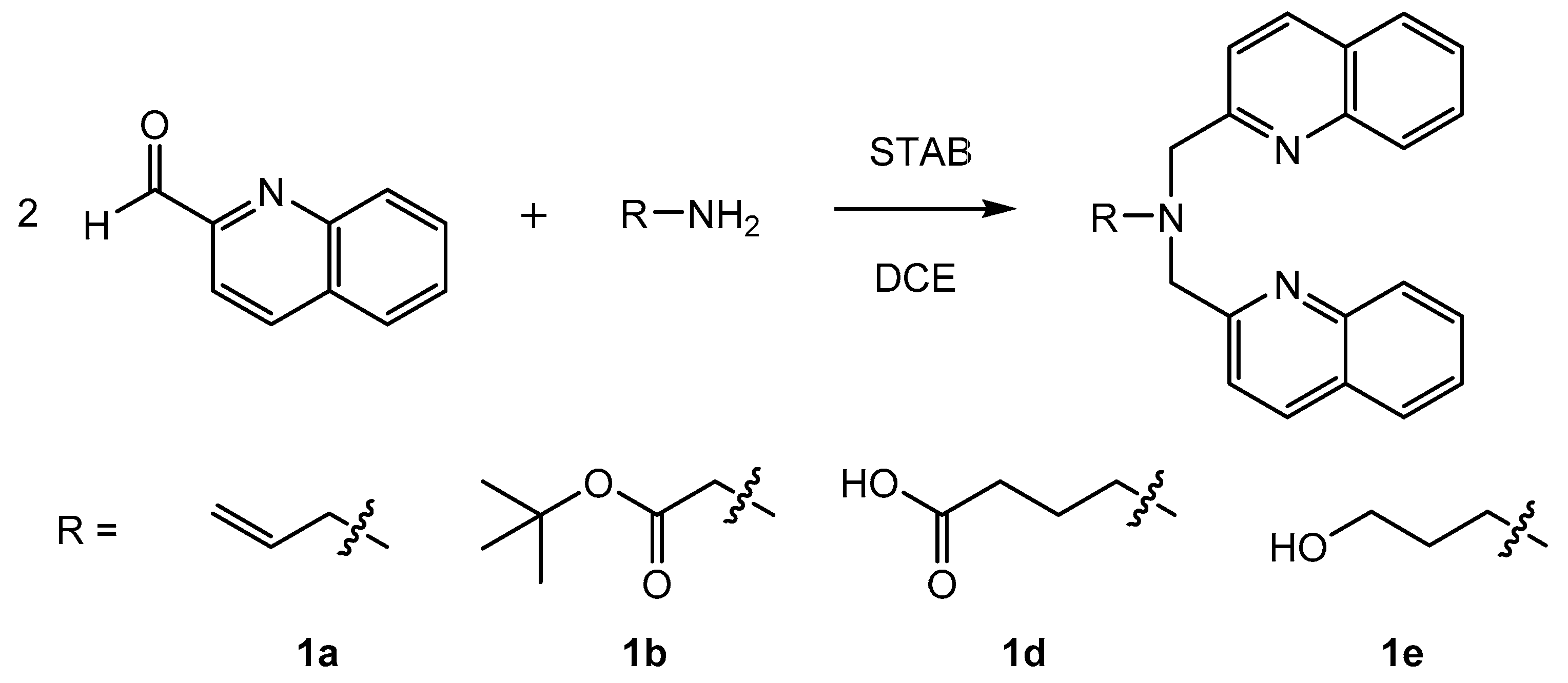

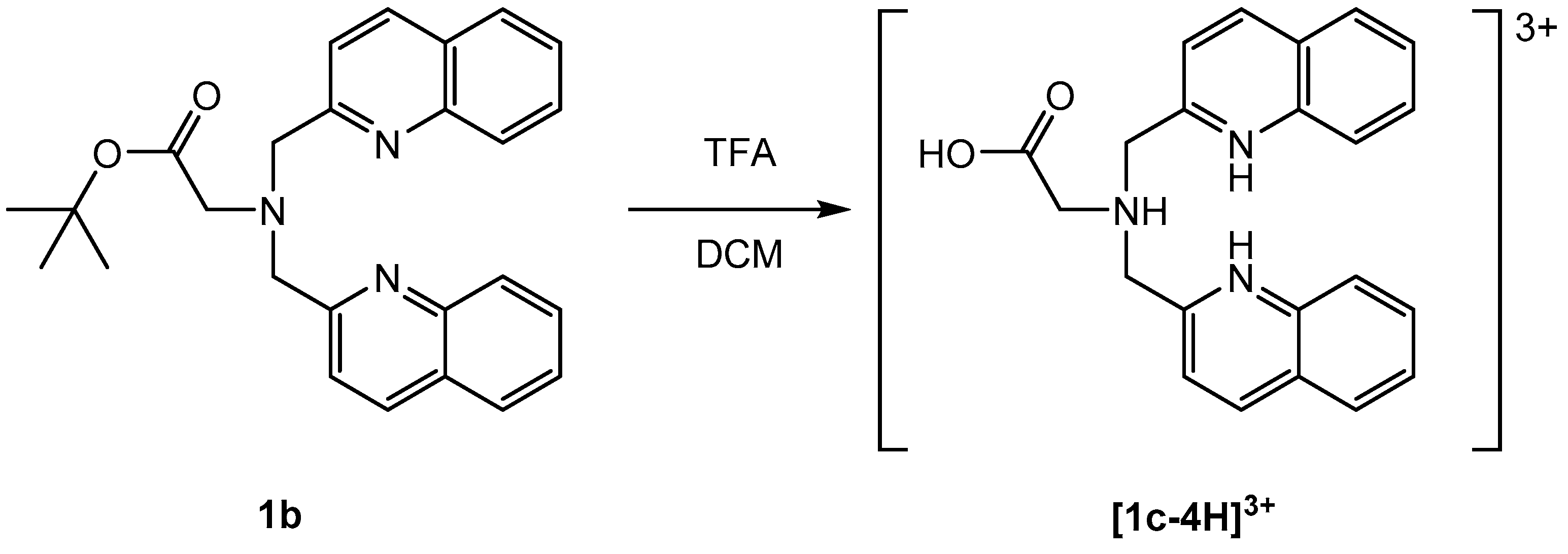

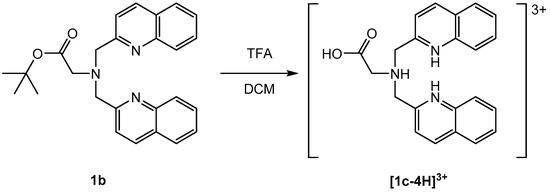

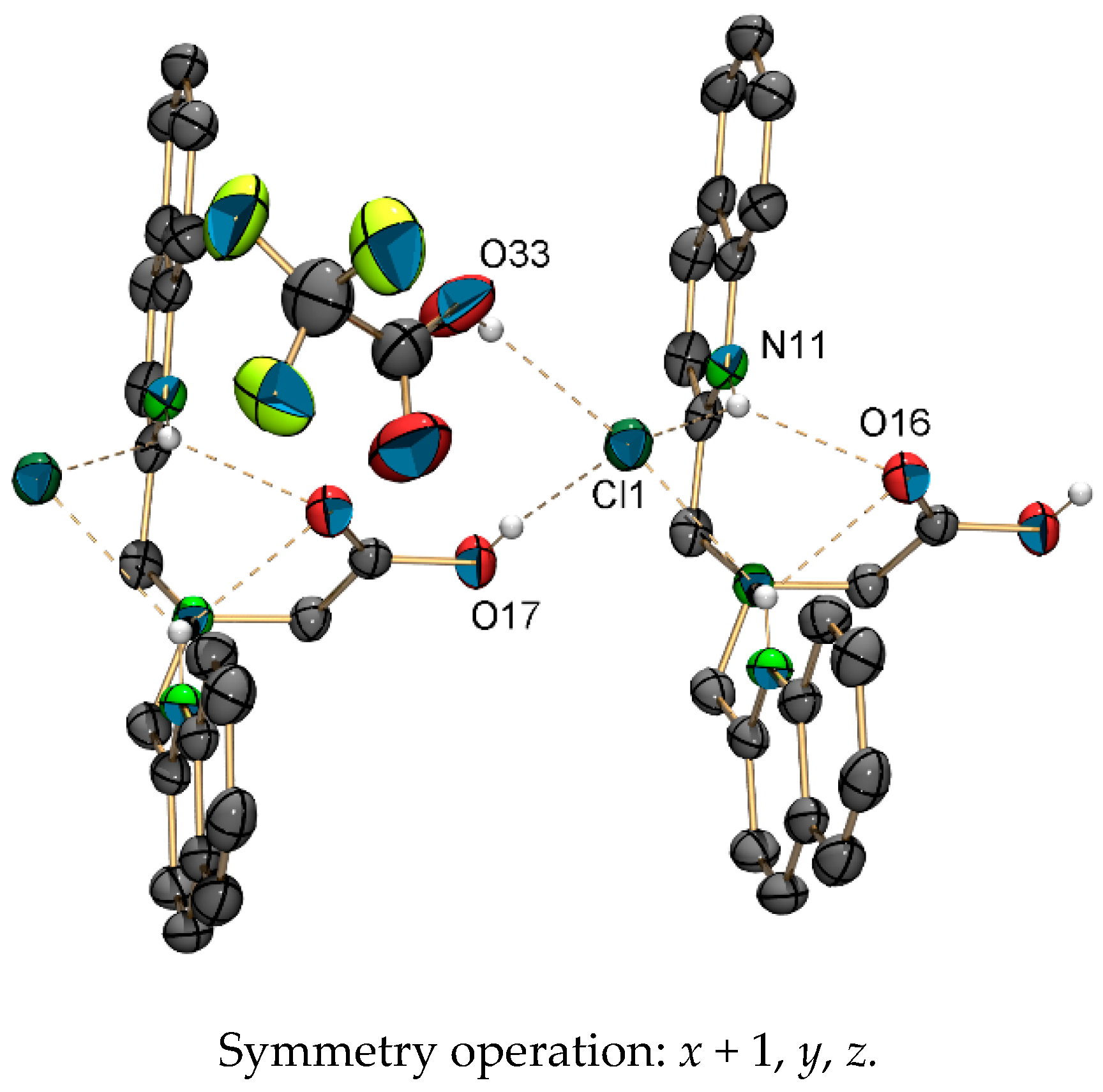

2.2. Synthesis of Chelators for Surface Modifications

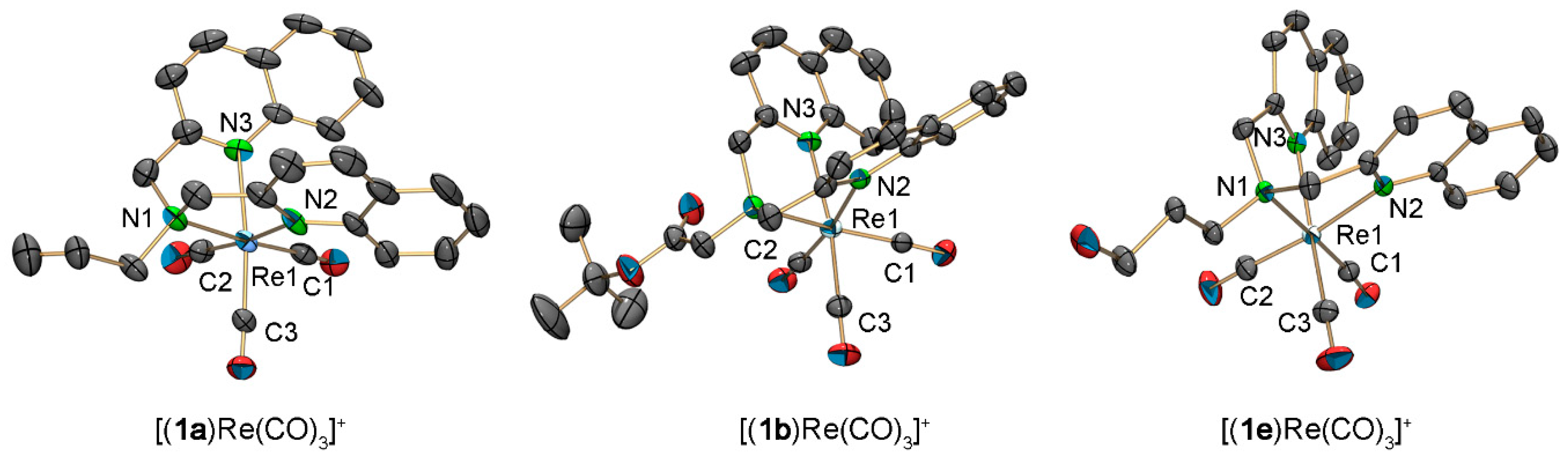

2.3. Reactions of Bisquinoline Molecules with the {M(CO)3}+ Moiety (M = Re, 99mTc)

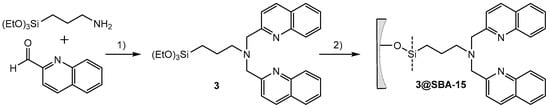

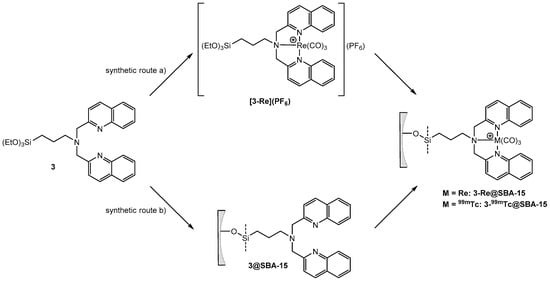

2.4. Synthesis and Labeling of a Bifunctional SBA-15 Construct with Re and 99mTc
3. Materials and Methods
3.1. Synthesis of 1d

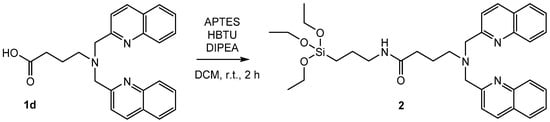

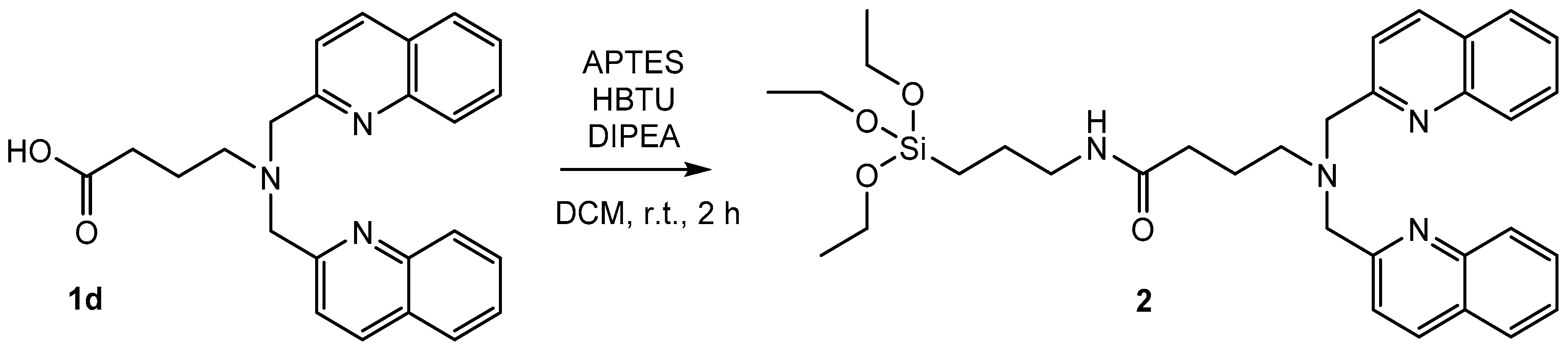

3.2. Synthesis of 2

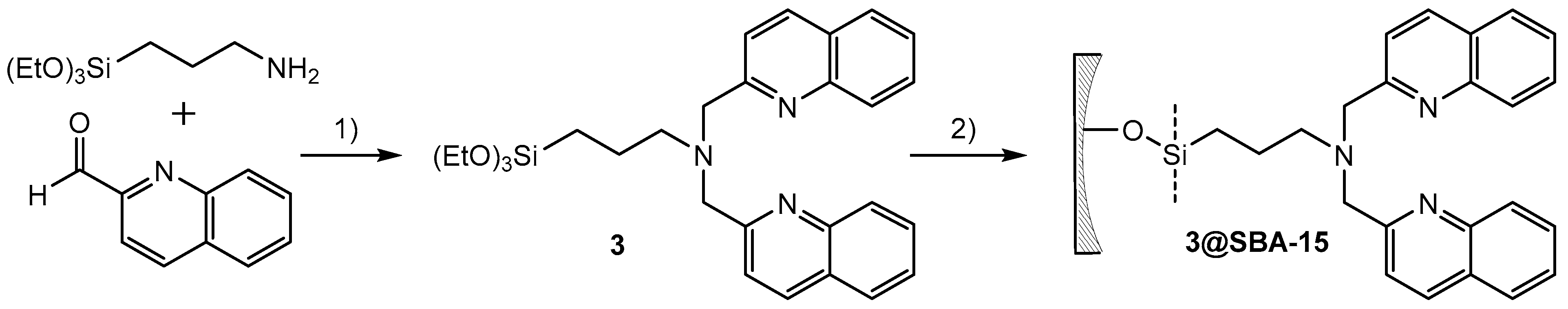

3.3. Synthesis of 3
3.4. General Procedure for the Synthesis of {Re(CO)3}+ Complexes
3.4.1. Analytical Data for [(1a)Re(CO)3](PF6)
3.4.2. Analytical Data for [(1b)Re(CO)3](PF6)
3.4.3. Analytical Data for [(1e)Re(CO)3](PF6)
3.4.4. Analytical Data for [3-Re](PF6)
3.5. Synthesis of 3@SBA-15

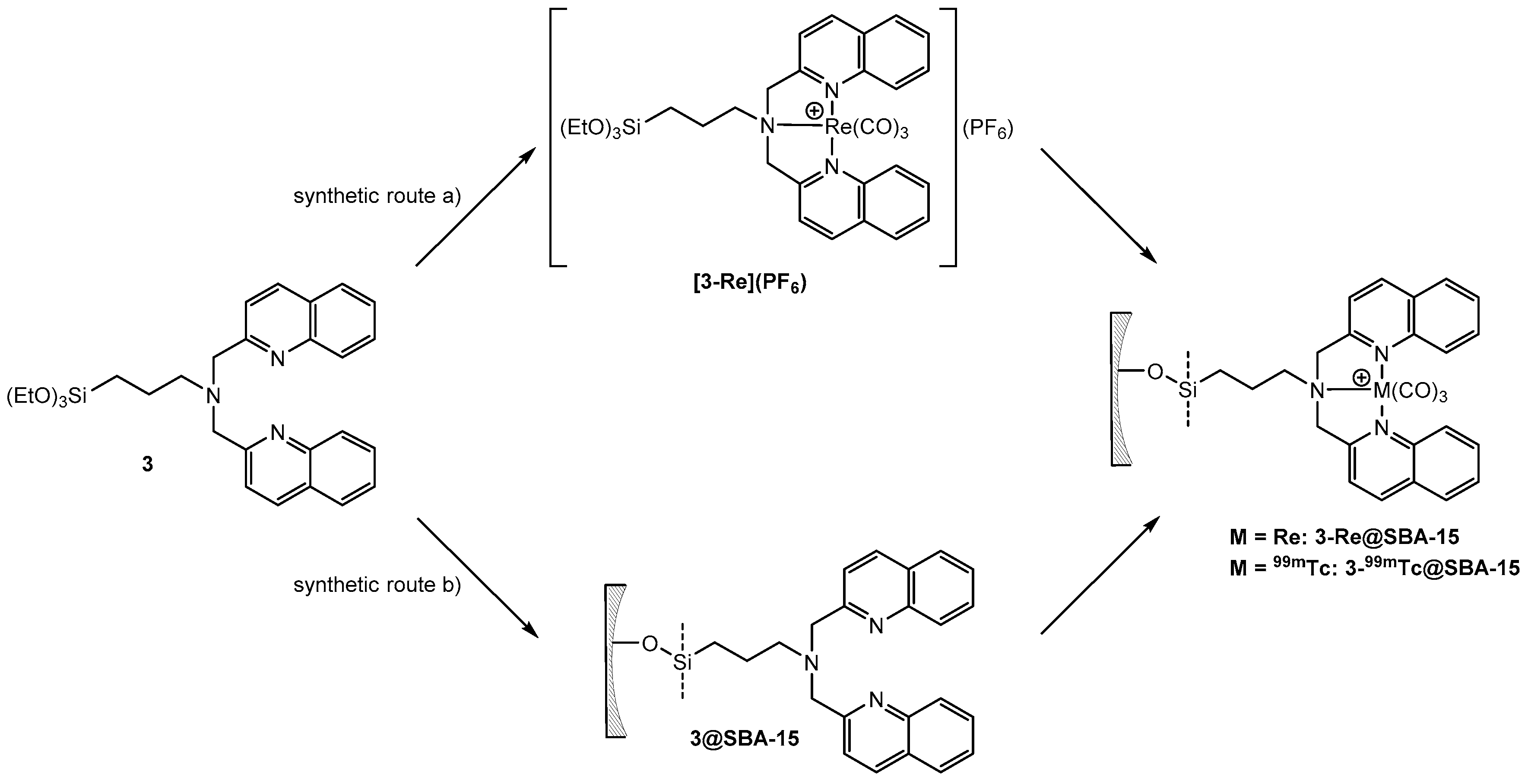

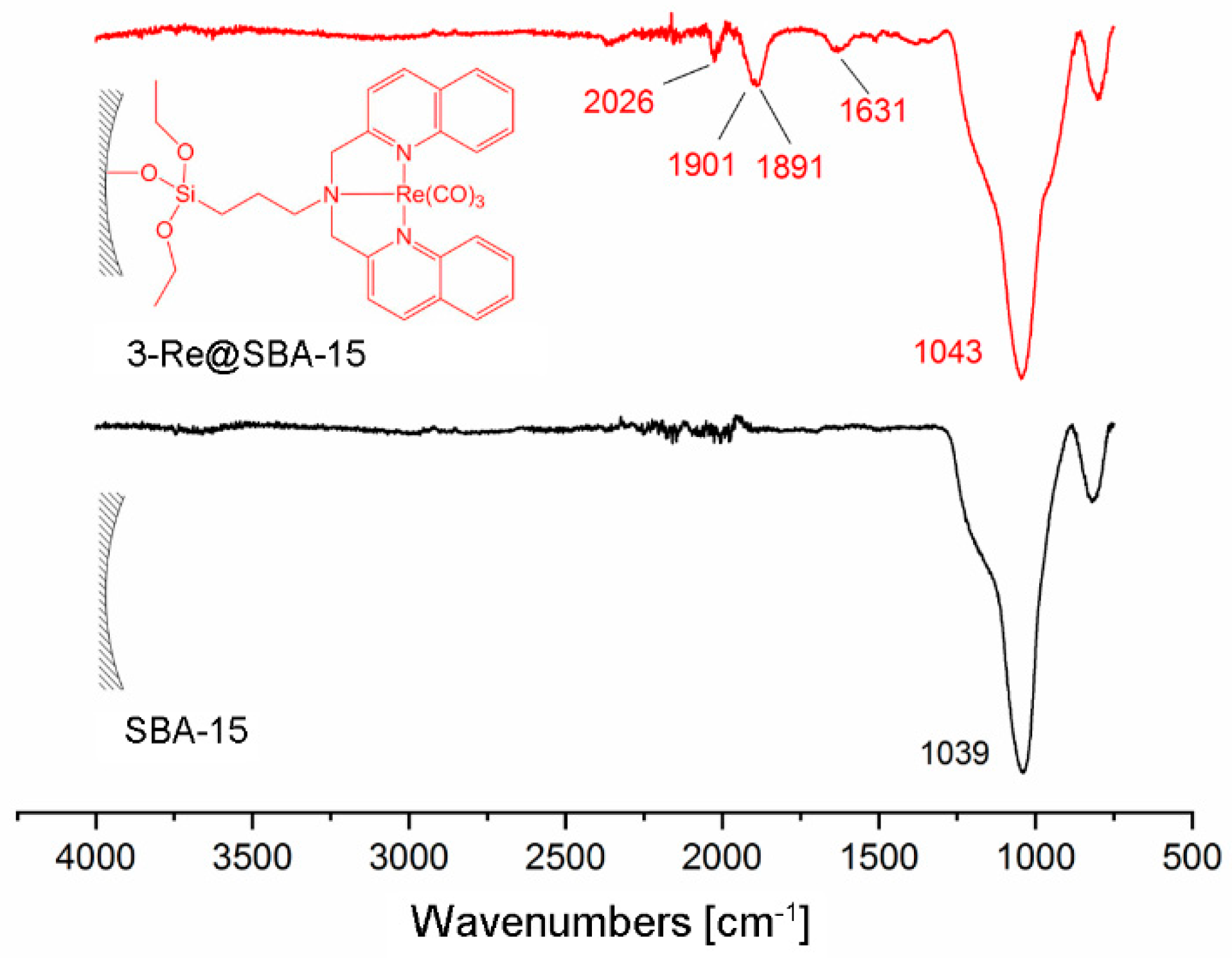

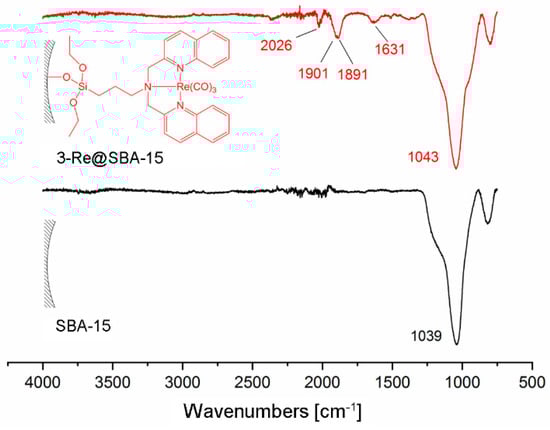

3.6. Synthesis of 3-Re@SBA-15
3.6.1. Method A: Grafting of 3-Re onto SBA15
3.6.2. Method B: Reaction of (NEt4)2[Re(H2O)3(CO)3] with 3@SBA-15

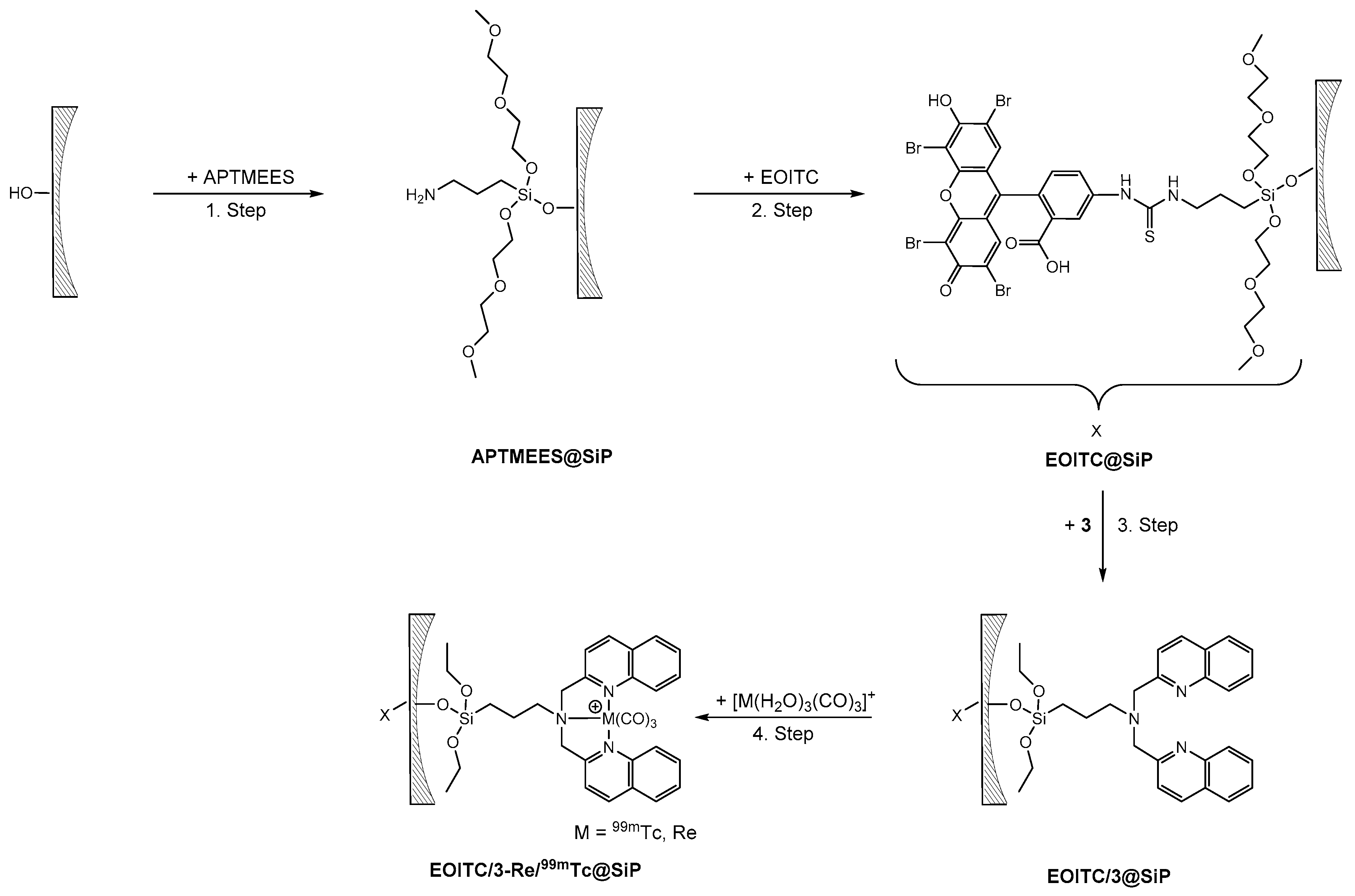

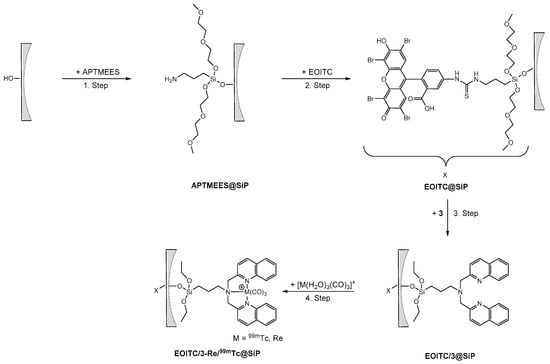

3.7. Synthesis of Bifunctionalized Mesoporous Silica Particles (EOITC/3@SiP)

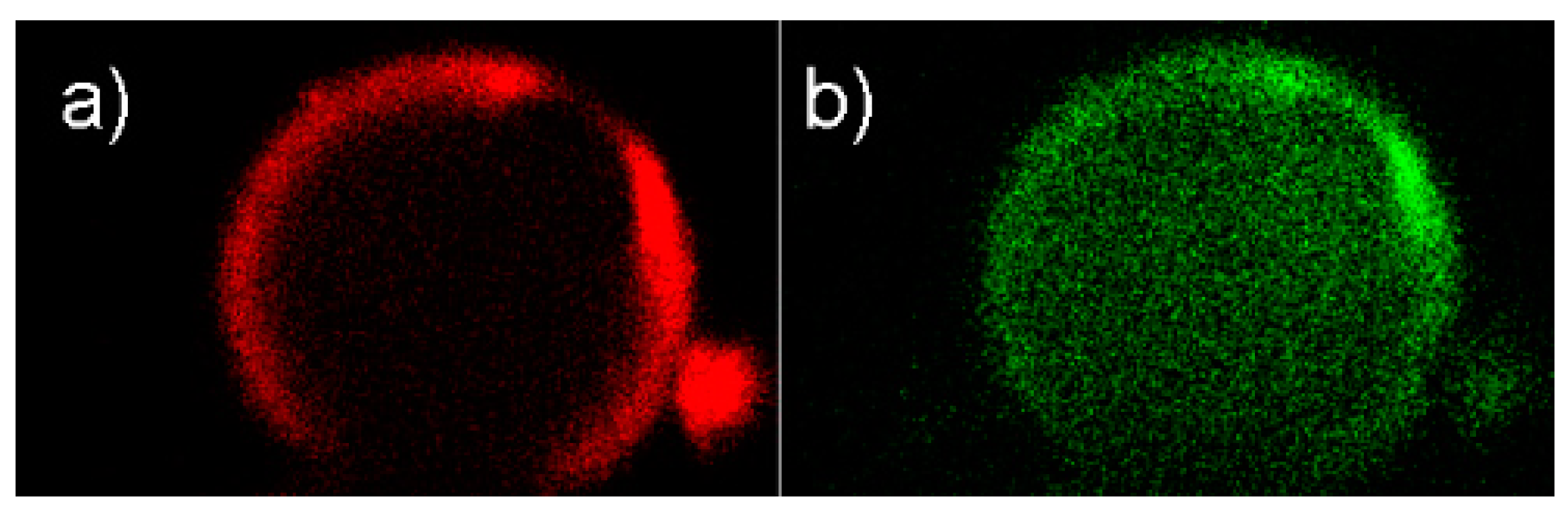

3.8. Reaction of Bifunctionalized Mesoporous Silica Particles (SiP) with [Re(H2O)3(CO)3]+

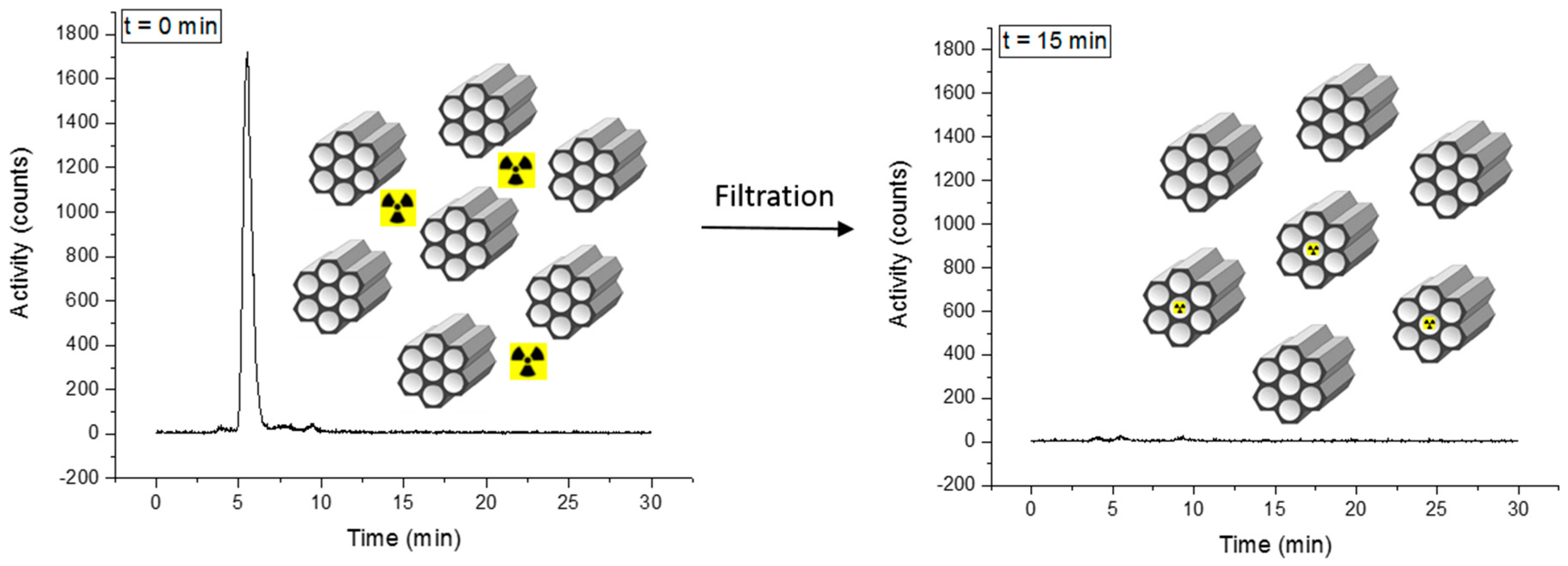

3.9. Labeling of Bifunctionalized Mesoporous Silica Particles (SiP) with [99mTc(H2O)3(CO)3]+
4. Conclusions
Supplementary Materials
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
