Post Synthetic Defect Engineering of UiO-66 Metal–Organic Framework with An Iridium(III)-HEDTA Complex and Application in Water Oxidation Catalysis

by
Giordano Gatto
,
Alceo Macchioni
*,
Roberto Bondi
,
Fabio Marmottini
and
Ferdinando Costantino
*
Department of Chemistry, Biology and Biotechnology, Università di Perugia and CIRCC, Via Elce di Sotto, 8, I-06123 Perugia, Italy
*
Authors to whom correspondence should be addressed.
Inorganics 2019, 7(10), 123; https://doi.org/10.3390/inorganics7100123
Submission received: 9 August 2019 / Revised: 4 October 2019 / Accepted: 5 October 2019 / Published: 10 October 2019
(This article belongs to the Special Issue Functional Coordination Polymers and Metal–Organic Frameworks)
Browse Figures
Versions Notes

Abstract

:
Clean production of renewable fuels is a great challenge of our scientific community. Iridium complexes have demonstrated a superior catalytic activity in the water oxidation (WO) reaction, which is a crucial step in water splitting process. Herein, we have used a defective zirconium metal–organic framework (MOF) with UiO-66 structure as support of a highly active Ir complex based on EDTA with the formula [Ir(HEDTA)Cl]Na. The defects are induced by the partial substitution of terephthalic acid with smaller formate groups. Anchoring of the complex occurs through a post-synthetic exchange of formate anions, coordinated at the zirconium clusters of the MOF, with the free carboxylate group of the [Ir(HEDTA)Cl]− complex. The modified material was tested as a heterogeneous catalyst for the WO reaction by using cerium ammonium nitrate (CAN) as the sacrificial agent. Although turnover frequency (TOF) and turnover number (TON) values are comparable to those of other iridium heterogenized catalysts, the MOF exhibits iridium leaching not limited at the first catalytic run, as usually observed, suggesting a lack of stability of the hybrid system under strong oxidative conditions.

Graphical Abstract

1. Introduction

Water oxidation (WO) to molecular oxygen is considered the ideal reaction to provide electrons and protons for the generation of renewable fuels [1,2,3]. In addition to being thermodynamically disfavored, WO is also an extremely complicated, multi-electron and multi-proton reaction from the kinetic point of view, asking for an efficient and robust catalyst [4]. WOCs (water oxidation catalysts) based on iridium are among the most efficient reported in the literature so far, having, however, in the little abundance and, consequently, high cost of iridium their “Achilles’ heel” [5,6,7]. A possible strategy to alleviate this problem stems in the minimization of the amount of noble-metal exploited in the catalytic process, according to the noble-metal atom economy principle [5]. This can be accomplished by utilizing (i) extremely active molecular catalysts at very low concentration [8,9,10,11,12,13,14,15], (ii) layered heterogeneous catalyst in which almost all active sites are reachable by the substrate [16], and (iii) heterogenized hybrid materials derived from the anchoring of a well-defined molecular catalyst on a suitable support [17,18]. The latter strategy should guarantee a very high percentage of active sites (potentially 100%), increased robustness of catalyst, mainly due to the inhibition of associative deactivation processes, and possible beneficial cooperation between the anchored catalyst and support. Many hybrid heterogenized catalysts have been reported in the literature [17,19,20,21,22,23] and, among them, those using MOF as support, pioneered by Lin and co-workers [24,25], have been particularly successful [26]. MOFs are a class of porous crystalline compounds constituted by the ordered connection of metal clusters and organic linkers, forming accessible pores and channels potentially useful for a plethora of applications, especially in catalysis and energy production [27,28,29], as support for metal nanoparticles [30] and for enhanced gas sorption properties [31]. Some of them are rapidly approaching the industrial world [32]. Zr-MOFs are particularly interesting for their chemical and thermal stability and low production cost. The archetype structure is that of UiO-66 which is constituted of hexanuclear clusters with the formula Zr6O4(OH)4(BDC)6 (BDC = 1,4-benzenedicarboxylic acid) in a cubic framework with face-centered cubic (fcu) topology [33]. UiO-66, together with other Zr-MOFs with different topologies, such as NU-1000, was already employed as support for Ir-based catalytic complex, employing both the Zr-cluster site [34,35] and via post-synthetic modification of the ligands for the in situ formation of the complex [36]. UiO-66 possess the exotic feature to be defective when it is crystallized in the presence of a mono carboxylic modulator such as formic, acetic, or benzoic acid, which act as substituent of BDC linker attached to the Zr6 cluster thus inducing missing linker or missing cluster defects into the structure. These defects can be considered as an opportunity to be employed for imparting targeted functionality to the MOFs by means the so called post-synthetic defect exchange (PSDE) of the monocarboxylic groups with other carboxylic linkers [37,38].
Herein, we report on the synthesis of formic acid (FA)-modulated UiO-66 with a high concentration of defects and its use a support for anchoring, by means of PSDE, an Ir(III) WOC complex based on EDTA (EDTA = N,N,N’N’-ethylenediaminotetraacetic acid). The complex, of formula [Ir(HEDTA)Cl]Na (see Figure 1) was already reported in literature as an efficient and durable homogeneous WOC under chemical oxidation with CAN as a sacrificial agent [39]. The molecular structure of the complex clearly shows that it possesses a free carboxylic group which could be employed as an anchoring functionality for its deposition onto a solid surface. Our approach here consists in a PSDE of the FA-UiO-66 MOF with the [Ir(HEDTA)Cl]− complex dissolved in water. The anchoring occurred through a topotactic exchange of the coordinated FA with the carboxylic group of the IrCl-EDTA complex. The hybrid material (IrEDTA@UiO-66) was characterized by means of surface area and porosity studies, inductively coupled plasma-optical emission spetrometry (ICP-OES) analysis, nuclear magnetic resonance (NMR) spectroscopy, and tested for WO reaction by using CAN as the sacrificial agent. The hybrid exhibited WO activity with TOF and TON values comparable to those of the best performing materials. However, a significant Ir leaching was observed not only during the first catalytic run, as usually observed, suggesting that strong oxidative conditions with Ce4+ lead to a rapid decomposition of the hybrid material.

2. Results and Discussion

2.1. Synthesis and Characterization

Synthesis of FA-Modulated UiO-66

FA-modulated UiO-66 was prepared according to the procedure reported by Taddei et al. [38]. The use of a large amount of formic acid as modulator (100 eq. with respect to Zr) induced the formation of a highly defective phase with respect to the defective free UiO structure, which can be obtained following other synthetic strategies present in literature [40]. FA acts as monocarboxylic modulator with the Zr clusters inducing two types of defects: missing linker defects (Figure 2b) and missing cluster defects (Figure 2c).
It is known that the materials obtained with FA as modulator most likely possess missing cluster defects [38]. Nitrogen adsorption and desorption analysis at 77 K was performed on FA-UiO-66 compound after activation at 120 °C overnight. The N2 adsorption/desorption isotherm is reported in Figure 3a and the Brunauer-Emmett-Teller (BET) value is 1450 m2/g with a total micropore volume of 0.57 cm3/g. These values, quite higher than the normal surface area and micropore volume of a defect-free UiO-66 (about 1100 m2/g and 0.4 cm3/g), suggest the highly defective nature of the obtained material. X-ray powder diffraction (XRPD) pattern of FA_UiO-66 (Figure 3b) shows the peaks at 7.3° and 8.5° of 2θ belonging to the (111) and (200) of the fcu UiO-66 phase and a good crystallinity degree. 1H-NMR spectra on the hydrolyzed compound confirm the presence of a considerable amount of FA, as can be seen in Figure 3d. Integration of 1H-NMR signals belonging to FA (8.3 ppm) and BDC (7.8 ppm) gives a FA/BDC ratio equal to 0.63. The obtained solution after the hydrolysis of the sample with NaOH was analyzed with ion chromatography resulting in the following BDC and FA contents in the starting solid: BDC = 2.78 mmol/g and FA = 1.72 mmol/g.
Given these results, the ratio FA/BDC = 0.63 is in very good agreement with the results of NMR experiments. Since FA is a monocarboxylic acid, the following equation can be used in order to determine the formula of the defective MOF:
F A B D C = 2 x 6 − x = 0.62
resulting in Zr6O4(OH)4(BDC)4.58(FA)2.74. Thermogravimetric analysis (Figure 3c) shows three different weight losses at 100 °C (7.5%), 330 °C (11%), and 540 °C (38%) due to the loss of water molecules and decomposition of the organic part of the MOF. If the plateau in the 550–1200 °C temperature range is assumed to be 6ZrO2 (Mw = 123 g/mol), we can use this value as a reference (100%) for extrapolating the theoretical formula from the analysis. The normalized weight at 100 °C is therefore 213%. The experimental formula weight from TGA analysis at 100 °C is, therefore, 1572 g/mol. Given the mass of the defective, desolvated MOF of formula Zr6O4(OH)4(BDC)4.58(FA)2.74 = 1555 g/mol, this is in good agreement with the experimental data from TGA analysis. The PSDE process for anchoring the Ir-EDTA complex onto the cluster surface is shown in Figure S3. After soaking the evacuated MOF into a water solution containing the dissolved complex (0.02 M) and heating at 80 °C for 24 h, the partial exchange of FA with the free carboxylic group of the complex occurred. Three samples with different amounts of exchanged Ir-EDTA were prepared: The compound was exchanged with 0.096, 0.077, and 0.057 mmol of Ir-EDTA, respectively. ICP-OES analysis for the determination of Ir content gave the following results: IrEDTA@UiO-66(1) = 256 µmol/g; IrEDTA@UiO-66(2) = 226 µmol/g; and IrEDTA@UiO-66(3) =170 µmol/g. Figure 3a shows the nitrogen adsorption and desorption analysis at 77 K performed in the same conditions on IrEDTA@UiO-66 containing 256 µmol/g (red curve). After the exchange the calculated BET value is reduced to 547 m2/g and the total micropore volume is reduced to 0.22 cm3/g suggesting that the complex is not simply linked to the particle surface but most likely occupies the micropores created by the defects. However, the Ir-EDTA complex is inserted in the micropores and the complex could obstruct a part of the micropore volume of the substrate. TGA analysis of IrEDTA@UiO-66 (Figure 3b, red curve) is similar to that of the pristine MOF although the decomposition of the material starts at lower temperature (around 350 °C) with respect to the unmodified MOF.
The XRPD patterns of the three samples are shown in Figure 4. Anchoring Ir-EDTA onto the cluster surface did not affect the structure of the MOF since the characteristic peaks remained unaltered.
Figure 5 shows the 1H-NMR spectrum of the hydrolyzed IrEDTA@UiO-66 sample. The peak at 8.3 ppm attributed to FA exhibits a reduced intensity and the integration with that of BDC gave as result FA/BDC = 0.10. This value is about six times lower than the unmodified defective MOF (FA/BDC = 0.63) meaning that the most part of FA was successfully exchanged by Ir-EDTA complex. Peaks belonging to the Ir-EDTA complex are clearly visible at 3 and 2.2 ppm. With this new ratio, a suggested formula can be Zr6O4(OH)4(BDC)4.58(FA)0.6(Ir-EDTA)2.2.

2.2. Water Oxidation Catalytic Activity of IrEDTA@UiO-66

Herein, the catalytic activity of IrEDTA@UiO-66 hybrid materials toward water oxidation to molecular oxygen (Equation (1)) is described. First, a blank experiment by using only the FA_UiO-66 without Ir was performed by adding a 25 mM solution of CAN to 3 mg of MOF (see Figures S1 and S2). No oxygen evolution was observed confirming the inactivity of MOF toward water oxidation. Catalytic tests with Ir containing MOF were carried out by using Ce4+ (added as CAN) as a sacrificial oxidant, dispersing the proper amount of catalyst in acidic water (pH 1, 0.1 M HNO3) at 25 °C.
4Ce4+ + 2H2O → 4Ce3+ + 4H+ + O2
The evolved gas, according to Equation (1), was quantified by differential manometry (See Materials and Methods). In a first series of experiments, a consecutive triple addition (100, 150, and 500 μL) of a 1.25 M solution of CAN to 4.9 mL of a 51.5 μM IrEDTA@UiO-66 suspension was executed (Table 1, entries 1–3; Figure 6). IrEDTA@UiO-66 was found to be a competent catalyst for water oxidation and exhibited a TOF of ca. 5 min−1 and TON values included between 62 and 308 with yields = 30%–50%. A second series of measurements was performed with the aim of evaluating possible leaching of the molecular catalyst from the MOF support. Particularly, a catalytic run was executed by using 73.12 µM IrEDTA@UiO-66 and 75 mM CAN (Table 1, entry 4). At the end of O2 evolution IrEDTA@UiO-66 was recovered by filtration and the supernatant solution tested by the addition of another aliquot of 75 mM CAN (Table 1, entry 5). Moreover, the recovered solid was tested under the same conditions (Table 1, entry 6). At the end of the reaction the solid catalyst was again recovered by filtration and the second supernatant tested (Table 1, entry 7). The measured TOF (4 min−1) and TON (108, yield = 42%) values of the starting IrEDTA@UiO-66 are nicely consistent with those observed in the first series of experiments. Furthermore, the recovered solid IrEDTA@UiO-66 exhibits similar TOF (6 min−1) and TON (180, yield = 67%) values. Nevertheless, the two supernatants are active, with even higher TOF (10 and 13 min−1) but comparable TON (363, yield = 44% and 1013, yield = 46%) values, evidencing some leaching of iridium in solution. ICP-OES measurements indicate that 30.98% and 30.75% of iridium leached out from IrEDTA@UiO-66 after the first and second catalytic run, respectively. In order to check the stability of the MOF before catalysis we evaluated the Ir leaching by dispersing IrEDTA@UiO-66 in a 0.1 M HNO3 solution for 2 h, without the addition of CAN. The measured Ir leaching was about 35%, which is similar to that observed in the first catalytic run. It means that the grafted complex is scarcely stable upon acidic conditions. The catalytic activity of IrEDTA@UiO-66 compares well with those of the molecular precursor [34] and hybrid material IrEDTA@TiO2 [20], tested under similar conditions, in terms of TOF (Table 1, entries 8–10 and 12). The TON values are clearly lower than those observed for the molecular precursor, which provide 100% yield, and somewhat smaller also than those of IrEDTA@TiO2 (Table 1, entries 8–10 and 12). Nevertheless, the main criticality of IrEDTA@UiO-66 seems to be the leaching of iridium, occurring also after the second catalytic run, contrary to what observed for IrEDTA@TiO2 (Table 1, entries 11 and 13) and other heterogenized iridium catalysts reported before [17,20]. Several explanations might be provided for such a phenomenon. It can be hypothesized some Ce4+ might undergo an exchange with the Zr4+ ions of MOF, becoming not available anymore for driving the oxidative splitting of water. Alternatively, it might be hypothesized that the oxidative potential of iridium inIrEDTA@UiO-66 is slightly higher than in the molecular precursor and hybrid material IrEDTA@TiO2, thus asking for a higher Ce4+/Ce3+ ratio in order to reach the appropriate “Nernstian” potential for WO [41,42]. Both the explanations are consistent with the observation that the addition of a second aliquot of CAN restores the catalytic activity.
A catalytic run with a large amount of IrEDTA@UiO-66 (50 mg, 2.61 mM; CAN = 75 mM) was performed in order to recover and analyze IrEDTA@UiO-66 post-catalysis. The 1H-NMR spectrum of the recovered solid digested in NaOD is significantly different than that before catalysis (Figure 7). In particular, the typical resonances of the –CH2 protons of EDTA in the 2.0–3.2 ppm range are not visible anymore in the post-catalysis sample, suggesting a complete degradation of the ligand framework [43]. XRPD pattern of the MOF after three catalytic runs (Figure S4) shows no crystallinity loss. The FA/BDC ratio (Figure S5) post catalysis is 0.20 suggesting that the framework remained most likely unaltered and the degradation involved a small fraction of BDC together with the Ir-EDTA complex. However, because the recovered solid is still active in WO, it might be hypothesized that after EDTA degradation some iridium remains attached at the MOF structure, possibly through the formation of Zr–O–Ir oxo bridges, as observed in heterogenized WOCs prepared by anchoring an Ir-Kläui molecular precursor onto BiVO4 nanopyramids [17].

3. Materials and Methods

3.1. Synthetic Procedures

All reagents were used as received without further purification: ZrCl4, cerium ammonium nitrate (CAN), formic acid (FA), terephthalic acid (BDC) and N,N-dimethylformamide (DMF) was purchased from Sigma Aldrich (St. Louis, MO, USA). [Ir(HEDTA)Cl]Na was prepared according to Reference [34].

3.1.1. Synthesis of FA-UiO-66

ZrCl4 (0.60 g, 2.5 mmol) was dissolved in DMF (40 mL). Then, water (0.135 mL, 7.5 mmol), FA (9.4 mL, 250 mmol), and BDC (0.435 g, 2.5 mmol) were added to the solution. The mixture was sonicated until complete dissolution and divided in four vials (10 mL each) and heated in an oven at 120 °C for 16 h. After the reaction, the solid was recovered for centrifugation and washed with DMF (one time after 2 h soaking), water (2 h soaking), and acetone (one time after 10 min soaking). At the end, the solid was dried in an oven at 80 °C for 2 h.

3.1.2. Synthesis of IrEDTA@UiO-66 via PSDE

FA_UiO66 (60 mg) was suspended in 5 mL of a 0.02 M water solution of a [Ir(HEDTA)Cl]Na (0.02M) for 24 h at 80 °C. After completion of the reaction, the solid was centrifuged and washed with DMF (one time, two-hour soaking), water (two times, two-hour soaking), and acetone (two times, two-hour soaking). The solid was dried in an oven at 80 °C for two hours. Two other syntheses with different Ir contents were carried out: 30 mg of UiO-66 in 0.01M Ir-EDTA solution (5 mL) and 40 g in 0.015 Ir-EDTA solution (5 mL).

3.2. Analytical and Instrumental Procedures

Powder X-Ray Diffraction (PXRD). PXRD patterns were collected in reflection geometry in the 4–40° 2θ range, with a 40 s per step counting time and with a step size of 0.016° on a PANalytical X’PERT PRO diffractometer (Malvern Panalytical Ltd., Malvern, UK), PW3050 goniometer, (Malvern Panalytical Ltd., Malvern, UK) equipped with an X’Celerator detector (Malvern Panalytical Ltd., Malvern, UK) by using the Cu-Kα radiation. The long fine focus (LFF) ceramic tube operated at 40 kV and 40 mA.
Thermogravimetric analysis (TGA). TGA was performed using a Netzsch STA490C thermoanalyzer (NETZSCH Group, Selb, Germany) under a 20 mL min−1 air flux with a heating rate of 10 °C min−1.
Nitrogen adsorption and desorption isotherms. N2 adsorption/desorption isotherms were performed using a Micromeritics ASAP 2010 analyzer (Micromeritics, Norcross, GA, USA). Prior of the analysis, the samples were degassed overnight under vacuum at 120 °C. BET analysis and t-plot analysis of the adsorption data were used to calculate specific surface area and micropore volume respectively. The Harksin and Jura equation was used as reference for the statistical thickness calculation.
Ion-Chromatography Analysis. Ion chromatography was carried out using a Dionex 500 (Dionex Corp., Sunnyvale, CA, USA) apparatus with a CD20 suppressed conductivity module. Sample analysis was performed as follow: About 30 mg of sample was dispersed in 40 mL of NaOH 0.0125 M and refluxed for 2 h. After reflux, the solution was diluted to 100 mL by water. The resulting solution was analyzed by ion chromatography using a Dionex AS11 column and eluted with a flux of 1.5 mL/min with NaOH 6 mM in the case of BDC analysis or NaOH 0.1 mM in the case of FA analysis.
ICP-OES Analysis. The ICP-OES analysis was carried out using a Varian 700-ES series (Agilent Technologies, Santa Clara, CA, USA) with a standard (2,5,7, and 10 mg/L respectively) of Iridium solution.
WO catalytic experiments. Catalytic experiments were performed using two homemade jacketed glass reactors coupled to a Testo 521-1 manometer. In a typical catalytic run, IrEDTA@UiO-66 suspended in a 0.1 M HNO3 solution was loaded into the first reaction vessel (working cell), whereas an equal amount of neat water was loaded into the second one (reference cell). Both reactors were sealed with a rubber septum, connected to the manometer, kept at a constant temperature of 25 °C, and placed under stirring for 20 min. Acquisition was started. When a steady baseline was achieved, an equal volume of a solution of CAN and neat water were injected into the working cell and reference cell, respectively, to reach a final volume of 5 mL in each reactor. The concentration of the stock solution of CAN was adjusted, depending on the final concentration desired, in order to have a maximum injection volume of 500 μL. The total gas evolved was estimated by measuring the differential pressure between the working and reference cell.
Fitting methodology and kinetic data analyses. All trends of [O2] evolution versus time were fitted by a composite mathematical function developed by Peters and Baskin (PB) for distinguishing sigmoidal and bilinear growth profiles of plant roots [38]. The derivative of the PB fits provided reaction rate (v = d[O2]/dt) trends as function of time. Reaction rate over catalyst concentration led to TOF (= v/[Ir]), which was plotted versus the factor conversion X (= 4[O2]/[CAN]0) [9].

4. Conclusions

In this paper a catalytic active Ir complex based on EDTA was successfully anchored onto a defective Zr-MOF with UiO-66 structure. The post-synthetic modification of defective MOF for designing a new heterogenous catalyst was here validated for the first time demonstrating that substitution of small formate anions linked to zirconium clusters with a larger carboxylate-bearing complex is possible. The material was employed for water oxidation reaction using Ce4+ as the sacrificial agent. The catalyst showed a good catalytic activity, which is comparable to that observed for already reported iridium-supported Zr-MOF [25] and slightly lower than Ir-EDTA@TiO2 heterogenized catalysts [20]. However, Ir leaching occurs not only during the first catalytic run, as usually observed, but also for the successive ones. Moreover, leaching of Ir was also observed simply dispersing the solid in the nitric acid solution, without CAN addition. This fact suggests that the material is not stable under the acidic and strong oxidative conditions due to the high redox potential of Ce4+. Furthermore, the WO reaction yield is somewhat lower than that observed for other heterogenized iridium WOCs, indicating a possible exchange of the zirconium atom of MOF with cerium of CAN or a higher “Nernstian” potential. Despite those drawbacks, the results reported in this paper suggest that anchoring a molecular WOC onto a defective MOF is a viable strategy to assemble a hybrid material to be integrated into a device for the generation of renewable fuels. Future developments of this work will be devoted to the stability improvement of the system by performing photo- or electro-catalysis which avoid the use of Ce4+ and strong acidic conditions.

Supplementary Materials

The following are available online at https://www.mdpi.com/2304-6740/7/10/123/s1, Figure S1: Manometric oxygen evolution of IrEDTA@UiO-66 and UiO-66. Figure S2: Differential manometric oxygen evolution of IrEDTA@UiO-66 and UiO-66. Figure S3: PSDE of FA with IrEDTA complex onto the structure of FA_UiO-66. Figure S4: XRPD patterns of IrEDTA@UiO-66(3) before and after three catalytic runs. Figure S5: 1H-NMR spectrum of IrEDTA@UiO-66 after 3 catalytic runs.

Author Contributions

Conceptualization, F.C. and A.M.; methodology, F.C., F.M., A.M.; formal analysis, G.G., R.B. and F.M.; data curation, G.G., F.M. and F.C.; writing—original draft preparation, F.C. and A.M.; writing—review and editing, F.C. and A.M.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Alstrum-Acevedo, J.H.; Brennaman, M.K.; Meyer, T.J. Chemical Approaches to Artificial Photosynthesis. 2. Inorg. Chem. 2005, 44, 6802–6827. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Lewis, N.S.; Nocera, D.G. Powering the planet: Chemical challenges in solar energy utilization. Proc. Natl. Acad. Sci. USA 2006, 103, 15729–15735. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Balzani, V.; Credi, A.; Venturi, M. Photochemical Conversion of Solar Energy. ChemSusChem 2008, 1, 26–58. [Google Scholar] [CrossRef] [PubMed]
  4. Llobet, A. Molecular Water Oxidation Catalysis: A Key Topic for New Sustainable Energy Conversion Schemes; Wiley-Interscience: New York, NY, USA, 2014. [Google Scholar]
  5. Macchioni, A. The Middle-Earth between Homogeneous and Heterogeneous Catalysis in Water Oxidation with Iridium. Eur. J. Inorg. Chem. 2019, 2019, 7–17. [Google Scholar] [CrossRef]
  6. Corbucci, I.; Macchioni, A.; Albrecht, M. Iridium Complexes in Water Oxidation Catalysis. In Iridium(III) in Optoelectronic and Photonics Applications; John Wiley & Sons Ltd.: Hoboken, NJ, USA, 2017; pp. 617–654. [Google Scholar]
  7. Thomsen, J.M.; Huang, D.L.; Crabtree, R.H.; Brudvig, G.W. Iridium-based complexes for water oxidation. Dalt. Trans. 2015, 44, 12452–12472. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Menendez Rodriguez, G.; Bucci, A.; Hutchinson, R.; Bellachioma, G.; Zuccaccia, C.; Giovagnoli, S.; Idriss, H.; Macchioni, A. Extremely Active, Tunable, and pH-Responsive Iridium Water Oxidation Catalysts. ACS Energy Lett. 2017, 2, 105–110. [Google Scholar] [CrossRef]
  9. Macchioni, A.; Menendez Rodriguez, G.; Gatto, G.; Zuccaccia, C. Benchmarking Water Oxidation Catalysts Based on Iridium Complexes: Clues and Doubts on the Nature of Active Species. ChemSusChem 2017, 4503–4509. [Google Scholar]
  10. Michaelos, T.K.; Shopov, D.Y.; Sinha, S.B.; Sharninghausen, L.S.; Fisher, K.J.; Lant, H.M.C.; Crabtree, R.H.; Brudvig, G.W. A Pyridine Alkoxide Chelate Ligand That Promotes Both Unusually High Oxidation States and Water-Oxidation Catalysis. Accounts Chem. Res. 2017, 50, 952–959. [Google Scholar] [CrossRef] [PubMed]
  11. Yang, K.R.; Matula, A.J.; Kwon, G.; Hong, J.; Sheehan, S.W.; Thomsen, J.M.; Brudvig, G.W.; Crabtree, R.H.; Tiede, D.M.; Chen, L.X.; et al. Solution Structures of Highly Active Molecular Ir Water-Oxidation Catalysts from Density Functional Theory Combined with High-Energy X-ray Scattering and EXAFS Spectroscopy. J. Am. Chem. Soc. 2016, 138, 5511–5514. [Google Scholar] [CrossRef]
  12. Woods, J.A.; Lalrempuia, R.; Petronilho, A.; McDaniel, N.D.; Müller-Bunz, H.; Albrecht, M.; Bernhard, S. Carbene iridium complexes for efficient water oxidation: Scope and mechanistic insights. Energy Environ. Sci. 2014, 7, 2316–2328. [Google Scholar] [CrossRef]
  13. Venturini, A.; Barbieri, A.; Reek, J.N.H.; Hetterscheid, D.G.H. Catalytic Water Splitting with an Iridium Carbene Complex: A Theoretical Study. Chem. A Eur. J. 2014, 20, 5358–5368. [Google Scholar] [CrossRef] [PubMed]
  14. McDaniel, N.D.; Coughlin, F.J.; Tinker, L.L.; Bernhard, S. Cyclometalated Iridium(III) Aquo Complexes:  Efficient and Tunable Catalysts for the Homogeneous Oxidation of Water. J. Am. Chem. Soc. 2008, 130, 210–217. [Google Scholar] [CrossRef] [PubMed]
  15. Li, M.; Takada, K.; Goldsmith, J.I.; Bernhard, S. Iridium(III) Bis-Pyridine-2-Sulfonamide Complexes as Efficient and Durable Catalysts for Homogeneous Water Oxidation. Inorg. Chem. 2016, 55, 518–526. [Google Scholar] [CrossRef] [PubMed]
  16. Fagiolari, L.; Scafuri, A.; Costantino, F.; Vivani, R.; Nocchetti, M.; Macchioni, A. A Ternary Zn–Al–Ir Hydrotalcite-Like Compound Exhibiting High Efficiency and Recyclability as a Water Oxidation Catalyst. ChemPlusChem 2016, 81, 1060–1063. [Google Scholar] [CrossRef]
  17. Wan, X.; Wang, L.; Dong, C.L.; Rodriguez, G.M.; Huang, Y.-C.; Macchioni, A.; Shen, S. Activating Kläui-Type Organometallic Precursors at Metal Oxide Surfaces for Enhanced Solar Water Oxidation. ACS Energy Lett. 2018, 3, 1613–1619. [Google Scholar] [CrossRef]
  18. Sheehan, S.W.; Thomsen, J.M.; Hintermair, U.; Crabtree, R.H.; Brudvig, G.W.; Schmuttenmaer, C.A. A molecular catalyst for water oxidation that binds to metal oxide surfaces. Nat. Commun. 2015, 6. [Google Scholar] [CrossRef] [PubMed]
  19. Chen, Z.; Concepcion, J.J.; Hu, X.; Yang, W.; Hoertz, P.G.; Meyer, T.J. Concerted O atom–proton transfer in the O–O bond forming step in water oxidation. Proc. Natl. Acad. Sci. USA 2010, 107, 7225–7229. [Google Scholar] [CrossRef] [PubMed]
  20. Savini, A.; Bucci, A.; Nocchetti, M.; Vivani, R.; Idriss, H.; Macchioni, A. Activity and Recyclability of an Iridium–EDTA Water Oxidation Catalyst Immobilized onto Rutile TiO2. ACS Catal. 2015, 5, 264–271. [Google Scholar] [CrossRef]
  21. Pastori, G.; Wahab, K.; Bucci, A.; Bellachioma, G.; Zuccaccia, C.; Llorca, J.; Idriss, H.; Macchioni, A. Heterogenized Water Oxidation Catalysts Prepared by Immobilizing Kläui-Type Organometallic Precursors. Chem. A Eur. J. 2016, 22, 13459–13463. [Google Scholar] [CrossRef]
  22. Materna, K.L.; Rudshteyn, B.; Brennan, B.J.; Kane, M.H.; Bloomfield, A.J.; Huang, D.L.; Shopov, D.Y.; Batista, V.S.; Crabtree, R.H.; Brudvig, G.W. Heterogenized Iridium Water-Oxidation Catalyst from a Silatrane Precursor. ACS Catal. 2016, 6, 5371–5377. [Google Scholar] [CrossRef] [Green Version]
  23. Materna, K.L.; Crabtree, R.H.; Brudvig, G.W. Anchoring groups for photocatalytic water oxidation on metal oxide surfaces. Chem. Soc. Rev. 2017, 46, 6099–6110. [Google Scholar] [CrossRef] [PubMed]
  24. Wang, C.; Xie, Z.; Dekrafft, K.E.; Lin, W. Doping Metal–Organic Frameworks for Water Oxidation, Carbon Dioxide Reduction, and Organic Photocatalysis. J. Am. Chem. Soc. 2011, 133, 13445–13454. [Google Scholar] [CrossRef]
  25. Wang, C.; Wang, J.-L.; Lin, W. Elucidating Molecular Iridium Water Oxidation Catalysts Using Metal–Organic Frameworks: A Comprehensive Structural, Catalytic, Spectroscopic, and Kinetic Study. J. Am. Chem. Soc. 2012, 134, 19895–19908. [Google Scholar] [CrossRef]
  26. Shao, Q.; Yang, J.; Huang, X. The Design of Water Oxidation Electrocatalysts from Nanoscale Metal–Organic Frameworks. Chem. A Eur. J. 2018, 24, 15143–15155. [Google Scholar] [CrossRef] [PubMed]
  27. Adil, K.; Belmabkhout, Y.; Pillai, R.S.; Cadiau, A.; Bhatt, P.M.; Assen, A.H.; Maurin, G.; Eddaoudi, M. Gas/vapour separation using ultra-microporous metal–organic frameworks: Insights into the structure/separation relationship. Chem. Soc. Rev. 2017, 46, 3402–3430. [Google Scholar] [CrossRef] [PubMed]
  28. Adil, K.; Chen, Z.; Weseliński, Ł.J.; Belmabkhout, Y.; Eddaoudi, M. A supermolecular building layer approach for gas separation and storage applications: The eea and rtl MOF platforms for CO2 capture and hydrocarbon separation. J. Mater. Chem. A 2015, 3, 6276–6281. [Google Scholar]
  29. Escorihuela, J.; Narducci, R.; Compañ, V.; Costantino, F. Proton Conductivity of Composite Polyelectrolyte Membranes with Metal–Organic Frameworks for Fuel Cell Applications. Adv. Mater. Interfaces 2019, 6, 1801146. [Google Scholar] [CrossRef]
  30. Wu, R.; Qian, X.; Zhou, K.; Liu, H.; Yadian, B.; Wei, J.; Zhu, H.; Huang, Y. Highly dispersed Au nanoparticles immobilized on Zr-based metal–organic frameworks as heterostructured catalyst for CO oxidation. J. Mater. Chem. A 2013, 1, 14294–14299. [Google Scholar] [CrossRef]
  31. Wu, H.; Chua, Y.S.; Krungleviciute, V.; Tyagi, M.; Chen, P.; Yildirim, T.; Zhou, W. Unusual and highly tunable missing-linker defects in zirconium metal–organic framework UiO-66 and their important effects on gas adsorption. J. Am. Chem. Soc. 2013, 135, 10525–10532. [Google Scholar] [CrossRef] [PubMed]
  32. Vilela, S.M.F.; Tomé, J.P.C.; Silva, P.; Paz, F.A.A. Multifunctional metal–organic frameworks: From academia to industrial applications. Chem. Soc. Rev. 2015, 44, 6774–6803. [Google Scholar]
  33. Cavka, J.H.; Jakobsen, S.; Olsbye, U.; Guillou, N.; Lamberti, C.; Bordiga, S.; Lillerud, K.P. A New Zirconium Inorganic Building Brick Forming Metal Organic Frameworks with Exceptional Stability. J. Am. Chem. Soc. 2008, 130, 13850–13851. [Google Scholar] [CrossRef] [PubMed]
  34. Yang, D.; Odoh, S.O.; Wang, T.C.; Farha, O.K.; Hupp, J.T.; Cramer, C.J.; Gagliardi, L.; Gates, B.C. Metal–organic framework nodes as nearly ideal supports for molecular catalysts: NU-1000-and UiO-66-supported iridium complexes. J. Am. Chem. Soc. 2015, 137, 7391–7396. [Google Scholar] [CrossRef] [PubMed]
  35. Yang, D.; Odoh, S.O.; Borycz, J.; Wang, T.C.; Farha, O.K.; Hupp, J.T.; Cramer, C.J.; Gagliardi, L.; Gates, B.C. Tuning Zr6 Metal–Organic Framework (MOF) Nodes as Catalyst Supports: Site Densities and Electron-Donor Properties Influence Molecular Iridium Complexes as Ethylene Conversion Catalysts. ACS Catal. 2016, 6, 235–247. [Google Scholar] [CrossRef]
  36. Pintado-Sierra, M.; Rasero-Almansa, A.M.; Corma, A.; Iglesias, M.; Sanchez, F. Bifunctional iridium-(2-aminoterephthalate)–Zr-MOF chemoselective catalyst for the synthesis of secondary amines by one-pot three-step cascade reaction. J. Catal. 2013, 299, 137–145. [Google Scholar] [CrossRef]
  37. Taddei, M. When defects turn into virtues: The curious case of zirconium-based metal–organic frameworks. Coord. Chem. Rev. 2017, 343, 1–24. [Google Scholar] [CrossRef]
  38. Taddei, M.; Wakeham, R.J.; Koutsianos, A.; Andreoli, E.; Barron, A.R. Post-Synthetic Ligand Exchange in Zirconium-Based Metal–Organic Frameworks: Beware of The Defects! Angew. Chemie Int. Ed. 2018, 57, 11706–11710. [Google Scholar] [CrossRef] [PubMed]
  39. Savini, A.; Bellachioma, G.; Bolaño, S.; Rocchigiani, L.; Zuccaccia, C.; Zuccaccia, D.; Macchioni, A. Iridium-EDTA as an Efficient and Readily Available Catalyst for Water Oxidation. ChemSusChem 2012, 5, 1415–1419. [Google Scholar] [CrossRef] [PubMed]
  40. De Stefano, M.R.; Islamoglu, T.; Garibay, S.J.; Hupp, J.T.; Farha, O.K. Room-temperature synthesis of UiO-66 and thermal modulation of densities of defect sites. Chem. Mater. 2017, 29, 1357–1361. [Google Scholar] [CrossRef]
  41. Codolà, Z.; Gamba, I.; Acuña-Parés, F.; Casadevall, C.; Clémancey, M.; Latour, J.-M.; Luis, J.M.; Lloret-Fillol, J.; Costas, M. Design of Iron Coordination Complexes as Highly Active Homogenous Water Oxidation Catalysts by Deuteration of Oxidation-Sensitive Sites. J. Am. Chem. Soc. 2019, 141, 323–333. [Google Scholar] [CrossRef] [PubMed]
  42. Zuccaccia, C.; Bellachioma, G.; Bortolini, O.; Bucci, A.; Savini, A.; Macchioni, A. Transformation of a Cp*–Iridium(III) Precatalyst for Water Oxidation when Exposed to Oxidative Stress. Chem. A Eur. J. 2014, 20, 3446–3456. [Google Scholar] [CrossRef] [PubMed]
  43. Peters, W.S.; I Baskin, T. Tailor-made composite functions as tools in model choice: The case of sigmoidal vs bi-linear growth profiles. Plant Methods 2006, 2, 11. [Google Scholar] [CrossRef] [PubMed]
Inorganics 07 00123 g001 550

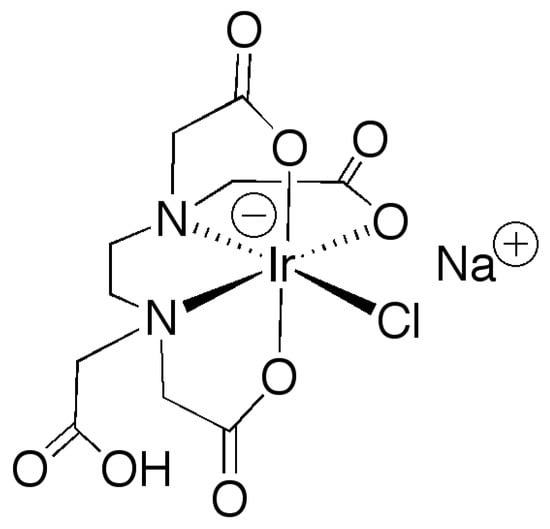

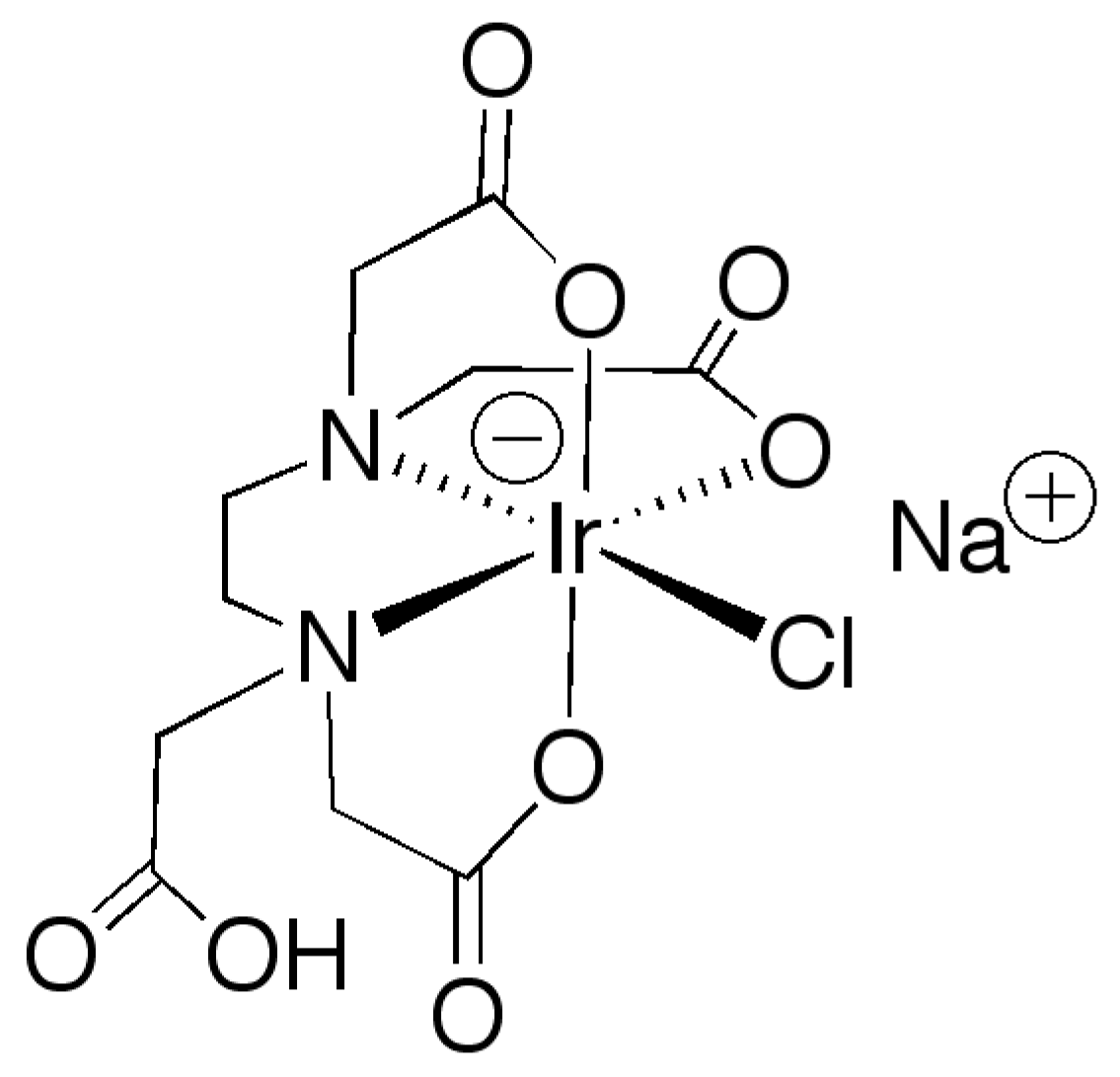

Figure 1. Molecular structure of [Ir(HEDTA)Cl]Na complex.
Figure 1. Molecular structure of [Ir(HEDTA)Cl]Na complex.
Inorganics 07 00123 g001
Inorganics 07 00123 g002 550

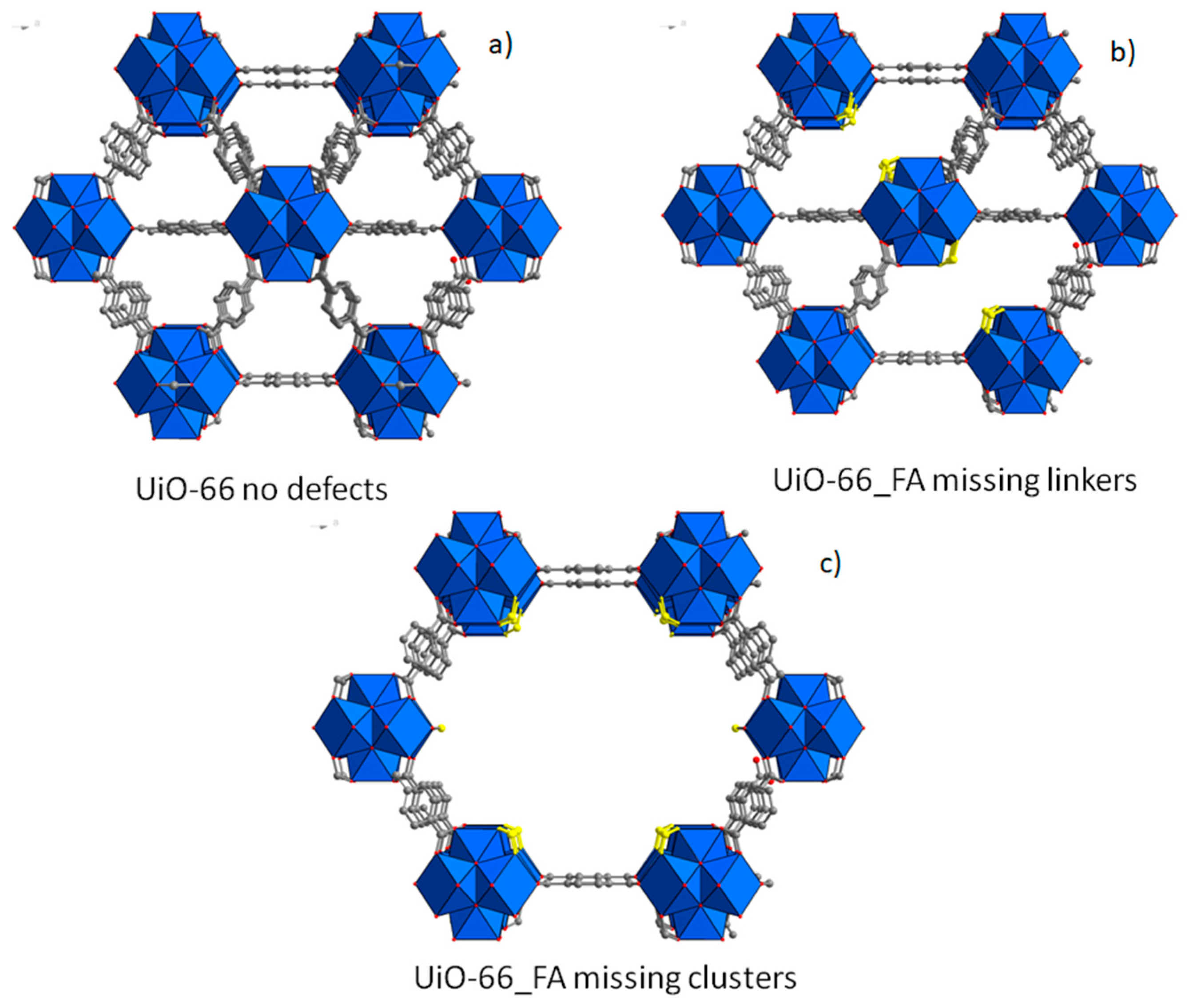

Figure 2. Structure of non-defective (a), missing linker defective (b), and missing cluster defective (c) UIO-66 phase. Formic acid is evidenced in yellow. Zirconium clusters are depicted in blue.
Figure 2. Structure of non-defective (a), missing linker defective (b), and missing cluster defective (c) UIO-66 phase. Formic acid is evidenced in yellow. Zirconium clusters are depicted in blue.
Inorganics 07 00123 g002
Inorganics 07 00123 g003 550

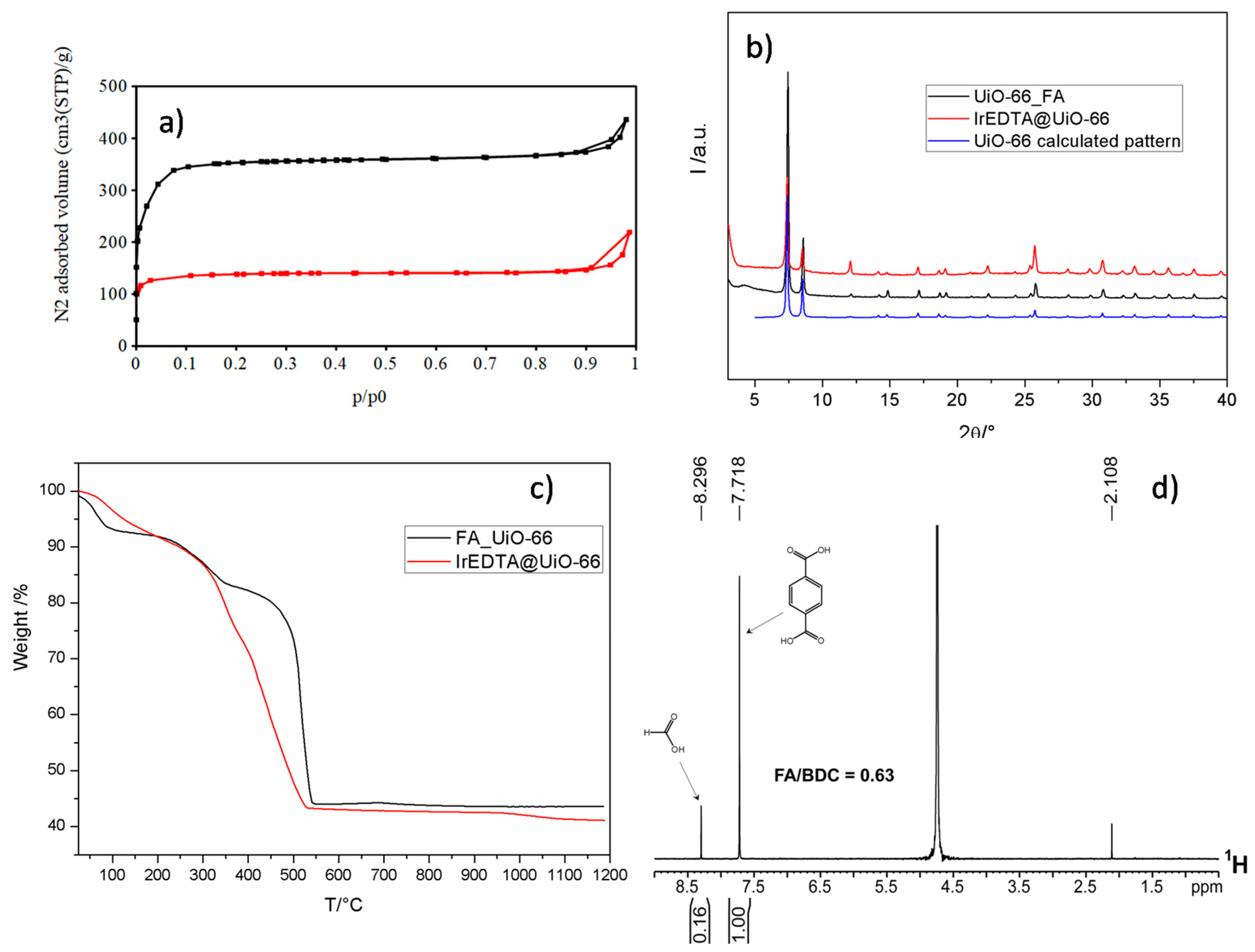

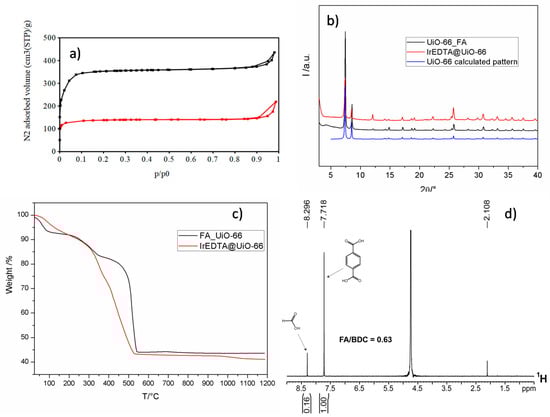

Figure 3. N2 adsorption and desorption isotherm for FA_UiO-66 (black line) and IrEDTA@UiO-66 (red line) (a). XRPD patterns of FA_UiO-66 (black), Ir-EDTA@UiO-66 (red), and calculated pattern for UiO-66 (blue) (b). TGA curve for FA_UiO-66 (black) and IrEDTA@UiO-66 (red) (c) and 1H-NMR spectrum for hydrolyzed FA_UiO-66 MOF (NaOD/D2O, 298 K) (d).
Figure 3. N2 adsorption and desorption isotherm for FA_UiO-66 (black line) and IrEDTA@UiO-66 (red line) (a). XRPD patterns of FA_UiO-66 (black), Ir-EDTA@UiO-66 (red), and calculated pattern for UiO-66 (blue) (b). TGA curve for FA_UiO-66 (black) and IrEDTA@UiO-66 (red) (c) and 1H-NMR spectrum for hydrolyzed FA_UiO-66 MOF (NaOD/D2O, 298 K) (d).
Inorganics 07 00123 g003
Inorganics 07 00123 g004 550

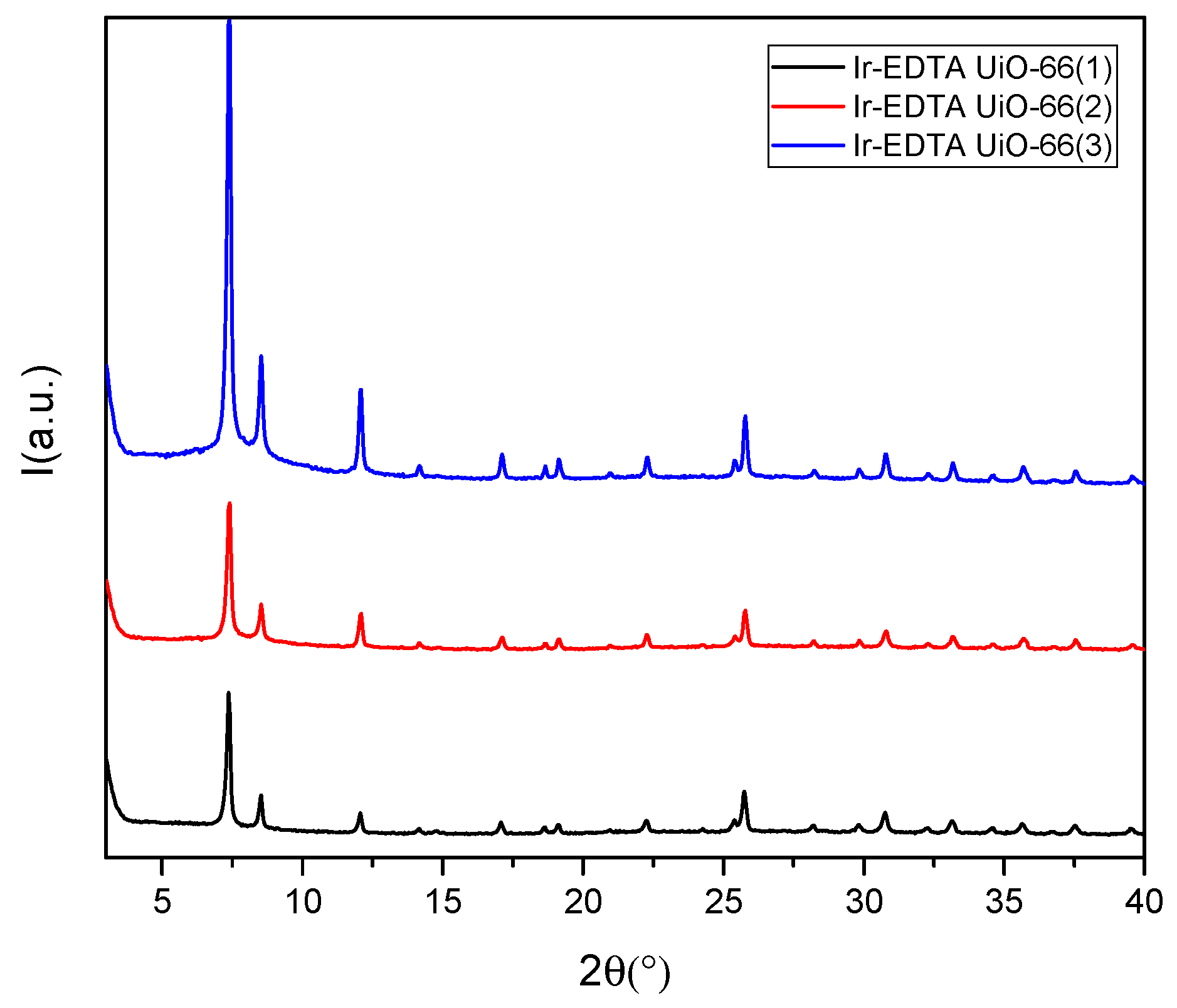

Figure 4. XRPD pattern of IrEDTA@UiO66(1) black, (2) red and (3) blue.
Figure 4. XRPD pattern of IrEDTA@UiO66(1) black, (2) red and (3) blue.
Inorganics 07 00123 g004
Inorganics 07 00123 g005 550

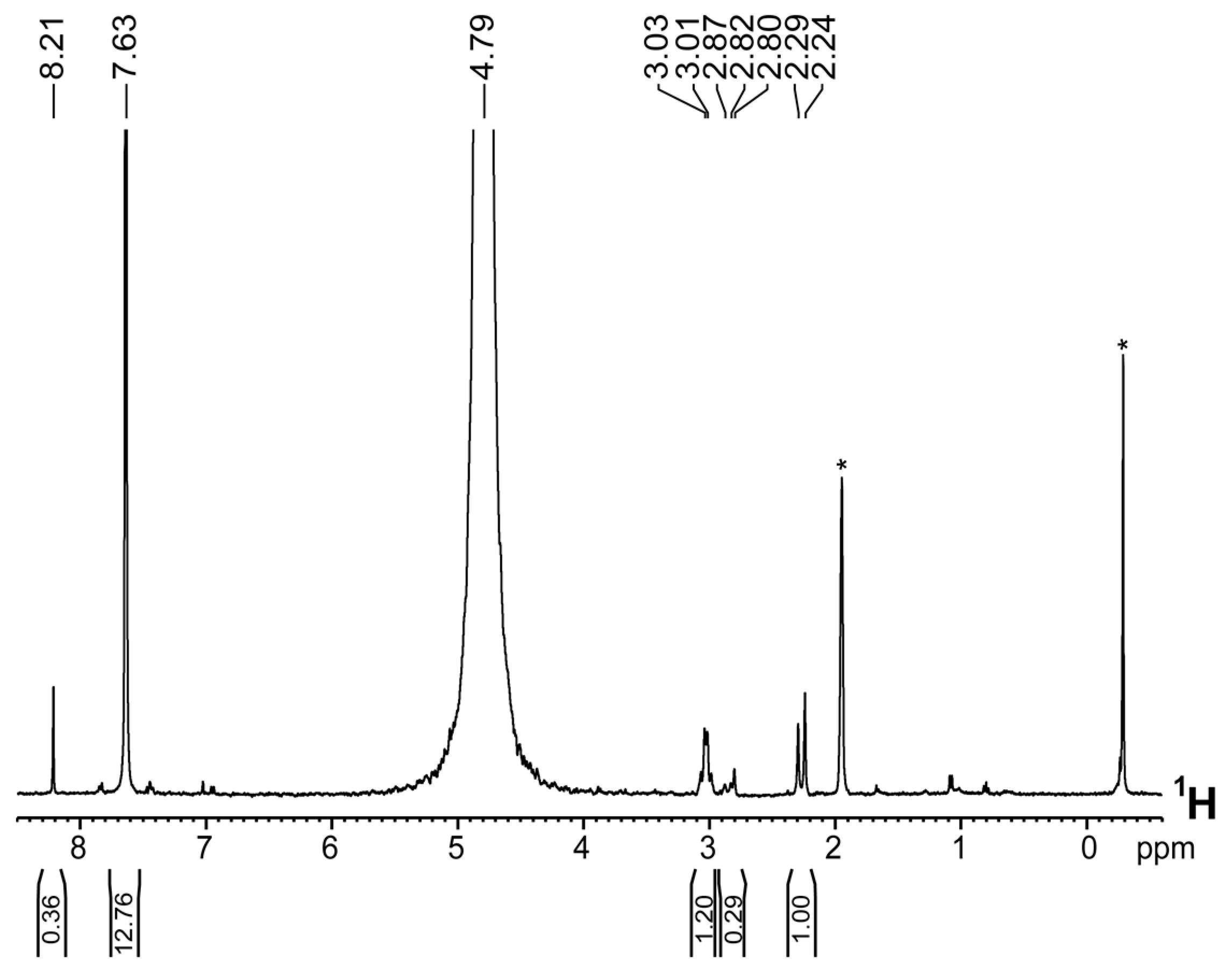

Figure 5. 1H-NMR spectrum of hydrolyzed Ir@UiO-66(1) sample [NaOD/D2O, 298 K; * denote impurities present in the solvent, likely acetone (ca. 2 ppm) and Silicon Grease (slightly lower than 0 ppm)].
Figure 5. 1H-NMR spectrum of hydrolyzed Ir@UiO-66(1) sample [NaOD/D2O, 298 K; * denote impurities present in the solvent, likely acetone (ca. 2 ppm) and Silicon Grease (slightly lower than 0 ppm)].
Inorganics 07 00123 g005
Inorganics 07 00123 g006 550

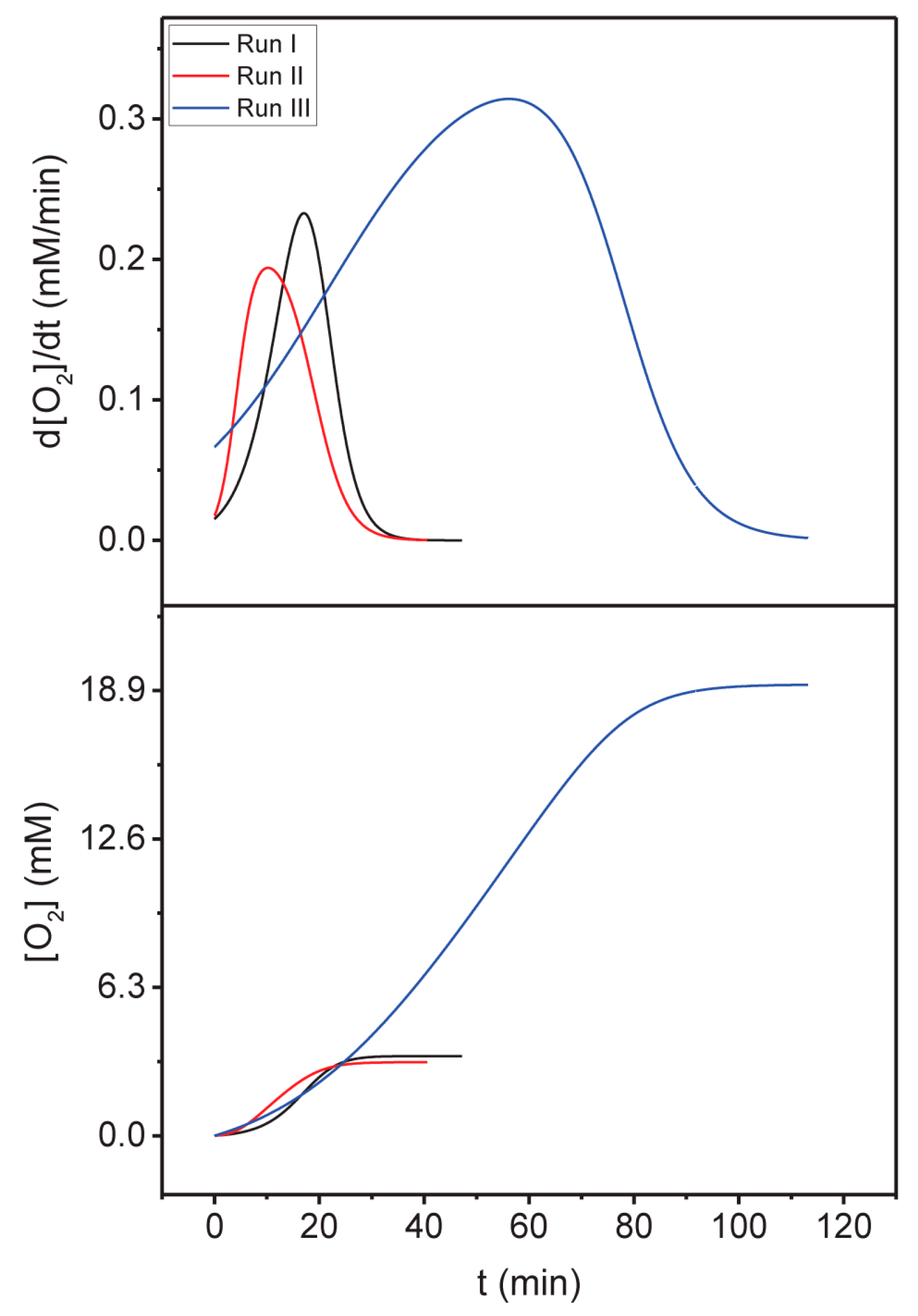

Figure 6. [O2] (bottom) and d[O2]/dt (up) versus time trends for a WO triple cerium ammonium nitrate (CAN) addition experiment (Table 1, entries 1–3).
Figure 6. [O2] (bottom) and d[O2]/dt (up) versus time trends for a WO triple cerium ammonium nitrate (CAN) addition experiment (Table 1, entries 1–3).
Inorganics 07 00123 g006
Inorganics 07 00123 g007 550

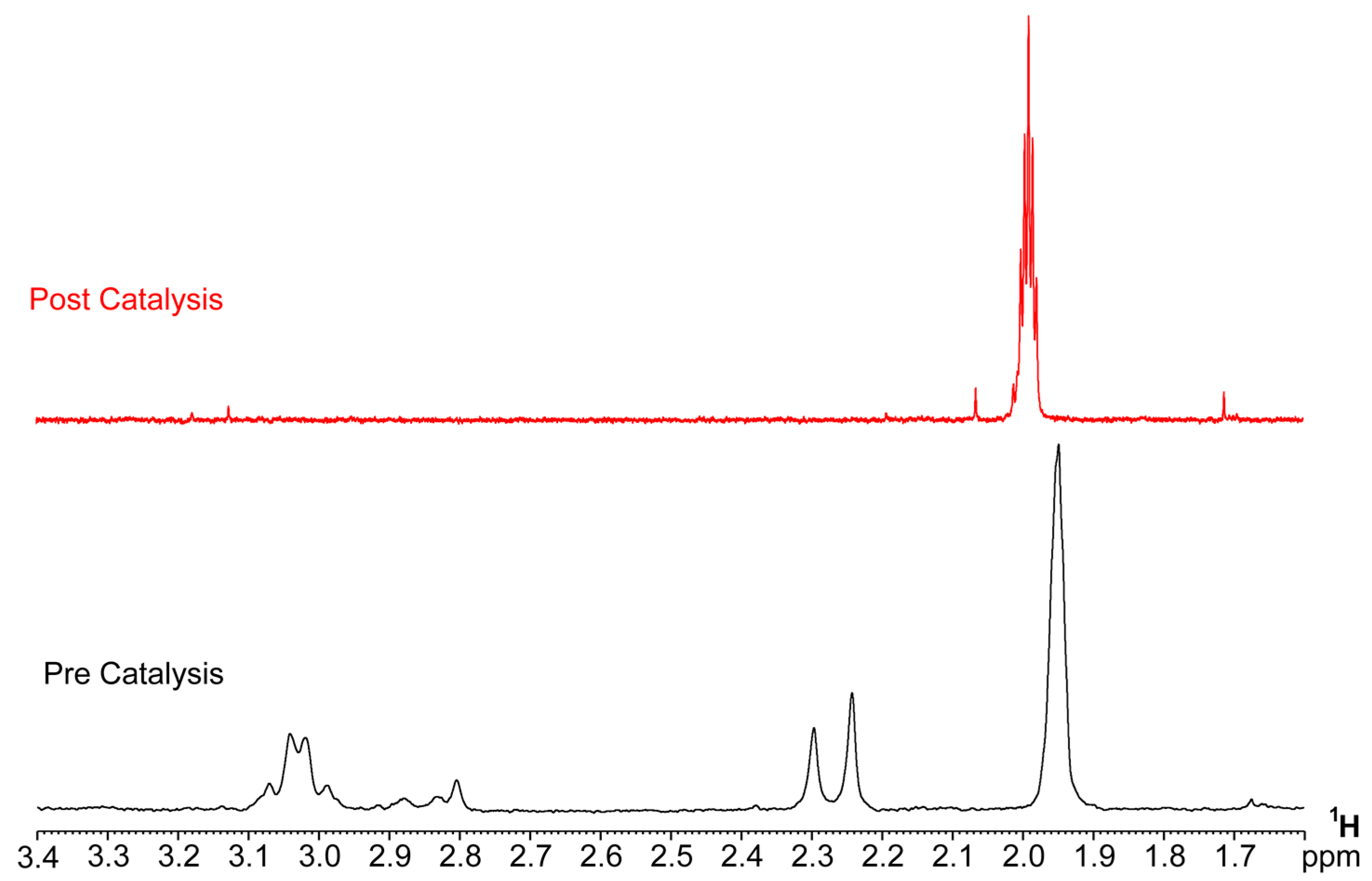

Figure 7. 1H-NMR spectra (NaOD/D2O, 298K) before (bottom) and after (up) a catalytic run, showing the disappearance of the aliphatic resonance of the EDTA ligand at 2.2–3.2 ppm.
Figure 7. 1H-NMR spectra (NaOD/D2O, 298K) before (bottom) and after (up) a catalytic run, showing the disappearance of the aliphatic resonance of the EDTA ligand at 2.2–3.2 ppm.
Inorganics 07 00123 g007
Table
Table 1. Summary of the water oxidation (WO) catalytic data for Equation (1). “Sur” indicates supernatant.
Table 1. Summary of the water oxidation (WO) catalytic data for Equation (1). “Sur” indicates supernatant.
EntryCatalytic Run[Ir][CAN]d[O2]/dtTOFTONYield
μMmMmM/minmin−1 %
IrEDTA@UiO-66
1Run I50250.2356754
2Run II49380.1943233
3Run III451260.29638255
4Run I73750.31410842
5Sur I23750.221036344
6Run II70750.41618067
7Sur II9750.1113101346
IrEDTA [39]
8Run I580 74000100
9Run II520 71000100
IrEDTA@TiO2 [20]
10Run I359 44670
11Sur I109 714159
12Run II259 47883
13Sur II010 –––
14IrCp*@Zr-bpy-dc [25]
15Run I103 0.52 17
16Run II103 0.54 17
17 Run III103 0.53 17
18IrCp*@Zr-ppy-dc [25]
19Run I103 6.3 27
20Run II103 9.4 80
