Mechanochemical Induced Structure Transformations in Lithium Titanates: A Detailed PXRD and ⁶Li MAS NMR Study

Abstract

Lithium titanates are used in various applications, such as anode materials for lithium intercalation (Li₄Ti₅O₁₂) or breeding materials in fusion reactors (Li₂TiO₃). Here, we report the formation of nano-crystalline lithium titanates by a mechanochemical approach and present a deeper insight into their structural characteristics by X-ray diffraction (XRD) and solid-state NMR spectroscopy. The compounds were synthesized in a high-energy planetary ball mill with varying milling parameters and different grinding tools. NaCl type Li₂TiO₃ (α-Li₂TiO₃) was formed by dry milling of lithium hydroxide with titania (rutile or anatase) and by a milling induced structure transformation of monoclinic β-Li₂TiO₃ or spinel type Li₄Ti₅O₁₂. Heating of mechanochemical prepared α-Li₂TiO₃ induces a phase transformation to the monoclinic phase similar to hydrothermal reaction products, but a higher thermal stability was observed for the mechanochemical formed product. Microstructure and crystallographic structure were characterized by XRD via Rietveld analysis. Detailed phase analysis shows the formation of the cubic phase from the various educts. A set of two lattice parameters for α-Li₂TiO₃ was refined, depending on the presence of OH⁻ during the milling process. An average crystallite size of less than 15 nm was observed for the mechanochemical generated products. The local Li environment detected by ⁶Li NMR revealed Li defects in the form of tetrahedral instead of octahedral site occupation. Subsequent adjustment of the structural model for Rietveld refinement leads to better fits, supporting this interpretation.

1. Introduction

High energy ball milling (hebm) is a versatile tool in the synthesis of metal oxides [1]. Beside the formation of oxide phases that can also be produced in other solid-state reactions, such as high temperature or hydrothermal reactions, it is possible to obtain nanocrystalline high-temperature or high-pressure phases, which are not accessible with traditional synthetic techniques. Examples are the formation of a high-pressure polymorph of TiO₂ starting from anatase or the formation of a (Zr_1−xTi_x)O₂ solid solution [2,3]. The milling process can also be used for a solvent-free surface functionalization of nanocrystallites due to the formation of reactive surfaces during the milling process [4]. Additionally, milling generates defects in the form of oxygen vacancies in anatase, as shown by impedance spectroscopy measurements [5].

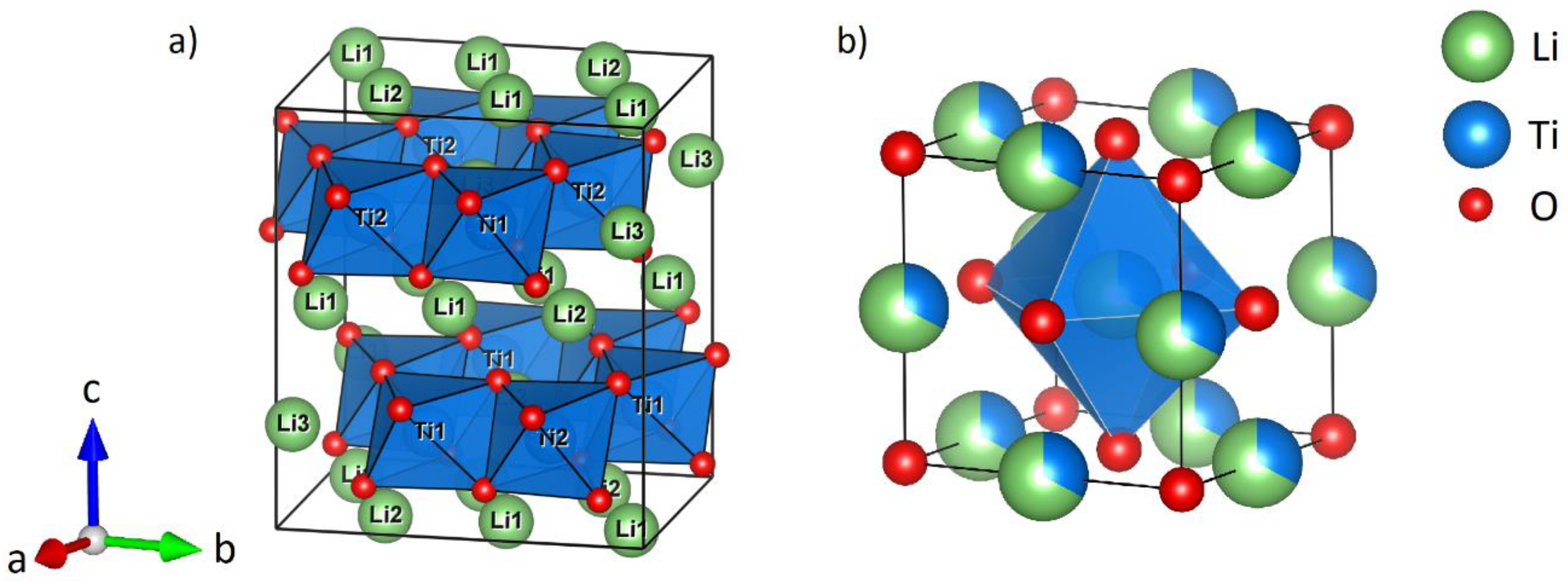

Li₂TiO₃ represents an interesting system for high energy ball milling because of the three known polymorphs that might be converted under the milling conditions depending on the energy impact. The monoclinic low temperature modification β-Li₂TiO₃ (Figure 1a) with space group C2/c has a layered structure with three different lithium sites and two different titanium sites and is isostructural to Li₂SnO₃ [6,7,8,9]. The cubic high temperature modification γ-Li₂TiO₃ (Figure 1b) with space group Fm−3m consists of a NaCl type structure with statistical distribution of Li⁺ and Ti⁴⁺ on the 4a site and Z = 4/3 formula units per unit cell (Li_2.66Ti_1.33O₄) [7,8,9]. The β polymorph undergoes a reversible transformation to the γ polymorph at approximately 1150 °C [7,10]. A metastable cubic low temperature form with space group Fm−3m is obtained by hydrothermal reactions from LiOH and TiO₂ in water and is denoted as α-Li₂TiO₃ [7,11,12,13]. An irreversible phase transformation from hydrothermally formed α-Li₂TiO₃ to β-Li₂TiO₃ occurs after heating above 300 °C [13,14,15].

Ball milling of monoclinic β-Li₂TiO₃ enhances the long-range ion transport, while also inducing a partial transformation to the cubic α polymorph and amorphization, but neither quantitative conversion nor details of the structural properties or phase compositions after milling have been reported yet [16]. The α polymorph may also be obtained by milling of NaOH, LiCl and TiO₂, but subsequent washing to remove NaCl is necessary and no structural characterization of the product is given [17]. For Li₄Ti₅O₁₂, a well-known Li-ion battery anode material, an increase in ion conductivity is reported after milling, but no structure transformation or structural changes by milling have been reported in the literature yet [18].

The goal of our study was the investigation of mechanochemical-induced processes in lithium titanates and the systematic study of process parameters such as milling tools, milling times and milling speed via detailed powder X-ray diffraction (PXRD) Rietveld refinement and ⁶Li single pulse excitation magic angle spinning NMR (SPE MAS NMR) experiments. The mechanochemical induced synthesis of cubic α-Li₂TiO₃ from the simple educts LiOH and TiO₂ is reported for the first time and its thermal stability is explored by PXRD. Furthermore, the mechanochemical induced phase transformation of β- to α-Li₂TiO₃ is examined by PXRD and additionally by ⁶Li NMR experiments, revealing occupation of tetrahedral sites by lithium. Subsequent modification of the structural model for α-Li₂TiO₃ improves the Rietveld refinement. Lastly, PXRD and ⁶Li NMR experiments reveal a strong structural influence on spinel Li₄Ti₅O₁₂ by mechanochemical treatment.

2. Results and Discussion

2.1. Mechanochemical Formation of α-Li₂TiO₃ from LiOH and TiO₂

High energy ball milling of LiOH with rutile or anatase as titania precursors in yttrium stabilized zirconia (ZrO₂) and tungsten carbide/cobalt hard metal (WC) tools leads to the formation of new reflections in the X-ray diffractogram which may be indexed by a cubic unit cell, as already noted in a previous study [19]. The new reflections could be assigned to either LiTiO₂ or Li₂TiO₃ with NaCl type structure (SG Fm−3m) and a refined lattice parameter a varying between 4.15 and 4.16 Å, depending on the reaction conditions. While both compounds have the same structure type, a quantitative reduction of Ti⁴⁺ to Ti³⁺ is required to form LiTiO₂. This is unlikely under the given conditions, since a reducing agent or oxygen release would be necessary. However, the appearance of very small portions of Ti³⁺ in TiO₂ has been described as a result of defect formation by mechanochemical methods [20]. The mechanochemical formation of LiTiO₂ has been described before by milling of Li₂O, TiO₂ and Ti, with larger impurities of elemental iron from abrasion of the steel milling tools [21]. Furthermore, LiTiO₂ is black in color [22], while the products of our process are white if ZrO₂ tools are used or gray if WC tools are used. The grey color is based upon abrasion from the WC tools [23]. Hence, the composition of the milling products corresponds to a composition close to Li₂TiO₃ with a mean Ti oxidation state of nearly IV. Due to the additional anatase to high pressure phase transformation [2], milling products of LiOH and anatase show a complex phase composition. The Rietveld refinement of the milling product from ZrO₂ tools after 6 h of milling at 600 rpm is shown as an example in the Supplementary Materials (Figure S1). The reflections of the high-pressure polymorph TiO₂-II overlap with the reflections of anatase and α-Li₂TiO₃. Additionally, milling with anatase as the titania precursor leads to a smaller portion of cubic phase after the same milling conditions.

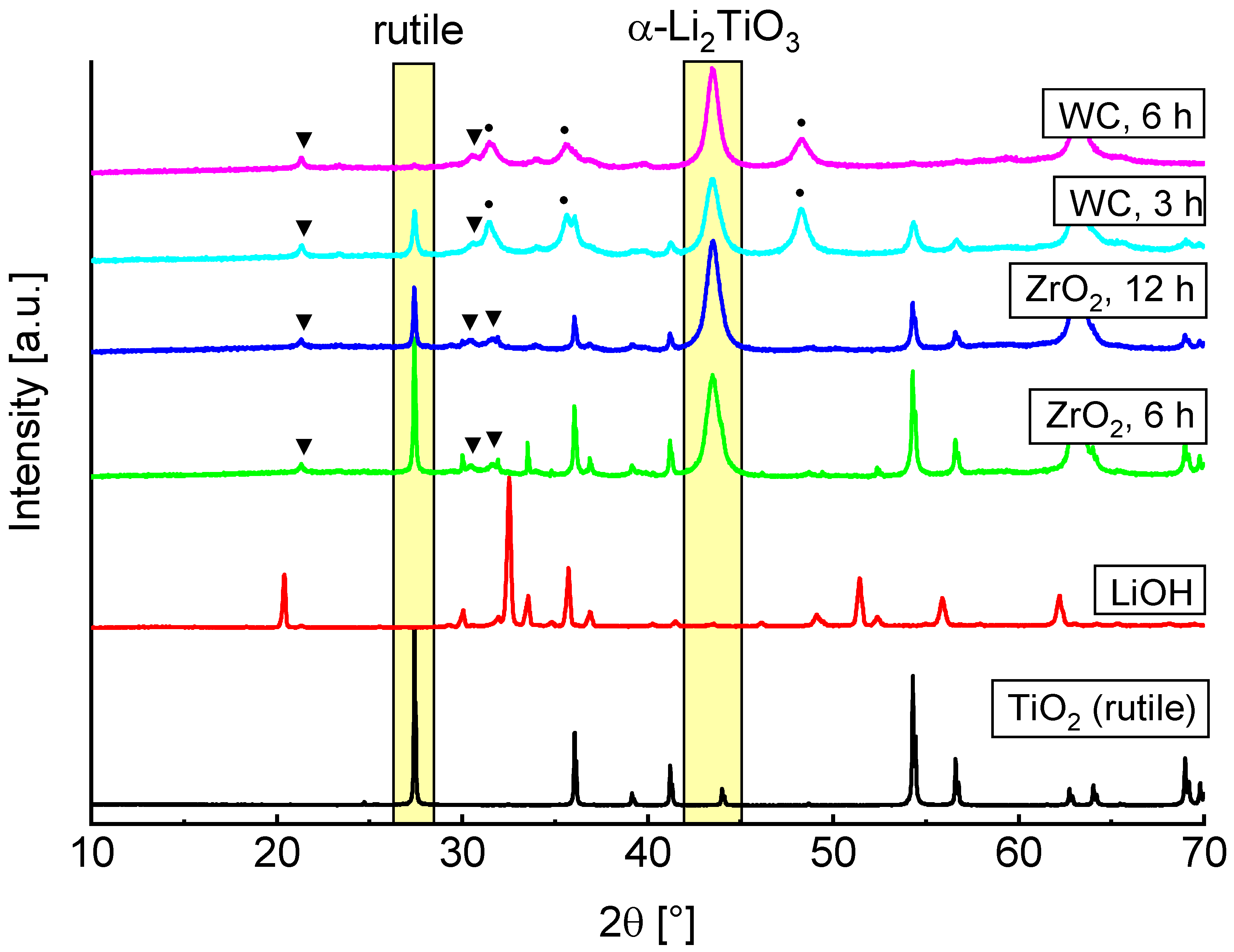

Based on the reported results we decided to only discuss the rutile ball milling more closely in the following sections. PXRD measurements of LiOH, rutile and the milling products with different parameters are shown in Figure 2. Decrease of the TiO₂ main reflection and rise of new α-Li₂TiO₃ reflections are marked by yellow rectangles. Formation of Li₂CO₃ (marked by triangles) is caused by unreacted amorphous LiOH which forms crystalline Li₂CO₃ on contact with air, allowing for quantification by Rietveld refinement.

A faster formation of α-Li₂TiO₃ can be observed by use of WC milling tools. Rietveld refinements indicate an introduction of 2 to 4% crystalline WC from abrasion of the tools (marked by circles). After a milling time of 6 h no rutile reflections are visible, while these are still present after 12 h if ZrO₂ tools are used. This is most likely due to the different hardness of the milling tools and the resulting variations in impact energies. There are already reports in the literature which indicate that the milling tools can have a large influence on the formation of different phases [3,24].

Only results obtained by using WC tools are discussed more closely in the following, since they show a more efficient conversion to cubic Li₂TiO₃. Depending on the milling parameters, the refined structural parameters of the PXRD measurements are slightly different. The lattice parameter a varies and the crystallite size is in the range of 10 to 15 nm. Since OH⁻ anions are readily available by using LiOH in the mechanochemical synthesis, substitution of O²⁻ by OH⁻ may be the case to some extent, resulting in a variation of the lattice parameter (4.15–4.16 Å) depending on the degree of substitution. Because only traces of H₂O were found during TG-IR investigation (Supplementary Materials Figures S4 and S5) only a small amount of OH⁻ may be assumed but different OH⁻ contents caused by varying conditions of synthesis account for the different lattice parameters of the as prepared products.

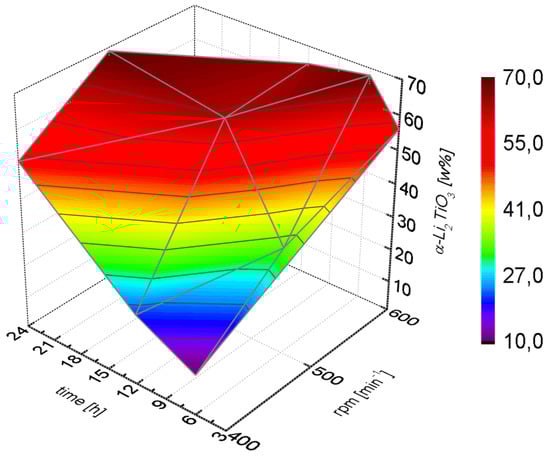

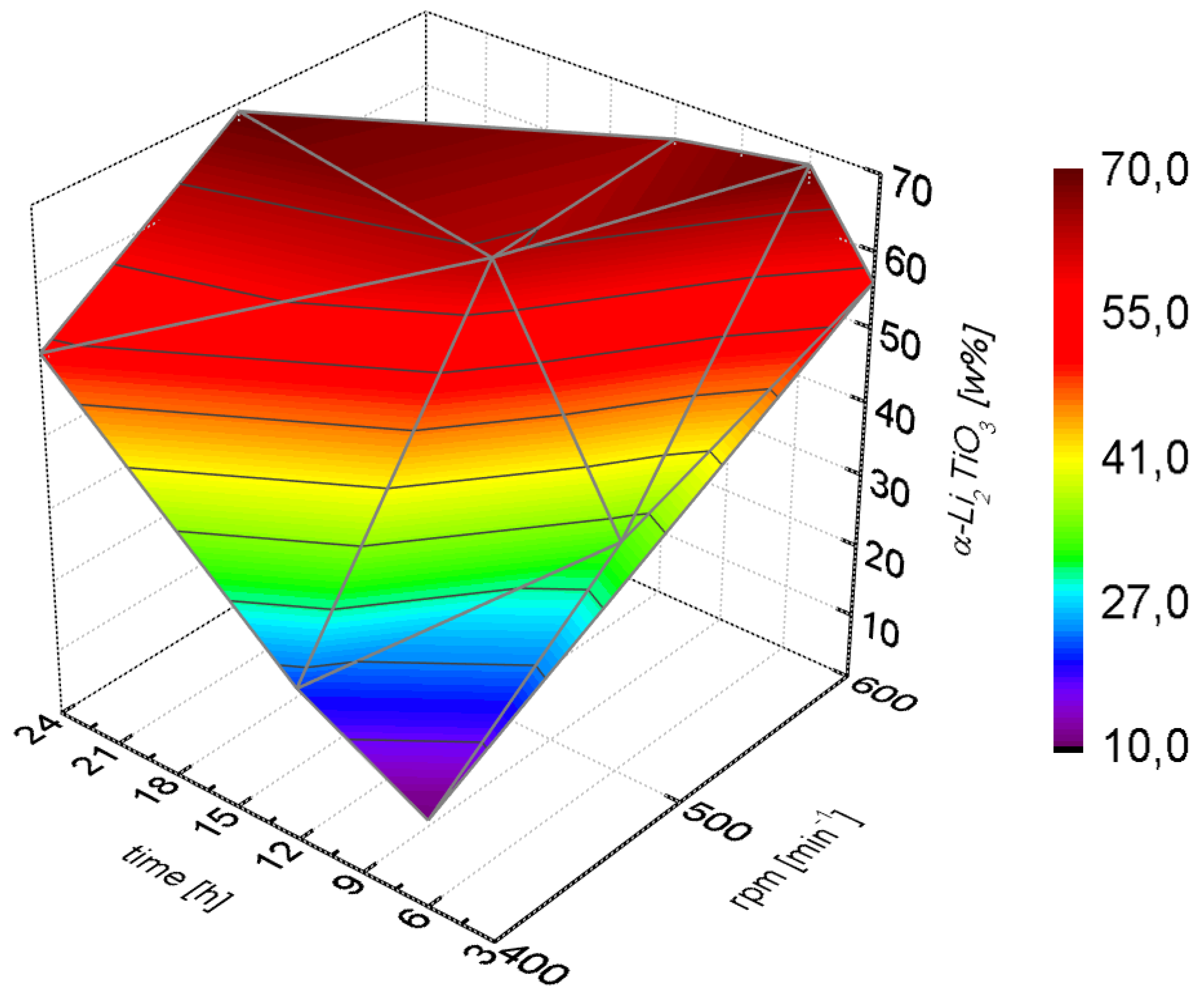

Higher amounts of cubic Li₂TiO₃ were only obtained after long milling times or high milling speeds (Figure 3). The cubic phase formed slowly at lower rotational speeds (400 rpm) and even after 24 h a portion of 50% was not exceeded. At high milling speeds (600 rpm) a portion larger than 50% was already achieved after milling for only three hours.

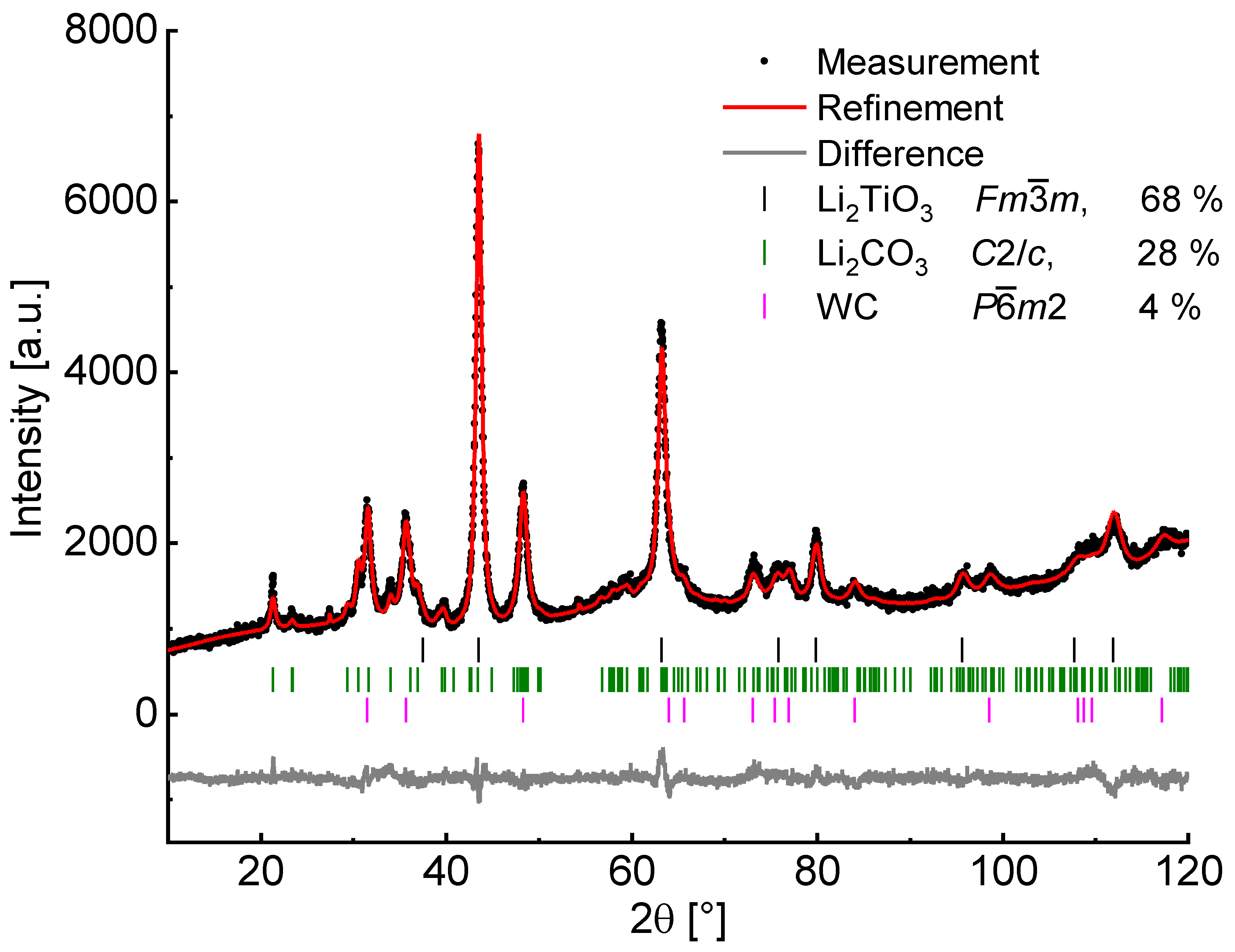

The percentage of α-Li₂TiO₃ after milling at 600 rpm for 6 h amounts to 68%, as analyzed by Rietveld refinement (Figure 4) neglecting possibly existing amorphous matter. Since Li₂CO₃ is still present after complete conversion of TiO₂ and an increased baseline intensity is visible, a portion of amorphous material may be assumed. Handling of the milling product in a glovebox with subsequent measurement in an airtight dome sample holder (Rietveld refinement in Supplementary Materials Figure S2) reveals no crystalline phase of LiOH nor Li₂CO₃, therefore Li₂CO₃ is formed after the milling process from the amorphous material by exposure to air. Measurements with an internal standard (50% of α-Al₂O₃) led to the identification of approximately 35% amorphous content, which may contain missing amounts of TiO₂.

If the amorphous content is assumed to contain the starting composition, the total formula may be written as Li_2−4xTi_1+xO₃ to consider a non-stoichiometry. A formula of Li_1.4Ti_1.15O₃ (x = 0.15) is necessary to stay in the range of the starting composition with a Li to Ti ratio of 2:1. A constrained refinement of the Li and Ti occupancy on the 4a site of α-Li₂TiO₃ also suggests a lithium deficiency. However, to preserve electric neutrality one titanium substitutes four lithium atoms resulting in a small electronic contrast and, accordingly, these refinements rather represent a general tendency and no absolute values. Since Li₂CO₃ crystallized only after the reaction, the remaining amorphous content may be assumed to be only or mainly TiO₂ in which case a nearly stoichiometric compound with the formula Li₂TiO₃ would be obtained. Thermogravimetric analysis reveals a mass loss of 16.2% (Supplementary Materials, Figure S4) upon heating to 1000 °C. IR coupling of the gas flow shows primarily characteristic bands of carbon dioxide besides traces of H₂O (Supplementary Materials, Figure S5), indicating crystalline Li₂CO₃ as the main fraction responsible for the mass loss. Therefore, the amorphous background is assumed to be primarily TiO₂.

SEM images (Supplementary Materials, Figure S3) indicate that large agglomerates with a seemingly granular surface were formed in the milling process. The primary grains of the agglomerates that form the surface are visible. The grain size of the primary grains is in the range of 20 nm and is of the same order as the refined crystallite sizes.

2.2. Thermal Transformation of α-Li₂TiO₃ to β-Li₂TiO₃

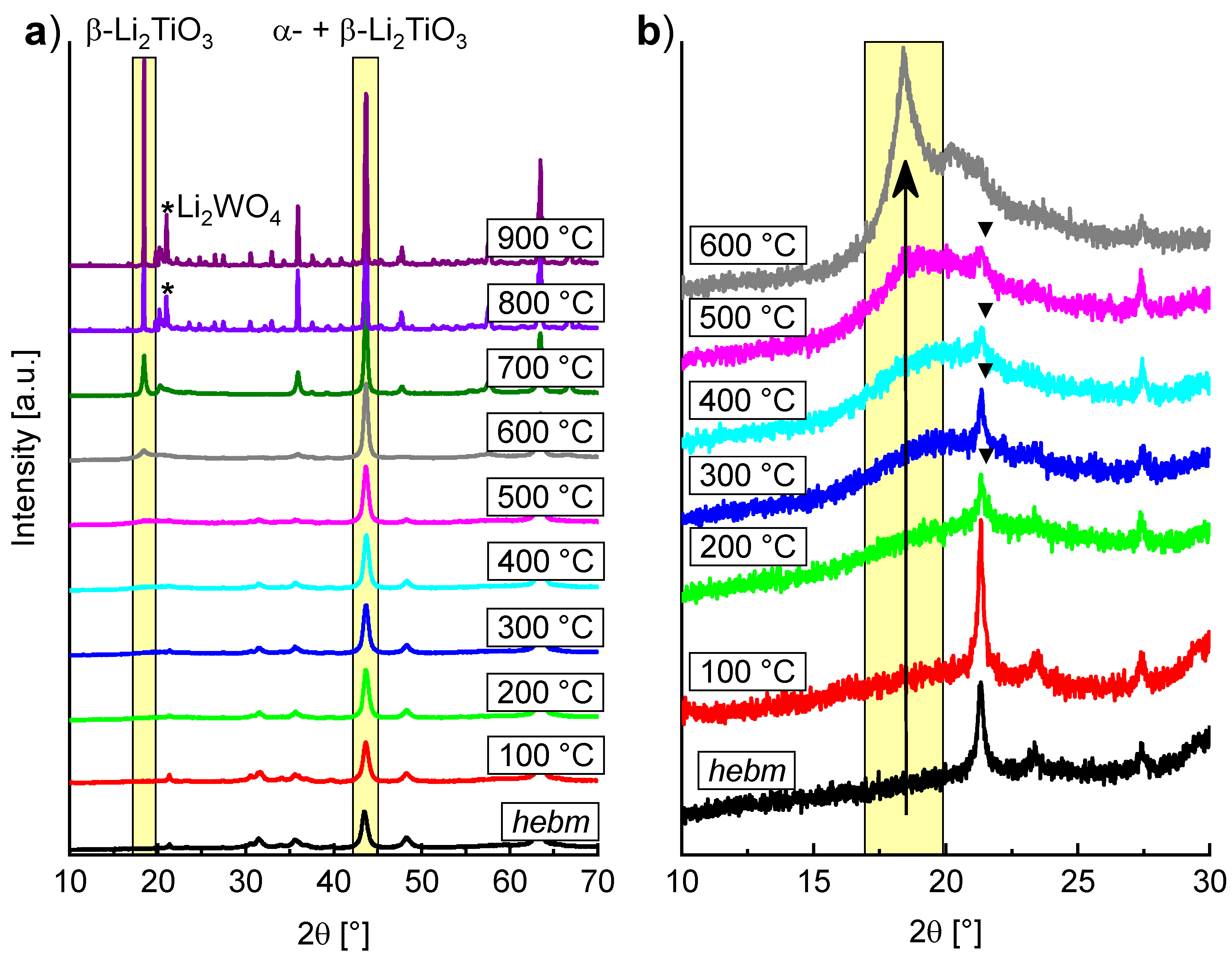

The thermal stability of mechanochemical formed α-Li₂TiO₃ (milling of LiOH and rutile in WC tools at 600 rpm for 6 h) was investigated by successive heating in 100 K steps for 1 h and subsequent PXRD measurement at ambient conditions after each step (Figure 5). Between 300 and 500 °C, the formation of a broad reflection in the range around 20° 2θ indicates a short-range ordering phenomenon. Since the range in which the reflection is formed coincides with the position of the 002-reflection (18.5°) of β-Li₂TiO₃, the broad reflection is probably caused by the nucleation of the monoclinic phase. Sharp reflections of β-Li₂TiO₃ become evident between 500 and 600 °C. The transformation is completed at temperatures over 700 °C. Compared to the hydrothermal synthesis of α-Li₂TiO₃, sharp reflections of β-Li₂TiO₃ are visible at 420 °C and the transformation is nearly complete at 500 °C, with only minor amounts of the α-phase visible (estimated at 12%) [14].

The lattice parameter a of α-Li₂TiO₃ changes from 4.1588(2) to 4.1435(1) Å after heating to 200 °C for 1 h. This may be a consequence of the previously mentioned hypothetical OH⁻ contents in the lattice of an as-prepared α-Li₂TiO₃. Heating induces a transformation of OH⁻ to O²⁻ and H₂O, leaving the cubic phase with a smaller lattice parameter. Additionally, a high phase portion of α-Li₂TiO₃ has been obtained under these mild conditions, with only 7% Li₂CO₃ remaining and without affecting crystallite size of the cubic phase (Rietveld refinement shown in Supplementary Materials, Figure S6).

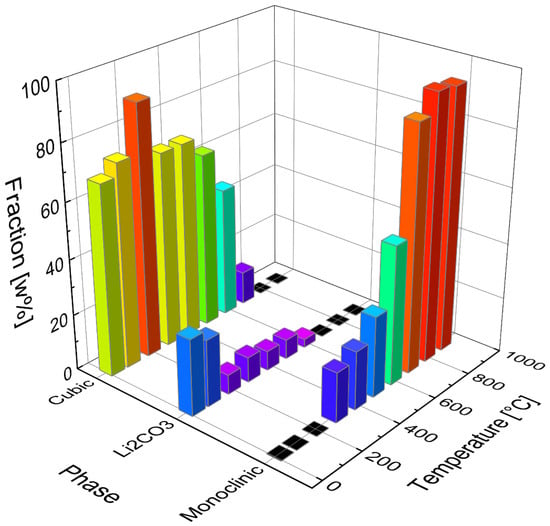

In the temperature range between 300 °C and 600 °C, a single fraction of β-Li₂TiO₃ was used in the refinements to estimate the proportion of cubic and monoclinic Li₂TiO₃. Starting with a temperature of 600 °C a three-fraction model for β-Li₂TiO₃ was used (described under Section 3.4). Increasing amounts of 30 to 90% monoclinic fraction were refined in the temperature range between 300 and 700 °C, while the amount of α-Li₂TiO₃ was decreasing. However, up to 500 °C the intensities of the cubic reflections are hardly affected. This either indicates that the monoclinic ordering arises from byproducts without affecting the cubic structure, or that the ordering takes place continuously. The refined phase portions of α-Li₂TiO₃ (cubic) Li₂CO₃ and β-Li₂TiO₃ (monoclinic) are depicted in Figure 6 with the corresponding calcination temperature.

Thermogravimetric analysis (Supplementary Materials, Figure S4) between 25 and 1000 °C shows a mass loss up to the temperature range of 575 to 600 °C (attributed to Li₂CO₃). An exothermic signal arises in the calculated differential thermal analysis (DTA) curve, which correlates to the complete crystallization of β-Li₂TiO₃ as observed in the PXRD measurements. At 600 °C a composition with equal amounts of α- and β-Li₂TiO₃ was refined. Fitting with only the monoclinic phase led to an insufficient refinement (GOF = 4.39) while inclusion of the cubic phase results in a greatly improved description (GOF = 1.42). At 700 °C an abrupt increase to >90% β-Li₂TiO₃ occurs, with only minor amounts of the cubic phase remaining. Fitting with only the monoclinic structure results in a similar description (GOF = 2.09) as by using both structures (GOF = 1.93). Though the improvement of the description is small, this may still be attributed to remaining portions of the cubic phase. This leads to an overall interpretation that an ordering phenomenon takes place in the cubic phase at lower temperatures with a discrete structure change between 600 and 700 °C.

2.3. Mechanochemical Induced Phase Transformation of β-Li₂TiO₃ and Spinel Li₄Ti₅O₁₂ to α-Li₂TiO₃

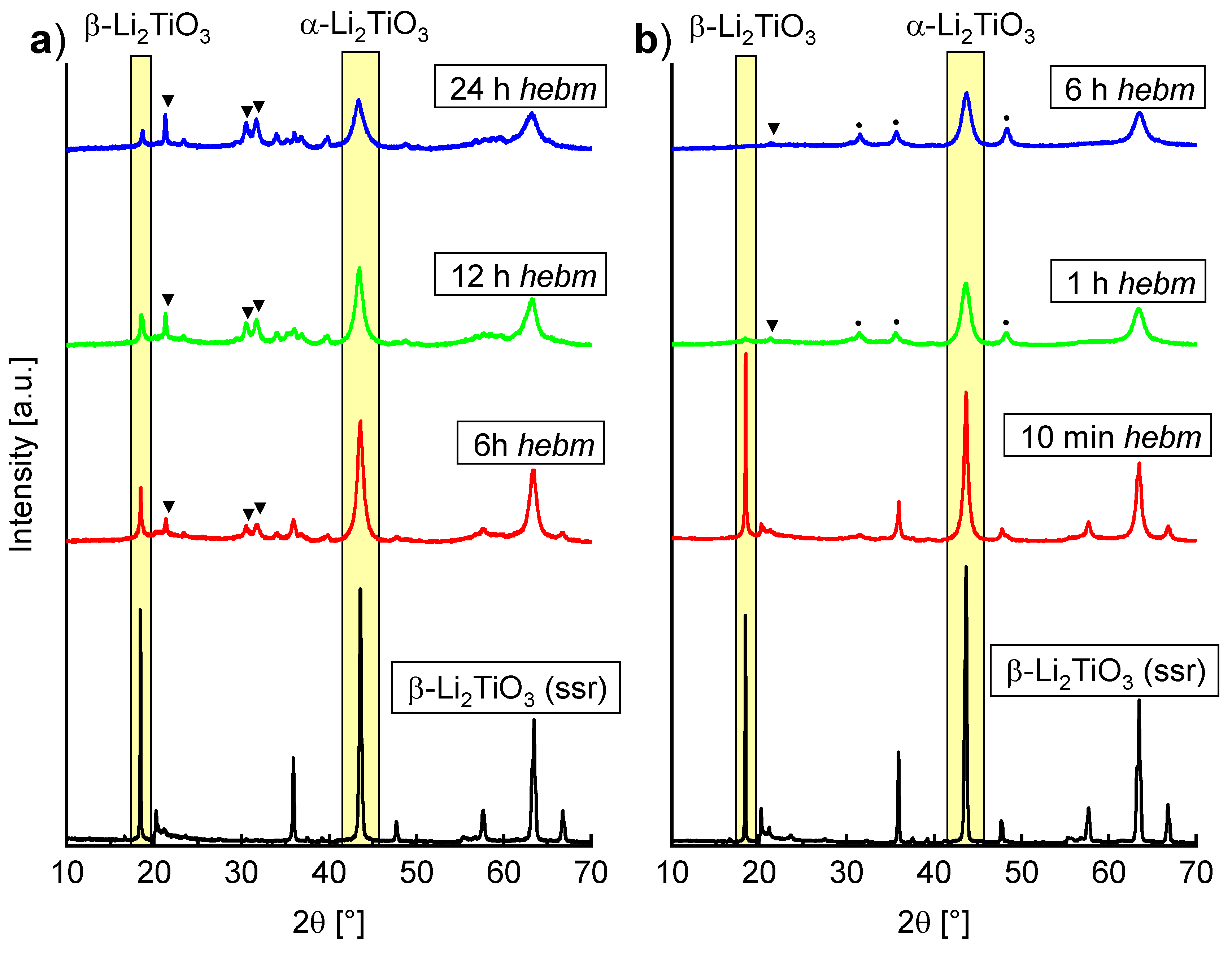

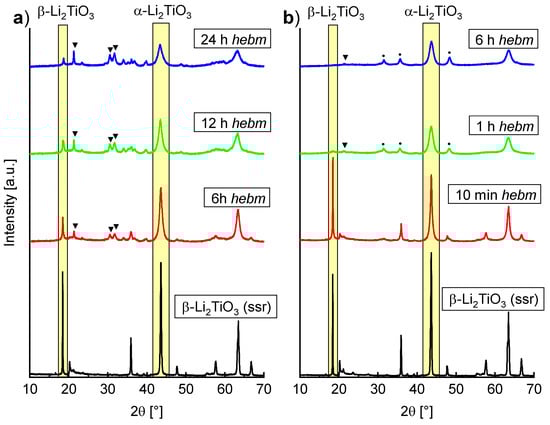

The ball milling-induced phase transformation from β- to α-Li₂TiO₃ has already been mentioned by Brandstätter et al. [16], but no further investigation in terms of a quantitative conversion was conducted. In Figure 7, PXRD measurements of β-Li₂TiO₃ before and after milling with (a) ZrO₂ tools and (b) WC tools at different parameters are shown. In both cases (a) and (b), a decrease of the β-Li₂TiO₃ main reflection can be seen. Milling with ZrO₂ tools at 600 rpm for 6 h leads to portions of 48% α-Li₂TiO₃, 25% β-Li₂TiO₃ and 28% Li₂CO₃. Prolonged milling leads to a further increase in intensity of Li₂CO₃ reflections. In contrast, the ball milling induced phase transformation is already detectable after milling for 10 min in WC tools. A portion of ca. 30% α-Li₂TiO₃ can be fitted, with small amounts of Li₂CO₃ (<10%). Even after milling for 1 h, only marginal amounts of ca. 5% β-Li₂TiO₃ remained. Milling with WC tools leads to complete disappearance of β-Li₂TiO₃ reflections after 6 h. Portions of 89% α-Li₂TiO₃, 8% Li₂CO₃ and 3% WC have been refined (Rietveld refinement in Supplementary Materials, Figure S7). Similar to the mechanochemical synthesis from LiOH and rutile, an increase in baseline intensity suggests the formation of amorphous material. Refinement of β-Li₂TiO₃ (milling in WC tools for 6 h) with an internal standard (50% of α-Al₂O₃) suggests a portion of 27% amorphous background. In comparison to the mechanochemical synthesis from LiOH and rutile in WC tools, a smaller lattice parameter a = 4.1463(2) Å is refined for α-Li₂TiO₃ if β-Li₂TiO₃ is used as an educt. This may also be a consequence of the previously mentioned hypothetical OH⁻ contents in the lattice. Since no OH⁻ is available in the mechanochemical-induced phase transformation of β- to α-Li₂TiO₃, a lattice parameter similar to the one of α-Li₂TiO₃ after heating to 200 °C is refined.

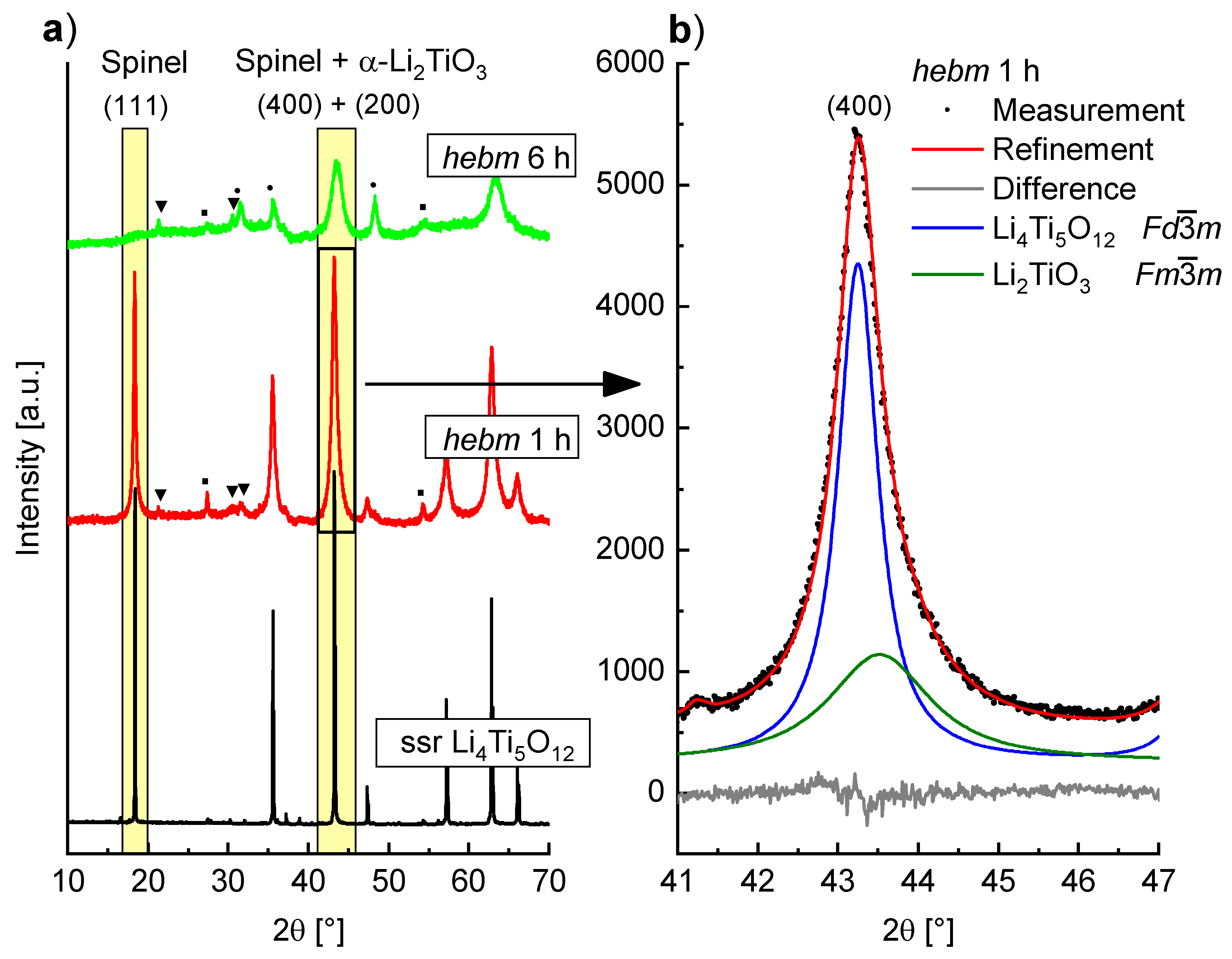

Formation of α-Li₂TiO₃ is also observed by milling of Li₄Ti₅O₁₂ with spinel type structure. PXRD measurements of Li₄Ti₅O₁₂ before and after milling in WC tools at 400 rpm are shown in Figure 8a. After a milling time of 1 h a slight asymmetric broadening of the (400) reflection is visible, while the (111) reflection is not as strongly affected and shows little asymmetry. This is caused by the formation of α-Li₂TiO₃ whose reflections overlap with the spinel reflections. In Figure 8b the Bragg intensities of the spinel (400) and the α-Li₂TiO₃ (200) reflection are shown with the resulting Rietveld fit. The (111) reflection of the spinel phase vanishes completely after a milling time of 6 h. Though a phase with cubic structure is formed, the intensities are very low and additional unidentified reflections are visible. Even after these mild milling conditions, the structure of the spinel phase is strongly altered, which may have large impact on the use of mechanochemically treated Li₄Ti₅O₁₂ as anode material in battery applications. It has already been established by impedance spectroscopy that milling of Li₄Ti₅O₁₂ leads to an increase in conductivity [18]. This may be due to this partial structure transformation of spinel Li₄Ti₅O₁₂ to α-Li₂TiO₃.

2.4. ⁶Li SPE MAS NMR

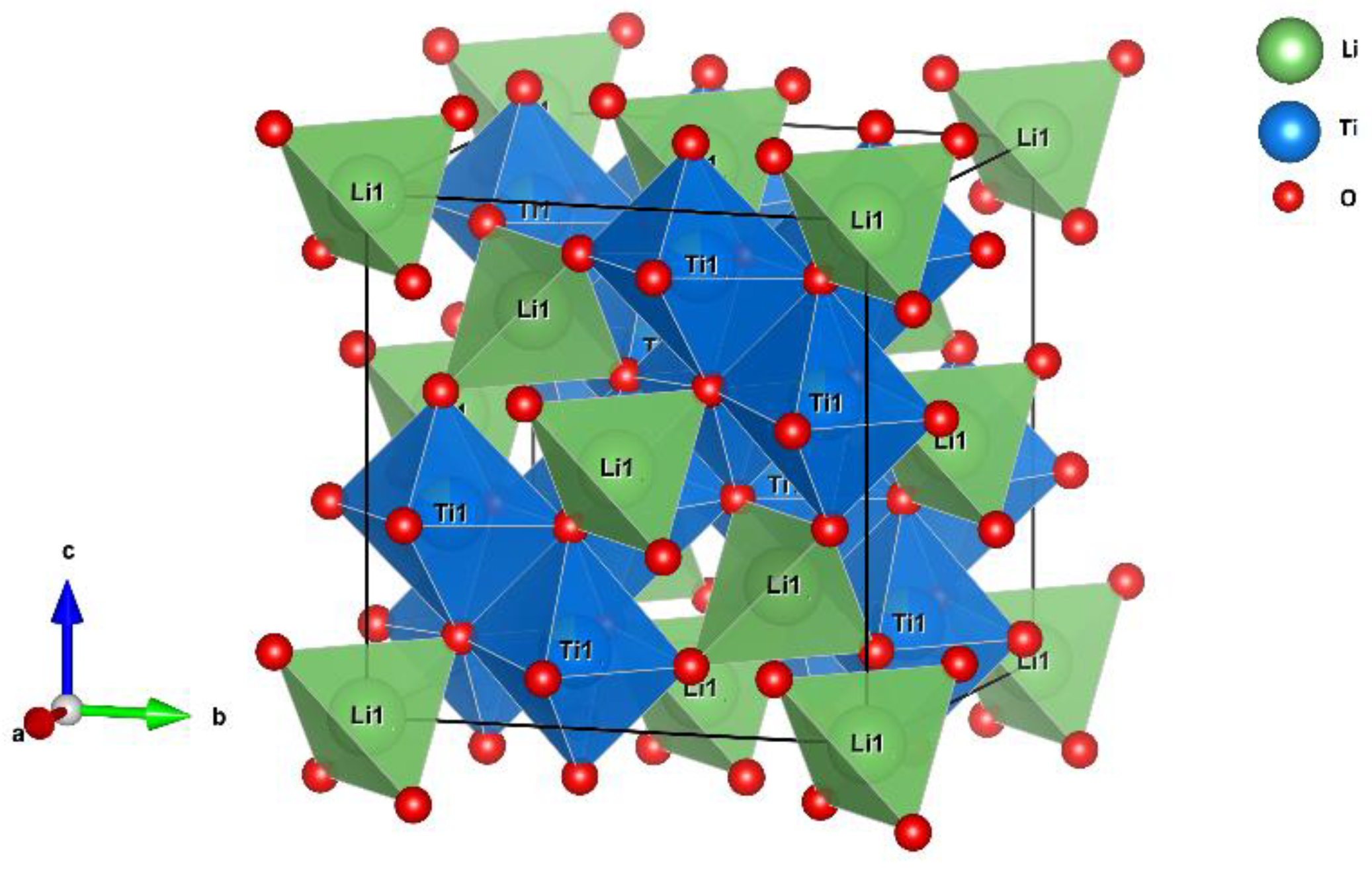

⁶Li SPE MAS NMR experiments reveal additional insight into the milling-induced structure transformation. To illustrate the following interpretations, the unit cell of spinel Li₄Ti₅O₁₂ is shown in Figure 9. (The unit cell of monoclinic β-Li₂TiO₃ is shown in Figure 1.)

PXRD refinements of 900 °C sintered β-Li₂TiO₃ with constrained lithium site occupancy factors (total Li content is 2.0 Li per formula unit) show a full occupation of the 8f and 4d site (Li1 and Li2), while the 4e lithium site (Li3) and the two titanium 4e sites (Ti1 and Ti2) show a mixed occupation with 0.6 Li on the Li3 site, 0.3 Li on the Ti1 site and 0.1 Li on the Ti2 site. To obtain a sample with low Li3/Ti1/Ti2 anti-site mixing, several sintering steps at 1100 °C were necessary. A mixing of 0.1 Li on the Ti1 site and 0.1 Li on the Ti2 site remained.

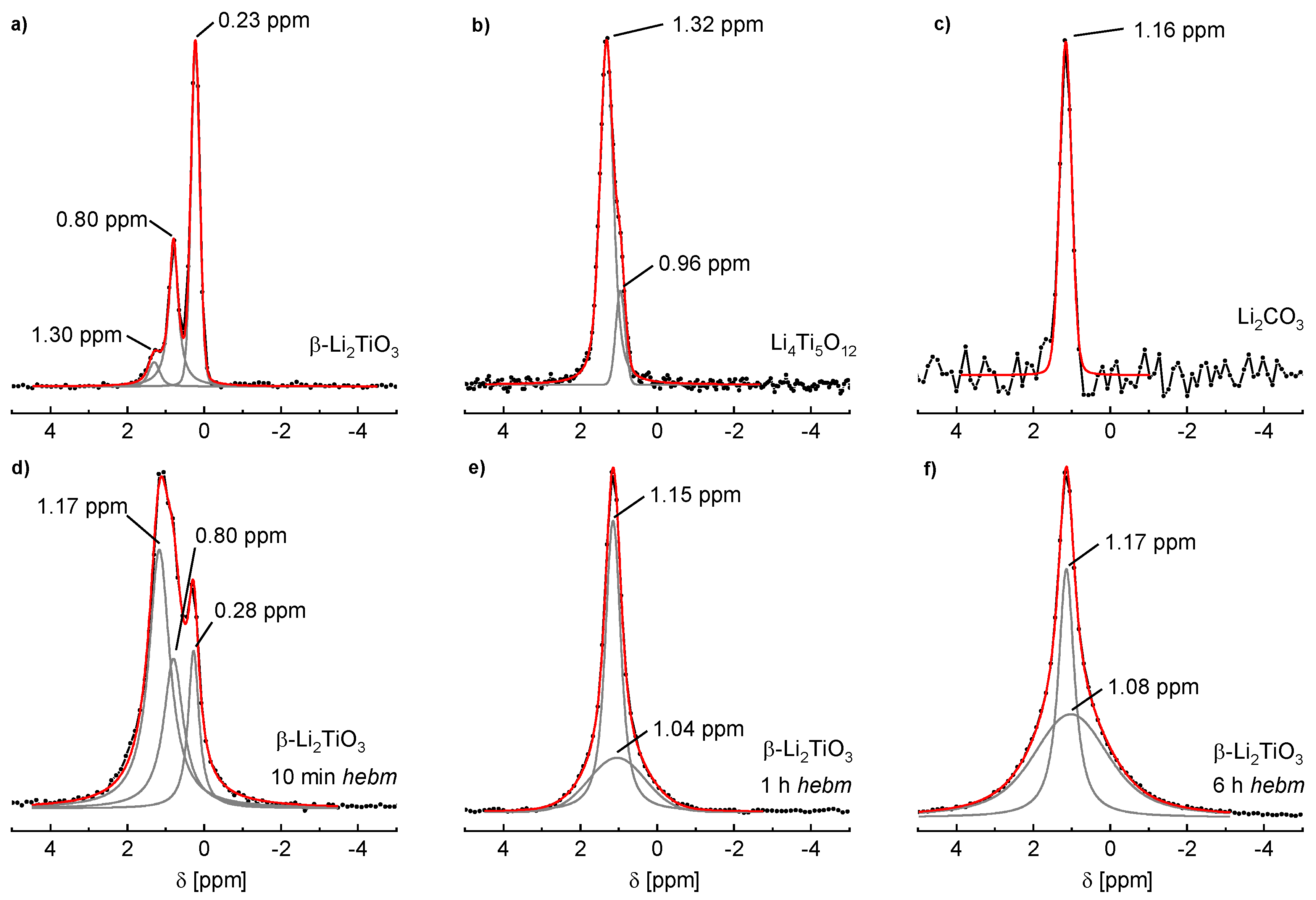

The ⁶Li NMR spectrum of 1100 °C sintered β-Li₂TiO₃ is shown in Figure 10a where three signals are visible. Fitting of the line profile was performed with three independent Voigt functions, resulting in shifts of δ = 1.30, 0.80 and 0.23 ppm. The peak at 0.80 ppm is attributed to lithium on the 4e site (Li3) in the LiTi₂ layer, the peak at 0.23 ppm originates from the two magnetically equivalent lithium sites 8f (Li1) and 4d (Li2) in the Li₂ layer [25,26]. The signals are consistent with values reported in the literature if an offset of ca. −1 ppm is considered due to the referencing against solid LiCl [27]. The shift of the third signal matches a tetrahedral coordination of lithium [25]. In Figure 10b the ⁶Li spectrum of spinel Li₄Ti₅O₁₂ is shown. Li₄Ti₅O₁₂ may also be written as (Li)[Li_0.33Ti_1.66]O₄ to illustrate the occupation of 1 Li on the tetrahedral and ⅓ Li on the octahedral position. According to the literature, the peak at 1.32 ppm is attributed to tetrahedrally-coordinated lithium on the 8a site, and the smaller peak at 0.96 ppm to octahedrally-coordinated lithium on the 16d site [28]. Additionally, the NMR spectrum of Li₂CO₃ reveals the solely tetrahedrally-coordinated lithium in this compound (Figure 10c). A single shift of 1.16 ppm is observed, which is also in accordance with the literature [28]. Since pristine compounds of β-Li₂TiO₃ and spinel Li₄Ti₅O₁₂ were yielded by solid state reactions, no Li₂CO₃ may be present (confirmed by PXRD measurements). The third signal of β-Li₂TiO₃ is therefore assigned to lithium on an interstitial position with tetrahedral coordination.

The spectrum of β-Li₂TiO₃ after 10 min of milling is shown in Figure 10d. The signal formerly at δ = 1.30 ppm is shifted to 1.17 ppm, while the positions of the two other signals are hardly affected. Additionally, the signal intensities of β-Li₂TiO₃ are strongly altered. The signal at 1.17 ppm indicates that more than half the lithium atoms are tetrahedrally coordinated, while only few remain in octahedral coordination. After 1 h of milling (Figure 10e) only two signals are present. The tetrahedral coordination remains as the dominant state indicated by the sharp line at 1.15 ppm. The band at 1.04 ppm, probably caused by cubic Li₂TiO₃ with Li and Ti in octahedral coordination and random ordering, indicates an additional new coordination environment. The signal at 1.15 ppm may be caused by Li₂CO₃ that is formed after the milling process. However, PXRD refinements show a portion of only 19% Li₂CO₃ after milling for 1 h, while the NMR signal is clearly caused by the main fraction in the sample. The tetrahedral coordination in Li₂TiO₃ is therefore assumed to be a transition state for the formation of the cubic state. This new broad signal at ca. 1 ppm becomes the dominant state after milling for 6 h (Figure 10f). The ⁶Li SPE MAS NMR spectrum of Li₂TiO₃ from milling of LiOH and rutile (WC tools, 6 h milling time) is nearly identical (not shown). This underlines the assumption that this broad signal is caused by octahedrally-coordinated Li in the cubic phase. Parts of the tetrahedra signal remain. This is most probably caused by occupation of interstitial positions and by Li₂CO₃, but it was not possible to separate the contributions of these two states.

The ⁶Li SPE MAS NMR spectra of Li₄Ti₅O₁₂ (Supplementary Materials, Figure S8) show a slightly different behavior compared to the transformation of β-Li₂TiO₃. A broad signal at δ = 1.15 ppm is visible after milling for 1 h, indicating a purely tetrahedral coordination environment. No signal of an octahedral coordination at ca. 1 ppm is visible. Additionally, a small signal at 1.57 ppm can be distinguished. This signal indicates a very short Li-O bonding distance or a coordination number lower than four. This signal may either be attributed to an interstitial position or the unidentified phase seen in PXRD, but no further identification was possible.

In conclusion to the finding that a tetrahedral coordination environment plays a major role in the structure after mechanochemical treatment, a revised structure model for the Rietveld refinement of α-Li₂TiO₃ was constructed. In the ideal NaCl structure model the octahedral 4a site is occupied by 1/3 Ti and 2/3 Li (model A). In the revised model, the tetrahedral 8c site was added and the corresponding site occupancy factors (sof) of Li on the 4a site (Li_O) and 8c site (Li_T) were refined. To keep the overall stoichiometry of Li₂TiO₃, a constraint refinement in the form [sof(Li_T) = ⅓ − ½·sof(Li_O)] was defined, while the occupation of Ti was kept constant (model B). The resulting structure parameters are shown in

Table 1. Structure model for the Rietveld refinement of α-Li₂TiO₃ with a mixed Li occupation in octahedral and tetrahedral gaps. Li_T = tetrahedra gap, Li_O = octahedra gap, WP = Wyckoff position, sof = site occupancy factor.

Site	WP	x	y	z	Atom	sof
Li_T	8c	1/4	1/4	1/4	Li+	0.07(1)
Li_O	4a	0	0	0	Li+	0.53(1)
	4a	-	-	-	Ti4+	0.333
O1	4b	1/2	1/2	1/2	O2−	1

.

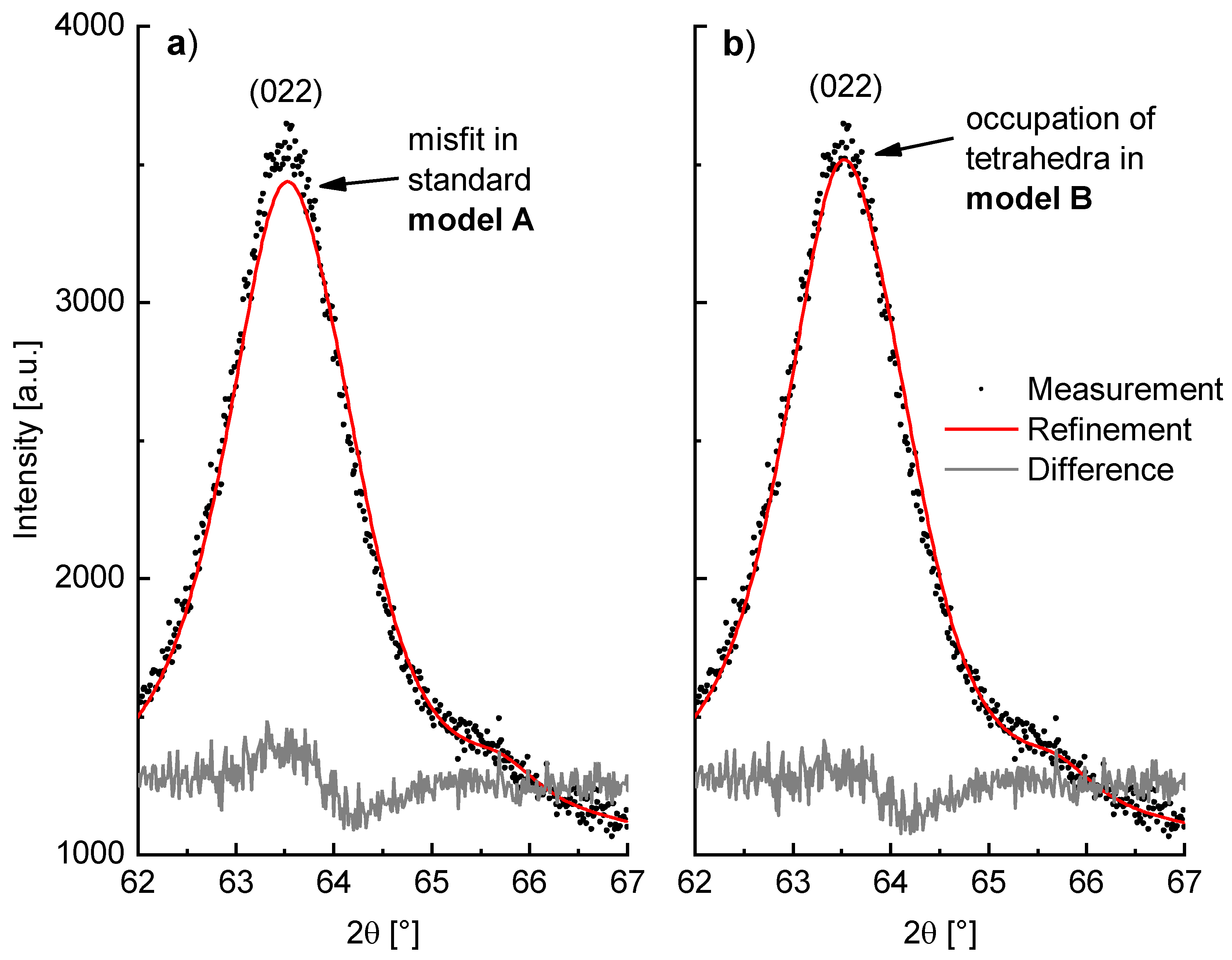

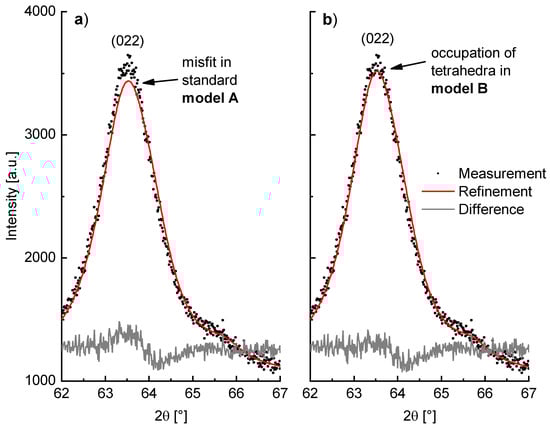

As a consequence of this adapted model, the Rietveld refinement of milled β-Li₂TiO₃ (WC tools, 600 rpm, 6h) is improved. This can be seen particularly in the description of the 022 reflection, which is depicted in Figure 11 with a fit using the (a) standard model A and (b) the adjusted model B. To better accommodate the shape of the amorphous background, a polynomial of 25th degree was used in these both cases, instead of the elsewise-used polynomial of 15th degree. Both the R_Bragg value of the Li₂TiO₃ phase and the overall fit are improved in model B. The GOF is reduced from 1.13 in model A to 1.11 in model B, which is only slightly better but nonetheless indicating an improvement. Beyond that, the R_Bragg value, which only dependents on the agreement between observed and calculated reflection intensities of the phase, is significantly lowered from 0.60% in model A to 0.28% in model B. However, since Li has a very low X-ray scattering factor the obtained values for the site occupancies in Table 1 are just an indication of an occupation of the tetrahedral site and cannot be regarded as proof. Nevertheless, this model helps to harmonize the results of the Rietveld refinement with the fitted areas of the signals of tetrahedral and octahedral environments in the ⁶Li SPE MAS NMR spectrum of milled β-Li₂TiO₃ (WC tools, 600 rpm, 6 h). The areas in the ⁶Li spectrum sum up to a proportion of 0.59 to 1 for tetrahedral- and octahedral-coordinated lithium, which corresponds to 37% tetrahedrally-coordinated lithium. The phase fraction from Rietveld refinement with model A (7% Li₂CO₃, 90% α-Li₂TiO₃ or 10.2 mol % Li₂CO₃ and 88.3 mol % α-Li₂TiO₃) corresponds to only 10% tetrahedrally coordinated lithium, solely arising from Li₂CO₃. This is far below the 37% from the ⁶Li spectrum. If tetrahedrally-coordinated lithium in α-Li₂TiO₃ from model B (6.2% Li₂CO₃, 91.1% α-Li₂TiO₃ or 9.0 mol % Li₂CO₃ and 89.5 mol % α-Li₂TiO₃) is factored in, a portion of 30% tetrahedrally-coordinated lithium is obtained, which fits the portion of the Li NMR spectrum. Here, a sof of 0.07 for Li on the 8c site (Li_T) corresponds to 21% of tetrahedrally coordinated lithium in α-Li₂TiO₃.

2.5. Impedance Spectroscopy

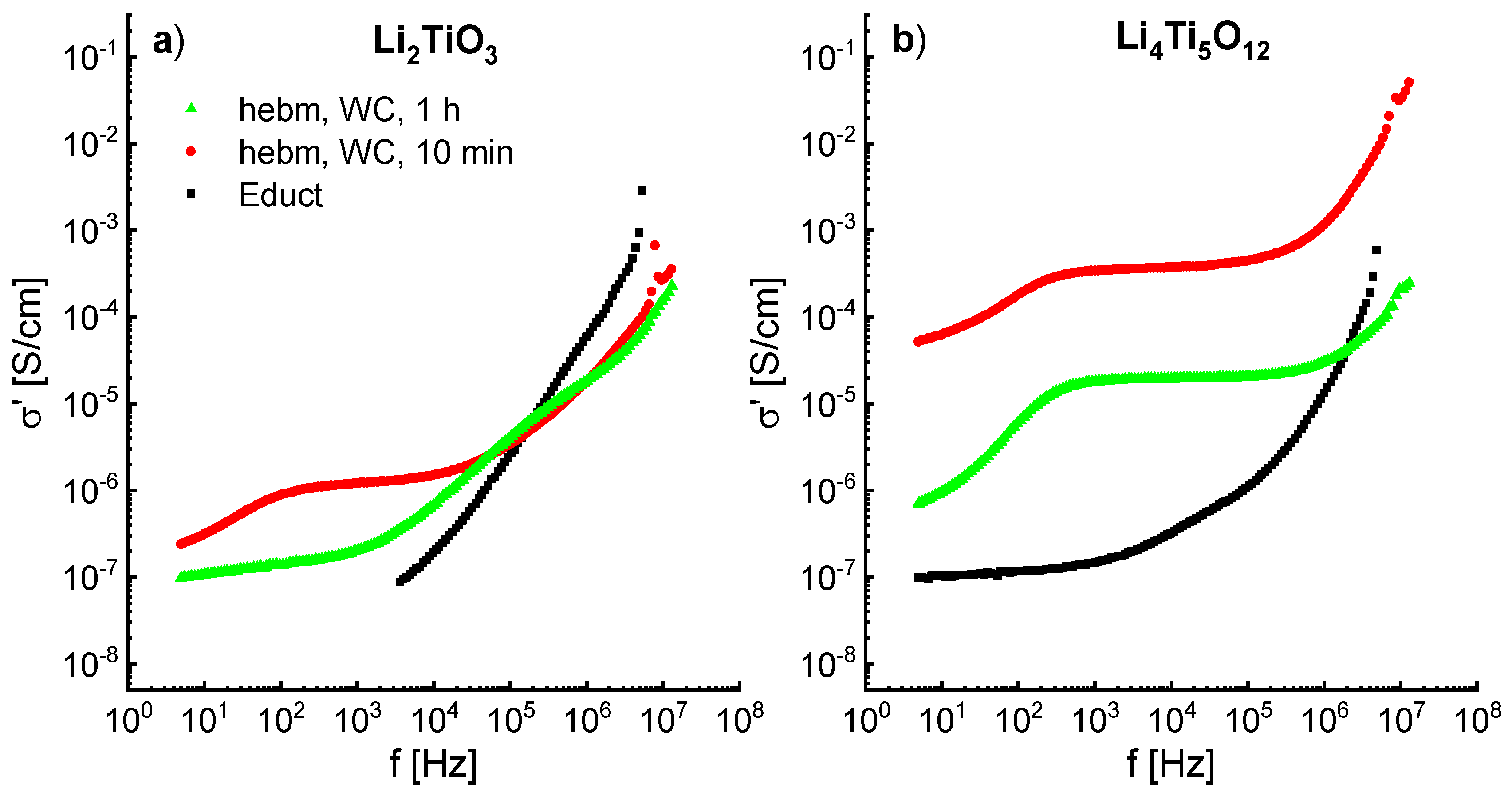

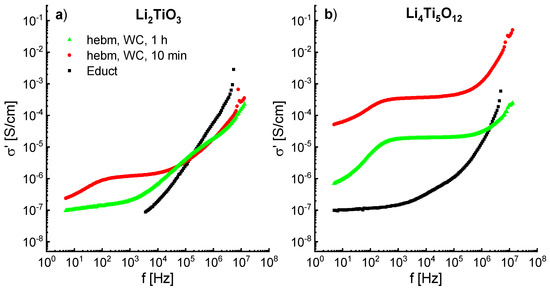

Since ball milling leads to the formation of defects, structure deformations and amorphization, an influence on the ion conductivity can be expected. The impedance spectra of ball-milled Li₂TiO₃ (600 rpm) and Li₄Ti₅O₁₂ (400 rpm) show an increase in conductivity of up to three orders of magnitude. The frequency dependent real part of the conductivity is shown in Figure 12a,b. The spectra were recorded at 298K.

The conductivity of Li₂TiO₃ from the solid-state reaction is rather poor and is immeasurable at frequencies below 3 kHz. After milling for 10 min an increase of one order of magnitude can be observed, with a typical dc plateau (σ_dc ≈ 10⁻⁶ S/cm) at lower frequencies and a dispersive regime at higher frequencies. Similar results are shown by Brandstätter et al. [16], however, only a conductivity σ_dc of about 10⁻⁹ S/cm is reported at room temperature for a milled sample. Milling of Li₂TiO₃ for 1 h decreases the conductivity to ≈ 10⁻⁷ S/cm, indicating a blocking of the Li ion transport. This may be due to the phase transformation from β- to α-Li₂TiO₃. As already shown by ⁶Li MAS NMR in Figure 10, milling for 10 min displaces Li to tetrahedrally-coordinated sites, which may be responsible for the increase in conductivity. Longer milling times promote a new octahedral coordinated state, which may be associated to the decrease in conductivity.

Li₄Ti₅O₁₂ shows a similar behavior to Li₂TiO₃, with a dc plateau at lower frequencies and a dispersive region at higher frequencies and a decrease of the conductivity after longer milling times. However, Li₄Ti₅O₁₂ from solid state reaction already exhibits a dc plateau at lower frequencies with σ_dc ≈ 10⁻⁷ S/cm at 298 K. Milling for 10 min increases the conductivity by three orders of magnitude to >10⁻⁴ S/cm at 298 K. The observed conductivities are the highest shown yet for ball-milled Li₄Ti₅O₁₂ at room temperature [18].

3. Materials and Methods

3.1. Materials

LiOH (Merck, Darmstadt. Germany, 98%), Li₂CO₃ (Merck, 99%), TiO₂ (Anatase, Merck, ≥99% and Rutile, Alfa Aesar GmbH, Karlsruhe, Germany, 99.5%), 2-propanole (Biesterfeld Spezialchemie, 97%) and n-pentane (Sigma Aldrich, Steinheim, Germany, 99%) were used as received. All solids have been characterized by PXRD. The used LiOH contained 20% LiOH·H₂O.

3.2. Sample Preparation

Milling was conducted in a Retsch PM100 planetary ball mill with rotational speeds of 400, 500 and 600 rpm. Milling tools, consisting of yttrium stabilized zirconia (ZrO₂) and tungsten carbide in cobalt matrix (WC) with a volume of 50 mL, as well as 200 milling balls of the same material, with a diameter of 5 mm, were used. The ball to powder weight ratio was 27:1 in case of ZrO₂ and 60:1 in case of WC tools. Approximately 3 g of starting powder (Li₄Ti₅O₁₂ or β-Li₂TiO₃) were placed in the grinding jar. To prevent cementing of the powders, 200 µL of 2-propanole were added as dispersing agent. In case of the mechanochemical synthesis from binary oxides, LiOH and TiO₂ (rutile or anatase) to form 3 g of Li₂TiO₃ were deployed. An excess of 10 mol % LiOH was used.

Spinel Li₄Ti₅O₁₂ and β-Li₂TiO₃ were synthesized by conventional solid-state reactions [6,29]. Appropriate amounts of lithium carbonate and anatase were homogenized by wet ball milling with n-pentane at 400 rpm for 1 h. A 50-mL agate grinding jar and twenty agate balls of 10 mm diameter were used. The dried mixtures were heated in a platinum crucible to 900 °C for 8 h in air atmosphere. The resulting white powders were manually ground in an agate mortar and reheated a second time. To obtain samples of β-Li₂TiO₃ with higher crystallinity and less Li-Ti-disorder, several heating steps at 1100 °C were carried out.

3.3. Characterization

Powder X-ray diffraction (PXRD) patterns were recorded on a Bruker D8-A25-Advance diffractometer (Bruker, Karlsruhe, Germany) in Bragg–Brentano θ–θ-geometry (goniometer radius 280 mm) with Cu Kα-radiation (λ = 154.0596 pm). A 12 µm Ni foil working as Kβ filter and a variable divergence slit were mounted at the primary beam side. A LYNXEYE detector with 192 channels was used at the secondary beam side. Experiments were carried out in a 2θ range of 7 to 120° with a step size of 0.013° and a total scan time of 2h. Topas 4.2 [30] was used for the Rietveld refinements. Crystallographic structure and microstructure were refined, while instrumental line broadening was included in a fundamental parameters approach [31]. The background was fitted by a Chebychev polynomial function of 15th degree, while fluorescence induced background was reduced by discriminating the detector. Crystal structure data were obtained from the crystallography open database (COD) [32] and inorganic crystal structure database (ICSD).

Thermogravimetric analysis was conducted on a Netzsch TG 209 F1 Iris ASC (Netzsch, Selb, Germany) in alumina crucibles (V = 75 µL), in a temperature range from 25–1000 °C under a nitrogen flow of 40 mL·min⁻¹ with a heating rate of 20 K·min⁻¹. The samples were dried in a pre-heating phase at 100 °C under flowing nitrogen and cooled again before the measurement was started. Coupling of the gas flow to a Bruker Vertex 70 IR spectrometer (Bruker, Karlsruhe, Germany) was achieved with a heated transfer line (200 °C) under constant nitrogen flow. Spectra were recorded between 4500 to 600 cm⁻¹ with a resolution of 4 cm⁻¹ and 32 scans per spectrum.

⁶Li single-pulse excitation magic angle spinning (SPE MAS) NMR spectra were recorded on a Bruker AV400WB spectrometer (Bruker, Karlsruhe, Germany) (⁶Li at 58.91 MHz) at 298K in standard ZrO₂ rotors (d = 4 mm). A spinning rate of 12 to 13 kHz and a relaxation delay of 3 s were used. Solid LiCl was used as external reference at 0 ppm.

Impedance spectra were recorded on an HP 4192A impedance analyzer (Hewlett-Packard, Palo Alto, CA, USA) in a frequency range of 5 Hz to 13 MHz at 298 K. Data points were recorded via software [33]. The samples were pressed into pellets with 10 mm diameter and a thickness of 1.4–2.1 mm under a uniaxial pressure of 250 MPa at room temperature. Both sides of the pellets were coated with silver conducting paste and dried overnight in air, to establish electrical contact with the platinum electrodes in the measurement cell.

3.4. Structural Model for β-Li₂TiO₃ in Rietveld Refinement

As already mentioned in the literature, Rietveld refinement of β-Li₂TiO₃ requires a more complex structural model than a single well-ordered phase. A mixed occupancy of Li and Ti in the LiTi₂ layer and different stacking variants must be considered to obtain a satisfactory fit [34]. In our work a three-fraction model [35,36] with a Li-Ti-mixing in the LiTi₂ layer was used to account for a distribution of different states, but no stacking variants were considered. The parameters of the microstructure of the three fractions were constrained but lattice parameters were refined independently.

4. Conclusions

The cubic polymorph of Li₂TiO₃ was successfully synthesized via high energy ball milling of LiOH with rutile, β-Li₂TiO₃ and spinel Li₄Ti₅O₁₂. The material of the used milling tools showed a large impact on the composition of the product powders. Use of tungsten carbide (WC) led to full conversion of rutile with LiOH or β-Li₂TiO₃ to α-Li₂TiO₃. In contrast, the use of yttrium-stabilized zirconia (ZrO₂) did not lead to full conversion, neither of rutile with LiOH nor β-Li₂TiO₃ regardless of the applied milling conditions. TG-IR coupling of the gas flow showed primarily characteristic bands of CO₂, indicating crystalline Li₂CO₃ to be mainly responsible for the mass loss upon heating. Therefore, the amorphous background is assumed to primarily consist of TiO₂.

Heating under mild conditions (200 °C for 1 h) of the mechanically produced cubic phase caused a phase percentage of 90% cubic phase, without affecting the nano-crystallinity. Further heating resulted in an ordering phenomenon with monoclinic structure at lower temperatures, following a discrete structure change between 600 and 700 °C resulting in a full transformation to β-Li₂TiO₃.

Even after mild milling conditions, the structure of spinel Li₄Ti₅O₁₂ is strongly altered, which may have a large impact on the use of mechanochemical treated Li₄Ti₅O₁₂ as anode material. Though a phase with cubic structure was formed, the reflections were very broad and additional unidentified reflections were visible.

⁶Li SPE MAS NMR spectra revealed an extensive rearrangement of the Li environment in β-Li₂TiO₃ after 10 min of milling. A tetrahedrally coordinated state may be occupied by Li. NMR spectra of the mechanochemically treated spinel Li₄Ti₅O₁₂ indicated a purely tetrahedrally-coordinated environment after milling for 1 h. The process of the milling-induced transformation of the spinel is not completely understood yet. In conclusion to these findings, a revised structure model including a tetrahedral Li site in cubic Li₂TiO₃ was tested in Rietveld refinement and resulted in a slightly improved fit.

Impedance spectroscopy measurements at 298K show an increase in conductivity of up to three orders of magnitude after milling for just 10 min. This may be due to the displacement of Li ions to tetrahedrally-coordinated or interstitial sites (as observed by ⁶Li NMR). Longer milling times tend to decrease the conductivity again. These results may be a hint of how to activate anode materials for a faster lithium intercalation.
