Arene Ruthenium Metalla-Assemblies with Anthracene Moieties for PDT Applications

by
Marie Gaschard
,
Farzaneh Nehzat
,
Thomas Cheminel
and
Bruno Therrien
*
Institute of Chemistry, University of Neuchâtel, Avenue de Bellevaux 51, CH-2000 Neuchâtel, Switzerland
*
Author to whom correspondence should be addressed.
Inorganics 2018, 6(3), 97; https://doi.org/10.3390/inorganics6030097
Submission received: 16 July 2018 / Revised: 5 September 2018 / Accepted: 6 September 2018 / Published: 12 September 2018
(This article belongs to the Special Issue Organometallic Macrocycles and Their Applications)
Browse Figures
Versions Notes

Abstract

:
The synthesis and characterization of three metalla-rectangles of the general formula [Ru4(η6-p-cymene)4(μ4-clip)2(μ2-Lanthr)2][CF3SO3]4 (Lanthr: 9,10-bis(3,3’-ethynylpyridyl) anthracene; clip = oxa: oxalato; dobq: 2,5-dioxido-1,4-benzoquinonato; donq: 5,8-dioxido-1,4-naphthoquinonato) are presented. The molecular structure of the metalla-rectangle [Ru4(η6-p-cymene)4(μ4-oxa)2(μ2-Lanthr)2]4+ has been confirmed by the single-crystal X-ray structure analysis of [Ru4(η6-p-cymene)4(μ4-oxa)2(μ2-Lanthr)2][CF3SO3]4 · 4 acetone (A2 · 4 acetone), thus showing the anthracene moieties to be available for reaction with oxygen. While the formation of the endoperoxide form of Lanthr was observed in solution upon white light irradiation, the same reaction does not occur when Lanthr is part of the metalla-assemblies.

Graphical Abstract

1. Introduction

Nowadays, one of the challenges in treating cancers is increasing the drug efficacy while limiting or even annihilating side effects. Photodynamic therapy (PDT) can possibly achieve these goals [1,2]. Although still emerging and under development, this method is already used in the clinic or under clinical trials for skin disorders [3,4,5], infections [6,7], superficial cancers [3,8,9,10] and for deeper cancers [3,11,12,13,14] (see Table 1). PDT involves three main elements which are individually harmless: a light-absorbing molecule called photosensitizer (PS), oxygen and light. [15] For medical treatment, the PS is administered either systemically or topically and often intravenously. After a period of systemic distribution, the PS accumulates in the tumor, thanks to both selective accumulation and selective retention [16]. Finally, the tumor is irradiated by light, which activates the PS (Figure 1, part A). At that point, the combination of the PDT elements becomes dangerous for the cells. The PS, at its singlet ground state, is excited and reaches an unstable singlet state S1*. Then, the PS reemits this energy and undergoes an intersystem crossing process leading to a triplet state T1, which is lower in energy (i.e., a longer-living state) than S1. The PS subsequently interacts with the biological environment through two kinds of photochemical reactions (Figure 1, part B) [17]. Both pathways (type I and type II) involve oxidative stress, mainly due to the formation of reactive oxygen species (ROS), and accordingly need oxygen to be effective [18].
PDT is considered a promising treatment as it possesses several benefits in comparison to common cancer therapies. Traditionally, the advantages attributed to PDT are to be less invasive, with a short treatment time and a double selectivity (combination of PS and light); it can be applied several times at the same location (contrary to traditional radiations); and it has a lower overall cost (no surgery involved). Nevertheless, the PDT technique is still limited and its use in routine treatments remains restricted. Limitations are generally associated with a residual photosensitivity after PDT treatment, difficulty to treat metastases (because of limited laser focalization), the need of light at a specific wavelength to be able to reach deeper tumors and finally to an adequate tissue oxygenation [2,14,19].
Unfortunately, hypoxia is a fundamental physiological feature in human solid cancers. This characteristic is absent in the healthy tissue and it corresponds to a low oxygen concentration in a determined cancerous region [20]. The first observation of this phenomenon was made by Thomlinson and Gray in the 1950s. They realized the importance of oxygen in cancerous tissues for obtaining a good efficiency of radiation treatments [21]. Later, they showed the existence of hypoxic and necrotic regions in cancerous areas, which are at 150 μm from the irregular blood vessels. Consequently, they were able to deduce the effective diffusion distance of oxygen in cancer tissue [22]. In the 1990s, the concentration of oxygen in human tumors was precisely determined by Vaupel et al. Using the “Eppendorf” electrode: the oxygen amount is very heterogeneous, and the median values are lower than in healthy tissues [23]. Since then, researchers undoubtedly confirmed the negative impact of hypoxia on cancer treatments. Hypoxia generally drives to drug resistance and failure of the radio- and chemotherapy [24,25], since cancerous cells exploit numerous mechanisms to survive. Here comes a non-exhaustive list of hypoxia consequences in a cancerous environment: an imperfect exposition of anti-cancerous drugs [26], a decrease of the DNA-breaking drugs toxicity [27,28], an upregulation of some genes [29,30], a selection of cells with genetic alterations carrying out the decrease or the suppression of apoptosis [31,32], a creation of genetic instability with an increased number of mutations [33], an adaptation of normal pathways to tumors for their survival [34,35], a dysfunction of RTK (receptor tyrosine kinase) and endocytosis [36], a tumor progression [37] and a restauration of the irradiation-damaged vasculature by vasculogenesis [38]. Thus, to apply the promising PDT treatment on human solid cancer, there is an indispensable need to overcome the problem of hypoxia, since oxygen remains a sine qua non condition for effectiveness.
Therefore, to carry oxygen to cancer cells, coordination chemistry can be a solution. In fact, several ruthenium-based complexes have been tested as photoactivated compounds and they appear to have good biological activity [39,40,41,42,43,44,45,46,47,48,49,50,51,52,53]. Moreover, we have demonstrated ten years ago the potential of arene ruthenium complexes in PDT [54,55,56,57,58,59], and recently we showed that the octonuclear metalla-cube [Ru8(η6-p-cymene)8(tpvb)2(donq)4]8+ (tpvb: 1,2,3,4-tetrakis{2-(4-pyridyl)vinyl}benzene; donq: 5,8-dioxido-1,4-naphtoquinonato) can entrap porphin (a photosensitizer) into its cavity [60]. When inside the hydrophobic cavity of the cage, porphin is not reactive to light, and the overall assembly is relatively harmless to cells. After internalization, porphin is released within the cells, and, after an irradiation at an appropriate wavelength, the system shows an excellent phototoxicity. Therefore, we describe here a new strategy that consists of using arene ruthenium metalla-assemblies to transport one or two molecules of singlet oxygen. For that purpose, the literature gives several examples of oxygen carriers [61,62], but we have focused our attention to anthracene units [63,64,65]. Actually, Aubry and coworkers have described the ability of aromatic compounds to permit a reversible binding of oxygen [66]. Thus, the basic idea is to attach anthracene units on metalla-assemblies, either on the clips or on the linkers, and ultimately to be able to deliver 1O2 and a PS to cells for PDT optimization.
In this conceptual paper, we have synthetized an anthracene-based linker, 9,10-bis(3,3’-ethynylpyridyl) (Lanthr), which form in combination with three arene ruthenium clips, [Ru2(η6-p-cymene)2(μ4oxa)2Cl2], [Ru2(η6-p-cymene)2(μ4-dobq)2Cl2] and [Ru2(η6-p-cymene)2(μ4-donq)2Cl2] (oxa: oxalato; dobq: 2,5-dioxido-1,4-benzoquinonato; donq: 5,8-dioxido-1,4-naphthoquinonato), three metalla-rectangles [Ru4(η6-p-cymene)4(μ4-oxa)2(μ2-Lanthr)2][CF3SO3]4 (A1), [Ru4(η6-p-cymene)4(μ4-dobq)2(μ2-Lanthr)2][CF3SO3]4 (A2), and [Ru4(η6-p-cymene)4(μ4-donq)2(μ2-Lanthr)2][CF3SO3]4 (A3), respectively. Then, the potential of the linker Lanthr and the arene ruthenium metalla-rectangles to act as oxygen carriers was evaluated by various spectroscopic methods.

2. Results and Discussion

The synthesis of the metalla-rectangles is straightforward. First, the bis-pyridyl linker, 9,10-bis(3,3’-ethynylpyridyl) (Lanthr), is prepared according to a modified version of the previously published method [67]. It starts with a palladium-catalyzed Sonogashira reaction between 1 equivalent of 9,10-dibromoanthracene and 2.2 equivalents of 3-ethynylpyridine (63% yield). Crystals of Lanthr are obtained by the slow vapor diffusion of toluene into a solution of Lanthr in dichloromethane at room temperature and they have permitted to confirm the molecular structure of Lanthr. The compound crystallized in the non-centrosymmetric space group P21, a monoclinic crystal system. In the solid state, the anthracene unit is nearly planar with the root mean square deviation of the 12 carbon atoms of the plane being 0.024 Å. The angles between the anthracene plane and the pyridyl rings are 1.6° and 2.9°, respectively. As illustrated in Figure 2, the occupancy of the nitrogen atoms of the pyridyl rings is poorly defined, showing the rotating flexibility around the ethynyl axes despite the conjugated aromatic system.
Then, the dinuclear arene ruthenium clips were prepared according to published methods: [Ru2(η6-p-cymene)2(μ4-oxa)Cl2] [68], [Ru2(η6-p-cymene)2(μ4-dobq)Cl2] [69] or [Ru2(η6-p-cymene)2(μ4-donq)Cl2] [70]. These dinuclear complexes react with two equivalents of silver trifluoromethanesulfonate in dichloromethane to afford a reactive intermediate (not isolated), and after filtration of AgCl, 1 equivalent of Lanthr is added to obtain the corresponding metalla-rectangles (Scheme 1). The resulting cationic p-cymene metalla-assemblies are isolated as their trifluoromethanesulfonate (CF3SO3−) salts in good yields (between 68% and 82%). The solubility of the metalla-rectangles depends on the nature of the dinuclear clip: A1 is soluble in ethanol but not in dichloromethane, while A2 and A3 show the opposite, being soluble in dichloromethane but not in ethanol. Moreover, only A1 is slightly soluble in water, but they are all soluble in acetone. These metalla-rectangles were fully characterized by various spectroscopic techniques (see the Supplementary Materials).
The formation of the metalla-rectangles A1, A2 and A3 was first confirmed by electrospray ionization mass spectrometry (ESI-MS). All spectra show the typical pattern of arene ruthenium metalla-assemblies with trifluoromethanesulfonate as counterions: a monocationic peak corresponding to [M–CF3SO3−]+ (respectively at m/z = 2323.2 and m/z = 2423.0; not observed for A3) and a dicationic peak for [M–2(CF3SO3−)]2+ (respectively at m/z = 1088.9, m/z = 1139.2 and m/z = 1188.1). They also present a peak which corresponds to [M–2Lanthr–2(CF3SO3−)]+ at respectively m/z = 708.0, m/z = 759.3 and m/z = 809.0. The experimental results perfectly correlate with the calculated isotopic distributions of the different species.
The 1H NMR spectra of A1, A2 and A3 in acetone-d6 present a chemical shift of the Lanthr protons, as compared to the non-coordinated material (Figure 3). The pyridyl protons show a mixed behavior; those adjacent to the Ru–N bond are shifted upfield, while the other two are shifted downfield. However, the protons of the anthracene units (marked by an orange triangle and a red dot) are strongly upfield shifted in all metalla-rectangles because of the shielding effect of the anthracene–anthracene parallel arrangement. In view of trapping singlet oxygen, these protons will be the most affected by the formation of the endoperoxide derivative.
In addition, typical peak multiplicities and chemical shifts of the arene ruthenium units are observed in the 1H NMR spectra of A1, A2 and A3. The aryl protons of the p-cymene ligands are observed between ~6.85 and ~6.35 ppm, the isopropyl protons at ~1.40 ppm, the septuplet of the –CH from the isopropyl groups at ~3.00 ppm and the methyl groups at ~2.30 ppm (see the Experimental section). Interestingly, the spectrum of A1 suggests the formation of two isomers due to the presence of broad signals in the aromatic region and due to additional splitting of some protons of the p-cymene ligands. On the other hand, the 1H NMR spectra of A2 and A3 do not show this phenomenon and their overall signals are rather well-defined as compared to those of A1. These elements support the presence of cis and trans isomers, in which the pyridyl units are pointing to the same or opposite sides of the metalla-rectangle: The free rotation of the pyridyl units being restricted upon formation of the metalla-rectangles. In fact, in the oxalato derivative A1, the short distance between the ruthenium atoms within the dinuclear clip (5.4 Å) forces the two Lanthr panels to be in close proximity [71]. Therefore, the chemical environment of the protons associated with the cis and trans isomers is more different. Accordingly, π–π stacking interactions between the two Lanthr units of the metalla-rectangles are stronger in A1 than in A2 and A3, where the Ru–Ru distances are estimated to be at 7.9 and 8.4 Å, respectively [71,72].
The diffusion coefficient (D) of A1, A2 and A3 was determined by Diffusion-Ordered Spectroscopy (DOSY) NMR experiments, recorded in acetone-d6 at 23 °C. The presence of a single diffusion line suggests, for each metalla-rectangle, the formation of one discrete species (isomers being undistinguishable). Interestingly, A1 and A3 have a similar value, at, respectively, 6.67 × 10−10 m2∙s−1 and 6.80 × 10−10 m2∙s−1, while A2 is slightly different (6.04 × 10−10 m2∙s−1). Generally, the bigger the assembly is, the smaller its diffusion coefficient. Herein, the size of the metalla-rectangles is increasing from A1 to A3. However, the results are not consistent with their theoretical molecular size since A2 has the smallest value of D. However, they might possess different arrangement in solution. Then, according to these D values and by applying the Stockes–Einstein equation, the hydrodynamic radius rH or the metalla-rectangles was calculated (viscosity of 0.31 mPa∙s for acetone and a temperature of 298 K): the rH values are 10.5 Å for A1 and 10.4 Å for A3, while for A2 it is 11.7 Å. These values are consistent with the formation of the expected metalla-assemblies [59,60,71,72,73,74,75,76].
Indeed, the molecular structure of A1 was further confirmed by single-crystal X-ray structure analysis (Figure 4). Crystals were obtained by slow diffusion of a mixture of ether–benzene (99:1) into an acetone solution of the corresponding metalla-rectangle. The salt crystallizes in the triclinic space group P-1. The asymmetric unit includes the tetra-cationic metalla-rectangle (trans isomer), four CF3SO3− anions, and four acetone molecules. The size of the rectangle defined by the four Ru–Ru edges is 5.4 × 17.7 × 5.4 × 17.9 Å, which correlates well with the rH determined by the DOSY experiment.
As mentioned before, π–π stacking interactions play an important role in the formation of these metalla-rectangles [77]. In the crystal structure of A1 ∙ 4 acetone, both anthracene groups are positioned in a “parallel fashion” that maximize π–π stacking interactions. The distance between the two centroids of the anthracene moieties is only 3.8 Å. However, as compared to Lanthr, the pyridyl groups are far from co-planarity with the anthracene unit (Figure 4). Two pyridyl rings are observed at an angle of approximately 7°, while the two others are rotated by 34°, from the idealized plane of their anthracene group. This distortion is probably imposed by the arene ruthenium oxalato clips as well as by an optimization of the anthracene-anthracene π–π interactions.
The electronic absorption spectra have been measured at room temperature in dichloromethane for Lanthr, A2 and A3 and in ethanol for A1 (Figure 5). The intense high energy band centered at 270 nm is assigned to ligand-localized or ligand π→π* transition and the broad low-energy band corresponds to metal-to-ligand charge transfer (MLCT). Typical anthracene prints in the UV–visible spectra are observed around 400–500 nm. These bands are different in the three metalla-assemblies. In fact, A1 displays a quite similar pattern as Lanthr, while A2 and A3 show broader band and a bathochromic shift of the bands associated with the anthracene located between ~400–550 nm. Moreover, A2 presents a wider band, from which it is not possible to distinguish in the visible region of the spectrum the two bands of the anthracene moiety.
In order to evaluate the ability of the ligand and the metalla-rectangles to form endoperoxide derivatives, several experiments were carried out in solution (NMR, UV–visible and fluorescence). Comparisons were made between the results obtained under an inert-atmosphere to those obtained with an O2-saturated atmosphere, as well as before or after light irradiation.
First, UV–visible spectroscopy was used to visualize the trapping of singlet oxygen by the metalla-rectangles. When dealing with anthracene derivatives, a visible-light excitation can be employed to trap singlet oxygen, and upon oxygen addition to the anthracene moiety the intensity of the absorption bands decreases over time [78,79]. Therefore, solutions of all compounds were prepared at a concentration of 10−5 M (EtOH for A1; CH2Cl2 for A2 and A3), and kept in the dark before starting the measurements. Then, multiple spectra were recorded: under nitrogen, after 15 min of oxygen bubbling into the solution, and also after one hour of visible light irradiation (cool white light, Hg, 8 W). However, in all cases, no spectroscopic changes were observed under these conditions.
We then turn our attention to fluorescence spectroscopy (Figure 6). Oxygen is known to be a common quencher of the fluorescence of aromatic compounds, since the formation of endoperoxide disrupts the electron delocalization of aromatic molecules [80,81,82]. Therefore, fluorescence spectroscopy was also used to study the behavior of the metalla-rectangles in the presence of O2. Each compound (5 × 10–8 M concentrations; EtOH for A1; CH2Cl2 for A2 and A3) was irradiated at a specific wavelength, where the maximal absorbance was detected by the fluorimeter (Lanthr, 271 nm; A1, 457 nm; A2, 273 nm; A3, 459 nm). At first sight, the spectra show different bands and intensities before and after placing the compounds under O2 (30 min of bubbling). In an inert atmosphere, A2 displays six bands: one at ~270 nm, two between 300 and 400 nm, two between 450 and 520 nm and one at ~550 nm; while with O2, there are seven bands, one additional band at ~620 nm (Figure 6). In the ~270 nm and ~550 nm regions, the intensity of the bands is decreasing with O2, whereas it is increasing in the other parts of the spectrum. Moreover, there is a slight hypsochromic shift of the bands located between 300 and 400 nm.
For A1 and A3 (Figure 6), no band before 450 nm is observed, and all their bands are hyperchromic. Only a very small decrease in the intensity of the band at ~470 nm is observed for A3. In comparison with Lanthr, the behavior of A2 follows an opposite trend: when the intensity is increasing for Lanthr, it is decreasing for A2. The only different variation is the intensity of its bands: in the UV part and at the end of the visible domain, A2 has a more intense fluorescence, and a less intense one between 450 and 550–570 nm. All together, these results show no evidence for an endoperoxide formation on the metalla-rectangles A1–A3. Therefore, we focused our attention to Lanthr alone, in order to determine if the bis-pyridyl anthracene ligand interacts with O2.

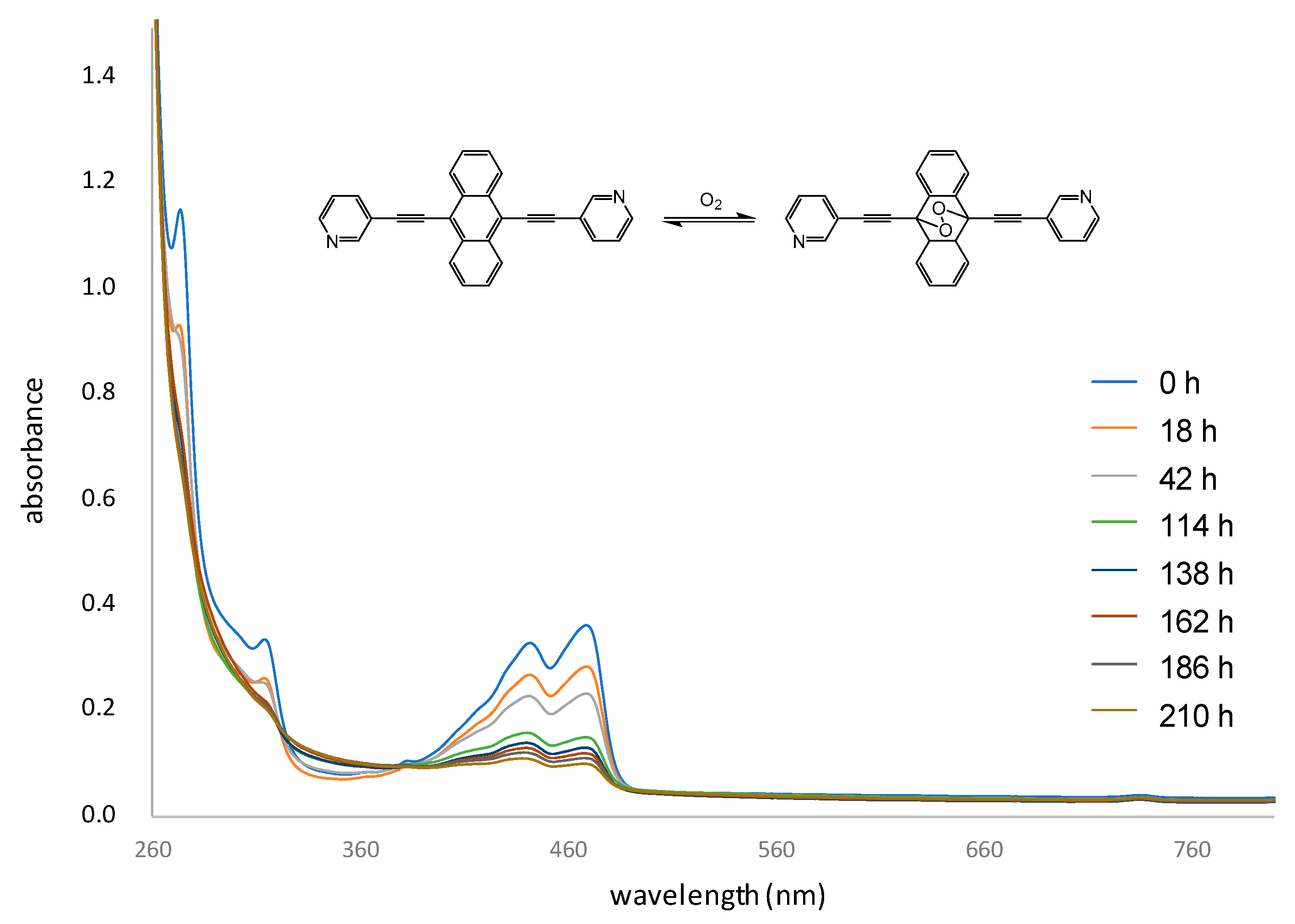

A series of UV–visible spectra have been recorded (Figure 7), in which an air-opened solution of Lanthr was continuously irradiated under white light. After a week, the intensity of the bands associated with the anthracene moiety was significantly reduced, and the solution appeared to have reached an equilibrium. Two isosbestic points were observed, at ~330 nm and ~390 nm, respectively. The formation of a new compound was confirmed by 1H NMR spectroscopy, in which a new set of signals was observed. Two new doublet of doublets, slightly downfield shifted as compared to the anthracene protons of Lanthr (8.7 and 7.7 ppm), are observed at 8.8 and 7.9 ppm, respectively: thus suggesting the formation of the endoperoxide derivative.

3. Experimental Section

3.1. Material and Methods

All solvents were dried before use according to standard procedures and all reactions were performed under an inert atmosphere. The ruthenium precursors [Ru2(η6-p-cymene)2(μ4-oxa)Cl2] [68], [Ru2(η6-p-cymene)2(μ4-dobq)Cl2] [69] and [Ru2(η6-p-cymene)2(μ4-donq)Cl2] [70] were prepared according to published methods. All other reagents were commercially available (Sigma-Aldrich, Brunschwig, Basel, Switzerland) and used as received. NMR spectra were recorded with a Bruker Avance II 400 spectrometer (Karlsruhe, Germany). UV–vis absorption spectra were recorded with a PerkinElmer UV−vis spectrophotometer (Waltham, MA, USA). IR spectra were recorded with a Thermoscientific Nicolet iS5 spectrometer (Waltham, MA, USA). Electrospray ionization mass spectrometry (ESI-MS) spectra were obtained in positive mode with a LCQ Finnigan mass spectrometer (San Jose, CA, USA). Microanalyses were carried out by the Mikroelementaranalytisches Laboratorium, ETH Zurich, Switzerland. Fluorescence spectra were recorded on a PerkinElmer LS 50 B luminescence spectrophotometer (Waltham, MA, USA). Irradiation studies were performed using a Luzchem LZC-ORG photoreactor (Montreal, QC, Canada) equipped with the corresponding lamp (cool white lamp, Hg, 8 W, Sylvania® F8T5/CW).

3.2. Synthesis and Characterization

9,10-bis(3,3’-ethynylpyridyl)anthracene (Lanthr): In a Schlenk flask, a mixture of 9,10-dibromoanthracene (400 mg, 1.19 mmol) and 3-ethynylpyridine (270 mg, 2.62 mmol) was dissolved in a solution of toluene:trimethylamine (1:1, 25 mL) and let under a nitrogen atmosphere during 15 min. Then, a mixture of palladium(II)acetate (5 mg, 0.024 mmol), copper(I)iodide (6 mg, 0.030 mmol) and triphenylphosphine (17 mg, 0.065 mmol) was added to this solution. The reaction mixture was stirred at reflux for 24 h. The solvent was removed under vacuum. The residue was dissolved in water and stirred for 2 h at RT, to eliminate the triethylammonium salt. The solid was filtered off and dried under vacuum. Recrystallization was done in toluene and the product was obtain as orange needles, which were dried under vacuum (285 mg, 63%). 1H NMR (CDCl3, 400 MHz): δ 9.02 (s, 2H, CHpyr), 8.66 (m, 6H, CHpyr and CHanth), 8.06 (d, J = 7.6 Hz, 2H, CHpyr), 7.69 (dd, 4H, CHanth), 7.42 (m, 2H, CHpyr). 13C NMR (CDCl3, 400 MHz): δ 152.4 (2C, CHpyr), 149.2 (2C, CHpyr), 138.6 (2C, CHpyr), 132.3 (4C, Canthr), 127.4 (4C, CHanthr), 127.3 (4C, CHanthr), 123.4 (2C, CHpyr), 120.7 (2C, Cpyr), 118.4 (2C, Canthr), 99.12 (2C, Cethynyl), 89.77 (2C, Cethynyl). IR (cm−1): 3078 (m; C–H aromatic), 2200 (w; C≡C), 1557 and 1477 (m; C=C aromatic), 799, 763 and 697 (s, sharp; C–H aromatic). ESI–MS (+); m/z = 381.2 [M+H]+. UV–vis [5.0 × 10−6, CH2Cl2; λmax, nm (ε, M−1·cm−1)]: 277 (1.2 × 105), 313 (5.5 × 104), 437 (5.0 × 104), 462 (5.3 × 104), 722 (1.1 × 104). Anal. calc. for C28H16N2 (380.46): C 88.38, H 4.25, N 7.37; Found: C 88.26, H 4.14, N 7.26.
General procedure for the synthesis of metalla-rectangles A1, A2 and A3: A mixture of metalla-clip (oxa: 200 mg, 0.32 mmol; dobq: 200 mg, 0.29 mmol; donq: 200 mg, 0.27 mmol) and silver trifluoromethanesulfonate (2 eq.) was dissolved in dichloromethane and was stirred for 3 h at RT. The mixture was filtrated in order to eliminate silver chloride. The resulting solution was added to a dichloromethane solution of Lanthr (1 eq.). Then, the mixture was refluxed overnight and consequently concentrated under vacuum. The concentrated solution was slowly poured into cold diethyl ether to induce precipitation. After filtration, the metalla-rectangles were filtered off and dried under vacuum.
[Ru4(η6-p-cymene)4(μ4-oxa)2(μ2-Lanthr)2][CF3SO3]4 (A1): Yellow solid. Yield, 74%. 1H NMR ((CD3)2CO, 400 MHz): δ 8.64 (m, 8H, CHpyr), 8.16 (m, 12H, CHanthr), 7.65 (t, J = 6.6 Hz, 4H, CHpyr), 7.34 (m, 8H, CHanthr), 6.20 (dd, J = 11.6 Hz, J = 6.0 Hz, 8H, CHcym), 6.05 (m, 8H, CHcym), 3.04 (sept, J = 6.6 Hz, 4H, CHcym), 2.35 (s, 12H, CH3cym), 1.45 (d, J = 6.8 Hz, 12H, CHcym), 1.43 (d, J = 6.8 Hz, 12H, CHcym). 13C NMR ((CD3)2CO, 400 MHz): δ 172.14 (2C, Coxa), 172.03 (2C, Coxa), 154.65 (4C, Cpyr), 152.54 (4C, Cpyr), 143.77 (4C, Cpyr), 137.19 (4C, Canthr), 131.42 (4C, Canthr), 128.15 (8C, Canthr), 127.65 (4C, Cpyr), 127.17 (8C, Canthr), 123.78 (4C, Cpyr), 120.90 (4C, Canthr), 117.87 (4C, COtf), 103.43 (4C, Ccym), 98.98 (4C, Ccym), 97.40 (4C, CC≡C), 92.88 (4C, CC≡C), 83.34 (2C, Ccym), 83.26 (2C, Ccym), 83.14 (4C, Ccym), 82.85 (2C, Ccym), 82.79 (2C, Ccym), 82.30 (2C, Ccym), 82.28(2C, Ccym), 31.96 (4C, Ccym), 22.69 (4C, Ccym), 22.35 (4C, Ccym), 18.21 (4C, Ccym). IR (cm−1): 3079 (w; C–H aromatic), 2211 (w; C≡C), 1625 (s; C=O oxa), 1482 (m; C=C aromatic), 765 (m, sharp; C–H aromatic), 636 (s; C–H aromatic). ESI–MS (+); m/z = 708.0 [M-2Lanthr-2 OTf−]+, 1088.9 [M-2 OTf−]2+, 2323.2 [M-OTf−]+. UV−vis [5.0 × 10−6, EtOH; λmax, nm (ε, M−1·cm−1)]: 271 (3.1 × 105), 312 (7.5 × 104), 437 (7.6 × 104), 459 (7.8 × 104), 742 (7.3 × 103). D ((CD3)2CO): 6.67 × 10−10 m2∙s−1. Anal. calc. for C104H88F12N4O20Ru4S4 (2474.48): C 50.48, H 3.59, N 2.27; Found: C 50.56, H 3.68, N 2.22.
[Ru4(η6-p-cymene)4(μ4-dobq)2(μ2-Lanthr)2][CF3SO3]4 (A2): Red solid. Yield, 68%. 1H NMR ((CD3)2CO, 400 MHz): δ 8.64 (d, J = 7.6 Hz, 4H, CHpyr), 8.58 (s, 4H, CHpyr), 8.31 (d, J = 6.0 Hz, 4H, CHpyr),8.05 (dd, J = 6.8 Hz, J = 3.2 Hz, 8H, CHanthr), 7.70 (t, J = 6.8 Hz, 4H, CHpyr), 7.47 (m, 8H, CHanthr), 6.34 (d, J = 6.0 Hz, 8H, CHcym), 6.11 (d, J = 6.0 Hz, 8H, CHcym), 5.96 (s, 4H, CHdobq), 3.04 (sept, J = 6.6 Hz, 4H, CHcym), 2.33 (s, 12H, CH3cym), 1.42 (d, J = 6.8 Hz, 24H, CHcym). 13C NMR ((CD3)2CO, 400 MHz): δ 184.40 (8C, Cdobq), 155.33 (4C, Cpyr), 153.20 (4C, Cpyr), 142.77 (4C, Cpyr), 131.27 (8C, Canthr), 128.27 (8C, Canthr), 127.32 (4C, Cpyr), 127.06 (8C, Canthr), 123.96 (1C, Canthr), 123.30 (1C, Canthr), 120.76 (4C, Cpyr), 117.69 (2C, Canthr), 104.84 (4C, Ccym), 102.37 (4C, Cdobq), 100.09 (4C, COtf), 97.03 (4C, Ccym), 92.11 (4C, CC≡C), 90.63 (4C, CC≡C), 84.60 (8C, Ccym), 82.62 (8C, Ccym), 32.12 (4C, Ccym), 22.48 (8C, Ccym), 18.24 (4C, Ccym). IR (cm−1): 3075 (w; C–H aromatic), 2198 (w; C≡C), 1574 (m; C=C aromatic), 817 and 764 (m; C–H aromatic) and 693 (s; C–H aromatic). ESI-MS (+); m/z = 759.3 [M-2Lanthr-2 OTf−]+, 1139.2 [M-2 OTf−]2+, 2423.0 [M-OTf−]+. UV−vis [5.0 × 10−6, CH2Cl2; λmax, nm (ε, M−1·cm−1)]: 274 (1.2 × 105), 314 (8.3 × 104), 457 (8.2 × 104), 722 (8.2 × 103). D ((CD3)2CO): 6.04 × 10−10 m2∙s−1. Anal. calc. for C112H92F12N4O20Ru4S4 (2572.46): C 52.24, H 3.61, N 2.18; Found: C 52.45, H 3.81, N 2.22.
[Ru4(η6-p-cymene)4(μ4-donq)2(μ2-Lanthr)2][CF3SO3]4 (A3): Green solid. Yield, 82%. NMR ((CD3)2CO, 400 MHz): δ 8.72 (s, 4H, CHpyr), 8.55 (d, J =6.8 Hz, 4H, CHpyr), 8.48(d, J = 5.6 Hz, 4H, CHpyr), 8.01 (dd, J = 6.4 Hz, J = 2.8 Hz, 8H, CHanthr), 7.62 (t, J = 6.8 Hz, 4H, CHpyr), 7.48 (dd, J = 6.8 Hz, J = 3.2 Hz, 8H, CHanthr), 7.44 (s, 8H, CHdonq), 6.09 (d, J = 6.0 Hz, 8H, CHcym), 5.86 (d, J = 6.0 Hz, 8H, CHcym), 3.04 (sept, J = 6.8 Hz, 4H, CHcym), 2.26 (s, 12H, CH3cym), 1.42 (d, J = 6.8 Hz, 24H, CHcym). 13C NMR ((CD3)2CO, 400 MHz): δ 154.93 (4C, Cpyr), 152.73 (4C, Cpyr), 142.40 (4C, Cpyr), 138.58 (8C, Cdonq), 132.98 (4C, Cdonq), 131.79 (8C, Canthr), 128.31 (8C, Canthr), 127.03 (8C, Canthr), 126.82 (4C, Cpyr), 122.85 (4C, Cpyr), 117.66 (4C, Canthr), 112.43 (8C, Cdonq), 109.28 (4C, COtf), 104.41 (4C, Ccym), 100.94 (4C, Ccym), 97.22 (4C, CC≡C), 91.66 (4C, CC≡C), 85.47(8C, Ccym), 83.72 (8C, Ccym), 31.62 (4C, Ccym), 22.48 (8C, Ccym), 17.43 (4C, Ccym). IR (cm−1): 2971 (w; C–H aromatic), 2204 (w; C≡C), 1531 (m; C=C aromatic), 967, 852 and 763 (m; C–H aromatic), 635 (s, sharp; C–H aromatic). ESI–MS (+); m/z = 809.0 [M-2Lanthr-2 OTf−]+, 1188.1 [M-2 OTf−]2+. UV−vis [5.0 × 10−6, CH2Cl2; λmax, nm (ε, M−1·cm−1)]: 271 (1.8 × 105), 310 (9.0 × 104), 445 (9.1 × 104), 476 (6.7 × 104), 694 (1.9 × 104). D ((CD3)2CO): 6.80 × 10−10 m2·s−1.
X-ray crystallography: Crystals were mounted on a Stoe Image Plate Diffraction system equipped with a Φ circle goniometer, using Mo Kα graphite monochromated radiation (λ = 0.71073 Å) with Φ range 0–200°. The structures were solved by direct methods using the program SHELXS–97 [83], while the refinement and all further calculations were carried out using SHELXL–97. The H-atoms were included in calculated positions and treated as riding atoms using SHELXL–97 default parameters. The non-H atoms were refined anisotropically using weighted full-matrix least-square on F2. In both structures, relatively high R factors are observed due to disorder within the crystals. Crystallographic details are summarized in Table 2, and Figure 2 and Figure 4 were drawn with ORTEP-32 [84].
CCDC-1853676 (Lanthr) and 1853677 (A1 ∙ 4 acetone) contain the supplementary crystallographic data for this paper. This can be obtained free of charge at www.ccdc.cam.ac.uk/conts/retrieving.html (or from the Cambridge Crystallographic Data Center, 12, Union Road, Cambridge CB2 1EZ, UK; fax: (internat.) +44-1223/336-033; E-mail: [email protected]).

4. Conclusions

Three metalla-rectangles containing anthracene-derived linkers have been synthesized and characterized. Upon formation of the metalla-assembly, the propensity of the anthracene moiety to react with oxygen to form endoperoxide derivatives was lost, probably due to electronic or steric constraints. Nevertheless, the introduction of anthracene groups on metalla-assemblies remains an interesting avenue to transport oxygen to cancer cells; however, in view of this study, the anthracene moiety should be anchored elsewhere to allow the formation of metalla-assemblies with endoperoxide groups.

Supplementary Materials

All NMR and mass spectra are available online at https://www.mdpi.com/2304-6740/6/3/97/s1. Cif and Check cif files of C28H16N2 (Lanthr) and C116H112F12N4O24Ru4S4 (A1 ∙ 4 acetone).

Author Contributions

For research articles with several authors, a short paragraph specifying their individual contributions must be provided. The following statements should be used “conceptualization, B.T.; methodology, M.G., F.N. and T.C.; validation, M.G., F.N., T.C. and B.T.; formal analysis, M.G., T.C. and F.N.; investigation, M.G., T.C. and F.N.; writing—original draft preparation, M.G. and B.T.; writing—review and editing, M.G. and B.T.; supervision, B.T.; project administration, B.T.”, please turn to the CRediT taxonomy for the term explanation. Authorship must be limited to those who have contributed substantially to the work reported.

Funding

This research was funded by the University of Neuchatel, Switzerland.

Acknowledgments

Marie Gaschard thanks the University of Neuchâtel for financial support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zuluaga, M.F.; Lange, N. Combination of photodynamic therapy with anti-cancer agents. Curr. Med. Chem. 2008, 15, 1655–1673. [Google Scholar] [CrossRef] [PubMed]
  2. Dolmans, D.E.J.G.J.; Fukumura, D.; Jain, R.K. Photodynamic therapy for cancer. Nat. Rev. Cancer 2003, 3, 380–387. [Google Scholar] [CrossRef] [PubMed]
  3. Usuda, J.; Kato, H.; Okunaka, T.; Furukawa, K.; Tsutsui, H.; Yamada, K.; Suga, Y.; Honda, H.; Nagatsuka, Y.; Ohira, T.; et al. Photodynamic therapy (PDT) for lung cancers. J. Thorac. Oncol. 2006, 1, 489–493. [Google Scholar] [CrossRef]
  4. Baron, E.D.; Malbasa, C.L.; Santo-Domingo, D.; Fu, P.; Miller, J.D.; Hanneman, K.K.; Hsia, A.H.; Oleinick, N.L.; Colussi, V.C.; Cooper, K.D. Silicon phthalocyanine (Pc4) photodynamic therapy is a safe modality for cutaneous neoplasms: Results of a phase 1 clinical trial. Lasers Surg. Med. 2010, 42, 728–735. [Google Scholar] [CrossRef] [PubMed]
  5. Babilas, P.; Schreml, S.; Landthaler, M.; Szeimies, R.M. Photodynamic therapy in dermatology: State-of-the-art. Photodermatol. Photoimmunol. Photomed. 2010, 26, 118–132. [Google Scholar] [CrossRef] [PubMed]
  6. Kharkwal, G.B.; Sharma, S.K.; Huang, Y.Y.; Dai, T.; Hamblin, M.R. Photodynamic therapy for infections: Clinical applications. Lasers Surg. Med. 2011, 43, 755–767. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Hamblin, M.R.; Hasan, T. Photodynamic therapy: A new antimicrobial approach to infectious disease? Photochem. Photobiol. Sci. 2004, 3, 436–450. [Google Scholar] [CrossRef] [PubMed]
  8. Dunn, J.M.; Mackenzie, G.D.; Banks, M.R.; Mosse, C.A.; Haidry, R.; Green, S.; Thorpe, S.; Rodriguez-Justo, M.; Winstanley, A.; Novelli, M.R.; et al. A randomised controlled trial of ALA vs. Photofrin photodynamic therapy for high-grade dysplasia arising in Barrett’s oesophagus. Lasers Med. Sci. 2013, 28, 707–715. [Google Scholar] [CrossRef] [PubMed]
  9. Schweitzer, V.G.; Somers, M.L. PHOTOFRIN-mediated photodynamic therapy for treatment of early stage (Tis-T2N0M0) SqCCa of oral cavity and oropharynx. Lasers Surg. Med. 2010, 42, 1–8. [Google Scholar] [CrossRef] [PubMed]
  10. Yu, J.; Hsu, C.H.; Huang, C.C.; Chang, P.Y. Development of therapeutic Au-methylene blue nanoparticles for targeted photodynamic therapy of cervical cancer cells. ACS Appl. Mater. Interfaces 2015, 7, 432–441. [Google Scholar] [CrossRef] [PubMed]
  11. Yavari, N.; Andersson-Engels, S.; Segersten, U.; Malmstrom, P.U. An overview on preclinical and clinical experiences with photodynamic therapy for bladder cancer. Can. J. Urol. 2011, 18, 5343–5351. [Google Scholar]
  12. Montazerabadi, A.R.; Sazgarnia, A.; Bahreyni-Toosi, M.H.; Ahmadi, A.; Aledavood, A. The effects of combined treatment with ionizing radiation and indocyanine green-mediated photodynamic therapy on breast cancer cells. J. Photochem. Photobiol. B 2012, 109, 42–49. [Google Scholar] [CrossRef] [PubMed]
  13. Wakui, M.; Yokoyama, Y.; Wang, H.; Shigeto, T.; Futagami, M.; Mizunuma, H. Efficacy of a methyl ester of 5-aminolevulinic acid in photodynamic therapy for ovarian cancers. J. Cancer Res. Clin. Oncol. 2010, 136, 1143–1150. [Google Scholar] [CrossRef] [PubMed]
  14. Agostinis, P.; Berg, K.; Cengel, K.A.; Foster, T.H.; Girotti, A.W.; Gollnick, S.O.; Hahn, S.M.; Hamblin, M.R.; Juzeniene, A.; Kessel, D.; et al. Photodynamic therapy of cancer: An update. CA Cancer J. Clin. 2011, 61, 250–281. [Google Scholar] [CrossRef] [PubMed]
  15. Patrice, T.; Moor, A.C.E.; Ortel, B.; Hasan, T. Mechanism of photodynamic therapy. In Photodynamic Therapy; Patrice, T., Ed.; The Royal Society of Chemistry: Cambridge, UK, 2003; Volume 2, pp. 19–58. [Google Scholar]
  16. Castano, A.P.; Demidova, T.N.; Hamblin, M.R. Mechanisms in photodynamic therapy: Part three-Photosensitizer pharmacokinetics, biodistribution, tumor localization and modes of tumor destruction. Photodiagn. Photodyn. Ther. 2005, 2, 91–106. [Google Scholar] [CrossRef]
  17. Foote, C.S. Definition of type I and type II photosensitized oxidation. Photochem. Photobiol. 1991, 54, 659. [Google Scholar] [CrossRef] [PubMed]
  18. Debele, T.A.; Peng, S.; Tsai, H.C. Drug carrier for photodynamic cancer therapy. Int. J. Mol. Sci. 2015, 16, 22094–22136. [Google Scholar] [CrossRef] [PubMed]
  19. Allison, R.R.; Moghissi, K. Photodynamic Therapy (PDT): PDT Mechanisms. Clin. Endosc. 2013, 46, 24–29. [Google Scholar] [CrossRef] [PubMed]
  20. Brown, J.M.; Wilson, W.R. Exploiting tumour hypoxia in cancer treatment. Nat. Rev. Cancer 2004, 4, 437–447. [Google Scholar] [CrossRef] [PubMed]
  21. Gray, L.H.; Conger, A.D.; Ebert, M.; Hornsey, S.; Scott, O.C. The concentration of oxygen dissolved in tissues at the time of irradiation as a factor in radiotherapy. Br. J. Radiol. 1953, 26, 638–648. [Google Scholar] [CrossRef] [PubMed]
  22. Thomlinson, R.H.; Gray, L.H. The histological structure of some human lung cancers and the possible implications for radiotherapy. Br. J. Radiol. 1955, 9, 539–549. [Google Scholar] [CrossRef]
  23. Vaupel, P.; Schlenger, K.; Knoop, C.; Höckel, M. Oxygenation of human tumors: Evaluation of tissue oxygen distribution in breast cancers by computerized O2 tension measurements. Cancer Res. 1991, 51, 3316–3322. [Google Scholar] [PubMed]
  24. Nordsmark, M.; Overgaard, M.; Overgaard, J. Pretreatment oxygenation predicts radiation response in advanced squamous cell carcinoma of the head and neck. Radiother. Oncol. 1996, 41, 31–39. [Google Scholar] [CrossRef]
  25. Brizel, D.M.; Dodge, R.K.; Clough, R.W.; Dewhirst, M.W. Oxygenation of head and neck cancer: Changes during radiotherapy and impact on treatment outcome. Radiother. Oncol. 1999, 53, 113–117. [Google Scholar] [CrossRef]
  26. Durand, R.E. Keynote address: The influence of microenvironmental factors on the activity of radiation and drugs. Int. J. Radiat. Oncol. Biol. Phys. 1991, 20, 253–258. [Google Scholar] [CrossRef]
  27. Batchelder, R.M.; Wilson, W.R.; Hay, M.P.; Denny, W.A. Oxygen dependence of the cytotoxicity of the enediyne anti-tumour antibiotic esperamicin A1. Br. J. Cancer Suppl. 1996, 27, S52–S56. [Google Scholar] [PubMed]
  28. Teicher, B.A.; Lazo, J.S.; Sartorelli, A.C. Classification of antineoplastic agents by their selective classification of antineoplastic agents by their selective toxicities toward oxygenated and hypoxic tumor cells. Cancer Res. 1981, 41, 73–81. [Google Scholar] [PubMed]
  29. Mizukami, Y.; Li, J.; Zhang, X.; Zimmer, M.A.; Iliopoulos, O.; Chung, D.C. Hypoxia-inducible factor-1-independent regulation of vascular endothelial growth factor by hypoxia in colon cancer. Cancer Res. 2004, 64, 1765–1772. [Google Scholar] [CrossRef] [PubMed]
  30. Wartenberg, M.; Ling, F.C.; Müschen, M.; Klein, F.; Acker, H.; Gassmann, M.; Petrat, K.; Pütz, V.; Hescheler, J.; Sauer, H. Regulation of the multidrug resistance transporter P-glycoprotein in multicellular tumor spheroids by hypoxia-inducible factor (HIF-1) and reactive oxygen species. FASEB J. 2003, 17, 503–505. [Google Scholar] [CrossRef] [PubMed]
  31. Graeber, T.G.; Osmanian, C.; Jacks, T.; Housman, D.E.; Koch, C.J.; Lowe, S.W.; Giaccia, A.J. Hypoxia-mediated selection of cells with diminished apoptotic potential in solid tumours. Nature 1996, 379, 88–91. [Google Scholar] [CrossRef] [PubMed]
  32. Erler, J.T.; Cawthorne, C.W.; Williams, K.J.; Koritzinsky, M.; Wouters, B.G.; Wilson, C.; Miler, C.; Demonacos, C.; Stratford, I.J.; Dive, C. Hypoxia-mediated down-regulation of Bid and Bax in tumors occurs via hypoxia-inducible factor 1-dependent and -independent mechanisms and contributes to drug resistance. Mol. Cell. Biol. 2004, 24, 2875–2889. [Google Scholar] [CrossRef] [PubMed]
  33. Yuan, J.; Glazer, P.M. Mutagenesis induced by the tumor microenvironment. Mutat. Res. Fundam. Mol. Mech. Mutagen. 1998, 400, 439–446. [Google Scholar] [CrossRef]
  34. Harris, A.L. Hypoxia—a key regulatory factor in tumour growth. Nat. Rev. Cancer 2002, 2, 38–47. [Google Scholar] [CrossRef] [PubMed]
  35. Rouschop, K.M.A.; van den Beucken, T.; Dubois, L.; Niessen, H.; Bussink, J.; Savelkouls, K.; Keulers, T.; Mujcic, H.; Landuyt, W.; Voncken, J.W.; et al. The unfolded protein response protects human tumor cells during hypoxia through regulation of the autophagy genes MAP1LC3B and ATG5. J. Clin. Investing. 2010, 120, 127–141. [Google Scholar] [CrossRef] [PubMed]
  36. Wang, Y.; Ohh, M. Oxygen-mediated endocytosis in cancer. J. Cell. Mol. Med. 2010, 14, 496–503. [Google Scholar] [CrossRef] [PubMed]
  37. Semenza, G.L. Hypoxia, clonal selection, and the role of HIF-1 in tumor progression. Crit. Rev. Biochem. Mol. Biol. 2000, 35, 71–103. [Google Scholar] [CrossRef] [PubMed]
  38. Kioi, M.; Vogel, H.; Schultz, G.; Hoffman, R.M.; Harsh, G.R.; Brown, J.M. Inhibition of vasculogenesis, but not angiogenesis, prevents the recurrence of glioblastoma after irradiation in mice. J. Clin. Investing. 2010, 120, 694–705. [Google Scholar] [CrossRef] [PubMed]
  39. Therrien, B. Transporting and shielding photosensitizers by using water-soluble organometallic cages: A new strategy in drug delivery and photodynamic therapy. Chem. Eur. J. 2013, 19, 8378–8386. [Google Scholar] [CrossRef] [PubMed]
  40. Mari, C.; Pierroz, V.; Ferrari, S.; Gasser, G. Combination of Ru(II) complexes and light: New frontiers in cancer therapy. Chem. Sci. 2015, 6, 2660–2686. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  41. Huang, H.; Bole, Y.; Zhang, P.; Huang, J.; Chen, Y.; Gasser, G.; Ji, L.; Chao, H. Highly charged ruthenium(II) polypyridyl complexes as lysosome-localized photosensitizers for two-photon photodynamic therapy. Angew. Chem. Int. Ed. 2015, 54, 14049–14052. [Google Scholar] [CrossRef] [PubMed]
  42. Pierroz, V.; Rubbiani, R.; Gentili, C.; Patra, M.; Mari, C.; Gasser, G.; Ferrari, S. Dual mode of cell death upon the photo-irradiation if a Ru(II) polypyridyl complex in interphase or mitosis. Chem. Sci. 2016, 7, 6115–6124. [Google Scholar] [CrossRef] [PubMed]
  43. Hess, J.; Huang, H.; Kaiser, A.; Pierroz, V.; Blacque, O.; Chao, H.; Gasser, G. Evaluation of the medicinal potential of two ruthenium(II) polypyridine complexes as one- and two-photon photodynamic therapy photosensitizers. Chem. Eur. J. 2017, 23, 9888–9896. [Google Scholar] [CrossRef] [PubMed]
  44. Heinemann, F.; Karges, J.; Gasser, G. Critical overview of the use of Ru(II) polypyridyl complexes as photosensitizers in one-photon and two-photon photodynamic therapy. Acc. Chem. Res. 2017, 50, 2727–2736. [Google Scholar] [CrossRef] [PubMed]
  45. Liu, J.; Zhang, C.; Rees, T.W.; Ke, L.; Ji, L.; Chao, H. Harnessing ruthenium(II) as photodynamic agents: Encouraging advances in cancer therapy. Coord. Chem. Rev. 2018, 363, 17–28. [Google Scholar] [CrossRef]
  46. Alessio, E.; Mestroni, G.; Bergamo, A.; Sava, G. Ruthenium antimetastatic agents. Curr. Top. Med. Chem. 2004, 4, 1525–1535. [Google Scholar] [CrossRef] [PubMed]
  47. Ang, W.H.; Dyson, P.J. Classical and non-classical ruthenium-based anticancer drugs: Towards targeted chemotherapy. Eur. J. Inorg. Chem. 2006, 2006, 4003–4018. [Google Scholar] [CrossRef]
  48. Bergamo, A.; Sava, G. Ruthenium complexes can target determinants of tumors malignancy. Dalton Trans. 2007, 13, 1267–1272. [Google Scholar] [CrossRef] [PubMed]
  49. Hartinger, C.G.; Dyson, P.J. Bioorganometallic chemistry—From teaching paradigms to medicinal applications. Chem. Soc. Rev. 2009, 38, 391–401. [Google Scholar] [CrossRef] [PubMed]
  50. Bruijnincx, P.C.A.; Sadler, P.J. New trends for metal complexes with anticancer activity. Curr. Opin. Chem. Biol. 2008, 12, 197–206. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  51. Meggers, E.; Atilla-Gokcumen, G.E.; Bregman, H.; Maksimoska, J.; Mulcahy, S.P.; Pagano, N.; Williams, D.S. Exploring chemical space with organometallics: Ruthenium complexes as protein kinase inhibitors. Synlett 2007, 8, 1177–1189. [Google Scholar] [CrossRef]
  52. Boca, S.C.; Four, M.; Bonn, A.; van der Sanden, B.; Astilean, S.; Baldec, P.L.; Lemercier, G. An ethylene-glycol decorated ruthenium(II) complex for two-photon photodynamic therapy. Chem. Commun. 2009, 0, 4590–4592. [Google Scholar] [CrossRef] [PubMed]
  53. Schmidt, R. Photosensitized generation of singlet oxygen. Photochem. Photobiol. 2006, 82, 1161–1177. [Google Scholar] [CrossRef] [PubMed]
  54. Schmitt, F.; Govindaswamy, P.; Süss-Fink, G.; Ang, W.H.; Dyson, P.J.; Juillerat-Jeanneret, L.; Therrien, B. Ruthenium porphyrin compounds for photodynamic therapy of cancer. J. Med. Chem. 2008, 51, 1811–1816. [Google Scholar] [CrossRef] [PubMed]
  55. Pernot, M.; Bastogne, T.; Barry, N.P.E.; Therrien, B.; Koellensperger, G.; Hann, S.; Reshetov, V.; Barberi-Heyob, M. Systems biology approach for in vivo photodynamic therapy optimization of ruthenium-porphyrin compounds. J. Photochem. Photobiol. B 2012, 117, 80–89. [Google Scholar] [CrossRef] [PubMed]
  56. Schmitt, F.; Govindaswamy, P.; Zava, O.; Süss-Fink, G.; Juillerat-Jeanneret, L.; Therrien, B. Combined arene ruthenium porphyrins as chemotherapeutics and photosensitizers for cancer therapy. J. Biol. Inorg. Chem. 2009, 14, 101–109. [Google Scholar] [CrossRef] [PubMed]
  57. Freudenreich, J.; Barry, N.P.E.; Süss-Fink, G.; Therrien, B. Permanent encapsulation or host–guest behavior of aromatic molecules in hexanuclear arene ruthenium prisms. Eur. J. Inorg. Chem. 2010, 2010, 2400–2405. [Google Scholar] [CrossRef]
  58. Freudenreich, J.; Furrer, J.; Süss-Fink, G.; Therrien, B. Template-directed synthesis of hexanuclear arene ruthenium complexes with trigonal-prismatic architecture based on 2,4,6-tris(3-pyridyl)triazine ligands. Organometallics 2011, 30, 942–951. [Google Scholar] [CrossRef]
  59. Freudenreich, J.; Dalvit, C.; Süss-Fink, G.; Therrien, B. Encapsulation of photosensitizers in hexa- and octanuclear organometallic cages: Synthesis and characterization of carceplex and host−guest systems in solution. Organometallics 2013, 32, 3018–3033. [Google Scholar] [CrossRef]
  60. Schmitt, F.; Freudenreich, J.; Barry, N.P.E.; Juillerat-Jeanneret, L.; Süss-Fink, G.; Therrien, B. Organometallic cages as vehicles for intracellular release of photosensitizers. J. Am. Chem. Soc. 2012, 134, 754–757. [Google Scholar] [CrossRef] [PubMed]
  61. Cobo, S.; Lafolet, F.; Saint-Aman, E.; Philouze, C.; Bucher, C.; Silvi, S.; Credi, A.; Royal, G. Reactivity of a pyridinium-substituted dimethyldihydropyrene switch under aerobic conditions: Self-sensitized photo-oxygenation and thermal release of singlet oxygen. Chem. Comm. 2015, 51, 13886–13889. [Google Scholar] [CrossRef] [PubMed]
  62. Benz, S.; Nötzli, S.; Siegel, J.S.; Eberli, D.; Jessen, H.J. Controlled oxygen release from pyridone endoperoxides promotes cell survival under anoxic conditions. J. Med. Chem. 2013, 56, 10171–10182. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Klaper, M.; Linker, T. Evidence for an oxygen anthracene sandwich complex. Angew. Chem. Int. Ed. 2013, 52, 11896–11899. [Google Scholar] [CrossRef] [PubMed]
  64. Liu, H.W.; Xu, S.; Wang, P.; Hu, X.X.; Zhang, J.; Yuan, L.; Zhang, X.B.; Tan, W. An efficient two-photon fluorescent probe for monitoring mitochondrial singlet oxygen in tissues during photodynamic therapy. Chem. Commun. 2016, 52, 12330–12333. [Google Scholar] [CrossRef] [PubMed]
  65. Asadirad, A.M.; Erno, Z.; Branda, N.R. Photothermal release of singlet oxygen from gold nanoparticles. Chem. Commun. 2013, 49, 5639–5641. [Google Scholar] [CrossRef] [PubMed]
  66. Aubry, J.M.; Pierlot, C.; Rigaudy, J.; Schmidt, R. Reversible binding of oxygen to aromatic compounds. Acc. Chem. Res. 2003, 36, 668–675. [Google Scholar] [CrossRef] [PubMed]
  67. Ciesielski, A.; Piot, L.; Samorì, P.; Jouaiti, A.; Hosseini, M.W. Molecular tectonics at the solid/liquid interface: Controlling of 1D coordination networks on graphite surfaces. Adv. Mater. 2009, 21, 1131–1136. [Google Scholar] [CrossRef]
  68. Yan, H.; Süss-Fink, G.; Neels, A.; Stoeckli-Evans, H. Mono-, di- and tetra-nuclear p-cymene ruthenium complexes containing oxalato ligands. J. Chem. Soc. Dalton Trans. 1997, 1997, 4345–4350. [Google Scholar] [CrossRef]
  69. Therrien, B.; Süss-Fink, G.; Govindaswamy, P.; Renfrew, A.K.; Dyson, P.J. The “complex-in-a-complex” cations [(acac)2M⊂Ru6(p-iPrC6H4Me)6(tpt)2(dhbq)3]6+: A trojan horse for cancer cells. Angew. Chem. Int. Ed. Engl. 2008, 47, 3773–3776. [Google Scholar] [CrossRef] [PubMed]
  70. Barry, N.P.E.; Therrien, B. Host–Guest Chemistry in the Hexanuclear (Arene)ruthenium Metalla-Prismatic Cage [Ru6(p-cymene)6(tpt)2(dhnq)3]6+. Eur. J. Inorg. Chem. 2009, 2009, 4695–4700. [Google Scholar] [CrossRef]
  71. Therrien, B. Arene Ruthenium Cages: Boxes Full of Surprises. Eur. J. Inorg. Chem. 2009, 2009, 2445–2453. [Google Scholar] [CrossRef] [Green Version]
  72. Barry, N.; Furrer, J.; Therrien, B. In- and Out-of-Cavity Interactions by Modulating the Size of Ruthenium Metallarectangles. Helv. Chim. Acta 2010, 93, 1313–1328. [Google Scholar] [CrossRef] [Green Version]
  73. Johnson, C.S., Jr. Diffusion ordered nuclear magnetic resonance spectroscopy: Principles and applications. Prog. Nucl. Magn. Reson. Spectrosc. 1999, 34, 203–256. [Google Scholar] [CrossRef]
  74. Barry, N.P.E.; Furrer, J.; Freudenreich, J.; Süss-Fink, G.; Therrien, B. Designing the host-guest properties of tetranuclear arene ruthenium metalla-rectangles to accommodate a pyrene molecule. Eur. J. Inorg. Chem. 2010, 5, 725–728. [Google Scholar] [CrossRef]
  75. Tidmarsh, I.S.; Taylor, B.F.; Hardie, M.J.; Russo, L.; Clegg, W.; Ward, M.D. Further investigations into tetrahedral M4L6 cage complexes containing guest anions: New structures and NMR spectroscopic studies. New J. Chem. 2009, 33, 366–375. [Google Scholar] [CrossRef]
  76. Furrer, M.A.; Schmitt, F.; Wiederkehr, M.; Juillerat-Jeanneret, L.; Therrien, B. Cellular delivery of pyrenyl-arene ruthenium complexes by a water-soluble arene ruthenium metalla-cage. Dalton Trans. 2012, 41, 7201–7211. [Google Scholar] [CrossRef] [PubMed]
  77. Lee, H.; Elumalai, P.; Singh, N.; Kim, H.; Lee, S.U.; Chi, K.W. Selective synthesis of ruthenium(II) metalla[2]-catenane via solvent and guest-dependent self-assembly. J. Am. Chem. Soc. 2015, 137, 4674–4677. [Google Scholar] [CrossRef] [PubMed]
  78. Díaz-Uribe, C.E.; Vallejo-Lozada, W.A.; Martínez-Ortega, F. Photooxidation of anthracene under visible light with metallocarboxyphenylporphyrins. Rev. Fac. Ing. Univ. Antioquia 2014, 73, 225–230. [Google Scholar]
  79. Alvariño Bouza, C. Autoensamblaje de nuevos metalociclos, complejos de inclusión y moléculas mecánicamenta entrelazadas. Ph.D. Thesis, Universidade da Coruña, A Coruña, Spain, 2015. [Google Scholar]
  80. Ware, W.R. Oxygen quenching of fluorescence in solution: An experimental study of the diffusion process. J. Phys. Chem. 1962, 66, 455–458. [Google Scholar] [CrossRef]
  81. Berlman, I.B.; Steingraber, O.J. Further evidence of a hidden singlet transition in biphenyl. J. Chem. Phys. 1965, 43, 2140–2141. [Google Scholar] [CrossRef]
  82. Lemp, E.; Zanocco, A.L. Singlet oxygen chemical acceptors. In Singlet Oxygen: Applications in Biosciences and Nanosciences; Nonell, S., Flors, C., Eds.; The Royal Society of Chemistry: Cambridge, UK, 2016; Volume 2, pp. 83–101. [Google Scholar]
  83. Sheldrick, G.M. A short history of SHELX. Acta Crystallogr A 2008, 64, 112–122. [Google Scholar] [CrossRef] [PubMed]
  84. Farrugia, L.J. ORTEP-3 for Windows—A version of ORTEP-III with a Graphical User Interface (GUI). J. Appl. Cryst. 1997, 30, 565. [Google Scholar] [CrossRef]
Inorganics 06 00097 g001 550

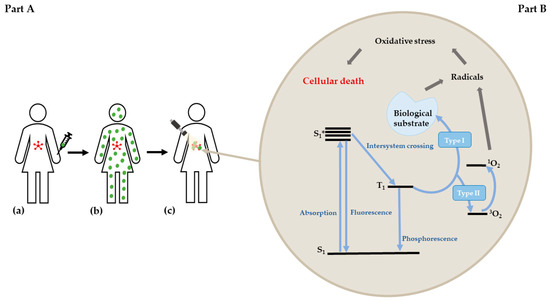

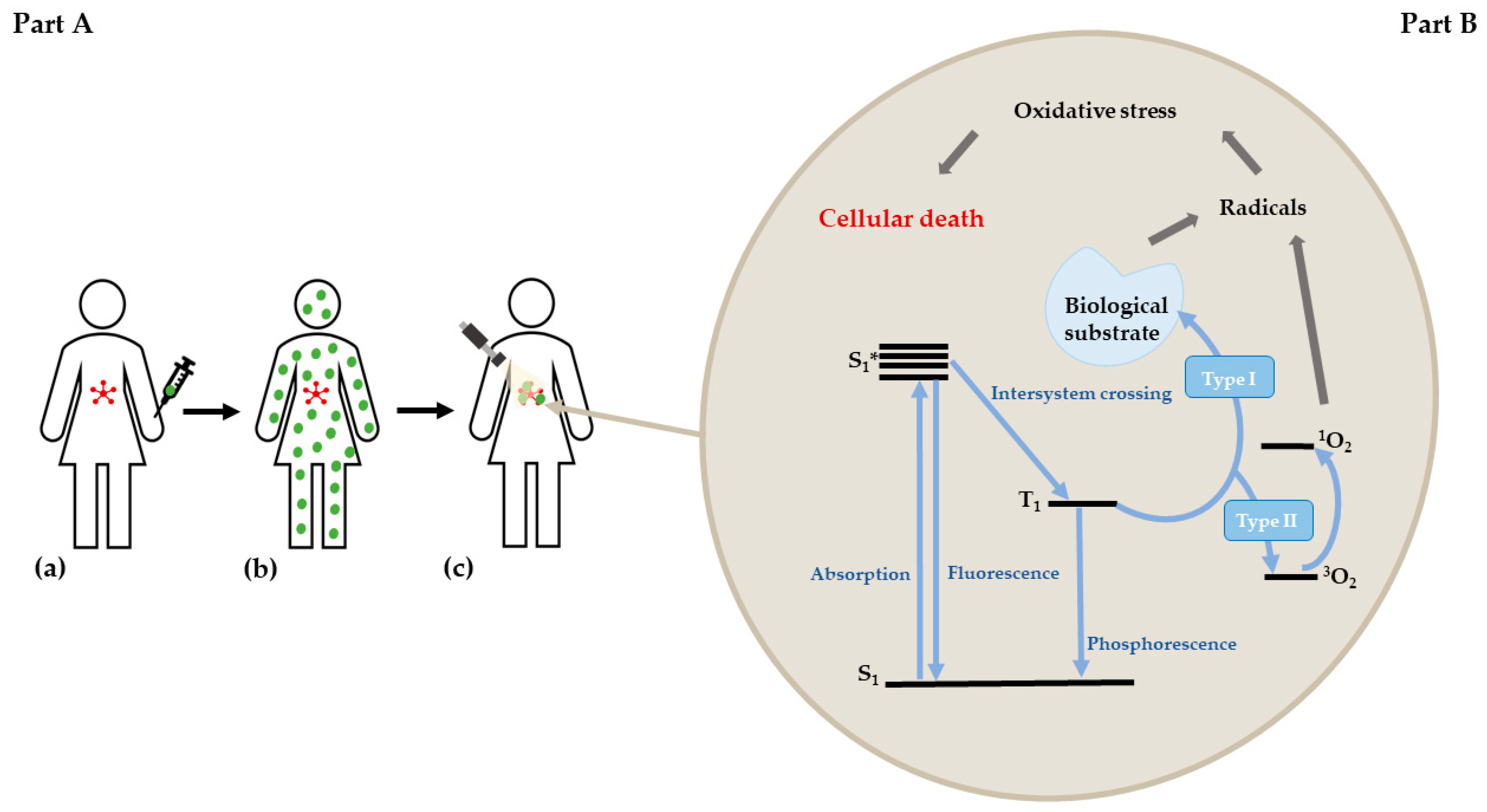

Figure 1. A—Standard PDT treatment: administration of PS (a) systemic PS distribution into the body; (b) PS accumulation in the tumor and irradiation (c); B—Jablonski diagram describing the PDT process.
Figure 1. A—Standard PDT treatment: administration of PS (a) systemic PS distribution into the body; (b) PS accumulation in the tumor and irradiation (c); B—Jablonski diagram describing the PDT process.
Inorganics 06 00097 g001
Inorganics 06 00097 sch001 550

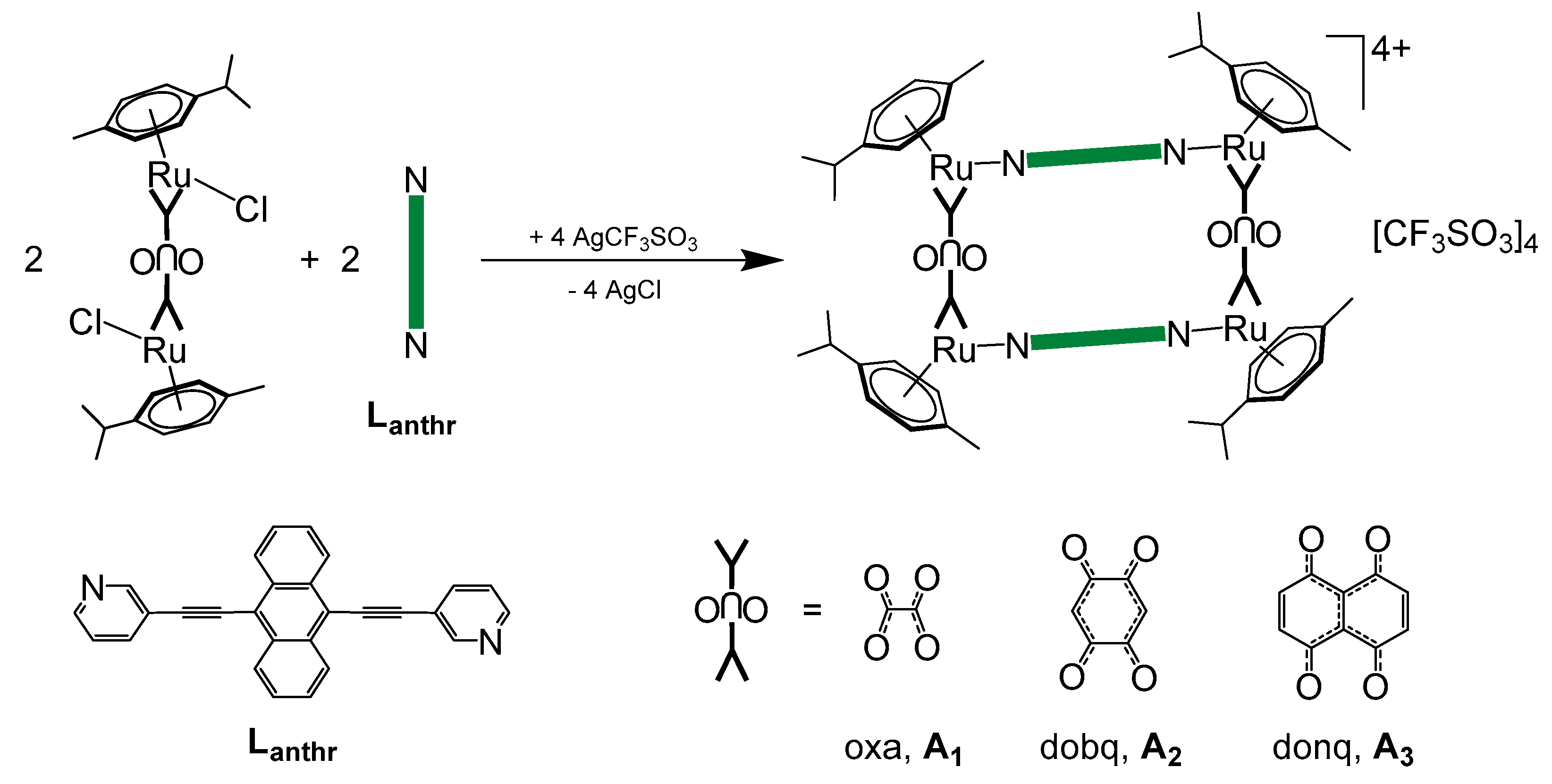

Scheme 1. Synthesis of Lanthr and metalla-rectangles A1, A2 and A3.
Scheme 1. Synthesis of Lanthr and metalla-rectangles A1, A2 and A3.
Inorganics 06 00097 sch001
Inorganics 06 00097 g002 550

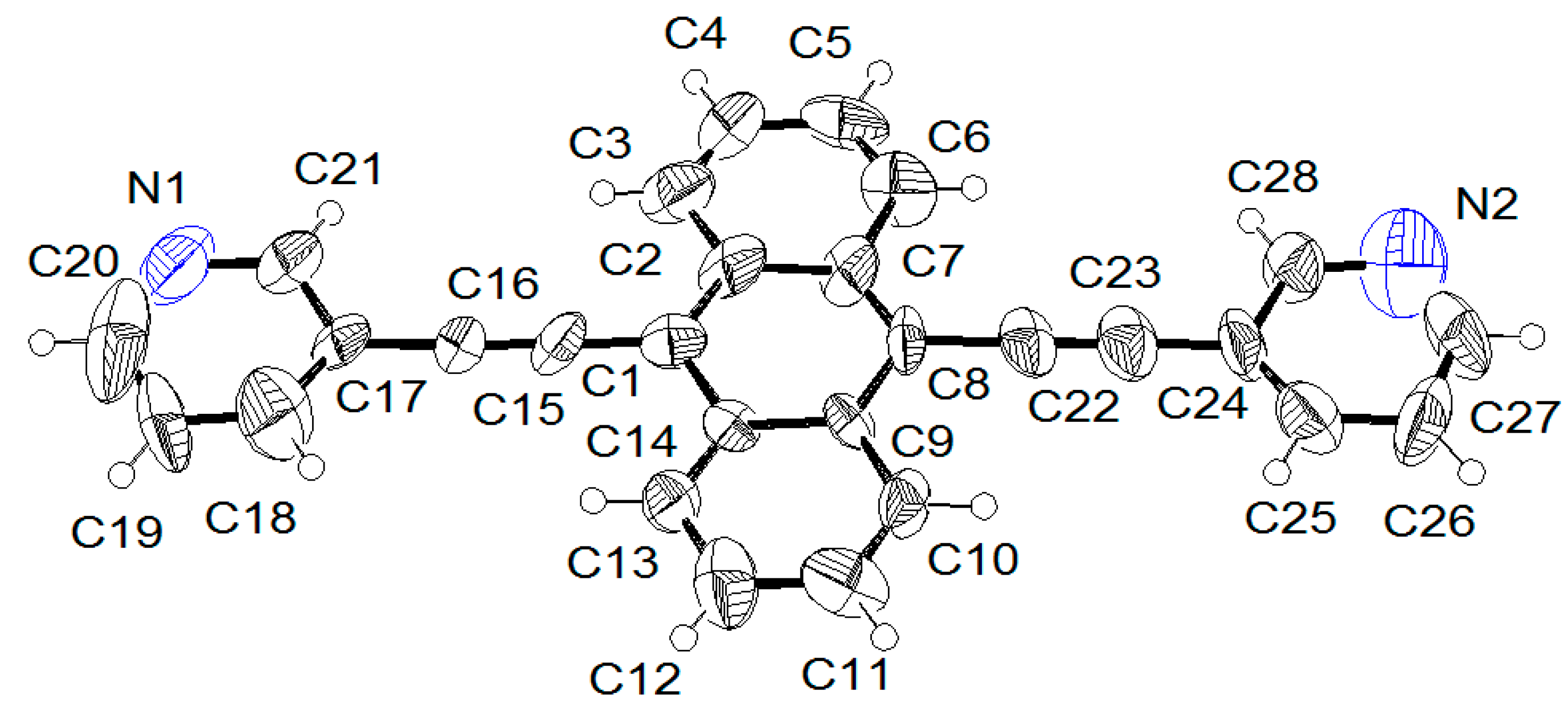

Figure 2. Ortep drawing of Lanthr at 50% probability level ellipsoids.
Figure 2. Ortep drawing of Lanthr at 50% probability level ellipsoids.
Inorganics 06 00097 g002
Inorganics 06 00097 g003 550

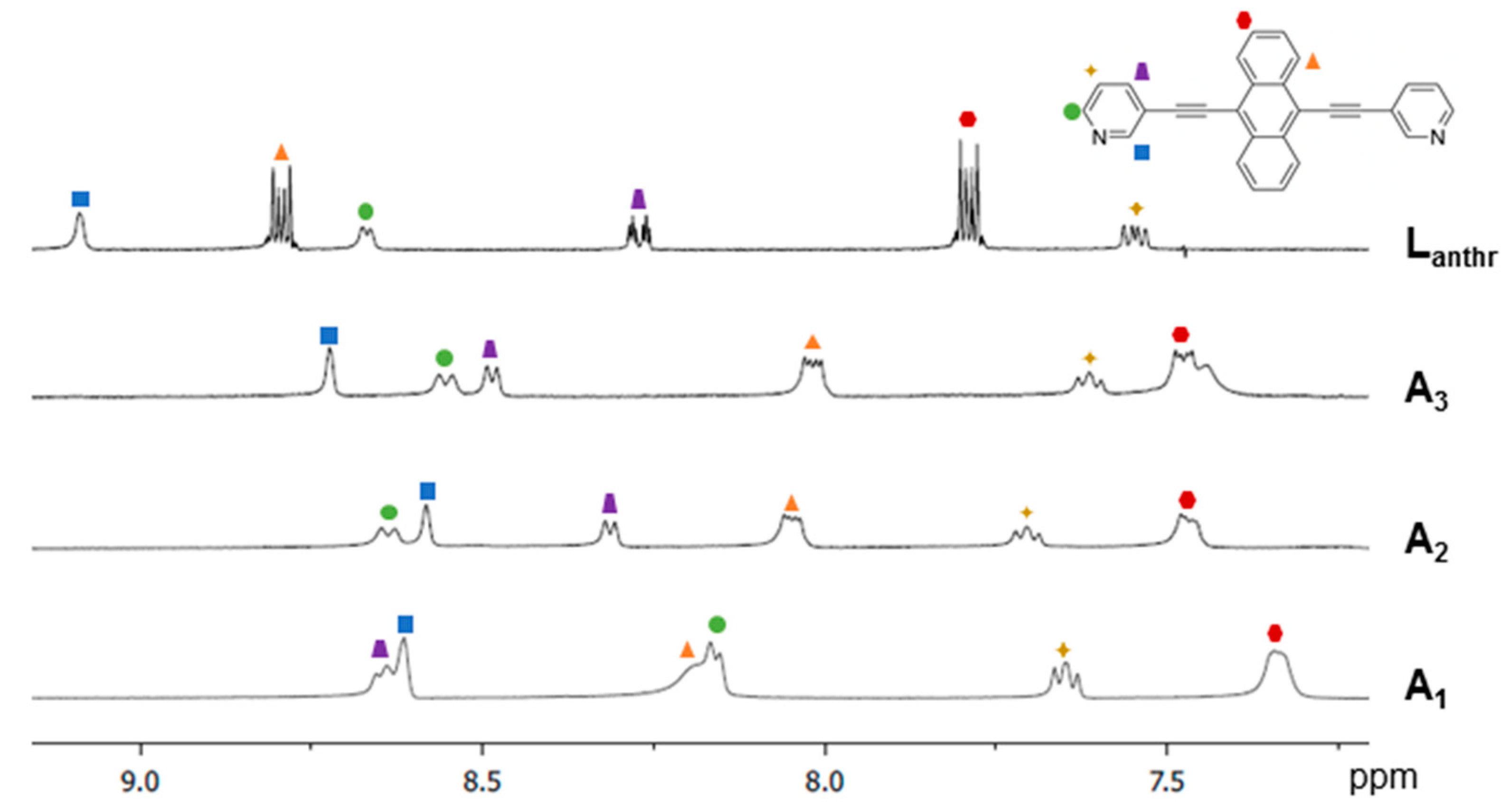

Figure 3. 1H NMR spectra of the aromatic region of Lanthr, A3, A2 and A1 (acetone-d6, 23 °C).
Figure 3. 1H NMR spectra of the aromatic region of Lanthr, A3, A2 and A1 (acetone-d6, 23 °C).
Inorganics 06 00097 g003
Inorganics 06 00097 g004 550

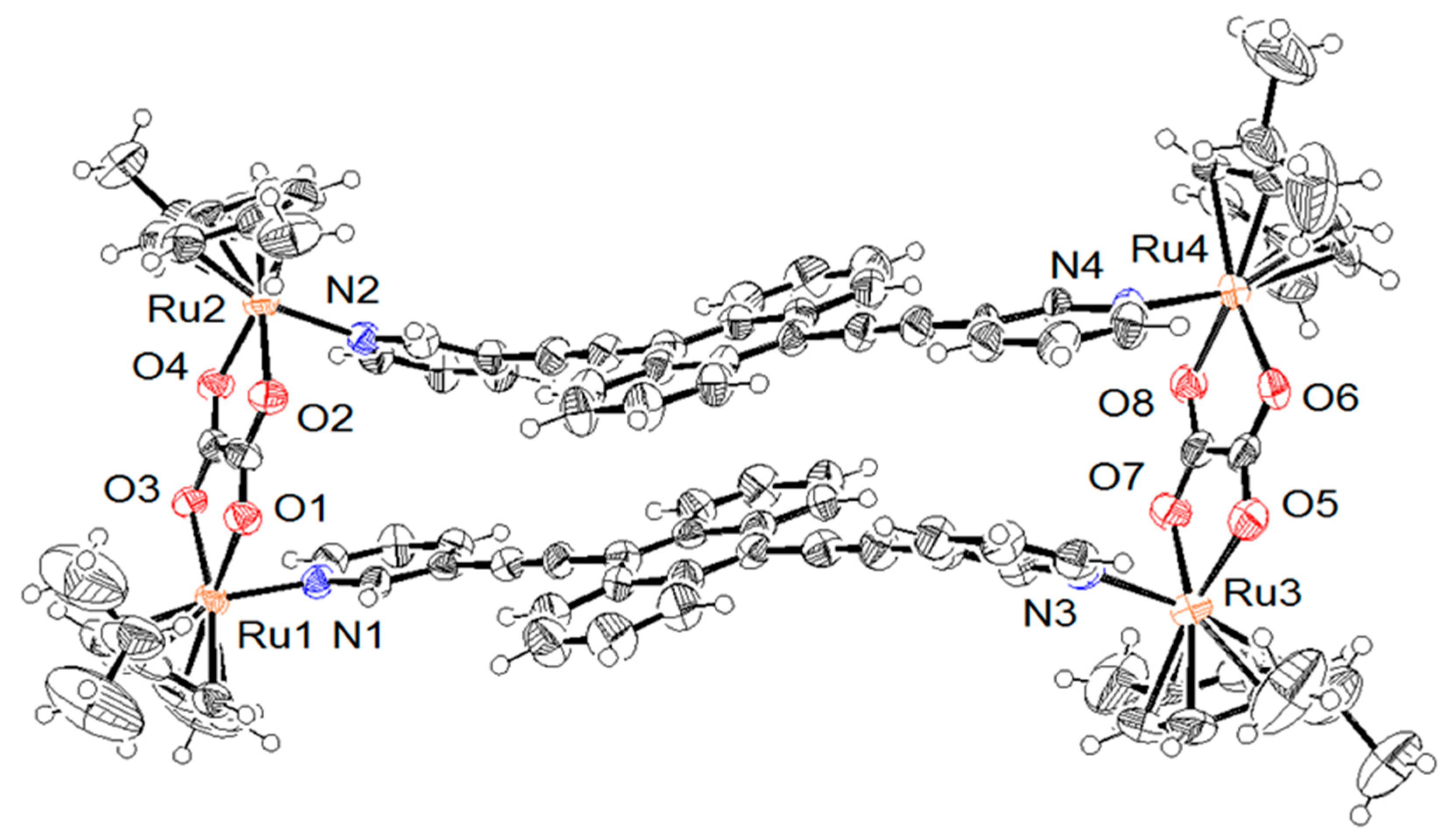

Figure 4. Molecular structure of A1 ∙ 4 acetone at 50% probability level ellipsoids. Trifluoromethanesulfonate and acetone molecules omitted for clarity.
Figure 4. Molecular structure of A1 ∙ 4 acetone at 50% probability level ellipsoids. Trifluoromethanesulfonate and acetone molecules omitted for clarity.
Inorganics 06 00097 g004
Inorganics 06 00097 g005 550

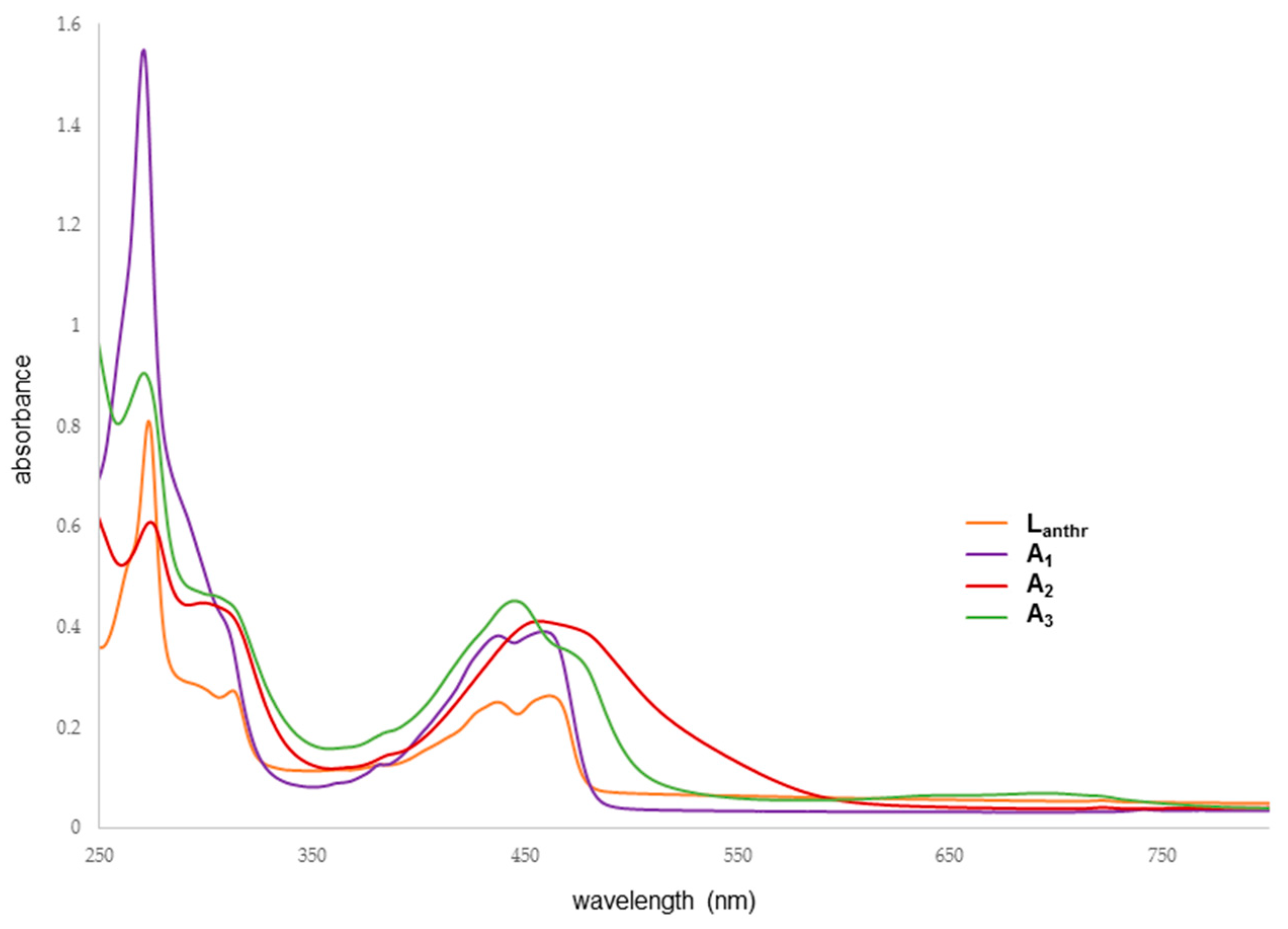

Figure 5. UV–visible spectra of Lanthr, A1, A2 and A3.
Figure 5. UV–visible spectra of Lanthr, A1, A2 and A3.
Inorganics 06 00097 g005
Inorganics 06 00097 g006 550

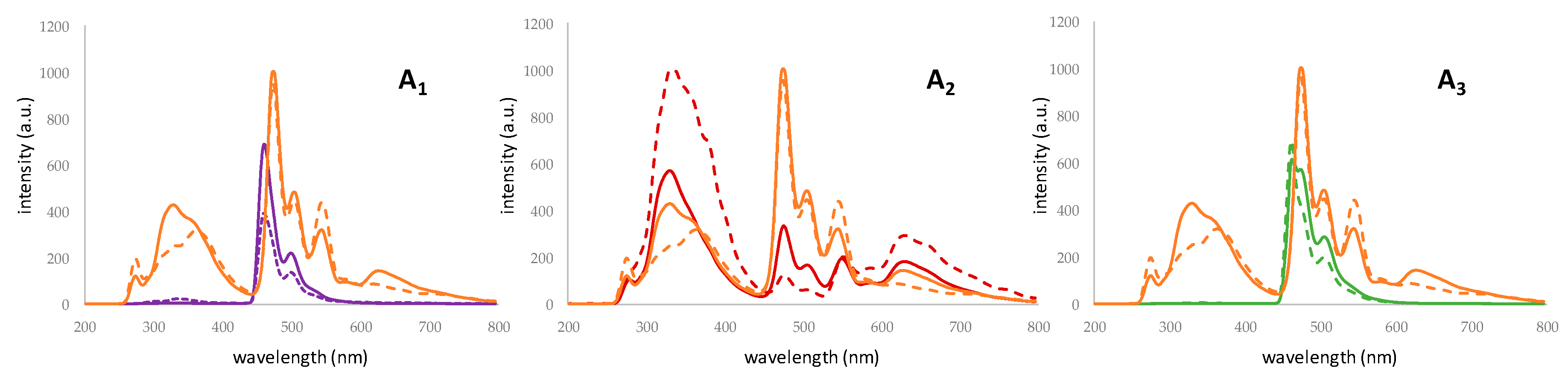

Figure 6. Fluorescence spectra of metalla-rectangles A1 (purple), A2 (red), A3 (green) and Lanthr (orange) at a concentration of 5 × 10–8 M (in CH2Cl2 or EtOH), under a N2 (dotted lines) or O2 atmosphere (solid line).
Figure 6. Fluorescence spectra of metalla-rectangles A1 (purple), A2 (red), A3 (green) and Lanthr (orange) at a concentration of 5 × 10–8 M (in CH2Cl2 or EtOH), under a N2 (dotted lines) or O2 atmosphere (solid line).
Inorganics 06 00097 g006
Inorganics 06 00097 g007 550
Figure 7. UV–visible spectra of Lanthr upon white light irradiation (10–5 M in DMSO).
Figure 7. UV–visible spectra of Lanthr upon white light irradiation (10–5 M in DMSO).
Inorganics 06 00097 g007
Table
Table 1. List of photosensitizers approved by the FDA (Food and Drug Administration) or under clinical trials [14].
Table 1. List of photosensitizers approved by the FDA (Food and Drug Administration) or under clinical trials [14].
PhotosensitizersApprovedTrialCancer Types
Porfimer sodium (hematoporphyrin, Photofrin)Worldwide-Lung, esophagus, bile duct, bladder, brain, ovarian
ALA (5-aminolevulinic acid, Levulan)Worldwide-Skin, bladder, brain, esophagus
ALA estersEurope-Skin, bladder
Temoporfin (m-tetrahydroxy phenylchlorin, Foscan)EuropeUSAHead, neck, lung, brain, skin, bile duct
VerteporfinEuropeUKOphthalmic (age-related macular degeneration), pancreatic, skin
HPPH (2-(1-hexyloxyethyl)-2-devinyl pyropheophorbide-a)-USAHead, neck, esophagus, lung
SnEt2 (tin ethyl etiopurpurin, Purlytin)-USASkin, breast
Talaporfin (mono-(l)-aspartylchlorin-e6) USALiver, colon, brain
Ce6-PVP (chlorin e6-polyvinypyrroidone, Fotolon), Ce6 derivatives (photodithazine, Radachlorin)-Belarus, RussiaNasopharyngeal, sarcoma, brain
Silicon phthalocyanine-USACutaneous T-cell lymphoma
Padoporfin (pallado-porphyrin, TOOKAD)-USAProstate
Motexafin lutetium (Lutex)-USABreast
Table
Table 2. Crystallographic data and structure refinement parameters for Lanthr and A1 ∙ 4 acetone.
Table 2. Crystallographic data and structure refinement parameters for Lanthr and A1 ∙ 4 acetone.
ParametersLanthrA1 ∙ 4 acetone
chemical formula C28H16N2C116H112F12N4O24Ru4S4
formula weight380.432706.61
crystal systemmonoclinictriclinic
space groupP21P-1
crystal size (mm3)0.23 × 0.13 × 0.120.25 × 0.18 × 0.14
crystal color and shapecolorless rodyellow plate
a (Å)5.0015(6)16.0557(11)
b (Å)16.944(2)20.7694(15)
c (Å)11.5374(15)21.3136(14)
α (°)90115.639(5)
β (°)92.433(10)98.267(5)
γ (°)90101.194(6)
cell volume (Å3)976.9(2)6073.6(8)
T (K)293(2)203(2)
Z22
scan range (°)1.77 < θ < 29.301.48 < θ < 29.33
ρcalcd (g cm−3)1.2931.480
μ (mm−1)0.0760.644
unique reflections527232944
reflections used [I > 2σ(I)]13789666
Rint0.17150.2498
final R indices [I > 2σ(I) [a]0.0799, wR2 0.17140.0911, wR2 0.2228
R indices (all data) [b]0.2499, wR2 0.23880.2609, wR2 0.2939
GOF [c]0.8050.836
max, min Δρ/e (Å−3)0.268, −0.1961.627, −1.213
[a]R1 = Σ|Fo| − |Fc||/Σ|Fo|.[b] wR2 = {Σ[w(Fo2 − Fc2)2]/Σ[w(Fo2)2]}1/2.[c] GOF = {Σ[w(Fo2 − Fc2)2]/(n − p)}1/2, where n is the number of reflections and p is the total number of parameters refined.

Share and Cite

MDPI and ACS Style

Gaschard, M.; Nehzat, F.; Cheminel, T.; Therrien, B. Arene Ruthenium Metalla-Assemblies with Anthracene Moieties for PDT Applications. Inorganics 2018, 6, 97. https://doi.org/10.3390/inorganics6030097

AMA Style

Gaschard M, Nehzat F, Cheminel T, Therrien B. Arene Ruthenium Metalla-Assemblies with Anthracene Moieties for PDT Applications. Inorganics. 2018; 6(3):97. https://doi.org/10.3390/inorganics6030097

Chicago/Turabian Style

Gaschard, Marie, Farzaneh Nehzat, Thomas Cheminel, and Bruno Therrien. 2018. "Arene Ruthenium Metalla-Assemblies with Anthracene Moieties for PDT Applications" Inorganics 6, no. 3: 97. https://doi.org/10.3390/inorganics6030097

APA Style

Gaschard, M., Nehzat, F., Cheminel, T., & Therrien, B. (2018). Arene Ruthenium Metalla-Assemblies with Anthracene Moieties for PDT Applications. Inorganics, 6(3), 97. https://doi.org/10.3390/inorganics6030097

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
