The Melt of Sodium Nitrate as a Medium for the Synthesis of Fluorides

Prokhorov General Physics Institute, Russian Academy of Sciences, 38 Vavilov Street, Moscow 119991, Russia
Institute of Fine Chemical Technology, Moscow Technology University, 86 Vernadsky Prospect, Moscow 119571, Russia
Kurnakov Institute of General and Inorganic Chemistry, Russian Academy of Sciences, 31 Leninskii Prospect, Moscow 119991, Russia
Author to whom correspondence should be addressed.
Inorganics 2018, 6(2), 38;
Submission received: 5 March 2018 / Revised: 23 March 2018 / Accepted: 28 March 2018 / Published: 29 March 2018
(This article belongs to the Special Issue Metal Fluorides)


The preparation of NaLnF4 complexes, LnF3 (Ln = La, Ce, Y) rare earth binary fluorides, CaF2 and SrF2 alkali earth fluorides, as well as mixtures of these compounds from their nitrates dissolved in molten NaNO3 has been studied in order to select the ideal solvent for fluoride synthesis by spontaneous crystallization from flux. Sodium fluoride (NaF) was used as a fluorinating agent. The results of our experiments have confirmed that NaNO3 melt is one of the most promising media for precipitating said inorganic fluoride materials within a broad temperature range (300–500 °С). Also, in contrast with precipitation/co-precipitation from aqueous solutions, our syntheses have resulted in obtaining equilibrium phases only.

Graphical Abstract

1. Introduction

Inorganic fluorides can be prepared using a broad variety of techniques [1,2,3,4,5,6]. However, using these methods in practice is always accompanied by some experimental obstacles. The most important problem for the fluoride syntheses is the reaction of said fluorides with water, i.e., hydrolysis, which leads to an accumulation of hydroxyl and/or oxygen impurities in the obtained materials [7,8,9]. Atmospheric water vapor, water from aqueous solutions and/or water adsorbed on the solid particle surfaces can participate in hydrolyzing fluorides. The rate of hydrolytic chemical transformation increases significantly when temperature goes up and hydrolysis at an elevated temperature has been called pyrohydrolysis. In order to suppress hydrolysis, an excess of fluorinating agent has been widely implemented to create a proper fluorinating atmosphere [10,11]. Direct oxidation by molecular oxygen in the course of fluorination is usually unfavorable from a thermodynamics point of view and, thus, as a result, it usually does not create additional problems for fluoride syntheses.
Undesirable batch reactions with crucible materials are important factors in solid phase fluorination and syntheses in molten media [2,12,13]. Typically, the use of ceramic crucibles is not possible due to their corrosion accompanied by the formation of highly volatile fluoride by-products, such as SiF4 and/or AlF3. On the other hand, metal (Mo, Ni, Cu, steel, etc.) or carbon crucibles can efficiently reduce fluorides, lowering the oxidation state of the fluoride-forming metal (europium, ytterbium) [14,15] or even completely reducing the latter to the free element (bismuth) [16]. Gold [17] and copper [18] seem to be convenient materials for fluoride preparation, but, nevertheless, one has to consider that hermetically sealed reactors are preferred in comparison to unsealed crucibles [17,19], for even platinum can become a reducing agent in the opened systems [20,21]. Teflon and/or other organofluorine polymers also can be used for the synthesis of fluorides with lower melting points and higher reaction activities [22,23].
The sintering time that is necessary for reaching the solid-phase equilibrium increases exponentially with a temperature decrease, and this factor becomes an overwhelming obstacle for the low-temperature phase synthesis [13,24].
Non-equilibrium specimens with unique functional properties (e.g., enhanced ionic conductivity) can be obtained by mechanochemical techniques. The use of such methods leads to product contamination with milling materials, such as ZrO2 or WC. However, a detailed study of possible oxygen contamination of the mechanochemical synthesis products has yet to be carried out [6,25].
Various functional fluoride materials with highly developed surfaces have been synthesized by thermal decomposition of the corresponding trifluoroacetates [6,26,27]. This is a very attractive synthetic method, but it leads to the product’s contamination with elemental carbon.
In contrast with the solid-phase synthesis, the use of solvents leads to a very significant rate acceleration. Water is the simplest solvent, and most fluorides, having low solubility in it, can be easily precipitated from aqueous solutions [3,4,28]. Such precipitation is very inexpensive. It requires very simple experimental arrangements and, very frequently, leads to the formation of nanofluorides [3,4,28]. Precipitation at room temperature minimizes hydrolysis by-products, but a well-developed surface of fluoride nanoparticle makes said hydrolysis easier. For example, hydrolytic oxygen contamination has been observed for bismuth fluoride precipitation [29].
We have performed systematic studies of phase formation in the fluoride systems using co-precipitation from aqueous nitrate and/or citrate solutions by various fluorinating agents (e.g., hydrofluoric acid, sodium fluoride, ammonium fluoride, etc.) [3,4,29,30,31,32,33,34,35,36,37,38,39]. Our results are valuable from both practical (luminophores, laser ceramics precursors, solid electrolytes) and theoretical (studying non-classic crystallization mechanism via oriented attachment crystal growth [40]; making novel non-equilibrium phases of variable compositions [30]) points of view. Our results have revealed a broad variety of the synthesized material properties compared to the existing data for the known phase diagrams obtained under equilibrium conditions [34]: low solubilities of the precipitated fluorides hindered achieving the chemical equilibrium.
It is worth noting that nanofluorides, obtained by co-precipitation, are hydrated. Highly active nanopowder surfaces causes multilayered water adsorption [41]. This hydration leads to the formation of quite unusual chemical compounds, such as (H3O)Ln3F10 (Ln = rare-earth elements) [30,42], and causes luminescence quenching by OH groups and/or water molecules in freshly prepared nanopowders. It is not easy to remove water that has been adsorbed on nanoparticle surfaces but their pyrohydrolysis under thermal treatment can be prevented by forming compounds with fluorinating agents, such as BaF2·HF [37] or ammonium fluoride solid solutions in strontium fluoride, Sr1−xyLnx(NH4)yF2+xy [34,38,39].
By definition, hydrothermal syntheses occur at elevated temperatures. This leads to a solubility increase and a surface energy decrease (particle faceting) for the synthesized nanofluorides, and equilibrium conditions can be reached. We successfully used the aforementioned hydrothermal techniques to prepare potassium—rare earth fluoride compound series [43,44,45] and, thus, refined phase equilibria data (including the ones for the lower temperatures) for the KF–RF3 systems [46]. However, temperature increase is accompanied with hydrolysis acceleration, and the content of the contaminating oxygen admixtures also increases in the K2RF5 < KRF4 < KR2F7 < KR3F10 series due to the isomorphous substitution of fluorine ions by OH fragments with preservation of the phase homogeneity.
Shifting from water to organic solvents (i.e., shifting from hydrothermal to solvothermal methods) helps overcome the hydrolysis problem [3,4,47,48,49].
Molten salt synthesis (MSS) represents an additional group of synthetic techniques. These techniques include phase formation and crystallization from molten solutions (flux) and it requires the used solvents to have lower melting temperatures, be chemically inert (i.e., solvents shall not form compounds and/or solid solutions with the target compounds or phases), have sufficient solubility for the starting materials, be able to separate solvent from the products, and be non-volatile and display low toxicity [50]. Of course, there is no such thing as an ideal solvent, but one still can try to find the best fitting materials for the aforementioned MSS technology. Sodium fluoride can be considered as one of the most promising MSS materials due to its sufficient water solubility and relatively low melting point (994 °С). However, it easily forms numerous phases with the other fluorides, like in the NaF–BaF2–GdF3 system [51]. Other fluoride flux materials for MSS methods include the following examples: Garton and Wanklyn grew K2NaGaF6 and Rb2KGaF6 single crystals using PbF2 solvent [52], Hoppe utilized toxic thallium fluoride as a flux [53], and other authors [54] implemented the highly reactive NH4HF2 as a flux and fluorinating agent for KMgF3 preparation [54].
PbCl2 can be used as a chloride flux, but it has low water solubility. Courbion et al. synthesized KGaF4 from 3KCl:ZnCl2 molten solution [55]. Fedorov et al. [56,57] prepared CaF2 and SrF2 utilizing water soluble calcium and strontium chlorides as fluxes, respectively.
Oxide glasses can be considered as some kind of fluxes, too, as nanofluorides can be obtained from oxyfluoride glass ceramics by a dissolution of the silicate matrix in hydrofluoric acid [58]. However, the aforementioned oxyfluoride glass ceramics are not the only ones representative of exotic type fluxes. Thus, an orthorhombic single CaF2 crystal polymorph has been grown under high pressure from molten Ca(OH)2 flux [59].
All of the above-listed reasons illustrate the need to search for novel solvents and, as a result, we have explored those opportunities and suggested nitrate melts as such alternative fluxes. Namely, we present below our results for the use of NaNO3 melt for fluoride syntheses.
The earliest reports about fluoride preparations in sodium and potassium nitrate melts, perhaps, were made by Batsanova et al. in 1971 [60,61] but later nitrate melts were implemented again for obtaining up-conversion luminophores [62,63,64,65,66], including the synthesis of doped LiYF4 in molten NaNO3–KNO3 mixture [62] as well as the preparation of up-conversion luminophores based on NaYF4 [63], LiYF4 [64], NaBiF4 [65], “BaCeF5” [66] phases in ammonium nitrate.

2. Results

In the present paper, we have studied the preparation of well-known LnF3 (Ln = La, Ce, Y) rare earth and CaF2, SrF2 alkali earth fluorides as well as their mixtures and NaLnF4 complexes from solutions of corresponding metal nitrates in molten NaNO3 by spontaneous crystallization (precipitation) in melt solutions. Despite the fact that actual chemical composition of the aforementioned NaLnF4 phases is Na3xLn2−xF6 (gagarinite-type structure, derived from UCl3-type; x ~ 0.5) [2,32,46], we will name such solid solution compounds formed in the NaF–LnF3 system as NaLnF4 in agreement with modern literature naming conventions.
We have used sodium fluoride (NaF) as the fluorinating agent in the studied systems; the corresponding chemical transformations can be described by the following equations:
Ln(NO3)3 + 3NaF → LnF3↓ + 3NaNO3,
Ln(NO3)3 + 4NaF → NaLnF4↓ + 3NaNO3,
M(NO3)2 + 2NaF → MF2↓ + 2NaNO3.
Results of our work are presented in Table 1 and Figure 1, Figure 2, Figure 3, Figure 4, Figure 5, Figure 6, Figure 7, Figure 8, Figure 9 and Figure 10.

2.1. The NaF–YF3 System

X-ray diffraction patterns of NaYF4 powders, obtained by precipitation from the NaNO3 melt, before (a) and after (b) washing with water are presented in Figure 1. The most intensive peaks in sample (a) X-ray diffraction pattern correspond to NaNO3 phase (R−3c space symmetry group (SSG); PCPDFWIN # 85-1466). After washing with water, sample (b) contained only one phase, NaYF4 or β-Na(Y1.5Na0.5)F6 (P63/m SSG; PCPDFWIN # 16-0334).
Figure 2 data illustrate the influence of fluorinating agent stoichiometry on the phase composition of the reaction products. NaF shortage results in precipitation of the two-phase specimen (Figure 2a) containing NaYF4 and yttrium fluoride. The SEM image of this sample (Figure 3a) indicates that this specimen contained particles of varying morphology: small (ca. 30 nm) spherical YF3 particles and larger faceted single crystal NaYF4 particles (ca. 100 nm). A further increase of the fluorinating agent stoichiometry in the starting reaction mixture caused a decrease in YF3 content in the obtained products. Using Y(NO3)3:NaF:NaNO3 = 7:52:41 starting material ratio has resulted in the precipitation of the single phase NaYF4. It is worth mentioning that the NaYF4 crystallization from the NaNO3 melt is incongruent, so, in order to obtain a pure/uncontaminated product, one has to use an excess of fluorinating agent compared to the process (2) stoichiometry.
As our example with 3 and 4 samples of Y(NO3)3:NaF:NaNO3 = 7:52:41 starting material ratio has demonstrated, raising the temperature of the specimen synthesis from 320 to 435 °С did not affect its X-ray diffraction pattern: in both cases, the synthesized products contained NaYF4 phase only with nearly the same crystal lattice parameters (Table 1), but with different particle morphology (Figure 4). NaYF4 particles, formed at 320 °С (Figure 4b,d), contained relatively large hexagonal-shaped micron-size particles. Such particles, made up by ca. 50 nm thick platelets, were hollow inside. In turn, a similar composition sample, formed at 320 °С (Figure 4b,d), also contained elongated micron-size particles with habitus, typical for the hexagonal system, but the temperature increase has led to the formation of dense, completely filled (bulk) particles.

2.2. The NaF–LaF3 and NaF–CeF3 Systems

Our attempts to prepare NaLaF4 phase in the NaF–LaF3 system were unsuccessful: for any ratios of the starting materials, only LaF3 microcrystals were formed (Figure 5a).
NaCeF4 phase easily precipitated in the NaF–CeF3 system (Figure 5b). NaCeF4 morphology (micron-sized hexagonal prisms) has been similar to NaYF4 morphology (Figure 6).

2.3. The CaF2–SrF2 System

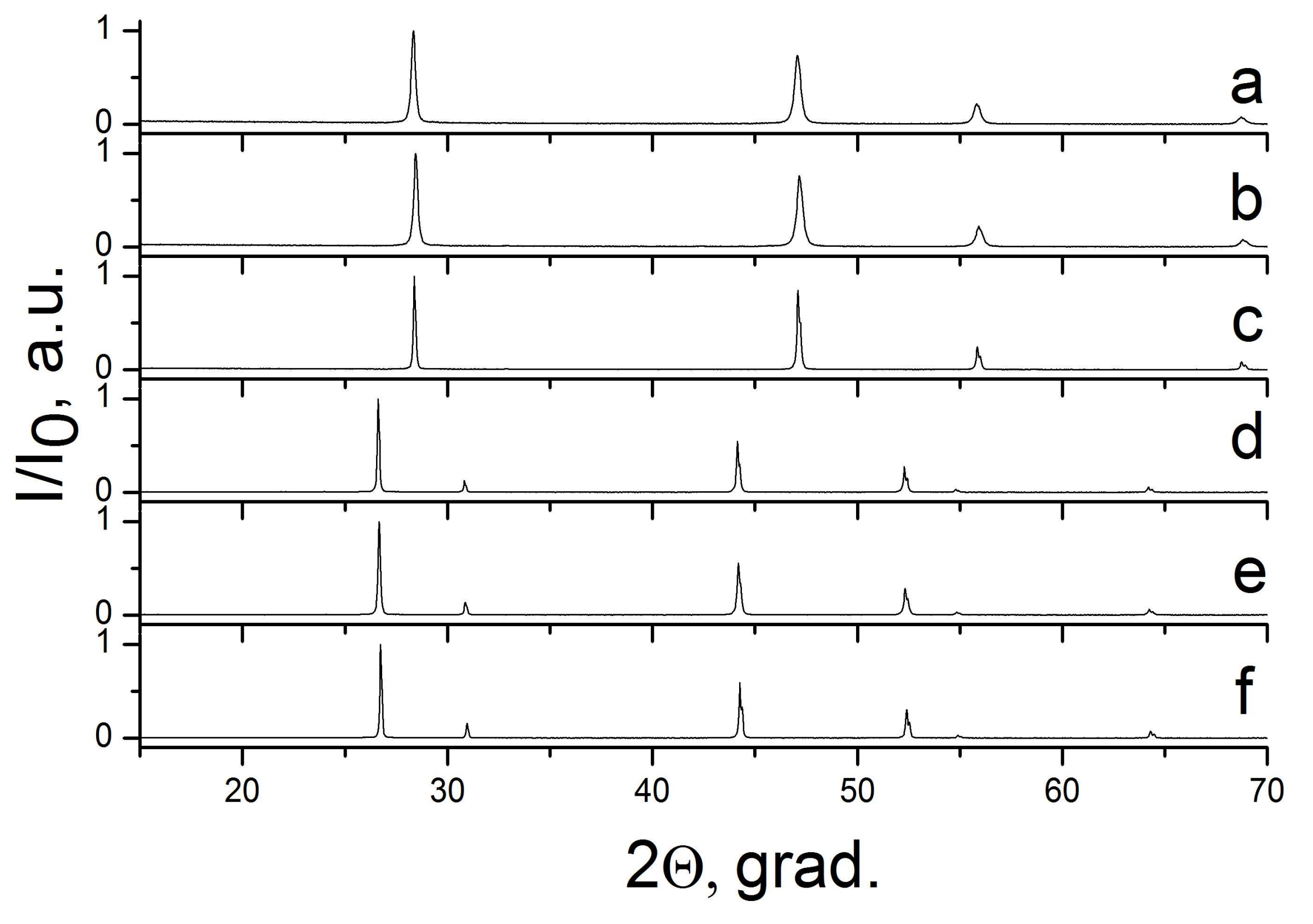

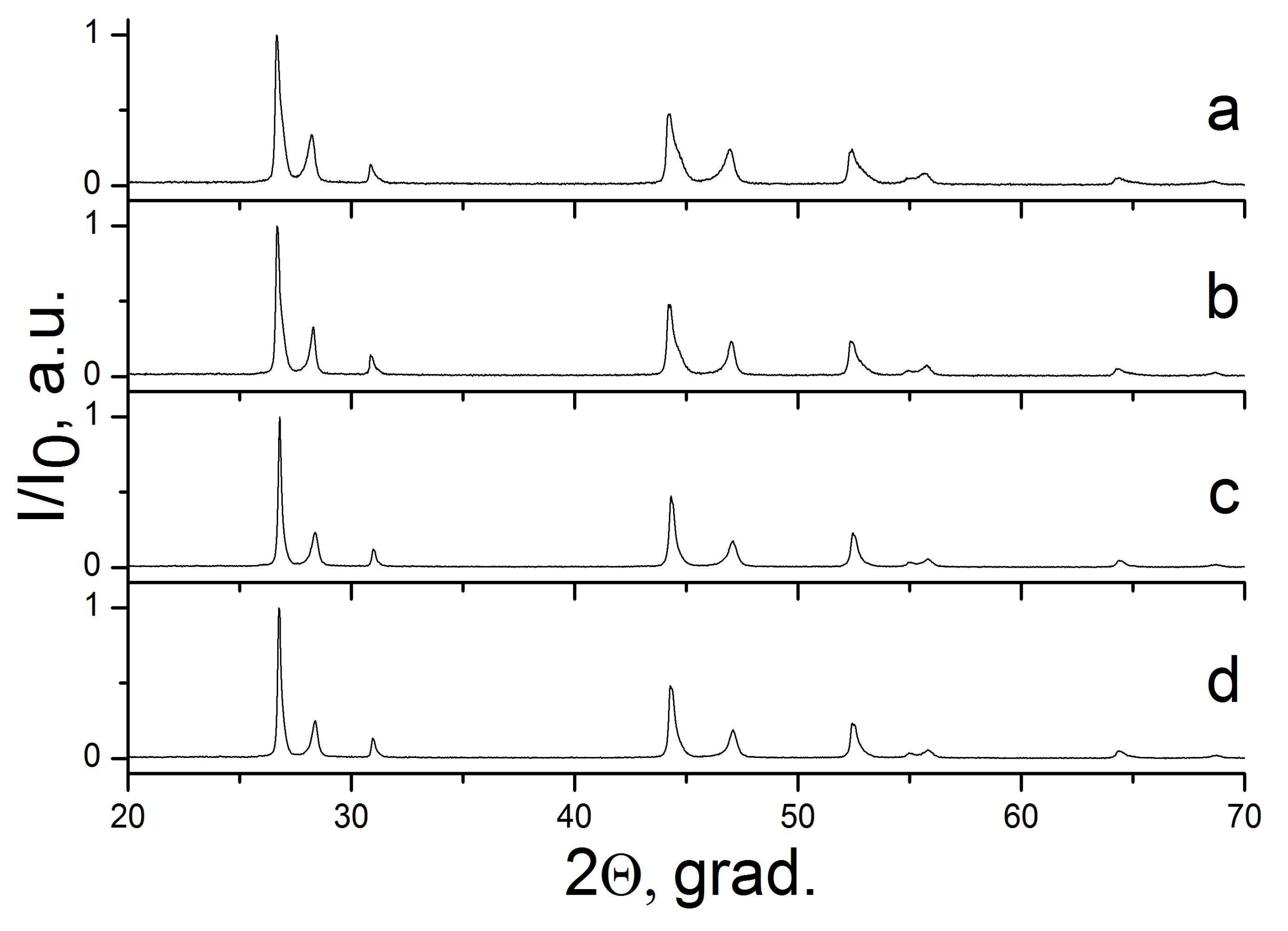

The results of our syntheses in the calcium and strontium fluoride systems are presented in Figure 7, Figure 8, Figure 9, Figure 10 and Figure 11. The values of yield were 68–91% (see Appendix A, Table A2). Intrinsic fluorides form easily washable micron-sized particles with fluorite-type crystal structures (Figure 7) with lattice parameters coinciding with the literature data (СaF2, a = 5.463 Å, PCPDFWIN # 35-0816; SrF2, a = 5.800 Å, PCPDFWIN # 06-0262). However, the morphology of the aforementioned powder particles is different: strontium fluoride formed faceted particles, whereas calcium fluoride did not (Figure 8). The use of equimolar Ca:Sr = 1:1 starting composition produced a mixture of two different fluorite-type phases with crystal lattice parameters different from both unit cell parameters for intrinsic CaF2 and SrF2 (Figure 9). SEM data unequivocally indicate that fluoride particles, containing more strontium fluoride, had a much larger size than the particles, containing more calcium fluoride (Figure 10 and Figure 11).

3. Discussion

For the reader’s convenience, the properties of molten sodium nitrate are summarized in Table 2.
The solubility of NaF in NaNO3 at 350 °С is about 5 mol %, and it increases up to 10 mol % at 450 °С [68]. Pure NaNO3 decomposes at 557 °С, but its decomposition temperature lowers when NaF is added (the addition of 7 mol % NaF decreases the decomposition temperature to 502 °С) [69]. Nevertheless, the use of NaNO3 melts provides a sufficiently broad temperature interval for the corresponding syntheses. Moreover, the addition of other nitrates and/or salts like KNO3, NH4NO3, etc. can lower further the NaNO3 melting temperature [70]: solid solution, formed in the NaNO3–KNO3 system, has its minimum point in the melting curves at 222 °С for 52 ± 3 mol % KNO3 [71]. However, addition of the different cations in the molten reaction mixture unavoidably results in the contamination of the formed microcrystals and even in the parallel formation of supplementary parasitic phases [46].
Sodium nitrate is a well-known oxidizer, but it has not shown any oxidative properties in our experiments, including absence of Ce(III) to Ce(IV) oxidation (i.e., formation of Ce(IV) phases was not observed). Nevertheless, one has to monitor a possibility of such oxidation processes in the future.
The oxygen and nitrogen content in the synthesized samples are below the detection limit (1%) of the EDX method.

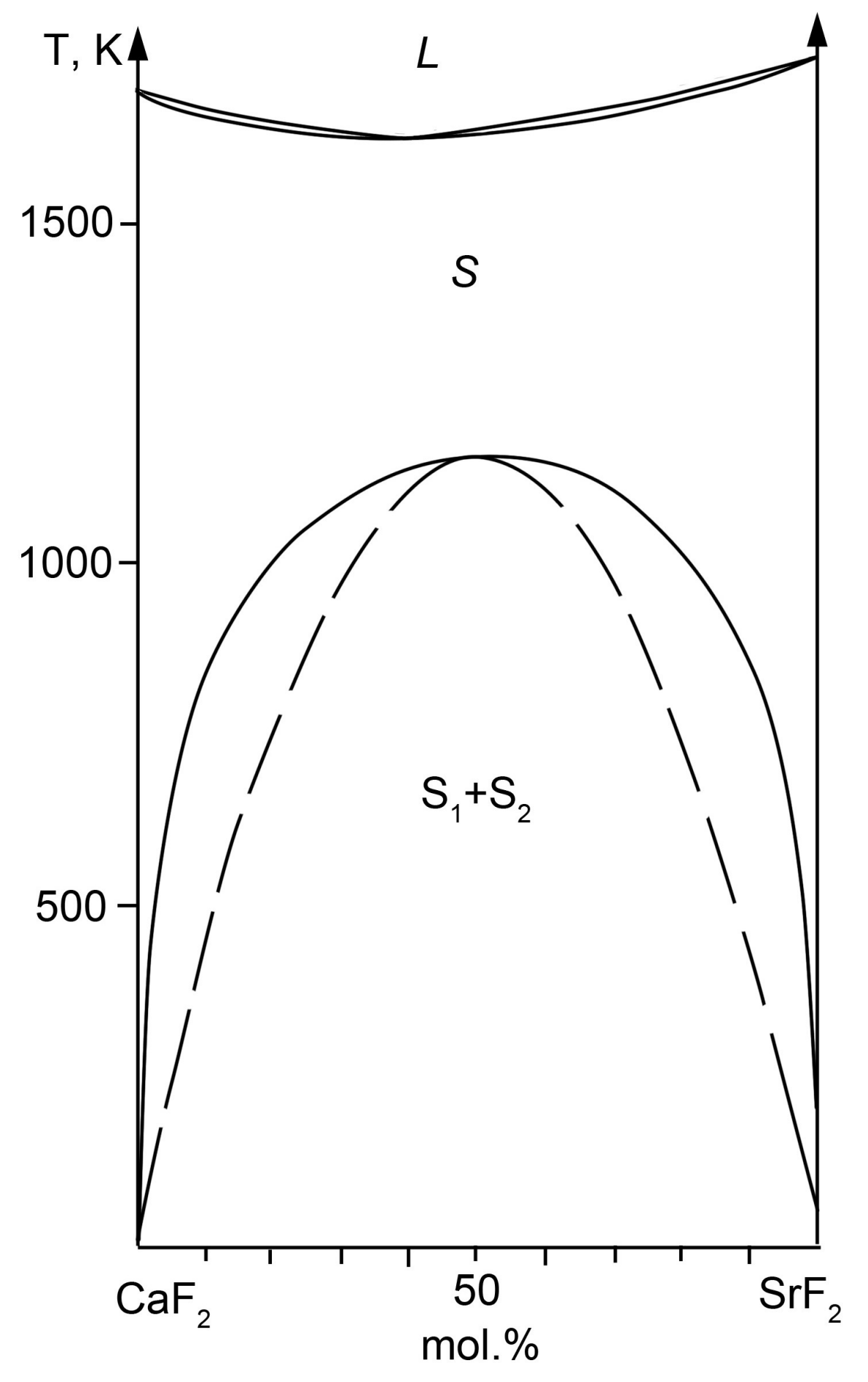

It is important to note that the simultaneous preparation of strontium and calcium fluorides has resulted in the formation of the mixture of slightly contaminated individual CaF2 and SrF2, respectively, whereas the use of the other synthetic techniques, such as melting [72], co-precipitation from aqueous solutions [28], or mechanochemical synthesis [73], resulted in continuous Ca1−xSrxF2 solid solution. However, in accordance with the third law of thermodynamics [24], all solid solutions must decompose under cooling, and the lack of such decomposition unequivocally indicates a non-equilibrium state of the prepared specimen. The highest critical decomposition temperature for Ca1−xSrxF2 solid solution, estimated for the CaF2–SrF2–MnF2 triple system data, is about 1160 K [74]. The decomposition curve of the Ca1−xSrxF2 solid solution, calculated for the regular solution model, is presented in Figure 11. Taking into account crystal lattice parameters а = 5.463 Å for CaF2 and а = 5.800 Å for SrF2 and considering a linear correlation between crystal lattice parameters and composition of the Ca1−xSrxF2 solid solution (Vegard’s Law), we carried out calculations for the concentrations of the CaF2-based and SrF2-based solid solutions (Table 3). We also used the data of Table 1 for the unit cell parameters of the phases formed in the CaF2–SrF2 system. The obtained 5 ± 2 mol % solid solution concentrations are in a good agreement with the estimated data for Т = 573 К (Figure 11). At the present time, we plan to continue our investigations of the influence of the synthesis durations on the aforementioned crystal lattice parameters.
Therefore, in the aforementioned Ca1−xSrxF2 system, only the synthesis in the NaNO3 melt produced equilibrium phases. This observation demonstrates quite unique perspectives for the preparation of the lower temperature equilibrium phases in the fluoride systems: making and studying such phases has been quite limited up to the present moment due to the above experimental obstacles [46,75,76]. Also, it is worth noting that the absence of NaLaF4 in our synthesized specimens can be easily explained in view of the aforementioned observations, for NaLaF4, easily obtainable by sintering or melting, is not stable at lower temperatures, while being stable at the higher temperatures [32,60,61].
It is worth mentioning the unusual morphology of the particles in synthesized NaYF4 powders (Figure 3 and Figure 4). It appears that flat nanoplates were formed first, and then they merged together forming hollow hexagonal prisms (Figures 3c and 4a,c), perhaps, by some attachment crystal growth process [40] with unknown/obscure mechanism. Bulk hexagonal prisms with habitus corresponding to the crystal lattice type have been formed at the higher temperature (Figure 4b,d).
Also it is worth mentioning the difference between morphologies of CaF2 and SrF2 microcrystals (Figure 8): SrF2 microcrystals are faceted (see such simple-shaped polyhedral like cubes and rhombododecahedrons in the SEM images), but the faceting of CaF2 was much fuzzier for unknown reasons. When both CaF2-based and SrF2-based solid solutions formed in the same precipitate, the particle size of the former is less than the particle size of the latter (Figure 10 and Figure 11). Dissolution of CaF2 in SrF2 led to the lower quality faceting compared to the intrinsic SrF2 (Figure 10).
Comparison of NaNO3 and NH4NO3 melt properties provides the former with two advantages: (1) NH4NO3 is thermally unstable and easily undergoes solid state decomposition before reaching its melting point at 167 °С [77], producing toxic gases containing N2O (one has to use hood exhaust equipment while working with NH4NO3 melts); and (2) as per Huang et al. [66], the use of NH4NO3 melts does not necessarily produce equilibrium conditions (“BaCeF5” phase is absent in the BaF2–CeF3 phase diagram [2], so cubic solid solution had to undergo mandatory ordering that has yet to be observed in [66]).
The use of ionic liquids for nanofluoride preparation represents a separate synthesis venue [78,79,80,81,82]. Ionic liquids are salts, containing large organic cations (usually, the unsymmetric ones), melt below 100 °С, and possess good thermal stability, high fire hazard safety, low corrosive activity, along with the low viscosity and vapor pressure. Ionic liquids appear to be good solvents for various organic and inorganic chemical compounds. Typical examples of ionic liquids include 1-butyl-3-methylimidazolium hexafluorophosphate (BmimPF6), tetrafluoroborate (BmimBF4), and/or chloride (BmimCl) [83]. These ionic liquids have been used successfully for the LnF3 and NaLnF4 rare earth nanofluoride syntheses [78,79,80,81,82] as solvents (ionic transport media) and as fluorinating agents (water traces initiate ionic liquid pyrohydriolysis). Synthesized nanopowders can be easily separated from ionic liquids by rinsing with methanol. Usually, ionic liquid syntheses are carried out at the elevated temperatures under microwave or solvothermal process conditions.
Nevertheless, our NaNO3 melt-based synthetic technique can be a good replacement or supplement to the aforementioned preparation methods in ionic liquids: NaNO3 possesses the same advantages as the aforementioned ionic liquids (lower-temperature melting point, high fire hazard safety, low corrosive activity, low toxicity), but it also is less expensive and can be washed out with water instead of toxic and flammable methanol.

4. Materials and Methods

We used 99.99 wt % pure yttrium, lanthanum and cerium nitrate hexahydrates Ln(NO3)3·6H2O, calcium nitrate tetrahydrate Ca(NO3)2·4H2O (all reagents were manufactured by LANHIT, Moscow, Russia), 99.9 wt % pure Sr(NO3)2, NaNO3, and NaF (KhimMed, Moscow, Russia), and double distilled water as our starting materials without further purification.
We synthesized the fluoride specimens in NaNO3 melts at 300–435 °С in ceramic crucibles with and without aluminum foil lining as well as in alundum crucibles. Separate experiments have indicated that ceramic crucibles were capable of withstanding melt corrosion, and metal lining did not provide any additional benefit to the quality and purity of the synthesized samples.
Starting materials were ground in the mortar with pestle until a homogeneous powder was formed. It was then quantitively transferred to the glazed porcelain crucible and placed in the oven for the synthesis at the elevated temperatures. Ratios of the starting materials were varied within the aforementioned ranges, including changes of the amounts of fluorinating agent excess and amount of the solvent used. All synthetic experiments were carried out at 300–435 °С (10 °С/min heating rate, 1 h exposure at maximum temperature) for all specimens unless specified otherwise. Annealed samples were cooled slowly over 10 hours. Molten products were removed from the crucibles, washed with doubly distilled water to remove remaining solvent and unreacted fluorinating agent, and dried under air at ~40 °С.
All synthesized samples were studied using a Bruker D8 Advanced (Cu Kα radiation) diffractometer (Bruker AXS GmbH, Karlsruhe, Germany). Crystal lattice parameters were calculated with TOPAS 4.2 software package (Rwp < 10) (Bruker, Karlsruhe, Germany). The particle size and morphology (scanning electron microscopy, SEM) and the chemical composition (energy dispersive X-ray analysis, EDX) of the samples were analyzed on a NVision 40 high-resolution scanning electron microscope (Carl Zeiss NTS GmbH, Oberkochen, Germany) equipped with an XMAX (80 mm2) detector (Oxford Instruments, Abingdon, UK), operating at an accelerating voltage of 1–20 kV. SEM images were obtained using an Everhart–Thornley detector (SE2) (Carl Zeiss NTS GmbH, Oberkochen, Germany).

5. Conclusions

Results of our experiments unequivocally indicate that NaNO3 melt is a very promising medium for the preparation of inorganic fluoride materials over a broad temperature range (300–500 °С). The latter synthetic temperature can be further lowered by using nitrate mixture, e.g., NaNO3–KNO3. Syntheses in NaNO3 melts allowed preparation of micron-sized powders containing faceted microcrystals with the lowered surface areas and decreased adsorption capabilities. The obtained luminescent materials did not require additional thermal treatment. Synthesized specimens contained equilibrium phases, and were not contaminated by oxygen and/or carbon. Suggested synthetic protocols are inexpensive, environmentally friendly and can be used as an alternative to ionic liquid synthesis methods.


This work has been carried out as a part of the planned GPI RAS research activity with the partial use of the equipment of the JRS PMR IGIC RAS. Authors express their sincere gratitude to Arthur I. Popov, Richard Simoneaux, and Elena Chernova for their most kind assistance in the preparation of the present manuscript.

Author Contributions

Pavel Fedorov and Mariya Mayakova conceived and designed the experiments; Mariya Mayakova, Alexander Alexandrov, Valery Voronov, and Alexander Baranchikov performed the experiments; Pavel Fedorov, Mariya Mayakova, and Vladimir Ivanov analyzed the data; Vladimir Ivanov and Sergey Kuznetsov contributed reagents/materials/analysis tools; Pavel Fedorov wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A1. Correspondence between the numbering of samples used in the paper and the current laboratory numbering of samples.
Table A1. Correspondence between the numbering of samples used in the paper and the current laboratory numbering of samples.
Paper Sample NumberLaboratory Sample Number
Table A2. The values of yield.
Table A2. The values of yield.
Paper Sample NumberMass Theor., gMass Exp., gYield, %


  1. Bergmann, H. Sc, Y, La and lanthanide: Fluoride, oxifluoride und zugehogige alkalidoppelverbindungen. In Gmelin Handbuch der Anorganischen Chemie; Springer: Berlin, Germany, 1976; ISBN 978-3-540-93321-2. [Google Scholar]
  2. Sobolev, B.P. The Rare Earth Trifluorides: The High Temperature Chemistry of the Rare Earth Trifluorides; Institut d’Estudis Catalans: Barcelona, Spain, 2000; ISBN 84-7283-518-9. [Google Scholar]
  3. Kuznetzov, S.V.; Osiko, V.V.; Tkatchenko, E.A.; Fedorov, P.P. Inorganic nanofluorides and related nanocomposites. Russ. Chem. Rev. 2006, 7, 1065–1082. [Google Scholar] [CrossRef]
  4. Fedorov, Р.P.; Luginina, A.A.; Kuznetsov, S.V.; Osiko, V.V. Nanofluorides. J. Fluor. Chem. 2011, 132, 1012–1039. [Google Scholar] [CrossRef]
  5. Stosiek, C.; Scholz, G.; Schroeder, S.L.M.; Kemnitz, E. Structure and properties of noncrystalline aluminum oxide-hydroxide fluorides. Chem. Mater. 2010, 22, 2347–2356. [Google Scholar] [CrossRef]
  6. Wilkening, M.; Duvel, A.; Preishuber-Pflugl, F.; Da Silva, K.; Breuer, S.; Sepelak, V.; Heitjans, P. Structure and ion dynamics of mechanosynthesized oxides and fluorides. Z. Kristallog. 2016, 232, 107–127. [Google Scholar] [CrossRef]
  7. Warf, J.C.; Cline, W.D.; Tevebaugh, R.D. Pyrohydrolysis in the determination of fluoride and other halids. Anal. Chem. 1954, 26, 342–346. [Google Scholar] [CrossRef]
  8. Banks, C.V.; Burke, K.E.; O’Laughlin, J.W. The determination of fluorine in rare earth fluorides by high temperature hydrolysis. Anal. Chim. Acta 1958, 19, 239–243. [Google Scholar] [CrossRef]
  9. Sobolev, B.P.; Fedorov, P.P.; Steynberg, D.B.; Sinitsyn, B.V.; Shakhkalanian, G.S. On the problem of polymorphism and fusion of lanthanide trifluorides. I. Influence of oxygen on phase transition temperatures. J. Solid State Chem. 1976, 17, 191–199. [Google Scholar] [CrossRef]
  10. Bamberger, C.E. Experimental Techniques in Molten Fluoride Chemistry. In Advances in Molt Salt Chemistry; Braunstein, J., Mamantov, G., Smith, G.P., Eds.; Plenum Press: New York, NY, USA, 1975; Volume 3, pp. 177–248. [Google Scholar]
  11. Fedorov, P.P.; Osiko, V.V. Crystal growth of fluorides. In Bulk Crystal Growth of Electronic, Optical and Optoelectronic Materials; Capper, P., Ed.; John Wiley & Son, Ltd.: Chichester, UK, 2005; pp. 339–356. [Google Scholar]
  12. Sobolev, B.P.; Fedorov, P.P. Phase diagramms of the CaF2–(Y,Ln)F3 systems. I. Experimental. J. Less Common Met. 1978, 60, 33–46. [Google Scholar] [CrossRef]
  13. Fedorov, P.P. Anneal time determined by studying phase transitions in solid binary systems. Russ. J. Inorg. Chem. 1992, 37, 973–975. [Google Scholar]
  14. Kuznetsov, S.V.; Fedorov, P.P. Morphological stability of solid–liquid interface during melt crystallization of solid solutions M1−xRxF2+x. Inorg. Mater. 2008, 44, 1434–1458. [Google Scholar] [CrossRef]
  15. Druon, F.; Ricaud, S.; Papadopoulos, D.N.; Pellegrina, A.; Camy, P.; Doualan, J.L.; Moncorge, R.; Courjaud, A.; Mattay, E.; Georges, P. On Yb:CaF2 and Yb:SrF2: Review of spectroscopic and thermal properties and their impact on femtosecond and high power laser performance. Opt. Mater. Express. 2011, 1, 489–502. [Google Scholar] [CrossRef]
  16. Kaminskii, A.A.; Butashin, A.V.; Sul’yanov, S.N. Crystallization and some spectroscopic properties of CsBi2F7–Nd3+. Neorg. Mater. 1996, 32, 110–112. (In Russian) [Google Scholar]
  17. Matar, S.; Reau, J.-M.; Grannec, J.; Rabardel, L. On a low-temperature form of KBiF4. J. Solid State Chem. 1983, 50, 1–6. [Google Scholar] [CrossRef]
  18. Dombrovski, E.N.; Serov, T.V.; Abakumov, A.M.; Ardashnikova, E.I.; Dolgikh, V.A.; Van Tendeloo, G. The structural investigation of Ba4Bi3F17. J. Solid State Chem. 2004, 177, 312–318. [Google Scholar] [CrossRef]
  19. Ratnikova, I.D.; Korenev, Y.M.; Fedorov, P.P.; Sobolev, B.P. Phase diagrams of the systems BaF2–RF4 (R = Zr, Hf). Zh. Neorgan. Khimii 1997, 42, 302–307. (In Russian) [Google Scholar]
  20. Popov, A.I.; Scharabarin, A.V.; Sukhoverkhov, V.F.; Tchumaevsky, N.A. Synthesis and properties of pentavalent antimony and bismuth fluorides. Z. Anorg. Allgem. Chem. 1989, 576, 242–254. [Google Scholar] [CrossRef]
  21. Popov, A.I.; Valkovskii, M.D.; Kiselev, Y.M. Structure of MII(AuVF6)2 of alkali-earth elements. Zh. Neorgan. Khimii 1990, 35, 1970–1977. (In Russian) [Google Scholar]
  22. Buchinskaya, I.I.; Fedorov, P.P. Lead difluoride and related systems. Rus. Chem. Rev. 2004, 73, 371–400. [Google Scholar] [CrossRef]
  23. Fedorov, P.P.; Zibrov, I.P.; Tarasova, E.V.; Polunina, S.M.; Sobolev, B.P.; Fedorov, P.I. Transition from peritectics to eutectics in PbF2–RF3 systems. Zh. Neorgan. Khimii 1988, 33, 3222–3225. (In Russian) [Google Scholar]
  24. Fedorov, P.P. Third law of thermodynamics as applied to phase diagrams. Rus. J. Inorg. Chem. 2010, 55, 1722–1739. [Google Scholar] [CrossRef]
  25. Heise, M.; Scholz, G.; Düvel, A.; Heitjans, P.; Kemnitz, E. Mechanochemical synthesis, structure and properties of lead containing alkaline earth metal fluoride solid solutions MxPb1−xF2 (M = Ca, Sr, Ba). Solid State Sci. 2018, 77, 45–53. [Google Scholar] [CrossRef]
  26. Ritter, B.; Krahl, T.; Rurack, K.; Kemnitz, E. Nanoscale CaF2 doped with Eu3+ and Tb3+ through fluorolytic sol–gel Synthesis. J. Mater. Chem. C 2014, 2, 8607–8613. [Google Scholar] [CrossRef]
  27. Glazunova, T.Y.; Boltalin, A.I.; Fedorov, P.P. Synthesis of calcium, strontium, and barium fluorides by thermal decomposition of trifluoroacetates. Russ. J. Inorg. Chem. 2006, 51, 983–987. [Google Scholar] [CrossRef]
  28. Fedorov, P.P.; Kuznetsov, S.V.; Mayakova, M.N.; Voronov, V.V.; Ermakov, R.P.; Baranchikov, A.E.; Osiko, V.V. Coprecipitation from aqueous solutions to prepare binary fluorides. Russ. J. Inorg. Chem. 2011, 56, 1525–1531. [Google Scholar] [CrossRef]
  29. Fedorov, P.P.; Mayakova, M.N.; Kuznetsov, S.V.; Voronov, V.V.; Osiko, V.V.; Ermakov, R.P.; Gontar’, I.V.; Timofeev, A.A.; Iskhakova, L.D. Coprecipitation of barium–bismuth fluorides from aqueous solutions: Nanochemical effects. Nanotechnol. Russ. 2011, 6, 203–210. [Google Scholar] [CrossRef]
  30. Fedorov, P.P.; Mayakova, M.N.; Kuznetsov, S.V.; Voronov, V.V.; Ermakov, R.P.; Samarina, K.S.; Popov, A.I.; Osiko, V.V. Co-precipitation of yttrium and barium fluorides from aqueous solutions. Mater. Res. Bull. 2012, 47, 1794–1799. [Google Scholar] [CrossRef]
  31. Mayakova, M.N.; Luginina, A.A.; Kuznetsov, S.V.; Voronov, V.V.; Ermakov, R.P.; Baranchikov, A.E.; Ivanov, V.K.; Karban, O.V.; Fedorov, P.P. Synthesis of SrF2–YF3 nanopowders by co-precipitation from aqueous solutions. Mendeleev Commun. 2014, 24, 360–362. [Google Scholar] [CrossRef]
  32. Kuznetsov, S.V.; Ovsyannikova, A.A.; Tupitsyna, E.A.; Yasyrkina, D.S.; Voronov, V.V.; Fedorov, P.P.; Batyrev, N.I.; Iskhakova, L.D.; Osiko, V.V. Phase formation in LaF3-NaGdF4, NaGdF4-NaLuF4, NaYF4-NaLuF4 systems: Synthesis of powders by co-precipitation from aqueous solutions. J. Fluor. Chem. 2014, 161, 95–101. [Google Scholar] [CrossRef]
  33. Mayakova, M.N.; Voronov, V.V.; Iskhakova, L.D.; Kuznetsov, S.V.; Fedorov, P.P. Low-temperature phase formation in the BаF2-CeF3 system. J. Fluor. Chem. 2016, 187, 33–39. [Google Scholar] [CrossRef]
  34. Fedorov, P.P.; Kuznetsov, S.V.; Osiko, V.V. Elaboration of nanofluorides and ceramics for optical and laser applications. In Photonic and Electronic Properties of Fluoride Materials; Tressaud, A., Poeppelmeier, K., Eds.; Elsevier: Amsterdam, The Netherlands, 2016; pp. 7–31. ISBN 9780128016398. [Google Scholar]
  35. Fedorov, P.P.; Luginina, A.A.; Ermakova, Y.А.; Kuznetsov, S.V.; Voronov, V.V.; Uvarov, O.V.; Pynenkov, A.A.; Nischev, K.N. Preparation of nanodispersed fluorite-type Sr1−xRxF2+x (R = Er, Yb, Ho) phases from citrate solutions. J. Fluor. Chem. 2017, 194, 8–15. [Google Scholar] [CrossRef]
  36. Fedorov, P.P.; Mayakova, M.N.; Kuznetsov, S.V.; Voronov, V.V.; Ermakova, Y.A.; Baranchikov, A.E. Synthesis of СаF2–YF3 nanopowders by co-precipitation from aqueos solutions. Nanosystems 2017, 8, 462–470. [Google Scholar] [CrossRef]
  37. Luginina, A.A.; Baranchikov, A.E.; Popov, A.I.; Fedorov, P.P. Preparation of barium monohydrofluoride BaF2·HF from nitrate aqueous solutions. Mater. Res. Bull. 2014, 49, 199–205. [Google Scholar] [CrossRef]
  38. Rozhnova, Y.A.; Luginina, A.A.; Voronov, V.V.; Ermakov, R.P.; Kuznetsov, S.V.; Ryabova, A.V.; Pominova, D.V.; Arbenina, V.V.; Osiko, V.V.; Fedorov, P.P. White light luminophores based on Yb3+/Er3+/Tm3+-Coactivated strontium Fluoride Powders. Mater. Chem. Phys. 2014, 148, 201–207. [Google Scholar] [CrossRef]
  39. Rozhnova, Y.A.; Kuznetsov, S.V.; Luginina, A.A.; Voronov, V.V.; Ryabova, A.V.; Pominova, D.V.; Ermakov, R.P.; Usachev, V.A.; Kononenko, N.E.; Baranchikov, A.E.; et al. New Sr1−x−yRx(NH4)yF2+x−y (R = Yb, Er) solid solution as precursor for high efficiency up-conversion luminophor and optical ceramics on the base of strontium fluoride. Mater. Chem. Phys. 2016, 172, 150–157. [Google Scholar] [CrossRef]
  40. Ivanov, V.K.; Fedorov, P.P.; Baranchikov, A.Y.; Osiko, V.V. Oriented aggregation of particles: 100 years of investigations of non-classical crystal growth. Russ. Chem. Rev. 2014, 83, 1204–1222. [Google Scholar] [CrossRef]
  41. Fedorov, P.P.; Kuznetsov, S.V.; Voronov, V.V.; Yarotskaya, I.V.; Arbenina, V.V. Soft сhemical synthesis of NaYF4 nanopowders. Russ. J. Inorg. Chem. 2008, 53, 1681–1685. [Google Scholar] [CrossRef]
  42. Lucier, B.E.G.; Johnston, K.E.; Arnold, D.C.; Lemyre, J.-L.; Beaupre, A.; Blanchette, M.; Ritcey, A.M.; Schurko, R.W. Comprehensive solid-state characterization of rare earth fluoride nanoparticles. J. Phys. Chem. C 2014, 118, 1213–1228. [Google Scholar] [CrossRef]
  43. Khaidukov, N.M.; Fedorov, P.P.; Dem’yanrts, L.D.; Zibrov, I.P.; Malyusov, V.A. K2LnF5 compounds. Russ. J. Inorg. Chem. 1990, 35, 383–384. (In Russian) [Google Scholar]
  44. Khaidukov, N.M.; Fedorov, P.P.; Abramov, N.A. Thermal and crystallographic charasteristics of KLnF4 synthesized under hydrothermal conditions. Inorg. Mater. 1991, 27, 2243–2246. (In Russian) [Google Scholar]
  45. Khaidukov, N.M.; Filatova, T.G.; Ikrami, M.B.; Fedorov, P.P. Morphotropy in lanthanide fluoride series. Inorg. Mater. 1993, 29, 1152–1156. (In Russian) [Google Scholar]
  46. Fedorov, P.P. Systems of alcali and rare-earth metal fluorides. Russ. J. Inorg. Chem. 1999, 44, 1703–1727. [Google Scholar]
  47. Cao, J.; Yuan, L.; Hu, S.; Tang, J.; Zhou, X.; Yang, J. Tuning the phase, morphology and size of monodisperse ScF3 and NaScF4 crystals through lanthanide doping. CrystEngComm 2016. [Google Scholar] [CrossRef]
  48. Kostiv, U.; Rajsiglov, L.; Luptáková, D.; Pluháček, T.; Vannucci, L.; Havliček, V.; Engstová, H.; Jirák, D.; Šlouf, M.; Makovicky, P.; et al. Biodistribution of upconversion/magnetic silicacoated NaGdF4:Yb3+/Er3+ nanoparticles in mouse models. RSC Adv. 2017, 7, 45997–46006. [Google Scholar] [CrossRef]
  49. Hyppänen, I.; Perälä, N.; Arppe, R.; Schäferling, M.; Soukka, T. Environmental and excitation power effects on the ratiometric upconversion luminescence based temperature sensing using nanocrystalline NaYF4:Yb3+,Er3+. ChemPhysChem 2017, 18, 692–701. [Google Scholar] [CrossRef]
  50. Timofeeva, V.A. Physical-Chemical and Metodical Bases of Melt-Solution Design of New Technical Crystals; VINITI: Moscow, Russia, 1990; p. 498. (in Russian) [Google Scholar]
  51. Pavlova, L.N.; Fedorov, P.P.; Ol’khovaya, L.A.; Ikrami, D.D.; Sobolev, B.P. Ordering of heterovalent solid solution with the fluorite structure in the NaF–BaF2–GdF3 system. Crystallogr. Rep. 1993, 38, 221–224. [Google Scholar]
  52. Garton, G.; Wanklyn, B.M. Growth of complex fluoride single crystals by the flux method. J. Cryst. Growth 1967, 1, 49–51. [Google Scholar] [CrossRef]
  53. Hoppe, R. Novel routs to the synthesis of metal fluorides. J. Fluor. Chem. 1985, 29, 38. [Google Scholar] [CrossRef]
  54. Wang, W.; Liu, X.; Zhang, J.; Ji, Y.; Jiang, N.; Ma, B.; Wang, X.; Liu, L. A facile way to synthesis KMgF3 and its luminescent property with Eu doping. Inorg. Chem. Commun. 2013, 33, 165–169. [Google Scholar] [CrossRef]
  55. Courbion, G.; Randrianohavy, J.V.; Rousseau, J.J. ESR Study of Cr3+ and Fe3+ Ions in KGaF4 Single Crystals. J. Solid State Chem. 1989, 81, 285–292. [Google Scholar] [CrossRef]
  56. Fedorov, P.P.; Mayakova, M.N.; Kuznetsov, S.V.; Maslov, V.А.; Sorokin, N.I.; Baranchikov, А.Е.; Ivanov, V.K.; Pynenkov, A.A.; Uslamina, М.А.; Nishchev, К.N. Phase diagram of the NaF–CaF2 system and the electrical conductivity of a CaF2-based solid solution. Russ. J. Inorg. Chem. 2016, 61, 1472–1478. [Google Scholar] [CrossRef]
  57. Fedorov, P.P.; Mayakova, M.N.; Maslov, V.А.; Baranchikov, А.Е.; Ivanov, V.K.; Pynenkov, А.А.; Uslamina, М.А.; Nishchev, К.N. The solubility of sodium and potassium fluorides in the strontium fluoride. Nanosystems 2017, 8, 830–834. [Google Scholar] [CrossRef]
  58. Fedorov, P.P.; Luginina, A.A.; Popov, A.I. Transparent oxyfluoride glass ceramics. J. Fluor. Chem. 2015, 172, 22–50. [Google Scholar] [CrossRef]
  59. Morris, E.; Groy, T.; Leinenweber, K. Crystal structure and bonding in the high-temperature form of fluorite (CaF2). J. Phys. Chem. Solids 2001, 62, 1117–1122. [Google Scholar] [CrossRef]
  60. Batsanova, L.R. Rare-earth fluorides. Russ. Chem. Rev. 1971, 40, 465–484. [Google Scholar] [CrossRef]
  61. Batsanova, L.R.; Kupriyanova, А.К.; Doroshenko, V.I. Study of the interaction of the rare-earth nitrates with sodium fluorides in molten NaNO3. Inorg. Mater. 1971, 7, 1876–1877. (In Russian) [Google Scholar]
  62. Ding, M.; Lu, C.; Cao, L.; Huang, W.; Ni, Y.; Xu, Z. Molten salt synthesis of tetragonal LiYF4:Yb3+/Ln3+ (Ln = Er, Tm, Ho) microcrystals with multicolor upconversion luminescence. CrystEngComm 2013, 15, 6015–6021. [Google Scholar] [CrossRef]
  63. Huang, X.Y.; Hu, G.H.; Xu, Q.J.; Li, X.X.; Yu, Q.M. Molten-salt synthesis and upconversion of hexagonal NaYF4:Er3+:Yb3+ micro-/nano-crystals. J. Alloys Compd. 2014, 616, 652–661. [Google Scholar] [CrossRef]
  64. Huang, X.Y. Synthesis in NH4NO3 flux and abnormal upconversion of LiYF4:Er3+ /Yb3+ microcrystals. Opt. Mater. Exp. 2014, 4, 2381–2391. [Google Scholar] [CrossRef]
  65. Huang, X.; Jiang, L.; Xu, Q.; Li, X.; He, A. Low-temperature molten-salt synthesis and upconversion of novel hexagonal NaBiF4:Er3++/Yb3+ micro-/nanocrystals. RSC Adv. 2017, 7, 41190–41203. [Google Scholar] [CrossRef]
  66. Huang, X.; Jiang, L.; Li, X.; He, A. Manipulating upconversion emission of cubic BaGdF5:Ce3+/Er3+/Yb3+ nanocrystals through controlling Ce3+ doping. J. Alloys Compd. 2017, 721, 374–382. [Google Scholar] [CrossRef]
  67. Sadovskiy, A.; Sukhanova, E.; Belov, S.; Kostikov, V.; Zykova, M.; Artyushenko, M.; Zharikov, E.; Avetissov, I. Axial vibration control of melt structure of sodium nitrate in crystal growth process. J. Cryst. Growth 2015, 417, 16–24. [Google Scholar] [CrossRef]
  68. Nyankovskaya, R.N.; Bergman, A.G. Singular irreversible-resiprocal system from nitrates and fluorides of sodium and potassium. Izv. Sektora Phys. Khim Anal. 1952, 21, 250–258. (In Russian) [Google Scholar]
  69. Kruglov, A.I.; Kochergin, V.P. Onset of thermal decomposition of mixtures of sodium and potassium nitrates with its halogenides. Izv. VUZov Khimiya Khim Tekhnol. 1971, 14, 1429–1430. (In Russian) [Google Scholar]
  70. Voskresenskaya, N.К.; Evseeva, N.N.; Berul, S.I.; Vereschetina, I.P. Handbook on the Melting of Salt Systems; Izd. Akad. Nauk: Moscow, Russia, 1961; p. 848. (In Russian) [Google Scholar]
  71. Greis, O.; Bahamdam, K.M.; Uwais, B.M. The phase diagram of the system NaNO3–KNO3 studied by differential scanning calorimetry. Thermochim. Acta 1985, 86, 343–350. [Google Scholar] [CrossRef]
  72. Fedorov, P.P.; Ushakov, S.N.; Uslamina, M.A.; Chernova, E.V.; Kuznetsov, S.V.; Voronov, V.V.; Düvel, A.; Heitjans, P.; Pynenkov, A.A.; Nishchev, K.N.; et al. Morphological stability of the solid‒liquid interface during melt crystallization of Ca1–xSrxF2 solid solution. Crystallogr. Rep. 2018, 63, 512–516. [Google Scholar]
  73. Heise, M.; Scholz, G.; Düvel, A.; Heitjans, P.; Kemnitz, E. Mechanochemical synthesis, structure, and properties of solid solutions of alkaline earth metal fluorides: Ma1−xMbxF2 (M: Ca, Sr, Ba). Solid State Sci. 2016, 60, 65–74. [Google Scholar] [CrossRef]
  74. Ol’khovaya, L.A.; Karpenko, G.A.; Ikrami, D.D.; Fedorov, P.P. The CaF2–SrF2–MnF2 ternary system. Russ. J. Inorg. Chem. 1991, 36, 1639–1642. [Google Scholar]
  75. Fedorov, P.P.; Izotova, O.E.; Alexandrov, V.B.; Sobolev, B.P. New phases with fluorite-derived structure in CaF2–(Y, Ln)F3 systems. J. Solid State Chem. 1974, 9, 368–374. [Google Scholar] [CrossRef]
  76. Fedorov, P.P.; Sobolev, B.P.; Belov, S.F. Fusibility diagram of the system NaF–YF3, and the cross-section Na0.4Y0.6F2.2–YOF. Inorg. Mater. 1979, 15, 640–643. [Google Scholar]
  77. Galwey, A.K.; Brown, M.E. Thermal Decomposition of Ionic Solids; Elsevier Science: Amsterdam, The Netherlands, 1999; ISBN 0-444-82437-5. [Google Scholar]
  78. Zhang, C.; Chen, J. Facile EG/ionic liquid interfacial synthesis of uniform RE3+ doped NaYF4 nanocubes. Chem. Commun. 2010, 46, 592–594. [Google Scholar] [CrossRef] [PubMed]
  79. Guo, H.; Zhang, T.; Qiao, Y.M.; Zhao, L.H.; Li, Z.Q. Ionic liquid-based approach to monodisperse luminescent LaF3:Ce, Tb nanodiskettes: Synthesis, structural and photoluminescent properties. J. Nanosci. Nanotechnol. 2010, 10, 1913–1919. [Google Scholar] [CrossRef] [PubMed]
  80. Song, Y.; Deng, Y.; Chen, J.; Zou, H. Ionic liquid-assisted hydrothermal synthesis of rare earth luminescence materials. In Application of Ionic Liquids on Rare Earth Green Separation and Utilization, Green Chemistry and Sustainable Technology; Chen, J., Ed.; Springer: Heidelberg/Berlin, Germany, 2016; pp. 207–257. [Google Scholar]
  81. Liu, S.; Hui, Y.; Zhu, L.; Fan, X.; Zou, B.; Cao, X. Synthesis and luminescence properties of CeF3:Tb3+ nanodisks via ultrasound assisted ionic liquid method. J. Rare Earths 2014, 32, 508–513. [Google Scholar] [CrossRef]
  82. Bartůněk, V.; Pinc, J.; Ulbrich, P.; Rak, J.; Pelánková, B.; Král, V.; Kuchař, M.; Ježek, P.; Engstová, H.; Smolková, K. Tunable rapid microwave synthesis of up-converting hexagonal NaYxGdyYbzEr(1−xyz)F4 nanocrystals in large quantity. J. Fluor. Chem. 2015, 178, 56–60. [Google Scholar] [CrossRef]
  83. Mun, J.; Sim, H. (Eds.) Handbook of Ionic Liquids: Properties, Applications and Hazards; NOVA Science Publishers, Inc.: New York, NY, USA, 2012; ISBN 978-1-62100-349-6. [Google Scholar]

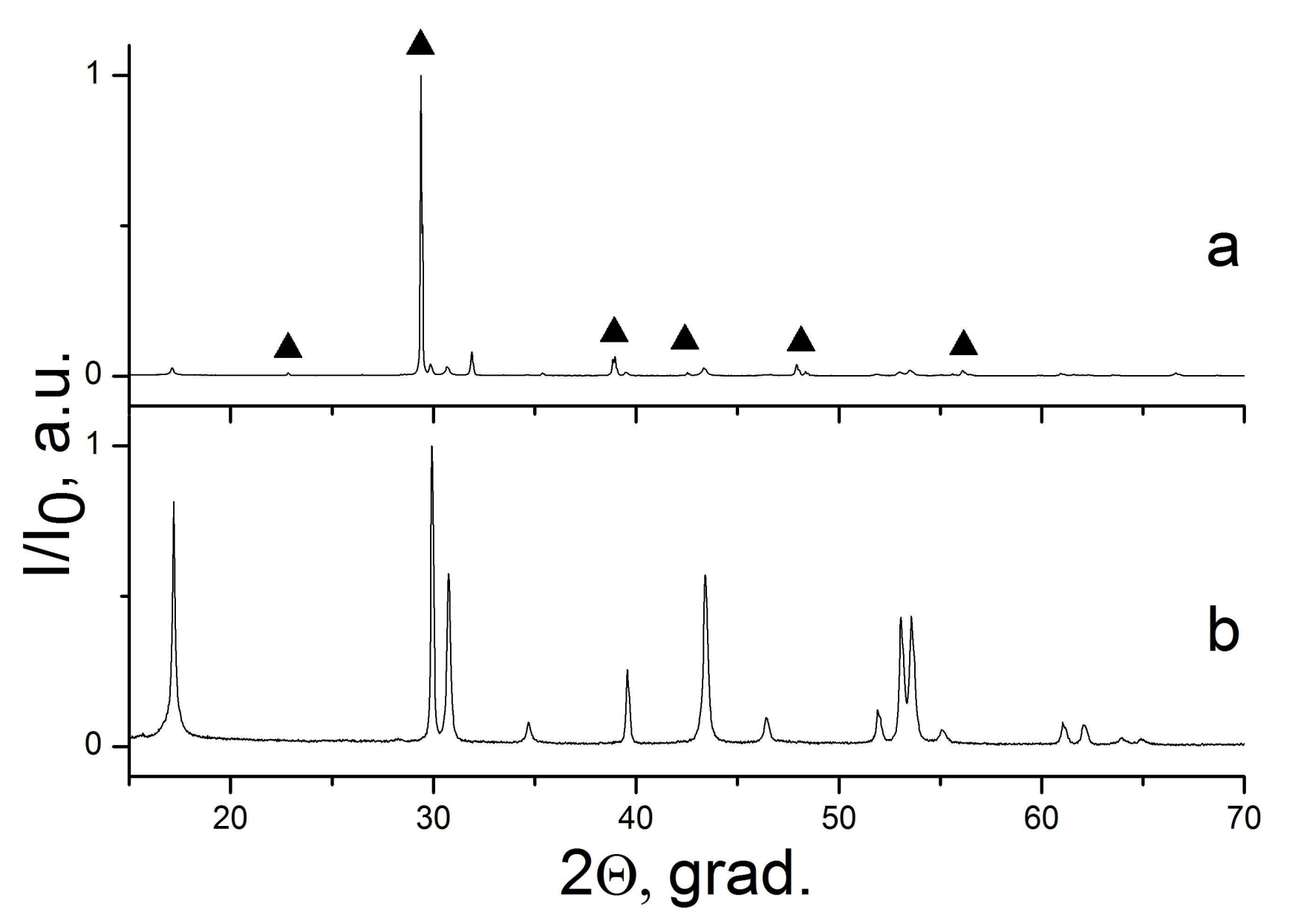

Figure 1. X-ray diffraction patterns of NaYF4 sample 3 before (a) and after (b) washing with water. NaNO3 phase lines are marked with triangle symbols.
Figure 1. X-ray diffraction patterns of NaYF4 sample 3 before (a) and after (b) washing with water. NaNO3 phase lines are marked with triangle symbols.
Inorganics 06 00038 g001

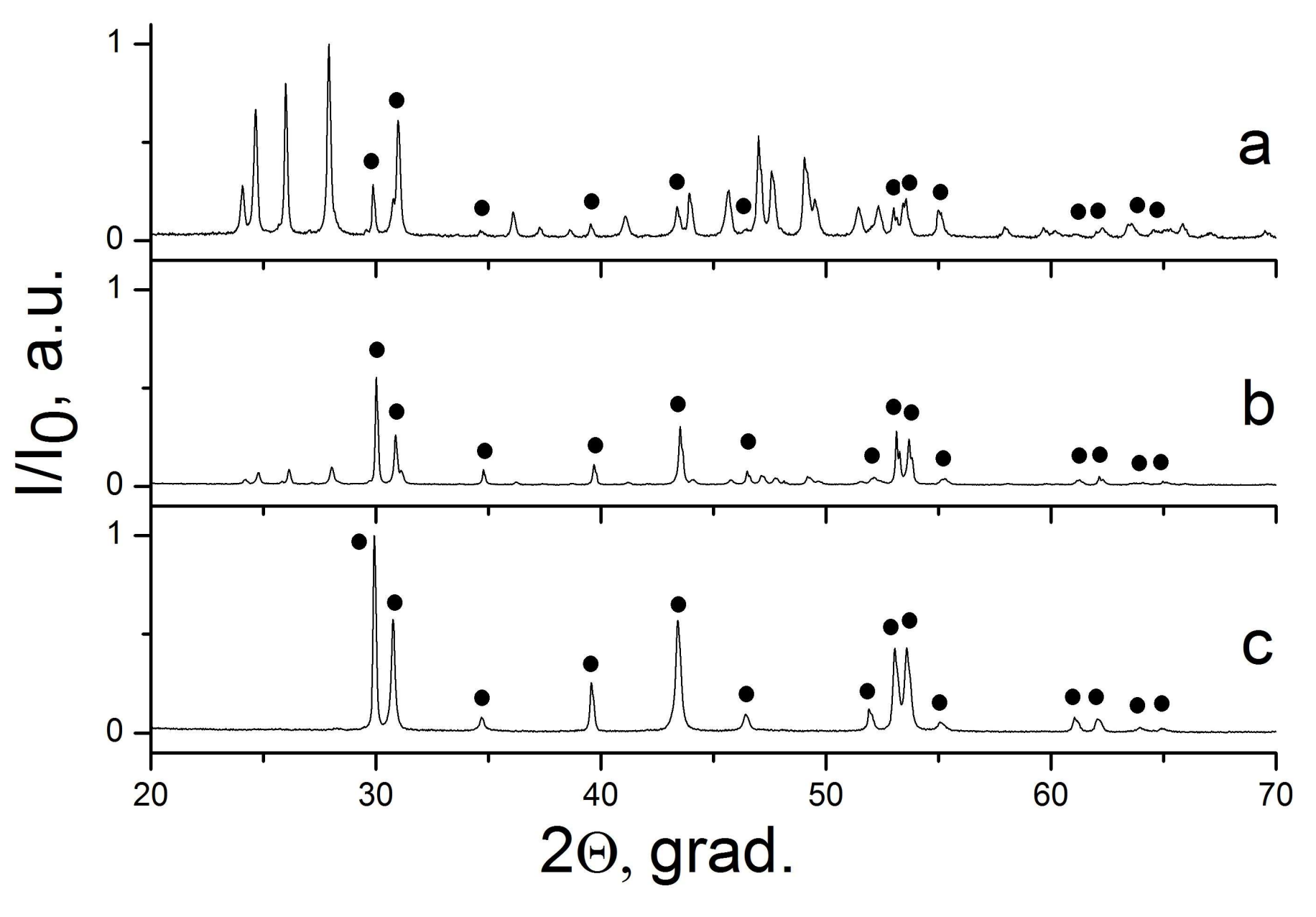

Figure 2. X-ray diffraction patterns of samples in the NaF–YF3 system synthesized at 320 °С, ratios of Y(NO3)3:NaF:NaNO3 starting materials: 11:30:59 (a) (sample 1); 9:39:52 (b) (sample 2); 7:52:41 (c) (sample 3). NaYF4 phase lines are marked with solid circle symbols.
Figure 2. X-ray diffraction patterns of samples in the NaF–YF3 system synthesized at 320 °С, ratios of Y(NO3)3:NaF:NaNO3 starting materials: 11:30:59 (a) (sample 1); 9:39:52 (b) (sample 2); 7:52:41 (c) (sample 3). NaYF4 phase lines are marked with solid circle symbols.
Inorganics 06 00038 g002
Figure 3. Scanning electron microscopy (SEM) images of the specimens in the NaF–YF3 system synthesized at 320 °С, ratios of Y(NO3)3:NaF:NaNO3 starting materials: 11:30:59 (a) (sample 1); 9:39:52 (b) (sample 2); 7:52:41 (c) (sample 3); 9:39:52 (sample 2) (d).
Figure 3. Scanning electron microscopy (SEM) images of the specimens in the NaF–YF3 system synthesized at 320 °С, ratios of Y(NO3)3:NaF:NaNO3 starting materials: 11:30:59 (a) (sample 1); 9:39:52 (b) (sample 2); 7:52:41 (c) (sample 3); 9:39:52 (sample 2) (d).
Inorganics 06 00038 g003aInorganics 06 00038 g003b
Figure 4. SEM images of NaYF4 specimens (synthesized at ratios of Y(NO3)3:NaF:NaNO3 starting materials equal to 7:52:41) synthesized at 320 °С (a,c) (sample 3); 435 °С (b,d) (sample 4).
Figure 4. SEM images of NaYF4 specimens (synthesized at ratios of Y(NO3)3:NaF:NaNO3 starting materials equal to 7:52:41) synthesized at 320 °С (a,c) (sample 3); 435 °С (b,d) (sample 4).
Inorganics 06 00038 g004

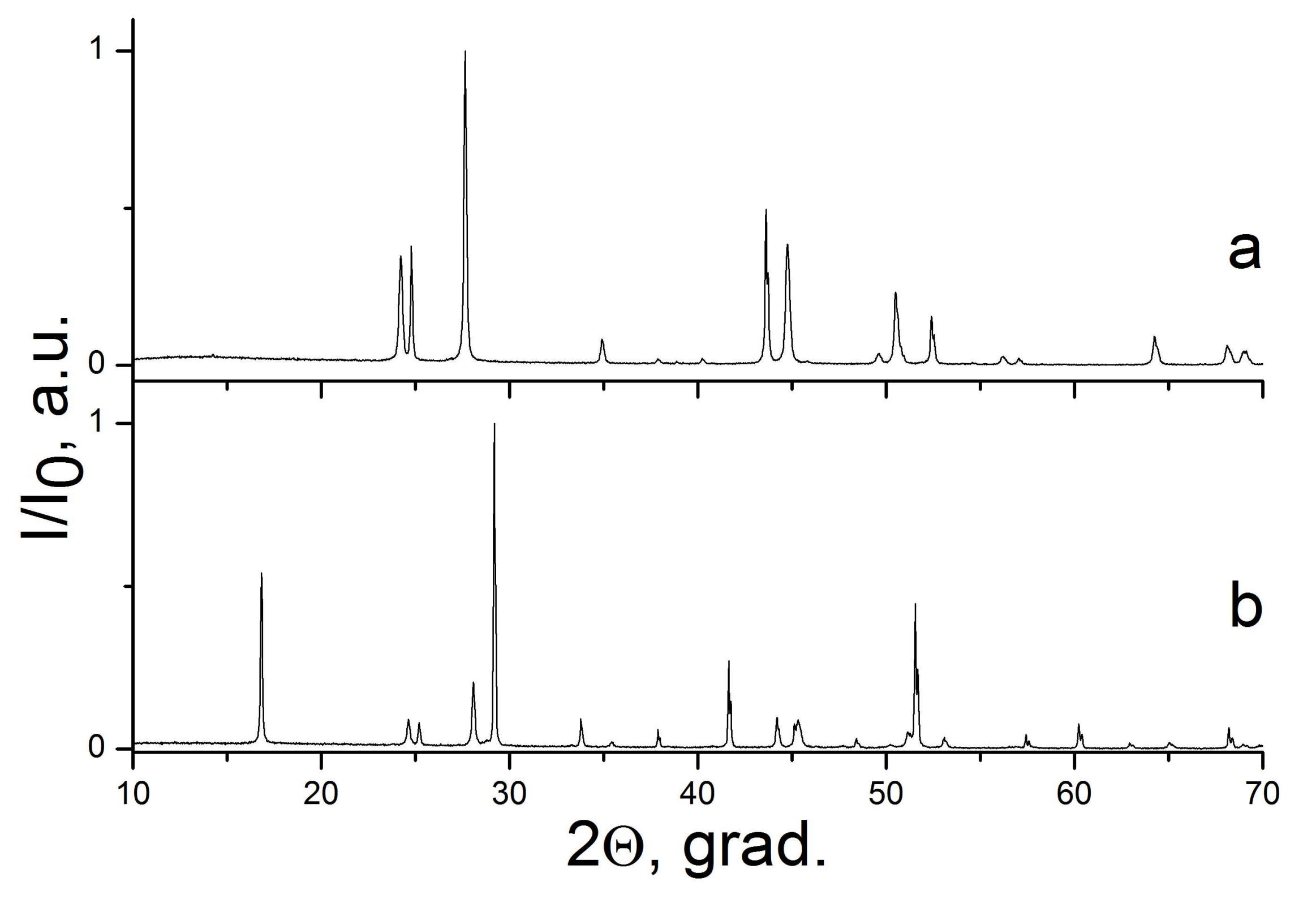

Figure 5. X-ray patterns of specimens in the NaF–LaF3 and NaF–CeF3 systems: Sample 6 (a), LaF3 phase; and Sample 7 (b), NaCeF4 + CeF3 phases.
Figure 5. X-ray patterns of specimens in the NaF–LaF3 and NaF–CeF3 systems: Sample 6 (a), LaF3 phase; and Sample 7 (b), NaCeF4 + CeF3 phases.
Inorganics 06 00038 g005
Figure 6. SEM images of sample 7 in the NaF–CeF3 system (Ce(NO3)3:NaF:NaNO3 = 4:53:43 ratio of starting materials) synthesized at 400 °С.
Figure 6. SEM images of sample 7 in the NaF–CeF3 system (Ce(NO3)3:NaF:NaNO3 = 4:53:43 ratio of starting materials) synthesized at 400 °С.
Inorganics 06 00038 g006
Figure 7. X-ray diffraction patterns of CaF2: Samples 8 (a), 9 (b), 11 (c), and SrF2: Samples 12 (d), 13 (e), 16 (f) specimens synthesized from NaNO3 flux.
Figure 7. X-ray diffraction patterns of CaF2: Samples 8 (a), 9 (b), 11 (c), and SrF2: Samples 12 (d), 13 (e), 16 (f) specimens synthesized from NaNO3 flux.
Inorganics 06 00038 g007
Figure 8. SEM images of CaF2, sample 10 (a) and SrF2 samples 15 (b), 14 (c), 15 (d).
Figure 8. SEM images of CaF2, sample 10 (a) and SrF2 samples 15 (b), 14 (c), 15 (d).
Inorganics 06 00038 g008
Figure 9. X-ray diffraction patterns of samples in the CaF2–SrF2 (1:1) system synthesized at 300 °С, ratios of M(NO3)2:NaF:NaNO3 (M = Сa + Sr) starting materials: (a) 22:33:45 (sample 17); (b) 8:12:80 (sample 18); (c) 17:50:33 (sample 19); (d) 7:21:72 (sample 20).
Figure 9. X-ray diffraction patterns of samples in the CaF2–SrF2 (1:1) system synthesized at 300 °С, ratios of M(NO3)2:NaF:NaNO3 (M = Сa + Sr) starting materials: (a) 22:33:45 (sample 17); (b) 8:12:80 (sample 18); (c) 17:50:33 (sample 19); (d) 7:21:72 (sample 20).
Inorganics 06 00038 g009
Figure 10. SEM images of CaF2–SrF2 (1:1) samples prepared at 300 °С and M(NO3)2:NaF:NaNO3 (M = Сa + Sr) ratios of starting materials (mol %): 22:33:45 (sample 17) (a); 8:12:80 (sample 18) (b); 17:50:33 (sample 19) (c); and 7:21:72 (sample 20) (d).
Figure 10. SEM images of CaF2–SrF2 (1:1) samples prepared at 300 °С and M(NO3)2:NaF:NaNO3 (M = Сa + Sr) ratios of starting materials (mol %): 22:33:45 (sample 17) (a); 8:12:80 (sample 18) (b); 17:50:33 (sample 19) (c); and 7:21:72 (sample 20) (d).
Inorganics 06 00038 g010
Figure 11. Phase diagram of the CaF2–SrF2 system [72]: melt (L), Ca1−xSrxF2 solid solution (S); spinodal is shown as a dashed line.
Figure 11. Phase diagram of the CaF2–SrF2 system [72]: melt (L), Ca1−xSrxF2 solid solution (S); spinodal is shown as a dashed line.
Inorganics 06 00038 g011
Table 1. Conditions and results of fluoride synthesis experiments.
Table 1. Conditions and results of fluoride synthesis experiments.
Sample Number *Ratios of Starting Materials, mol %(M,Ln)
Temp. (°C)Phase CompositionSpace Symmetry GroupCrystal Lattice Parameters, Å
111:30:59320NaYF4 + YF3P63/m
a1 = 5.982(1)
c1 = 3.525(1)
a2 = 6.388(1)
b = 6.846(1)
c2 = 4.244(1)
29:39:52320NaYF4 + YF3P63/ma = 5.982(1)
c = 3.525(1)
37:52:41320NaYF4P63/ma = 5.984(1)
c = 3.525(1)
47:52:41435NaYF4P63/mа = 5.974(2)
c = 3.529(1)
53:6:91400LaF3P−3c1a1 = 7.1815(3)
c1 = 7.3365(2)
690:4:5330LaF3P−3c1a = 7.1841(1)
c = 7.3522(1)
74:53:43400CeF3 + NaCeF4P−3c1
a1 = 7.0901(1)
c1 = 7.2481(1)
a2 = 6.1367(2)
c1 = 3.7377(2)
811:67:22300CaF2Fm−3ma = 5.4654(1)
96:35:59300CaF2Fm−3ma = 5.4655(1)
109:55:36400CaF2Fm−3ma = 5.4648(1)
1114:29:57400CaF2Fm−3ma = 5.4648(1)
1211:67:22300SrF2Fm−3ma = 5.8010(1)
136:35:59300SrF2Fm−3ma = 5.8001(1)
149:55:36400SrF2Fm−3ma = 5.8001(1)
1520:40:40400SrF2Fm−3ma = 5.8001(1)
1614:29:57400SrF2Fm−3ma = 5.7992(1)
1722:33:45300“CaF2” + “SrF2Fm−3ma1 = 5.483(1)
a2 = 5.775(1)
188:12:80300“CaF2” + “SrF2Fm−3ma1 = 5.476(1)
a2 = 5.784(1)
1917:50:33300“CaF2” + “SrF2Fm−3ma1 = 5,479(1)
a2 = 5.792(1)
207:21:72300“CaF2” + “SrF2Fm−3ma1 = 5.473(1)
a2 = 5.789(1)
Table 2. NaNO3 properties [67].
Table 2. NaNO3 properties [67].
PropertySymbol (Units)Value
Melting pointt (°С)305
Densityρ (kg/m3)1903
Thermal conductivityλ (W/m·K)2.5 × 10−3
Specific heatCp (J/kg·K)2836
Thermal expansivityβ (K−1)4.5 × 10−4
Viscositym (kg/m·s)2.2 × 10−3
Table 3. Compositions of the specimens synthesized in the SrF2–CaF2 system.
Table 3. Compositions of the specimens synthesized in the SrF2–CaF2 system.
Sample NumberComposition
17Ca0.94Sr0.06F2 + Sr0.93Ca0.07F2
18Ca0.96Sr0.04F2 + Sr0.95Ca0.05F2
19Ca0.95Sr0.05F2 + Sr0.97Ca0.03F2
20Ca0.97Sr0.03F2 + Sr0.97Ca0.03F2

Share and Cite

MDPI and ACS Style

Fedorov, P.; Mayakova, M.; Alexandrov, A.; Voronov, V.; Kuznetsov, S.; Baranchikov, A.; Ivanov, V. The Melt of Sodium Nitrate as a Medium for the Synthesis of Fluorides. Inorganics 2018, 6, 38.

AMA Style

Fedorov P, Mayakova M, Alexandrov A, Voronov V, Kuznetsov S, Baranchikov A, Ivanov V. The Melt of Sodium Nitrate as a Medium for the Synthesis of Fluorides. Inorganics. 2018; 6(2):38.

Chicago/Turabian Style

Fedorov, Pavel, Mariya Mayakova, Alexander Alexandrov, Valery Voronov, Sergey Kuznetsov, Alexander Baranchikov, and Vladimir Ivanov. 2018. "The Melt of Sodium Nitrate as a Medium for the Synthesis of Fluorides" Inorganics 6, no. 2: 38.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
