Inorganics 2016, 4(3), 20; https://doi.org/10.3390/inorganics4030020

Communication
The Viscosity and Intermolecular Interaction of Organic and Inorganic Hybrid Systems Composed of Chiral Schiff Base Ni(II), Cu(II), and Zn(II) Complexes with Long Ligands, Azobenzene, and PMMA
Department of Chesmitry, Faculty of Science, Tokyo University of Science, Tokyo 162-8601, Japan
*
Author to whom correspondence should be addressed.
Academic Editor: Duncan H. Gregory
Received: 2 June 2016 / Accepted: 21 June 2016 / Published: 27 June 2016

Abstract

:
We have here synthesized new chiral Schiff base Ni(II), Cu(II), Zn(II) complexes (Ni, Cu, Zn) and hybrid materials with azobenzene (AZ) in polymethyl methacrylate (PMMA). Linearly polarized UV light irradiation of these hybrid materials slightly increased their optical anisotropy of AZ as well as the complexes, which were measured with polarized IR and UV-Vis spectra and discussed based on TD-DFT calculations. Non-linear concentration (viscosity) dependence of PMMA solutions about artifact peaks suggested weak intermolecular interactions due to the flexibility of complexes by inserted methylene chains. Molecular modeling indicated that large spaces around complexes in PMMA resulted in easy molecular orientation (Ni > Cu > Zn) as short-term saturation of the UV light irradiation.
Keywords:
PMMA; azobenzene; Schiff base complexes; viscosity; polarized light; Weigert effect

1. Introduction

The study of organic–inorganic materials of Schiff base complexes and polymers is progressing to impart new features such as fluorescence properties [1]. Indeed, we have also systematically prepared organic/inorganic hybrid materials composed of chiral Schiff base mononuclear and dinuclear complexes including or mixing azo-moiety in synthetic polymer (e.g., polymethyl methacrylate (PMMA) and polyvinyl alcohol [2]) or biopolymer (albumin [3] or laccase [4]) matrices. In addition, optical alignment by the Weigert effect of azobenzene (AZ) has been widely used [5]. By the UV irradiation of polarized light to PMMA cast film containing AZ (azo-moieties) and chiral Schiff base complexes, an increase in optical anisotropy was observed in our previous studies [6,7,8,9]. After linearly or circularly polarized UV light irradiation, we have also measured polarized electronic (UV-Vis), infrared (IR), and circular dichroism (CD) spectra in order to elucidate light-induced molecular orientation of each component by the direct Weigert effect of AZ (azo-moiety) or supramolecular transmission to metal complexes. However, a detailed mechanism and intermolecular interaction is not reasonably understood. In other words, the mechanism has not been clarified; specifically, the interaction between AZ and metal complex in PMMA film is still unclear.
Previously, to elucidate intermolecular interactions, we designed metal complexes involving an electron-withdrawing (Br– or halogen) group, an UV absorbing and hydrophobic (Ph–) group, and a strong hydrogen-bonding (HO–) group to PMMA [10]. Here, we prepared new similar Ni(II), Cu(II), and Zn(II) complexes (abbreviated as Ni, Cu, and Zn, respectively) that enhance flexibility by inserting one more methylene chains between the Ph– group and the asymmetric carbon atom (Figure 1). We focused on the polarized light-induced molecular orientation control of the present complexes. In order to examine intermolecular interactions further, we employed concentration (viscosity) dependence of PMMA solutions and molecular modeling.

2. Results

2.1. Polarized IR Spectra

The angular dependence of polarized IR spectra after irradiation of linearly polarized UV light is exhibited in Figure 2. Linearly polarized UV light irradiation resulted in the induction of anisotropic molecular orientation, not only AZ directly but also the complexes though supramolecular transmission in the PMMA matrix. Polarized IR spectra of C=N bands can provide selective information about the molecular orientation of complexes only [11]. In order for a discussion of the Weigert effect, namely, the orientation of dyes in general and among many methods [12], we employed conventional polarized absorption spectra [13] (Tables S1–S3), and these two parameters (R and S) for the degree of photoinduced optical anisotropy (spectral dichroism):
R = A 0 A 90 ;
S = A 0   A 90 A 0 +   A 90 ,
where A90 and A0 denote the absorbance measured with the measuring polarizer perpendicular and parallel, respectively, to the electric vector of irradiation polarized light. Ideal isotropic systems of S = 0 and R = 1 and both S and R parameters are changed as dichroism by molecular alignment increases.
As for Ni+AZ+PMMA, saturation of induced molecular orientation was observed at 0.5 min with R = 1.29 and S = 0.0888. Though induced anisotropy of Ni was also confirmed, the degree of orientation was considered to be the weakest among them.
As for Cu+AZ+PMMA, saturation of induced molecular orientation was observed at 10 min with R = 1.32 and S = 0.0970. The longest time for saturation of molecular orientation may be ascribed to the flexibility of the coordination environment of copper(II) complexes.
As for Zn+AZ+PMMA, saturation of induced molecular orientation was observed at 0.5 min with R = 1.31 and S = 0.0927. Transmission of molecular anisotropy was quickly observed for a zinc(II) complex because of their stiffness of compressed tetrahedral coordination environment. The order of saturation time is Ni < Cu < Zn, which may be attributed to the difference in transmission of molecular orientation due to the molecular geometry and molecular flexibility of the complexes.

2.2. Polarized UV-Vis and CD Spectra with Thoretical Calculations

Figure 3, Figure 4 and Figure 5 exhibit experimental (in acetone solution) and simulated (UB3LYP/6-31G(d)) CD and UV-Vis spectra of Ni, Cu, and Zn, respectively, based on optimized structures (Figures S1–S3). The π–π*, n–π*, and d–d bands could be reasonably assigned based on a theoretical simulation using Gaussian09 [14]. As the model structures in PMMA, the optimized structures of Ni and Cu afford a tetrahedrally distorted square planar geometry indicating dipole moment 3.2694 Debye with direction vector (x, y, x) = (1.7223, 0.7499, −2.6759)) and 5.2898 Debye with (−1.5744, 4.2113, 2.7872), while that of Zn affords a compressed tetrahedral geometry indicating 8.2269 Debye with (4.6534, −5.7037, 3.6736).
Contrary to IR spectra, UV-Vis spectra (Tables S4–S6) contain overlap of AZ and complexes with initially drastic spectral changes by trans to cis photoisomerization of AZ. Thus, polarized UV-Vis spectra contain information about molecular orientation of each component and their conformational (both ligands and coordination environment) changes—as expected, deviated from crystal structures [15].
As for Ni+AZ+PMMA, after 10 min, π–π* (318 nm), n–π* (440 nm), and d–d (610 nm) bands exhibited R = 0.958; S = −0.0142, R = 1.02; S = 0.0078, and R = 1.08; S = 0.0269, respectively.
As for Cu+AZ+PMMA, after 10 min, π–π* (318 nm), n–π* (440 nm), and d–d (614 nm) bands exhibited R = 1.00; S = −0.0011, R = 0.954; S = −0.0055, and R = 0.998; S = −0.0007, respectively.
As for Zn+AZ+PMMA, after 10 min, π–π* (318 nm) and n–π* (440 nm) bands exhibited R = 0.969; S = −0.0105 and R = 1.05; S = −0.00152, respectively.
In contrast to previous studies [15,16], however, supramolecular chirality resulting from helical orientation could not be observed as detectable changes of CD spectra (220–900 nm), even following circularly polarized UV light irradiation for 10 min (not shown). Long and flexible ligand conformation [17,18] exhibited a disadvantage in the supramolecular transmission of molecular orientation.

3. Discussion

Viscosity and CD Spectra with Molecular Modeling
In order to discuss intermolecular interaction in PMMA, Figure 6 shows a correlation between concentration of PMMA acetone solutions and the intensity of so-called artifact peak of solid-state CD spectra. Our previous studies [19,20] have successfully elucidated that there is a good correlation between viscosity (namely, concentration of PMMA acetone solutions of stiff chiral metal complexes [21]) and intensity of artifact CD peaks, accompanying a gradual restriction of free rotation and losing isotropy of a chiral complex (Figure S4). In principle, isotropy of a chiral material reduces artifact peaks of CD spectra.
In this study, we tested 1:2 mixtures of PMMA acetone solutions (2.5, 5, 10, 15, 20, 25 wt %) and 0.05 mM acetone solutions of complexes and AZ. The strongest artifact CD peaks could be observed at 10%, 15%, and 5% for Ni, Cu, and Zn, respectively. Contrary to other examples of relatively stiff complexes, a poor correlation between viscosity and intensity was found. Both the flexible conformation of ligands and the whole structure of the complexes resulted in a different fashion of intermolecular interaction between the complexes, AZ, and PMMA.
Molecular modeling (Figure 7) helps the visualization of intermolecular interaction fashion between complexes, AZ, and PMMA from the viewpoint of stereochemistry. In the PMMA matrix, free volume around AZ enables AZ to photoisomerize smoothly. Similar to the discussion of AZ, the order of free volume around complexes is Ni > Cu > Zn, which is in agreement with the easy-to-move complexes in PMMA.

4. Materials and Methods

Complexes (Ni, Cu, and Zn) were prepared according to literature methods [10,16,18] using the corresponding chiral amines and aldehydes having halogen. Ni: Yield: 52.5%. IR 1631 cm−1 (C=N). Cu: Yield: 46.2%. IR 1628 cm−1 (C=N). Zn: Yield: 71.8%. IR 1615 cm−1 (C=N). Hybrid materials of complexes (Ni, Cu, and Zn), AZ, and PMMA were prepared according to literature procedures [16,18].
Infrared (IR) spectra were recorded with Nujol mull on a JASCO FT-IR 4200 plus spectrophotometer (JASCO, Tokyo, Japan) equipped with a polarizer in the range of 4000–400 cm−1 at 298 K. Absorption electronic spectra were measured on a JASCO V-570 spectrophotometer equipped with a polarizer in the range of 900–200 nm at 298 K. Circular dichroism (CD) spectra were measured on a JASCO J-725 spectropolarimeter in the range of 800–200 nm at 298 K. Viscosity was measured on an A&D SV-10A type SV (A&D, Tokyo, Japan, 30 Hz frequency) at 298 K. Photo-illumination were carried out using a lamp (1.0 mW/cm2) with optical filters (UV λ = 200–400 nm) and a polarizer.
All calculations were performed using the Gaussian 09W software Revision D.01 (Gaussian, Inc., Wallingford, CT, USA) [14]. The vertical excitation energy was calculated using the TD-DFT method based on the singlet ground state geometry. The exchange functional, the correlation functional, and the basis set were UB3LYP/6-31G8d.

5. Conclusions

In summary, we prepared organic/inorganic hybrid materials containing three new chiral complexes having Br–, Ph–, and –OH groups. Stereochemistry of ligands resulted in weakening propagation of optical anisotropy from azobenzene to chiral Schiff base metal complexes in PMMA polymer matrix. In contrast to previous analogous chiral Schiff base metal complexes without the methylene group (namely, connecting (R)-asymmetric carbon and the Ph– group directly), flexibility for Ni, Cu, and Zn was attributed to a methylene carbon between the (R)-asymmetric carbon and the Ph– group. Linearly polarized UV light irradiation induced anisotropic molecular orientation of AZ as well as complexes, and saturated irradiation time was Ni < Cu < Zn. Viscosity and CD intensity test suggested weak intermolecular interaction between flexible complexes and PMMA. This may be in agreement with the free volume of PMMA around complexes Ni > Cu > Zn.

Supplementary Materials

The following are available online at www.mdpi.com/2304-6740/4/3/20/s1. Figure S1: Optimized structure of Ni with dipole moment (arrow). Figure S2: Optimized structure of Cu with dipole moment (arrow). Figure S3: Optimized structure of Zn with dipole moment (arrow). Figure S4: PMMA concentration dependence of acetone solutions of Ni, Cu, and Zn. Table S1: The R and S values of polarized IR spectra for Ni+AZ+PMMA. Table S2: The R and S values of polarized IR spectra for Cu+AZ+PMMA. Table S3: The R and S values of polarized IR spectra for Zn+AZ+PMMA. Table S4: The R and S values of polarized UV-Vis spectra for Zn+AZ+PMMA. Table S5: The R and S values of polarized UV-Vis spectra for Ni+AZ+PMMA. Table S6: The R and S values of polarized UV-Vis spectra for Cu+AZ+PMMA.

Acknowledgments

The computations were performed at the Research Center for Computational Science, Okazaki, Japan.

Author Contributions

Hiroshi Takano and Maiko Ito performed the experiments; Masahiro Takase performed computational chemistry; Nobumitsu Sunaga performed molecular modeling; Takashiro Akitsu designed the study and wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
AZazobenzene
CDcircular dichroism
IRinfrared
PMMApolymethyl methacrylate
TD-DFTtime-dependent density functional theory
UVultraviolet
Visvisible

References

  1. Zhang, Z.; Feng, W.; Su, P.; Lu, X.; Song, J.; Fan, D.; Wong, W.-K.; Jones, R.A.; Su, C. Near-Infrared Luminescent PMMA-Supported Metallopolymers Based on Zn−Nd Schiff-Base Complexes. Inorg. Chem. 2014, 53, 5950–5960. [Google Scholar] [CrossRef] [PubMed]
  2. Takase, M.; Akitsu, T. Linearly polarized light-induced anisotropic orientation of binuclear Ni(II), Cu(II), and Zn(II) Schiff base complexes including or without methyl orange in PVA. In Polymer Science Book Series—Polymer Science: Research Advances, Practical Applications and Educational Aspects; Formatex Research Centre: Badajoz, Spain, 2016; Volume 1, In press. [Google Scholar]
  3. Tsuda, E.; Mitsumoto, Y.; Takakura, K.; Sunaga, N.; Akitsu, T.; Konomi, T.; Katoh, M. Electrochemical Tuning by Polarized UV Light Induced Molecular Orientation of Chiral Salen-Type Mn(II) and Co(II) Complexes in an Albumin Matrix. J. Chem. Chem. Eng. 2016, 2, 53–59. [Google Scholar]
  4. Kominato, C.; Akitsu, T. Photoinduced molecular orientation of catalytic-like chiral azo-Schiff base complexes in PMMA or laccase matrices. Lett. Appl. NanoBioSci. 2015, 2, 264–270. [Google Scholar]
  5. Natansohn, A.; Rochon, P. Photoinduced motions in azo-containing polymers. Chem. Rev. 2002, 102, 4139–4175. [Google Scholar] [CrossRef] [PubMed]
  6. Akitsu, T.; Itoh, T. Polarized spectroscopy of hybrid materials of chiral Schiff base cobalt(II), nickel(II), copper(II), and zinc(II) complexes and photochromic azobenzenes in PMMA films. Polyhedron 2010, 29, 477–487. [Google Scholar] [CrossRef]
  7. Aritake, Y.; Takanashi, T.; Yamazaki, A.; Akitsu, T. Polarized spectroscopy and hybrid materials of chiral Schiff base Ni(II), Cu(II), Zn(II) complexes with included or separated azo-groups. Polyhedron 2011, 30, 886–894. [Google Scholar] [CrossRef]
  8. Aritake, Y.; Akitsu, T. The role of chiral dopants in organic/inorganic hybrid materials containing chiral Schiff base Ni(II), Cu(II), and Zn(II) complexes. Polyhedron 2012, 31, 278–284. [Google Scholar] [CrossRef]
  9. Yamazaki, A.; Akitsu, T. Polarized spectroscopy and polarized UV light-induced molecular orientation of chiral diphenyl Schiff base Ni(II) and Cu(II) complexes and azobenzene in a PMMA film. RSC Adv. 2012, 2, 2975–2980. [Google Scholar] [CrossRef]
  10. Ito, M.; Akitsu, T.; Palafox, M.A. Theoretical interpretation of polarized light-induced supramolecular orientation on the basis of normal mode analysis of azobenzene as hybrid materials in PMMA with chiral Schiff base Ni(II), Cu(II), and Zn(II) complexes. J. Appl. Solut. Chem. Model. 2016, 5, 30–47. [Google Scholar]
  11. Akitsu, T.; Tanaka, R. Polarized Electronic and IR Spectra of Hybrid Materials of Chiral Mn(II) Complexes and Different Types of Photochromic Dyes Showing Photoisomerization or Weigert Effect. Curr. Phys. Chem. 2011, 1, 82–89. [Google Scholar] [CrossRef]
  12. Svechkarev, D.; Kolodezny, D.; Mosquera-Vázquez, S.; Vauthey, E. Complementary Surface Second Harmonic Generation and Molecular Dynamics Investigation of the Orientation of Organic Dyes at a Liquid/Liquid Interface. Langmuir 2014, 30, 13869–13878. [Google Scholar] [CrossRef] [PubMed]
  13. Hicks, M.R.; Kowalski, J.; Rodger, A. LD spectroscopy of natural and synthetic biomaterials. Chem. Soc. Rev. 2010, 39, 3380–3393. [Google Scholar] [CrossRef] [PubMed]
  14. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09, Revision D.01; Gaussian, Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  15. Akitsu, T.; Kominato, C. Molecular Recognition of Trans-Chiral Schiff Base Metal Complexes for Induced CD. In An Integrated View of the Molecular Recognition and Toxinology—From Analytical Procedures to Biomedical Applications; InTech: Rijeka, Croatia, 2013; pp. 515–532. [Google Scholar]
  16. Ito, M.; Akitsu, T. Polarized UV light induced molecular arrangement depending on flexibility of chiral Schiff base Ni(II), Cu(II), and Zn(II) complexes by azobenzene in PMMA matrix. Comtemp. Eng. Sci. 2014, 7, 869–877. [Google Scholar]
  17. Takase, M.; Ito, M.; Takano, H.; Akitsu, T. Crystal Structure of a Chiral Schiff Base Zinc(II) Complex, [Zn(C15H12Br2NO2)2]. Struct. Chem. Cryst. Commun. In press.
  18. Hariu, N.; Ito, M.; Akitsu, T. Linearly, Circularly, or Non-polarized Light Induced Supramolecular Arrangement of Diastereomer Schiff Base Ni(II), Cu(II), and Zn(II) Complexes by Azobenzene in PMMA Matrix. Comtemp. Eng. Sci. 2015, 8, 57–70. [Google Scholar]
  19. Okamoto, Y.; Nidaira, K.; Akitsu, T. Environmental Dependence of Artifact CD Peaks of Chiral Schiff Base 3d–4f Complexes in Softmater PMMA Matrix. Int. J. Mol. Sci. 2011, 12, 6966–6979. [Google Scholar] [CrossRef] [PubMed]
  20. Hattori, K.; Okamoto, Y.; Kominato, C.; Akitsu, T. PMMA matirx viscosity dependence of CD bands of flexible chiral Schiff base Ni(II), Cu(II), and Zn(II) complexes. Contemp. Eng. Sci. 2014, 7, 853–859. [Google Scholar]
  21. Okamoto, Y.; Akitsu, T. Viscosity Dependence of Solid-State CD Peaks of Chiral Schiff Base Ni(II) and Cu(II) Complexes in PMMA Soft Mater Matrices. J. Chem. Chem. Eng. 2013, 7, 487–494. [Google Scholar]

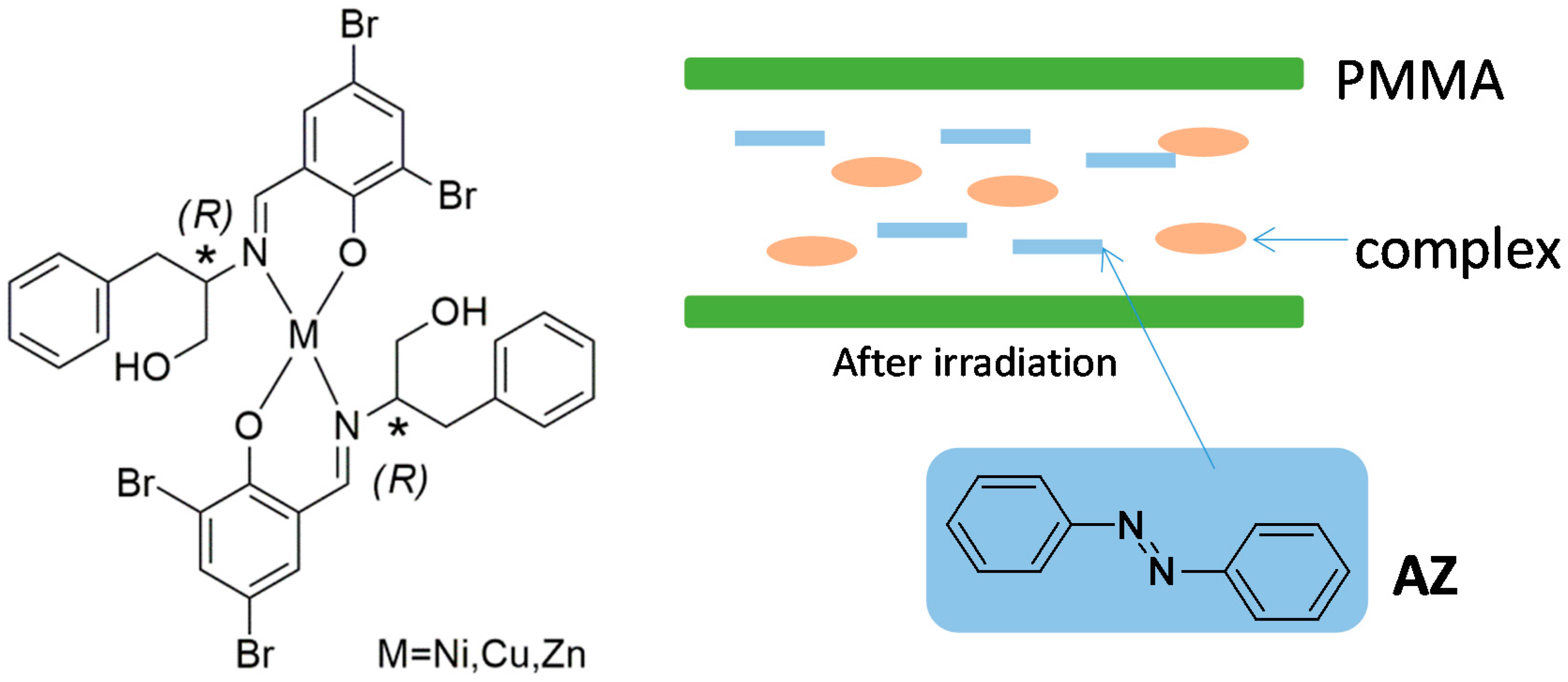

Figure 1. (Left) Molecular structures of Ni, Cu, and Zn; (Right) Schematic representation of organic/inorganic hybrid materials M+AZ+PMMA showing anisotropic molecular orientation after linearly polarized UV light irradiation.
Figure 1. (Left) Molecular structures of Ni, Cu, and Zn; (Right) Schematic representation of organic/inorganic hybrid materials M+AZ+PMMA showing anisotropic molecular orientation after linearly polarized UV light irradiation.
Inorganics 04 00020 g001

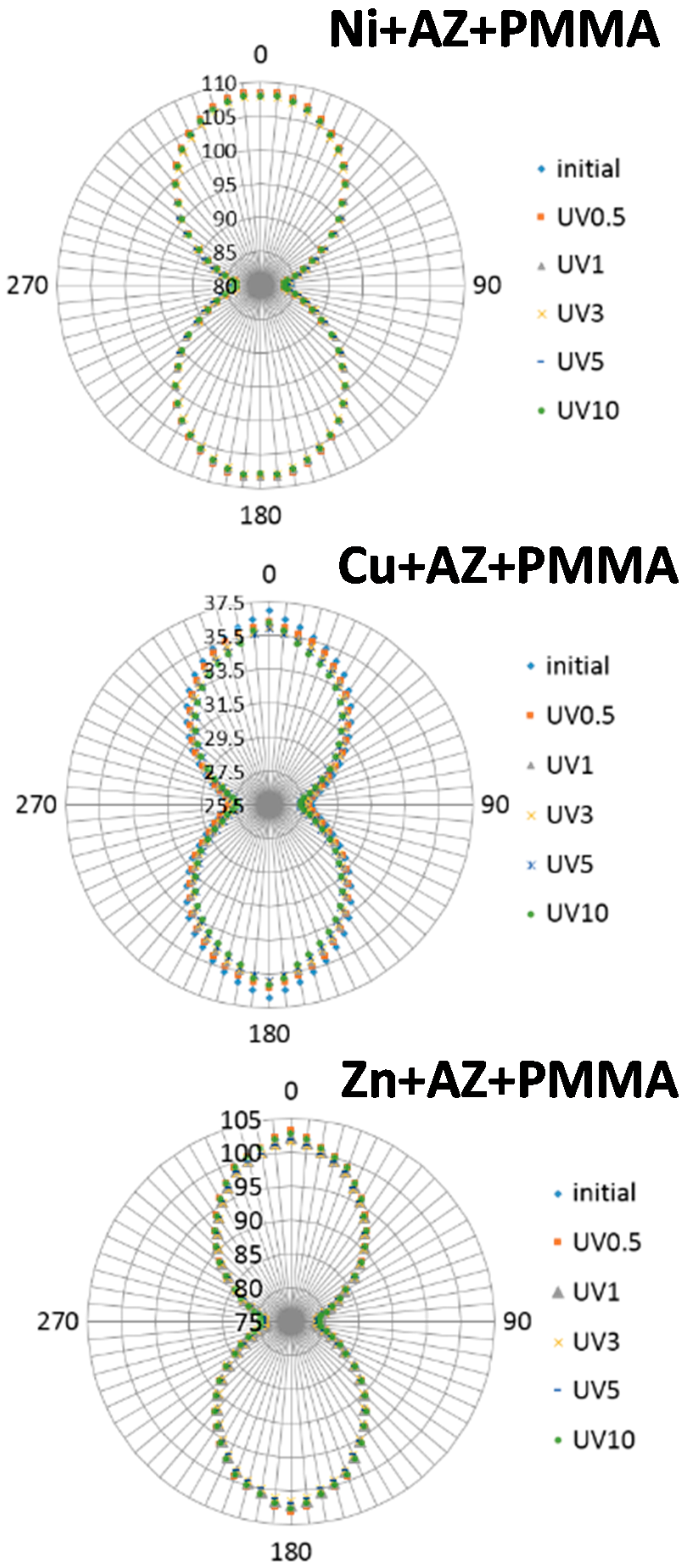

Figure 2. Angular dependence of polarized IR spectra (C=N bands at 1634, 1628, and 1617 cm−1) after irradiation of linearly polarized UV light Ni+AZ+PMMA, Cu+AZ+PMMA, and Zn+AZ+PMMA, respectively.
Figure 2. Angular dependence of polarized IR spectra (C=N bands at 1634, 1628, and 1617 cm−1) after irradiation of linearly polarized UV light Ni+AZ+PMMA, Cu+AZ+PMMA, and Zn+AZ+PMMA, respectively.
Inorganics 04 00020 g002

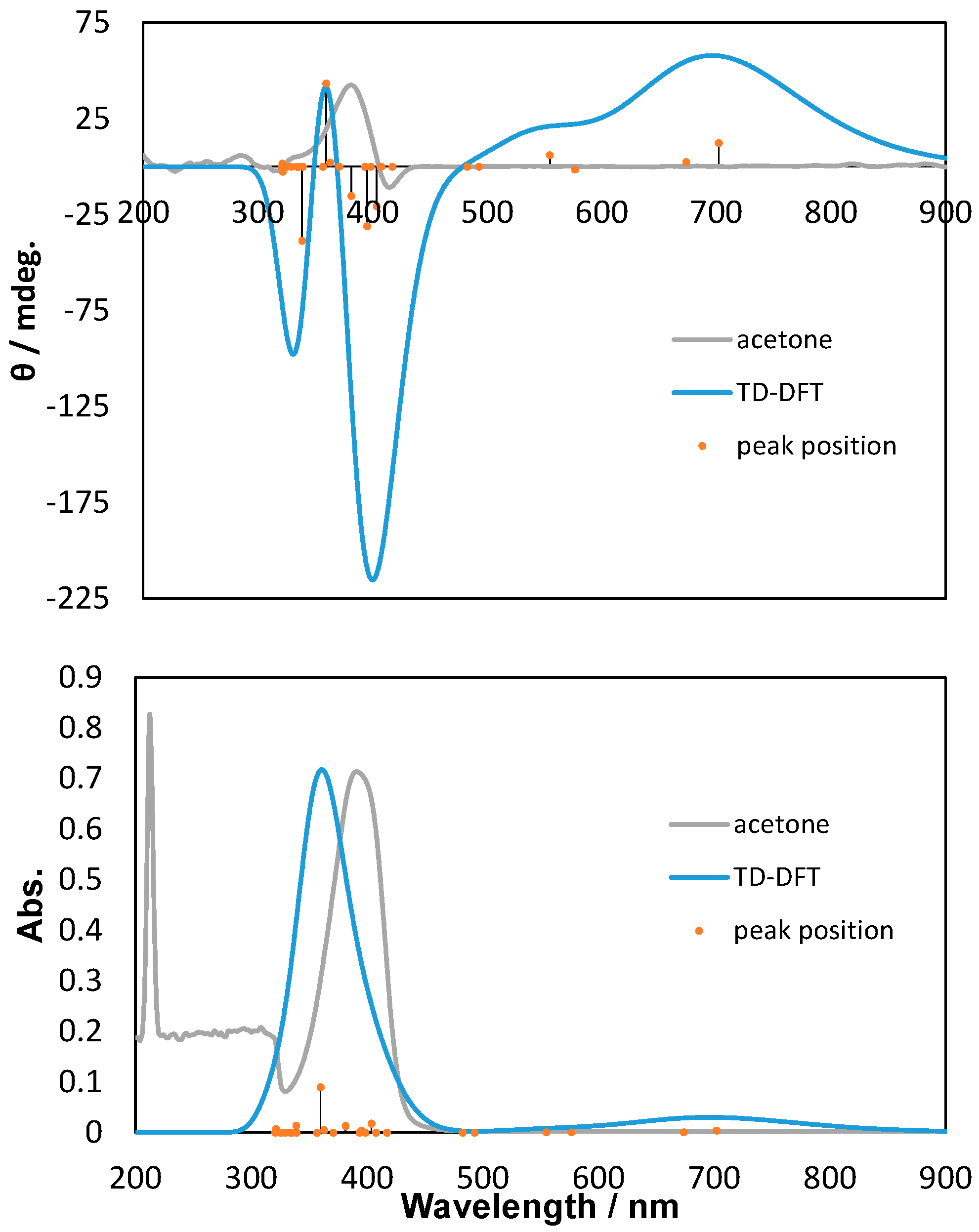

Figure 3. Experimental (in acetone solution) and simulated (UB3LYP/6-31G(d)) UV-Vis and CD spectra of Ni.
Figure 3. Experimental (in acetone solution) and simulated (UB3LYP/6-31G(d)) UV-Vis and CD spectra of Ni.
Inorganics 04 00020 g003

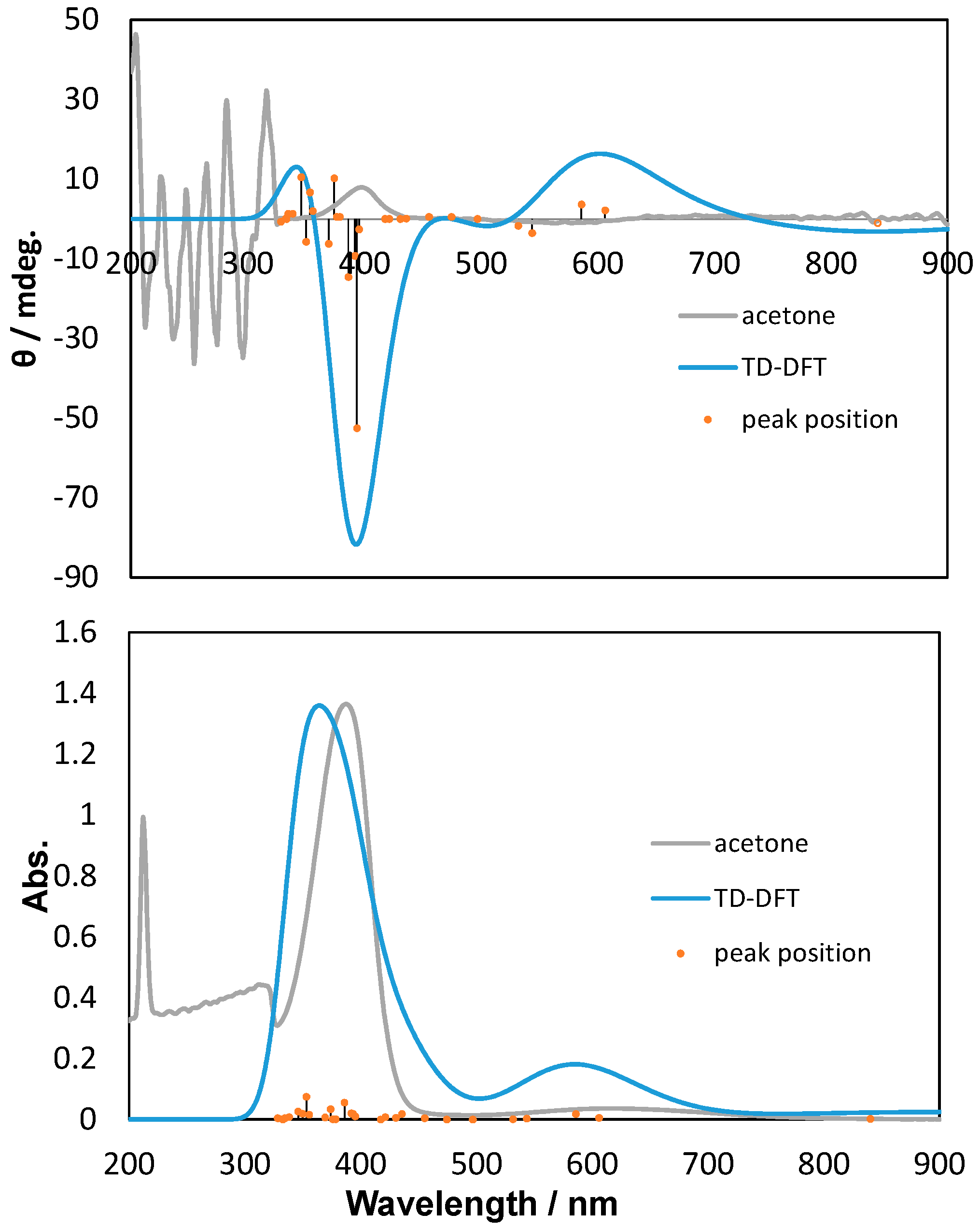

Figure 4. Experimental (in acetone solution) and simulated (UB3LYP/6-31G(d)) UV-Vis and CD spectra of Cu.
Figure 4. Experimental (in acetone solution) and simulated (UB3LYP/6-31G(d)) UV-Vis and CD spectra of Cu.
Inorganics 04 00020 g004
Figure 5. Experimental (in acetone solution) and simulated (UB3LYP/6-31G(d)) UV-Vis and CD spectra of Zn.
Figure 5. Experimental (in acetone solution) and simulated (UB3LYP/6-31G(d)) UV-Vis and CD spectra of Zn.
Inorganics 04 00020 g005

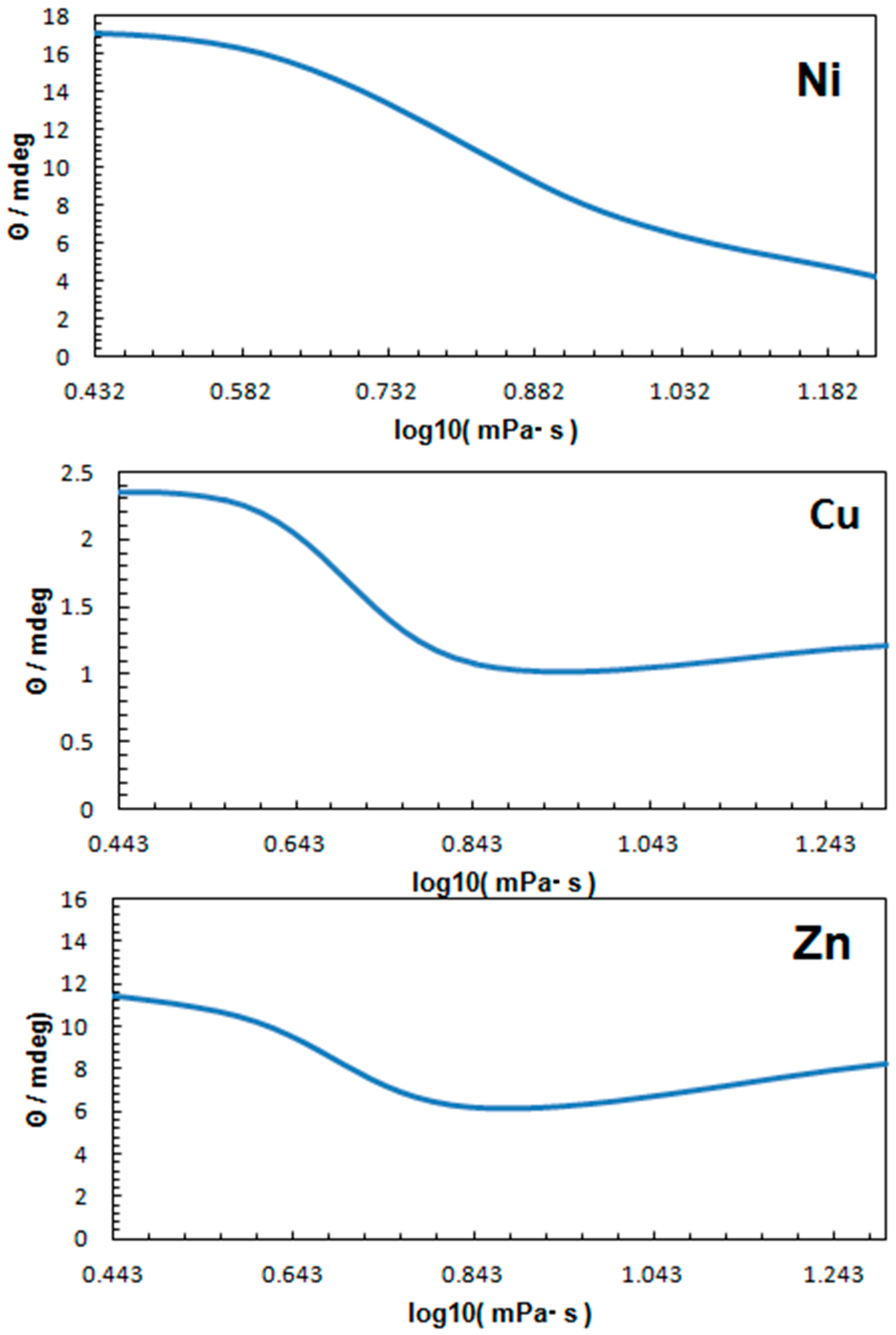

Figure 6. Correlation between concentration of PMMA acetone solutions Ni, Cu, or Zn and the intensity of artifact CD peaks.
