Article

Metal Rich Metallaboranes: Synthesis, Structure and Bonding of pileo-[(Cp*Ru)2M(CO)3(µ-H)(µ-E)(µ3-BH)B2H5] (M = Mo, W, E = CO, and M = Mn, E = H) Clusters

by
Alaka Nanda Pradhan
1,
Shippy Jaiswal
1,
Marie Cordier
2,
Jean-François Halet
2,3,* and
Sundargopal Ghosh
1,*
1
Department of Chemistry, Indian Institute of Technology Madras, Chennai 600036, India
2
Univ Rennes, CNRS, Ecole Nationale Supérieure de Chimie de Rennes, Institut des Sciences Chimiques de Rennes (ISCR), UMR 6226, F-35000 Rennes, France
3
Laboratory for Innovative Key Materials and Structures (LINK), CNRS—Saint-Gobain—NIMS, IRL 3629, National Institute for Materials Science (NIMS), Tsukuba 305-0044, Japan
*
Authors to whom correspondence should be addressed.
Inorganics 2024, 12(1), 7; https://doi.org/10.3390/inorganics12010007
Submission received: 17 November 2023 / Revised: 14 December 2023 / Accepted: 20 December 2023 / Published: 23 December 2023
(This article belongs to the Special Issue Boron Chemistry: Fundamentals and Applications)
Browse Figures
Versions Notes

Abstract

:
The synthesis and structural characterization of a series of heterotrimetallic ruthenaborane clusters are reported. The photolytic reaction of nido-[(Cp*Ru)2(µ-H)2B3H7] (nido-1) (Cp* = 1,2,3,4,5-pentamethylcyclopentadienyl) with [M(CO)5·THF] (THF = tetrahydrofuran, M = Mo and W) yielded the heterotrimetallic clusters pileo-[(Cp*Ru)2{M(CO)3}(µ-CO)(µ-H)(µ3-BH)B2H5], M = Mo (2), W (3) and the known arachno ruthenaboranes [1,2-(Cp*Ru)(Cp*RuCO)(µ-H)B3H8] (I) and [{Cp*Ru(CO)}2B2H6] (II). In an attempt to synthesize the Mn-analog of 2 and 3, we performed a similar reaction of nido-1 with [Mn2(CO)10], which afforded the heterotrimetallic pileo-[(Cp*Ru){Mn(CO)3}(µ-H)2(µ3-BH)B2H5] (4) cluster along with the reported trimetallic hydrido(hydroborylene) species [(Cp*Ru)2{Mn(CO)3}(µ-H)(µ-CO)3(µ-BH)] (III). Ruthenaboranes 2, 3 and 4 are isoelectronic and isostructural. The geometry of 2–4 can be viewed as a triangle face-fused square pyramidal and tetrahedral geometry, in which the apical vertex of the tetrahedron is occupied by a µ3–BH moiety. All of these pileo ruthenaborane clusters obey Mingos’ fusion formalism. Clusters 2–4 were characterized using multinuclear NMR, IR spectroscopies and electrospray ionization mass spectrometry. The single-crystal X-ray diffraction studies of clusters 2 and 4 confirmed their structures. Further, density functional theory (DFT) studies of these pileo ruthenaboranes have been carried out to investigate the nature of bonding, fusion and electronic structures.

Graphical Abstract

1. Introduction

In the past few decades, the study of boron cage compounds has emerged as an innovative and intriguing area of chemistry. This is due to boron’s extraordinary capacity to form stable, three-dimensional clusters that are covalently bonded rather than chains and rings [1,2,3,4]. This arises from the fact that it has one less valence electron than the number of valence orbitals, and the variety of ways in which boron seeks to solve the problem of having fewer electrons than atomic orbitals available for bonding (its “electron deficiency”) results in its rich chemistry. One solution is to adopt high connectivity with many boron–boron contacts, leading to polyhedral borane compounds with some unusual bonding features and unique structural motifs to compensate for this electron deficiency. Over the years, the synthesis and characterization of such polyhedral borane clusters with single- and condensed-cage geometries have garnered a lot of attention, built on the pioneering work of Alfred Stock ninety years ago [5]. By introducing carbon, main group, or transition-metal fragments to the polyhedral skeletons, many borane, carborane, metallaborane, metallacarborane and metallaheteroborane species have been isolated and characterized [6,7,8,9,10,11,12]. These species often demonstrate intriguing properties apart from their peculiar three-dimensional geometries and typical multicenter bonding interactions [13,14,15]. Some of them have been utilized in supramolecular design, ceramics, medicines, catalysis, nanomaterials, and polymer chemistry, for instance [16,17,18,19,20,21,22,23,24,25,26,27]. In parallel to the polyhedral clusters, another class of TM boron complexes with low boron content is of interest [2,8]. In particular, following the pioneering work of several people such as Fehlner [4,28], Kennedy [6,29] or Housecroft [11,30,31], to mention a few, we have contributed to enriching the library of the metal-rich single-cage and condensed-cage polyhedral clusters of early and late transition metals (TMs) over the last two decades [8].
The electron-counting principles that Wade and Williams [32,33,34,35] first proposed for single-cage boranes and were further developed by Mingos [36] and Jemmis [37,38] for single and fused polyhedral cages and their metal or main group derivatives have proven helpful for classifying and rationalizing the structural and electronic properties of these clusters, connecting the number of vertices n of the cage and the number of skeletal electron pairs (SEPs) [39,40]. Additionally, these electron-counting rules were useful for establishing new classes of closed and open polyhedral clusters and, depending on the number of missing vertices in the pseudo-deltahedral geometry, they were classified as closo (n + 1 SEP), nido (n + 2 SEPs), or arachno (n + 3 SEPs). Although thousands of such compounds have been synthesized, examples of clusters with capping vertices are not very common. The clusters with pileo geometry have a dual role. First, they describe systems with n SEPs. Second, they describe corresponding n-vertex clusters with a capped closed polyhedral [41]. Some of the known examples are pileo-[(PPh3)3(CO)2OsB5H5IrH] [42,43], pileo-[(CpFe)(ML3H)B5H7], and (M = Mo, L = PMe2Ph, M = W, L = PMe3) [44], reported by Barton’s and Green’s groups, respectively. For such hydride species where several geometric isomers are possible for a given number of SEPs, the observed isomeric form will depend on the steric and electronic demands of the bridging hydrogens, which contribute significantly to the energetics of these species. The specific role of bridging and extra skeletal hydrogens in cage bonding can give rise to specifications for their arrangement within the electron counting rules. Essentially, polyhedral metallaboranes can be viewed as a molecular bridge connecting polyhedral borane cages with transition metal clusters. This is a result of the Hoffmann’s isolobal principle, which states that a transition metal fragment can be considered to be isolobal with a BH unit or any monosubstituted boron center making up polyhedral boron clusters, and may consequently play an important role in cluster bonding [45].
As part of our research on such clusters, we performed the reaction of preformed metallaboranes with metal carbonyls in different conditions such as room temperature and heating [8,46,47]. Using this synthetic strategy, we have isolated and synthesized a series of metal-rich single- and condensed-cage metallaboranes in recent years. The reaction of ruthenaboranes, e.g., nido-[(Cp*Ru)2(µ-H)2B3H7] (nido-1) [48] and arachno-[{Cp*Ru(CO)}2B2H6] (II) [46], with different metal carbonyls afforded metal-rich triply bridged borylenes, interstitial and semi-interstitial borides and condensed clusters [8,46,47]. Very recently, we reported the formation of heterometallic metal-rich clusters from the reaction of nido-1 with group 7 metal carbonyls [M2(CO)10] (M = Mn, Re). The photolytic reaction afforded the hydrido(hydroborylene) compounds [(Cp*Ru)2M(CO)3-(µ-H)(µ-CO)3(µ-BH)] (M = Mn, Re), the heterotrimetallic square pyramidal cluster [(Cp*Ru)2Re(CO)3(µ-H)2(µ-CO)(µ,η2-B2H5)] and the planar heterotrimetallic hydride clusters [Cp*Ru(CO)x{Re(CO)4}(µ-H)y] (x = 2, y = 1 and x = 1, y = 3) [49]. Herein, we describe the synthesis, structure and bonding of pileo-[(Cp*Ru)2M(CO)3(µ-H)(µ-E)(µ3-BH)B2H5] (M = Mo, W, E = CO, and M = Mn, E = H) clusters.

2. Results and Discussion

Synthesis of the Pileo-Heterotrimetallic Clusters [(Cp*Ru)2M(CO)3(µ-H)(µ-E)(µ3-BH)B2H5] (M = Mo, W, E = CO, and M = Mn, E = H)

In recent years, we have reported the formation of heterometallic metal-rich clusters of early and late TMs [8,46,47]. In the past, all of these reactions were carried out under thermolytic conditions or at room temperature. Interestingly, in the photolytic conditions, we performed a reaction that led to the formation of a series of metal-rich metallaboranes [49]. So, relying on these results, we explored the chemistry with group 6 and 7 metal carbonyls. In an attempt to isolate similar types of heterometallic metal-rich clusters, we performed the room temperature photolytic reaction of nido-[(Cp*Ru)2(µ-H)2B3H7] (nido-1) with [M(CO)5·THF] (M = Mo and W) for 4 h, which led to the formation of pileo-[(Cp*Ru)2{M(CO)3}(µ-CO)(µ-H)(µ3-BH)B2H5], [M = Mo (2) Rf = 0.52 in CH2Cl2/n-hexane (10:90 v/v) and W (3) Rf = 0.44 in CH2Cl2/n-hexane (10:90 v/v)] and known arachno-[1,2-(Cp*Ru)(Cp*RuCO)(µ-H)B3H8] (I) [50] and arachno-[{Cp*Ru(CO)}2B2H6] (II) [46] (Scheme 1). In an attempt to synthesize the Mn-analog of 2 and 3, we carried out the room temperature photolytic reaction of nido-1 with [Mn2(CO)10] in hexane for 4 h, which led to the formation of pileo-[(Cp*Ru)2Mn(CO)3(µ-H)2(µ3-BH)B2H5] (4) [Rf = 0.71 in CH2Cl2/n-hexane (10:90 v/v)], I and the reported hydrido(hydroborylene) [(Cp*Ru)2{Mn(CO)3}(µ-H)(µ-CO)3(µ-BH)] (III) (Scheme 1). Ruthenaborane clusters 2, 3 and 4 were characterized by multinuclear NMR, IR spectroscopies and mass spectrometry. Finally, single-crystal diffraction analysis was performed to determine the structure of clusters 2 and 4.
Heterotrimetallic clusters: Clusters 2–4 were isolated in 26%, 22% and 24% yields, respectively, as air-stable orange solids. The room-temperature 11B{1H} NMR spectra of clusters 2–4 show three distinct chemical shifts at δ = 120.7, 15.9, −0.2 (2), 122.3, 21.2, 0.4 (3) and 118.0, 21.9, −1.5 (4) ppm in a 1:1:1 ratio. The downfield broad chemical shifts at δ = 120.7, 122.3 and 118.0 ppm, for 2–4, respectively, indicate the presence of a bridging borylene boron atom. The presence of a borylene moiety is also confirmed by the broad peaks at δ = 8.71, 9.31 and 8.59 ppm in the 1H NMR spectra of 2, 3 and 4, respectively, which are the characteristic peaks of a borylene moiety. Further, clusters 2, 3 and 4 exhibit a sharp peak at δ = −12.89, −12.52 and −12.13 ppm, respectively, which may be due to the presence of ruthenium hydrides. The 1H spectra of 2–4 indicate the presence of two different Cp* environments, which was further validated by the 13C{1H} NMR spectra of 2 and 3. In addition, the 1H spectra display broad upfield resonances at δ = −3.64, −10.37, −15.06 (2), −3.91, −11.55, −14.37 (3) and −3.98, −15.13 (4) ppm that may be due to B-H-B, M-H-B (M = Mo, W and Mn) or Ru-H-B. In 4, the upfield sharp signals at δ = −17.97 ppm correspond to Mn-H-Ru.
The IR spectra exhibit bands for terminal BH, terminal and bridging CO ligands of clusters 2 and 3, whereas cluster 4 shows peaks for only terminal BH and terminal CO ligands. The ESI-MS spectra of clusters 2–4 show isotopic patterns at m/z = 720.0142, 810.0559 and 653.0523 that correspond to C23H38O4B3Ru2Mo [M]+, C23H39O4B3Ru2W [M + H]+, and C23H38O4B3Ru2Mn [M]+, respectively. Although the broad resonances in 1H and 11B{1H} suggest the presence of a borylene species (µ-BH), their exact core geometries were not anticipated from these spectroscopic data. In order to interpret the structures and to confirm the spectroscopic assignments, a single-crystal X-ray diffraction study was performed on crystals from 2 and 4.
Suitable crystals for X-ray diffraction were obtained from the hexane/CH2Cl2 solution of clusters 2 and 4 at 5 °C. Both clusters 2 and 4 crystallize in the monoclinic system with space group P21/n. As shown in Figure 1, clusters 2 and 4 can be considered as adopting a nido-square pyramidal geometry capped by a BH fragment. The geometry of cluster 3 was established through the comparison of its spectroscopic data with cluster 2 and other similar pileo-trimetallic metallaboranes (Table 1) [47,51,52]. The structure of 3 seems similar to 2, and can also be considered as having a capped nido-square pyramidal Ru2MB3 (M = Mo, W) geometry. Alternatively, the core geometry of these clusters can also be viewed as a face-fused polyhedron composed of an Ru2MB2 (M = Mo, W, Mn) distorted square pyramid and an RuMB (M = Mo, W, Mn) tetrahedral framework (Figure 2). This kind of cluster can be referred to as a pileo structure with a monocapped square pyramidal geometry analogous to that of pentaborane(9). One interesting feature of clusters 2–4 is the presence of a bridging borylene ligand (µ3-BH). The generation of clusters 2–4 can be described by the geometry rearrangement of nido-1. One BH moiety might be replaced from the basal position to the capped position to produce clusters 2 and 3 by introducing one {M(CO)3} fragment and a bridging CO ligand in the basal position, followed by the elimination of a H2 unit. However, in 4, there is no bridging CO ligand between Ru and Mn to satisfy the electron count. Three endo hydrogens and one CO in 2 and 3 bridge the distorted open square face [Ru2MB2] (M = Mo, W) and one hydrogen bridges two Ru atoms, whereas in 4, four endo hydrogens bridge the distorted open square face [RuMnB2]. Similar to clusters 2 and 3, one hydrogen bridges one apical and one basal Ru atom in 4. The distorted square pyramidal core of 2–4 is similar to that encountered in [(Cp*Ru)2{Re(CO)3}(µ-H)2(µ-CO)B2H5] [49] and [{Ru(CO)3}3(µ-H)B2H5] [53,54]. The existence of clusters 2–4 allows us to draw a structural comparison with the reported clusters with a similar geometry, but with different transition metals (Table 1) [47,51,52]. The axial Ru atom of the distorted square pyramid is situated approximately 1.804 Å (2) and 1.784 Å (4) above the RuMB2 square plane, which is comparable to distances measured in the similar types of clusters shown in Table 1. The two ruthenium atoms (apical and basal) are separated by an intermetallic distance of 2.7738(3) Å (2) and 2.7536(5) Å (4), which is in the typical range for a Ru-Ru single bond, but less compared to distances in homometallic pileo-[(Cp*Ru)3(µ-H)2(µ3-BX)B2H5] (X = H (2.807 Å) [51], Cl (2.8323 Å) [47]. In addition, the observed B-B bond distances of 1.796(3) Å (2) and 1.781(8) Å (4) suggest the presence of B-B single bonds in 2 and 4 and comparatively less than in the similar clusters reported in Table 1 [47,51,52]. The core geometry of 2–4 is also comparable to the homo- and hetero-metallic clusters pileo-2,3-[{Fe(PMe3)2}2(µ-H)B4H9] [55], pileo-2,3-[(Cp*Ru)2(µ-H)B4H7] [48], pileo-[(Cp*Rh){Ru(CO)3}4(µ-Cl)B] [56], pileo-[(Cp*TaCl){Ru3(CO)8}(µ-Cl)B2H4] [8], different geometrical isomers of pileo-2,3-[(Cp*Ru)2(µ-H)B4H5Cl2] and pileo-2,3-[(Cp*Ru)2(µ-H)B4H4Cl4] [57]. The average Ru-B bond length in 4 (2.170 Å) is comparable with that in pileo-[(Cp*Ru)3(µ-H)2(µ3-BX)B2H5] (X = H [51], Cl [47], whereas this bond length is longer in the case of 2 (2.320 Å). As shown in Figure 1, the orientations of the {Mo(CO)3} and {Mn(CO)3} fragments are different in 2 and 4. The orientation in 2 is similar to pileo-[(Cp*Rh)2{Cr(CO)3}(µ-CO)(µ3-BH)B2H4] [47], whereas in 4, it is similar to that in pileo-[(Cp*Rh)2{M(CO)3}(µ-CO)(µ3-BH)B2H4] (M = Mo, W) [52]. In 2, the average Mo-B (2.383 Å) and Ru-Mo (2.849 Å) bond lengths are in accordance with those reported in molybdaboranes [52,58]. Also, the average Mn-Ru (2.768 Å) and Mn-B (2.236 Å) bond distances in 4 are in the range of those reported for the related clusters [59,60]. The qualitative shape of clusters 2 and 4 is similar and the only significant geometrical difference is the slight deviation of the dihedral angle between Ru2M′ and RuB2 planes from 114.6° (2) to 115.9° (4) upon moving from group 6 to 7 (Figure 2). The corresponding dihedral angle between the planes M2M′ and MB2 in the reported pileo-trimetallic metallaboranes ranges from 114 to 119° (Table 1).
A series of metal-rich metallaboranes with a condensed geometry is documented in the literature with different structural motifs of borons and metals. As discussed earlier, Wade, Mingos, Jemmis, and others proposed various complementary electron-counting rules for rationalizing the geometries of the main group and TM condensed clusters with respect to their cluster valence electron count (cve) and skeletal electron pairs (SEPs) [32,33,34,35,36,37,38]. According to polyhedral skeletal electron pair theory (PSEPT) [36], clusters 2–4 share the same skeleton electron pairs (7 SEPs), i.e., (n + 1) (2, 3: 2Cp*Ru (2 × 1 = 2) + 3BH (3 × 2 = 6) + 4H (4) + Mo(CO)3/W(CO)3 (0) + CO (2) = 14 electrons = 7 SEPs), 4: 2Cp*Ru (2 × 1 = 2) + 3BH (3 × 2 = 6) + 5H (5) + Mn(CO)3 (1) = 14 electrons = 7 SEPs) as that of nido-1, despite having pileo geometry. The electron count for clusters 2–4 was justified using Mingos’ fusion formalism, which is equal to the electron count for the parent cluster minus the electron count of shared units. Thus, the total cve count accessible for 2–4 is 56 {square pyramid [Ru2MB2] (54 e) + tetrahedron [Ru2MB2] (50 e)—triangle [Ru2M] (48 e) = 56 e}, which is the same if one uses the fused polyhedral model (2, 3: 2Cp*Ru (2 × 13 = 26) + 3B (3 × 3 = 9) + 7H (7) + M (6) + 4CO (4 × 2 = 8) = 56 e, 4: 2Cp*Ru (2 × 13 = 26) + 3B (3 × 3 = 9) + 8H (8) + Mn (7) + 3CO (3 × 2 = 6) = 56 e).
Density functional theory (DFT) calculations were performed at the BP86/def2-TZVP level of theory on clusters 2, 3 and 4 to gain some insights into their bonding and electronic properties. The molecular orbital analyses of 2 (Figure 3a), 3 (Figure 3c) and 4 (Figure 3e), indicate that the HOMOs are essentially localized on the metal atoms. In cluster 4, there is also some presence of a weak bonding interaction involving the H 1s orbital and d orbitals of Ru1 and Mn1 centers. Further, the LUMO of 2 (Figure 3b), 3 (Figure S17e) and 4 (Figure S18e) display antibonding interactions between the metal atoms (Ru, Mo for 2, Ru, W for 3 and Ru, Mn for 4). Additionally, HOMO-9 of 2 (Figure S16c), 3 (Figure 3d) and 4 (Figure 3f) shows strong bonding interaction between the capped boron atom and the Ru2M triangle, which suggests a μ3-bonding mode for the boron atom. Let us note that HOMO-12 and HOMO-13 in 4 show extended overlap involving metal d-orbitals and boron p-orbitals, as shown in Figure 4a and Figure S18c (not shown in the case of clusters 2 and 3).
A Natural Bond Orbital (NBO) analysis indicated the existence of a three-center-two-electron bond along the Ru1-H1-Mn1 in 4 (Figure 4b). This was further confirmed from a topological analysis showing that the contour line map displays bond-critical points (BCPs) between Ru1-H1 and Mn1-H1 bonds in the Ru1-H1-Mn1 plane, as depicted in Figure 4c. Surprisingly, the NBO analysis unexpectedly revealed that the capped boron atom has a very high positive natural charge in the case of clusters 2–4 (0.74, 0.68 and 0.72 for 2, 3 and 4, respectively), while the other two planar boron atoms possess small negative natural charges (−0.11 and −0.10 for 2, −0.13 and −0.10 for 3, and −0.06 and −0.10 for 4), as shown in Table S2, indicating that the capped boron should be very prone to nucleophilicity.

3. Materials and Methods

3.1. General Methods and Instrumentation

All of the reactions were accomplished under an argon atmosphere with standard Schlenk line and glove box techniques. All of the solvents were distilled using appropriate drying agents prior to use. CDCl3 was degassed and distilled before recording all NMR spectra and stored over molecular sieves. Nido-1,2-[(Cp*RuH)2B3H7] (nido-1) [48] was prepared according to literature methods, while [LiBH4·THF], [Mo(CO)6], [W(CO)6] and [Mn2(CO)10] were obtained commercially and used as received. Thin-layer chromatography (TLC) was performed on 250 mm aluminum-supported silica gel TLC plates. The NMR spectra were recorded on 500 MHz Bruker FT-NMR spectrometers. The residual solvent protons were used as a reference (δ, ppm, CDCl3, 7.26) and the residual solvent carbon for 13C{1H} NMR spectra was used as a reference (δ, ppm, CDCl3, 77.16 and δ, ppm, d6-benzene, 128.07). A sealed tube containing [Bu4N(B3H8)] (δB, -30.07 ppm) in C6D6 was used as external reference in 11B NMR, which was synthesized according to the method in the literature [61]. The 11B-decoupled 1H spectra were obtained with inverse gated decoupling (zgig) pulse sequences. All pulse sequences are available in a commercial Bruker spectrometer. 1H-decoupled 11B spectra were processed with a backward linear prediction algorithm to remove the broad 11B background signal from the NMR probe and NMR tube [62,63]. The ESI-MS spectra were recorded on 6545 Qtof LC/MS and Qtof Micro YA263 HRMS instruments. The IR spectra were recorded on a JASCO FT/IR-1400 apparatus using a dichloromethane (CH2Cl2) solvent. The photoreactions described here were conducted in an LZC-4 V Luzchem photoreactor (Luzchem Research, Inc., Gloucester, ON, Canada) with 14 UVA lamps (8 W HITACHI FL8BL-B; λ = (350 ± 50) nm).
Synthesis of 2 and 3: In a flame-dried Schlenk tube, a yellow solution of nido-1 (0.1 g, 0.19 mmol) was taken and a freshly prepared yellow solution of [Mo(CO)5·THF] (UV irradiation of Mo(CO)6 (0.07 g) in 10 mL of THF for 20 min) was added dropwise using a cannula at ambient temperature. The reaction mixture was UV-irradiated for over 4 h and the color change from yellow to red was observed. The solution was subjected to evaporation under reduced pressure and subjected to thin-layer chromatography using silica gel TLC plates for the separation of the reaction mixture. Elution with CH2Cl2/hexane (10:90 v/v) yielded air-stable pure orange solid 2 (0.037 g, 26%) and known yellow I (0.019 g, 19%) [50] and II (0.009 g, 7%) [46]. Note that the treatment of nido-1 with [W(CO)5·THF] (UV irradiation of W(CO)6 (0.07 g) in 10 mL of THF for 20 min) afforded orange 3 (0.035 g, 22%) along with clusters I (0.019 g, 19%) and II (0.009 g, 7%).
2: MS (ESI+) calcd. for C23H38O4B3Ru2Mo [M]+ m/z 720.0155, found 720.0142; 11B NMR (22 °C, 128 MHz, CDCl3): δ = 120.7, 15.9, −0.2 ppm; 1H NMR (22 °C, 500 MHz, CDCl3): δ = 3.42 (br, 1H, BHt), 4.62 (br, 1H, BHt), 8.71 (br, 1H, BHt), 1.92 (s, 15H, Cp*), 1.79 (s, 15H, Cp*), −3.64 (1H, B-H-B), −10.37 (1H, Ru-H-B), −12.89 (1H, Ru-H-Ru), −15.06 (1H, Mo-H-B) ppm; 13C{1H} NMR (22 °C, 100 MHz, CDCl3): δ = 10.4, 11.0 (s, C5Me5), 98.7 (s, C5Me5) (accidental overlapping of two Cp* ligands’s chemical shifts), 251.2 (CO) ppm; IR (CH2Cl2, cm−1): 2489, 2455 (BHt), 1994, 1933, 1875 (terminal CO), 1788 (bridging CO).
3: MS (ESI+) calcd. for C23H39O4B3Ru2W [M + H]+ m/z 810.0695, found 810.0559; 11B NMR (22 °C, 128 MHz, CDCl3): δ = 122.3; 21.2, 0.4 ppm; 1H NMR (22 °C, 500 MHz, CDCl3): δ = 3.46 (br, 1H, BHt), 4.12 (br, 1H, BHt), 9.31 (br, 1H, BHt), 1.78 (s, 15H, Cp*), 1.93 (s, 15H, Cp*), −3.91 (1H, B-H-B), −11.55 (1H, Ru-H-B), −12.52 (1H, Ru-H-Ru), −14.37 (1H, W-H-B) ppm; 13C{1H} NMR (22 °C, 100 MHz, CDCl3): δ = 10.4, 11.0 (s, C5Me5), 98.8, 95.8 (s, C5Me5) 249.4 (CO) ppm; IR (CH2Cl2, cm−1): 2468, 2435 (BHt), 1994, 1936, 1875 (terminal CO), 1794 (bridging CO).
Synthesis of 4: In a flame-dried Schlenk tube, a yellow solution of nido-1 (0.100 g, 0.19 mmol) and [Mn2(CO)10] (0.045 g, 0.11 mmol) in hexane (15 mL) was taken. Then, the mixture was UV-irradiated for over 4 h. The volatile components were removed under vacuum. After the removal of the solvent, the residue was subjected to chromatographic workup using silica gel TLC plates. Elution with CH2Cl2/hexane (10:90 v/v) yielded air-stable pure orange 4 (0.031 g, 24%) and III (0.008 g, 6%) [49].
4: MS (ESI+) calcd. for C23H38O4B3Ru2Mn [M]+ m/z 653.0602, found 653.0523; 11B NMR (22 °C, 128 MHz, CDCl3): δ = 118.0, 21.9, −1.5 ppm; 1H NMR (22 °C, 500 MHz, CDCl3): δ = 2.32 (br, 1H, BHt), 4.07 (br, 1H, BHt), 8.59 (br, 1H, BHt), 1.86 (s, 15H, Cp*), 1.93 (s, 15H, Cp*), −3.98 (1H, B-H-B), −12.13 (1H, Ru-H-Ru), −15.13 (2H, Mn-H-B, Ru-H-B), −17.97 (1H, Ru-H-Mn) ppm; IR (CH2Cl2, cm−1): 2485, 2448 (BHt), 2001, 1929, 1902 (terminal CO).

3.2. Single-Crystal X-ray Diffraction Analysis

The crystallographic and structural refinement data of 2 and 4 are given in Table 2. Suitable X-ray-quality crystals of 2 and 4 were grown via the slow diffusion of a n-hexane/CH2Cl2 solution at 5 °C. The crystal data were collected and integrated using a Bruker APEX-II CCD diffractometer for 2, and Bruker APEXII CCD for 4, with graphite monochromated Mo Kα (λ = 0.71073 Å) radiation at 296(2) K. The structures of these compounds were solved using heavy atom methods with SHELXS-97 and SHELXT-2014 [64,65,66] and refined with SHELXL-2014, SHELXL-2017 and SHELXL-2018 [65]. All molecular structures were drawn using Olex2 [67].

3.3. Computational Details

The optimization of clusters 2–4 was carried out using the Gaussian 16 program [68] with the BP86 functional [69,70] and the def2-TZVP basis set [71] from the EMSL (Environmental Molecular Sciences Laboratory) Basis Set Exchange Library [72]. The model compounds were thoroughly optimized without any solvent effect in the gaseous state, starting with X-ray crystallographic structures. Frequency calculations were carried out to check the nature of the stationary states and to confirm the absence of any imaginary frequency, which eventually confirmed energy minima on the potential energy hyper surface for all structures. A natural bond orbital (NBO) [73] analysis was performed with the NBO partitioning scheme implemented in the Gaussian 16 code. The Chemcraft [74] visualization program was used to plot all of the optimized structures and orbital pictures. The Multiwfn V.3.6 package [75] was used to create two-dimensional electron density and Laplacian electronic distribution plots.

4. Conclusions

In this article, we have demonstrated the isolation and structural characterization of new pileo heterotrimetallic clusters 2–4 in the coordination sphere of group 6, 7 and 8 transition metals. Clusters 2–4 possess a pileo geometry with 7 SEPs (n + 1). One of the interesting features of all of these clusters is the existence of a triply bridging borylene ligand (µ3-BH), which is stabilized by the heterotrimetallic transition metal (Ru2M, M = Mo, W and Mn) framework. The geometry of these clusters can also be considered as the outcome of the fusion of a trimetallic tetrahedron with a square pyramid, following Mingos’ fusion formalism. Furthermore, we observed that the insertion of TM carbonyl fragments can generate relatively air-stable clusters.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/inorganics12010007/s1, 1H, 11B{1H}, 13C{1H} NMR, IR and mass spectra (Figures S1–S14); X-ray analysis details and CIF and checkCIF files as well as the xyz coordinates of the DFT-optimized model clusters, calculated HOMO and LUMO energy levels and HOMO-LUMO gaps, selected bond parameters and their Wiberg bond indices (WBI) for clusters 2–4 (Figure S15–S21).

Author Contributions

A.N.P. and S.J. formulated and planned the experiments; A.N.P. and S.J. carried out the synthesis and spectroscopic analyses and discussed the results with S.G. and J.-F.H.; A.N.P. and S.J. organized the manuscript with guidance from S.G. and J.-F.H.; M.C. and J.-F.H. performed the X-ray analysis; and S.G. supervised the project and oversaw the project administration. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by ERF, IIT Madras (grant no.—RF/2223/0528/CY/RFER/008224).

Data Availability Statement

Accession codes: 2192116 (2), 2192115 (4). Crystallographic data can be acquired for free from the Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/data_request/cif, accessed on 1 November 2023, by emailing [email protected], or by contacting the Cambridge Crystallographic Data Centre, 12 Union Road, Cambridge, CB2 1EZ, UK; Fax: +44-1223-336033.

Acknowledgments

A.N.P. thanks the University Grants Commission (UGC), India, and S.J. thanks the Council of Scientific & Industrial Research (CSIR), India, for the research fellowship. The Department of Chemistry, IIT Madras, is gratefully acknowledged for the X-ray support. The authors thank IIT Madras for the computational facilities. We thank Venkatachalam Ramkumar for single-crystal X-ray diffraction data analyses.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Brown, L.D.; Lipscomb, W.N. Closo Boron Hydrides with 13 to 24 Boron Atoms. Inorg. Chem. 1977, 16, 2989–2996. [Google Scholar] [CrossRef]
  2. Marder, T.B.; Lin, Z. Contemporary Metal Boron Chemistry I Borylenes, Boryls, Borane Sigma-Complexes, and Borohydrides. In Structure and Bonding; Springer: Berlin, Germany, 2008; Volume 130. [Google Scholar]
  3. Shameema, O.; Pathak, B.; Jemmis, E.D. Theoretical study of the reaction of B20H16 with MeCN: Closo/closo to closo/nido conversion. Inorg. Chem. 2008, 47, 4375–4382. [Google Scholar] [CrossRef] [PubMed]
  4. Fehlner, T.P.; Halet, J.-F.; Saillard, J.-Y. Molecular Clusters. A Bridge to Solid-State Chemistry; University Press: Cambridge, UK, 2007. [Google Scholar]
  5. Stock, A. Hydrides of Boron and Silicon; Cornell University Press: Ithaca, NY, USA, 1933. [Google Scholar]
  6. Kennedy, J.D. The Polyhedral Metallaboranes. Prog. Inorg. Chem. 1986, 34, 211–434. [Google Scholar]
  7. Grimes, R.N. Carboranes, 3rd ed.; Elsevier: Oxford, UK, 2016. [Google Scholar]
  8. Kar, S.; Pradhan, A.N.; Ghosh, S. Polyhedral Metallaboranes and Metallacarboranes. In Comprehensive Organometallic Chemistry IV; Parkin, G., Meyer, K., O’hare, D., Eds.; Elsevier: Amsterdam, The Netherlands, 2022; Volume 9, pp. 263–369. [Google Scholar]
  9. Avdeeva, V.V.; Malinina, E.A.; Kuznetsov, N.T. Boron cluster anions and their derivatives in complexation reactions. Coord. Chem. Rev. 2022, 469, 214636–214744. [Google Scholar] [CrossRef]
  10. Grimes, R.N. Transition metal Metallacarboranes. In Comprehensive Organometallic Chemistry II; Abel, E.W., Stone, F.G.A., Wilkinson, G., Eds.; Pergamon: Oxford, UK, 1995; Volume 1, pp. 373–430. [Google Scholar]
  11. Housecroft, C.E. Boron Atoms in Transition Metal Clusters. Adv. Organomet. Chem. 1991, 33, 1–50. [Google Scholar]
  12. Hosmane, N.S.; Maguire, J.A. Metallacarboranes of d- and f-block metals. In Comprehensive Organometallic Chemistry III; Crabtree, R.H., Mingos, D.M.P., Eds.; Elsevier: Amsterdam, The Netherlands, 2007; Volume 3, pp. 175–264. [Google Scholar]
  13. King, R.B. Three-Dimensional Aromaticity in Polyhedral Boranes and Related Molecules. Chem. Rev. 2001, 101, 1119–1152. [Google Scholar] [CrossRef] [PubMed]
  14. Jemmis, E.D. Overlap control and stability of polyhedral molecules. closo-Carboranes. J. Am. Chem. Soc. 1982, 104, 7017–7020. [Google Scholar] [CrossRef]
  15. Mingos, D.M.P.; Wales, D.J. Introduction to Cluster Chemistry; Prentice Hall: Hoboken, NJ, USA, 1990. [Google Scholar]
  16. Tietze, L.F.; Griesbach, U.; Bothe, U.; Nakamura, H.; Yamamoto, Y. Novel Carboranes with a DNA Binding Unit for the Treatment of Cancer by Boron Neutron Capture Therapy. Chem. Bio. Chem. 2002, 3, 219–225. [Google Scholar] [CrossRef]
  17. Hosmane, N.S.; Eagling, R.D. Hand Book of Boron Science with Applications in Organometallics, Catalysis, Materials and Medicine; World Scientific: Singapore, 2018. [Google Scholar]
  18. Zhang, X.; Yan, H. Transition metal-induced B−H functionalization of o-carborane. Coord. Chem. Rev. 2019, 378, 466–482. [Google Scholar] [CrossRef]
  19. Zhang, J.; Xie, Z. Synthesis, Structure, and Reactivity of 13- and 14-Vertex Carboranes. Acc. Chem. Res. 2014, 47, 1623–1633. [Google Scholar] [CrossRef]
  20. Deng, L.; Xie, Z. Advances in the chemistry of carboranes and metallacarboranes with more than 12 vertices. Coord. Chem. Rev. 2007, 251, 2452–2476. [Google Scholar] [CrossRef]
  21. Chen, M.; Zhao, D.; Xu, J.; Li, C.; Lu, C.; Yan, H. Electrooxidative B−H Functionalization of nido-Carboranes. Angew. Chem. Int. Ed. 2021, 60, 7838–7844. [Google Scholar] [CrossRef] [PubMed]
  22. Farràs, P.; Juárez-Pérez, E.J.; LepšÍk, M.; Luque, R.; Núñez, R.; Teixidor, F. Metallacarboranes and Their Interactions: Theoretical Insights and Their Applicability. Chem. Soc. Rev. 2012, 41, 3445–3463. [Google Scholar] [CrossRef] [PubMed]
  23. Núñez, R.; Tarrés, M.; Ferrer-Ugalde, A.; de Biani, F.F.; Teixidor, F. Electrochemistry and Photoluminescence of Icosahedral Carboranes, Boranes, Metallacarboranes, and Their Derivatives. Chem. Rev. 2016, 116, 14307–14378. [Google Scholar] [CrossRef] [PubMed]
  24. Teixidor, F.; Núñez, R.; Flores, M.A.; Demonceau, A.; Viñas, C. Forced Exo-Nido Rhoda and Ruthenacarboranes as Catalyst Precursors. A review. J. Organomet. Chem. 2000, 614–615, 48–56. [Google Scholar] [CrossRef]
  25. Núñez, R.; Romero, I.; Teixidor, F.; Viñas, C. Icosahedral boron clusters: A perfect tool for the enhancement of polymer features. Chem. Soc. Rev. 2016, 45, 5147–5173. [Google Scholar] [CrossRef] [PubMed]
  26. Kirlikovali, K.O.; Axtell, J.A.; Gonzalez, A.; Phung, A.C.; Khan, S.I.; Spokoyny, A.M. Luminescent metal complexes featuring photophysically innocent boron cluster ligands. Chem. Sci. 2016, 7, 5132–5138. [Google Scholar] [CrossRef]
  27. Fink, K.; Uchman, M. Boron cluster compounds as new chemical leads for antimicrobial therapy. Coord. Chem. Rev. 2021, 431, 213684–213693. [Google Scholar] [CrossRef]
  28. Ghosh, S.; Noll, B.C.; Fehlner, T.P. Expansion of iridaborane clusters by addition of monoborane. Novel metallaboranes and mechanistic detail. Dalton Trans. 2008, 371–378. [Google Scholar] [CrossRef]
  29. Kennedy, J.D. Macropolyhedral metallaboranes—Aspects of preparation, constitution and structure. Coord. Chem. Rev. 2016, 323, 71–86. [Google Scholar] [CrossRef]
  30. Housecroft, C.E. Boranes and Metallaboranes Structure, Bonding and Reactivity, 2nd ed.Ellis Horwood: Frederick, MD, USA, 1994. [Google Scholar]
  31. Housecroft, C.E. From metallaboranes to transition metal borides: The chemistry of metal-rich metallaborane clusters. Polyhedron 1987, 6, 1935–1958. [Google Scholar] [CrossRef]
  32. Wade, K. The structural significance of the number of skeletal bonding electron-pairs in carboranes, the higher boranes and borane anions, and various transition-metal carbonyl cluster compounds. J. Chem. Soc. D 1971, 792–793. [Google Scholar] [CrossRef]
  33. Wade, K. Skeletal electron counting in cluster species. Some generalisations and predictions. Inorg. Nucl. Chem. Lett. 1972, 8, 559–562. [Google Scholar] [CrossRef]
  34. Wade, K. Structural and Bonding Patterns in Cluster Chemistry. Adv. Inorg. Chem. Radiochem. 1976, 18, 1–66. [Google Scholar]
  35. Williams, R.E. Carboranes and boranes; polyhedra and polyhedral fragment. Inorg. Chem. 1971, 10, 210–214. [Google Scholar] [CrossRef]
  36. Mingos, D.M.P. Polyhedral skeletal electron pair approach. Acc. Chem. Res. 1984, 17, 311–319. [Google Scholar] [CrossRef]
  37. Jemmis, E.D.; Balakrishnarajan, M.M.; Pancharatna, P.D. Unifying Electron-Counting Rule for Macropolyhedral Boranes, Metallaboranes, and Metallocenes. J. Am. Chem. Soc. 2001, 123, 4313–4323. [Google Scholar] [CrossRef]
  38. Jemmis, E.D.; Balakrishnarajan, M.M.; Pancharatna, P.D. Electronic Requirements for Macropolyhedral Boranes. Chem. Rev. 2002, 102, 93–144. [Google Scholar] [CrossRef]
  39. Mingos, D.M.P. 50th Anniversary of Electron Counting Paradigms for Polyhedral Molecules—Historical and Recent Developments (Structure and Bonding); Springer Nature: Berlin, Germany, 2021; Volume 187. [Google Scholar]
  40. Mingos, D.M.P. 50th Anniversary of Electron Counting Paradigms for Polyhedral Molecules—Historical and Recent Developments (Structure and Bonding); Springer Nature: Berlin, Germany, 2021; Volume 188. [Google Scholar]
  41. Kennedy, J.D. The Polyhedral Metallaboranes. Prog. Inorg. Chem. 1984, 32, 519–679. [Google Scholar]
  42. Bould, J.; Pasieka, M.; Braddock-Wilking, J.; Rath, N.P.; Barton, L. Synthesis of Heterobimetallaboranes and Related Species from [(PPh3)2(CO)OsB5H9]: Pileo-[(PPh3)2(CO)OsB5H5lrH(PPh3)(CO)], closo-[(PPh3)2(CO)(µ-H)OsB4H5{η5-(C5Me5)M}] (M = Rh, Ir), nido-[(PPh3)2(CO)Os(µ-H){η5-(C5Me5)Ir}B3H6], and nido-[(PPh3)2(CO)OsB4H7(n-C4H9)]. Organometallics 1995, 14, 5138–5149. [Google Scholar]
  43. Barton, L.; Bould, J.; Fang, H.; Rath, N.P. Formation of Heterobimetallaheptaboranes from the nido-metallahexaboranes (PPh3)2(CO)OsB5H9 and (PPh3)2(CO)IrB5H8. Main Group Met. Chem. 1996, 19, 711–726. [Google Scholar] [CrossRef]
  44. Bullick, H.J.; Grebenik, P.D.; Green, M.L.H.; Hughes, A.K.; Leach, J.B.; Mountford, P. Reactivity of nido-[2-{Fe(η-C5H5)}B5H10] with some transition-metal hydride complexes. J. Chem. Soc. Dalton Trans. 1994, 3337–3342. [Google Scholar] [CrossRef]
  45. Hoffmann, R. Building Bridges Between Inorganic and Organic Chemistry (Nobel Lecture). Angew. Chem. Int. Ed. Engl. 1982, 21, 711–724. [Google Scholar] [CrossRef]
  46. Geetharani, K.; Bose, S.K.; Varghese, B.; Ghosh, S. From Metallaborane to Borylene Complexes: Syntheses and Structures of Triply Bridged Ruthenium and Tantalum Borylene Complexes. Chem. Eur. J. 2010, 16, 11357–11366. [Google Scholar] [CrossRef] [PubMed]
  47. Yuvaraj, K.; Bhattacharyya, M.; Prakash, R.; Ramkumar, V.; Ghosh, S. New Trinuclear Complexes of Group 6, 8, and 9 Metals with a Triply Bridging Borylene Ligand. Chem. Eur. J. 2016, 22, 8889–8896. [Google Scholar] [CrossRef] [PubMed]
  48. Lei, X.; Shang, M.; Fehlner, T.P. Chemistry of Dimetallaboranes Derived from the Reaction of [Cp*MCl2]2 with Monoboranes (M = Ru, Rh; Cp* = η5-C5Me5). J. Am. Chem. Soc. 1999, 121, 1275–1287. [Google Scholar] [CrossRef]
  49. Pradhan, A.N.; Jaiswal, S.; Ghosh, S. Metal-Rich Metallaboranes: Synthesis, Structure, and Bonding of Heteronuclear Trimetallic Clusters containing (µ3-BH) Ligand. Eur. J. Inorg. Chem. 2023, 26, e202300254–e202300263. [Google Scholar] [CrossRef]
  50. Pradhan, A.N.; Bairagi, S.; Ghosh, S. Diborane and Triborane Species in the Coordination Sphere of Group-8 Transition Metals. Inorg. Chem. 2023, 62, 14790–14803. [Google Scholar] [CrossRef]
  51. Lei, X.; Shang, M.; Fehlner, T.P. Synthesis and Characterization of Cp*3Ru3B3H8, Cp* = η5-C5Me5, Exhibiting a Capped Nido Geometry. Cluster Geometry Driven by Hydrogen Bridging. Inorg. Chem. 1998, 37, 3900–3901. [Google Scholar] [CrossRef]
  52. Bhattacharyya, M.; Prakash, R.; Jagan, R.; Ghosh, S. Synthesis and ligand substitution of tri-metallic triply bridging borylene complexes. J. Organomet. Chem. 2018, 866, 79–86. [Google Scholar] [CrossRef]
  53. Chipperfield, A.K.; Housecroft, C.E.; Matthews, D.M. Ru3(CO)9B2H6: A metal-rich ruthenaborane analogue of pentaborane(9) and a model for a triruthenium supported unsaturated hydrocarbon. J. Organomet. Chem. 1990, 384, C38–C42. [Google Scholar] [CrossRef]
  54. Leadbeater, N.E. A High Yield Route to Ruthenaboranes. Organometallics 1998, 17, 5913–5915. [Google Scholar] [CrossRef]
  55. Grebenik, P.D.; Green, M.L.H.; Kelland, M.A.; Leach, J.B.; Mountford, P. Synthesis of Small nido-Ferrapentaboranes;a Novel Borane-capped nido-DiferrapentaboraneSynthesis of Small nido-Ferrapentaboranes;a Novel Borane-capped nido-Diferrapentaborane. J. Chem. Soc. Chem. Commun. 1990, 1234–1236. [Google Scholar] [CrossRef]
  56. Hattersley, A.D.; Housecroft, C.E.; Rheingold, A.L. Cluster core geometrical variation in heterometallic boride clusters containing RhRu4 skeletons: Crystal structures of [RhRu4H2(η5-C5Me5)(µ-Cl)(CO)12B] and [RhRu4H(nbd)(CO)12B(AuPPh3)] (nbd = norbornadiene). J. Chem. Soc. Dalton Trans. 1996, 1996, 603–610. [Google Scholar] [CrossRef]
  57. Ghosh, S.; Fehlner, T.P.; Beatty, A.M.; Noll, B.C. Insertion of B-X (X ) Cl, SMe2) Moieties into Ruthenaborane Frameworks: Synthesis and Characterization of (η5-C5Me5Ru)2(µ-H)B4HmCln, (m, n = 4, 3; 5, 2; 7, 2), closo-1-(SMe2)-2,3-(η5-C5Me5Ru)2(µ3-H)B5HCl3, and closo-2,3-(η5-C5Me5Ru)2B6H3Cl3. Organometallics 2005, 24, 2473–2480. [Google Scholar] [CrossRef]
  58. Mondal, B.; Bag, R.; Ghorai, S.; Bakthavachalam, K.; Jemmis, E.D.; Ghosh, S. Synthesis, Structure, Bonding, and Reactivity of Metal Complexes Comprising Diborane(4) and Diborene(2): [{Cp*Mo(CO)2}2{µ-η2:η2-B2H4}] and [{Cp*M(CO)2}2B2H2M(CO)4], M = Mo, W. Angew. Chem. Int. Ed. 2018, 57, 8079–8083. [Google Scholar] [CrossRef] [PubMed]
  59. Sharmila, D.; Mondal, B.; Ramalakshmi, R.; Kundu, S.; Varghese, B.; Ghosh, S. First-row Transition Metal-Diborane and Borylene Complexes. Chem. Eur. J. 2015, 21, 5074–5083. [Google Scholar] [CrossRef] [PubMed]
  60. Anju, R.S.; Saha, K.; Mondal, B.; Dorcet, V.; Roisnel, T.; Halet, J.F.; Ghosh, S. Chemistry of Diruthenium Analogue of Pentaborane(9) With Heterocumulenes: Toward Novel Trimetallic Cubane-Type Clusters. Inorg. Chem. 2014, 53, 10527–10535. [Google Scholar] [CrossRef]
  61. Ryschkewitsch, G.E.; Nainan, K.C. Octahydrotriborate(1-) ([B3H8]-) salts. Method A. Inorg. Synth. 1974, 15, 113–114. [Google Scholar]
  62. Weiss, R.; Grimes, R.N. Sources of Line Width in Boron-11 Nuclear Magnetic Resonance Spectra. Scalar Relaxation and Boron-Boron Coupling in B4H10 and B5H9. J. Am. Chem. Soc. 1978, 100, 1401–1405. [Google Scholar] [CrossRef]
  63. Led, J.J.; Gesmar, H. Application of the linear prediction method to NMR spectroscopy. Chem. Rev. 1991, 91, 1413–1426. [Google Scholar] [CrossRef]
  64. Altomare, A.; Cascarano, G.; Giacovazzo, C.; Guagliardi, A.; Burla, M.C.; Polidori, G.; Camalli, M. SIRPOW. 92—A program for automatic solution of crystal structures by direct methods optimized for powder data. J. Appl. Cryst. 1994, 27, 435–436. [Google Scholar] [CrossRef]
  65. Sheldrick, G.M. SHELXT–Crystal structure refinement with SHELXL. Acta Cryst. 2015, 71, 3–8. [Google Scholar]
  66. Sheldrick, G.M. SHELXS97 and SHELXL97: Program for Crystal Structure Solution and Refinement; University of Gottingen: Gottingen, Germany, 1997. [Google Scholar]
  67. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Cryst. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  68. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 16, Revision C.01; Gaussian, Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  69. Schmider, H.L.; Becke, A.D. Optimized density functionals from the extended G2 test set. J. Chem. Phys. 1998, 108, 9624–9631. [Google Scholar] [CrossRef]
  70. Perdew, J.P. Density-functional approximation for the correlation energy of the inhomogeneous electron gas. Phys. Rev. B Condens. Matter Mater. Phys. 1986, 33, 8822–8824. [Google Scholar] [CrossRef] [PubMed]
  71. Pritchard, B.P.; Altarawy, D.; Didier, B.; Gibson, T.D.; Windus, T.L. A New Basis Set Exchange: An Open, up-to-date Resource for the Molecular Sciences Community. J. Chem. Inf. Model. 2019, 59, 4814–4820. [Google Scholar] [CrossRef] [PubMed]
  72. London, F.J. Quantum theory of interatomic currents in aromatic combinations. J. Phys. Radium 1937, 8, 397–409. [Google Scholar] [CrossRef]
  73. Wiberg, K. Application of the Pople-Santry-Segal CNDO Method to the Cyclopropylcarbinyl and Cyclobutyl Cation and to Bicyclobutane. Tetrahedron 1968, 24, 1083–1096. [Google Scholar] [CrossRef]
  74. Glendening, E.D.; Badenhoop, J.K.; Reed, A.E.; Carpenter, J.E.; Bohmann, J.A.; Morales, C.M.; Landis, C.R.; Weinhold, F. NBO Program 6.0; Theoretical Chemistry Institute, University of Wisconsin: Madison, WI, USA, 2013. [Google Scholar]
  75. Lu, T.; Chen, F. Multiwfn: A multifunctioal wavefunction analyzer. J. Comput. Chem. 2012, 33, 580–592. [Google Scholar] [CrossRef]
Inorganics 12 00007 sch001

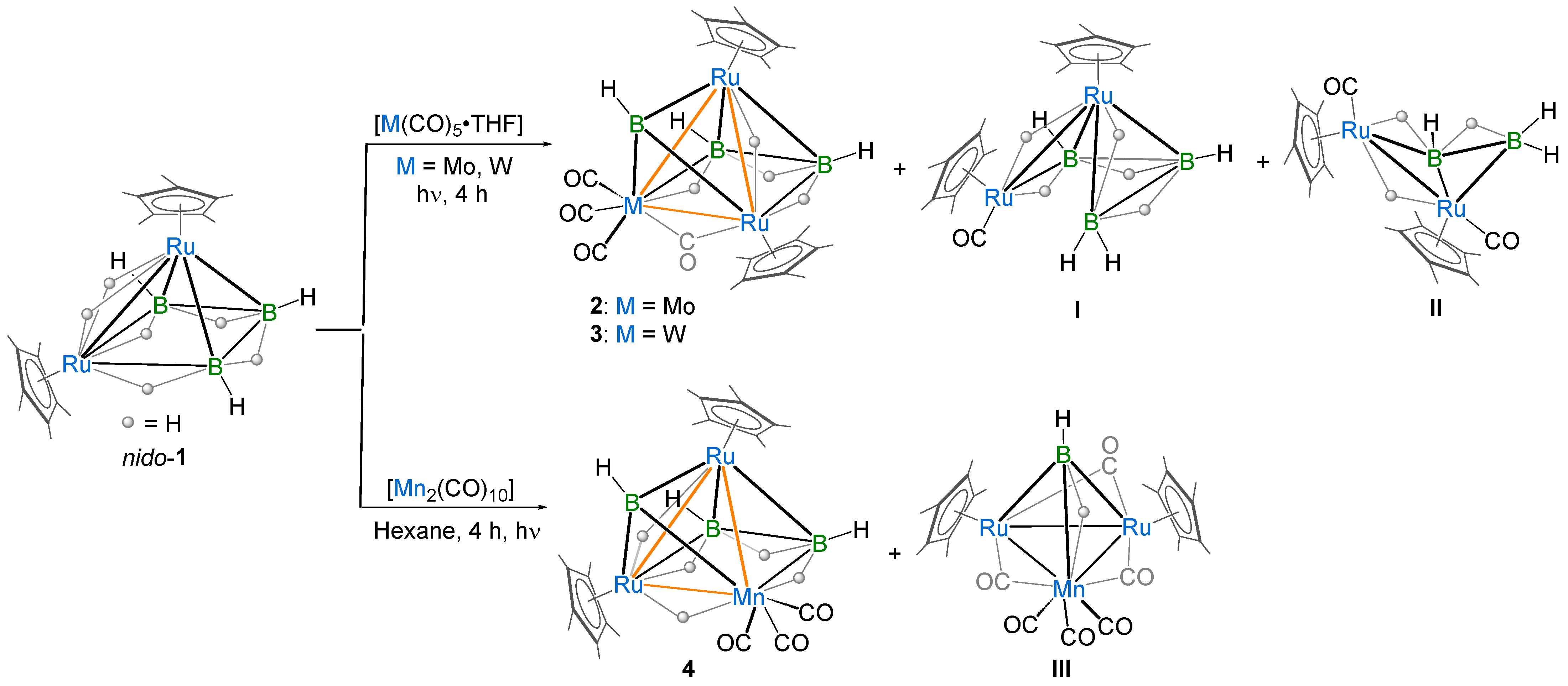

Scheme 1. Synthesis of pileo heterotrimetallic clusters 2–4 and I–III.

Scheme 1. Synthesis of pileo heterotrimetallic clusters 2–4 and I–III.
Inorganics 12 00007 sch001
Inorganics 12 00007 g001
Figure 1. Molecular structures and labeling diagrams of 2 (left) and 4 (right). Selected bond lengths (Å) and bond angles (°); 2: Ru1-B1 2.410(2), Ru1-B3 2.218(2), Ru2-B2 2.172(2), Ru1-Ru2 2.7738(3), Ru1-Mo1 2.8589(3), Ru2-Mo1 2.8395(3), Mo1-B3 2.265(2), Mo1-B2 2.501(2), B1-B2 1.796(3), Ru1-B3-Mo1 79.22(7), B2-B1-Ru1 104.17(13), B1-Ru2-B2 49.02(9), B1-Ru1-Ru2 48.59(5); 4: B1-Ru2 2.008(5), B1-Mn1 2.154(5), B2-Mn1 2.318(6), B1-Ru1 2.176(5), B2-B3 1.781(8), B2-Ru2 2.133(5), B3-Ru2 2.152(5), Mn1-Ru2 2.7096(8), Mn1-Ru1 2.8280(8), Ru1-Ru2 2.7536(5), Mn1-B1-Ru1 81.55(16), B3-B2-Mn1 102.6(3), Ru2-B2-Mn1 74.85(16), Ru2-B3-Ru1 74.41(14), B2-Mn1-Ru2 49.47(12).
Figure 1. Molecular structures and labeling diagrams of 2 (left) and 4 (right). Selected bond lengths (Å) and bond angles (°); 2: Ru1-B1 2.410(2), Ru1-B3 2.218(2), Ru2-B2 2.172(2), Ru1-Ru2 2.7738(3), Ru1-Mo1 2.8589(3), Ru2-Mo1 2.8395(3), Mo1-B3 2.265(2), Mo1-B2 2.501(2), B1-B2 1.796(3), Ru1-B3-Mo1 79.22(7), B2-B1-Ru1 104.17(13), B1-Ru2-B2 49.02(9), B1-Ru1-Ru2 48.59(5); 4: B1-Ru2 2.008(5), B1-Mn1 2.154(5), B2-Mn1 2.318(6), B1-Ru1 2.176(5), B2-B3 1.781(8), B2-Ru2 2.133(5), B3-Ru2 2.152(5), Mn1-Ru2 2.7096(8), Mn1-Ru1 2.8280(8), Ru1-Ru2 2.7536(5), Mn1-B1-Ru1 81.55(16), B3-B2-Mn1 102.6(3), Ru2-B2-Mn1 74.85(16), Ru2-B3-Ru1 74.41(14), B2-Mn1-Ru2 49.47(12).
Inorganics 12 00007 g001
Inorganics 12 00007 g002
Figure 2. Schematic representation of the cluster fusion in clusters 2–4 (a = distance of apical Ru from square plane RuMB2, b = dihedral angle between planes Ru2M′ and RuB2).
Figure 2. Schematic representation of the cluster fusion in clusters 2–4 (a = distance of apical Ru from square plane RuMB2, b = dihedral angle between planes Ru2M′ and RuB2).
Inorganics 12 00007 g002
Inorganics 12 00007 g003
Figure 3. Selected molecular orbitals of 2–4: (a) HOMO of 2, (b) LUMO of 2, (c) HOMO of 3, (d) HOMO-9 of 3, (e) HOMO of 4, (f) HOMO-9 of 4. Isocontour values: ±0.04 [e.bohr−3]1/2.
Figure 3. Selected molecular orbitals of 2–4: (a) HOMO of 2, (b) LUMO of 2, (c) HOMO of 3, (d) HOMO-9 of 3, (e) HOMO of 4, (f) HOMO-9 of 4. Isocontour values: ±0.04 [e.bohr−3]1/2.
Inorganics 12 00007 g003
Inorganics 12 00007 g004
Figure 4. (a) HOMO-13 of 4 (isocontour values: ±0.04 [e.bohr−3]1/2), (b) selected NBO of 4, (c) contour line diagram of the Laplacian electron density in the Ru1-H1-Mn1 plane. Solid red lines illustrate areas of charge concentration [(∇2ρ(r) < 0] in the contour line diagrams of the Laplacian electron density, whereas dashed black lines show areas of charge depletion [(∇2ρ(r) > 0]. Bond-critical points (BCPs) are shown with blue dots, while bond routes are shown with a brown line.
Figure 4. (a) HOMO-13 of 4 (isocontour values: ±0.04 [e.bohr−3]1/2), (b) selected NBO of 4, (c) contour line diagram of the Laplacian electron density in the Ru1-H1-Mn1 plane. Solid red lines illustrate areas of charge concentration [(∇2ρ(r) < 0] in the contour line diagrams of the Laplacian electron density, whereas dashed black lines show areas of charge depletion [(∇2ρ(r) > 0]. Bond-critical points (BCPs) are shown with blue dots, while bond routes are shown with a brown line.
Inorganics 12 00007 g004
Table 1. Selected spectroscopic and structural parameters of pileo-trimetallic metallaboranes.
Table 1. Selected spectroscopic and structural parameters of pileo-trimetallic metallaboranes.
Clustersd(B-B)av (Å)Dihedral Angle (°) bd(ΠMM′B2-M) a (Å)11B NMR (δ, ppm)Ref.
Inorganics 12 00007 i0011.82 (3)117.61.748121.3, 59.9, 23.5[47]
Inorganics 12 00007 i0021.874 (11) (H)
1.806 (6) (Cl)		119.2 (H)
117.9 (Cl)		1.821 (H)
1.807 (Cl)		128.3, 14.4 (H)
114.5, 32.6, −0.9 (Cl)		[51]
[47]
Inorganics 12 00007 i0031.814 (19) (Mo)
1.829 (16) (W)		116.7 (Mo)
116.7 (W)		1.778 (Mo)
1.771 (W)		124.8, 60.7, 20.1 (Mo)
126.0, 59.9, 22.5 (W)		[52]
Inorganics 12 00007 i0041.796 (3) (Mo)
— (W)		114.6 (Mo)
— (W)		1.804 (Mo)
— (W)		120.6, 15.9, −0.2 (Mo)
122.3; 21.2, 0.4 (W)		this work
Inorganics 12 00007 i0051.781 (8)115.91.784118.0, 21.9, −1.5this work
a M = Cp*Rh, Cp*Ru, M′ = Cp*Ru, Cr/Mo/W/Mn(CO)3, b angle between planes Ru2M and RuB2, av = average, d = distance.
Table 2. Crystallographic and structural refinement data for 2 and 4.
Table 2. Crystallographic and structural refinement data for 2 and 4.
Compound24
CCDC No.21921162192115
Empirical formulaC24H37B3MoO4Ru2C23H38B3MnO3Ru2
Formula weight720.04652.04
Crystal systemmonoclinicmonoclinic
Space groupP21/nP21/n
a (Å)10.9696(12)9.3964(13)
b (Å) 13.7372(17)14.3307(17)
c (Å)18.383(2)20.306(2)
α (°)9090
β (°)100.328(4)94.870(5)
γ (°)9090
Volume (Å3)2725.3(5)2724.4(6)
Z44
ρcalc (g/cm−3)1.7551.590
µ (mm−1)1.5751.572
F (000)14321312
2θ range for data collection (°)55.02850
Independent reflections 61534792
Final R indices [I ≥ 2σ (I)]0.02260.0644
Parameters338331
