Hydrothermal Synthesized CoS2 as Efficient Co-Catalyst to Improve the Interfacial Charge Transfer Efficiency in BiVO4

by
Yangqin Gao
*,
Guoqing Yang
,
Zhijie Tian
,
Hongying Zhu
,
Lianzheng Ma
,
Xuli Li
,
Ning Li
and
Lei Ge
*
Department of Materials Science and Engineering, College of New Energy and Materials, China University of Petroleum Beijing, No. 18 Fuxue Rd., Beijing 102249, China
*
Authors to whom correspondence should be addressed.
Inorganics 2022, 10(12), 264; https://doi.org/10.3390/inorganics10120264
Submission received: 27 October 2022 / Revised: 9 December 2022 / Accepted: 15 December 2022 / Published: 18 December 2022
(This article belongs to the Special Issue Photoelectrodes for Water Splitting)
Browse Figures
Versions Notes

Abstract

:
The bare surface of BiVO4 photoanode usually suffers from extremely low interfacial charge transfer efficiency which leads to a significantly suppressed photoelectrochemical water splitting performance. Various strategies, including surface modification and the loading of co-catalysts, facilitate the interface charge transfer process in BiVO4. In this study, we demonstrate that CoS2 synthesized from the hydrothermal method can be used as a high-efficient co-catalyst to sufficiently improve the interface charge transfer efficiency in BiVO4. The photoelectrochemical water splitting performance of BiVO4 was significantly improved after CoS2 surface modification. The BiVO4/CoS2 photoanode achieved an excellent photocurrent density of 5.2 mA/cm2 at 1.23 V versus RHE under AM 1.5 G illumination, corresponding to a 3.7 times enhancement in photocurrent compared with bare BiVO4. The onset potential of the BiVO4/CoS2 photoanode was also negatively shifted by 210 mV. The followed systematic combined optical and electrochemical characterization results reveal that the interfacial charge transfer efficiency of BiVO4 was largely improved from less than 20% to more than 70% due tor CoS2 surface modification. The further surface carrier dynamics study performed using an intensity modulated photocurrent spectroscopy displayed a 6–10 times suppression in surface recombination rate constants for CoS2 modified BiVO4, which suggests that the key reason for the improved interfacial charge transfer efficiency possibly originates from the passivated surface states due to the coating of CoS2.

1. Introduction

Hydrogen (H2) is considered a perfect energy carrier to solve the challenge of the energy crisis [1,2,3,4]. Driven by solar energy, photoelectrochemical (PEC) water splitting can produce H2 fuel from water to achieve a promising, sustainable, and low-cost H2 supply. Metal oxide based high efficient photoelectrocatalysts, such as WO3 [5,6,7], TiO2 [8,9,10,11], Fe2O3 [12,13,14,15], ZnO [16,17,18], and BiVO4 [19,20,21,22,23,24], have attracted extensive research efforts over the past few decades, among which bismuth vanadate (BiVO4) is regarded as a promising photoanode material for practical PEC water splitting.
As a typical n-type semiconductor, BiVO4 has a relatively narrow band gap of 2.4 eV which enables it to convert ~11% of solar energy to hydrogen to reach a theoretical solar-to-hydrogen (STH) conversion efficiency of 9% [25,26,27,28]. However, the reported PEC water splitting performance of BiVO4 is extremely unsatisfied, and the reason is supposed to be caused by its short hole diffusion length, limited charge transportation, low charge separation efficiency, or sluggish water oxidation kinetics [29,30,31,32,33,34]. To address these issues, various approaches have been developed to promote the PEC performance of BiVO4 [35,36,37,38,39,40,41,42]. However, only a small portion of photogenerated holes can directly participate in the water oxidation process as they are limited by the low charge transfer efficiency presented at the electrode/electrolyte interface caused by either the charge trapping effect of surface states or poor water oxidation kinetics. Therefore, improving the charge transfer efficiency at the BiVO4/electrolyte interface is crucial to achieve satisfied PEC water splitting performance.
Inspired by the excellent electrochemical properties of the recent reported transition metal sulfides, such as NiS [43], CoS [44], and CoS2 [45,46], we modified porous BiVO4 photoanode with hydrothermal synthesized CoS2 to address the issue of low charge transfer efficiency at the BiVO4/electrolyte interface. The PEC performance of BiVO4 was significantly enhanced after surface modification by CoS2, which suggests that CoS2 can be adopted as a suitable co-catalyst for BiVO4. Combined optical and electrochemical characterization results show that CoS2 surface modification leads to a highly enhanced charge transfer efficiency at the solid/electrolyte interface. A further study on the surface carrier dynamics with IMPS reveals that enhanced charge transfer efficiency mainly originates from the suppressed surface recombination of charge carriers, which indicates a surface passivation effect of CoS2 in promoting the PEC performance of BiVO4.

2. Materials and Methods

2.1. Materials

Bismuth nitrate pentahydrate (Bi(NO3)3·5H2O, AR) was obtained from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). Dimethyl sulfoxide (DMSO, C2H6SO), p-benzoquinone (C6H4O2, AR), and sodium iodide dihydrate (NaI·2H2O, AR) were obtained from Tianjin Guangfu Fine Chemical Research Institute. Cobalt chloride hexahydrate (CoCl2·6H2O, AR) was purchased from Shandong Xiya Reagent Co., Ltd. (Shandong, China). Vanadyl acetylacetonate (VO(acac)2, 98%), thiourea (CH4N2S, AR), and ethylene imine polymer (PEI, (CH2CH2NH)n, N,W. 7000, 50% aqueous solution) were purchased from Shanghai Aladdin Reagent Co., Ltd. (Shanghai, China). F-doped tin oxide (FTO) coated glasses were purchased from Guluo Glass Co., Ltd. (Luoyang, China). Deionized water (resistivity > 18.0 MΩ•cm) was used to prepare the aqueous solutions. All chemicals were used directly without purification.

2.2. Preparation of BiVO4 Photoanode

The bismuth vanadate photoanode was synthesized according to the method reported previously [47]. Twenty mm Bi (NO3)3·5H2O was ultrasonically dissolved in 100 mL HNO3 (pH = 1.2), and then 40 mm NaI·2H2O was added to obtain solution A. Another solution was prepared by dissolving 300 mM p-benzoquinone in 45 mL anhydrous ethanol, which was named as solution B. Solution B was added into solution A after the two solutions were uniformly dispersed, and then the solutions were slowly stirred for 30 min to prepare the deposition solution. BiOI film was electrodeposited on FTO glass substrate with the three-electrode system in which FTO substrate, a platinum plate, and a saturated Ag/AgCl electrode were used as working electrode (WE), counter electrode (CE), and reference electrode (RE), respectively. A two-step electrodeposition step was adopted for BiOI deposition at room temperature. First, the FTO substrate was biased at −0.3 V versus Ag/AgCl for 5 s, and then the FTO substrate was biased at −0.1V versus Ag/AgCl for 360 s. After electrodeposition, the BiOI coated the FTO substrate and was washed using deionized water followed by drying in air. The following procedure was applied to convert BiOI film into BiVO4. Seventy μL dimethyl sulfoxide (DMSO) solution with 0.2 M vanadyl acetylacetonate (VO(acac)2) dissolved into it was drop casted onto the prepared BiOI film (1 × 1 cm), and then the sample was put into in a muffle furnace which was preheated to 120 ℃ and annealed at 450 °C (with 2 °C/min ramping rate) for 2 h. The sample was then taken out after the muffle furnace was naturally cooled to room temperature. After that, the sample was stirred in a 1 M NaOH solution for 30 min to remove the excess V2O5 formed on the surface, and then the sample was washed with deionized water and naturally dried in air.

2.3. Preparation of CoS2 and BiVO4/CoS2 Photoanode

A slightly modified hydrothermal method was adopted to prepare the CoS2 and BiVO4/CoS2 sample. First, 0.1 g polyethyleneimine was dissolved in 20 mL deionized water. Next, 140 mM CoCl2·6H2O and 140 mM thiourea were added into the solution. The prepared solution was then stirred for 30 min at room temperature. After that, the mixed solution was transferred into a 30 mL Teflon autoclave, and FTO glass substrate and BiVO4 coated FTO substrate were put at the bottom of the autoclave with the sample surface face up. Afterward, the autoclave was sealed and heated at 170 °C in an oven for 30 min. Finally, the prepared CoS2 and BiVO4/CoS2 samples were washed with deionized water and ethanol and dried at 80℃ in vacuum oven for 12 h.

2.4. Structure and Morphology Characterizations

A Bruker D8 Advance X-ray diffractometer (Bruker Corporation) with Cu Kα radiation (k = 1.5406 Å) was used to perform the X-ray diffraction (XRD) measurement, and the scan range was set to 10–70°, while the scan rate was set to 6°/min. UV–Vis diffuse reflectance characterizations were carried out using a UV-Vis spectrophotometer (TU-1901, Beijing Persee General Instrument Co. Ltd., Beijing, China) with an additional integration sphere. BaSO4 was used as the total reflection reference during the measurement. The morphology of the sample was characterized using a HITACHI SU8010 (Hitachi Ltd., Tokyo, Japan) scanning electron microscope (SEM) at an accelerating voltage of 5 kV. High resolution transmission electron microscope (HRTEM) characterization was performed using JEOL JEM-2100 (JEOL Ltd., Tokyo, Japan) operated at an acceleration voltage of 200 kV. The X-ray photoelectron spectroscopy (XPS) measurements were determined using a PHI 5300 ESCA system (PerkinElmer Inc., Waltham, MA, USA), and C 1s peak (284.8 eV) was used as a reference to calibrate the collected spectra.

2.5. Electrochemical and Photoelectrochemical Characterization

A standard three-electrode system connected to a CHI 760e electrochemical workstation (Shanghai Chenhua Instrument Co., Ltd., Shanghai, China) was used to perform the photoelectrochemical performance characterization. Saturated Ag/AgCl electrode, a platinum plate, and the characterized sample were used as a reference electrode (RE), a counter electrode (CE), and a working electrode (WE), respectively. A 500 W Xe arc lamp (Perfect Light) and an AM 1.5G filter were assembled to simulate the sunlight spectrum, and a thermopile detector (Photoelectric Instrument Factory of Beijing Normal University, Beijing, China) was used to calibrate the power density of the light source to 100 mW/cm2. The applied potential was converted to the reversible hydrogen electrode (RHE) using the Nernst equation VRHE = VAg/AgCl + 0.0592 V × pH + 0.197 V [48]. The current–voltage (J–V) curve was obtained via linear sweep voltammetry (LSV), and the scan rate was set to 0.02 V/s. The sulfite solution was 0.25 M K2B4O7 solution (pH = 9.5) which contained 0.2 M sodium sulfite, and 0.5 M KPi buffer solution (pH = 7.0) was used as the electrolyte for water oxidation. The electrolyte solution was deaerated by pumping N2 for 15 min before each test. Photoelectrochemical impedance spectroscopy (PEIS) characterizations were performed on the same electrochemical workstation working at the open circuit potential of the sample, and an AM 1.5G illumination light source was adopted during the measurement. The test frequency range was 100 kHz to 0.1 Hz with a sinusoidal AC amplitude of 10 mV.

2.6. Intensity Modulated Photocurrent Spectroscopy (IMPS) Characterization

Intensity modulated photocurrent spectroscopy (IMPS) spectra were recorded using a Zahner CIMPS setup (Zahner-Elektrik GmbH & Co. KG, Gundelsdorf, Germany). The characterized sample, Ag/AgCl electrode, and Pt electrode were connected to construct a standard three-electrode setup and function as working electrode, reference electrode, and counter electrode, respectively. A 0.1 M Na2SO4 solution (pH = 7) was used as the electrolyte during the measurement. The frequency scan range of IMPS characterization was set to 10 kHz–50 mHz. A light emitting diode (LED) lamp with an intensity of 1.8 mW/cm2 at 428 nm was used as the light source to generate the modulated light illumination.

2.7. Surface Photovoltage Spectroscopy (SPV) Characterization

The surface photovoltage (SPV) spectroscopy characterization was carried out on a surface photovoltage spectrometer (PL-SPS/IPCE1000 Beijing Perfect Light Technology Company, Beijing, China). The SPV test was performed under atmosphere pressure and at 25 degrees Celsius. The SPV instrument consisted of a monochromatic light source, a lock-in amplifier (SR830-DSP, Stanford, Made in U.S.A), a light chopper (SR540, Stanford, Made in U.S.A), and a sample chamber. The details of the SPV measurement setup can be found elsewhere [49].

3. Results and Discussion

3.1. Material and Chemical Characterization

3.1.1. XRD Analysis

The crystal structure and crystallinity of the prepared samples were characterized by X-ray diffraction, and the results are shown in Figure 1a. Both the bare BiVO4 (Figure S1 in the Supplementary Materials) and pure CoS2 samples show clear diffraction peaks. All the diffraction peaks of BiVO4 are consistent with the standard diffraction pattern of monoclinic BiVO4 (JCPDS card No. 14–0688), and the diffraction peaks of CoS2 are in accordance with the cubic cattierite structured CoS2 (JCPDS card No. 41-1471), which indicates that the samples were prepared with high purity and good crystallinity. After CoS2 surface modification, the XRD pattern of BiVO4/CoS2 is similar to the bare BiVO4 sample, which indicates that the crystal structure of BiVO4 stays the same after loading CoS2. However, no characteristic diffraction peaks of CoS2 can be distinguished in the XRD pattern of BiVO4/CoS2, which may be attributed to the little loading amount of CoS2.

3.1.2. SEM and HRTEM Analysis

The microstructural morphology of BiVO4 and the BiVO4/CoS2 composite sample were characterized by scanning an electron microscope (SEM) and high-resolution transmission electron microscopy (HRTEM). The SEM images of BiVO4 and BiVO4/CoS2 are shown in Figure 1b,c. The bare BiVO4 sample shows a nano worm morphology with a nanoporous structure which is uniformly distributed on the whole substrate. Many tiny, nanosized particles appear on the nano worm surface after the surface of BiVO4 is modified by CoS2, which should be assigned to CoS2 nanoparticles. Figure 1d presents the HRTEM image of the BiVO4/CoS2 sample. It can be seen that nanoparticles with a size of ~10 nm are distributed on the bulk surface, which is consistent with the SEM characterization result. Moreover, both lattice fringes corresponding to CoS2 and BiVO4 can be clearly observed in the HRTEM image. The lattice space of 0.247 nm observed in the surface distributed nanoparticles could be indexed to the (210) plane of CoS2, and the lattice space of 0.312 nm observed in the bulk matrix aligns with the ( 1 ¯ 21) plane of BiVO4. The HRTEM characterization result demonstrates that CoS2 is successfully attached on the surface of BiVO4.

3.1.3. XPS Analysis

The electronic structure and the element chemical valence states in the BiVO4/CoS2 sample were further investigated using X-ray photoelectron spectroscopy (XPS), and the results are shown in Figure 2. The survey XPS spectra are shown in Figure S2 in the Supplementary Materials, from which the presence of Co, S in the sample of BiVO4/CoS2 is verified by the signature signals of Co 2p and S 2p. As shown in Figure 2a, the high-resolution spectra of Co 2p are deconvoluted into Co 2p1/2 and Co 2p3/2 spin–orbit doublets with two shake-up satellites. The two peaks positioned at 778.6 and 793.6 eV can be ascribed to the existence of the Co−S bond, and the two peaks located at 780.7 eV and 795.8 eV are assigned to the Co−O bond [50,51,52]. The presence of a Co−O bond suggests the superficial surface of CoS2 may be oxidized during air contact, while the two satellite peaks located at 783.6 eV and 802.7 eV further verify the oxidation state of Co on the surface of CoS2 [53]. The peak positions of Co 2p3/2 exhibit a slight shift to higher binding energies compared with pure CoS2, which indicates that the change in the local chemical environment of Co in the BiVO4/CoS2 sample is weak. Furthermore, the peak intensities for the Co−O bond are more pronounced after CoS2 surface modification, which suggests an enhanced oxidation degree of Co in the BiVO4/CoS2 sample which may be caused by the formation of a Co−O bond at the BiVO4/CoS2 interface. In Figure 2b, the two peaks that appear at 162.6 and 163.8 eV shown in the high-resolution S 2p spectra coincide with the binding energies of bridging S22− [54], which highlights the presence of CoS2 in the sample. The weak peak positioned at 161.6 eV indicates the existence of a small amount of divalent sulfide ions which may be attributed to surface adsorbed sulfide spices. There is large overlap between the S 2p and Bi 4f spectra; therefore, the chemical state of S cannot be clearly revealed in BiVO4/CoS2, but the shakeup at 168 eV for S 2p is consistent with an oxidation state of CoS2 in BiVO4/CoS2 [50]. The two peaks positioned at 516.5 eV and 524.5 eV shown in the V 2p XPS spectra (Figure S3 in the Supplementary Materials) are standard binding energies for V5+ in BiVO4 [55]. The two binding energies of Bi 4f5/2 at 159 eV and Bi 4f7/2 at 164.3 eV indicate the chemical valence state of Bi is +3 (Figure 2c) [56]. The high-resolution spectra of V 2p and Bi 4f in BiVO4/CoS2 exhibit a visible peak shift toward lower binding energy, and considering the positive peak shift for Co 2p3/2, these results indicate that a possible charge transfer process occurred between BiVO4 and CoS2. Figure 2d shows the spectra of O 1s in CoS2, BiVO4, and BiVO4/CoS2. The O 1s spectra of CoS2 have two main peaks positioned at 530.8 eV and 531.8 eV which correspond to metal oxide and metal hydroxides formed on the surface of CoS2 [57]. The spectra of O 1s in BiVO4 can fit into three peaks with binding energies of 529.6 eV, 531.3 eV, and 532.2 eV, which are assigned to the O2- species in the lattice (OL), surface adsorbed hydroxyl groups in the oxygen deficient region (OV), and surface chemisorbed oxygen species dissociated from the water molecule (OC) [58]. The signal for lattice oxygen in BiVO4 is largely suppressed due to the surface covered CoS2; therefore, the O 1s spectra of BiVO4/CoS2 predominately consist of the oxygen signals of CoS2. Furthermore, both the peaks standing for lattice oxygen in BiVO4 and surface formed metal oxide in CoS2 are slightly shifted toward the low binding energy direction in the sample of BiVO4/CoS2, which indicates a strong correlation between CoS2 and BiVO4 through oxygen.

3.2. Photoelectrochemical Water Splitting Performance of the BiVO4/CoS2 Photoanode

The photocurrent density-potential (J–V) curves of BiVO4 and BiVO4/CoS2 photoanodes were obtained using linear sweep voltammetry measurements. As shown in Figure 3a, the bare BiVO4 photoanode gives a photocurrent density of 1.4 mA/cm2 at 1.23 V versus RHE, along with an onset photocurrent at 0.45 V versus RHE, which gives a J–V curve in a concave shape. Obviously, the PEC performance of bare BiVO4 is much less than the theoretical value expected from its decent bandgap structure. In comparison, the PEC performance is significantly enhanced in the BiVO4/CoS2 photoanode. After CoS2 surface modification, the photocurrent density of BiVO4/CoS2 at 1.23V versus RHE is enhanced by 3.7 times, which reaches 5.2 mA/cm2. Furthermore, a 210 mV cathodic shift in onset potential is observed along with the enhanced photocurrent, so the shape of the J–V curve changes from concave to convex, which usually stands for an improved photoconversion process. The J–V curves obtained under chopped light illumination (Figure 3b) show clearly that CoS2 surface modification has an insignificant effect on the dark current of the photoanode. Therefore, the improved photocurrent in the BiVO4/CoS2 photoanode should be attributed to an enhanced photoconversion process.

3.3. Mechanism Study for the Enhanced Photoelectrochemcial Water Splitting Performance

3.3.1. Optical Absorption Characterization

A series of systematic combined optical and electrochemical characterizations were performed to explore the reason for the improved PEC performance in the BiVO4/CoS2 photoanode. First, UV-Vis spectroscopy was adopted to study the influence of CoS2 on the light absorption of BiVO4. Figure 4a presents the UV-Vis spectra of BiVO4 and BiVO4/CoS2. The absorptance of BiVO4/CoS2 is similar to BiVO4 in the range of 300–480 nm, but it exhibits a significantly enhanced light absorption in the range of 480–800 nm, which results in a dark color for BiVO4/CoS2 in contrast with the yellowish color shown in BiVO4. The optical bandgap of BiVO4 is estimated to be 2.57 eV based on the Tauc plot, which is similar to reported values in the literature [47]. CoS2 surface modification only results in a 0.2 eV decrease in the optical bandgap of BiVO4, which means the enhanced light absorption in the range of 480–800 nm is mainly caused by the light absorption of CoS2. In general, if the photons absorbed by CoS2 contribute to form free charge carriers while there is no change in the charge separation efficiency of BiVO4, an improved PEC performance would be obtained due to the enhanced light absorption as more free charge carriers are available to drive the water splitting process.

3.3.2. Bulk Charge Separation Efficiency Analysis

J–V curves of the bare BiVO4 and BiVO4/CoS2 photoanodes in a 0.25 M K2B4O7 buffer solution (pH = 9.5) with 0.2 M sodium sulfite as a hole scavenger were measured under AM 1.5G illumination to check whether the presence of CoS2 would affect the charge separation efficiency in BiVO4 (Figure 4b). Contrary to our expectation, the photocurrent density of the BiVO4/CoS2 photoanode characterized in the sulfite solution is slightly lower than the bare BiVO4 in the whole potential range n. Compared with the four-electron transfer process involved in water oxidation, sulfite oxidation only requires a charge transfer of two electrons so the free charge carriers generated by BiVO4 can be consumed extremely fast once when they arrive at the surface; therefore, the surface recombination of charge carriers is significantly suppressed in the presence of sulfite ions, and the interfacial charge transfer efficiency is regarded as 100% [47]. In this regard, the photocurrent characterized in the sulfite solution stands for the quantity of free charge carriers that arrive at the photoelectrode/electrolyte interface. However, if all the photo excited electron-hole pairs generated in BiVO4 are separated as free charge carriers and drift onto the surface—which means a 100% bulk charge separation efficiency—the quantity of theoretical photogenerated charge carriers can be obtained by combing the light absorption properties of the BiVO4 photoanode with the photon flux spectra of AM 1.5 G illumination. Consequently, the bulk charge separation efficiency of BiVO4 can be obtained by dividing the experimental derived quantity of charge carriers by the theoretical value derived from light absorption. Following the same procedure, the bulk charge separation efficiencies of the BiVO4/CoS2 photoanode are also obtained, and the summarized results are shown in Figure 4c. Clearly, the bulk charge separation efficiency of BiVO4/CoS2 is slightly lower than that of bare BiVO4 in almost the whole potential range, which is not a surprising result as a lower sulfite oxidation current is observed for BiVO4/CoS2. Therefore, CoS2 surface modification should not work to form heterojunction or Schottky junction with BiVO4, which helps enhance the bulk charge separation efficiency, and the enhanced optical absorption raised from CoS2 should not contribute to the enhanced PEC water splitting performance.
The decreased bulk charge separation efficiency after CoS2 surface modification can be further confirmed via surface photovoltage spectroscopy (SPV) characterization. The characterized sample is positioned at an open circuit during the measurement. Therefore, the SPV signal reflects the state of quasi-Fermi level splitting achieved under alternative illumination and dark conditions; or, in other words, the bulk charge separation efficiency at different wavelengths can be evaluated by comparing the intensity of the SPV signal. The SPV characterization results for BiVO4 and BiVO4/CoS2 are shown in Figure 4d. Both photovoltage signals of the two samples have an onset positioned at ~ 525 nm, which corresponds to the bandgap light absorption of BiVO4. The surface photovoltage apparently decreases after the BiVO4 is modified with CoS2, which is consistent with the decreased bulk charge separation efficiency observed in BiVO4/CoS2.

3.3.3. Interfacial Charge Transfer Efficiency Analysis

No enhanced bulk charge separation efficiency was observed; therefore, the significantly enhanced water splitting performance can only be explained as an improved charge transfer process at the electrode/electrolyte interface. The photocurrent acquired in the sulfite solution represents the quantity of free charge carriers arrived at the photoelectrode/electrolyte interface, and the photocurrent obtained in the phosphate buffer solution stands for the quantity of free charge carriers involved in the water oxidation process. Therefore, the interfacial charge transfer efficiencies for BiVO4 and BiVO4/CoS2 can be simply evaluated through the ratio between the photocurrents obtained in the phosphate buffer solution and in the sulfite solution [47], and the summarized results are presented in Figure 5a. Less than 20% interfacial charge transfer efficiency is derived at the whole potential range for bare BiVO4 photoanode. In contrast, the interfacial charge transfer efficiency at all potentials is greatly improved after the bare BiVO4 photoanode is modified by CoS2, which stays higher than 70% before the applied bias is reduced to 0.45 V. Photoelectrochemical impedance spectroscopy (PEIS) is applied to confirm the enhanced interfacial charge transfer process, and the PEIS characterization results measured at open circuit potential irradiated by AM 1.5 G illumination are shown in Figure 5b. The PEIS spectra were fitted by an equivalent Randles circuit shown in the inset of Figure 5b to evaluate the charge transfer resistance presented at the electrode/electrolyte interface. Rs stands for all the series resistance in the system; Cbulk represents the capacitance of the bulk; Rct,bulk is the resistance of the hole trapping rate due to the presence of surface states; Css stands for the capacitance of the surface states; and Rct,ss is the resistance of the transferring holes to the donor species dispersed in the electrolyte [59]. The derived Rct,ss for BiVO4/CoS2 is 20.11 Ω, which is much smaller than the 452.9 Ω derived for bare BiVO4.

3.3.4. Surface Charge Dynamics Study with Intensity Modulated Photocurrent Spectroscopy

The observed interfacial charge transfer efficiency enhancement in BiVO4/CoS2 can be caused by accelerated water oxidation kinetics or a suppressed surface recombination process or both [60]. The rate constants of charge transfer (ktr) and surface recombination (Kroc) at the electrode/electrolyte interface were characterized using intensity modulated photocurrent spectroscopy (IMPS) in order to explore which is the key reason for the significantly improved interfacial charge transfer efficiency [60,61,62].
The IMPS plots characterized in the potential range of 0.6–1.1 V versus RHE for bare BiVO4 and BiVO4/CoS2 are shown in Figure 6a,b, respectively. All the IMPS plots are composed of two connected semicircles, and the small semicircles in the upper quadrant shown in the IMPS plots of BiVO4/CoS2 suggest a relatively enhanced charge transfer process at all potentials, which is consistent with the combined optical and electrochemical characterization results. The semicircle positioned in the upper quadrant of the complex plane was analyzed to derive the pseudo-first-order rate constants of ktr and krec, and the results are summarized in Figure 6c,d. In contrast to what one would intuitively expect for BiVO4 modified by CoS2 with excellent electrocatalytic properties, the charge transfer rate constant is reduced instead of enhanced. This observation suggests that the excellent electrocatalytic property of CoS2 is not the main reason for the enhanced charge transfer efficiency in the BiVO4/CoS2 system. Alternatively, the introduction of CoS2 deteriorates the slow water oxidation kinetics in bare BiVO4 into an even worse case. Considering the excellent electrocatalytic property possessed by CoS2, the observed reduced charge transfer rate constant may be caused by the sluggish charge transfer at the BiVO4/CoS2 interface. Interestingly, the surface recombination rate constants are suppressed by 6–10 times in the sample of BiVO4/CoS2 at all biased potentials, which indicates that the largely suppressed surface recombination should be the main contributing factor to the improved charge transfer efficiency observed in the BiVO4/CoS2 system, in which much more photogenerated charge carriers arrived at the surface that have an increased chance to oxidize the surface adsorbed water molecules. Therefore, the main function of CoS2 in the BiVO4/CoS2 system is supposed to passivate the surface states in BiVO4, which may be achieved by reducing the dangling bonds on the surface of BiVO4 with the formation of the Co-O bond at the BiVO4/CoS2 interface.

3.3.5. Proposed Mechanism for Enhanced Photoelectrochemical Water Splitting Performance

Based on the characterization results mentioned above, a supposed mechanism for the enhanced PEC performance in the BiVO4/CoS2 photoanode is proposed and illustrated in Figure 7. In bare BiVO4, the electron-hole pairs generated by optical absorption can be separated into free charge carries in a decent efficiency. However, when the photogenerated holes arrive at the surface, they are predominately trapped by the high density of surface states present on the surface of bare BiVO4, and a further attraction of photoelectrons generated in the bulk phase is followed, which results in a sever surface recombination. Therefore, much less photogenerated holes are involved in the water oxidation process, and the obtained photocurrent is much lower than the value expected in theory. After the surface of bare BiVO4 is modified by CoS2, the formation of the Co-O bond at the BiVO4/CoS2 interface possibly reduces the density of dangling bonds on the surface of BiVO4, which passivates the surface states of BiVO4 to a decent level. Furthermore, the presence of the BiVO4/CoS2 interface may also act as a barrier for the recombination of charge carriers once the photogenerated holes are transferred to CoS2. In this way, the surface recombination of charge carriers is largely suppressed, and more photogenerated holes arrived at the surface have a large chance to be involved in the water oxidation process, which then achieves an enhanced PEC performance.

4. Conclusions

In summary, the surface of bare BiVO4 is modified by CoS2 via a simple hydrothermal method to form composited BiVO4/CoS2 photoanode. After CoS2 surface modification, the J–V curve of the BiVO4/CoS2 photoanode shows a 210 mV cathodic shift in onset potential and 3.7 times enhancement in photocurrent, which exhibits a photocurrent density of 5.2 mA cm−2 at 1.23 V versus RHE. Combined optical and electrochemical characterization results show that the bulk charge separation efficiency is not enhanced in the composite photoanode. Instead, a significantly enhanced interfacial charge transfer efficiency is observed. IMPS was adopted to characterize the rate constants of charge carriers related to the interface charge transfer process in order to explore the reason for the enhanced interfacial charge transfer efficiency by CoS2 surface modification. Unexpectedly, a reduced charge transfer rate constant is observed at all the characterization potentials for BiVO4/CoS2 compared to bare BiVO4, which indicates that the electrocatalytic properties of CoS2 make little positive contribution to the enhanced charge transfer process. In contrast, the surface recombination rate constants in BiVO4 are observed to be suppressed by 6–10 times after CoS2 surface modification at all biased potentials. Therefore, the main function of CoS2 is supposed to passivate the surface states presented on the surface of BiVO4, which results in more photogenerated holes involved in the water oxidation process. Our work shows that the excellent electrocatalytic properties of co-catalyst may not be responsible for the enhanced PEC performance in composite photoelectrodes, but the influence of co-catalyst on the surface states and surface recombination of the photoelectrode should also be considered when designing highly efficient photoelectrodes.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/inorganics10120264/s1, Figure S1: XRD pattern of BiVO4; Figure S2: XPS survey spectra; Figure S3: High-resolution XPS spectra of V 2p.

Author Contributions

Conceptualization, Y.G. and L.G.; methodology, G.Y.; validation, H.Z., L.M. and X.L.; formal analysis, N.L.; investigation, G.Y. and Z.T.; data curation, G.Y.; writing—original draft preparation, G.Y.; writing—review and editing, Y.G. and L.G.; funding acquisition, Y.G. and L.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was founded by the National Natural Science Foundation of China (Grant no. 22002188) and the Science Foundation of China University of Petroleum, Beijing (no. 2462017YJRC014 and no. 2462018BJC005).

Acknowledgments

The authors are thankful for the technical support from the Microstructure Laboratory for Energy Materials at China University of Petroleum, Beijing.

Conflicts of Interest

The authors declare that they have no known competing financial interest or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Turner, J.A. A Realizable Renewable Energy Future. Science 1999, 285, 687–689. [Google Scholar] [CrossRef] [Green Version]
  2. Turner, J.A. Sustainable hydrogen production. Science 2004, 305, 972–974. [Google Scholar] [CrossRef] [PubMed]
  3. Walter, M.G.; Warren, E.L.; McKone, J.R.; Boettcher, S.W.; Mi, Q.; Santori, E.A.; Lewis, N.S. Solar Water Splitting Cells. Chem. Rev. 2010, 110, 6446–6473. [Google Scholar] [CrossRef] [PubMed]
  4. Chen, Y.; Li, J.-F.; Liao, P.-Y.; Zeng, Y.-S.; Wang, Z.; Liu, Z.-Q. Cascaded electron transition in CuWO4/CdS/CdS heterostructure accelerating charge separation towards enhanced photocatalytic activity. Chin. Chem. Lett. 2020, 31, 1516–1519. [Google Scholar] [CrossRef]
  5. Sarnowska, M.; Bienkowski, K.; Barczuk, P.J.; Solarska, R.; Augustynski, J. Highly Efficient and Stable Solar Water Splitting at (Na)WO3Photoanodes in Acidic Electrolyte Assisted by Non-Noble Metal Oxygen Evolution Catalyst. Adv. Energy Mater. 2016, 6, 1600526. [Google Scholar] [CrossRef]
  6. Zhou, Y.; Zhang, L.; Lin, L.; Wygant, B.R.; Liu, Y.; Zhu, Y.; Zheng, Y.; Mullins, C.B.; Zhao, Y.; Zhang, X.; et al. Highly efficient photoelectrochemical water splitting from hierarchical WO3/BiVO4 nanoporous sphere arrays. Nano Lett. 2017, 17, 8012–8017. [Google Scholar] [CrossRef] [PubMed]
  7. Zhang, J.; Ma, H.; Liu, Z. Highly efficient photocatalyst based on all oxides WO3/Cu2O heterojunction for photoelectrochemical water splitting. Appl. Catal. B 2017, 201, 84–91. [Google Scholar] [CrossRef]
  8. Cho, I.S.; Lee, C.H.; Feng, Y.; Logar, M.; Rao, P.M.; Cai, L.; Kim, D.R.; Sinclair, R.; Zheng, X. Codoping titanium dioxide nanowires with tungsten and carbon for enhanced photoelectrochemical performance. Nat. Commun. 2013, 4, 1723. [Google Scholar] [CrossRef] [Green Version]
  9. Zhou, T.; Wang, J.; Chen, S.; Bai, J.; Li, J.; Zhang, Y.; Li, L.; Xia, L.; Rahim, M.; Xu, Q.; et al. Bird-nest structured ZnO/TiO2 as a direct Z-scheme photoanode with enhanced light harvesting and carriers kinetics for highly efficient and stable photoelectrochemical water splitting. Appl. Catal. B Environ. 2020, 267, 118599. [Google Scholar] [CrossRef]
  10. Pu, Y.-C.; Wang, G.; Chang, K.-D.; Ling, Y.; Lin, Y.-K.; Fitzmorris, B.C.; Liu, C.-M.; Lu, X.; Tong, Y.; Zhang, J.Z.; et al. Au Nanostructure-Decorated TiO2 Nanowires Exhibiting Photoactivity Across Entire UV-visible Region for Photoelectrochemical Water Splitting. Nano Lett. 2013, 13, 3817–3823. [Google Scholar] [CrossRef]
  11. Butburee, T.; Bai, Y.; Wang, H.; Chen, H.; Wang, Z.; Liu, G.; Zou, J.; Khemthong, P.; Lu, G.Q.M.; Wang, L. 2D porous TiO2 single-crystalline nanostructure demonstrating high photo-electrochemical water splitting performance. Adv. Mater. 2018, 30, 1705666. [Google Scholar] [CrossRef] [PubMed]
  12. Yi, S.-S.; Wulan, B.-R.; Yan, J.-M.; Jiang, Q. Highly efficient photoelectrochemical water splitting: Surface modification of cobalt-phosphate-loaded Co3O4/Fe2O3 p-n heterojunction nanorod arrays. Adv. Funct. Mater. 2019, 29, 1801902. [Google Scholar] [CrossRef]
  13. Moradlou, O.; Rabiei, Z.; Banazadeh, A.; Warzywoda, J.; Zirak, M. Carbon quantum dots as nano-scaffolds for α-Fe2O3 growth: Preparation of Ti/CQD@α-Fe2O3 photoanode for water splitting under visible light irradiation. Appl. Catal. B Environ. 2018, 227, 178–189. [Google Scholar] [CrossRef] [Green Version]
  14. Liao, A.; He, H.; Tang, L.; Li, Y.; Zhang, J.; Chen, J.; Chen, L.; Zhang, C.; Zhou, Y.; Zou, Z. Quasi-Topotactic Transformation of FeOOH Nanorods to Robust Fe2O3 Porous Nanopillars Triggered with a Facile Rapid Dehydration Strategy for Efficient Photoelectrochemical Water Splitting. ACS Appl. Mater. Interfaces 2018, 10, 10141–10146. [Google Scholar] [CrossRef] [PubMed]
  15. Wang, Z.; Lyu, M.; Chen, P.; Wang, S.; Wang, L. Energy loss analysis in photoelectrochemical water splitting: A case study of hematite photoanodes. Phys. Chem. Chem. Phys. 2018, 20, 22629–22635. [Google Scholar] [CrossRef] [PubMed]
  16. Li, X.; Liu, S.; Fan, K.; Liu, Z.; Song, B.; Yu, J. MOF-Based Transparent Passivation Layer Modified ZnO Nanorod Arrays for Enhanced Photo-Electrochemical Water Splitting. Adv. Energy Mater. 2018, 8, 1800101. [Google Scholar] [CrossRef]
  17. Khan, I.; Qurashi, A.; Berdiyorov, G.; Iqbal, N.; Fuji, K.; Yamani, Z.H. Single-step strategy for the fabrication of GaON/ZnO nanoarchitectured photoanode their experimental and computational photoelectrochemical water splitting. Nano Energy 2018, 44, 23–33. [Google Scholar] [CrossRef]
  18. Han, H.; Karlicky, F.; Pitchaimuthu, S.; Shin, S.H.R.; Chen, A. Highly Ordered N-Doped Carbon Dots Photosensitizer on Metal–Organic Framework-Decorated ZnO Nanotubes for Improved Photoelectrochemical Water Splitting. Small 2019, 15, e1902771. [Google Scholar] [CrossRef] [PubMed]
  19. Tian, Z.; Zhang, P.; Qin, P.; Sun, D.; Zhang, S.; Guo, X.; Zhao, W.; Zhao, D.; Huang, F. Novel black BiVO4/TiO2−x photoanode with enhanced photon absorption and charge separation for efficient and stable solar water splitting. Adv. Energy Mater. 2019, 9, 1901287. [Google Scholar] [CrossRef]
  20. Zhou, S.; Chen, K.; Huang, J.; Wang, L.; Zhang, M.; Bai, B.; Liu, H.; Wang, Q. Preparation of heterometallic CoNi-MOFs-modified BiVO4: A steady photoanode for improved performance in photoelectrochemical water splitting. Appl. Catal. B 2020, 266, 118513. [Google Scholar] [CrossRef]
  21. Wang, S.; Chen, P.; Bai, Y.; Yun, J.; Liu, G.; Wang, L. New BiVO4 Dual Photoanodes with Enriched Oxygen Vacancies for Efficient Solar-Driven Water Splitting. Adv. Mater. 2018, 30, e1800486. [Google Scholar] [CrossRef] [PubMed]
  22. Gao, Y.; Li, Y.; Yang, G.; Li, S.; Xiao, N.; Xu, B.; Liu, S.; Qiu, P.; Hao, S.; Ge, L. Fe2TiO5 as an efficient co-catalyst to improve the photoelectrochemical water splitting performance of BiVO4. ACS Appl. Mater. Interfaces 2018, 10, 39713–39722. [Google Scholar] [CrossRef] [PubMed]
  23. Gao, Y.; Yang, G.; Dai, Y.; Li, X.; Gao, J.; Li, N.; Qiu, P.; Ge, L. Electrodeposited co-substituted LaFeO3 for enhancing the photoelectrochemical activity of BiVO4. ACS Appl. Mater. Interfaces 2020, 12, 17364–17375. [Google Scholar] [CrossRef] [PubMed]
  24. She, H.; Yue, P.; Ma, X.; Huang, J.; Wang, L.; Wang, Q. Fabrication of BiVO4 photoanode cocatalyzed with NiCo-layered double hydroxide for enhanced photoactivity of water oxidation. Appl. Catal. B 2020, 263, 118280. [Google Scholar] [CrossRef]
  25. Jia, Q.; Iwashina, K.; Kudo, A. Facile fabrication of an efficient BiVO4 thin film electrode for water splitting under visible light irradiation. Proc. Natl. Acad. Sci. USA 2012, 109, 11564–11569. [Google Scholar] [CrossRef] [Green Version]
  26. Choi, S.K.; Choi, W.; Park, H. Solar water oxidation using nickel-borate coupled BiVO4 photoelectrodes. Phys. Chem. Chem. Phys. 2013, 15, 6499–6507. [Google Scholar] [CrossRef] [Green Version]
  27. Abdi, F.F.; Firet, N.; van de Krol, R. Efficient BiVO4 Thin Film Photoanodes Modified with Cobalt Phosphate Catalyst and W-doping. ChemCatChem 2013, 5, 490–496. [Google Scholar] [CrossRef]
  28. Qiu, Y.; Liu, W.; Chen, W.; Zhou, G.; Hsu, P.-C.; Zhang, R.; Liang, Z.; Fan, S.; Zhang, Y.; Cui, Y. Efficient solar-driven water splitting by nanocone BiVO 4 -perovskite tandem cells. Sci. Adv. 2016, 2, e1501764. [Google Scholar] [CrossRef] [Green Version]
  29. Zhong, D.K.; Gamelin, D.R. Photoelectrochemical water oxidation by cobalt catalyst (“Co−Pi”)/α-Fe2O3 composite photoanodes: Oxygen evolution and resolution of a kinetic bottleneck. J. Am. Chem. Soc. 2010, 132, 4202–4207. [Google Scholar] [CrossRef]
  30. Zhong, D.K.; Choi, S.; Gamelin, D.R. Near-complete suppression of surface recombination in solar photoelectrolysis by “Co-Pi” catalyst-modified W:BiVO4. J. Am. Chem. Soc. 2011, 133, 18370–18377. [Google Scholar] [CrossRef]
  31. Seabold, J.A.; Choi, K.-S. Efficient and Stable Photo-Oxidation of Water by a Bismuth Vanadate Photoanode Coupled with an Iron Oxyhydroxide Oxygen Evolution Catalyst. J. Am. Chem. Soc. 2012, 134, 2186–2192. [Google Scholar] [CrossRef]
  32. Abdi, F.F.; Savenije, T.J.; May, M.M.; Dam, B.; van de Krol, R. The Origin of Slow Carrier Transport in BiVO4 Thin Film Photoanodes: A Time-Resolved Microwave Conductivity Study. J. Phys. Chem. Lett. 2013, 4, 2752–2757. [Google Scholar] [CrossRef]
  33. Huang, Z.-F.; Pan, L.; Zou, J.-J.; Zhang, X.; Wang, L. Nanostructured bismuth vanadate-based materials for solar-energy-driven water oxidation: A review on recent progress. Nanoscale 2014, 6, 14044–14063. [Google Scholar] [CrossRef] [PubMed]
  34. Lee, D.K.; Choi, K.-S. Enhancing long-term photostability of BiVO4 photoanodes for solar water splitting by tuning electrolyte composition. Nat. Energy 2018, 3, 53–60. [Google Scholar] [CrossRef]
  35. Park, Y.; McDonald, K.J.; Choi, K.-S. Progress in bismuth vanadate photoanodes for use in solar water oxidation. Chem. Soc. Rev. 2013, 42, 2321–2337. [Google Scholar] [CrossRef] [PubMed]
  36. Kim, J.H.; Lee, J.S. Elaborately Modified BiVO4Photoanodes for Solar Water Splitting. Adv. Mater. 2019, 31, e1806938. [Google Scholar] [CrossRef]
  37. Zhang, H.; Zhou, W.; Yang, Y.; Cheng, C. 3D WO3/BiVO4/cobalt phosphate composites inverse opal photoanode for efficient photoelectrochemical water splitting. Small 2017, 13, 1603840. [Google Scholar] [CrossRef]
  38. Zalfani, M.; Hu, Z.-Y.; Yu, W.-B.; Mahdouani, M.; Bourguiga, R.; Wu, M.; Li, Y.; van Tendeloo, G.; Djaoued, Y.; Su, B.-L. BiVO4/3DOM TiO2 nanocomposites: Effect of BiVO4 as highly efficient visible light sensitizer for highly improved visible light photocatalytic activity in the degradation of dye pollutants. Appl. Catal. B 2017, 205, 121–132. [Google Scholar] [CrossRef] [Green Version]
  39. Kuang, Y.; Jia, Q.; Nishiyama, H.; Yamada, T.; Kudo, A.; Domen, K. A front-illuminated nanostructured transparent BiVO4 photoanode for >2% efficient water splitting. Adv. Energy Mater. 2016, 6, 1501645. [Google Scholar] [CrossRef]
  40. Zhong, X.; He, H.; Yang, M.; Ke, G.; Zhao, Z.; Dong, F.; Wang, B.; Chen, Y.; Shi, X.; Zhou, Y. In3+-doped BiVO4 photoanodes with passivated surface states for photoelectrochemical water oxidation. J. Mater. Chem. A 2018, 6, 10456–10465. [Google Scholar] [CrossRef]
  41. Zhou, M.; Bao, J.; Xu, Y.; Zhang, J.; Xie, J.; Guan, M.; Wang, C.; Wen, L.; Lei, Y.; Xie, Y. Photoelectrodes based upon Mo:BiVO4 inverse opals for photoelectrochemical water splitting. ACS Nano 2014, 8, 7088–7098. [Google Scholar] [CrossRef]
  42. Byun, S.; Jung, G.; Moon, S.-Y.; Kim, B.; Park, J.Y.; Jeon, S.; Nam, S.-W.; Shin, B. Compositional engineering of solution-processed BiVO4 photoanodes toward highly efficient photoelectrochemical water oxidation. Nano Energy 2018, 43, 244–252. [Google Scholar] [CrossRef]
  43. Chen, J.S.; Ren, J.; Shalom, M.; Fellinger, T.; Antonietti, M. Stainless Steel Mesh-Supported NiS Nanosheet Array as Highly Efficient Catalyst for Oxygen Evolution Reaction. ACS Appl. Mater. Interfaces 2016, 8, 5509–5516. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Prabakaran, K.; Lokanathan, M.; Kakade, B. Three dimensional flower like cobalt sulfide (CoS)/functionalized MWCNT composite catalyst for efficient oxygen evolution reactions. Appl. Surf. Sci. 2019, 466, 830–836. [Google Scholar] [CrossRef]
  45. Li, J.; Xia, Z.; Zhang, M.; Zhang, S.; Li, J.; Ma, Y.; Qu, Y. Ce-doped CoS2 pyrite with weakened O2 adsorption suppresses catalyst leaching and stabilizes electrocatalytic H2 evolution. J. Mater. Chem. A 2019, 7, 17775–17781. [Google Scholar] [CrossRef]
  46. Zhang, H.; Li, Y.; Zhang, G.; Xu, T.; Wan, P.; Sun, X. A metallic CoS2 nanopyramid array grown on 3D carbon fiber paper as an excellent electrocatalyst for hydrogen evolution. J. Mater. Chem. A 2015, 3, 6306–6310. [Google Scholar] [CrossRef]
  47. Kim, T.W.; Choi, K.-S. Nanoporous BiVO4 Photoanodes with Dual-Layer Oxygen Evolution Catalysts for Solar Water Splitting. Science 2014, 343, 990–994. [Google Scholar] [CrossRef]
  48. Luo, J.; Steier, L.; Son, M.-K.; Schreier, M.; Mayer, M.T.; Grätzel, M. Cu2O Nanowire Photocathodes for Efficient and Durable Solar Water Splitting. Nano Lett. 2016, 16, 1848–1857. [Google Scholar] [CrossRef]
  49. Li, L.; Yang, X.; Lei, Y.; Yu, H.; Yang, Z.; Zheng, Z.; Wang, D. Ultrathin Fe-NiO nanosheets as catalytic charge reservoirs for a planar Mo-doped BiVO4 photoanode. Chem. Sci. 2018, 9, 8860–8870. [Google Scholar] [CrossRef] [Green Version]
  50. Faber, M.S.; Dziedzic, R.; Lukowski, M.A.; Kaiser, N.S.; Ding, Q.; Jin, S. High-Performance Electrocatalysis Using Metallic Cobalt Pyrite (CoS2) Micro- and Nanostructures. J. Am. Chem. Soc. 2014, 136, 10053–10061. [Google Scholar] [CrossRef]
  51. Hou, J.; Zhang, B.; Li, Z.; Cao, S.; Sun, Y.; Wu, Y.; Gao, Z.; Sun, L. Vertically aligned oxygenated-CoS2–MoS2 heteronanosheet architecture from polyoxometalate for efficient and stable overall water splitting. ACS Catal. 2018, 8, 4612–4621. [Google Scholar] [CrossRef]
  52. Kong, W.; Luan, X.; Du, H.; Xia, L.; Qu, F. Enhanced electrocatalytic activity of water oxidation in an alkaline medium via Fe doping in CoS2 nanosheets. Chem. Commun. 2019, 55, 2469–2472. [Google Scholar] [CrossRef]
  53. Hao, J.; Yang, W.; Peng, Z.; Zhang, C.; Huang, Z.; Shi, W. A Nitrogen Doping Method for CoS2 Electrocatalysts with Enhanced Water Oxidation Performance. ACS Catal. 2017, 7, 4214–4220. [Google Scholar] [CrossRef]
  54. Han, X.; Wu, X.; Deng, Y.; Liu, J.; Lu, J.; Zhong, C.; Hu, W. Ultrafine Pt Nanoparticle-Decorated Pyrite-Type CoS 2 Nanosheet Arrays Coated on Carbon Cloth as a Bifunctional Electrode for Overall Water Splitting. Adv. Energy Mater. 2018, 8, 1800935. [Google Scholar] [CrossRef]
  55. Feng, C.; Jiao, Z.; Li, S.; Zhang, Y.; Bi, Y. Facile fabrication of BiVO4 nanofilms with controlled pore size and their photoelectrochemical performances. Nanoscale 2015, 7, 20374–20379. [Google Scholar] [CrossRef]
  56. Madhusudan, P.; Ran, J.; Zhang, J.; Yu, J.; Liu, G. Novel urea assisted hydrothermal synthesis of hierarchical BiVO4/Bi2O2CO3 nanocomposites with enhanced visible-light photocatalytic activity. Appl. Catal. B 2011, 110, 286–295. [Google Scholar] [CrossRef]
  57. Lee, H.; Wu, X.; Ye, Q.; Wu, X.; Wang, X.; Zhao, Y.; Sun, L. Hierarchical CoS2/Ni3S2/CoNiOx nanorods with favorable stability at 1 A cm−2 for electrocatalytic water oxidation. Chem. Commun. 2019, 55, 1564–1567. [Google Scholar] [CrossRef]
  58. Zhang, B.; Wang, L.; Zhang, Y.; Ding, Y.; Bi, Y. Ultrathin FeOOH Nanolayers with Abundant Oxygen Vacancies on BiVO4 Photoanodes for Efficient Water Oxidation. Angew. Chem. Int. Ed. 2018, 57, 2248–2252. [Google Scholar] [CrossRef]
  59. Klahr, B.; Gimenez, S.; Fabregat-Santiago, F.; Hamann, T.; Bisquert, J. Water Oxidation at Hematite Photoelectrodes: The Role of Surface States. J. Am. Chem. Soc. 2012, 134, 4294–4302. [Google Scholar] [CrossRef] [Green Version]
  60. Peter, L.M.; Wijayantha, K.G.U.; Tahir, A.A. Kinetics of light-driven oxygen evolution at α-Fe2O3 electrodes. Faraday Discuss. 2012, 155, 309–322. [Google Scholar] [CrossRef]
  61. Zachaus, C.; Abdi, F.F.; Peter, L.M.; van de Krol, R. Photocurrent of BiVO4 is limited by surface recombination, not surface catalysis. Chem. Sci. 2017, 8, 3712–3719. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Ponomarev, E.; Peter, L. A generalized theory of intensity modulated photocurrent spectroscopy (IMPS). J. Electroanal. Chem. 1995, 396, 219–226. [Google Scholar] [CrossRef]
Inorganics 10 00264 g001 550

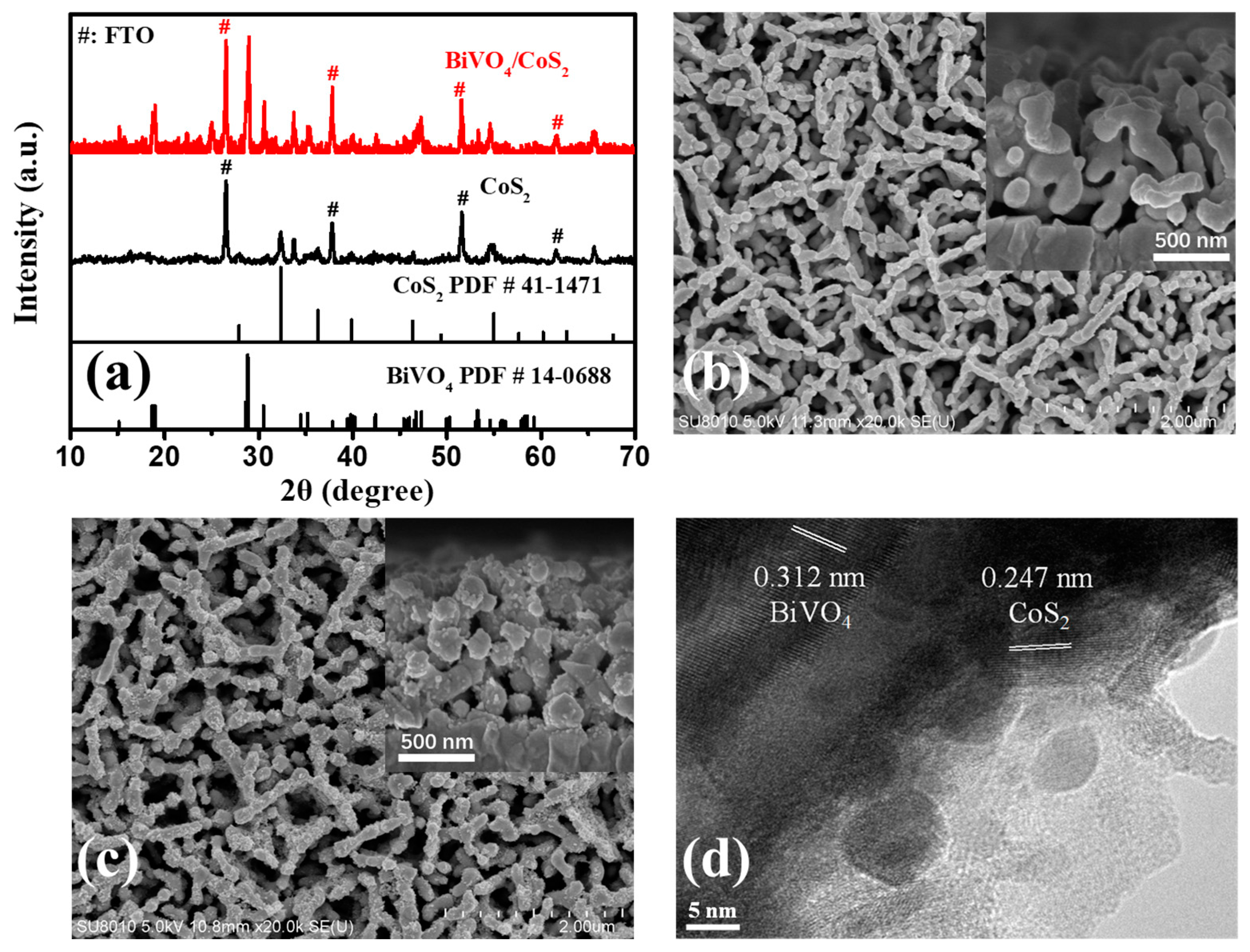

Figure 1. (a) XRD of CoS2 and BiVO4/CoS2. (b) SEM image of bare BiVO4, inset: cross-section image of bare BiVO4. (c) BiVO4/CoS2, inset: cross-section image of BiVO4/CoS2. (d) HRTEM image of BiVO4/CoS2.
Figure 1. (a) XRD of CoS2 and BiVO4/CoS2. (b) SEM image of bare BiVO4, inset: cross-section image of bare BiVO4. (c) BiVO4/CoS2, inset: cross-section image of BiVO4/CoS2. (d) HRTEM image of BiVO4/CoS2.
Inorganics 10 00264 g001
Inorganics 10 00264 g002 550

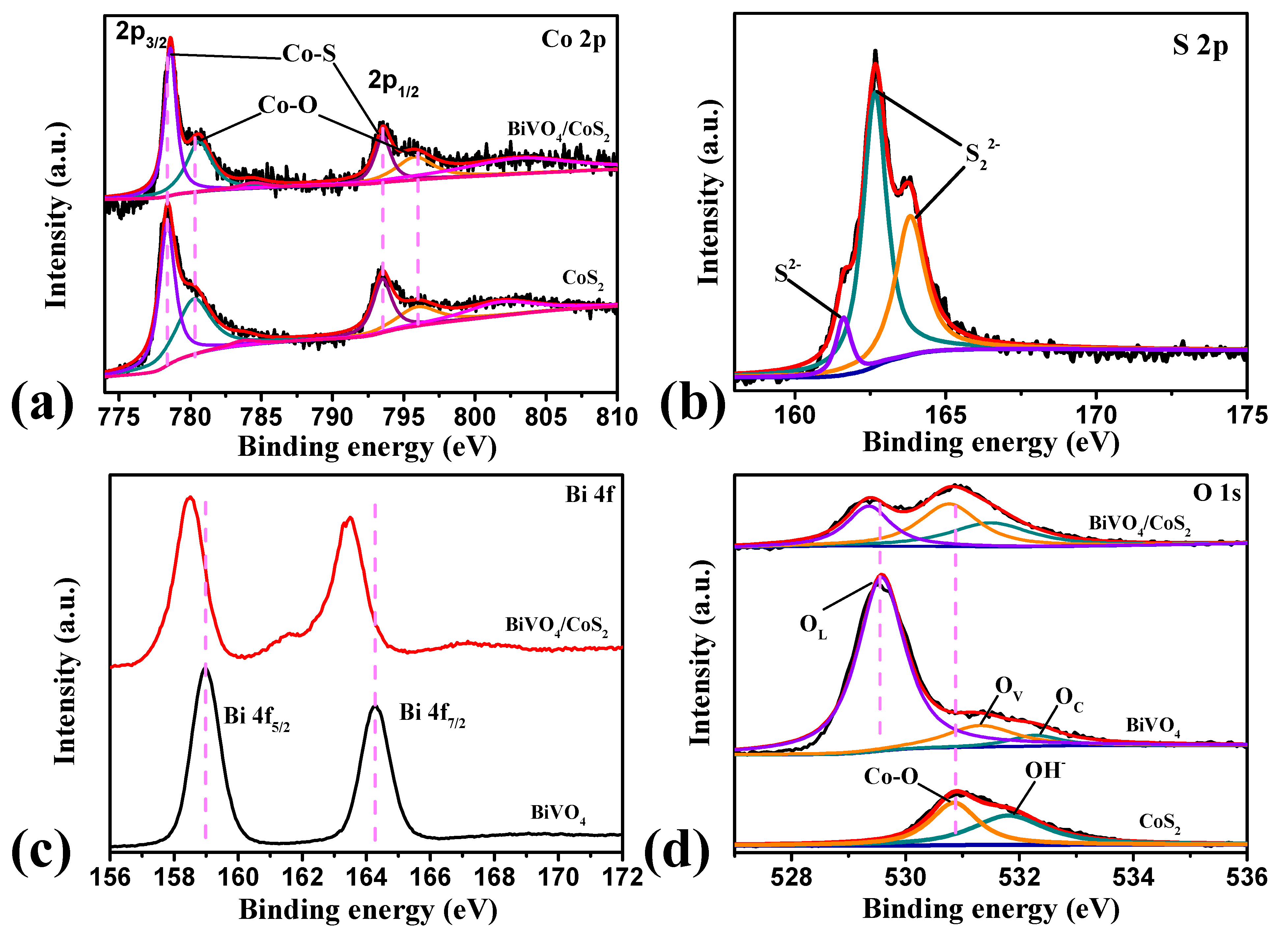

Figure 2. XPS spectra of the bare BiVO4, CoS2, and BiVO4/CoS2 samples. (a) Co 2p, (b) S 2p, (c) Bi 4f, and (d) O 1s.
Figure 2. XPS spectra of the bare BiVO4, CoS2, and BiVO4/CoS2 samples. (a) Co 2p, (b) S 2p, (c) Bi 4f, and (d) O 1s.
Inorganics 10 00264 g002
Inorganics 10 00264 g003 550

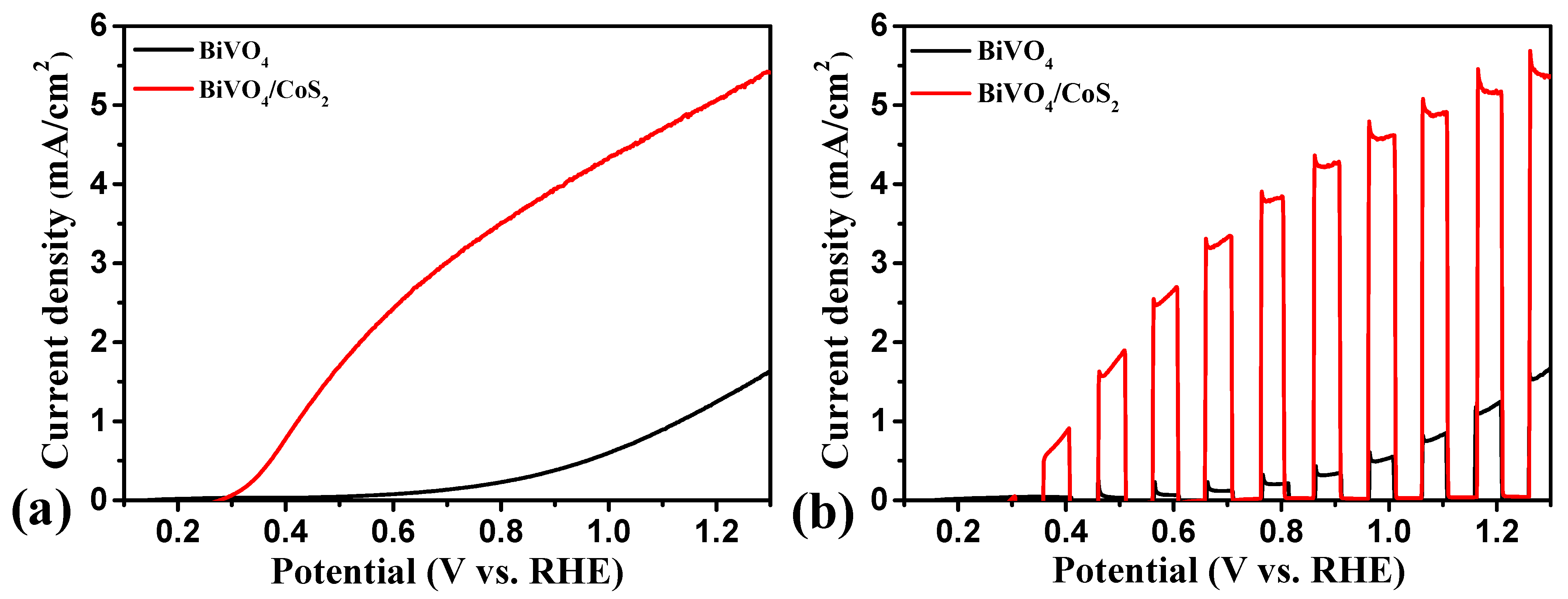

Figure 3. J–V curves of the bare BiVO4 and BiVO4/CoS2 photoanodes measured under (a) continuous and (b) chopped AM 1.5G illumination; 0.5 M KPi buffer solution (pH = 7) was used as the electrolyte.
Figure 3. J–V curves of the bare BiVO4 and BiVO4/CoS2 photoanodes measured under (a) continuous and (b) chopped AM 1.5G illumination; 0.5 M KPi buffer solution (pH = 7) was used as the electrolyte.
Inorganics 10 00264 g003
Inorganics 10 00264 g004 550

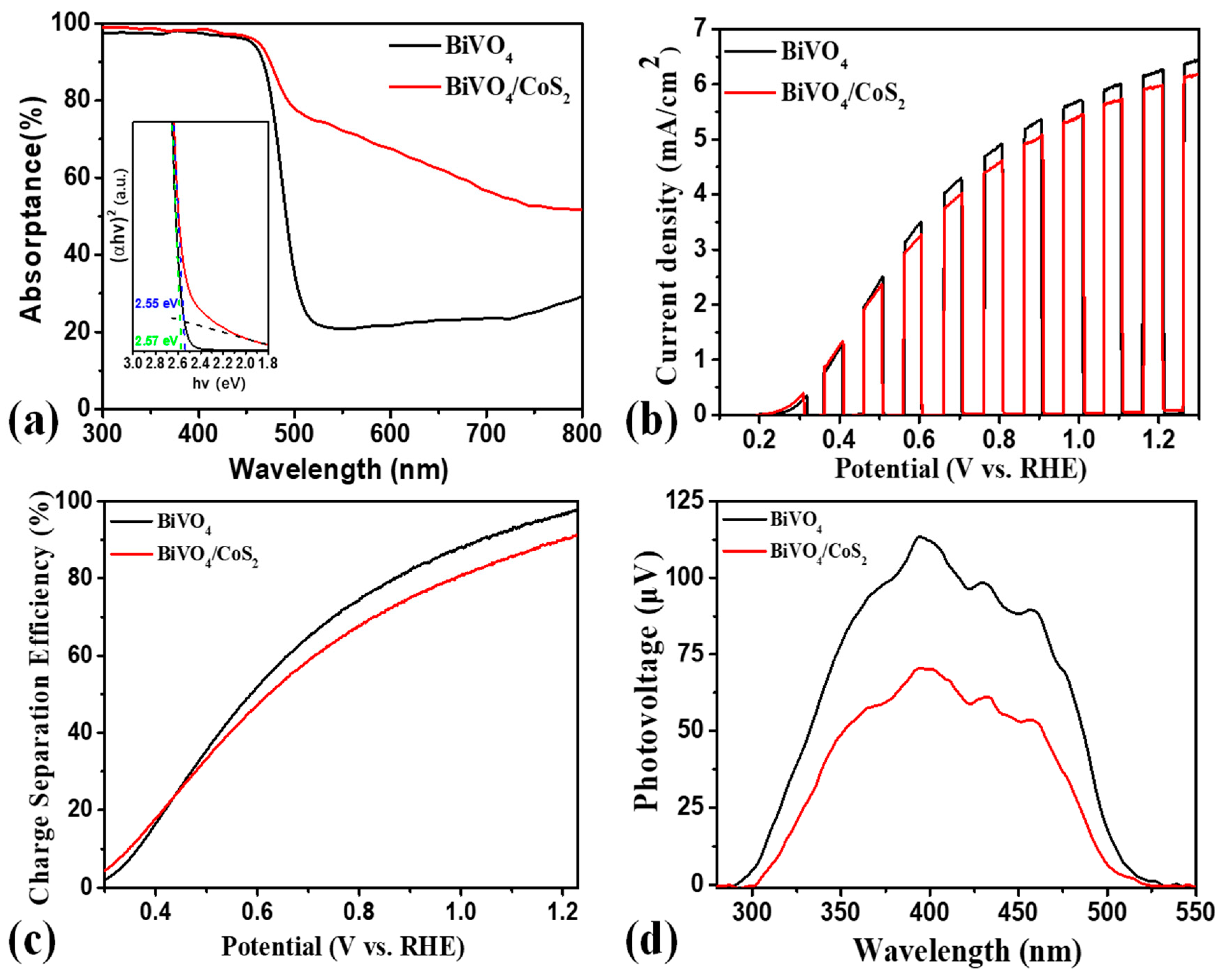

Figure 4. (a) UV–Vis spectra of the bare BiVO4 and BiVO4/CoS2 photoanodes. (b) J–V curves of the bare BiVO4 and BiVO4/CoS2 photoanodes measured under chopped AM 1.5G illumination. A 0.25 M K2B4O7 buffer solution (pH = 9.5) with the addition of 0.2 M sodium sulfite was used as the electrolyte. (c) Derived bulk charge separation efficiencies of BiVO4 and BiVO4/CoS2. (d) Surface photovoltage spectroscopy of the bare BiVO4 and BiVO4/CoS2 photoanodes.
Figure 4. (a) UV–Vis spectra of the bare BiVO4 and BiVO4/CoS2 photoanodes. (b) J–V curves of the bare BiVO4 and BiVO4/CoS2 photoanodes measured under chopped AM 1.5G illumination. A 0.25 M K2B4O7 buffer solution (pH = 9.5) with the addition of 0.2 M sodium sulfite was used as the electrolyte. (c) Derived bulk charge separation efficiencies of BiVO4 and BiVO4/CoS2. (d) Surface photovoltage spectroscopy of the bare BiVO4 and BiVO4/CoS2 photoanodes.
Inorganics 10 00264 g004
Inorganics 10 00264 g005 550

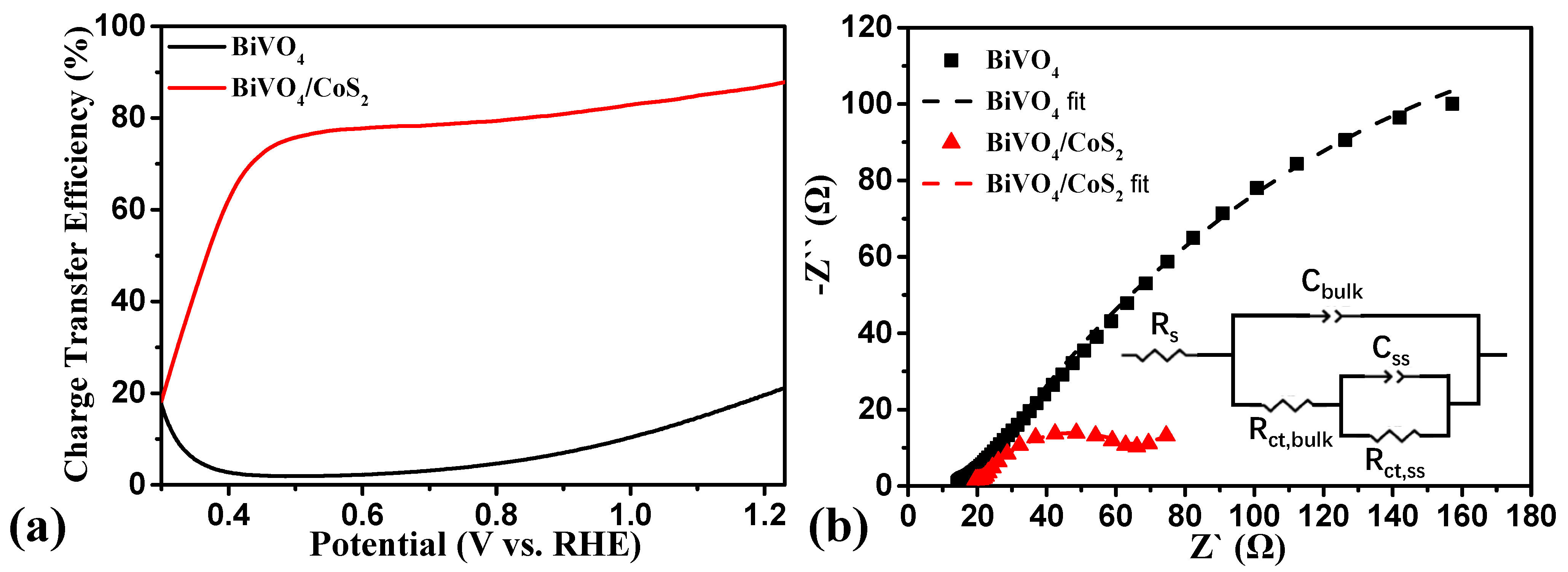

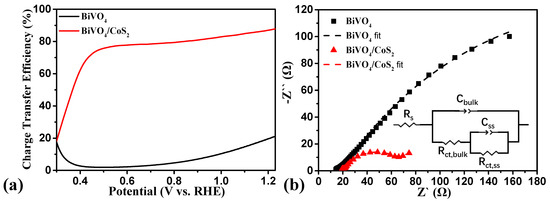

Figure 5. (a) Charge transfer efficiencies of BiVO4 and BiVO4/CoS2. (b) The Nyquist plots of the BiVO4 and BiVO4/CoS2 photoanodes.
Figure 5. (a) Charge transfer efficiencies of BiVO4 and BiVO4/CoS2. (b) The Nyquist plots of the BiVO4 and BiVO4/CoS2 photoanodes.
Inorganics 10 00264 g005
Inorganics 10 00264 g006 550

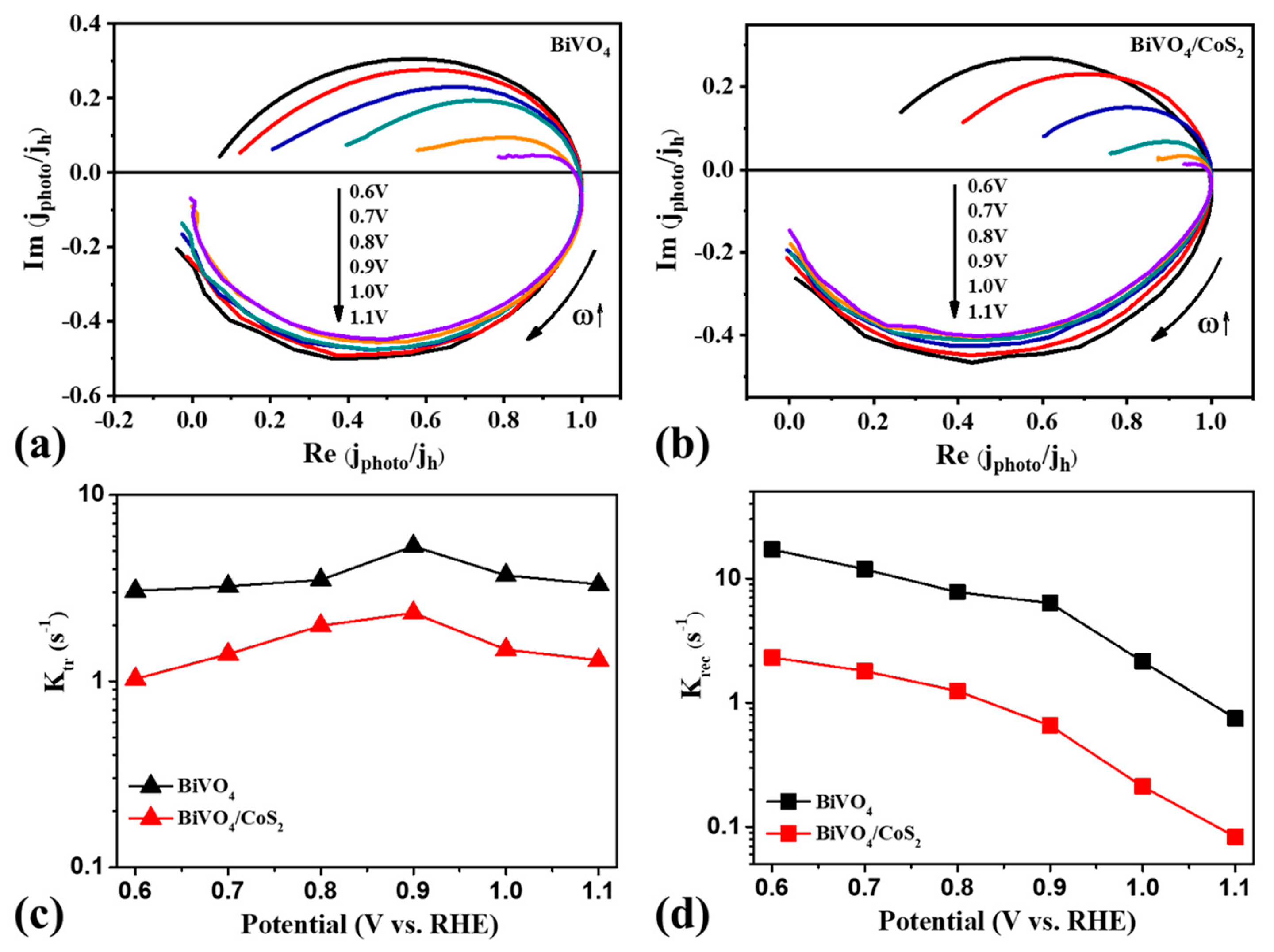

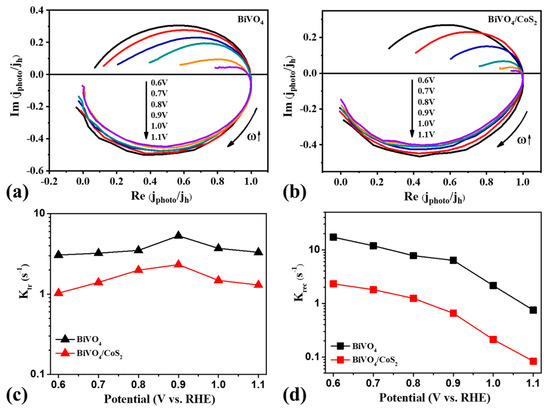

Figure 6. (a) IMPS spectra of BiVO4. (b) IMPS spectra of BiVO4/CoS2. (c) Derived charge transfer rate constant. (d) Recombination rate constant for BiVO4 and BiVO4/CoS2.
Figure 6. (a) IMPS spectra of BiVO4. (b) IMPS spectra of BiVO4/CoS2. (c) Derived charge transfer rate constant. (d) Recombination rate constant for BiVO4 and BiVO4/CoS2.
Inorganics 10 00264 g006
Inorganics 10 00264 g007 550

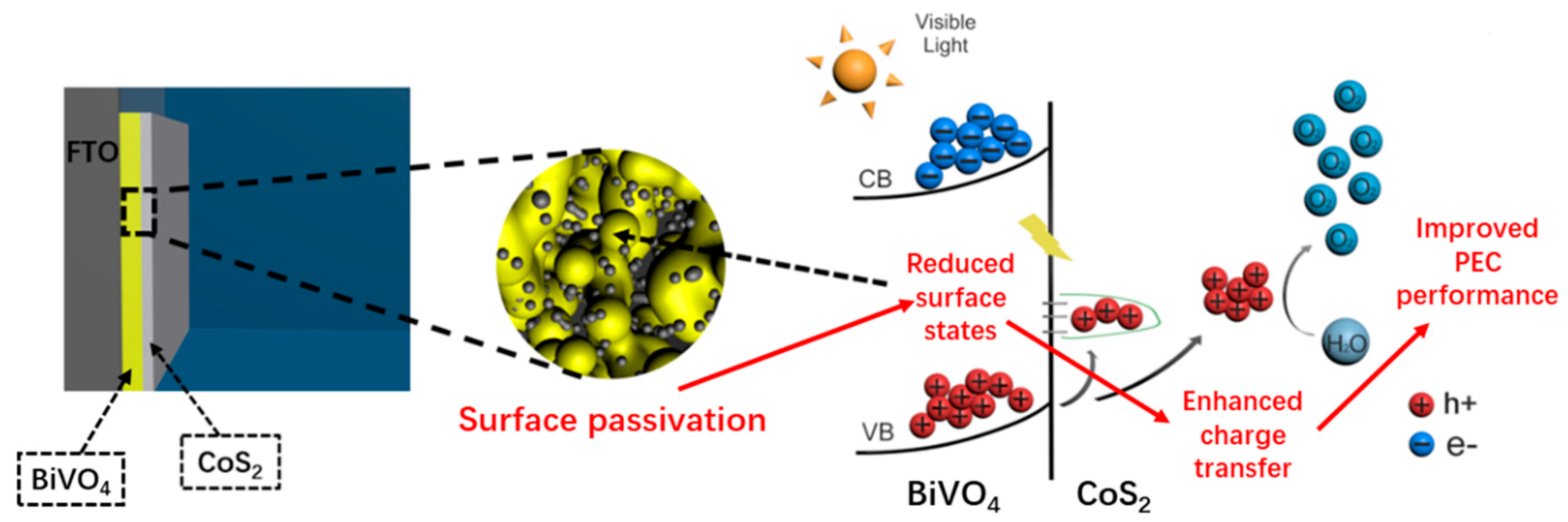

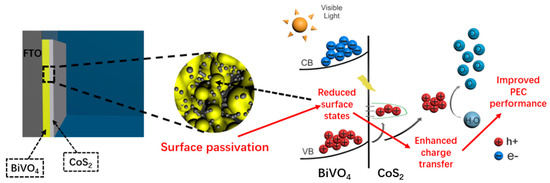

Figure 7. Schematic illustration for the proposed function of CoS2 to improve the PEC performance of BiVO4.
