Article

Coupling of Thiazole-2-Amines with Isocyanide Ligands in bis-(Isocyanide) Platinum Complex: A New Type of Reactivity

Institute of Chemistry, Saint Petersburg State University, Saint Petersburg 199034, Russia
*
Author to whom correspondence should be addressed.
Inorganics 2022, 10(12), 221; https://doi.org/10.3390/inorganics10120221
Received: 7 November 2022 / Revised: 21 November 2022 / Accepted: 22 November 2022 / Published: 24 November 2022
(This article belongs to the Section Organometallic Chemistry)

Abstract

:
The treatment of cis-[PtCl2(XylNC)2] with thiazol-2-amines in a 2:1 ratio leads to a regioisomeric mixture of two binuclear complexes. These regioisomers are products of kinetic and thermodynamic control capable of regioisomerization. When the same reaction is carried out with a 5-fold excess of thiazol-2-amine, the nucleophile is able to react with the in situ-formed binuclear platinum(II) complexes, yielding a new type of bis-carbene platinum species. All new isolated compounds were characterized by 1H, 13C{1H}, and 195Pt{1H} NMR spectroscopy, high-resolution ESI-MS, and single-crystal X-ray diffraction.

Graphical Abstract

1. Introduction

Platinum metal complexes with diaminocarbene ligands (ADC—acyclic diaminocarbenes, NHC—N-heterocyclic carbenes) have become the subject of constant attention from modern researchers due to their successful application in catalysis [1,2,3], medicinal chemistry [4,5], and materials design [4]. Therefore, a large number of works have appeared that are devoted to methods for the synthesis of these species.
One such method is a platinum metal-mediated coupling of coordinated isocyanides with N-containing polynucleophiles. This reaction was first discovered by Chugaev more than 100 years ago [6] and studied by Belluco and coworkers in the 1970s [7,8,9,10]. These works have been systematized by Michelin, Pombeiro, and Guedes da Silva [11]. At the turn of the millennium, there was a surge in research in this area. It was associated with the development of catalysis of multicomponent reactions involving isocyanides (see, for example, reviews [12,13,14,15]) and with the discovery of good catalytic properties of acyclic diaminocarbene complexes (M-ADC) of platinum metals (see reviews and recent papers [2,3,16,17,18,19,20,21,22,23,24,25,26,27,28,29]) as well as their photophysical properties [30] and cytotoxicity [31]. It was found that the structure of the products for metal-mediated coupling strongly depends on the used nucleophile. M-ADCs are the main products when mono-N-nucleophiles are used as substrates. In the case of metal-mediated coupling of bis-isocyanide complexes with aromatic 2-amino-substituted azaheterocycles, binuclear complexes can form along with M-ADC [32,33,34].
Previously, we reported [35,36] that the treatment of cis-[PdCl2(XylNC)2] with thiazol-2-amine leads to a regioisomeric mixture of two binuclear complexes (Scheme 1), one of which proved to be kinetically controlled, while the generation of the other one is thermodynamically driven. In many instances, platinum(II) complexes exhibit similar reactivity as their palladium(II) congeners, although the former species are typically substantially more kinetically inert. This inertness is often used for the tapping and identification of those reaction intermediates that are elusive or quite unstable when relevant palladium(II) species are employed. To get a deeper insight into the mechanism of the reported coupling, for this work we addressed the platinum(II) complex cis-[PtCl2(XylNC)2] and studied its reaction with thiazol-2-amines.

2. Results and Discussion

2.1. The platinum(II)-Mediated Reaction

The reaction of cis-[PtCl2(XylNC)2] 1 with amino-substituted azaheterocycles 2 and 3 (2:1 molar ratio) in the presence of a base (t-BuONa) leads to regioisomeric mixtures of two platinum(II) binuclear diaminocarbene complexes 4a/b and 5a/b (Scheme 2, Route A); this coupling proceeds similarly to that of the corresponding palladium(II) complex cis-[PdCl2(XylNC)2]. The composition of the mixture depends on the reaction conditions. Thus, the reaction conducted at room temperature (RT) results almost exclusively in isomer a for complex 4 and in a 1:1 isomer mixture for complex 5, whereas the quantity of isomer b increases upon reflux in 1,2-dichloroethane (Table 1). The product ratios in the reaction mixtures were monitored by 1H NMR and determined by the peak integration.
Refluxing the reaction mixture with an excess of 2 or 3 (3–10 equiv.) without an added base affords predominantly a new type of product: bis-carbene species 6 and 7 (Scheme 2, Route B). Such bis-carbene complexes of platinum(II) containing aminoazaheterocyclic fragments were not previously known. When the reaction is conducted at RT, it results in the generation of all three types of products, namely the two binuclear complexes (Scheme 2, top panel) and one mononuclear monoprotonated bis-carbene (bottom panel).
As in the case of binuclear palladium complexes [35], for platinum(II), the kinetically controlled regioisomer transforms over time into the thermodynamically controlled one. However, in contrast to the palladium congeners, the isomerization of 4a under similar conditions (CDCl3, 45 °C) took much longer: 110 days for the Pt(II) species vs. 14 days for the Pd(II) species (Figure 1).
For a deeper understanding of plausible reaction routes of the coupling of bis(isocyanide) Pt(II) complex with amino-substituted azaheterocycles, we studied the dependence of products ratio on reagents ratio in the model reaction of 1 and thiazole-2-amine 2 (Table 2). The experiments were conducted at RT for 12 h and the ratios were obtained by the 1H NMR peak integration. In all reaction mixtures, irrespective of the concentration of 2, we observed the formation of binuclear species 4a and 4b. Regioisomer 4b is generated in trace amounts when the amount of 2 was less than one equiv. Starting from a 1:1 ratio between 1 and 2, we observed 1H NMR resonances of bis-carbene 6. Upon the increase of the starting concentration of 2, the fraction of 6 also increases.
While studying the reaction mixture with the 5:1 ratio of 2 and 1, we observed changes in the signals’ intensities over time. Thus, the intensity of Me-groups’ peaks from bis-carbene 6 increased, while those from binuclear species 4a concurrently decreased. After two weeks at RT, we did not observe any signals from 4a, while the reaction mixture remained homogeneous (Figure 2).
We assumed that in an excess of 2, binuclear species 4a could transform into bis-carbene 6. To prove this hypothesis, we performed the isolation of binuclear complex 4a and then carried out its reaction with three equiv. of 2. As expected, this reaction yielded bis-carbene 6. Furthermore, we performed a cross-experiment comprising of the addition of three equiv. of another nucleophile, 5-methylthiazol-2-amine 3, to complex 4a. This experiment verified the generation of two bis-carbene complexes 7 and 8, both identified in the reaction mixture by 1H NMR and HRESI-MS (Scheme 3).
Considering the results of our experiments, we propose the following mechanism for the formation of 6 (Scheme 4). In the first stage, binuclear complex 4a may proceed dissociation into cationic bis-isocyanide intermediate i1 and anionic monocarbene complex i2, which can recombine into isomeric binuclear complex 4b. However, in the presence of 2 acting as a nucleophile and a proton donor, each of these species can transform into monocarbene intermediate i3. The latter reacts with one more equiv. of thiazol-2-amine to eventually provide bis-carbene 6.

2.2. Identification of 4a, 4b, 5a, 6, and 7

Complexes 4a, 4b, 5a, 6, and 7 were isolated as pale-yellow crystals. After dissolution, all these species were characterized by HRESI-MS, 1D (1H, 13C{1H}, and 195Pt{1H}), and 2D (1H,1H-COSY, 1H,1HNOESY, 1H,13C-HSQC, 1H,13C-HMBC) NMR spectroscopy. Complex 5b was not isolated in pure form and was characterized in the mixture with the other regioisomer by HRESI-MS and 1H NMR.
The 1H NMR spectra of 45a/b in each case display signals for each of the four Xyl fragments as well as proton signals of the thiazole core. In the 13C{1H} NMR spectra of 45a/b, two distinct resonances of two Pt-bound NCN fragments were observed at 154.07–154.86 ppm and 182.20−184.50 ppm for kinetically controlled isomers 45a and at 149.98 and 170.83 ppm for thermodynamically controlled isomer 4b. The attribution of these signals was performed by 2D (HMBC, HSQC) NMR, and the position of the signals is similar to the analogous binuclear Pd(II) species [35,36]. Finally, in the 195Pt{1H} spectra of binuclear complexes 45a/b, two signals from two Pt(II) centers were observed in the range from −3750 to −3820 ppm.
At the same time, the 1H NMR spectra of complexes 6 and 7 exhibit only one set of signals for both two xylyl and two thiazole fragments, indicating the symmetric structure of complexes. Similarly, the 13C{1H} NMR spectra of the complexes display only one signal corresponding to the carbene carbon atom at ca. 160 ppm, and the 195Pt{1H} NMR spectra display only one signal around −3850 ppm. One should also mention the presence in the 1H NMR spectra of a high-field signal (12.5–14.0 ppm), corresponding to the N···H···N hydrogen atom involved in a resonance-assisted hydrogen bond [37] between two carbene ligands.
The solid-state structures of 45a,b, 6, and 7 were established by single-crystal X-ray diffraction (XRD). The plot of the XRD structures is shown in Figure 3, while the crystal data, data collection parameters, and structure refinement data are given in Tables S1 and S2.
The structures of complexes 45a/b are similar to those for the relevant Pd(II) binuclear complexes with thiazole fragments [35,36]. In structures of 45a/b, both metal centers adopt a slightly distorted square planar geometry, and the isocyanide ligands are in the cis-position to the NCN fragments. The bond lengths of the two coordinated CN groups fall in the interval of 1.139–1.165 Å which is typical for the common range of the CN triple bonds in the related isocyanide Pd(II) and Pt(II) complexes [35,36]. In 45a, the lengths of the C−N bonds in the one NCN fragment connected to Pt are close (1.336(8)–1.373(8) Å), and they are intermediate between the typical double (1.260(9) Å) and single bonds (1.452(8) Å) [38]. In the other NCN fragment, one C–N bond is closer to single (1.454(7)–1.468(7) Å), while the other bond is a typical double bond (1.274–1.276 Å). For 45b, one C−N bond in each NCN fragment is double (1.267–1.308 Å), and the other one is closer to a single bond (1.400–1.434 Å).
In the case of complexes 6 and 7, both carbene fragments are located in cis-position. Despite the single set of signals in the solution NMR spectra for two chelate carbene ligands, in a solid state, two carbene N-C-N fragments appear to be different for both complexes. The first N-C-N fragment possesses both N atoms protonated, and the lengths of both C−N bonds are intermediate between the typical double and single bonds (1.304–1.379 Å), reflecting the diaminocarbene nature. In the second N-C-N fragment, only one N atom is protonated, whereas the second N atom is involved in the intramolecular hydrogen bonding. The latter results in different C−N bond lengths in the fragment: the bond with the protonated N atom is single (1.271–1.283 Å) while the other one is closer to a double bond (1.409–1.412 Å). The disagreement between XRD and NMR data can be explained by the fast exchange of the N-H proton between two N-C-N fragments in a solution, whereas in a solid state, this proton is attributed only to one nitrogen atom.
All other bond lengths in the complexes are typical, and their values agree with those reported for related Pt(II) and Pd(II) carbene and isocyanide complexes [26,32,34,35,36].

2.3. Noncovalent Interactions in the Structures of 4a, 4b, 5a, 6, and 7

Inspection of the crystallographic data for the obtained complexes suggests the presence of intermolecular and intramolecular noncovalent interactions in their structures (dotted lines in Figure 3). Like previously reported PdII species [35], the binuclear PtII complexes display the presence of intermolecular chalcogen bonds [39]: S···Cl interactions in the structures of 4a–b and S···N interactions in the structures of 5ab. At the same time, both bis-carbene complexes 7 and 8 feature intermolecular bifurcated chalcogen-hydrogen bonds μ(S,N−H)Cl [34] with the chloride anion in outer coordination sphere, as well as intramolecular N–H···N hydrogen bonds between two carbene fragments. To confirm the presence of these noncovalent interactions in the crystal structures and quantify their energies from a theoretical point of view, we carried out DFT calculations along with topological analysis of the electron density distribution (quantum theory of atoms in molecules, QTAIM) [40] for the XRD geometries of complexes. The results of the QTAIM analysis are visualized in Figure 4 and summarized in Table 3.
The QTAIM analysis demonstrates the presence of appropriate bond critical points (3, –1) (BCPs) for all discussed interactions. The observed low magnitude of the electron density, positive values of the Laplacian, and close to zero energy density in the BCPs are typical for noncovalent interactions. We have defined energies for the studied contacts in accordance with the conventional approach by Espinosa et al. [41] and Vener et al. [42]. For the binuclear PtII complexes 4–5a,b, the energies of the intramolecular S···Cl and S···N chalcogen bonds are in the same range as for PdII analogs (3–5 kcal/mol). Note also the intramolecular N–H···N hydrogen bonds of medium strength (10–15 kcal/mol) in the structures of bis-carbene complexes 6 and 7. The latter interaction should also contribute to stabilization of these new types of complexes.

3. Materials and Methods

3.1. General

The complex cis-[PtCl2(CNXyl)2] (complex 1) was synthesized using the reported procedure [43]. All reagents and solvents were obtained from commercial sources and used as received, apart from chloroform, which was dried by conventional distillation over calcium chloride. Mass spectra were obtained on a Bruker micrOTOF spectrometer equipped with an electrospray ionization (ESI) source, and a mixture of MeOH and CH2Cl2 was used for sample dissolution. The instrument was operated in a positive ion mode using a m/z range of 50–3000 with the capillary voltage of the ion source set at −4500 V and the capillary exit at 50–150 V. The most intensive peak in the isotopic pattern is reported. The 1D (1H, 13C, 195Pt) NMR spectra were acquired on a Bruker Avance 400 spectrometer, whereas the 2D (1H,1H-COSY, 1H,1H-NOESY, 1H,13C-HSQC, and 1H,13C-HMBC) NMR correlation experiments were recorded on a Bruker Avance III 500 MHz spectrometer. All NMR spectra were measured in CDCl3 at ambient temperature.

3.2. Synthesis of the Complexes

Complexes 4a and 5a. A solution of complex 1 (0.04 mmol, 20 mg), NaOBut (0.04 mmol, 5.5 mg), and nucleophile 2 (3) (0.02 mmol) in 5 mL of dichloromethane placed in a 10 mL vial were stirred under ultrasonication for 40 min at room temperature. The resulting mixture was filtered off from some insoluble material and then dried under low pressure.

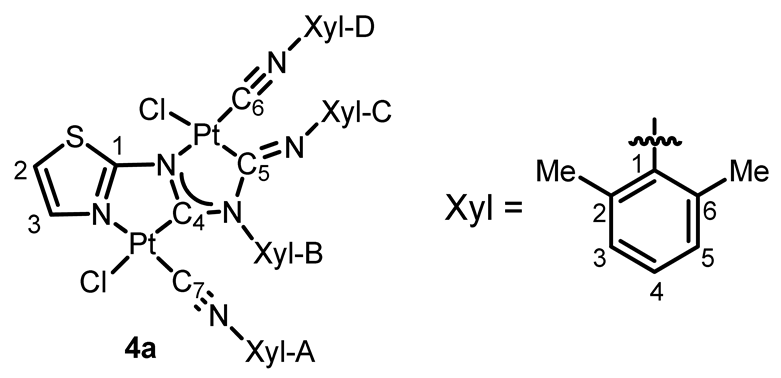

Inorganics 10 00221 i001
Yield 70%. HR ESI+-MS: found m/z 1046.1827 [M–Cl]+, calculated C39H38N6ClSPt2+: 1046.1842. NMR 1H: 7.97 (d, 1H, H3, thiazole, J = 4.07), 7.18 (t, 1H, H4, Xyl-A, J = 7.48), 7.09 (t, 1H, H4, Xyl-D, J = 7.48), 7.04 (d, 2H, H3,5, Xyl-A, J = 7.64), 6.95 (d, 2H, H3,5, Xyl-D, J = 7.63), 6.93 (d, 1H, H2, thiazole, J = 3.89), 6.87 (d, 2H, H3,5, Xyl-B, J = 7.59), 6.59 (d, 2H, H3,5, Xyl-C, J = 7.52), 6.39 (t, 1H, H4, Xyl-B, J = 7.56), 6.05 (t, 1H, H4, Xyl-C, J = 7.50), 2.42 (s, 6H, Me, Xyl-B), 2.27 (s, 6H, Me, Xyl-A), 2.24 (s, 6H, Me, Xyl-D), 2.06 (s, 6H, Me, Xyl-C). NMR 13C: 183.93 (C1, thiazole), 183.19 (C4), 154.73 (C5), 150.55 (C1, Xyl-C), 142.16 (C1, Xyl-B), 136.51 (2C, C2,6, Xyl-B), 134.50 (2C, C2,6, Xyl-D), 134.38 (2C, C2,6, Xyl-A), 132.45 (C2, thiazole), 129.69 (C4, Xyl-B), 129.52 (C4, Xyl-A), 128.87 (C4, Xyl-D), 127.87 (4C, C3,5, Xyl-A, Xyl-B), 127.70 (2C, C3,5, Xyl-C), 127.45 (2C, C3,5, Xyl-D), 126.54 (2C, C2,6, Xyl-C), 123.30 (C4, Xyl-C), 112.54 (C3, thiazole), 19.64 (2C, Me, Xyl-C), 19.12 (2C, Me, Xyl-B), 18.64 (2C, Me, Xyl-A), 18.56 (2C, Me, Xyl-D). NMR 195Pt: −3809.44, −3817.46.
Inorganics 10 00221 i002

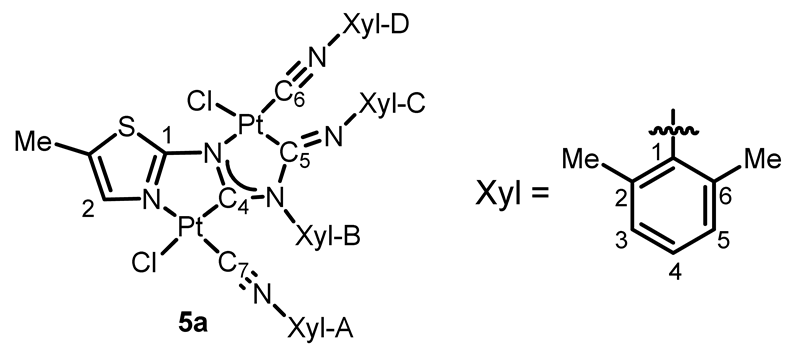

5a. Yield 96%. HR ESI+-MS: found m/z 1060.1982 [M–Cl]+, calculated C40H40N6ClSPt2+: 1060.1993 NMR 1H (400 MHz, CDCl3): 7.64 (s, 1H, H2, thiazole), 7.18 (t, 1H, H4, Xyl-A, J = 7.7), 7.09 (t, 1H, H4, Xyl-D, J = 7.60), 7.04 (d, 2H, H3,5, Xyl-A, J = 7.60), 6,94 (d, 2H, H3,5, Xyl-D, J = 7.70), 6.86 (d, 2H, H3,5, Xyl-B, J = 7.59), 6.58 (d, 2H, H3,5, Xyl-C, J = 7.50), 6.38 (t, 1H, H4, Xyl-B, J = 7.50), 6.04 (t, 1H, H4, Xyl-C, J = 7.50), 2.41 (s, 6H, Me, Xyl-B), 2.38 (s, 3H, Me, thiazole) 2.26 (s, 6H, Me, Xyl-A), 2.24 (s, 6H, Me, Xyl-D), 2.06 (s, 6H, Me, Xyl-C). NMR 13C (101 MHz, CDCl3): 183.04 (C1, thiazole). 182.39 (C4), 150.59 (C1, Xyl-C), 154.07 (C5), 142.21 (C1, Xyl-B), 136.54 (2C, C2,6, Xyl-B), 134.51 (2C, C2,6, Xyl-D), 134.38 (2C, C2,6, Xyl-A), 129.61 (C4, Xyl-B), 129.47 (C4, Xyl-A), 128.83 (C4, Xyl-D), 127.78 (4C, C3,5, Xyl-A, Xyl-B), 127.68 (2C, C3,5, Xyl-C), 127.43 (2C, C3,5, Xyl-D), 126.57 (C2, thiazole), 126.48 (2C, C2,6, Xyl-C), 123.24 (C4, Xyl-C), 19.63 (2C, Me, Xyl-C), 19.12 (2C, Me, Xyl-B), 18.64 (2C, Me, Xyl-A), 18.56 (2C, Me, Xyl-D), 17.74 (Me, thiazole). NMR 195Pt (86 MHz, CDCl3): −3807.07, −3812.47.
Complex 4b. A solution of complex 1 (0.04 mmol, 20 mg), NaOBut (0.04 mmol, 5.5 mg) and nucleophile 2 (0.02 mmol, 1.9 mg) in 5 mL of dichloroethane placed in a 10 mL vial was stirred at 70 °C for 2 days. The resulting mixture was filtered off from some insoluble material and then dried under low pressure. The title product was isolated by slow crystallization out of the mixture of dichloromethane and acetone (1:2) under normal pressure and room temperature. The crystals were separated from the solution (0.5–1 mL) and dried under low pressure at room temperature.

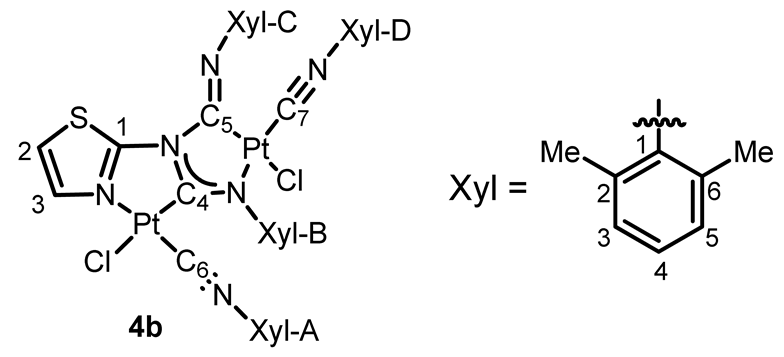

Inorganics 10 00221 i003
4b. Yield 38%. HR ESI+-MS: found m/z 1046.1827 [M–Cl]+, calculated for C39H38N6ClSPt2+: 1046.1842. NMR 1H: 8.18 (d, 1H, H3, thiazol, J = 4.0), 7.20 (t, 1H, H4, Xyl-A, J = 7.5), 7.11 (t, 1H, H4, Xyl-D, J = 7.5), 7.07 (d, 2H, H3,5, Xyl-A, J = 7.6), 7.00 (d, 1H, H2, thiazol, J= 4.0), 6.96 (d, 2H, H3,5, Xyl-D, J = 7.6), 6.87 (d, 2H, H3,5, Xyl-B, J = 7.5), 6.76 (d, 2H, H3,5, Xyl-C, J = 7.5), 6.32 (t, 1H, H4, Xyl-B, J = 7.5), 6.19 (t, 1H, H4, Xyl-C, J = 7.5), 2.44 (s, 6H, Me, Xyl-B), 2.31 (s, 6H, Me, Xyl-A), 2.29 (s, 6H, Me, Xyl-C), 2.24 (s, 6H, Me, Xyl-D). NMR 13C: 170.83 (C4), 164.37 (C1, thiazole), 149.98 (C5), 148.81 (C1, Xyl-C), 146.94 (C1, Xyl-B), 134.58 (2C, C2,6, Xyl-D), 134.37 (2C, C2,6, Xyl-A), 133.41 (2C, C2,6, Xyl-B), 132.53 (C2, thiazole), 129.34 (C4, Xyl-A), 128.75 (C4, Xyl-D), 128.38 (2C, C2,6, Xyl-C), 127.78 (C4, Xyl-B), 127.69 (2C, C3,5, Xyl-C), 127.63 (2C, C3,5, Xyl-A), 127.33 (2C, C3,5, Xyl-B), 127.26 (2C, C3,5, Xyl-D), 123.51 (C4, Xyl-C), 113.16 (C3, thiazole), 19.39 (2C;, Me, Xyl-C), 19.36 (2C, Me, Xyl-B), 18.52 (2C, Me, Xyl-D), 18.46 (2C, Me, Xyl-A). NMR 195Pt: −3752.35, −3779.41.
Complexes 6 and 7. A solution of complex 1 (0.04 mmol, 20 mg), NaOBut (0.04 mmol, 5.5 mg), and nucleophile 2 (3) (0.11 mmol) in 5 mL of dichloroethane placed in a 10 mL vial was stirred at 70 °C for 2 days. The resulting mixture was filtered off from some insoluble material and concentrated to 1 mL under low pressure and purified from residual binuclear complexes 4 (5) via column chromatography with dichloromethane (19 mL) as eluent on silica gel as a sorbent. The title product was washed from the silica gel with methanol (2 × 2 mL) and dried under low pressure.

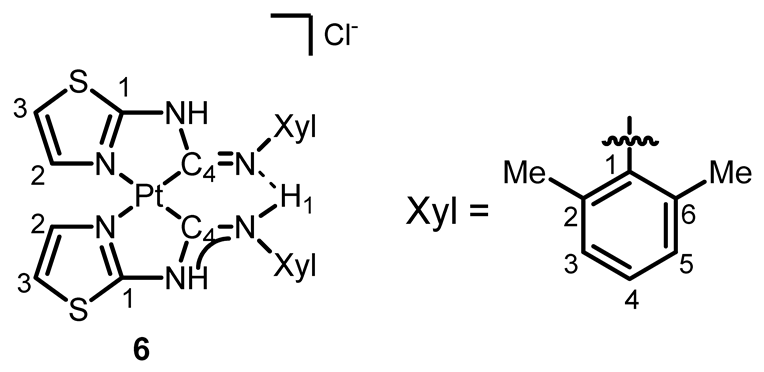

Inorganics 10 00221 i004
6. Yield 47%. HR ESI+-MS: found m/z: 656.1230 [M–Cl]+, calculated for C24H25N6PtS2+: 656.1238. NMR 1H: 13.92 (s, 1H, H1), 7.51 (d, J = 3.9 Hz, 2H, H2 thiazol), 7.16–7.09 (m, 6H, Xyl), 7.03 (d, J = 3.9 Hz, 2H, H3, thiazol), 2.22 (s, 12H, Me). The signals of the remaining NH protons were not detected, presumably due to exchange. NMR 13C: 173.17 (2C, C1, thiazol), 160.63 (2C, C4), 139.14 (2C, C1, Xyl), 135.19 (2C, C2, thiazol), 131.67 (4C, C2,6), 128.64 (4C, C3,5, Xyl), 126.65 (2C, C4, Xyl), 113.01 (2C, C3, thiazol), 18.30 (4C, Me, Xyl). NMR 195Pt: −3853.80.

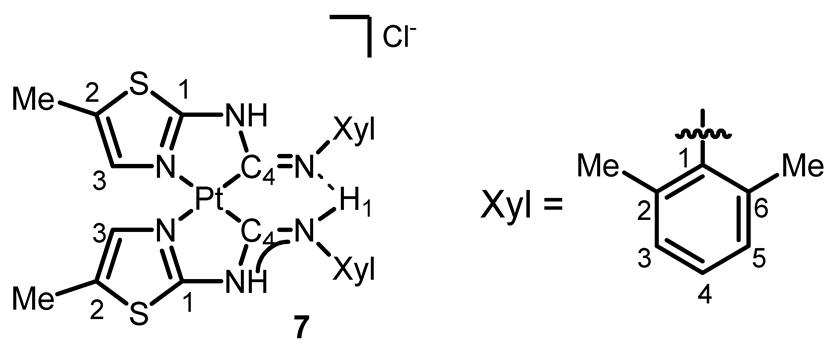

Inorganics 10 00221 i005
7. Yield 43%. HR ESI+-MS: found m/z 684.1525 [M–Cl]+, calculated C26H29N6S2Pt+: 684.1538. NMR 1H (400 MHz, CDCl3): 12.60 (s, 1H, H1), 7.09–6.96 (m, 8H, Xyl, C3, thiazole), 2.39 (s, 6H, Me, thiazole), 2.21 (s, 12H, Me, Xyl). The signals of the remaining NH protons were not detected, presumably due to exchange. NMR 13C (101 MHz, CDCl3): 174.57 (2C, C1, thiazole), 160.18 (2C, C4), 141.63 (2C, C1, Xyl), 131.76 (4C, C2,6, Xyl), 128.22 (4C, C3,5, Xyl), 125.39 (2C, C4, Xyl), 124.31 (1C, C3, thiazole), 18.72 (4C, Me, Xyl), 12.80 (1C;, Me, thiazole). NMR 195Pt (86 MHz, CDCl3): −3850.38.

3.3. X-ray Diffraction

The SC-XRD experiments were carried out using Oxford Diffraction “Xcalibur” (4a,b, 6), Rigaku “SuperNova XtaLAB” (5a, 5b), and Rigaku “Synergy XtaLAB” (7) diffractometers with monochromated MoKα and CuKα radiation. All crystals were kept at 100(2) K during data collection. The crystal structures were solved using ShelXT [44] and Superflip [45,46,47] structure solution programs and refined by means of ShelXL [48] incorporated in the Olex2 [49] program complex. All crystallographic data are available free of charge via the Cambridge Crystallographic Data Centre (CCDC 2212275–2212279, accessed on 11 October 2022; 2214271, accessed on 20 October 2022; https://www.ccdc.cam.ac.uk/structures/).

3.4. Computational Details

For studies of the nature of noncovalent interactions, the single-point calculations based on the experimental X-ray geometries for wavefunction generation were carried out for 45a,b, while for the structures of 6 and 7, the positions of the heavy atoms were fixed and only the positions of H atoms were optimized. All calculations were carried out at the DFT level of theory using the M06 [50] functional with the empirical corrections for dispersion in accordance with Grimme’s D3 model [51] and def2-SVP basis [52,53] set for all atoms by Gaussian-16 program package [54]. The Hessian matrices were calculated analytically for all optimized model structures to prove the location of correct minima on the potential energy surface (no imaginary frequencies were found). The QTIAM analysis was carried out using Multiwfn 3.8 software [55]. The Cartesian atomic coordinates for model structures are given as XYZ files in Supplementary Files.

4. Conclusions

In this work, we have shown that the reaction of bis(isocyanide) complexes of platinum(II) with aminoazaheterocyles can lead not only to the mixture of binuclear regioisomeric complexes but also to a new type of bis-carbene species not observed previously for the reaction on PdII metal center. The formation of the bis-carbene complexes occurs via the reaction of binuclear diaminocarbene PtII species with aminothiazoles, and this process was studied experimentally by 1H NMR and HR-ESIMS methods. The isolated compounds were characterized by 1H, 13C{1H}, and 195Pt{1H} NMR spectroscopy and HRESI-MS in a solution, whereas the solid-state structures of all complexes were elucidated by single-crystal XRD. In addition, we observed several types of noncovalent interactions in the crystal structures of obtained complexes (S···Cl/N chalcogen bonds, bifurcated chalcogen-hydrogen bonds μ(S,N−H)Cl, N–H···N hydrogen bonds), and their presence was confirmed by the theoretical studies.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/inorganics10120221/s1, Figures S1–S15: NMR 1H, 13C, and 195Pt spectra of complexes 47; Tables S1 and S2: crystal data and structure refinement for complexes 47; crystallographic information files (CIF) and checkCIF report files for complexes 47.

Author Contributions

Conceptualization, V.P.B.; methodology, A.S.M.; resources, V.V.S.; investigation, Y.A.O. and A.S.M.; writing—original draft preparation, A.S.M.; writing—review and editing, V.P.B.; visualization, V.V.S.; supervision, V.P.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Russian Science Foundation, grant number 19-13-00008.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

Physicochemical studies were performed at the Center for Magnetic Resonance, the Center for X-ray Diffraction Studies, and the Center for Chemical Analysis and Materials Research of Saint Petersburg State University.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Díez-González, S.; Marion, N.; Nolan, S.P. N-heterocyclic carbenes in late transition metal catalysis. Chem. Rev. 2009, 109, 3612–3676. [Google Scholar] [CrossRef] [PubMed]
  2. Boyarskiy, V.P.; Luzyanin, K.V.; Kukushkin, V.Y. Acyclic diaminocarbenes (ADCs) as a promising alternative to N-heterocyclic carbenes (NHCs) in transition metal catalyzed organic transformations. Coord. Chem. Rev. 2012, 256, 2029–2056. [Google Scholar] [CrossRef]
  3. Slaughter, L.M. Acyclic aminocarbenes in catalysis. ACS Catal. 2012, 2, 1802–1816. [Google Scholar] [CrossRef]
  4. Mercs, L.; Albrecht, M. Beyond catalysis: N-heterocyclic carbene complexes as components for medicinal, luminescent, and functional materials applications. Chem. Soc. Rev. 2010, 39, 1903–1912. [Google Scholar] [CrossRef]
  5. Oehninger, L.; Rubbiani, R.; Ott, I. N-Heterocyclic carbene metal complexes in medicinal chemistry. Dalton Trans. 2013, 42, 3269–3284. [Google Scholar] [CrossRef]
  6. Tschugajeff, L.; Grigorjewa, M.; Posnjak, A. The hydrazine-carbylamine-complexes of platinum. Z. Anorg. Allg. Chem. 1925, 148, 37–42. [Google Scholar] [CrossRef]
  7. Crociani, B.; Boschi, T.; Belluco, U. Synthesis and reactivity of novel palladium(II)- isocyanide complexes. Inorg. Chem. 1970, 9, 2021–2025. [Google Scholar] [CrossRef]
  8. Crociani, B.; Uguagliati, P.; Belluco, U. Steric role of aromatic ring ortho-substituents in mechanism of carbene formation from palladium(II) arylisocyanide complexes and anilines. J. Organomet. Chem. 1976, 117, 189–199. [Google Scholar] [CrossRef]
  9. Rotondo, E.; Cusumano, M.; Crociani, B.; Uguagliati, P.; Belluco, U. Mechanism of nucleophilic-attack by aromatic-amines on palladium(II) bis-isocyanide complexes factors affecting formation of mono-carbene derivatives and bis-carbene derivatives. J. Organomet. Chem. 1977, 134, 249–257. [Google Scholar] [CrossRef]
  10. Zanella, R.; Boschi, T.; Crociani, B.; Belluco, U. Reactions of palladium(II) isocyanide complexes with bifunctional amines. J. Organomet. Chem. 1974, 71, 135–143. [Google Scholar] [CrossRef]
  11. Michelin, R.A.; Pombeiro, A.J.L.; Guedes da Silva, M.F.C. Aminocarbene complexes derived from nucleophilic addition to isocyanide ligands. Coord. Chem. Rev. 2001, 218, 75–112. [Google Scholar] [CrossRef]
  12. Dömling, A. Recent developments in isocyanide based multicomponent reactions in applied chemistry. Chem. Rev. 2006, 106, 17–89. [Google Scholar] [CrossRef]
  13. Giustiniano, M.; Basso, A.; Mercalli, V.; Massarotti, A.; Novellino, E.; Tron, G.C.; Zhu, J.P. To each his own: Isonitriles for all flavors. Functionalized isocyanides as valuable tools in organic synthesis. Chem. Soc. Rev. 2017, 46, 1295–1357. [Google Scholar] [CrossRef]
  14. Wang, Q.; Wang, D.X.; Wang, M.X.; Zhu, J.P. Still unconquered: Enantioselective Passerini and Ugi multicomponent reactions. Acc. Chem. Res. 2018, 51, 1290–1300. [Google Scholar] [CrossRef]
  15. Zhang, B.O.; Studer, A. Recent advances in the synthesis of nitrogen heterocycles via radical cascade reactions using isonitriles as radical acceptors. Chem. Soc. Rev. 2015, 44, 3505–3521. [Google Scholar] [CrossRef]
  16. Boyarskiy, V.P.; Bokach, N.A.; Luzyanin, K.V.; Kukushkin, V.Y. Metal-mediated and metal-catalyzed reactions of isocyanides. Chem. Rev. 2015, 115, 2698–2779. [Google Scholar] [CrossRef]
  17. Kinzhalov, M.A.; Boyarskii, V.P. Structure of isocyanide palladium(II) complexes and their reactivity toward nitrogen nucleophiles. Russ. J. Gen. Chem. 2015, 85, 2313–2333. [Google Scholar] [CrossRef]
  18. Kinzhalov, M.A.; Luzyanin, K.V. Reactivity of acyclic diaminocarbene ligands. Coord. Chem. Rev. 2019, 399, 213014. [Google Scholar] [CrossRef]
  19. Mikhaylov, V.N.; Sorokoumov, V.N.; Korvinson, K.A.; Novikov, A.S.; Balova, I.A. Synthesis and simple immobilization of palladium(II) acyclic diaminocarbene complexes on polystyrene support as efficient catalysts for sonogashira and Suzuki–Miyaura cross-coupling. Organometallics 2016, 35, 1684–1697. [Google Scholar] [CrossRef]
  20. Hashmi, A.S.K.; Lothschutz, C.; Bohling, C.; Hengst, T.; Hubbert, C.; Rominger, F. Carbenes made easy: Formation of unsymmetrically substituted N-heterocyclic carbene complexes of palladium(II), platinum(II) and gold(I) from coordinated isonitriles and their catalytic activity. Adv. Synth. Catal. 2010, 352, 3001–3012. [Google Scholar] [CrossRef]
  21. Hashmi, A.S.K.; Lothschutz, C.; Bohling, C.; Rominger, F. From isonitriles to carbenes: Synthesis of new NAC- and NHC-palladium(II) compounds and their catalytic activity. Organometallics 2011, 30, 2411–2417. [Google Scholar] [CrossRef]
  22. Moncada, A.I.; Manne, S.; Tanski, J.M.; Slaughter, L.M. Modular chelated palladium diaminocarbene complexes: Synthesis, characterization, and optimization of catalytic Suzuki-Miyaura cross-coupling activity by ligand modification. Organometallics 2006, 25, 491–505. [Google Scholar] [CrossRef]
  23. Wanniarachchi, Y.A.; Kogiso, Y.; Slaughter, L.M. Chiral palladium bis(acyclic diaminocarbene) complexes as enantioselective catalysts for the Aza-Claisen rearrangement. Organometallics 2008, 27, 21–24. [Google Scholar] [CrossRef]
  24. Wanniarachchi, Y.A.; Slaughter, L.M. One-step assembly of a chiral palladium bis (acyclic diaminocarbene) complex and its unexpected oxidation to a bis(amidine) complex. Chem. Commun. 2007, 31, 3294–3296. [Google Scholar] [CrossRef]
  25. Singh, C.; Prakasham, A.P.; Gangwar, M.K.; Butcher, R.J.; Ghosh, P. One–Pot Tandem Hiyama alkynylation/Cyclizations by Palladium(II) Acyclic Diaminocarbene (ADC) Complexes Yielding Biologically Relevant Benzofuran Scaffolds. ACS Omega. 2018, 3, 1740–1756. [Google Scholar] [CrossRef] [PubMed]
  26. Gee, J.C.; Fuller, B.A.; Lockett, H.-M.; Sedghi, G.; Robertson, C.M.; Luzyanin, K.V. Visible light accelerated hydrosilylation of alkynes using platinum–[acyclic diaminocarbene] photocatalysts. Chem. Commun. 2018, 54, 9450–9453. [Google Scholar] [CrossRef]
  27. Dobrynin, M.V.; Kasatkina, S.O.; Baykov, S.V.; Savko, P.Y.; Antonov, N.S.; Mikherdov, A.S.; Boyarskiy, V.P.; Islamova, R.M. Deprotonated diaminocarbene platinum complexes for thermoresponsive luminescent silicone materials: Both catalysts and luminophores. Dalton Trans. 2021, 50, 14994–14999. [Google Scholar] [CrossRef]
  28. Dobrynin, M.V.; Kasatkina, S.O.; Baykov, S.V.; Savko, P.Y.; Antonov, N.S.; Mikherdov, A.S.; Boyarskiy, V.P.; Islamova, R.M. Cyclometallated Platinum(II) Complexes for Obtaining Phenyl-Containing Silicone Rubbers via Catalytic Hydrosilylation Reaction. Russ. J. Gen. Chem. 2022, 92, 79–84. [Google Scholar] [CrossRef]
  29. Kinzhalov, M.A.; Luzyanin, K.V. Synthesis and Contemporary Applications of Platinum Group Metals Complexes with Acyclic Diaminocarbene Ligands. Russ. J. Inorg. Chem. 2022, 67, 48–90. [Google Scholar] [CrossRef]
  30. Kinzhalov, M.A.; Grachova, E.V.; Luzyanin, K.V. Tuning the Luminescence of Transition Metal Complexes with Acyclic Diaminocarbene Ligands. Inorg. Chem. Front. 2022, 9, 417–439. [Google Scholar] [CrossRef]
  31. Serebryanskaya, T.V.; Kinzhalov, M.A.; Bakulev, V.; Alekseev, G.; Andreeva, A.; Gushchin, P.V.; Protas, A.V.; Smirnov, A.S.; Panikorovskii, T.L.; Lippmann, P.; et al. Water soluble palladium(II) and platinum(II) acyclic diaminocarbene complexes: Solution behavior, DNA binding, and antiproliferative activity. New J. Chem. 2020, 44, 5762–5773. [Google Scholar] [CrossRef]
  32. Tskhovrebov, A.G.; Luzyanin, K.V.; Dolgushin, F.M.; Guedes da Silva, M.F.C.; Pombeiro, A.J.L.; Kukushkin, V.Y. Novel reactivity mode of metal diaminocarbenes: Palladium(II)-mediated coupling between acyclic diaminocarbenes and isonitriles leading to dinuclear species. Organometallics 2011, 30, 3362–3370. [Google Scholar] [CrossRef]
  33. Kinzhalov, M.A.; Luzyanin, K.V.; Boyarskiy, V.P.; Haukka, M.; Kukushkin, V.Y. Coupling of C-amino aza-substituted heterocycles with an isocyanide ligand in palladium(II) complex. Russ. Chem. Bull. 2013, 62, 758–766. [Google Scholar] [CrossRef]
  34. Mikherdov, A.S.; Novikov, A.S.; Kinzhalov, M.A.; Boyarskiy, V.P.; Starova, G.L.; Ivanov, A.Y.; Kukushkin, V.Y. Halides held by bifurcated chalcogen-hydrogen bonds. Effect of mu Cl-(S, Cl-N-H) contacts on dimerization of Cl(carbene)Pd-II species. Inorg. Chem. 2018, 57, 3420–3433. [Google Scholar] [CrossRef]
  35. Mikherdov, A.S.; Kinzhalov, M.A.; Novikov, A.S.; Boyarskiy, V.P.; Boyarskaya, I.A.; Dar’in, D.V.; Starova, G.L.; Kukushkin, V.Y. Difference in energy between two distinct types of chalcogen bonds drives regioisomerization of binuclear (diaminocarbene) PdII complexes. J. Am. Chem. Soc. 2016, 138, 14129–14137. [Google Scholar] [CrossRef]
  36. Mikherdov, A.S.; Popov, R.A.; Kinzhalov, M.A.; Haukka, M.; Polukeev, V.A.; Boyarskiy, V.P.; Roodt, A. Reaction mechanism of regioisomerization in binuclear (diaminocarbene)PdII complexes. Inorg. Chim. Acta 2021, 514, 120012. [Google Scholar] [CrossRef]
  37. Guevara-Vela, J.M.; Romero-Montalvo, E.; Costales, A.; Pendása, Á.M.; Rocha-Rinza, T. The nature of resonance-assisted hydrogen bonds: A quantum chemical topology perspective. Phys. Chem. Chem. Phys. 2016, 18, 26383–26390. [Google Scholar] [CrossRef]
  38. Allen, F.; Kennard, O.; Watson, D.; Brammer, L.; Orpen, A.; Taylor, R. Tables of bond lengths determined by X-ray and neutron diffraction. Part 1. Bond lengths in organic compounds. J. Chem. Soc. Perkin Trans. 1987, 2, S1–S19. [Google Scholar] [CrossRef]
  39. Aakeroy, C.B.; Bryce, D.L.; Desiraju, G.R.; Frontera, A.; Legon, A.C.; Nicotra, F.; Rissanen, K.; Scheiner, S.; Terraneo, G.; Metrangolo, P.; et al. Definition of the chalcogen bond (IUPAC Recommendations 2019). Pure Appl. Chem. 2019, 91, 1889–1892. [Google Scholar] [CrossRef]
  40. Bader, R.F.W. A quantum theory of molecular structure and its applications. Chem. Rev. 1991, 91, 893–928. [Google Scholar] [CrossRef]
  41. Espinosa, E.; Molins, E.; Lecomte, C. Hydrogen bond strengths revealed by topological analyses of experimentally observed electron densities. Chem. Phys. Lett. 1998, 285, 170–173. [Google Scholar] [CrossRef]
  42. Vener, M.V.; Egorova, A.N.; Churakov, A.V.; Tsirelson, V.G. Intermolecular hydrogen bond energies in crystals evaluated using electron density properties: DFT computations with periodic boundary conditions. J. Comput. Chem. 2012, 33, 2303–2309. [Google Scholar] [CrossRef] [PubMed]
  43. Luzyanin, K.V.; Guedes da Silva, M.F.C.; Kukushkin, V.Y.; Pombeiro, A.J.L. First example of an imine addition to coordinated isonitrile. Inorg. Chim. Acta 2009, 362, 833–838. [Google Scholar] [CrossRef]
  44. Sheldrick, G.M. SHELXT-Integrated space-group and crystal-structure determination. Acta Crystallogr. Sect. A 2015, 71, 3–8. [Google Scholar] [CrossRef]
  45. Palatinus, L.; Chapuis, G. SUPERFLIP – a computer program for the solution of crystal structures by charge flipping in arbitrary dimensions. J. Appl. Cryst. 2007, 40, 786–790. [Google Scholar] [CrossRef]
  46. Palatinus, L.; Van Der Lee, A. Symmetry determination following structure solution in P1. J. Appl. Cryst. 2008, 41, 975–984. [Google Scholar] [CrossRef]
  47. Palatinus, L.; Prathapa, S.J.; van Smaalen, S. EDMA: A computer program for topological analysis of discrete electron densities. J. Appl. Cryst. 2012, 45, 575–580. [Google Scholar] [CrossRef]
  48. Sheldrick, G.M. IUCr Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C Struct. Chem. 2015, 71, 3–8. [Google Scholar] [CrossRef]
  49. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  50. Zhao, Y.; Truhlar, D.G. The M06 suite of density functionals for main group thermochemistry, thermochemical kinetics, noncovalent interactions, excited states, and transition elements: Two new functionals and systematic testing of four M06-class functionals and 12 other functionals. Theor. Chem. Acc. 2008, 120, 215–241. [Google Scholar]
  51. Grimme, S.; Antony, J.; Ehrlich, S.; Krieg, H. A consistent and accurate ab initio parametrization of density functional dispersion correction (DFT-D) for the 94 elements H-Pu. J. Chem. Phys. 2010, 132, 154104. [Google Scholar] [CrossRef]
  52. Weigend, F.; Ahlrichs, R. Balanced basis sets of split valence, triple zeta valence and quadruple zeta valence quality for H to Rn: Design and assessment of accuracy. Phys. Chem. Chem. Phys. 2005, 7, 3297–3305. [Google Scholar] [CrossRef]
  53. Weigend, F. Accurate Coulomb-fitting basis sets for H to Rn. Phys. Chem. Chem. Phys. 2006, 8, 1057–1065. [Google Scholar] [CrossRef]
  54. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 16, Revision C.01; Gaussian, Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  55. Lu, T.; Chen, F. Multiwfn: A multifunctional wavefunction analyzer. J. Comput. Chem. 2012, 33, 580–592. [Google Scholar] [CrossRef]

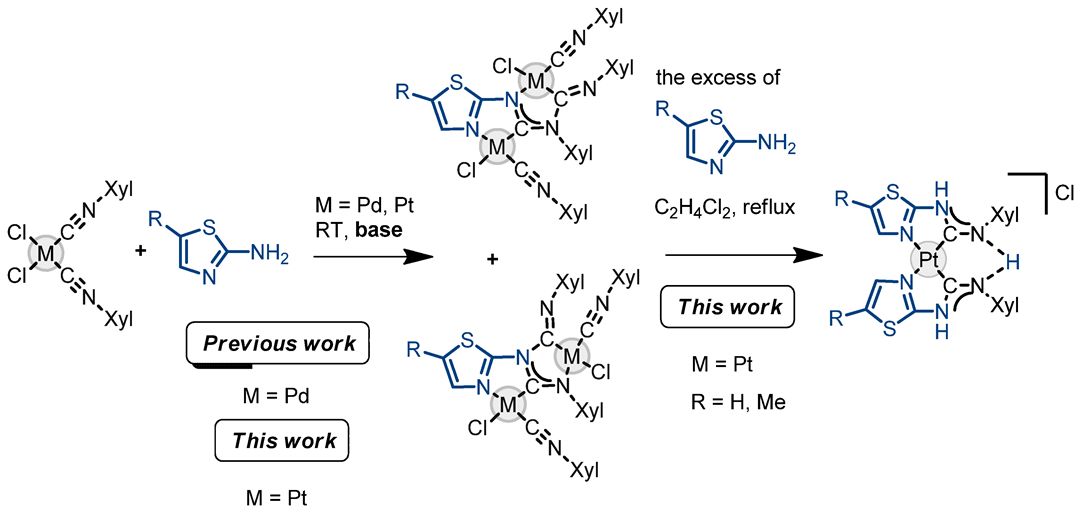

Scheme 1. The reactions of cis-[MCl2(XylNC)2] (M = Pt, Pd) with thiazol-2-amine.
Scheme 1. The reactions of cis-[MCl2(XylNC)2] (M = Pt, Pd) with thiazol-2-amine.
Inorganics 10 00221 sch001

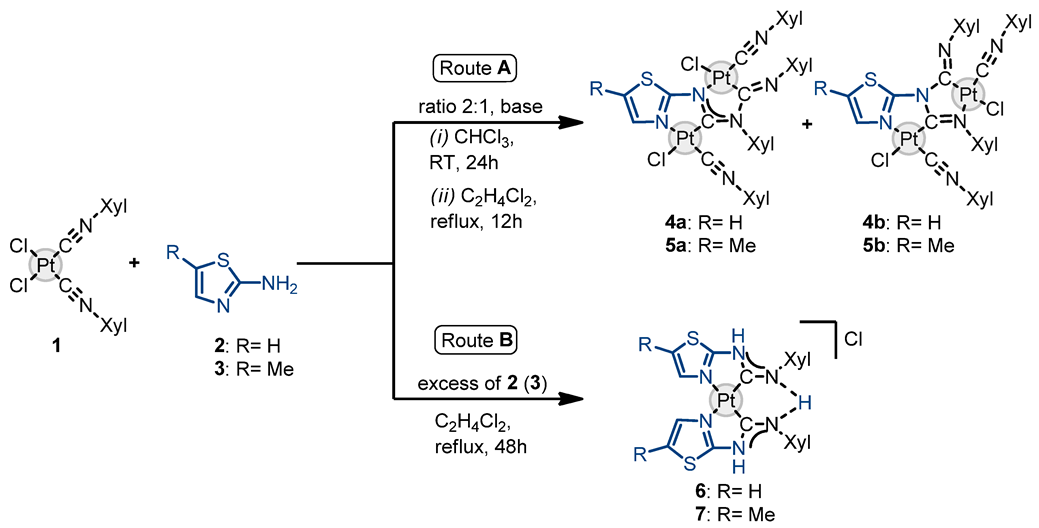

Scheme 2. The studied reactions of 1.
Scheme 2. The studied reactions of 1.
Inorganics 10 00221 sch002

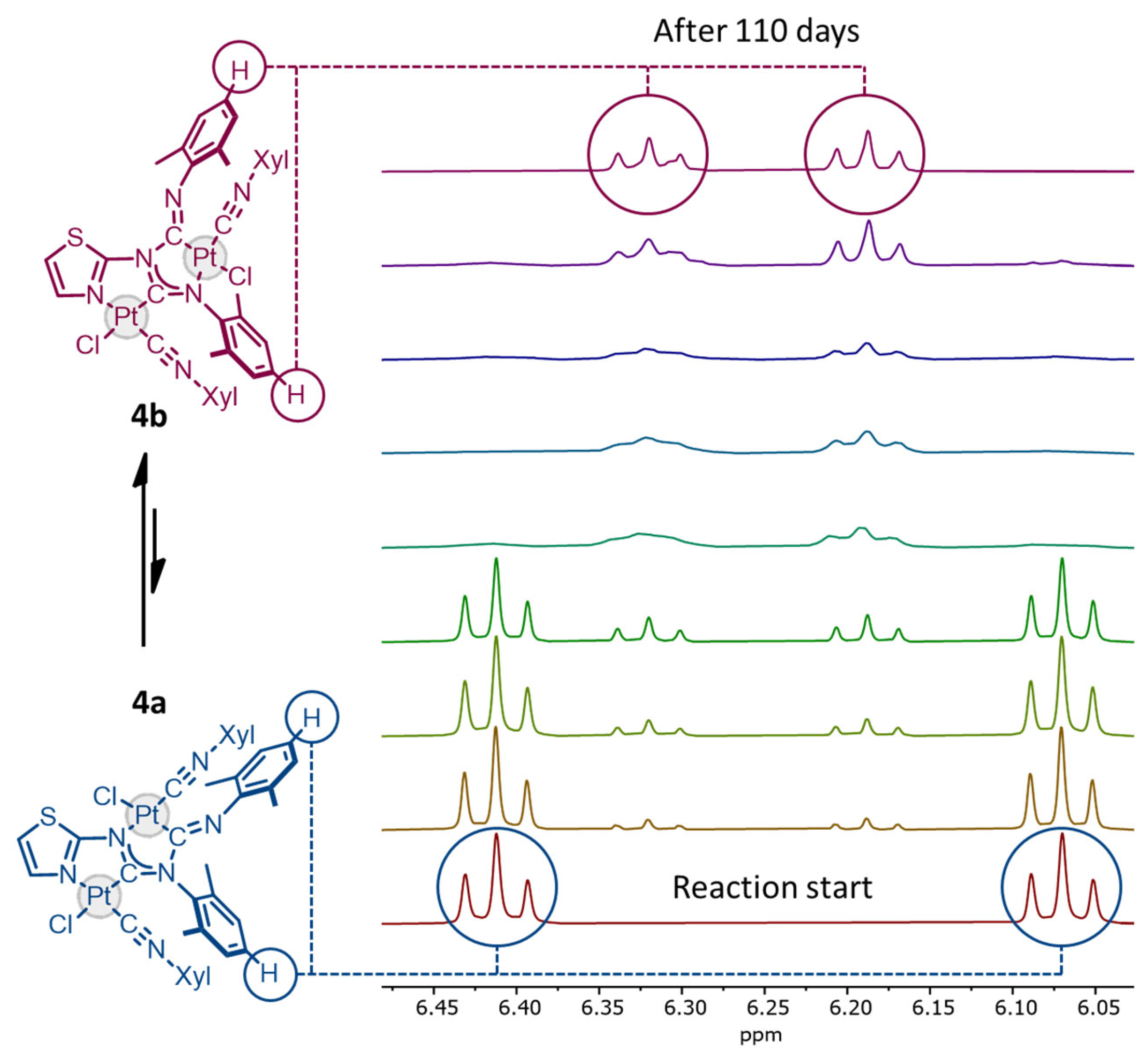

Figure 1. 1H NMR monitoring of isomerization 4a into 4b in CDCl3 at 45 °C.
Figure 1. 1H NMR monitoring of isomerization 4a into 4b in CDCl3 at 45 °C.
Inorganics 10 00221 g001

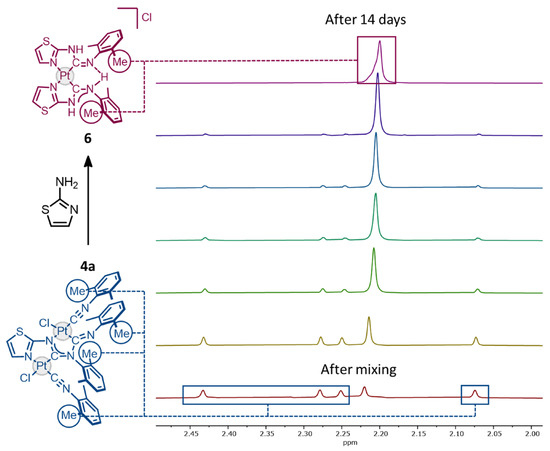

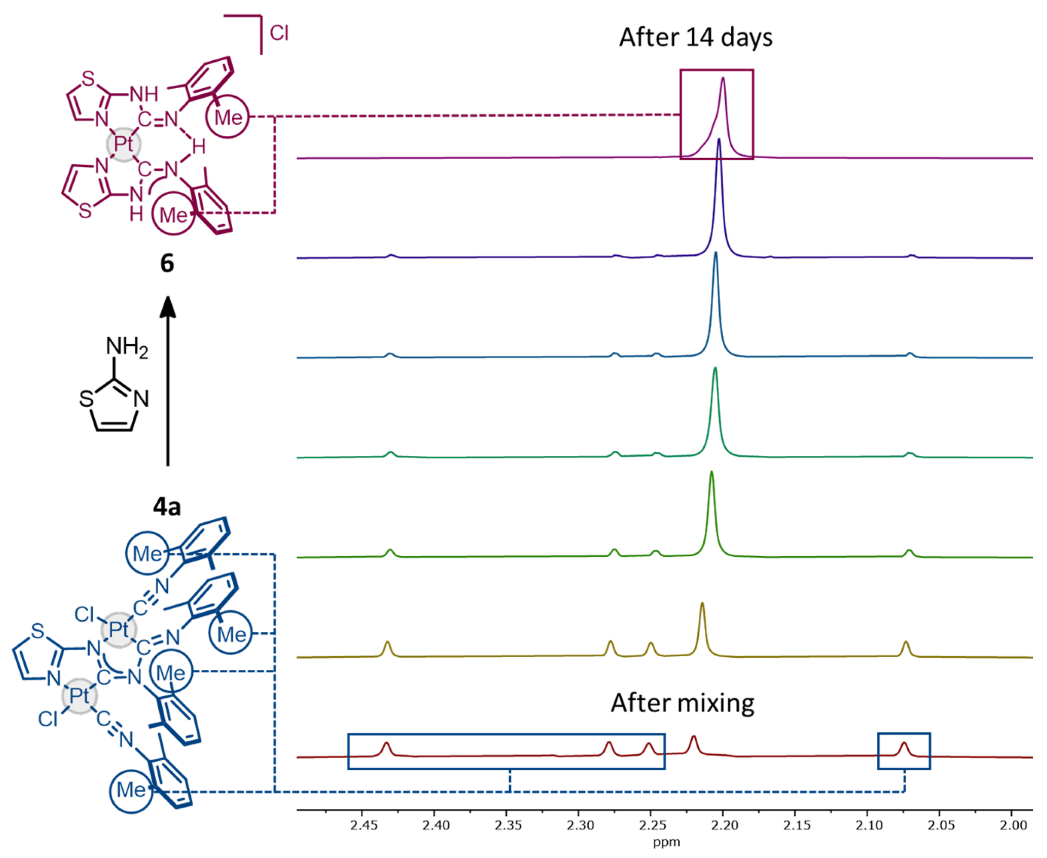

Figure 2. 1H NMR monitoring of the reaction mixture with 1/2 ratio = 1:5 at RT.
Figure 2. 1H NMR monitoring of the reaction mixture with 1/2 ratio = 1:5 at RT.
Inorganics 10 00221 g002

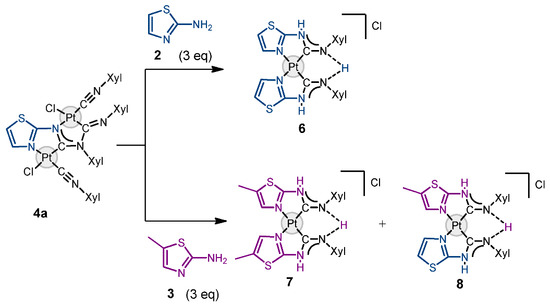

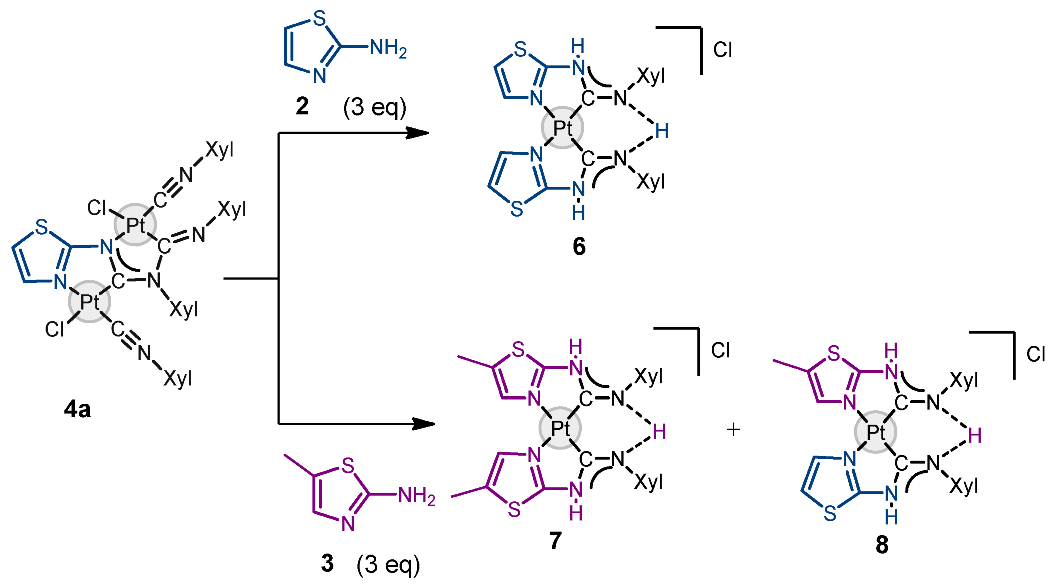

Scheme 3. The performed cross-experiment.
Scheme 3. The performed cross-experiment.
Inorganics 10 00221 sch003

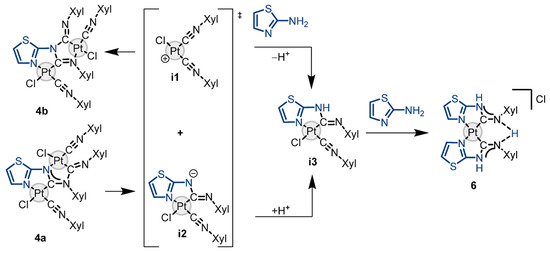

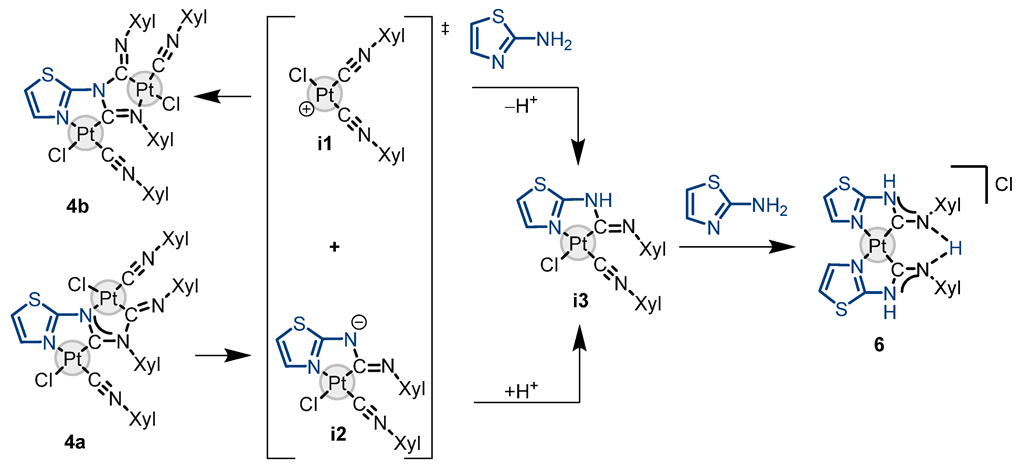

Scheme 4. Postulated mechanism of the reaction.
Scheme 4. Postulated mechanism of the reaction.
Inorganics 10 00221 sch004

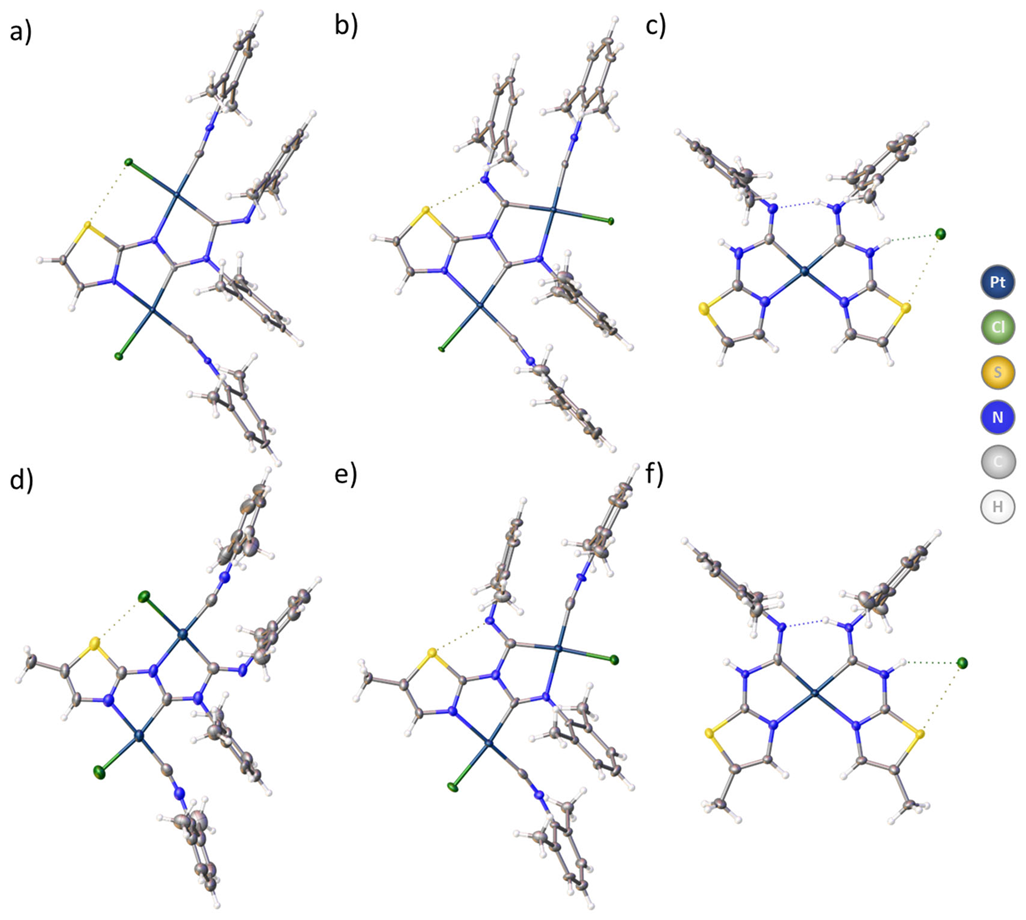

Figure 3. Views of crystal structures of complexes: 4a (a), 4b (b), 6 (c), 5a (d), 5b (e), 7 (f). Dotted lines indicate S···Cl, S···N, H···Cl and H···N noncovalent interactions.
Figure 3. Views of crystal structures of complexes: 4a (a), 4b (b), 6 (c), 5a (d), 5b (e), 7 (f). Dotted lines indicate S···Cl, S···N, H···Cl and H···N noncovalent interactions.
Inorganics 10 00221 g003

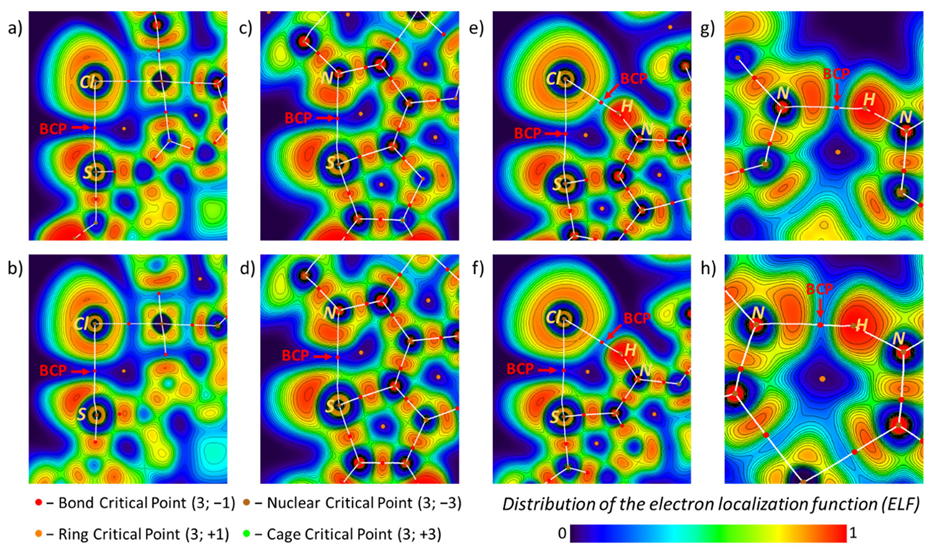

Figure 4. Visualization of the electron localization function (ELF), QTAIM bond critical point (BCP), and bond paths (white lines) corresponding S···Cl chalcogen bonds in structures of 4a (a) and 4b (b), S···N chalcogen bonds in structures of 5a (c) and 5b (d), bifurcated chalcogen-hydrogen bonds μ(S,N−H)Cl in structures of 6 (e) and 7 (f), and N–H···N hydrogen bonds in structures of 6 (g) and 7 (h).
Figure 4. Visualization of the electron localization function (ELF), QTAIM bond critical point (BCP), and bond paths (white lines) corresponding S···Cl chalcogen bonds in structures of 4a (a) and 4b (b), S···N chalcogen bonds in structures of 5a (c) and 5b (d), bifurcated chalcogen-hydrogen bonds μ(S,N−H)Cl in structures of 6 (e) and 7 (f), and N–H···N hydrogen bonds in structures of 6 (g) and 7 (h).
Inorganics 10 00221 g004
Table 1. Regioisomeric ratios obtained by the 1H NMR integration of the reaction performed under different conditions.
Table 1. Regioisomeric ratios obtained by the 1H NMR integration of the reaction performed under different conditions.
MixtureConditionsRatio a:b for PtRatio a:b for Pd [35,36]
4a/bRT10:15:1
reflux1:31:4
5a/bRT1:14:1
reflux1:21:4
Table 2. Products ratio depending on the fraction of 2.
Table 2. Products ratio depending on the fraction of 2.
Ratio between Reactants 2:1 (Equiv.)Conversion of 1 (%)Product Ratios after 12 h (Equiv.)
64a4b
0.55001.00trace
1700.090.91trace
2980.110.890
31000.500.500
51000.750.250
101000.880.120
Table 3. Noncovalent interactions in the structures of complexes: geometrical parameters of noncovalent interactions (Å and deg), values of the density of all electrons multiplied on sign(λ2)—sign(λ2)ρ(r), Laplacian of electron density—∇2ρ(r), energy density—H(r), potential energy density—V(r), and Lagrangian kinetic energy—G(r) (a.u.) at the BCPs (3, –1), energies of noncovalent interactions defined by two approaches.
Table 3. Noncovalent interactions in the structures of complexes: geometrical parameters of noncovalent interactions (Å and deg), values of the density of all electrons multiplied on sign(λ2)—sign(λ2)ρ(r), Laplacian of electron density—∇2ρ(r), energy density—H(r), potential energy density—V(r), and Lagrangian kinetic energy—G(r) (a.u.) at the BCPs (3, –1), energies of noncovalent interactions defined by two approaches.
ComplexContactd(D···A)∠(R-D···A)sign(λ22ρ(r)H(r)V(r)G(r)Eint aEint b
4aS···Cl3.075172.01−0.0180.0460.0004−0.0110.0113.43.0
5aS···Cl3.072164.88−0.0180.0470.0003−0.0110.0113.53.1
4bS···N2.696160.17−0.0250.0780.0019−0.0160.0184.94.7
5bS···N2.716160.42−0.0240.0750.0019−0.0150.0174.74.5
6S···Cl3.417170.15−0.0110.0230.0003−0.0050.0061.61.5
H···Cl1.976160.36−0.0450.068−0.0052−0.0270.0228.66.0
H···N1.707151.39−0.0520.144−0.0035−0.0430.03913.510.6
7S···Cl3.331172.26−0.0130.0270.0002−0.0060.0061.91.7
H···Cl2.163154.27−0.0320.051−0.0024−0.0170.0155.54.0
H···N1.680152.56−0.0560.144−0.0055−0.0470.04214.811.2
a Eint = −V(r)/2 [41]; b Eint = 0.429G(r) [42].
