Review of Virus Inactivation by Visible Light

Abstract

The COVID-19 pandemic is driving the search for new antiviral techniques. Bacteria and fungi are known to be inactivated not only by ultraviolet radiation but also by visible light. Several studies have recently appeared on this subject, in which viruses were mainly irradiated in media. However, it is an open question to what extent the applied media, and especially their riboflavin concentration, can influence the results. A literature search identified appropriate virus photoinactivation publications and, where possible, viral light susceptibility was quantitatively determined in terms of average log-reduction doses. Sensitivities of enveloped viruses were plotted against assumed riboflavin concentrations. Viruses appear to be sensitive to visible (violet/blue) light. The median log-reduction doses of all virus experiments performed in liquids is 58 J/cm². For the non-enveloped, enveloped and coronaviruses only, they were 222, 29 and 19 J/cm², respectively. Data are scarce, but it appears that (among other things) the riboflavin concentration in the medium has an influence on the log-reduction doses. Experiments with DMEM, with its 0.4 mg/L riboflavin, have so far produced results with the greatest viral susceptibilities. It should be critically evaluated whether the currently published virus sensitivities are really only intrinsic properties of the virus, or whether the medium played a significant role. In future experiments, irradiation should be carried out in solutions with the lowest possible riboflavin concentration.

1. Introduction

The so far two-year rampant corona pandemic caused by the SARS-CoV-2 coronavirus, has not yet been halted despite all political, social, technical and medical measures. In fact, the latest “omicron” mutation has led to a global peak in new infections [1]. As a result, new approaches to virus reduction, among other things, must and will continue to be sought. Conventional disinfection techniques such as chemical disinfection or disinfection with ultraviolet radiation are very effective [2,3,4,5,6], but are not applicable in many everyday situations because, for example, ultraviolet radiation damages not only viruses but also human cells and various materials.

For bacteria and fungi, there have been many studies in recent years concerning the disinfecting effect of visible light. Blue and violet light are especially able to inactivate pathogenic bacteria and fungi [7,8,9,10,11,12,13,14,15] if the applied irradiation doses are high enough. Endogenous photosensitizers, such as porphyrins or flavins, naturally present in bacteria and fungi, absorb this visible light and subsequently generate reactive oxygen species such as ¹O₂, OH or H₂O₂. These intracellular reactive oxygen species attack DNA, proteins or membranes and, if the produced damage becomes too great, the cell dies. Human cells also contain such photosensitizers, but they have nevertheless proven to be very resistant to visible light [16,17,18,19,20,21,22,23,24].

So far, it is assumed that viruses do not contain photosensitizers as bacteria or fungi do. Nevertheless, it is obvious to ask whether visible light might also have an inactivating effect on SARS-CoV-2 or other viruses. In fact, previous studies on the effect of light on viruses have actually observed a significant coronavirus reduction with the help of visible light.

However, much of the experiments to date have been conducted with viruses in cell culture media, which may themselves contain photosensitizers such as riboflavin, that generate reactive oxygen species under illumination as reported by Grzelak et al. [25]. Riboflavin is of particular importance in this respect, as it’s known strong antiviral effect is used in the disinfection of blood products. This is mostly undertaken in combination with UVB or UVA irradiation [26,27,28,29,30,31]—also against SARS-CoV-2 [32]—but virus inactivation with riboflavin also works with visible light [33].

Therefore, it cannot be excluded that media components influence virus photoinactivation results. Regardless, there are already commercial illumination devices that advertise white light, with partially increased short-wavelength (violet/blue) components, as safe measures against coronaviruses under a variety of different conditions in the air and on surfaces, based on currently published studies performed using viruses in media.

In the study presented here, the hitherto published results on the photoinactivating effect of visible light on viruses were collected and analyzed as far as possible. In particular, the question of whether the used media and their riboflavin content exhibit an influence on virus reduction was addressed.

2. Materials and Methods

The main focus of the present literature review was on inactivation studies of viruses by visible light. Photodynamic virus inactivation was excluded with the exception of investigations on viruses in solutions with a similar riboflavin concentration to that used in standard culture media such as DMEM and containing 0.4 mg riboflavin per milliliter, this exception was made to better assess any influence of this known photosensitizer.

Searches were performed on Pubmed and Google Scholar for the following terms in various combinations: virus, phage, bacteriophage, inactivation, photoinactivation, disinfection, visible light, radiation, irradiation, blue, violet, 405 nm, and riboflavin.

Where studies were found, the literature sources cited therein were searched for studies that could potentially be included. In addition, we checked whether the studies found were cited by other virus inactivation publications that also fit thematically and should therefore be included.

Where possible, attempts were made to quantify viral susceptibility using average log-reduction doses (irradiation dose for a 90% reduction). Sometimes the appropriate values were given in the text, otherwise we determined them by analyzing (enlarged) figures. If data sets were given, then a reduction of about 3 log-level was chosen and the average log-reduction dose was calculated on this basis.

To judge the potential influence of riboflavin, the riboflavin concentration was estimated in most studies. For distilled water and salt solutions such as phosphate buffered saline (PBS) the concentration was assumed to be 0.0 mg/L. For (fresh) medium the typical concentrations, such as 0.4 mg/L for DMEM [34], 0.2 mg/L for RPMI 1640 [35] and 0.1 mg/L for MEM [36] were assumed. These media are often mixed with fetal calf serum (FCS) in concentrations between 2 and 10% or other components, but as long as it is mostly medium, the other components are ignored (for consumed medium it is assumed that the riboflavin is also mostly consumed).

For the calculation of median log-reduction doses and other analyses, only quantitative results in liquids, with riboflavin concentrations below 1 mg/L, were included. Experiments with viruses on surfaces or within living cells were assumed to be incomparable to the result in saline solutions or media and therefore excluded in the analysis.

3. Results

About 30 appropriate studies were found during the literature search. They are listed in

Table 1. Retrieved results for photoinactivation experiments with visible (violet/blue) light on non-enveloped (A) and enveloped viruses (B). Experimental conditions are given with the assumed riboflavin (RF) concentration and log-reduction dose, if available. If authors published results for a virus with different media or riboflavin concentrations, these are given one below the other. Results marked with * have been obtained on surfaces or at riboflavin concentrations above 1 mg/L and are not included in the further analysis.

(A) Non-Enveloped Viruses	Irradiation Wavelength	Medium during Irradiation	Assumed Riboflavin Concentration [mg/L]	90% Reduction Dose [J/cm2]
lambda phage (dsDNA)	410 nm	PBS + riboflavin	18.8	4 * [37]
		PBS	0	no reduction after 5 J/cm2 [37]
adenovirus (dsDNA)	420 nm	DMEM + FCS	0.4	29 [38]
feline calcivirus (ssRNA)	405 nm	PBS + riboflavin + tyrosine, tryptophan, pyridoxine and folic acid	0.4	82 [39]
		nutrient rich medium (DMEM + FCS +...)	0.4	88 [39]
		PBS + riboflavin	0.4	329 [39]
		PBS	0.0	719 [39]
phi C31 (dsDNA)	405 nm	nutrient rich medium	0.2	113 [40]
		PBS	0.0	1021 [40]
viral haemorrhagic septicaemia virus (ssRNA)	405 nm	L15 + FCS	0.1	114 [41]
encephalomyocarditis virus (ssRNA)	405 nm + blue/white	DMEM + FCS + PBS (ratio unknown)	?	178 [42]
murine norovirus (ssRNA)	408 (cw laser)	DMEM + riboflavin	1.4	491 * [43]
		DMEM	0.4	1976 [43]
tobacco mosaic virus (ssRNA)	white light	acetate buffer + riboflavin	0.05	reduction observed [44]
		acetate buffer	0	no reduction [44]
Tulane virus (ssRNA)	405 nm	blueberry surface + riboflavin		reduction [45]
		blueberry surface		no reduction after 7.6 J/cm2 [45]
foot and mouth disease virus (ssRNA)	daylight and artificial light	phosphate saline	0	medium reduction [46]
poliovirus type 1 (ssRNA)	fluorescent lamp	gelatin saline	0	weak reduction [47]
human rhinovirus 1b (ssRNA)	425 nm	DMEM + FCS	0.4	no reduction after 45 J/cm2 [48]
poliovirus type 3 (ssRNA)	white light of incandescent bulb	medium 199	0.01	no reduction [49]
(B) Enveloped Viruses	Irradiation Wavelength	Medium during Irradiation	Assumed Riboflavin Concentration [mg/L]	90% Reduction Dose [J/cm2]
SARS-CoV-2 (ssRNA, coronavirus)	425 nm	DMEM + FCS	0.4	5 [48]
		MEM + FCS	0.1	18.8 [48]
		inside vero cells	?	6.4 * [48]
		inside epithelial cells	?	6.7 * [48]
SARS-CoV-2 (ssRNA, coronavirus)	410 nm + blue/white	MEM + FCS (DMEM @ FOI laboratory?)	0.1	6.5 blue (<490 nm) 12.6 total irradiation [50]
SARS-CoV-2 (ssRNA, coronavirus)	405 nm + blue/white	DMEM	0.4	6.6 [51]
SARS-CoV-2 (ssRNA, coronavirus)	405 nm + blue/white	DMEM + FCS + PBS (ratio unknown)	?	7.5 (<420 nm) [42]
SARS-CoV-1 (ssRNA, coronavirus)	425 nm	DMEM + FCS	0.4	9.9 [48]
feline infectious peritonitis virus (ssRNA, coronavirus)	405 nm	DMEM + FCS	0.4	14.1 [52]
		metal wet		12 * [52]
		metal dry		20.3 * [52]
		paper wet		10.8 * [52]
		paper dry		13 * [52]
		plastic wet		14.4 * [52]
		plastic dry		31.8 * [52]
MERS-CoV (ssRNA, coronavirus)	425 nm	DMEM + FCS	0.4	18.8 [48]
influenza A virus (ssRNA)	405 nm + blue/white	DMEM + FCS + PBS (ratio unknown)	?	23.5 [42]
respiratory syncytial virus (ssRNA)	420 nm	DMEM + FCS	0.4	29 [38]
SARS-CoV-2 (ssRNA, coronavirus)	420 nm	DMEM + FCS	0.4	29 [38]
BCoV (ssRNA, coronavirus)	401 nm	DMEM + FCS	0.4	29 [53]
HCoV-229E (ssRNA, coronavirus)	405 nm (pulsed)	RPMI 1640	0.2	55 [54]
BCoV (ssRNA, coronavirus)	405 nm	(consumed) RPMI 1640 diluted 1:10 in PBS	0	57.5 [55]
		steel surface		96 * [55]
zika virus (ssRNA)	445 nm (cw laser)	unknown medium	?	64 [56]
HCoV-229E (ssRNA, coronavirus)	405 nm	RPMI 1640	0.2	89 [54]
herpes simplex virus Type 1 (dsDNA)	445 nm (pulsed)	unknown medium		112 [57]
phi 6 (dsRNA)	405	PBS/SMG	0	400 [58]
phi 6 (dsRNA)	455	PBS	0	2130 [59]
semliki forest virus (ssRNA)	daylight and fluorescent lamp	gelatin saline + riboflavin	2	very strong reduction [47]
		gelatin saline	0	strong reduction [47]
sindbis virus (ssRNA)	daylight and fluorescent lamp	gelatin saline	0	strong reduction [47]
Murray Valley encephalitis virus (ssRNA)	fluorescent lamp	gelatin saline	0	strong reduction [47]
transmissible gastroenteritis virus (ssRNA, coronavirus)	daylight	unknown medium	?	strong reduction [60]
influenza B virus (ssRNA)	daylight and artificial light	phosphate saline	0	strong reduction [46]
vesicular stomatitis virus (ssRNA)	daylight and artificial light	phosphate saline	0	strong reduction [46]
measles morbillivirus (ssRNA)	white light of fluorescent lamp	salt solutions	0	strong reduction [61]
herpes simplex virus (dsDNA, JES strain)	white light of fluorescent lamp	MEM	0.1	strong reduction [62]
		riboflavin solution	0.1	strong reduction [62]
		salt solutions	0	reduction [62]
		distilled water	0	no reduction [62]
canine distemper virus (ssRNA)	artificial visible light	MEM	0.1	strong reduction [63]
		riboflavin solution	0.1	strong reduction [63]
		salt solutions	0	reduction [63]
measles morbillivirus (ssRNA)	white light of incandescent bulb	Eagle’s basal medium	0.1	strong reduction [49]
		distilled water	0	reduction [49]
murine leukaemia virus (ssRNA)	420–430 nm	OptiMEM	0.1	reduction [64]
rubella virus (ssRNA)	white light of incandescent bulb	PBS	0	reduction [65]
influenza A virus (ssRNA)	fluorescent lamp	gelatin saline	0	reduction [47]
parainfluenza virus type 3 (ssRNA)	white light of fluorescent lamp	salt solutions	0	reduction [61]
SARS-CoV-2 (ssRNA, coronavirus)	450, 454, 470 nm	inside vero cells	?	reduction [66]
		DMEM + FCS	0.4	no reduction after 20 J/cm2 [66]
Newcastle disease virus (ssRNA)	daylight and artificial light	phosphate saline	0	weak reduction [46]
vaccinia virus (dsDNA)	white light of incandescent bulb	Eagle’s basal medium	0.1	weak reduction [49]
vaccinia virus (dsDNA)	daylight and artificial light	phosphate saline	0	weak reduction [46]
influenza A virus (ssRNA)	daylight and artificial light	phosphate saline	0	weak reduction [46]
fowl plague virus (ssRNA)	daylight and artificial light	phosphate saline	0	no reduction [46]
rabbit pox virus (dsDNA)	fluorescent lamp	gelatin saline	0	no reduction [47]

, divided into results for non-enveloped and enveloped viruses. The irradiation wavelengths and average log-reduction doses are given, if possible. Some of the retrieved studies are older than 50 years and were performed with different kinds of white lamps of unknown emission spectrum or spectrally resolved irradiance. In such cases, no quantitative assessment of the (violet/blue) light sensitivity by log-reduction dose was possible.

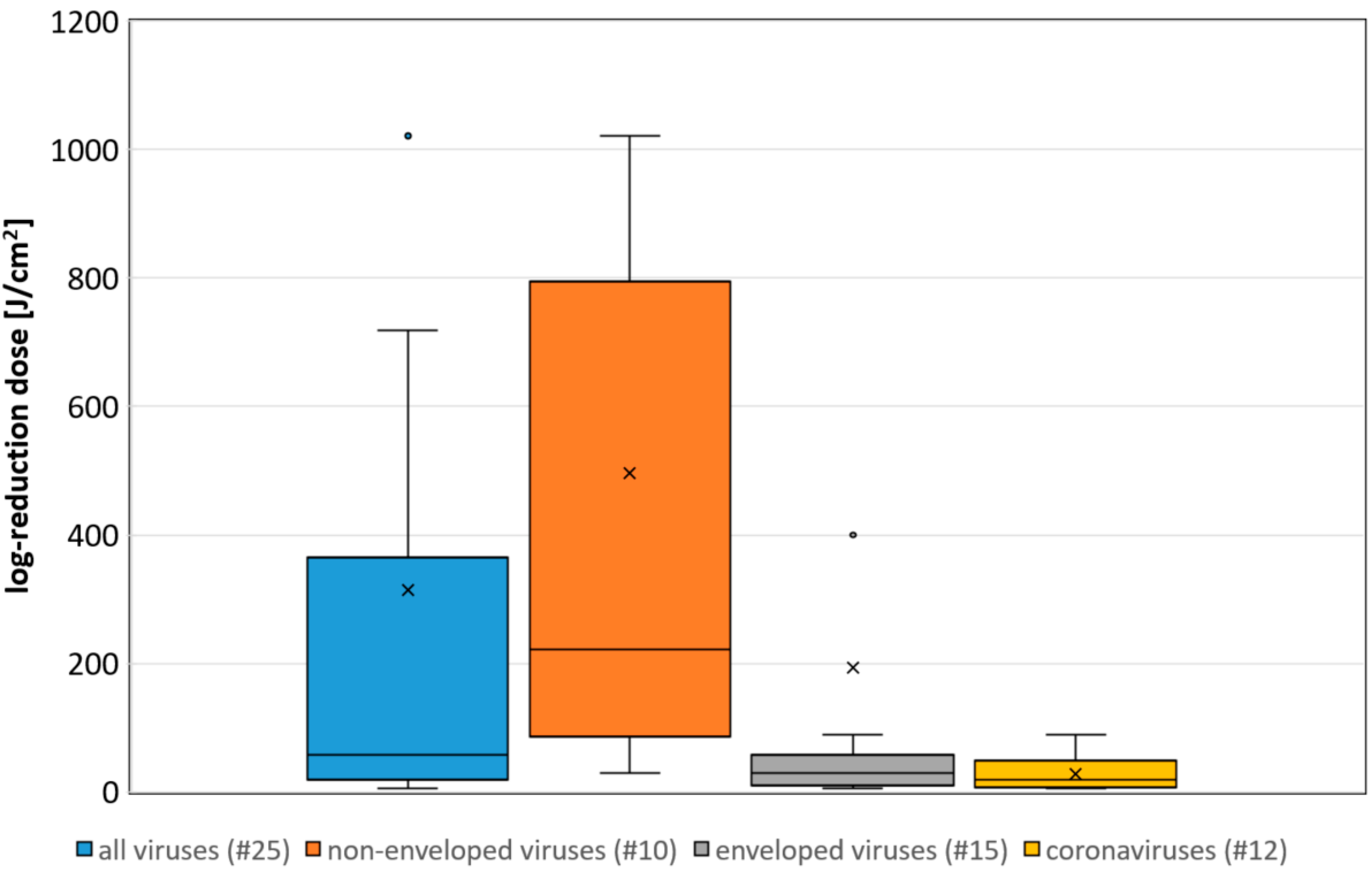

The median log-reduction doses of all virus experiments performed in liquids is 58 J/cm². For the non-enveloped, enveloped and coronaviruses only, they are 222, 29 and 19 J/cm², respectively (results on surfaces or at riboflavin concentrations above 1 mg/L were ignored). The differences between these groups is also illustrated in the boxplot in Figure 1.

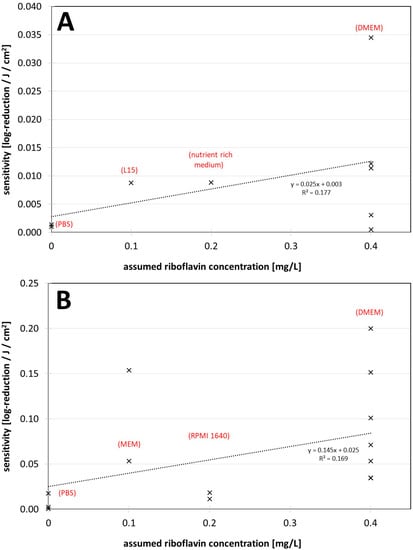

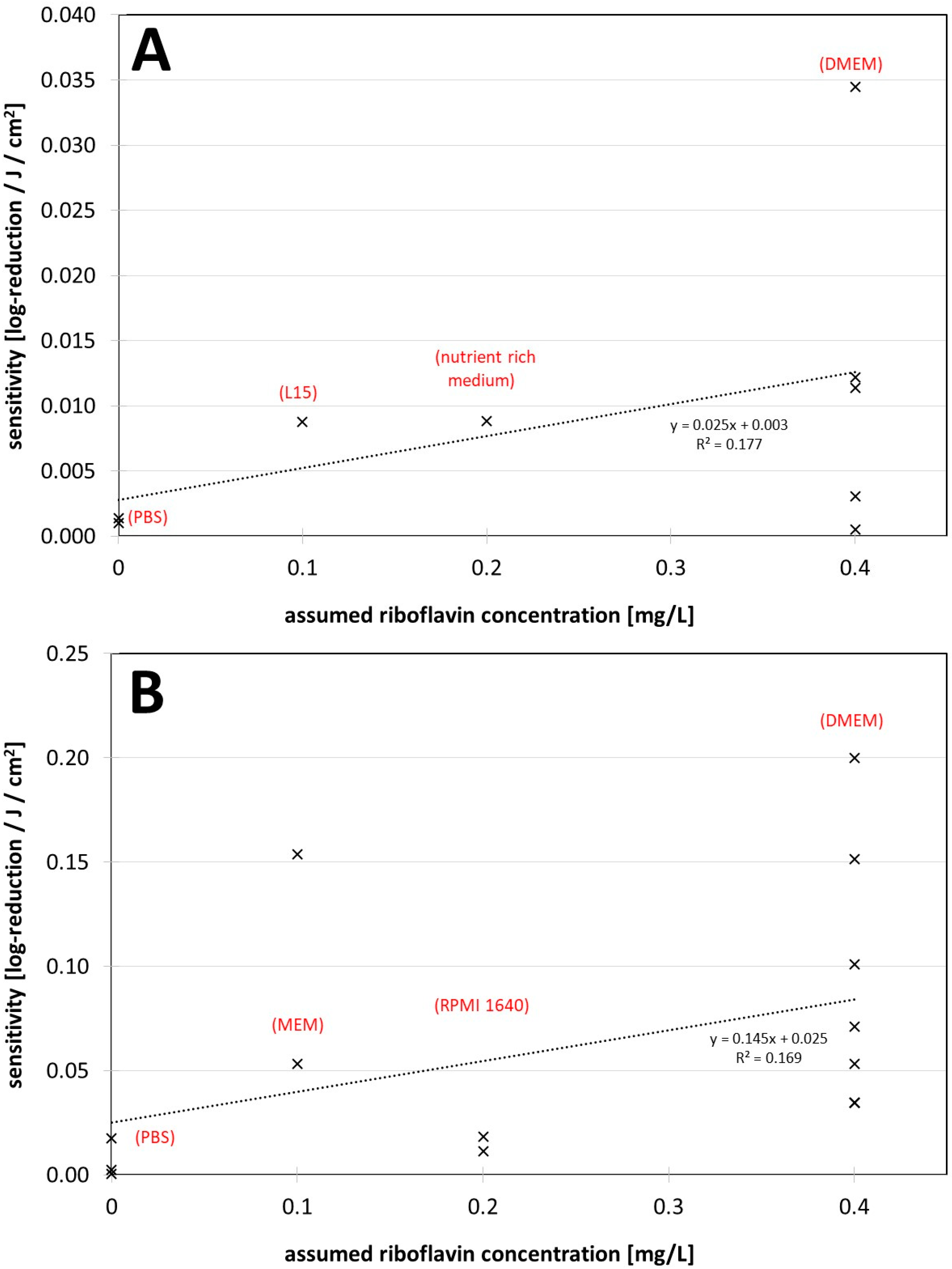

A correlation between the assumed riboflavin concentration (or the applied media) and the sensitivity (inverse of the log-reduction dose) is illustrated in Figure 2A,B for all non-enveloped and enveloped virus data, respectively. The results for both groups, with those of enveloped viruses including those for all coronaviruses, show that sensitivity increases with higher riboflavin concentration. However, this tendency appears to be less pronounced for non-enveloped viruses.

4. Discussion

The overall impression from Table 1 and Figure 1 is that, although there are large differences between the various viruses and experimental conditions, viruses can be inactivated by visible violet or blue light. Enveloped viruses such as coronaviruses appear to be particularly sensitive and non-enveloped less sensitive.

The median log-reduction doses are roughly in the same order of magnitude as previously observed for bacteria and fungi [14,15], although it is as yet unclear whether the mechanisms or photosensitizers are comparable.

However, there is a major difference in how the virus experiments are conducted. Irradiations of bacterial and fungal solutions occur predominantly in media such as PBS, which do not contain photosensitizers. In particular, irradiation experiments with animal or human viruses usually take place in cell culture media with additives such as FCS or even phenol red. The latter may lead to a lower irradiance than expected due to optical absorption in the violet/blue spectral region and should always be considered as Tomb et al. and Biasin et al. [39,51] did.

Another aspect may be even more critical. Many of the recent (corona-) virus investigations consider the observed photoinactivation to be an intrinsic property of the viruses studied. However, the applied media contain at least one photosensitizer, riboflavin, which can make an appreciable contribution to inactivation. Most of the new coronavirus studies do not discuss this possibility. Rathnasinghe et al. have mentioned a comparative study with a riboflavin solution but published no results [42].

Riboflavin is known to act as a photosensitizer in combination with short wavelength visible light or with UV radiation. In photoinactivation experiments performed 50 years ago, it has already been found that the medium has an effect on virus reduction and that riboflavin concentrations, as found in common culture media, enhanced virus reduction [44,47,49,62,63]. This has been reconfirmed in more recent studies by Tomb et al. [39,40] and Kingsley [43,45] and also fits the results of Grezlak et al. [25] according to which irradiated media generate reactive oxygen species, for which riboflavin is mainly responsible.

This influence of riboflavin in the medium also does not seem to contradict the data presented here. Two of the three lowest log-reduction doses for violet/blue light in Table 1 are from coronavirus experiments with white LED light and with an appreciable blue irradiance around 450 nm, the riboflavin absorption maximum.

The riboflavin concentrations in Figure 2 are only very roughly estimated and the data are sparse and scattered, but it already appears that irradiation experiments performed in DMEM with 0.4 mg/L riboflavin in the starting medium lead to higher photoinactivation sensitivities or smaller log-reduction doses compared with experiments in other media.

This is strongly supported by the fact that, in all results in Table 1 for a single virus but different riboflavin concentrations originating from a single paper, cell culture media, or riboflavin concentrations similar to cell culture media, led to lower log-reduction doses or higher photoinactiavation sensitivities than saline solutions with no or less riboflavin. This can be recognized very well in the mammalian virus experiments of Tomb et al. [39]. In pure PBS, the log-reduction dose was 719 J/cm². With 0.4 mg/L riboflavin the dose dropped to 319 J/cm² and in nutrient rich medium, it was even as low as 88 J/cm², which is almost a factor of 10 less than in the riboflavin-free solution. Also, in studies on a phage, Tomb et al. found approximately a factor of 10 in the log-reduction dose in solutions without riboflavin (1021 J/cm²) and in nutrient medium (113 J/cm²) [40]. This observation of the influence of the medium or the riboflavin concentration on the virus inactivation is quantitatively and qualitatively confirmed by several other authors [37,43,45,48,49,62,63]. In contrast, there is not one report with a higher log-reduction at lower riboflavin concentrations, when different concentrations or media were employed.

The question of the cause of the viral photosensitivity and the underlying mechanism of action remains unresolved. If exogenous photosensitizers in the medium, such as riboflavin, are responsible for the virus inactivation then it is a kind of photodynamic therapy (PDT), in which virus nucleotides, proteins, or the virus envelope are destroyed by reactive oxygen species [67,68].

However, in saline solutions such as PBS, no external photosensitizers are expected and yet many authors have observed photoinactivation of viruses. This effect also still appears to be oxygen dependent [63,65], which could be indicative of a mechanism based on endogenous photosensitizers and ROS generation. However, there are no known endogenous virus photosensitizers and no microbiological reason why viruses might require such photosensitizers.

Nonetheless, it has already been observed that typical PDT dyes can attach to viral envelopes [61]. This allows the speculation that viruses might inadvertently carry photosensitizers from their host cells, which contain mainly porphyrins and flavins. This would explain the particularly efficient effect of violet or blue light on viruses—especially enveloped viruses—and for example, the relationship between the antiviral effects of 405 and 455 nm as observed by Vatter et al. [59] for the phage phi6.

5. Conclusions

It appears that riboflavin, and also possibly other media components [25,39,63] may have a major impact on photoinactivation results. DMEM especially might lead to higher virus sensitivities and should be used with caution in such experiments. Authors of future studies should consider this.

As long as it cannot be excluded that the medium has an influence on photoinactivation of (corona-) viruses, it should be mentioned in publications that virus reduction with visible light may be quite different under other conditions, such as in air. This is especially important in the ongoing corona pandemic, where frightened citizens seek protective measures and companies might offer deceptive security based on misunderstood studies.
