Probing Small Distances in Live Cell Imaging

Abstract

For probing small distances in living cells, methods of super-resolution microscopy and molecular sensing are reported. A main requirement is low light exposure to maintain cell viability and to avoid photobleaching of relevant fluorophores. From this point of view, Structured Illumination Microscopy (SIM), Axial Tomography, Total Internal Reflection Fluorescence Microscopy (TIRFM) and often a combination of these methods are used. To show the high potential of these techniques, measurements on cell-substrate topology as well as on intracellular translocation of the glucose transporter GLUT4 are described. In addition, molecular parameters can be deduced from spectral data, fluorescence lifetimes or non-radiative energy transfer (FRET) between a donor and an acceptor molecule. As an example, FRET between the epidermal growth factor receptor (EGFR) and the growth factor receptor-bound protein 2 (Grb2) is described. Since this interaction, as well as further processes of cellular signaling (e.g., translocation of GLUT4) are sensitive to stimulation by pharmaceutical agents, methods (e.g., TIRFM) are transferred from a fluorescence microscope to a multi-well reader system for simultaneous detection of large cell populations.

1. Introduction

Probing small distances is a continuous challenge in life cell imaging. Optical microscopy plays a predominant role in this field as it provides several non-destructive techniques for imaging and sensing applications. Methods of transmission, scattering or fluorescence microscopy have been reported for many years, however, their resolution is generally limited to about 200 nm. Only in the last 30 years, this so-called Abbe limit has been overcome by super-resolution techniques, where resolutions below 100 nm have been attained. This offers new insights into many compartments or organelles of a cell, e.g., nuclei, mitochondria, lysosomes and further vesicles, as outlined in

Table 1. Typical size of cell organelles and related super-resolution techniques.

Organelle	Diameter (typ.)	Technique
nucleus	6–12 µm	SIM 1
mitochondrium	0.5–1.5 µm
lysosome	0.1–1.2 µm
microtubule	~25 nm	STED/MINFLUX/SMLM 1
Actin filament	~7 nm
membrane	4–5 nm	TIRFM
protein	3–6 nm

¹ Techniques are further described in Section 2.

. Specific techniques, e.g., Total Internal Reflection Fluorescence Microscopy (TIRFM) even allow for selective imaging of cell membranes whose thickness is only about 5 nm [1,2]. Imaging options in the range of only a few nanometers are limited, however, information about the micro-environment of specific molecules, e.g., proteins, can be obtained from sensing additional parameters, e.g., fluorescence spectra or lifetimes. In this context measurement of Förster Resonance Energy Transfer (FRET) [3] from a so-called donor to an acceptor molecule plays a predominant role not only for fluorescence staining, but also for measuring intra-molecular or intermolecular distances in the nanometer range (for an overview see [4,5,6]). This manuscript gives an overview on high resolution microscopy as well as on nanometer sensing.

2. Microscopy

The lateral resolution Δx of a common (wide-field) microscope is defined either by the Abbe criterion (for coherent illumination)

Δx ≥ λ/2A_N

(1)

or by the Rayleigh criterion (for a luminescent object or incoherent illumination)

Δx = 0.61 λ/A_N

(2)

with the wavelength λ and the numerical aperture A_N of the microscope objective lens. In both cases values around 200 nm are achieved for numerical apertures A_N ≥ 1.30 at λ = 500 nm. Often the axial resolution is related to the depth of focus

Δz = n λ/A_N²

(3)

resulting in Δz ≈ 400 nm for the refractive index n = 1.50, λ = 500 nm and A_N = 1.40. In comparison with wide-field microscopy, (confocal or multiphoton) laser scanning microscopy offers numerous advantages concerning contrast and optical sectioning. However, for an increase of resolution in confocal microscopy a pinhole is required that selects only a small part of the diffraction pattern (“Airy disk”) of individual points, thus reducing the detection sensitivity considerably. Alternatively, an array of several pinholes with individual detectors (Airy Scan Microscopy), an ultrasensitive camera chip (image scan microscopy) or a pinhole with a scanning device (Re-Scan Confocal Microscopy [7]) may replace the original pinhole (for an overview see e.g., [8]). These alternatives, however, make the whole setup rather complex and expensive. Therefore, to increase resolution and limit the complexity of the optical system, several super-resolution or super-localization methods have been developed.

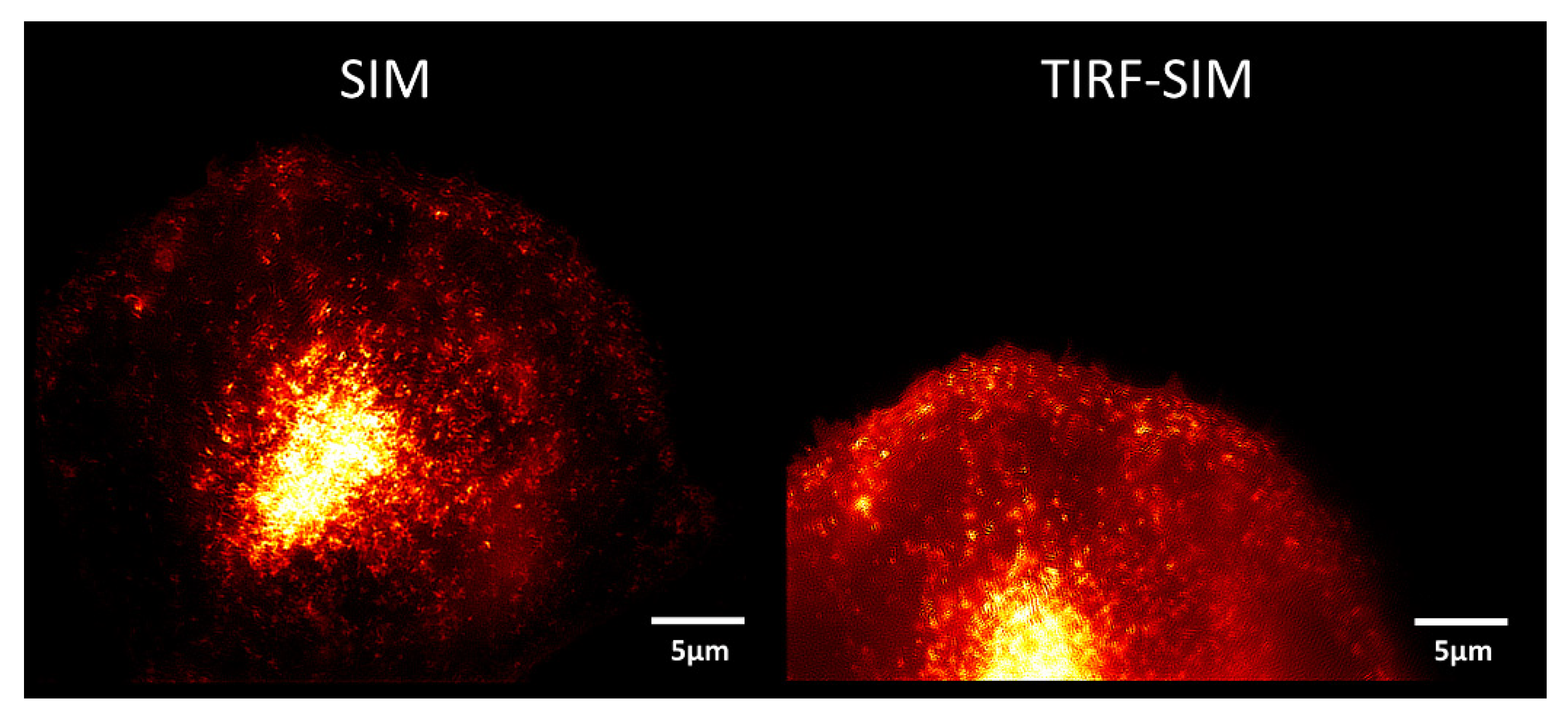

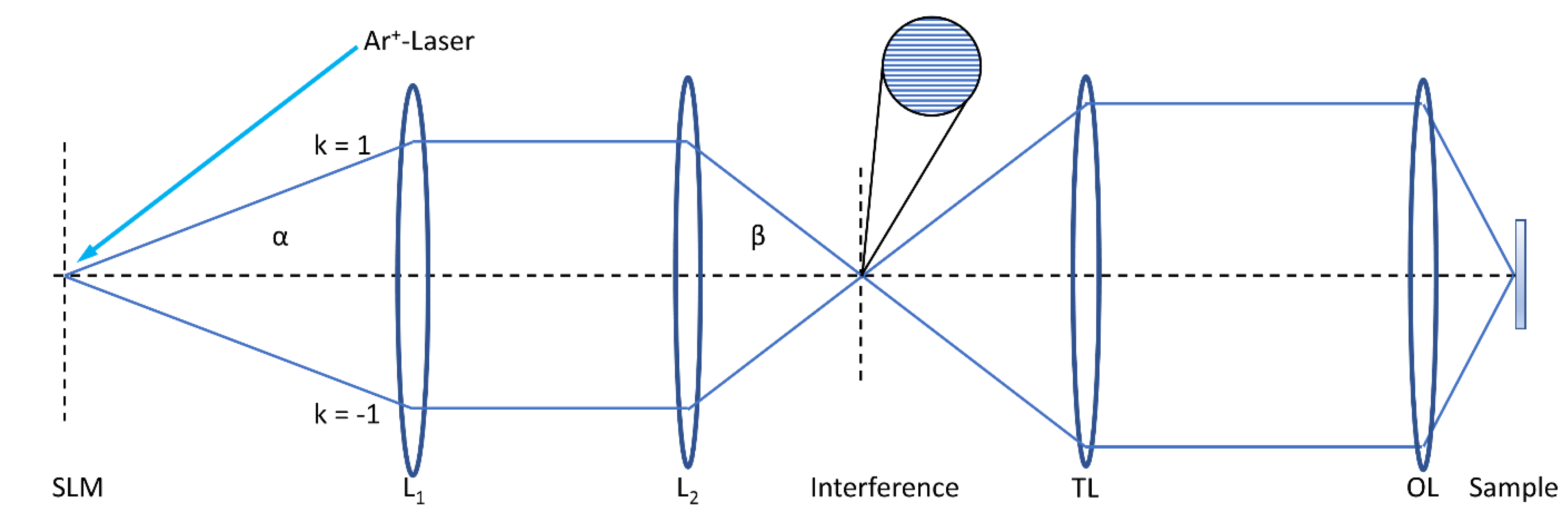

Structured Illumination Microscopy (SIM) [9,10,11] with a periodically modulated illumination pattern leads to a resolution enhancement around a factor of 2 in the lateral direction compared to the value given by the Abbe criterion. Here, the sample is illuminated by 2 interfering laser beams creating a sinusoidal pattern (Figure 1) that may be rotated to obtain isotropic resolution enhancement in the lateral plane. Images are recorded for at least 3 rotation angles and 3 phases (0, 2π/3, 4π/3) of the interference pattern, and a super-resolution image is calculated from a minimum of 9 individual images. While 2 interfering beams are sufficient for enhanced resolution in the lateral dimension, 3 interfering beams are needed for increasing resolution in all 3 dimensions. It should be mentioned that resolution can be enhanced even by more than a factor 2, if the emission rate of the sample responds non-linearly to the illumination intensity, using e.g., saturation effects or photo-switching of a fluorescent protein [12].

In some cases, especially for larger specimens, Lattice Light Sheet Microscopy, a combination of Light Sheet Microscopy and SIM, is a useful tool for observing subcellular processes in three dimensions. This technique achieves high resolution (Δx = 150 nm, Δz = 280 nm) and contrast at high image acquisition speed, thus minimizing damage of cells due to phototoxicity [13,14].

Total Internal Reflection Fluorescence Microscopy (TIRFM) is a wide-field technique that permits selective detection of surfaces, e.g., plasma membranes. When a light beam propagating through a medium of refractive index n₁ (e.g., glass) meets a second medium of refractive index n₂ < n₁ (e.g., cell membrane or cytoplasm), total internal reflection occurs at all angles of incidence Θ, which are greater than a critical angle Θc = arcsin (n₂/n₁). Thereby, an evanescent electromagnetic field is generated that penetrates about 100 nm into the sample and permits selective excitation of membrane proximal fluorophores. “Prism-type TIRF”, based on light incidence via a glass or quartz prism whose refractive index exceeds that of the specimen, has been used for live cell measurements for almost 40 years [1,2]. By variation of the angle of incidence (“VA-TIRFM”), an axial resolution of only a few nanometers becomes possible, which permits studies of cell-substrate topology, e.g., upon application of cytotoxic or phototoxic agents or in studies of diseases. An illumination device (microscope condenser) for variable-angle TIRFM is depicted in Figure 2a, an application to Chinese Hamster Ovary (CHO) cells expressing a membrane-associated Green Fluorescence Protein (GFP) in Figure 2b,c. While the penetration depth d (Θ) of the evanescent electromagnetic wave depends on the angle of incidence Θ, the fluorescence intensity of the TIRFM signal for a homogenously fluorescent layer of thickness t can be calculated as

I_F (Θ) = A T(Θ) t e^−Δ/d(Θ)

(4)

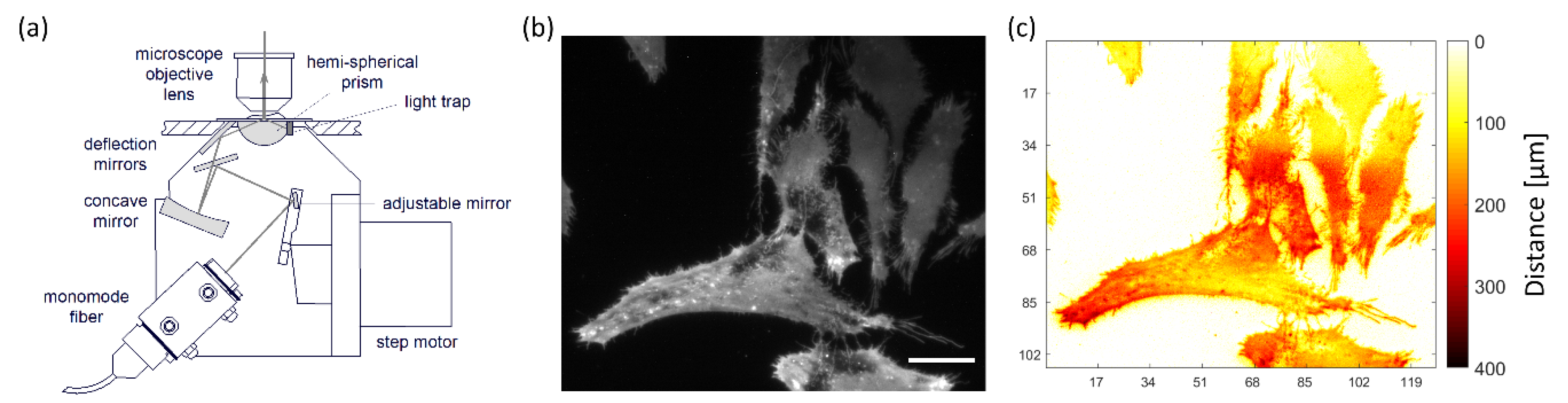

with a constant A, a transmission factor T(Θ) through the cell-substrate interface, a penetration depth d(Θ) of the evanescent wave and a distance Δ between a cell and its substrate [16]. Variation of the angle Θ permits imaging of this distance Δ for the whole specimen (cell-substrate topology), and arbitrary objective lenses can be used for image detection.

In “Objective-type TIRF”, which became available 20 years later than prism-type TIRFM, the illumination beam is focused close to the edge of the aperture of a microscope objective lens with very high numerical aperture, so that illumination occurs under total internal reflection [17]. Alternatively, the focused spot may be scanned in a circular orbit for homogeneous illumination of the sample under various directions during short exposure times (HILO technique [18]). Objective-type TIRF can be combined with structured illumination microscopy (SIM) using up to 6 interfering laser beams to achieve super-resolution in three dimensions (see Figure 1) [18,19,20,21]. A comparison of SIM and TIRF-SIM is shown in Figure 3 for a Chinese Hamster Ovary (CHO) cell transfected with GFP-tagged glucose transporter 4 (GLUT4). Insulin as well as insulin-mimetic compounds, e.g., tannic acid or an extract of Bellis perennis (common daisy) [22], are presently used as stimulating agents to trigger translocation of GLUT4 from intracellular compartments to the plasma membrane, as further described in line 209 ff.. As depicted Figure 3 (left), we observed fluorescence arising primarily from small vesicles by SIM. When we measured the plasma membrane almost exclusively by TIRF-SIM (Figure 3, right), we observed a more even distribution of fluorescence intensity over the whole cell surface.

An alternative method to TIRFM deserves mentioning. It is called “Supercritical angle fluorescence microscopy” (SAF) and is based on full-field excitation of the sample and selective detection of fluorescence above the critical angle Θc [23,24]. A main advantage of this method is that membrane associated fluorescence (above Θc) and whole cell fluorescence (below Θc) can be observed simultaneously, but a disadvantage is that the total light exposure is higher than for TIRFM experiments. Also variation of the angle Θ is difficult to realize.

Stimulated Emission Depletion (STED) microscopy is a laser scanning technique that overcomes the diffraction limited resolution of confocal and multiphoton microscopes. The enhancement of resolution is due to suppression of fluorescence of the dye molecules in the outer regions of a diffraction limited illumination spot by stimulated emission using a (second) donut shaped laser beam. While a resolution of 30–70 nm can thus be achieved [25], the irradiance exceeds that of a conventional fluorescence microscope by a factor 10⁴–10⁵ and may cause severe damages to living specimens. This problem was minimized with the introduction of MINFLUX nanoscopy, a technique based on localization and tracking of single molecules in the intensity minimum of a donut-shaped laser beam. MINFLUX achieves nanometer resolution (isotropic: ≥ 2 nm) at moderate light exposure, which is comparable to confocal laser scanning microscopy [26].

Super-resolution may further result from single molecule localization microscopy (SMLM) within a thin illuminated layer of a sample [27,28,29,30]. If a single molecule is detected n times, its localization can be determined with a precision Δx = Δx₀/√n with Δx₀ ~200 nm according to the Rayleigh criterion. Therefore, a precision of localization Δx = 20 nm results from n = 100 and Δx = 10 nm from n = 400. Methods based on super-localization microscopy include Stochastic Optical Reconstruction Microscopy (STORM), Photoactivation Localization Microscopy (PALM) and related techniques. Generally, SMLM techniques need an irradiance, which is about 100 times larger than for conventional microscopy and a prolonged exposure time of at least a few seconds, so that the risk of cell damage is again very high.

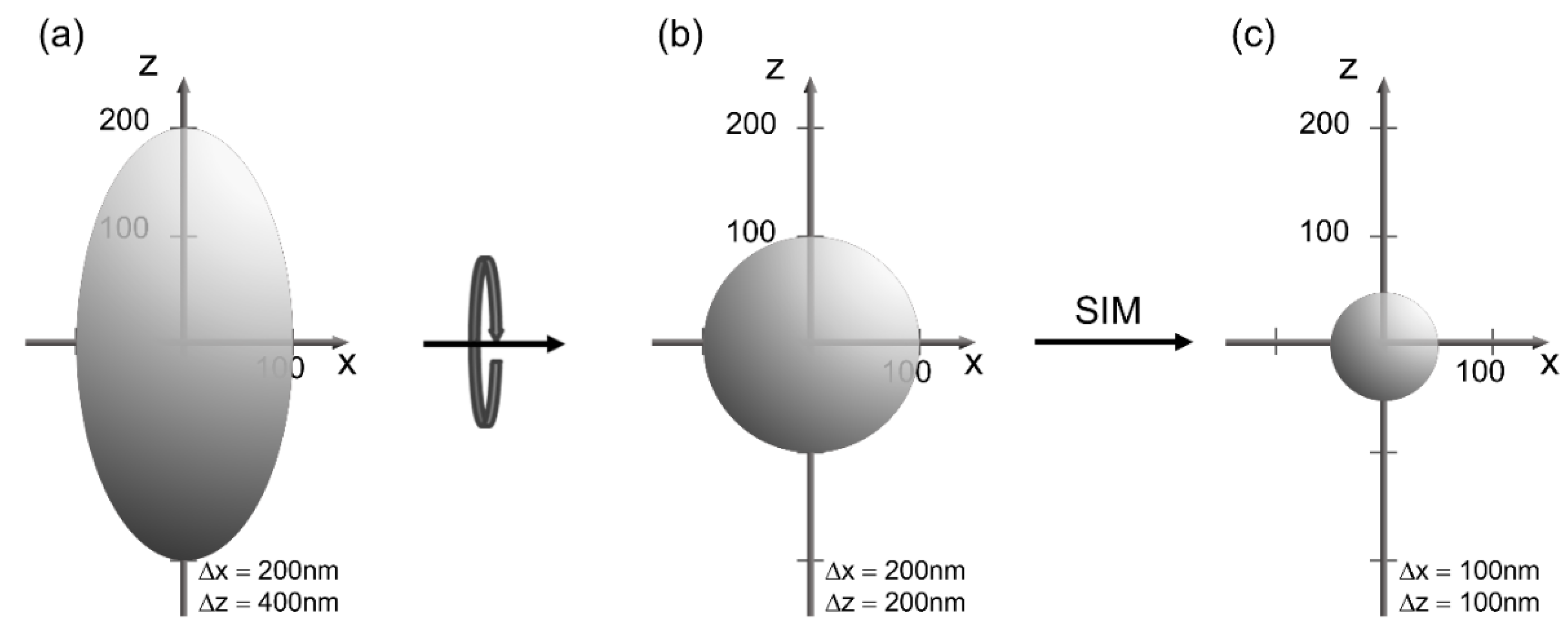

Most microscopy techniques can also be combined with Axial Tomography to overcome the anisotropy of optical resolution. As shown by the point spread function in Figure 4a the lateral resolution is generally higher than the axial resolution. However, after rotation always the optimal (lateral) resolution can be used as depicted in Figure 4b. A combination with super-resolution microscopy gives an extremely high isotropic resolution, e.g., about 100 nm in the case of SIM (Figure 4c). Rotation of samples needs specific sample holders and preparation techniques, e.g., cells embedded in a gel within a rotatable capillary, whose refractive index can be adapted to that of water or oil when using an immersion lens of high magnification [31]. A sample holder with fine tuning of rotation angles over 360° has been reported previously [32]. It can be easily adapted to a great variety of common light microscopes and is suitable for various applications in life science.

In every optical system, light emitted from each point in the object is convolved with the point spread function (PSF) of the system to produce the final image. This convolution causes points in the object plane to become blurred regions in the image plane, thus degrading imaging quality. Deconvolution is a post-acquisition image processing technique used to reverse this process to partially restore lost resolution and improve contrast. However, as with all analytical tools, it must be applied with care to maximize reliability and avoid artifacts [33,34].

3. Sensing

Depending on the method of microscopy, resolution is limited to 10–100 nm, i.e., smaller structures cannot be resolved in an image. However, it is well known that fluorescence spectra as well as fluorescence lifetimes depend on the microenvironment of a relevant fluorophore, including pH, viscosity, and polarity [35,36]. In particular, after excitation of a molecular species by a short light pulse its fluorescence often shows an exponential decay with the time constant

τ = (k_F + k_nr)⁻¹

(5)

where k_F represents the rate of radiative (fluorescent) transitions and k_nr that of non-radiative transitions from an excited molecular state. k_nr depends on various parameters, e.g., molecular conformation, intersystem crossing between excited singlet and triplet states or the molecule’s microenvironment. Coming back to the stimulus-dependent translocation of GLUT4 from intracellular storage compartments to the plasma membrane (see Figure 3), we measured the fluorescence lifetime of GLUT4-GFP prior to and subsequent to stimulation with insulin or the insulin-mimetic substances tannic acid or Bellis perennis extract. Here, we illuminated either whole cells or their plasma membranes at an angle of 62° (epi-illumination) or 66° (TIRF), as depicted in Figure 5.

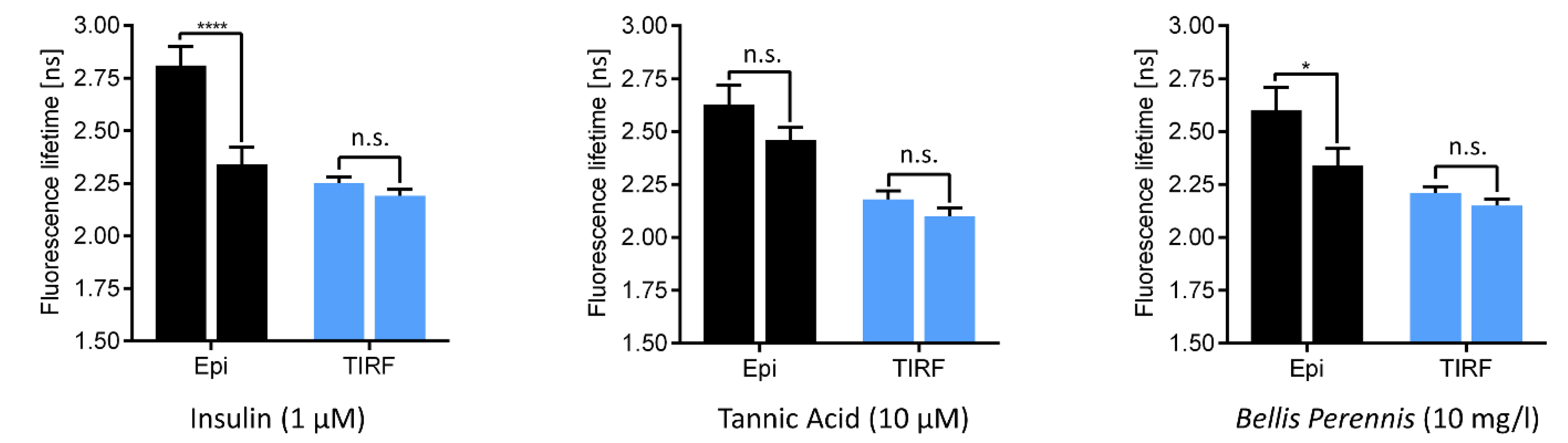

According to Figure 5, fluorescence lifetimes were around 2.2 ns upon TIRF illumination and remained almost constant after stimulation. These values reflect membrane associated GLUT4-GFP fluorescence with increasing intensity, but almost constant lifetime after stimulation. In contrast, fluorescence lifetimes of 2.5–2.8 ns within whole cells decreased upon stimulation to 2.3–2.4 ns, thus approaching the values measured within the plasma membrane. This decrease was significant for stimulation by insulin and Bellis perennis extract and indicated a trend for tannic acid. Therefore, fluorescence lifetime may represent a quantitative molecular parameter for fluorescence re-distribution from intracellular vesicles to the plasma membrane as observed in the SIM/TIRF-SIM images. In this context it should be mentioned that some shortening of GFP lifetime in close vicinity to a cell-glass interface has been reported in the literature [37].

In the case of non-radiative energy transfer from an excited donor molecule to an acceptor molecule (FRET [3]) the energy transfer rate k_ET contributes to the rate k_nr and may cause a pronounced decrease of the fluorescence lifetime τ of the donor molecule. This effect has been used frequently to measure changes of molecular conformations (“intramolecular FRET”) as well as intermolecular interactions of the optical transition dipoles of specific chromophores. Examples of intramolecular FRET are calcium signaling [38] or cyclic AMP signaling using a so-called EPAC sensor ([39] and references therein). Examples for intermolecular FRET are manifold. They include intrinsic fluorophores as well as fluorescent membrane probes (for a review see [6]), but since the introduction of GFP [40] and its variants for the blue, yellow and red spectral range, cellular proteins fused with one of these GFP variants are often used as energy donors or acceptors. Relevant topics include interactions of cellular growth factor proteins [41,42] as well caspase driven molecular interactions upon apoptosis [43,44]. Furthermore, FRET experiments are used increasingly for studies of pathogenesis of various diseases, e.g., tumors [45] or Alzheimer’s disease [46]. Altogether, FRET can be evaluated on the basis of spectral data (e.g., ratio measurements of donor and acceptor fluorescence), fluorescence lifetimes and polarization measurements, which are of particular interest, if donors and acceptors represent the same type of molecules (homo-FRET [47]). A major restriction of ratio measurements may be the spectral overlap of donor and acceptor emission (which requires some deconvolution and background subtraction) and the often unknown fluorescence quantum yields, while the main problem of fluorescence lifetime measurements may be the appropriate reference of a sample without acceptor or with a photo-bleached acceptor (for further details see [4,5,6].

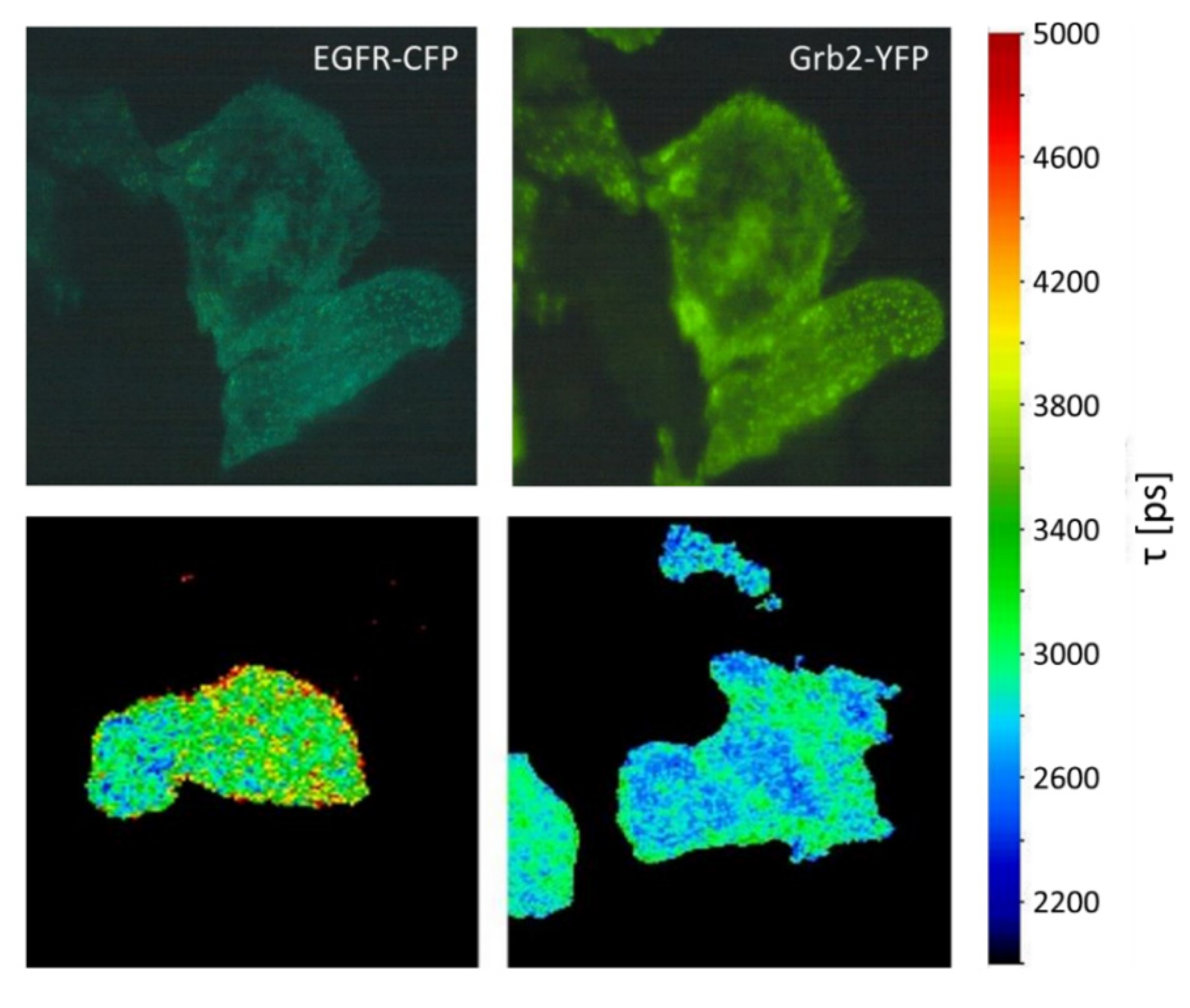

When FRET is combined with TIR-illumination, cell membranes and protein-protein interactions close to the plasma membrane can be examined selectively. A recent application of TIR-FRET is depicted in Figure 6 showing the interaction between the epidermal growth factor receptor (EGFR), fused with Cyan Fluorescent Protein (CFP), and the growth factor receptor-bound protein 2 (Grb2), fused with Yellow Fluorescent Protein (YFP). The EGFR regulates important pathways such as growth, survival, proliferation and differentiation in mammalian cells, and has become a major drug target, as EGFR signaling is critical for the development of many types of cancer [48]. In Figure 6, membrane specific donor and acceptor fluorescence is depicted (top), and fluorescence lifetime images of the donor EGFR-CFP are shown in absence and in presence of the acceptor Grb2-YFP (bottom). Pronounced shortening of the fluorescence lifetime is observed in the second case due to FRET. Furthermore, the efficiency of energy transfer from EGFR-CFP to Grb2-YFP increased after stimulation of the cells with the epidermal growth factor (EGF) [49].

As a valuable contribution to the growing field of high throughput screening, the TIR-FRET technique was transferred from a fluorescence microscope to a multi-well reader system for simultaneous detection of large cell populations grown in adapted microtiter plates. A 96-well plate reported earlier [50] was modified for this purpose, and in addition to TIR-FRET experiments this fluorescence reader was used to quantify GLUT 4 translocation from intracellular storage compartments to the plasma membrane. Stimulation by insulin could thus be measured quantitatively in a large concentration range between 10–12 and 10–6 mol/L [51], and insulin mimetic compounds are further evaluated in view of their efficacy for treatment of type 2 diabetes mellitus.

4. Discussion

Methods for probing small distances in life cell imaging—including super-resolution microscopy and molecular sensing—are reported. Super-resolution techniques, however, should be applied with care in order to avoid photochemical damages of the cells as well as photobleaching of fluorescent specimens. Presently, SIM with a lateral resolution around 100 nm seems to fulfill the requirement of low or moderate light exposure. MINFLUX technology with a resolution of only a few nanometers may be a promising alternative in the near future. For cell membrane studies with high axial resolution, TIRFM appears to be the method of choice, since by variation of the angle of incidence (VA-TIRFM) cell-substrate distances can be determined with a precision of a few nanometers. Prism-type TIRFM may be advantageous for selection of a wide angular range in comparison to objective-type TIRFM. In addition, prism-type TIRFM has the advantage that any kind of objective lens (with arbitrary aperture and magnification) can be used. Prism-type TIRF technology can also be applied in new fields, e.g., fluorescence screening of larger cell collectives in microtiter plates, which has a high potential in pharmaceutical sciences. In addition, various combinations of methods, e.g., TIRF-SIM with a high lateral and axial resolution, as well a combination of axial tomography with further super-resolution methods, appear promising. Whenever small dimensions within a sample cannot be visualized in a microscope, fluorescent molecules can be localized and molecular distances can be estimated on the basis of spectral data, fluorescence lifetimes or FRET between a donor and an acceptor molecule. FRET data (spectra, fluorescence lifetimes or FRET efficiencies) can also be displayed as high resolution images.
