Phase-Controlled Planar Metalenses for High-Resolution Terahertz Focusing

Abstract

We experimentally demonstrate that high-resolution terahertz focusing can be realized in planar metalenses, which consist of arrays of different V-shaped antenna units on a silicon substrate. Numerical results show that a larger numerical aperture of metalenses can provide smaller full width at half maximum of field distribution, leading to higher spatial resolution. The measurement of fabricated metalenses samples was performed by a terahertz near-field imaging system, and experimental results agree well with the numerical prediction. Especially for 1.1 THz incident light, when the numerical aperture increases from 0.79 to 0.95, the full width at half maximum correspondingly decreases from 343 μm to 206 μm, offering an improvement of spatial resolution.

1. Introduction

Metasurface has attracted much attention due to its performance and ultrathin thickness, compared to the conventional bulk optical component. By spatially adjusting the geometrical parameters of metasurface [1,2], such as size, shape, and orientation of the building blocks, one can arbitrarily control polarization [3], phase [4], and amplitude of incident light [5]. Owing to the design flexibility and versatility, various metasurface-based optical devices including flat lenses, beam deflectors, wave plates, vortex generators, and holograms have been implemented.

Among all the applications of metasurfaces, one intriguing development is metalens for concentrating light. In practice, the ultrathin [6] and ultraflat metalenses [7] are desirable for device miniaturization and system integration, promising applications in imaging [8], lithography [9], spectroscopy [10], laser fabrication [11], etc. Additionally, benefiting from the exotic properties of metasurfaces, metalens can provide unusual functions that are very challenging or impossible to achieve in a conventional lens. Examples include dual polarity plasmonic metalens, broadband/multispectral metalens, metalens array, multifocal lens, and polarization-dependent metalens. Particularly, in our previous numerical study [12], broadband focusing [13] metalens in the range of 4.2 to 4.5 THz is demonstrated. It consists of eight concentrically arranged copper units offering discrete phase [14,15] from 0 to 2π for cross-polarized scatter and can be used for multichannel THz wave communication [16,17]. Nevertheless, although much effort has been paid in designing metalenses, improvement is still necessary for many aspects such as polarization conversion efficiency, focal spot size, operation bandwidth, and especially spatial resolution [18]. Practically, due to the great importance of the quality of imaging, many studies on spatial resolution are especially investigated in numerical calculations and experiments [19]. However, the analysis of the physical principle still needs more explorations.

In this paper, we experimentally demonstrate the high resolution of planar metalenses that can be realized. Specifically, the proposed metalenses comprise arrays of different V-shaped antenna [20,21,22] units on a silicon substrate, in which super unit cells containing eight different resonant units are designed to form concentric rings. The spatial resolution in the metalens system is analyzed by the angular spectrum model. The measured results of the THz near-field imaging system show that THz wave focusing is achieved by controlling the position distribution of the resonant units [23,24]. Furthermore, when the numerical apertures increase from 0.79 to 0.95, the full width at half maximum (FWHM) correspondingly decreases from 343 μm to 206 μm in the experiment, offering an improvement in spatial resolution [25,26,27]. The experimental results well agree with the analysis by angular spectrum model and facilitate the practical application of metalenses in THz imaging, communication, photonic integrated circuits, etc.

2. Design and Theory

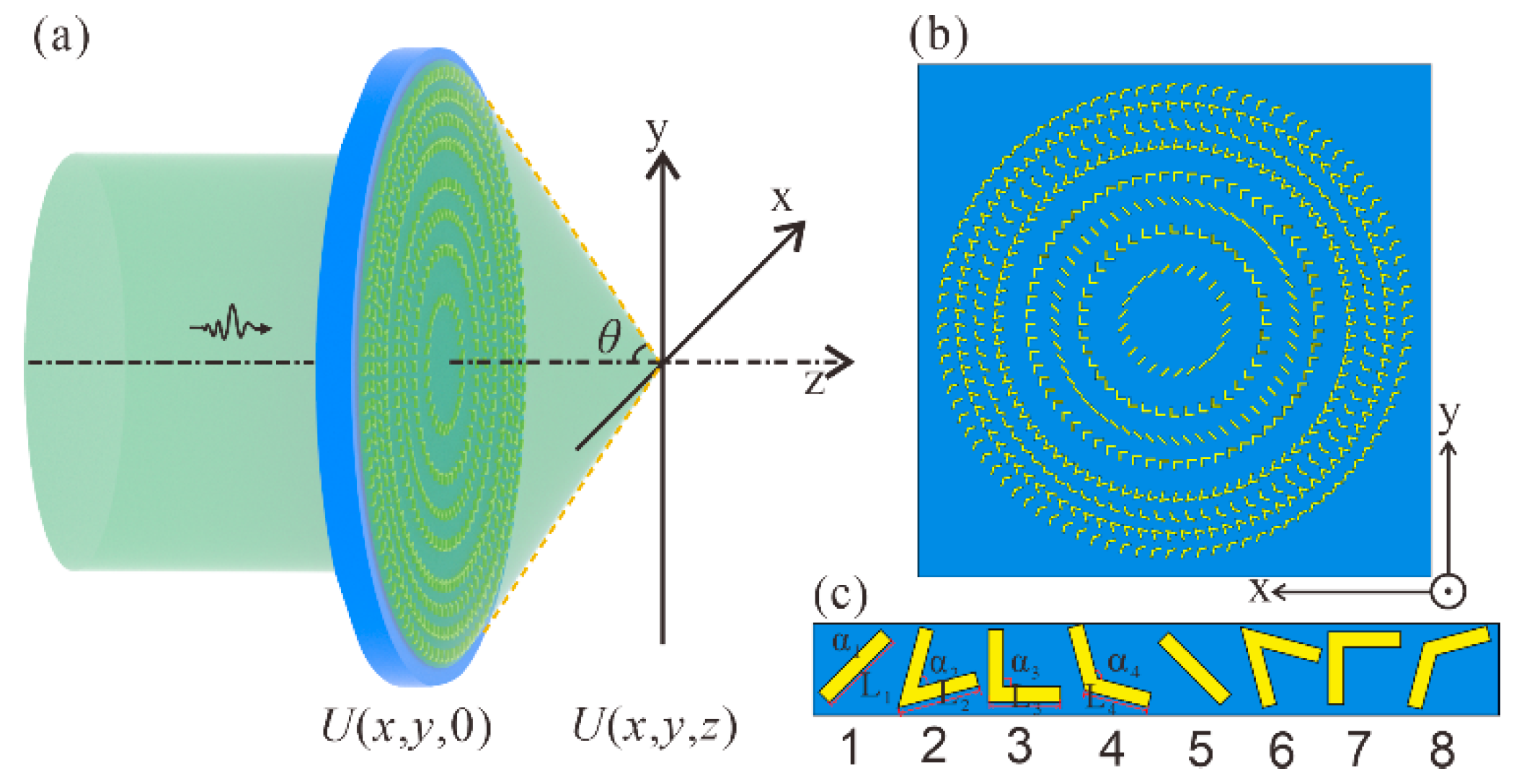

Figure 1a,b presents the schematic of the proposed metalens structure, from the perspective and front views, respectively, which comprises an array of different resonant antenna units distributing on the silicon substrate. The super unit cell contains eight different shapes and sizes of anisotropic antenna resonance units, illustrated in Figure 1c, in the order of 1–3–5–7–2–4–6–8. Based on the super unit cells, concentric rings on the silicon substrate are constructed to form metalens and realize broadband focusing on the x–y plane.

As is well known, the metasurface anisotropic resonant unit in Figure 1b can offer cross-polarized scattering and steer THz wave in directions characterized by the generalized Snell’s theorem. To realize focus, the eight resonant units in super unit cells of concentric rings should be arranged in a special pattern. The required phase shift ψ(r) at a distance of r from the center of the metalens should be as follows:

$$\psi \left(r\right)=\frac{2\pi }{\lambda }\left(\sqrt{f^2+r^2}-f\right)$$

(1)

where f is the focal length of the designed metalens, and λ is the wavelength of the incident THz wave in free space. Practically, the spatial resolution in the metalens system can be analyzed by the angular spectrum model [28]. Since a wave is an incident on a transverse (x,y) plane traveling along the z direction with U(x,y,0) representing the complex field across the z = 0 plane where the lens is located, the angular spectrum A(f_X, f_Y, 0) of U(x,y,0) can be given by

$$A\left(f_X,f_Y,0\right)={\displaystyle \underset{-\infty }{\overset{\infty }{\int }}{\displaystyle \underset{-\infty }{\overset{\infty }{\int }}U}}(x,y,0)\exp \left[-j2\pi \left(f_{X}x+f_{Y}y\right)\right]dxdy$$

(2)

where f_X and f_Y are spatial frequencies. According to angular spectrum model, the angular spectrum A(f_X,f_Y,z) at distance z can be written by A(f_X,f_Y,0) multiplying transfer function H(f_X,f_Y), i.e., $A\left(f_X,f_Y,z\right)=A\left(f_X,f_Y,0\right)\cdot H\left(f_X,f_Y\right)$. The complex field U(f_X,f_Y,z) at z can be written as an inverse Fourier transform of A(f_X,f_Y,z),

$$U(x,y,z)={\displaystyle \underset{-\infty }{\overset{\infty }{\int }}{\displaystyle \underset{-\infty }{\overset{\infty }{\int }}U}}\left(f_X,f_Y,0\right)\cdot H(f_X,f_Y)\exp \left[j2\pi \left(f_{X}x+f_{Y}y\right)\right]d{f}_{X}d{f}_Y$$

(3)

Nonetheless, considering that the lens structure with a finite size limits the extent of the filed distribution, U(x,y,0) should be rewritten as

$$\tilde{U}(x,y,0)=U(x,y,0)\cdot circ(x,y)$$

(4)

with

$$circ(x,y)=\{\begin{array}{l}1,\sqrt{x^2+y^2}\le r\\ 0,\mathrm{otherwise}\end{array}$$

Thus, A(x, y, 0) in Equation (2) will be

$$\tilde{A}\left(f_X,f_Y,0\right)={\displaystyle \underset{-\infty }{\overset{\infty }{\int }}{\displaystyle \underset{-\infty }{\overset{\infty }{\int }}U}}(x,y,0)\cdot circ(x,y)\exp \left[-j2\pi \left(f_{X}x+f_{Y}y\right)\right]dxdy$$

(5)

Then, the angular spectrum at distance z becomes $\tilde{A}\left(f_X,f_Y,z\right)=\tilde{A}\left(f_X,f_Y,0\right)\cdot H\left(f_X,f_Y\right)$.

Subsequently, the complex field at z should be given by

$$\tilde{U}(x,y,\mathrm{z})={\displaystyle \underset{-\infty }{\overset{\infty }{\int }}{\displaystyle \underset{-\infty }{\overset{\infty }{\int }}\tilde{A}}}\left(f_X,f_Y,0\right)\cdot H(f_X,f_Y)\exp \left[j2\pi \left(f_{X}x+f_{Y}y\right)\right]d{f}_{X}d{f}_Y$$

(6)

It is clear that the circ(x,y) function in Equation (5) has an effect on the angular spectrum $\tilde{A}\left(f_X,f_Y,z\right)$, and finally, on the field distribution of $\tilde{U}(x,y,\mathrm{z})$ in Equation (6). Generally, the smaller the radius of the metalenses at z = 0 is, i.e., the smaller the r of circ function in Equation (4), the broader the FWHM of field distribution $\tilde{U}(x,y,\mathrm{z})$.

3. Simulation Results and Discussion

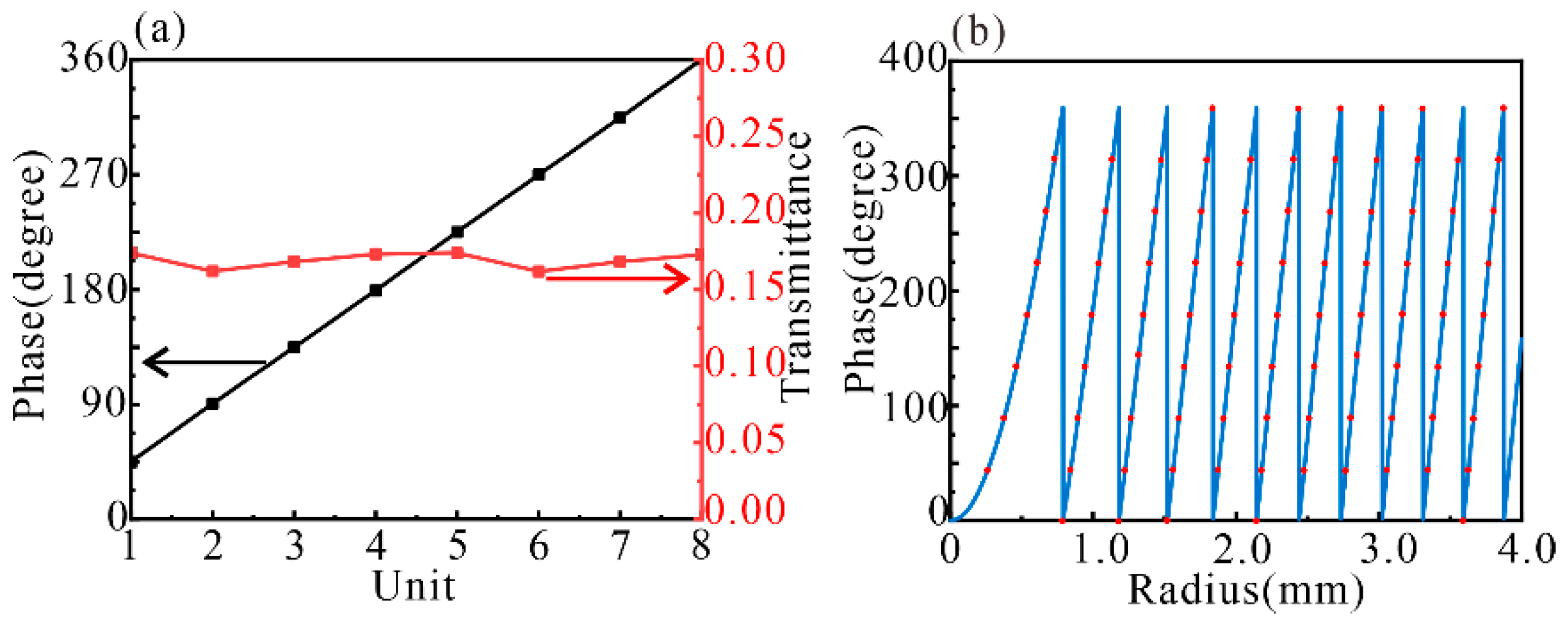

Specifically, the substrate of the metalens in Figure 1 is set as silicon with a dielectric constant of 11.7 and thickness of 200 μm. The material of resonance units is copper with a thickness of 0.2 μm. The linearly polarized THz wave (electric field along the x axis) is a normal incident along the z direction. We first performed numerical simulations through CST Studio Suite to realize metalens focusing by optimizing the geometric parameters of the structure. We took 1.1 THz (corresponding to wavelength 273 μm) as an example, for which the periodicity length is p_x = p_y = 58 μm. The parameters characterizing the units from 1 to 4 are L₁ = 58 μm, L₂ = 57.9 μm, L₃ = 47.8 μm, L₄ = 42.8 μm and α₁ = 0°, α₂ = 60°, α₃ = 90°, α₄ = 120°. Here, L_i and α_i (I = 1,2,3,4) are the arm lengths and angles of the units shown in Figure 1c, respectively. Units from 5 to 8 were separately obtained by rotating units 1–4 by an angle of 90° clockwise. The width of each unit arm is w = 10 µm. Figure 2a displays simulation results of transmittance and phase values of the eight resonant units in each super unit cell [29,30] at 1.1 THz. We can find that the eight units have similar transmittance (the red line) and geometric phases cover from 0 to 2π (the black line) by π/4 step, ensuring that the transmitted wavefront approximates a plane wave. In Figure 2b, the solid curve demonstrates the relation of required phases and r in Equation (1), and the red points indicate the actual phase that can be provided by distributed resonance units in metalens of Figure 1.

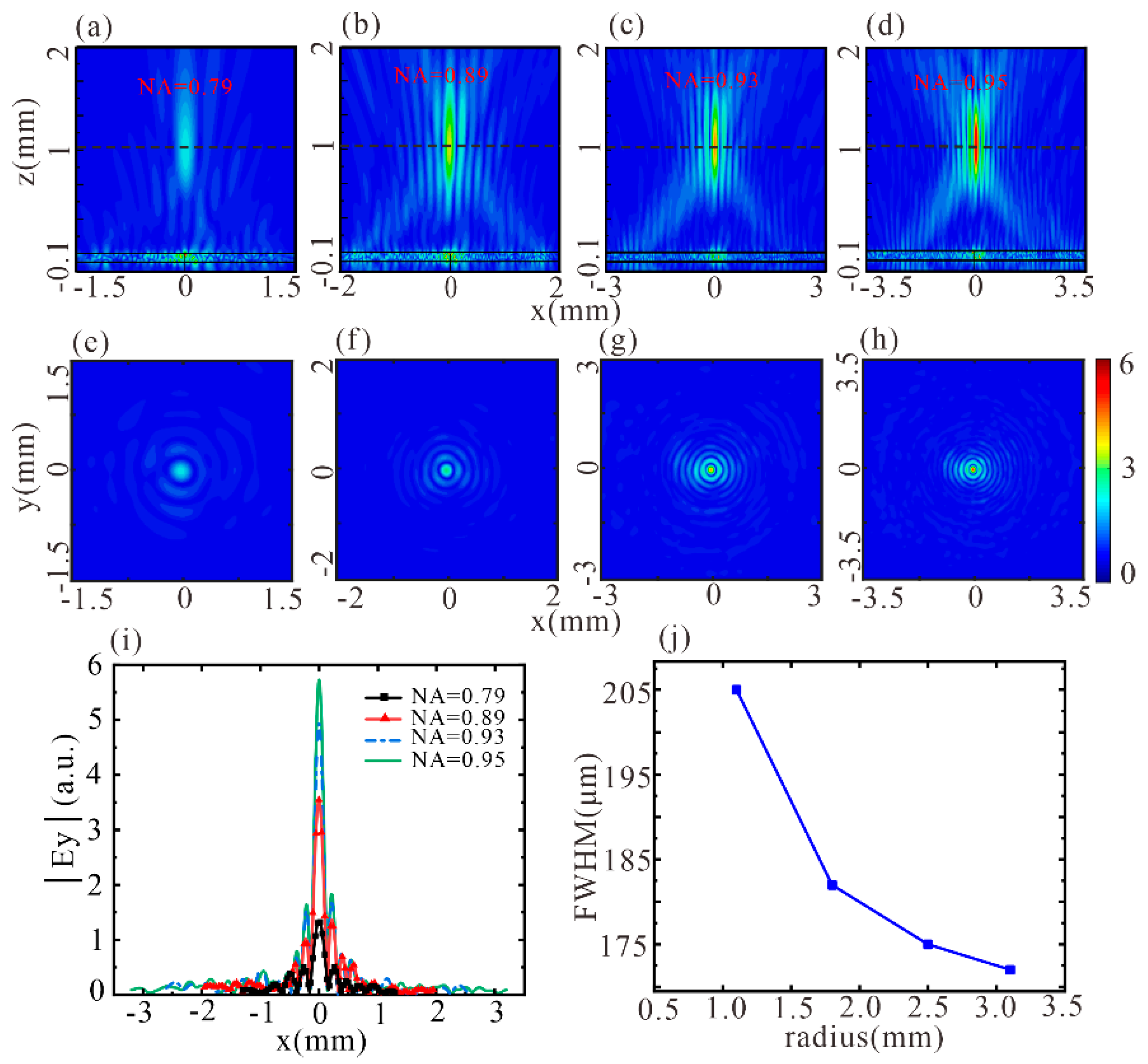

Furthermore, the distribution of electric field intensity for cross-polarized THz wave (electric field is along the y axis) on metalens can be obtained through CST. To analyze the spatial resolution of the metalens conventionally, we first define numerical aperture (NA) as NA = n*sin(θ), in which n is the refractive index of air, and θ is dominated by radius r and focal length f of metalens shown in Figure 1. Practically, for metalenses with certain designed superunit cells, the f will keep unchanged and different r offers different NA. Meanwhile, different r leads to different circ(x,y) functions in Equation (4), and as a result, a different spatial resolution of angular spectrum model. In other words, larger r provides larger NA and smaller FWHM of field distribution, i.e., higher spatial resolution. Specifically, the distribution for metalens with r = 1135 μm is shown in Figure 3a, while the front view is shown in Figure 3e. From Figure 3a, we can infer that the focal length for 1.1 THz is approximately 1000 μm, and NA = 0.79 can be obtained. At the focal plane (z = 1000 μm), the electric field distribution |Ey| along the x axis is illustrated in Figure 3i by a black solid curve, which shows that FWHM = 205 µm. When r = 1877 μm, 2515 μm, and 3131 μm, corresponding to NA = 0.89, 0.93, and 0.95, the electric field distributions with views of x–z and x–y planes are shown in Figure 3b–d,f–h, respectively. In addition, at the focal plane (z = 1000 μm), the electric field distributions along the x axis are severally illustrated in Figure 3i by solid, dotted, triangle, and square curves with NA = 0.95, 0.93, 0.89, and 0.79, respectively. Correspondingly, the FWHMs depending on r are shown in Figure 3j. It is shown that larger r leads to smaller FWHM in Figure 3j and higher spatial resolution in Figure 3a–d, that is, in practical application, the performance of metalenses for THz imaging, communication, photonic integrated circuits is affected by the set of r. Additionally, the focusing efficiency can be defined as energy ratio of center focusing spot to the incidence, which is 5.1%, 5.2%, 3.73%, 2.7% for NA = 0.78, 0.85, 0.92, and 0.95, respectively [31].

4. Experimental Results

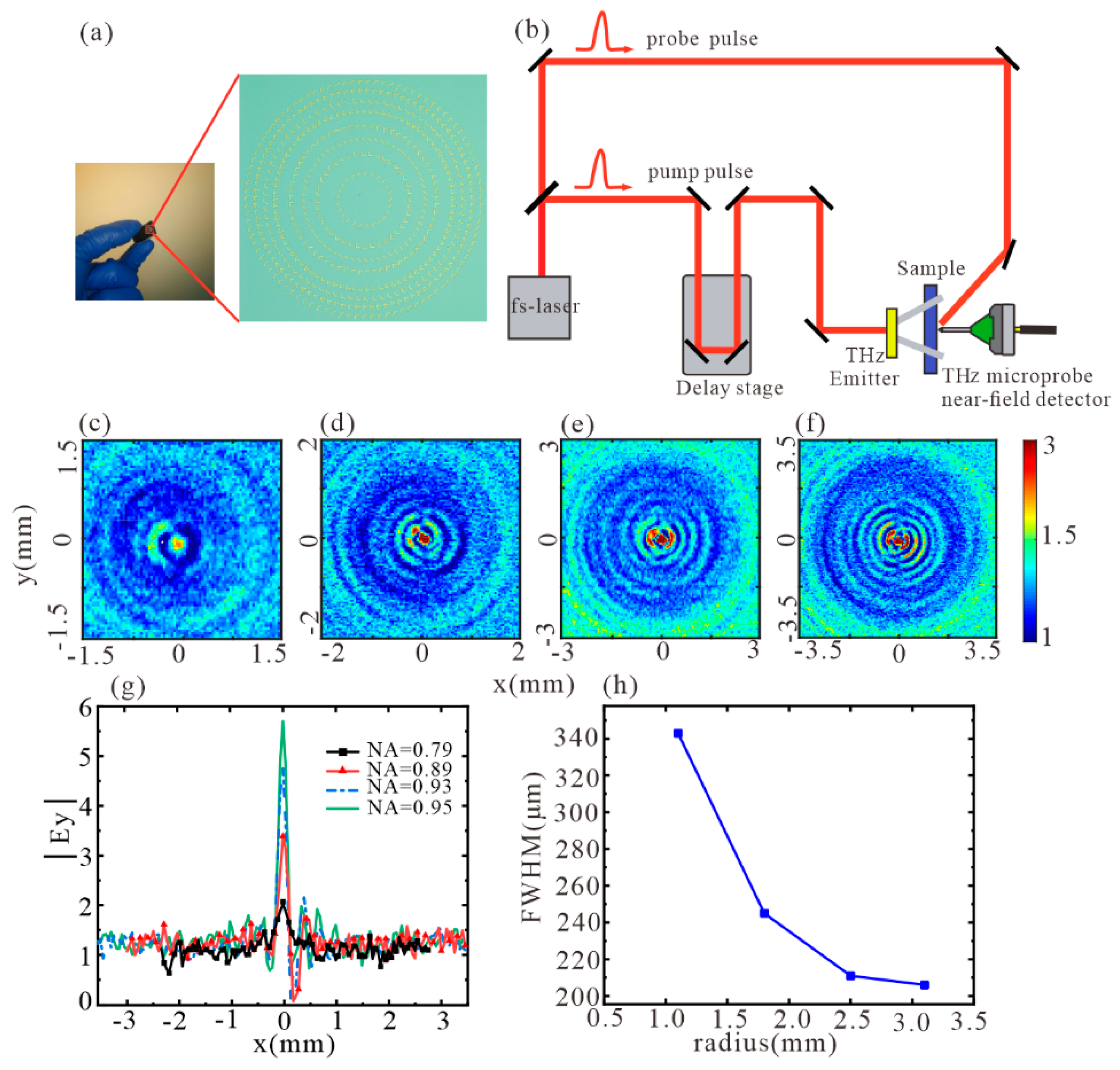

The V-shaped units of metalenses were fabricated on the silicon substrate by UV lithography. First, a layer of 10 nm thick chromium was deposited on the silicon substrate with an electron beam evaporator, followed by the depositing of 200 nm thick copper on it. Then, positive photoresist SUN-115P was coated onto the silicon substrate by a spin coater at a spin speed of 2000 rpm for 30 s, followed by hot plate baking at 100 °C for 1 min. Next, the V-shaped antennas were defined on photoresist surface by UV lithography, followed by hot plate baking at 100 °C for 90 s. After photoresist development in SUN-238D for 8 s, copper was etched excess from the sample by reactive ion etching. The last step to pattern the designed structure was a liftoff process in the acetone to remove photoresist from the surface of the structure. Figure 4a shows the microscopic image of the fabricated sample. We performed the measurement by THz near-field imaging system (TeraCube Scientific M2), as illustrated in Figure 4b. The fs-laser source we used is 780 nm with 100 fs pulse width and 80 MHz repetition rate. The THz signal scans the sample surface using a microprobe and is recorded at each pixel to obtain a THz image. The measured electric field distributions for metalenses with r = 1135 μm, 1877 μm, 2515 μm, and 3131 μm, corresponding to NA = 0.79, 0.89, 0.93, and 0.95, are shown in Figure 4c–f, respectively. During the measurement process, the microprobe of the system kept a 1000 μm distance from metalens samples. Through Figure 4c–f, the electric field distributions along the x axis are severally obtained and illustrated in Figure 4g. Correspondingly, the relations between FWHMs and r are demonstrated in Figure 4h, which shows that FWHM decreases from 343 μm to 206 μm as NA increases from 0.79 to 0.95. Clearly, the experimental results in Figure 4c–h agree well with the simulation results in Figure 3e–j and the analysis of the angular spectral model, demonstrating that larger r, i.e., larger NA, leads to smaller FWHM and higher spatial resolution. Here, we note that in Figure 4c–f, the background signals are mainly affected by the copolarized transmission. Additionally, the focusing efficiency of 3.7%, 4.19%, 3.17%, and 2.4% for NA = 0.78, 0.85, 0.92, and 0.95 are achieved, respectively. Compared to the 3% focusing efficiency in [32], similar efforts are obtained in our structure. Nonetheless, metasurfaces consists of Si Mie resonators can provide almost lossless transmission [33], implying the possibility of our next investigation.

5. Conclusions

In conclusion, metalenses comprising arrays of different V-shaped antenna units distributing on a silicon substrate are proposed theoretically and fabricated experimentally. We first performed numerical simulations, and the results show that a larger numerical aperture of metalenses can provide a smaller FWHM of field distribution, leading to higher spatial resolution. Then, we experimentally fabricated the metalenses samples by UV lithography and measured their field distributions by THz near-field imaging system. The experimental results agree very well with numerical prediction. Our proposed design can facilitate the practical application of metalenses in THz imaging, communication, photonic integrated circuits, etc.
