Photonics 2019, 6(2), 74; https://doi.org/10.3390/photonics6020074

Article
Stability Boundaries in Laterally-Coupled Pairs of Semiconductor Lasers
1
School of Computer Engineering and Electronics Engineering, University of Essex, Wivenhoe Park, Colchester CO4 3SQ, UK
2
Department of Mathematical Sciences, University of Essex, Wivenhoe Park, Colchester CO4 3SQ, UK
3
School of Optoelectronic Science and Engineering, Soochow University, Suzhou 215006, China
*
Author to whom correspondence should be addressed.
Received: 30 May 2019 / Accepted: 20 June 2019 / Published: 25 June 2019

Abstract

:
The dynamic behaviour of coupled pairs of semiconductor lasers is studied using normal-mode theory, applied to one-dimensional (slab) and two-dimensional (circular cylindrical) real index confined structures. It is shown that regions of stable behaviour depend not only on pumping rate and laser separation, but also on the degree of guidance in the structures. Comparison of results between normal-mode and coupled-mode theories for these structures leads to the tentative conclusion that the accuracy of the latter is determined by the strength of self-overlap and cross-overlap of the symmetric and antisymmetric normal modes in the two lasers.
Keywords:
semiconductor lasers; coupled lasers; stability; normal modes; coupled modes

1. Introduction

Arrays of laterally-coupled edge-emitting lasers (EELs) and vertical-cavity surface-emitting lasers (VCSELs) are used for many high-power or high-brightness applications [1,2]. Other potential applications include high-frequency modulation [3,4], beam-steering [5] and parity-time symmetry breaking [6]. The theoretical description of physical phenomena in laser arrays is usually based either on coupled-mode theory or normal-mode analysis. The former has the advantages of simplicity and physical insight, although it is not accurate for asymmetric structures [7], and can give erroneous results for anti-guided structures, as discussed in [8,9]. However, for symmetric structures with weak coupling between lasers, coupled-mode theory has been applied successfully to analyse the locking behaviour and dynamics of arrays with two or more elements [3,5,10,11,12,13,14,15,16,17,18,19,20,21,22]. The normal-mode approach, which can provide a more accurate description for a wider range of structures, has been used in conjunction with a more sophisticated treatment of the electron-photon interaction to describe the beam switching and ultrafast pulsations in VCSEL arrays [23,24,25].
Comparisons of the coupled-mode and normal-mode methods have been made in terms of formalism [26] and of numerical results for bifurcations [17] for two-element arrays with real index guiding. In this situation, the coupling rate η, which in coupled-mode theory is calculated from the overlap integral of the lateral fields of the individual lasers [27], is related to the frequencies, νs, νa, of the symmetric and antisymmetric normal modes by η = (νsνa)/2. Expressions for η in the case of purely real index guidance (i.e., ignoring any effects of gain or loss) have been derived for one-dimensional step-index (slab) waveguides [27] and for circular optical fibres that are weakly guiding (i.e., the difference between core and cladding refractive indices is much less than either index) [28]. A simplified expression for the latter that is valid for multimode fibre couplers has been given by Ogawa [29]. A more general expression for the coupling coefficient between circular cross-section VCSELs with real guidance is also available [30]. Comparison of the dynamics of a coupled pair of lasers modelled by slab waveguides indicated generally good agreement between coupled-mode and normal-mode treatments for edge-to-edge spacings greater than the waveguide width [17]. The only experimental test (to the best of our knowledge) of coupled-mode limits for laser pairs was performed by comparing predicted and measured far-field visibility of optically-pumped VCSELs [31]; the results indicated that coupled-mode theory was inaccurate for a spacing between the two pump spots of less than 13 μm when the modal radius of a solitary VCSEL was estimated as 3.5 ± 0.5 μm. In general, a clear definition of the ranges of parameters where coupled-mode theory is sufficiently accurate has not been given as yet.
The present contribution is intended to contribute to the discussion of dynamics in laterally-coupled pairs of EELs and VCSELs by presenting normal-mode theory and modelling for cases where the laser waveguides are one-dimensional (slab) or two-dimensional (circular cylindrical) structures. In each case, the guidance is purely real, so that no account is taken of guidance due to the effects of gain. We give results for the boundaries between regions of stable and unstable behaviour of these coupled pairs in the plane of normalised pump rate versus normalised spacing between the lasers. The normal-mode results are compared with those from coupled-mode theory in each case, as well as comparing between results for the slab and circular guides.

2. Model

The notation used for pairs of identical one-dimensional (slab) and two-dimensional (circular) waveguides is shown in Figure 1a,b, respectively. In each case, the core (cladding) refractive index is ncore (nclad) and the edge-to-edge separation is 2d. The slab half-width and cylinder radius are each a. With this notation, the conventional definitions of the normalised frequency v and the normalised decay constant of the fields in the cladding w for single solitary guides are:
v 2 = ( 2 π a λ ) 2 ( n c o r e 2 n c l a d 2 ) and w 2 = ( 2 π a λ ) 2 ( n e f f 2 n c l a d 2 ) ,
where λ is the free-space wavelength and neff is the effective index of the single solitary guide.
In what follows, we confine attention to the lowest-order normal modes in each of the structures of Figure 1, ignoring polarisation effects. Due to the symmetry of the waveguides, these modes have even parity, for the lowest order mode, and odd parity for the next highest. We refer to these as ‘symmetric’ and ‘anti-symmetric’, respectively, and are further distinguished by the fact that the anti-symmetric mode goes through zero at the origin, whilst the symmetric does not. With the z-axis as the propagation direction, the total transverse electric field E(x,y,t) can then be expressed as:
E ( x , y , t ) = k E k ( t ) Φ k ( x , y ) exp ( i ν k t ) ,
where the suffix k denotes the symmetric (s) and antisymmetric (a) modes, νk is the frequency of mode k, Ek, Φk are the time-dependent and spatial-dependent field components, respectively, and t is time. For the one-dimensional slab waveguide of Figure 1a, the confinement is in the x direction, so that the dependence on y can be neglected.
In order to work with rate equations that are autonomous, we introduce the new field variable:
E ˜ k = E k exp ( i ν k t ) .
The rate equation for k is then:
d E ˜ k d t = [ i ν k ν k 2 κ ] E ˜ k + c 2 n g ( 1 i α ) k E ˜ k ( g ¯ 1 Γ 1 k k + g ¯ 2 Γ 2 k k ) ,
where κ is the cavity decay rate (=1/(2τp) where τp is the photon lifetime), c is the speed of light, ng is the group index of the cavity, α is the linewidth enhancement factor, g 1 ¯ , g 2 ¯ are the mean gains per unit length in guides 1 and 2, and Γ1kk’, Γ2kk’ are overlap factors in guides 1 and 2, defined as:
Γ j k k = g u i d e : j Φ k ( x , y ) Φ k ( x , y ) d x d y ,
where j = (1,2) labels the guide and the k,k’ label the modes (s,a). The spatial components of the field are normalised as:
| Φ k ( x , y ) | 2 d x d y = 1 .
The rate equation for carrier concentration Nj in guide j is:
d N j d t = P j γ N j c n g k , k E ˜ k * E ˜ k g ¯ j Γ j k k , j =   1 , 2 , k =   s , a , k =   s , a , ,
where Pj is the pumping rate in the jth guide and γ is the carrier recombination rate. The conventional linear relationship between gain, g j ¯ , and carrier concentration is assumed:
g ¯ j = a d i f f ( N j N 0 ) ,
where adiff is the differential gain and N0 is the transparency concentration.

3. Results

For numerical calculations, we use a wavelength of 1.3 μm with core radius (half-width) 4 μm and refractive indices ncorenclad = 3.4. Three values of the difference (ncorenclad) are chosen as 0.000971, 0.002 and 0.0055. From Equation (1), these correspond to normalised frequency v = 1.571, 2.255 and 3.740, respectively. These values have been chosen to explore different regions of operation of the coupled guides in terms of the transverse modes supported by each solitary guide: the cut-offs for the first and second higher-order modes of the slab are v = π/2 and π, and those for the circular cylinder are 2.405 and 3.832, respectively. Hence, these values include operating regions, where 1, 2 or 3 transverse modes of the slab and 1 or 2 modes of the circular cylinder are present. The values of the other parameters appearing in the rate equations are κ = 327 ns−1, α = 2, γ = 1 ns−1, adiff = 1 × 10−15 cm2 and N0 = 1 × 1018 cm−3.
First, we compare the coupling coefficient η for coupled circular cylindrical guides with the three values of v. We used industry standard software to numerically compute the normal modes and their complex two-dimensional field distributions. The results were benchmarked against published data wherever possible to confirm computational accuracy. For the case of symmetric one-dimensional slab waveguides, analytic solutions were used as the benchmark. Figure 2 shows the variation of η with the ratio d/a of edge-to-edge spacing to diameter for these three cases. The discrete points (indicated by circles, triangles and diamonds) are calculated from the difference of lowest-order normal-mode frequencies, η = (νsνa)/2. The dashed lines are fitted to these results using the approximation due to Ogawa [29] of the form:
η 1 d 1 / 2 exp ( 2 w d a ) ,
where w is given by Equation (1) for the solitary guide. Also shown in Figure 2 (by square symbols) are the corresponding calculated results for a slab guide with v = 1.571. In this case, the dotted line is fitted to these results using the analytical form for the coupling rate [27], which yields η exp ( 2 w d / a ) . In all cases, the constant of proportionality is found by setting the functions equal to the normal-mode result at d/a = 1. There is a very good level of agreement between the numerical results and the analytic forms.
Next, we turn our attention to the behaviour of the overlap factors defined in Equation (5) and evaluated for the lowest-order symmetric and antisymmetric normal modes. Figure 3, Figure 4 and Figure 5 show plots of these versus d/a for coupled circular cylindrical guides with v = 1.571, 2.255 and 3.740, respectively. Each overlap factor is shown as a ratio to the conventional optical confinement factor ΓS for the lowest-order mode (LP01) of the corresponding solitary single guide, given by [32]:
Γ S = 1 ( 1 w 2 v 2 ) ( 1 K 0 2 ( w ) K 1 2 ( w ) ) ,
where K0, K1 are modified Bessel functions. This ratio occurs when rate Equations (4) and (7) are cast into normalised form for computational purposes. In these figures, the subscript denoting the guide has been dropped and the values for subscripts k k are given as |Γsa|, since this quantity has a different sign in each guide. The symbols (circles, triangles, diamonds) in these figures refer to numerically calculated points, whilst the broken lines are empirical fits used later in the numerical solutions of the rate equations. It is noteworthy that there is significant structure in the variation of these overlap factors for low values of d/a in the operating regions considered here, and that the region of d/a where this structure occurs reduces with increasing v. Plots of the overlap factors for a specific slab waveguide have been presented in [17], including the detuning between resonant frequencies of the two lasers, and show somewhat less variation at corresponding d/a values for the case of zero detuning. In the limit of large d/a, all the ratios of overlap to confinement factors shown in Figure 3, Figure 4 and Figure 5 tend to a value of 0.5. In this limit, it can be shown that rate Equations (4) and (7) reduce to the corresponding equations for the coupled-mode approximation [21]; details of this reduction as well as other aspects of the normal-mode treatment will be presented elsewhere.
Using the results of Figure 2, Figure 3, Figure 4 and Figure 5, together with similar results for slab guides, rate Equations (4) and (7) can be solved numerically and the regions of stable and unstable behaviour determined. Figure 6, Figure 7 and Figure 8 show the results of this in terms of Hopf bifurcations in the plane of P/Pth vs. d/a, where Pth is the threshold value of P for a solitary laser.
At a given point in the plane, the steady state solutions were found using a nonlinear solver, started as close as possible to the expected solutions using approximate analytical expressions. These solutions yielded a Jacobian matrix, which was then diagonalised to find the eigenvalues. At a Hopf bifurcation, a pair of complex conjugate eigenvalues crosses the imaginary axis and the real part goes from negative (stable solution) to positive (unstable solution). A bisection routine was then written to trace the boundary between stable and unstable solutions using this criterion.
Figure 6 shows results for slab and circular cylindrical guides with v = 1.571, as well as the corresponding results obtained using the values of overlap factors in the limit of large d/a (labelled ‘inf’). Figure 7 and Figure 8 show the corresponding results for v = 2.255 and 3.740, respectively. The general form of the curves in each case resembles those reported in earlier literature on laterally-coupled lasers [11,13,21], although in some cases the branches of the curves at the lower left of each Figure are not reported. Stable solutions for the antiphase mode are found to the upper right of the upper branches (away from the origin) and to the lower left of the lower branches of the curves (near the origin); in other regions, unstable steady state solutions are found. The results labelled ‘inf’ in Figure 6, Figure 7 and Figure 8 are in perfect agreement with those from coupled-mode theory, using the approximation for the Hopf bifurcation [21]:
P P t h = 2 α η γ a d i f f N 0 g ¯ t h 1 + a d i f f N 0 g ¯ t h .
Comparing the results in Figure 6, Figure 7 and Figure 8, it is clear that with increasing values of v, the regions of instability shrink with their limits moving to lower ranges of d/a. This trend follows that of the overlap factors in Figure 3, Figure 4 and Figure 5 in their deviation from the value of 0.5 at small d/a. Also, with increasing v, the curves for the slab and circular cylindrical guides become closer, illustrating the power of this normalisation. Attempts to achieve a closer match between these curves by choosing differing v values (in terms of core-cladding index difference) for each, based on matching either the w value or the coupling rate slope with d/a for the slab and circular guides, met with limited success.
Comparing the curves computed from the normal-mode equations with those from the coupled-mode approximation (equivalent to the curves labelled ‘inf’) in Figure 6, Figure 7 and Figure 8 indicates that in most cases the latter are at lower d/a ranges than the former. For the slab waveguide at the largest value of v (in Figure 8), the agreement between coupled-mode and normal-mode results is rather closer than for the other values, and this may result from the limited range over which the normalised overlap factors deviate from 0.5. It is worth bearing in mind also that higher-order modes (1 for the circle, 2 for the slab) are present in the guides of Figure 8, but we have considered only coupling between the fundamental modes of each guide (as represented by the lowest-order symmetric and antisymmetric normal modes of the coupled structure). The theory of coupling between higher-order modes in coupled optical fibres, including the effects of spin-orbit interaction, has been presented in [33].

4. Discussion

The normal-mode theory for laterally-coupled pairs of identical semiconductor lasers has been given in terms of rate equations for the lowest-order symmetric and antisymmetric modes in structures with real index guidance. Both one-dimensional (slab) and two-dimensional (circular cylindrical) guides have been considered. Attention has been drawn to the important role played by the overlap factors between the modes in each guide and their variation with guide separation. In the limit of large separation, these overlap factors, when normalised by the confinement factor of the fundamental mode in a solitary laser guide, tend to the value 0.5. In this limit, the normal-mode rate equations reduce to those for the coupled-mode approximation with the corresponding result that the coupling rate is given by half the difference in frequencies of the symmetric and antisymmetric modes.
Results for the boundaries between regions of stability and instability in the plane of normalised pump rate versus normalised guide spacing have been presented for slab and circular guides with three different values of (weakly-guiding) core-cladding refractive index difference and all other parameter values the same. These results indicate that the ranges of instability shrink with increasing index difference and their boundaries move to lower values of guide spacing. The coupled-mode results become closer to those from the normal-mode theory with increasing index difference and increasing guide spacing. This behaviour is attributed to the corresponding changes of the normalised overlap factors with these parameters, in particular their deviation from the limiting value of 0.5. It is, therefore, postulated that the behaviour of the normalised overlap factors determines the level of accuracy of the coupled-mode theory, a property that has hitherto not been properly defined.
Future work in this subject will include extension of the normal-mode theory for coupled lasers to include the influence of polarisation and the effects of higher order modes.

Author Contributions

M.A. conceived the project and the general flow of the theoretical work. M.V. carried out the theoretical derivation of the equations. M.V. and I.H. performed the numerical computations. M.J.A., I.H. and H.S. directed various aspects of the theory and modelling. All authors contributed to writing the paper.

Funding

This research was funded by the Engineering and Physical Sciences Research Council (EPSRC) under Grant No. EP/M024237/1.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Botez, D.; Scifres, D.R. (Eds.) Diode Laser Arrays; Cambridge University Press: Cambridge, UK, 1994. [Google Scholar]
  2. Seurin, J.F.P. High-Power VCSEL Arrays. In VCSELs Fundamentals, Technology and Applications of Vertical-Cavity Surface-Emitting Lasers; Michalzik, R., Ed.; Springer: Berlin, Germany, 2013. [Google Scholar]
  3. Wilson, G.A.; DeFreez, R.K.; Winful, H.G. Modulation of phased-array semiconductor lasers at K-band frequencies. IEEE J. Quantum Electron. 1991, 27, 1696–1704. [Google Scholar] [CrossRef]
  4. Fryslie, S.T.M.; Gao, Z.; Dave, H.; Thompson, B.J.; Lakomy, K.; Lin, S.; Decker, P.; McElfresh, D.; Schutt-Aine, J.E.; Choquette, K.D. Modulation of coherently-coupled phased photonic crystal vertical cavity laser arrays. IEEE J. Sel. Top. Quantum Electron. 2017, 23, 1700409. [Google Scholar] [CrossRef]
  5. Hill, D.E. Phased array tracking of semiconductor laser arrays with complex coupling coefficients. IEEE J. Sel. Top. Quantum Electron. 2017, 23, 1501209. [Google Scholar] [CrossRef]
  6. Gao, Z.; Fryslie, S.T.M.; Thompson, B.J.; Scott Carney, P.; Choquette, K.D. Parity-time symmetry in coherently coupled vertical cavity laser arrays. Optica 2017, 4, 323–329. [Google Scholar] [CrossRef]
  7. Hardy, A.; Streifer, W. Coupled mode theory of parallel waveguides. J. Lightwave Technol. 1985, 3, 1135–1146. [Google Scholar] [CrossRef]
  8. Botez, D.; Mawst, L.J. Phase-locked laser arrays revisited. IEEE Circuits Devices Mag. 1996, 12, 25–32. [Google Scholar] [CrossRef]
  9. Gao, Z.; Siriani, D.; Choquette, K.D. Coupling coefficient in antiguided coupling: magnitude and sign control. J. Opt. Soc. Am. B 2018, 35, 417–422. [Google Scholar] [CrossRef]
  10. Wang, S.S.; Winful, H.G. Dynamics of phase-locked semiconductor laser arrays. Appl. Phys. Lett. 1988, 52, 1774–1776. [Google Scholar] [CrossRef]
  11. Winful, H.G.; Wang, S.S. Stability of phase-locking in coupled semiconductor laser arrays. Appl. Phys. Lett. 1988, 53, 1894–1896. [Google Scholar] [CrossRef]
  12. Yoo, H.J.; Hayes, J.R.; Paek, E.G.; Scherer, A.; Kwon, Y.S. Array mode analysis of two-dimensional phased arrays of vertical cavity surface emitting lasers. IEEE J. Quantum Electron. 1990, 26, 1039–1051. [Google Scholar] [CrossRef]
  13. Ru, P.; Jakobsen, P.K.; Moloney, J.V.; Indik, R. Generalized coupled-mode model for the multistripe index-guided laser arrays. J. Opt. Soc. Am. B 1993, 10, 507–515. [Google Scholar] [CrossRef]
  14. Silber, M.; Fabiny, L.; Wiesenfeld, K. Stability results for in-phase and splay-phase states of solid-state laser arrays. J. Opt. Soc. Am. B 1993, 10, 1121–1129. [Google Scholar] [CrossRef]
  15. Leonés, M.; Lamela, H.; Carpintero, G. Coupling effects in the dynamic behavior of two laterally coupled semiconductor lasers. Proc. SPIE. 1999, 3625, 707–714. [Google Scholar]
  16. Lamela, H.; Leonés, M.; Carpintero, G.; Simmendinger, C.; Hess, O. Analysis of the dynamic behavior and short-pulse modulation scheme for laterally coupled diode lasers. IEEE J. Sel. Top. Quantum Electron. 2001, 7, 192–200. [Google Scholar] [CrossRef]
  17. Erzgräber, H.; Wieczorek, S.; Krauskopf, B. Dynamics of two laterally coupled semiconductor lasers: Strong- and weak-coupling theory. Phys. Rev. E 2008, 78, 066201. [Google Scholar] [CrossRef] [PubMed]
  18. Erzgräber, H.; Wieczorek, S.; Krauskopf, B. Locking behaviour of three coupled laser oscillators. Phys. Rev. E 2009, 80, 026212. [Google Scholar] [CrossRef] [PubMed]
  19. Blackbeard, N.; Erzgräber, H.; Wieczorek, S. Shear-induced bifurcations and chaos in models of three coupled lasers. SIAM J. Appl. Dyn. Syst. 2011, 10, 469–509. [Google Scholar] [CrossRef]
  20. Blackbeard, N.; Wieczorek, S.; Erzgräber, H.; Dutta, P.S. From synchronisation to persistent optical turbulence in laser arrays. Phys. D 2014, 286–287, 43–58. [Google Scholar] [CrossRef]
  21. Adams, M.J.; Li, N.Q.; Cemlyn, B.R.; Susanto, H.; Henning, I.D. Effects of detuning, gain-guiding and index antiguiding on the dynamics of two laterally-coupled semiconductor lasers. Phys. Rev. A 2017, 95, 053869. [Google Scholar] [CrossRef]
  22. Li, N.Q.; Susanto, H.; Cemlyn, B.R.; Henning, I.D.; Adams, M.J. Nonlinear dynamics of solitary and optically injected two-element laser arrays with four different waveguide structures: A numerical study. Opt. Express 2018, 26, 4751–4765. [Google Scholar] [CrossRef]
  23. Ning, C.Z.; Goorjian, P.M. Ultrafast directional beam switching in coupled vertical-cavity surface-emitting lasers. J. Appl. Phys. 2001, 90, 497–499. [Google Scholar] [CrossRef]
  24. Ning, C.Z. Self-sustained ultrafast pulsation in coupled vertical-cavity surface-emitting lasers. Opt. Lett. 2002, 27, 912–914. [Google Scholar] [CrossRef]
  25. Goorjian, P.M.; Ning, C.Z. Ultrafast beam self-switching by using coupled vertical cavity surface-emitting lasers. J. Mod. Opt. 2002, 49, 707–718. [Google Scholar] [CrossRef]
  26. Marom, E.; Ramer, O.G.; Ruschin, S. Relation between normal-mode and coupled-mode analyses of parallel waveguides. IEEE J. Quantum Electron. 1984, 20, 1311–1319. [Google Scholar] [CrossRef]
  27. Yariv, A. Optical Electronics in Modern Communications, 5th ed.; Oxford University Press: New York, NY, USA, 1997; Section 13.8. [Google Scholar]
  28. Snyder, A.W. Coupled-mode theory for optical fibers. J. Opt. Soc. Am. 1972, 62, 1267–1277. [Google Scholar] [CrossRef]
  29. Ogawa, K. Simplified theory of the multimode fiber coupler. Bell Syst. Tech. J. 1977, 56, 729–745. [Google Scholar] [CrossRef]
  30. Yoo, H.J.; Hayes, J.U.; Kwon, Y.S. Analysis of coupling coefficient between two vertical cavity surface emitting lasers for two-dimensional phase-locked array. Electron. Lett. 1990, 26, 896–897. [Google Scholar] [CrossRef]
  31. Hendriks, R.F.M.; van Exter, M.P.; Woerdman, J.P.; van der Poel, C.J. Phase coupling of two optically pumped vertical-cavity surface-emitting lasers. Appl. Phys. Lett. 1996, 69, 869–871. [Google Scholar] [CrossRef]
  32. Gloge, D. Weakly guiding fibers. Appl. Opt. 1971, 10, 2252–2258. [Google Scholar] [CrossRef]
  33. Alexeyev, C.N.; Boklag, N.A.; Yavorsky, M.A. Higher order modes of coupled optical fibres. J. Opt. 2010, 12, 115704. [Google Scholar] [CrossRef]

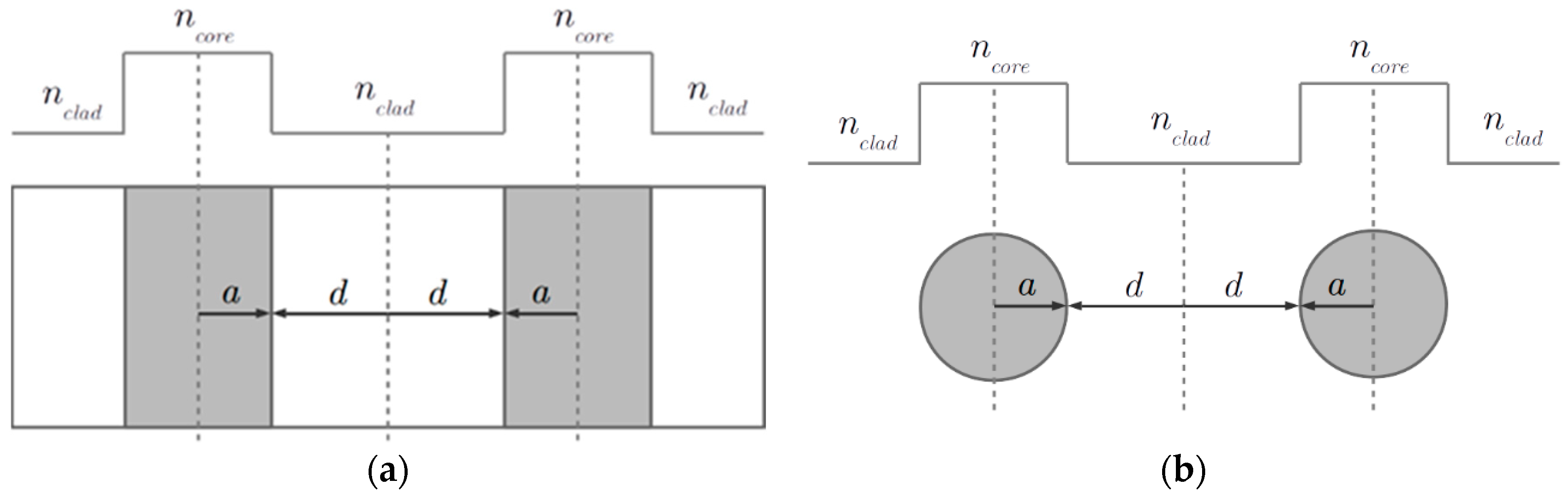

Figure 1. (a) Schematic of two coupled slab waveguides. (b) Schematic of two coupled circular cylindrical waveguides.
Figure 1. (a) Schematic of two coupled slab waveguides. (b) Schematic of two coupled circular cylindrical waveguides.
Photonics 06 00074 g001

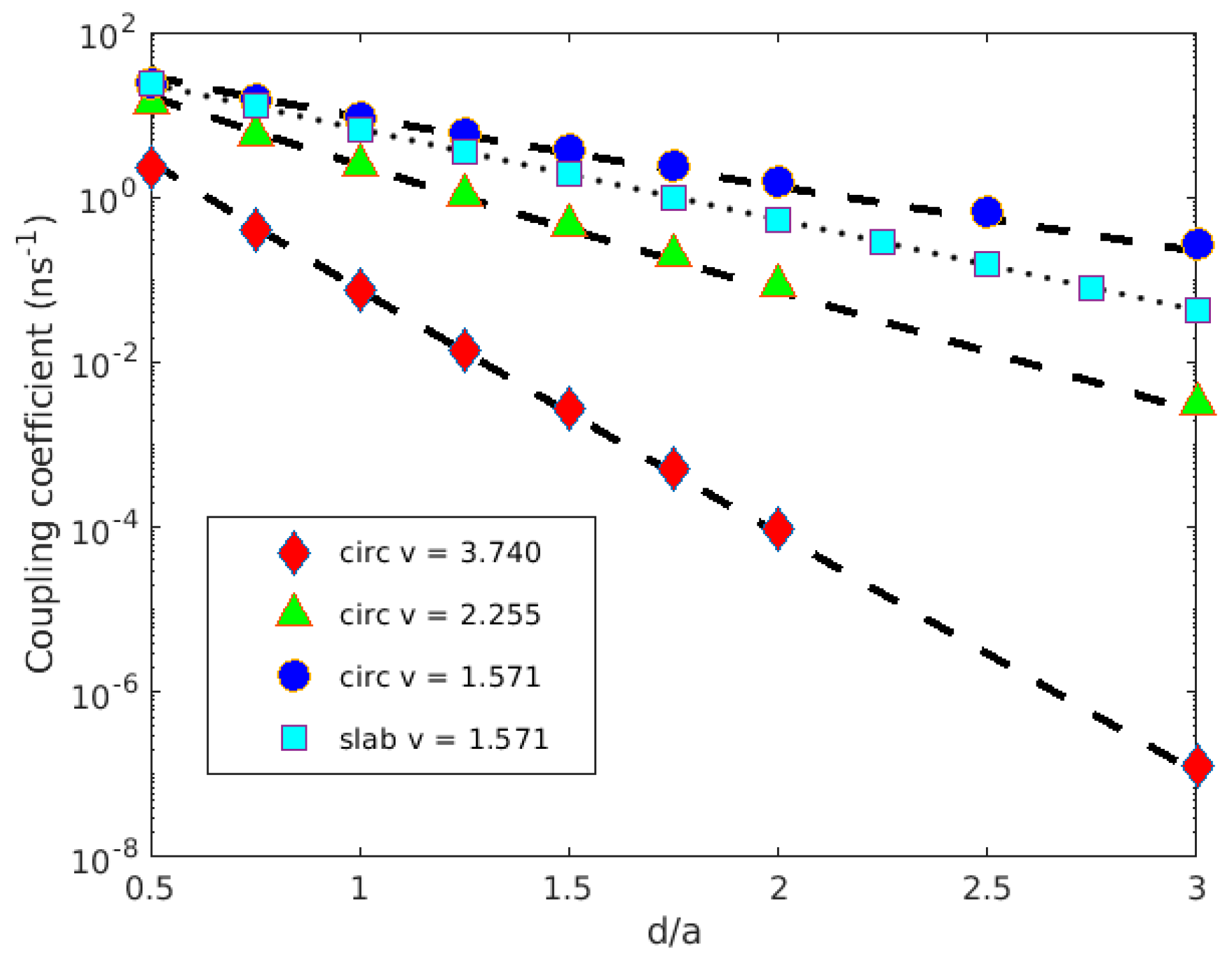

Figure 2. Variation of coupling rate with d/a for pairs of circular cylindrical guides with three values of v and for a slab guide with v = 1.571. Symbols (circles, squares, triangles, diamonds) are calculated from normal-mode theory; dashed and dotted lines are fitted from analytic results given in the text.
Figure 2. Variation of coupling rate with d/a for pairs of circular cylindrical guides with three values of v and for a slab guide with v = 1.571. Symbols (circles, squares, triangles, diamonds) are calculated from normal-mode theory; dashed and dotted lines are fitted from analytic results given in the text.
Photonics 06 00074 g002
Figure 3. Overlap factors versus d/a for coupled circular cylindrical guides with v = 1.571.
Figure 3. Overlap factors versus d/a for coupled circular cylindrical guides with v = 1.571.
Photonics 06 00074 g003

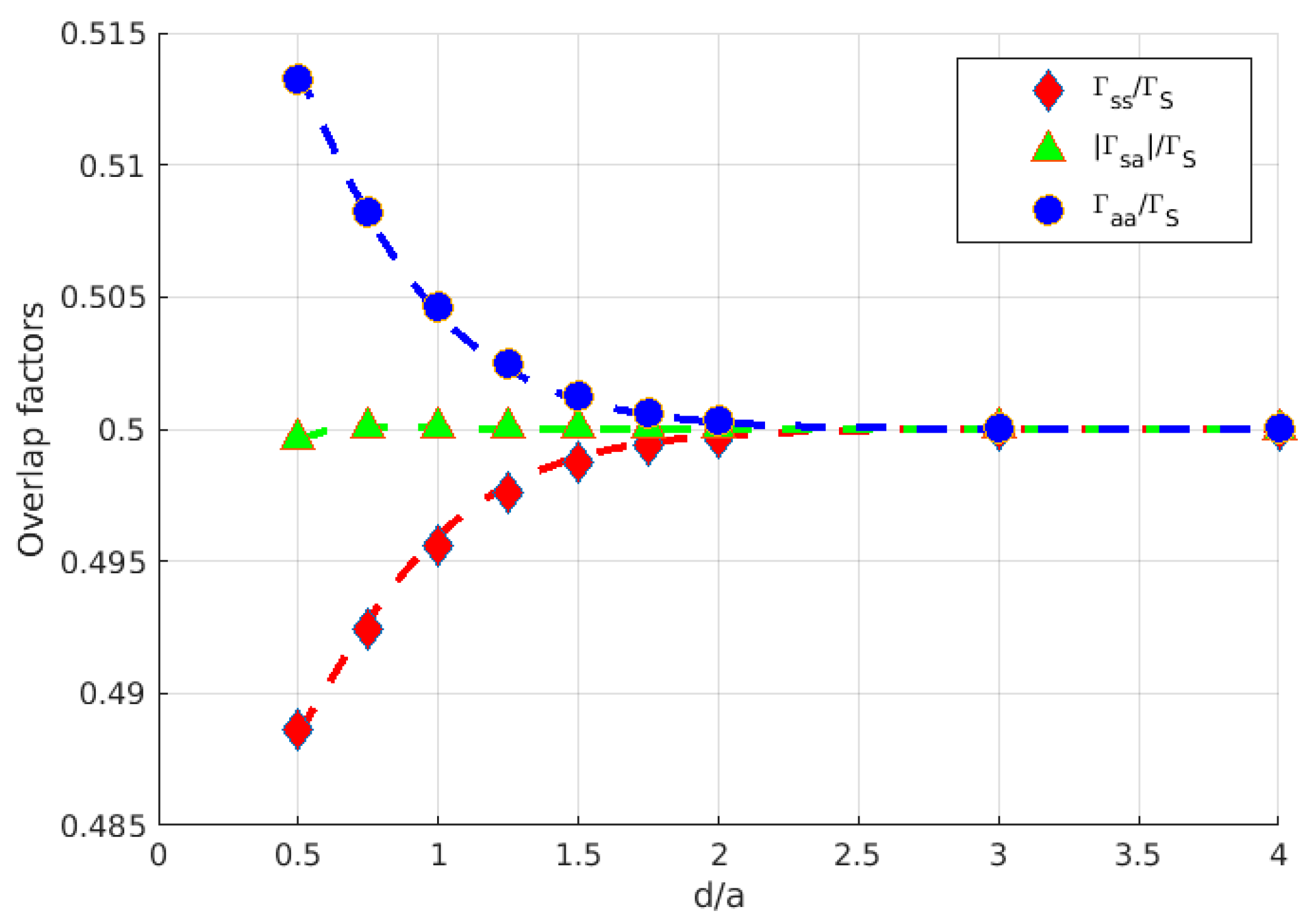

Figure 4. Overlap factors versus d/a for coupled circular cylindrical guides with v = 2.255.
Figure 4. Overlap factors versus d/a for coupled circular cylindrical guides with v = 2.255.
Photonics 06 00074 g004

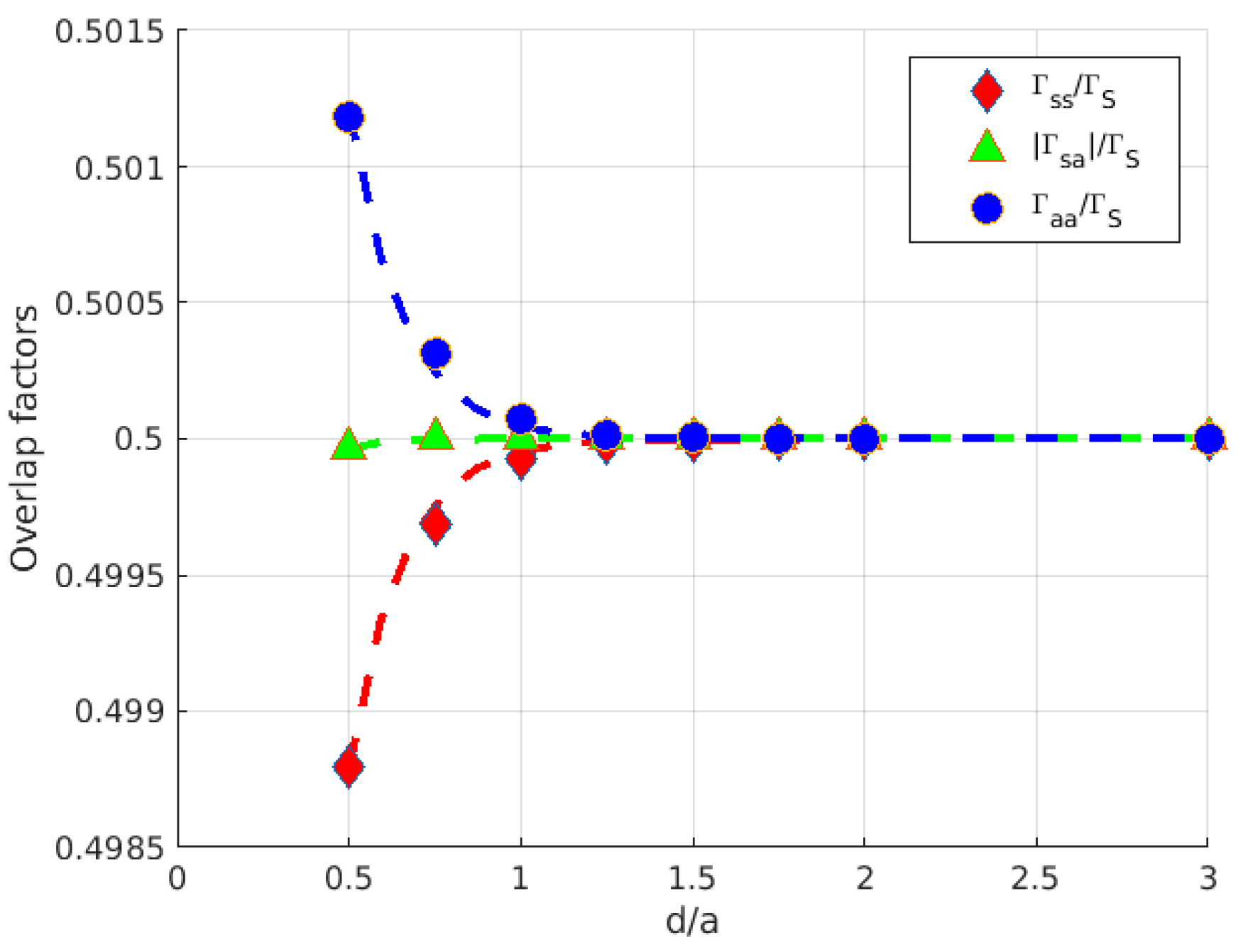

Figure 5. Overlap factors versus d/a for coupled circular cylindrical guides with v = 3.740.
Figure 5. Overlap factors versus d/a for coupled circular cylindrical guides with v = 3.740.
Photonics 06 00074 g005

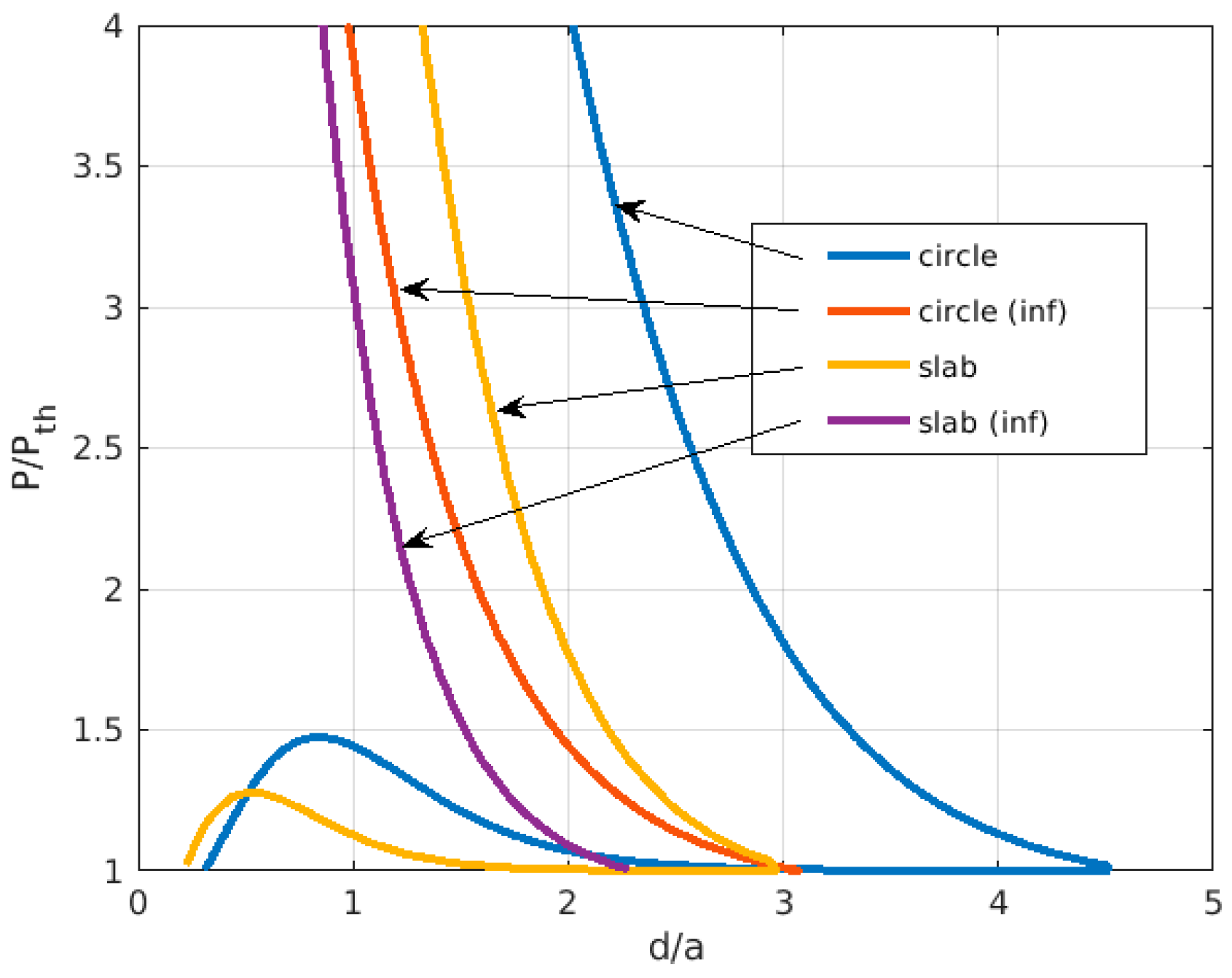

Figure 6. Stability boundaries in the plane of P/Pth versus d/a for coupled circular cylindrical guides with v = 1.571. Curves labelled ‘inf’ are obtained using the values of overlap factors in the limit of large d/a.
Figure 6. Stability boundaries in the plane of P/Pth versus d/a for coupled circular cylindrical guides with v = 1.571. Curves labelled ‘inf’ are obtained using the values of overlap factors in the limit of large d/a.
Photonics 06 00074 g006

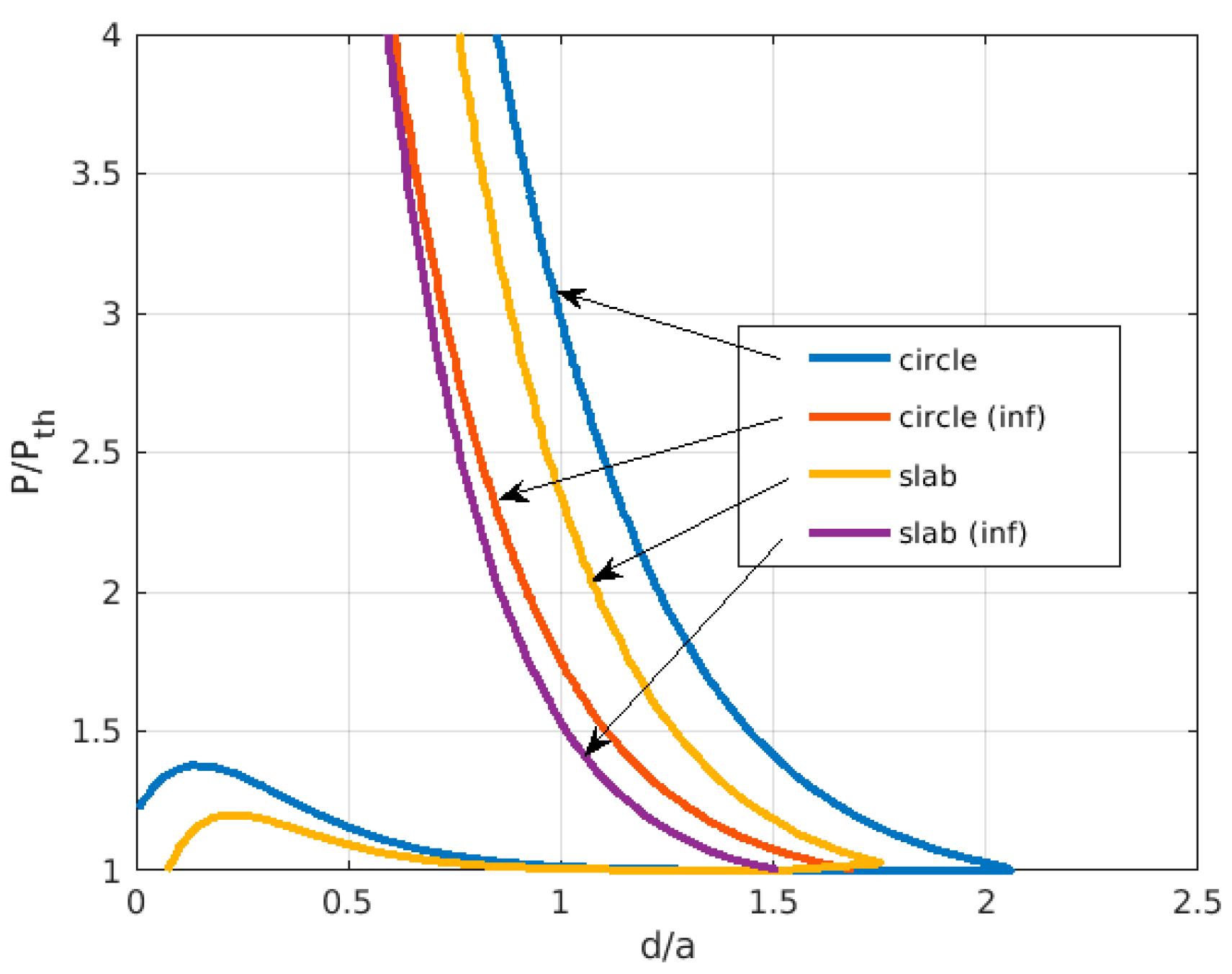

Figure 7. Stability boundaries in the plane of P/Pth versus d/a for coupled circular cylindrical guides with v = 2.255.
Figure 7. Stability boundaries in the plane of P/Pth versus d/a for coupled circular cylindrical guides with v = 2.255.
Photonics 06 00074 g007

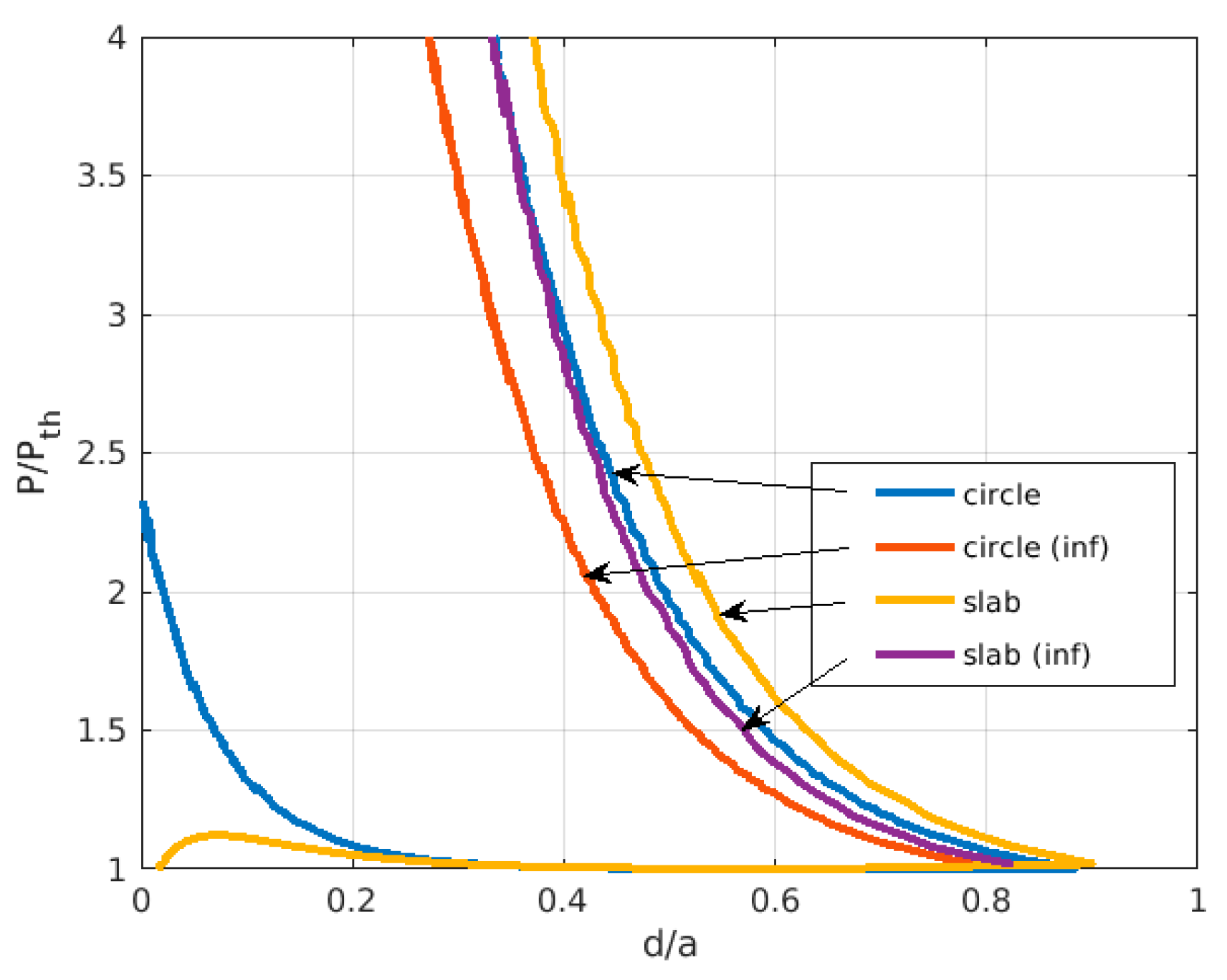

Figure 8. Stability boundaries in the plane of P/Pth versus d/a for coupled circular cylindrical guides with v = 3.740.
Figure 8. Stability boundaries in the plane of P/Pth versus d/a for coupled circular cylindrical guides with v = 3.740.
Photonics 06 00074 g008
