Gain and Threshold Current in Type II In(As)Sb Mid-Infrared Quantum Dot Lasers

Abstract

In this work, we improved the performance of mid-infrared type II InSb/InAs quantum dot (QD) laser diodes by incorporating a lattice-matched p-InAsSbP cladding layer. The resulting devices exhibited emission around 3.1 µm and operated up to 120 K in pulsed mode, which is the highest working temperature for this type of QD laser. The modal gain was estimated to be 2.9 cm⁻¹ per QD layer. A large blue shift (~150 nm) was observed in the spontaneous emission spectrum below threshold due to charging effects. Because of the QD size distribution, only a small fraction of QDs achieve threshold at the same injection level at 4 K. Carrier leakage from the waveguide into the cladding layers was found to be the main reason for the high threshold current at higher temperatures.

1. Introduction

The mid-infrared wavelength range (2–5 µm) continues to attract significant research interest due to its importance for various potential applications, such as optical gas sensing, environmental pollution monitoring, chemical process control, non-invasive medical diagnosis, tunable IR spectroscopy, laser surgery and infrared countermeasures [1]. Efficient and cost-effective solid-state laser sources emitting in this spectral range are required in many applications. In recent years, mid-infrared quantum well (QW) lasers have made significant progresses in reducing the threshold current density, increasing maximum working temperature and output power [2,3]. Moreover, the quantum cascade lasers (QCLs) and inter-band cascade lasers (ICLs), which make use of the inter sub-band transition, have achieved superior performance [4,5]. However, these types of devices suffer from lower wall plug efficiency and higher turn-on voltages than QW lasers. In addition, QCLs and ICLs are typically composed of hundreds of thin layers, making their growth more challenging. From theoretical studies, due to their discrete density of states, QDs have higher material gain, narrower gain spectrum, and are less temperature sensitive than QWs [6], making them the ideal candidate as the gain medium in semiconductor lasers. Compared with QCLs and ICLs, QD lasers also have the advantage of less complicated growth. Although the growth conditions for successful realization of QDs needs careful attention to detail to obtain the correct size distribution and area density, once these conditions are established the active region growth can be easily completed and does not require an extended growth period. Despite these potential merits, to date there are still very few reports on QD lasers in the mid-infrared range and their performance lags behind the aforementioned types of lasers. However, type II InSb/InAs QDs grown by molecular beam epitaxy (MBE), which have exhibited room temperature mid-infrared photo-luminescence (PL) [7] and electro-luminescence (EL) [8], could be a route towards QD light sources and lasers emitting beyond 3 µm.

In this work, we present broad area InSb QD laser diodes grown on InAs substrates, which emitted around 3.1 µm. The structure incorporated a p-InAs_0.61Sb_0.13P_0.26 cladding layer grown by liquid phase epitaxy (LPE). The laser diodes worked up to 120 K in pulsed mode, which is a significant improvement compared with previous work [9,10]. The gain of these type II QDs was estimated and the different contributions to the threshold current were studied.

2. Experimental Section

The QD lasers were grown on (100) oriented p-InAs substrates. Firstly, a 2 µm thick InAs_0.61Sb_0.13P_0.26 cladding layer was deposited by LPE from an indium-rich melt. The material was p-type doped with Zn to a concentration of ~2 × 10¹⁸ cm⁻³. The rest of the structure was then grown in a VG V80H MBE reactor. Ten layers of InSb QDs with 20 nm thick InAs spacers between each layer were deposited in the middle of a 1.2 µm thick undoped (1 × 10¹⁶ cm⁻³) InAs waveguide region. On top of that, an n-doped cladding layer was grown, which was composed of 0.3 µm thick n-InAs with a doping concentration of 1 × 10¹⁷ cm⁻³ and 1.7 µm thick n⁺-InAs with a doping concentration of 5 × 10¹⁸ cm⁻³ which had a lower refractive index to complete the waveguide. The structure and band alignment of the resulting lasers are sketched in Figure 1a.

Current-voltage measurements from the fabricated lasers revealed good p-i-n diode rectifying characteristics. As shown in Figure 1b, the turn-on voltage decreased from 0.34 V at 4 K to 0.10 V at 300 K. The diode series resistance was ~2 Ω for all temperatures and the reverse leakage current was 4 mA (0.5 V reverse bias) at 300 K.

Unlike the common Stranski-Krastanov growth of QDs, which mainly relies on the strain effect between the deposited material and the substrate [11], in this case the growth of the InSb QDs is based on the As-to-Sb anion exchange reaction, which is achieved by exposing the substrate to Sb₂ flux for a very short time interval. The substrate temperature during dot formation can be adjusted in the interval 320–450 °C, resulting in InSb layers of thickness in the range 0.5–0.9 monolayer (ML). Ideally, larger QDs are required for use in lasers to maintain sufficient hole localization. For QDs grown using the exchange reaction, this is only possible at growth temperatures below 350 °C. However, it was found that at growth temperatures in the range 320–350 °C the PL intensity decreased dramatically because of the poor material quality. Furthermore, strong Sb segregation can occur on the InAs surface forming rougher interfaces. Thus, to avoid this problem, in our laser structure the QDs were grown at higher substrate temperature (420 °C). Then to increase the size of the QDs, InSb was deposited for 4 s following the Sb exchange reaction, resulting in QDs about 0.8 ML in thickness (i.e., a few nanometers in each dimension) but with a very high density (~10¹² cm⁻²). More details of the QD exchange growth can be found in our earlier work [8]. In agreement with previous reports, no wetting layer was observed. The QDs grown using this method typically emitted in the 3–4 µm spectral range, and the emission wavelength was dependent upon the substrate temperature and Sb₂ flux exposure time during the growth [8,9]. After growth, broad area laser stripes were fabricated from the sample using conventional photolithography and wet chemical etching. Ti/Au (20 nm/200 nm) metallization was thermally evaporated on both sides to form the ohmic contacts. The lasers were fabricated to be 75 µm in width and of selected varying cavity lengths. The diodes were mounted and wire-bonded on TO-46 headers for measurements and testing.

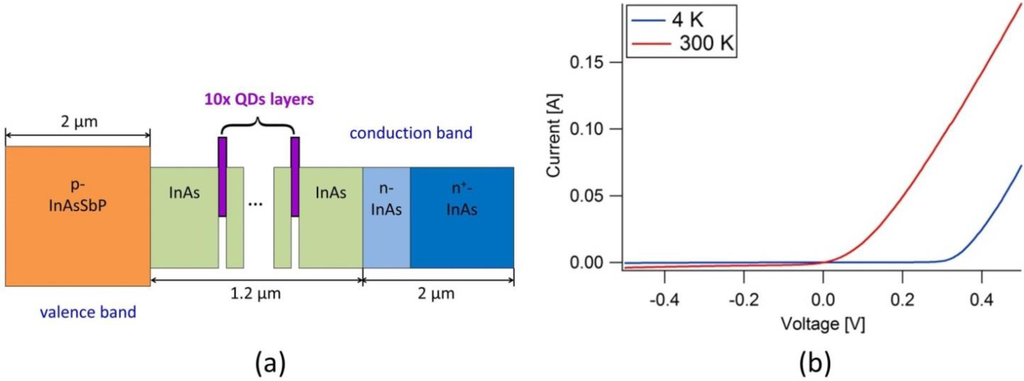

Figure 1. (a) Illustration of the QD laser structure and the conduction and valence band alignments. (b) Current-voltage curves of the laser diode measured at 4 K and 300 K.

Figure 1. (a) Illustration of the QD laser structure and the conduction and valence band alignments. (b) Current-voltage curves of the laser diode measured at 4 K and 300 K.

3. Results and Discussion

3.1. Gain from InSb QDs

QD laser diodes with different cavity lengths were tested in pulsed mode (100 ns pulse width, 2 kHz repetition rate) from 4 K to 120 K. The threshold current density (J_th) increased from 1.59 kAcm⁻² to 4.68 kAcm⁻² as the cavity length was reduced from 1.17 mm to 0.33 mm. Using the same method as for QW lasers [12], the gain of our InSb QD lasers was estimated from the relation between J_th and different laser cavity lengths L, using:

$$J_{th}=\frac{n_w{J}_{tr}}{{\eta }_i}exp\left(\frac{{\alpha }_i+\frac{1}{L}ln\left(\frac{1}{R}\right)}{n_w{\text{Γ}}_w{G}_0}\right)$$

(1)

where n_w is the number of QD layers, J_tr is the transparency current density per layer, η_i is the internal quantum efficiency, α_i is the waveguide loss, R is the reflection coefficient of the end facet, Γ_wG₀ is the modal gain in which Γ_w is the optical confinement factor per layer and G₀ is the material gain coefficient. By making a linear fit between ln (J_th) and 1/L, the modal gain can be extracted.

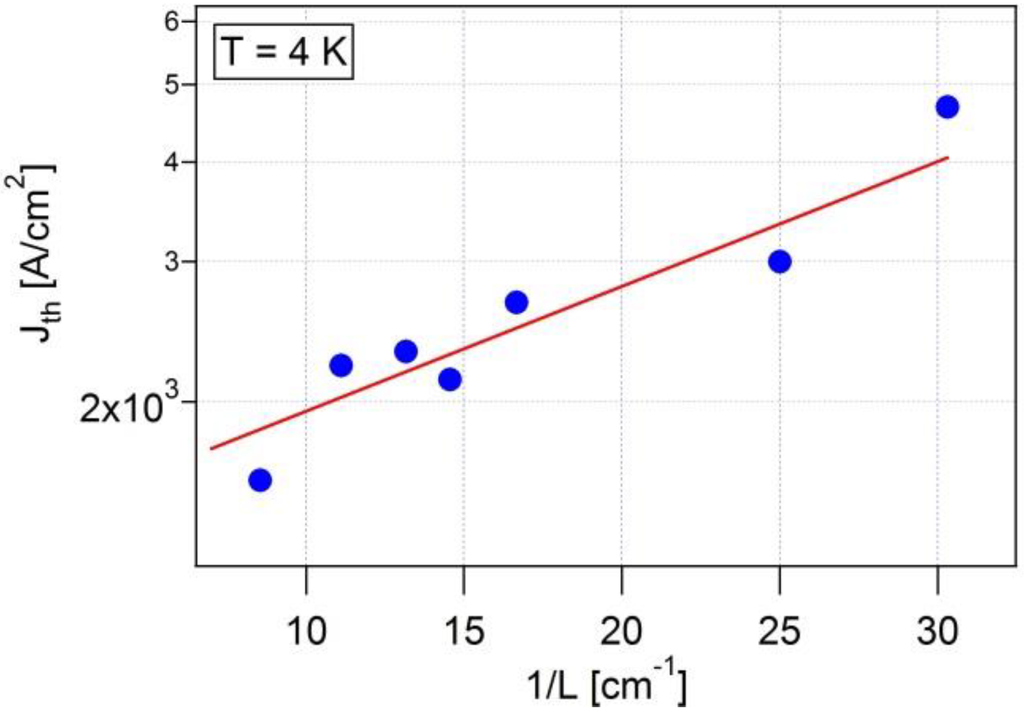

Figure 2. Threshold current density (J_th) vs. reciprocal cavity length (1/L) of the laser diodes at 4 K. The red line shows the linear fit between ln(J_th) and 1/L.

Figure 2. Threshold current density (J_th) vs. reciprocal cavity length (1/L) of the laser diodes at 4 K. The red line shows the linear fit between ln(J_th) and 1/L.

From Figure 2, the modal gain of the QD laser was estimated to be ~29 cm⁻¹, (i.e., 2.9 cm⁻¹ per QD layer on average). This value is lower than typical (InAs) type I QDs emitting in the near-infrared range which is in the order of 10 cm⁻¹ [13,14], but is close to that of type II QWs emitting at a similar wavelength [12]. The relatively lower modal gain from type II structures is closely related to the large spatial separation between electrons and holes compared with type I structures, which results in a much smaller electron-hole wave function overlap.

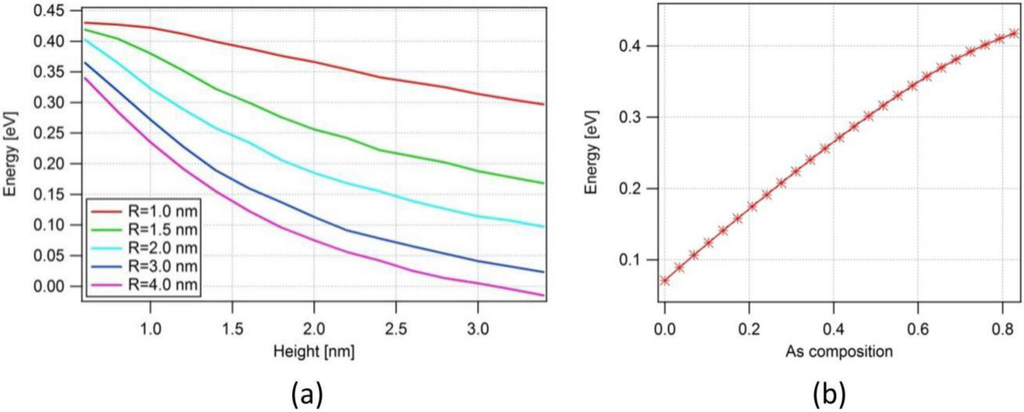

Figure 3. (a) Calculated transition energy of InSb QD as a function of the QD height for different radius (R) values at 4 K. (b) Calculated transition energy of InAs_xSb_1–x QD as a function of As composition at 4 K, where the QD size is fixed at 3 nm base radius and 2 nm height.

Figure 3. (a) Calculated transition energy of InSb QD as a function of the QD height for different radius (R) values at 4 K. (b) Calculated transition energy of InAs_xSb_1–x QD as a function of As composition at 4 K, where the QD size is fixed at 3 nm base radius and 2 nm height.

From previous reports [7,8,9,15], the peak emission wavelength of such InSb QDs typically falls between 3.2 and 3.8 µm at low temperatures, corresponding to transition energies in the range 0.326–0.388 eV. The dependence of transition energies of pure InSb QD on the radius and height of the QDs at 4 K were evaluated using three-dimensional single band Schrödinger calculations in COMSOL multiphysics. The results are plotted in Figure 3a, where the transition energy exhibits a strong dependence on the QD size. For example, with a fixed radius of 2 nm, a 0.5 nm change in QD height (from 1.5 nm to 2 nm) resulted in about 70 meV difference in transition energy. Although the COMSOL calculation is a much simpler estimation than the k.p calculations, the values obtained here are in fact in good agreement with the results from 6 × 6 k.p calculations [16]. Assuming the QD was composed of pure InSb, it was found from both k.p modeling in [16] and COMSOL calculation from Figure 3a that, to achieve typical transition energy of 0.35 eV, the QD height needed to be about 1.0 nm and radius 1.25–1.5 nm. However, high resolution microscopic images reported in [17] revealed that the QDs could possibly be much larger in size (~3 nm base radius and ~2.5 nm in height). The most probable reason for this disagreement is that instead of pure InSb, the QDs may contain a large proportion of As. By fixing the QD size according to the microscopic image in [17], the transition energy dependence on the composition of As was also calculated by the same method in COMSOL and plotted in Figure 3b. To obtain the 0.35 eV transition energy, the QD composition should be close to InAs_0.6Sb_0.4. It needs to be stressed that one image cannot represent all of the QDs in the structure and it is most likely that there are deviations in both QD size and composition. Thus, both QDs with pure InSb in an extremely small size or larger QDs with more As in the composition can exist in the same sample.

In the In(As)Sb QDs, holes are the only confined carriers, while electrons can move freely in the InAs matrix. Both COMSOL simulations and 6 × 6 k.p calculations [16] confirm that the ground heavy hole (GHH) state was the only confined energy state within QDs of base radius 1.25–3 nm. For both pure InSb QDs (~1.25 nm) and larger InAs_0.6Sb_0.4 QDs (~3 nm), the electron-hole wave function overlap lies within the range 35%–40% (using both simulation methods), which is lower than in type I QDs and W-structures [18,19]. However, due to the high QD density, an exceptionally high material gain of ~20 × 10⁴ cm⁻¹ can be estimated for our type II QD, which is in the same range as for type I QDs [13]. Despite the smaller electron-hole wave function overlap, these type II QDs can serve as an efficient gain medium for mid-infrared laser diodes.

The laser diodes emitted between 3.02–3.11 µm and the details of the laser spectrum can be revealed by using high resolution Fourier transform infrared (FTIR) spectroscopy. The measured spectra of one laser diode at 4 K with different drive currents are plotted in Figure 4. The relatively broad overall spectra are probably caused by the size distribution of QDs. Two representative groups of modes are circled in this figure. At lower current injection, the longer wavelengths modes (circled in red) appeared first. With higher current injection, the shorter wavelengths modes (circle in blue) became stronger. This means the longer wavelength modes reach threshold first, associated with coherent emission from the larger QDs. This is also consistent with the transfer of holes between adjacent QDs by tunneling or thermal excitation [20] so that QDs with lower GHH states (i.e., emitting at longer wavelengths) become occupied first as current injection is increased.

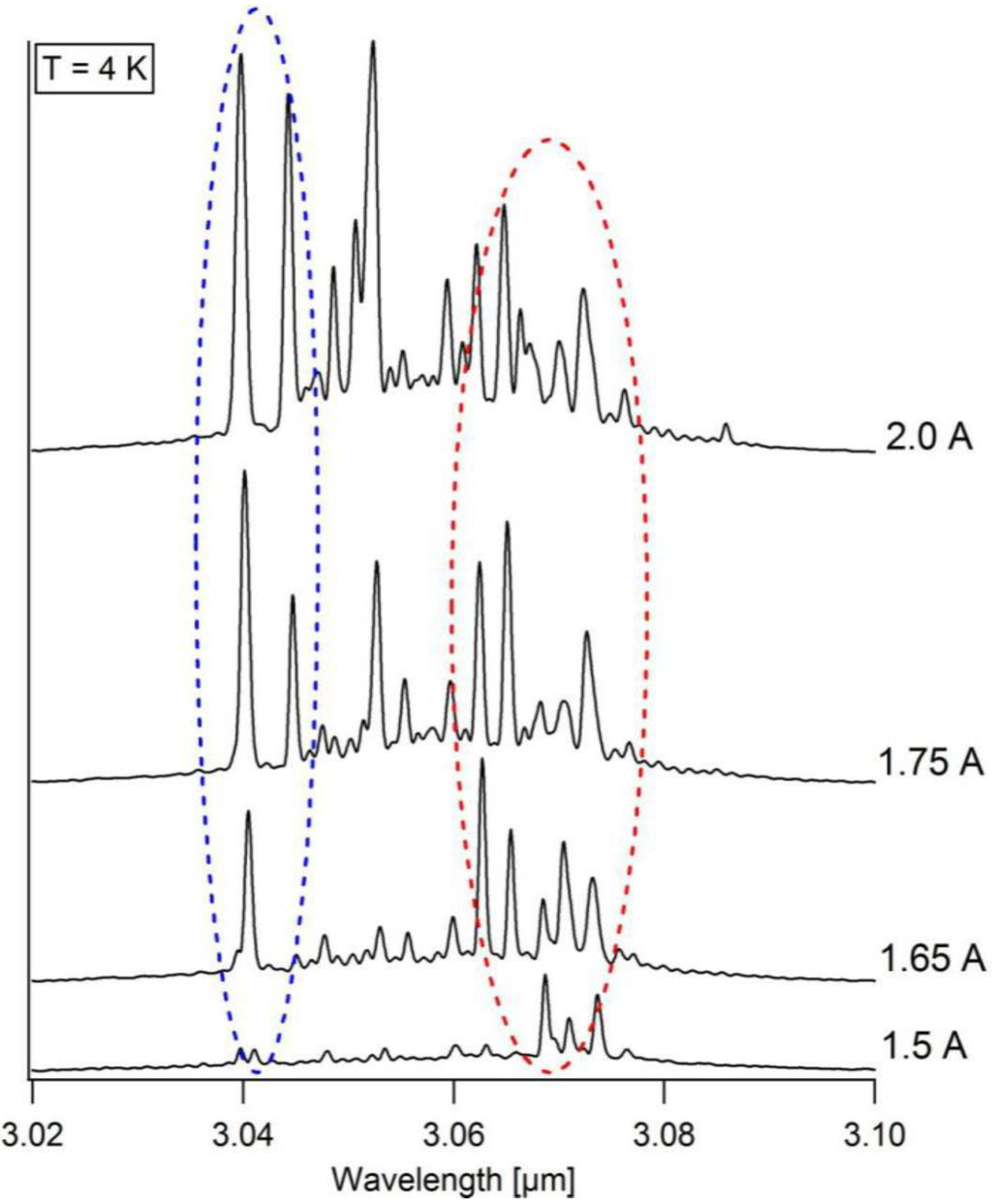

Figure 4. Multimodal laser spectra measured at 4 K using different pulsed drive currents. Two representative groups of modes are identified and are circled using red and blue dashed lines in the figure.

Figure 4. Multimodal laser spectra measured at 4 K using different pulsed drive currents. Two representative groups of modes are identified and are circled using red and blue dashed lines in the figure.

3.2. Spontaneous Emission

The spontaneous electro-luminescence (SE) emission spectra from the laser diodes were measured from the end facet when the injected current was below threshold. An interesting phenomenon was observed that with increasing current injection, there was a large blue shift of the SE peak position. In Figure 5a, the SE peaked at 3.236 µm at 50 mA and moved down to 3.094 µm at 750 mA, corresponding to an energy difference of about 18 meV, but without significant broadening. The above threshold spectrum envelope at 1.0 A is also shown in the low resolution spectra of Figure 5a, where the lasing peak lies very close to the peak of the SE spectrum at 750 mA.

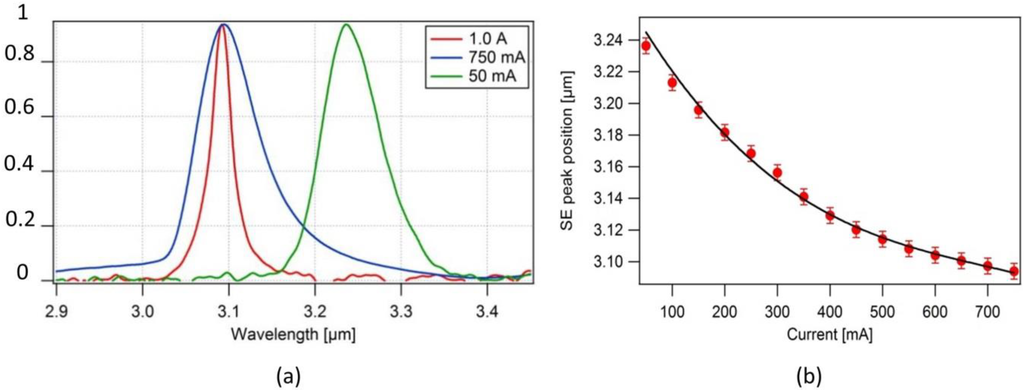

Figure 5. (a) Comparison of the sub-threshold emission spectrum at 50 mA current injection (green curve) and at 750 mA current injection (blue curve) with the laser spectrum envelope just above threshold at 1.0 A current injection (red curve). The peak intensities of the three spectra have been normalized. (b) Below threshold spontaneous emission peak wavelength shift with increasing current from a laser diode measured at 4 K. The threshold current of this laser I_th = 950 mA.

Figure 5. (a) Comparison of the sub-threshold emission spectrum at 50 mA current injection (green curve) and at 750 mA current injection (blue curve) with the laser spectrum envelope just above threshold at 1.0 A current injection (red curve). The peak intensities of the three spectra have been normalized. (b) Below threshold spontaneous emission peak wavelength shift with increasing current from a laser diode measured at 4 K. The threshold current of this laser I_th = 950 mA.

The SE peak position dependence on the injected current is shown in Figure 5b. In the lower current range the rate of the SE peak shift is greater than in the higher current range. Since there is only one quantized heavy hole state in our QDs, one possible reason to explain the SE peak shift is the band-bending effect caused by the electric field in type II structures. When the holes occupy the QDs, the electrons can be attracted closer to them, causing the conduction band to bend into a triangular shape, as illustrated in Figure 6a. Quantized electron states may occur in the triangular potential, resulting in higher recombination energy. Blue shifts caused by band-bending have already been reported from other kinds of type II QWs [21] and QDs [22]. The relation between the injected current and wavelength shift can be written as [21]:

$$\text{Δ}{E}_B\propto I^{1/3}$$

(2)

where ΔE_B is the transition energy shift caused by band-bending, and I is the injected current.

Another possible reason that can cause a blue shift of the SE peak is the charging of QDs. In type II structures, since electrons and holes are spatially separated, the repulsive Coulomb force between carriers of the same type (the injected holes in our case) is much greater than the attractive Coulomb force between electrons and holes [23,24]. The strong interaction between the two holes in GHH state inside the QD can decrease the hole confinement energy, resulting in a blue shift of the SE peak. A single QD can be modelled as a cylindrical capacitor as sketched in Figure 6b. The relation between the transition energy shift arising from this charging effect and injected current can be obtained as:

$$\text{Δ}{E}_C\propto I^{1/2}$$

(3)

where ΔE_C is the transition energy shift caused by charging, and I is the injected current.

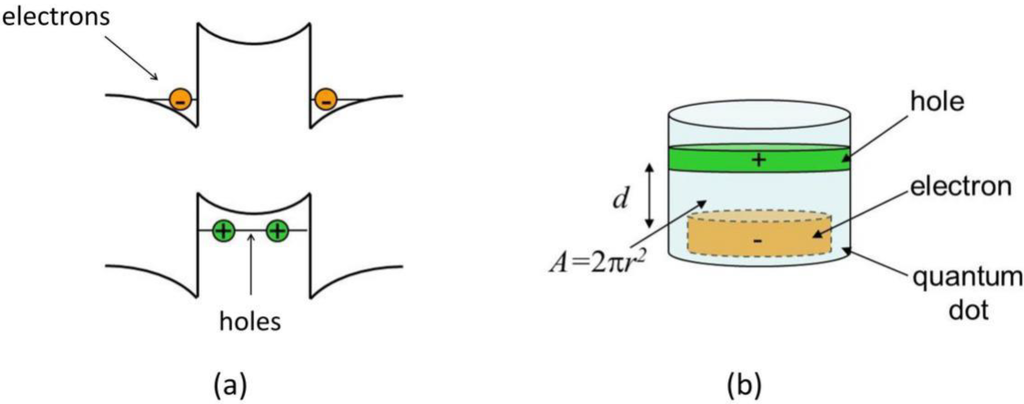

Figure 6. (a) Illustration of the band-bending effects caused by the electric field in type II nanostructures. (b) Illustration of the simple capacitor model for a QD associated with charging effects.

Figure 6. (a) Illustration of the band-bending effects caused by the electric field in type II nanostructures. (b) Illustration of the simple capacitor model for a QD associated with charging effects.

Comparing Equations (2) and (3), it is evident that the energy shifts caused by these two mechanisms have different dependence on the injected current. A logarithmic plot of the measured SE peak shift against the current is shown in Figure 7. The slope of the linear fit (blue line) in this plot was 0.53, which confirms that the QD charging effect is responsible for the blue shift of the SE peak.

Figure 7. Logarithmic plot of the SE peak shift (ΔE) at different injected currents (I). The blue line is a linear fit between ln(ΔE) and ln(I). The slope = 0.53.

Figure 7. Logarithmic plot of the SE peak shift (ΔE) at different injected currents (I). The blue line is a linear fit between ln(ΔE) and ln(I). The slope = 0.53.

3.3. Non-Radiative current

With increasing temperature, the threshold current density J_th of the laser diodes increased rapidly. However, compared to previous reports the measured maximum working temperature (T_max) was improved from 60 K to 120 K, because of improved waveguide design and cladding layer material quality. The relationship between J_th and temperature was plotted in Figure 8, where the characteristic temperature, T₀ was estimated to be 101 K when the temperature was below 50 K. For the temperature range between 50 K and 120 K, the value of T₀ dropped to 48 K. Possible contributions towards the increase of J_th and decrease of T₀ include: the leakage current, Auger recombination and Shockley-Read-Hall (SRH) recombination. The total current density J_tot can be expressed as [25]:

$$J_{tot}\left(T\right)=J_{leak}+J_{rad}+J_{SHR}+J_{Auger}=J_{leak}+J_{rad}+e{d}_{eff}(An+C{n}^3)$$

(4)

where J_leak, J_rad, J_SRH and J_Auger are the leakage current, radiative current, SRH current and Auger current, respectively. The terms An and Cn³ represent contributions from SRH and Auger recombination, where n is the threshold carrier density and d_eff is the effective width of the active region. The relation between temperature and J_leak was taken from [26]. In ideal QD lasers, J_rad should be temperature independent [6,27]. The calculated J_SRH, J_Auger and J_leak were plotted in Figure 8, where we have used representative values of the respective coefficients taken from the literature [26,28]. The J_tot (black curve) was then fitted to the experimental data J_exp by adjusting the constant value of J_rad.

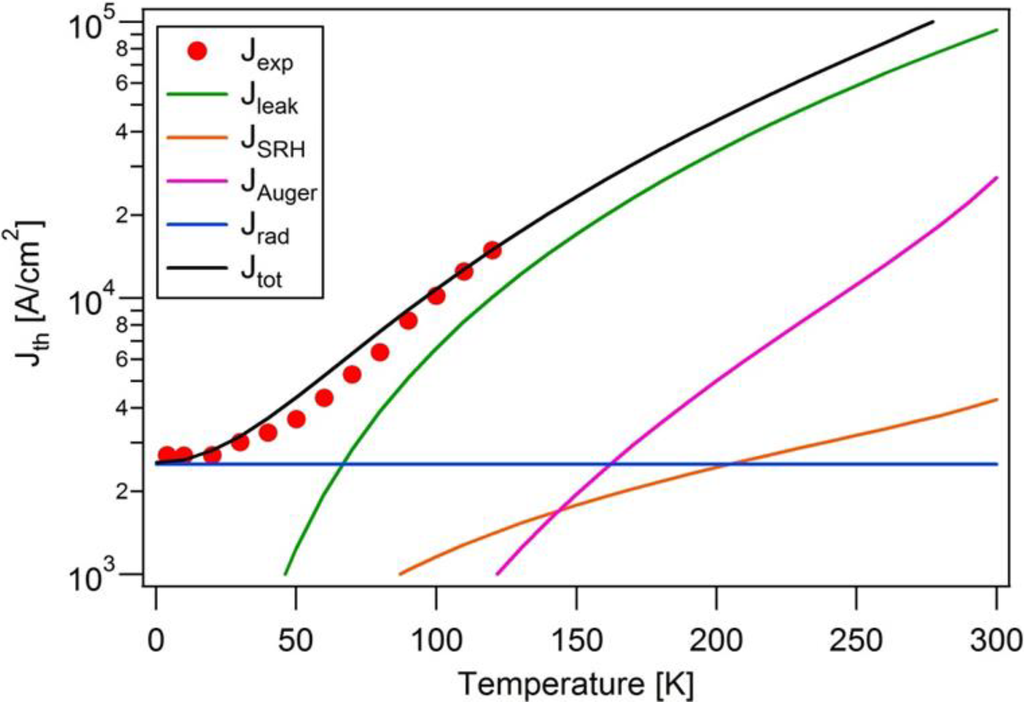

Figure 8. Measured threshold current density (red dots) of the In(As)Sb QD laser at different temperatures. Calculated J_leak (green curve), J_SRH (orange curve), J_Auger (pink curve), J_rad (blue line) and J_tot (black curve) are also presented.

Figure 8. Measured threshold current density (red dots) of the In(As)Sb QD laser at different temperatures. Calculated J_leak (green curve), J_SRH (orange curve), J_Auger (pink curve), J_rad (blue line) and J_tot (black curve) are also presented.

It is evident that for T < 40 K, the contributions from all three non-radiative mechanisms were negligible compared with the experimental data (J_exp), thus the high J_th in the low T region can only be attributed to radiative recombination. The J_rad was fixed at 2.5 kA/cm² to make a reasonable fit between J_tot and J_exp. This plot also implies that J_leak is the dominant non-radiative component above 50 K. In fact, according to this calculation, at 120 K only 17% of the total current contributed towards radiative recombination, while leakage current consumed 67% of the total current. Within J_leak, the hole leakage was the dominating factor, since there was no valence band offset between the waveguide and n-cladding. The threshold current density at 4 K is rather high and requires explanation. According to Figure 8, the main contribution to the threshold current at this temperature is radiative. Because there is a distribution of QD size and composition, only a small fraction of QDs achieve threshold at the same injection level, and a large part of the radiative current is essentially wasted. Figure 4 confirms that QD of different sizes give coherent emission at different injection levels, with the larger QD being the first to reach threshold. We can speculate that only ~1%–10% of the QD are lasing together at each temperature.

4. Conclusions

We investigated the gain and characteristic temperature dependence of type II In(As)Sb/InAs QDs for use in mid-infrared laser diodes. The devices emitted at around 3.1 µm and operated up to 120 K. The transition energy dependences on QD size and composition were calculated. The charging effect in the QDs was identified as the main reason for the blue shift in the spontaneous electro-luminescence. Different non-radiative recombination mechanisms were compared, and it was found that the leakage current was the major factor for the increase of J_th with temperature, though the J_rad needed to obtain lasing threshold was also quite high. In order to improve the T_max and reduce J_th, the J_leak should be effectively suppressed, probably by inserting a hole blocking layer in the laser structure. The J_rad also needs to be reduced, which can only be achieved by increasing the modal gain of the QDs and carefully controlling the size distribution of the QDs.
