Article

Quantum-Enhanced Imaging Model Based on Squeezed States

1
State Key Laboratory of Quantum Optics Technologies and Devices, Institute of Opto-Electronics, Shanxi University, Taiyuan 030006, China
2
Collaborative Innovation Center of Extreme Optics, Shanxi University, Taiyuan 030006, China
*
Author to whom correspondence should be addressed.
Photonics 2026, 13(3), 244; https://doi.org/10.3390/photonics13030244
Submission received: 26 January 2026 / Revised: 15 February 2026 / Accepted: 27 February 2026 / Published: 2 March 2026
(This article belongs to the Special Issue Advanced Research in Quantum Optics)

Abstract

Aided by quantum sources, quantum metrology helps enhance measurement precision. Here, we construct a theoretical model for quantum imaging based on squeezed states and present the corresponding numerical results. Through discretization and quantum Fisher information theory, we investigate the two-point resolution and spatial multi-parameter estimation of optical fields with unknown spatial distributions. We calculate and compare imaging results based on squeezed vacuum states, coherent states, and squeezed coherent states; our results show that squeezed coherent states yield greater quantum Fisher information, which can effectively improve imaging quality. In addition, we analyze the influence of imaging basis functions, degree of squeezing, quantum correlations, and other factors on imaging performance. The proposed quantum imaging model and computational method can be extended to more complex scenarios, such as multi-mode squeezed-state imaging schemes and incoherent imaging systems. In the future, this approach is expected to find applications in practical imaging systems, including Raman microscopy and stimulated Brillouin scattering imaging.

1. Introduction

Optical imaging technology plays a crucial role in humanity’s exploration of the unknown world. However, the resolution of traditional imaging systems is limited by the Rayleigh diffraction limit. Based on quantum Fisher information theory, Tsang et al. were the first to investigate the fundamental limits of imaging resolution and the method for achieving two-point super-resolution imaging [1]. Subsequently, research on super-resolution imaging grounded in quantum information theory has been extensively developed, evolving from initial one-dimensional two-point imaging to the estimation of multiple points and three-dimensional imaging [2,3,4]. This research has further extended to practical imaging scenarios involving factors such as detection noise and mode crosstalk [5,6,7]. Currently, super-resolution quantum imaging has become a focal point of research. Nevertheless, existing studies remain primarily concentrated in the field of imaging with incoherent thermal light sources.
Squeezed states serve as a crucial quantum resource for enhancing the precision of quantum measurements [8], exemplified by their application in gravitational-wave laser interferometers [9]. With the continuous advancement of research, the application of squeezed states in quantum imaging has emerged as a prominent new research direction, supported by multiple experimental works [10,11,12,13,14,15] that demonstrate higher precision than classical schemes using squeezed coherent states. These works include Raman microscopy imaging [10,11,12], stimulated Brillouin scattering imaging [13], temperature distribution imaging [14], and Low-Light Shadow Imaging [15]. Among these, refs. [12,13] achieve signal-to-noise ratio improvements of 3.6 dB and 3.4 dB relative to the shot noise limit, respectively, demonstrating that quantum imaging based on squeezed states can effectively overcome the shot noise limit and improve imaging quality.
Can squeezed states enable quantum imaging that simultaneously overcomes both the shot noise limit and the Rayleigh diffraction limit? Mikhail I. Kolobov et al. theoretically explored quantum imaging based on spatially multimode squeezed vacuum states [16]. Their results indicate that squeezed states can achieve super-resolution quantum imaging surpassing the shot noise limit. However, they did not provide the ultimate quantum theoretical limit for such imaging. Giacomo Sorelli et al. [17] investigated the super-resolution problem for point sources using squeezed states based on quantum Fisher information theory and derived a quantum limit for resolution. Nevertheless, their system model is relatively simple and cannot be readily extended to the study of arbitrary images. Therefore, establishing a comprehensive imaging theoretical model based on squeezed states and conduct research on super-resolution imaging utilizing squeezed states remains an open and pressing issue to be addressed.
To address the aforementioned issues related to super-resolution imaging based on squeezed states, this paper constructs a corresponding imaging theory model and presents numerical calculation results. By employing discretization and quantum Fisher information theory, the problem of two-point resolution is investigated. The correctness of the established model is verified through comparison with results from existing literature. Building upon this theoretical model, the paper further explores the problem of spatial multi-parameter estimation in imaging for light fields with arbitrary spatial distributions, demonstrating the advantages of squeezed coherent states in quantum imaging, both in ideal conditions and in the presence of a certain level of noise. This quantum imaging model and its computational methodology can be extended to more complex scenarios, such as imaging schemes based on multimode squeezed states, and even to incoherent imaging systems [18]. It thus lays a theoretical foundation for future experimental research on super-resolution imaging utilizing squeezed states.

2. Theoretical Methods

2.1. Description of the Imaging System

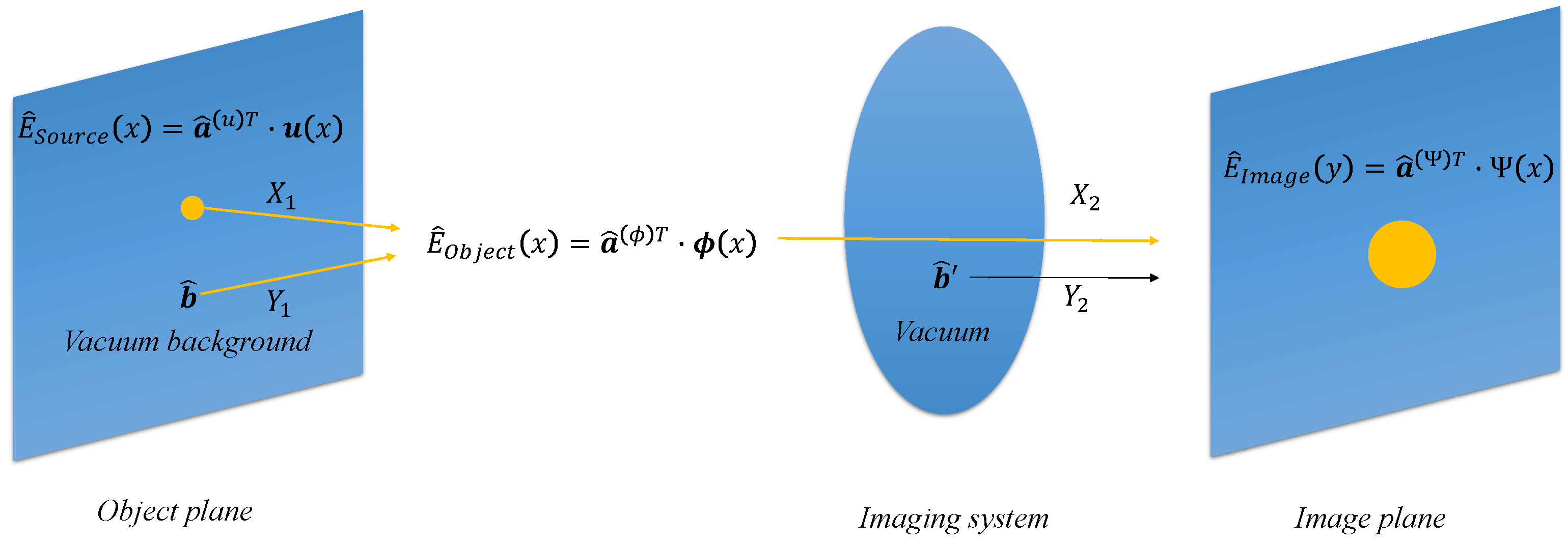

We consider a simple imaging system as shown in Figure 1. The multimode optical field at the object plane, represented by E ^ Source ( x ) = a ^ ( u ) T · u ( x ) , is composed of a finite number of modes { u j ( x ) } . This field corresponds to the optical modes excited at the object plane (typically resulting from the reflection or transmission of an illumination source), where a ^ ( u ) = [ a ^ 0 ( u ) , a ^ 1 ( u ) , ] T denotes the annihilation operators of the optical field, and u ( x ) = [ u 0 ( x ) , u 1 ( x ) , ] T represents the corresponding spatial modes of the field. It carries the desired complex amplitude distribution information, which is the target to be reconstructed from the measurement results. In addition to E ^ Source ( x ) , the vacuum field b ^ is also present at the object plane. The complete optical field at the object plane, E ^ Object ( x ) is the superposition of the two. In our imaging model, E ^ Object ( x ) is expanded using a set of modes { ϕ j ( x ) } as E ^ Object ( x ) = a ^ ( ϕ ) T · ϕ ( x ) , where the relationship between a ^ ( ϕ ) and a ^ ( u ) is given by
a ^ ( ϕ ) = X 1 a ^ ( u ) + Y 1 b ^
X 1 = u 0 ( x ) ϕ 0 ( x ) u 1 ( x ) ϕ 0 ( x ) u 0 ( x ) ϕ 1 ( x ) u 1 ( x ) ϕ 1 ( x )
The expression Y 1 b ^ refers to Appendix A. For scalar, quasi-monochromatic classical imaging problems, the propagation of the optical field’s complex amplitude from the object plane to the image plane is regarded as the action of an integral operator with the amplitude point spread function g ( x , y ) as its kernel on E Source ( x ) , yielding the optical field at the image plane.
E Image ( y ) = S g ( x , y ) E Source ( x ) , d x
where S represents the distribution area of the optical field. The quantum version of this form was provided by Jeffrey H. Shapiro [19]. We analyze here an equivalent scheme; see Appendix A for details. For our one-dimensional problem, We choose a complete orthonormal basis for the expansion; for convenience, we select the rectangular function basis { R b ( x ; x k , Δ ) } is defined as
R b ( x ; x k , Δ ) = 1 Δ , x k Δ 2 x < x k + Δ 2 0 , otherwise
Here, Δ is the width of the rectangle. We first expand g ( x , y ) using ϕ k ( x ) = R b ( x ; x k , Δ ) as the basis for the object plane and ψ j ( y ) = R b ( y ; y j , Δ ) as the basis for the image plane, and then obtain the matrix representation in the limit Δ 0 .
g = Δ g ( x 0 , y 0 ) Δ g ( x 1 , y 0 ) Δ g ( x 0 , y 1 ) Δ g ( x 1 , y 1 )
Performing a truncated singular value decomposition on it, we obtain g = U Λ V and discard the smaller singular values. We define Ψ j ( y ) = k U k j * R b ( y ; y k , Δ ) as the new basis for the image plane, and denote the corresponding annihilation operator vector as a ^ ( Ψ ) .Then the transformation from the object plane to the image plane is given by a ^ ( Ψ ) = X 2 a ^ ( ϕ ) + Y 2 b ^ . where
X 2 = Λ V
Here, Y 2 b ^ represents the vacuum state introduced due to losses (see Appendix A). The optical field at the image plane is obtained as E ^ Object ( x ) = a ^ ( Ψ ) T · Ψ ( x ) . The overall transformation from the source field E ^ Source ( x ) to the image plane field E ^ Object ( x ) is described as follows.
a ^ ( Ψ ) = X 2 ( X 1 a ^ ( u ) + Y 1 b ^ ) + Y 2 b ^
We have established an imaging model based on the amplitude point spread function. In our study, we primarily explore the application of squeezed coherent states in coherent imaging. Our model is also applicable to incoherent sources.

2.2. Gaussian States in Linear Systems

In quantum optics, the quadrature amplitude operator q ^ j and quadrature phase operator p ^ j of an optical field are defined through the annihilation operator as q ^ j = a ^ j + a ^ j 2 and p ^ j = a ^ j a ^ j 2 i . The operator vector for a multimode Gaussian state is defined as d ^ = [ q ^ 0 , p ^ 0 , q ^ 1 , p ^ 1 , p ^ 1 , ] T . An important property of Gaussian states is that all statistical moments of the probability distributions for measurements of their quadrature amplitudes and phases can be completely described by their expectation value d ^ and covariance matrix V = { d ^ d ^ , d ^ T d ^ T } . Therefore, these contain all the statistical information of the Gaussian state [20]. Equation (7) can be summarized as a class of transformations.
a ^ out = X a ^ in + Y b ^
where X represents the transformation acting on the non-vacuum input a ^ in , and Y is the transformation acting on the vacuum input. The following relationships hold:
a ^ out = X a ^ in a ^ a ^ T out = X ¯ a ^ a ^ T in X T a ^ a ^ T out = X a ^ a ^ T in X T
where ⊗ denotes the Kronecker product. Both d ^ and V can be expressed in terms of a ^ , a ^ a ^ T , and a ^ a ^ T :
d ^ = a ^ + a ^ * 2 1 0 + a ^ a ^ * 2 i 0 1 V = 2 Re [ a ^ a ^ T ] 1 0 0 1 + 2 Im [ a ^ a ^ T ] 0 1 1 0 + 2 Re [ a ^ a ^ T ] 1 0 0 1 + 2 Im [ a ^ a ^ T ] 0 1 1 0 4 d ^ d ^ T + I
where I denotes the identity matrix. Moreover, Equation (10) is invertible; its inverse operation is provided in Appendix B. Therefore, for a multi-mode Gaussian state, the calculation proceeds as follows: first, transform the input state’s d ^ in and V in into a ^ in , a ^ a ^ T in and a ^ a ^ T in using the inverse of Equation (10). Next, compute the output state’s a ^ out , a ^ a ^ T out and a ^ a ^ T out via Equation (9). Finally, convert these results into d ^ out and V out using Equation (10).

2.3. Quantum Fisher Information for Gaussian States

The quantum Fisher information (QFI), denoted as F, is a physical quantity that quantifies the achievable precision for parameter estimation given a specific quantum state and measurement problem. It yields the quantum Cramér-Rao bound (QCRB) [20] V ( t ) 1 N F ( t ) , (where N is the number of repetitions of the experiment) which represents the lower bound on the variance of an unbiased estimator for a given probe state. Consider a prepared probe state described by the density matrix ρ ^ 0 . After interacting with the target of interest, the probe state evolves into ρ ^ , which now encodes information about the parameter t. The symmetric logarithmic derivative (SLD) operator L ^ t , required for computing the QFI, can then be defined and solved via the Lyapunov equation:
ρ ^ t = L ^ t ρ ^ + ρ ^ L ^ t 2
This leads to the QFI F = Tr [ ρ ^ L ^ t 2 ] . For multi-parameter estimation problems [21], the quantum Fisher information is generalized to the quantum Fisher information matrix (QFIM), with the corresponding QCRB expressed as a matrix inequality. Specifically, let the N -dimensional parameter vector to be estimated be t = ( t 0 , t 1 , , t μ , t ν , , t N 1 ) . Then the covariance matrix of t satisfies
V ( t ) 1 N F 1 ( t )
Generally, calculating the QFIM is quite complex. For scenarios where information is encoded into Gaussian states, Rosanna Nichols et al. [21] proposed an efficient and precise computational method that determines the QFIM based on the expectation values and covariance matrix. The matrix elements F μ ν ( t ) of the QFIM F ( t ) are given by:
F μ ν = 1 2 j , k = 0 N 1 l = 0 3 Tr S T 1 M l j k S 1 V t μ Tr S T 1 M l j k S 1 V t ν λ j λ k ( 1 ) k + 2 d ^ T t μ V 1 d ^ t ν
where S and λ i are derived from the Williamson decomposition of the covariance matrix V .
V = S D S T
where D = diag ( λ 0 , λ 0 , λ 1 , λ 1 , ) , S belongs to the real symplectic group Sp ( 2 N , R ) = { S S Ω S T = Ω } , and Ω = 0 1 1 0 N is the symplectic structure matrix. M l j k is a block matrix composed of 2 × 2 blocks, where all blocks are zero matrices except the block indexed by j k . The block labeled j k , denoted as m l j k , takes different forms depending on l: m 0 j k = 1 2 0 1 1 0 , m 1 j k = 1 2 1 0 0 1 , m 2 j k = 1 2 1 0 0 1 , m 3 j k = 1 2 0 1 1 0 .
For high-dimensional covariance matrices, conventional methods cannot directly yield a valid Williamson decomposition and instead only provide constraints on the solution [20,22]. Here, we refer to the work of Martin Houdede et al. [23], which presents a robust and accurate numerical method to achieve this decomposition. The details are provided in Appendix C.
Therefore, as illustrated in the Figure 2, the method for analyzing the imaging process is as follows:
  • Determine the amplitude point spread function g ( x , y ) based on the actual imaging system.
  • Discretize g ( x , y ) using { ϕ j ( x ) } = { R b ( x ; x j , Δ ) } and { ψ j ( y ) } = { R b ( y ; y j , Δ ) } .
  • Obtain X 2 = Λ V via truncated singular value decomposition.
  • Determine X 1 based on { u j ( x ) } and { ϕ j ( x ) } .

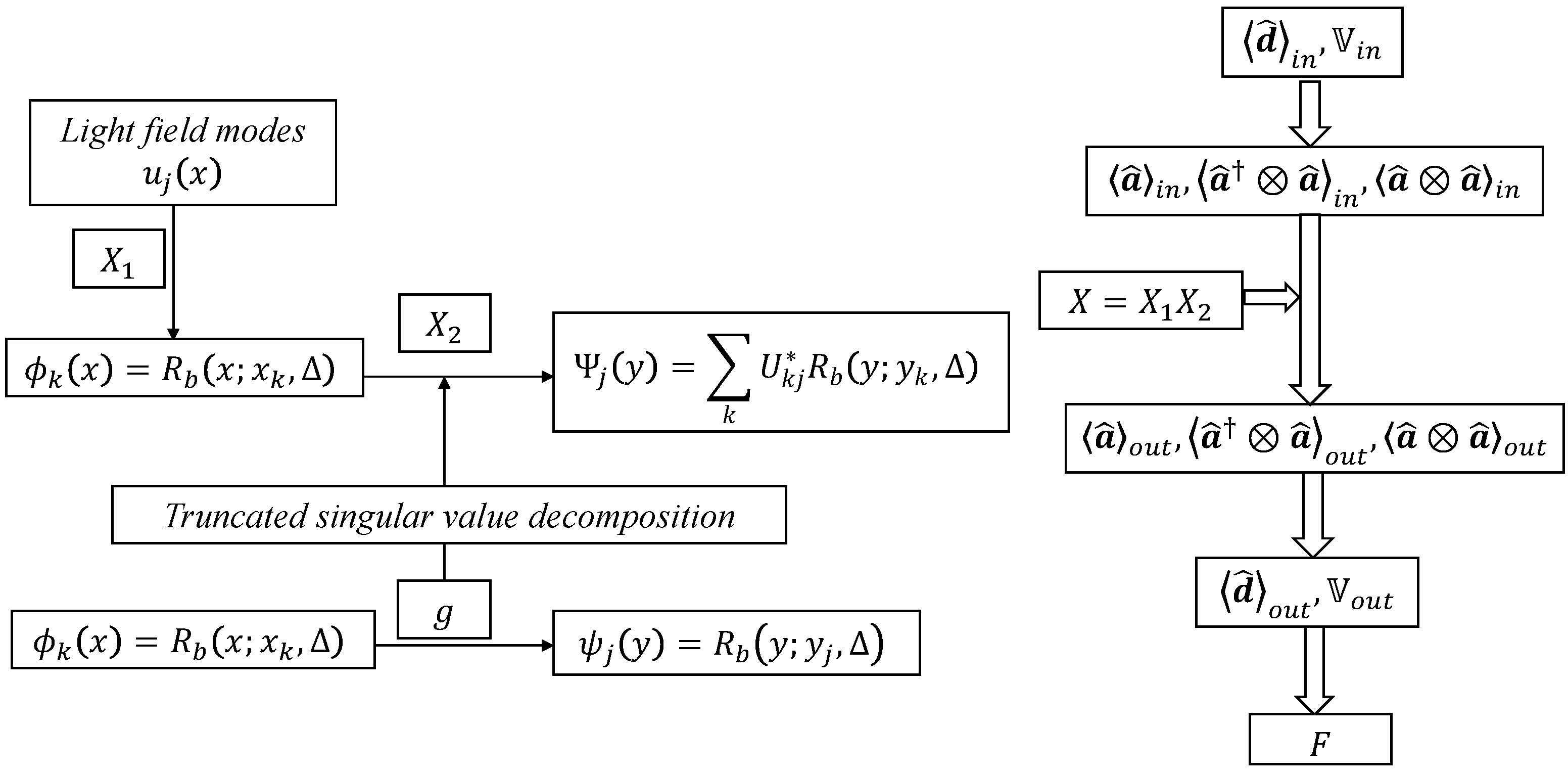

Figure 2. Analysis of a simple imaging system. (Left) Optical path analysis. (Right) Calculation of the quantum Fisher information matrix (QFIM).
Figure 2. Analysis of a simple imaging system. (Left) Optical path analysis. (Right) Calculation of the quantum Fisher information matrix (QFIM).
Photonics 13 00244 g002
The algorithm for calculating the QFIM F ( t 0 ) is:
  • Input the parameter-dependent functions: d ^ in ( t ) , V in ( t ) , and the transformation matrix X ( t ) , along with the parameter value t 0 .
  • Calculate a ^ in ( t ) , a ^ a ^ T in ( t ) , and a ^ a ^ T in ( t ) using the inverse of Equation (10).
  • Compute a ^ out ( t ) , a ^ a ^ T out ( t ) , and a ^ a ^ T out ( t ) via Equation (9).
  • Determine d ^ out ( t ) and V out ( t ) using Equation (10).
  • Compute the partial derivatives d ^ out ( t ) t j and V out ( t ) t j .
  • Assign the value t 0 to the parameter t and perform the Williamson decomposition on V out ( t 0 ) to obtain S 1 , S T , and the symplectic eigenvalues { λ j } using the method described in Appendix C.
  • Calculate and return the QFIM F ( t ) based on Equation (13).
Based on this framework, it is possible to automatically and rapidly compute the QFIM corresponding to any finite-dimensional parameter vector. Furthermore, by increasing the numerical precision and modeling accuracy, any desired finite computational precision can be achieved. In terms of describing interactions, compared to methods such as Gaussian channels [21] or symplectic transformations [20], this approach is not compatible with nonlinear processes like squeezing transformations. However, it offers advantages including convenient analysis, the ability to quickly construct composite maps via matrix multiplication and direct sums, efficient use of computational memory, and adaptability to cases where the numbers of input and output modes are unequal. Regarding the computation of the QFIM, this method integrates two efficient algorithms to achieve fast calculation of the matrix for multi-mode Gaussian states.

3. Application

3.1. Two-Point Resolution

Giacomo Sorelli et al. [17] discussed a two-dimensional imaging problem—the resolution of two point sources. The scenario involves two point-like emitters in the object plane, each in a Gaussian state. After passing through an imaging system described by a Gaussian point spread function, the light reaches the image plane, where the task is to estimate the separation distance between the two points using the imaging apparatus. Let the amplitude point spread function from object plane coordinates ( x , x ) to image plane coordinates ( y , y ) be
G ( x , y , x , y ) = κ 1 σ π e ( x y ) 2 + ( x y ) 2 2 σ 2
where κ is the transmission efficiency of a single point source from the object plane to the image plane. For more details on the amplitude point spread function, see Appendix D. The object plane contains two point-like squeezed light sources located at ( s 2 , 0 ) and ( s 2 , 0 ) , respectively. The objective is to estimate their separation distance s. Since only the two points on the x-axis are considered, the problem can be decoupled as G ( x , y , x , y ) = κ g ( x , y ) g ( x , y ) , where
g ( x , y ) = 1 σ π e ( x y ) 2 2 σ 2
is the amplitude point spread function normalized with respect to a point source. With reference to the method of Giacomo Sorelli et al. [17], we calculated the QFI for the separation distance s between two point sources δ ( x s 2 ) and δ ( x + s 2 ) (Note: A point source is described by a Dirac δ function, which is not square-integrable. Its handling is detailed in Appendix E). The calculation was performed for two thermal states, each with a mean photon number n ¯ = 100 .
d ^ = 0 0 0 0 , V = ( 2 n ¯ + 1 ) 1 0 0 0 0 1 0 0 0 0 1 0 0 0 0 1
coherent states n ¯ = 100
d ^ = 2 n ¯ 1 0 1 0 , V = 1 0 0 0 0 1 0 0 0 0 0 0 0 0 0 1
squeezed vacuum states n ¯ = n ¯ s = sin 2 r = 3
d ^ = 0 0 0 0 , V = e 2 r 0 0 0 0 e 2 r 0 0 0 0 e 2 r 0 0 0 0 e 2 r
squeezed coherent states n ¯ = n ¯ c + n ¯ s , where n ¯ c = 100 , n ¯ s = sin 2 r = 3
d ^ = 2 n ¯ c 1 0 1 0 , V = e 2 r 0 0 0 0 e 2 r 0 0 0 0 e 2 r 0 0 0 0 e 2 r
For the numerical calculations, we set the parameters as follows: The amplitude point spread function is given by κ g ( x , y ) = κ 1 σ π e ( x y ) 2 2 σ 2 the transmission coefficient κ = 0.35 . The imaging region is L obj = 5 σ . This is our assumption regarding the extent of the optical field distribution at the object plane.
Under this parameter configuration, the QFI for the two-point separation s σ is calculated and plotted as a connected curve, with the results shown in the left panel of Figure 3. For each calculated data point, the QFI per effective photon F σ 2 η n ¯ , obtained using the method from reference [17] (denoted as F 1 ) and that from our proposed method (denoted as F 2 ) are compared. The relative deviation F 1 F 2 F 1 is illustrated in the right panel of Figure 3.
Under this parameter configuration, the discrepancy between the two methods is | F 1 F 2 F 1 | < 3 % , thereby validating the correctness of our approach using existing results. For the two-point resolution problem, the estimation precision for a coherent state exhibits different curves depending on the relative phase between the two light sources. For estimating small separations s σ , the coherent state achieves optimal precision when the relative phase is π , and it reaches a higher precision limit compared to the case when s σ 1 , demonstrating a super-resolution phenomenon. This result is close to the upper bound of QFI given by Cosmo Lupo et al. [5]. For the squeezed vacuum state, it shows no advantage over the coherent state in the region of small s σ , which is of primary interest. Building upon the work in reference [17], we consider coupling the optimal coherent state with a squeezed vacuum state to form a squeezed coherent state. By suppressing its displacement fluctuations, the precision can be further enhanced, surpassing the shot noise level.

3.2. Spatial Multi-Parameter Estimation of Optical Fields

To extend imaging from the two-point problem to broader quantum imaging applications, we now investigate the estimation of the unknown spatial distribution of an optical field. An optical field with a specific profile, after passing through an imaging system, forms a distorted spot on the image plane. Our task is to estimate the spatial distribution of the optical field at the object plane based on the field measured at the image plane.
Consider an optical field with an unknown spatial profile, represented by E ^ ( x ) = a ^ 0 ( u ) u 0 ( x ) . The function u 0 ( x ) is expanded using a set of basis functions { h j ( x ) }
E ^ ( x ) = a ^ 0 ( u ) c 0 h 0 ( x ) + c 1 h 1 ( x ) +
where the expansion coefficients [ c 0 , c 1 , ] are our estimation targets. Together with the known basis functions { h j ( x ) } , they determine the characteristics of u 0 ( x ) . We consider three schemes for mode expansion using { h j ( x ) } and compare them. The first is the Hermite–Gaussian mode, commonly used in quantum optics and laser physics: h j ( x ) = 1 2 j j ! 2 π e x 2 2 × ( 2 ) 2 H j x 2 . The second is a typical basis function on a closed interval, the Legendre polynomials: h j ( x ) = 2 j + 1 L obj L j 2 x L obj . The third is obtained from the singular value decomposition of the amplitude point spread function κ g ( x , y ) = κ 1 σ π e ( x y ) 2 2 σ 2 , giving the right singular vectors: h j ( x ) = k = 0 k max V k j R b ( x ; x k , Δ ) .
We choose a representative and intuitive hypothetical field distribution for u 0 ( x ) : E test ( x ) = C test x + L obj 2 1 4 x 2 L obj 2 2 , where C test is a normalization constant. Its profile is shown in Figure 4a. We consider reconstructing E test ( x ) using the first 6 modes of the three aforementioned schemes. All three can achieve reconstruction with high accuracy; therefore, neglecting the influence of higher-order modes, we calculate the QFIM per average photon number F n ¯ for the parameter vector [ c 0 , c 1 , c 2 , c 3 , c 4 , c 5 ] .
We set the imaging region as L obj = 6.25 σ , and the transmission coefficient is κ = 0.296 . After singular value decomposition, the largest singular value is η 0 = 0.947 , where the singular value η j represents the transmission efficiency of the field for the corresponding singular value basis.
Under the three basis function schemes, the QFIM per average photon number F n ¯ , yielded by the coherent state is shown in Figure 4, respectively.
Thus, under coherent states, the quantum Fisher information matrices corresponding to the Hermite–Gaussian modes and the Legendre polynomials are not diagonal, indicating that the parameters are correlated and the corresponding covariance matrix possesses non-zero off-diagonal elements. In contrast, under the basis of right-singular vectors, the quantum Fisher information matrix is strictly diagonal. Analytical calculation yields a simple expression: F = diag ( 4 η 0 n ¯ , 4 η 1 n ¯ , ) , demonstrating that all classical correlations arising from the diffraction process are completely eliminated. Furthermore, we calculated the relative QCRB ( F 1 ) j j ( F S V D 1 ) j j in Figure 4b. To further quantify this metric, we consider the weighted average of different components ( F 1 ) j j —the weighted trace Tr [ W F 1 ] , where the weight matrix W is chosen as W = 1 6 F SVD such that the result for coherent states under the singular value basis is normalized to unity. The weighted traces Tr [ W F 1 ] are calculated to be 4.50, 1.73, and 1, respectively. Overall, the singular value basis yields a significantly lower variance bound. This conclusion serves as a verification, using quantum estimation theory, of a classical optics finding [24]. Additionally, after testing with various field profiles, we found that these computational results are independent of the specific values of the parameter vector [ c 0 , c 1 , c 2 , c 3 , c 4 , c 5 ] and are general in nature.
Next, we consider further enhancing the estimation precision for the expansion coefficients within the framework of the right singular vector basis. We note that a bright squeezed coherent state | α , r , where the displacement direction aligns with the squeezing direction, can effectively improve estimation accuracy. The average photon number of a squeezed coherent state is given by n ¯ = | α | 2 + sinh 2 r . Considering practical experimental constraints, the coherent-part mean photon number n ¯ c = | α | 2 is relatively easy to prepare. However, the squeezed-part mean photon number n ¯ s = sinh 2 r is typically limited to a smaller mean photon number due to technical challenges. Here, we focus on the scenario where α r .
Unlike the classical case, when the bright squeezed coherent state | α , r is used as the probe state,
d ^ = 2 α 0 , V = e 2 r 0 0 e 2 r
the calculated QFIM becomes non-diagonal. This is because, as a non-classical optical field, the squeezed state exhibits quantum correlations between photons in different modes { h j ( x ) } . However, the diagonal elements of F 1 are significantly reduced, and the matrix remains approximately diagonal. Its off-diagonal elements are of the same order of magnitude or one order smaller than the smallest diagonal element, ( F 1 ) 00 , yet are numerically significantly smaller than ( F 1 ) 00 . Thus, overall, the squeezed coherent state provides an improvement in precision.Due to the presence of correlations, performing individual measurements on each mode makes it difficult to extract complete quantum information. Therefore, an optimal measurement scheme approaching the QCRB bound may require the implementation of some form of joint measurement.
Under the premise that n ¯ 1 , we fixed the squeezed-part mean photon number n ¯ s to a fixed value and incrementally increased the total photon number n ¯ to calculate the QFIM. The observed trend in its values demonstrates an improvement characterized by a specific coefficient relative to the standard quantum limit. Keeping the total photon number fixed at n ¯ = 10 4 while varying n ¯ s = 1 , 2 , 3 , we found that the degree of improvement offered by the squeezed coherent state is jointly influenced by the values of the parameter vector [ c 0 , c 1 , c 2 , c 3 , c 4 , c 5 ] and the singular values η j . We investigated the enhancement effect provided by the squeezed-part mean photon number under two different optical field energy distributions.
As can be seen from Figure 5, the results show that for the parameter distribution in Figure 5a, as the photon number of the squeezed state increases, the weighted trace Tr [ W F 1 ] takes the values 1, 0.896, 0.887, and 0.883, respectively. For the parameter distribution in Figure 5c, the weighted trace results are 1, 0.957, 0.954, and 0.952, respectively, with increasing squeezed-state photon number. The larger the singular values η j and coefficients c j , the greater the improvement offered by squeezed states relative to coherent states. However, as the mean photon number n ¯ s of the squeezed state increases, the further enhancement in estimation precision attainable by increasing squeezing gradually diminishes. Although we have considered the case without relative phase differences among the modes, our results also hold for scenarios with relative phase differences; see Appendix F for details.
When the system suffers from additional loss, we establish the following model: the field E ^ ( x ) = a ^ 0 ( u ) u 0 ( x ) is coupled with an additional background field E ^ Background ( x ) = a ^ 1 ( u ) u 1 ( x ) . The background field distribution is given by u 1 ( x ) = 1 6 j = 0 5 h j ( x ) (where h j ( x ) are the right singular value bases). Assuming a thermal source with a mean photon number of 1 excited in each mode, the optical field at the object plane is given by
d ^ = 2 n ¯ c 0 0 0 , V = e 2 r 0 0 0 0 e 2 r 0 0 0 0 2 n ¯ th + 1 0 0 0 0 2 n ¯ th + 1
We assume that the transmission efficiency of the squeezed coherent state in the coupling is κ add , and thus X 1 becomes ( κ add X 1 ( u 0 ) 1 κ add X 1 ( u 1 ) ) , where ( · · ) denotes horizontal concatenation of matrices, and X 1 ( u 0 ) , X 1 ( u 1 ) correspond to X 1 for single-mode fields. We investigate the effect of different additional transmission efficiencies κ add on the weighted trace Tr [ W F 1 ] under the scenario and parameters set in Figure 5a, for the state | α , r with n ¯ = 10 4 , n ¯ s = 0 , 3 , n ¯ c = n ¯ n ¯ s , considering three cases: n ¯ th = 0 (vacuum noise), n ¯ th = 2 , and n ¯ th = 6 (corresponding to one thermal photon per singular-vector basis).
The results are shown in Figure 6. It can be observed that as κ add increases, Tr [ W F 1 ] gradually increases. However, for the same κ add and n ¯ th , the squeezed coherent state with n ¯ s = 3 maintains a stable difference relative to the coherent state, demonstrating that squeezed coherent states retain their advantage even in the presence of noise.
Overall, for estimating the spatial distribution of u 0 ( x ) in the unknown optical field E ^ ( x ) = a ^ 0 ( u ) u 0 ( x ) , we transform the problem into a multi-parameter estimation task via the basis function expansion method. Among various expansion schemes, we confirm that using the right singular vectors as the basis functions achieves the optimal estimation precision.
Compared to the coherent state, the squeezed coherent state can further enhance the estimation precision for either the amplitude or the phase of the basis function expansion coefficients. The degree of this improvement increases with larger singular values η j , larger expansion coefficients c j , and a higher mean photon number in the squeezed-part n ¯ s .
In the additional loss model we established, the scalar QCRB Tr [ W F 1 ] achieved by squeezed coherent states consistently maintains a stable advantage over that of coherent states.
Due to the quantum correlations among different modes, when utilizing a squeezed coherent state as the resource, estimating the amplitude or phase distribution parameters requires a joint measurement scheme to approach the QCRB. Although our theoretical framework provides the QCRB limit for this estimation problem, the attainability of this limit is contingent upon the specific detection scheme employed. Existing super-resolution imaging detection methods include SPADE [1], balanced homodyne detection, and SLIVER [25]. SPADE has the potential to achieve the QCRB limit. However, the difficulty of implementing efficient mode decomposition leads to loss of squeezed states and mode crosstalk, which affects the practical measurement limit. The double array homodyne detection we propose offers additional advantages such as high detection efficiency and flexible operation, and is expected to achieve the ultimate measurement limit under certain conditions [26].

4. Conclusions

This paper establishes an imaging theoretical model based on Gaussian states and a corresponding method for calculating the quantum Fisher information of an imaging system, investigating quantum imaging problems utilizing squeezed states. First, we investigated the two-point imaging problem. Consistent with existing literature, our study confirms that a squeezed vacuum state does not enhance coherent imaging quality. We further explored two-point imaging with a squeezed coherent state, and the results demonstrate its superior performance compared to both thermal and coherent states.
Subsequently, we extended the research to the imaging of general patterns, specifically addressing the multi-parameter estimation problem for the spatial distribution features of an image. We expand the optical field using basis functions, thereby transforming the problem into a multi-parameter estimation of the expansion coefficients. The squeezed coherent state exhibits the potential to surpass the shot noise limit in multi-parameter estimation, with the optical field’s energy distribution and system losses identified as key factors influencing the degree of squeezing-enhanced performance. Moreover, we demonstrate that squeezed coherent states retain their advantage even in the presence of a certain level of background noise.
However, due to potential quantum correlations among different parameters, separate measurements targeting individual modes are insufficient for extracting complete quantum information. Therefore, comprehensively evaluating the quantum enhancement effect and devising optimal experimental measurement schemes that approach the quantum Cramér–Rao bound remain important open questions for future exploration.
The quantum imaging model and computational methodology presented here can be extended to more complex scenarios by incorporating additional modes or more general matrices X, such as imaging schemes based on multimode squeezed states, as well as to incoherent imaging systems [18]. Furthermore, it paves the way for exploring applications in practical imaging contexts, including Raman microscopy imaging [10,11,12] and stimulated Brillouin scattering imaging [13].

Author Contributions

Conceptualization, C.P. and K.L.; methodology, C.P.; software, C.P. and Y.X.; validation, C.P. and Y.X.; formal analysis, C.P.; investigation, K.L. and C.P.; data curation, C.P. and Y.X.; writing—original draft preparation, C.P.; writing—review and editing, C.P., Y.X. and K.L.; visualization, C.P. and Y.X.; supervision, K.L.; project administration, K.L.; funding acquisition, K.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Natural Science Foundation of China(NSFC) (62575161); The central government guides local funds for science and technology development (YDZJSX20231A001).

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflicts of interest.

Appendix A. Multimode Bosonic Fields in Linear Systems

For the propagation of multimode bosonic fields, we can start from a simple model, first considering the beam splitter model in quantum optics:
c ^ d ^ = η 1 η 1 η η a ^ b ^
where a ^ and b ^ are the annihilation operators of the optical fields at the input ports, and c ^ , d ^ are the annihilation operators at the output ports. The parameter η represents the transmission efficiency from a ^ to c ^ . By placing multiple such beam splitters in parallel with their ports independent, we have:
c ^ 0 c ^ 1 d ^ 0 d ^ 1 = η 0 1 η 0 η 1 1 η 1 1 η 0 η 0 1 η 1 η 1 a ^ 1 a ^ 2 b ^ 1 b ^ 2
Let the non-vacuum field operators among the a ^ j form the vector a ^ = [ a ^ 0 , a ^ 1 , , a ^ n ] T . The output fields of interest among the c ^ j form the vector c ^ = [ c ^ 0 , c ^ 1 , , c ^ m ] T . The corresponding vacuum fields among the b ^ j that couple into c ^ form the vector b ^ = [ b ^ 0 , b ^ 1 , , b ^ m ] T . Neglecting the unobserved output fields d ^ j , the transformation can be written as:
c ^ = Λ a ^ + Γ b ^
When m n , Λ is an m × n matrix
Λ = η 0 η 1 η n 0 0 0 0 0
Γ is an m × m matrix
Γ = 1 η 0 1 η 1 1 η n 1 1
When m < n , some of the a ^ j are not coupled into the output. Here, Λ and Γ are diagonal matrices composed of selected elements η j and 1 η j , respectively. Introducing unitary transformations U and V, and setting a ^ = V e ^ , c ^ = U f ^ , substituting these into (A3) yields:
f ^ = X e ^ + Y b ^
where X = U Λ V and Y = U Γ . This describes the process by which a multimode bosonic field e ^ evolves into f ^ after coupling with a multimode vacuum field b ^ in a lossy linear system. Here, X corresponds to the classical transformation of the linear system, and X = U Λ V is its singular value decomposition. Since Y can be derived from the singular value decomposition of X, the classical transformation X completely characterizes the quantum behavior of the bosonic field within the linear system. In optical systems, X corresponds to the transmission matrix in classical optics.The quantum diffraction theory given by Jeffrey H. Shapiro [19] is precisely a special case when X = g . In Appendix B, we note that the specific form of Y is not necessary, which greatly facilitates our calculations.

Appendix B. Statistical Moments and Normal-Ordered Operator Expectation Values

Given d ^ = [ q ^ 0 , p ^ 0 , q ^ 1 , p ^ 1 , p ^ 1 , ] T , and substituting the definitions q ^ = a ^ + a ^ 2 and p ^ = a ^ a ^ 2 i , we obtain
d ^ = 2 Re [ a ^ ] 1 0 + 2 Im [ a ^ ] 0 1
According to the definition V = { d ^ d ^ , d ^ T d ^ T } , expanding the calculation shows that the covariance matrix is a block matrix composed of 2 × 2 submatrices. The block at the j-th row and k-th column is:
V j k = q ^ j q ^ k + q ^ k q ^ j q ^ j p ^ k + p ^ k q ^ j p ^ j q ^ k + q ^ k p ^ j p ^ j p ^ k + p ^ k p ^ j 2 q ^ j q ^ k q ^ j p ^ k p ^ j q ^ k p ^ j p ^ k
From the relations q ^ j = 2 Re [ a ^ j ] and p ^ j = 2 Im [ a ^ j ] , and substituting the canonical commutation relation [ a ^ j , a ^ k ] = δ j k into Equation (A8), we obtain after simplification:
V j k = 2 Re [ a ^ j a ^ k ] + 2 Re [ a ^ j a ^ k ] + δ j k 2 Im [ a ^ j a ^ k ] + 2 Im [ a ^ j a ^ k ] 2 Im [ a ^ j a ^ k ] + 2 Im [ a ^ j a ^ k ] 2 Re [ a ^ j a ^ k ] 2 Re [ a ^ j a ^ k ] + δ j k 2 q ^ j q ^ k q ^ j p ^ k p ^ j q ^ k p ^ j p ^ k
Writing Equation (A9) in matrix form yields the expression for the covariance matrix in Equation (10).
Defining matrices V ( o , o ) , V ( o , e ) , V ( e , o ) , V ( e , e ) whose elements satisfy the corresponding relationships:
V j k = V j k ( o , o ) V j k ( o , e ) V j k ( e , o ) V j k ( e , e )
Simultaneously solving Equations (A9) and (A10) and expressing the result in matrix form yields:
a ^ a ^ T = V ( o , o ) + V ( e , e ) 4 + q ^ q ^ T + p ^ p ^ T I 2 + V ( o , e ) V ( e , o ) 4 + q ^ p ^ T p ^ q ^ T 2 i a ^ a ^ T = V ( o , o ) V ( e , e ) 4 + q ^ q ^ T p ^ p ^ T 2 + V ( o , e ) + V ( e , o ) 4 + q ^ p ^ T + p ^ q ^ T 2 i
Equation (A11) together with the definitions of q ^ and p ^ constitute the inverse operation of (10).

Appendix C. Technical Details of the Williamson Decomposition

The work by Martin Houdede et al. [23] presents a method for computing the Williamson decomposition for the symplectic structure matrix Ω = O I I O (where O is the zero matrix). We have adapted this method to obtain the Williamson decomposition for the symplectic structure matrix Ω = 0 1 1 0 N . The core of this algorithm transforms the Williamson decomposition problem into a Schur decomposition problem, for which efficient and robust built-in algorithms are readily available in major mathematical software packages. The complete Williamson decomposition calculation procedure is shown in Figure A1.

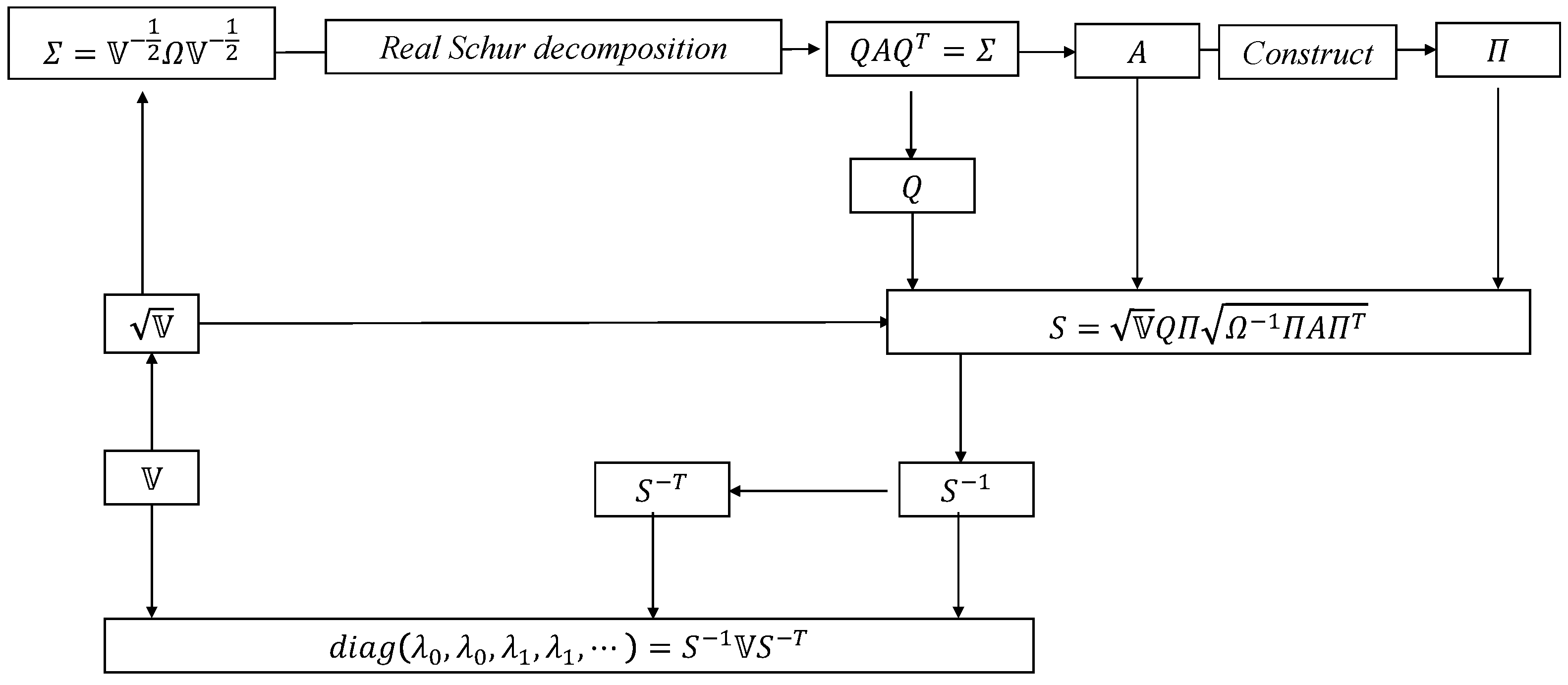

Figure A1. The computational workflow for the Williamson decomposition.
Figure A1. The computational workflow for the Williamson decomposition.
Photonics 13 00244 g0a1
The specific computational steps are as follows:
  • Construct the matrix
    Σ = V 1 2 Ω V 1 2
  • Using a real Schur decomposition, decompose matrix Σ as
    Σ = Q A Q T
    The matrix A will have a form similar to Ω :
    A = 0 z 0 z 0 0 0 z 1 z 1 0
    where z j are numerical values that may be positive or negative.
  • Based on the specific structure of matrix A, construct a permutation matrix Π such that the signs and arrangement of the non-zero elements in A exactly match those in Ω , i.e.,
    Π A Π T = 0 | z 0 | | z 0 | 0 0 | z 1 | | z 1 | 0
    The permutation matrix Π is a block-diagonal matrix, with each block being 1 0 0 1 for positive z j and 0 1 1 0 for negative z j .
  • The symplectic transformation matrix is given by:
    S = V Q Π Ω 1 Π A Π T
  • Compute the Williamson decomposition S 1 V S T
    S 1 V S T = λ 0 λ 0 λ 1 λ 1

Appendix D. Supplementary Details on the Amplitude Point Spread Function

In classical imaging systems, the action of the amplitude point spread function on the optical field at the object plane is represented by an integral operator T. The law of energy conservation requires that, for any optical field E Obj at the object plane, the total energy of the optical field E Img at the image plane, given by E Img = E Img * ( y ) E Img ( y ) d y , does not exceed the total energy of the optical field at the object plane E Obj = E Obj * ( x ) E Obj ( x ) d x . From the perspective of functional analysis, for any optical field E Obj at the object plane, the output energy satisfies E Img T E Obj , where T is the norm of the integral operator, which depends on the expression of g ( x , y ) and the integration domain. To align with the work of Giacomo Sorelli et al. [17], we adopt the following Gaussian-shaped amplitude point spread function:
g ( x , y ) = κ 1 σ π e ( x y ) 2 2 σ 2
For an object-plane optical field consisting of a single point E Obj = δ ( x x 0 ) , the energy arriving at the image plane is κ E Obj . However, for more general distributions such as multiple points, the energy reaching the image plane may exceed κ E Obj . Through calculation, when both the object plane and the image plane are of infinite extent, its norm T is
T = 2 σ π κ
T 1 implies that σ and κ satisfy
σ κ 2 1 2 π
When we integrate over the object plane, the integration interval is from L obj 2 to L obj 2 , which physically represents the region over which we intend to reconstruct the optical field. Moreover, it also modifies the specific form of the right singular vector basis and the allowable range of κ , and can be determined in experiments by the size of the target region.
For finite-sized object and image planes, the norm T fin ( L obj ) satisfies T fin ( L obj ) < T . Consequently, the above condition is sufficient but not necessary to ensure T fin ( L obj ) 1 . For a quantum imaging system, when transforming the amplitude point spread function into the quantum diffraction model in Section 2.1, the classical energy conservation law must also be satisfied.
In practical calculations, T fin ( L obj ) can be approximated by the square of the largest singular value of the matrix g in (5).

Appendix E. Details of the Rectangular Function Basis

Let the expression for the rectangular function be
R ( x ; s , Δ ) = 1 Δ , s Δ 2 x < s + Δ 2 0 , otherwise
Performing normalization such that c 2 R 2 ( x ) d x = 1 , the normalization coefficient is found to be c = 1 Δ . Therefore, the normalized basis function R b ( x ; s , Δ ) is defined as:
R b ( x ; s , Δ ) = 1 Δ R ( x ; s , Δ )
The orthogonality is apparent. When Δ 0 , using the definition of the Riemann sum, the projection of a square-integrable function onto it is:
u k ( x ) , R b ( x ; x j , Δ ) = 1 Δ x j Δ 2 x j + Δ 2 f ( x ) d x Δ u k ( x j )
g ( x , y ) , R b ( x ; x k , Δ ) R b ( y ; y j , Δ ) = 1 Δ x k Δ 2 x k + Δ 2 y j Δ 2 y j + Δ 2 g ( x , y ) d y d x Δ g ( x k , y j )
For the Dirac δ function, which does not belong to the square-integrable space L 2 ( S ) , we must apply special treatment. Under the rectangular function basis, we proceed as follows: approximate δ ( x d ) as an extremely narrow rectangular pulse c R ( x ; d , Δ ) , where c We require that the resulting transformation X = X 1 X 2 correctly characterizes the evolution of each mode. From the previous analysis, X is a submatrix of a unitary matrix. Therefore, we require that
X X I
and is of approximately the same order of magnitude as I. Only then will it possess key properties similar to those of functions in L 2 ( S ) . A specific calculation shows it is a scalar. Using the definition of the Riemann sum, it equals
X X c 2 Δ 2 S g * ( x j , y ) g ( x j , y ) d y
where S denotes the region of the image plane. Therefore, c 2 Δ 2 = 1 , so c = 1 Δ . Thus, R δ ( x ; x 0 , Δ ) = 1 Δ R ( x ; x 0 , Δ ) .

Appendix F. Further Discussion on the Phase Issue

In the main text, we considered the parameter estimation problem in the absence of relative phase differences among the modes. However, our results remain valid even when relative phase differences exist. Therefore, we consider a complex scenario with coefficients [ c 0 e i θ 0 , c 1 e i θ 1 , c 2 e i θ 2 , c 3 e i θ 3 , c 4 e i θ 4 , c 5 e i θ 5 ] . For the same imaging system and parameters, we perform calculations using the right singular vectors as the basis. The following results are obtained:
For the coherent state, the QCRB F 1 remains diagonal. This indicates that when using classical resources, there exists no statistical correlation among the parameters [ c 0 , c 1 , c 2 , c 3 , c 4 , c 5 , θ 0 , θ 1 , θ 2 , θ 3 , θ 4 , θ 5 ] .
For squeezed coherent states, as shown in Figure A2, F 1 is a block-diagonal matrix. Quantum entanglement introduces statistical correlations among the estimates of different amplitude distributions [ c 0 , c 1 , c 2 , c 3 , c 4 , c 5 ] and among the estimates of different phase distributions [ θ 0 , θ 1 , θ 2 , θ 3 , θ 4 , θ 5 ] , but there is no statistical correlation between the amplitude and phase parts. We also computed results for other values of [ θ 0 , θ 1 , θ 2 , θ 3 , θ 4 , θ 5 ] , which are identical to those in Figure A2, indicating that the phases do not affect the amplitude estimation results. For phase estimation, phase-squeezed states can be employed to achieve enhancement.

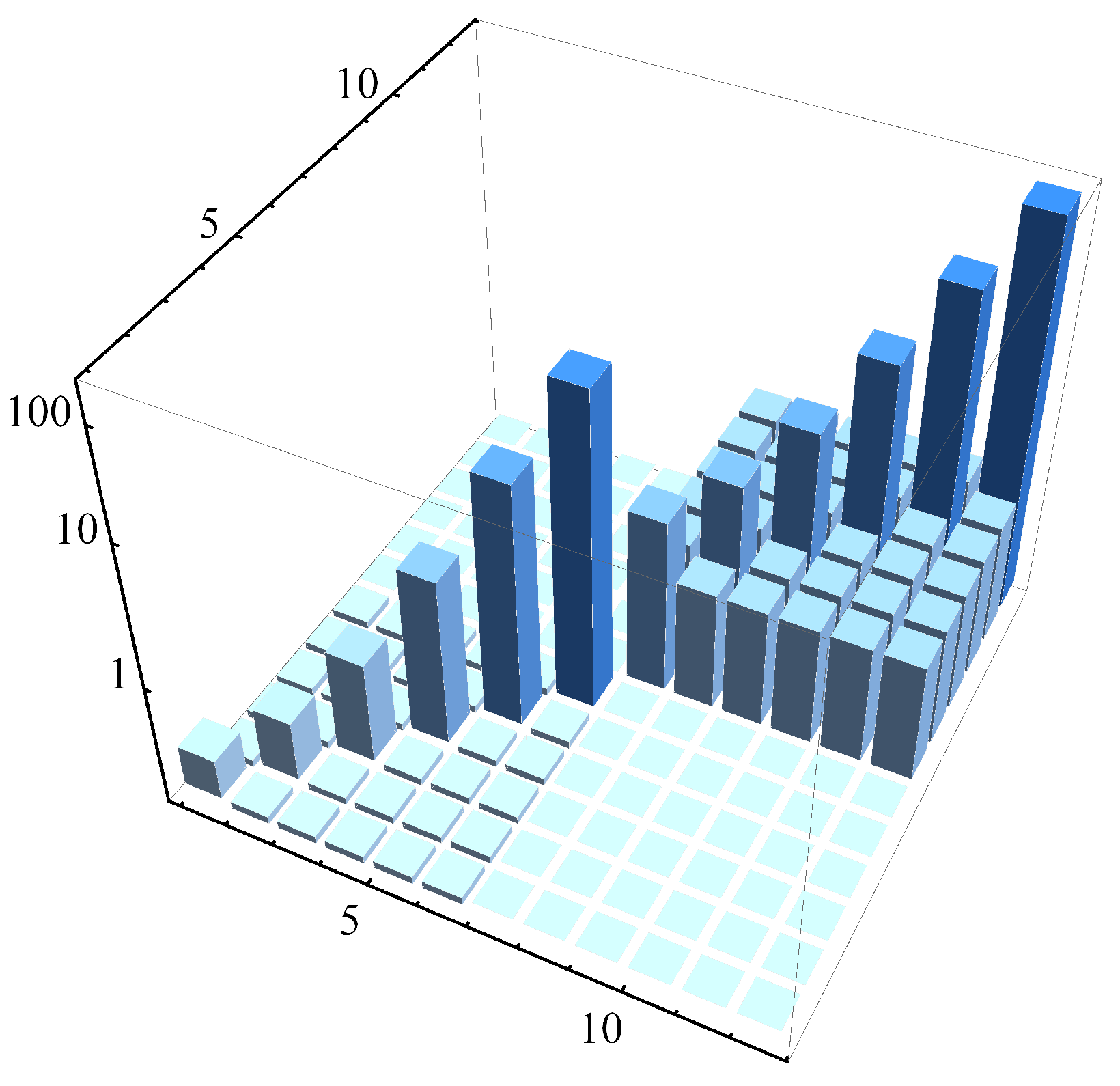

Figure A2. QCRB n ¯ F 1 for the parameter vector [ c 0 , c 1 , c 2 , c 3 , c 4 , c 5 , θ 0 , θ 1 , θ 2 , θ 3 , θ 4 , θ 5 ] = 1 6 , 1 6 , 1 6 , 1 6 , 1 6 , 1 6 , 0 , 0 , 0 , 0 , 0 , 0 , which corresponds to the complex amplitude distribution shown in Figure 4a.The total mean photon number is n ¯ = 10 4 , and the mean photon number from the squeezed part is n ¯ s = 1 . For clearer visualization, the coordinate axes are compressed via the transformation ln ( ln ( x + 1 ) + 1 ) , while the tick labels indicate the original values.
Figure A2. QCRB n ¯ F 1 for the parameter vector [ c 0 , c 1 , c 2 , c 3 , c 4 , c 5 , θ 0 , θ 1 , θ 2 , θ 3 , θ 4 , θ 5 ] = 1 6 , 1 6 , 1 6 , 1 6 , 1 6 , 1 6 , 0 , 0 , 0 , 0 , 0 , 0 , which corresponds to the complex amplitude distribution shown in Figure 4a.The total mean photon number is n ¯ = 10 4 , and the mean photon number from the squeezed part is n ¯ s = 1 . For clearer visualization, the coordinate axes are compressed via the transformation ln ( ln ( x + 1 ) + 1 ) , while the tick labels indicate the original values.
Photonics 13 00244 g0a2

References

  1. Tsang, M.; Nair, R.; Lu, X. Quantum Theory of Superresolution for Two Incoherent Optical Point Sources. Phys. Rev. X 2016, 6, 031033. [Google Scholar] [CrossRef]
  2. Napoli, C.; Piano, S.; Leach, R.; Adesso, G.; Tufarelli, T. Towards Superresolution Surface Metrology: Quantum Estimation of Angular and Axial Separations. Phys. Rev. Lett. 2019, 122, 140505. [Google Scholar] [CrossRef] [PubMed]
  3. Lupo, C.; Huang, Z.; Kok, P. Quantum Limits to Incoherent Imaging are Achieved by Linear Interferometry. Phys. Rev. Lett. 2020, 124, 080503. [Google Scholar] [CrossRef] [PubMed]
  4. Wang, B.; Xu, L.; Li, J.; Zhang, L. Quantum-Limited Localization and Resolution in Three Dimensions. Photonics Res. 2021, 9, 1522–1530. [Google Scholar] [CrossRef]
  5. Lupo, C.; Pirandola, S. Ultimate Precision Bound of Quantum and Subwavelength Imaging. Phys. Rev. Lett. 2016, 117, 190802. [Google Scholar] [CrossRef]
  6. Gessner, M.; Fabre, C.; Treps, N. Superresolution Limits from Measurement Crosstalk. Phys. Rev. Lett. 2020, 125, 100501. [Google Scholar] [CrossRef]
  7. Sorelli, G.; Gessner, M.; Walschaers, M.; Treps, N. Optimal Observables and Estimators for Practical Superresolution Imaging. Phys. Rev. Lett. 2021, 127, 123604. [Google Scholar] [CrossRef]
  8. Schnabel, R. Squeezed States of Light and Their Applications in Laser Interferometers. Phys. Rep. 2017, 684, 1–51. [Google Scholar] [CrossRef]
  9. Jia, W.; Xu, V.; Kuns, K.; Nakano, M.; Barsotti, L.; Evans, M.; Mavalvala, N. LIGO Scientific Collaboration. Squeezing the Quantum Noise of a Gravitational-Wave Detector Below the Standard Quantum Limit. Science 2024, 385, 1318–1321. [Google Scholar] [CrossRef]
  10. Casacio, C.A.; Madsen, L.S.; Terrasson, A.; Waleed, M.; Barnscheidt, K.; Hage, B.; Taylor, M.A.; Bowen, W.P. Quantum-Enhanced Nonlinear Microscopy. Nature 2021, 596, E12. [Google Scholar] [CrossRef]
  11. Garces, G.T.; Chrzanowski, H.M.; Daryanoosh, S.; Thiel, V.; Marchant, A.L.; Patel, R.B.; Humphreys, P.C.; Datta, A.; Walmsley, I.A. Quantum-Enhanced Stimulated Emission Detection for Label-Free Microscopy. Appl. Phys. Lett. 2020, 117, 024002. [Google Scholar] [CrossRef]
  12. de Andrade, R.B.; Kerdoncuff, H.; Berg-Sorensen, K.; Gehring, T.; Lassen, M.; Andersen, U.L. Quantum-Enhanced Continuous-Wave Stimulated Raman Scattering Spectroscopy. Optica 2020, 7, 470–475. [Google Scholar] [CrossRef]
  13. Li, T.; Li, F.; Liu, X.; Yakovlev, V.V.; Agarwal, G.S. Quantum-Enhanced Stimulated Brillouin Scattering Spectroscopy and Imaging. Optica 2022, 9, 959–964. [Google Scholar] [CrossRef] [PubMed]
  14. Haeehan, A.; Ali, N.A.; Dominic, P.G.; David, A.G.W.; Michael, J.B.; Ali, S.; Mark, C.H.; Mahdi, H. Enhanced imaging of electronic hot spots using quantum squeezed light. Appl. Phys. Lett. 2024, 124, 264001. [Google Scholar] [CrossRef]
  15. Cuozzo, S.L.; Barge, P.J.; Prajapati, N.; Bhusal, N.; Lee, H.; Cohen, L.; Novikova, I.; Mikhailov, E.E. Low-Light Shadow Imaging Using Quadrature-Noise Detection with a Camera. Adv. Quantum Technol. 2022, 5, 2100147. [Google Scholar] [CrossRef]
  16. Kolobov, M.I.; Fabre, C. Quantum Limits on Optical Resolution. Phys. Rev. Lett. 2000, 85, 3789–3792. [Google Scholar] [CrossRef]
  17. Sorelli, G.; Gessner, M.; Walschaers, M.; Treps, N. Quantum Limits for Resolving Gaussian Sources. Phys. Rev. Res. 2022, 4, L032022. [Google Scholar] [CrossRef]
  18. Brady, A.J.; Gong, Z.; Gorshkov, A.V.; Guha, S. Incoherent Imaging with Spatially Structured Quantum Probes. arXiv 2025, arXiv:2510.09521. [Google Scholar] [CrossRef]
  19. Shapiro, J.H. The Quantum Theory of Optical Communications. IEEE J. Sel. Top. Quantum Electron. 2009, 15, 1547–1569. [Google Scholar] [CrossRef]
  20. Serafini, A. Quantum Continuous Variables: A Primer of Theoretical Methods, 2nd ed.; CRC Press: Boca Raton, FL, USA, 2023; pp. 38–39+47+77–83+241–242. [Google Scholar]
  21. Nichols, R.; Liuzzo-Scorpo, P.; Knott, P.A.; Adesso, G. Multiparameter Gaussian Quantum Metrology. Phys. Rev. A 2018, 98, 012114. [Google Scholar] [CrossRef]
  22. Tan, S. Quantum State Discrimination with Bosonic Channels and Gaussian States. Ph.D. Thesis, Massachusetts Institute of Technology, Stanford, CA, USA, 2010. [Google Scholar]
  23. Houde, M.; McCutcheon, W.; Quesada, N. Matrix Decompositions in Quantum Optics: Takagi/Autonne, Bloch-Messiah/Euler, Iwasawa, and Williamson. Can. J. Phys. 2024, 102, 497–507. [Google Scholar] [CrossRef]
  24. Bertero, M.; Boccacci, P.; Pike, E.R. Resolution in Diffraction-Limited Imaging, a Singular Value Analysis. Opt. Acta 1982, 29, 1599–1611. [Google Scholar] [CrossRef]
  25. Nair, R.; Tsang, M. Far-Field Superresolution of Thermal Electromagnetic Sources at the Quantum Limit. Phys. Rev. Lett. 2016, 117, 190801. [Google Scholar] [CrossRef]
  26. Xie, Y.; Liu, H.; Sun, H.; Liu, K.; Gao, J. Far-Field Superresolution of Thermal Sources by Double Homodyne or Double Array Homodyne Detection. Opt. Express 2024, 32, 19495–19507. [Google Scholar] [CrossRef]
Figure 1. The propagation process of the quantized optical field in a simple imaging system. The multimode optical field at the object plane, a ^ ( u ) , together with the vacuum field b ^ , is projected onto a ^ ( ϕ ) . It then evolves through the imaging system, coupling with the vacuum field b ^ , to form the image plane optical field a ^ ( Ψ ) .
Figure 1. The propagation process of the quantized optical field in a simple imaging system. The multimode optical field at the object plane, a ^ ( u ) , together with the vacuum field b ^ , is projected onto a ^ ( ϕ ) . It then evolves through the imaging system, coupling with the vacuum field b ^ , to form the image plane optical field a ^ ( Ψ ) .
Photonics 13 00244 g001

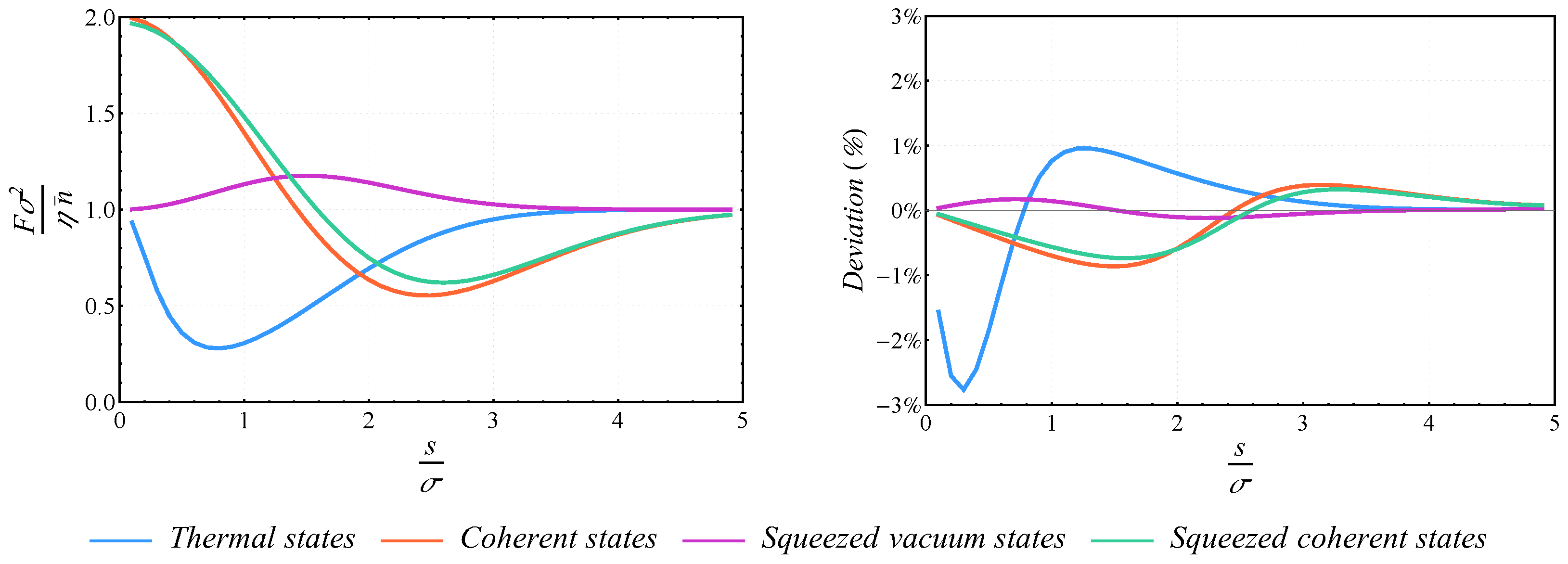

Figure 3. Calculated results of the QFI. The left panel shows the calculated values F σ 2 η n ¯ , and the right panel presents the relative deviation from the method from reference.
Figure 3. Calculated results of the QFI. The left panel shows the calculated values F σ 2 η n ¯ , and the right panel presents the relative deviation from the method from reference.
Photonics 13 00244 g003

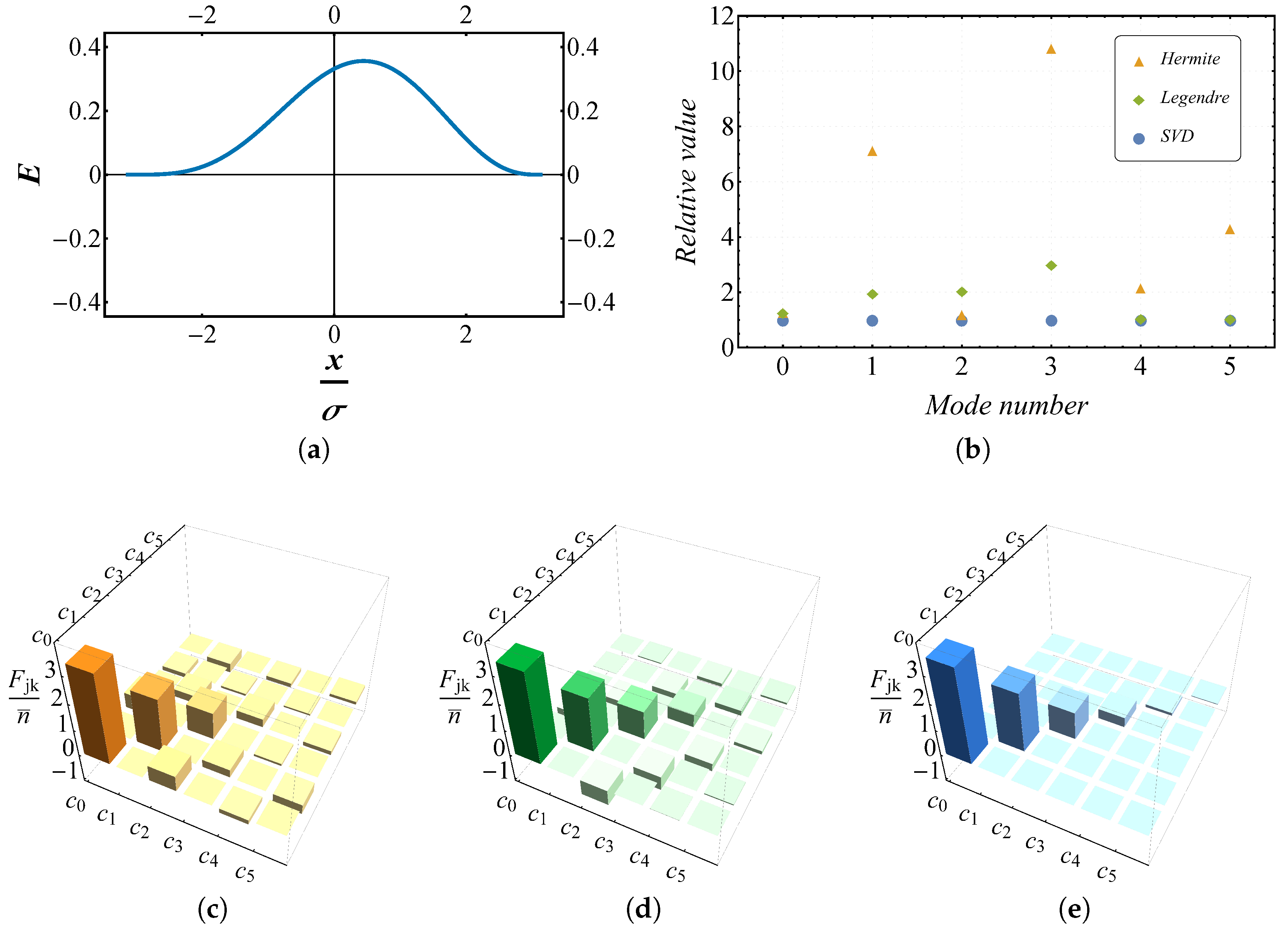

Figure 4. (a) The complex amplitude distribution of the optical field E test ( x ) . (ce) The matrix elements F j k n ¯ of the QFIM corresponding to the parameter vector [ c 0 , c 1 , c 2 , c 3 , c 4 , c 5 ] for expansions based on Hermite–Gaussian modes, Legendre polynomials, and right singular vector basis functions, respectively. (b) The relative QCRB ( F 1 ) j j ( F S V D 1 ) j j ( i = 0 , 1 , 2 , 3 , 4 , 5 ) under different expansions.
Figure 4. (a) The complex amplitude distribution of the optical field E test ( x ) . (ce) The matrix elements F j k n ¯ of the QFIM corresponding to the parameter vector [ c 0 , c 1 , c 2 , c 3 , c 4 , c 5 ] for expansions based on Hermite–Gaussian modes, Legendre polynomials, and right singular vector basis functions, respectively. (b) The relative QCRB ( F 1 ) j j ( F S V D 1 ) j j ( i = 0 , 1 , 2 , 3 , 4 , 5 ) under different expansions.
Photonics 13 00244 g004

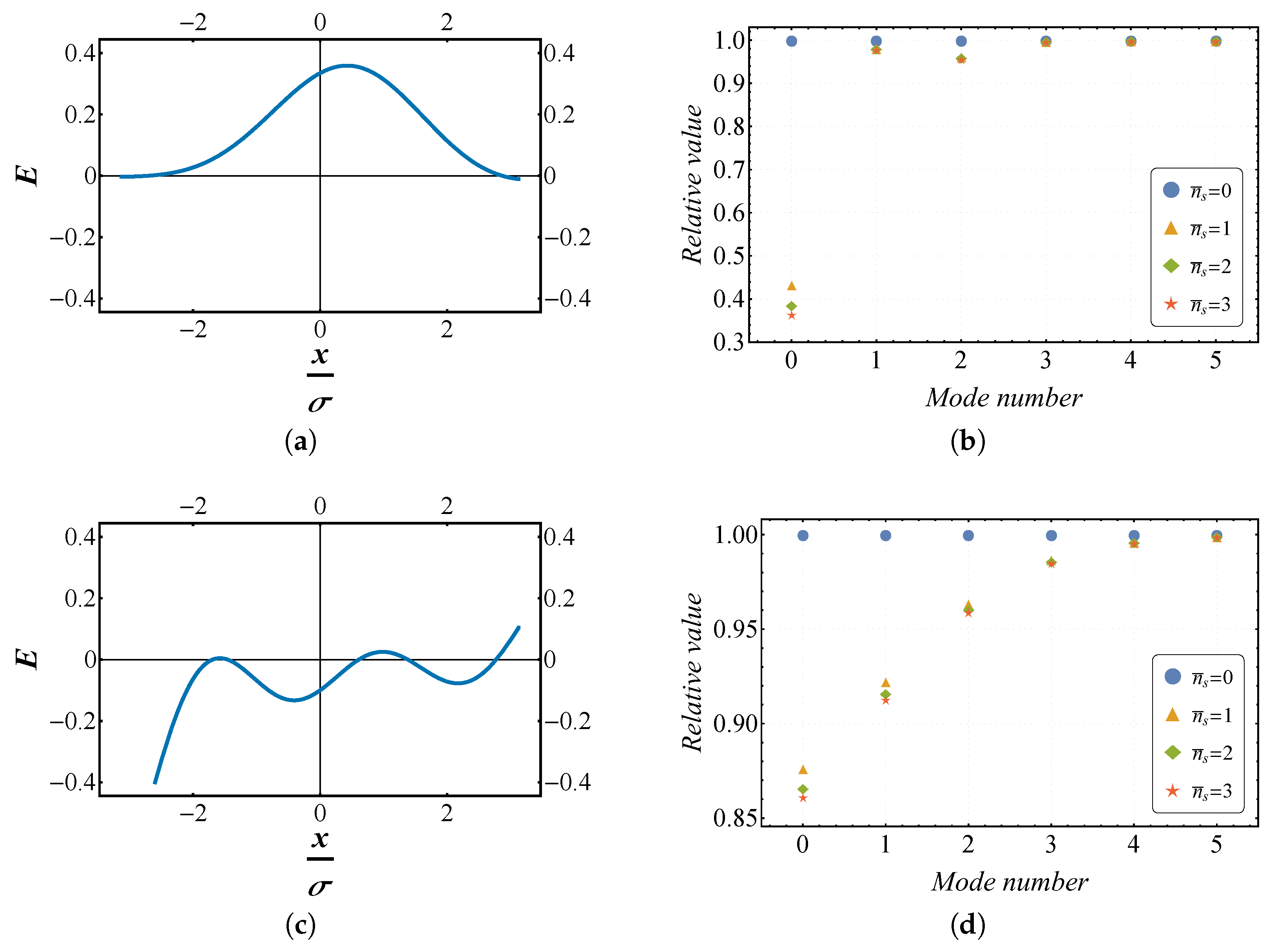

Figure 5. The influence of increasing the mean photon number in the squeezed-part n ¯ s on the relative QCRB ( F 1 ) j j ( F n ¯ s = 0 1 ) j j for estimating the parameter vector [ c 0 , c 1 , c 2 , c 3 , c 4 , c 5 ] . Here, (a) shows the complex amplitude distribution of the optical field obtained by reconstructing E test ( x ) , and (b) shows the results when the parameter vector [ c 0 , c 1 , c 2 , c 3 , c 4 , c 5 ] takes the specific value mentioned above. (c) displays the complex amplitude distribution of the optical field for [ c 0 , c 1 , c 2 , c 3 , c 4 , c 5 ] = 1 6 , 1 6 , 1 6 , 1 6 , 1 6 , 1 6 , and (d) shows the corresponding results for this case.
Figure 5. The influence of increasing the mean photon number in the squeezed-part n ¯ s on the relative QCRB ( F 1 ) j j ( F n ¯ s = 0 1 ) j j for estimating the parameter vector [ c 0 , c 1 , c 2 , c 3 , c 4 , c 5 ] . Here, (a) shows the complex amplitude distribution of the optical field obtained by reconstructing E test ( x ) , and (b) shows the results when the parameter vector [ c 0 , c 1 , c 2 , c 3 , c 4 , c 5 ] takes the specific value mentioned above. (c) displays the complex amplitude distribution of the optical field for [ c 0 , c 1 , c 2 , c 3 , c 4 , c 5 ] = 1 6 , 1 6 , 1 6 , 1 6 , 1 6 , 1 6 , and (d) shows the corresponding results for this case.
Photonics 13 00244 g005

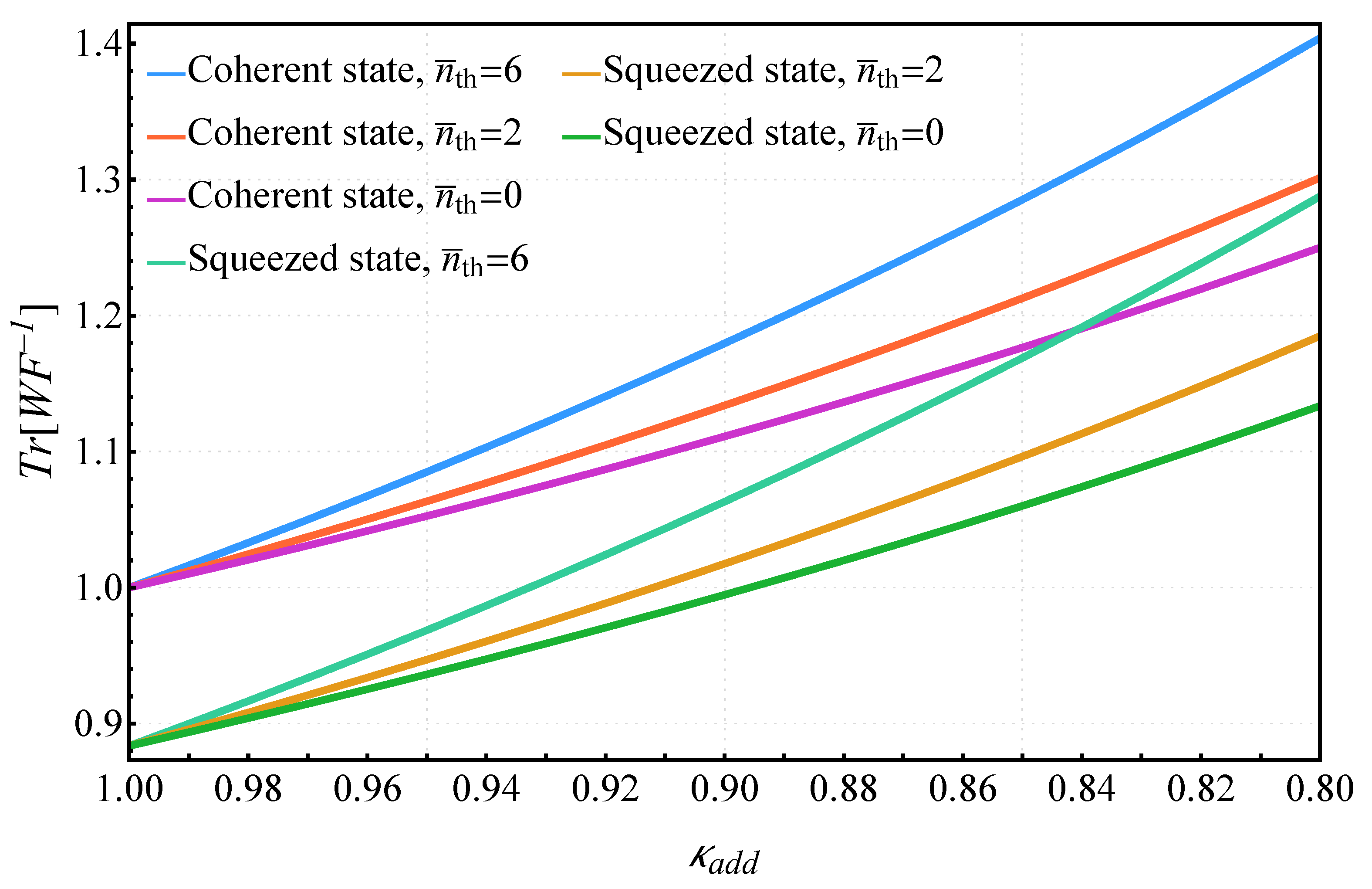

Figure 6. We investigate the influence of different additional transmission efficiencies κ add on the weighted trace Tr [ W F 1 ] for probe states | α , r with n ¯ s = 3 (squeezed states) and n ¯ s = 0 (coherent states), where u 0 ( x ) is as shown in Figure 4a.
Figure 6. We investigate the influence of different additional transmission efficiencies κ add on the weighted trace Tr [ W F 1 ] for probe states | α , r with n ¯ s = 3 (squeezed states) and n ¯ s = 0 (coherent states), where u 0 ( x ) is as shown in Figure 4a.
Photonics 13 00244 g006
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Peng, C.; Xie, Y.; Liu, K. Quantum-Enhanced Imaging Model Based on Squeezed States. Photonics 2026, 13, 244. https://doi.org/10.3390/photonics13030244

AMA Style

Peng C, Xie Y, Liu K. Quantum-Enhanced Imaging Model Based on Squeezed States. Photonics. 2026; 13(3):244. https://doi.org/10.3390/photonics13030244

Chicago/Turabian Style

Peng, Chunrong, Yanxiang Xie, and Kui Liu. 2026. "Quantum-Enhanced Imaging Model Based on Squeezed States" Photonics 13, no. 3: 244. https://doi.org/10.3390/photonics13030244

APA Style

Peng, C., Xie, Y., & Liu, K. (2026). Quantum-Enhanced Imaging Model Based on Squeezed States. Photonics, 13(3), 244. https://doi.org/10.3390/photonics13030244

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
