An Improved PCA and Jacobian-Enhanced Whale Optimization Collaborative Method for Point Cloud Registration

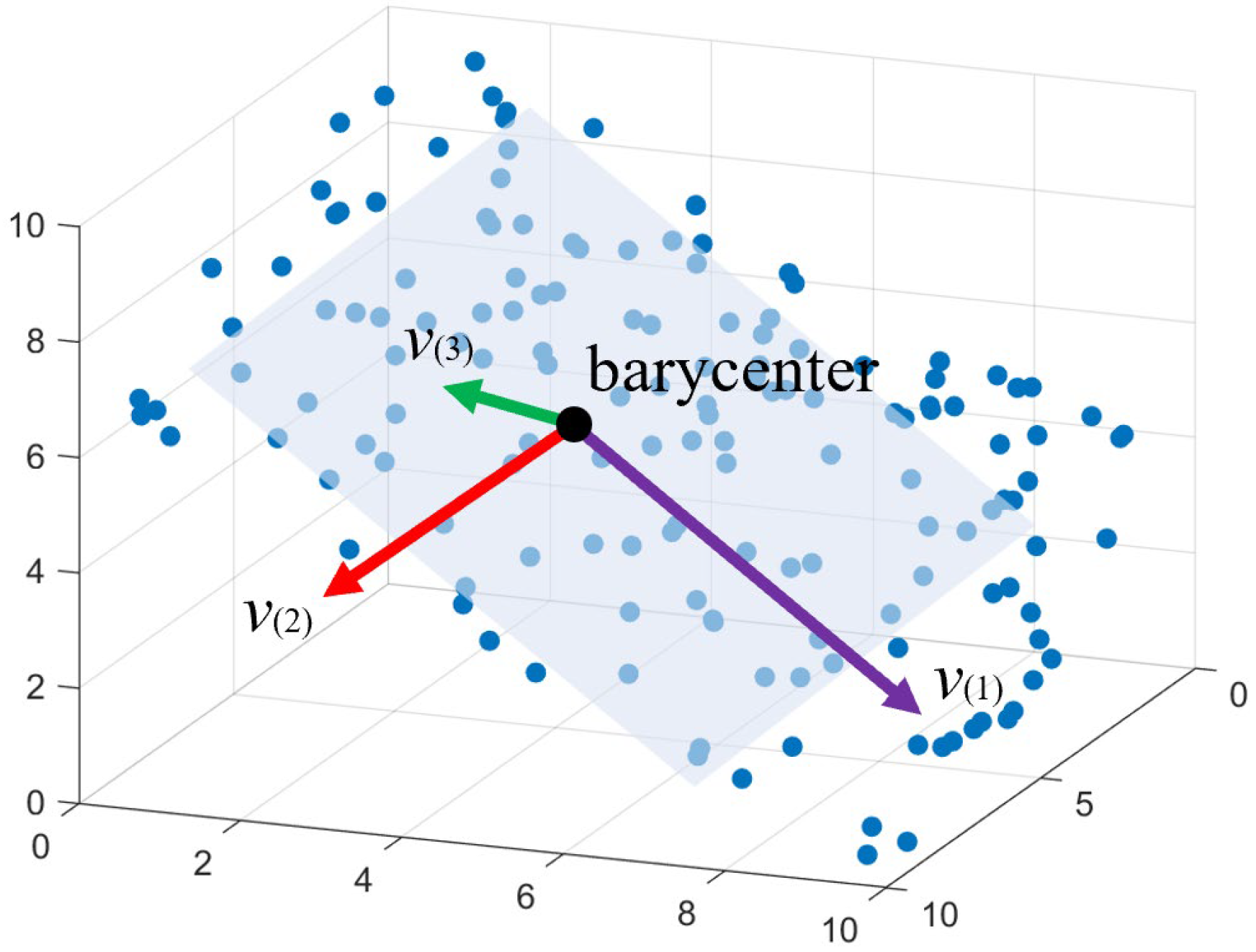

Scanned data often contain substantial outliers due to environmental interference, which drastically decreases the performance of traditional registration algorithms. To address this issue, this article proposes an improved principal component analysis (PCA) and Jacobian-enhanced whale optimization collaborative method for point cloud registration. First, an improved PCA point cloud initial registration algorithm is proposed by introducing the normal vector local information to set the screening conditions. This algorithm can streamline the original set of 48 candidate rotation matrices down to 4, achieving rapid point cloud registration at the data level between the scanned and model point clouds. Second, a Jacobian whale optimization algorithm for fine registration (JWOA-FR) is proposed by incorporating local gradient information. The algorithm employs gradient descent on optimal whale individuals to dynamically guide global search updates, thereby enhancing both registration accuracy and efficiency. Finally, a threshold is set to remove the outliers contained in the workpieces based on the information of the matched point pairs. The iterative closest point (ICP) algorithm is further used to improve registration accuracy for data without outliers. The experimental results showed that registration errors of large workpieces 1, 2, and 3 were 2.0755 mm, 2.3955 mm, and 2.5823 mm, respectively, after outlier removal, which indicates that the proposed method is applicable to data with outliers, and the registration accuracy meets the requirements.
