Design of High-Q-Gradient Dielectric Nanoparticle Chain Surface Plasmonic Cavities

Abstract

Surface plasmonic cavities consisting of dielectric nanoparticle chains directly placed on a metal substrate are designed and studied, including a periodic nanoparticle chain (PNC) cavity and several different surface plasmon trap (SPT) cavities. The SPT cavities are designed by adjusting the nanoparticle sizes and the spacing between nanoparticles. Among them, the nanoparticle sizes range from 10 nm to 140 nm, and the spacings between the nanoparticles range from 200 nm to 280 nm. Compared to the PNC cavity, the SPT cavities support a single mode operation with higher Q factors within a relatively wide bandwidth. In particular, when the particle size and the spacing between the particles of the chain are set to vary in a parabolic gradient profile, the Q factor of the SPT cavity can be improved up to 85% compared to the PNC cavity. Our designs can be applied in the development of high-Q-factor plasmonic nanolasers.

1. Introduction

Laser miniaturization is a requirement for the development of integrated optics. In conventional lasers with photonic modes, neither the mode size nor the physical size can be smaller than half the wavelength, hindering the process of miniaturization and integration. Surface plasmon polaritons (SPPs) are coherent electron oscillations at the interface between metal and dielectric materials [1,2]. Lasers based on SPP modes can break the diffraction limit and shrink down to deep subwavelength scales, and they have become a major driving force in the development of nanoscale lasers. They have the advantages of good localization, a fast response time, a small mode volume, a high Purcell factor, etc. [1,3]. Over the past two decades, SPP lasers with different microcavity structures have emerged, such as nanoparticle SPP lasers [4,5], nanoparticle array SPP lasers [6,7,8,9], nanowire SPP lasers [10,11,12,13,14,15], nanosquare SPP lasers [16], and nanodisk SPP lasers [17]. One of the typical SPP lasers operates by optical pumping to generate excitons in the gain medium, which transfer energy to surface plasmons that then oscillate and are amplified in the nanocavity [18].

Among them, nanoparticle array SPP lasers have attracted more attention because of their simple structures. A nanoparticle array SPP laser with high-density states and low optical loss can effectively couple and resonate with the income wave, significantly reducing the linewidth of the output signal. Therefore, it is a useful method to achieve high-performance lasers [9]. Currently, the majority of nanoparticle array SPP laser cavities are constructed using metallic nanoparticles and various dielectric gain materials [6,7,8,9]. Meanwhile, dielectric nanoparticle structures have been applied in some optical devices, such as sensors [19], photonic crystals [20], waveguides [21], and antennas [22]. However, there have been few reports on the cavity structures of SPP lasers in which dielectric nanoparticles are directly placed onto metal substrates [23]. Dielectric nanoparticles on a metal substrate can turn the electric dipole resonance into a magnetic mode and strongly enhance the optical response. Therefore, it is necessary and meaningful to study this type of structure. In this paper, one-dimensional (1D) dielectric nanoparticle chains directly placed on a metal substrate are analyzed as surface plasmonic cavities.

In the following, the band structure (including the band gap and band edge position) of 1D periodic nanoparticle chain (PNC) structures are studied in Section 2. The band edge mode of the 1D PNC structure is investigated, which shows a weak mode confinement capability [24,25]. In Section 3, three different surface plasmon trap (SPT) cavity structures are designed by altering the nanoparticle sizes. The concept of a surface plasmon trap here is similar to that of a photon trap [26,27,28,29,30,31]. The effects of the depth of SPT on the Q factors of the cavities are studied. These SPT cavity structures have relatively high Q factors and can be operated in a single mode within a relatively wide bandwidth. In Section 4, more complex SPT cavity structures are studied by changing both the nanoparticle sizes and the spacing between nanoparticles. Finally, in the conclusion, we summarize the research results of the paper.

2. Band Edge Mode of Periodic Nanoparticle Chain Structure

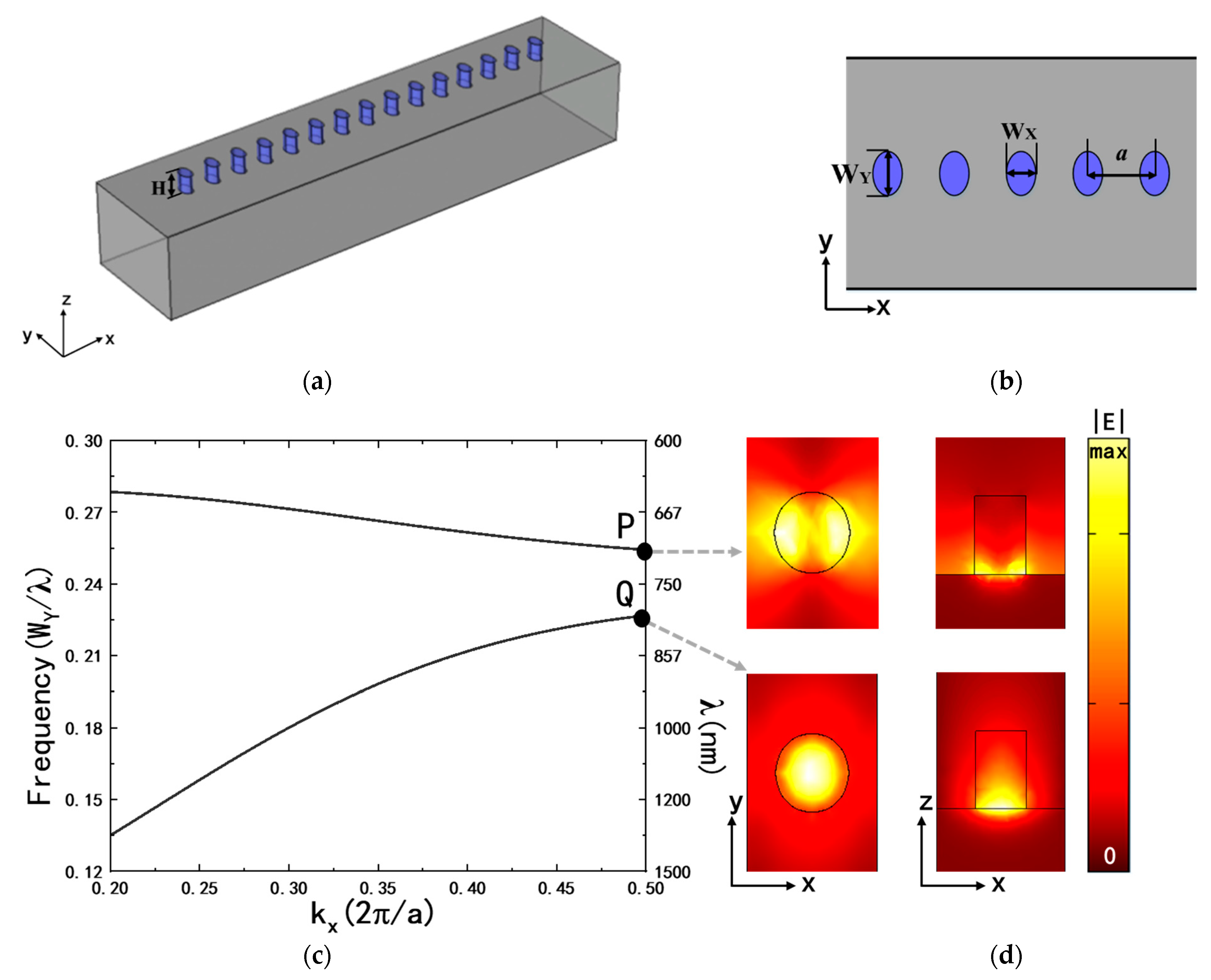

The PNC structure is illustrated in Figure 1a. The nanoparticles are dielectric elliptical cylinders with the same size and are placed directly onto the metal substrate. An elliptical cylindrical structure with its major axis along the transverse direction is selected due to its large bandgap and high reflectivity which limit the optical mode [32,33]. The PNC structure and the SPT structures in the following sections are studied by the finite element method (FEM) using COMSOL Multiphysics 5.6 software. Perfectly matching layers (PMLs) are applied to absorb electromagnetic fields and eliminate boundary scattering. In the calculation of the band structures in Section 2, the periodic boundary conditions are employed for the boundaries perpendicular to the x-axis direction. In the calculation of the energy spectra in Section 3 and Section 4, a circular magnetic current is placed around the central dielectric nanoparticle of the microcavity to generate the resonance mode in which the electric field is concentrated in the region of the dielectric nanoparticles. A tetrahedron mesh is used. The minimum mesh size is 5 nm.

The metal substrate is set as silver for its low absorption loss. The relative permittivity is fitted using the Drude–Lorentz dispersion model, referring to the experimental results within the wavelength range of 600–800 nm [34]. The fitting parameters include the background dielectric constant ε_∞ = 3.75, the plasma frequency ω_p = 1.325 × 10¹⁶ rad/s, and the collision frequency γ = 1.384 × 10¹⁴ rad/s. The material of the dielectric nanoparticles is selected as a typical lead halide perovskite (CH₃NH₃PbI₃, MAPbI₃), which has broad application prospects as a direct bandgap material with a high optical gain [35]. This perovskite material has a gain spectrum from approximately 720 to 790 nm [36]. In our simulations, the real part of the dielectric refractive index is set as n = 2.566 and the imaginary part is set as k = −0.015, representing the gain effect [37,38]. The entire structure is placed in the air. The height, major axis, and minor axis of the elliptical cylinder nanoparticle are H = 150 nm, W_Y = 180 nm, and W_X = 140 nm, respectively. The periodic constant is a = 280 nm as shown in Figure 1a,b.

The dispersion relation of the PNC structure is analyzed and plotted in Figure 1c. In the figure, k_x is normalized to the periodic constant a in the horizontal axis. The frequency is normalized to the unit of W_Y/λ, where λ is the wavelength of the optical wave, and the major axis W_Y = 180 nm remains unchanged throughout this paper. Meanwhile, the periodic constant a is a changeable parameter for the optimization of the following content. According to Figure 1c, it can be found that there is a band gap between the two bands in the wavelength range of 708 nm to 796 nm. The two band edges are located at k_x = 0.5(2π/a), which are denoted by points P and Q, respectively. At the two points, the electromagnetic (EM) waves have a group velocity of V_g = dω/dk = 0, which can be applied to band edge mode lasers [39]. The points P and Q are the band edges of the upper and lower bands, respectively, whose electric field diagrams are shown in unit cells, as shown in Figure 1d. It can be seen that both modes are SPP modes, with the electric field confined at the interface between the dielectric particles (or air) and the metal substrate. Among them, the EM field at the lower band edge Q is mainly located in the nanoparticles, while the EM field at the upper band edge P has a node at the center of the nanoparticle and more energy distributes in the air region. Usually, the band edge mode corresponding to P is suitable to be used in sensors [40]. On the other hand, the band edge mode corresponding to Q is suitable in applications as lasers because the field is concentrated in the dielectric gain medium region. Moreover, the wavelength of the band edge mode of Q should be adjusted to be within the gain bandwidth of the gain medium.

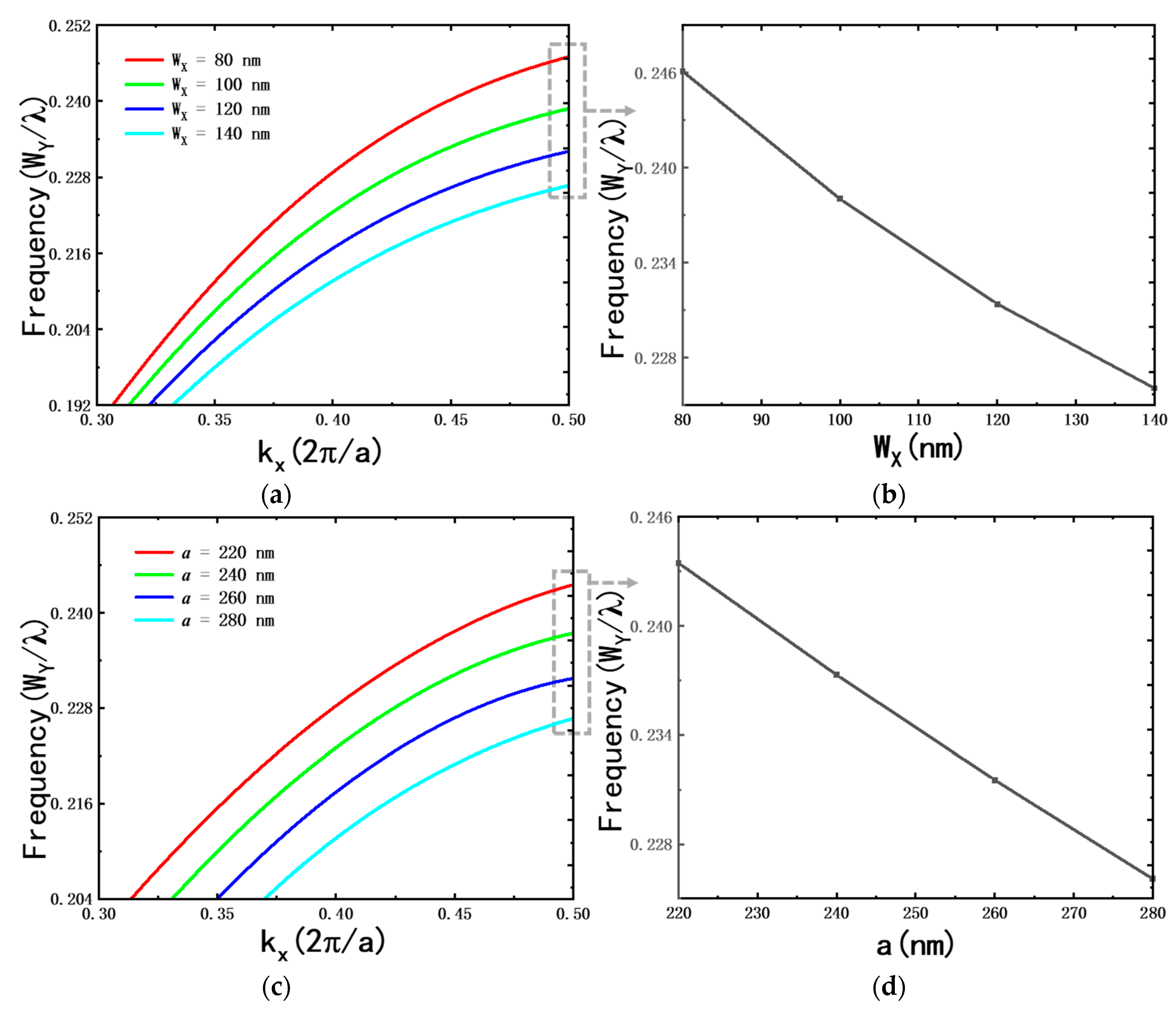

The band edge frequency and the position of the band gap can be tuned by changing the structural parameters of the PNC. In the following, when the major axis W_Y and the height H remain unchanged, the minor axis W_X of the elliptical cylinders and the periodic constant a of the chain are adjusted to optimize the band structure. Figure 2a shows the dispersion relation curves for different W_X values ranging from 80 to 140 nm when a is kept constant at 280 nm. It can be seen that the band edge frequency gradually decreases with the increase in W_X, as shown in Figure 2b. Figure 2c demonstrates the dispersion relation curves for different a values ranging from 220 to 280 nm when W_X is kept constant at 140 nm. Similarly, it can be found that the band edge frequency decreases as a becomes larger, as shown in Figure 2d.

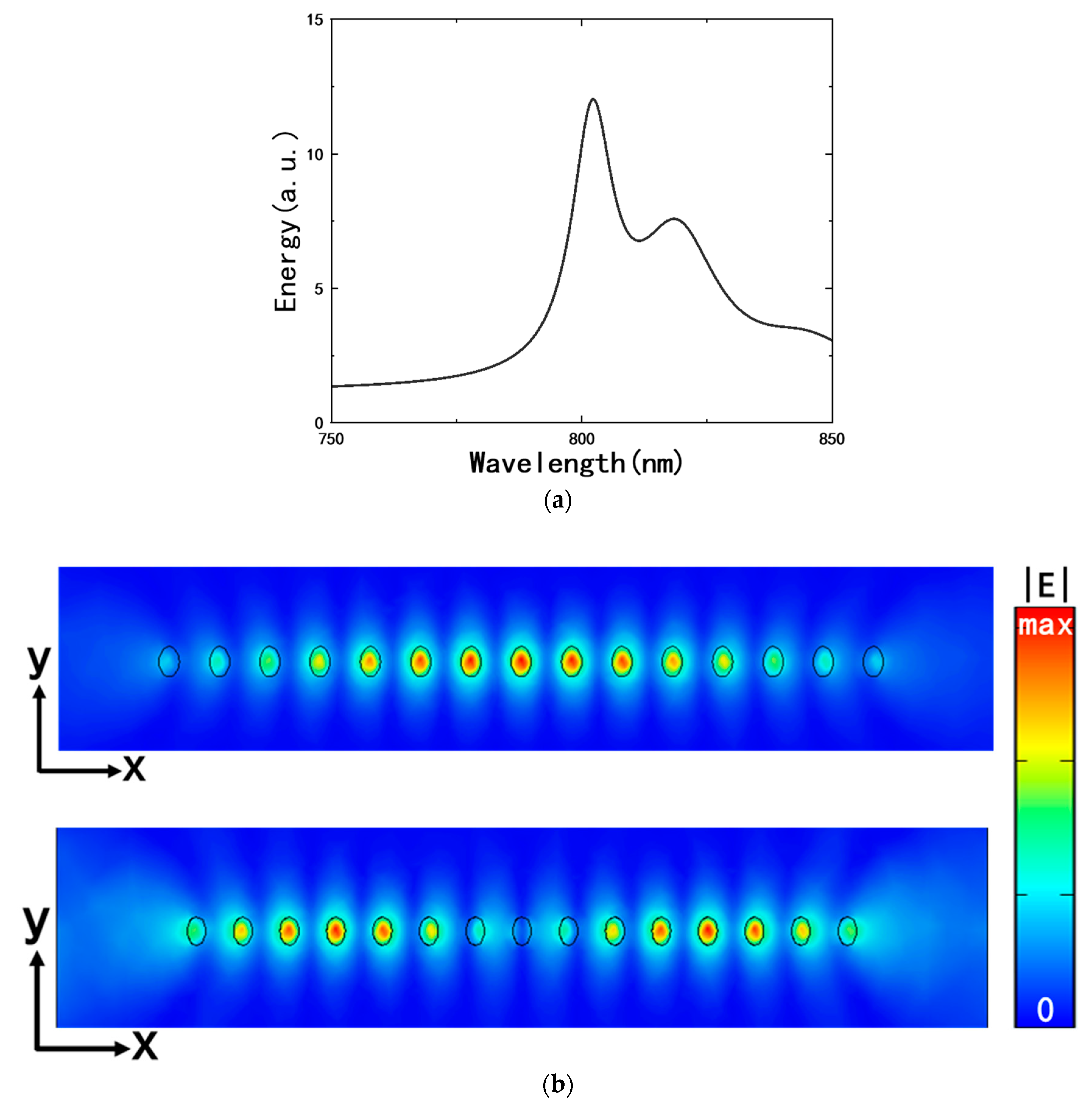

A segment of the PNC structure can act as a microcavity supporting the band edge mode. Figure 3a shows the energy spectrum of a PNC cavity consisting of 15 nanoparticles, with a = 280 nm, W_X = 140 nm, W_Y = 180 nm, and H = 150 nm, respectively. There are two resonant peaks located at 802 nm and 815 nm, respectively. The peak at 802 nm corresponds to the band edge mode, which is very close to the band edge point of Q (796 nm) in Figure 1c. The electric field modulus (|E|) of the band edge mode of the chain cavity is shown in the top panel of Figure 3b. The electric field modulus (|E|) of the mode at 815 nm is shown in the bottom panel of Figure 3b. These two modes are close to each other and might be detrimental to the realization of a laser capable of single-mode operation. Based on the above analysis, some geometric parameters (including W_X and a) will be optimized to improve the characteristics of the nanoparticle chain cavities in the following sections.

3. Three Surface Plasmon Trap Cavities Made by Engineering Particle Sizes

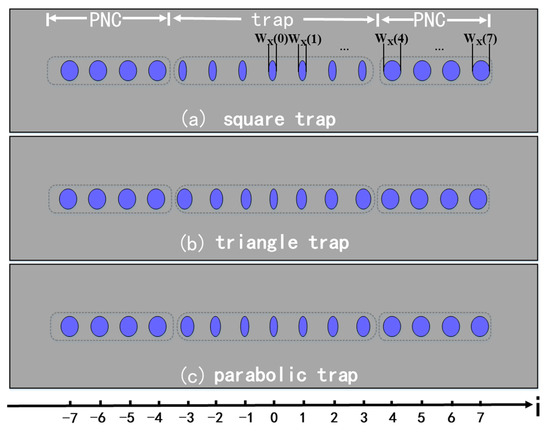

Based on the results of Section 2, we designed three different SPT structures by engineering the particle sizes while keeping the periodic constant a = 280 nm unchanged, as shown schematically in Figure 4. Typically, an SPT structure consists of three segments: the two end segments are PNC structures and the middle segment is the trap region. The PNC segments act as reflectors for the cavity and the wavelength of the cavity mode should lie in their band gap. The PNC segments in the three structures are identically composed of four nanoparticles. Their differences lie in the trap segments of the three SPT structures. Figure 4a shows the square trap which is made of seven identical nanoparticles, and their particle size is smaller than that of the PNC segments. According to Figure 2a, this trap segment can support a mode with a wavelength shorter than the band edge of the PNC segments. Figure 4b shows the triangle trap which is made of seven nanoparticles whose parameter W_X varies linearly [41]. Figure 4c shows the parabolic trap which is made of seven nanoparticles whose parameter W_X varies parabolically [42]. The sizes of the nanoparticles in the two traps of Figure 4b,c are all smaller than that of the PNC segments, and therefore these two traps can also support modes with a wavelength shorter than the band edge of the PNC segments. In the above three SPT structures, the parameters of W_Y = 180 nm, H = 150 nm, and a = 280 nm are kept constant. The position of the nanoparticle in the chain is denoted by the letter i. The position number of the middle particle is set to i = 0. W_X(i) denotes the parameter W_X of the i-th particle counted from the middle one. The detailed parameters of the minor axis W_X of the three SPT structures are summarized in the following equations.

For the square trap structure:

$$W_X(i)=\left\{\begin{array}{l}{W}_X(0),\hfill \\ W_X(4),\hfill \end{array}\right.\begin{array}{c}\\ \end{array}\begin{array}{c}\left|i\right|\in [0,3]\\ \left|i\right|\in [4,7]\end{array}$$

(1)

For the triangle trap structure:

$$W_X(i)=\left\{\begin{array}{l}{W}_X(0)+\frac{i(W_X(4)-W_X(0))}{4},\hfill \\ W_X(4),\hfill \end{array}\right.\begin{array}{c}\\ \end{array}\begin{array}{c}\left|i\right|\in [0,3]\\ \left|i\right|\in [4,7]\end{array}$$

(2)

For the parabolic trap structure:

$$W_X(i)=\left\{\begin{array}{l}{W}_X(0)+\frac{i^2(W_X(4)-W_X(0))}{16},\hfill \\ W_X(4),\hfill \end{array}\right.\begin{array}{c}\\ \end{array}\begin{array}{c}\left|i\right|\in [0,3]\\ \left|i\right|\in [4,7]\end{array}$$

(3)

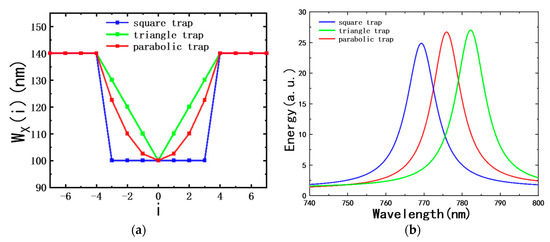

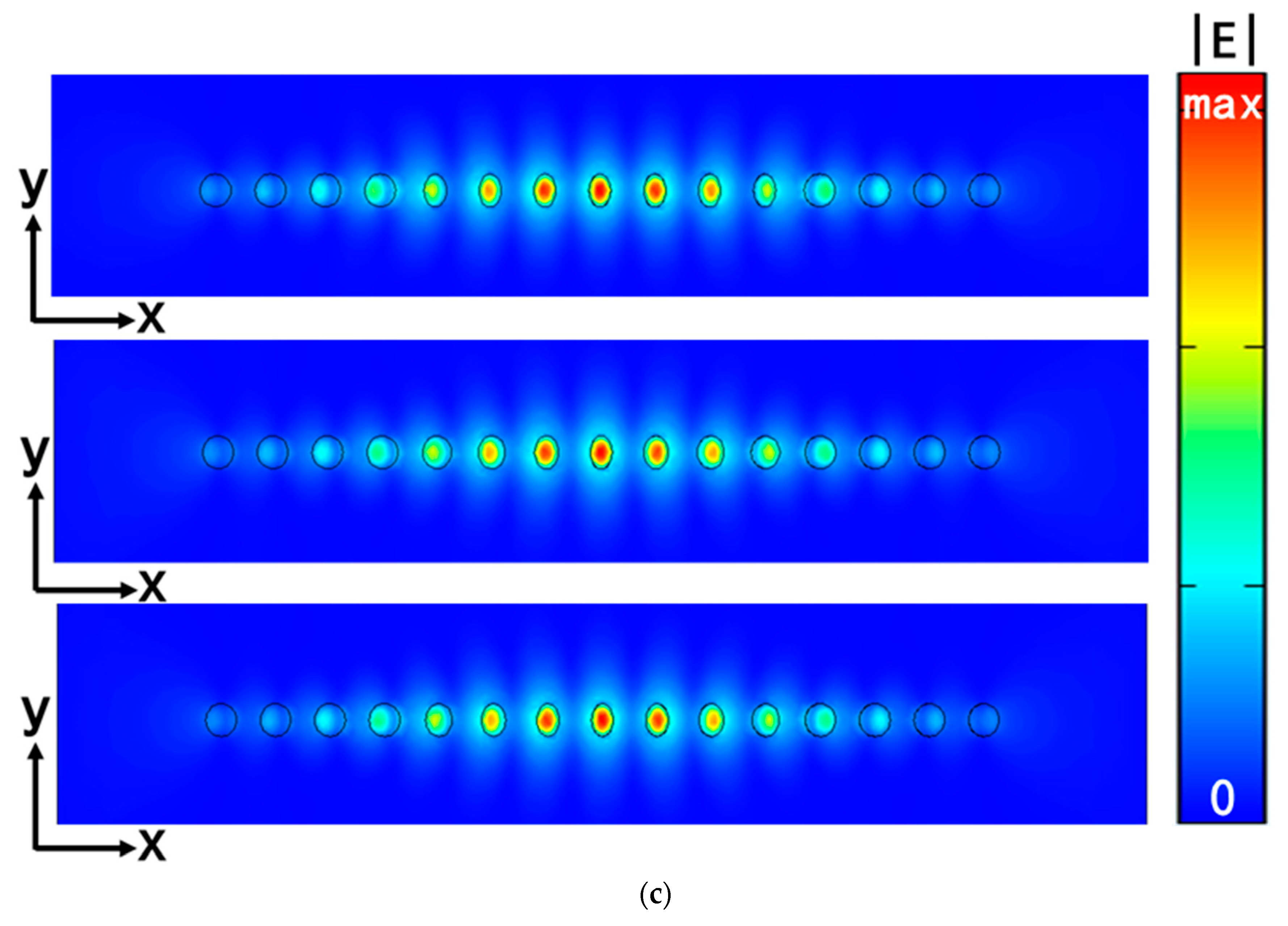

Here, W_X(4) = 140 nm, and the band structure of the PNC segments is the same as that of Figure 1c. W_X(0) is set to 100 nm, and Figure 5a shows the W_X profiles of three different SPT structures. Figure 5b shows the energy spectra of the three SPT structures. Comparing to the result of Figure 3a for the pure PNC structure, the three SPT structures support only one resonant mode in the bandwidth ranging from 740 nm to 800 nm. Figure 5c demonstrates the electric field distribution diagrams corresponding to the resonant peaks in Figure 5b for the three SPT structures.

The quality (Q) factors of the square trap, triangle trap, and parabolic trap structures are 207, 193, and 211, respectively. These Q factors are all much higher than that of the band edge mode of the PNC structure in Figure 3a (its Q factor is equal to 133 at a wavelength of 802 nm). Moreover, it can be found that within the bandwidth of 740 nm–800 nm, there is only one resonant mode for each SPT structure. Compared to the results in Figure 3b, the electric field distributions of the modes for the SPT structures shown in Figure 5c are more concentrated in the middle parts of the nanoparticle chains. However, the resonant wavelengths of the three SPT structures are different. Specifically, the resonant wavelengths of the square trap, triangle trap, and parabolic trap structures are 769 nm, 782 nm, and 776 nm, respectively. Thus, it is hard to conclude which SPT structure is better for the improvement of the cavity Q factors. This is because the PNC segment at the cavity end has a different reflection coefficient at different wavelengths. In order to further elucidate the characteristics of the three SPTs, the depths of the three different traps are scanned so that the resonant wavelength can be shifted within the band gap of the PNC segment. Modifying the depths of the traps actually changes the value of W_X(0) in Equations (1)–(3). Meanwhile, the other parameters are not changed.

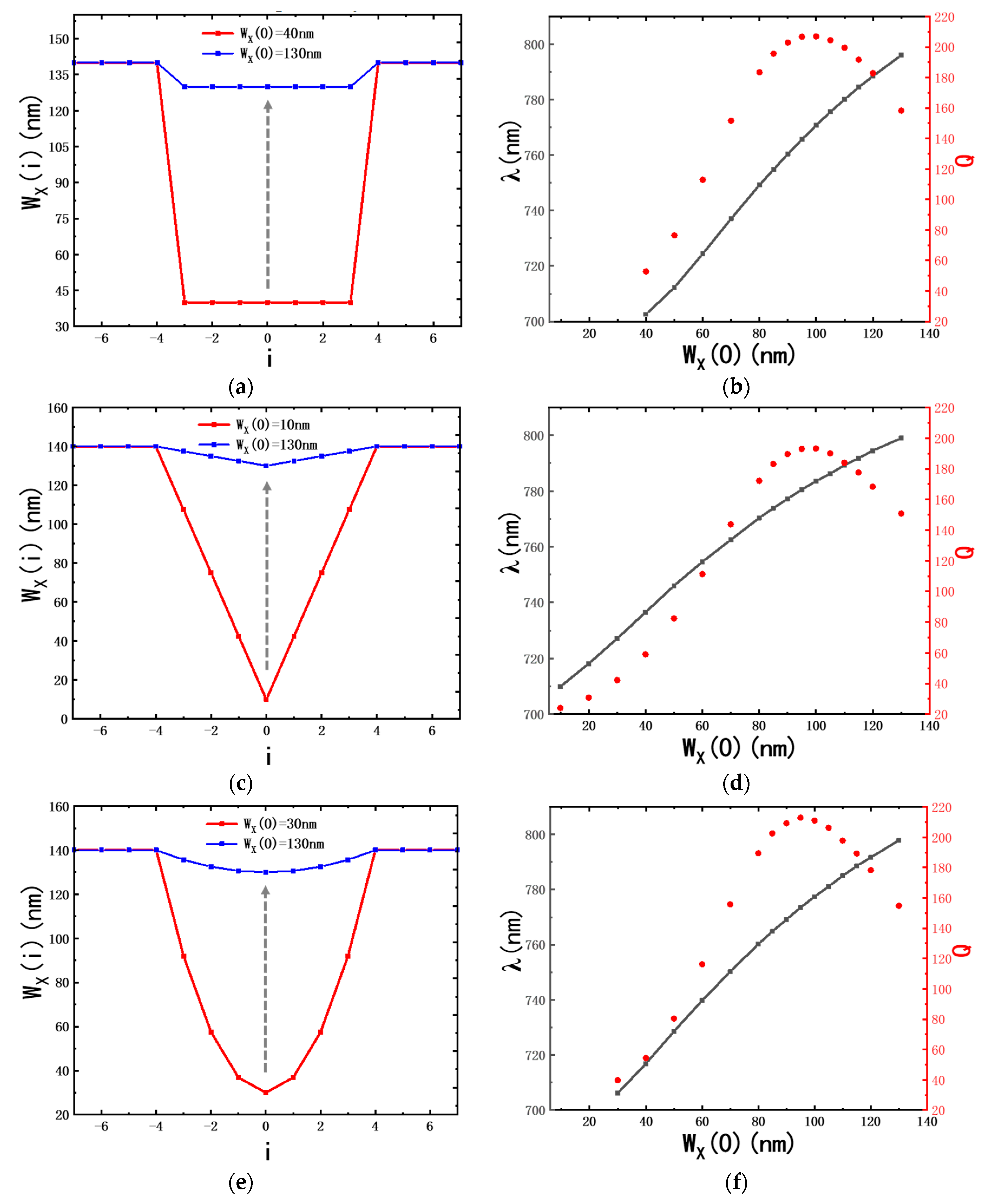

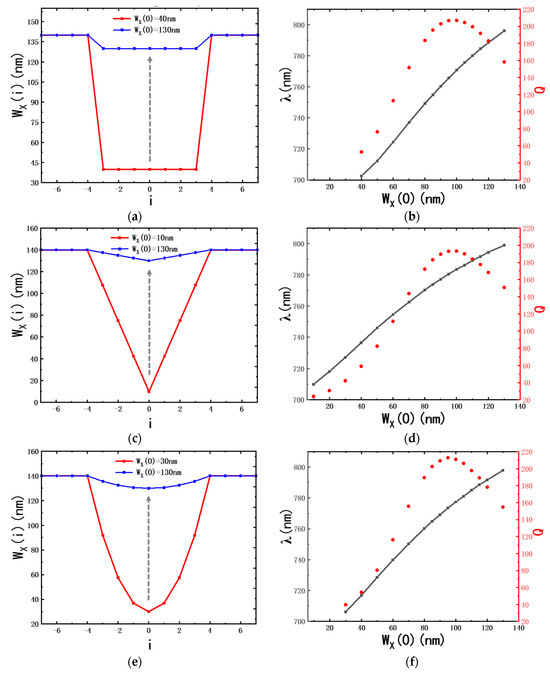

Figure 6a,c,e show the variations in W_X(i) profiles for the square trap, triangle trap, and parabolic trap structures, respectively. Figure 6b,d,f show the Q factors and resonant wavelengths of the three SPT structures when the depths of the traps vary. The range of the resonant wavelengths of the three SPT structures is from 708 nm to 796 nm, corresponding to the band gap of the PNC segments at the end (refer to Figure 1c). For the three trap structures, the resonant wavelengths increase steadily when W_X(0) increases. However, the Q factors reach the maxima when W_X(0) is near the value of 100 nm. Among the three SPT structures, the parabolic trap structure possesses the highest Q factor (21) with W_X(0) being 95 nm. The maximum Q factor of the triangle trap structure (193) is smaller than that of the other two structures (207 and 213). This might be due to the field distribution of its mode having a relatively high radiation loss. The resonant wavelengths corresponding to the maximum Q factors of the three structures are 771 nm, 784 nm, and 773 nm, respectively.

In order to further increase the Q factor of the SPT structure, in the next section, we will optimize the other parameter, the spacing a(i) between nanoparticles based on the parabolic trap structure with the highest Q factor. Here, the spacing a(i) in the trap varies for different i values; therefore, we no longer call it a periodic constant.

4. Size-gradient and Spacing-gradient Surface Plasmon Trap Cavity

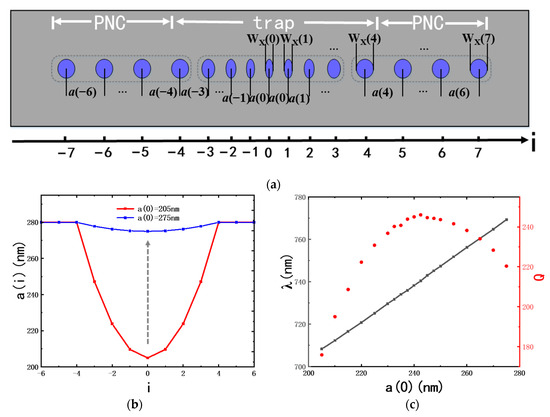

Based on an analysis of our results in the former sections, a size-gradient and spacing-gradient surface plasmon trap structure(SS-SPT) is designed. Referring to the parabolic trap structure of Figure 4c, the SS-SPT structure is shown in Figure 7a schematically. The minor axis W_X(i) varies according to Equation (3), with W_X(0) = 95 nm and W_X(4) = 140 nm. The spacing a(i) between nanoparticles is adjusted to parabolic trap profiles according to the following equation:

$$a(i)=\left\{\begin{array}{l}a(0)+\frac{i^2(a(4)-a(0))}{16},\hfill \\ a(4),\hfill \end{array}\right.\begin{array}{c}\\ \end{array}\begin{array}{c}\left|i\right|\in [0,3]\\ \left|i\right|\in [4,6]\end{array}$$

(4)

when i ≥ 0, a(i) marks the spacing between the i-th and (i + 1)-th nanoparticles, and the whole structure is symmetrical with respect to the central particle (with a minor axis of W_X(0)). It should be noted that there are two a(0) values due to the symmetry of the whole structure. Here, a(4) = 280 nm, and other parameters (H, W_Y) of the SS-SPT structure are the same as the parameters of the parabolic trap structure above. Figure 7b shows the variations in the a(i) profiles when a(0) varies from 205 nm to 275 nm for the SS-SPT structure. Figure 7c shows the Q factors and resonant wavelengths of the SS-SPT structure when the depth of the trap varies.

The variation range of a(0) is from 205 to 275 nm. In this range, the resonant wavelength increases steadily when a(0) increases, and the Q factors reach the maximum (246) when a(0) is 242.5 nm, at which point the resonant wavelength is 740 nm. The highest Q factor of the SS-SPT structure is 15.5% higher than the Q factor (213) of the parabolic trap structure in Section 3, as shown in Figure 8a specifically. As a(0) lies in the range from 230 to 260 nm, the Q factor of the SS-SPT structure remains above 230.

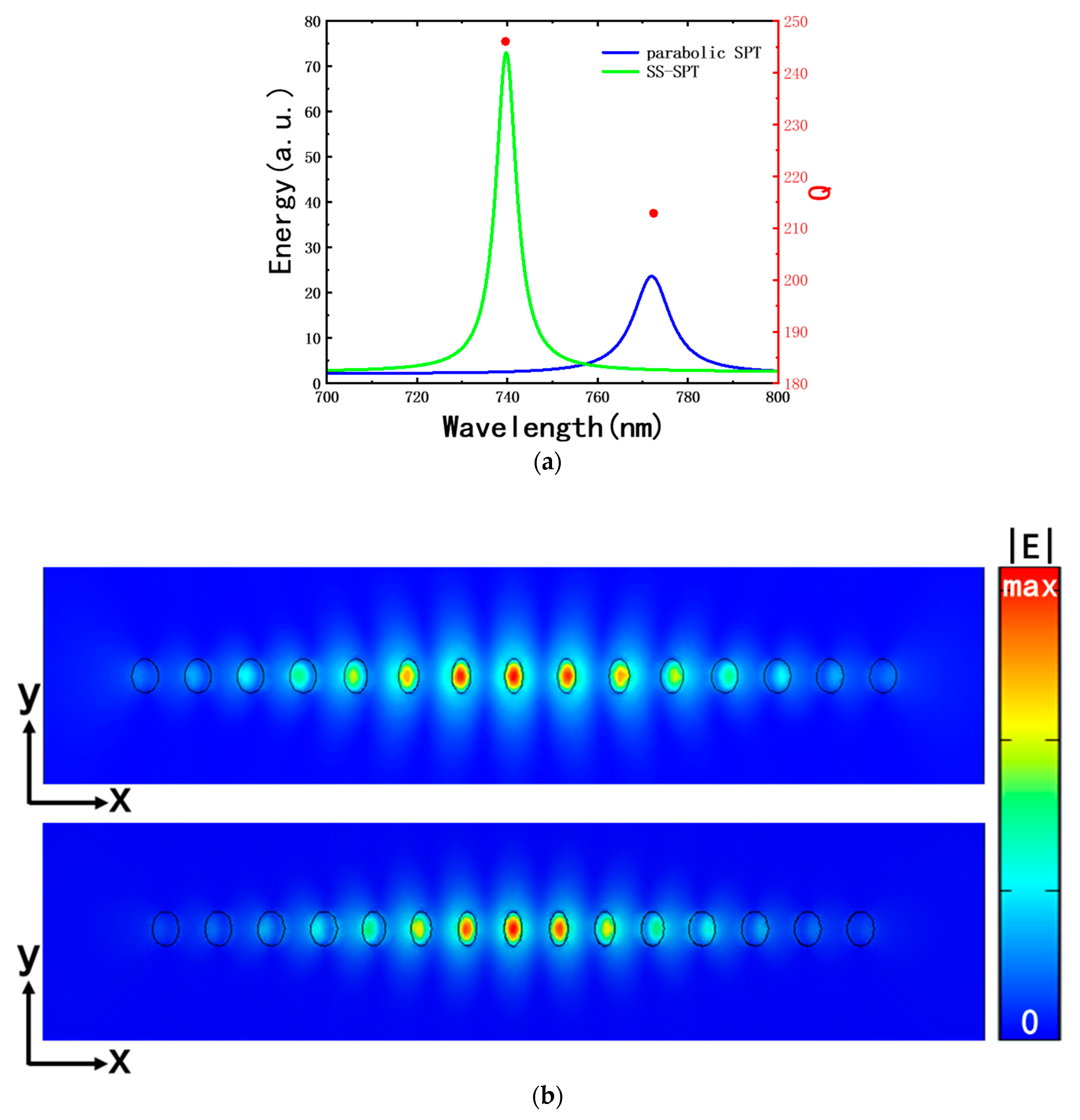

By optimizing the parameters of the trap structure, the Q factor of the SS-SPT structure is 85% higher than the Q factor of the PNC structure cavity in Section 2. Figure 8b shows the electric field modulus (|E|) of the optimized parabolic trap structure and the SS-SPT structure. Comparing the results of Figure 8 and Figure 3, the SS-SPT structure is better in terms of both mode selection and mode confinement than the PNC structure.

5. Discussion

The synthesis of single-crystal perovskite materials applied in this article can be achieved through surface-initiated solution growth strategies [43,44]. And perovskite nanoparticles can be transferred onto a substrate to fabricate nanoparticle chain cavities. For the selection of materials, in addition to using lead halide perovskite dielectric materials and silver substrates, nanoparticle chain plasmon cavity structures are also suitable for other gain materials (such as III–V semiconductors, etc.) and different metal substrates corresponding to different wavelength bands.

Furthermore, inspired by nanoparticle chain structures, a microcavity structure consisting of a perforated perovskite nanobeam on a metal substrate can be attempted. The positions and sizes of air holes may be similar to the shapes of the elliptical cylinders studied in this article. By changing the sizes of the air holes and the spacing between adjacent air holes, the performance of the cavity can be optimized. The gain material of this type of air hole structure is more than that of the nanoparticle chain structure, and its mode will be different from that of the nanoparticle chain structure.

6. Conclusions

In this paper, surface plasmonic 1D nanoparticle chain cavities are studied. The structures consist of dielectric elliptical cylinder nanoparticles directly placed on a metal substrate. The band structure of the surface plasmonic periodic nanoparticle chain (PNC) is investigated. The band gap and the band edge position can be tuned by changing the particle size and the periodic constant (or the spacing between nanoparticles).

By changing the nanoparticle size (the minor axis of the elliptical nanoparticles), three types of surface plasmon trap (SPT) structures are designed, including the square trap structure, triangle trap structure, and parabolic trap structure. The PNC cavity has more than one mode, and there are few adjustable factors for optimization. Compared to the PNC cavity, the SPT cavities can achieve single-mode operation in a relatively wide band width. At the same time, the particle sizes can be flexibly adjusted to effectively manipulate the electric field distribution. Furthermore, the Q factors of the SPT cavities are much higher than that of the PNC cavity (133). Among the three SPT structures, the parabolic trap structure results in the highest Q factor (213). Its Q factor is 60% higher than the Q factor of the PNC structure.

Moreover, based on the optimized parabolic trap structure, a plasmon trap structure with a size gradient and spacing gradient surface (SS-SPT) is designed to further increase the Q factor. In an SS-SPT, the minor axis (W_X) and spacing a are both set in parabolic profiles. Our numerical results show that the Q factor of the SS-SPT structure can be even higher than the optimized parabolic trap structure. Its Q factor (246) is 15.5% higher than that of the parabolic trap structure and 85% higher than the Q factor of the PNC structure. The SS-SPT structure can also operate in single mode with good mode confinement. The designs in this paper may contribute to research on surface plasmon cavities and SPP nanolasers in the future.
