Spectral Element Method Modeling of Eddy Current Losses in High-Frequency Transformers

Department of Electrical Engineering, Electromechanics and Power Electronics, Eindhoven University of Technology, 5600 MB Eindhoven, The Netherlands
*
Author to whom correspondence should be addressed.
Math. Comput. Appl. 2019, 24(1), 28; https://doi.org/10.3390/mca24010028
Received: 14 December 2018 / Revised: 19 February 2019 / Accepted: 19 February 2019 / Published: 21 February 2019
(This article belongs to the Section Engineering)
  |
PDF [2701 KB, uploaded 3 March 2019]
  |

Abstract

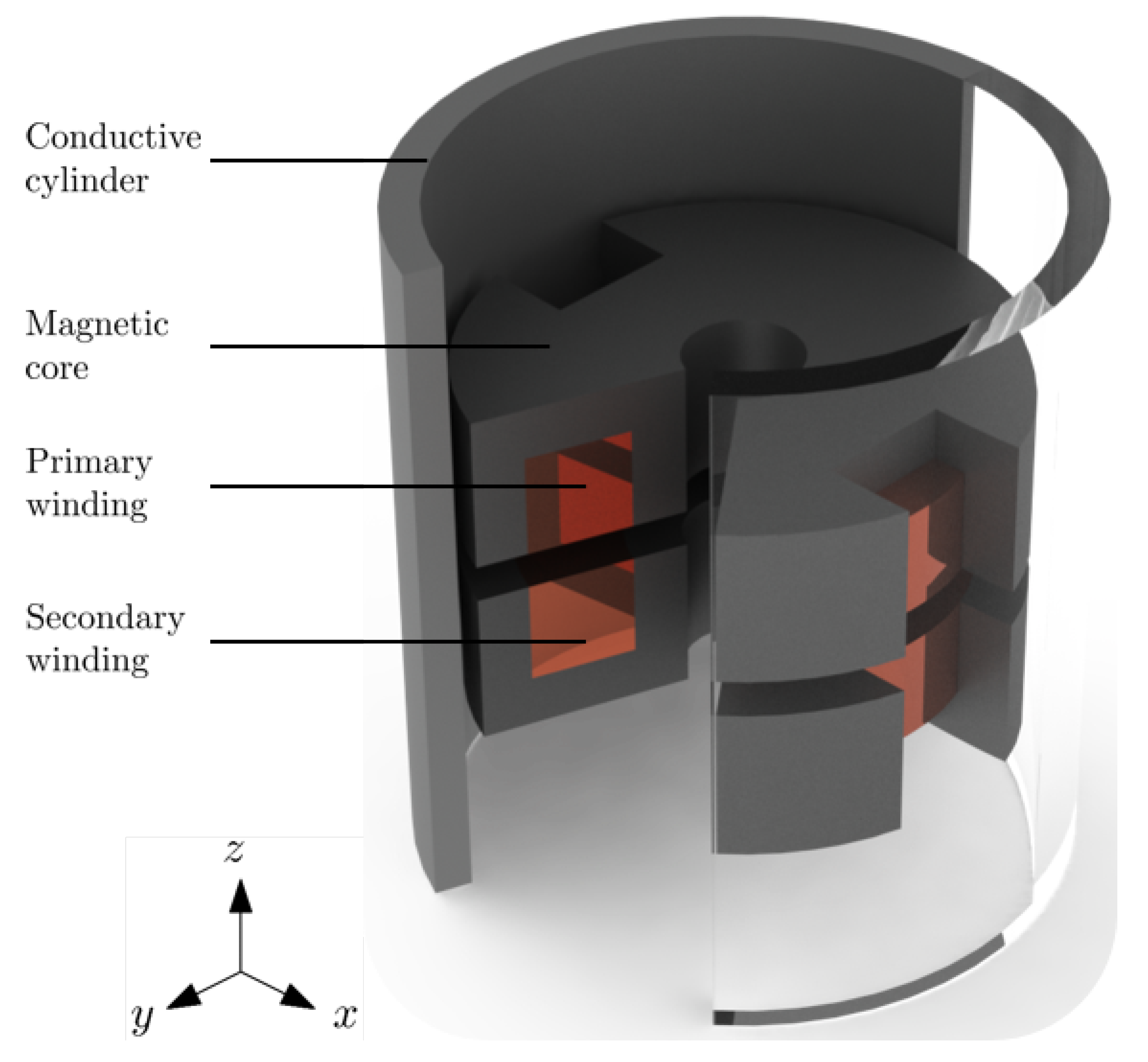

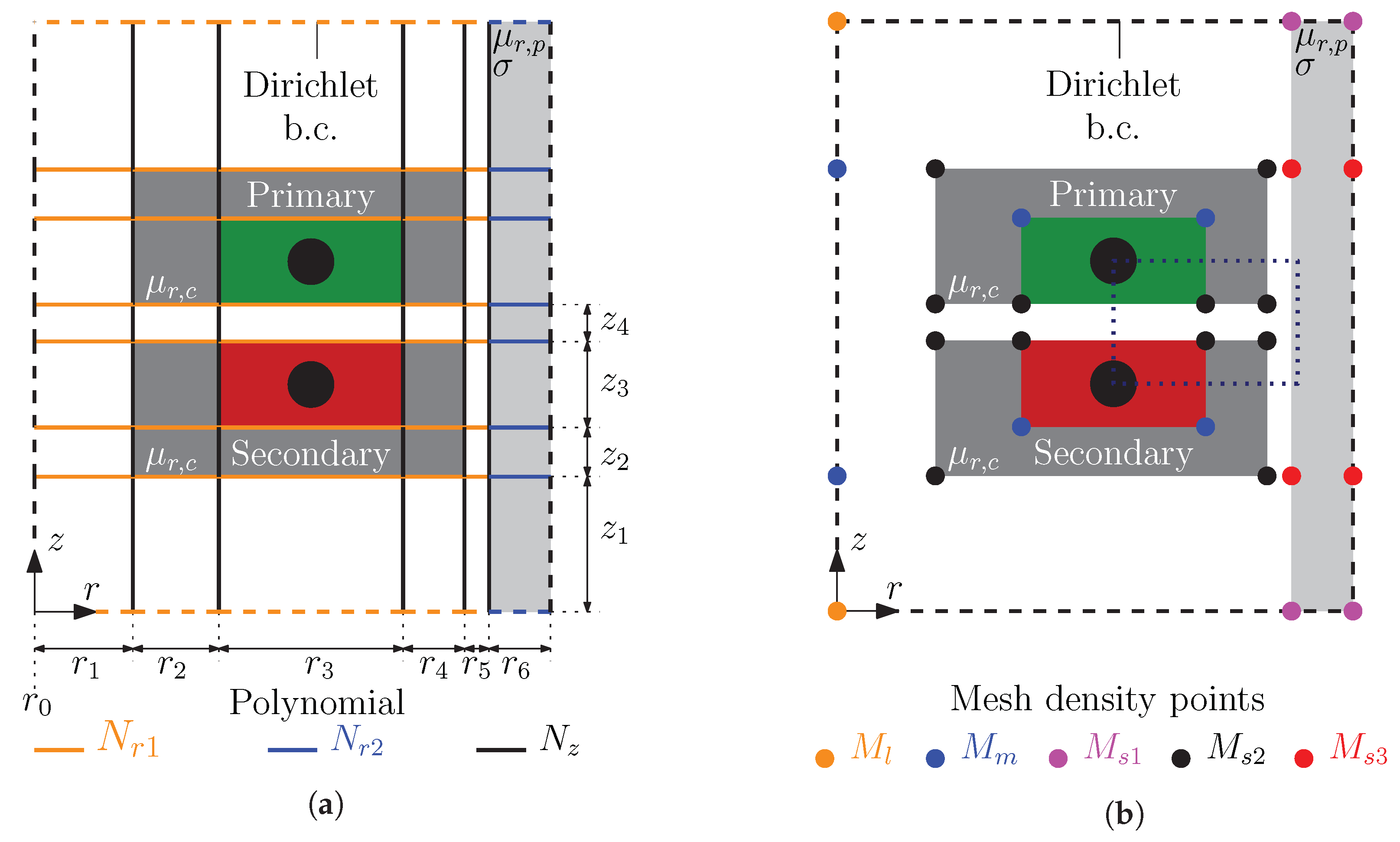

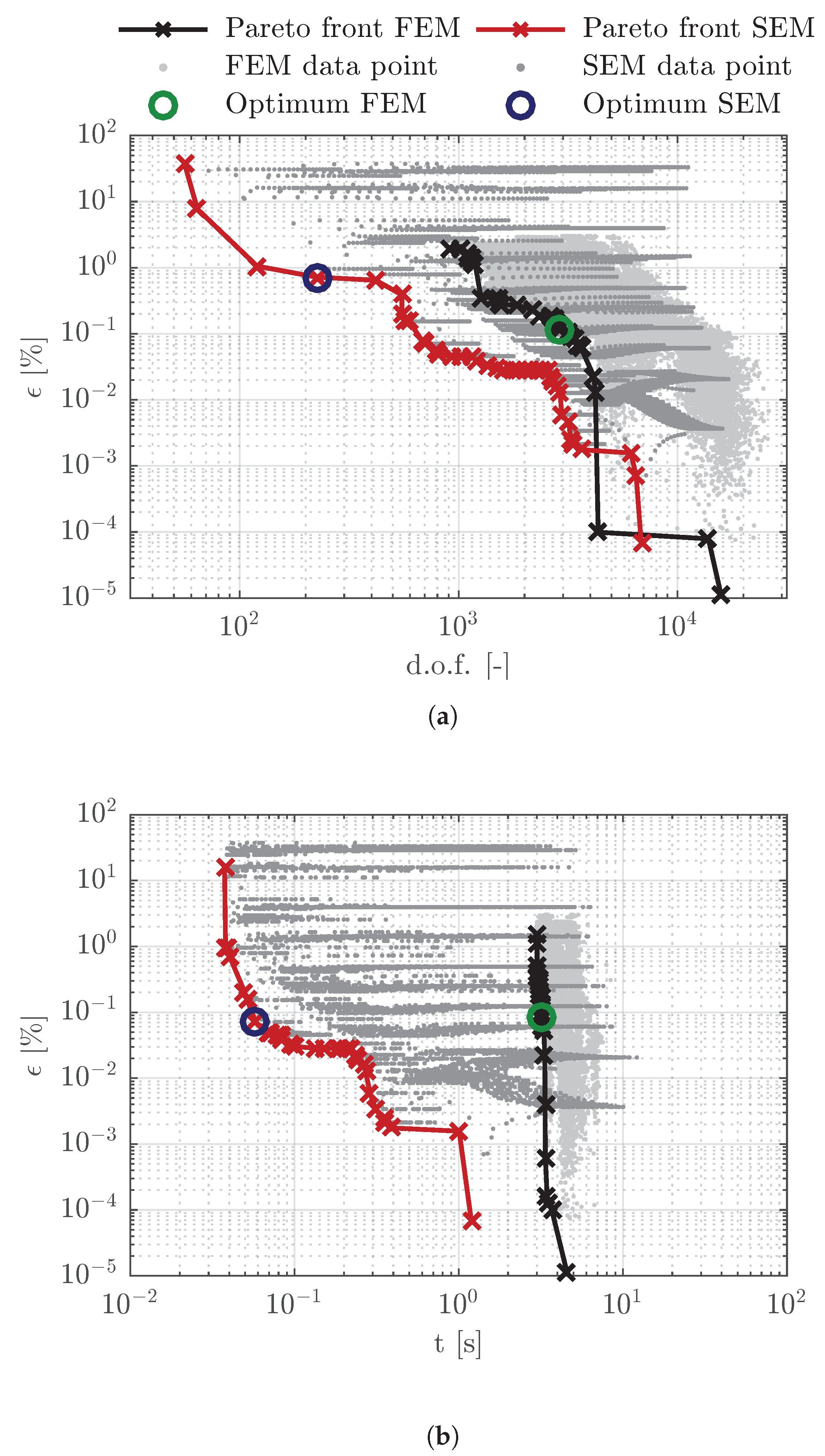

This paper concerns the modeling of eddy current losses in conductive materials in the vicinity of a high-frequency transformer; more specifically, in two-dimensional problems where a high ratio between the object dimensions and the skin-depth exists. The analysis is performed using the Spectral Element Method (SEM), where high order Legendre–Gauss–Lobatto polynomials are applied to increase the accuracy of the results with respect to the Finite Element Method (FEM). A convergence analysis is performed on a two-dimensional benchmark system, for both the SEM and FEM. The benchmark system consists of a high-frequency transformer confined by a conductive cylinder and is free of complex geometrical shapes. Two different objectives are investigated. First, the discretizations at which the relative error with respect to a reference solution is minimized are compared. Second, the discretizations at which the trade-off between computational effort and accuracy is optimized are compared. The results indicated that by applying the SEM to the two-dimensional benchmark system, a higher accuracy per degree of freedom and significantly lower computation time are obtained with respect to the FEM. Therefore, the SEM is proven to be particularly useful for this type of problem. View Full-Text
Keywords: eddy currents; finite element analysis; inductive power transmission; numerical models; Pareto analysis; spectral element method eddy currents; finite element analysis; inductive power transmission; numerical models; Pareto analysis; spectral element method
