UShaped Assembly Line Balancing by Using Differential Evolution Algorithm
Abstract
:1. Introduction
2. Literature Review
2.1. UShape Assembly Line Balancing by Using Other Metaheuristic Methods
2.2. UShape Assembly Line Balancing by Using Differential Evolution Algorithm
2.3. Differential Evolution Algorithm for Solving Other Problems
3. Uline Assembly Line Balancing Problem Pattern and Mathematical Model

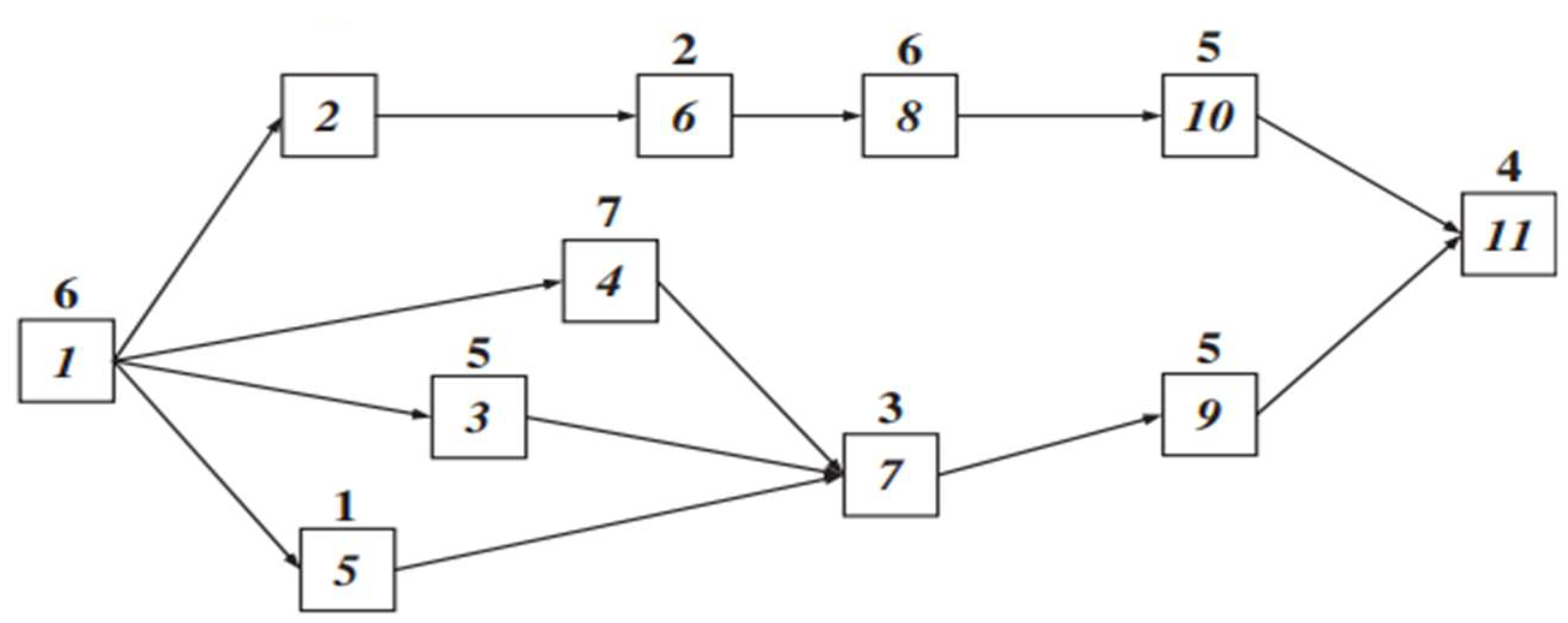

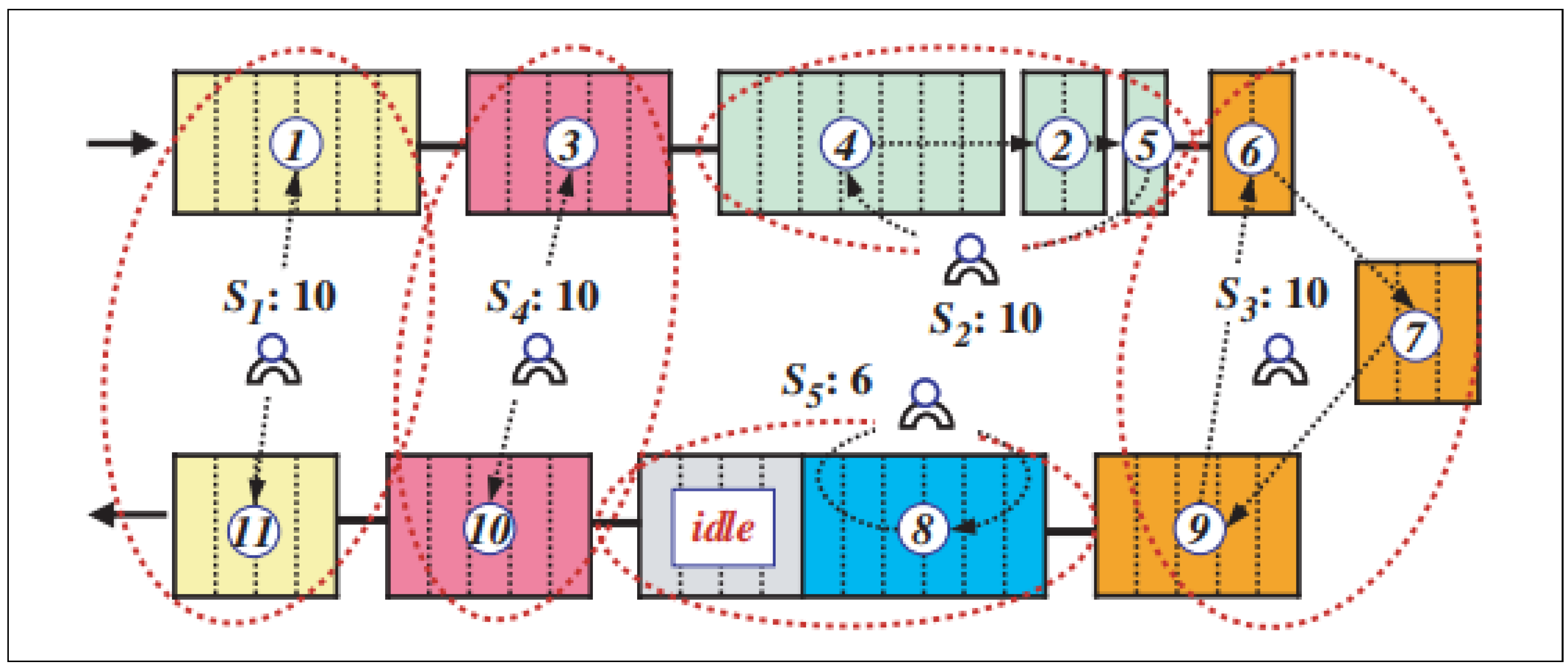

3.1. Uline Assembly Line Balancing Problem (UALBP)
 UALBP1: Given the cycle time (c), minimize the number of stations (m);
 UALBP2: Given the number of stations (m), minimize the cycle time (c).;
 UALBPE: Maximize the line efficiency (E) for c and m being variable.
3.2. Mathematical Model of the UShaped Assembly Line
3.2.1. Indices
 n denotes the index of a task, where n = 1 …. N
 k denotes the index of workstation k, where k = 1 … M
 N denotes the total number of tasks
 M denotes the total number of workstations
3.2.2. Parameter
 P_{n} denotes the processing time of task n
 CT denotes the cycle time of a workstation
 P_{nj} denotes the relationship of task n to task j
 ${F}_{nj}=\{\begin{array}{l}1\text{}\mathrm{if}\text{}\mathrm{task}\text{}n\text{}\mathrm{is}\text{}\mathrm{predecessor}\text{}\mathrm{of}\text{}\mathrm{task}\text{}j\\ 0\text{\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}}\mathrm{otherwise}\end{array}$
3.2.3. Decision Variables
 ${X}_{nk}\text{\hspace{0.17em}}=\text{\hspace{0.17em}}\{\begin{array}{l}1\text{}\mathrm{if}\text{}\mathrm{task}\text{}n\text{}\mathrm{is}\text{}\mathrm{assigned}\text{}\mathrm{to}\text{}\mathrm{station}\text{}k\text{}\\ 0\text{\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}}\mathrm{otherwise}\end{array}$
 ${Y}_{k}\text{\hspace{0.17em}}=\text{\hspace{0.17em}}\{\begin{array}{l}1\text{}\mathrm{if}\text{}\mathrm{station}\text{}k\text{}\mathrm{is}\text{}\mathrm{opened}\\ 0\text{\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}}\mathrm{otherwise}\end{array}$Objective function:$$Min\text{\hspace{0.17em}}Z={\displaystyle \sum _{k=1}^{M}{Y}_{k}}$$$$\sum _{k=1}^{M}{X}_{nk}}=1\text{\hspace{1em}\hspace{1em}}\forall n=1\dots N,$$$$\begin{array}{c}{\displaystyle \sum _{k=1}^{M}(K\times {X}_{jk})}(K\times {X}_{nk})\ge 0\\ \forall n=1\dots N,\text{\hspace{0.17em}\hspace{0.17em}}k=1\dots M,\text{\hspace{0.17em}}{F}_{nj}=1\end{array}$$$$\begin{array}{c}{\displaystyle \sum _{n=1}^{N}{X}_{nk}\times}{P}_{n}\le CT\times {Y}_{k}\\ \forall k=1\dots M\end{array}$$$${Y}_{k}\le {Y}_{k1}\text{\hspace{0.17em}}\forall k=2\dots M$$
4. General Differential Evolution Algorithm

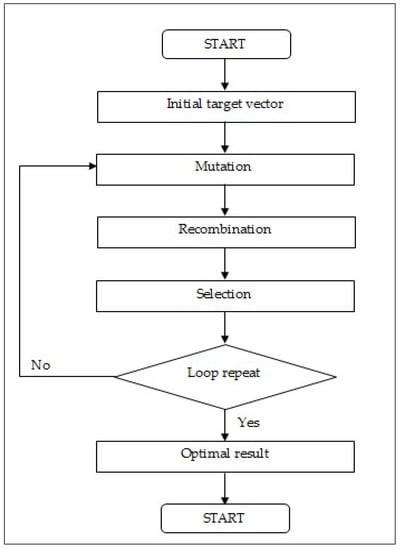

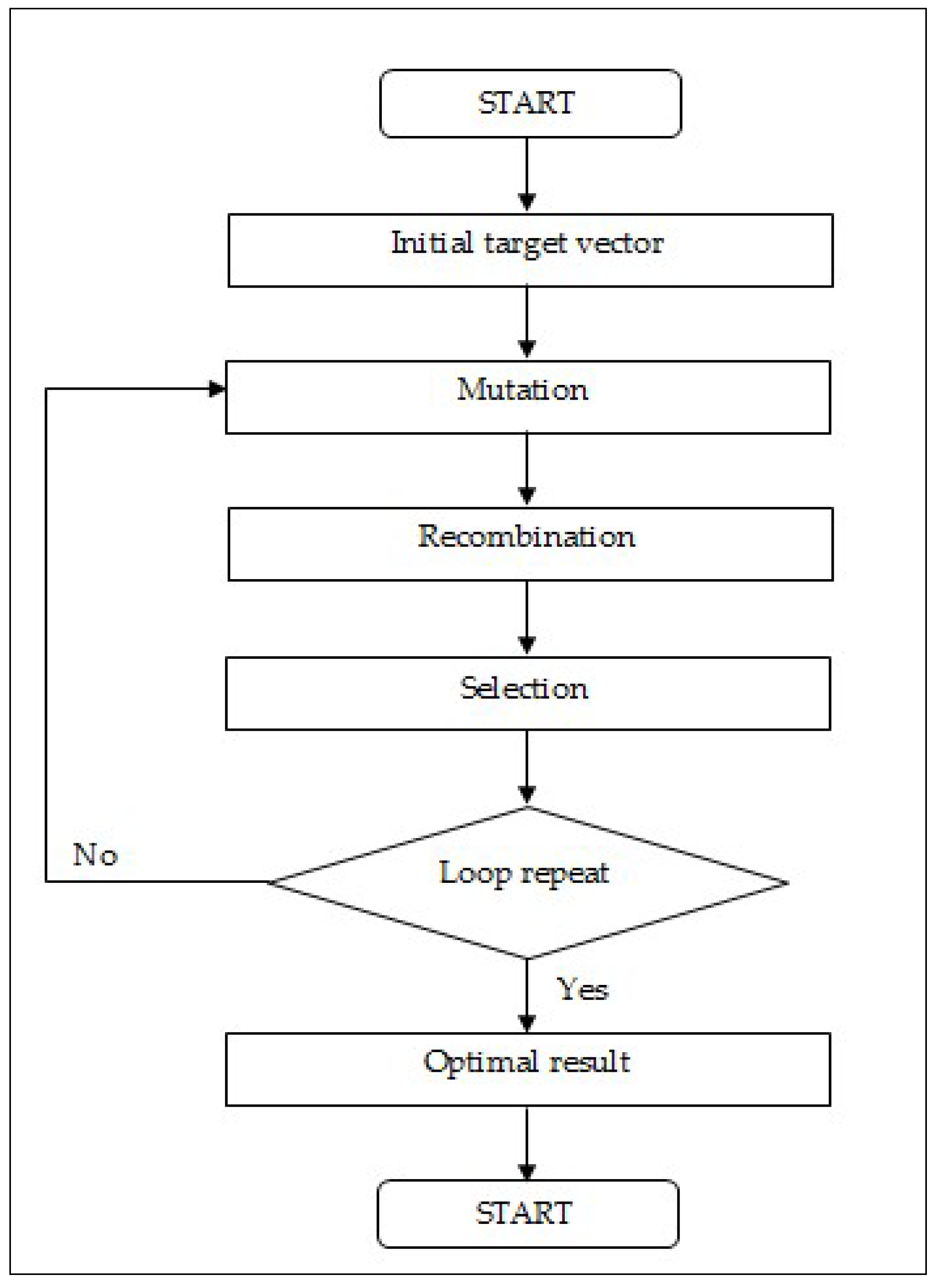

4.1. Differential Evolution Algorithm
4.2. Procedure of UALB1 by Using Differential Evolution Algorithm

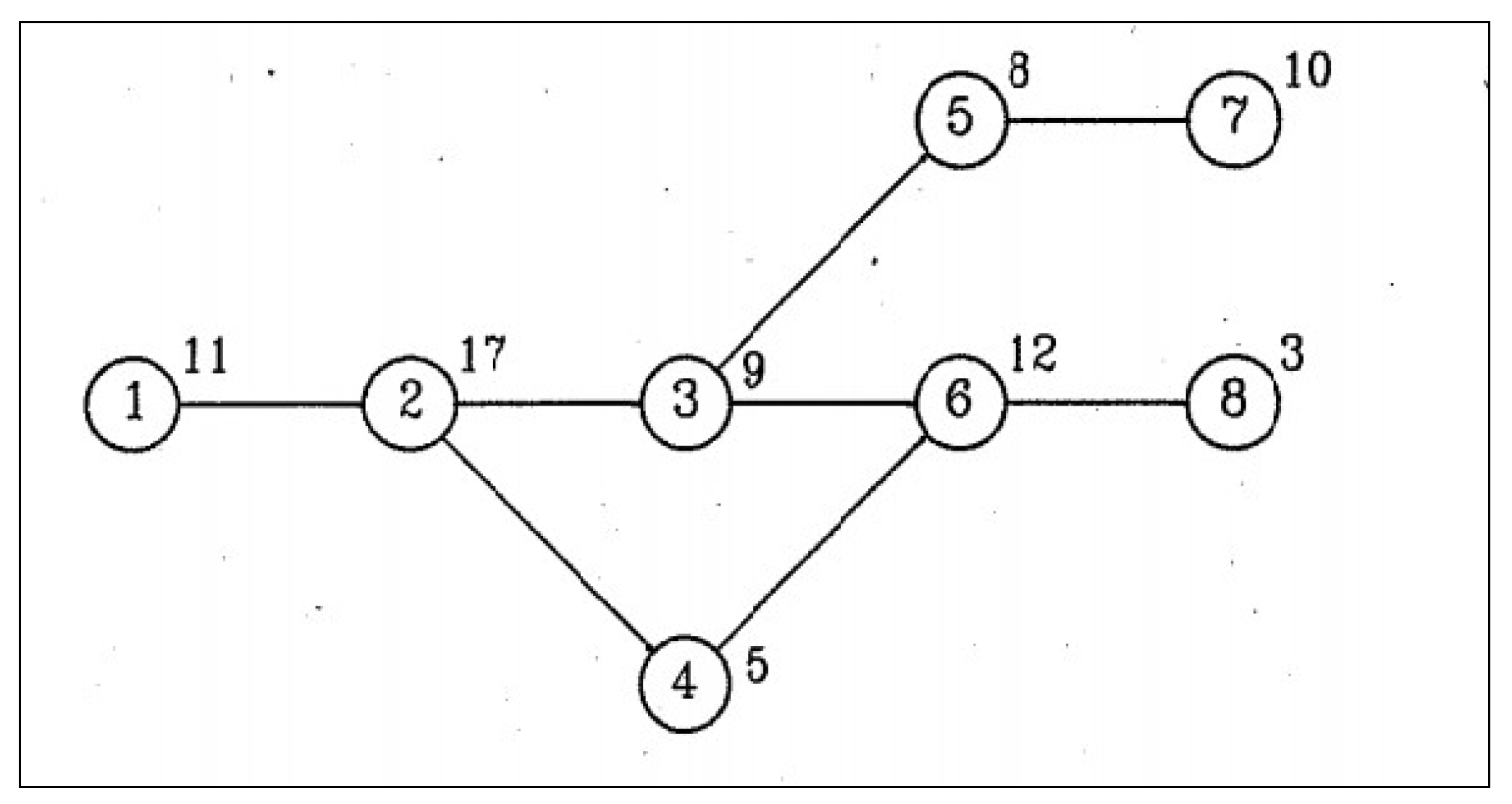

4.2.1. Calculation Using the General Differential Evolution Algorithm DE/rand/1 and Binomial Crossover
 V_{i,j,G} = Mutant Vector
 X_{r1,j,G}, X_{r2,j,G}, X_{r3,j,G} = Random vector from G round
 F = Scaling factor (random real number between 0 and 2)
 V_{i,j,G} = Mutant Vector
 X_{i,j,G} = Target Vector
 CR = Crossover Constant (real number in the range 0–1)
 rand j [0,1) = random real number between 0 and 1 in every position, j = 1, 2, 3, ..., G (G = number of position).
 U_{i,j,G} = Trial Vector
 X_{i,j,G+1} = Target Vector in the next generation, i = 1,2,...n
4.2.2. Procedure of UALB1 by Using the Improved Differential Evolution Algorithm
Algorithm 1. Pseudocode of the DE for (UALBP1)
Setup initial DE parameter
Do while from first iteration to final iteration
Do while from first DE to final DE
Setup initial parameters: cycle time, remaining time, station number
Do while from first task to final task
Find start/following task with task time is less than or equal to
Remaining time, and proper precedence to data list
Input scaling factor, crossover rate and NP to data list
Select task randomly to list
Update remaining time/station number
Produce the four Mutation Equations
$${V}_{i,j,G}={X}_{best,j,G}+F({X}_{r1,j,G}{X}_{r2,j,G})$$
$${V}_{i,j,G}={X}_{i,j,G}+F\left({X}_{best,j,G}{X}_{i,j,G}\right)+F\left({X}_{r1,j,G}{X}_{r2,j,G}\right)$$
$${V}_{i,j,G}={X}_{best,j,G}+F\left({X}_{r1,j,G}{X}_{r2,j,G}\right)+F\left({X}_{r3,j,G}{X}_{r4,j,G}\right)$$
$${V}_{i,j,G}={X}_{r1,G}+F\left({X}_{r2,G}{X}_{r2,G}\right)+F\left({X}_{r4,G}{X}_{r5,G}\right)$$

Developed by applying the two Crossover or Recombination Equations
$${U}_{i,j,G}=\{\begin{array}{l}{V}_{i,j,G}\text{}\mathrm{when}\text{}rand{b}_{i}\le j\\ {X}_{i,j,G}\text{}if\text{}rand{b}_{i}j\end{array}$$
$${U}_{i,j,G}=\{\begin{array}{l}{V}_{i,j,G}\text{}\mathrm{when}\text{}\mathrm{j}\le rand{b}_{i,1}\text{}and\text{}j\ge rand{b}_{i,2}\\ {X}_{i,j,G}\text{}\mathrm{when}\text{}rand{b}_{i,1}\text{}jrand{b}_{i,2}\end{array}$$

Produce new target vector (selection\process)
$${X}_{i,j,G+1}=\{\begin{array}{l}{U}_{i,j,G}iff({U}_{i,j,G})\le f({X}_{i,j,G})\\ {X}_{i,j,G}\text{\hspace{0.05em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{0.17em}\hspace{0.17em}}otherwise\end{array}$$

End do
End do
Select best solution from all DE in the iteration
End do
Show/select best solution from all DE in all iteration

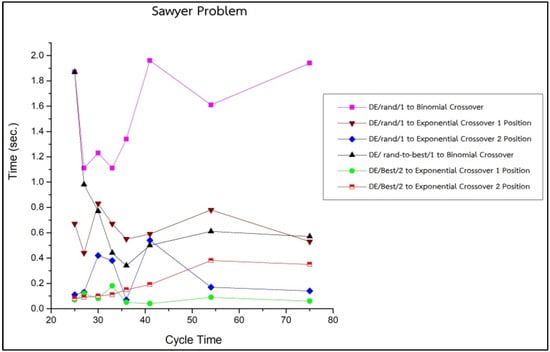

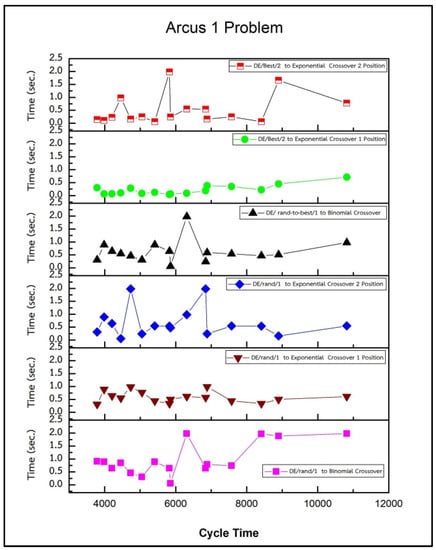

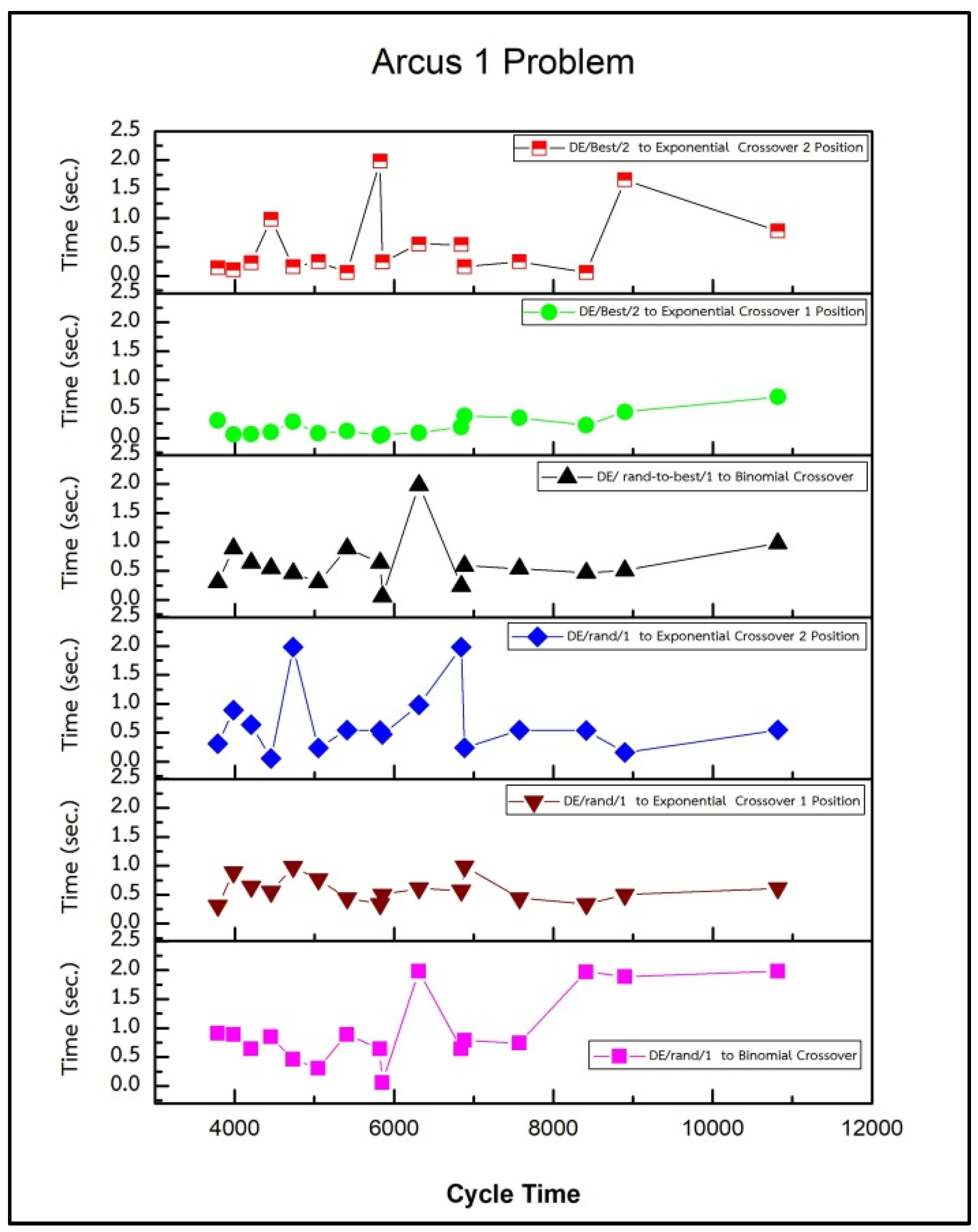

5. Analysis of the Results from the Experiment on DE for Solving UALBP
 DE/rand/1 to Binomial Crossover (Basic)
 DE/rand/1 to Exponential Crossover 1 Position (improved)
 DE/rand/1 to Exponential Crossover 2 Position (improved)
 DE/ randtobest/1 to Binomial Crossover (improved)
 DE/Best/2 to Exponential Crossover 1 Position (improved)
 DE/Best/2 to Exponential Crossover 2 Position (improved)
6. The Results from the Comparison of DE Algorithm and Other Metaheuristic Methods
7. Conclusions and Suggestions
Author Contributions
Acknowledgments
Conflicts of Interest
References
 Chen, S. JustInTime UShaped Assembly Line Balancing. Ph.D. Thesis, Lehigh University, Bethlehem, PA, USA, 2003. [Google Scholar]
 McMullen, P.; Frazier, G.V. Using Simulated Annealing to Solve a Multiobjective Assembly Line Balancing Problem with parallel workstations. Int. J. Prod. Res. 1998, 10, 2717–2741. [Google Scholar] [CrossRef]
 Suresh, G.; Sahu, S. Stochastic Assembly Line Balancing Using Simulated Annealing. Int. J. Prod. Res. 1994, 8, 1801–1810. [Google Scholar] [CrossRef]
 Kriengkorakot, N.; Pianthong, N. The Assembly Line Balancing Problem: Review Articles. KKU Eng. J. 2007, 34133–34140. [Google Scholar]
 Garg, H. A hybrid GSAGA algorithm for constrained optimization problem. Int. Sci. 2019, 478, 499–523. [Google Scholar] [CrossRef]
 Garg, H. A hybrid PSOGA algorithm for constrained optimization problem. Appl. Math. Comput. 2016, 274, 292–305. [Google Scholar] [CrossRef]
 Garg, H. An efficient biogeography based optimization algorithm for solving reliability optimization problems. Swarm Evolut. Comput. 2015, 24, 1–10. [Google Scholar] [CrossRef]
 Garg, H. An approach for solving constrained reliabilityredundancy allocation problems using Cuckoo search algorithm. J. Appl. Sci. 2015, 4, 14–25. [Google Scholar] [CrossRef]
 Sethanan, K.; Pitakaso, R. Improved differential evolution algorithms for solving generalized assignment problem. Expert Syst. Appl. 2016, 45, 450–459. [Google Scholar] [CrossRef]
 Miltenburg, J.; Wijingaard, J. The Uline Line Balancing Problem. Memet. Sci. 1994, 40, 1378–1388. [Google Scholar] [CrossRef]
 Miltenburg, J.; Sparling, D. Optimal solution algorithms for the Uline balancing problem. Ph.D. Thesis, McMaster University, Hamilton, ON, Canada, 1995. [Google Scholar]
 Sparling, D.; Miltenburg, J. The mixedmodel Uline balancing problem. Int. J. Prod. Res. 1998, 36, 485–501. [Google Scholar] [CrossRef]
 Urban, T.L. Optimal Balancing of UShaped Assembly Lines. Memet. Sci. 1998, 44, 738–741. [Google Scholar] [CrossRef]
 Miltenburg, J. Balancing Ulines in a multiple Uline facility. Eur. J. Oper. Res. 1998, 15, 1–23. [Google Scholar] [CrossRef]
 Veres, P.; Banyai, T.; Illes, B. Optimization of InPlant Production Supply with Black Hole Algorithm. Solid State Phenom. 2017, 261, 503–508. [Google Scholar] [CrossRef]
 Banyai, T.; Illes, B.; Banyai, A. Smart Scheduling: An Integrated First Mile and Last Mile Supply Approach. Complexity 2018, 2018, 1–15. [Google Scholar] [CrossRef]
 Nearchou, A.C. Multiobjective balancing of assembly lines by population heuristics. Int. J. Prod. Res. 2008, 46, 466–481. [Google Scholar] [CrossRef]
 Vila, M.; Pereira, J. A branchandbound algorithm for assembly line worker assignment and balancing problem. Comput. Oper. Res. 2013, 40, 3045–3055. [Google Scholar] [CrossRef]
 Scholl, A.; Klein, R. ULINO: optimally balancing UShaped JIT assembly lines. Int. J. Prod. Res. 1999, 37, 721–736. [Google Scholar] [CrossRef]
 Martinez, U.; Duff, W.S. Heuristic approaches to solve the Ushaped line balancing problem augmented by Genetic Algorithms. Inf. Eng. Des. Sym. 2004, 11, 246–259. [Google Scholar]
 Gokcen, H.; Agpak, K.; Gencer, C.; Kizilkaya, E. A shortest route formulation of simple Utype assembly line balancing problem. Appl. Math. Mode. 2005, 29, 373–380. [Google Scholar] [CrossRef]
 Gutjahr, A.L.; Nemhauser, G.L. An algorithm for the line balancing problem. Memet. Sci. 1964, 11, 308–315. [Google Scholar] [CrossRef]
 Gokcen, H.; Agpak, K. A goal programming approach to simple Uline balancing problem. Eur. J. Oper. Res. 2006, 171, 577–585. [Google Scholar] [CrossRef]
 Chiang, W.C.; Urban, T.L. The Stochastic Uline Balancing Problem: A Heuristic Procedure. Eur. J. Oper. Res. 2006, 175, 1767–1781. [Google Scholar] [CrossRef]
 Erel, E.; Sabuncuoglu, I.; Aksu, B.A. Balancing of Utype Assembly Systems Using Simulated Annealing. Int. J. Prod. Res. 2001, 39, 3003–3015. [Google Scholar] [CrossRef]
 Sotskov, Y.N.; Dolgui, A.; Portmann, M.C. Stability analysis of an optimal balance for an assembly line with fixed cycle time. Eur. J. Oper. Res. 2006, 168, 783–797. [Google Scholar] [CrossRef]
 Hwang, R.; Katayama, H.; Gen, M. Ushaped assembly line balancing problem with genetic algorithm. Eur. J. Oper. Res. 2008, 46, 4637–4649. [Google Scholar] [CrossRef]
 Andreas, C.N. A Differential Evolution Algorithm for Simple Assembly Line Balancing. IFAC. Int. Fed. Auto. Cont. 2005, 16, 1462–1467. [Google Scholar]
 Pitakaso, R. Differential evolution algorithm for simple assembly line balancing type 1 (SALBP1). J. Ind. Prod. Eng. 2015, 32, 104–114. [Google Scholar] [CrossRef]
 Qin, A.K.; Hang, V.L.; Suganthan, P.N. Differential Evolution Algorithm with Strategy Adaptation for Global Numerical Optimization. IEEE Trans. Evolut. Comput. 2009, 13, 398–417. [Google Scholar] [CrossRef]
 Zou, D.; Liu, H.; Gao, L.; Li, S. An improved differential evolution algorithm for the task assignment problem. Eng. Appl. Artif. Intell. 2011, 24, 616–624. [Google Scholar] [CrossRef]
 Zeng, X.; Wong, W.; Sun Leung, S. An operator allocation optimization model for balancing control of the hybrid assembly lines using Pareto utility discrete differential evolution algorithm. Comput. Oper. Res. 2012, 39, 1145–1159. [Google Scholar] [CrossRef]
 Jackson, J.R. A computing procedure for a line balancing problem. Memet. Sci. 1956, 2, 261–271. [Google Scholar] [CrossRef]
 Bowman, E.H. Assembly Line Balancing by Linear Programming. Oper. Res. 1960, 8, 385–389. [Google Scholar] [CrossRef]
 Ronkkonen, J.; Kukkonen, S.; Price, K.V. RealParameter Optimization with Differential Evolution. IEEE Congr. Evolut. Comput. 2005, 8, 506–513. [Google Scholar]
 Kriengkorakot, N. Metaheuristic approach for assembly line balancing problem. Ph.D. Thesis, Ubon Ratchathani University, Ubon Ratchathani, Thailand, 2008. [Google Scholar]
 Pitakaso, R.; Sethanan, K. Modified differential evolution algorithm for simple assembly line balancing with a limit on the number of machine types. Eng. Optim. 2015, 48, 253–271. [Google Scholar] [CrossRef]
Vector 1  Station  1  2  3  4  5
Work  1, 8  6, 4  2  3, 5  7
Time  11, 3  12, 5  17  9, 8  10
Target Vector  0.30, 0.57  0.44, 0.61  0.72  0.53, 0.68  0.92
Vector 2  Station  1  2  3  4  5
Work  7, 5  1, 8  6  3  4, 2
Time  10, 8  11, 3  12  12  5, 11
Target Vector  0.57, 0.32  0.74, 0.92  0.21  0.44  0.69, 0.82
Vector 3  Station  1  2  3  4  5
Work  1, 8  7, 5  6, 4  3  2
Time  11, 3  10, 8  12, 5  9  17
Target Vector  0.51, 0.96  0.88, 0.67  0.84, 0.62  0.41  0.92
Vector 4  Station  1  2  3  4  5
Work  1, 8  7, 5  2  3, 4  6
Time  11, 3  10, 8  17  9, 5  12
Target Vector  0.13, 0.26  0.58, 0.81  0.64  0.42, 0.21  0.69
Vector 5  Station  1  2  3  4
Work  8, 6, 4  7, 5  3, 1  2
Time  3, 12, 5  10, 8  9, 11  17
Target Vector  0.84, 0.41, 0.59  0.91, 0.76  0.32, 0.98  0.48
Vector 1  Position  1  2  3  4  5  6  7  8
Work  1  8  6  4  2  3  5  7
Time  11  3  12  5  17  9  8  10
Target Vector  0.3  0.57  0.44  0.61  0.72  0.53  0.68  0.92
Vector 2  Position  1  2  3  4  5  6  7  8
Work  7  5  1  8  6  3  4  2
Time  10  8  11  3  12  12  5  11
Target Vector  0.57  0.32  0.74  0.92  0.21  0.44  0.69  0.82
Vector 3  Position  1  2  3  4  5  6  7  8
Work  1  8  7  5  6  4  3  2
Time  11  3  10  8  12  5  9  17
Target Vector  0.51  0.96  0.88  0.67  0.84  0.62  0.41  0.92
Mutant Vector 1  0.35  0.06  0.33  0.81  0.22  0.39  0.90  0.84
Vector  Position  1  2  3  4  5  6  7  8
1  Work  1  8  6  4  2  3  5  7
Time  11  3  12  5  17  9  8  10
Target Vector  0.3  0.57  0.44  0.61  0.72  0.53  0.68  0.92
Vector  Position  1  2  3  4  5  6  7  8
1  Mutant Vector  0.35  0.06  0.33  0.81  0.22  0.39  0.90  0.84
rand(j)  0.40  0.40  0.06  0.96  0.47  0.40  0.94  0.33
Trial Vector  0.35  0.06  0.33  0.61  0.22  0.39  0.68  0.84
Vector 1  Station  1  2  3  4  5
Work  8, 6  1, 3  2  4, 5  7
Time  3, 12  11, 9  17  5, 8  10
Trial Vector  0.06, 0.33  0.35, 0.39  0.22  0.61, 0.68  0.84
Problem  c  m*  DE1^{*}  DE2^{**}  DE3^{***}  DE4^{****}  DE5^{*****}  DE6^{******}

m  Cal Time (s)  m  Cal Time (s)  m  Cal Time (s)  m  Cal Time (s)  m  Cal Time (s)  m  Cal Time (s)
Sawyer 30  25  14  14  1.87  14  0.67  14  0.11  14  1.87  14  0.07  14  0.08
27  13  13  1.11  13  0.44  13  0.13  13  0.98  13  0.12  13  0.09
30  11  11  1.23  11  0.83  11  0.42  11  0.77  11  0.08  11  0.10
33  10  10  1.11  10  0.67  10  0.67  10  0.44  10  0.18  10  0.11
36  10  10  1.34  10  0.55  10  0.55  10  0.34  10  0.05  10  0.15
41  8  8  1.96  8  0.59  8  0.59  8  0.50  8  0.04  8  0.19
54  6  6  1.61  6  0.78  6  0.38  6  0.61  6  0.09  6  0.38
75  5  5  1.94  5  0.53  5  0.07  5  0.57  5  0.06  5  0.35
Arcus 183  3786  21  21  0.91  21  0.31  21  0.54  21  0.31  21  0.30  21  0.14
3985  20  20  0.89  20  0.89  20  0.17  20  0.89  20  0.06  20  0.11
3786  21  21  0.91  21  0.31  21  0.54  21  0.31  21  0.30  21  0.14
4454  18  18  0.85  18  0.55  18  0.31  18  0.55  18  0.10  18  0.98
4732  17  17  0.46  17  0.98  17  0.89  17  0.46  17  0.28  17  0.16
5048  16  16  0.31  16  0.77  16  0.64  16  0.31  16  0.08  16  0.25
5408  15  15  0.89  15  0.44  15  0.06  15  0.89  15  0.12  15  0.06
5824  14  14  0.64  14  0.34  14  1.98  14  0.64  14  0.04  14  1.98
5853  13  13  0.06  13  0.50  13  0.24  13  0.06  13  0.06  13  0.24
6309  13  13  1.98  13  0.61  13  0.55  13  1.98  13  0.09  13  0.55
6842  12  12  0.64  12  0.57  12  0.54  12  0.24  12  0.19  12  0.54
6883  12  12  0.79  12  0.99  12  0.47  12  0.59  12  0.38  12  0.16
7571  11  11  0.74  11  0.44  11  0.98  11  0.54  11  0.35  11  0.25
8412  10  10  1.97  10  0.34  10  1.98  10  0.47  10  0.22  10  0.06
8898  9  9  1.89  9  0.50  9  0.24  9  0.51  9  0.45  9  1.66
10816  7  7  1.98  7  0.61  7  0.55  7  0.98  7  0.71  7  0.78
Total Optimal Solutions Found from 24 Problem Instances  24  1.16  24  0.61  24  0.53  24  0.67  24  0.17  24  0.40
Problems  Size  Cycle Time  IP* Solution  MMAS**  DE1***

m*  m  %  cal. Time (s)  E  m  %  cal. Time (s)  E
Mitchell  21  14  8  8  0  1.50  93.75  8  0  0.05  93.75
15  8  8  0  1.63  87.75  8  0  0.03  87.75
21  5  5  0  5.43  100.00  5  0  0.01  100.00
Heskiaoff  28  114  9  10  11.11  30.00  79.33  9  11.11  0.04  89.82
128  8  9  12.50  30.00  81.28  8  12.50  0.08  88.89
138  8  8  0  1.71  92.75  8  0  0.09  92.75
205  5  5  0  1.68  99.99  5  0  0.07  99.99
216  5  5  0  2.36  94.81  5  0  0.13  94.81
256  4  4  0  5.52  100.00  4  0  0.16  100.00
324  4  4  0  2.35  79.01  4  0  0.09  79.01
342  3  3  0  2.45  99.81  3  0  0.12  99.81
Sawyer  30  25  14  14  0  1.22  92.57  14  0  0.07  92.57
27  13  13  0  0.96  92.31  13  0  0.12  92.31
30  11  11  0  7.48  98.18  11  0  0.08  98.18
33  10  10  0  20.15  98.18  10  0  0.18  98.18
36  10  10  0  2.08  90.00  10  0  0.05  90.00
41  8  8  0  14.67  98.78  8  0  0.04  98.78
54  6  6  0  5.56  100.00  6  0  0.09  100.00
75  5  5  0  2.97  86.84  5  0  0.06  86.84
Kilbridge and Wester  45  57  10  10  0  1.33  96.84  10  0  0.11  96.84
79  7  8  14.28  30.00  90.67  7  0  0.12  99.82
92  6  7  16.67  30.00  89.28  6  0  0.14  100.00
110  6  6  0  1.48  83.64  6  0  0.10  83.64
138  4  4  0  4.08  100.00  4  0  0.14  100.00
184  3  3  0  6.73  100.00  3  0  0.15  100.00
Total Optimal Solution (or Lower Bound) Found from 25 Problem Instances  21  2.18/inst.  9.19/inst.  95.51/inst.  25  0.94/inst.  0.10/inst.  97.84/inst.
Problems  Size  Cycle Time  IP^{*} Solution  MMAS^{**}  DE1^{***}

m*  m  %  cal. Time (s)  E  m  %  cal. Time(s)  E
Weemag  75  28  63  63  0  1.19  93.75  63  0  0.12  93.75
29  63  63  0  1.19  87.75  63  0  0.14  87.75
30  62  62  0  1.23  100.00  62  0  0.07  100.00
31  62  62  0  1.14  89.82  62  0  0.05  89.82
32  61  61  0  1.16  88.89  61  0  0.10  88.89
33  61  61  0  1.22  92.75  61  0  0.28  92.75
34  61  61  0  1.22  99.99  61  0  0.08  99.99
35  60  60  0  1.22  94.81  60  0  0.12  94.81
36  60  60  0  1.25  100.00  60  0  0.04  100.00
37  60  60  0  1.23  79.01  60  0  0.06  79.01
38  60  60  0  1.19  99.81  60  0  0.22  99.81
39  60  60  0  1.14  92.57  60  0  0.08  92.57
40  60  60  0  1.25  92.31  60  0  0.19  92.31
41  59  59  0  1.19  98.18  59  0  0.10  98.18
42  55  55  0  1.16  98.18  55  0  0.11  98.18
43  50  50  0  1.30  90.00  50  0  0.15  90.00
45  38  38  0  4.31  98.78  38  0  0.19  98.78
46  34  34  0  3.59  100.00  34  0  0.38  100.00
52  31  31  0  2.59  86.84  31  0  0.35  86.84
54  31  31  0  1.17  96.84  31  0  0.22  96.84
Weemag  75  56  30  30  0  1.55  99.82  30  0  0.45  99.82
Arcus 1  83  3786  21  21  0  1.03  100.00  21  0  0.30  100.00
3985  20  20  0  1.00  83.64  20  0  0.06  83.64
4206  19  19  0  1.08  89.82  19  0  0.07  89.82
4454  18  18  0  1.03  88.89  18  0  0.10  88.89
4732  17  17  0  1.02  92.75  17  0  0.28  92.75
5048  16  16  0  1.05  99.99  16  0  0.08  99.99
5408  15  15  0  1.08  94.81  15  0  0.12  94.81
5824  14  14  0  1.10  100.00  14  0  0.04  100.00
5853  13  14  7.69  1.05  79.01  13  0  0.06  89.63
6309  13  13  0  1.07  99.81  13  0  0.09  99.81
6842  12  12  0  1.03  92.57  12  0  0.19  92.57
6883  12  12  0  1.03  92.31  12  0  0.38  92.31
7571  11  11  0  1.04  98.18  11  0  0.35  98.18
8412  10  10  0  1.05  98.18  10  0  0.22  98.18
8898  9  9  0  1.03  90.00  9  0  0.45  90.00
10816  7  8  14.29  1.04  98.78  8  14.29  0.71  98.78
Scholl  297  1394  50  51  2.00  12.08  100.00  51  2.00  12.28  100.00
1452  48  49  2.08  16.10  86.84  49  2.08  11.08  86.84
1483  47  48  2.13  11.30  96.84  48  2.13  11.30  96.84
1515  46  47  2.17  11.55  99.82  47  2.17  11.55  99.82
1548  45  46  2.22  11.92  89.82  46  2.22  11.92  89.82
1584  44  45  2.27  11.63  88.89  45  2.27  11.63  88.89
1620  43  44  2.33  11.91  92.75  44  2.33  11.91  92.75
1659  42  43  2.38  11.97  99.99  43  2.38  11.97  99.99
1699  41  42  2.44  12.28  94.81  42  2.44  12.28  94.81
1742  40  41  2.50  11.08  100.00  41  2.50  11.08  100.00
1787  39  40  2.56  11.96  79.01  40  2.56  11.96  79.01
1834  38  39  2.63  11.45  99.81  39  2.63  11.55  99.81
1883  37  38  2.70  12.22  92.57  38  2.70  12.30  92.57
1935  36  37  2.77  12.30  92.31  37  2.77  12.10  92.31
>1991  >35  >36  >2.86  >12.10  >98.18  >36  >2.86  >11.55  >98.18
2049  34  35  2.94  11.55  98.18  35  2.94  12.03  98.18
2111  33  34  3.03  12.30  90.00  34  3.03  12.85  90.00
Scholl  297  2177  32  33  3.13  12.10  98.78  33  3.13  11.55  98.78
2247  31  32  3.23  11.55  100.00  32  3.23  11.92  100.00
2322  30  31  3.33  12.03  86.84  31  3.33  11.63  86.84
2402  29  30  3.45  12.85  96.84  30  3.45  11.91  96.84
2488  28  29  3.57  12.84  99.82  29  3.57  11.97  99.82
2580  27  28  3.70  12.81  92.57  28  3.7  12.28  92.57
2680  26  27  3.85  11.77  92.31  27  3.85  11.08  92.31
2787  25  26  4.00  12.63  98.18  26  4.00  11.99  98.18
Total Optimal Solution (or Lower Bound) Found from 62 Problem Instances  35  1.49/inst.  5.70/inst.  94.61/inst.  36  0.94/inst.  4.88/inst.  95.51/inst.
© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Share and Cite
Sresracoo, P.; Kriengkorakot, N.; Kriengkorakot, P.; Chantarasamai, K. UShaped Assembly Line Balancing by Using Differential Evolution Algorithm. Math. Comput. Appl. 2018, 23, 79. https://doi.org/10.3390/mca23040079
Sresracoo P, Kriengkorakot N, Kriengkorakot P, Chantarasamai K. UShaped Assembly Line Balancing by Using Differential Evolution Algorithm. Mathematical and Computational Applications. 2018; 23(4):79. https://doi.org/10.3390/mca23040079
Chicago/Turabian StyleSresracoo, Poontana, Nuchsara Kriengkorakot, Preecha Kriengkorakot, and Krit Chantarasamai. 2018. "UShaped Assembly Line Balancing by Using Differential Evolution Algorithm" Mathematical and Computational Applications 23, no. 4: 79. https://doi.org/10.3390/mca23040079
