# Surrogate-Based Optimization Using an Open-Source Framework: The Bulbous Bow Shape Optimization Case

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

- How to efficiently and accurately simulate the physics involved.
- How to modify the geometry or mesh.
- How to search the optimal configuration.
- How to interface the applications involved in the optimization loop.

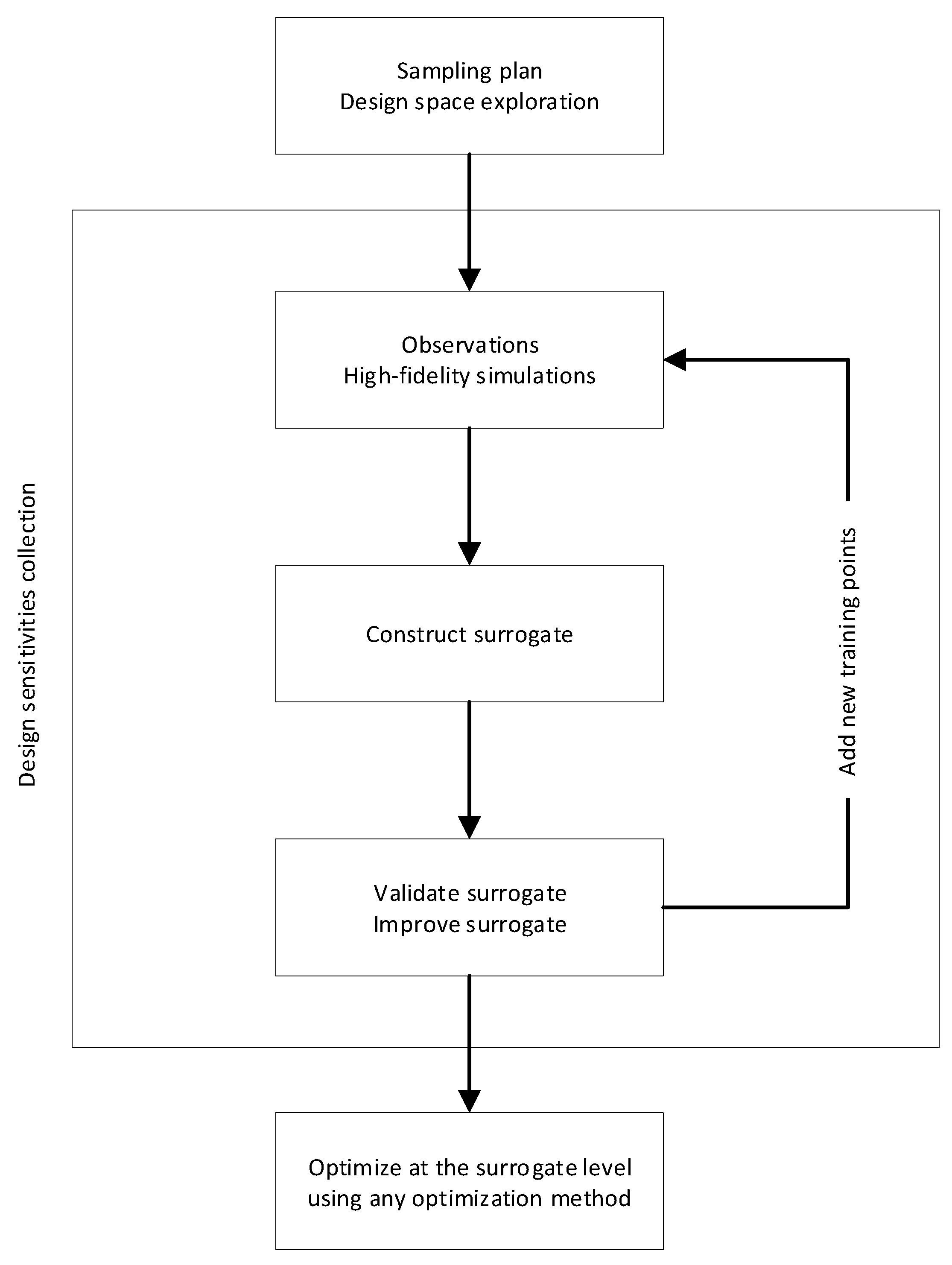

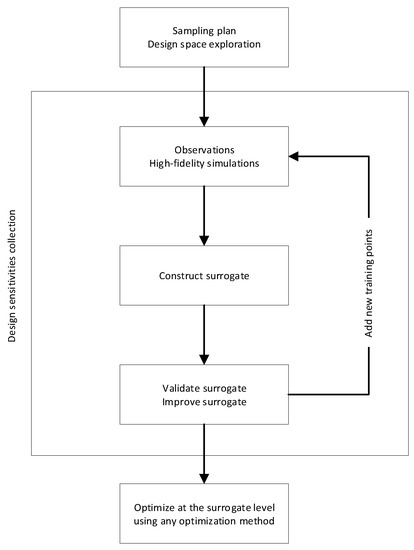

## 2. Description of the Optimization Framework and Optimization Strategy

## 3. Description of the CFD Model

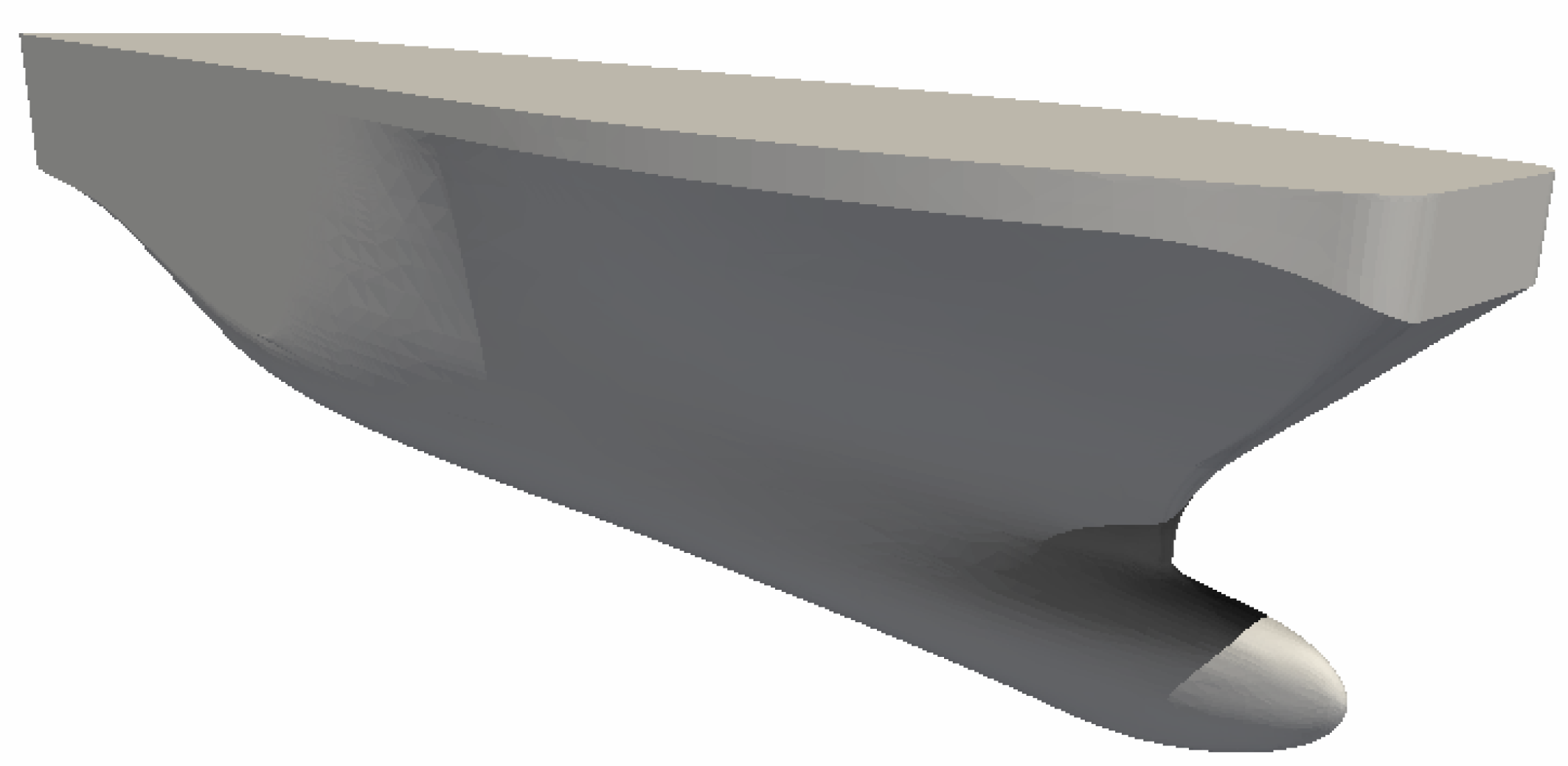

#### 3.1. Reference Geometry and Modeling Assumptions

- All simulations were performed at model scale (1/20).
- No propeller nor appendages were modeled (bare hull).
- Only half of the hull was simulated (we used symmetry).
- A fixed trim condition of zero degrees was imposed.
- All the simulations were conducted in calm water conditions and no incoming waves.
- The thermophysical properties of the working fluids are constant (refer to Table 2).
- The simulations were conducted at the same Froude number as in the towing tank experiments.

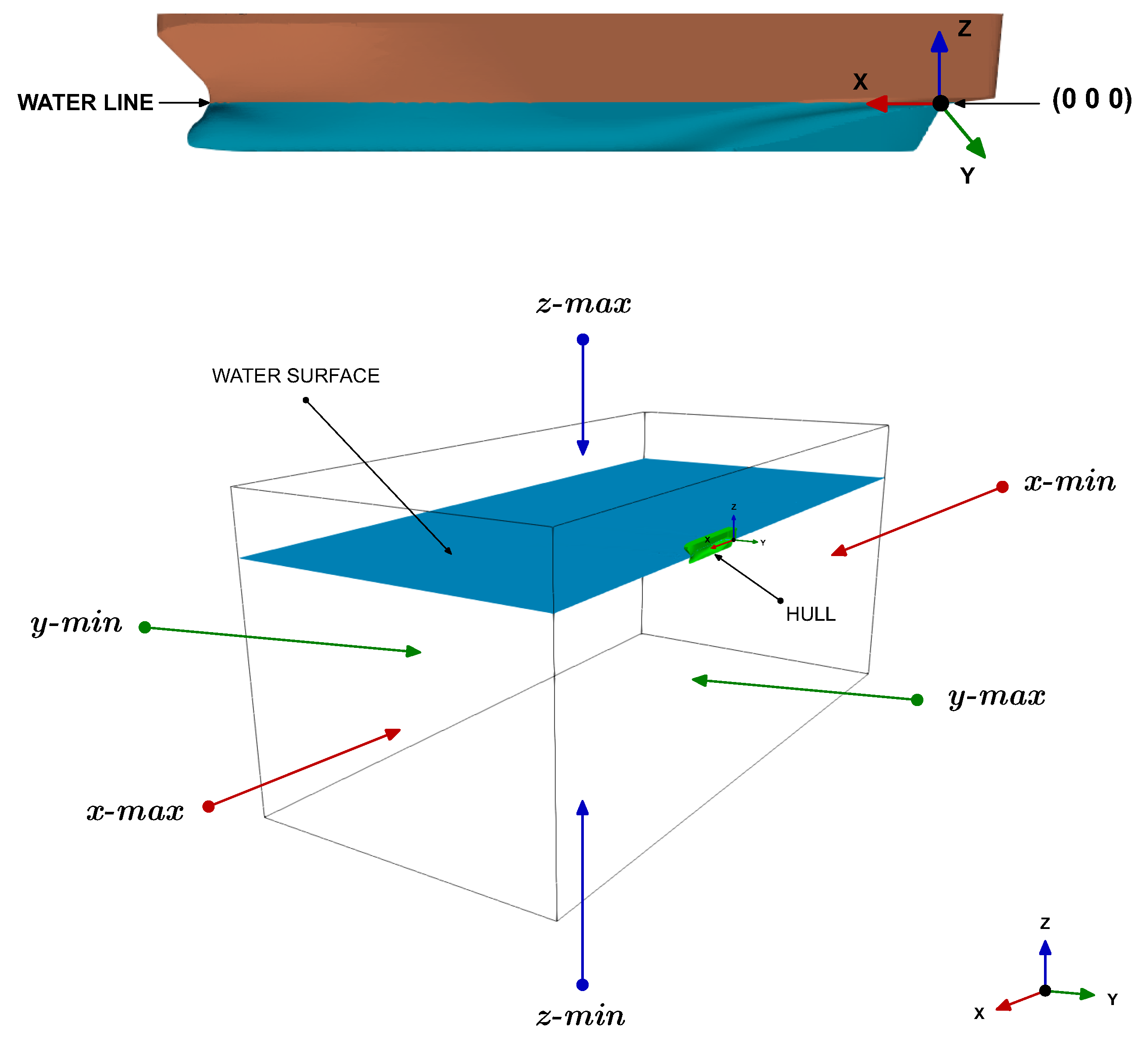

#### 3.2. Computational Domain and Boundary Conditions

#### 3.3. Numerical Schemes

## 4. Calibration and Validation of the Solver

## 5. Results and Discussion

## 6. Conclusions and Future Perspectives

## Author Contributions

## Acknowledgments

## Conflicts of Interest

## References

- Gaggero, S.; Tani, G.; Villa, D.; Viviani, M.; Ausonio, P.; Travi, P.; Bizzarri, G.; Serra, F. Efficient and multi-objective cavitating propeller optimization: An application to a high-speed craft. Appl. Ocean Res.
**2017**, 64, 31–57. [Google Scholar] [CrossRef] - Vesting, F.; Bensow, R.E. On surrogate methods in propeller optimization. Ocean Eng.
**2014**, 88, 214–227. [Google Scholar] [CrossRef] - Paik, B.G.; Kim, G.D.; Kim, K.Y.; Seol, H.S.; Hyun, B.S.; Lee, S.G.; Jung, Y.R. Investigation on the performance characteristics of the flexible propellers. Ocean Eng.
**2013**, 73, 139–148. [Google Scholar] [CrossRef] - Gaggero, S.; Gonzalez-Adalid, J.; Sobrino, M. Design and analysis of a new generation of CLT propellers. Appl. Ocean Res.
**2016**, 59, 424–450. [Google Scholar] [CrossRef] - Vernengo, G.; Bonfiglio, L.; Gaggero, S.; Brizzolara, S. Physics-Based Design by Optimization of Unconventional Supercavitating Hydrofoils. J. Ship Res.
**2016**, 60, 187–202. [Google Scholar] [CrossRef] - Harries, S. Parametric Design and Hydrodynamic Optimization of Ship Hull Forms; Mensch-und-Buch-Verlag: Berlin, Germany, 1998. [Google Scholar]
- Campana, E.; Peri, D.; Tahara, Y.; Stern, F. Shape optimization in ship hydrodynamics using computational fluid dynamics. Comput. Methods Appl. Mech. Eng.
**2006**, 196, 634–651. [Google Scholar] [CrossRef] - Tahara, Y.; Peri, D.; Campana, E.; Stern, F. Computational fluid dynamics-based multi-objective optimization of a surface combatant using a global optimization method. J. Mar. Sci. Technol.
**2008**, 13, 95–116. [Google Scholar] [CrossRef] - Biliotti, I.; Brizzolara, S.; Viviani, M.; Vernengo, G.; Ruscelli, D.; Galliussi, M.; Guadalupi, D.; Manfredini, A. Automatic parametric hull form optimization of fast naval vessels. In Proceedings of the 11th International Conference on Fast Sea Transportation, Honolulu, HI, USA, 26–29 September 2011. [Google Scholar]
- Vernengo, G.; Brizzolara, S.; Bruzzone, D. Resistance and sea-keeping optimization of a fast multi-hull passenger ferry. Int. J. Offshore Polar Eng.
**2015**, 25, 26–34. [Google Scholar] - Tahara, Y.; Peri, D.; Campana, E.; Stern, F. Single- and multi-objective design optimization of a fast multi-hull ship: Numerical and experimental results. J. Mar. Sci. Technol.
**2011**, 16, 412–433. [Google Scholar] [CrossRef] - Vernengo, G.; Brizzolara, S. Numerical investigation on the hydrodynamic performance of fast SWATHs with optimum canted struts arrangements. Appl. Ocean Res.
**2017**, 63, 76–89. [Google Scholar] [CrossRef] - Serani, A.; Leotardi, C.; Iemma, U.; Campana, E.; Fasano, G.; Diez, M. Parameter selection in synchronous and asynchronous deterministic particle swarm optimization for ship hydrodynamics problems. Appl. Soft Comput.
**2016**, 49, 313–334. [Google Scholar] [CrossRef][Green Version] - Chen, X.; Diez, M.; Kandasamy, M.; Zhang, Z.; Campana, E.; Stern, F. High-fidelity global optimization of shape design by dimensionality reduction, meta-models and deterministic particle swarm. Eng. Optim.
**2015**, 47, 473–494. [Google Scholar] [CrossRef] - Peri, D.; Tinti, F. A multi-start gradient-based algorithm with surrogate model for global optimization. Commun. Appl. Ind. Math.
**2012**, 3, 1–22. [Google Scholar] - Demo, N.; Tezzele, M.; Gustin, G.; Lavini, G.; Rozza, G. Shape optimization by means of proper orthogonal decomposition and dynamic mode decomposition. In Proceedings of the NAV 2018, Trieste, Italy, 20–22 June 2018; pp. 212–219. [Google Scholar]
- Umetani, N.; Bickel, B. Learning Three-dimensional Flow for Interactive Aerodynamic Design. ACM Trans. Graph.
**2018**, 37. [Google Scholar] [CrossRef] - Li, J.; Bouhlel, M.A.; Martins, J.R.R.A. A data-based approach for fast airfoil analysis and optimization. In Proceedings of the 2018 AIAA/ASCE/AHS/ASC Structures, Structural Dynamics, and Materials Conference, Kissimmee, FL, USA, 8–12 January 2018. [Google Scholar]
- Matejka, J.; Glueck, M.; Bradner, E.; Hashemi, A.; Grossman, T.; Fitzmaurice, G. Dream Lens: Exploration and Visualization of Large-Scale Generative Design Datasets. In Proceedings of the ACM CHI Conference on Human Factors in Computing Systems, Montreal, QC, Canada, 21–26 April 2018. [Google Scholar]
- Kracht, A.M. Design of bulbous bow. SNAME Trans.
**1978**, 86, 197–217. [Google Scholar] - Huang, F.; Yang, C. Hull form optimization of a cargo ship for reduced drag. J. Hydrodyn. Ser. B
**2016**, 28, 173–183. [Google Scholar] [CrossRef] - Lu, Y.; Chang, X.; Hu, A. A hydrodynamic optimization design methodology for a ship bulbous bow under multiple operating conditions. Eng. Appl. Comput. Fluid Mech.
**2016**, 10, 330–345. [Google Scholar] [CrossRef] - Mahmood, S.; Huang, D. Computational fluid dynamics based bulbous bow optimization using a genetic algorithm. J. Mar. Sci. Appl.
**2012**, 11, 286–294. [Google Scholar] [CrossRef] - Luo, W.; Lan, L. Design Optimization of the Lines of the Bulbous Bow of a Hull Based on Parametric Modeling and Computational Fluid Dynamics Calculation. Math. Comput. Appl.
**2017**, 22, 4. [Google Scholar] [CrossRef] - Bolbot, V.; Papanikolaou, A. Parametric, multi-objective optimization of ship’s bow for the added resistance in waves. Ship Technol. Res.
**2016**, 63, 171–180. [Google Scholar] [CrossRef] - OpenFOAM Web Page. Available online: http://openfoam.com (accessed on 12 October 2018).
- Mimmo Web Page. Available online: http://optimad.github.io/mimmo (accessed on 12 October 2018).
- Dakota Web Page. Available online: https://dakota.sandia.gov/ (accessed on 12 October 2018).
- Spisso, I. Parametric and Optimization Study: OpenFOAM and Dakota. In Proceedings of the Workshop on HPC Enabling of OpenFOAM for CFD Applications, Bologna, Italy, 26–28 November 2012. [Google Scholar]
- Geremia, P. Industrial design optimization using open source tools. In Proceedings of the 6th OpenFOAM® Workshop, University Park, PA, USA, 13–16 June 2011. [Google Scholar]
- Geremia, P.; de Villiers, E. Open source software tools for powertrain optimization. In Proceedings of the 6th OpenFOAM® Workshop, University Park, PA, USA, 13–16 June 2011. [Google Scholar]
- Skuric, V.; Uroic, T.; Rusche, H. Multi-objective optimization of a tube bundle heat exchanger. In Proceedings of the 9th OpenFOAM® Workshop, Zagreb, Croatia, 23–26 June 2014. [Google Scholar]
- Byrne, J.; Cardiff, P.; Brabazon, A.; O’Neill, M. Evolving parametric aircraft models for design exploration. J. Neurocomput.
**2014**, 142, 39–47. [Google Scholar] [CrossRef] - Ohm, A.; Tetursson, H. Automated CFD Optimization of a Small Hydro Turbine for Water Distribution Networks; Chalmers University of Technology: Göteborg, Sweden, 2017. [Google Scholar]
- Oh, J.T.; Chien, N.B. Optimization design by coupling computational fluid dynamics and genetic algorithm. In Computational Fluid Dynamics; IntechOpen: London, UK, 2018. [Google Scholar]
- Lee, W.H.; Oh, S.H.; Lee, S.D. Deciding optimal parameter for internal wavemaker using coupling of Dakota and OpenFOAM. In Proceedings of the 13th OpenFOAM® Workshop, Shanghai, China, 24–29 June 2018. [Google Scholar]
- Slotnick, J.; Khodadoust, A.; Alonso, J.; Darmofal, D.; Gropp, W.; Lurie, E.; Mavriplis, D. CFD Vision 2030 Study: A Path To Revolutionary Computational Aerosciences; NASA: Hampton, VA, USA, 2014.
- Adams, B.M.; Ebeida, M.S.; Eldred, M.S.; Geraci, G.; Jakeman, J.D.; Maupin, K.A.; Monschke, J.A.; Swiler, L.P.; Stephens, J.A.; Vigil, D.M.; et al. Dakota, A Multilevel Parallel Object-Oriented Framework for Design Optimization, Parameter Estimation, Uncertainty Quantification, and Sensitivity Analysis: Version 6.5 User Manual; Sandia National Laboratories: Albuquerque, NM, USA, 2014.
- Scardigli, A.; Arpa, R.; Chiarini, A.; Telib, H. Enabling of Large Scale Aerodynamic Shape Optimization through POD-Based Reduced-Order Modeling and Free Form Deformation. In Proceedings of the EUROGEN 2015, Glasgow, UK, 14–16 September 2015. [Google Scholar]
- Crane, K.; Weischedel, C.; Wardetzky, M. Geodesics in Heat: A New Approach to Computing Distance Based on Heat Flow. ACM Trans. Graph.
**2013**, 32, 1–11. [Google Scholar] [CrossRef] - Buhmann, M.D. Radial Basis Function: Theory and Implementations; Cambrige University Press: Cambrige, UK, 2003. [Google Scholar]
- Salmoiraghi, F.; Scardigli, A.; Telib, H.; Rozza, G. Free-form deformation, mesh morphing and reduced-order methods: enablers for efficient aerodynamic shape optimisation. Int. J. Comput. Fluid Dyn.
**2018**. [Google Scholar] [CrossRef] - Weller, H.G.; Tabor, G.; Jasak, H.; Fureby, C. A tensorial approach to computational continuum mechanics using object-oriented techniques. Comput. Phys.
**1998**, 12, 620–631. [Google Scholar] [CrossRef] - Forrester, A.; Sobester, A.; Keane, A. Engineering Design via Surrogate Modeling. A Practical Guide; Wiley: New York, NY, USA, 2008. [Google Scholar]
- Dalbey, K.R. Efficient and Robust Gradient Enhanced Kriging Emulators; Sandia National Laboratories: Albuquerque, NM, USA, 2013.
- Jones, D.R.; Schonlau, M.; Welch, W.J. Efficient global optimization of expensive black-box functions. J. Glob. Optim.
**1998**, 13, 455–492. [Google Scholar] [CrossRef] - Iuliano, E.; Perez, E.A. Application of Surrogate-Based Global Optimization to Aerodynamic Design; Springer: Basel, Switzerland, 2016. [Google Scholar]
- Oliver, M.; Webster, R. Kriging: A Method of Interpolation for Geographical Information Systems. Int. J. Geogr. Inf. Syst.
**1990**, 4, 313–332. [Google Scholar] [CrossRef] - Adams, B.M.; Ebeida, M.S.; Eldred, M.S.; Geraci, G.; Jakeman, J.D.; Maupin, K.A.; Monschke, J.A.; Swiler, L.P.; Stephens, J.A.; Vigil, D.M.; et al. Dakota, A Multilevel Parallel Object-Oriented Framework for Design Optimization, Parameter Estimation, Uncertainty Quantification, and Sensitivity Analysis: Version 6.5 Theory Manual; Sandia National Laboratories: Albuquerque, NM, USA, 2014.
- Dalbey, K.R.; Giunta, A.A.; Richards, M.D.; Cyr, E.C.; Swiler, L.P.; Brown, S.L.; Eldred, M.S.; Adams, B.M. Surfpack User’s Manual Version 1.1; Sandia National Laboratories: Albuquerque, NM, USA, 2013.
- Giunta, A.A.; Watson, L. A comparison of approximation modeling techniques: polynomial versus interpolating models. In Proceedings of the 7th AIAA/USAF/NASA/ISSMO Symposium on Multidisciplinary Analysis and Optimization, St. Louis, MO, USA, 2–4 September 1998. [Google Scholar]
- Romero, V.J.; Sqiler, L.P.; Giunta, A.A. Construction of response surfaces based on progressive lattice-sampling experimental designs. Struct. Saf.
**2004**, 26, 201–219. [Google Scholar] [CrossRef] - Zoutendijk, G. Methods of Feasible Directions: A Study in Linear and Non-Linear Programming; Elsevier: Amsterdam, The Netherlands, 1960. [Google Scholar]
- Gen, M.; Cheng, R. Genetic Algorithms and Engineering Optimization; Wiley-Interscience: New York, NY, USA, 2000. [Google Scholar]
- Vassiliadis, V.S.; Conejeros, R. Broyden family methods and the BFGS update. In Encyclopedia of Optimization; Floudas, C.A., Pardalos, P.M., Eds.; Springer: Boston, MA, USA, 2008. [Google Scholar]
- Jones, D.R.; Perttunen, C.D.; Stuckman, B.E. Lipschitzian optimization without the Lipschitz constant. J. Optim. Theory Appl.
**1993**, 79, 157–181. [Google Scholar] [CrossRef] - Guerrero, J.; Bailardi, G.; Kifle, H. Visual storytelling and data visualization in numerical simulations. In Proceedings of the 11th OpenFOAM® Workshop, Guimarães, Portugal, 26–30 June 2016. [Google Scholar]
- Guerrero, J. Opportunities and Challenges in CFD Optimization: Open Source Technology and the Cloud. In Proceedings of the Sixth Symposium on OpenFOAM® in Wind Energy, Gotland, Sweden, 13–14 June 2018. [Google Scholar]
- Wilcox, D.C. Turbulence Modeling for CFD; DCW Industries: La Cañada Flintridge, CA, USA, 2010. [Google Scholar]
- Practical Guidelines for Ship Resistance CFD. Available online: https://ittc.info/media/4198/75-03-02-04.pdf (accessed on 12 October 2018).

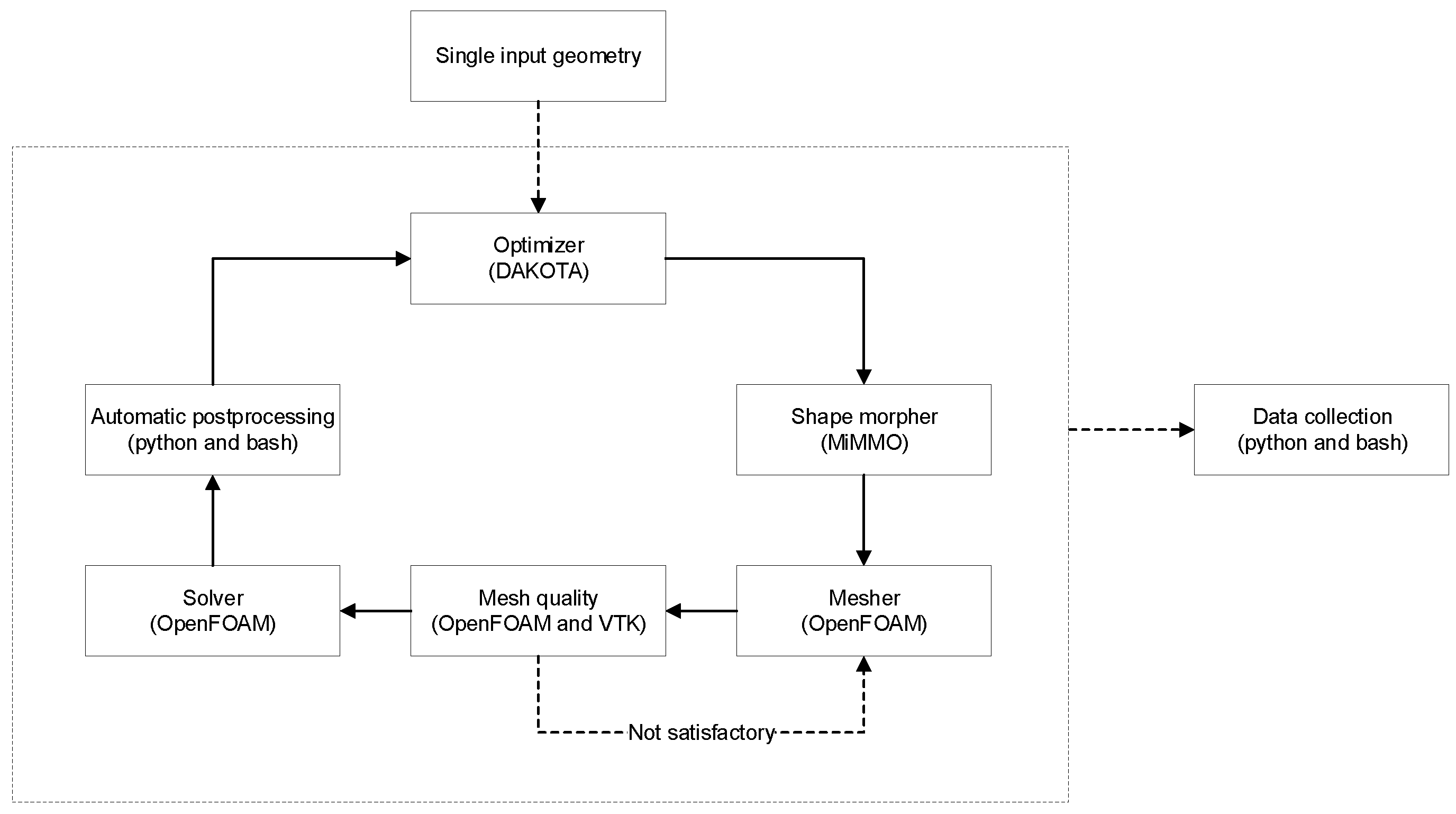

**Figure 1.**Optimization loop. Notice that it only takes one single geometry. During the whole optimization loop, data are continuously collected.

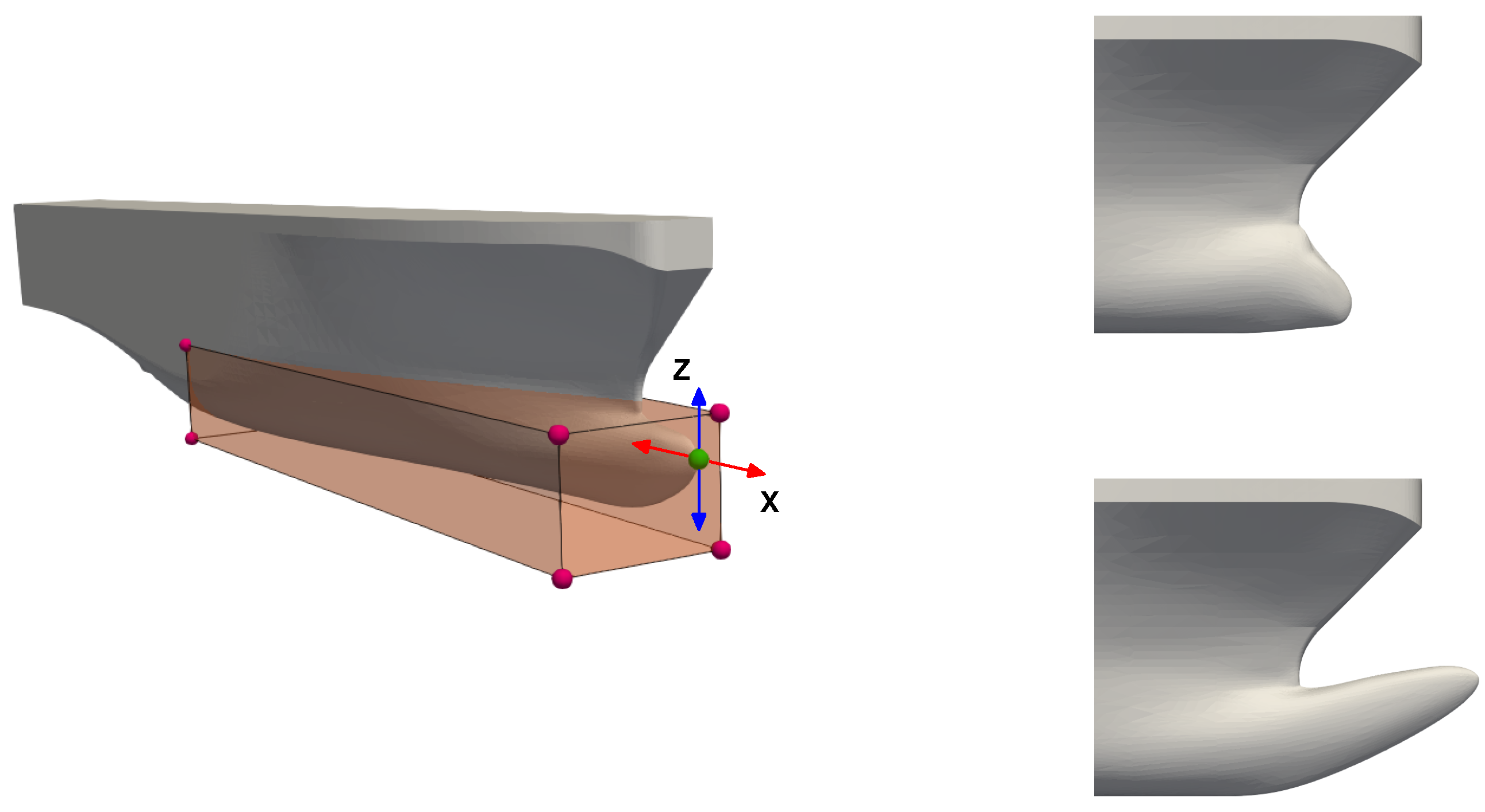

**Figure 2.**Left: undeformed geometry. The green sphere represents the control point used to deform the geometry; this control point can move in the plane XZ. The surface region within the selection box is free to deform. Right: two deformed geometries.

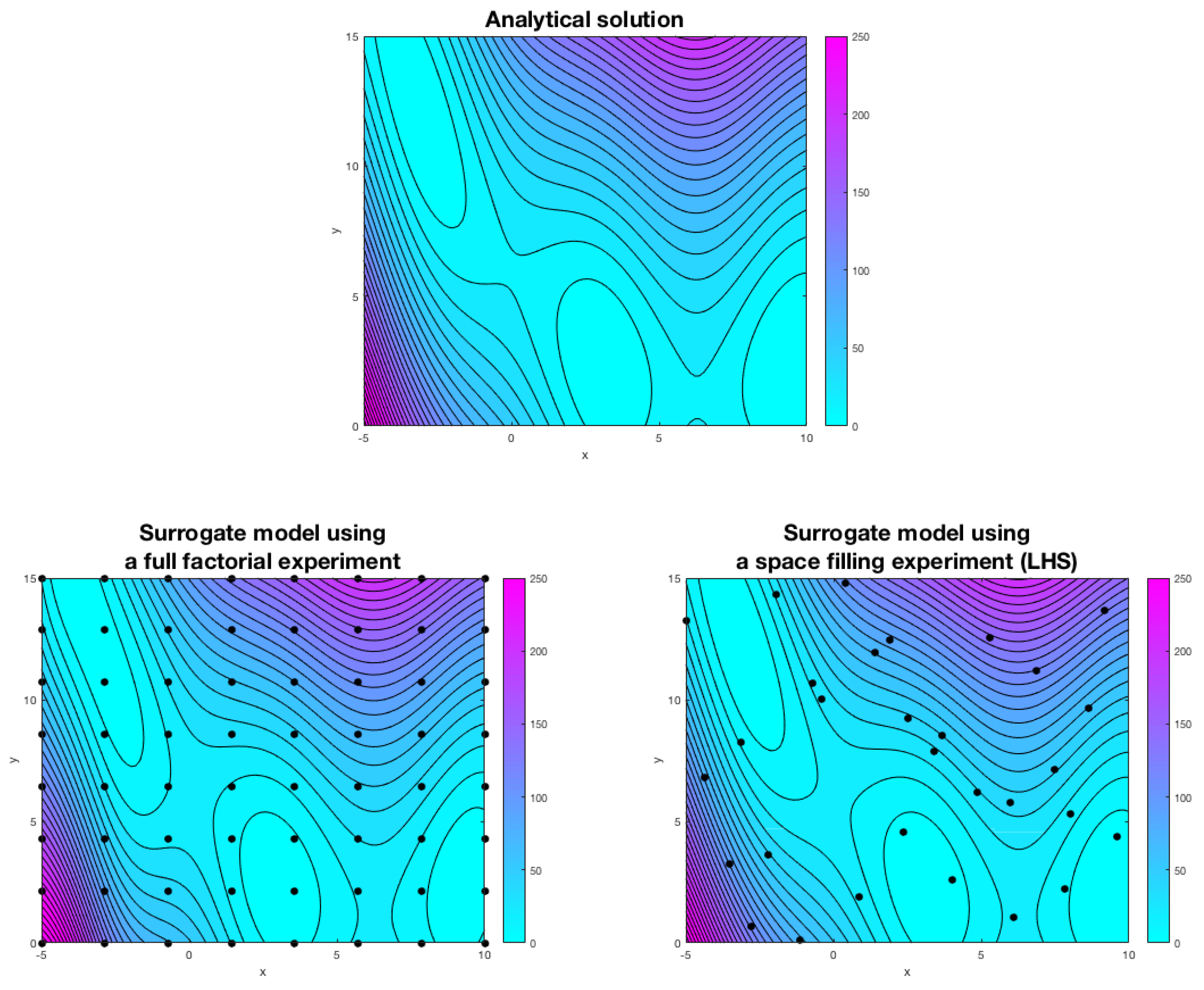

**Figure 4.**Top: analytical solution. Bottom-left: surrogate model using a full-factorial experiment with 64 training points. Bottom-right: surrogate model using a space-filling experiment with 30 training points (Latin hypercube sampling, LHS).

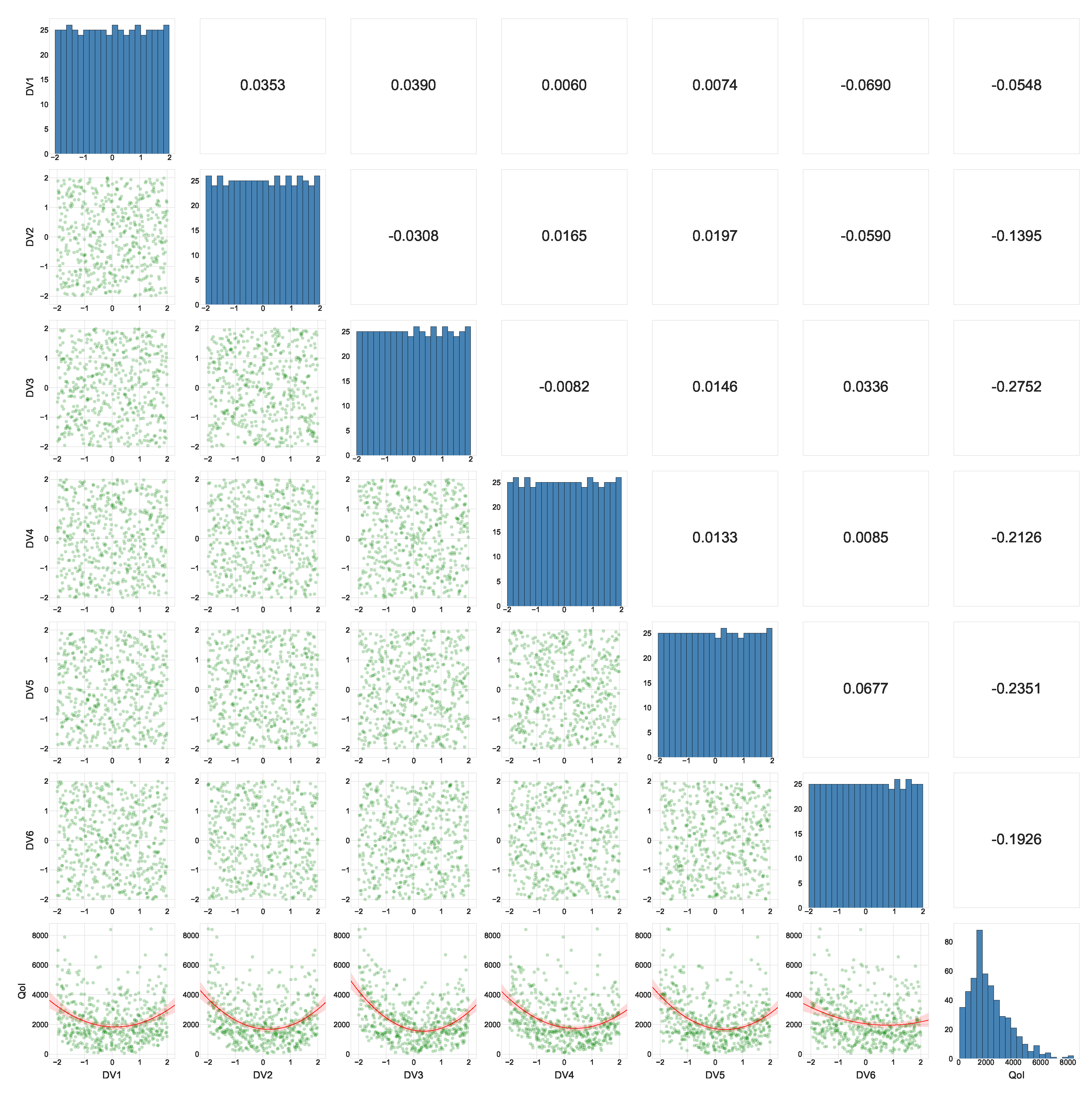

**Figure 5.**Scatterplot matrix of the high-dimensional Rosenbrock function space exploration study ($d=6$). The Spearman correlation is shown in the upper triangular part of the matrix. In the diagonal of the matrix, the histograms showing the data distribution are displayed. In the lower triangular part of the matrix, the data distribution is shown using scatterplots. In the last row of the matrix plot, the response of the quantity of interest (QoI) in function of the design variables is illustrated, together with a quadratic regression model.

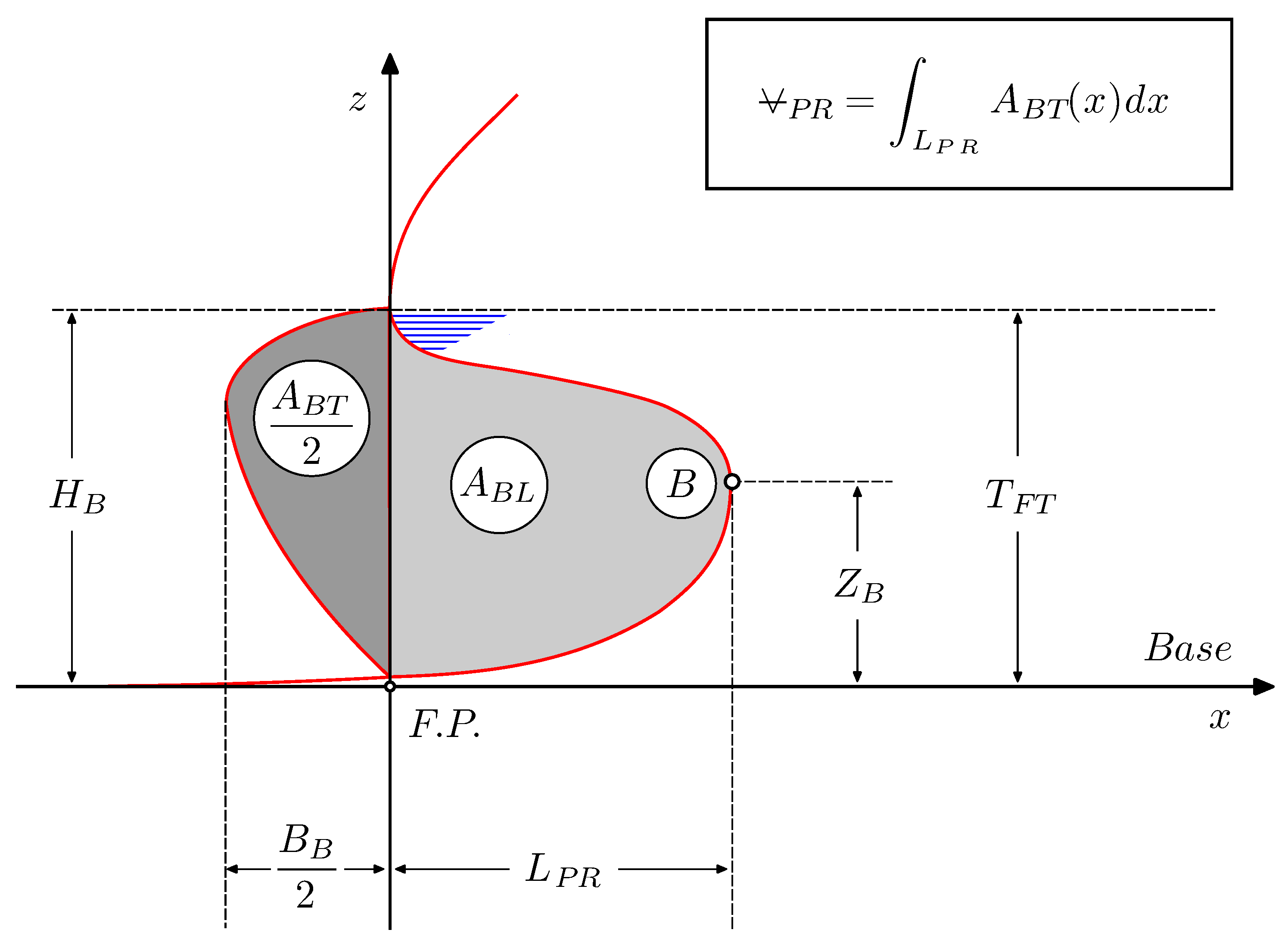

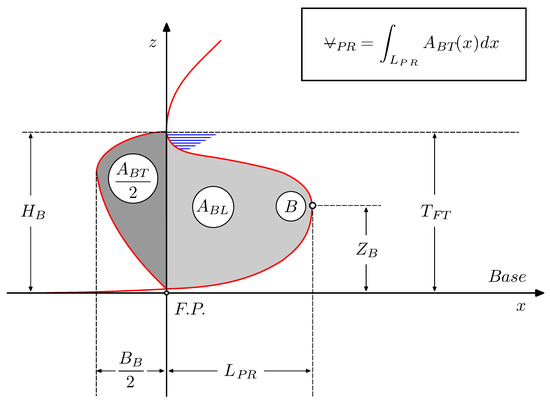

**Figure 7.**Sketch showing the characteristic lengths used to define the geometry parameters. Adapted from Reference [20].

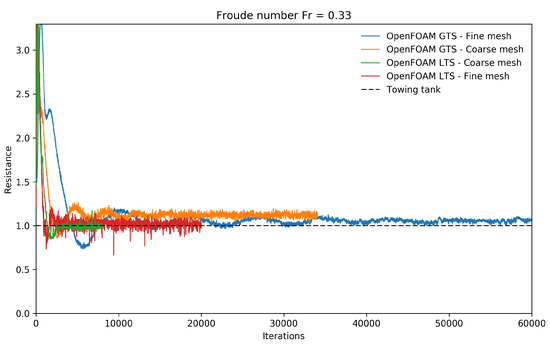

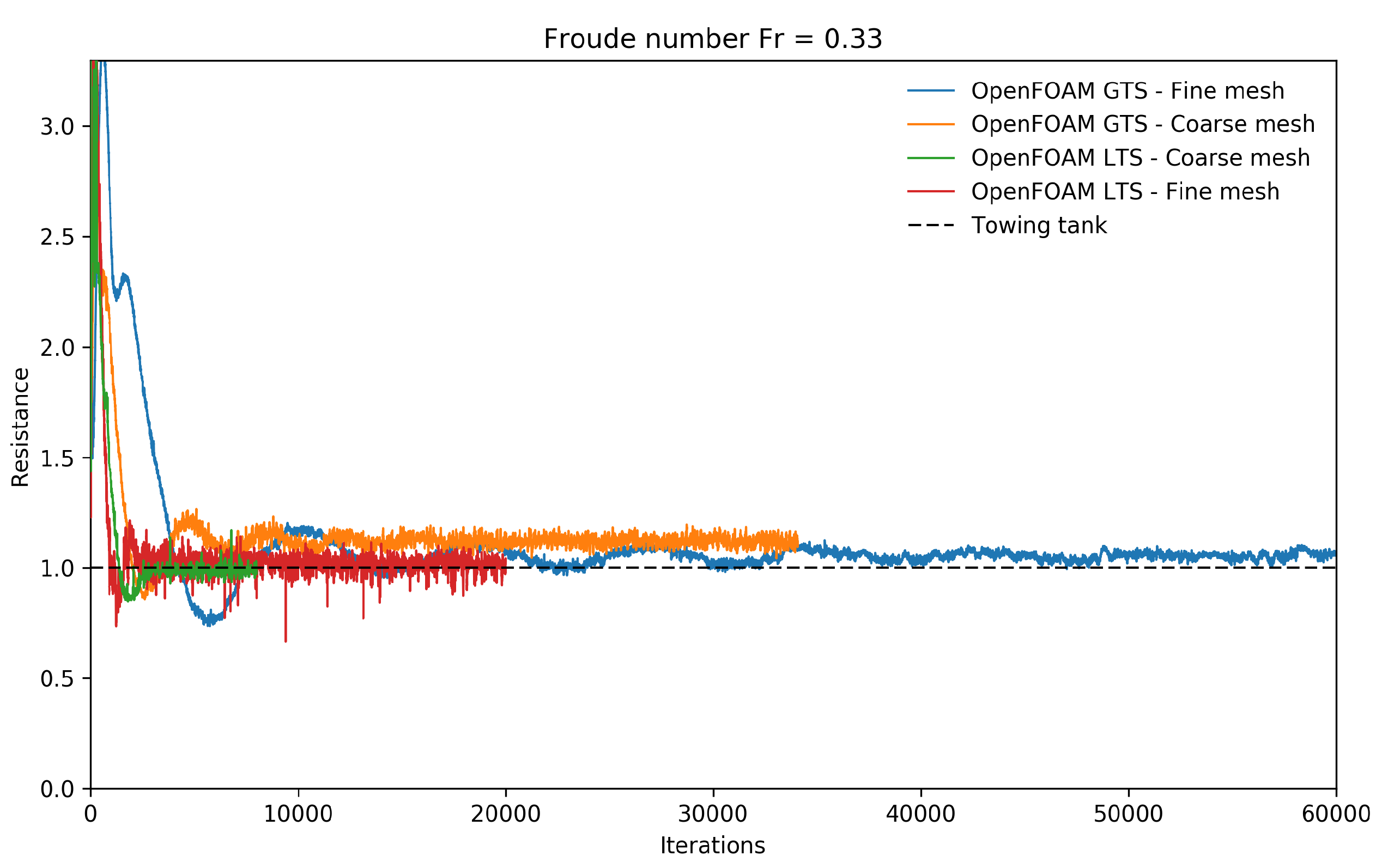

**Figure 9.**Comparison of the normalized resistance as a function of the iteration number for the coarse and fine meshes. In the legend, LTS (local time-stepping) corresponds to the steady solution, and GTS (global time-stepping, i.e., a time-step identical for all control volumes) corresponds to the transient solutions.

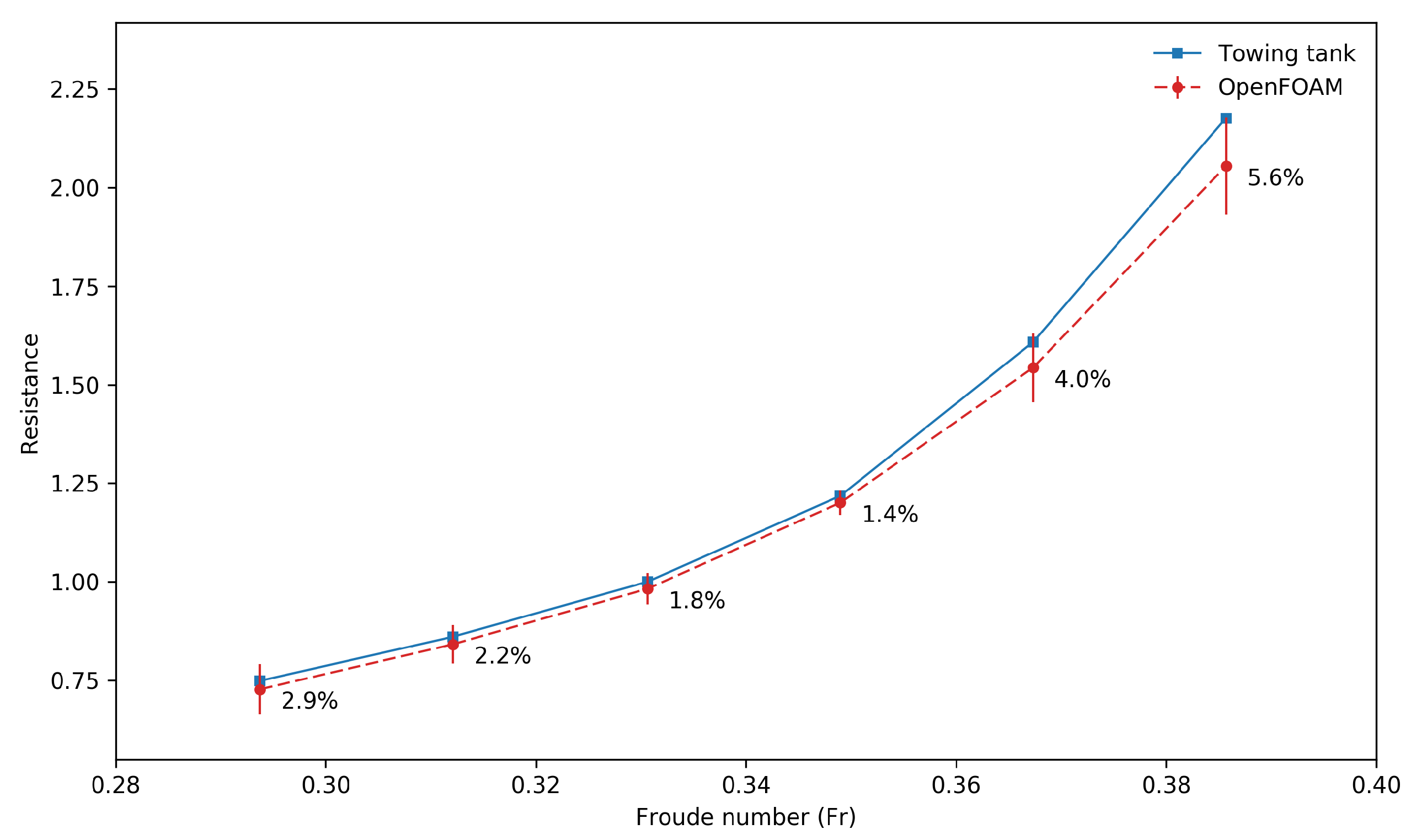

**Figure 10.**Comparison of the normalized resistance as a function of the Froude number. The numbers next to the markers indicate the percentage error between the numerical results and the experimental data.

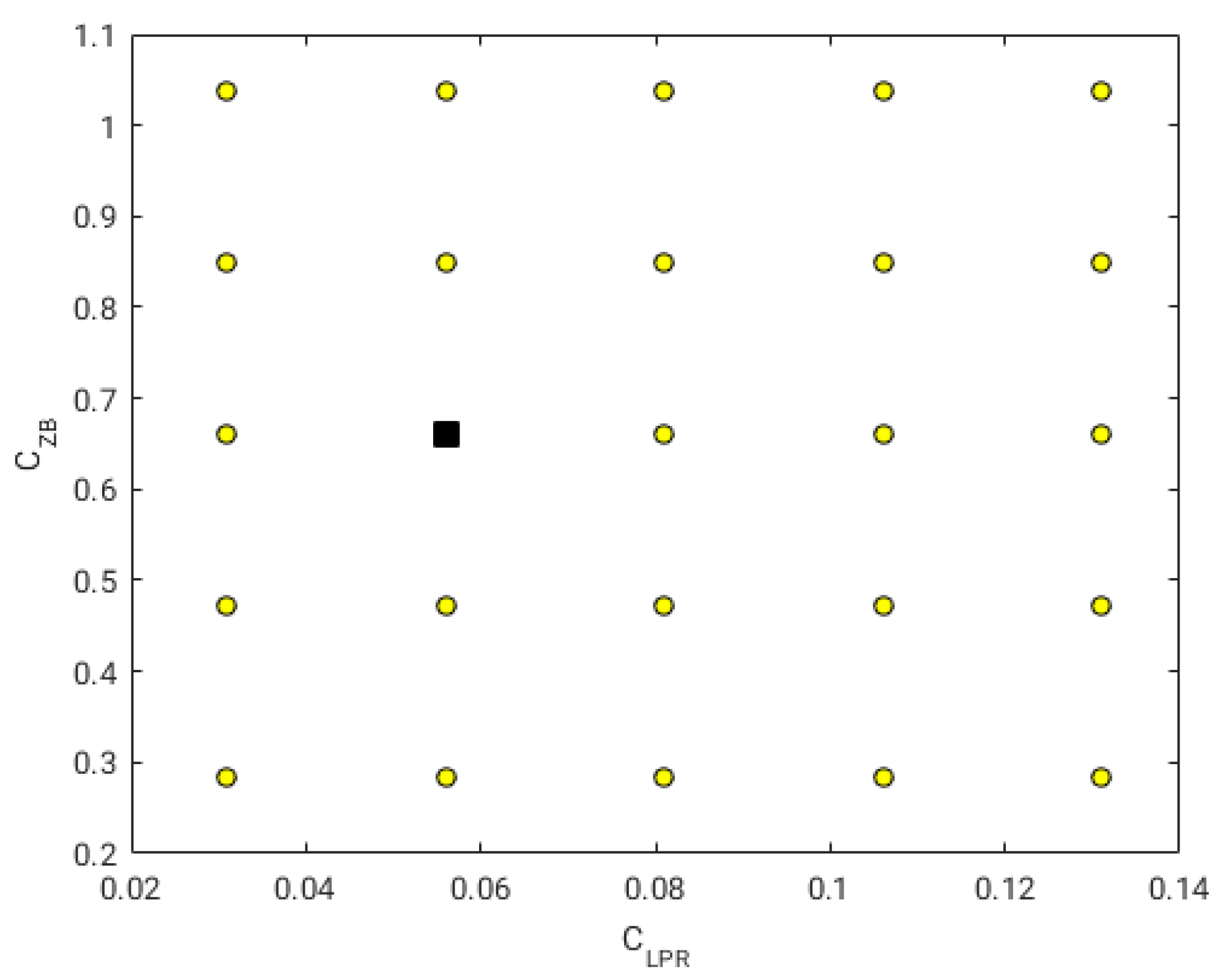

**Figure 11.**Sampling plan used in this study. The square represents the original geometry, whereas the circles represent the different geometry variations. Every point in the sampling plan represents a location where a high-fidelity computation was computed. All the simulations were conducted at a Froude number of 0.294.

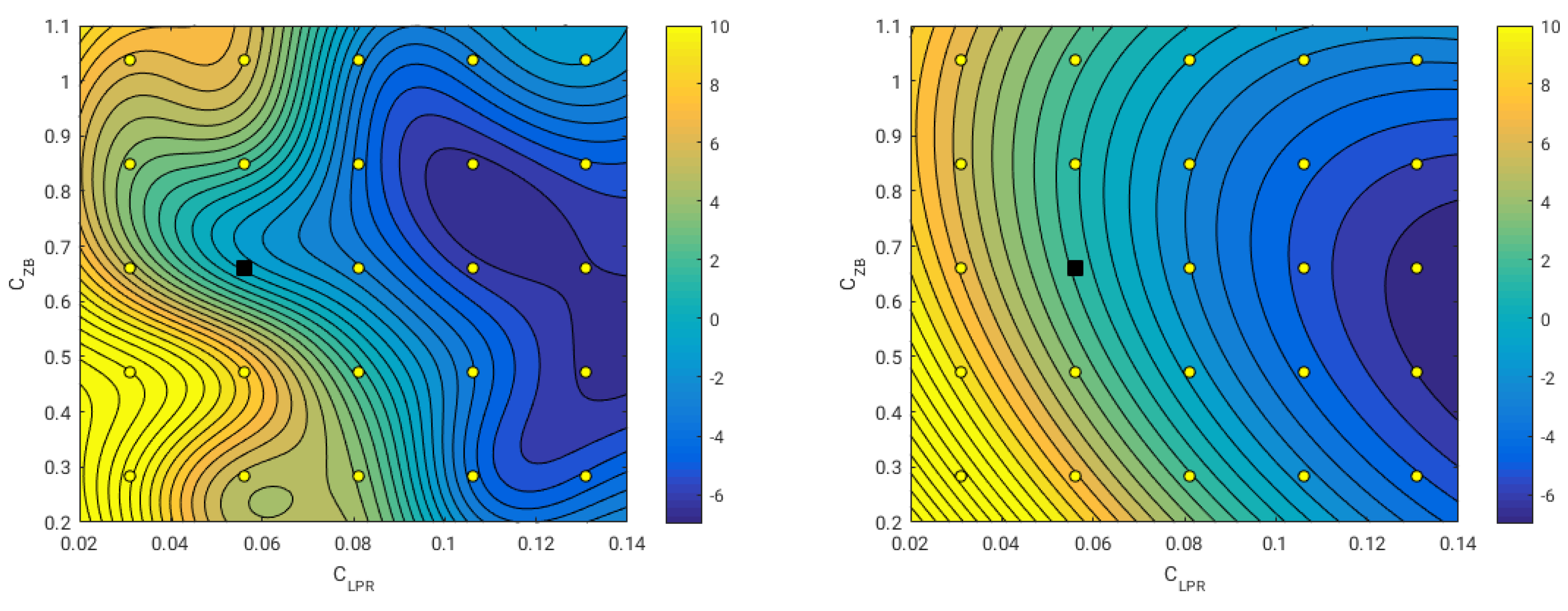

**Figure 12.**Left: surrogate model constructed using Kriging interpolation. Right: surrogate model constructed using quadratic polynomial interpolation. In the image, the uniform spaced points represent the locations where the high-fidelity computations were computed. The square represents the starting geometry and the circles represent the new geometries. In both images, the color scale represents the resistance variation in reference to the original geometry (where negative values indicate resistance reduction, and positive values indicate resistance increment).

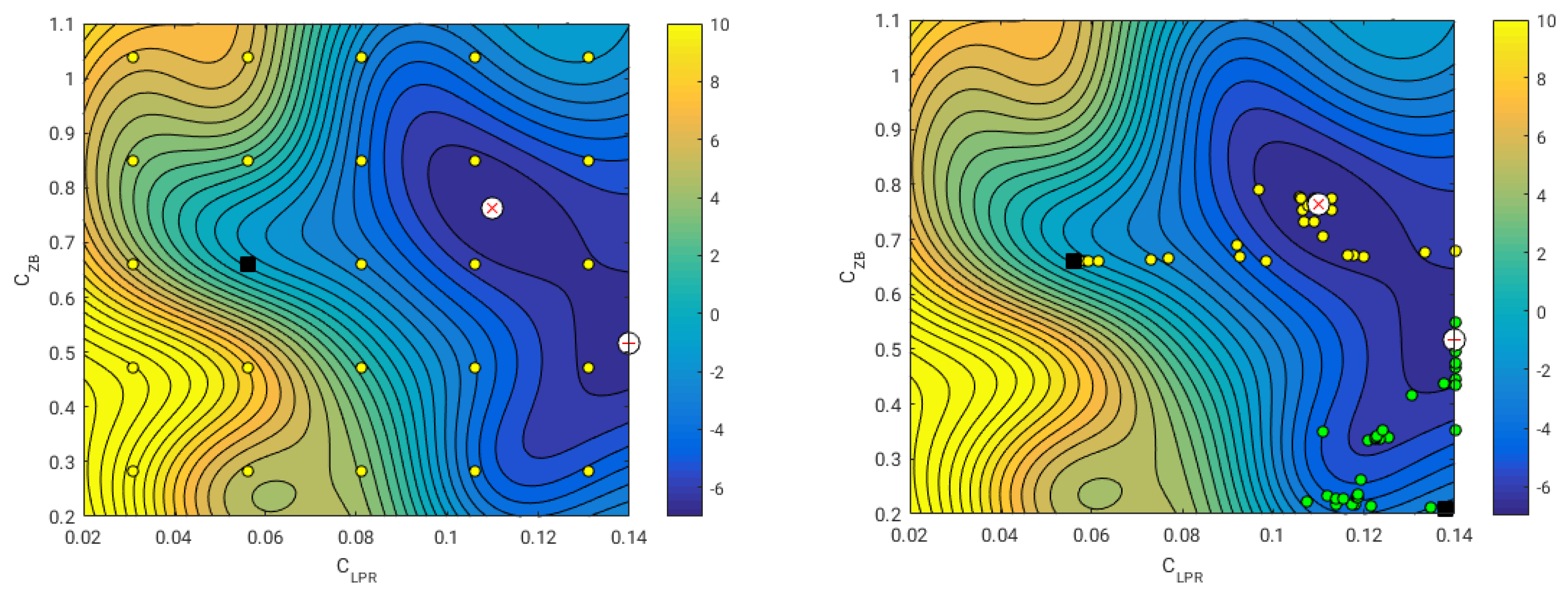

**Figure 13.**Left: the × symbol represents the global minimum, and the + symbol represents the local minimum. The square represents the starting geometry and the circles represent the new geometries. Right: the two squares represent two different starting points of the optimization algorithm. The yellow circles represent the path followed by the gradient-based algorithm when starting from the topmost position, whereas the green circles represent the path followed by the gradient-based algorithm when starting from the bottom-most position. In both images, the color scale represents the resistance variation in reference to the original geometry (where negative values indicate resistance reduction, and positive values indicate resistance increment).

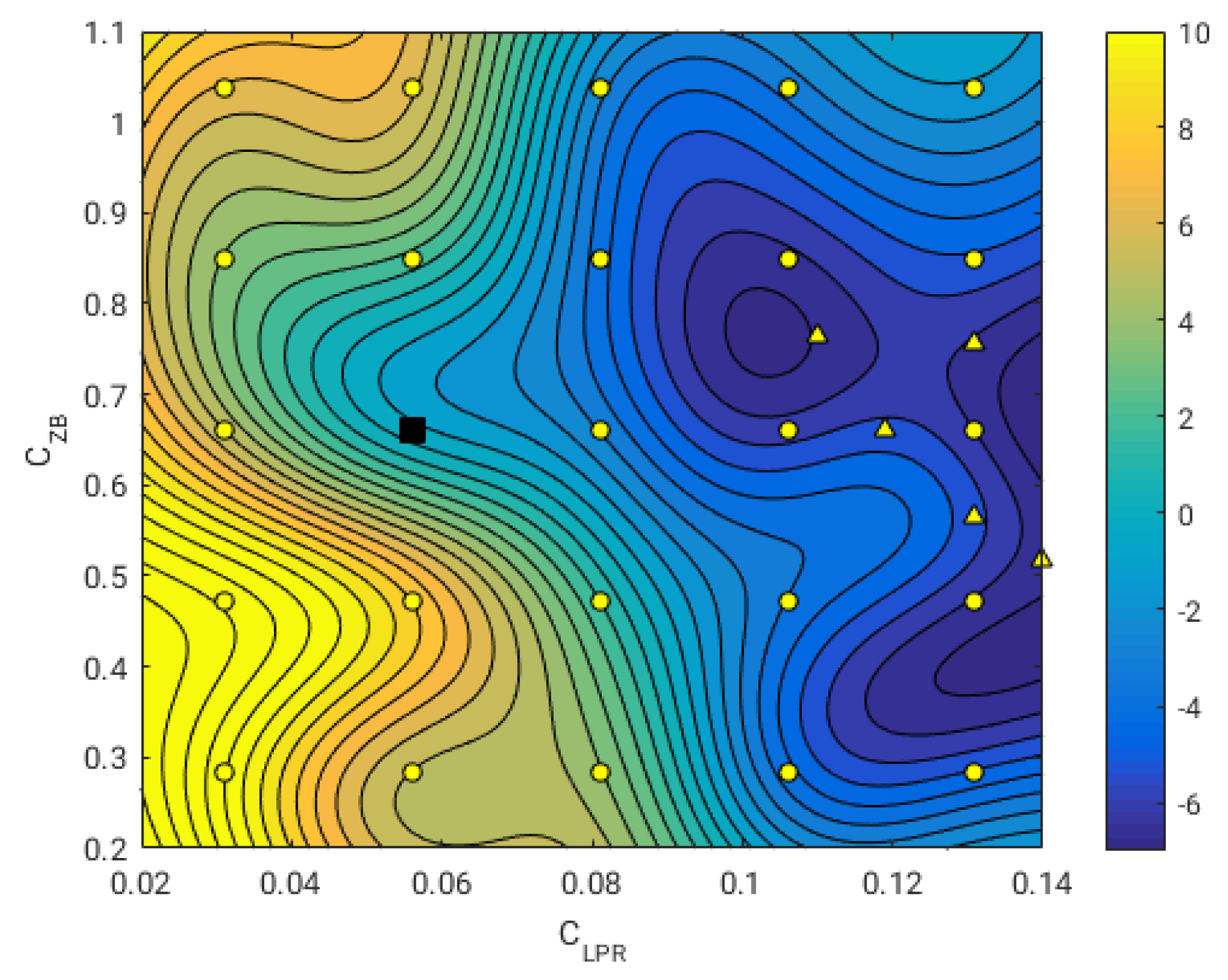

**Figure 14.**Improved surrogate using infilling. The square represents the starting geometry and the circles represent the new geometries. The triangles represent the infill points used. The color scale represents the resistance variation in reference to the original geometry (where negative values indicate resistance reduction, and positive values indicate resistance increment).

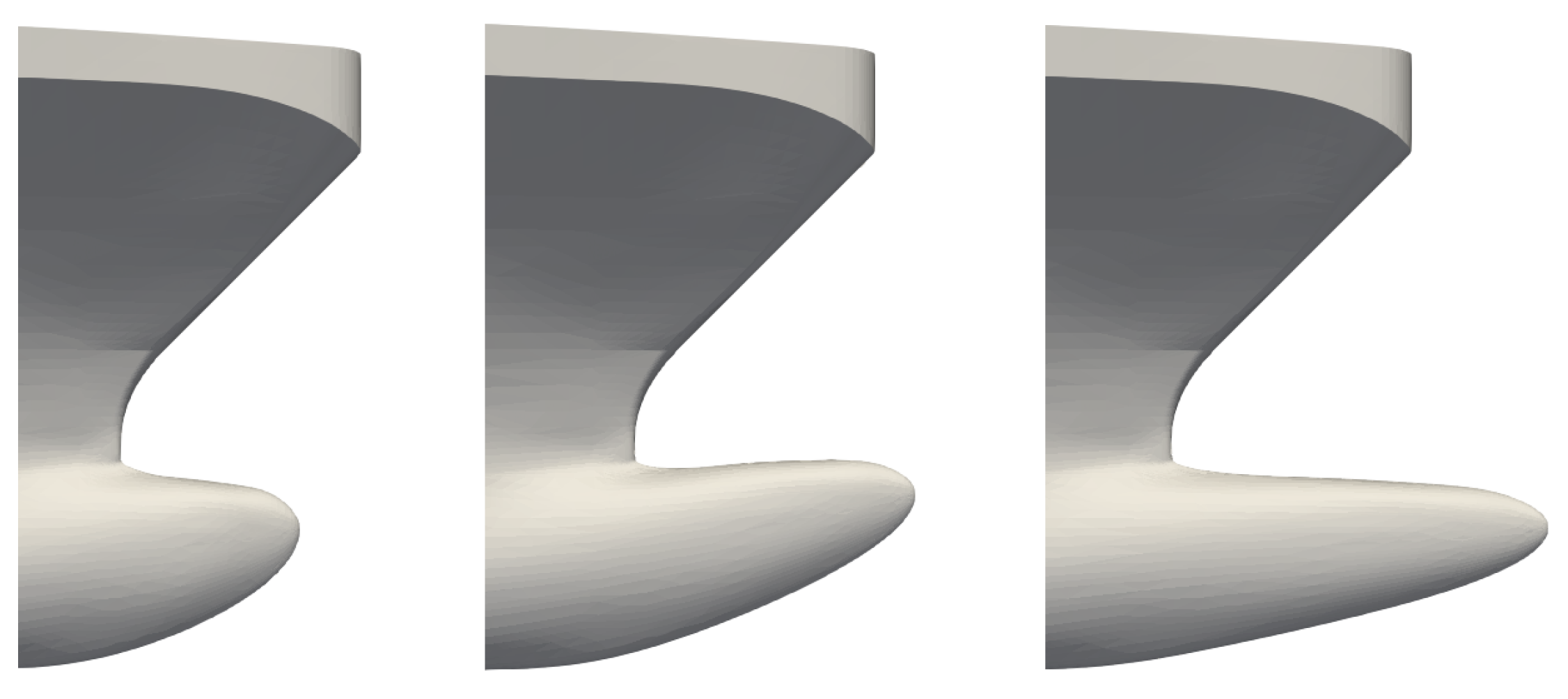

**Figure 15.**Bulbous bow shapes. Left: original shape. Middle: shape obtained at global minimum. Right: shape obtained at local minimum.

**Table 1.**Outcome of the optimization study of the high-dimensional Rosenbrock function. In the table, observations refer to the number of experiments used to construct the surrogate. Note that the same starting point ($\mathbf{x}=0$) was used for all the design variables in the gradient-based optimization studies. In the table, DV stands for design variable, HF stands for high-fidelity simulations, SBO stands for surrogate-based optimization, MFD stands for method of feasible directions, QN stands for quasi-Newton BFGS method, and DR stands for division of rectangles derivative-free method.

- | HF-MFD | HF-QN | SBO-MFD | SBO-QN | SBO-DR |
---|---|---|---|---|---|

DV-1 | 0.999 | 0.999 | 0.958 | 0.958 | 0.993 |

DV-2 | 0.999 | 0.999 | 0.992 | 0.994 | 1.007 |

DV-3 | 0.998 | 0.999 | 1.004 | 0.999 | 0.998 |

DV-4 | 0.997 | 0.998 | 1.115 | 1.091 | 1.037 |

DV-5 | 0.995 | 0.996 | 1.208 | 1.189 | 1.058 |

DV-6 | 0.989 | 0.992 | 1.317 | 1.251 | 1.108 |

QoI | 0.00003 | 0.00002 | $-48$ | $-48$ | $-44$ |

Function Evaluations | 1238 | 420 | - | - | - |

Observations | - | - | 500 | 500 | 500 |

Phase | Density $\mathit{\rho}\phantom{\rule{0.277778em}{0ex}}[\frac{\mathit{kg}}{{\mathit{m}}^{3}}]$ | Kinematic Viscosity $\mathit{\nu}\phantom{\rule{0.277778em}{0ex}}[\frac{{\mathit{m}}^{2}}{\mathit{s}}]$ |
---|---|---|

Water | $998.3$ | $1.02\times {10}^{-6}$ |

Air | $1.2$ | $1.48\times {10}^{-5}$ |

Mesh | Number of cells | Average ${\mathit{y}}^{+}$ |
---|---|---|

Coarse | ≈ 800000 | ≈ 80 |

Fine | ≈ 2800000 | ≈ 7 |

**Table 4.**Percentage error (with respect to the experimental data) and CPU time of the benchmark cases. All the simulations were run in parallel with four processors. In all cases, the reported CPU time was measured at 8000 iterations.

Benchmark Case | Percentage Error | CPU Time (seconds) |
---|---|---|

Steady - Coarse mesh | 1.8% | ≈ 12000 |

Steady - Fine mesh | 1.1% | ≈ 20000 |

Unsteady - Coarse mesh | 6.8% | ≈ 27000 |

Unsteady - Fine mesh | 4.3% | ≈ 35000 |

**Table 5.**Resistance reduction and percentage error (with respect to the high-fidelity simulations) of five cases not included in the original sampling plan.

${\mathit{C}}_{\mathit{L}\mathit{P}\mathit{R}}$ | ${\mathit{C}}_{\mathit{Z}\mathit{B}}$ | Resistance Reduction | Percentage Error | Note |
---|---|---|---|---|

0.119 | 0.660 | ≈ 5% | ≈ 7% | - |

0.131 | 0.566 | ≈ 5% | ≈ 7% | - |

0.131 | 0.755 | ≈ 5% | ≈ 6% | - |

0.109947 | 0.762845 | ≈ 7% | ≈ 2% | Global minima |

0.14 | 0.515651 | ≈ 6% | ≈ 2% | Local minima |
