Separation of Lanthanide Isotopes from Mixed Fission Product Samples

Abstract

The measurement of radioactive fission products from nuclear events has important implications for nuclear data production, environmental monitoring, and nuclear forensics. In a previous paper, the authors reported the optimization of an intra-group lanthanide separation using LN extraction resin from Eichrom Technologies^®, Inc. and a nitric acid gradient. In this work, the method was demonstrated for the separation and quantification of multiple short-lived fission product lanthanide isotopes from a fission product sample produced from the thermal irradiation of highly enriched uranium. The separations were performed in parallel in quadruplicate with reproducible results and high decontamination factors for ¹⁵³Sm, ¹⁵⁶Eu, and ¹⁶¹Tb. Based on the results obtained here, the fission yields for ¹⁴⁴Ce, ¹⁵³Sm, ¹⁵⁶Eu, and ¹⁶¹Tb are consistent with published fission yields. This work demonstrates the effectiveness of the separations for the intended application of short-lived lanthanide fission product analysis requiring high decontamination factors.

1. Introduction

The measurement of radioactive fission products from nuclear events has implications for nuclear data production, environmental monitoring, and nuclear forensics. While many of the peak yield fission products are easily measured via gamma spectroscopy in unseparated radioactive samples, there are some key analytes of interest where the radiometric interferences prevent low uncertainty measurements and/or have sufficiently low fission yields hindering detection in the presence of multiple peak yield fission products. In these cases, either chemical separation or alternative detection methodologies are required, such is the case for the lanthanide, namely the rare earth elements (REEs), which are defined here as the lanthanides and yttrium.

Previous efforts have developed methods to isolate and measure fission products of interest; however, isotopes with poor decay structure (i.e., short half-life, low branching ratio gamma emissions) have proven to be challenging [1,2,3,4,5,6]. Among these challenging isotopes are multiple REEs, including ⁹¹Y, ¹⁴⁴Ce, ¹⁵³Sm, ¹⁵⁵Eu, ¹⁵⁶Eu, and ¹⁶¹Tb. REEs with low fission yields and short half-lives, including ¹⁵³Sm, ¹⁵⁵Eu, ¹⁵⁶Eu, and ¹⁶¹Tb, require chemical separations and/or advanced detector technologies for analysis in fission samples. Short-lived fission product analysis benefits greatly from separations, which minimize radiometric impurities by lowering the detection limit and/or shortening the analysis time, while the elimination of radiometric impurities can permit analysis using additional radiometric detection methods such as liquid scintillation counting, which has high counting efficiency but little to no energy resolution. Some high fission yield REEs, including ⁹¹Y and ¹⁴⁴Ce, can be quantified from fission product samples with little to no separation using gamma spectroscopy, but minimizing the presence of other radionuclides can improve the data quality and/or analysis time.

Since the REEs are typically in the +3 oxidation state, chemical separation is based typically using the decreasing ionic radii across the lanthanide series, which results in an increase in complex stability for the heavy members of the f-block versus the lighter members [7,8]. The minimal change in ionic radii among neighboring lanthanides makes the intra-group separation challenging; yttrium has the same oxidation state and ionic radii of some of the lanthanides adding to the separation difficulty [8].

Extraction chromatography separates analytes of interest using organic extractants coated onto polymer beads. One of four different extractants classes can be used to separate the REEs, including quaternary ammonium salts, acidic organophosphorus, neutral organophosphorus, and diglycolamide [9]. Acidic organophosphorus-based extractants provide optimal separation among the REEs, and this is the basis of LN resin from Eichrom Technologies^®, Inc. (Lisle, IL, USA) [10,11]; LN resin is comprised of polymeric beads coated with di-(2-ethylhexyl)-phosphoric acid (HDEHP). LN resin has been used for intra-group REEs separations with both HCl and HNO₃ elution profiles [12,13,14,15]. REEs sorb to LN resin in low molarity acid, and as the acid concentration is increased, the REEs are sequentially eluted lightest (La) to heaviest (Lu). The stability of the REEs-extractant complex is determined by the REEs ionic radius and charge; this results in Y co-eluting with the heavy lanthanides.

An optimized separation scheme was developed by Arrigo et al. using LN resin employing increasing HNO₃ concentration for REEs separation [12]. With the focus on a fission product analysis, the method developed by Arrigo et al. focused on maximizing the radiometric purity and chemical yield for Sm, Eu, Tb, and Y; parameters investigated during the optimization included LN resin mass, resin mesh size, lanthanide carrier mass loading, and nitric acid elution gradient [12].

The purpose of this work is to evaluate the separation developed by Arrigo et al. to test its efficacy in conjunction with Eichrom’s UTEVA and TRU resins to isolate and measure multiple short-lived REEs fission products. The separation was tested utilizing a fission sample produced from a highly enriched uranium (HEU) source irradiated with thermal neutrons.

2. Materials and Methods

2.1. Reagents and Materials

Bulk LN resin (50–100 µm), UTEVA resin (50–100 µm, 2 mL cartridges), and TRU resin (50–100 µm, 2 mL cartridges) were purchased from Eichrom Technologies^®, Inc. Reagent or Optima™ grade HNO₃ and HCl were purchased from Fisher Scientific and used without further purification. Standards for the lanthanides and yttrium were purchased from Inorganic Ventures, Ultra Scientific, or High-Purity Standards Corporation as 1000 ppm single-element solutions. A ¹⁵²Eu radiometric standard was purchased from Eckert and Zeigler. Iron powder, sodium nitrite, and ascorbic acid were purchased from Acros Organics and used without further purification. Sulfamic acid was purchased from Ricca and used without further purification. All solutions and samples were prepared with Milli-Q water (Millipore, Burlington, MA, USA, resistivity > 18 MΩ cm^-1). Disposable polypropylene columns (0.8 cm inner diameter, part number AC-141-AL) were purchased from Eichrom^® Technologies, Inc. along with the corresponding caps, tip closures, and frits; the materials were used as purchased. Polypropylene Falcon and/or Corning 50 mL centrifuge tubes and Falcon 15 mL sample tubes were purchased from Fisher Scientific. Fractions were collected in 20 mL polyethylene liquid scintillation counting (LSC) vials from Perkin Elmer.

2.2. Resin Hydration and Column Preparation

Prior to use, each column was prepared by transferring 0.7800 ± 0.0005 g Eichrom^® LN resin (50–100 µm) to a 50 mL centrifuge tube by weight, hydrated with 25–30 mL of 0.1 M HNO₃ over the course of 24 h with gentle agitation. Samples were centrifuged at 3500 RPM for 5 min. The liquid phase was decanted and discarded. The resin slurry was loaded into 2 mL polypropylene columns with a 0.8 cm inner diameter purchased from Eichrom^® Technologies, Inc. The columns were fitted with a top frit leaving approximately 0.5 cm liquid between the resin bed and the frit; the final bed volume was 2 mL. Each column was rinsed with 10–15 mL 0.01 M HNO₃ and then stored in 0.01 M HNO₃ prior to use.

2.3. Irradiated HEU Sample Production

A 93% HEU metal target was irradiated with thermal neutrons at the MITR-II reactor at the Massachusetts Institute of Technology. The sample was dissolved with 6 M nitric acid and slightly warmed; the final solution was diluted to give an acid concentration of 3 M HNO₃. Four aliquots of the sample were taken, with each containing approximately 1 × 10¹² fissions (0.9 g solution, 0.69 mg of U) spiked with 360 Bq ¹⁵²Eu and 50 µg each of Sm, Eu, and Tb from 1000 µg/mL single element ICP standards.

2.4. Separation Chemistry Using UTEVA, TRU and LN Resins

Samples were processed through an initial separation using Eichrom’s UTEVA and TRU resin to remove actinides and select fission products from the sample prior to the REEs separation. This process has been published previously by Morley et al. with a short summary provided here [5]. After adding the appropriate tracers and carriers to the aliquots of irradiated HEU solution, 2 mL of 0.6 M iron (II) sulfamate, 1 drop of 1 M ammonium thiocyanate as an indicator, and 1 mL of 1 M ascorbic acid were added. The samples were allowed to sit for 20 min to allow for the reduction of Np(V) to Np(IV) and Pu(IV) to Pu(III) (if present). The samples were loaded onto stacked UTEVA and TRU vacuum cartridges and eluted at 1 mL/min using a vacuum box. The samples were quantitatively transferred to the cartridge stack by rinsing the sample container three times with 2 mL of 3 M HNO₃. The cartridges were then rinsed with 10 mL of 3 M HNO₃. Following the rinse, the UTEVA and TRU cartridges were separated, and the REEs were eluted from the TRU resin with 5 mL of 3 M HNO₃—0.1 M NaNO₂ followed by 6 mL of 2 M HCl. The nitrite oxidizes Pu to the +4 oxidation state to prevent Pu(III) from co-eluting.

The REEs fractions were transposed to 0.01 M HNO₃ then underwent an intra-group separation using 2 mL LN resin (50–100 µm) columns; the flow rate was 8.6–12 bed volumes per hour (BV/hr) or 5–7 min per mL eluent (min/mL). The samples, in 1 mL of 0.01 M HNO₃, were loaded onto the LN resin columns, quantitatively transferred with three 2 mL rinses of 0.01 M HNO₃, then eluted by gravity with increasing concentrations of HNO₃ up to 8 M using the elution gradient summarized in

Table 1. Gradient elution parameters for REEs separation using 0.78 g LN resin with 50-100 µm particle size.

Fraction	HNO3 (M)	Eluent Volume (mL)	Bed Volume	Elements Eluted
1	0.01—load 0.01—quant. transfer	1 6	0.5 3
2	0.01 0.05 0.1	5 5 5	2.5 2.5 2.5
3	0.25	8	4	La, Ce, Pr, Nd
4	0.3	8	4	Ce, Pr, Nd
5	0.4	2	1
6	0.4	2	1	Sm
7	0.4	2	1	Sm
8	0.4	2	1	Sm
9	0.5	2	1	Sm
10	0.5	2	1	Sm, Eu
11	0.5	2	1	Eu
12	0.5	2	1	Eu
13	0.75	2	1	Eu
14	0.75	2	1	Eu
15	0.75	2	1	Eu
16	0.75	2	1	Eu
17	1	2	1
18	1.5	2	1	Tb
	2	2	1	Tb
	2.5	2	1	Tb
19	2.5	2	1	Y
	3	2	1	Y
	8	5	2.5	Y
20	8	15	7.5

. The fractions containing Tb (18a, 18b, and 18c in Table 1) were co-collected and transposed to 0.5 M HNO₃ for a second separation. The Tb containing samples, in 1 mL of 0.5 M HNO₃, were loaded onto the LN resin columns, quantitatively transferred with three 2 mL rinses of 0.5 M HNO₃ and eluted by gravity with increasing concentrations of HNO₃ up to 8 M using the elution gradient summarized in

Table 2. Gradient elution parameters for Tb purification using a second separation with 0.78 g LN resin with 50–100 µm particle size.

Fraction	HNO3 (M)	Eluent Volume (mL)	Bed Volume	Elements Eluted
1	0.5—load	5	2.5	Sm
2	0.75	10	5	Eu
3	1	2	1
4	1.5	2	1	Tb
	2	2	1	Tb
	2.5	2	1	Tb
5	2.5	2	1
6	3	2	1
7	8	5	2.5

. The fractions containing Tb (4a, 4b, and 4c in Table 2) were co-collected and processed for analysis.

Separated Ce, Sm, and Eu fractions were diluted to a total of 10 mL such that the final acid concentration was 2% HNO₃; the fractions were sent for gamma spectroscopy followed by inductively coupled plasma optical emission spectroscopy (ICP-OES) analysis for the Sm fractions. Separated Tb fractions were split for radiometric counting and yielding, 90% and 10%, respectively. Tb samples for radiometric counting were evaporated to <0.25 mL and stippled onto a filter, covered in Kaptan tape, and counted by low energy photon spectroscopy (LEPS). The chemical recoveries were calculated by comparing the amount of each element in the purified fraction to the amount added (by mass). Chemical yields were determined for Ce by gamma spectroscopy for ¹⁴¹Ce and ¹⁴³Ce in the HEU solution, for Sm by ICP-OES analysis in the separated fractions, for Eu by gamma spectroscopy of ¹⁵²Eu radiotracer, and for Tb by inductively coupled plasma mass spectrometry (ICP-MS) analysis. All samples were prepared by weight using a four-place balance from Mettler Toledo (Columbus, OH, USA).

2.5. Sample Analysis

Samples were analyzed by gamma spectroscopy, LEPS, ICP-OES, and/or ICP-MS; the sample analyses were monitored for impurities that might result in spectral or mass interferences.

2.5.1. HPGe Analysis

Gamma emitting radionuclides in the irradiated HEU solution and separated fractions were counted on multiple high purity germanium detectors (HPGe) from Canberra or Ortec. Samples were analyzed in a calibrated geometry consisting of 10 mL solution (in this case, 2% HNO₃) in 20 mL polyethylene LSC vials. All gamma data was collected and analyzed using Canberra Genie 2000 V3.4.1 and APEX software. The data were corrected for decay during irradiation and counting and were reported at the end of the irradiation time. Corrections are applied for cascade summing in all counting geometries. The detectors were calibrated using a NIST-traceable mixed gamma standard from Eckert and Zeigler with certified gamma peaks at 13 energies between 46.5 and 1836 keV; isotopes include ²¹⁰Pb, ²⁴¹Am, ¹⁰⁹Cd, ⁵⁷Co, ¹³⁹Ce, ²⁰³Hg, ¹¹³Sn, ⁸⁵Sr, ¹³⁷Cs, ⁸⁸Y, and ⁶⁰Co. Control checks are performed daily for energy calibration, peak resolution, and efficiency calibration using control sources containing ²⁴¹Am, ¹³⁷Cs, and ⁶⁰Co. Nuclear data, including half-lives and gamma branching ratios, were adopted from the NUDAT2 database at the National Nuclear Data Center at Brookhaven National Laboratory. For isotopes with more than one gamma line, activities reported were based on the weighted mean values. Separated fractions for Sm were counted for 1.42 h, and the principal gamma ray detected from ¹⁵³Sm was 103.18 keV. Separated fractions for Eu were counted for 17–19 h, the principal gamma rays detected from ¹⁵²Eu were 121.78, 778.9, 867.37, 1085.87, 1112.07, and 1408.01 keV, and the principal gamma rays detected from ¹⁵⁶Eu were 646.29, 723.47, 1065.14, 1079.16, 1153.8, 1230.71, 1242.42, 1277.43, 1366.41, and 1965.95 keV. The separated fractions for Ce were counted for 17 h; the principle gamma ray(s) detected from ¹⁴¹Ce was 145.44 keV, from ¹⁴³Ce were 57.36, 231.55, 293.27, 350.62, 490.37, 664.57, 721.93, and 880.46 keV, and from ¹⁴⁴Ce was 133.51 keV. Uncertainties in counting statistics were based on Currie [16].

2.5.2. Low Energy Photon Spectroscopy Analysis

Terbium-161 was quantified in the purified Tb fractions using HPGe detectors designed for LEPS from Ortec or Canberra; samples were counted for up to 10 days. The principal gamma rays and X-rays detected from ¹⁶¹Tb were at 25.6, 45.5, 48.9, and 74.6 keV and weaker X-rays were detected at 52.0 and 57.2 keV. The individual peaks had at least 1000 counts for a statistical uncertainty of approximately 3%. All gamma data was collected and analyzed using Genie 2000 V3.4.1 (Mirion Technologies, Meriden, CT, USA) and APEX-GAMMA software (Mirion Technologies, Meriden, CT, USA). The data were corrected for decay during irradiation and counting and were reported at the end of the irradiation time. The detectors were calibrated using the NIST-traceable mixed gamma standard from Eckert and Zeigler described for the HPGe detectors as well as single isotope standards to avoid interferences. Control checks are performed daily for energy calibration, peak resolution, and efficiency calibration using control sources containing ²⁴¹Am, ¹³⁷Cs, and ⁶⁰Co. Uncertainties in counting statistics were based on Currie [16].

2.5.3. ICP-OES Analysis

The analysis of Sm was performed using a Perkin-Elmer Optima 5300 DV ICP-OES. Calibration solutions ranged from 2–1000 µg/mL in 2% HNO₃ for radial mode and 0.5–10 µg/mL in 2% HNO₃ for axial mode. Samples prepared using a separate NIST traceable standard were included during the analysis run every 10 samples to verify instrument stability and accuracy of the calibration. The solution was aspirated using a peristaltic pump, and the sample introduction included a quartz Scott-type spray chamber, GemCone high dissolved solids nebulizer, and a 2.0 mm inner diameter alumina injector. The acquisition parameters included data collection based on peak area with 1–5 s auto-read and three replicates, RF power 1350 W, peristaltic pump 1.5 mL/min, with carrier gases 20 L/min plasma, 0.3 L/min auxiliary, and 0.65 L/min to the nebulizer.

2.5.4. ICP-MS Analysis

The analysis of ¹⁵⁹Tb was performed using an Agilent 7700X quadrupole ICP-MS (Santa Clara, CA, USA). Calibration solutions ranging from 0.1 to 5 ng/g in 2% HNO₃ were prepared by gravimetric dilution of a 1000 µg/mL single element standard from Ultra Scientific (North Kingston, RI, USA); all dilutions were made with 2% HNO₃ prepared from Fisher Optima™ acid. Samples prepared using a separate NIST traceable standard were included during the analysis run every 10 samples to verify instrument stability and accuracy of the calibration. The solution was aspirated using a peristaltic pump, and the sample introduction included a standard quartz micromist nebulizer and quartz spray chamber (Glass Expansion, Pocasset, MA, USA). The background equivalent concentration (BEC) was 0.003 ng/g for Tb. The acquisition parameters include peak pattern 1, replicates 3, integration time 0.50 s, RF power 1550 W, nebulizer pump 0.1 rps, and carrier gas 1.00 L/min.

3. Results and Discussion

An HEU metal sample was irradiated with thermal neutrons and dissolved nitric acid with gradual heat. The solution was evaporated to soft dryness and reconstituted to give a solution containing 1.15 × 10¹² ± 5% fissions per gram HEU solution in 3 M HNO₃. The number of fissions was calculated based on the average atoms/g of HEU solution as determined by gamma spectroscopy for the peak yield fission products ⁹⁵Zr, ⁹⁷Zr, ⁹⁹Mo, ¹⁰³Ru, ¹⁴⁰Ba/La, ¹³²Te/I, ¹³⁷Cs, ¹⁴¹Ce, ¹⁴³Ce, ¹⁴⁴Ce, and ¹⁴⁷Nd compared to the cumulative fission yields (CFY) for thermal irradiation of ²³⁵U reported by England and Rider [17]. To ensure near quantitative yield, the HEU sample was analyzed by gamma spectroscopy before and after dissolution, which showed minimal loss of activity to the quartz irradiation ampoule.

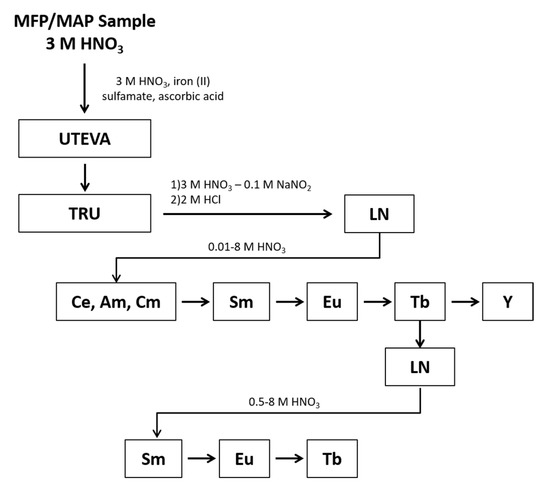

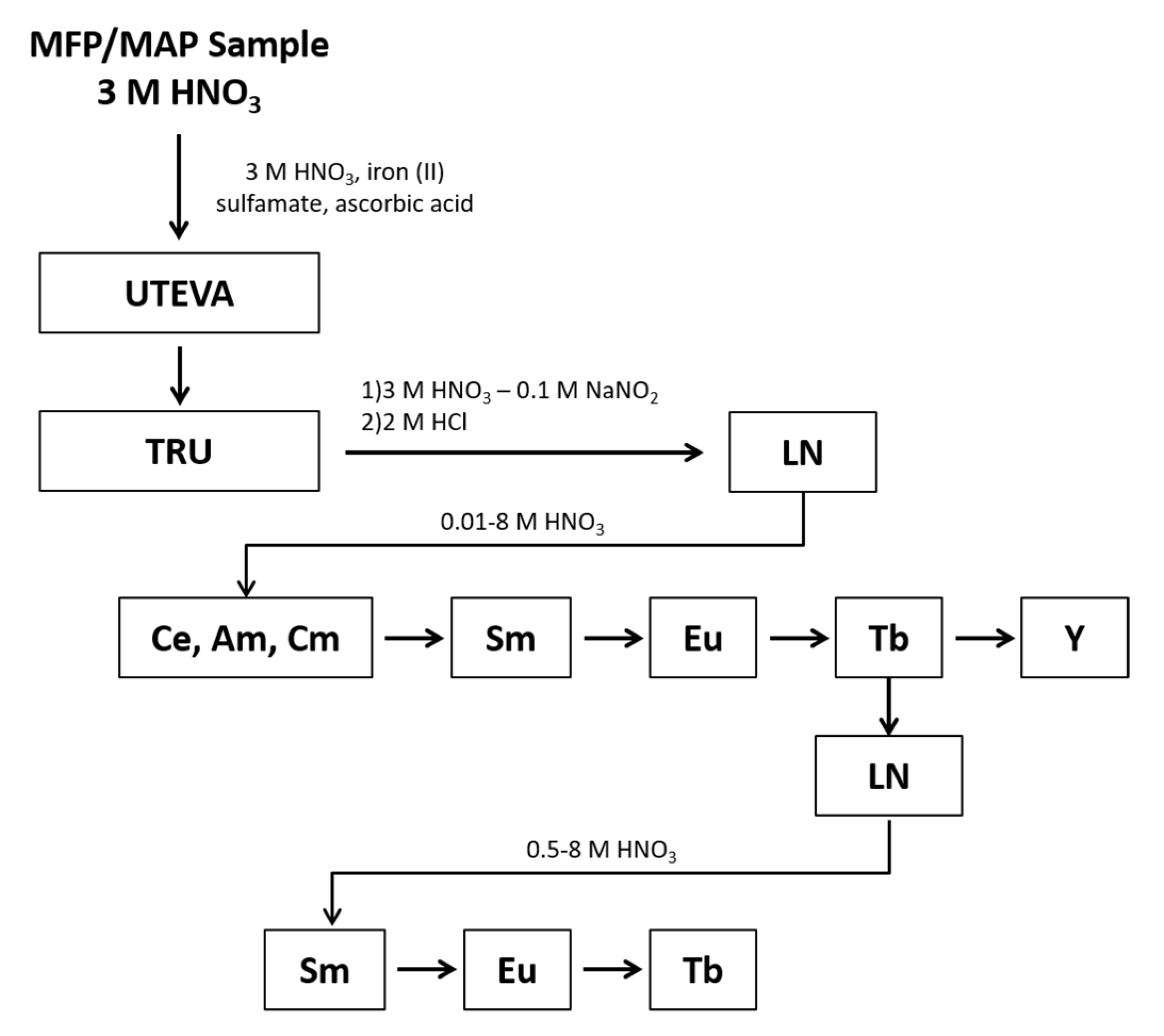

Samples were prepared in quadruplicate and processed using the chemical separation scheme shown in Figure 1. The REEs were separated as a group from the rest of the sample using Eichrom’s UTEVA and TRU resins. When the samples were loaded onto the UTEVA and TRU resins, an Fe(II) reductant was used to reduce Pu to Pu(III), which sorbs to the TRU resin along with other tri-valent actinides and REEs. During the REEs elution, nitrite was added to oxidize Pu to Pu(IV) to prevent co-elution with the REEs. Under the conditions of this experiment, the REEs are present in the +3 valence as determined during optimization studies where the yield of each REE was tracked following elution from the TRU and LN resins to determine the REEs were quantitatively eluted as expected for the +3 valence. Following elution from the TRU resin, the REEs fraction underwent an intergroup separation using Eichrom’s LN resin to isolate separate fractions containing the light lanthanides (La through Nd), Sm, Eu, Tb, and Y. The Tb fraction underwent an additional separation using LN resin to remove low-level radiometric contaminants that would hinder LEPS analysis.

The chemical yields for Ce, Sm, Eu, and Tb are presented in

Table 3. Chemical yields for the separated lanthanide fractions sent for radiometric detection (gamma spectroscopy or LEPS). Samples were run in quadruplicate.

Isotope	Yield (Average%)	±%RSD	Fraction Number	Yielding Method
141Ce	76.3	10.9	3 1	Gamma spectroscopy
143Ce	81.5	10.3	3 1	Gamma spectroscopy
153Sm	75.1	9.79	7 1	ICP-OES
156Eu	56.5	9.06	10 1	Gamma spectroscopy
161Tb	94.1	0.294	4 2	ICP-MS

¹ First separation with LN resin using the elution gradient shown in Table 1. ² Second separation with LN resin for Tb purification using the elution gradient shown in Table 2.

. Cerium elutes primarily in fraction 3, with the remaining Ce eluting in fraction 4. Samarium and Eu each elute predominately over three 2 mL fractions with Sm eluting in fractions 6–9 and Eu eluting in fractions 10–13. Because the analytes elute over multiple fractions, small changes in the elution conditions can result in large changes in yield when evaluating each fraction. To maximize separation and account for small shifts in the elution profile, each 2 mL fraction was collected separately and screened by gamma spectroscopy for 20 min to determine the elution profile. The yields for Ce, Sm, and Eu can each be maximized to > 90% if the applicable fractions are combined either during elution or following the screening by gamma spectroscopy [12].

The chemical yield for Tb is high because this represents the complete Tb elution peak where fractions 18–20 were co-collected and processed through a second LN resin separation where fractions 4–6 were collected. The eluate collected for ¹⁶¹Tb radiometric analysis is slightly larger than the Tb elution peak as determined by cold carrier studies to allow for small shifts in the elution profile to maximize the Tb yield without co-eluting Eu or Y. Based on cold carrier studies, the Tb yield from the LN separation is >95% [12]. However, there can be Tb loss during the TRU separation reducing the overall yield; cold carrier studies have shown this loss to be variable but were typically between 2% and 15%.

The quantities of radio-lanthanides present in the Sm, Eu, and Tb fractions are given in

Table 4. The results of the gamma spectroscopic analysis of the separated Sm fraction; fraction 7 from each sample was counted for 1.42 h. Samples were run in quadruplicate and 1σ uncertainty.

Isotope	Atom Concentration (Atoms/g HEU Solution)	MDC (Atoms/g HEU Solution)	DF
140La	3.11 × 106 ± 12.4%	≤3.31 × 105	≤5.22 × 104
141Ce	2.23 × 107 ± 7.42%	≤2.53 × 106	≤1.29 × 104
143Ce	2.82 × 107 ± 8.57% 1	≤4.63 × 106	≤2.54 × 103
147Nd	1.70 × 107 ± 12.0% 2	≤3.56 × 106	≤3.78 × 103
149Pm	1.74 × 107 ± 25.6% 1	≤1.87 × 107	≤6.31 × 102
153Sm	1.07 × 109 ± 4.96%	≤9.78 × 106

¹ 2 replicates < MDC. ² 1 replicates < MDC.

,

Table 5. The results from the gamma spectroscopic analysis of the separated Eu fraction; fraction 10 from each sample was counted for 17–19 h. Samples were run in quadruplicate and uncertainty on atom concentration is 1σ.

Isotope	Atom Concentration (Atoms/g HEU Solution)	MDC (Atoms/g HEU Solution)	DF
141Ce	4.25 × 106 ± 9.38%	≤1.00 × 106	≤6.85 × 104
147Nd	3.47 × 106 ± 13.7% 1	≤1.31 × 106	≤7.75 × 103
153Sm	<MDC	≤5.69 × 106
156Eu	1.65 × 108 ± 3.89%	≤2.42 × 106

¹ 2 replicates < MDC.

and

Table 6. LEPS results for the purified Tb fraction; each sample was counted up to 10 days. Samples were run in quadruplicate and uncertainty on atom concentration is 1σ.

Isotope	Atom Concentration (Atoms/g HEU Solution)	MDC (Atoms/g HEU Solution)
141Ce	<MDC	≤5.27 × 105
143Ce	<MDC	≤5.07 × 107
147Nd	<MDC	≤3.89 × 105
149Pm	<MDC	≤1.00 × 108
153Sm	<MDC	≤7.51 × 106
161Tb	8.79 × 105 ± 20.35%

. In addition to the primary radio-lanthanide of interest, the quantities and the minimum detectable concentration (MDC) are given for other lanthanides which may be present in those samples. The Sm fraction contains small quantities of light lanthanides; the highest decontamination factor (DF) is achieved for the lightest lanthanides, which are expected as they elute in order of atomic number. The Eu fraction also contains small quantities of Ce and Nd, although Sm was below MDC. The quantities of light lanthanides remaining in the Sm and Eu fractions do not adversely impact quantification using gamma spectroscopy.

Optimization studies showed that the Tb fraction following the first separation using LN resin was sometimes contaminated with other radio-lanthanides, including ^141,143,144Ce, ¹⁴⁷Nd, and ¹⁵³Sm. While the quantities of the impurities were low, their presence hindered ¹⁶¹Tb analysis via LEPS and prevented the use of beta counting. Performing a second separation using LN resin on the Tb fraction removes the radio-lanthanide impurities.

The light lanthanides including ¹⁴¹Ce, ¹⁴³Ce, ¹⁴⁴Ce, and ¹⁴⁷Nd are all peak yield fission products which are present in the irradiated HEU sample at much higher levels than Sm, Eu, or Tb; ^141,143,144Ce and ¹⁴⁷Nd are present at roughly 15–40 times that of Sm, 150–400 times that of Eu, and 26,000–68,000 times that of Tb; the CFY are given in

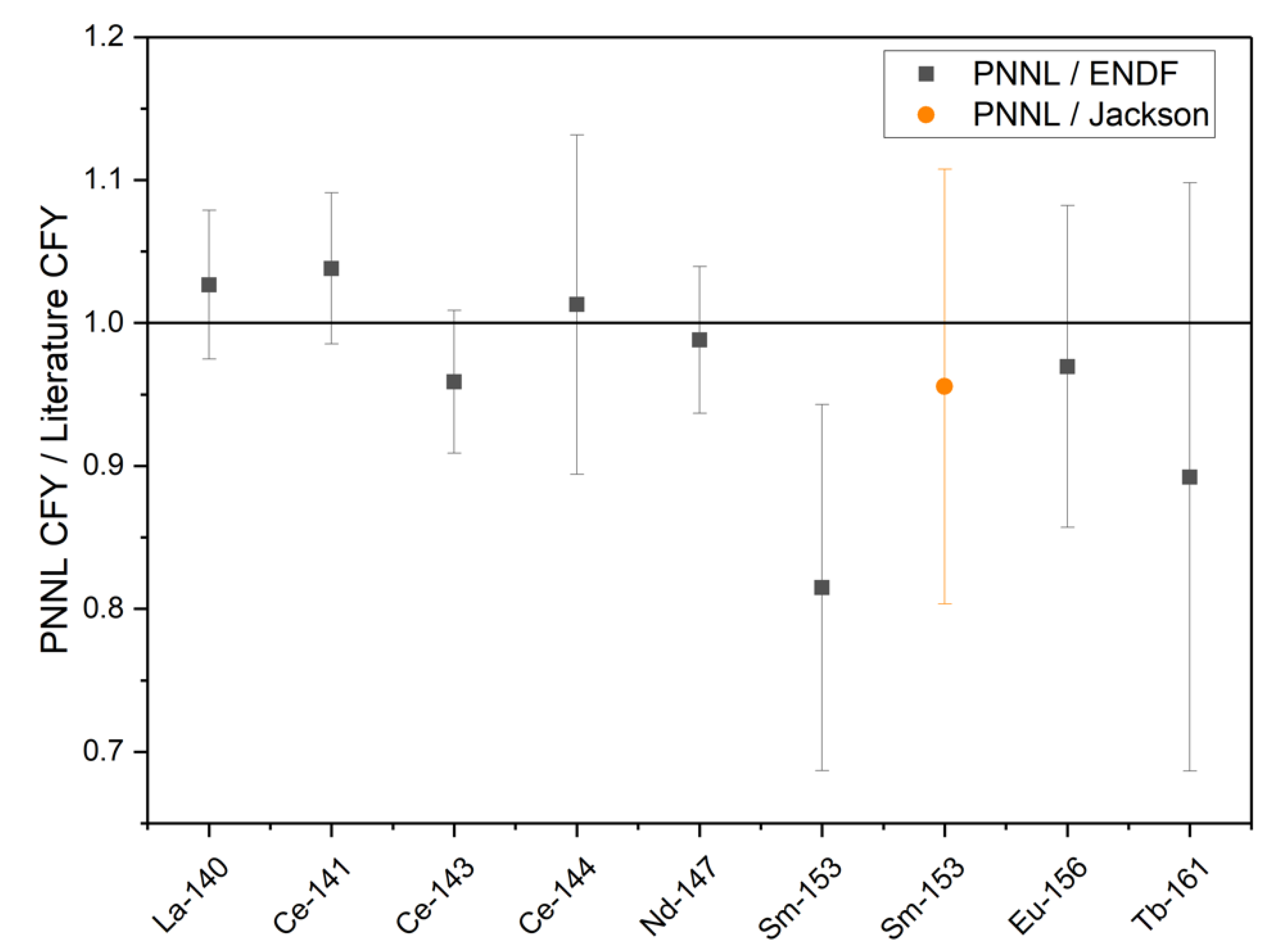

Table 7. Cumulative fission yields (CFY) of the lanthanides present in an irradiated HEU sample. Samples were run in quadruplicate, and error bars show 1σ uncertainty.

Isotope	CFY—HEU Sample	CFY—ENDF/B-VII.7 [9]	Analysis Sample
140La	6.38 × 10−2 ± 4.97%	6.22 × 10−2 ± 1.00%	Unseparated
141Ce	6.07 × 10−2 ± 5.00%	5.85 × 10−2 ± 1.00%	Unseparated
143Ce	5.71 × 10−2 ± 5.02%	5.96 × 10−2 ± 1.40%	Unseparated
144Ce	5.57 × 10−2 ± 11.7%	5.50 × 10−2 ± 0.70%	Separated
147Nd	2.22 × 10−2 ± 4.99%	2.25 × 10−2 ± 1.40%	Unseparated
153Sm	1.29 × 10−3 ± 15.2%	1.58 × 10−3 ± 4.00% 1.35 × 10−3 ± 4.69% 1	Separated
156Eu	1.44 × 10−4 ± 10.9%	1.49 × 10−4 ± 4.00%	Separated
161Tb	7.61 × 10−7 ± 22.7%	8.53 × 10- ± 4.00%	Separated

¹ CFY reported by Jackson et al. [10].

. These radionuclides also have sufficiently long half-lives to be present during analysis following the chemical separations described here. The effectiveness of the separation to remove the light lanthanides can be quantified using a DF that is based on the number of atoms of an analyte in the samples before separation compared to the number of atoms of that analyte post separation as given in Equation (1).

$$\mathrm{D}\mathrm{F}=\frac{\mathrm{A}\mathrm{t}\mathrm{o}\mathrm{m}\mathrm{s} \mathrm{o}\mathrm{f} \mathrm{a}\mathrm{n}\mathrm{a}\mathrm{l}\mathrm{y}\mathrm{t}\mathrm{e} \mathrm{X} \mathrm{i}\mathrm{n} \mathrm{t}\mathrm{h}\mathrm{e} \mathrm{l}\mathrm{o}\mathrm{a}\mathrm{d} \mathrm{s}\mathrm{o}\mathrm{l}\mathrm{u}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}}{\mathrm{A}\mathrm{t}\mathrm{o}\mathrm{m}\mathrm{s} \mathrm{o}\mathrm{f} \mathrm{a}\mathrm{n}\mathrm{a}\mathrm{l}\mathrm{y}\mathrm{t}\mathrm{e} \mathrm{X} \mathrm{i}\mathrm{n} \mathrm{t}\mathrm{h}\mathrm{e} \mathrm{s}\mathrm{e}\mathrm{p}\mathrm{a}\mathrm{r}\mathrm{a}\mathrm{t}\mathrm{e}\mathrm{d} \mathrm{f}\mathrm{r}\mathrm{a}\mathrm{c}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}}$$

(1)

The Tb samples following the second separation were found to have 8.79 × 10⁵ ± 20.3% atoms ¹⁶¹Tb/g HEU solution with all other radionuclides below the MDC; the MDC for radio-lanthanides of interest is shown in Table 6.

The absolute CFY for each analyte was calculated based on the atoms of each radionuclide and the fissions, which were produced in the sample as shown in Equation (2). The CFY for the radionuclides quantified at PNNL with relative uncertainties, as well as the CFY reported by England and Rider [17] and ENDF/B-II.1 [18], are shown in Table 7. The CFY for ¹⁴⁰La, ¹⁴¹Ce, ¹⁴³Ce, and ¹⁴⁷Nd is based on the gamma radiometric analysis of the unseparated HEU solution, while ¹⁴⁴Ce, ¹⁵³Sm, ¹⁵⁶Eu, and ¹⁶¹Tb are based on radiometric analysis of the separated fractions following the LN resin separation. The calculated results based on the thermally irradiated HEU are consistent with the values reported in England and Rider [17] and ENDF/B-VII.1 [18] within a 1σ uncertainty for the radionuclides other than ¹⁵³Sm. During an interlaboratory calibration and comparison study for ¹⁵³Sm, Jackson et al. found that the ¹⁵³Sm thermal ²³⁵U CFY reported by England and Rider (1.58 × 10⁻³) is most likely 15% high and should be closer to 1.35 × 10⁻³ [17]. While the ¹⁵³Sm CFY calculated based on the experimental results reported here is low compared to England and Rider, it agrees well with the value reported by Jackson et al. [19]. The ratios of the PNNL CFY and the CFY reported in ENDF/B-II.1 or by Jackson et al. are shown in Figure 2.

$$\mathrm{C}\mathrm{F}\mathrm{Y}= \frac{\mathrm{A}\mathrm{t}\mathrm{o}\mathrm{m}\mathrm{s} \mathrm{o}\mathrm{f} \mathrm{a}\mathrm{n}\mathrm{a}\mathrm{l}\mathrm{y}\mathrm{t}\mathrm{e} \mathrm{X} \mathrm{p}\mathrm{e}\mathrm{r} \mathrm{g}\mathrm{r}\mathrm{a}\mathrm{m} \mathrm{s}\mathrm{t}\mathrm{o}\mathrm{c}\mathrm{k} \mathrm{H}\mathrm{E}\mathrm{U} \mathrm{s}\mathrm{o}\mathrm{l}\mathrm{u}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}}{\mathrm{F}\mathrm{i}\mathrm{s}\mathrm{s}\mathrm{i}\mathrm{o}\mathrm{n}\mathrm{s} \mathrm{X} \mathrm{p}\mathrm{e}\mathrm{r} \mathrm{g}\mathrm{r}\mathrm{a}\mathrm{m} \mathrm{s}\mathrm{t}\mathrm{o}\mathrm{c}\mathrm{k} \mathrm{H}\mathrm{E}\mathrm{U} \mathrm{s}\mathrm{o}\mathrm{l}\mathrm{u}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}}$$

(2)

4. Conclusions

With the methods developed for REEs separation reported here, it is possible to obtain separated fractions containing Ce, Sm, Eu, and Tb from a single aliquot of a fission product sample. The radiometric purity of the Sm and Eu fractions is greatly increased, thereby decreasing the detection limit and/or radiometric analysis time. The improved radiometric purity generates Tb fractions suitable for LEPS or beta analysis. An additional benefit of the new separation method is a light lanthanide fraction suitable for quantification of Ce. Cerium-144 has a relatively long half-life and can be quantified in the irradiated HEU solution after the shorter-lived fission products have decayed; however, with this new method, a low uncertainty measurement by gamma spectroscopy is possible after the chemical separation. This method is based on gravity column chromatography, so it is possible to run many separations in parallel. The method reported here uses HNO₃ as the eluent, the extractant that enables the separation remains on the column removing the need for additional processing prior to analysis, and the eluent does not require pH adjustment. In contrast, anion exchange separations, including high-pressure ion chromatography methods, add organic ions to the sample to greatly improve the intra-group separation, and the separation is highly dependent on the eluent pH. The separation of REEs using LN resin with an HNO₃ eluent offers an additional option to the available intra-group REEs separation methods.
