Article

Eco-Friendly Direct GC–MS Method for Estimation of Niacin and Related Impurities Involving Pyridine in Food Supplements

by
Atiah H. Almalki
1,2,
Ibrahim A. Naguib
1 and
Fatma F. Abdallah
3,*
1
Department of Pharmaceutical Chemistry, College of Pharmacy, Taif University, P.O. Box 11099, Taif 21944, Saudi Arabia
2
Addiction and Neuroscience Research Unit, Taif University, P.O. Box 11099, Taif 21944, Saudi Arabia
3
Pharmaceutical Analytical Chemistry Department, Faculty of Pharmacy, Beni-Suef University, Alshaheed Shehata Ahmad Hegazy St., Beni-Suef 62514, Egypt
*
Author to whom correspondence should be addressed.
Separations 2021, 8(4), 46; https://doi.org/10.3390/separations8040046
Submission received: 14 February 2021 / Revised: 9 March 2021 / Accepted: 24 March 2021 / Published: 6 April 2021
(This article belongs to the Special Issue Rapid Separations of Complex Mixtures)

Abstract

:
Niacin is a water-soluble vitamin whose deficiency causes many disorders and diseases, including pellagra and high blood cholesterol. Herein, niacin and four common impurities, isonicotinic acid (ISO), 5-ethyl-2-methylpyridine (MP), pyridine-2, 5-dicarboxylic acid (PDC) and pyridine PYR, are simultaneously analyzed, where PYR is known as potentially nephrotoxic and hepatotoxic. The separation of a mixture using gas chromatography–mass spectroscopy (GC–MS) without any derivatization steps was the main target. Many studies have been published to study Niacin and its impurities using colorimetry and HPLC. GC–MS was selected to study the analyzed mixture owing to its known sensitivity and selectivity. In this study, a single quadrupole mass spectrometer operated in selected ion monitoring (SIM) mode at an electron ionization energy of 70 eV was applied for the quantitative analysis of Niacin. Helium was used as the carrier gas and adjusted to run through an HP-5ms (5%-phenyl)-methylpolysiloxane column. Statistical analysis proved that this method is equally effective as the previously reported method. Importantly, this study was eco-friendly as compared to the reported high performance thin layer chromatographic method (HPTLC). Finally, this study provides a new and valid eco-friendly method analysis to determine the concentration of niacin and its common impurities at very low concentration. Conclusion: A simple, rapid accurate and green GC–MS analytical method was developed and validated to determine niacin and its related official impurities.

1. Introduction

Pyridine-3-carboxylic acid is the IUPAC name of water-soluble vitamin B3 [1], also known as nicotinic acid or niacin (NIA) [1]. Pellagra is a disease that is most prevalent in the world’s poorest communities where malnutrition prevails [2]. A severe cellular deficiency of NIA is the main cause of pellagra, which is also known as the 4 “D’s”: diarrhea, dermatitis, dementia, and death [2,3]. Niacin is the dietary precursor for NAD+ (nicotinamide adenine dinucleotide), which is a central cofactor for cellular metabolism [4] and essential for DNA synthesis [4,5]. The supplemental form of NIA is the major medication used to treat pellagra. Niacin is also an efficient agent for reducing low-density lipoprotein cholesterol levels and elevating high-density lipoprotein [6,7]. Hence, it is used alongside other lipid-lowering medications to treat high blood cholesterol [6,7].
As an essential nutrient, NIA has attracted significant attention from researchers for a long time. In the 1930s, NIA was successfully determined in foodstuffs using colorimetric methods [8,9]. Several analytical studies followed, using TLC [10,11,12,13,14], spectrophotometric [15,16,17,18], and HPLC methods [19,20,21]. Capillary electrophoresis and HPLC methods were developed to determine NIA in foods [22] via autoclaving at 121 °C in the presence of 0.8 M sulfuric acid for 2 h. Potentiometric and voltametric studies have also been reported in the literature [23,24]. Although the thermal stability of NIA was a controversial topic [25], many gas chromatographic methods were developed for the determination of NIA in food samples and in enzymes, relying on short analysis time, low molecular weight of NIA and high volatility [25,26]. Pyridine (PYR) is the main impurity in commercial NIA [1]. With respect to the literature, PYR has been reaffirmed to be pneumotoxic, hepatotoxic, and nephrotoxic [27,28]. Additionally, PYR is also a precursor of illegal drugs; for example, it is used in amphetamine and amphetamine-like drugs [29]. In addition to PYR, isonicotinic acid (ISO), 5-ethyl-2-methylpyridine (MP), and pyridine-2, 5-dicarboxylic acid (PDC) have been reported as common NIA impurities; see Figure 1 [1].
Few analytical studies concerned with the determination of NIA and its impurities have been reported. Recently, the quintuple mixture containing NIA and its official impurities was analyzed by high performance thin layer chromatographic method (HPTLC) [30] and chemometric models [31]. The presented study is designed to suggest and validate a gas chromatography–mass spectroscopy (GC–MS) method to separate and assess NIA and its related impurities with high accuracy and sensitivity, applying a GC method coupled with a mass spectrometer offering high sensitivity and additional confirmatory results. Unlike previously reported, direct GC analysis offers specificity and sensitivity, reproducibility, linearity and saves costs and time. GC–MS is known for its sensitivity to quantify very small concentrations of compounds (up to pbb or less) and to identify unknown compounds from a complicated matrix [32]. Owing to the high resolution, sensitivity, precision and accuracy of the GC–MS method, it has separative and quantitative features to assess small concentrations of analytes [33,34]. In addition, this study aims to implement the established GC–MS methods to quantify NIA in the marketed pharmaceutical formulation as part of quality control analysis.
Moreover, the presented work aims to offer validation of the developed method by applying USP guidelines [35] and a statistical comparison with a previously reported method [20] to verify its ability to conduct routine analysis of the studied drug.
Achieving a balance between the environmental impact and separation capacity of the analytical method represents great challenges for any analyst. Accordingly, an eco-scale assessment for the newly developed GC–MS and previously reported HPTLC method [30] is conducted to prove the relative greenness of the introduced method.

2. Experimental Analysis

2.1. Instruments

The analyses of NIA, PYR, MP, PDC and ISO samples were performed using a gas chromatograph (TRACETM 1310 GC) equipped with a single quadrupole mass spectrometer (ISQ LT) and AI/AS1310 auto-sampling unit (Thermo Scientific, Waltham, MA, USA). To assist compound identification, the NIST Standard Reference Database 1A was used. Analysis was achieved using an Agilent (19091S-433: 2330.46415) HP-5ms (5%-phenyl)-methylpolysiloxane column (30 m × 250 µm I.D. × 0.25 µm film thickness). The maximum temperature of the oven of the GC–MS was 325 °C, within which temperature programs were used to optimize separation efficiency.
The Xcalibur program (Thermo Scientific, USA) version 3.1 was used for data analysis.

2.2. Materials and Reagents

2.2.1. Standards

Niacin was kindly supplied by the Amoun Pharmaceutical Company, Obour city, Cairo, Egypt, with a purity of 99.70% according to the company certificate. PYR, PDC, and ISO standards were purchased from Acros Organics Company, Geel, Antwerp, Belgium, with purity of 98% for PYR, and PDC, and 99% for ISO according to the company’s certificate. Alfa Aesar Company, Kandel, Germany, was the supplier of MP with a purity of 97% according to the certificate.

2.2.2. Pharmaceutical Formulation

NIACIN® tablets (batch no. 152405-05) were manufactured in the USA by Solgar, Inc., Leonia, NJ, and each tablet was claimed to deliver 100 µg of NIA.

2.2.3. Chemicals and Solvents

HPLC-grade ethanol was purchased from Sigma Aldrich, Darmstadt, Germany.

2.3. Standard Solutions

2.3.1. Stock and Working Standard Solutions

Stock standard solutions of NIA, PYR, MP, PDC, and ISO were prepared separately by accurate weighting of 0.1 g of the respective standards. In sequence, the weighed portions were added to five separate 100 mL flasks. For ultimate dissolution and environmental considerations, ethanol was used as the solvent to prepare 1000 µg mL−1 stock solutions. First, 10 mL of each stock solution was accurately transferred to five separate 100 mL flasks to prepare the five respective 100 µg mL−1 working standard solutions.

2.3.2. Solutions of Pharmaceutical Formulation

Hard grinding of 20 NIACIN® tablets was performed after accurate weighting using a four-digit balance. An accurately weighed equivalent portion (100 mg) of NIA was placed into a 100 mL volumetric flask, and 75 mL of ethanol was subsequently added to the flask. Ultrasonication of the prepared solution was conducted for 30 min to achieve maximum dissolution. The solution was left to cool at 25 °C for a sufficient time, and ethanol was added to the flask to reach the final volume. Finally, filtration was performed to obtain a 1000 µg mL−1 stock solution.
A working solution of 100 µg mL−1 was prepared via proper dilution of the stock solution. To apply the standard addition technique, homogeneous blending of the pure standard of NIA with the ground tablets was necessary before repeating the previously described procedure.

2.4. Chromatographic Conditions

Analysis of NIA, PYR, MP, PDC and ISO was achieved using an Agilent (19091S-433: 2330.46415) HP-5ms (5%-phenyl)-methylpolysiloxane (30 m × 250 µm I.D. × 0.25 µm film thickness) column. Helium was pumped as the carrier gas, and the injection volume was 1 μL. Several temperature programs were studied to achieve maximum sensitivity and selectivity. The initial temperature of the oven was firstly set at 120 °C, but the peaks were very broad and tailed, so more decreased temperatures were used to give sharp peaks until reaching a temperature of 90 °C. The best sharp, symmetric peaks were obtained by applying 90 °C as an initial temperature, which was increased gradually to 200 °C according to the specific temperature program mentioned before in the experimental section. Additionally, various trials concerning different helium carrier gas flow rates, such as 0.8, 1 and 1.2 mL min−1, were conducted. Full separation of the five analyzed components with minimal peak tailing was obtained upon application at a flow rate of 1.2 mL min−1.
A total of 9 min was required by the method to analyze the mixture. The injector and transfer line had controlled temperatures of 250 and 280 °C, respectively. Selected ion monitoring (SIM) mode was applied to perform the analysis via electron ionization with 70 eV energy. The injector was used in split-less mode during the entire analysis.

2.5. Calibration Curve Construction

Numerous concentrations of NIA, PYR (its toxic impurity), MP, PDC and ISO, in the ranges 0.5–20 μg mL−1, 0.005–5 μg mL−1, 0.1–5 μg mL−1, 0.5–20 μg mL−1 and 0.5–20 μg mL−1, respectively, were prepared via proper dilutions of their corresponding standard working solutions using ethanol as a solvent. Triple injections into the GC–MS for every concentration were performed following the detailed separation procedure (Section 3.1). A calibration graph of each analyte was constructed using the recorded peak areas, and the linear regression equations were calculated.

2.6. Application to Pharmaceutical Formulation

Solutions of the marketed dosage form were freshly prepared before applying the clarified steps under construction of the calibration curve.

3. Validation of the Newly Developed Method

It should be noted that validation of the suggested method was accomplished in view of the USP guidelines [35].

3.1. Linearity

Using the proposed chromatographic conditions, the linearity of the developed method was confirmed by determining the integrated peak area of different concentrations of NIA, PYR, MP, PDC and ISO. Sequentially, calibration graphs were constructed by plotting the peak area as a function of concentration, and the regression equations were then determined.

3.2. Accuracy

The accuracy of the GC–MS method was examined by implementing the introduced method to assess numerous concentrations of pure standards of NIA, PYR, MP, PDC and ISO. By applying the corresponding regression equation of each analyte (Table 1, the concentrations of the analyzed samples were obtained; see Table 2. To further confirm the accuracy of the presented method, a standard addition technique was implemented, which resulted in good recoveries, confirming no interventions with excipients; see Table 3.

3.3. Precision

The repeatability and intermediate precision for each analyte were tested to confirm the precision of the newly suggested method [35].

Repeatability

Three concentrations of NIA, PYR, MP, PDC and ISO were analyzed on the same day in triplicate using the proposed method. The chosen concentrations for NIA, ISO and PDC were 5, 10 and 20 µg mL−1 respectively. For PYR and MP, the chosen concentrations were 0.5, 1 and 2 µg mL−1, respectively. Good RSD% values confirmed the repeatability of the proposed method; see Table 2.

3.4. Intermediate Precision

Over five successive days, the aforementioned procedure was reapplied to analyze the selected concentrations of the studied analytes. Good RSD % values were gained and are listed in Table 2.

3.5. Specificity

Full separation of the five injected components using the proposed GC–MS method showed the specificity of the newly developed method; see Figure 2. In addition, the ability of the proposed method to test the component of interest in a specific and accurate manner in existence with other interfering ingredients (Table 3) was tested. Acceptable selectivity and resolution values were obtained; see Table 4.

Limits of Detection and Quantitation (LOD and LOQ)

The low obtained values of LOD and LOQ were indicators of the high sensitivity of the proposed method (Table 2), but the presented method is only capable of the impurity testing of pyridine. Both LOD and LOQ were assessed mathematically [35]; LOD = 3.3× (SD of the response/slope) and LOQ = 10 × (SD of the response/slope).

3.6. System Suitability

System suitability testing was performed based on the concept that analytical procedures, samples, equipment and electronics work as a comprehensive system that can be assessed in its entirety [35]. It is supposed to assess the system performance before and within the time of analysis. Resolution (Rs), peak asymmetry and selectivity factor (α) were examined.

4. Results and Discussion

The quintuple mixture under study was assessed by chemometric models, which were unable to determine all analytes in the mixture, as they determined the active pharmaceutical component (NIA) only [21]. Regarding chromatographic methods, the recently developed HPTLC method was able to separate and assess the mixture of interest [30]. Nonetheless, the developed chemometric and chromatographic methods were less sensitive compared to the presented GC–MS method.
The novelty of this study is driven by the ability of the developed GC–MS method to separate and quantify the studied substances with respect to the USP guidelines [36]. It offers high sensitivity and selectivity for the presented mixture compared to previously published chromatographic methods. The introduced GC–MS method was rapid, direct, sensitive and more eco-friendly as compared to the reported HPTLC method.

4.1. Method Development and Optimization

Several temperature programs were studied to achieve maximum sensitivity and selectivity. The initial temperature of the oven was firstly set at 120 °C, but the peaks very broad and tailed, so more decreased temperatures were used to give sharp peaks until reaching temperature of 90 °C. The best sharp, symmetric peaks were obtained applying 90 °C as an initial temperature, which increased gradually to 200 °C according to the specific temperature program mentioned before in the experimental section. Additionally, various trials concerning different helium carrier gas flow rates, such as 0.8, 1 and 1.2 mL min−1, were conducted. The full separation of the five analyzed components with minimal peak tailing was applying at a flow rate of 1.2 mL min−1. The implemented temperature programs and all the analytical conditions are detailed in the experimental section. Pyridine first appeared at 1.67 min, followed by MP, NIA, PDC and ISO at 3.57, 5.68, 7.00 and 7.76 min, respectively; see Figure 2. The resulting chromatogram showed sharp and symmetric peaks for all analytes, except the ISO peak, which had slight tailing that remained within the permissible limits according to the USP guidelines [36].
For more confirmatory data, a mass spectrometer with electron impact ionization/selective ion monitoring (ES/SIM) mode was used. The mass spectra of the five analytes are shown in Figure S1 (Supplementary Materials). Fragments (m/z) were used to quantitatively assess both the active ingredient and impurities. The major mass fragments for NIA and ISO were 123, 105 and 78 m/z, while those of PYR were 79, 52 and 51 m/z. For MP, the major mass fragments were 106, 121 and 79 m/z and those for PDC were 167, 123, 51 and 44 m/z.
The calibration curve of each analyte was constructed by plotting the integrated peak area × 10−6 against the respective concentration. The regression equation of each separated ingredient was subsequently calculated; see Table 1. The regression equation parameters are listed in Table 2.

4.2. Results of Figures of Merit

The developed GC method was validated according to the USP guidelines [35], and the results for linearity, accuracy and specificity are presented in Table 2, affirming the validity of this method.
For further evaluation of accuracy, the standard addition method was applied, and the results are presented in Table 3, where perfect recoveries of the pure added fractions were obtained, confirming the accuracy of the method.
Precision was validated at two levels, the repeatability and intermediate precision. The results presented in Table 2 show low RSD% for both affirming low deviations for intraday determinations and day to day variations as well.
Very low limits of detection and quantitation were obtained for the main drug (NIA) and its impurities, as indicated in Table 2, especially the toxic one (pyridine), which could be detected at 0.001 µg mL−1 and quantified at 0.003 µg mL−1, indicating the very high sensitivity of the method.
Resolution (Rs), peak asymmetry, capacity factor, tailing factor, HETP and selectivity factor (α) were examined to ensure the system performance and suitability of the suggested method, and results are acceptable and fully presented in Table 4. The system suitability results for the main drug (NIA) were optimum regarding peak symmetry (tailing factor) and resolution from all other peaks.

4.3. Results of Assay of Dosage Form

The results of the assay of the drug product provided optimum recovery for NIA with low standard deviation. Finally, a statistical comparison between the results obtained from the suggested method, previously reported HPLC method and recently developed HPTLC method was performed; see Table 5 [20,30]. The hypothetical t and F values were larger than those that were experimentally obtained, confirming no significant differences between the two methods in terms of both accuracy and precision.

4.4. Eco-Scale Assessment of Proposed Method

An eco-scale semi-quantitative tool [36] was recently developed to assess the greenness capacity of analytical procedures [37,38]. An eco-scale comparative study of the newly developed GC/MS method, the reported HPLC [20] and recently published HPTLC [30] method was performed, demonstrating the higher greenness value of the newly presented method; see Table 6. The total score was obtained for each method after subtracting the penalty points of all involved parameters. The total scores obtained were 75, 89 and 92 for the reported HPLC method, the recently published HPTLC method and the introduced GC/MS method, respectively. The proposed method proved to be the greenest analytical method.

5. Conclusions

The mixture of the active ingredient (NIA) and common impurities involving toxic PYR were analyzed by the newly developed simple and selective GC–MS method. The uniqueness of the developed method is its ability to separate and quantitatively analyze the five studied components without intricate derivatization steps and within 9 min. Using the presented method, the components of interest could be assessed at very low concentrations. In addition, the validation of the proposed method was conducted according to the USP guidelines. In addition, environmental aspects were considered by using ethanol, a well-known green solvent, and decreasing waste by ensuring a short analysis time. The total eco-score of the proposed method was higher than that of the previously HPTLC method, confirming its higher greenness capacity. The capacity of the developed method for application in the routine analysis of pharmaceutical formulations containing NIA was confirmed via the successful determination of NIA in NIACIN® tablets, because no interference from the additives was observed.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/separations8040046/s1, Figure S1: Mass spectra of NIA, PYR, MP, PDC and ISO.

Author Contributions

Conceptualization, A.H.A. and I.A.N.; methodology, F.F.A.; software, F.F.A.; formal analysis F.F.A.; investigation, A.H.A., I.A.N. and F.F.A.; resources, A.H.A.; data curation, I.A.N. and F.F.A.; writing—original-draft preparation, A.H.A. and F.F.A.; writing—review and editing A.H.A. and F.F.A.; visualization, I.A.N.; supervision, A.H.A., I.A.N. and F.F.A.; project administration, A.H.A. and I.A.N.; funding acquisition, A.H.A. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by Taif University Researchers Supporting Project (TURSP-2020/208), Taif University, Taif, Saudi Arabia.

Institutional Review Board Statement

Not Applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data can be provided by authors upon request.

Acknowledgments

The authors would like to extend their sincere appreciation to Taif University Researchers Supporting Project number TURSP-2020/208, Taif University, Taif, Saudi Arabia.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

GC–MSGas chromatography–mass spectrometry
ISOisonicotinic acid
MP5-ethyl-2-methylpyridine
NIAniacin
PCDpyridine-2, 5-dicarboxylic acid
SIMselected ion monitoring
USPUnited States pharmacopeia

References

  1. Her Majesty’s. The British Pharmacopoeia; The Stationary Office: London, UK, 2013. [Google Scholar]
  2. Hegyi, J.; Schwartz, R.A.; Hegyi, V. Pellagra: Dermatitis, dementia, and diarrhea. Int. J. Dermatol. 2004, 43, 1–5. [Google Scholar] [CrossRef] [PubMed]
  3. Williams, A.C.; Ramsden, D.B. Pellagra: A clue as to why energy failure causes diseases? Med. Hypotheses. 2007, 69, 618–628. [Google Scholar] [CrossRef] [PubMed]
  4. Kirkland, J.B. Niacin status, NAD distribution and ADP-ribose metabolism. Curr. Pharm. Des. 2009, 15, 3–11. [Google Scholar] [CrossRef]
  5. Jacobson, E.L.; Jacobson, M.K. [19] Tissue NAD as a biochemical measure of niacin status in humans. Methods Enzymol. 1997, 280, 221–230. [Google Scholar] [PubMed]
  6. Brown, B.G.; Bardsley, J.; Poulin, D.; Hillger, L.A.; Dowdy, A.; Maher, V.M.; Zhao, X.Q.; Albers, J.J.; Knopp, R.H. Moderate dose, three-drug therapy with niacin, lovastatin, and colestipol to reduce low-density lipoprotein cholesterol <100 mg/dl in patients with hyperlipidemia and coronary artery disease. Am. J. Cardiol. 1997, 80, 111–115. [Google Scholar] [CrossRef]
  7. Khera, A.V.; Patel, P.J.; Reilly, M.P.; Rader, D.J. The addition of niacin to statin therapy improves high-density lipoprotein cholesterol levels but not metrics of functionality. J. Am. Coll. Cardiol. 2013, 62, 1909–1910. [Google Scholar] [CrossRef] [Green Version]
  8. Swaminathan, M.A. Colorimetric Method for the Estimation of Nicotinic Acid in Foodstuffs. Nature 1938, 41, 830. [Google Scholar] [CrossRef]
  9. Bandier, E.; Hald, J.A. Colorimetric reaction for the quantitative estimation of nicotinic acid. Biochem. J. 1939, 33, 264. [Google Scholar] [CrossRef] [Green Version]
  10. Frei, R.W.; Kunz, A.; Pataki, G.; Plims, T.; Zürcher, H. The determination of nicotinic acid and nicotinamide by thin-layer chromatography and in situ fluorimetry. Anal. Chim. Acta. 1970, 49, 527–534. [Google Scholar] [CrossRef]
  11. Carlson, L.A. Determination of free nicotinic acid in blood plasma. Clinic. Chim. Acta. 1966, 13, 349–351. [Google Scholar] [CrossRef]
  12. Díaz, A.N.; Paniagua, A.G.; Sánchez, F.G. Thin-layer chromatography and fibre-optic fluorimetric quantitation of thiamine, riboflavin and niacin. J. Chromatogr. A 1993, 655, 39–43. [Google Scholar] [CrossRef]
  13. Tiwari, P.K.; Sathe, P. Development and validation of HPTLC method for niacin and simvastatin in binary combination. Adv. Biosci. Biotechnol. 2010, 1, 131–135. [Google Scholar] [CrossRef] [Green Version]
  14. Brunink, H.; Wessels, E.J. The determination of nicotinic acid by fluorimetric densitometry. Analyst 1972, 97, 258–259. [Google Scholar] [CrossRef] [PubMed]
  15. Kazemipour, M.; Ansari, M.; Ramezani, H.; Moradalizadeh, M. Simultaneous determination of lovastatin and niacin in tablet by first and third derivative spectrophotometry and H-point standard addition methods. Res. Pharm. Sci. 2012, 7, 95–102. [Google Scholar] [CrossRef] [PubMed]
  16. Nwanisobi, G.C.; Ukoha, P.O. Spectrophotometric determination of niacin using 2, 3-dichloro-5,6-dicyano-1, 4-benzoquinone. Asian J. Chem. 2016, 28, 237. [Google Scholar] [CrossRef]
  17. Capella-Peiró, E.; Monferrer-Pons, L.; García-Alvarez-Coque, C.; Esteve-Romero, J. Flow-injection spectrophotometric determination of nicotinic acid in micellar medium of N-cetylpyridinium chloride. Anal. Chim. Acta 2001, 427, 93–100. [Google Scholar] [CrossRef]
  18. Esteve-Romero, J.S.; Monferrer-Pons, L.; Ramis-Ramos, G.; Garcia-Alvarez-Coque, M.C. Enhanced spectrophotometric determination of nicotinic acid in a sodium dodecyl sulphate micellar medium. Talanta 1995, 42, 737–745. [Google Scholar] [CrossRef]
  19. Perrone, D.; Donangelo, C.M.; Farah, A. Determination of niacin in cereal samples by HPLC. Food Chem. 2008, 110, 1030–1035. [Google Scholar] [CrossRef]
  20. Pfuhl, P.; Kärcher, U.; Häring, N.; Baumeister, A.; Tawab, M.A.; Schubert-Zsilavecz, M. Simultaneous determination of niacin, niacinamide and nicotinuric acid in human plasma. J. Pharm. Biomed. Anal. 2005, 36, 1045–1052. [Google Scholar] [CrossRef] [PubMed]
  21. Klejdus, B.; Petrlová, J.; Potěšil, D.; Adam, V.; Mikelová, R.; Vacek, J.; Kizek, R.; Kubáň, V. Simultaneous determination of water-and fat-soluble vitamins in pharmaceutical preparations by high-performance liquid chromatography coupled with diode array detection. Anal. Chim. Acta 2004, 520, 57–67. [Google Scholar] [CrossRef]
  22. Windahl, K.L.; Trenerry, V.C.; Ward, C.M. The determination of niacin in selected foods by capillary electrophoresis and high performance liquid chromatography: Acid extraction. Food Chem. 1999, 65, 263–270. [Google Scholar] [CrossRef]
  23. Gonçalves, E.M.; Joseph, A.; Conceição, A.C.L.; da Piedade, M.E.M. Potentiometric titration study of the temperature and ionic strength dependence of the acidity constants of nicotinic acid (niacin). J. Chem. Eng. Data 2011, 56, 2964–2970. [Google Scholar] [CrossRef]
  24. Rahman, M.T.; Hossain, M.E.; Ehsan, M.Q. Spectrophotometric and cyclic voltammetric study of interaction of Fe (III) with vitamin B3 and vitamin B6. J. Bangladesh Acad. Sci. 2014, 38, 143–153. [Google Scholar] [CrossRef] [Green Version]
  25. Moreschi, E.C.; Matos, J.R.; Almeida-Muradian, L.B.J. Thermal analysis of vitamin PP Niacin and niacinamide. Therm. Anal. Calorim. 2009, 98, 161–164. [Google Scholar] [CrossRef]
  26. Sheppard, A.J.; Prosser, A.R. [101] Gas chromatography of niacin. In Methods in Enzymology; Academic Press: Cambridge, MA, USA, 1971; Volume 18, pp. 17–20. [Google Scholar] [CrossRef]
  27. Day, B.J.; Carlson, G.P.; Denicola, D.P. Potentiation of carbon tetrachloride-induced hepatotoxicity and pneumotoxicity by pyridine. J. Biochem. Toxic. 1993, 8, 11–18. [Google Scholar] [CrossRef]
  28. Arinç, E.; Adali, O.; Gençler-Özkan, A.M. Stimulation of aniline, p-nitrophenol and N-nitrosodimethylamine metabolism in kidney by pyridine pretreatment of rabbits. Arch. Toxicol. 2000, 74, 527–532. [Google Scholar] [CrossRef]
  29. Ghira, G.B.; Raţiu, I.A.; Bocoş-Binţinţan, V. Fast characterization of pyridine using ion mobility spectrometry and photoionization detection. Environ. Eng. Manag. J. 2013, 12, 251–256. [Google Scholar]
  30. Naguib, I.A.; Draz, M.E.; Abdallah, F.F. Impurity profiling high-performance-thin-layer chromatography method involving the assay of essential human micronutrient niacin with eco-scale assessment. Biomed. Chromatogr. 2020, 34. [Google Scholar] [CrossRef]
  31. Naguib, I.A.; Abdallah, F.F. Two Multivariate Calibration Models for Assay of Niacin in complex mixtures with its official impurities: A Pharmaceutical Application. J. AOAC Int. 2020, 103, 1660–1666. [Google Scholar] [CrossRef]
  32. Ratiu, I.A.; Bocos-Bintintan, V.; Monedeiro, F.; Milanowski, M.; Ligor, T.; Buszewski, B. An optimistic vision of future: Diagnosis of bacterial infections by sensing their associated volatile organic compounds. Crit. Rev. Anal. Chem. 2020, 50, 501–512. [Google Scholar] [CrossRef]
  33. Chauhan, A.; Goyal, M.K.; Chauhan, P. GC-MS technique and its analytical applications in science and technology. Anal. Bioanal. Tech. 2014, 5, 222. [Google Scholar] [CrossRef] [Green Version]
  34. United States Pharmacopeia Convention Inc. The United States Pharmacopeia, National Formulary 35, 30th ed.; United States Pharmacopeia Convention Inc.: Rockville, MD, USA, 2012. [Google Scholar]
  35. Van Aken, K.; Strekowski, L.; Patiny, L. EcoScale, a semi-quantitative tool to select an organic preparation based on economical and ecological parameters. Beilstein J. Org. Chem. 2006, 2, 3. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Mohamed, H.; Lamie, N. Analytical Eco-Scale for Assessing the Greenness of a Developed RP-HPLC Method Used for Simultaneous Analysis of Combined Antihypertensive Medications. J. AOAC Int. 2016, 99, 1260–1265. [Google Scholar] [CrossRef]
  37. Gamal, M.; Ali, H.M.; Abdelfatah, R.M.; Magdy, M.A. A green approach for simultaneous analysis of two natural hepatoprotective drugs in pure forms, capsules and human plasma using HPLC-UV method. Microchem. J. 2019, 151, 104258. [Google Scholar] [CrossRef]
  38. Gamal, M.; Elhalim, L.M.A. Novel Eco-friendly HPLC Methods Using Refractive Index Detector for Analysis of Three Veterinary Antibiotics in Pharmaceutical Formulations and Rat Plasma. J. Chromatogr. Sci. 2020, 58, 940–950. [Google Scholar] [CrossRef]

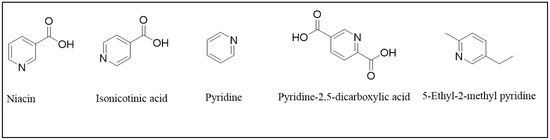

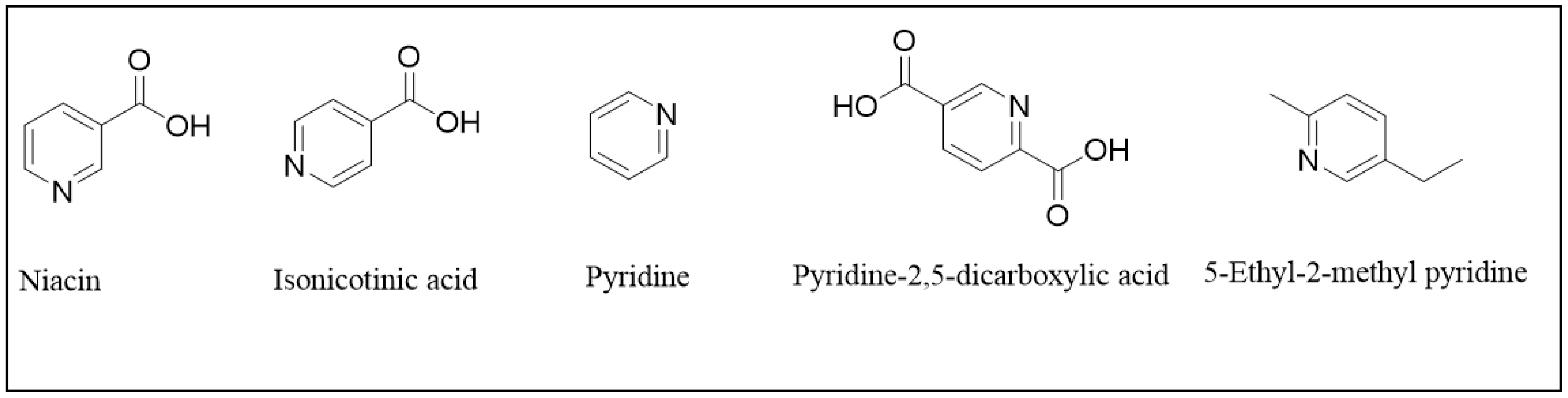

Figure 1. The chemical structures of nicotinic acid and its official impurities.
Figure 1. The chemical structures of nicotinic acid and its official impurities.
Separations 08 00046 g001

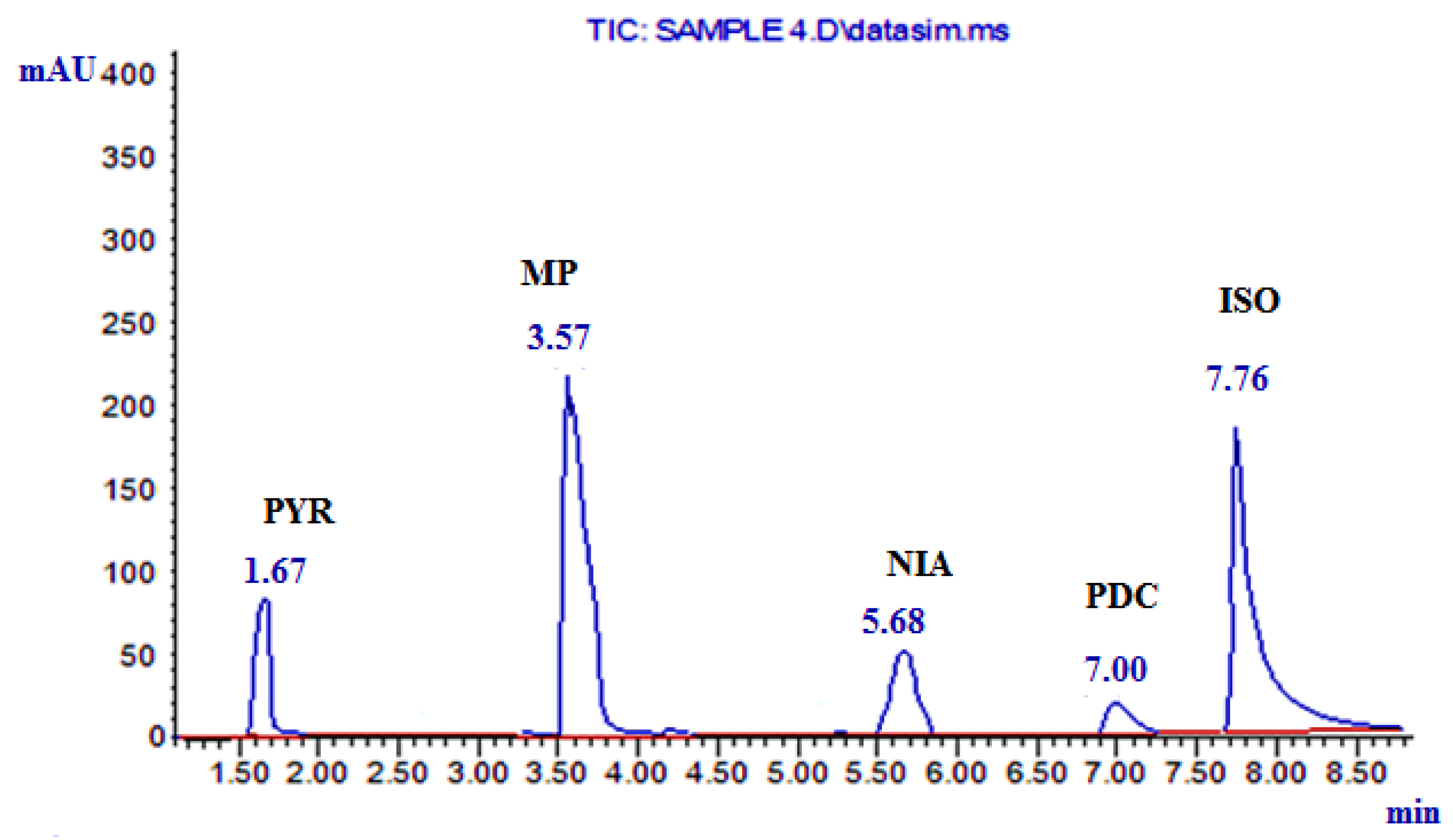

Figure 2. GC chromatogram of the quintuple mixture of NIA (5 µg/mL), PYR (0.05 µg/mL), MP (0.1 µg/mL), PDC (0.5 µg/mL) and ISO (10 µg/mL).
Figure 2. GC chromatogram of the quintuple mixture of NIA (5 µg/mL), PYR (0.05 µg/mL), MP (0.1 µg/mL), PDC (0.5 µg/mL) and ISO (10 µg/mL).
Separations 08 00046 g002
Table 1. The regression equations and retention times of the separated ingredients.
Table 1. The regression equations and retention times of the separated ingredients.
Components of the Analyzed MixtureRegression Equation *Retention Time
NIAA1 = 0. 9636 C1 + 0.51585.68
PYRA2 = 36.61 C2 + 8.28841.67
MPA3 = 10.15 C3 − 0.57453.57
PDCA4 = 0.4934 C4 − 0.07267.00
ISOA5 = 1.1665 C5 + 0.08747.76
* A1, A2, A3, A4 and A5 are the respective integrated peak areas × 10−6; C1, C2, C3, C4 and C5 are the concentrations in μg mL−1; r1, r2, r3, r4 and r5 are the regression coefficients of NIA, PYR, MP, PDC and ISO, respectively.
Table 2. Analytical validation parameters of the introduced gas chromatography–mass spectroscopy (GC–MS) method for analysis of the quintuple mixture of PYR, MP, NAI, PDC and ISO.
Table 2. Analytical validation parameters of the introduced gas chromatography–mass spectroscopy (GC–MS) method for analysis of the quintuple mixture of PYR, MP, NAI, PDC and ISO.
GC–MS MethodParameter
ISOPDCMPPYRNIA
0.5–200.5–200.1–50.005–50.5–20Range (µg mL−1)
1.16650.493410.150036.61000.9636Slope
0.0874−0.0726−0.57458.28840.5158Intercept
0.99990.99980.99990.99990.9997Regression coefficient
101.03 ± 1.729100.95 ± 2.100100.17 ± 1.06499.69 ± 1.607100.49 ± 0.754Accuracy
(Mean ± SD)
2.0741.3051.7191.6131.513     Precision
-
Repeatability (RSD%) a
-
Intermediate precision (RSD%) b
2.4642.4342.2002.5152.122
0.1390.1360.0300.0010.121LOD (µg mL−1)
0.4600.4500.0980.0030.400LOQ (µg mL−1)
a The intraday precision, mean of 3 different concentrations reanalyzed 3 times during the same day. b The intermediate precision, mean of the same three different concentrations reassessed 3 times during 5 consecutive days.
Table 3. Quantitative analysis of NIA in the pharmaceutical tablets via the developed method and applying of standard addition technique.
Table 3. Quantitative analysis of NIA in the pharmaceutical tablets via the developed method and applying of standard addition technique.
Recovery % bPure Found
(µg mL−1)
Pure Added
(µg mL−1)
Found% a
Mean ± SD)
Claimed Taken
(µg mL−1)
Niacin® Tablets, Batch No. 152405-05
98.672.963.0100.11 ± 1.7555.0NIA
99.604.985.0
99.339.9310.0
99.20 ± 0.391Mean ± SD
a Average of 6 determinations. b Average of 3 determinations.
Table 4. System suitability testing parameters of the suggested method for quantitative estimation of quintuple mixture of NIA and its related impurities.
Table 4. System suitability testing parameters of the suggested method for quantitative estimation of quintuple mixture of NIA and its related impurities.
Reference Values [35]GC/MSParameter
ISOPDCNIAPDCNIAMPPYRMP
~11.51.311.311.41.31.4Tailing factor (T)
1–106.7664.6864.682.570.672.57Capacity factor (K’)
Acceptable
Rs > 1.53.1856.262.641.67Resolution (RS)
>13.841.821.281.13Selectivity(α)
Increase with efficiency of the separation214,285.7135,714.2911,718.7535,714.2911,718.757092.23348.27092.2Column efficiency (N)
The smaller the value the higher the column efficiency0.0140.0840.2560.0840.2560.4230.8960.423HETP = height equivalent to theoretical plate, (cm/plate)
Table 5. Statistical analysis of the values resulted by the developed among the suggested GC–MS method, reported HPLC and reported high performance thin layer chromatographic method (HPTLC) method for assessment of NIA in its commercial dosage form.
Table 5. Statistical analysis of the values resulted by the developed among the suggested GC–MS method, reported HPLC and reported high performance thin layer chromatographic method (HPTLC) method for assessment of NIA in its commercial dosage form.
ParameterReported HPTLC Method [31] **GC/MSReported HPLC Method [21] ***GC/MS
Mean99.82100.1199.74100.11
SD1.6731.9220.9651.922
Variance2.7973.6970.9313.697
n6666
Student’s t-test * (2.228)0.2830.430
F-test * (5.050)1.3223.970
* Figures in parenthesis are the corresponding tabulated values at p = 0.05. ** The separation was achieved on HPTLC sheets using mixture of ethyl acetate: ethanol: ammonia solution (6: 4: 0.05, by volume) then the dried plates were scanned at 254 nm. *** C18-A (150 × 4.6 mm, 3 μm particle size) in a single run using combined isocratic and linear gradient elution with a mobile phase consisting of 0.010% trifluoroacetic acid of pH 3.9 (solvent A) and methanol (solvent B) at the flow rate 0.7 mL min−1 and UV detection at 280 nm.
Table 6. Ecological comparison among the suggested GC–MS method, reported HPLC and reported HPTLC method applying eco-scale assessment method.
Table 6. Ecological comparison among the suggested GC–MS method, reported HPLC and reported HPTLC method applying eco-scale assessment method.
Reagent/InstrumentsPenalty Points
Reported HPLC Method [20]Reported HPTLC Method [30]Proposed GC–MS Method
Helium--1
Ethylacetate 4-
Ethanol 2-
Methanol 12--
Triflouroacetic acid8--
Ammonia solution-2-
Technique
(Energy used)
002
Occupational hazard000
Waste535
Total penalty pointsΣ25Σ11Σ8
Analytical Eco-scale Total score758992
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Almalki, A.H.; Naguib, I.A.; Abdallah, F.F. Eco-Friendly Direct GC–MS Method for Estimation of Niacin and Related Impurities Involving Pyridine in Food Supplements. Separations 2021, 8, 46. https://doi.org/10.3390/separations8040046

AMA Style

Almalki AH, Naguib IA, Abdallah FF. Eco-Friendly Direct GC–MS Method for Estimation of Niacin and Related Impurities Involving Pyridine in Food Supplements. Separations. 2021; 8(4):46. https://doi.org/10.3390/separations8040046

Chicago/Turabian Style

Almalki, Atiah H., Ibrahim A. Naguib, and Fatma F. Abdallah. 2021. "Eco-Friendly Direct GC–MS Method for Estimation of Niacin and Related Impurities Involving Pyridine in Food Supplements" Separations 8, no. 4: 46. https://doi.org/10.3390/separations8040046

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
