Cost-Effective Simultaneous Separation and Quantification of Phenolics in Green and Processed Tea Using HPLC–UV–ESI Single-Quadrupole MS Detector and Python Script

Abstract

Phenolic composition of green tea (Camellia sinensis) varies according to manufacturing processes that result in deglycosylation of glycosylated phenolics and condensation, epimerization, and degalloylation of flavan-3-ols (catechins). Ambiguous phenolic assignments based on UV absorbance alone can occur when the chromatographic peaks overlapped slightly. We established an improved method using an HPLC–UV coupled with a single-quadrupole MS detector (MS¹) that can reject false UV peaks after checking the preceding MS¹ peaks. Adjusted UV data coded by the Python algorithm were deployed to compare tea phenolics. Performance validation of the MS¹ and UV analysis methods for 19 phenolics revealed a sensitivity of 0.17 and 0.47 pmol/injection, limit of detection of 15 and 33 μg/L, limit of quantification of 50 and 110 μg/L, intra-day precision of 5% and 1% relative standard deviation, and trueness of 83–135% and 97–100%, respectively. Our results suggest that the HPLC–UV–MS¹ method, which is a low operational cost method, potentially provides the precise phenolic composition of teas.

1. Introduction

Green tea (GT; Camellia sinensis) is one of the most widely consumed beverages in the world [1]. Phenolic compounds of teas, such as GT, black tea, and dark tea, are diverse and modified by tea manufacturing processes such as withering, thermal treatment, and microbial fermentation [2,3]. The health-promoting effects of some phenolic compounds have been evaluated, and they have been found to have anticancer, anti-hyperlipidemic, anti-inflammatory, anti-obesity, antioxidative, and antiviral activities [4,5,6,7,8,9]. Advanced analytical methods, accompanied with state-of-the-art technologies such as mass spectrometry, nuclear magnetic resonance, and metabolomics approach, have played a key role in determining the dose of health-beneficial bioactive phenolics, such as flavonoids, in food resources [10,11].

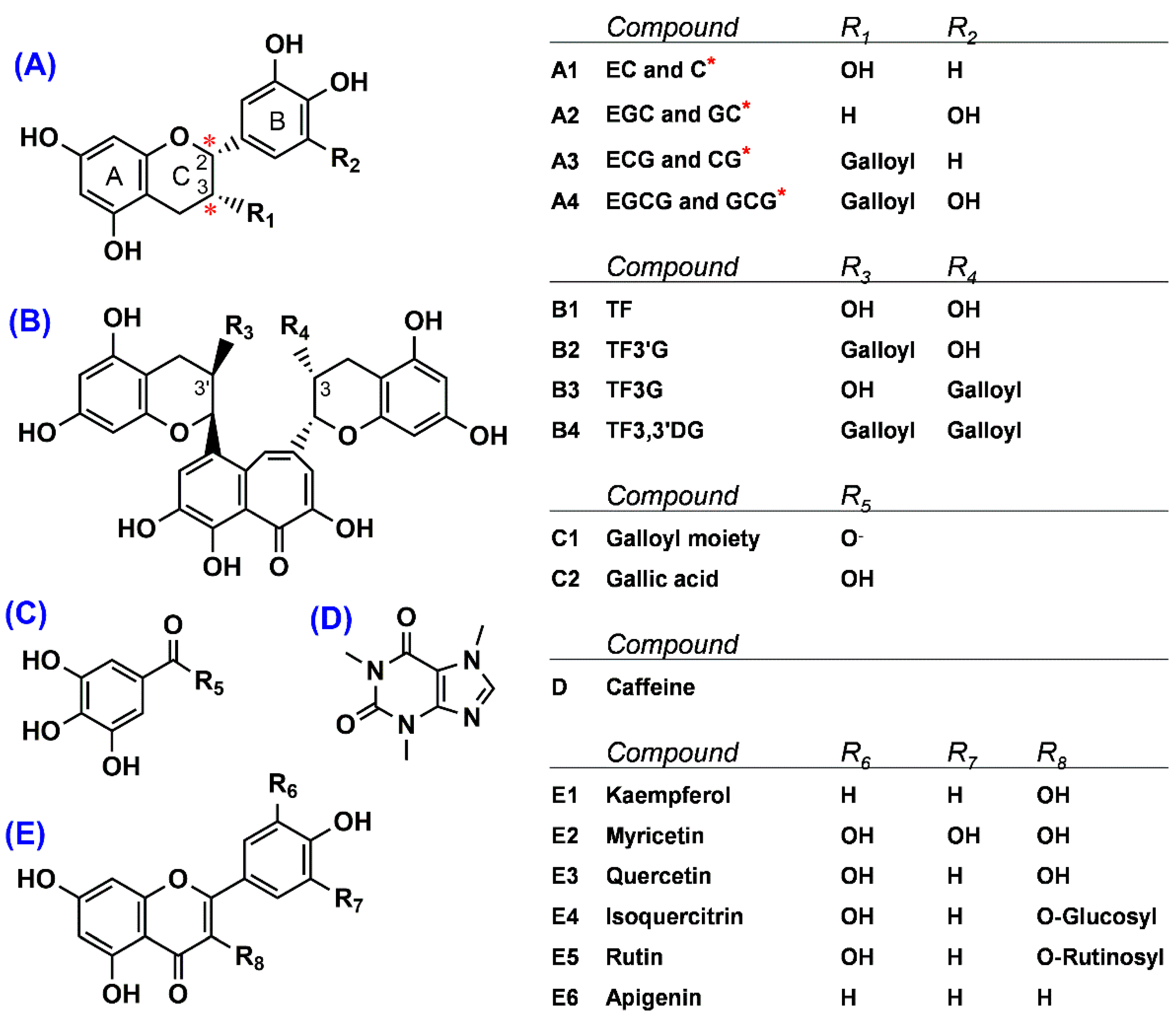

GT primarily contains flavan-3-ols (catechins), such as (–)-epigallocatechin (EGC) and (–)-epigallocatechin gallate (EGCG), and theaflavins, which are produced by endogenous enzymatic oxidation when polyphenol oxidases in the tea leaves are released during tea processing (Figure 1) [2]. Various flavonol and flavone glycosides are present in tea leaves, and their aglycones, such as apigenin, kaempferol, myricetin, and quercetin, can be formed by addition of exogenous enzymes [12,13]. Most flavan-3-ols can be degraded by microbial post-fermentation. A variety of intrinsic and extrinsic factors such as fermentation heat, moisture, and microbial activity cause the release of gallic acid as a result of the cleavage of galloyl moieties from galloylated flavan-3-ols, such as (−)-epicatechin gallate (ECG) and EGCG [14]. A decade ago, 68 kinds of phenolics were tentatively identified in GT and processed tea [15], and recently, 60 phenolic compounds were tentatively identified by comparing young and old green tea leaves [16].

Research has been undertaken to determine separation methods that can enhance analytical performance of the phenolic compounds present in tea. Epicatechin (EC) was first isolated from GT by crystallization of ethyl acetate extract 90 years ago [17]. Eight flavan-3-ols were simultaneously analyzed by high-performance liquid chromatography (HPLC) in 1976 [18]. By using HPLC, it has been possible to reduce the separation time of eight flavan-3-ols to within 20 min [19]. Over 45 compounds were subsequently simultaneously analyzed using ultra-performance liquid chromatography (UPLC) coupled with quadrupole time of flight (TOF) MS [10]. Furthermore, 24 compounds from GT were quantified within 3 min of run-time by using an HPLC coupled with a quadrupole MS/MS system equipped with a core–shell column [20].

Advancements in analytical instruments such as various automated samplers, high resolution MS, and Q-TOF have facilitated handling of large samples and provided high resolution and high selectivity by multiple reaction monitoring. Moreover, non-targeted metabolomic analysis of food phenolics in many botanical plants can provide a wealth of information [10,21]. However, advanced analytical instruments are expensive to purchase and maintain, require advanced training to operate, and have high operation costs (e.g., special eluents and columns). Even though over 20 compounds in various tea samples have been quantified with high-resolution instruments, resolution was generally poor, and there was also poor separation of these compounds due to the lack of analytical optimization (i.e., fronting and tailing of peaks) [3]. MS analysis has the advantage of being able to simultaneously analyze and assign many compounds even when their retention times (t_R) overlap. However, this convenience cannot be achieved through HPLC-ultraviolet (UV) that is widely used in many fields of research and manufacture.

Accurate quantification of tea phenolics using high-resolution MS needs sufficient budget in many research institutes. Therefore, we have developed an alternative analytical method using MS detector with low acquisition cost that meets high specificities for the target compounds and eliminates false UV peaks according to the MS results. In this study, simultaneous detection of 20 compounds from green tea and its processed products was performed and validated using two detectors, UV and single-quadrupole mass detector (MS¹) in single HPLC separation system.

2. Results and Discussion

2.1. HPLC-UV and MS¹ Method Development

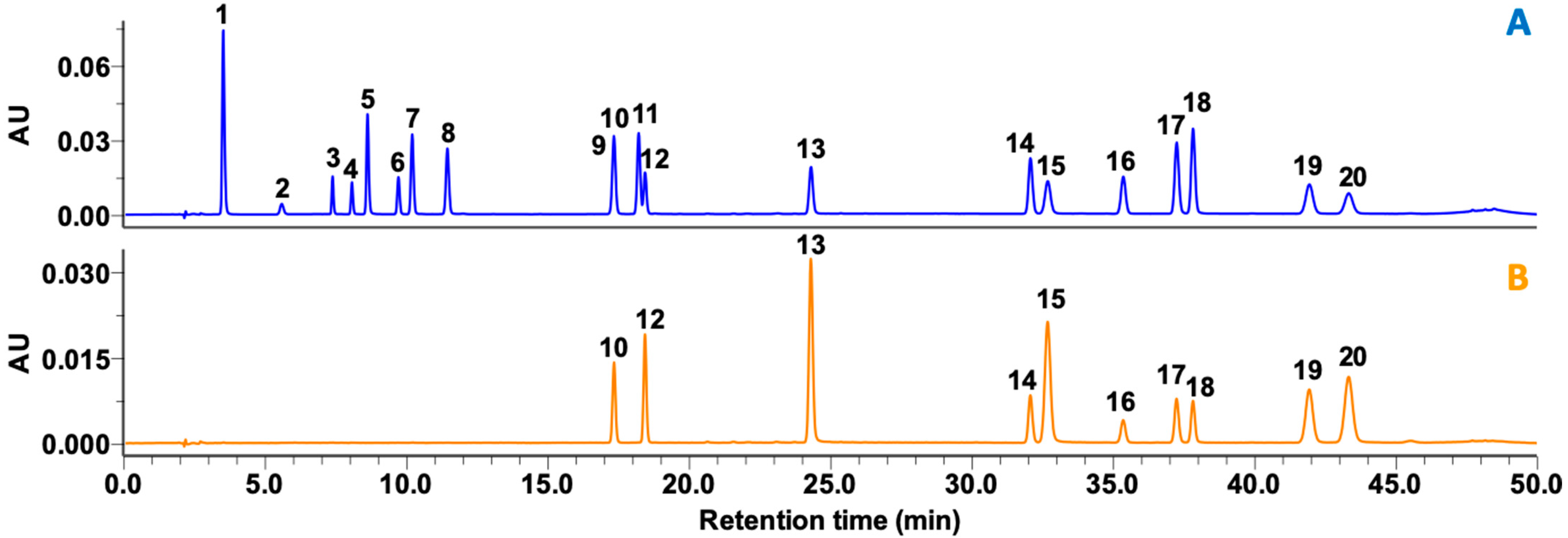

The 20 compounds were separated using a run time of 50 min that was based on modification of previous protocols [7,22]. Separation strategies were organized into three parts: (1) a hydrophilic part (peaks 1−8), (2) a meso-hydrophilic part (peaks 9−13), and (3) a hydrophobic part (peaks 14−20) (Figure 2). Due to mutual interaction of a meso-hydrophilic part under changing elution conditions, peak overlap occurred between peaks 9 (ECG) and 10 (rutin). Excluding these two peaks, all the other peaks were clearly separated with proper resolution at both 275 and 365 nm. Even though there was overlap of peaks in UV detection, there were no overlapping peaks in mass detection (Figure S1 and Supplementary Data I).

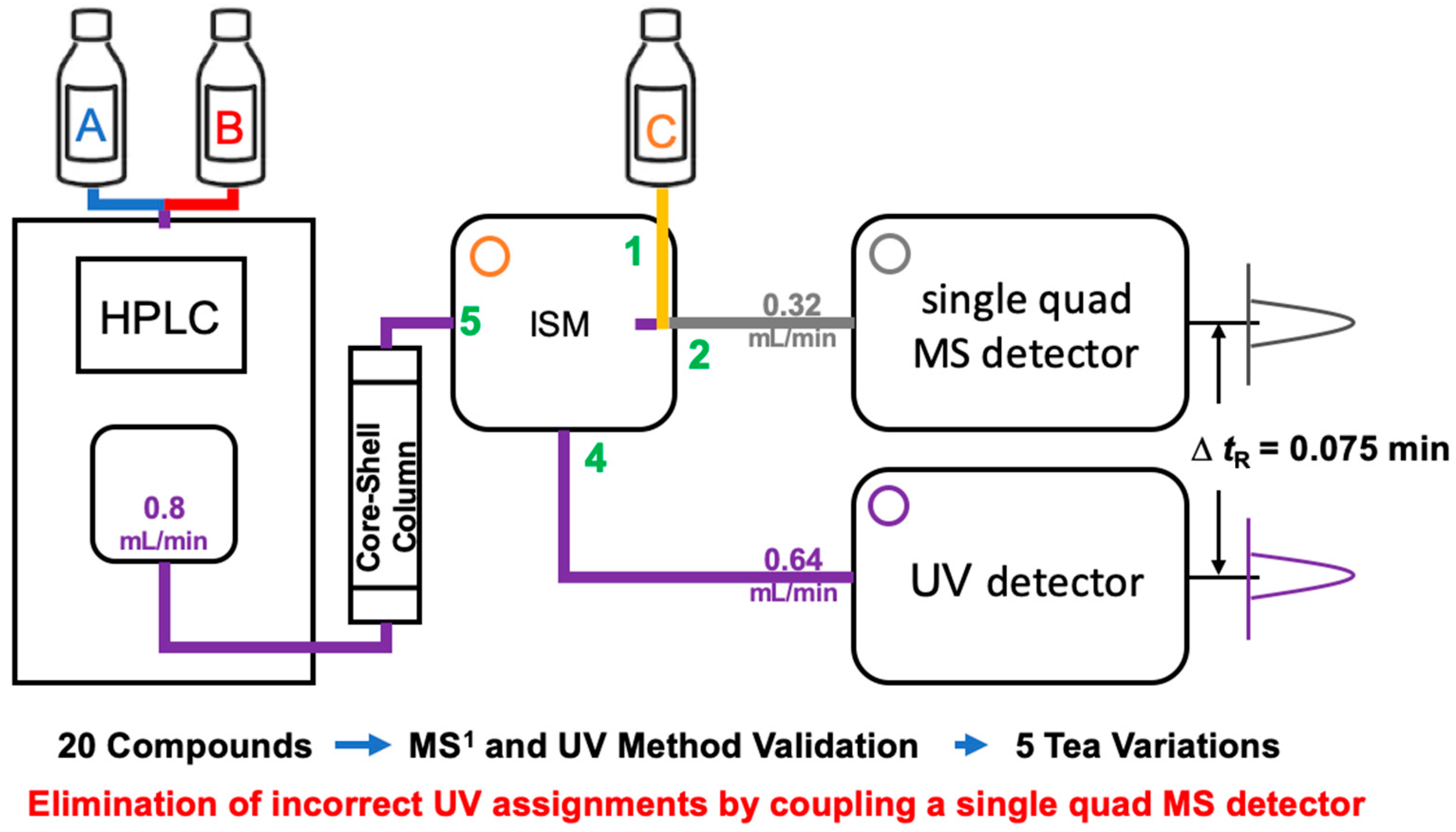

Due to the arrangement of the two detectors, the t_R gap (t_R gap = t_R (UV)−t_R (MS¹)) of each peak appeared in the precise range (0.075 ± 0.004 min; data not shown). Mass detection was conducted within a limited retention time window of acquisition time to enhance sensitivity similar to most MS/MS research. This approach can deliver more precise results and eliminate unnecessary acquisitions, which can improve inter-scan capacity during simultaneous acquisition and yield a valid number of quantification points for one peak [23]. The symmetry factors of the 20 compounds ranged from 1.02 to 1.20 and 1.03 to 1.06 for UV detection at 275 and 365 nm, respectively (data not shown). The resolution of these 20 compounds was in the range of 2.0−10.0 for UV and MS¹ (data not shown), which is greater than 1.5 found on the basis of baseline-separation criteria [24].

Conditions for appropriate simultaneous separation of compounds in Camellia sp. depends on the topic of research and the compounds of interest (e.g., flavan-3-ols, theaflavins, or flavonols) [25,26,27]. Many flavonol glycosides of GT are in the meso-hydrophilic zone in reversed-phase HPLC column analysis, while polymeric compounds such as theaflavins transformed by tea processing or exogenous enzymes appear in the hydrophobic zone [7]. These chemical characteristics of flavonoids make it challenging to find a method suitable for analysis. Peaks overlap if UV detection alone is used to separate phenolic compounds in Camellia sp. [16], and consequently, many flavonol glycosides cannot be distinguished. Therefore, a proper separation method that effectively distinguishes flavonol glycosides is required. The ideal retention time range for separation in our study for most flavonol glycosides was 10−30 min (Figure S2). However, peak overlap at 275 nm was unavoidable due to co-elution of ECG or (–)-catechin gallate (CG) and flavonol glycosides. Results should therefore be interpreted carefully.

2.2. Validation of UV and MS¹ Methods

Limit of detection (LOD), limit of quantification (LOQ), linearity, trueness, and precision were determined for a liquid chromatography system coupled with both UV and MS¹ detectors. The validation results are summarized in

Table 1. Method validation of UV detection versus mass detection.

Method a	Class b	Compound c	tRd (min)	LOD e (μg/L)	LOQ f (μg/L)	Linearity (R g)	Trueness h (Recovery% ± CI j)	Precision (RSD i; %)
								Intra-Day k	Inter-Day l
UV	PA	Gallic acid	3.53 ± 0.01	5 ± 0	17 ± 0	0.9999	98.64 ± 0.36	0.46	2.31
	F3L	GC	5.47 ± 0.06	162 ± 12	539 ± 39	0.9999	98.28 ± 0.24	0.39	2.63
	F3L	EGC	7.36 ± 0.04	20 ± 2	68 ± 6	0.9995	99.20 ± 0.36	0.59	2.97
	F3L	C	8.03 ± 0.05	36 ± 1	120 ± 4	0.9998	99.27 ± 0.27	0.43	2.00
	AL	Caffeine	8.58 ± 0.07	5 ± 1	16 ± 2	0.9999	99.13 ± 0.15	0.24	1.80
	F3L	EC	9.62 ± 0.08	26 ± 2	86 ± 8	0.9999	99.16 ± 0.26	0.42	2.20
	F3L	EGCG	10.09 ± 0.09	10 ± 1	32 ± 2	0.9999	98.80 ± 0.29	0.47	2.74
	F3L	GCG	11.29 ± 0.12	16 ± 2	52 ± 5	0.9999	99.65 ± 0.42	0.69	2.16
	F3L	ECG	17.10 ± 0.18	17 ± 4	56 ± 13	0.9998	98.77 ± 0.41	0.66	2.31
	FL	Rutin	17.11 ± 0.20	47 ± 2	158 ± 9	0.9999	98.90 ± 0.50	0.82	1.99
	F3L	CG	18.02 ± 0.15	15 ± 2	48 ± 6	0.9998	98.36 ± 0.40	0.66	2.38
	FL	Isoquercitrin	18.26 ± 0.16	30 ± 7	99 ± 24	0.9999	99.31 ± 0.28	0.45	2.11
	FL	Myricetin	24.12 ± 0.15	18 ± 2	61 ± 5	0.9998	97.23 ± 0.22	0.36	2.26
	TF	TF	31.82 ± 0.24	22 ± 2	73 ± 5	0.9999	99.00 ± 0.25	0.41	3.00
	FL	Quercetin	32.41 ± 0.20	38 ± 1	127 ± 5	0.9998	99.04 ± 0.14	0.24	2.49
	TF	TF3G	35.03 ± 0.27	32 ± 4	107 ± 12	0.9999	98.84 ± 0.36	0.58	2.66
	TF	TF3′G	36.98 ± 0.24	26 ± 6	85 ± 19	0.9999	98.85 ± 0.27	0.44	2.43
	TF	TF3,3′DG	37.56 ± 0.24	22 ± 2	72 ± 8	0.9999	98.70 ± 0.35	0.58	2.18
	FL	Apigenin	41.63 ± 0.24	61 ± 5	201 ± 16	0.9999	99.16 ± 0.40	0.65	1.89
	FL	Kaempferol	42.99 ± 0.25	57 ± 2	191 ± 8	0.9997	98.43 ± 0.63	1.03	2.45
MS1	PA	Gallic acid	3.44 ± 0.02	5 ± 0	19 ± 1	0.9983	98.99 ± 0.30	0.49	2.1
	F3L	GC	5.39 ± 0.06	23 ± 1	75 ± 4	0.9968	89.99 ± 0.63	1.13	6.3
	F3L	EGC	7.28 ± 0.04	5 ± 1	18 ± 2	0.9921	110.89 ± 0.87	1.26	4.3
	F3L	C	7.96 ± 0.05	6 ± 1	19 ± 1	0.9944	92.46 ± 3.01	5.26	12.9
	AL	Caffeine	8.51 ± 0.06	8 ± 1	26 ± 3	0.9985	135.35 ± 0.96	1.14	16.7
	F3L	EC	9.55 ± 0.08	8 ± 1	26 ± 5	0.9968	109.40 ± 0.19	0.28	5.3
	F3L	EGCG	10.02 ± 0.09	9 ± 1	29 ± 3	0.9981	97.74 ± 0.44	0.73	17.2
	F3L	GCG	11.21 ± 0.12	8 ± 1	26 ± 4	0.9975	99.10 ± 0.46	0.74	8.4
	F3L	ECG	17.03 ± 0.16	47 ± 9	158 ± 30	0.9965	102.90 ± 1.03	1.62	5.1
	FL	Rutin	17.04 ± 0.20	11 ± 2	35 ± 6	0.9901	104.03 ± 0.64	0.99	6.1
	F3L	CG	17.94 ± 0.15	19 ± 3	65 ± 10	0.9985	106.77 ± 0.97	1.46	5.7
	FL	Isoquercitrin	18.19 ± 0.15	7 ± 2	22 ± 5	0.9920	112.64 ± 1.10	1.58	7.2
	FL	Myricetin	24.05 ± 0.15	11 ± 1	37 ± 5	0.9941	119.39 ± 1.35	1.83	24.6
	TF	TF	31.74 ± 0.23	17 ± 1	56 ± 3	0.9949	104.39 ± 1.28	1.97	4.3
	FL	Quercetin	32.34 ± 0.19	7 ± 1	24 ± 1	0.9922	112.54 ± 1.30	1.86	6.8
	TF	TF3G	34.96 ± 0.26	46 ± 3	154 ± 10	0.9994	102.08 ± 1.29	2.04	2.7
	TF	TF3′G	36.90 ± 0.24	25 ± 1	83 ± 4	0.9994	98.56 ± 1.00	1.64	4.9
	TF	TF3,3′DG	37.49 ± 0.24	19 ± 2	65 ± 7	0.9992	134.22 ± 1.22	1.47	23.2
	FL	Apigenin	41.56 ± 0.24	4 ± 0	13 ± 1	0.9719	83.56 ± 1.46	2.82	21.2
	FL	Kaempferol	42.93 ± 0.25	12 ± 2	39 ± 7	0.9983	125.85 ± 2.73	3.50	19.5

^a UV: ultraviolet, MS¹: single mass spectrometer. ^b Abbreviations are listed as follows: AL; alkaloid; F3L, flavan-3-ol; FL, flavonol/flavone; PA, phenolic acid; TF, theaflavin. ^c Refer to the abbreviations of compounds in Figure 1. ^d t_R: retention time. ^e LOD: limit of detection. ^f LOQ: limit of quantification. ^g R: correlation coefficient. ^h Trueness includes an accuracy term (n = 6). ⁱ RSD: relative standard deviation. ^j CI: confidence interval (95%). ^k Intra-day variation of analysis (n = 6). ^l Inter-day variation of analysis (n = 6 × 3 days).

. The t_R values of compounds detected by UV and MS¹ had an acceptable standard deviation (SD) and good resolution (Rs; data not shown). Elution conditions in the hydrophobic zone (t_R > 30) resulted in relatively large SDs (>0.2%), whilst the repeatability of t_R remained the same (average relative standard deviation (RSD) of 0.8% for both UV and MS¹ detection).

Seven-point calibration curves were plotted over the 20-fold concentration range, and linearity was excellent for UV detection (R > 0.9995) and moderate for MS¹ detection (R > 0.990 except for apigenin). Sensitivity ranged from 0.11 to 2.66 pmol/injection and from 0.07 to 0.53 pmol/injection for UV and MS¹ detection, respectively (data not shown). LOD ranged from 5 to 162 μg/L for UV detection and from 4 to 47 μg/L for MS¹ detection. LOQ ranged from 16 to 539 μg/L for UV detection and from 13 to 158 μg/L for MS¹ detection (Table 1). The sensitivity of MS¹ detection was 0.4−14.4-fold higher than that of UV detection (data not shown). The LODs of MS¹ detection were twofold higher than those reported for determination of flavan-3-ols by MS/MS instrumentation [28]. Furthermore, LOD of UV detection was two orders of magnitude lower than that reported previously [3,29].

The trueness of spiked compounds ranged from 97.23% to 99.65% recovery in the UV detection, whereas that of spiked compounds ranged from 83.56% to 135.35% recovery in the MS¹ detection (Table 1). UV detection showed better trueness compared with MD¹ detection. Some phenolics (e.g., kaempferol, myricetin, and apigenin) and caffeine caused poor trueness in the MS¹ detection. Intra-day precision ranged from 0.2% to 1.0% RSD for UV detection and from 0.3% to 5.3% RSD for MS¹ detection (Table 1). Inter-day precision ranged from 1.8% to 3.0% RSD for UV detection and from 2.1% to 25.0% RSD for MS¹ detection (Table 1). Our RSD values for intra- and inter-day precisions of UV detection were four- to five-fold lower than those reported for UPLC–MS/MS instrumentation [30]. However, the inter-day precision of some compounds (e.g., myricetin and apigenin) in MS¹ detection were relatively high RSD values (>20%), partly due to daily variations in MS¹. Despite the shortcomings of MS¹ detection, its combination with traditional UV detection is useful to overcome them. Hereafter, we discuss the utility of HPLC–UV–MS¹ for analyzing tea samples.

2.3. Quantification of Commercial Tea Samples

An HPLC–UV coupled with an MS¹ was used to quantify 19 phenolics and caffeine derived from representative green tea and processed tea samples. To ensure that we analyzed a diverse variety of tea samples and compounds within the tea samples, we selected five commercial tea samples: two green teas and three processed teas (one oolong tea obtained by semi-fermentation, one black tea by full-fermentation, and one dark tea by microbial fermentation). Phenolics and caffeine in the tea samples were quantified by UV detection. UV wavelengths of 275 and 365 nm were used to detect flavan-3-ols and flavonols, respectively, as reported previously [13].

Major differences in phenolic profiles among tea samples were detected as shown in Figure S2. Fermented teas contained fewer flavan-3-ols and relatively higher levels of theaflavins than the other teas analyzed. A considerable amount of flavonol glycosides disappeared from fermented teas compared to unfermented teas. Retention times of phenolics and caffeine in the five tea samples were effectively reproduced at two UV wavelengths (275 and 365 nm). Tea extracts contain various compounds that can be difficult to detect by UV detection alone. As described in Figure S2, transformed compounds such as complex polyphenols or phenolic acid derivatives exhibit similar t_R values to those of epimerized flavan-3-ols (e.g., (−)-gallocatechin (GC)) [16,31]. Therefore, UV quantification may lead to inaccurate findings. If invalid quantification occurs, the difference in t_R between UV and MS¹ will be outside the valid range of 0.06−0.09 min (Figure S3). Therefore, post-processing of UV quantification was performed using an algorithm coded in Python that matches the UV peak with the corresponding MS¹ data indexed by the same injection ID. In total, 839 lines of MS¹ data and 1927 lines of UV data were processed using Empower 3 software (Waters Corp., Milford, MA, USA) (Supplementary Data II). Without the mechanistic post-processing of UV data, however, manual inspection of UV data must be undertaken to obtain valid data based upon MS¹ data. Therefore, we adopted the following matching logic: (1) same injection ID matching, (2) gap in t_R, (3) rejection/collection of invalid/valid matching, and (4) quantification with the valid UV peak. Using these post-data processing steps, we were able to obtain a reliable quantification summary.

Similar to the results reported by many previous researchers [2,3,14,16,26,31], green teas (GT from Taiwan, GTT; and GT from Korea, GTK) contain mainly flavan-3-ols (45−120 mg/g) and some flavonol glycosides, and oolong tea (oolong tea from Taiwan, OTT) and black tea (black tea from England, BTE) contain theaflavins (4−12 mg/g) and gallic acid (1.7−1.9 mg/g) (

Table 2. Concentrations (mg/g) of phenolics and caffeine in commercial teas as determined by an HPLC system equipped with a UV detector (processed by Python code).

Compound a	Tea Extract b
	GTT MeOH	GTT Water	GTK MeOH	GTK Water	OTT MeOH	OTT Water	PTK MeOH	PTK Water	BTE MeOH	BTE Water
Gallic acid	0.48 ± 0.07d c	0.51 ± 0.01d	0.28 ± 0.04d	0.28 ± 0.02d	1.95 ± 0.04c	1.91 ± 0.10c	5.00 ± 0.32a	4.50 ± 0.09b	1.72 ± 0.17c	1.84 ± 0.06c
GC	n.d. d	3.43 ± 0.25a	n.d.	1.76 ± 0.08b	n.d.	n.d.	n.d.	1.98 ± 0.22b #	n.d.	n.d.
EGC	27.27 ± 2.20ab	23.19 ± 0.04ab	28.68 ± 1.90a	22.06 ± 1.01b	8.28 ± 5.67c	3.22 ± 1.25d	4.77 ± 0.55cd	5.69 ± 1.19cd	2.40 ± 1.22d	3.00 ± 0.20d
C	n.d.	n.d.	n.d.	n.d.	n.d.	<LOQ e	2.64 ± 0.52b	n.d.	10.20 ± 2.79a	8.83 ± 0.73a
Caffeine	24.88 ± 0.93c	19.74 ± 0.55e	26.40 ± 1.68bc	20.85 ± 0.56de	31.95 ± 0.72a	24.18 ± 0.54cd	32.64 ± 2.16a	29.49 ± 0.49ab	26.61 ± 3.31bc	23.50 ± 0.29cde
EC	7.26 ± 0.63b	6.54 ± 0.10b	9.81 ± 0.49a	7.86 ± 0.19b	3.71 ± 0.78c	1.64 ± 0.60d	1.60 ± 0.30d	1.61 ± 1.31d	3.54 ± 1.49c	1.79 ± 0.30d
EGCG	61.20 ± 0.36a	22.80 ± 2.15b	63.17 ± 4.14a	15.35 ± 4.65c	12.12 ± 0.52c	1.94 ± 0.17d	0.35 ± 0.02d #	n.d.	2.80 ± 0.49d	n.d.
GCG	<LOQ	<LOQ	n.d.	n.d.	n.d.	n.d.	n.d.	n.d.	n.d.	n.d.
ECG	15.51 ± 0.26a	3.35 ± 0.59bc #	13.92 ± 1.16a	n.d.	5.83 ± 0.00b #	<LOQ	n.d.	n.d.	4.78 ± 0.14b #	n.d.
Rutin	1.87 ± 0.08a	1.51 ± 0.04a	n.d.	n.d.	0.86 ± 0.09b	0.68 ± 0.06b	n.d.	n.d.	1.83 ± 0.43a	1.77 ± 0.06a
Isoquercitrin	0.92 ± 0.12b	0.72 ± 0.03bc #	n.d.	n.d.	0.35 ± 0.01cd #	0.24 ± 0.06d	n.d.	n.d.	1.22 ± 0.22a	1.06 ± 0.10ab #
TF	n.d.	n.d.	n.d.	n.d.	0.73 ± 0.05b	n.d.	n.d.	n.d.	2.63 ± 0.39a	n.d.
TF3G	n.d.	n.d.	n.d.	n.d.	1.65 ± 0.04b	n.d.	n.d.	n.d.	5.04 ± 1.15a	n.d.
TF3′G	n.d.	n.d.	n.d.	n.d.	0.61 ± 0.00b	n.d.	n.d.	n.d.	1.97 ± 0.39a	n.d.
TF3,3′DG	n.d.	n.d.	n.d.	n.d.	1.23 ± 0.44b	n.d.	n.d.	n.d.	2.83 ± 0.90a	n.d.
Apigenin	<LOQ	n.d.	n.d.	n.d.	<LOQ	n.d.	n.d.	n.d.	n.d.	n.d.

^a Compounds are listed in ascending order of retention time. Some compounds (CG, quercetin, and kaempferol) were not detected by UV. ^b Abbreviations: GTT, green tea of Taiwan; GTK, green tea of Korea; OTT, oolong tea of Taiwan; PTK, post-fermented tea of Korea; BTE, black tea of England. MeOH: 60% (v/v) aqueous methanol, Water: 80 °C hot water. ^c Results are shown as means ± standard deviations (n = 3−6; ^# marked results indicate n = 2). Different letters in the same row indicate significant differences according to the Tukey–Kramer honestly significant difference test (p < 0.05). ^d n.d.: not detected. ^e <LOQ: below limit of quantification.

). Most flavan-3-ols disappeared from post-fermented tea (post-fermented (dark) tea from South Korea, PTK), whereas a relatively large amount of gallic acid (4.5−5.0 mg/g) was present due to cleavage of the galloyl moiety from flavan-3-ols (Table 2).

To compare the effects of solvents on the extraction of phenolics, we investigated two extraction conditions: an experimental condition (60% (v/v) aqueous methanol with sonication at ambient temperature) and a consumer usage condition (infusion with hot water at 80 °C for 3 min). Briefly, the content of hydrophilic compounds (gallic acid and EGC) and meso-hydrophilic compounds (rutin and isoquercitrin) in solution was similar between the aqueous methanol extract and hot water infusion for all five teas (Table 2). The content of relatively hydrophilic compounds (caffeine, EC, and EGCG) in the hot water infusion was statistically different from that in the 60% (v/v) aqueous methanol extract. Interestingly, among the four epicatechins (EC, ECG, EGC, and EGCG), the content of ECG in 60% (v/v) aqueous methanol extracts of GTT and OTT was 4.6- and 9.0-fold higher than that in the hot water infusion, respectively. Hot water infusions of GTK, PTK, and BTE did not contain ECG, and that of GTT, GTK, OTT, PTK, and BTE did not contain theaflavins (Table 2). The content of caffeine was relatively high (20−33 mg/g) in the five tea extracts obtained using both extraction conditions. The flavone apigenin was below the LOQ or not detected for both UV and MS¹ (Table 2). Quercetin and kaempferol were not present in any of the tea extracts (data not shown). The phenolic content of the tea samples by manual post-processing is presented in Table S1 for comparison.

2.4. Operational Cost Comparison

Two systems comprising HPLC–UV–MS¹ and UPLC–MS/MS were compared for our separation method and representative method, respectively. For the simple comparison, instruments were exampled with the same manufacture. Separation columns and solvents were adopted in accordance with the requirements of the instruments. We set 2000 injections per column and 5000 injections per year; thereafter, operational costs (consumables, discipline of researcher, and maintenance of instrument) per year, initial costs of instrumentation, and total costs (sum of operational cost and initial cost) per 5 years were evaluated (Table S2). Briefly, the operational cost of the two systems were almost the same (approximately USD 35,000 per year) due to longer analysis time of HPLC–UV–MS¹ and the expensive requirements of UPLC–MS/MS system. Ultimately, a cost-effective analysis can be achieved with the HPLC–UV–MS¹ system (approximately USD 260,000 for 5 years) owing to the initial cost of the instrumentation compared with the four times higher price of the UPLC–MS/MS system (approximately USD 470,000 for 5 years).

3. Materials and Methods

3.1. Chemicals and Reagents

Apigenin (purity > 95.0%), (−)-EC (purity > 99.0%), (−)-ECG (purity > 99.0%), (−)-EGC (purity > 99.0%), (−)-EGCG (purity > 99.0%), (−)-catechin (C) (purity > 99.0%), CG (purity > 99.0%), GC (purity > 99.0%), (−)-gallocatechin gallate (GCG) (purity > 99.0%), theaflavin (purity > 90.0%), theaflavin 3-O-gallate (purity > 90.0%), theaflavin-3′-O-gallate (purity > 90.0%), and theaflavin-3,3′-O-digallate (purity > 90.0%) were purchased from FUJIFILM Wako Pure Chemical Industries, Ltd. (Osaka, Japan). Caffeine (purity > 99.0%), dimethyl sulfoxide (DMSO), gallic acid (purity > 94.5%), isoquercitrin (purity > 90.0%), kaempferol (purity > 97.0%), myricetin (purity > 96.0%), rutin (purity > 94.0%), and quercetin (purity > 95.0%) were purchased from Sigma-Aldrich Co., LLC (St. Louis, MO, USA). Formic acid, mass-grade acetonitrile, HPLC-grade acetonitrile, and methanol were purchased from Thermo Fisher Scientific Inc. (Waltham, MA, USA). Water for HPLC was purchased from Burdick and Jackson (Muskegon, MI, USA). Other chemicals used in this study were of analytical reagent grade.

3.2. Instrumentation and Analytical Conditions

The analytic methods were modified from that of previously report [22]. An Alliance HPLC (Waters Corp.) equipped with a quaternary pump with a Poroshell 120 SB ODS column (120 Å, 2.7 μm, 4.6 × 150 mm; Agilent Technologies, Inc., Santa Clara, CA, USA) was used for separation. The flow rate was 0.8 mL/min, the column temperature was set to 30 °C, and the injection volume was 5 µL. Gradient elution was performed with 0.1% (v/v) formic acid in water (solvent A) and 0.1% (v/v) formic acid in acetonitrile (solvent B). Linear elution was performed as follows: 92% A/8% B at 0 min, 92% A/8% B at 2 min, 88% A/12% B at 3 min, 84% A/16% B at 4 min, 84% A/16% B at 12 min, 80% A/20% B at 15 min, 80% A/20% B at 18 min, 76% A/24% B at 22 min, 74% A/26% B at 32 min, 72% A/28% B at 35 min, 72% A/28% B at 43 min, 40% A/60% B at 46 min, 92% A/8% B at 47 min, and 92% A/8% B at 50 min. The eluent was divided by the Waters Isocratic Solvent Manager (ISM) into two detectors: four-fifths to the Waters 2996 UV detector and one-fifth to the ACQUITY QDa mass detector (Waters Corp.) using a 4:1 splitter (Figure 3). Thirty percent (v/v) of mass-grade acetonitrile in mass-grade water was combined with the inlet of the mass detector with a 0.16 mL/min flowrate using the ISM. Caffeine, flavan-3-ols, gallic acid, and theaflavins were monitored at 275 nm with a sampling rate of 2 points/s. Flavonols and flavones were detected at 365 nm with a sampling rate of 2 points/s. MS¹ was performed using the following parameters: capillary voltage, 0.8 kV; probe temperature, 600 °C; electrospray ionization (ESI) source temperature, 120 °C; and desolvation nitrogen gas pressure, 90 psi. Cone voltages were allocated according to the chemical being analyzed: caffeine, 5 V; gallic acid and flavan-3-ols, 10 V; and others, 15 V. Single-ion recording was performed in positive mode for caffeine and negative mode for phenolics. Mass data acquisitions of phenolics and caffeine analyzed in this study were performed in a time window of ±1−±2.5 min on the basis of their t_R (

Table 3. Parameters of 19 phenolic and caffeine compounds obtained using UV and MS¹ methods.

Class	Compound	UV			MS1
		tRa (min)	Wavelength (nm)		tR (min)	SIR b Window (min)	m/z (Polarity c)	Cone Voltage (V)
PA	Gallic acid	3.53	275		3.44	2.5−4.5	169.02 (−)	10
F3L	GC	5.47	275		5.39	4.5−8.0	305.07 (−)	10
F3L	EGC	7.36	275		7.28	4.5−8.0	305.07 (−)	10
F3L	C	8.03	275		7.96	7.0−10.5	289.08 (−)	10
AL	Caffeine	8.58	275		8.51	5.0−10.0	195.08 (+)	5
F3L	EC	9.62	275		9.55	7.0−10.5	289.08 (−)	10
F3L	EGCG	10.09	275		10.02	9.0−12.0	457.08 (−)	10
F3L	GCG	11.29	275		11.21	9.0−12.0	457.08 (−)	10
F3L	ECG	17.10	275		17.03	16.0−19.0	441.09 (−)	10
FL	Rutin	17.11	365		17.04	16.0−18.0	609.15 (−)	15
F3L	CG	18.02	275		17.94	16.0−19.0	441.09 (−)	10
FL	Isoquercitrin	18.26	365		18.19	17.0−19.0	463.10 (−)	15
FL	Myricetin	24.12	365		24.05	23.0−25.0	317.04 (−)	15
TF	TF	31.82	275		31.74	30.5−33.0	563.13 (−)	15
FL	Quercetin	32.41	365		32.34	31.0−33.5	301.04 (−)	15
TF	TF3G	35.03	275		34.96	33.5−38.0	715.14 (−)	15
TF	TF3′G	36.98	275		36.90	33.5−38.0	715.14 (−)	15
TF	TF3,3′DG	37.56	275		37.49	36.0−38.5	867.15 (−)	15
FL	Apigenin	41.63	365		41.56	40.5−43.0	269.05 (−)	15
FL	Kaempferol	42.99	365		42.93	42.0−45.0	285.05 (−)	15

^a Retention time (t_R) was determined by averaging values (n = 10). ^b Single-ion recording (SIR) was accomplished within the time zone of each compound to acquire a valid sampling rate. ^c Positive (+) and negative (−) polarities were set according to the characteristics of each compound.

). All data were collected and processed using Empower 3 software (Waters Corp.).

3.3. Stock Solutions and Commercial Tea Sample Preparations

Fresh stock solutions (100 and 200 mg/L) containing 20 analyzed compounds (caffeine and 19 phenolics) were prepared by mixing 2000 mg/L of each compound in DMSO. Working solutions were obtained by dilution of stock solutions with aqueous methanol.

Five different teas were chosen for evaluation and quantification of various phenolics including flavan-3-ols, theaflavins, and flavonols. Tea samples were purchased online. The origins of tea samples used in this study were as follows: GTT (Lipton Mingjianqing pyramid teabag (product name); Unilever Taiwan Co., Taipei, Taiwan), GTK (Sejak loose tea (product name); AMOREPACIFIC Co., Seoul, South Korea), OTT (Dongbangmeiren loose tea (product name); Shun Jen Tea Co., Taipei, Taiwan), PTK (Heukcha loose tea (product name); AMOREPACIFIC Co.), and BTE (English breakfast tea bag (product name); Twining and Company Ltd., Andover, UK). Tea samples were ground using a Tubemill (IKA, Staufen, Germany) at 25,000 rpm for 1 min.

Extraction of teas for quantitative analysis of phenolics and caffeine was carried out using two solvents: aqueous methanol for maximal extraction of phenolics and hot water to simulate how consumers use teas. One hundred milligrams of ground tea was added to 10 mL of 60% (v/v) aqueous methanol, and this mixture was sonicated for 10 min. Thereafter, it was filtered through a 0.45 µm GHP syringe filter (Pall Corp., Port Washington, NY, USA). Filtered samples were diluted to 100 and 500 mg/L using absolute methanol for quantitative analysis. For water extraction, 100 mg of ground tea was poured into 10 mL of thermostat-heated (80 °C) mineral water and then agitated for 3 min with shaking (500 rpm). After hot water extraction, the extract was filtered through a 0.45 µm GHP syringe filter (Pall Corp.) and diluted to 500 and 1000 mg/L using water for quantitative analysis.

3.4. Method Validation

A mixed solution of 20 standards at a concentration of 0.5−1.0 mg/L was injected into the system 10 times to calculate LOD, LOQ, and system suitability. Validation of HPLC–UV and MS¹ methods was performed with the acquisition of the same injection in terms of LOD, LOQ, range, linearity, intra-day precision, inter-day precision, and trueness. Overall method validation rules that are described in “Eurachem Guide: The Fitness for Purpose of Analytical Methods, 2nd Edition 2014” were followed.

3.5. Post-Data Processing by Python Algorithm and Statistical Analyses

To quantify compounds presented in standards and samples, we applied smoothing treatment of mass chromatography data using the mathematical mean method (level 7−9) by Empower 3 software (Waters Corp.). The two sets of results obtained from UV and MS¹ were exported into a spreadsheet data by Empower 3 software (Waters Corp.). Unnecessary or unmatched UV detection data with a t_R gap outside of the proper range (0.06−0.09 min) were rejected. The matching algorithm was coded using Python (Python Software Foundation; www.python.org, accessed on 1 April 2021) on the basis of the same injection identification (ID) as used for MS acquisition (Figure S4 and Supplementary Data II).

Data were expressed as mean ± SD on the basis of triplicates. One-way analysis of variance was performed using comparisons of all pairs by the Tukey–Kramer honestly significant difference test with the p-value set at <0.05 using JMP 13 for Windows 7 or newer versions (SAS Institute Inc., Cary, NC, USA).

4. Conclusions

A method comprising an HPLC–UV system coupled with an MS¹ was cost-effectively developed and validated in this study for simultaneous, efficient, and relatively sensitive quantification of phenolics. The HPLC–UV–MS¹ method can be used to analyze the phenolic composition of complex plant-based extracts, such as green tea and processed tea, with good reproducibility and high precision. The HPLC–UV–MS¹ method showed twofold lower LOD than ordinary HPLC–UV, and validation results were excellent. The HPLC–UV system coupled with an MS¹ and equipped with a core–shell column exhibited high specificity and validity with an economical operation cost. Moreover, less effort is required to operate this system than more sophisticated instruments, less handling and processing of data is required, and this method can be used at research and manufacturing sites that need more accurate quality control for green and processed tea products.
