Analysis of Volatile Components and Antibacterial Activity of Silver Wormwood Essential Oils from Different Habitats by E-Nose Combined with GC-MS
1
Key Laboratory of Modern Preparation of TCM, Ministry of Education, Jiangxi University of Chinese Medicine, Nanchang 330004, China
2
CR Jiangzhong Pharmaceutical Group Co., Ltd., Nanchang 330096, China
3
School of Pharmacy, Jiangxi University of Chinese Medicine, Nanchang 330004, China
*
Authors to whom correspondence should be addressed.
Separations 2023, 10(11), 553; https://doi.org/10.3390/separations10110553
Submission received: 20 September 2023
/
Revised: 25 October 2023
/
Accepted: 25 October 2023
/
Published: 31 October 2023
(This article belongs to the Special Issue Advances in the Chromatographic Separation and Analysis of Natural Products/Medicines)
Abstract
:Electronic nose (E-nose) combined with gas chromatography–mass spectrometry (GC-MS) was used to analyze the volatile components of silver wormwood from different habitats, and the antibacterial activity of essential oils was also studied, to provide a scientific basis for quality control of silver wormwood and rational utilization of their essential oils. In this study, the total content of essential oils in silver wormwood was determined by steam distillation; the volatile components were conducted in an overall analysis by E-nose combined with chemometrics; the volatile components were analyzed and identified by GC-MS; and two G-negative bacteria and one Gram-positive bacteria were used as test bacteria to determine the antibacterial activity of the essential oils from silver wormwood. The results showed that principal component analysis (PCA) and linear discriminant analysis (LDA) of E-nose could distinguish the essential oils of silver wormwood from different habitats, and the odor difference of essential oils was obvious. A total of 87 volatile components were identified by GC-MS, and there were significant differences in components and contents in silver wormwood from different habitats; PCA and hierarchical cluster analysis (HCA) could effectively distinguish silver wormwood from different habitats. The essential oils from silver wormwood from different habitats all had a certain inhibitory effect on Bacillus subtilis, Staphylococcus aureus, and Escherichia coli. Therefore, the combination of E-nose and GC-MS could quickly distinguish silver wormwood from different habitats and provide a reference for quality control, drug selection, and comprehensive utilization of silver wormwood.
1. Introduction
Silver wormwood is the dry leaf of Artemisia argyi Lévl. et Vant and contains flavonoids, essential oils, polysaccharides, and other active ingredients [1,2]. Essential oil is the main active component of silver wormwood and mainly contains monoterpene and its derivatives, sesquiterpene and its derivatives, ketones (aldehydes), alcohols (phenols), acids (esters), alkanes (alkenes), and other chemical components [3]. Silver wormwood is bitter and pungent in flavor and warm in nature and has the functions of warming meridians, stopping bleeding, dispelling cold, and relieving pain [4]. Silver wormwood has pharmacological effects such as antioxidant, antibacterial, antivirus, antitumor, and immune regulation [5,6,7]. Silver wormwood has a high medicinal value and abundant resources and is mainly produced in Henan province and Hubei province. Silver wormwood is widely used. In addition to being used as medicinal materials, it can also be made into practical articles such as moxa wool, moxa-wool moxibustion, and inkpad. In addition, it is also closely related to food and can be used to make wormwood leaves bread, fresh wormwood leaves, wormwood oxalic acid, wheat fermented by wormwood leaves, and other foods [8]. Therefore, the development and utilization of silver wormwood have attracted the attention of researchers, and considering how to control the quality of silver wormwood has become an important prerequisite for medicinal safety and food safety.
As the main active component of silver wormwood, the essential oil has a strong special odor and is regarded as the standard to evaluate the medicinal quality of silver wormwood, and its content can directly reflect the quality of silver wormwood [9,10]. Due to different planting conditions and methods and harvesting methods in different habitats, the volatile components of silver wormwood from different habitats are quite different. Most researchers only focus on the analysis of the content differences of the essential oils in silver wormwood from different habitats, leading to the inability to scientifically and comprehensively reflect the quality differences of silver wormwood from different habitats.
In this study, electronic nose (E-nose) combined with gas chromatography–mass spectrometry (GC-MS) was used to analyze the essential oils in silver wormwood from different habitats. Odor, an important sensory indicator of essential oil in traditional Chinese medicine, is directly related to the quality and efficacy of traditional Chinese medicine [11,12]. For traditional Chinese medicine that contains essential oils, the differences in the types and contents of volatile components lead to differences in the odors of different traditional Chinese medicine. At present, the evaluation of the quality of traditional Chinese medicine based on odor and other traits mainly uses sensory evaluation, which has various limitations, such as strong subjectivity [13]. E-nose is a simulated biological olfactory system that can digitize, model, and visualize subjective feelings, quickly analyze and distinguish the odor of complex samples, and has the advantages of simple operation, quick detection, and high sensitivity [14,15]. It can detect the overall information of samples and form odor fingerprints and has been widely applied in many fields such as food, medicine, environment, and agriculture [16,17,18]. In terms of antibacterial activity, essential oil of silver wormwood has certain inhibition activity on Escherichia coli and Staphylococcus aureus and the antibacterial activity of silver wormwood essential oil is also different in different places [19]. In this paper, two G-negative bacteria and one Gram-positive bacteria were used as test bacteria to determine the antibacterial activity of the essential oils from silver wormwood.
This study used E-nose to detect the odor of essential oil samples of silver wormwood from different habitats, analyzed the volatile components in silver wormwood from different habitats by GC-MS combined with chemometrics, and researched the antibacterial activity of essential oils in silver wormwood from different habitats, thus providing a reference for quality control, variety breeding, and comprehensive development of silver wormwood from different habitats.
2. Materials and Methods
2.1. Instruments and Reagents
A 7890A/5975C gas chromatography–mass spectrometer (Agilent Technology Co., Ltd., Beijing, China); SuperNose Electronic Nose (Shanghai Ruixuan International Trade Co., Ltd., Shanghai, China); BT25S Electronic Analytical Balance (Beijing Sai Dolis Instrument Co., Ltd., Beijing, China); essential oil extractor (Sichuan Shuniu Glass Instrument Co., Ltd., Chongzhou, China); 80KCS vertical steam sterilization pot (Shanghai Shen’an Medical Device Factory, Shanghai, China); and Model SPX-150F Biochemical Incubator (Shanghai Yue Long Instrument and Equipment Co., Ltd., Shanghai, China) were used.
Reagents such as n-hexane and anhydrous sodium sulphate were analytical reagents; C7–C32 n-alkanes (Chengdu Croma Co., Ltd., Chengdu, China); Staphylococcus aureus (ATCC 25923), Escherichia coli (ATCC 25922), and Bacillus subtilis (ATCC 6633) were all ordered from American TypeCulture Collection (ATCC).
2.2. Materials
The seven habitats of silver wormwood are shown in Table 1. The materials were all identified as Artemisia argyi Levl. et Vant by Professor Yang Ming of the Jiangxi University of Chinese Medicine.
2.3. Isolation of Essential Oil
Steam distillation is usually used to extract essential oil [20]. A total of 200 g of fresh silver wormwood leaves were weighed, cut into pieces, placed in a round-bottomed flask, added with 2000 mL double-distilled water, shaken and mixed, and soaked for 1 h. Then, essential oils were isolated for 3.5 h according to the A determination method of essential oils in the four general rules of Chinese Pharmacopoeia (2020 edition), stood, and layered. After that, their volumes were read and their yields were calculated; then, they were added to anhydrous sodium sulphate, dried, put in a brown glass bottle, and sealed at 4 °C for later use. The parallel experiment was repeated three times, and the average was taken.
2.4. Odor Analysis by E-Nose
The analysis method of E-nose comes from the research of other students in our research group [9]. A 50 μL sample was sucked into a 40 mL autosampler, sealed, and left for 1 h before the headspace vial was filled with sample gas for autosampler analysis. The sampling parameters of the electronic nose are set as follows: pure air was used as a carrier; carrier air flow rate was 0.6 L/min; cleaning time was 180 s; and detection time was 120 s. The sample amount was 10 μL, and each sample was measured three times in parallel.
2.5. GC-MS Analysis
The essential oils in silver wormwood were qualitatively and quantitatively analyzed by GC-MS. A total of 50 μL volatile oil was precisely sucked from silver wormwood, dissolved in n-hexane and constant-volumed into a 10 mL volumetric flask, filtrated with a 0.22 μm microporous filter membrane to obtain a volatile oil sample solution.
Gas chromatographic conditions: HP-5 MS quartz capillary column (30 m × 0.25 mm × 0.25 μm). The programmed temperature was adopted: the initial temperature was 40 °C, kept for 1 min, then running at 70 °C, then heating at 10 °C/min to 220 °C, kept for 0 min, and then heating at 25 °C/min to 280 °C, and kept at 280 °C for 9 min. The carrier gas was high-purity helium with a flow rate of 1.0 mL/min. The inlet temperature was 280 °C. The split ratio was 40:1. Solvent was delayed for 3 min. The sample amount was 1.0 μL.
Mass spectrometry conditions: quadrupole temperature 150 °C. The ionization source was standard EI source, and the ion source temperature was 230 °C. Electron multiplier tube voltage was 2447.06 V. The mass scanning range m/z was 50~650.
2.6. Antibacterial Activity Determination
The antibacterial effects on Bacillus subtilis, Staphylococcus aureus, and Escherichia coli of the essential oils from silver wormwood were determined by the measurement of inhibition zones [21]. A total of 200 μL of various bacteria suspensions were sucked by a pipette on a clean worktable and uniformly coated on the surface of the plate culture medium to make a plate containing bacteria. A 6 mm round filter paper was clamped with sterile tweezers, and 10 μL essential oil was sucked by a pipette gun and added to the filter paper. The dripping side faced down and was attached to a flat plate with three filter papers and stood upright for 20 min. Sterile water was used as a negative control and gentamicin drug-sensitive paper (10 μg/plate) was used as positive control. All the plates were put upside down in a constant temperature incubator at 37 °C for 24 h. The diameters of the inhibition zones were measured by the cross method, and the average was taken after three parallel experiments.
2.7. Data Analysis
The electronic nose used its software to perform principal component analysis (PCA) and linear discriminant analysis (LAD) on the data. The relative content of components was determined by the peak area normalization method. By searching the standard mass spectrometry library of the NIST20 chemical workstation and the comparison of their GC Kováts retention indices (RI) and referring to relevant literature, the chemical structure of components was identified.
3. Results and Discussion
3.1. Color and Content of Essential Oil
The silver wormwood essential oils from different habitats were isolated by steam distillation. The color and content of the essential oils are shown in Table 2. The results showed that the color and content of silver wormwood essential oils from different habitats were quite different. The content of essential oils from seven different habitats ranged from 0.30% to 1.09%. The content of essential oil in QA samples was the highest (1.09%), which was significantly higher than that in other samples, and the content of essential oil in BGA samples was the lowest (0.30%). Among the essential oil samples, the essential oil color of HA samples was dark blue, which was easy to distinguish; LJA samples were grass green, BGA samples were yellow, essential oils from other habitats showed different degrees of blue–green, and SYA samples were the lightest. The blue color of essential oil in silver wormwood was mainly related to the chemical components of azulene and davanone with unique color in the samples [22].
3.2. Odor Analysis by E-Nose
3.2.1. Radar Chart of Odor Information
E-noses are very sensitive to odor information from a sample, and slight changes in volatile compounds may cause differences in sensor response. Therefore, E-noses are widely used in analysis fields such as food, beverages, cosmetics, medicine, and agriculture. In this study, an E-nose equipped with 14 sensors was used to detect and analyze the comprehensive odor components of silver wormwood essential oil samples from different origins. The sensors of the E-noses are equivalent to the olfactory cells of the human nose. The sensors respond to the odor components by the sample, and each sensor has a different response focus. The difference in sensor response not only depends on the different odor components but also depends on the concentration of the odor components [23].
The average response value of each sensor of the E-noses was selected to draw the radar map of the odor information of the E-noses of silver wormwood samples, as shown in Figure 1. The response values of 14 sensors to volatile components of different samples were different, and the response values of S1 and S8 sensors to the odor of samples were larger. According to the performance of the sensor, it is sensitive to terpenes, alcohols, and ketones. So, it is speculated that the differences in odor components in silver wormwood from different habitats are mainly affected by terpenes, alcohols, and ketones.
3.2.2. Principal Component Analysis (PCA)
PCA is an unsupervised statistical method that generates a new set of variables, called principal components, each of which is a linear combination of defined original variables [24]. Siger studied 418 vegetable oil samples through PCA and HCA, showing the usefulness of statistical tools [25]. Wei used electronic nose combined with PCA and linear discriminant analysis to measure peony seed oil doping [26].
PCA analysis of E-nose detection data of silver wormwood samples from different habitats is shown in Figure 2. The contribution rates of PC1 and PC2 were 99.10% and 0.59%, respectively, and the cumulative variance contribution rate was 99.69%, which could represent all the information of samples. The recognition index (DI value) was 96.83%, and the discrimination between different data was obvious, which indicates that there are apparent differences in the odor of silver wormwood samples from different habitats and that the electronic nose can distinguish silver wormwood samples from different habitats well.
3.2.3. Linear Discriminant Analysis (LDA)
Different from the PCA variance maximization theory, the idea of the LDA algorithm is to project the data into a low-dimensional space to make the same type of data as compact as possible and different types of data as dispersed as possible. Therefore, the LDA is a supervised pattern-recognition learning algorithm [27].
It can be seen from Figure 3 that the DI value was 99.91% and each sample was distributed in different areas without overlapping each other, indicating that the E-noses can effectively distinguish silver wormwood from different habitats. The model had a good distinguishing effect, and the trend and results obtained were the same as those obtained by PCA, which further verified the results of PCA.
3.3. GC-MS Analysis
3.3.1. GC-MS Analysis of Volatile Components
According to the above GC-MS conditions, the volatile components in silver wormwood samples from different habitats were analyzed, and the total ion flow diagram of essential oils in silver wormwood from different habitats was obtained, as shown in Figure 4.
According to the obtained mass spectrometry data, the chromatographic peaks in the total ion flow diagram were analyzed, and the relative contents of each component were calculated by peak area normalization method after NIST20 mass spectrometry library retrieval and artificial auxiliary analysis, as shown in Table 3.
A total of 87 compounds were identified in the silver wormwood essential oils from seven different habitats, accounting for 90.89~99.83% of the total volatile components. Huang detected more than 30 chemical components from silver wormwood essential oil by GC-MS [28].
Significant differences existed in the types and relative contents of volatile components in silver wormwood from different habitats. The components with high content were α-terpinene, cymene, eucalyptus, p-terphenyl, carvinol, caryophyllene oxide, camphor, borneol, etc. These compounds may constitute the main components of the basic flavor characteristics of silver wormwood essential oil.
Eucalyptol and borneol are the index components for the content determination of silver wormwood in Chinese Pharmacopoeia (2020 edition), which have many pharmacological effects, such as antibacterial, anti-inflammatory effects, etc. Their contents had certain significance for the quality evaluation of silver wormwood [29]. The content of eucalyptol in samples from different habitats all met the standard, among which the relative content of QA samples was as high as 14.46%, followed by HA samples (13.81%) and PA samples (13.02%), and the relative content of eucalyptus in SYA samples was the lowest, with a content of 4.81%. Except for CZA samples and SYA samples, borneol was found in silver wormwood from other habitats. The relative content of PA samples was as high as 14.79%, and the content of PA samples was 1.82%. Limonene, terpinene, α-terpineol, borneol, and other components have a strong aroma, and the differences in these components’ content will lead to differences in aroma and curative effect of silver wormwood from different habitats.
3.3.2. PCA of Volatile Components
To further compare the differences of volatile components in silver wormwood from different habitats and determine the volatile components that play a key role in aroma intensity, PCA was carried out with the relative content of common peaks as eigenvalue. The eigenvalue and contribution rate of principal components are the basis for selecting principal components [30]. It can be seen from Table 4 that the eigenvalue of the first two principal components were all greater than 1. The contribution rate of the first principal component was 55.80%, the contribution rate of the second principal component was 23.30%, and the cumulative contribution rate of total variance was 79.10%, indicating that the first two principal components can reflect the main characteristics of silver wormwood samples from different provenances; so, the first two principal components were extracted for analysis. Among them, α-terpinene, cymene, cucalyptus, p-terpineol, and carvingol contributed more to PC1, while cucalyptus, carvingol, and caryophyllene contributed more to PC2.
The quality of silver wormwood samples was evaluated by adding the sum of factor scores of principal components and their weights (weight = contribution rate of principal components/cumulative contribution rate of two principal components) and calculating the total score F of each factor of principal components. The higher the F, the better the quality. It can be seen from Table 5 that, among silver wormwood from seven different habitats, HA samples had the highest comprehensive score and the best quality, followed by SYA samples, and LJA samples had the worst quality.
After PCA, the principal component analysis scores of silver wormwood samples from different habitats were obtained, as shown in Figure 5. According to the score chart, all samples of silver wormwood could be effectively distinguished, indicating that there are apparent differences in volatile odor components and contents of silver wormwood from different habitats, and there are great differences between PA samples and BGA samples.
3.3.3. Hierarchical Cluster Analysis (HCA)
The purpose of performing HCA is to classify data into specific groups by considering similarity criteria, and distance measures such as Euclidean distance [31].
SPSS 21.0 software was used to conduct cluster analysis, taking the relative percentage data of common peaks as variables and adopting the method of inter-group connection and taking the square Euclidean distance as the measurement standard interval [32]. The systematic cluster analysis was carried out on silver wormwood samples from seven producing areas, as shown in Figure 6. It can be seen from the figure that the samples of silver wormwood are divided into two categories by cluster analysis: the first category is HA samples, QA samples, PA samples, CZA samples, and SYA samples and the second category is BGA samples and LJA samples. This result was consistent with that of PCA.
3.4. Antibacterial Activity Determination
The diameter of the inhibition zones of silver wormwood essential oils was determined by the paper disc diffusion method [33]. The results are shown in Table 6. The silver wormwood essential oil had a good inhibitory effect on Bacillus subtilis, Staphylococcus aureus, and Escherichia coli. The diameter of the inhibition zone of CZA samples against Bacillus subtilis was 21.22 ± 1.05 mm and the inhibitory effect of CZA samples on Bacillus subtilis was the strongest. The diameter of the inhibition zone of the QA samples against Staphylococcus aureus was 18.20 ± 0.17 mm and the inhibitory effect was the strongest. The diameter of the inhibition zone of HA samples was 17.93 ± 1.04 mm and the inhibitory effect of HA samples on Escherichia coli was the strongest.
4. Conclusions
Silver wormwood essential oil has a strong aroma and complex components, and it is an important index affecting its quality [34]. Due to the influence of climate, planting methods, and harvesting, the quality of silver wormwood from different habitats is quite different, so it is difficult to judge the best variety of silver wormwood. Wang combined HS-SPME with GC-MS, studied the essential oils of silver wormwood that come from five habitats, and explored the influence of climatic factors on the main components of the essential oils [35]. The combination of E-nose technology and GC-MS technology can be used to analyze the volatile components of silver wormwood from different habitats from two aspects: the overall odor information and the specific types and contents of essential oil components.
In this study, silver wormwood essential oils from seven different habitats were isolated by steam distillation, the volatile components were analyzed by E-nose, GC-MS, and chemometrics, and the antibacterial effects of essential oils from seven habitats were studied. The results of E-nose showed that the samples of silver wormwood from seven different habitats were distributed in different regions and did not overlap with each other, which indicated that there were obvious differences in odor characteristics among samples of silver wormwood from different habitats. GC-MS was used to detect the volatile components of silver wormwood samples from different habitats qualitatively and quantitatively. PCA and HCA analysis were consistent with the results of E-nose detection. Analysis showed that the HA samples had the best quality and the LJA samples had the worst quality. The results of antibacterial activity showed that the silver wormwood essential oils from seven habitats had a good inhibitory effect on Bacillus subtilis, Staphylococcus aureus, and Escherichia coli.
This study shows that the E-nose combined with GC-MS can effectively distinguish silver wormwood from different habitats, which provides a new idea for studying the odor substance basis and rapid identification of silver wormwood and provides a scientific basis for breeding superior varieties, quality control, and comprehensive development of silver wormwood resources.
Author Contributions
Conceptualization, X.L. and N.W.; methodology, Y.Y. and D.G.; software, Y.Y. and D.G.; validation, Y.Y. and D.G.; formal analysis, Y.Y. and S.Y.; investigation, Y.Y. and H.H.; resources, N.W.; data curation, Y.Y., S.Y. and H.H.; writing—original draft preparation, Y.Y.; writing—review and editing, Y.Y. and D.G.; visualization, Y.Y.; supervision, X.L. and N.W.; project administration, X.L. and N.W.; funding acquisition, X.L. and N.W. All authors have read and agreed to the published version of the manuscript.
Funding
This research was funded by [Jiangxi University of Chinese Medicine Doctoral Fund] grant number [2022WBZR004] and [National Natural Science Foundation of China] grant number [82074026].
Data Availability Statement
This published article includes all data generated or analyzed during this study.
Acknowledgments
We thank Chao Zhang and Lin Tan for their help during this work.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Hu, Q.; Liu, Z.; Guo, Y.; Lu, S.; Du, H.; Cao, Y. Antioxidant Capacity of Flavonoids from Folium Artemisiae argyi and the Molecular Mechanism in Caenorhabditis elegans. J. Ethnopharmacol. 2021, 279, 114398. [Google Scholar] [CrossRef]
- Guo, L.; Zhang, D.; Xue, Z.-J.; Jiao, Q.; Liu, A.-P.; Zheng, Y.-G.; Liu, E.-H.; Duan, L. Comparison of Artemisiae argyi Folium and Artemisiae lavandulaefoliae Folium by Simultaneous Determination of Multi-Components with Single Reference Standard Method and Chemometric Analysis. Phytochem. Anal. 2019, 30, 14–25. [Google Scholar] [CrossRef] [PubMed]
- Zhang, X.L.; Chen, X.W.; Wu, Y.M. Research Progress on the Chemical Composition and Pharmacological Activity of Moxa Leaf Volatile Oil in the Past 10 Years. Chin. J. Tradit. Chin. Med. 2021, 39, 111–118. [Google Scholar] [CrossRef]
- Gu, L.; Wang, X.; Shao, X.; Ding, Y.; Li, Y. Study on Chemical Constituents of Folium Artemisiae argyi carbonisatum, Toxicity Evaluation on Zebrafish and Intestinal Hemostasis. Saudi Pharm. J. 2022, 30, 532–543. [Google Scholar] [CrossRef]
- Yun, C.; Jung, Y.; Chun, W.; Yang, B.; Ryu, J.; Lim, C.; Kim, J.H.; Kim, H.; Cho, S.-I. Anti-Inflammatory Effects of Artemisia Leaf Extract in Mice with Contact Dermatitis In Vitro and In Vivo. Mediat. Inflamm. 2016, 2016, 8027537. [Google Scholar] [CrossRef]
- Kolören, O.; Kolören, Z.; Şekeroğlu, Z.A.; Çolayvaz, M.; Karanis, P. Amoebicidal and Amoebistatic Effects of Artemisia argyi Methanolic Extracts on Acanthamoeba castellanii Trophozoites and Cysts. Acta Parasitol. 2019, 64, 63–70. [Google Scholar] [CrossRef]
- Zhang, K.; Wang, N.; Gao, X.; Ma, Q. Integrated Metabolite Profiling and Transcriptome Analysis Reveals Tissue-Specific Regulation of Terpenoid Biosynthesis in Artemisia argyi. Genomics 2022, 114, 110388. [Google Scholar] [CrossRef]
- Xu, D.; Liao, C.; Su, X.; Liang, Y. Modern technology and antioxidant activity of wheat sauce fermented by Artemisia argyi. Food Res. Dev. 2020, 41, 68–74. [Google Scholar]
- Guo, D.; Yang, Y.; Wu, Y.; Liu, Y.; Cao, L.; Shi, Y.; Wan, N.; Wu, Z. Chemical Composition Analysis and Discrimination of Essential Oils of Artemisia argyi Folium from Different Germplasm Resources Based on Electronic Nose and GC/MS Combined with Chemometrics. Chem. Biodivers. 2023, 20, e202200991. [Google Scholar] [CrossRef]
- Hou, M.Z.; Chen, L.L.; Chang, C.; Zan, J.F.; Du, S.M. Pharmacokinetic and Tissue Distribution Study of Eight Volatile Constituents in Rats Orally Administrated with the Essential Oil of Artemisiae Argyi Folium by GC-MS/MS. J. Chromatogr. B Anal. Technol. Biomed. Life Sci. 2021, 1181, 122904. [Google Scholar] [CrossRef]
- Uehara, A.; Tommis, B.; Belhassen, E.; Satrani, B.; Ghanmi, M.; Baldovini, N. Odor-Active Constituents of Cedrus atlantica Wood Essential Oil. Phytochemistry 2017, 144, 208–215. [Google Scholar] [CrossRef] [PubMed]
- Zhang, S.; Wu, M.; Wu, F.; Feng, Y. Research progress on chemical constituents detection and material basis of traditional Chinese medicine odor. Res. Dev. Nat. Prod. 2023, 35, 332–341. [Google Scholar]
- Fan, J.; Zhang, W.; Zhou, T.; Zhang, D.; Zhang, D.; Zhang, L.; Wang, G.; Cao, F. Discrimination of Malus Taxa with Different Scent Intensities Using Electronic Nose and Gas Chromatography−Mass Spectrometry. Sensors 2018, 18, 3429. [Google Scholar] [CrossRef] [PubMed]
- Wang, D.; Lu, F.; Ai, L.; Wu, C.-J.; Liu, Z.; Zhang, M.; Zhong, C. Discovery of Active Ingredients in Traditional Chinese Medicine Based on the Analysis of Odor and Flavor of Compounds. Curr. Pharm. Des. 2022, 28, 2771–2784. [Google Scholar] [CrossRef]
- Lu, L.; Hu, Z.; Hu, X.; Li, D.; Tian, S. Electronic Tongue and Electronic Nose for Food Quality and Safety. Food Res. Int. 2022, 162, 112214. [Google Scholar] [CrossRef]
- Prasad, P.; Raut, P.; Goel, S.; Barnwal, R.P.; Bodhe, G.L. Electronic Nose and Wireless Sensor Network for Environmental Monitoring Application in Pulp and Paper Industry: A Review. Env. Monit. Assess. 2022, 194, 855. [Google Scholar] [CrossRef]
- Swanson, B.; Fogg, L.; Julion, W.; Arrieta, M.T. Electronic Nose Analysis of Exhaled Breath Volatiles to Identify Lung Cancer Cases: A Systematic Review. J. Assoc. Nurses AIDS Care 2020, 31, 71–79. [Google Scholar] [CrossRef]
- Shi, H.; Zhang, M.; Adhikari, B. Advances of Electronic Nose and Its Application in Fresh Foods: A Review. Crit. Rev. Food Sci. Nutr. 2018, 58, 2700–2710. [Google Scholar] [CrossRef]
- Wu, Y.Q.; Chen, H.X.; Zhang, L.L. Application Progress and Development Prospects of Mugwort Essential Oil. Anhui Agric. Sci. 2022, 50, 6–10. [Google Scholar]
- Zhang, H.; Huang, T.; Liao, X.; Zhou, Y.; Chen, S.; Chen, J.; Xiong, W. Extraction of Camphor Tree Essential Oil by Steam Distillation and Supercritical CO2 Extraction. Molecules 2022, 27, 5385. [Google Scholar] [CrossRef]
- Alanazi, A.K.; Alqasmi, M.H.; Alrouji, M.; Kuriri, F.A.; Almuhanna, Y.; Joseph, B.; Asad, M. Antibacterial Activity of Syzygium aromaticum (Clove) Bud Oil and Its Interaction with Imipenem in Controlling Wound Infections in Rats Caused by Methicillin-Resistant Staphylococcus aureus. Molecules 2022, 27, 8551. [Google Scholar] [CrossRef] [PubMed]
- Ghasemi, M.; Babaeian Jelodar, N.; Modarresi, M.; Bagheri, N.; Jamali, A. Increase of Chamazulene and α-Bisabolol Contents of the Essential Oil of German Chamomile (Matricaria chamomilla L.) Using Salicylic Acid Treatments under Normal and Heat Stress Conditions. Foods 2016, 5, 56. [Google Scholar] [CrossRef] [PubMed]
- Yang, W.; Yu, J.; Pei, F.; Mariga, A.M.; Ma, N.; Fang, Y.; Hu, Q. Effect of Hot Air Drying on Volatile Compounds of Flammulina velutipes Detected by HS-SPME-GC-MS and Electronic Nose. Food Chem. 2016, 196, 860–866. [Google Scholar] [CrossRef] [PubMed]
- Hidayat, W.; Shakaff, A.Y.M.; Ahmad, M.N.; Adom, A.H. Classification of Agarwood Oil Using an Electronic Nose. Sensors 2010, 10, 4675–4685. [Google Scholar] [CrossRef] [PubMed]
- Siger, A.; Górnaś, P. Free Tocopherols and Tocotrienols in 82 Plant Species’ Oil: Chemotaxonomic Relation as Demonstrated by PCA and HCA. Food Res. Int. 2023, 164, 112386. [Google Scholar] [CrossRef] [PubMed]
- Wei, X.; Shao, X.; Wei, Y.; Cheong, L.; Pan, L.; Tu, K. Rapid Detection of Adulterated Peony Seed Oil by Electronic Nose. J. Food Sci. Technol. 2018, 55, 2152–2159. [Google Scholar] [CrossRef]
- Rusinek, R.; Kmiecik, D.; Gawrysiak, W.M.; Malaga, T.U.; Tabor, S.; Findura, P.; Siger, A.; Gancarz, M. Identification of the Olfactory Profile of Rapeseed Oil as a Function of Heating Time and Ratio of Volume and Surface Area of Contact with Oxygen Using an Electronic Nose. Sensors 2021, 21, 303. [Google Scholar] [CrossRef]
- Huang, H.C.; Wang, H.F.; Yih, K.H.; Chang, L.Z.; Chang, T.M. Dual Bioactivities of Essential Oil Extracted from the Leaves of Artemisia argyi as an Antimelanogenic versus Antioxidant Agent and Chemical Composition Analysis by GC/MS. Int. J. Mol. Sci. 2012, 13, 14679–14697. [Google Scholar] [CrossRef]
- Lin, M.A.; Chang, J.C.; Li, P.K.; Yu, H.M.; Yan, F.; Lan, P.G.; Da, H.L.; Lu, Q.H. Effects of Different Planting Density, Leaf Position and Leaf Age on Growth and Quality of Artemisia argyi Var. Argyi “Qiai.”. Zhongguo Zhong Yao Za Zhi 2020, 45, 4031–4040. [Google Scholar] [CrossRef]
- Jolliffe, I.T.; Cadima, J. Principal Component Analysis: A Review and Recent Developments. Philos. Trans. A Math. Phys. Eng. Sci. 2016, 374, 20150202. [Google Scholar] [CrossRef]
- Schripsema, J.; Augustyn, W.; Viljoen, A. Characterisation of Sclerocarya birrea (Marula) Seed Oil and Investigation of the Geographical Origin by Applying Similarity Calculations, Differential NMR and Hierarchical Cluster Analysis. In Phytochemical Analysis; Wiley Online Library: Hoboken, NJ, USA, 2023. [Google Scholar] [CrossRef]
- Zargaran, A.; Sakhteman, A.; Faridi, P.; Daneshamouz, S.; Akbarizadeh, A.R.; Borhani-Haghighi, A.; Mohagheghzadeh, A. Reformulation of Traditional Chamomile Oil: Quality Controls and Fingerprint Presentation Based on Cluster Analysis of Attenuated Total Reflectance-Infrared Spectral Data. J. Evid. Based Complement. Altern. Med. 2017, 22, 707–714. [Google Scholar] [CrossRef] [PubMed]
- Radünz, M.; da Trindade, M.L.M.; Camargo, T.M.; Radünz, A.L.; Borges, C.D.; Gandra, E.A.; Helbig, E. Antimicrobial and Antioxidant Activity of Unencapsulated and Encapsulated Clove (Syzygium aromaticum L.) Essential Oil. Food Chem. 2019, 276, 180–186. [Google Scholar] [CrossRef] [PubMed]
- Liu, Y.; He, Y.; Wang, F.; Xu, R.; Yang, M.; Ci, Z.; Wu, Z.; Zhang, D.; Lin, J. From Longevity Grass to Contemporary Soft Gold: Explore the Chemical Constituents, Pharmacology, and Toxicology of Artemisia argyi H.Lév. & Vaniot Essential Oil. J. Ethnopharmacol. 2021, 279, 114404. [Google Scholar] [CrossRef] [PubMed]
- Wang, J.J.; Hao, W.F.; Zhang, J.W.; Shu, Z.M. Response of Volatiles of Artemisiae argyi Folium to Climatic Factors. Zhongguo Zhong Yao Za Zhi 2018, 43, 3163–3170. [Google Scholar] [CrossRef]

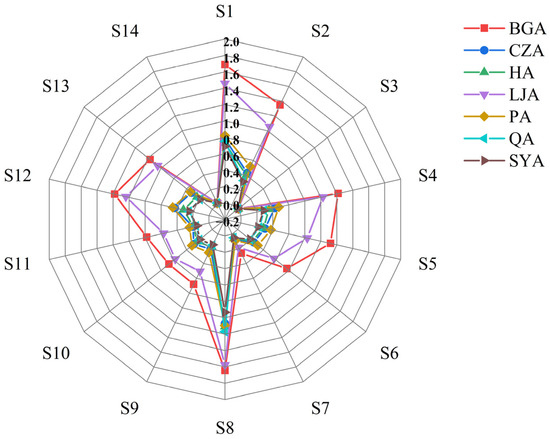

Figure 1.
Radar map of silver wormwood essential oils from different habitats.

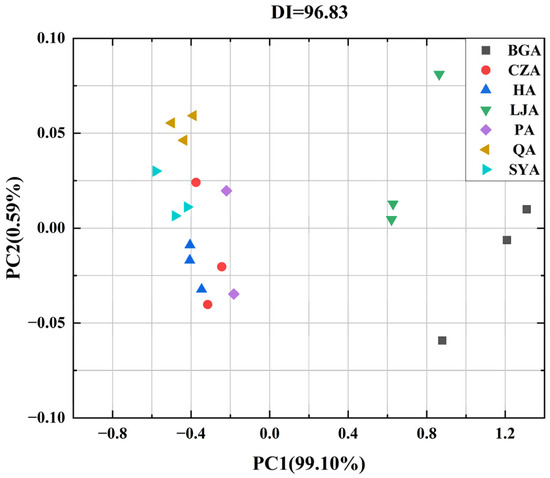

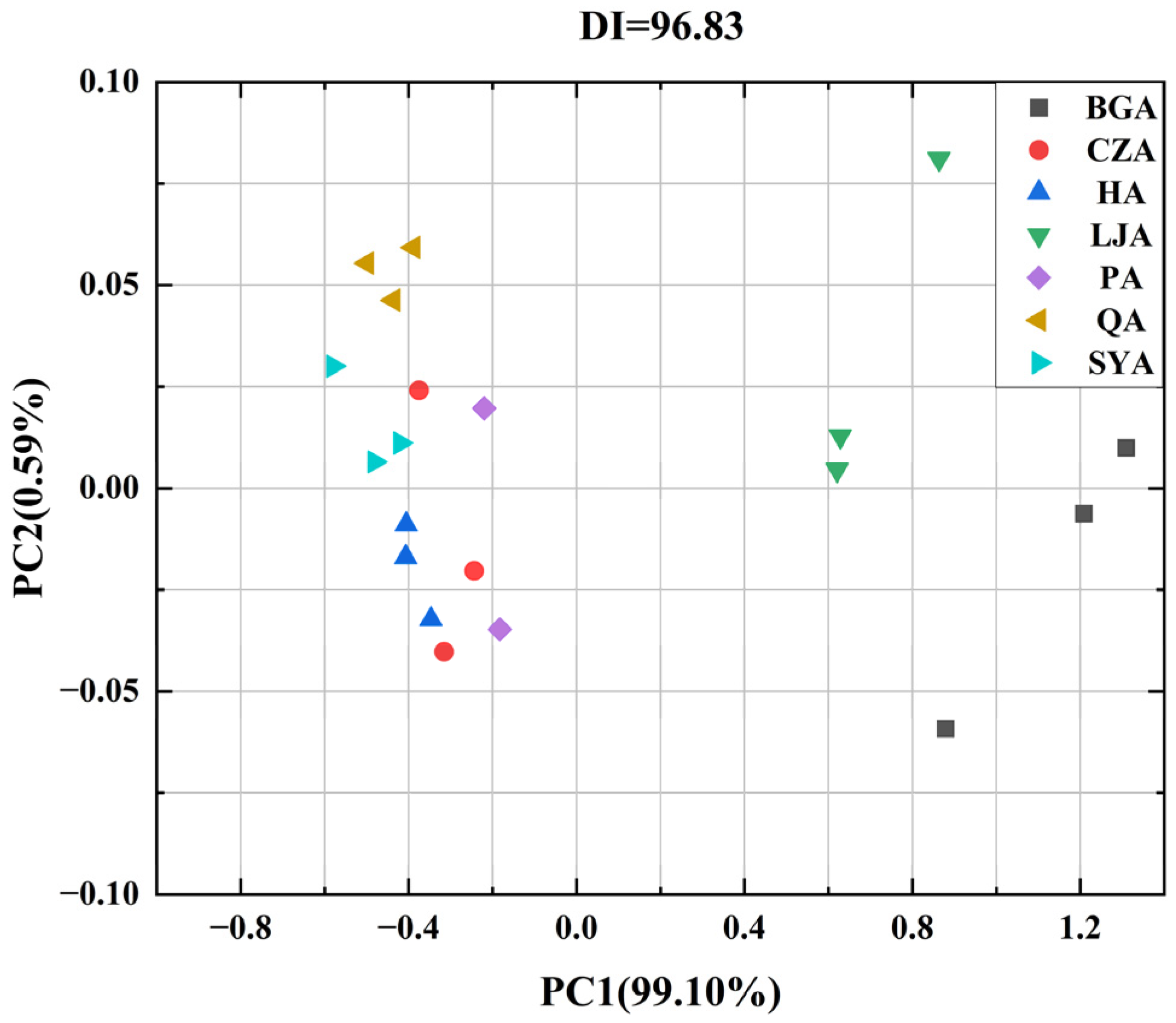

Figure 2.
PCA of E-noses of silver wormwood from different habitats.

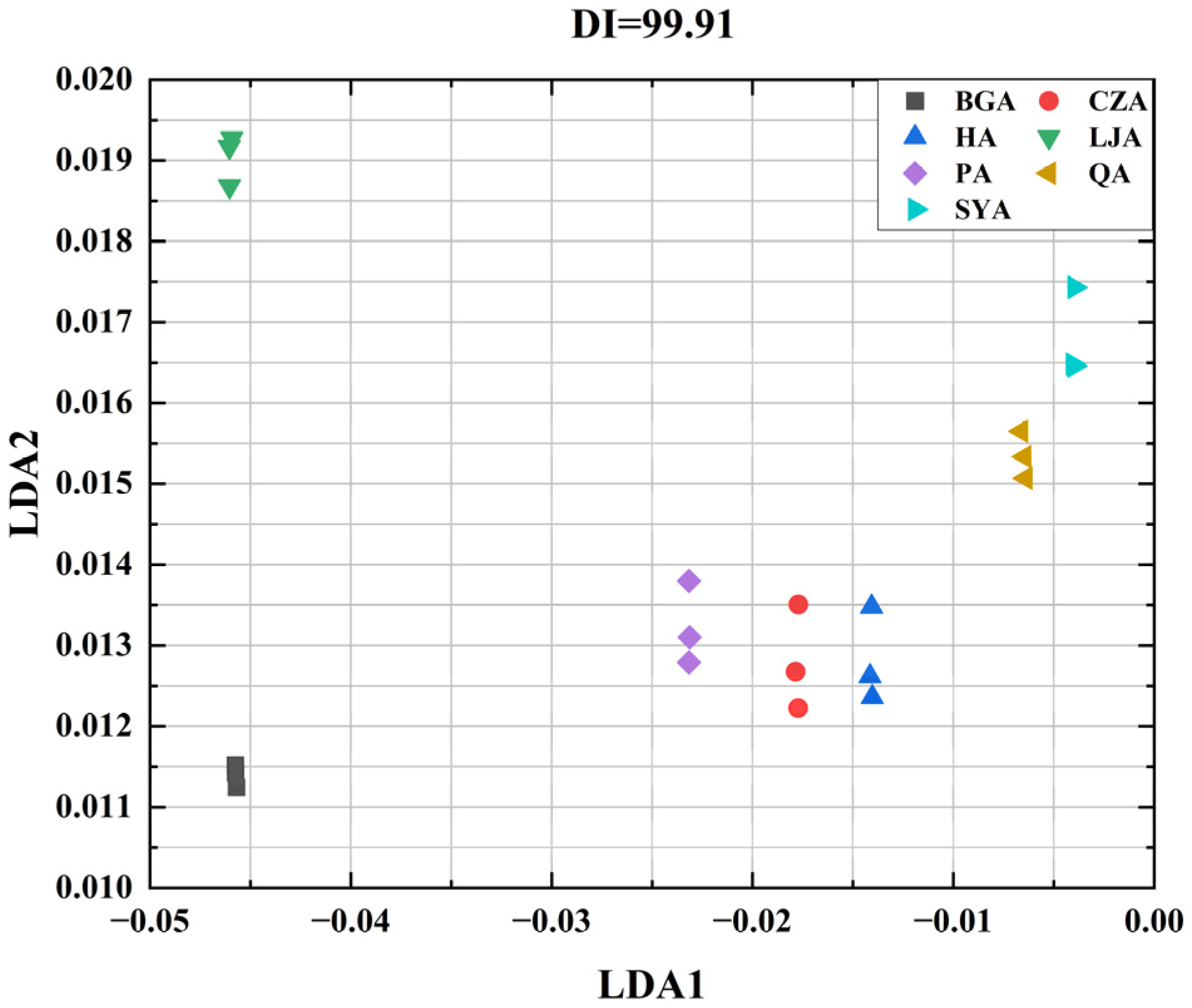

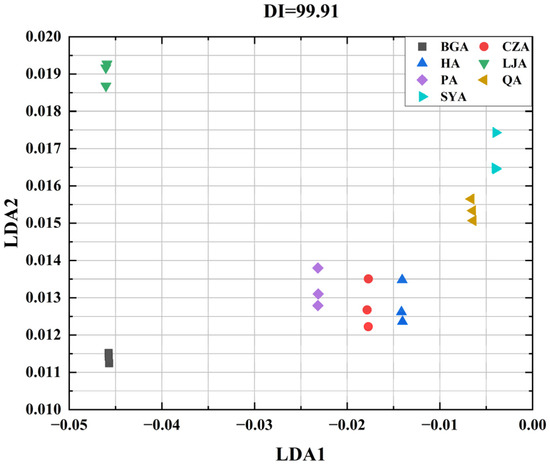

Figure 3.
LDA of E-noses of silver wormwood from different habitats.

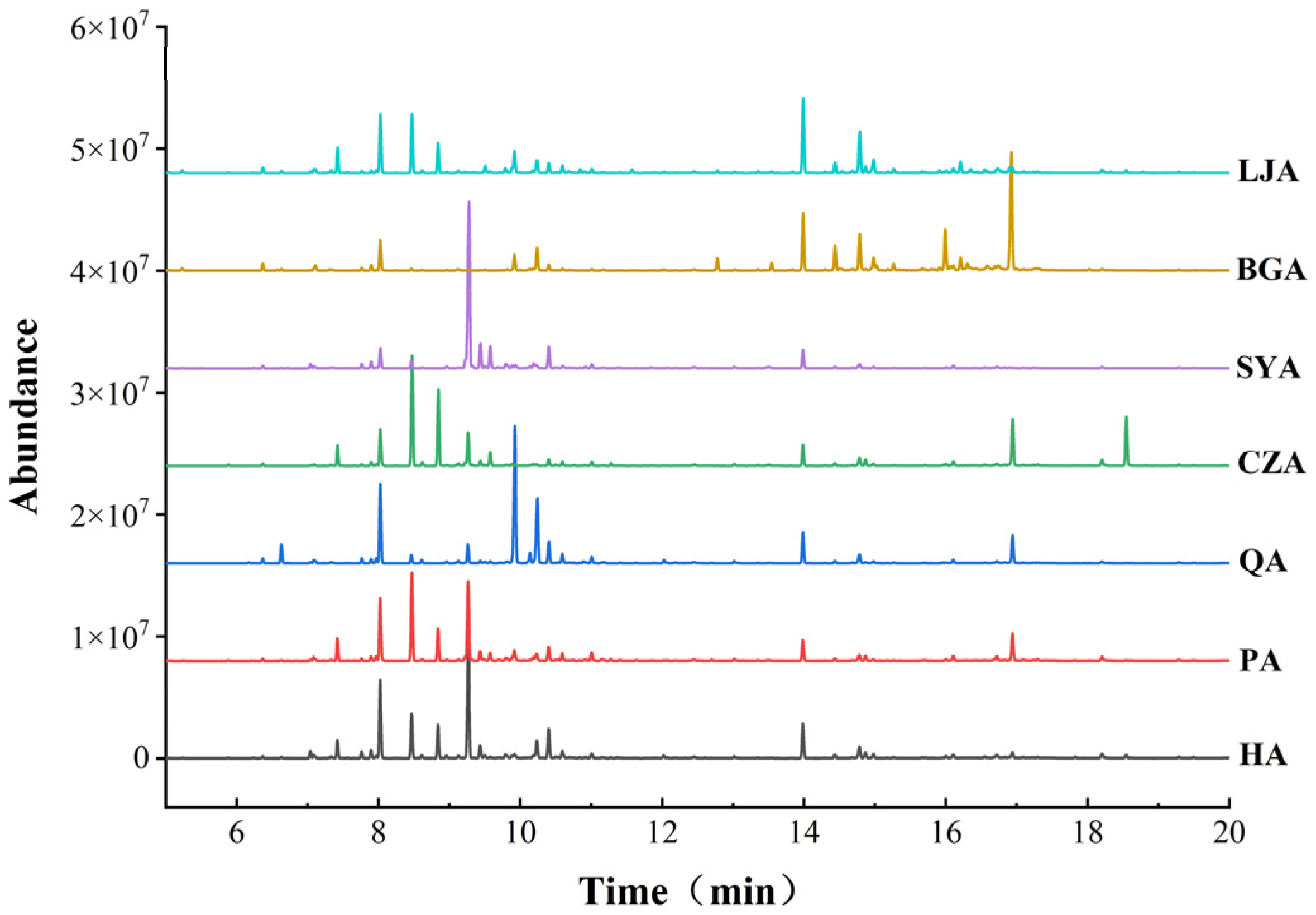

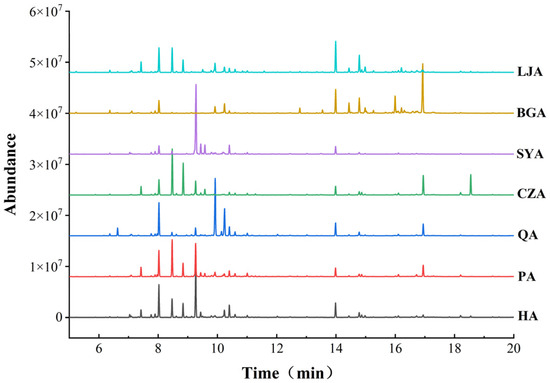

Figure 4.
Total ion chromatogram of volatile components in silver wormwood from different habitats.

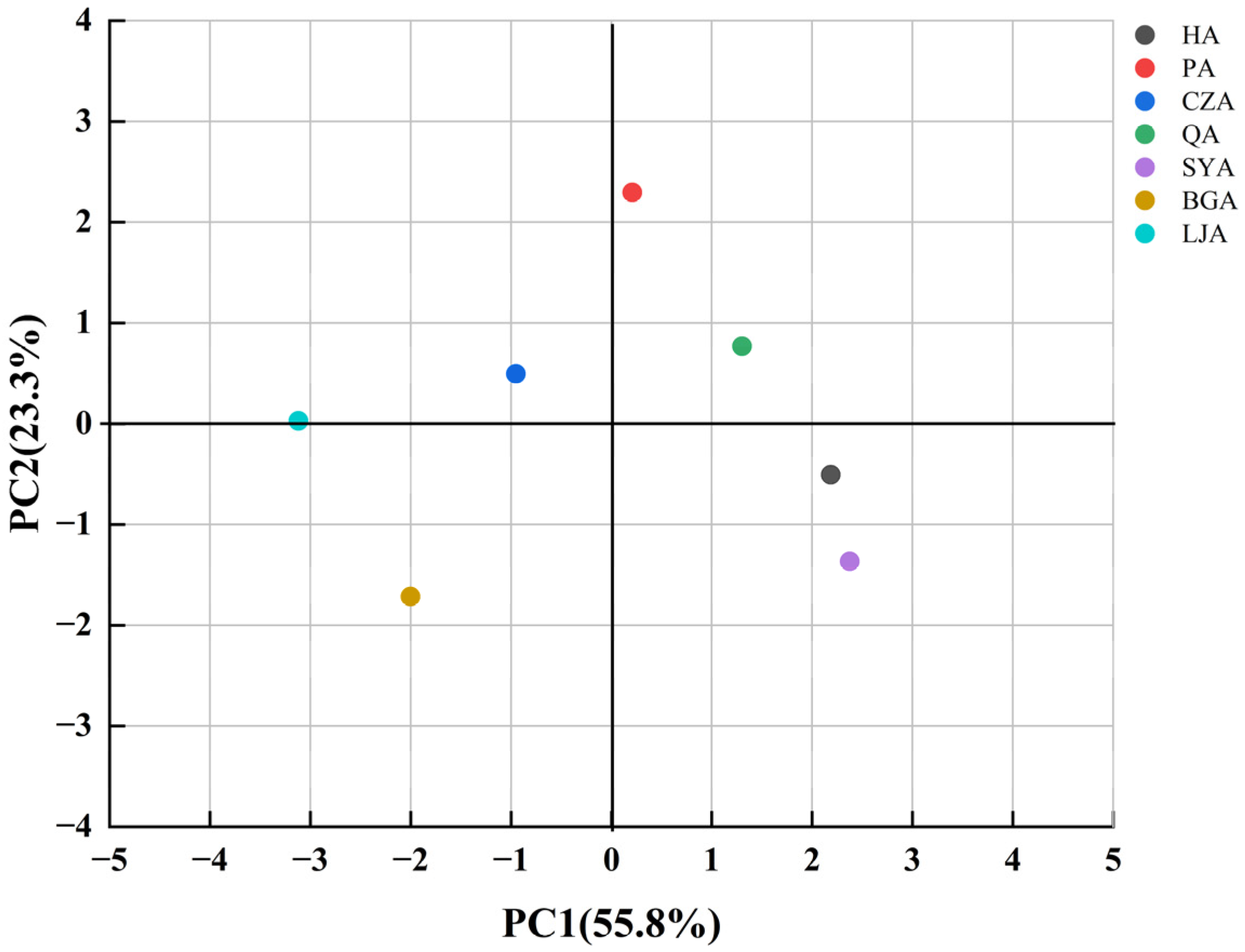

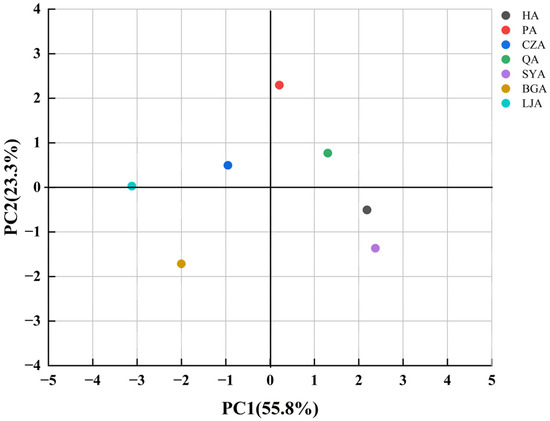

Figure 5.
PCA diagram of volatile components in silver wormwood from different habitats.

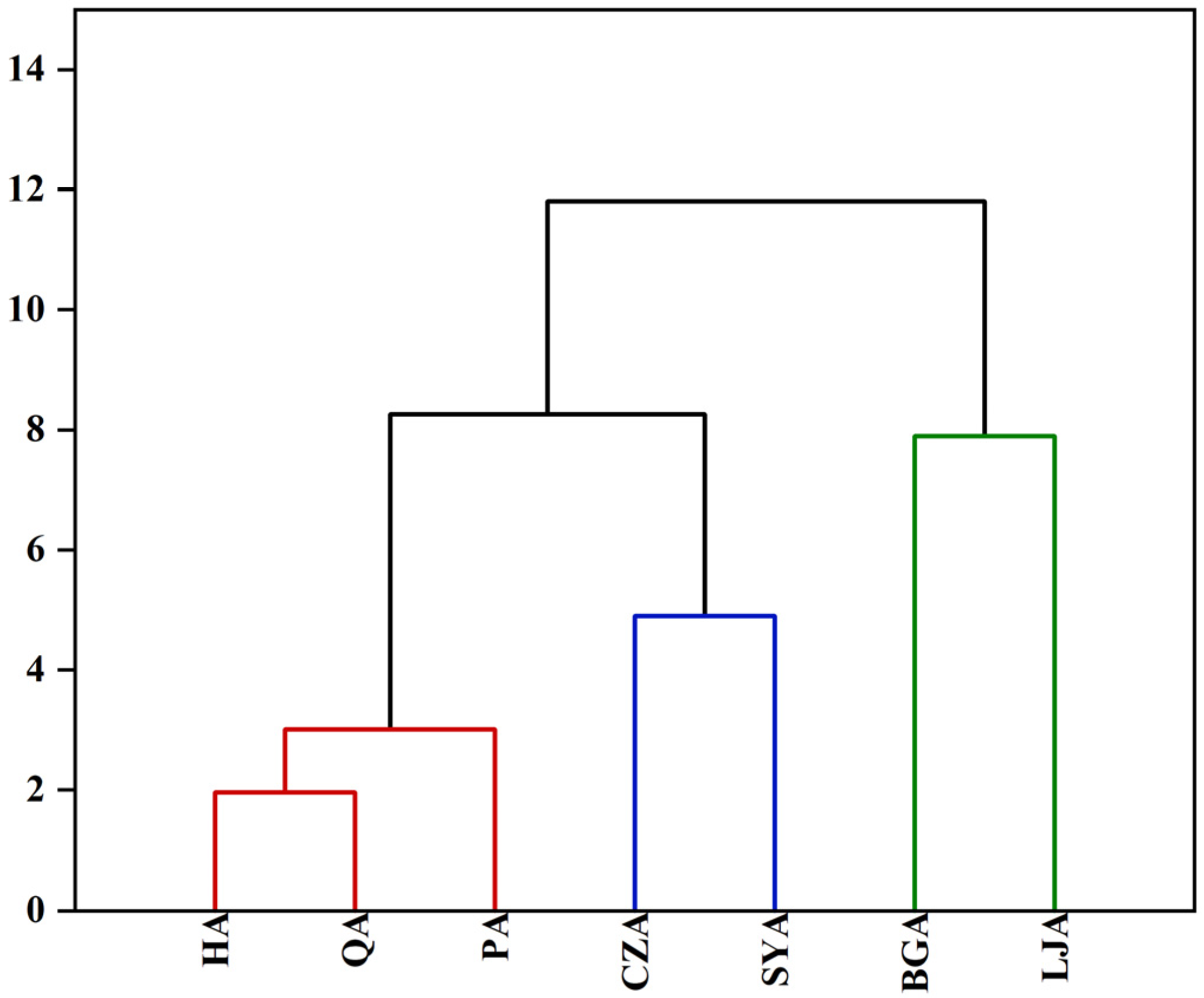

Figure 6.
HCA of silver wormwood from different habitats: The same color represents the same category.
Figure 6.
HCA of silver wormwood from different habitats: The same color represents the same category.
Table 1.
Silver wormwood habitat information.
| No. | Sample Name | Habitat |
|---|---|---|
| 1 | HA | Jingxi Village, Quzhou, Zhejiang Province, China |
| 2 | PA | Tuanzhang Village, Poyang, Jiangxi Province, China |
| 3 | QA | Qizhou Town, Qichun, Hubei Province, China |
| 4 | CZA | Guichi District, Chizhou, Anhui Province, China |
| 5 | SYA | Longhui Village, Shaoyang, Hunan Province, China |
| 6 | BGA | Dacheng Village, Poyang, Jiangxi Province, China |
| 7 | LJA | Linjiang Town, Kaixian, Chongqing Municipality, China |
Table 2.
Content and color of silver wormwood essential oils from different habitats.
| Sample Name | Color | Yields (%) |
|---|---|---|
| HA | Dark blue | 0.60 ± 0.03 |
| PA | Blue–green | 0.57 ± 0.04 |
| QA | Blue–green | 1.09 ± 0.02 |
| CZA | Blue–green | 0.69 ± 0.07 |
| SYA | Light blue–green | 0.74 ± 0.06 |
| BGA | Yellow | 0.30 ± 0.00 |
| LJA | Grass green | 0.33 ± 0.03 |
Table 3.
Volatile components of silver wormwood essential oils from different habitats.
| No. | Compounds | RI from Experiment | RI from Literature | Relative Content (%) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| HA | PA | CZA | QA | SYA | BGA | LJA | ||||
| 1 | 1-Hexanol | 892 | - | - * | - | - | - | - | 0.48 | 0.53 |
| 2 | Santolina triene | 936 | - | - | - | 0.23 | - | - | - | - |
| 3 | α-Tricyclene | 953 | - | - | - | - | 0.14 | - | - | - |
| 4 | α-Pinene | 965 | 977 | 0.30 | 0.38 | 0.40 | 0.81 | 0.56 | 1.16 | 0.95 |
| 5 | Camphene | 980 | 988 | - | - | - | 3.13 | - | - | - |
| 6 | α-Sabinene | 1002 | 1013 | 1.17 | - | - | - | 0.94 | - | 0.23 |
| 7 | 3-Octenol | 1006 | 1019 | 0.79 | 0.89 | 0.32 | 0.93 | 0.67 | - | - |
| 8 | β-Pinene | 1007 | 1018 | - | - | - | - | - | 1.22 | 1.23 |
| 9 | Dehydrocineole | 1022 | 1041 | 0.39 | - | - | 0.34 | - | - | 0.67 |
| 10 | Yamogi alcohol | 1028 | - | 2.94 | 4.23 | 3.54 | - | - | - | 4.36 |
| 11 | α-Terpinene- | 1049 | 1067 | 1.17 | 0.45 | 0.28 | 0.87 | 1.00 | 0.47 | 0.36 |
| 12 | Cymene | 1057 | 1071 | 1.40 | 0.78 | 0.71 | 0.78 | 1.56 | 0.99 | 0.39 |
| 13 | Limonene | 1062 | 1074 | 0.42 | 0.92 | 0.31 | 0.93 | 0.64 | - | 0.55 |
| 14 | Eucalyptol | 1065 | 1076 | 13.81 | 13.02 | 7.31 | 14.46 | 4.81 | 5.37 | 11.57 |
| 15 | g-Terpinene | 1090 | 1097 | - | - | - | 1.41 | 1.76 | 0.35 | - |
| 16 | Atemisia ketone | 1091 | 1098 | 7.96 | 18.09 | 22.45 | - | - | - | 10.89 |
| 17 | 4-Thujanol | 1099 | 1171 | 1.10 | 0.44 | 1.42 | 1.23 | - | 0.31 | 1.00 |
| 18 | Artemesia alcohol | 1114 | - | 5.65 | 6.30 | 14.97 | - | - | - | 5.43 |
| 19 | Thujone | 1142 | - | 25.88 | 18.05 | 8.22 | 3.84 | 58.44 | - | - |
| 20 | 2-Cyclohexenol | 1158 | 1109 | 0.57 | - | - | - | 0.90 | - | 2.37 |
| 21 | trans-Verbenol | 1181 | 1192 | 0.40 | - | - | - | 0.69 | - | - |
| 22 | Methyl methacrylate | 1182 | - | - | - | 0.22 | - | - | - | - |
| 23 | 2-Bornanone | 1183 | - | 0.93 | 3.17 | - | 28.65 | - | 2.92 | 5.41 |
| 24 | Photocitral B | 1196 | - | - | - | - | - | 0.60 | 0.42 | - |
| 25 | cis-Chrysanthenol | 1197 | - | - | - | - | 2.17 | - | - | - |
| 26 | Lavandulol | 1199 | - | - | - | - | - | - | 0.42 | 0.56 |
| 27 | 3-Methyl-3-nitro-1-butene | 1199 | - | - | - | 0.18 | - | - | - | - |
| 28 | 4-Methyl-1, 4-heptadiene | 1199 | - | - | 0.75 | - | - | - | - | - |
| 29 | Artemisia triene | 1269 | - | 0.51 | - | - | - | - | - | - |
| 30 | 1,5-Dimethyl-6-methylenespiro [2.4]heptane | 1200 | - | - | - | - | - | 1.34 | - | - |
| 31 | p-Menthaol | 1202 | - | - | - | - | - | 1.00 | - | - |
| 32 | Borneol | 1203 | 1218 | 3.56 | 1.82 | - | 14.79 | - | 4.32 | 2.97 |
| 33 | 4-Terpineol | 1215 | 1236 | 5.47 | 2.96 | 1.32 | 3.98 | 5.31 | 1.07 | 1.99 |
| 34 | α-Terpineol | 1229 | 1265 | 1.57 | 1.54 | 0.88 | 1.82 | - | 0.36 | 1.56 |
| 35 | cis-Piperitol | 1246 | - | - | - | - | - | - | - | 0.61 |
| 36 | 1,4-Dimethyl-cyclohex-3-enyl methyl ketone | 1249 | - | - | - | - | 0.55 | - | - | - |
| 37 | Verbenone | 1251 | - | - | 0.41 | - | - | 0.51 | - | - |
| 38 | Carveol | 1257 | 1274 | 0.94 | 1.77 | 0.86 | 1.19 | 1.01 | 0.33 | 0.74 |
| 39 | cis-p-mentha-1 (7), 8-dien-2-ol | 1267 | - | 0.60 | - | - | - | - | - | |
| 40 | 1-Imidazole-1-yl-3-methylbut-2-en-1-one | 1275 | - | - | 0.36 | 0.52 | - | - | - | - |
| 41 | 3-Carvomenthenone | 1295 | - | - | - | - | - | - | - | 0.69 |
| 42 | 2-Butylphenol | 1327 | - | 0.33 | - | -- | - | - | - | - |
| 43 | Bornyl acetate | 1328 | 1364 | - | - | - | 0.75 | - | - | - |
| 44 | α-EIemene | 1382 | - | - | - | - | - | - | 2.22 | 0.41 |
| 45 | 3-Allylguaiacol | 1398 | - | 0.38 | - | - | 0.50 | 0.51 | - | - |
| 46 | Eugenol | 1398 | 1418 | - | 0.45 | 0.43 | - | - | - | - |
| 47 | Copaene | 1425 | - | - | - | - | - | - | - | 0.33 |
| 48 | Crysanthenone | 1436 | - | - | - | - | - | 0.70 | - | - |
| 49 | β-Elemene | 1440 | - | - | - | - | - | - | 1.41 | - |
| 50 | Caryophyllene | 1473 | 1487 | 6.27 | 4.35 | 4.42 | 5.67 | 4.52 | 10.62 | 15.12 |
| 51 | Humulene | 1508 | - | 0.75 | - | - | 0.46 | - | - | - |
| 52 | 1, 4, 7,-Cycloundecatriene, 1, 5, 9, 9-tetramethyl- | 1508 | - | - | 0.48 | 0.55 | - | 0.44 | 4.50 | 2.15 |
| 53 | Alloaromadendrene | 1516 | 1516 | - | - | - | - | - | - | 0.33 |
| 54 | g-Muurolene | 1529 | - | - | - | - | - | - | - | 0.53 |
| 55 | Germacrene | 1537 | 1551 | 2.45 | 1.51 | 1.95 | 1.93 | 1.30 | 7.13 | 8.60 |
| 56 | 1,2,3,4,4a,5,6,8a-octahydro-4a,8-dimethylnaphthalene | 1544 | - | 1.10 | 1.05 | 1.33 | - | - | - | 1.30 |
| 57 | Bicylogermacrene | 1553 | 1573 | 0.92 | - | 0.53 | 0.42 | - | 2.86 | 3.32 |
| 58 | g-Elemene | 1553 | - | - | - | - | - | 0.43 | - | - |
| 59 | Davana ether | 1556 | - | - | - | - | - | - | 0.82 | - |
| 60 | α-Amorphene | 1569 | - | - | - | - | - | - | 1.17 | 0.76 |
| 61 | Nerolidol | 1609 | 1630 | - | - | - | - | - | 0.55 | - |
| 62 | Virdiflorol | 1630 | - | - | - | - | - | - | 3.11 | 2.96 |
| 63 | Spatulenol | 1638 | 1595 | 0.43 | 0.34 | 0.41 | - | - | - | 0.60 |
| 64 | Isolongifolen-5-one | 1643 | 1602 | - | - | - | - | - | 0.85 | - |
| 65 | Caryophyllene oxide | 1647 | - | 0.82 | 1.15 | 1.09 | 0.75 | 0.75 | 1.06 | 1.26 |
| 66 | Umbelliferone | 1660 | - | - | - | - | - | - | 0.31 | - |
| 67 | 2-Norprezizene | 1664 | - | - | - | - | - | - | 1.52 | - |
| 68 | γ-Gurjunene | 1667 | - | - | - | - | - | - | - | 0.93 |
| 69 | Ledol | 1667 | 1666 | - | - | - | - | - | 0.76 | - |
| 70 | Junenol | 1684 | - | - | - | - | - | - | - | 0.94 |
| 71 | Isospathulenol | 1688 | - | - | - | - | - | - | 1.77 | - |
| 72 | 3-Ethyl-2-methyl-1,3-hexadiene | 1696 | - | - | - | - | - | - | 0.82 | - |
| 73 | Cariophylladienol | 1698 | - | 1.00 | 1.21 | 0.59 | 0.48 | 0.61 | - | - |
| 74 | τ-Cadinol | 1699 | - | - | - | - | - | - | 1.80 | 1.83 |
| 75 | α-Cadinol | 1715 | - | - | - | - | - | - | - | 1.09 |
| 76 | Longiverbenone | 1717 | - | - | - | - | - | - | 26.02 | - |
| 77 | Neointermedeol | 1719 | - | 1.12 | 6.12 | 10.06 | 5.35 | - | - | 0.95 |
| 78 | Isoaromadendrene epoxide | 1750 | - | - | - | - | - | - | 1.01 | - |
| 79 | Silane, diphenylisobutoxy (2-methodyethoxy)- | 1835 | - | - | - | - | 0.39 | - | - | - |
| 80 | 3, 4, 5-Trimethoxy-β-methyl-β-nitrostyrene | 1835 | - | - | - | 1.46 | - | - | - | - |
| 81 | 2,3-Dphenyl-1H-1,2,4-triazole-5-thion | 1835 | - | 1.00 | - | - | - | - | - | - |
| 82 | 1-Naphthylamine | 1835 | - | - | 0.99 | - | - | - | - | - |
| 83 | 1, 5-Diphenyl-2H-1, 2, 4-triazoline-3-thione | 1867 | - | - | - | - | - | 0.28 | 0.39 | - |
| 84 | Methyl oleate | 2053 | - | 0.57 | - | 10.05 | - | - | - | 0.43 |
| 85 | 4-[(Dimethylamino)methyl]-2,5-dimethylphenol | 2170 | - | - | - | - | 0.21 | - | - | - |
| 86 | Octasiloxane, 1, 1, 3, 3, 5, 5, 7, 7, 9, 9, 11, 11, 13, 13, 15, 15-hexadecamethyl- | 2190 | - | 1.29 | - | - | - | - | - | - |
| 87 | Cyclotrisiloxane, hexamethyl | 2209 | - | - | 0.85 | - | - | - | - | - |
| Total | 95.36 | 95.43 | 97.01 | 98.93 | 91.28 | 90.89 | 98.90 | |||
RI: retention indices. *—not detected.
Table 4.
Eigenvalue and contribution rates of principal components of silver wormwood from different habitats.
Table 4.
Eigenvalue and contribution rates of principal components of silver wormwood from different habitats.
| Principal Component | Eigenvalue | Variance Contribution (%) | Cumulative Variance Contribution (%) |
|---|---|---|---|
| 1 | 3.91 | 55.80 | 55.80 |
| 2 | 1.63 | 23.30 | 79.10 |
Table 5.
Scores of principal component factors of silver wormwood from different habitats.
| Sample Name | F1 1 | F2 2 | F 3 |
|---|---|---|---|
| HA | 2.186 | −0.506 | 1.392 |
| PA | 0.208 | 2.295 | 0.824 |
| CZA | −0.952 | 0.495 | −0.525 |
| QA | 1.301 | 0.769 | 1.144 |
| SYA | 2.376 | −1.366 | 1.272 |
| BGA | −2.001 | −1.715 | −1.917 |
| LJA | −3.119 | 0.028 | −2.190 |
1 F1: principal component factor 1; 2 F2: principal component factor 2; 3 F: total score of principal component factors.
Table 6.
The antimicrobial dimension of silver wormwood essential oils from different habitats.
| Essential Oil | Gram-Positive Bacteria (mm) | Gram-Negative Bacteria (mm) | |
|---|---|---|---|
| Bacillus Subtilis | Staphylococcus Aureus | Escherichia coli | |
| HA | 13.89 ± 0.75 | 11.48 ± 0.12 | 17.93 ± 1.04 |
| PA | 20.32 ± 0.82 | 6.29 ± 0.41 | 16.09 ± 0.91 |
| CZA | 21.22 ± 1.05 | 4.47 ± 0. 08 | 15.67 ± 0.27 |
| QA | 13.80 ± 1.74 | 18.20 ± 0.17 | 13.78 ± 0.48 |
| SYA | 15.42 ± 0.66 | 15.28 ± 0.33 | 16.07 ± 0.45 |
| BGA | 17.27 ± 0.56 | 7.67 ± 0.71 | 8.21 ± 0.16 |
| LJA | 16.30 ± 1.01 | 7.76 ± 0.22 | 11.50 ± 0.45 |
| Positive control | 19.57 ± 0.63 | 16.55 ± 0.35 | 23.32 ± 0.45 |
| Negative control | - 1 | - | - |
1—Not detected.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Yang, Y.; Guo, D.; Yang, S.; Hu, H.; Luo, X.; Wan, N. Analysis of Volatile Components and Antibacterial Activity of Silver Wormwood Essential Oils from Different Habitats by E-Nose Combined with GC-MS. Separations 2023, 10, 553. https://doi.org/10.3390/separations10110553
AMA Style
Yang Y, Guo D, Yang S, Hu H, Luo X, Wan N. Analysis of Volatile Components and Antibacterial Activity of Silver Wormwood Essential Oils from Different Habitats by E-Nose Combined with GC-MS. Separations. 2023; 10(11):553. https://doi.org/10.3390/separations10110553
Chicago/Turabian StyleYang, Yiqin, Dongyun Guo, Shujie Yang, Huiquan Hu, Xiaorong Luo, and Na Wan. 2023. "Analysis of Volatile Components and Antibacterial Activity of Silver Wormwood Essential Oils from Different Habitats by E-Nose Combined with GC-MS" Separations 10, no. 11: 553. https://doi.org/10.3390/separations10110553
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
