Synthesis of MFe₂O₄/CNS (M = Zn, Ni, Mn) Composites Derived from Rice Husk by the Hydrothermal-Microwave Method for Remediation of Paddy Fields

Abstract

In this research work, MFe₂O₄/CNS was prepared using the hydrothermal–microwave method. The influence of cations (M) toward functional groups of composites and their performance in pesticide degradation were studied. Rice husk was pyrolyzed hydrothermally (200 °C, 6 h) and by microwave (800 W, 40 min). Each product was mixed with MCl₂ (Zn, Ni, Mn), FeCl₃, KOH, and water, and calcined (600 °C, 15 min) to obtain a composite. Characterization by XRD confirmed the MFe₂O₄/CNS structure. The FTIR spectra of the composites showed different band sharpness related to C-O and M-O. A mixture of dried paddy farm soil, composite, BPMC (buthylphenylmethyl carbamate) pesticide solution (0.25%), and H₂O₂ solution (0.15%) was kept under dark conditions for 48 h. The solution above the soil was filtered and measured with a UV-Vis spectrophotometer at 217 nm. Applications without the composite and composite–H₂O₂ were also conducted. The results reveal that dark BPMC degradation with the composite was 7.5 times larger than that without the composite, and 2.9 times larger than that without the composite–H₂O₂. There were no significantly different FTIR spectra of the soil, soil–BPMC, soil–BPMC-H₂O₂, and soil–BPMC-H₂O₂ composite and no significantly different X-ray diffractograms between the soil after drying and soil after application for pesticide degradation using the composite.

1. Introduction

Pesticides are chemicals used to fight pests and disease vectors in agricultural or domestic settings. They are toxic substances, but their use in agriculture helps improve crop yield. However, pesticides can become biocides, i.e., harming all other life, such as pets, frogs, fish, and plant resistance [1]. Pesticides can also accumulate in both raw and cooked agricultural products [2]. The negative effect of pesticides on humans include cancer, defects, brain damage, genetic mutation, and decrease in immunity. Organochlorine and organophosphate pesticides have high toxicity and long persistence in the soil. While carbamate and pyrethroid are easily degraded, long-term usage can result in accumulation [1].

Pesticide degradation is related to the chemical transformation from a molecule to a simpler and less-toxic form. It can be categorized into two groups, i.e., chemical and biological degradation. Chemical degradation generally occurs in water or atmosphere and follows oxidation, reduction, hydrolysis, or photolysis reactions. Biological degradation generally occurs in soil and living organisms by oxidation, reduction, hydrolysis, or conjugation reactions. Oxidation is a reaction between the pesticide and dissolved oxygen in the environment. It can also be achieved by singlet oxygen, ozone, hydrogen peroxide, or other hydroxy radicals [3]. Hydrogen peroxide is a liquid fertilizer additive used to handle fungi and bacteria in plant growth [4]. This substance is used safely in fish pan to increase DO [5]. It means that usage of hydrogen peroxide as oxidator in degradation of pesticide in the soil will not danger the water environment.

Removal of pesticides can be done with activated carbon, which can adsorb pesticide and microbes in the soil and facilitate biological degradation [2]. However, activated carbon has a less surface area than nanocarbons due to its particle size. For example, the activated carbon of empty fruit bunch biomass has a lesser surface area than graphene or CNT from the same biomass [5]. Surface area is an important characteristic for adsorbents due to determining the contact of the surface of the adsorbent and the adsorbate. A small particle size generates a larger surface area of the solid [6]. On the other hand, the nano size of the carbon is needed for easy formation of colloids. This helps farmers to easily spray pesticide together with a liquid fertilizer. Beside potency of nanocarbons as a remediator of the polluted soil, they can also be used to improve soil quality through slow release of the fertilizer by the carbon [7].

Carbon nanomaterials have been synthesized by thermal pyrolysis using a conventional furnace [8], hydrothermal pyrolysis [9,10], microwave [11,12], and sequential hydrothermal–microwave pyrolysis [13,14]. The hydrothermal pyrolysis method is characterized by high pressure and low temperature. It is conducted under heating and pressure in the closed vessel. This pressure is generated by vapor pressure. Water is needed in the hydrothermal reaction as a reactant, solvent, or puffing accelerator [15]. This method is good for synthesis of carbon nanomaterials, although it still needs long periods of pyrolysis. For example, xylose and pine were pyrolyzed hydrothermally at a low temperature, i.e., at 180 °C for 12 h, to obtain CNS, which was of 80 nm and 50–100 nm, respectively [9]. The other example is synthesis of carbon spheres from pyrolysis of lignin hydrothermally at 270 °C for 7 h, resulting in carbon particle size of 30–60 nm [16].

Conventional pyrolysis can perform shorter pyrolysis than hydrothermal pyrolysis but at higher temperatures. For example, the pyrolysis of N. tabacum stems using crucible in a conventional tube furnace under a stream of nitrogen gas at 400 °C for 2, 3, and 4 h resulted in nanocarbons size of 54.88, 36.80, and 25.34 nm, respectively [8].

Microwave pyrolysis is faster and needs a shorter time than both conventional thermal and hydrothermal methods. This is because its mechanism of heating effectively starts from the center of the material. Electromagnetic waves penetrate it and interact with molecules in the materials, resulting in a transfer to thermal energy [12]. For example, pyrolysis of rice husk with catalyst of ferrocene, Fe(C₅H₅)₂, using a microwave at 600 W for 38 min, results in CNS that has tubular and sphere morphology [11].

When combined, the hydrothermal–microwave method sequentially can complete a pyrolysis reaction. Based on FTIR spectra, the sequential hydrothermal–microwave pyrolysis of gelam wood bark resulted in more oxy functional groups than with the microwave [13]. On the other hand, the hydrothermal–microwave pyrolysis of patchouli biomass produced less groups than with the hydrothermal method [14].

Biomass is a term addressing all plants, materials based on plants, and residual materials [17]. Biomass mainly includes lignocellulose, including cellulose, hemicellulose, and lignin of 40–60, 20–40, and 10–25 wt.%, respectively. All biomasses contain carbon atoms and can be pyrolyzed to produce nanocarbons. Pyrolysis of biomass involves dehydration of moisture and decomposition of lignocellulose [18]. Rice husk is a huge source of biomass in Indonesia, primarily due to high consumption of the grain. Rice husk has been used as a precursor of nanocarbons.

Nanocarbons have been modified using metal oxides for various applications, such as in photocatalysts, electrochemical capacitors, gas sensors, and Li-ion batteries. A composite of a nanocarbon-metal oxide can be prepared using the conventional method or the microwave method [19]. ZnFe₂O₄ is a double-layered oxide substance. It is highly beneficial as a catalyst due to its double metal cation. This zinc ferrite has a lower bandgap (1.9 eV) than ZnO (3.37 eV) and was obtained by calcination of Zn-Fe-LDH at 600 °C [20] and 950 °C [21]. Zn-Fe-LDH was precipitated from a solution of Zn²⁺ and Fe³⁺ salts using NaOH solution [20,21].

ZnFe₂O₄ is type of spinel, i.e., a metal oxide that has the chemical formula of AB₂O₄ with A²⁺ and B³⁺ metal cations and O²⁻ anions. Various methods have been applied to synthesize nanospinels, such as ball milling, sol-gel, thermal decomposition, co-precipitation, solvothermal, solution combustion, hydrothermal, and ceramic route techniques. Among these methods, dry thermal decomposition offers the simplest preparation. MFe₂O₄ is called ferrospinel and has three kinds of structures, i.e., a normal structure, an inverse structure, and a mixed structure. In the normal structure, M(II) occupy tetrahedral sites and Fe(III) octahedral sites. In the inverse structure, M(II) occupy octahedral sites, and Fe(III) occupy tetrahedral and octahedral sites. In the mixed structure, both sites are occupied by M(II) and Fe(III). ZnFe₂O₄, NiFe₂O₄, and MnFe₂O₄ are normal, inverse, and mixed structures, respectively. Synthesis of ZnFe₂O₄ and NiFe₂O₄ with the same synthesis method (coprecipitation) resulted in different surface areas and bandgaps [22]. ZnFe₂O₄ and NiFe₂O₄ have different crystallite sizes [22,23].

Taking into consideration the above-described aspects, including potency of rice husk as a precursor of nanocarbons, hydrothermal-microwave pyrolysis in the formation of nanocarbons, simplicity of MFe₂O₄/CNS formation by calcination, and performance of nanocarbon as an adsorbent and MFe₂O₄ as a catalyst, the synthesis of MFe₂O₄/CNS composites was conducted in this research work. Purpose of this research was to study the influence of M(II) cations on functional groups of composites and their performance in pesticide degradation by oxidation reaction without light (in dark) with the assumption that the reaction was lasted in the depth of soil with no sunlight.

2. Materials and Methods

2.1. Material and Instrumentation

This research used biomass (rice husk) as a carbon precursor. Some chemicals were used for chemical activation of pyrolysis and as precursor of the composite, i.e., ZnCl₂ (Merck)], and precursors of ferrospinel (MFe₂O₄), including FeCl₃ (Merck; Darmstadt, Germany), KOH (Merck; Darmstadt, Germany), NiCl₆.6H₂O (Merck; Darmstad, Germany), MnCl₂.6H₂O (Merck; Darmstadt, Germany), and distilled water.

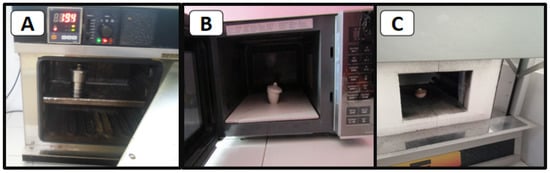

Some thermal tools were used, i.e., an oven (Memmert, Büchenbach, Germany) for hydrothermal pyrolysis, microwave (Panasonic, NN-GT35HM, Osaka, Japan), and furnace (Carbolite, Derbyshire, UK). Instruments used for characteriza-tion were FTIR spectrometer (Shimadzu, Kyoto Japan), X-ray diffractometer (PANa-lytical X’PERT PRO, Malvern, UK), and UV-Vis spectrophotometer (FEI Inspect-S50, Hillsboro, OR, USA).

2.2. Synthesis of MFe₂O₄/CNS from Rice Husk

Rice husk (G) biomass (>60 mesh) of 10 g, ZnCl₂ of 0.2 g, and water of 20 mL were put in an autoclave and pyrolyzed in an oven (6 h; 200 °C), then pyrolyzed further using a microwave (800 W; 40 min) in a porcelain crucible. The crucible cover was adjusted to leave a little space for gas emission. The microwave pyrolysis was stopped every 10 min to prevent the broken crucible. The product was unwashed to obtain ZnO/CNS.

For synthesis of the composite, the carbon product (1 g) was mixed with ZnCl₂ (0.2 g), FeCl₃ (0.952 g), KOH (1.344 g), and water (1 mL), and calcined in a closed crucible at 600 °C for 15 min to obtain the ZnFe₂O₄/CNS composite using a conventional furnace. The same procedure was repeated using NiCl₂ and MnCl₂ as substitution for ZnCl₂. G-Zn(Fe), G-Ni(Fe), and G-Mn(Fe) were codes for ZnFe₂O₄/CNS, NiFe₂O₄/CNS, and MnFe₂O₄/CNS, respectively. The thermal instruments used in the synthesis and placement of the crucible in the microwave and furnace are shown in Figure 1.

2.3. Characterization

In this research, characterizations were conducted for biomass, composites, and soil. Biomass was characterized by FTIR spectrometry to identify its functional groups. All synthesized composite products were characterized by FTIR spectrometry and XRD.

The dry soil before contamination by pesticide (TS200), after contamination (BT), after contamination and remediation by H₂O₂ (BHT), and after contamination and remediation by H₂O₂-ZnFe₂O₄/CNS [TG-Zn(Fe)] was characterized by FTIR spectrometry. Only the dry soil before contamination (TS200) and after contamination and remediation by H₂O₂-ZnFe₂O₄/CNS [TG-Zn(Fe)] were characterized by XRD.

2.4. Application of Composites for Catalytic Dark Degradation

Pesticide solution (BPMC; 0.25%) was prepared by dissolution of concentrated BPMC (500 g/L). Paddy soil was dried in an oven at 200 °C for 1 h and repeated 5 times. The dry soil (10 g) was mixed with 25 mL of BPMC solution (0.25%), 10 mL of H₂O₂ solution (0.15%), and kept for 48 h in a dark place. The solution was then filtered and measured with a UV-Vis spectrophotometer at maximum wavelength of BPMC (±217 nm). The treatment was repeated three times.

The BPMC solution was marked as B. The sample filtrates and residues were labeled to match with the treatment, including the contaminated soil (BT) and the contaminated and remediated soil by H₂O₂ (BHT).

The filtrates of the contaminated and remediated soil by H₂O₂-MFe₂O₄ were marked to match with the codes of the composites, i.e., G-Zn(Fe), G-Mn(Fe), and G-Ni(Fe)]. The residues of the filtration for the contaminated and remediated soil by H₂O₂-MFe₂O₄ were marked by TG-Zn(Fe), TG-Mn(Fe), and TG-Ni(Fe).

3. Results and Discussions

3.1. Material Transformation

Carbon nanostructures from the biomass of rice husk was prepared using the hydrothermal-microwave pyrolysis method. There was no more conditioning of carbon to reduce particle size before preparation of the composites; thus, the nanosizes were conditioned by hydrothermal and microwave heating. The composites of MFe₂O₄/CNS were prepared with conventional heating from a mixture of CNS, salts of metal chloride, and KOH. The change of material from biomass to composites is presented in Figure 2.

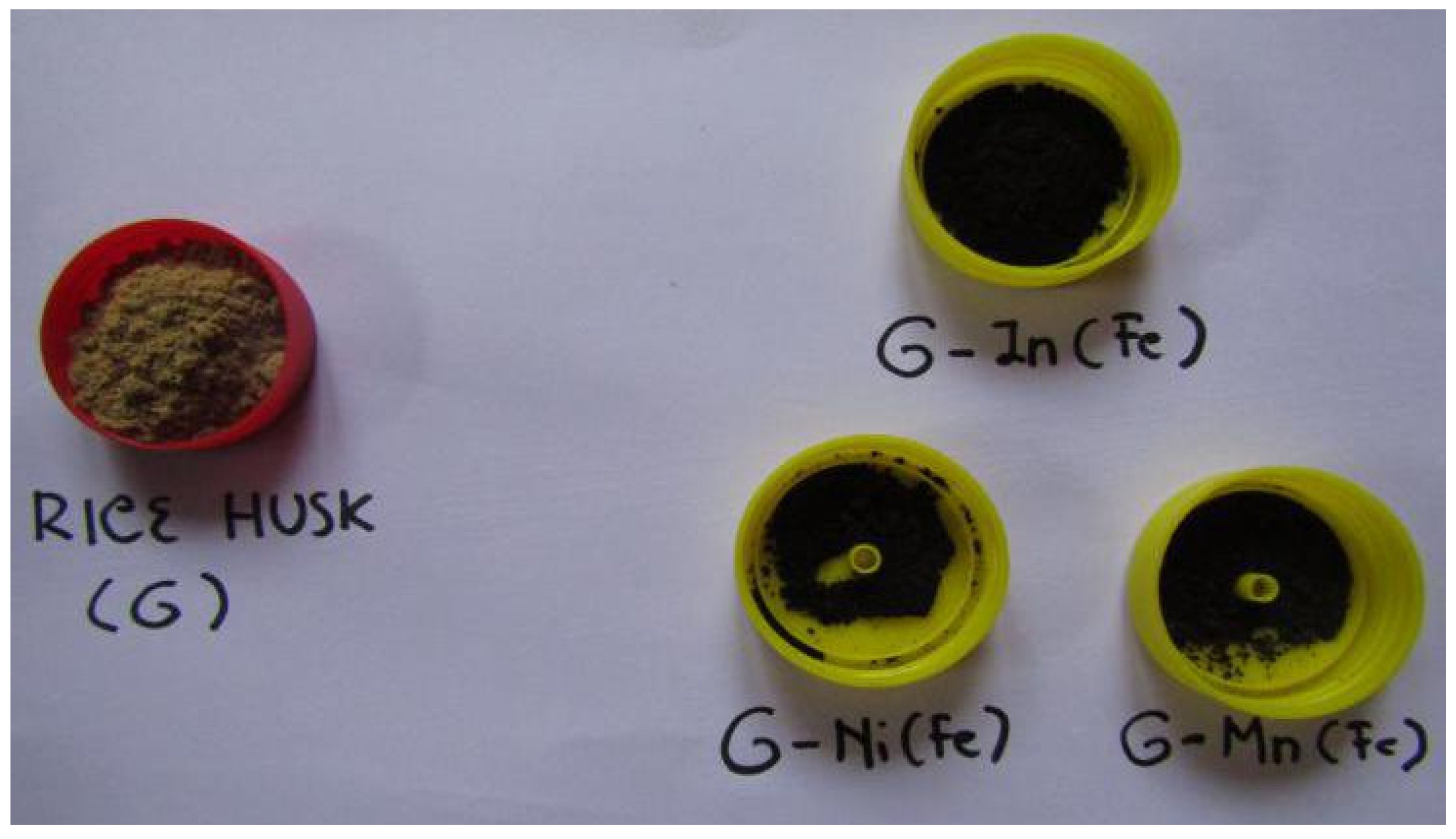

Colour conversion from brown to black is a consequence of the pyrolysis reaction, which alternated the chemical structures of lignocellulose to that of carbon material. Reaction mechanisms of the hydrothermal conversion from components of lignocellulose, including lignin, hemicellulose, and cellulose to carbon has been explained in another research work [24]. It is principally related to the formation of aromatics rings as part of graphene layers. The two-step reaction in this research with the proposed stoichiometric reactions is as follows:

1.

Pyrolysis of biomass in the microwave using the ZnCl₂ activator produced an intermediate composite:

2.

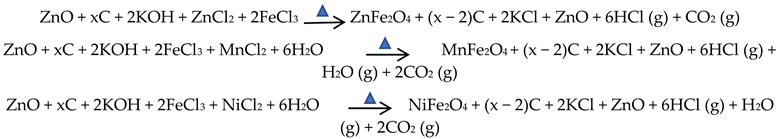

Calcination of ZnO/CNS, KOH, chloride salt, H₂O:

Identification of the final products, which resulted in calcination, was performed by instrumental characterization.

3.2. Characterization of Functional Groups

The rice husk biomass was pyrolyzed using a ZnCl₂ activator to produce activated carbon. The hydrothermal method is a pressure-thermal process, while microwave pyrolysis includes electromagnetic penetration, which creates rapid heating of the entire material. Both optimize the nano size of the carbon. Functional groups of the biomass and the composite products were identified based on FTIR spectra (Figure 3). The spectrum of KCl as impurity of the product could not be identified with FTIR spectrophotometry due to its spectrum emerging in the far infrared region (400–10 cm⁻¹); thus, it was not detected in the center infrared zone, i.e., 4000–400 cm⁻¹ [25].

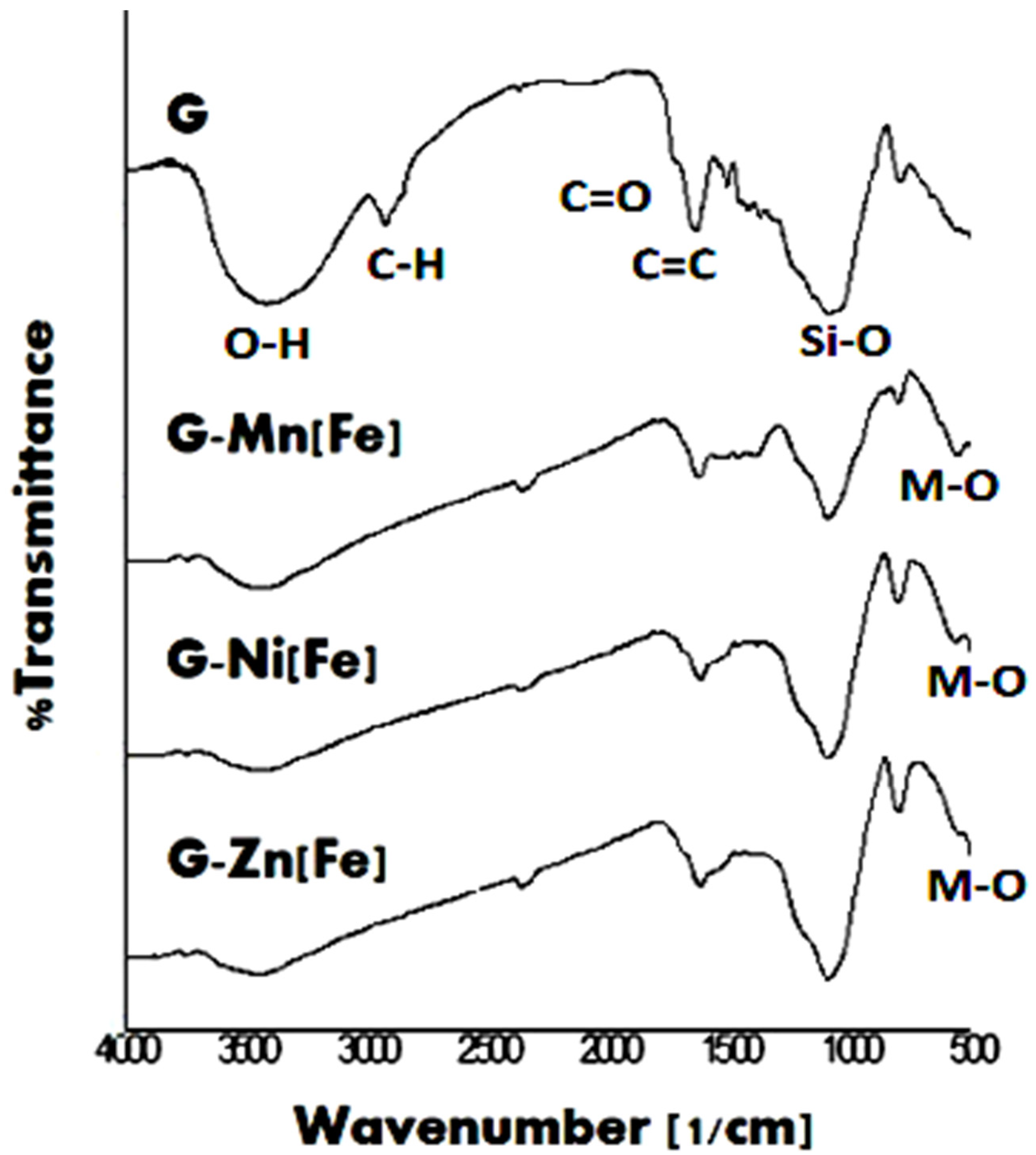

In Figure 3, the spectrum of the biomass shows bands related to functional groups, including -OH at about 3500 cm⁻¹, -aliphatic C-H at about 2900 cm⁻¹, C=O at 1700 cm⁻¹, C=C at 1600 cm⁻¹, and C-H out of plane in the graphene aromatic layer at about 800 cm⁻¹. Based on their chemical structures [26], these groups are matched with the functional groups in general lignocellulose of biomass, i.e., lignin, cellulose, and hemicellulose. All these FTIR spectrum bands were interpreted using the FTIR data of biomass as follows: 3300–4000 (O-H stretching), 2800–3000 (C-H stretching), 1750–1730 (C=O stretching in carbonyl) [27], and the aromatics –CH at 875–750 cm⁻¹ [28]. The band at about 540 cm⁻¹ is related to M-O [29]. It is originally connected to the metal oxide contained in the biomass. The FTIR spectrum of the biomass also indicates the existence of the Si-O band [30] at about 1050 cm⁻¹ and indicates content of inorganic silica or silicate in the biomass.

All composite products show a decrease in the bands, such as -OH, aliphatic -CH, C=O, compared to the biomass. This indicates that pyrolysis reaction has lasted. In the hydrothermal method, the ZnCl₂ activator was used as a chemical activator, improving the pyrolysis reaction. In the modification process, addition of more ZnCl₂, FeCl₃, other MCl₂, and KOH into the carbon product resulted in more activation, besides the reaction to form MFe₂O₄. Sharper bands of C-H out of plan for use of Ni²⁺ and Zn²⁺ verified that both cations are stronger activators than Mn(II); thus, the formation of graphene layers was more effective. These different effects from the chemical activators are related to effective nucleus charge, which is determined by the charge and radius size of the cations. The size of Zn²⁺ < Ni²⁺ < Mn²⁺, indicates that the attraction force of the cation as a Lewis acid toward the Lewis base of the oxygen atom on hydroxide groups increases in the following sequence: Zn²⁺ > Ni²⁺ > Mn²⁺. Those chemical activators have a role as dehydrating agents, which improves pyrolysis reactions and prevents the formation of tar. There was no significant change in M-O band after the modification. This may be due to little amounts of metal oxide relative to the carbon. The M-O bands indicate the existence of metal oxides, as has been predicted in chemical reactions related to both pyrolysis and calcination processes.

3.3. Characterization of a Composite Crystal Structure by XRD

The nanocarbon product resulting from the pyrolysis was modified with MFe₂O₄ by calcination using conventional heating. The crystal structure of the composite was characterized using XRD at LSUM State University of Malang with a sample code—C1282 from LSUM for G-Zn(Fe). The composite diffractogram was remade by the origin program (presented in Figure 4). The characterized composite is that which supported the highest removal of pesticide by catalytic degradation. This is based on the consideration that MFe₂O₄ composites with different M(II) and from the same biomass (patchouli biomass) gave very similar X-ray diffractogram patterns, indicating the same structure [15].

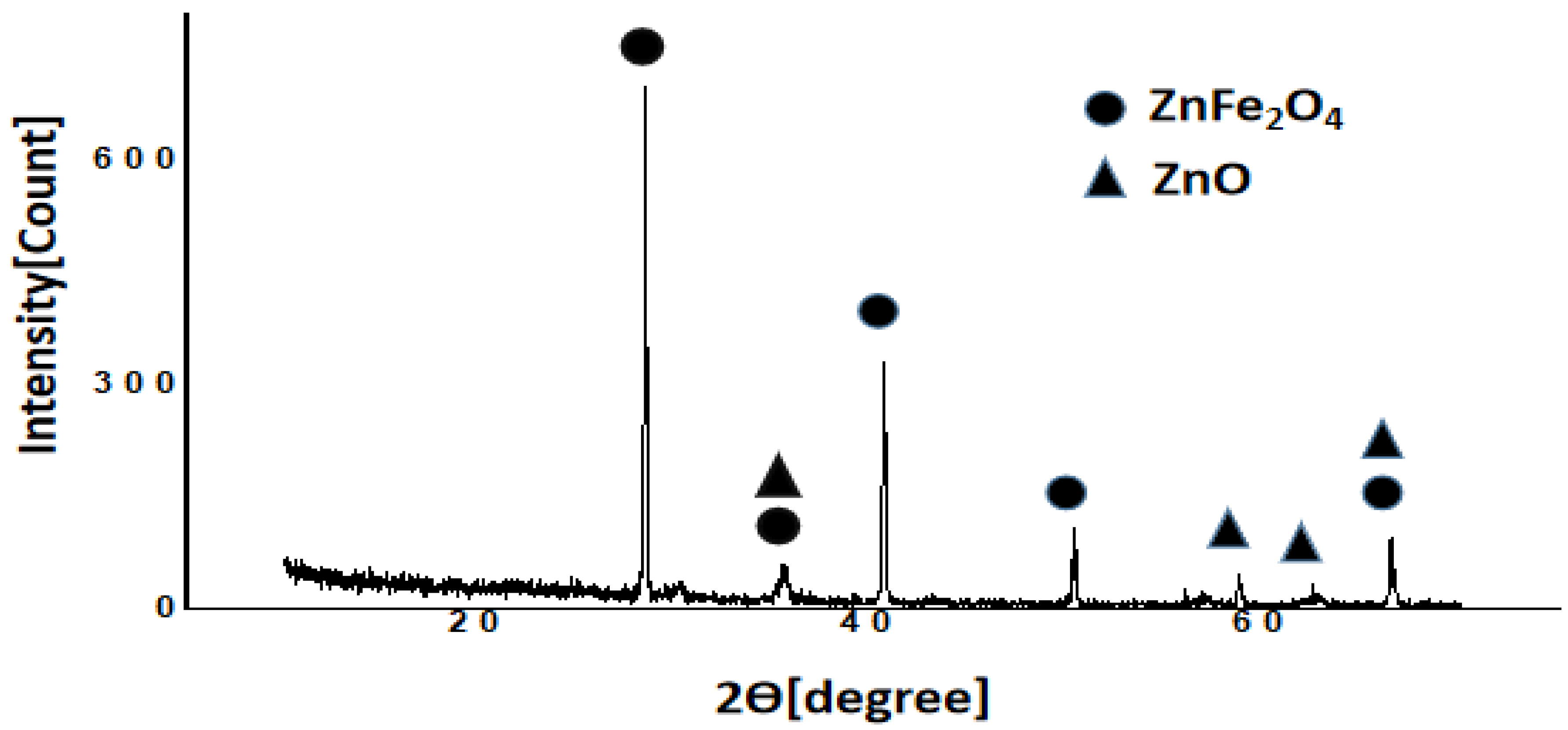

The diffractogram in Figure 4 is compared to diffractograms of standard ZnFe₂O₄ and ZnO [20]. ZnFe₂O₄ has data of 2θ (hkl) as follows: 29.9, 35.2, 42.8, 53.2, 56.6, 62.1, and 66.4° connected to (111), (220), (311), (400), (422), (511), (440), respectively, for the reference code of 01-089-4926. The side product of ZnO wurtzite has peaks at 36.3, 56.6, 62.9, and 66.5°, which are related to hkl of (101), (110), (103), and (200), respectively, for the reference code of 01-079-0206. The comparison shows that the composite product contains ZnFe₂O₄ and ZnO.

3.4. Catalytic Dark Degradation Reaction of the Pesticide

A test for pesticide degradation was conducted by applying heat at 200 °C for 5 h to dry soil. This was not only to remove water but also to kill all bacteria in the soil that had the potency to support biodegradation. Generally, soil bacteria grows optimally at 15–35 °C, but some can live to 100 °C; for example, pyrolobus fumarii [31].

The tests were applied without a catalyst composite but with peroxide acid (BHT), without both peroxide acid and composite (BT), and with composite and peroxide acid [TG-Zn(Fe)]. Data of the degradation is listed in

Table 1. Data of pesticide removal and degradation reaction.

Sample	λ (nm)	Abs	% Removal	% Degradation	Average	SD
B	216.0	2.970
BT	219.5	2.817	5.15		3.87
	219.0	2.893	2.59
BHT	217.5	2.915	1.85		1.48
	216.5	2.937	1.11
G-Mn(Fe)	216.0	2.542	14.41	10.54
	216.0	2.524	15.02	11.15	10.74	0.35
	217.5	2.542	14.41	10.54
G-Zn(Fe)	217.0	2.533	14.71	10.84
	217.5	2.533	14.71	10.84	11.14	0.51
	217.0	2.510	15.59	11.72
G-Ni(Fe)	215.0	2542	14,41	10.54
	215.0	2.533	14.71	10.84	10.64	0.17
	216.0	2.542	14.41	10.54

. The degradation reaction was performed in the dark under the assumption that the selected soil depth is not one where the reaction could be caused by sunlight. Thus, in this treatment, it is not about photodegradation, but catalytic dark degradation. The residues and filtrates after degradation test are shown in Figure 5.

In the treatment without peroxide acid and composite (BT), the decrease in pesticide is caused by adsorption. In this case, the soil plays the role of an adsorbent. There was no degradation by microbia due to the drying process of the soil. Thus, all other data of percent removal for usage of the catalyst was subtracted from the data of BT to remove the role of adsorption by the soil. However, the data for BHT could not be subtracted due to less percent removal than for BT.

Based on the data in Table 1, it is known that the composite ZnFe₂O₄ gave the highest data of pesticide removal. This removal [TG-Zn(Fe)] is 2.9 times larger than that by the soil (BT) and 7.5 times larger than that by soil–H₂O₂ (BHT). The removal of pesticides by soil (BT) and soil–H₂O₂ (BHT) were probably caused by the adsorption process.

In the BT system, there is no H₂O₂ and catalyst; thus, the a radical formation reaction does not take place. There is peroxide acid but no Fe(III) cation of the ZnFe₂O₄ catalyst, resulting in no radical formation as a result of peroxide acid and the cation Fe(III) reaction. On the other hand, the molecules of peroxide acid can be adsorbed by the soil, causing a decrease in pesticide adsorption by the soil. This is responsible for the lower pesticide removal of BHT than BT.

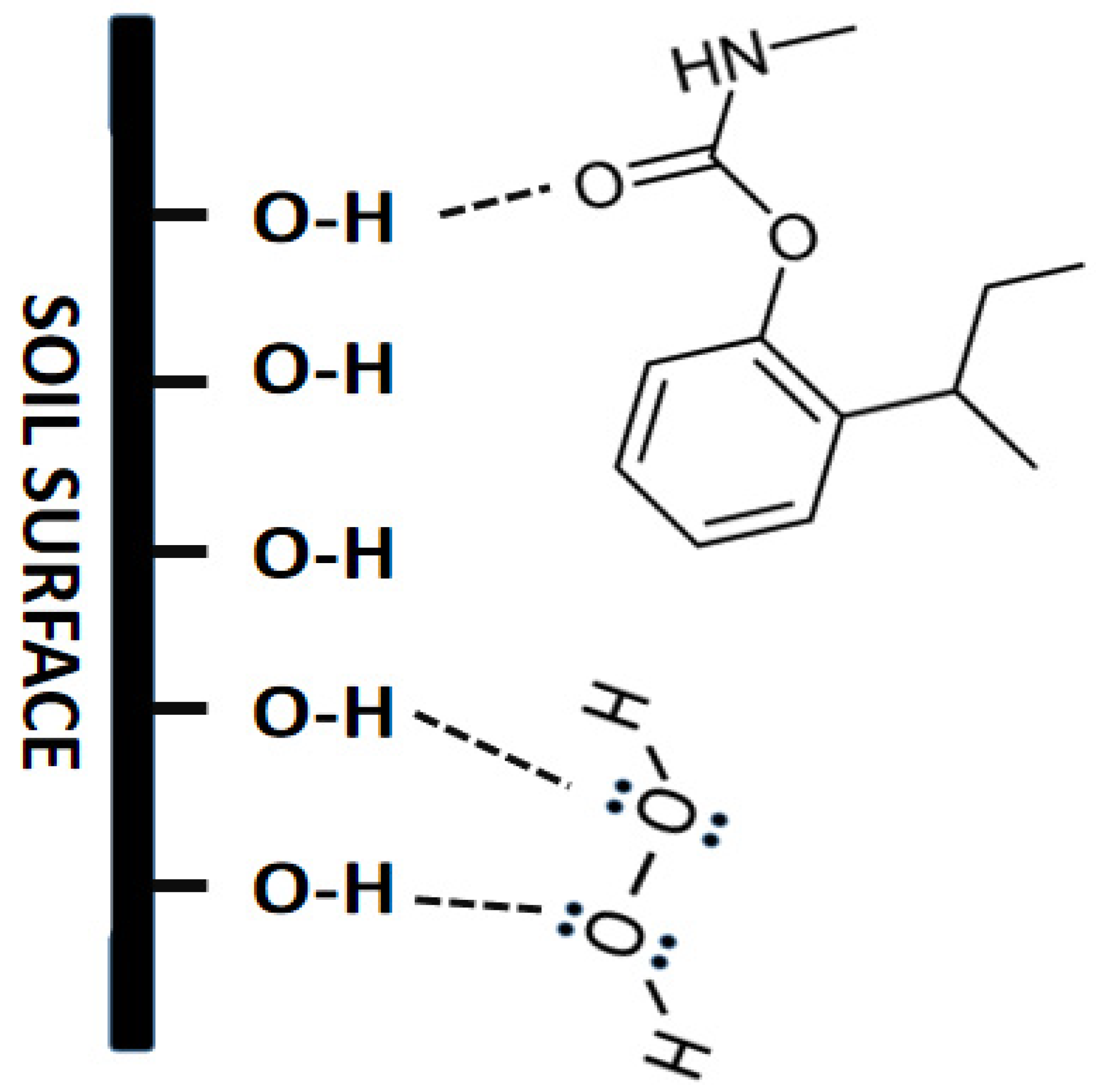

By considering mineral type in soil, including muscovite, illite, and maghemite (result of XRD characterization), which are rich of hydroxides, H₂O₂ molecules can be adsorbed by the soil through hydrogen bonding. BPMC molecules have C=O functional groups; thus, these molecules can also be adsorbed by soil with the same chemical interaction. This interaction explains the possibility of a competition of adsorption between BPMC and H₂O₂ by the soil—lower adsorption of BPMC by soil in the presence of H₂O₂ than without_, as shown in Figure 6. Although H₂O₂ can be ionized in wet soil, the characteristic of H₂O₂ as a weak acid causes it to mostly exist as a molecule.

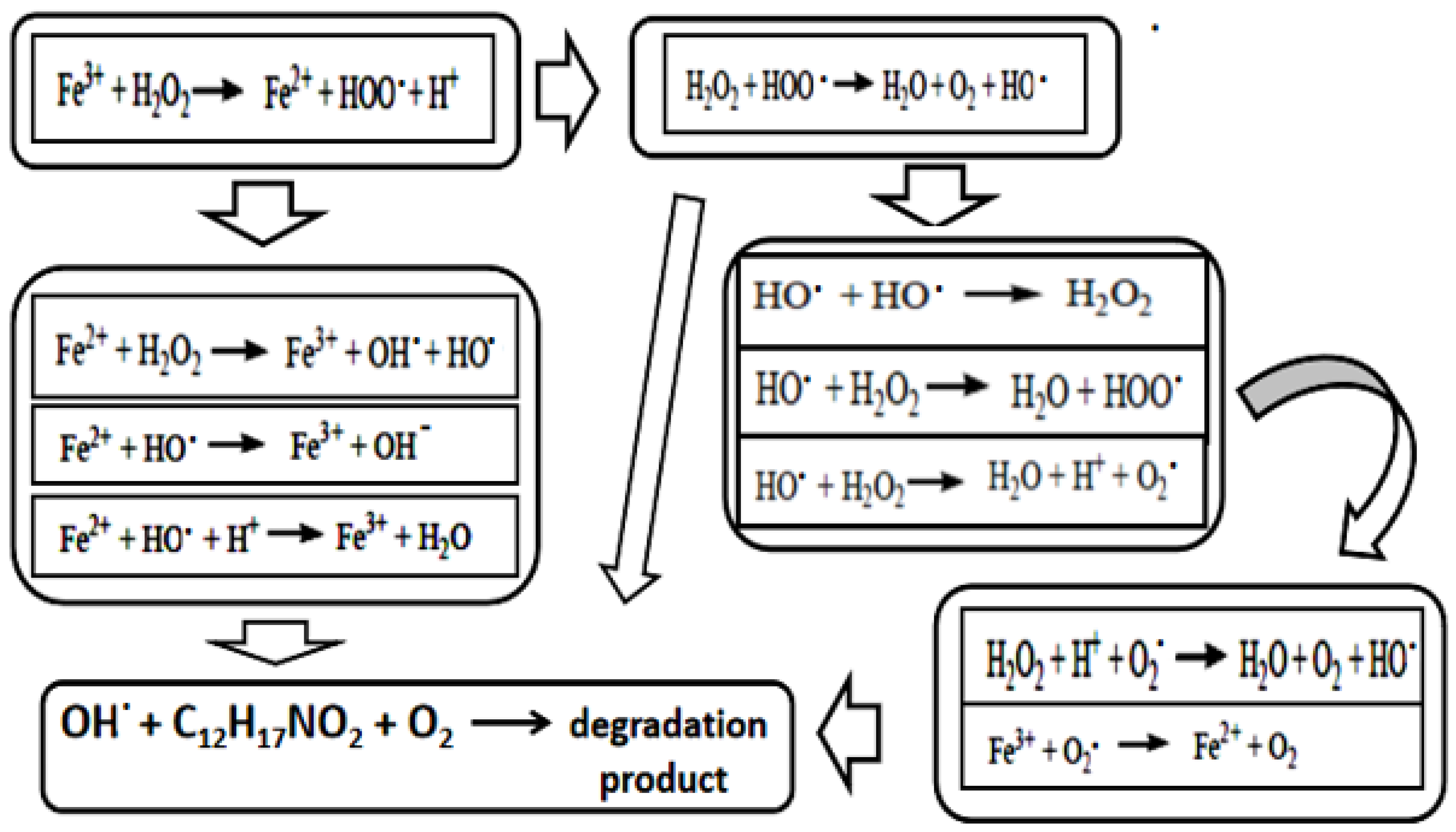

Based on an analogy toward Fenton reactions [32] and by considering the spontaneity of a Fe(III) and H₂O₂ redox reaction due to positive E°, i.e., 0.07 V [33], the reaction of peroxide acid and Fe(III) on [TG-Zn(Fe)] was used as a starting reaction to form radicals. In the redox reaction concept, E°(Fe³⁺, Fe²⁺) = +0.77 V and E°(O_2,H₂O₂)= +0.70 V [33]. The products of Fe(III) and H₂O₂ are Fe(II) and [HO₂]⁻ radical. By considering both products and elementary reactions in the Fenton reaction [32], three possible reaction lines in degradation of pesticides can be designed (Figure 7).

As seen in chemical equations, Fe(III) in MFe₂O₄ is the cation that reacts with H₂O₂ to form radicals. However, based on % degradation, M(II) has a different influence on catalytic activity. In a ferrospinel structure, all Zn²⁺ cations stay in the tetrahedral site and all Ni²⁺ cations stay in octahedral sites. In the case of MnFe₂O₄, half each of the Mn²⁺ and Fe³⁺ cations occupy the tetrahedral sites and octahedral sites [22]. In tetrahedral and octahedral sites, each metal cation is surrounded by 4 and 6 oxygen atoms, respectively. The attraction force of Lewis base oxygen atoms toward Lewis acid metal cations in coordination bonding has an influence on the attraction force of metal cations toward BPMC. This explains why ZnFe₂O₄ had the highest degradation percentage. Both MnFe₂O₄ had less degradation percentages than ZnFe₂O₄ because only half of the Mn²⁺ cations occupy the tetrahedral sites. Although half of the Fe³⁺ cations also stay in the same tetrahedral sites, the ion radius of Fe³⁺ is smaller in size than that of Mn²⁺; thus, the attraction force toward oxygen atoms is stronger, and physically, oxygen atoms provide more of a barrier to BPMC in creating chemical interactions.

In comparison, the oxidation of 4-chlorophenol by H₂O₂ was performed using the catalyst of ZnFe₂O₄ and MnFe₂O₄ without radiation at 70 °C. The usage of ZnFe₂O₄ and MnFe₂O₄ achieved COD 100% removal for 120 and 105 min, respectively [34]. The degradation percentage in this research is much lower because the reaction lasted in the soil, as compared to the oxidation reaction of 4-chlorophenol in the solution. The presence of the soil had a negative influence on the reaction of organic oxidation through adsorption of organic substance by the porous and polar surface of the soil. A solution provides easier contact between the organic substance, oxidator, and catalyst.

The other comparison is between the usage of NiFe₂O₄ and ZnFe₂O₄ for photocatalytic degradation of methylene blue using the H₂O₂ oxidator in the solution; degradation was found to be 94% for both [35]. This higher degradation percentage is due to a radiation treatment along the reaction process, which accelerates the formation of radicals. Again, a solution allows easier contact of the catalyst and the oxidator.

3.5. Functional Groups of Dry Soil before and after Dark Acylation Degradation of Pesticides

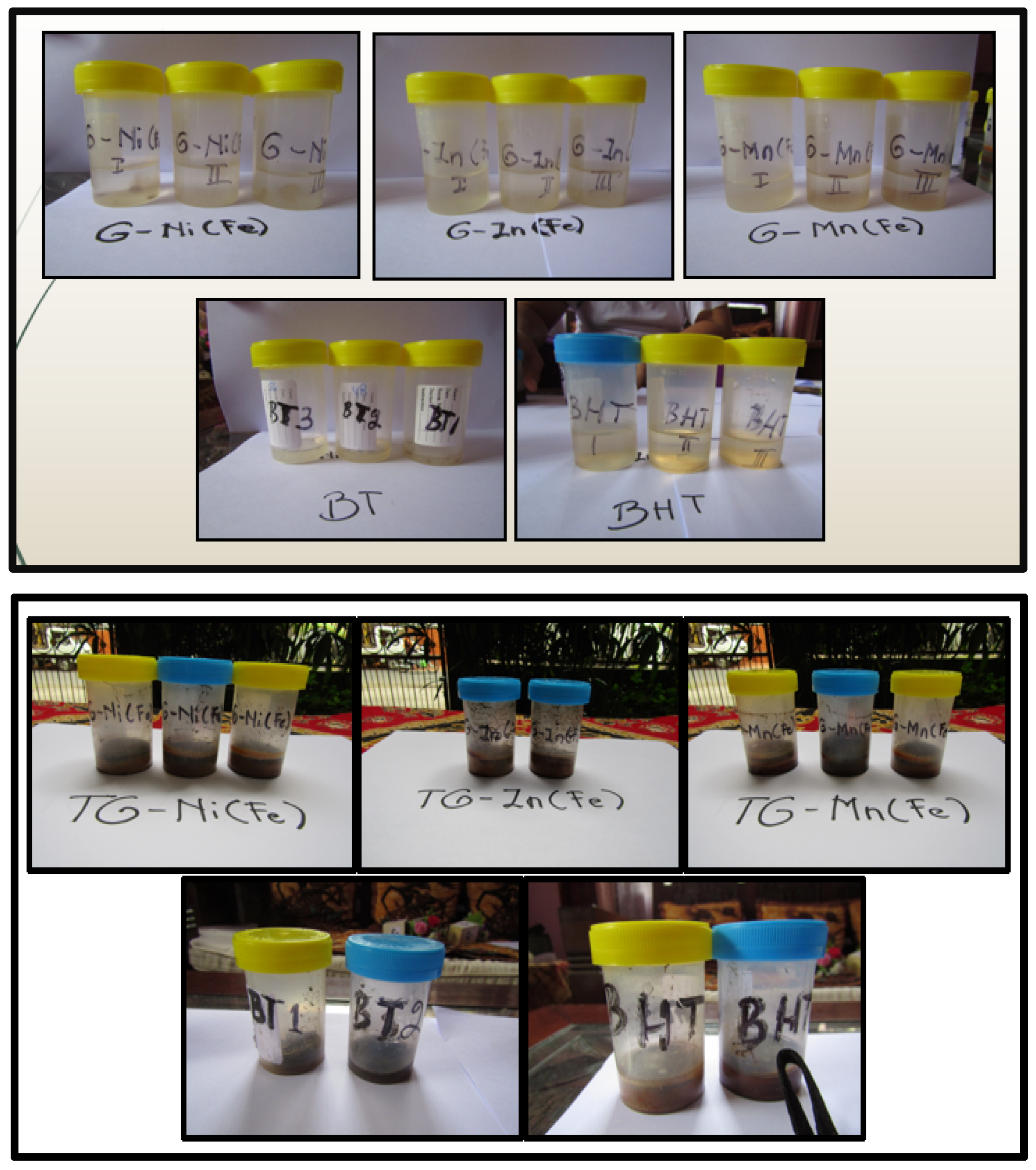

After the dark degradation test, filtration of the pesticide solution was performed to obtain the residues. Pictures of the dry soil and the residue of BT (dry soil-pesticide), BHT (dry soil-pesticide-H₂O₂), and TG-Zn(Fe) [dry soil-pesticide-H₂O₂-composite] are presented in Figure 8. The figures of BT, BHT, and TG-Zn(Fe) samples in Figure 8 were taken from one of residues in Figure 7 for drying and taking their photograph. The dry soil was dark brown in colour due to the content of hematite and maghemite. The most common color of hematite and maghemite in soil is moderate reddish brown and dark yellowish brown, respectively [36]. The existence of these minerals in soil is studied by X-ray diffraction.

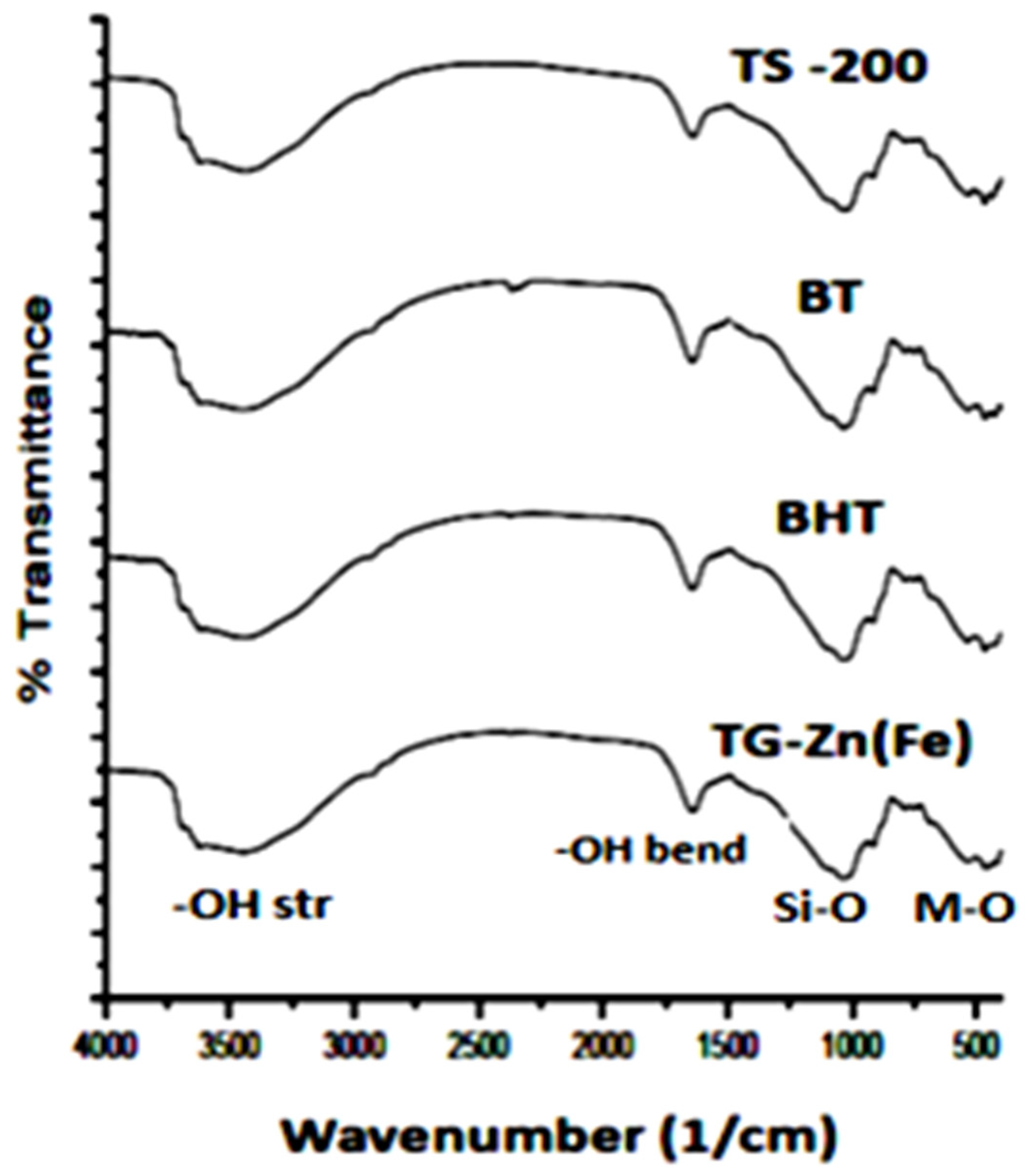

The dry soil and residues were characterized by FTIR spectrometry (Figure 9). The FTIR spectra of both are shown in Figure 9. The spectra show that the dry soil contains a polar group of -OH at 3500 cm⁻¹ related to the hydrate, stretching Si-O at 1000–1100 cm⁻¹, -OH silanol at about 950 cm⁻¹, and both M-O and bending Si-O at about 500 cm⁻¹. Sharp bands at 1000–1100 cm⁻¹ indicate silicate and aluminosilicate mineral in the soil. The polar groups of the soil interact with the BPMC molecules in the adsorption process.

There was no significant difference in the soil and the residue spectra. It may be caused by too little amount of the composite, pesticide, and H₂O₂ relative to the soil, detectable by FTIR spectrometry.

3.6. Crystal Structure of Dry Soil before and after Dark Degradation of Pesticides

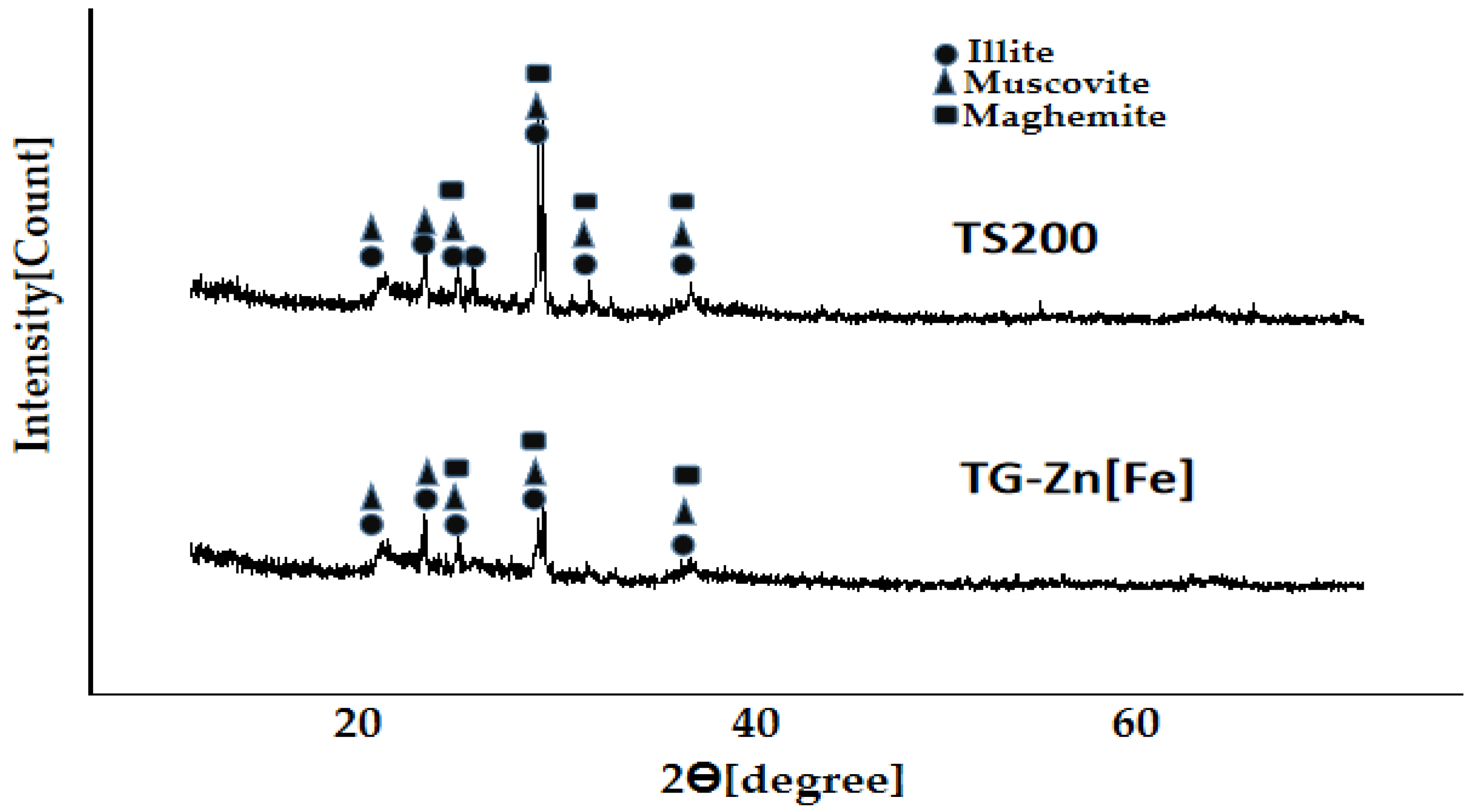

Characterization of the soil before [TS200] and after treatment [TG-Zn(Fe)] for the degradation test of pesticides by X-ray diffraction method is presented in Figure 10. The characterization was conducted at LSUM State University Malang with sample codes of C1286 and C1287 from LSUM for TS200 and TG-Zn(Fe), respectively. The diffractograms of both soils show relatively the same points of diffraction angles (2θ) for all peaks, which indicate no change in crystal structure due to the degradation test.

The choice of a standard diffractogram for interpretation of the sample diffractograms was based on the mineralogy of paddy soil. There are four types of paddy soils; however, alluvial soil is the most prominent in Indonesia, supported by irrigation and a rainy climate. The types of minerals in alluvial soil include montmorillonite, illite, vermiculite, and kaolinite. [37]. Muscovite [KAl₂(AlSi₃O₁₀)(OH)₂], hematite [α-Fe₂O₃], and quartz [α-SiO₂] are also considered, as they exist in vulcanic paddy soil [38], and Malang, east Java is near Mount Semeru, which is an active volcano. Maghemite has also been considered for the comparison because hematite usually exists in association with maghemite in soil [39]. Maghemite also occurs mainly in tropical and subtropical soils [40].

The diffractogram data of dry soil before and after the degradation test was interpreted by a comparison with mineral data in the American Mineralogist Crystal Structure Database (AMCSD). Quick identification of minerals is based on comparison of d-spacing data for three highest peaks of standard minerals to diffractograms of the sample [41]. Intensity of the diffractogram is connected to the amount of the diffracted X-ray. Positions of 2 theta is related to Bragg angles and the determined diffraction plans that diffract the X-ray. The highest peak indicates the largest number of same diffraction plans, which build a crystal and diffract the X-ray, so that the three highest peaks of a standard X-ray diffractogram become the main identity of the crystal structure.

The results of the comparison show that three main peaks of illite match with the diffractogram data of the soils. This means that the soils contain the illite mineral. On the other hand, muscovite and maghemite (gamma-Fe₂O₃) gave two peak (including the highest ones), which match with the data of the sample soil. This means that the soils probably contain those minerals. However, montmorillonite showed one peak match, without including the highest one. Kaolinite and quartz showed two peaks match, without including the highest one. This means that montmorillonite, quartz, and kaolinite content in the soil is questioned.

All soil diffractogram peaks in Figure 8 are named on the basis of the matched standard mineral (AMCSD) in the form of 2θ(hkl), as follows (the highest peaks are marked with a sign of *:

• Illite: 19.77(020)*; 21.69(021); 23.32(111); 24.38(−112)*; 29.14(112)*; 30.58(−113); 35.22(200).
• Muscovite: 19.89(−111*); 21.60(022); 23.01(71.16); 27.85(114); 28.56(−111); 29.84(025); 31.22(115); 35.02(131)*.
• Maghemite: 23.89(210); 26.20(211); 30.35(220); 30.35(220*); 35.75(311)*.

The existence of maghemite is responsible for the presence of M-O in the FTIR spectra bands in Figure 3. Illite[K_0,65Al₂(Al_0,65Si_3,35O₁₀)(OH)₂] and muscovite belong to a group of clay mineral, i.e., the layered minerals consist of a silicate layer and an aluminate layer. The silicate layers are built by tetrahedron SiO₄, held together using oxygen atoms [42]. These silicate layers give Si-O vibrations, which provide a sharp, wide FTIR band at the range of 1000–1050 cm⁻¹.

With regard to intensity, the diffractograms of soil after the degradation test show lower intensity than before. This means that the process of pesticide degradation decreased the crystallinity of the mineral crystals in the soil. Between muscovite, illite, and maghemite, the most influence in the degradation reaction is probably related to maghemite. The maghemite structure contains Fe(III).

4. Conclusions

A composite of MFe₂O₄/CNS was synthesized, characterized, and applied for degradation of the BPMC pesticide. The formation of the composite reduced -OH, aliphatic -CH, and C=O content of, but improved aromatic -C-H, indicating an increase in graphene layer formation. The crystal structure of the composite was a mixture of ZnFe₂O₄/CNS and ZnO/CNS. A dark degradation test of the pesticide in wet soil showed that the composite of ZnFe₂O₄/CNS had the best performance. There was no change in the crystal structure after the test, except for a decrease in crystallinity.
