The EU Training Network for Resource Recovery through Enhanced Landfill Mining—A Review

Abstract

The “European Union Training Network for Resource Recovery Through Enhanced Landfill Mining (NEW-MINE)” was a European research project conducted between 2016 and 2020 to investigate the exploration of and resource recovery from landfills as well as the processing of the excavated waste and the valorization of the obtained waste fractions using thermochemical processes. This project yielded more than 40 publications ranging from geophysics via mechanical process engineering to ceramics, which have not yet been discussed coherently in a review publication. This article summarizes and links the NEW-MINE publications and discusses their practical applicability in waste management systems. Within the NEW-MINE project in a first step concentrates of specific materials (e.g., metals, combustibles, inert materials) were produced which might be used as secondary raw materials. In a second step, recycled products (e.g., inorganic polymers, functional glass-ceramics) were produced from these concentrates at the lab scale. However, even if secondary raw materials or recycled products could be produced at a large scale, it remains unclear if they can compete with primary raw materials or products from primary raw materials. Given the ambitions of transition towards a more circular economy, economic incentives are required to make secondary raw materials or recycled products from enhanced landfill mining (ELFM) competitive in the market.

1. Introduction

Although landfill mining, “the process for extracting minerals or other solid natural resources from waste materials that have previously been disposed of by burying them in the ground” [1], has been investigated since 1953 [2], the interest in this topic only really started in the 1980s in the USA [3] and the 1990s in Europe [4]. The main reasons for Landfill Mining towards at the end of the 20th century comprised landfill remediation and landfill volume recovery [5]. Between 2017 and 2015, several national (research) projects such as the “Closing the Circle” project (Flanders/Belgium) [6], the LAMIS project (Austria) [7,8,9,10], the MINERVE project (Wallonia/Belgium) [11] and the TönsLM project (Germany) [12] were conducted, which focused more on material and energy recovery. These projects covered different process steps ranging from geophysical exploration via exploration to dry and wet mechanical processing.

In summary, these studies demonstrated that using state-of-the-art technologies can yield concentrates of metals, inorganic-nonmetallic materials and combustibles. The metal concentrates can already be sold at the market, since standard pyrometallurgical recycling routes exist, which makes this fraction a key economic driver for landfill mining [13]. However, the inorganic-nonmetallic and combustible fractions are more challenging, while the remaining fine fraction represents the final sink for contaminants [14] that have to be removed from the circular economy [15]. In detail, recycling of inorganic-nonmetallic materials even from fresh construction and demolition waste is mainly as aggregate [16], which is a low-value application that is, furthermore, associated with a quality decrease due to the negative impact on the attached cement paste on concrete properties [17]. Similarly, energy recovery from calorific fractions of the waste may either occur by classical waste incineration processes [18] or after mechanical processing to refuse derived fuel (RDF) in co-incineration plants [19]. Nevertheless, even in the latter case the waste supplier has to pay for the material instead of obtaining revenues. Finally, regarding the fine fractions it has to be mentioned that 78% of excavated soils, most of them not contaminated, are landfilled in Austria [20] due to low landfilling costs and low material values. Therefore, it seems unlikely that contaminated soil-like materials from landfills would be recycled.

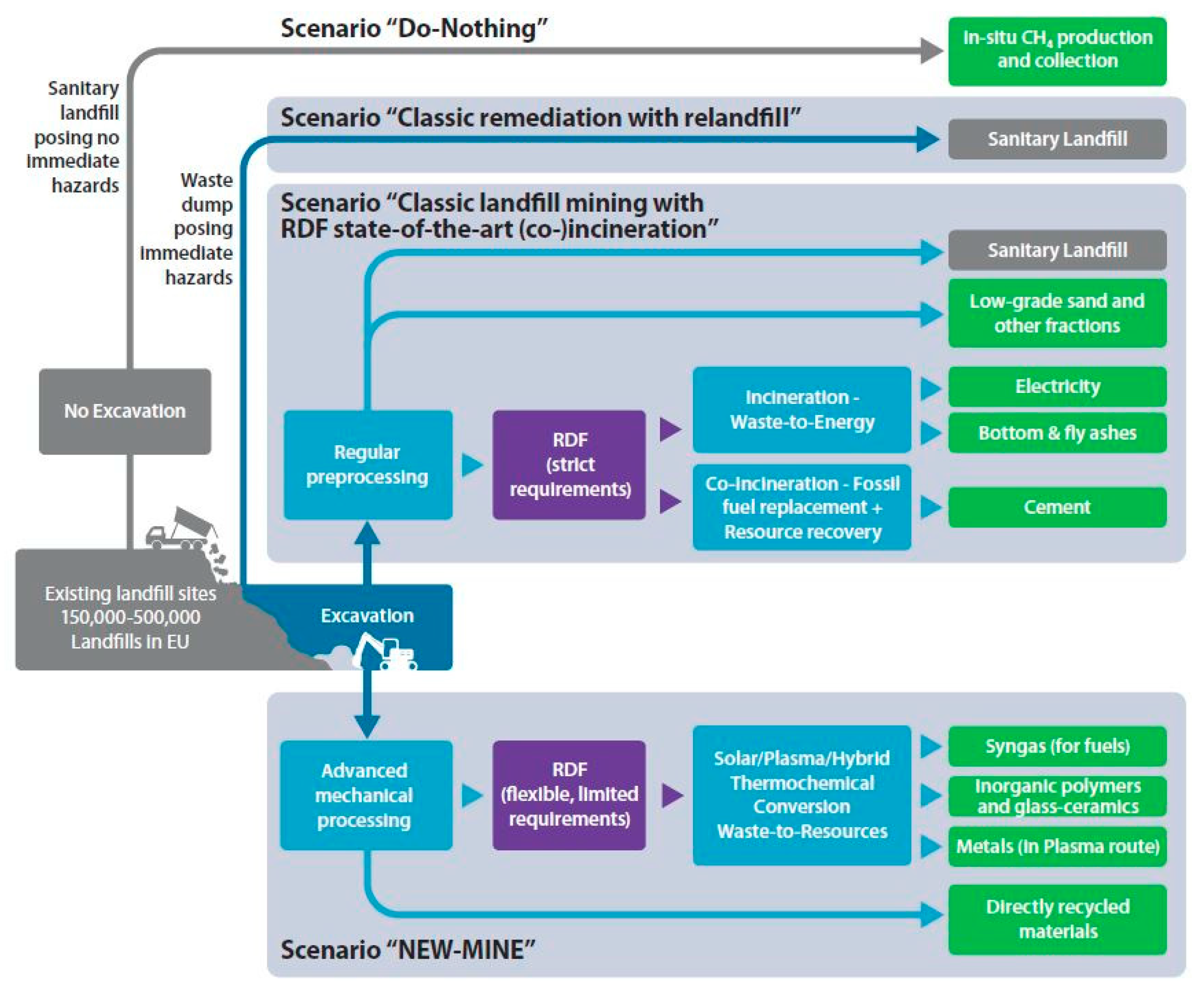

For these reasons the question arose if innovative technology might be an option to increase the economic feasibility of landfill mining projects. Consequently, in 2013 the term “enhanced landfill mining (ELFM)” was defined as “the safe conditioning, excavation and integrated valorization of (historic and/or future) landfilled waste streams as both materials (waste-to-material, WtM) and energy (waste-to-energy, WtE), using innovative transformation technologies and respecting the most stringent social and ecological criteria” [6]. To investigate the potential of such “innovative transformation technologies” and to cluster the existing European expertise in the field of landfill mining, the European Enhanced Landfill Mining Consortium (EURELCO) was founded in 2014 [21]. From this consortium the “EU Training Network for Resource Recovery through Enhanced Landfill Mining (NEW-MINE)” was developed and received funding from the European Union in 2016. For a period of four years, 15 early stage researchers (ESRs) investigated the exploration of and resource recovery from landfills as well as the processing of the excavated waste and the valorization of the obtained waste fractions using thermochemical processes (Figure 1).

The NEW-MINE project yielded a significant output of scientific publications, ranging from geophysics via mechanical process engineering to ceramics. Although there is already a review article that links the first NEW-MINE results with previous investigations [22], there is no comprehensive review assessing the entire research output of NEW-MINE with respect to its practical applicability in waste management systems, which is the aim of this review article.

This article is structured in the following way: Firstly, the methods for literature review and discussion of the project results are given. Secondly, the project results are summarized referring to the individual publications. In this context also the state-of-the-art before the project and the publications referring to the NEW-MINE publications are shortly summarized. Thirdly, in the Discussion section, the practical applicability of the NEW-MINE results in waste management systems is discussed. Finally, a summary of the project results and the challenges regarding their practical application is given.

2. Materials and Methods

Based on the publications listed on the NEW-MINE website (www.new-mine.eu accessed on 16 November 2020), additional publications of the authors were identified using Google Scholar and searching for the names of the NEW-MINE researchers. In a second step papers citing the NEW-MINE publications were identified and set into the context of NEW-MINE. The focus was on peer-reviewed publications, but certain conference proceedings were selected in those cases when the contained information was not found in a peer-reviewed article. Additionally, the search term “NEW-MINE” was used to find publications referring to this project. In the Google Scholar searches between dozens and few hundred articles appeared which were checked for consistency to the review topic. Publications by authors with similar names who were obviously other persons than the NEW-MINE researchers were excluded as well as publications referring to “new mines”, but not to the NEW-MINE project. The entire literature research was conducted in November and December 2020. Finally, the results of the NEW-MINE project were checked for practical applicability based on the experience of the authors in waste management and on personal communications with colleagues over the last years. In this context, some theoretical reflections on resource classification and varying terminology in interdisciplinary research were added.

3. Results

3.1. Innovative Landfill Exploration & Mechanical Processing

3.1.1. Landfill Exploration

Landfills have been investigated long before the NEW-MINE project with respect to environmental problems arising from the landfilled waste [23,24,25]. With respect to the recovery of resources from landfills, the task for geophysical exploration is different: The landfill as a potential anthropogenic deposit shall be explored with respect to the quality, quantity and “bonitaet” (=geological factors influencing the mining) [26] of the contained secondary raw materials [27]. In contrast to pollutant-related exploration tasks, the resource-related exploration task aims not for the identification of individual objects or leakages but for the estimation of the average material composition. Before the onset of the NEW-MINE project only few studies focused on these kinds of exploration, e.g., for a distinction between landfilled foundry sands and iron-rich materials using magnetic methods [28]. Parallel to the NEW-MINE project, but not referring to it, another research group distinguished between metal enrichments and plastic enrichments in a landfill using a combination of electromagnetic and magnetic methods [29].

The publications within the NEW-MINE project include both applied studies focusing on the exploration of landfills with respect to the material composition and fundamental studies focusing on data processing of geophysical sensors.

The first applied study [30] investigated the suitability of electromagnetic induction measurements and ground penetrating radar to characterize the geometry and electric properties of waste layers. It was appreciated by scientists of two other EU project on ELFM, the SMARTGROUND project who cited it with respect to electromagnetic measurements in their study on ELFM in the UK [31], and the RAWFILL project who cited it with respect to geophysical exploration in general [32]. The second applied study [33] used magnetic total-field measurements to estimate the bulk magnetic susceptibility of the Hollabrunn landfill, Austria, by inverse modelling and validated the resulting susceptibility by manual sorting of drill-core samples. In parallel, the magnetic susceptibility of reference materials was determined by laboratory analyses and the resulting bulk susceptibility of the landfilled waste mixture was computed using a weighted mean. The differences between the bulk susceptibility derived from inverse modelling of the field data (0.06 to 0.11 SI) and the values obtained from computing from the values from the reference materials (0.01 to 0.05 SI) highlight the challenges to determine the iron content in landfills from magnetic data. This publication has not yet been cited, although two publications released in 2020 have addressed magnetic exploration in the context of landfill mining [34,35].

Consistent with the overall character of the NEW-MINE project and the requirements of the Marie Skłodowska Curie Actions, the share of fundamental research was dominant which is also reflected in the higher number of publications regarding the basic aspects of geophysical exploration. For example, a probabilistic inversion of electromagnetic data using the so-called Kalman ensemble generator, was introduced [36]. This approach has already been already cited twice by other authors [37,38] and was further extended to a joint inversion of direct current resistivity and small-loop electromagnetic data [39], which was published in a mathematical journal, Algorithms, highlighting the interdisciplinarity of the NEW-MINE project. Finally, offset parameters were incorporated into the probabilistic inversion framework to estimate systematic errors in electromagnetic measurements [40].

In summary, the role of geophysics in post-NEW-MINE projects (e.g., RAWFILL) is higher than in pre-NEW-MINE projects (e.g., TönsLM), and post-NEW-MINE projects refer to the results of NEW-MINE.

3.1.2. Mechanical Processing

Mechanical processing of landfilled waste was the main focus in pre-NEW-MINE projects with dry methods being investigated in the LAMIS project [7] and wet methods in the TönsLM project [12].

Based on a comprehensive study on state-of-the-art processing of excavated waste from the Halbenrain landfill, Austria, using an existing mechanical-biological treatment (MBT) plant [41], a novel processing concept using a ballistic separator as first processing step for untreated excavated landfilled waste was developed and tested at the Mont-Saint-Guibert landfill, Belgium [42]. The NEW-MINE approach to use state-of-the-art MBT was addressed outside NEW-MINE in the context of the problematic character of the fine fraction [43], its biological treatment to increase the value of the fine fraction [44], and regarding landfill mining in general [45].

A second key innovation in this field reached by NEW-MINE was the demonstration of the feasibility of near-infrared (NIR) sorting for the beneficiation of heavy fractions from dry-mechanical processing [46]. The authors could enrich the inert materials in these fractions from values between 85.6 to 98.8 wt% in the input to a range between 97.7 and 99.6 wt% in the output, by ejecting the plastics: this represents an important step towards a possible recycling of the inert fraction. Another finding, i.e., the impact of attached defilements on sorting performance, was subsequently considered in Austria’s largest waste management project, ReWaste 4.0 [47]. The applicability of results from mechanical processing of ELFM materials to “fresh” waste highlights the relevance of NEW-MINE results in this field. Within NEW-MINE, the influence of surface roughness and surface moisture of plastics on NIR sorting was investigated [48], and the findings were used outside NEW-MINE for material flow characterization in sensor-based sorting systems using an instrumented particle [49] and for a study of the influence of material alterations and machine impairment [50]. NEW-MINE learnings on the effects of throughput rate and input composition on sensor-based sorting [51] were subsequently used within the above mentioned ReWaste 4.0 project [47,52].

Finally, the challenge of the fine fraction, which has been identified in pre-NEW-MINE projects, e.g., in the LAMIS project [53], was firstly summarized in two review publications [54,55]. A post-NEW-MINE study on contaminants in landfills [56], despite using a misleading soil definition [57], added further information on this topic. Other publications [44,58] also addressed the observation that the fine fraction makes up the majority of the landfilled material, but used correct terminology. Further post-NEW-MINE studies on leachate characteristics [59] and composition of the fine fraction [60] added further information to these fields. The need to further process the fine fraction to minimize re-landfilling was mentioned by a publication on geophysical exploration of landfills [61]. The problem stated within NEW-MINE that currently no valorization options for the fine fraction exist because of the possibility of contamination of this fraction [43] was later considered by an Estonian [62] and by an Indian study [63]. The same statement was also extracted from the second review [55] but with the suggestion to tackle this problem by further processing [44]. In contrast, a Hungarian group extracted the contradicting statement that fine fractions can be considered as a relevant source of metals, calorific fractions, inert fractions and soil-like material recovery [64]. The explanation that the amount of the fine fraction increases over time due to humification processes was mentioned in an Indian study on the application of Fourier-transformed infrared spectroscopy for its characterization [65]. The need for a deeper understanding of the physico-chemical properties of the fine fractions including their distribution across the different grain size fractions was also applied to shredder fine fractions [66]. Within the field of landfill mining, the general observations regarding the fine fractions were considered by authors of the SMARTGROUND project [67].

Then, the fine fraction < 90 mm obtained by ballistic separation was characterized [68] and further separated into a light fraction, a heavy fraction, ferrous and non-ferrous metals and a fine fraction < 4.5 mm using windsifting, magnetic separation, eddy-current separation and screens [69]. The heavy fraction was investigated with respect to the utilization as construction material and the light fraction with respect to the use as refuse derived fuel (RDF) [70]. The fine fraction < 4.5 mm was further processed and characterized with respect to the relationship between mineralogy and leachability indicating the stable mineralogical bonding of many contaminants (e.g., Pb as metal and Pb-Ca phosphate and Zn as Fe-Zn alloy, ZnS and ZnSO₄) [71].

In summary, novel research results obtained within NEW-MINE, especially using sensor-based sorting, can be applied to areas beyond ELFM.

3.2. Thermochemical Conversion and Solar Energy Storage

3.2.1. Thermochemical Conversion

Most pre-NEW-MINE landfill mining projects covered the value chain from exploration via excavation and mechanical treatment to the production of concentrates of secondary raw materials, i.e., metals for pyrometallurgical recycling, mineral wastes for the production of construction materials and combustibles for energy recovery. These concentrates are still wastes (and not products) but state-of-the-art recyling and recovery routes do exist, which is why the actual recycling or recovery was not part of most of these projects. With respect to the combustibles these recovery routes include among others:

• Municipal solid waste incineration plants (MSWI plants)
• Refuse derived fuel power plants (RDF power plants)
• Cement works (co-incineration)
• Coal-fired power plants (co-incineration)
• Industrial power plants (co-incineration) [72].

Consequently, previous projects investigated the combustibles with respect to the (co-) incineration in existing facilities considering not only calorific properties but also the content of heavy metals [7] as these restrict the valorization options of RDF by co-incineration [19]. For those cases in which the combustibles fulfil the requirements for co-incineration in the cement industry, the inorganic constituents of the RDF are incorporated into the mineral phases of the clinker contributing to its desired hydraulic properties, which justifies to address the share of RDF used on a material level as “recycling index” [73]. In contrast, for those cases in which contaminant concentrations exceed limit values for RDF, energy recovery in MSWI plants is the state-of-the-art option. MSWI yields bottom ashes whose recycling is restricted by limit values for total concentrations and/or leachable concentrations of contaminants [74,75]. The chemical composition and leachability, as well as the element-specific limit values significantly vary between individual EU member states.

Table 1. Ranges of total (mg/kg) [76] and leachable (mg/L) [76,77] contents and respective limit values (CH, DK, SWE, FIN, FRA, AUT, D, NL, BEL for total and DK, ESP, SWE, FIN, FRA; AUT, GER; NED, BEL for leachable contents) for recycling of MSWI bottom ashes.

Total Content	Concentrations	Limit Values
Cd	1–177	0.2–10
Cu	738–17620	40–500
Cr	115–852	40–500
Ni	38–850	35–500
Pb	197–6441	20–1250
Zn	1142–9370	120–1250
Leachable Content	Concentrations	Limit Values
Cl	259–416	80–5000
Cr	0.01	0.006–0.5
Ni	<0.05	0.01–0.35
Sb	0.016–0.023	0.006–0.2
SO4	15–106	70–6500
Pb	1.8–6	0.02–0.82

presents the ranges of concentrations relative to ranges of limit values for material used in road construction, showing that the total contents of Cd, Cu, Cr, Pb and Zn and the leachable contents of Pb are most problematic.

Following the pathway of classic incineration for those calorific fractions exceeding the threshold values for co-incineration would, therefore, result in the need to re-landfill significant proportions of the resulting bottom ashes. Disposal of MSWI bottom ash at increasing scarcity of landfill volume and the need for landfill aftercare for up to more than 100 years [78] is associated with significant costs, which will represent a massive financial and environmental burden for governments and the public in the future.

This is why within NEW-MINE, despite sharp criticism [79], gasification and pyrolysis were investigated as alternative thermochemical conversion processes within NEW-MINE with the background idea to use the produced syngas and to couple these processes to plasma technology to convert the resulting ashes directly into a vitreous slag, which might be favorable compared to MSWI bottom ashes with respect to mechanical and leaching properties. As it was not possible within the project to test plasma technology, vitreous slag from previous tests was used for further experiments, but also MSWI bottom ash was melted to obtain a similar slag.

Within NEW-MINE, the light fraction obtained by mechanical processing of excavated waste from the Mont-Saint-Guibert landfill was subjected to pyrolysis (N₂ atmosphere, 900 °C, 1 h) and the resulting char was subjected to steam gasification using thermogravimetry analysis (TGA) to study the reaction kinetics [80]. This publication was cited as one of the few studies on gasification kinetics of MSW chars [81] and regarding the observed increase in activation of the char by gasification [82]. Furthermore, the study was cited with respect to the energy savings, low NO_x emissions and pollutant reduction of steam gasification compared to conventional thermochemical conversion technologies [83]. In a second study, a sample of the fine fraction (<10 mm) and two samples of combustibles (with different share of defilements) were used for a similar experimental setup [84]. The latter publication was cited in a review on co-incineration of organic waste and coal [85] and with respect to the higher production of CO and CO₂ in pyrolysis when using finer waste fractions in a publication on the prediction of gaseous products from RDF pyrolysis [86]. Two further results originated from this NEW-MINE publication: (1) pyrolysis of landfilled waste yields less oil and gas than pyrolysis of fresh waste and (2) gasification of char from pyrolysis of landfilled waste yields waste fuel with a higher reactivity compared to the same process using fresh waste, which is explained by the catalytic effect of the metals present in landfilled waste [87]. Further studies citing this publication are on pyrolysis of pre-treated trommel fines [88]. In the third study on this topic, it was shown that steam co-gasification of landfilled waste with biochar increases H₂ yields [89]. This publication was mentioned in a review article on waste-to-energy technologies [90] and with respect to the use of the syngas from gasification for ammonia synthesis [91].

The second issue addressed within NEW-MINE regarding gasification was the cracking of tars from the produced syngas which would restrict its utilization options. At first, a review on the state of the art regarding the role of plasma in syngas tar cracking [92] was published, which was cited outside of NEW-MINE by two other review articles [93,94] mentioning the efficiency, but also the short lifetime and high costs of this technology, as well as a novel warm gas tar cleaning processing called OLGA. In a next step, naphthalene was used as a model tar molecule and Corona plasma-aided thermal cracking was demonstrated successfully for its removal at 800 °C [95]. This study was cited with respect to tar generation and conversion kinetics [96], regarding the required high temperatures of 1100 °C which represent a disadvantage compared to catalytic reforming [97], and as an example for thermal tar cracking [98]. Finally, two CaO-rich catalysts doped with Sr were synthesized from mussel shells and successfully tested for tar cracking in the syngas [99].

Another NEW-MINE publication focused on further aspects of the pyrolysis process. Lab-scale pyrolysis tests at 400 to 700 °C with the above-mentioned light fraction of the Mont-Saint-Guibert landfill revealed the enrichment of polycyclic aromatic hydrocarbons (PAH) in the condensable pyrolysis products, highlighting the need to further treat this output fraction [100]. Although the main focus of thermochemical conversion technologies within NEW-MINE was on the treatment of the combustibles, thermal treatment (400/450 °C, 30 min) was also used to assess the quality of the nonferrous metals obtained from mechanical processing of the excavated waste from Mont-Saint-Guibert landfill [101].

3.2.2. Solar Energy Storage

In contrast to waste incineration and co-incineration, which produce energy and even contribute to 3.7% of the German end energy consumption [72], gasification requires external energy. The use of energy from renewable sources for this purpose is environmentally favorable, but requires energy storage. Consequently, within NEW-MINE, MgO-stabilized SrO was synthesized and successfully tested for heat storage via the SrO/SrCO₃ cycle [102]. This research was considered outside NEW-MINE with respect to radiation propagation in a heat exchanger transforming solar radiation into high-temperature heat [103], thermochemical energy storage in the CaO/CaCO₃ [104] and MnAl₂O₄/MnAl₂O_4−x [105] system and two reviews on thermochemical energy storage [106,107]. The most recent NEW-MINE publication in this field deals with thermochemical heat storage via the CuO/Cu₂O redox cycle and describes the synthesis of granules with a gravimetric energy storage density in the range of 470 to 615 kJ kg⁻¹ [108].

In summary, NEW-MINE publications on thermochemical conversion and solar energy storage focused on the organic constituents of gasification chars and of oxide/carbonate systems for solar energy storage and created a novel state-of-the-art. However, the fate of inorganic pollutants during gasification was not addressed and the intended production of vitreous slags via plasma processing that might immobilize these pollutants was not realized in the project.

3.3. Benefication of Products from Thermochemical Conversion

3.3.1. Melting and Vitrification

Since the intended plasma gasification of ELFM materials was not realized within NEW-MINE, three groups of input materials were selected for further processing, i.e., (1) MSWI bottom ashes, (2) vitreous slag from plasma gasification (“Plasmastone”) from a pre-NEW-MINE project and (3) synthetic vitreous slags mimicking the plasmastone composition. The aims of the beneficiation of these materials comprised the recovery of metals and the beneficiation of the nonmetallic fractions for specific applications in civil engineering beyond the state-of-the-art applications of MSWI bottom ashes as low-strength aggregates [109]. Thermal treatment of MSWI bottom ashes within NEW-MINE aimed for the recovery of metals and beneficiation of the mineral fraction. For this purpose, two heating technologies were investigated.

Firstly, a submerged arc furnace (SAF) and an electric resistance furnace (ERF) were used to melt MSWI bottom ash obtained from a Dutch MSWI plant at 1500 and 1400 °C, respectively. These experiments yielded an Cu-Fe alloy and a vitreous CaO-Al₂O₃-SiO₂ slag, which might be used for the production of glass ceramics or inorganic binders [110] and were linked to the application of SAF technology in other fields [111].

Secondly, microwave heating was used to study the dielectric properties from the above mentioned MSWI bottom ash from a Dutch MSWI plant and revealed that MSWI bottom ash absorbs microwaves with low losses until 320 °C but above this temperature pyrolysis enhances the dielectric loss [112]. This study was cited with respect to microwave cladding, an emerging surface modification technique [113]. In a next step, flash microwave vitrification was realized at 2.45 GHz within 1.5 min. The advantage of this technology for vitrification is that the cooling rate is naturally so fast, due to the inherent cold environment, that no specific efforts are required for quenching [114].

3.3.2. Alkali Activation

The next group of studies within NEW-MINE dealt with the further benefication of vitrified MSWI bottom ashes. In one study, the vitrified bottom ash was subjected to alkali activation (1 M NaOH and 2.5 M NaOH and sinter crystallization (800 °C or 900 °C), thereby yielding porous (70 vol%) glass ceramics with a compressive strength of 3 MPa, which might be used as an alternative to lightweight concrete [115]. Another group of studies addressed the production of inorganic polymers by alkali activation. Compared to geopolymers, which are the main subgroup of alkali activated materials, inorganic polymers differ with respect to their chemical composition.

A synthetic plasmastone analogue was used to study the impact of solid-to-liquid and K₂O/SiO₂ ratio and the type of activation solution on the resulting inorganic polymers. Adjustment of these process parameters yielded inorganic parameters with a compressive strength of up to 119 MPa [116]. This study was cited in a review article as an example to valorize vitrified MSWI bottom ash [117]. Based on these findings, strategies to increase the volumetric stability of inorganic polymers were developed [118]. This work was cited in the context of alternative cementitious materials for radioactive waste encapsulation, taking into account that strengthening of inorganic polymers was observed due to radiation-induced iron oxidation [119]. One approach to increase the volumetric stability is the addition of CaO-rich materials, which was demonstrated in another study [120].

3.3.3. Sintering of Glass-Ceramics

The last group of studies refers to the sintering of vitreous slags from plasma processing of MSW or from MSWI vitrification to glass ceramics, which might be used as building materials such as aggregates and panels. The most-cited publication of NEW-MINE [121] dealt with the production of porous glass ceramics from the vitreous slag obtained by plasma processing of MSW. It was demonstrated how increasing the firing temperature of glass ceramics can trap chromium in stable pyroxene group minerals and adding borosilicate glass can decrease the leaching of Cr, Mo and V as boron acts as a network former. This paper was cited in publications on the preparation of glass-containing foams from geopolymers [122] and vitrified MSWI bottom ash [123] in which the formation of wollastonite and the freezing of the microstructural evolution were mentioned. Other papers cited this publication with respect to the recycling of glass waste into foam glass [124,125,126,127,128,129], porous waste glass for lead removal in wastewater treatment [130], lead stabilization through alkali activation and sintering of Pb-bearing sludge [131], utilization of waste glass for the production of sulphuric acid resistant concrete [132], mechanical and alkali activation of MSWI fly and bottom ashes for the production of low-range alkaline cement [133] and foam glass-ceramics [134], inorganic gel casting for manufacturing of boro-alumino-silicate glass foams [135], porous glass-ceramics derived from MgO-CuO-TiO₂-P₂O₅ glasses [136], alkali activation of coal and biomass fly ashes [137], nickel-based catalysts for steam reforming of naphthalene utilizing MSW gasification slag as support [138], production of porous glass ceramics from titanium mine tailings and waste glass [139], porous bioactive glass microspheres [140], Al-SiO₂ composites [141], glass-ceramic foams from alkali-activated vitrified MSWI bottom ash and waste glasses [142]. Another study used vitrified MSWI bottom ash as input material to obtain similar porous glass ceramics [143] and was cited by some of the publications that also cited the first study.

In a next step, dense glass with good mechanical and environmental properties (low leaching due to stable incorporation of heavy metals in stable hedenbergite, wollastonite and iron oxides) were obtained from a mixture of “Plasmastone”, recycled soda-lime glass and kaolin clay by cold pressing and fast heat treatment (1000 °C, 40 °C/min) [144]. This publication was referred to as a case study for the influence of crystallization time on glass ceramics [145].

The crucial linkage between mineralogy and technical and environmental performance was also investigated in a further study in which low temperatures (800 °C) were sufficient to immobilize heavy metals in a stable matrix using spent borosilicate glasses and additional electromagnetic shielding functionalities were obtained by magnetite formation [146]. This approach was cited in a study on the substitution of feldspar by waste glass for porcelain production [147] and in a paper on cheap pore-generating agents for ceramics [148]. Finally, the promoting effect of firing in nitrogen atmosphere on the stabilization of pollutants and novel functionalities was investigated [149]; the paper was cited in studies on the recycling of iron-rich inorganic wastes into functional glass-ceramics [150] and on the production of glass ceramics from MSWI bottom ash and coal fly ash by melting and sintering [151].

In summary, the NEW-MINE publications on beneficiation of products of thermochemical conversion of (excavated) MSW, i.e., vitrified MSWI bottom ashes and vitreous slags of plasma gasification, yielded novel insights into the relation between (crystalline/vitreous) structure and (mechanical/leaching) properties of waste-derived glass ceramics and inorganic polymers. Although these specific approaches to address MSWI residues might not be realized in practical waste management, the underlying mechanisms are also relevant for the mobility of heavy metals in other mineral wastes and allow the eco-design of their properties and, consequently, enhanced recyclability.

3.4. Multi-Criteria Assessment

3.4.1. Life Cycle Assessment

Already before NEW-MINE, comprehensive methods for landfill mining projects have been developed. With respect to ecological and socio-economic criteria, this approach was based on utility analysis and then transferred into a utility-net present value chart [9]. In contrast, within NEW-MINE, for the ecological assessment life cycle assessment (LCA) was used, although it was not applied to landfill mining, but to the impact of sanitary landfills themselves [152]: this approach yields important information regarding the alternative to ELFM, i.e., state-of-the-art landfill aftercare. This LCA publication was cited with respect to the site selection for landfills [153,154] and in a study which yielded the controversial statement that “recycling metals except gold had more negative environmental impacts than mining” [155]. Further citing studies deal with environmental impacts of combustion-based energy production [156], composting on closed landfill sites [157], bioreactor landfills [158], suppression of methane generation [159], modelling of landfill gas production [160], organic waste enrichment [161]. Within NEW-MINE, LCA was also applied to compare smelting of MSWI bottom ash with the state-of-the-art mineral processing approach and revealed that the energy demand for smelting processes overrules, with respect to global warming, the positive effect of secondary raw material production [162].

In summary, LCA demonstrated the environmental impact of all scenarios of landfill management. Landfill aftercare requires a high effort for gas and leachate treatment, while traditional landfill mining with MSWI yields mineral fractions of MSWI bottom ashes which cannot substitute for high-value primary raw materials due to the leaching of pollutants. In contrast ELFM, with the production of vitreous slags–either via plasma gasification of municipal solid waste (MSW) or via smelting of MSWI bottom ashes, yields more valuable secondary raw materials which are characterized by a lower leaching, but their production requires more energy.

3.4.2. Techno-Economic Assessment

Based on a comprehensive study on existing economic assessment methods [163] it has been suggested within NEW-MINE to follow learning-oriented approaches. Subsequently, an economic and environmental assessment of a possible ELFM project in Sweden has been conducted and revealed that none of the scenarios is economically profitable, but of all them result in net avoided emissions due to the recovery of metals [164]. In a next step, more than 500,000 landfill mining scenarios were evaluated with respect to their net present value and the influencing factors were identified via global sensitivity analysis. It was found that 80% of these scenarios show negative results and that revenues from avoided landfill management costs are more important than revenues from resource recovery [165]. This study was cited in a review paper on the impact of landfills on the environment [166] in a study on the environmental and economic assessment of ELFM in Tehran [167] and with respect to geophysical exploration of landfills [35].

In summary, NEW-MINE results confirm that ELFM is ecologically favorable, but economically not profitable, which demonstrates the need for an integrated ecological and economic assessment [9,35]. This means, that for those cases in which this integrated assessment shows a positive effect of ELFM, economic incentives would be required to make secondary raw materials or recycled products from ELFM competitive in the market.

3.4.3. Sociological Assessment

Before NEW-MINE, landfill mining was investigated mainly from technological, environmental and economic perspectives. However, it is well known that large infrastructure projects often fail due to public resistance [168]. Therefore, within NEW-MINE, also stakeholders’ perspectives on ELFM were investigated [169] and stakeholder needs were identified [170]. The latter study was cited in a study on the characterization of excavated waste [171]. Finally, stakeholder archetypes for ELFM were defined: The Engaged Citizen, the Entrepreneur, the Technology Enthusiast, the Visionary and the Skeptic [172]. In summary, the importance of the involvement of stakeholders in ELFM has been demonstrated and fundamentals for corresponding strategies have been laid.

4. Discussion

4.1. Disciplinarity and Interdisciplinarity

Within the NEW-MINE project the entire process chain, from landfill exploration via excavation and mechanical processing to thermochemical conversion and beneficiation of conversion products, has been investigated. This broad scope constituted a unique feature of the NEW-MINE project and, correspondingly, many publications do not address the landfill mining itself, but waste treatment technologies, which may also be used for waste from other sources than landfills. Some publications, e.g., dealing with energy storage, are only loosely linked to landfill mining. This broad scope enabled the interdisciplinary collaboration of researchers, for example between geophysicists and waste scientists [33], waste scientists and polymer scientists [48], experts in mechanical and thermal waste treatment [84,89,101] and in high and low temperature waste mineralogy [121,144]. However, the majority of the publications can be allocated to a single scientific discipline. With respect to the number of publications citing the NEW-MINE publications, no significant difference between disciplinary and interdisciplinary publications is visible. Although most disciplinary publications were cited by researchers from other disciplines (e.g., [165] by [35]), most of them were cited by colleagues from the authors’ discipline.

Considering that the overall research question of the project was to investigate if innovative technologies increase the economic and environmental feasibility of landfill mining, more interdisciplinary cooperation would be required. For example, if the purity of an inert fraction obtained by sensor-based sorting is increased from 86 to 98% [46], what is then the impact on the economic, environmental and societal assessment of ELFM? This and several similar questions demonstrate the need for further interdisciplinary research in the field of ELFM for which NEW-MINE could have been an excellent starting point.

4.2. Recycling Waste from Landfills

Although a lot of reasons for landfill mining have been identified and excavation of landfills for environmental remediation has been practiced already for decades, it is the recovery of resources from landfills, which fostered the landfill mining projects in the last decade including the NEW-MINE project This is clearly indicated in the project’s name, i.e., “EU Training Network for Resource Recovery Through Enhanced Landfill Mining”. During the NEW-MINE project a lot of effort was devoted to treat the excavated waste by mechanical, thermochemical and chemical methods. The final aim of these treatments is to obtain either a secondary raw material, which may substitute for a primary raw material in an industrial process, or a product, which substitutes for a product with the same functionalities but is made from primary raw materials. Regarding the production of secondary raw materials, NEW-MINE demonstrated that e.g., the 2D fraction of ballistic separation can substitute for fossil fuels in co-incineration plants. In contrast, the use of the inert fraction as raw material for the production of concrete [70] and the use of the fine fraction as raw material for the production of compost soil [71] fails, due to the exceeded limit values for total and leachable contaminants.

Regarding the production of a product, it has been demonstrated that e.g., glass-ceramics [144] fulfil the mechanical and leaching requirements for building products. Apart from the problem that several countries, e.g., Austria, have also limit values for total contents, it has to be mentioned that these products have to compete with products with the same functionality but are made from primary raw materials. Consequently, comparative economic and environmental assessments are required to investigate the production costs and environmental impact of e.g., lightweight concrete made from primary raw materials (e.g., Airium^TM) and waste-derived glass-ceramics that compete for the same application. With respect to raw materials, the same applies: e.g., recycled aggregates compete with natural aggregates (with the problem of decreasing quality with increasing number of recycling cycles [173]), but also additional challenges occur: The RDF that can be produced by ballistic separation or windsifting has a negative value, i.e., the producer has to pay the cement plant to incinerate it. Therefore, within the Halbenrain case study in NEW-MINE, the lightweight fraction, which could have been delivered to an RDF production plant was re-landfilled, as this was the cheaper option. The reason for this paradox is that combustible waste must not be landfilled in Austria and incineration is an expensive process, considering also the taxes that have to be paid. Therefore, co-incineration plants can demand negative prices for RDF, as it is still cheaper than incineration. Only for the specific case study of ELFM, re-landfilling of combustibles is allowed and represents the cheapest option.

In summary, even if secondary raw materials or recycled products can be produced from ELFM materials, it remains unclear if they can compete with primary raw materials or products from primary raw materials. First observations for Austria suggest that this may often not be the case. Given the ambitions of transition towards a more circular economy, economic incentives are required to make secondary raw materials or recycled products from ELFM competitive in the market.

4.3. Waste Management Meets Mining Economics

Finally, as is already evident in the project name “NEW-MINE” in which terminology from mining economics (“resources”) and waste management (“landfill”) are used, it represents a good example to apply a figure illustrating the different terminologies from mining economics, waste management and process engineering [27] to MSW landfills and ELFM (Figure 2).

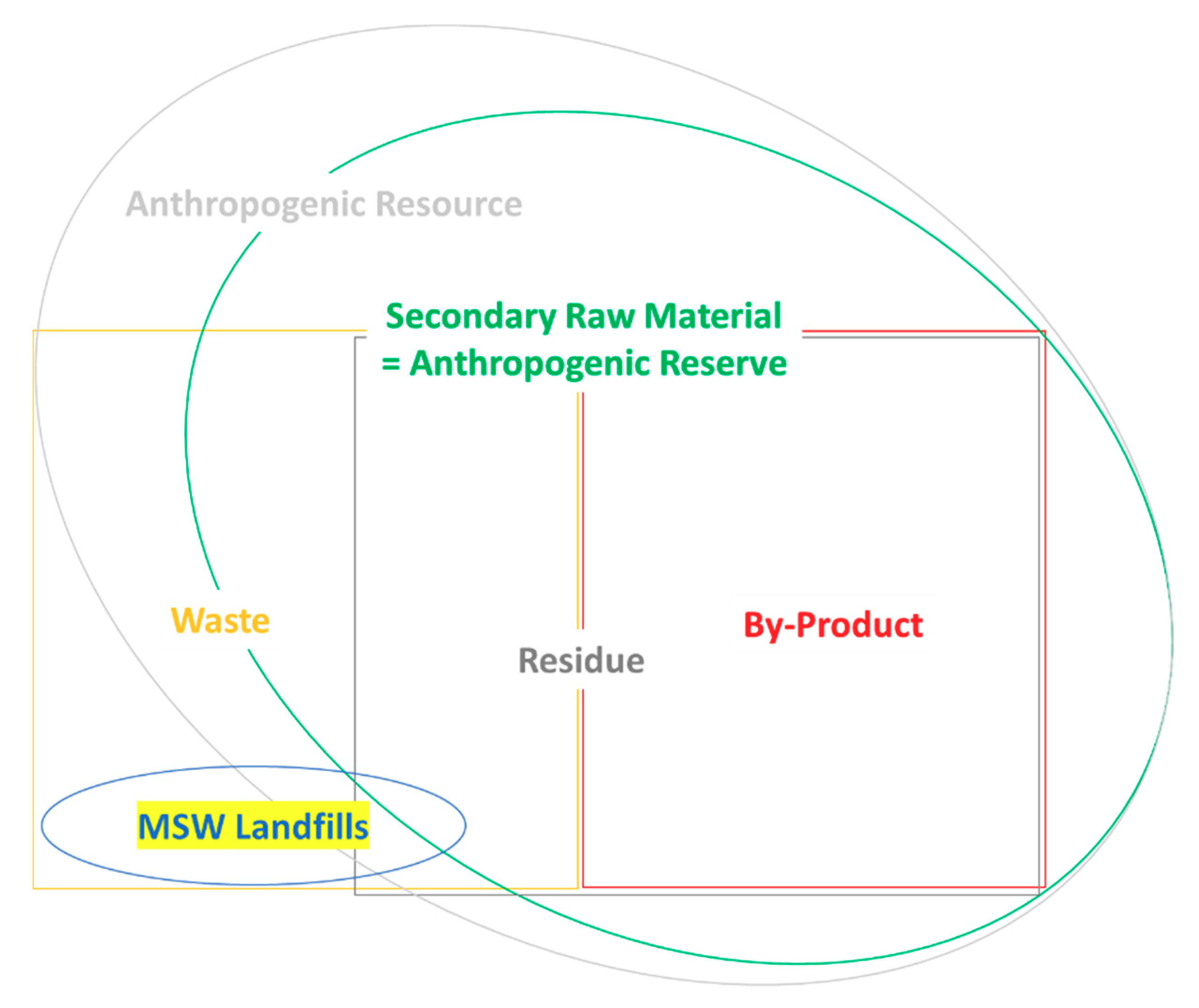

Often, in the recycling business, the term “waste” is avoided due to its negative connotations. Instead, the terms “residue”, “anthropogenic resource”, “by-product” or “secondary raw material” are used, but they have a different meaning.

Waste is precisely defined in the European Waste Framework Directive [174] as “any substance or object which the holder discards or intends or is required to discard”. Consequently, the material in an MSW landfill is waste, as the (former) holder discarded it. If the material is recycled, it reaches the end-of-waste at the moment when it substitutes for a primary raw material. Considering the technologies investigated within NEW-MINE, this means that the material remains a waste until the waste-derived glass ceramics or inorganic binders finally substitute for conventional construction ceramics or cement, respectively, and this only if they fulfil the technical and environmental requirements for the competing products made from primary raw materials.

A by-product is only a substance or object whose further use is certain [174], i.e., there cannot be a by-product in a landfill, since if the further use would have been certain, it could not have been disposed of. In contrast to “waste” and “by-product” which originate from waste management, the term “residue” stems from process engineering and refers to “the part that is left after the main part has gone or been taken away” [175]. In some MSW landfills also residues can be found, as industrial waste has not always been disposed of in separate landfills. Similar to “residue” also “secondary raw materials” are defined by the Great Soviet Encyclopaedia as “materials and articles which, after complete initial use (wear), may be used repeatedly in production as starting material” [176].

The terms “resource” (reasonable prospects for eventual economic extraction in the foreseeable future) and “reserve” originate from mining economics (current economic extraction possible) and have been introduced into waste management [13]. If current economic extraction is possible, the material will be a secondary raw material for a subsequent industrial process, i.e., “anthropogenic reserve” and “secondary raw material” are synonyms. With respect to ELFM, only a small fraction of the excavated materials within NEW-MINE, i.e., the metal fractions from magnetic and eddy current separation or from smelting processes, fall in this category. Some other fractions, e.g., the combustibles, might be classified as “anthropogenic resource” if RDF prices rise significantly above zero. However, the results for the fine fraction do not justify a classification as anthropogenic resource, as no reasonable prospects for their purification exist [71].

In summary, the quantity of resources that can be recovered from MSW landfills can be significant, if valorization options for the inert fraction and the combustibles become feasible. However, quality and “bonitaet” [26] of anthropogenic resources from MSW landfills represent significant challenges for future ELFM projects.

5. Conclusions

The NEW-MINE project (2016–2020) was a European research project investigating the entire process chain of ELFM. Within the NEW-MINE project in a first step concentrates of specific materials (e.g., metals, combustibles, inert materials) were produced which might be used as secondary raw materials. In a second step, recycled products (e.g., inorganic polymers, functional glass-ceramics) were produced from these concentrates at the lab scale. However, even if secondary raw materials or recycled products could be produced at a large scale, it remains unclear if they can compete with primary raw materials or products from primary raw materials. Given the ambitions of transition towards a more circular economy, economic incentives are required to make secondary raw materials or recycled products from ELFM competitive in the market.
