Upgrading of Wash Oil through Reduction of Nitrogen-Containing Compounds

Abstract

As part of improving the quality of wash oil, the reduction of three kinds of nitrogen-containing compounds (NCs), including quinoline (QU), iso-quinoline (IQU), and indole (IN), found in wash oil was examined by liquid–liquid equilibrium extraction. The wash oil and an aqueous solution of formamide were used as the raw material and the solvent, respectively. Increasing the volume fraction of water in the solvent in the initial state (y_w,0) resulted in a decrease in the distribution coefficients of each NC, while inversely, the selectivity of each NC in reference to 2-methylnaphthalene increased. The selectivity ranges of QU, IQU and IN at y_w,0 = 0.05~0.3 were 19~57, 19~56 and 50~79, respectively. Through five stages of equilibrium extraction performed under the condition of y_w,0 = 0.05, the concentrations of QU and IQU contained in the raffinate oil recovered at the fifth stage were reduced by about 69% and 65% compared to those contained in the wash oil. The concentration of IN in particular, a useful compound in the chemical industry, which is a raw material for pharmaceuticals, dyes, and fragrances, was reduced by 93.4% through a five-stage extraction operation. The formamide extraction method of this study was highly efficient in reducing the NC present in the wash oil, showing the feasibility of this method.

1. Introduction

Wash oil produced from a distillation fraction (distilled temperature 500–550 K) of coal tar contains a number of valuable nitrogen-containing compounds (NCs), such as a quinoline (QU), iso-quinoline (IQU), quinaldine and indole (IN), which are used in the production of pharmaceuticals, perfumes, pigments, dyes and pesticides [1,2,3]. Conversely, the NCs mentioned above are undesirable impurities in wash oil due to their contribution to air pollution and unpleasant odors. At present, QU and mixtures containing more than 0.1% QU are classified as hazardous chemicals (carcinogens, skin irritants, etc.). Therefore, wash oil containing about 1.4% QU is a hazardous chemical, so there are many restrictions on its transportation, handling, etc. For the above reasons, the improvement of wash oil quality according to the reduction of NCs and the review of the purification of useful components, such as IN, using a crude NC mixture recovered through the quality improvement process are considered to be very meaningful from the viewpoint of recycling resources.

To date, since the crude separation of NC from the coal tar fraction is a reaction extraction using an acid and a base, the operation is complicated, and has the disadvantage that it is impossible to recover and reuse the solvent [4]; thus, the development of a simpler and more efficient separation method is required. Extraction using ionic liquids [5,6,7], supercritical extraction [8,9], azeotropic distillation and traditional extraction methods [1,2,3,4,10,11,12,13] using various organic solvents, such as methanol, ethanol and formamide, have been studied for the reduction of NCs contained in the coal tar fraction. Among them [4,11,13], it has been reported that NCs present in the coal tar fraction can be reduced in a convenient and efficient manner by using an aqueous solution of methanol as a conventional extraction method. However, this methanol extraction method is not satisfactory from a separation point of view because of the low selectivity of NCs.

In a previous study [3], we examined the effects of experimental factors on the reduction of NCs using eight kinds of traditional extraction solvents and a model coal tar fraction consisting of nine kinds of components. In this review, it was reported that the aqueous solution of formamide is the optimal solvent in terms of the balance between the distribution coefficient and the selectivity of NCs.

This study was conducted to improve the quality of wash oil by reducing the NCs contained within it. In this review, we investigated the effect of the volume fraction of water in the solvent in the initial state (y_w,0) on the reduction of NCs present in wash oil using the aqueous solution formamide. In addition, to confirm the efficacy of reducing NCs through the batch multistage extraction under fixed extraction conditions, we performed a five-stage equilibration extraction.

2. Materials and Experimental Methods

2.1. Materials

As a raw material of this study, wash oil was supplied by OCI Company Ltd. (Seoul, Korea). Naphthalene (NA, 99% purity), QU (98% purity), IQU (97% purity), IN (≥99% purity), quinaldine (≥95% purity), 2-methylnaphthalene (2MNA, 97% purity), 1-methylnaphthalene (≥95% purity), biphenyl (BP, ≥99.5% purity), dibenzofuran (DBF, 98% purity) and fluorene (98% purity), which were used for the GC identification or quantification of the constitutive components of the wash oil, were purchased from Sigma-Aldrich, Seoul, Korea. Formamide (≥99.5% purity), used as a solvent in this study, was also purchased from Sigma-Aldrich, Seoul, Korea. In this study, the above-mentioned 11 kinds of commercial reagents were used without further purification.

2.2. Experimental Method

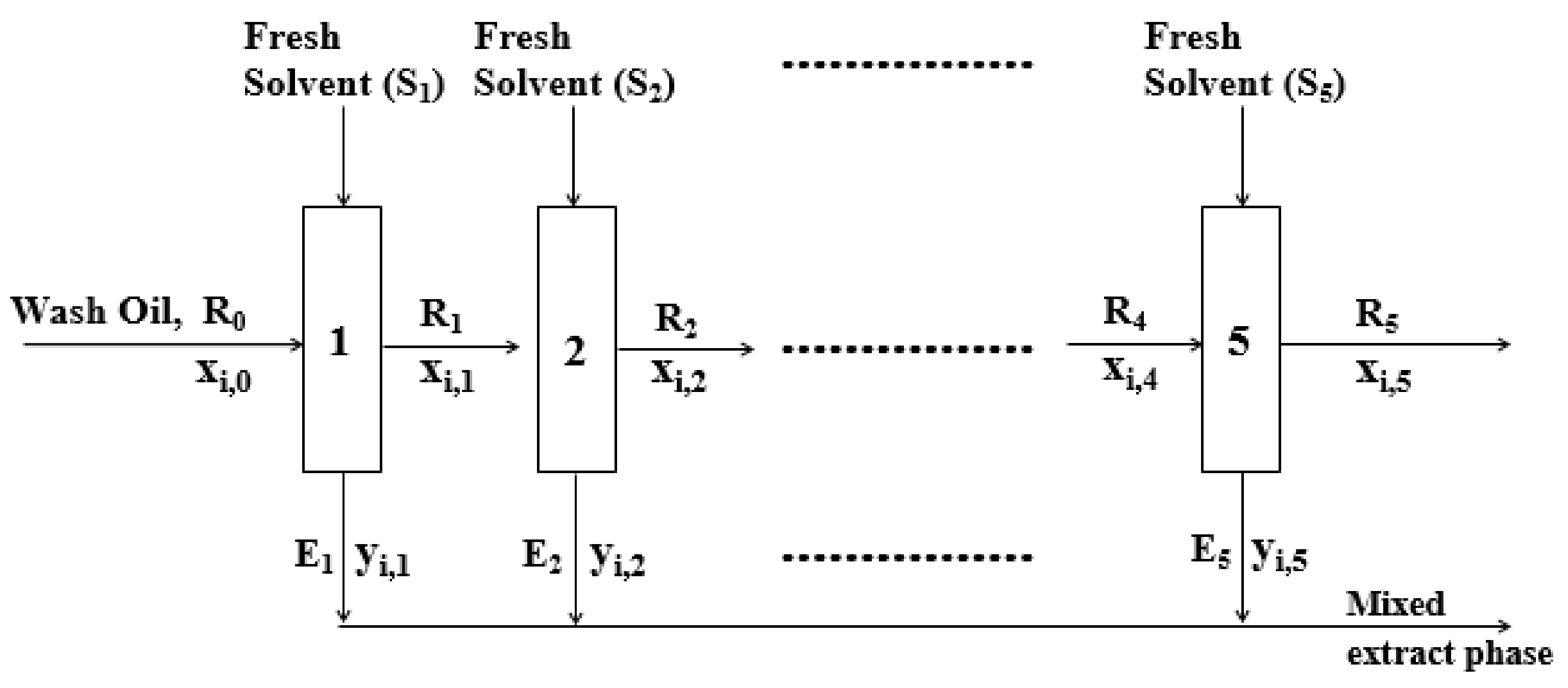

A schematic diagram for the extraction method used in this study is presented in Figure 1 [2]. To make a solvent of a certain concentration, the formamide was mixed with tap water. Erlenmeyer flasks of 1 L containing a certain amount of the feed (R₀: the wash oil, R₁–R₄: the raffinate phase recovered from each stage) and the fresh solvent (S₁–S₅) were placed in a shaking water bath maintained at the experimental temperature and vibrated for a certain time to reach a liquid–liquid equilibrium. After reaching the equilibrium, the mixture was settled for an aliquot of time, and the raffinate phase and the extract phase were separated using a 1 L separatory funnel, and then the mass of each phase was measured. The separated raffinate phase and a fresh aqueous solution of formamide were used as a raw material and a solvent at the next stage, respectively. Irrespective of the number of stages, 400 mL of the fresh solvent was charged in a 1 L Erlenmeyer flask. The raffinate phases and the extract phases recovered from the equilibrium extraction of each stage were analyzed by adding a small amount of acetone, and their compositions were determined. The analysis of two phases was carried out by a gas chromatograph (GC, Hewlett Packard Co., Houston, TX, USA, HP 6890: capillary column, HP-1 (60 mL, 0.32 mm I.D.)) equipped with flame ionization detector (FID). The analysis conditions of the samples were as follows: carrier gas, N₂; volume flow rate, 1 mL/min; injection temperature, 523 K; sample volume, 1 μL; splitting ratio, 0.025; column temperature, maintained at 383 K for 3 min, then increased at a rate of 5 K/min to 523 K, then 14 K/min to 593 K; detector temperature, 593 K.

2.3. Material Systems and Experimental Conditions

The material systems used for this study and the experimental conditions are summarized in

Table 1. Material systems and experimental conditions.

System
Feed: wash oil and raffinate phases
Solvent: aqueous solution of formamide
Experimental Conditions
Liquid–liquid contact time, t (h)	12~96
Number of equilibrium extractions, n (-)	1~5
Operating temperature, T (K)	303
Volume of fresh solvent (mL)	400
Volume fraction of water in solvent in initial state, yw,0 (-)	0.05~0.3
Volume ratio of solvent to feed in initial state, S1/R0 (-)	1

. The wash oil (400 mL R₀), and the raffinate phases (R₁–R₄), which were recovered from each stage after reaching liquid–liquid equilibrium, were used as the raw materials. The fresh aqueous solution of formamide (400 mL S₁–S₅) was used as a solvent. The volume fraction of the solvent to a raw material in the initial state (S₁/R₀), the operating temperature (T) and the volume of the fresh solvent added to each stage were fixed and constant. The number of equilibrium extractions (n), the volume fraction of water in the solvent in the initial state (y_w,0) and the liquid–liquid contact time (t) were changed.

3. Results and Discussion

3.1. Gas Chromatogram of Wash Oil

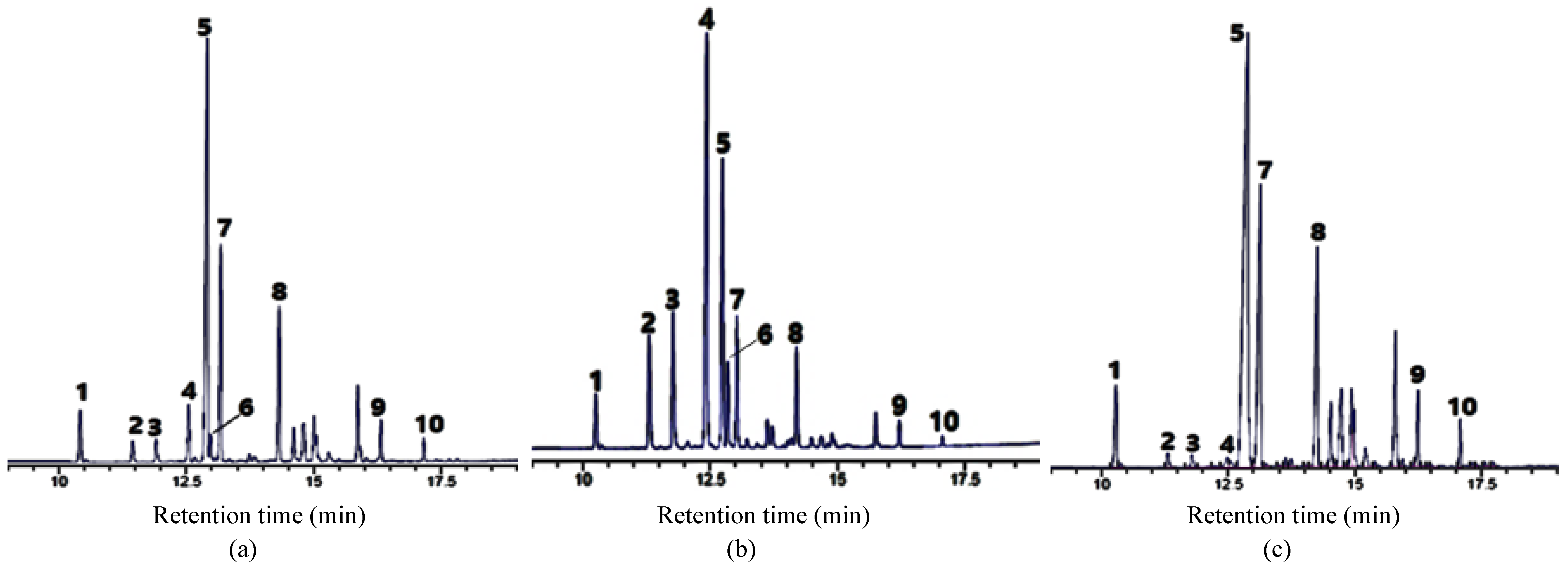

Figure 2a presents the gas chromatogram of the wash oil and the component names of the identified compounds. They were identified through analysis by adding a small amount of 10 standard reagents purchased from Sigma-Aldrich, Korea, as mentioned above. From the GC identification, we can see that the wash oil contains a relatively small amount of NC, but a large amount of bicyclic aromatic compounds (2MNA, 1-methylnaphthalene) and BP. The compositions of the six compounds quantified in this study are shown in

Table 2. Composition of feed (wash oil).

Component	Mass Fraction (-)
Naphthalene (NA, C10H8)	0.033
Quinoline (QU, C9H7N)	0.014
Iso-quinoline (IQU, C9H7N)	0.017
Indole (IN, C8H7N)	0.044
2-Methylnaphthalene (2MNA, C11H10)	0.335
Biphenyl (BP, C12H10)	0.087
Others	0.470

. The compositions of QU, IQU and IN, which are the components of which this study aims to reduce the concentrations, were about 1.4%, 1.7% and 4.4%, respectively.

3.2. Batch Equilibrium Extraction

3.2.1. Definition Equation

The distribution coefficient of component i obtained at the nth stage, (m_i)_n, is defined as:

(m_i)_n = (y_i)_n/(x_i)_n

(1)

where (y_i)_n and (x_i)_n, respectively, denote the mass fraction of component i in the extract phase and that in the raffinate phase recovered after the nth stage contact run.

The selectivity of component i in reference to 2MNA at the nth stage, (β_i,2MNA)_n, which is defined as the ratio of the distribution coefficient for component i to that for 2MNA, was calculated by Equation (2).

(β_i,2MNA)_n = (m_i)_n/(m_2MNA)_n

(2)

The residual rate of component i in the raffinate phase recovered from the nth stage (R_i)_n and residual rate of the raffinate phase (R_r)_n, respectively, are defined as:

(R_i)_n = R_n × (x_i)_n/{R₀ × (x_i)₀} × 100%

(3)

(R_r)_n = (R_n/R₀) × 100%

(4)

where R₀, R_n and (x_i)₀ refer to the mass of a raw material (wash oil), that of the raffinate recovered after the nth stage contact run, and the mass fraction of component i in a raw material (wash oil), respectively.

3.2.2. Review of Mass Balance and Reproducibility

As a result of calculating Equation (5) by substituting the measured values from this study to both sides of the mass balance equation, expressed as follows, the values of both sides were almost the same.

R_n−1 × (x_i)_n−1 − R_n × (x_i)_n = E_n × (y_i)_n − S_n × (y_i)₀

(5)

where S_n and (y_i)₀ represent the mass of the fresh solvent put into the nth stage and the mass fraction of component i, respectively. The values of (y_i)₀ for all components in this study are zero, regardless of the number of the equilibrium extraction. From this result, it was estimated that the measured values through the entire experiment in this study were very satisfactory. In addition, the experiments were replicated twice or three times under the same conditions to confirm the reproducibility of the measured value. The range of mass variation of component i in the raffinate phase or the extract phase was very good, within ±5%.

3.2.3. Confirmation of Equilibrium Arrival Time

To confirm the time of reaching the equilibrium, the raffinate phases and the extract phases recovered through contact (contact time: 12 h, 24 h, 72 h, 96 h) with a raw material and a solvent were analyzed. The compositions of the raffinate phase and the extract phase recovered through contact for more than 48 h were almost the same, regardless of the contact time. Therefore, the liquid–liquid contact time of this study was maintained at 72 h.

3.2.4. Reduction Performance

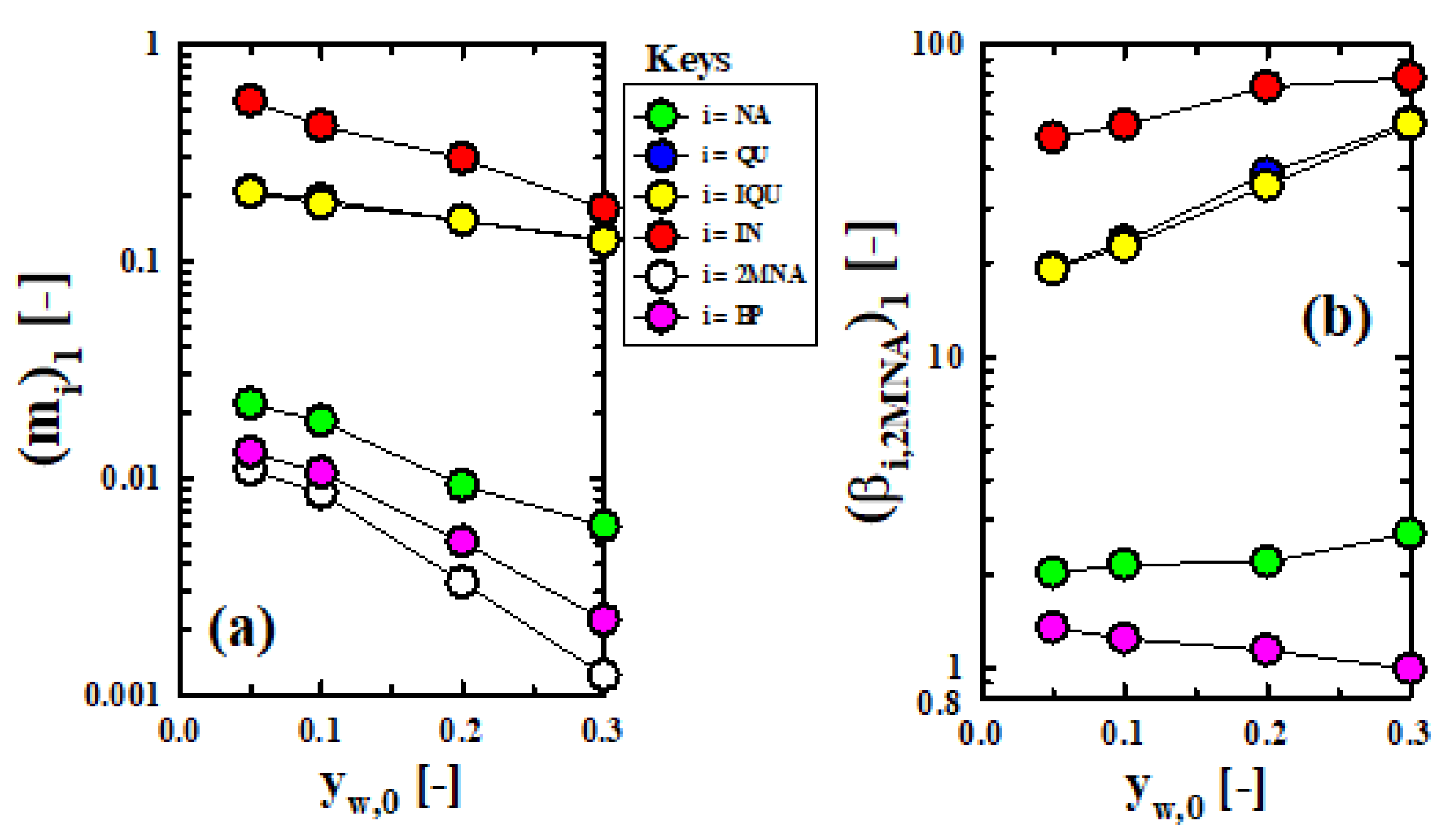

Figure 3a,b, respectively, represent the effects of y_w,0 on (m_i)₁ and (β_i,2MNA)₁ in the first stage (n = 1) under fixed conditions (S₁/R₀ = 1, T = 303 K, t = 72 h). Increasing y_w,0 resulted in decreasing (m_i)₁ because the polarity of an extract phase increases with an increase in its moisture. Therefore, (m_i)₁, accordingly, decreased sharply as y_w,0 increased. The (m_i)₁ (i = QU, IQU, IN) of three kinds of NC were much higher than those of NA, 2MNA and BP. This indicates that the polarities of three kinds of NC are much higher than those of the other components of the three kinds. As shown from the definition equation of (β_i,2MNA)₁ and the above-mentioned results of (m_i)₁, the (β_i,2MNA)₁ of three kinds of NC, inversely, increased with an increase in y_w,0. The values of (β_QU,2MNA)₁ and (β_IQU,2MNA)₁ were observed to be almost the same, and it was difficult to separate between those components. The sequence of (β_i,2MNA)₁ for the entire component of this study was IN > QU = IQU > NA > BP. In y_w,0 = 0.05~0.3, the ranges of (β_i,2MNA)₁ for QU, IQU and IN, which are the components of which this study aims to reduce the concentrations, were 19~57, 19~56, and 50~79, respectively.

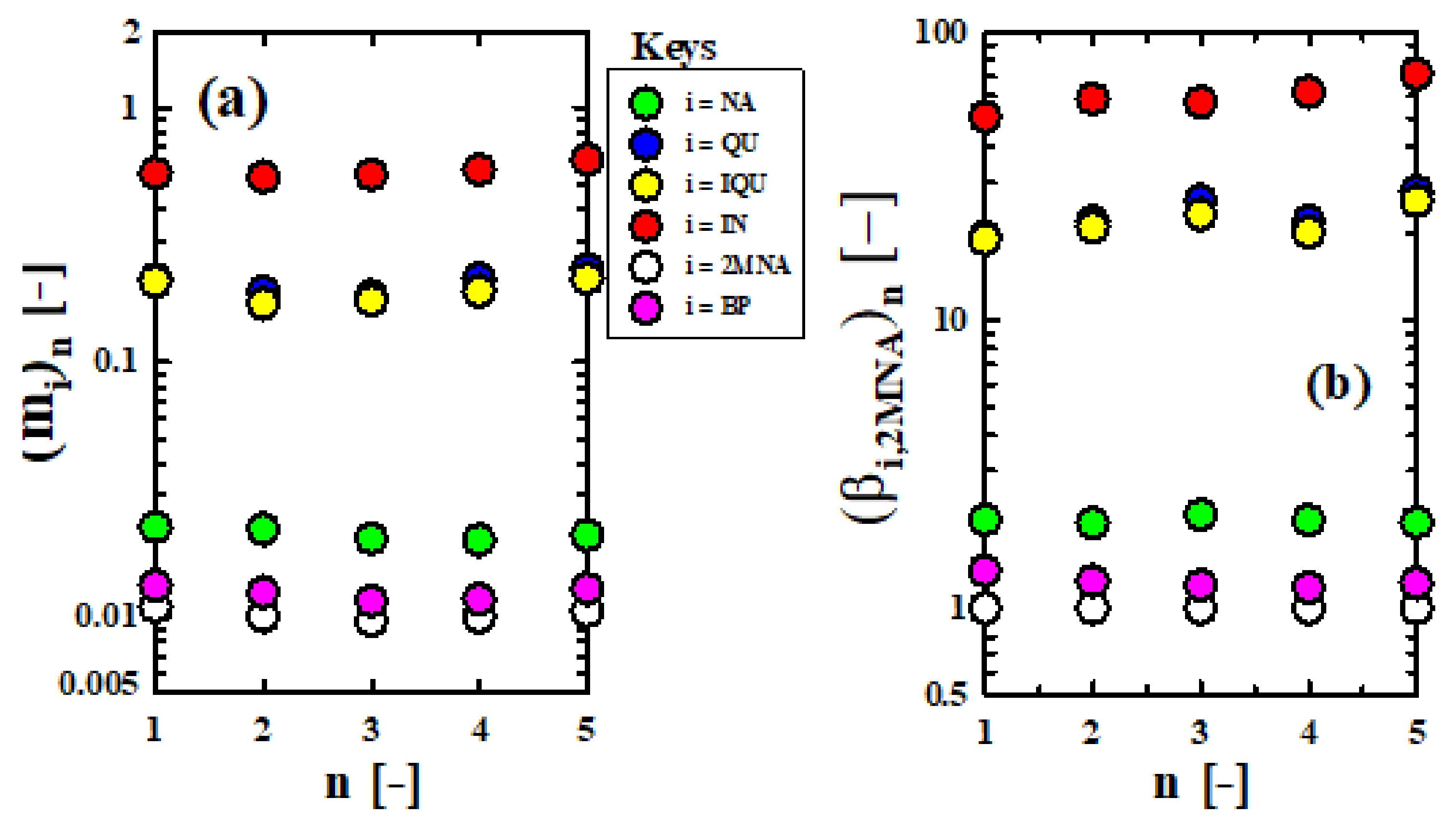

Figure 4a,b, respectively, show the changes in (m_i)_n and (β_i,2MNA)_n according to the number of equilibrium extractions obtained through the five-stage extraction performed under y_w,0 = 0.05, selected in this study considering the balance of (m_i)₁ and (β_i,2MNA)₁ for the NCs in Figure 3. Regardless of the number of equilibrium extractions, (m_i)_n in all of the components in this study showed almost the same value. Therefore, we could not recognize a change in (m_i)_n according to the number of equilibrium extractions. The sequence of (m_i)_n was IN > QU = IQU > NA > BP > 2MNA. The same as the above-mentioned tendency of (m_i)_n, the (β_i,2MNA)_n of three kinds of NC (QU, IQU, IN) was much greater than that of other the three kinds of compounds (NA, BP, 2MNA), and (β_QU,2MNA)_n and (β_IQU,2MNA)_n were almost the same. Through this, we could see that formamide extraction is effective in reducing NCs from the wash oil, but it is difficult to separate QU and IQU. The selectivity of QU, IQU and IN were about 21, 20 and 57, respectively, regardless of the number of equilibrium extractions. It was found that the formamide extraction method used in this study showed particularly high selectivity to IN among the NC components. The sequence of selectivity for all of the components of this study was the same as that of the above-mentioned (m_i)_n.

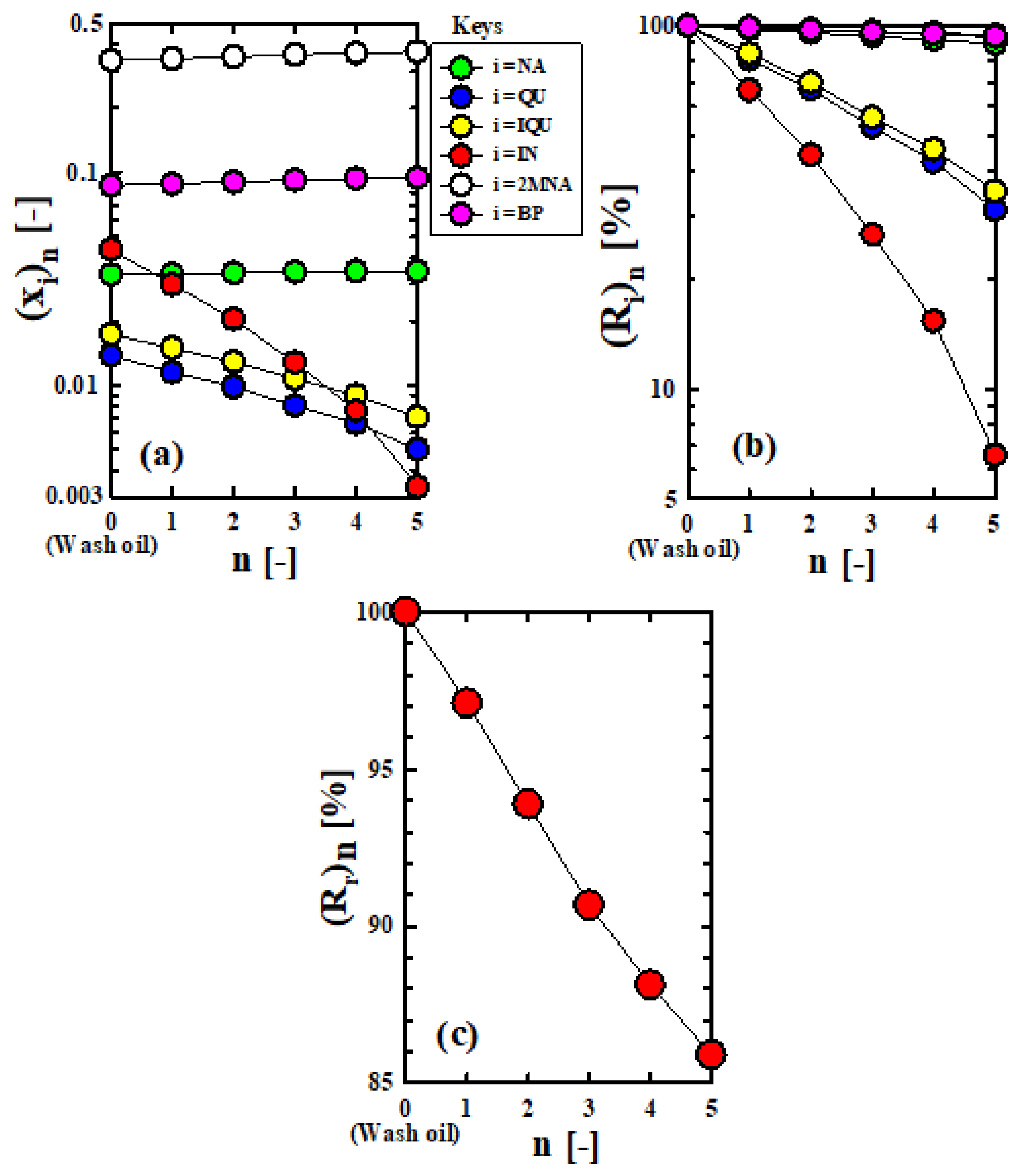

Figure 5a–c presents the changes in (x_i)_n, (R_i)_n and (R_r)_n according to the number of equilibrium extractions, respectively. The n = 0 shown in these figures refers to the wash oil used as a raw material in this study. As predicted by Figure 3a, three kinds of NC with large polarity are extracted into the extraction phase, and it can be seen that the (x_i)_n of three kinds of NC in raffinate phase decrease rapidly as the number of equilibrium extractions increases. Conversely, the other three components, aside from the three kinds of NC, showed a tendency to increase slightly as the number of equilibrium extractions increases. This is because the compositions of the three kinds of NC contained in the wash oil are very low, so even if a large amount of the NC with large polarity is extracted as the equilibrium extractions proceed, the composition change in components such as 2MNA in the raffinate phase is not significantly affected. At n = 5, the (x_i)_n of each NC, which are the target components for concentration reduction in this study, was significantly lower than that of each NC contained in the wash oil used as a raw material in this study. Through this, the effect of reducing NC in the wash oil by formamide extraction could be reconfirmed. Conversely, it can be seen from Figure 5b that the (R_i)_n of the three kinds of NC present in the raffinate oil decreases rapidly as the equilibrium extraction progresses, but the (R_i)_n of the other three kinds of components decreases very slowly. The (R_i)_n of QU, IQU and IN at n = 5 were about 31%, 35% and 6.6%, respectively. Considering the (R_i)_n of QU, IQU and IN obtained from a five-stage equilibrium, it is expected that the raffinate oil containing little amounts of NC will be recovered when the extraction operation is performed using a tower-type multistage apparatus under optimal extraction conditions. As the equilibrium extraction proceeds from Figure 5c, it can be seen that (R_r)_n decreases, indicating about 86% in n = 5. It was found in particular that the formamide extraction method, which has a very high selectivity for NC compared to other components, presented a very high residual rate of the product (raffinate oil) with improved quality.

3.2.5. Comparison of Gas Chromatogram

Figure 2b,c, respectively, show the gas chromatograms of a mixed extract phase (${{\displaystyle \sum }}_{n=1}^5{E}_n)$ and the raffinate phase (R₅) recovered from n = 5. When the gas chromatogram of the mixed extract phase in Figure 2b was compared with that of the wash oil in Figure 2a, the peak heights of four kinds of NC (peak numbers 2, 3, 4, 6) were considerably increased, but those of the other compounds were considerably decreased. The gas chromatogram of the raffinate phase (R₅) of Figure 2c was also very different from that of the wash oil. Four kinds of NC were extracted through a five-stage extraction, so that the peak height of each NC decreased, but the peak heights of other compounds were much higher. Through these gas chromatograms, it was possible to reconfirm the effect of formamide extraction on the reduction of NCs present in the wash oil.

When comprehensively considering the results of this study, as described above, the formamide extraction method is expected to be one of the most useful methods in reducing NCs in the wash oil.

3.2.6. Reduction Process of NC from Wash Oil

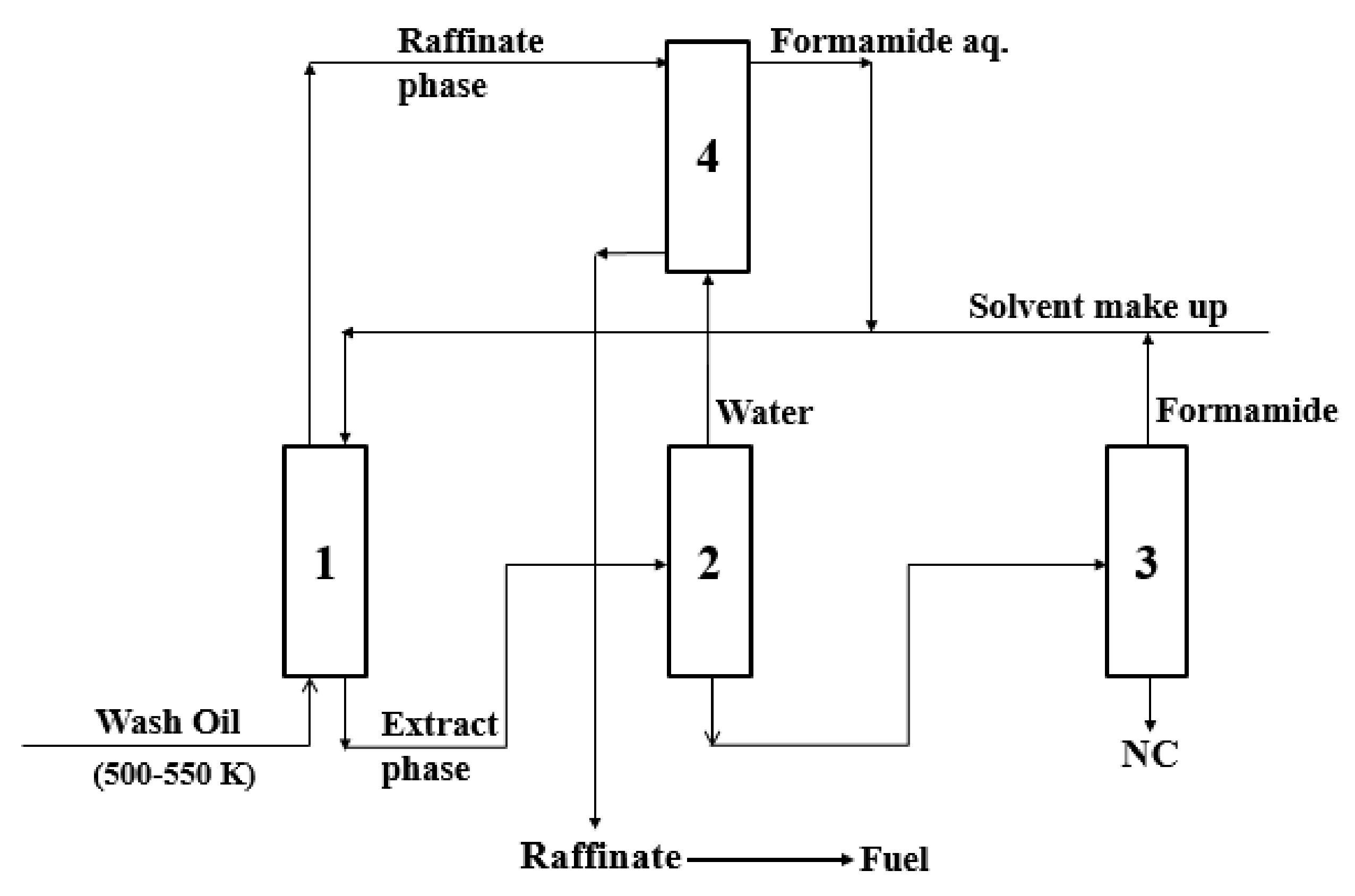

The process for the reduction of NCs from wash oil was investigated using the experimental results obtained from the formamide extraction [2]. The proposed process is composed of one extraction tower, one washing tower and two distillation towers, as shown in Figure 6. Tower 1 is an extraction column to separate NCs from all other compounds in the wash oil. Tower 2 is an atmospheric distillation column to remove water contained in the extract phase and tower 3 is a vacuum distillation column to separate formamide and the NC. Additionally, tower 4 is a washing column to remove the formamide present in the raffinate phase.

4. Conclusions

Until now, complex reaction extraction methods have been used to reduce NCs from a coal tar fraction, but today, the development of a simpler and more efficient reduction method is needed. From this perspective, this study experimentally performed a reduction of NCs contained in wash oil by applying a batch equilibrium extraction. The formamide extraction method, a quality improvement method of wash oil applied in this study, produced very effective results in reducing the NCs of wash oil, and it is expected to be an alternative to the complex reaction extraction methods that have been applied thus far.
