Review

Use of Black Soldier Fly Larvae for Food Waste Treatment and Energy Production in Asian Countries: A Review

1
Department of Environmental Engineering, Konkuk University, Seoul 05029, Korea
2
Department of Civil & Environmental Engineering, Konkuk University, Seoul 05029, Korea
*
Author to whom correspondence should be addressed.
Processes 2021, 9(1), 161; https://doi.org/10.3390/pr9010161
Received: 24 December 2020 / Revised: 11 January 2021 / Accepted: 12 January 2021 / Published: 15 January 2021

Abstract

:
Food waste accounts for a substantial portion of the organic waste generated at an increasing rate worldwide. Organic waste, including food waste, is largely subjected to landfill disposal, incineration, and anaerobic digestion; however, more sustainable methods are needed for treating it. Treatment of organic waste using black soldier fly (Hermetia illucens) larvae is an environmentally safe and cost-efficient method that has been attracting increasing attention worldwide. Black soldier fly decomposes various types of organic waste and converts them into high-value biomasses such as oils and proteins. This review introduces the trends in research related to the treatment of organic waste by black soldier fly (Hermetia illucens) larvae (BSFL) and their bioconversion efficiencies in Asian countries. Perspectives on the growth of BSFL during waste treatment operation and optimal rearing conditions are provided. The trends in studies related to the application of BSFL as biofuel and animal feed are also discussed. Such use of BSFL would be beneficial in Asia, especially in countries where the technology for processing organic waste is not readily available. This review may provide further directions of investigations including culture techniques for industrial scale applications of BSFL in food waste treatment and resource production in Asian countries.

1. Introduction

1.1. Trends in Food Waste Generation

The amount of consumed food is increasing exponentially owing to the improvement in living standards and the growth of the human population. Accordingly, the quantity of food waste is increasing steadily and causing a wide range of social problems. The Food and Agriculture Organization (FAO) defined food waste as food that is discarded, generally at retail and consumption stages [1]. In Korea, food waste is defined as the waste generated or dumped during the production, distribution, processing, cooking, storage, and consumption of food and food ingredients.

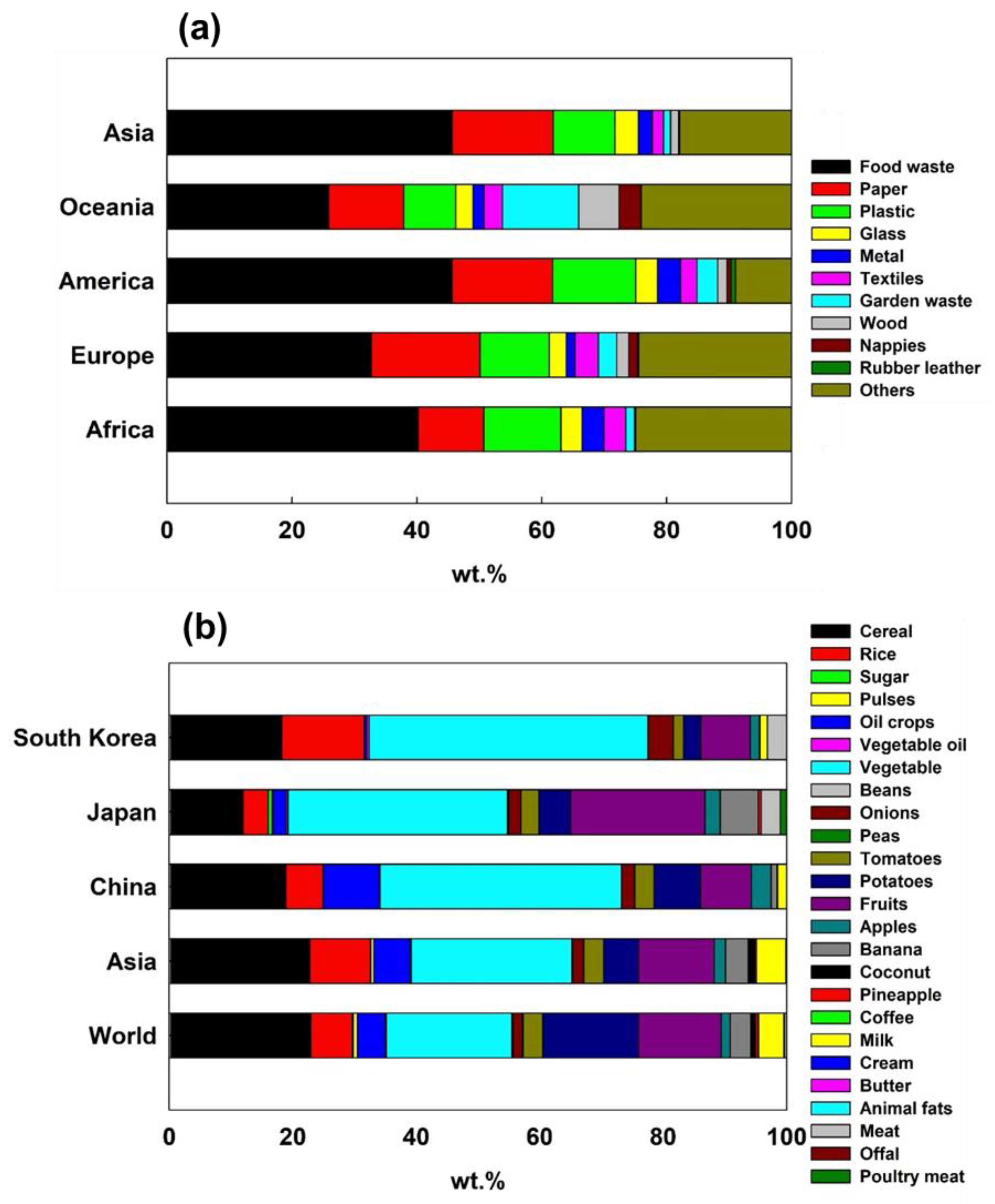

More than 2.1 billion tons of municipal solid waste is generated worldwide each year, but only about 16% is recycled and more than 46% is discarded [2]. Food waste accounts for approximately 25 to 45% of municipal solid waste, which also consists of plastic, metal, glass, textile, wood, rubber, leather, and paper waste (Figure 1) [3,4]. The increase in food waste leads to an imbalance in food systems around the world, and in the case of toxic waste, it can adversely affect human health, biodiversity, and ecosystems [2].
The amount of food waste is expected to increase over the next 25 years, mainly owing to the growing economies and populations of Asian countries. For example, the amount of food waste in Asian countries could increase from 278 million to 416 million tons between 2005 and 2025 [5]. The typical food waste that is disposed of in the Asia-Pacific region and around the world is summarized in Figure 1. As a country’s income level increases, the proportion of organic waste in solid waste decreases; in low-income countries the percentage of organic waste is 64%, but this value is reduced to 28% in high-income countries [6]. Thus, effective treatment technologies are required to reduce the environmental and economic burdens of organic waste.

1.2. Insect-Based Food Waste Treatment Methods

Insect-based treatment of food waste is being increasingly recognized as an environmentally friendly method for recycling resources, and it also has the advantage of low installation costs. Additionally, such insects can be an excellent protein source through a certain procedure of extraction [8,9]. However, it is very important to maintain suitable conditions, such as feed components, adequate temperature, humidity, and acidity for the insects to survive and thrive [10]. Among the insects, food waste treatment using black soldier fly (Hermetia illucens) larvae (BSFL) is gaining significant attention [11]. BSF belongs to the family Diptera of the order Stratiomyidae and inhabits tropical and temperate regions worldwide [12]. The larvae breakdown various organic wastes using their strong mouth parts and powerful digestive enzymes [13,14] and effectively decompose organic wastes such as the debris of rotten animals and plants [12]. Under ideal conditions of food supply, temperature, and humidity, BSFL can pupate within 2 weeks. The benefits of BSFL composting are that it treats organic waste rapidly and reduces bacterial growth and odor [14]. In addition, BSFL compete with the housefly (Musca domestica), a major mediator of disease, and may thus suppress it [15]. The BSFL also contain natural antibiotics such as defensin-like peptide 4 (DLP4), where defensin is an antibacterial peptide secreted by fungi [16], can potentially modify harmful microorganisms in manure and food waste as well as reduce the abundance of Escherichia coli 0157:H7 and Salmonella enterica [17].
The larvae and prepupae of BSF is a useful animal feed source because it is composed of protein and fat as high as 40% and 30%, respectively [18,19]. Additionally, it is not harmful to humans; for example, it does not feed on grain, invade human habitats, or carry pests and diseases [20]. Because many types of organic wastes can be substrates for BSFL, BSFL-mediated waste treatment is easy to operate, and does not require a large area. Overall, there are many advantages to using the BSFL for waste treatment in terms of the environment, economy, and industrial use [12].

2. Treatment of Organic Waste Including Food Waste Using BSFL

Various substrates can be treated using BSFL. Livestock excreta do not decompose quickly and effectively and pollute the environment if left untreated [20]. Earlier methods for treating livestock manure mainly included high temperature composting; however, manure composting using BSFL began to garner attention starting in the early 1970s. Feces treatment using BSFL was suggested as a strategy to improve hygiene in developing countries as BSFL effectively decompose the feces while absorbing it into biomass [21]. When the feces of chicken, pig, and cow were investigated as suitable substrates for BSFL [22], the survival rate of the larvae was 80% or more in all feces and the nitrogen and phosphorus contents were reduced in all feces. Other studies also reported that BSFL reduce nutrient levels in cow manure, specifically 30–50% of nitrogen and 61–70% of phosphorus [23]. In addition, the activity of E. coli and number of Salmonella species in chicken manure was reduced when comparing feces with and without BSFL treatment [15]. Fruits and vegetables are also good substrates for BSFL [24]. Effects of fruits, vegetables, and their mixtures on larval productivity and body composition have been studied, and larval survival rate, pupa weight, and adult emergence rate were the highest in BSFL fed with the fruit and vegetable mix. The protein content was also higher in BSFL fed on the fruit and vegetable mix when compared to that of BSFL fed on fruit or vegetable alone [24].

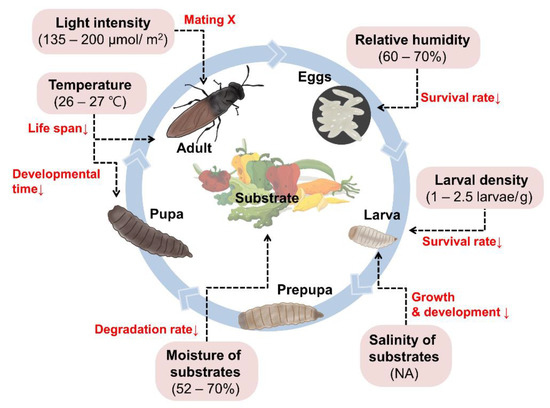

2.1. Factors Affecting BSFL Growth and Food Waste Treatment Efficiency

The wide regional distribution of BSFL suggests that they can resist a wide range of environmental conditions; however, optimal conditions do exist for cultivating BSFL as shown in Figure 2. Many Asian countries have appropriate natural conditions for rearing BSF. The optimal temperature and relative humidity for rearing BSF are 26–27 °C and 60–70%, respectively [25]. The optimal moisture content of substrates is 52–70%, similar to the relative humidity [25] and the optimal light intensity is 135–200 µmol/m2 [26], which is highly dependent on seasonal changes and on the weather. Considering that many Asian countries, including those in southeast Asia, have high temperatures and humidity, industries related to BSF cultivation have high potential if implemented in such areas. Larval density should also be considered when decomposing food waste using BSFL. Competition between larvae changes the behavior of the colony and adversely affects the larval survival rate [14]. Therefore, when larvae are cultivated, the larval density should be controlled according to substrate conditions. It was reported that the most effective ratio of the number of larvae to gram of substrate for cultivating BSFL is 2:1 [14] (Figure 2).
During the treatment of organic wastes, the growth of BSFL can be monitored by analyzing aspects of larval development. Larval development time, final larval weight, growth rate, and larval survival rate is reported to be 15–36.7 days, 154–271 mg, 2.3–37 mg/d, and 85.6–97.1%, respectively [14,23,27,28,29]. The growth of BSFL can vary depending on the types of substrates and rearing conditions. For example, the survival rate of BSFL were 87%, 90%, and 93% when fed with food waste, fruits & vegetables, and poultry feed, respectively. However, when fed with digested sludge, the survival rate was as low as 39% [11].

2.2. Feed Characteristics

Feeding is a decisive factor affecting the development of BSFL, and nutrition during the larval period is known to influence adult development. Food quality affects the larval size, survival rate, adult size, and fertility of BSF [33,34]. For this reason, the pretreatment of the substrate is key for BSFL cultivation. For instance, food processing, such as heat treatment and crushing, changes the structure of the substrate so that BSFL improve their digestion of the food waste [14]. The growth of BSF is also greatly influenced by the moisture content of the substrate [35], and excessive moisture decreases the degradation rate of the substrate [32].
A few studies have been carried out to investigate the effects of the salt concentration of the substrate on BSFL. The growth rate and development of the larvae and decomposition rate of the substrate were lower when food waste containing NaCl was fed to BSFL than when the food waste not containing NaCl was fed. This was because NaCl inhibited larval growth [13], as reported by a study in which 3% NaCl in the substrate inhibited the growth of BSFL [36] (Figure 2).

2.3. Environmental Conditions

BSF is a eurythermal insect that can adapt to various temperatures (15–47 °C), despite being sensitive to temperature [37]. Temperature and humidity have a large influence on the development, mating, and spawning of BSF [38]. The larval development, adult emergence, and survival rates of BSFL reared on brewer’s spent grain and cow dung were investigated, and the optimum temperature range was 25–30 °C. At temperatures higher than 30 °C, the lifespan of the adults decreased. Studies have also reported that if the temperature and humidity are not properly controlled, they may seriously affect the hatching of eggs and development of BSFL [30,37]. Specifically, it was reported that BSFL grown at 27 °C showed a slower development rate than BSFL grown at 30 °C. Additionally, when the humidity was low, the egg membrane dehydrated, and the survival rate of the egg decreased. The effect of humidity on the egg hatching and adult emergence of BSF was investigated at 25, 40, 50, 60, and 70% relative humidity, and the higher the relative humidity, the higher the hatching rate and emergence of the adults and the slower the development time [30] (Figure 2).
Light is needed for BSF to mate. As BSF cannot mate in winter owing to the weak intensity of light, artificial light is required [37]. Fluorescent lamps, halogen lamps, light-emitting diode (LED) lamps, and oxo bulbs can be used as sources of artificial light, but when rare earth lamps were used, mating did not occur [31].

3. Food Waste Treatment Using BSFL in Asian Countries

Various studies have been conducted in Asian countries regarding the use of BSF in food waste treatment and the industries including biodiesel production (Table 1). Owing to its ease of operation and cost-effectiveness, BSFL-mediated waste treatment can be beneficial in Asian countries where treatment technology and capital are insufficient. In this section, we summarize the major results of studies that have been conducted on the use of BSFL in Asian countries. This review focuses mainly on studies implemented in Asian countries including China, Korea, Malaysia, Indonesia, Vietnam, Taiwan, and Japan. Each country was selected according to the scale of food waste production, population, and number of studies on BSFL.

3.1. China

China is a country inhabited by more than 1.4 billion people, with an annual sewage production of 40 million tons [39]. Many studies have been conducted in China on the disposal of food waste using BSFL. The conversion rates of carbon and nitrogen and GHG emissions during food waste disposal using BSFL were investigated [40], and it was shown that the pH of food waste was a decisive factor influencing treatment. Specifically, the pH of food waste showed a negative correlation with the amount of CO2 generated but a positive correlation with NH3. These results were attributed to most CO2 being transformed into carbonate under high pH. In the case of NH3, high pH accelerates the degradation of organic nitrogen and NH4+ into NH3. Additionally, it was reported that food waste treatment using BSFL emitted lower concentrations of GHG (e.g., CH4 and N2O) than open composting and the higher the pH of food waste, the more pronounced the results [40]. It was reported that the amount of CH4 and N2O emitted from waste treatment process using BSFL were 2.4 ± 0.4 mg/kg and 1.0±0.4 mg/kg, respectively, while during composting 1,500 mg/kg and 1,200 mg/kg of CH4 and N2O, respectively, were emitted. Compared to open composting, BSFL-mediated waste treatment reduces anaerobes, such as methanogens and denitrifiers, owing to the air circulation provided by BSFL, preventing the generation of CH4 and N2O [40]. In addition, the gut microbial communities of BSFL hardly produce CH4 and N2O [41].
In China, as the population increases, the demand for milk and meat is gradually increasing [56], leading to an increase in livestock breeding. One study evaluated the conversion rate of organic matter and VFAs as well as fecal soil performance during the composting of different livestock feces using BSFL [56]. Chicken, pig, and cow feces were inoculated with BSFL and then composted for 9 days. Composting using BSFL reduced the organic matter and nitrogen by 20.3–22.2% and 6.1–14.4%, respectively, and accumulated VFAs by 25.6–80.1%. Thus, composting using BSFL is an effective method in developing countries such as China as it increases feces maturity and the quality of the products obtained from composting [56].
In China, attempts have been made to produce biodiesel from rice straw and restaurant solid waste using BSF as well as microorganisms [42], and it was found that 43.8 g of biodiesel could be obtained from 2000 BSFL grown on a mixture of rice straw and restaurant solid waste. The obtained biodiesel met the standard EN 14214, published by the European Committee for Standardization, that describes the requirements and test methods regarding fatty acid methyl esters (FAME) (Table 4). The authors concluded that the conversion of lignocellulose-rich materials into biodiesel using microorganisms and BSFL is an environmentally safe waste treatment method. Biodiesel production using BSFL has also been attempted by another research group [57]. Specifically, crude fat was extracted from BSFL grown for 10 days on organic waste and converted into biodiesel, and 36 g, 58 g, and 91 g of biodiesel were obtained from 1000 BSFL grown on cattle, pig, and chicken manure, respectively. These findings suggest that BSFL can replace expensive edible biomasses in biodiesel production (Table 4).
In China, where there are no strict restrictions on the use of insects as animal feed, many studies have been implemented on the use of BSFL for animal feed. In one study, the growth rate and gut health of mirror carp (Cyprinus carpio L.) fed with different concentrations of BSFL for 8 weeks were investigated [58]. No differences were found between the growth rates of mirror carp fed with or not fed with BSFL, but the gut length of the fish fed with 100% BSFL was longer than that of the fish not fed with BSFL. Thus, it was reported that BSFL feed (less than 131 g/kg) did not adversely affect the growth rate and gut health of the mirror carp [58]. In addition, it was confirmed that a small amount of BSFL feed lowered the lipid content of the fish and increased its antioxidant levels. Another study analyzed the body composition, blood metabolites, and tissues of the liver and intestines of sea bass (Lateolabrax japonicus) fed with BSFL and/or fishmeal for 56 days [59]. There were no differences in the growth rate, body index, liver and intestinal tissues, and antioxidant and immunity levels of the intestine between sea bass fed with BSFL or fishmeal.

3.2. Republic of Korea

In Korea, studies have mainly focused on the molecular biology of BSF and the antimicrobial activity of substances extracted from it. When ceropin-like peptide 1 (CLP1) was extracted from the blood lymph of BSF and purified, it showed antibacterial activity against Gram-negative bacteria [43]. In another study, peptides similar to defensin, an antibacterial peptide secreted by fungi, were isolated from BSF [44]. These defensin-like peptides (DLP3 and DLP4) showed antibacterial activity against Gram-positive bacteria. The biochemical properties of the digestive enzymes secreted by the salivary gland and intestines of black soldier fly have also been analyzed [45]. The intestinal extracts of black soldier fly showed trypsin-like protease activity, and higher activities of leucine arylamidase, α-galactosidase, β-galactosidase, α-mannosidase, and α-fucosidase than those reported for the intestinal extracts of housefly. Thus, the improved BSF-mediated decomposition of organic matter such as food waste compared to other species of flies appears to be attributed to its higher amylase, lipase, and protease activities [45].
Furthermore, the defatting process required when using BSFL as feed was tested in Korea using hot water and supercritical CO2 extraction [46]. When BSFL defatting was performed using hot water, the fat content in BSFL was reduced to 16%. In contrast, when the supercritical CO2 extraction method was used, the fat content in BSFL was reduced to 5% or less. Therefore, it was concluded that the supercritical CO2 extraction method may be a suitable method for the defatting of BSFL for its use as feed [46].

3.3. Malaysia

Among the various studies conducted on BSF in Malaysia, one study used locally produced coconut fruit as a substrate for BSFL and analyzed the lipid and protein content of the larvae grown on fermented coconut waste [28]. The growth rate was the highest in BSFL grown on coconut waste fermented for 4 weeks, and the highest lipid content was 48%. In contrast, BSFL grown on unfermented coconut waste showed the lowest lipid content (33%). In addition, the protein content of BSFL increased when the coconut waste was fermented for a longer duration of time. Another study attempted to increase the lipid and protein content of BSFL by feeding larvae with a mixture of coconut endosperm waste and tofu [60]. When fed with a 3:2 ratio of these components, the highest lipid content of BSFL was achieved (58%), and the protein content was 21%.
Biodiesel production using BSFL was also studied in Malaysia. Lipids were extracted from 20-day-old BSFL grown on kitchen waste and successfully converted into biodiesel, which was confirmed using Fourier-transform infrared spectroscopy (FT-IR) [47]. The potential of using BSFL for biodiesel production was also determined [48], and BSFL had a lipid content of 32% and contained 84% FAME when esterified. Therefore, it was concluded that the production of biodiesel using BSFL could be an effective strategy to mitigate the food shortages in Malaysia because the FAME content of BSFL is similar to the content of FAME extracted from plants such as coconut or palm oil.

3.4. Indonesia

About 60% of the total waste generated in Indonesia is organic waste [49]. Vegetables and fruits are representative organic waste products and the fertility and survival rates of BSF grown on vegetable and fruit wastes were analyzed [49]. The low survival rate of BSFL was attributed to the high moisture content of the vegetable and fruit wastes. In another study, organic matter was treated with BSFL in the Dayeuhkolot Region near Citarium River [61], and the organic matter was reduced by 56%. The growth rate, development time, survival rate, and nutritional composition of BSFL fed with the feces of horses, sheep, and mixtures of these feces with vegetables were also analyzed [29], and it was shown that the BSFL fed with the mixture of horse feces and vegetables had the shortest development time and highest survival rate, fertility rate, and protein content. Therefore, it was suggested that to increase the growth rate and protein content of BSFL, it is necessary to add vegetables to animal feces.
Similar to the studies conducted in Malaysia, those in Indonesia attempted to cultivate BSFL using local products. In Indonesia, various types of organic waste are generated from agricultural and residential activities, and plant-based waste accounts for a large proportion of the total waste produced. The Philippine Tung tree, an evergreen tree widely cultivated for timber or medicine in Indonesia, has a relatively high oil content of 37.6–39.2% and protein content of 14.9–28.2% [50]. The protein and oil content of BSFL fed with the Philippine Tung tree was 45% and 27%, respectively, suggesting that it is a suitable substrate for BSFL. The effects of three other plant-based organic wastes produced in Indonesia, namely horse excrement, vegetable waste, and tofu dreg, on the growth of BSFL were also investigated [62], and all were reported to be suitable for cultivating BSFL.
Protein hydrolysate, which is a mixture of peptides and amino acids produced during proteolysis, exhibits various biological activities, including antioxidant and antibacterial activities, and it has numerous industrial applications. In Indonesia, an attempt was made to obtain protein hydrolysate by hydrolyzing BSF with the enzyme bromelain [51]. The protein hydrolysate produced from BSF consisted of 8.0% lysine, 7.7% leucine, and 7.2% valine, and it exhibited antioxidant activity by scavenging diphenylpicryhydrazyl (DPPH) free radicals.

3.5. Other Asian Countries

In Vietnam and Taiwan, several studies have been conducted on the production of biodiesel using BSFL. In Vietnam, the fatty acid composition and physicochemical properties of oil extracted from BSFL were reported [54]. The content of lauric acid, linoleic acid, and linolenic acid extracted and purified from BSFL was 28.8%, 11.1% and 0.4%, respectively. The viscosity, the free fatty acid value, the acid value, the saponification value, the iodine value, and the peroxide index of the refined oil were 96 ± 0.14 cP, 0.45 ± 0.017%, 0.9 ± 0.043 mg KOH g−1, 215.78 mg KOH g−1, 53.7 g I2/100 g, and 133 mEq·kg−1, respectively. In another study, transesterification was conducted using solvents including methanol to produce biodiesel from BSFL [63]. Among the solvents used for transesterification, n-hexane showed 14.5 times higher biodiesel productivity compared to the process in which no solvent was used, and it was, therefore, identified as the most effective solvent for transesterification. The highest biodiesel yield of 94% was achieved when n-hexane and methanol were mixed at a volume ratio of 1:2. Thus, transesterification using n-hexane may be promising for lowering the costs of biodiesel production using BSFL.
In Taiwan, an enzyme-based method was proposed for the production of biodiesel from BSFL because conventional methods require a large amount of extraction solvent and a long extraction time [55]. Different proteases were used to extract biodiesel from BSFL before hexane extraction. Among the enzymes used, lipid yield was 2.2 times higher when Protamex® was used than when the enzyme was not used, and this was found to be an effective pretreatment method for biodiesel production using BSFL. The extracted biodiesel met the American Society for Testing and Materials specification D6751 and European standard EN 14214. Based on these findings, it was suggested that enzymatic extraction could be an effective method for extracting lipids from BSFL.
In Taiwan, polyhydroxyalkanoate nanofibers showing antibacterial activity and cytocompatibility were produced from the pupa shells of BSF [64]. Specifically, after inoculating men’s foreskin fibroblasts with those nanofibers, the cells proliferated and further inhibited the growth of the bacteria E. coli and Staphylococcus aureus. These results show the potential for the application of this nanofiber to medical materials such as bioprotective materials.
In Japan, it was investigated whether BSFL fed on food waste could replace soybean meal and oil as food for hens [52]. There was no difference in food intake and spawning rate between hens fed on BSFL and hens fed on soybean meal and oil. The study also found that the eggshells of hens fed on BSFL were thicker than those of hens fed on soybean meal and oil, and the eggs were heavier.
Another study in Japan investigated the effect of light sources in BSFL rearing. One hundred BSF adults were incubated under LED lights and sunlight [53]. More fertilized eggs were obtained from BSF adults treated with sunlight, but the spawning rate and spawning cycle were similar for both treatments. Additionally, when BSF were fed with a mixture of water and sugar, the lifespan of the adult females and males tripled and doubled, respectively, compared to that of adults fed with water only. Thus, it was concluded that feeding BSF with water and sugar under LED light conditions was an effective strategy for its incubation.

4. Application of BSFL after Food Waste Treatment

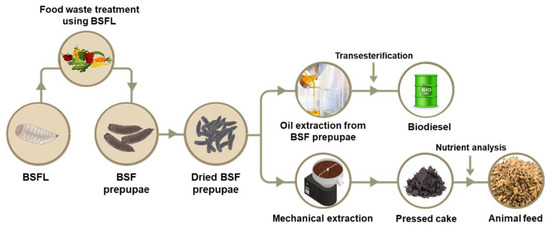

Throughout the process of food waste treatment using BSFL, the volume of waste is reduced as it is utilized as a substrate. When BSFL ingest substrates for their growth, the substrates are converted into nutritional compositions of BSFL. Such bioconversion process leads to the production of larval biomass, and this can be utilized for further applications in the field of waste valorization [65]. Since the production of well-grown BSFL biomass is the requisite for high-quality animal feed and biodiesel, feeding and the resulting growth of BSFL is very important [66,67] (Figure 3).
The waste reduction efficiencies are strongly related to the amount of biomass production and are also related to the protein conversion. As summarized in Table 2, previous studies have analyzed the substrate reduction ratio, biomass conversion ratio, and protein conversion ratio. Generally, the substrate reduction ratio and biomass conversion ratio are shown to be approximately 50% and 13%, respectively; however, the protein conversion ratio varies between studies likely due to the difference in substrate source.

4.1. BSFL for Animal Feed

Although the body composition of BSFL significantly differs depending on the substrate (Table 3), the high protein content of BSFL make them a good nutrition source of animal feed [46,69]. In fact, the crude protein content of BSFL after defatting was 60% [69]. However, since the characteristics of substrates strongly affect the composition of BSFL, it is important to identify the influences of substrates to obtain BSFL biomass with suitable nutritional composition [70]. For example, one study reported that the protein content of BSFL fed with various organic wastes was between 39 to 44%, while the amino acid components were more affected by the substrate type [11]. Since the protein quality can be mediated by the composition of amino acids, it is also important to consider the profiles of amino acids [71]. Another point is that the protein content shows a variation during the life cycle of BSF [72]. The protein content gradually increases up to approximately 30% until they become a prepupa and decreases after they grow into adult [72].
To produce animal feeds from BSFL biomass, defatting is required through separate processing, and this can lead to financial losses associated with the costs of machinery and facilities and the time required for defatting. However, partial defatting is simple enough to achieve in developing countries [73], and thus it would still be possible to use BSFL as animal feed in Asian countries (Figure 3).

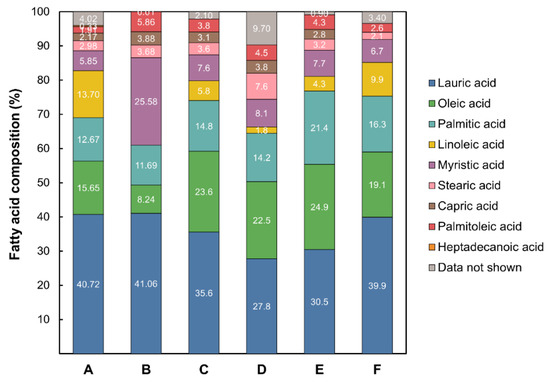

The fatty acids extracted from BSFL were analyzed for their composition in previous studies conducted in Asian countries (Figure 4). In these studies, organic wastes including food waste, livestock manure, and fermented wheat bran were fed to BSFL for 7–20 days, and fatty acids were extracted from BSFL. Fatty acid analysis was mainly conducted by gas chromatography with flame ionization detector or mass spectrometry. The main fatty acids extracted from BSFL were saturated fatty acid methyl esters such as lauric acid, palmitic acid, and mysristic acid. Lauric acid was the most dominant fatty acid of BSFL, and after ingestion, this is reported to be converted into monolaurin which has antiviral, antibacterial, and antiprotozoal properties [74,75]. The weight of BSFL and lauric acid content is positively correlated, and this suggests that lauric acid is an important determinant of larval weight [74]. Moreover, the results of BSFL fatty acid analysis show that their fatty acids are useful in the food industry since their content is similar to that of palm oil and coconut fat [76].
In addition to fatty acid composition, mineral contents are also an important aspect to be considered when using BSFL as animal feed. A higher manganese, iron, zinc, copper, phosphorus, and calcium content in BSFL compared to that in other insect larvae was reported [77]. In particular, BSFL had a higher calcium content than fishmeal [77], which make them advantageous for use as feed for livestock.
Several studies have been conducted to determine the safety of BSFL used as feed [77,78,79]. Cadmium, lead, and zinc were shown to have no significant effects on the physiology of BSFL, but cadmium was accumulated in the body [78]. Another study reported that heavy metals had an adverse effect on development, especially cadmium and lead, which accumulated in BSFL at high concentrations. In contrast, fungal toxins and pesticides did not affect the development or accumulate in BSFL [79]. In another study, it was shown that cadmium and chromium accumulated in the larvae and prepupae [80]. Thus, monitoring heavy metals such as cadmium and lead in BSFL and in the substrate is necessary before using BSFL as feed.

4.2. BSFL for Biodiesel Feedstock

Biodiesel production from BSFL in Asian countries can be an excellent alternative to that using edible plant materials. The process for biodiesel production using BSFL is shown in Figure 3. After defatting the BSFL, it is possible to use the fat as biodiesel. Compared to the oil crops (e.g., palm oil or sugar cane) currently used as sources of biodiesel, BSF has a shorter life cycle, exhibits better fertility, and requires less land for production.
The quality of the lipid produced by BSFL is strongly related to the quality of biodiesel [71]. As shown in Figure 4, the main fatty acid methyl esters in BSFL such as lauric acid, palmitic acid, mysristic acid were comparable to that of conventional biodiesel [57,63]. Additionally, the physicochemical properties such as density, viscosity, flash point and cetane index were similar [57,63], and also were consistent with the European standard EN 14,214 [42] (Table 4). According to the previous study, most insects had higher content of unsaturated fatty acid than saturated fatty acid [81]. On the other hand, BSFL-based biodiesel has higher content of saturated fatty acid than unsaturated fatty acid, and thus the oxidation stability, which is related to the storage of biodiesel and sensitivity upon exposure to the air, is comparable to conventional biodiesel [82]. Due to such oxidation stability and low viscosity, BSFL-biodiesel is considered to be high-quality biodiesel [74]. BSFL store the energy in the last cycle of their life in the form of saturated fatty acids because adult BSFL does not feed [74], and this explains their oxidation stability.
Although BSFL have a high lipid content, they are not used for food in many Asian countries and thus can be used as a substitute for sugar cane and corn in biodiesel production, thereby overcoming the ethical concerns about food shortages in developing countries. However, future research is needed on the practical use of BSFL for biodiesel production, the development of processes including extraction and purification, and the mass culture technology of BSFL.

4.3. Economic, Environmental, and Social Aspects of BSFL-Based Resources

Although there are many studies on life cycle assessment (LCA) in the process of bioconversion of insects, only a few studies on BSFL have been conducted [83]. However, in the context of waste valorization, applications such as biodiesel and food industry have high potential due to the advantages of BSFL mentioned earlier. Therefore, more studies about LCA evaluation on BSFL is needed. Previous studies have found that the process of bioconversion of BSFL has less environmental impact than conversion from biomass of other animal sources such as fishmeal and chicken meat [84,85]. The process of biodiesel production based on BSFL reduced CO2 net emission compared to conventional composting using nitrogen fertilizer [86] and lowered the global warming potential index [83].
Public acceptance will be crucial to further increase the use of eco-friendly BSFL in the food industry. When comparing the flavor and meat quality of livestock fed with conventional feed and feed containing BSFL, the difference in odor, flavor, and texture was not significant [87]. Additionally, when comparing the composition of meat fed BSFL with the control group, it was confirmed that the contents of water, protein, lipids, and ash were similar [88]. Consequently, BSFL can replace soybean oil currently used for source of fat [89,90]. In addition, sausages containing BSFL and general sausages did not have different nutrients, and factors that determine tastes such as texture and gumminess were also not different [91].
Nevertheless, the consumption of BSFL may be poorly accepted by the public due to doubts about its safety [73]. However, most of the microorganisms that may exist in BSFL are removed during heating step such as boiling [92]. In addition, although intake patterns are different, insects such as mealworms are already used as food in Asia and Europe [93]. For the food shortage and sustainable development arising from the increasing population, the public awareness of the use of BSFL as food needs to be improved.

5. Conclusions

Food waste treatment using BSFL have gained great attention due to their advantages such as sustainability and possible application of BSFL-derived resources. Treatment of food waste via BSFL can contribute greatly to reducing many environmental problems such as GHG emission and the generation of harmful substances associated with existing disposal methods including landfills and incineration. In addition, BSFL can be used to produce valuable products such as oils and proteins. Through several steps of manufacturing process, high-quality biodiesel can be produced from BSFL that bioconverted food waste. Moreover, BSFL can be applied as animal feed since they have nutritional values that are comparable to existing animal feeds. Considering that the cultivation of BSFL is greatly influenced by abiotic factors such as light, temperature, and salinity, the development of culture technology is essential the economic efficiency of BSFL applications in Asian countries. Cultivating BSFL in Asian countries with adequate light and a mild climate would enable small businesses to generate high returns without high investment. As so, food waste disposal using BSFL would be a desirable method to implement in Asia where it is difficult to secure the technology required to process organic waste. Industrial applications of BSFL can be promoted in Asian countries through further investigations on food waste treatment and energy production, in particular culture techniques.

Author Contributions

Conceptualization, C.-H.K. and H.C.; data curation, C.-H.K., J.R., and K.K.; formal analysis, C.-H.K. and J.R.; methodology, C.-H.K. and H.C.; software, C.-H.K.; validation: C.-H.K. and J.L.; investigation, C.-H.K., J.R., J.L., K.K., J.-y.L., and H.C.; writing—original draft preparation, C.-H.K., J.R., and H.C.; writing—review & editing, J.L., K.K., J.-y.L., K.Y.P., and H.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Korea Environmental Industry & Technology Institute through the Public Technology Program based on Environmental Policy Program, funded by Korea Ministry of Environment (MOE) (2018000710002).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in insert article.

Conflicts of Interest

The authors declare no conflict of interest.
