Influence of Selected Parameters and Different Methods of Implementing Vacuum Impregnation of Apple Tissue on Its Effectiveness

Abstract

The study provides comprehensive information on the vacuum impregnation process applied to plant materials. It aims (in traditional applications) to ensure impermeability and elimination of porosity of various materials. The process substantially accelerates mass transfer in the liquid–solid system. The study describes the course of the process and accompanying phenomena as well its effects on plant tissues. The aim of the investigations was to determine the impact of some impregnation parameters (pressure, pressure change rate, vacuum maintenance time, relaxation time, and the coefficient of impregnating liquid viscosity) and the mode of impregnation (wet, dry, cyclic wet) on the degree of filling the plant tissue with the impregnating solution. Jonagold apples were used as the study material. The investigations have revealed that changes in the vacuum impregnation parameters (vacuum maintenance time, relaxation time, pressure change rate in the system) and the impregnation method do not exert a significant impact on the effectiveness of the process as expressed by the degree of permeation of the impregnating solution into the tissue. The pressure value and the viscosity coefficient were the only parameters that had a significant effect on the impregnation yield.

1. Introduction

Each type of impregnation under reduced pressure, referred to as vacuum impregnation, accelerates mass transfer in the liquid–solid system, reduces porosity, and improves material permeability; hence, the process is widely applied in the production of engine blocks and heads, power and brake systems, and aircraft undercarriage elements [1]. It facilitates engineering of the structure (Food Matrix Engineering) [2,3,4,5] and functional features of materials, simultaneously enhancing their physicochemical stability [6,7]. Impregnation, which contributes to shortening the time of unit operations without disturbing the original structure of tissues [8], is applied in the production of food for modification, enrichment, or improvement of its quality [9].

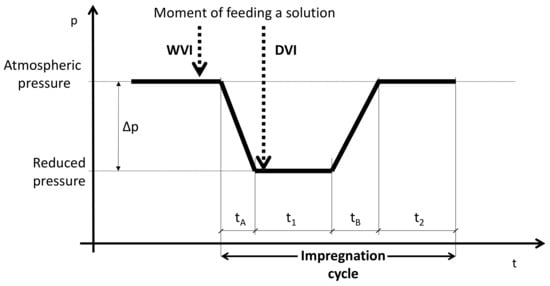

Vacuum impregnation consists of the following phases: reduction of the pressure in the system (up to over 3 kPa), maintenance of the pressure for a specified time, restoration of the atmospheric pressure in the system, and maintenance of this pressure in the system during relaxation. In a porous food raw material-liquid system, there are coupled phenomena of material deformation and relaxation induced by expansion of gas escaping from pores and the outflow of liquids from free spaces [10,11,12] as well as the impact of the impregnating liquid on the material structure. Deformation–Relaxation Phenomena (DRP) dominatein the first and second phase of the process and the Hydrodynamic Mechanism (HDM) dominates in the last two phases when the impregnating liquid permeates the structure of the material. This is accompanied by deformation and opposite-direction relaxation of the material (compression) [13]. The pore volume decreases until establishment of equilibrium [14]. The process is determined by synergistic external factors (process conditions including pressure and temperature, properties of the impregnating liquid, time of vacuum maintenance, time of relaxation, viscosity and concentration of the impregnation solution, the size and shape of the material, and the ratio of material mass to the solution mass) and internal factors (properties of the impregnated material and its three-dimensional architecture) [4].

Processes occurring on the plant material-surrounding liquid surface are examined with an assumption of cylindricity of the material pores. Determination of the process parameters is difficult, hence the discrepancies in the results of different investigations [14,15].

Application-targeted research is focused on the process itself and impregnating liquids, which together with their functions, e.g., protection against rupture and disintegration of material cells during the drying, canning, or freezing processes, may constitute the “know-how” [16]. A reduced process temperature decreases the likelihood of thermal damage to organic tissue and sustains its structure, whereas the use of a sugar solution prevents loss of the volatile aroma of fresh fruit and discoloration caused by enzymaticoxidative browning [17].

Impregnation often precedes heat treatment [18], and partial removal of water, reduction of pH, and introduction of additional components to the material intended for freezing do not affect the integrity of the material and contribute to prolongation of shelf life at low temperatures [16]. This distinguishes impregnation from other methods of acquisition of new products [19]. The modification of the structure of fruits and vegetables does not destroy their cellular structure, but ensures mass transfer during osmotic dehydration of the material [20] and changes the physical properties of the material, e.g., thermal conductivity and dielectric properties, which have a great impact on the technological processing of fruits and vegetables [21].

The aim of the study was to determine the impact of selected impregnation parameters on the degree of permeation of the model material tissue by the impregnating solution. The degree of permeation of the model plant tissue by an impregnation staining solution was a measure of the effectiveness of the impregnation process. The impact of the method of impregnation process, pressure, pressure change rate, vacuum maintenance time, relaxation time, and the coefficient of impregnating liquid viscosity on the effectiveness of the vacuum impregnation process was investigated.

2. Materials and Methods

A cylinder with diameter d = 17 mm and height h = 20 mm was cut out from the model material, i.e., Jonagold apple tissue. The height of the cylinder was greater than the diameter (h>d), because further research was carried out on its cross-section.

Water stained with a 2% Tris(4-(dimethylamino)phenylo)methylium chloride solution (2% methylene violet, (Avantor Performance Materials Poland) was the impregnating liquid [22,23]. The viscosity coefficient of this solution was 1 mPa·s.Additionally, water and starch syrup solutions stained with 2% methylene violet with a calibrated viscosity coefficient η [mPa·s] of 1, 50, 100, 200, and 400mPa·s were used to determine the impact of the viscosity coefficient on the degree of permeation of the apple tissue by the impregnation solution.

The viscosity coefficient of the impregnating liquid was controlled with a Brookfield viscometer: model LVDV-II+PRO (Brookfield Engineering Laboratories Inc. Middleboro, MA, USA). Temperature was stabilized with a water bath. The viscosity coefficient was determined with the use of an S-62 spindle at a rotational speed value ranging from 6 to 60 min⁻¹. Computer software Rheocal v3.1 (Brookfield Engineering Laboratories Inc. Middleboro, MA, USA) was used to record the data and control the viscometer.Measurements took place at 20 °C.

The present investigations were based on both wet and dry impregnation methods as well as a cyclic wet impregnation method, which was not included in the classification mentioned above.

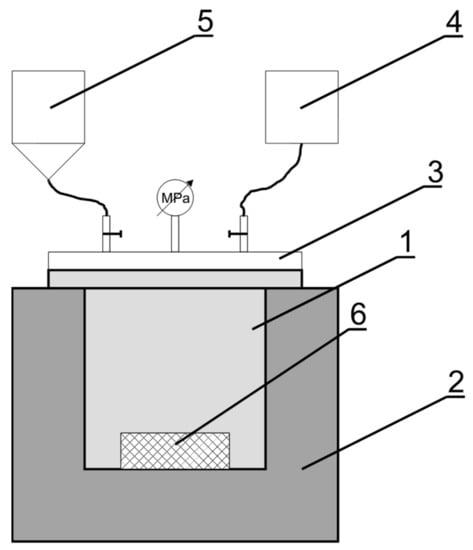

The impregnation process was carried out in a 2dm³ chamber connected to a vacuum pump regulating the pressure in the chamber in the range of 5kPa–atmospheric pressure (p_ATM).The experiments were conducted at a temperature of 20 °C, which was the same as the temperature of the impregnating liquid. The volume of the impregnating solution was 0.5dm³. The course of the subsequent experiments varied depending on the type of the impregnation process employed. Figure 1 describes the process of vacuum impregnation and its individual phases.

2.1. Wet Vacuum Impregnation (WVI)

In the case of wet vacuum impregnation (WVI), apple tissue samples were placed in a liquid-filled chamber. The pressure was reduced to 5 kPa after sealing the chamber. The programmed pressure changerates $\left(\frac{\Delta \mathrm{p}}{{\mathrm{t}}_{\mathrm{A}}}\right)$ were 5, 10, and 30kPa·s⁻¹ respectively. Then, the chamber remained under vacuum for 0, 100, 300, 600, and 900 s. Later, the chamber pressure returned to atmospheric pressure at a speed $\left(\frac{\Delta \mathrm{p}}{{\mathrm{t}}_{\mathrm{B}}}\right)$ of 5, 10, and 30 kPa·s⁻¹. The last impregnation phase was carried out at atmospheric pressure and lasted 0 to 900 s.

2.2. DryVacuum Impregnation (DVI)

During dry impregnation, the material was placed in an empty chamber, in which the pressure was reduced to 5 kPa. Under such conditions, the impregnation liquid was injected into the chamber. Then, the system maintained a vacuum in the chamber for time t₁. After the atmospheric pressure was restored in the chamber, the system was maintained over time t₂ after the impregnation. All impregnation parameters in the DVI method were the same as in the WVI method.

2.3. Cyclic Wet Vacuum Impregnation

In the cyclic WVI experiments, the impregnation cycle was repeated 5 and 10 times without disrupting the contact of between the impregnating liquid and the impregnated material.

2.4. Control

The control was impregnation at atmospheric pressure. It was (p_ATM) carried out concurrently with the other experiments, serving as a reference system. In the case of WVI, impregnation at atmospheric pressure was carried out by immersing the material in the liquid in the chamber. In the DVI impregnation setup, the impregnating liquid was poured over the analyzed material placed in an empty chamber. The impregnation workbench is presented in Figure 2.

2.5. Image Analysis

After the process of apple tissue impregnation with the staining solutions, cross-sections of the samples were prepared for analyses. Cylindrical samples with diameter d = 17 mm and height h = 20 mm were cut at the midheight. Each cross-section was photographed with an OLYMPUS C5060 digital camera (Olympus Europe, Germany). To determine the degree of tissue staining with the impregnating solution (u_S), the image was analyzed using the PHOTOSHOP CS5graphics program (Adobe Inc. San Jose, CA, USA). The histogram function was used, in which, in the first step, the percentage of the entire sample surface extracted from the background was calculated. The second step was to calculate the percentage of the surface stained with the impregnation solution. The penetration rate of the impregnating substance was calculated as the ratio of the percentage of colored surface to the percentage of the entire surface of the sample.

These experiments were carried out in five replications(fivecylindrical apple tissue samples excised from different parts thereof were placed into the vacuum chamber at one time). The arithmetic mean and standard deviation were calculated in all cases.

The subjects of analysis in the study werethe impregnation method, the pressure change rate in various stages of the time to maintain the vacuum (t₁) and the time of relaxation (t₂).

All results were analyzed for significance by means of Tukey’s honest significant difference test (HSD) at a significance level of α = 0.05using the STATISTICA 13.3 package.

3. Results

3.1. Influence of Pressure Change Rate, Vacuum Maintenance Time, and Relaxation Time

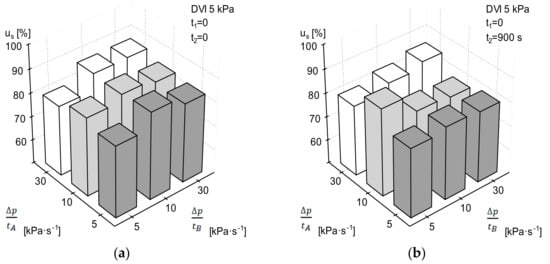

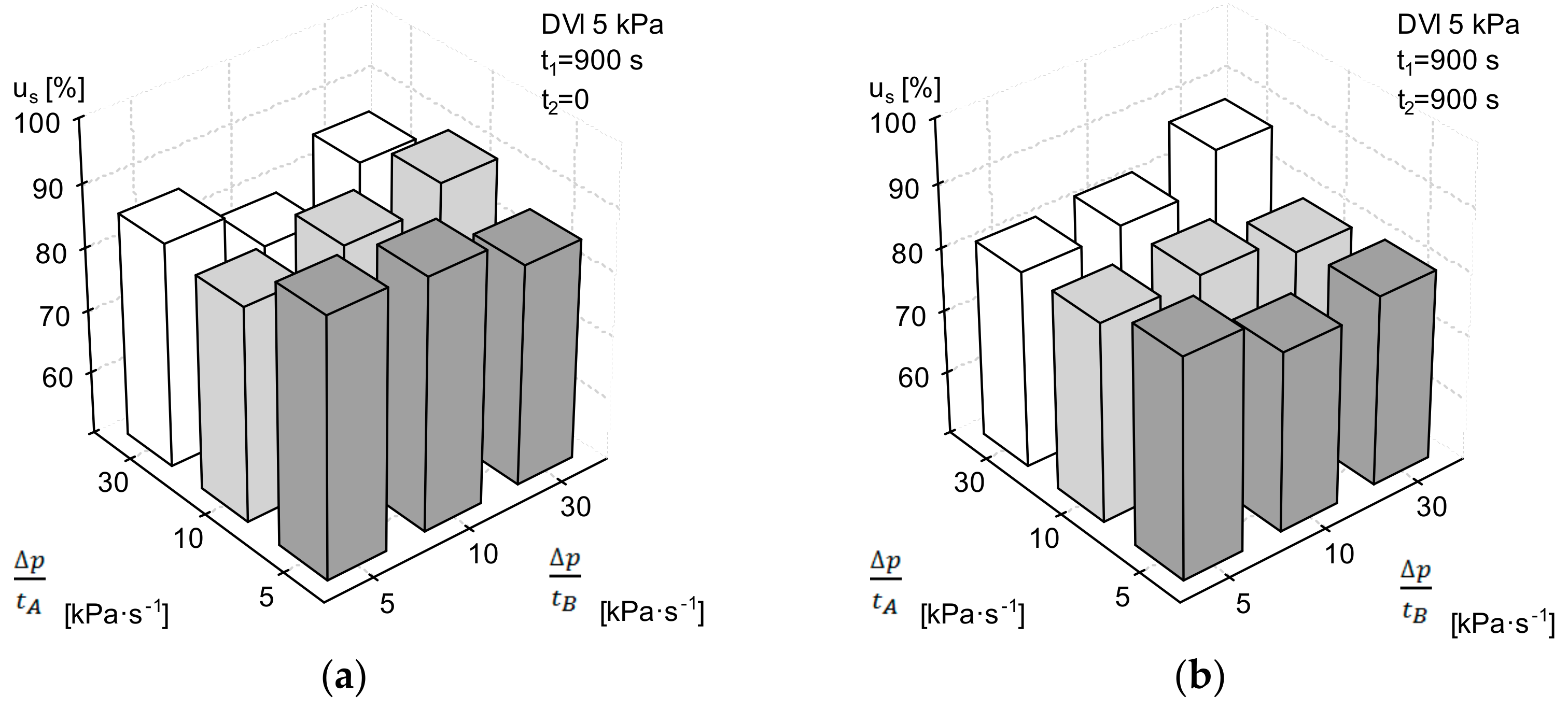

Figure 3 and Figure 4 present the dependence of the percentage of apple tissue staining u_S on the dynamics of pressure changes in phases 1 and 3 of dry vacuum impregnation (DVI) for the selected values of vacuum maintenance time t₁ and relaxation time t₂.

For time values t₁ = t₂ = 0, the percentage of apple tissue staining in the dry impregnation process (DVI) ranged from 79.5% for $\frac{\Delta \mathrm{p}}{{\mathrm{t}}_{\mathrm{A}}}$ = 30 kPa·s⁻¹ and $\frac{\Delta \mathrm{p}}{{\mathrm{t}}_{\mathrm{B}}}$ = 5 kPa·s⁻¹ to 86.8% for $\frac{\Delta \mathrm{p}}{{\mathrm{t}}_{\mathrm{A}}}$ = 30 kPa·s⁻¹ and $\frac{\Delta \mathrm{p}}{{\mathrm{t}}_{\mathrm{B}}}$ = 30kPa·s⁻¹ (Figure 3 and Figure 4). The standard deviations of the tested value in this experimental cycle ranged from 3.7% to 17.5%. The highest degree of apple tissue staining, i.e., 87.4%, was noted at the maximum values of t₁ and t₂ and for $\frac{\Delta \mathrm{p}}{{\mathrm{t}}_{\mathrm{A}}}$=$\frac{\Delta \mathrm{p}}{{\mathrm{t}}_{\mathrm{B}}}$ = 30 kPa·s⁻¹.

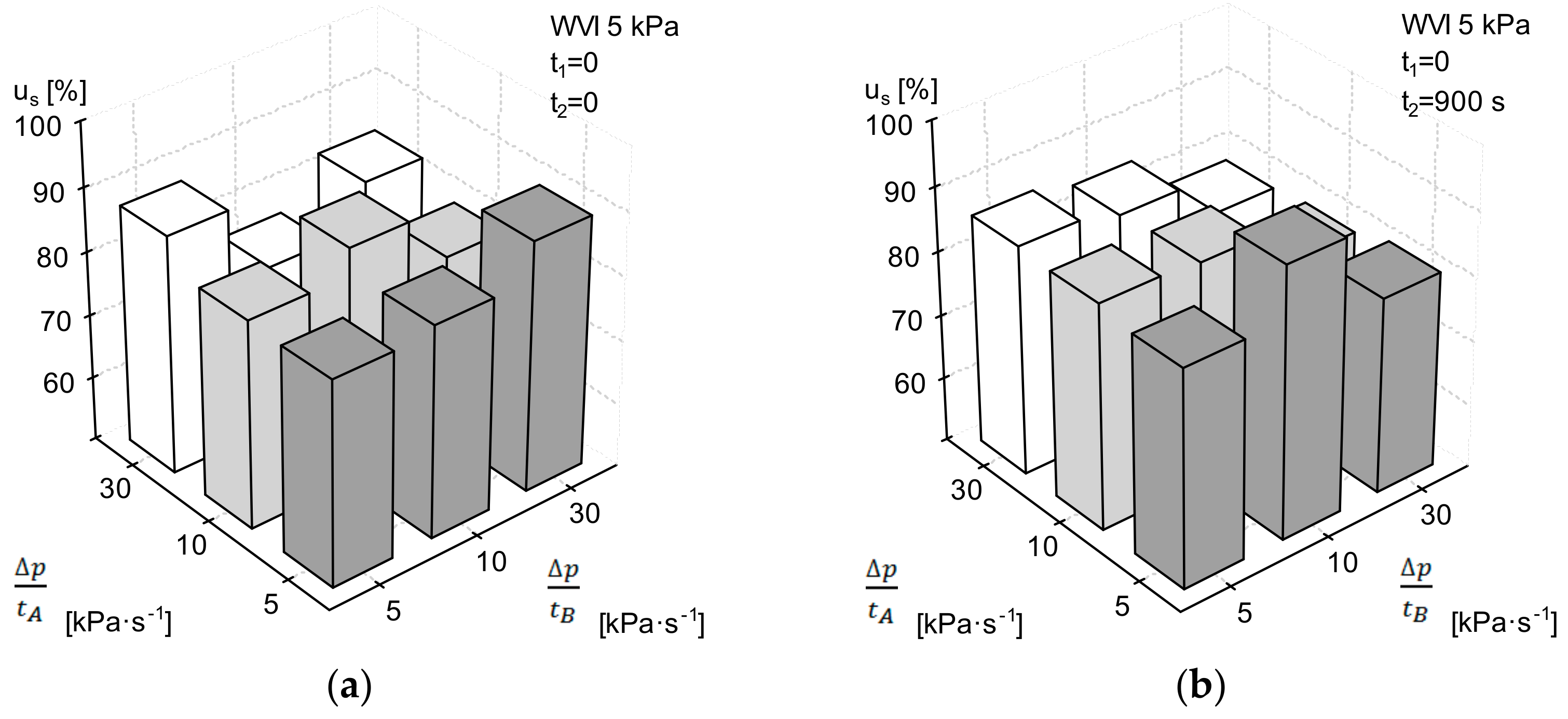

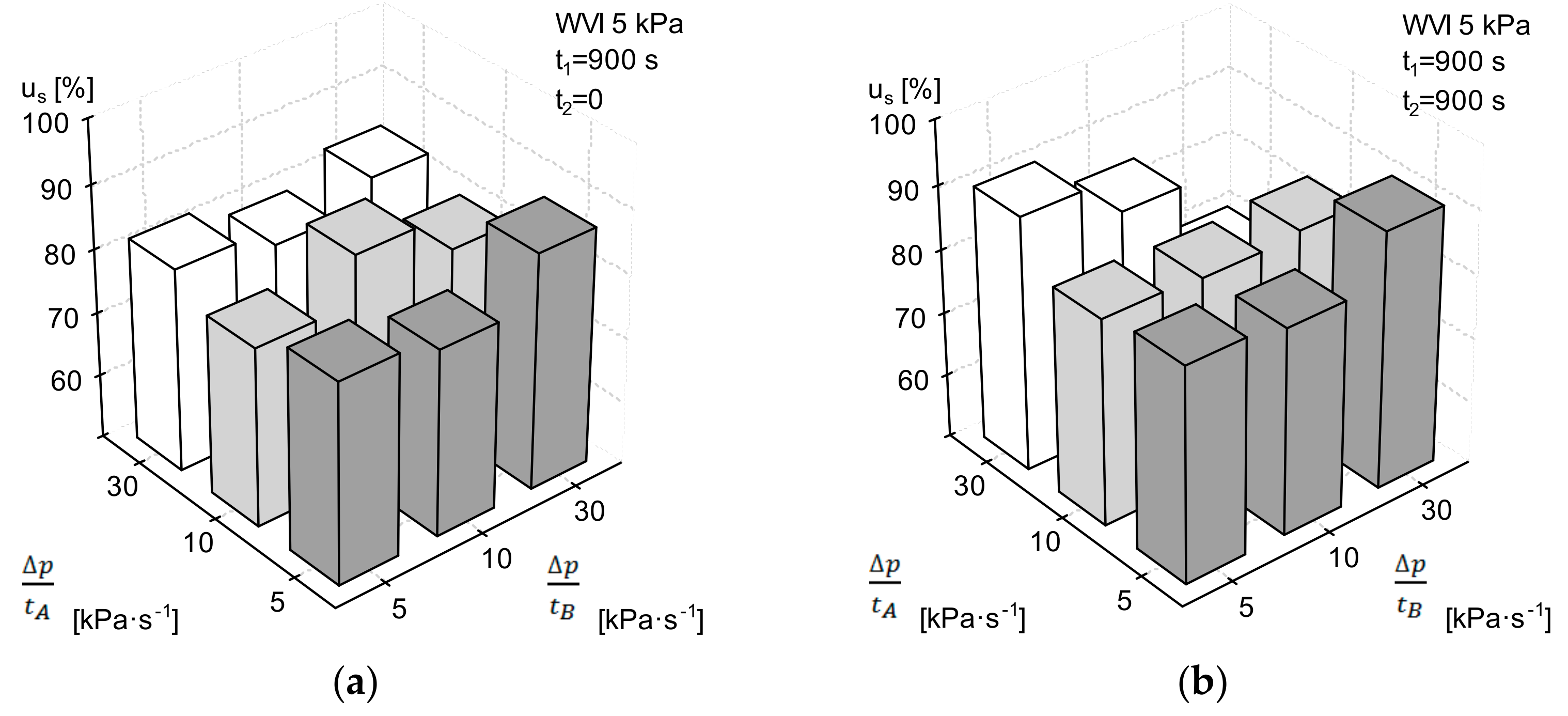

Figure 5 and Figure 6 present the dependence of the percentage of apple tissue staining u_S on the dynamics of pressure changes in phases 1 and 3 of wet vacuum impregnation (WVI) for the selected values of vacuum maintenance time t₁ and relaxation time t₂.

Similar results were obtained in the wet impregnation process (WVI). In this case, the highest percentage of apple tissue staining (90.5%) was recorded at $\frac{\Delta \mathrm{p}}{{\mathrm{t}}_{\mathrm{A}}}$ = 30 kPa·s⁻¹ and $\frac{\Delta \mathrm{p}}{{\mathrm{t}}_{\mathrm{B}}}$ = 5 kPa·s⁻¹ and at a time value of t₁ = t₂ = 900 s (Figure 5 and Figure 6). The standard deviations for the impact of the dynamics of pressure changes in the wet impregnation (WVI) process were similar to those calculated for the dry impregnation treatment (DVI). Summing up this investigation cycle, it can be concluded there are no clear trends in the impact of the dynamics of pressure changes in phases 1 and 3 on the impregnation result. Therefore, further investigations of the dynamics of pressure changes were carried out in the maximum value system, i.e., $\frac{\Delta \mathrm{p}}{{\mathrm{t}}_{\mathrm{A}}}$ = $\frac{\Delta \mathrm{p}}{{\mathrm{t}}_{\mathrm{B}}}$ = 30 kPa·s⁻¹.

3.2. Influence of Vacuum Impregnation Method

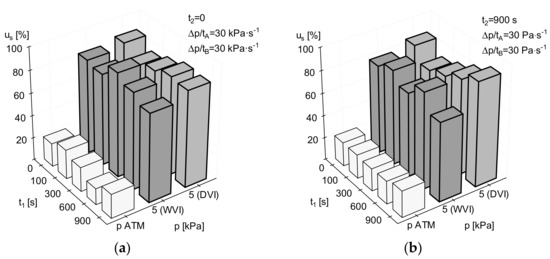

Figure 7 present graphs of changes in the percentage of apple tissue staining u_S at time t₁, at different impregnation methods, and different relaxation time values t₂ and for the 30kPa·s⁻¹ pressure change rate in the system in phases 1 and 3.

The impregnation was carried out at atmospheric pressure (p_ATM) and 5kPa with the dry (DVI) and wet (WVI) method.

Figure 8 presents selected photographs of apple tissue impregnated with water and stained with a 2% methylene violet solution.

The pictures show a strong vacuum impregnation effect, regardless of the method employed. Impregnation of the apple tissue at atmospheric pressure resulted in staining of merely the outer layers of its tissues. Nevertheless, this experimental cycle allowed exclusion of another factor from the research. Since there was no impact of the pressure change rate in the previous step, the investigations were narrowed in terms of the impregnation method. It was noted that the results of the wet (WVI) and dry (DVI) methods did not differ; therefore, the dry impregnation (DVI) mode, which was more complicated, was discarded.

3.3. Influence of Solution Viscosity Coefficient

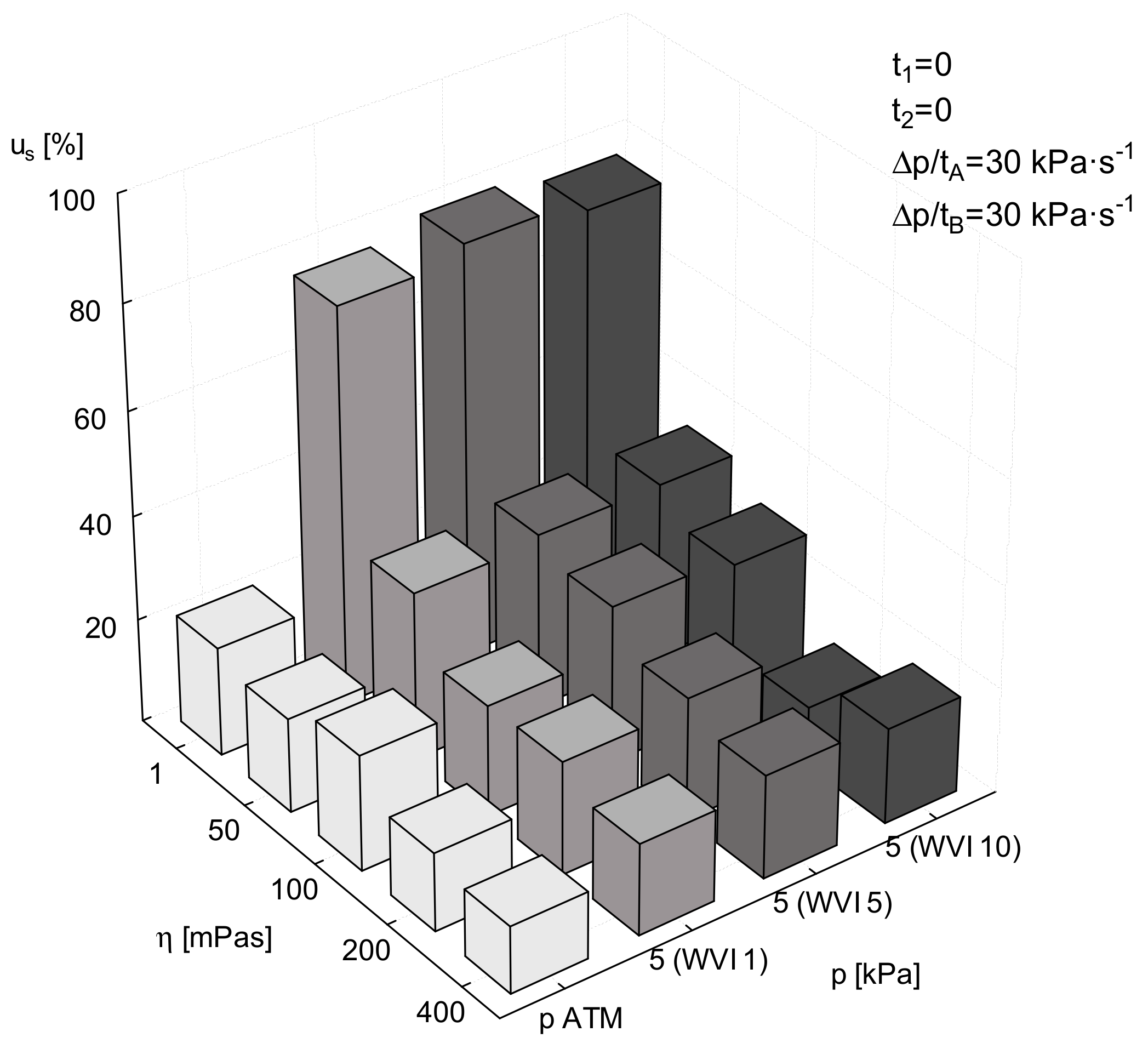

Figure 9 shows a graph of the changes in the percentage of apple tissue staining u_S depending on the solution viscosity coefficient in the different impregnation treatments. The impregnation at atmospheric pressure yielded below 20% of apple tissue staining, with standard deviations in the range from 2.8 to 8.3%. When thepressure was reduced to 5kPa, the impregnation contributed to a sharp increase in the percentage of apple tissue staining (u_S). It ranged from 75.2% in the case of the 1 wet impregnation cycle treatment 5 (WVI 1) to 79.7% in the fivecycles of WVI.As the viscosity of the liquid increased, a decrease of apple tissue staining occurred. The standard deviations in the percentage of staining in the vacuum impregnated apple tissue were higher, i.e., from 1.9 to 12.9%, than the values noted for impregnation at atmospheric pressure. As in the previous cycle, there were no trends in the impact of the vacuum maintenance time (t₁) and the relaxation time (t₂) on the impregnation results.

In the case of impregnation carried out at atmospheric pressure, the tissue staining was low, regardless of the viscosity of the impregnating liquid (Figure 10). Repeating vacuum impregnation with a low viscosity liquid (η = 1 mPa⋅s) resulted in increased penetration of the impregnating liquid into the fruit tissue. After using higher viscosity liquids (η = 400 mPa⋅s), liquid diffusion in the fruit tissue was difficult. Repeated impregnation did not increase the amount of liquid diffusing into the fruit tissue.

3.4. Statistical Analysis

The statistical analysis of the investigation results performed using Tukey’s reasonable significant difference (HSD) test at a significance level of α =0.05 provides a comprehensive picture of the findings of the research focused on optimization of the process parameters used in consecutive steps of the experimental design.

Table 1. Analysis of the significance of the impact of the analyzed factors on the u_s value. Mean values marked with the same letter in columns do not differ significantly (p ≤ 0.05).

Factor	Value	us(%)(SD)
Pressure change rate $\frac{\Delta \mathrm{p}}{{\mathrm{t}}_{\mathrm{A}}}$(kPa·s−1)	5	80.5 (±15.2)a *
	10	84.4 (±16.3)a
	30	76.5 (±14.4)a
Pressure change rate $\frac{\Delta \mathrm{p}}{{\mathrm{t}}_{\mathrm{B}}}$(kPa·s−1)	5	80.1 (±12.5)a
	10	88.7 (±14.7)a
	30	79.6 (±11.2)a
Time t1(s)	0	84.1 (±13.1)a
	100	83.8 (±14.6)a
	300	80.7 (±12.8)a
	600	87.8 (±11.9)a
	900	82.8 (±14.5)a
Time t2(s)	0	84.5 (±17.4)a
	100	83.6 (±15.5)a
	300	76.7 (±15.3)a
	600	82.5 (±12.2)a
	900	82.9 (±10.8)a
Impregnation method	WVI	84.7 (±13.4)a
	WVI 5	89.4 (±15.7)a
	WVI 10	88.4 (±16.2)a
	DVI	85.3 (±16.8)a
Pressurep (kPa)	5	83.4 (±17.5)a
	pATM	21.1 (±3.5)b
Viscosity coefficient(mPa·s)	1	68.3 (±0.8)a
	50	37.4 (±7.6)b
	100	27.0 (±8.3)c
	200	21.1 (±5.3)cd
	400	16.8 (±13.9)d

* Mean values marked with the same letter (a, b, c, d) in columns do not differ significantly (p≤0.05).

shows the results of statistical analysis of the impact of the analyzed factors, i.e., the pressure change rate in impregnation phase 1 and 3, vacuum maintenance time, relaxation time, impregnation method, pressure, and impregnating liquid viscosity coefficient on the results reflected by the percentage of apple tissue staining.

4. Discussion

Apple tissues exhibit medium susceptibility to impregnation. In previous studies, staining solutions were used as an indicator of the effectiveness of the vacuum impregnation process [22,23]. Such solutions served only for visualization of the process effectiveness, but the degree of tissue staining was not a source of empirical data for researchers. A comparison of the images taken in previous reports with the results obtained in this study demonstrates their similarity. However, since the images were not analyzed in the previous studies, this statement does nothave a scientific background based on numerical data. Furthermore, each of the reports of food investigations cited in the present paper werebased on wet vacuum impregnation, which is only one of many methods for implementation of the process. Therefore, the results of the present study cannot be fully compared with those reported by other authors [24,25,26,27,28,29,30,31,32,33,34].

During vacuum impregnation, plant tissues exhibit different types of behavior. In apple tissue, there is strong gas expansion in the pores in the vacuum phase, which is explained by the natural outflow of the liquid from pores induced by the pressure gradient [35]. Mango, peach, and orange tissues exhibit strong deformation of the porous structure during the vacuum phase and after restoration of atmospheric pressure in the system [36,37]. Diced carrots, zucchini, and beetroot impregnated in isotonic sucrose maintain the increased pore volume [15].

Impregnation treatment of vegetables and fruits is usually carried out at pressure values from 5 to 60kPa. Reduction of the impregnation pressure increases the effect of this process [38]. The effectiveness of impregnation is enhanced with increasing process time in the range from 0 to 120min. Increased viscosity of the impregnating liquid reduces the efficiency of the process [22], while low viscosity eliminates deformation of the material [11,24]. There is a strict correlation between the efficiency of the process and the impregnated material and its structure [15].

Fruit and vegetables are particularly susceptible to impregnation, which is applied for intensification of mass transfer in the solid–liquid system [38].

The most common measure of susceptibility of various raw materials and food products is effective porosity, ε_e [%], defined as m³ of gas inside the pores/m³ of sample [27].

In general, all researchers try to provethat the greater the effective porosity, i.e., the more gases there are in the free spaces of the material, the more susceptible this material is to vacuum impregnation.

The most susceptible raw materialsare eggplant (ε_e=64%), mushroom (ε_e=36%), and cherry (ε_e=30%). Apple (ε_e=23%–27%), mandarina pills (ε_e=25%) or orange pills (ε_e=21%) are slightly less susceptible, while the smallest are banana (ε_e=4%), plum (ε_e=2%), apricot (ε_e=2%), and kiwi fruit (ε_e=2%). It is worth noting the large discrepancies in the results of effective porosity tests obtained for different varieties of apple and zucchini [14,26,28,39,40,41,42].

On the other hand, the vacuum impregnation process model published by Fito [27] shows that not all the porous structure of the material is filled with the surrounding liquid. Gases still occupy part of thestructure. This means that the porosity of raw materials is not an excellent measure of its susceptibility to vacuum impregnation. In addition, the widespread use of wet vacuum impregnation (WVI) in existing food materials research creates a barrier to the escape of gases from pores in the form of the liquid surrounding thematerial. In this method of performing vacuum impregnation, the liquid is in contact with the raw material before reducing the pressure. Dry vacuum impregnation (DVI) was used in this work. In this method, the liquid is introduced into the vacuum chamber after removing the gases from the pores and the escaping gases do not find resistance in the form of the surrounding liquid.

Research on the effectiveness of the vacuum impregnation process carried out by the authors by image analysis method indicates that about 80% of the apple tissue is filled with impregnating liquid. Meanwhile, the porosity of the apple is about 25%. Such a result means that the results of tests based on porosity cannot be compared with those based on image analysis.

Thus, when assessing the effectiveness of the impregnation process, one should also provide the method of assessment next to the chosen indicator.

This fact is also indicated by earlier research of the authors regarding the process of vacuum impregnation of wheat in order to facilitate the separation of bran from endosperm in the process of milling into flour. The indicator of the effectiveness of impregnation was grain moisture. The moisture content increases obtained during vacuum impregnation were much higher than theporosity. The increase in moisture content reached 15% [43,44].

5. Conclusions

The tests conducted during this experiment and the statisticalanalysis of theresults led to the following conclusion:

Pressure and impregnating liquid viscosity coefficient are the only parameters that have a significant effect on the impregnation result, as reflected by the degree of filling of the tissue with the impregnating solution. The other parameters examined in the study did not induce significant changes in the analyzedparameter.

The process of vacuum impregnation may find application as a support for other processes found in food technology that involve mass exchange in a liquid–solid system, such as osmotic drying or extraction. It can be used in the production of sausages, cheeses, and vegetable and fruit products. The largest potential applications of vacuum impregnation, however, result from the fact that this process allows the structure of many solid food materials to be modified by filling them with ingredients that do not naturally occur in them, such as probiotics or vitamins [43,44].
