Stabilization/Solidification of Strontium Using Magnesium Silicate Hydrate Cement

Abstract

Magnesium silicate hydrate (M–S–H) cement, formed by reacting MgO, SiO₂, and H₂O, was used to encapsulate strontium (Sr) radionuclide. Samples were prepared using light-burned magnesium oxide and silica fume, with sodium hexametaphosphate added to the mix water as a dispersant. The performance of the materials formed was evaluated by leach testing and the microstructure of the samples was also characterized. The stabilizing/solidifying effect on Sr radionuclide in the MgO–SiO₂–H₂O system with low alkalinity is demonstrated in the study. The leaching rate in a standard 42-day test was 2.53 × 10⁻⁴ cm/d, and the cumulative 42-day leaching fraction was 0.06 cm. This meets the relevant national standard performance for leaching requirements. Sr²⁺ was effectively incorporated into the M–S–H hydration products and new phase formation resulted in low Sr leaching being observed.

1. Introduction

The volume of low level radioactive waste (LLW) and intermediate level radioactive waste (ILW) accounts for ~95% of the total volume of nuclear waste. Strontium and cesium are important contaminants in LLW and ILW, because these radionuclides are most often present in the cooling water of nuclear reactors. These nuclides have long half-lives (⁹⁰Sr has a half-life of 28.8 years and ¹³⁷Cs has a half-life of 30.5 years), can readily migrate, and are known to cause carcinogenesis in contaminated living organisms [1,2,3,4,5,6]. Therefore, the management of low- and intermediate-level radioactive wastes containing Cs and Sr remains a major challenge to the nuclear energy industry.

Stabilization/solidification (S/S) includes a broad range of waste treatment technologies, which use asphalt or cementitious materials to convert wastes into a solid form that is more suitable for transportation and long-term storage [7]. Effective solidification transforms a radioactive waste liquid into a solidified material, reducing the potential for radionuclides to migrate into the biosphere and reducing the volume of material requiring storage/disposal. For low- and intermediate-level wastes, solidification in cementitious materials is the preferred option. This uses the hydration and hardening characteristics of Portland cement to achieve physical encapsulation, adsorption, and chemical bonding of the radionuclides. The processing is relatively simple and low cost [8]. However, there are issues with conventional cement stabilization/solidification. These include expansion of the solidified body and the potential for heavy metal salts to retard cement hydration reactions. Therefore, research on new types of solidification systems, such as alkali-activated cementitious materials, alkali–slag–clay mineral composite cementitious materials, phosphate cement, and phosphate cement–clay mineral composite systems, is ongoing [9,10,11,12,13,14,15].

Alkaline slag cement systems based on metakaolin have been used for the solidification of simulated radioactive wastes and produced low Cs⁺ and Sr²⁺ leaching rates [11]. However, the pH of these systems is higher than 12, which is not conducive to long-term solidification because of the formation of mobile metal complexes. Phosphate cements are also being investigated for solidifying nuclear wastes. These are rapid-setting and hardening and the solidified wastes formed are reported to be resistant to leaching and damage from freeze–thaw cycling [16,17,18]. However, the setting of phosphate cements is difficult to control and a highly exothermic reaction limits the ability to solidify some types of nuclear waste [19].

Cements that hydrate to form magnesium silicate hydrate (M–S–H gel) are formed from reactions between MgO, SiO₂, and H₂O, and these can have a low porosity, large specific surface area, high strength, low heat of hydration, and low pH [20,21,22,23,24,25]. M–S–H gel was first discovered in sulfate-eroded marine concrete [26]. Natural magnesium-rich silicate minerals are reported to adsorb heavy metal ions and hazardous organic compounds [27,28]. Synthetic magnesium silicate has excellent adsorption of radioactive U and methylene blue [29,30]. Magnesium silicate systems have also been used to encapsulate nuclear wastes containing active metals such as Mg and Al. The low pH and pore solution composition resulted in effective Al encapsulation with minimal H generation [25,31,32,33]. Some nuclear wastes contain significant quantities of mixed wastes including the main nuclides Sr and Cs, and Mg and Al alloys. While the high pH in Portland cement-based binders passivates the corrosion of Mg alloys, Al alloys corrode under high pH conditions with the evolution of H₂ gas [26]. The pH of water in equilibrium with the M–S–H system is in the range from 9.5 to 10.5 and, therefore, the M–S–H system may be suitable for stabilizing this type of nuclear waste [34].

The aim of this research was to assess, for the first time, the effectiveness of M–S–H forming cement systems for the stabilization/solidification of simulated radioactive Sr. The samples formed were leached tested and the compressive strength were determined. In addition, the microstructure was characterized to understand the effect of Sr addition on hydration reactions and the phases formed.

2. Experimental

2.1. Materials

Light-burned MgO (Mag Chem 30, M.A.F. Magnesite B.V. Den Haag, The Netherlands) with an MgO content >98% and an activity of 82.16% was used (

Table 1. Chemical composition of light-burned magnesia and silica fume (wt.%).

Chemical Composition (wt.%)	MgO	CaO	SiO2	Fe2O3	Al2O3	K2O	MnO	SO3
light-burned magnesia	98.45	0.62	0.49	0.18	0.04	−	0.04	−
silica fume	0.45	0.43	97.34	0.05	0.12	0.97	0.04	0.35

). The composition of the silica fume used had a SiO₂ content >97% (SiO₂, model 920U, Shanghai Elkem, Shanghai, China), as shown in Table 1. Sodium hexametaphosphate (Na–HMP) with a purity >95% was also used (Sinopharm Group, Shanghai, China). The radionuclide ⁹⁰Sr was replaced with the stable isotope ⁸⁸Sr and added to samples as strontium nitrate (Sr(NO₃)₂) with purity >95%.

2.2. Methods

The mass ratio of the light-burned MgO to silica fume was 2:3. The amount of sodium hexametaphosphate added was 2 wt.% of the total mass of the MgO and silica fume [34]. The water-to-binder mass ratio varied in different samples between 0.6 and 0.8 and deionized water was used in all mixes. The mass fraction of Sr²⁺ added as Sr(NO₃)₂ varied from 0.8 wt.% to 3.2 wt.% of the total mass of the MgO and silica fume.

The raw materials including the required amount of Sr(NO₃)₂ were blended together, and then deionized water containing the Na–HMP was added and mixed to form cement paste samples. This was then poured into 20 × 20 × 20 mm steel moulds to form cubic samples or ø50 × 50 mm moulds to form cylindrical samples. The samples were removed from the moulds when the samples were sufficiently hard, and then they were stored under standard curing conditions of 20 ± 2 °C at a humidity of >95%.

Samples were tested in compression after curing for 3, 7, and 28 days in accordance with the relevant standard (GB/T 17671-1999) [35]. The leaching tests were completed in accordance with GB/T 7023-2011 [36], the standard test method for leachability of low and intermediate level solidified radioactive waste forms, and GB 14569.1-2011 [37] performance requirements for low- and intermediate-level radioactive waste form-cemented waste form.

The leaching tests used the ø50 × 50 mm cylindrical samples cured for 28 days. The end faces were polished with sandpaper and the samples were suspended in a polyethylene container using nylon filament. Deionized water and simulated seawater were used as the leachants. The composition of simulated seawater is shown in

Table 2. Synthetic components of simulated seawater.

	NaCl	MgCl2	Na2SO4	CaCl2	KCl	NaHCO3	KBr
Quality/g	23.50	4.98	3.92	1.10	0.66	0.19	0.09

Note: Dilute to 1000 g with water; the ionic strength should be 0.71 mol/kg.

. The leachates were replaced after 1, 3, 7, 10, 14, 21, 28, 35, and 42 days, and the concentration of Sr²⁺ in the leachate was measured by inductively coupled plasma optical emission spectrometry (ICP-OES). The leaching rate and cumulative amount of Sr leached were calculated using the following formulas [36]:

$${\mathrm{R}}_{\mathrm{n}}=\frac{{\mathrm{m}}_{\mathrm{n}}/{\mathrm{m}}_0}{(\mathrm{F}/\mathrm{V}){\mathrm{t}}_{\mathrm{n}}}$$

(1)

$${\mathrm{P}}_{\mathrm{t}}=\frac{{\mathsf{\Sigma }\mathrm{m}}_{\mathrm{n}}/{\mathrm{m}}_0}{\mathrm{F}/\mathrm{V}}$$

(2)

where R_n is the leaching rate of Sr²⁺ in the n-th leaching cycle (cm/d); m_n is the mass of Sr²⁺ leached in the n-th leaching cycle (g); m₀ is the initial mass of Sr²⁺ in the leaching test sample (g); F is the geometric surface area of the sample in contact with the leachate (cm²); V is the volume of sample (cm³); t_n is the number of days in the n-th leaching cycle; and P_t is the cumulative leaching fraction of Sr²⁺ at time t (cm).

Phase analysis of solidified M–S–H cement samples used X-ray diffraction (XRD; D8 Advance AXS, Brooklyn, Germany) with a Cu target, a working voltage of 40 kV, a working current of 40 mA, a scanning range of 5~80°, and a scanning speed of 0.02° 2θ/min. Scanning electron microscopy (SEM; Nova Nano SEM 450; FEI, Hillsboro, OR, USA) was used to examine the microstructure of the solidified samples at a resolution of 3.5 nm at 30 kV. The test samples examined were taken from a central thin section taken out after crushing the solidified body to a particle size of 3–5 mm. Energy dispersive spectrometry (EDS) was used to perform an elemental analysis of samples.

3. Results

3.1. Compressive Strength

Figure 1 shows the effect of Sr²⁺ and the water–cement ratio on the 28-day compressive strengths of M–S–H cement-solidified Sr²⁺ samples. The compressive strength decreases with increasing water–cement ratio and increasing Sr²⁺ content. For samples with a water–cement ratio of 0.6, the compressive strength with a Sr²⁺ content of 3.2 wt.% decreased by 48.1% compared with the control samples. For samples with a water–cement ratio of 0.65–0.8, the corresponding reductions were 40.7%, 41.8%, 38.3%, and 49.8%, respectively. The presence of strontium significantly inhibits the development of compressive strength. However, even at the highest water–cement ratio of 0.8 and Sr²⁺ content of 3.2 wt.%, the 28-day compressive strength was ~10 MPa, which exceeds the 7 MPa required in the specification [36].

3.2. Crystalline Phase Analysis

Figure 2 shows XRD data for M–S–H cements with 0 wt.% and 3.2 wt.% Sr²⁺ added. Figure 2a shows sharp Mg(OH)₂ peaks at 18.6°, 38.0°, 50.8°, and 58.6°. The two peaks at 42.9° and 62.3° correspond to MgO. The diffuse background appearing at 2θ between 32 and 38° and between 58 and 62° corresponds to M–S–H gel [34]. This shows that Mg(OH)₂ is a reaction product in the initial stages of hydration, accompanied by the formation of some M–S–H gel. The content of Mg(OH)₂ decreases as hydration proceeds.

Figure 2b shows that the addition of Sr retards hydration. Some SrCO₃ identified by the peak at 25° was present in the hydration products at all ages. Hydration was slower than the control samples without added Sr²⁺. Some MgO had not hydrated after 28 days and peaks associated with Mg(OH)₂ remained strong and the amount of M–S–H gel was reduced. It is speculated that strontium ions promote the hydrolysis of MgO to form Mg(OH)₂ during the initial stage of hydration, but later compete for hydroxyl ions to form strontium hydroxide, which slows down the rate of M–S–H gel formation in the later stages and leads to the slow development of strength.

3.3. Microstructural Analysis

Figure 3 shows SEM images of samples with 0 wt.% and 3.2 wt.% Sr²⁺ hydrated for 3, 7, and 28 days. Figure 3a shows that the hydration products of magnesium silicate cement at the initial stage (three days) of hydration were mainly short rod-like magnesium hydroxide crystals. After seven days, the number of Mg(OH)₂ crystals decreased, and floc M–S–H gel overlapped the surface of silica fume particles. After hydration for 28 days, compact internal structures were formed, except for some unreacted spherical silica fume particles.

Figure 3b shows that solidified Sr in the magnesium silicate cement affected the MgO–SiO₂–H₂O hydration environment. At the beginning of hydration, a large number of pine nut-shaped crystalline Mg(OH)₂ structures can be seen, while a small amount of flocculent M–S–H gel was dispersed therein. There was also a small number of cubic pyramidal Mg(OH)₂ crystals. As the hydration reaction progressed, the number of Mg(OH)₂ crystals decreased gradually. After seven days’ hydration, the main hydration product was a flocculent M–S–H gel, although some Mg(OH)₂ crystals were still present. The crystals basically disappeared from the SEM images after 28 days, while the amount of flocculent substances continued to increase. Specially, a petal-like substance appeared in the sample when the hydration process lasted for 28 days.

EDS analysis of the MgO-SiO₂-H₂O solidified body with 3.2 wt.% Sr²⁺ after curing for 28 days produced the elemental distribution is shown in

Table 3. Energy dispersive spectrometry (EDS) analysis of the MgO–SiO₂–H₂O solidified body with 3.2 wt.% Sr²⁺, cured for 28 days.

Element	A		B		C
	Weight/%	Atom/%	Weight/%	Atom/%	Weight/%	Atom/%
C	5.61	10.50	17.85	32.30	14.25	26.32
O	32.52	45.72	40.36	54.82	38.52	53.43
Mg	15.25	14.11	1.39	1.24	4.63	4.23
Si	31.57	25.28	1.88	1.45	7.04	5.56
Sr	13.39	3.44	37.11	9.20	32.19	8.15

Note: The points A, B, and C are marked in Figure 3b.

. Strontium ions were mainly concentrated in the petal-like features. The elements in the petals were mainly C, O, and Sr, and the atomic percentages were 32.30%, 54.82%, and 9.20%, respectively. This is characteristic of one type of strontium carbonate and is consistent with the XRD analysis. It can be seen that Sr²⁺ is chemically bound to the magnesium silicate cement matrix, which is conducive to improving the long-term leaching resistance of the cured body. In addition, the atomic molar ratios of Mg and Si in the regions A, B and C were 0.56, 0.86 and 0.76, respectively, indicative of M-S-H gel [38]. It also shows that the content of unreacted silica fume in the system was high, which indicates that the presence of strontium ions significantly reduces the rate of hydration in magnesium silicate cement.

3.4. Leach Test Results

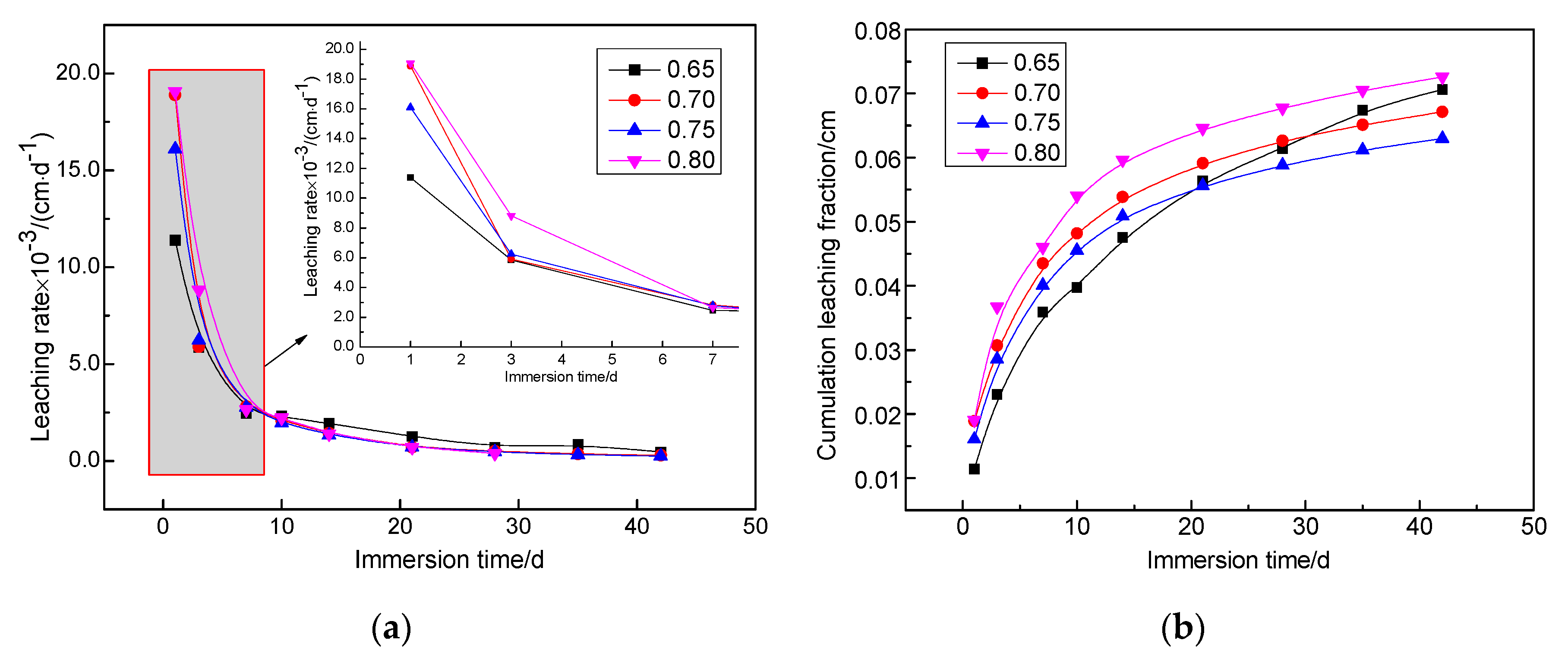

Figure 4 shows the leaching rate and cumulative fraction leached from solidified bodies with different water–cement ratios doped with 1.6 wt.% Sr²⁺ at 25 °C under deionized water leaching conditions. This indicates that the leaching rate of different water–cement ratios of the magnesium silicate cement solidified body samples initially increased, but then decreased. At the beginning of the leaching test (before seven days), the Sr²⁺ leaching rate decreased rapidly, but this slowed after seven days. After 28 days, the leaching rate tended to be consistent and gradually reached a steady state. However, the difference in leaching results between the water–cement ratios was small. The effect of the water–cement ratio on leaching from the solidified body of magnesium silicate cement was not obvious. After 42 days of leaching, the maximum leaching rate of each solidified sample was 4.64 × 10⁻⁴ cm/d, and the minimum was 2.53 × 10⁻⁴ cm/d. This was one order of magnitude lower than the limit (1 × 10⁻³ cm/d) required by the National Standards. Cumulative leaching from the cumulative fraction leached score curves results during the first 10 days increased rapidly, and the growth rate gradually stabilized after 28 days, which was consistent with the trend in the leaching rate. The 42-day cumulative fraction that leached from all samples was 0.06~0.07 cm, which only accounted for about 35% of the specification limit in GB 14569.1-2011 [37], which stipulates that the 42-day cumulative fraction leached from the cement solidified body to Sr²⁺ is 0.17 cm.

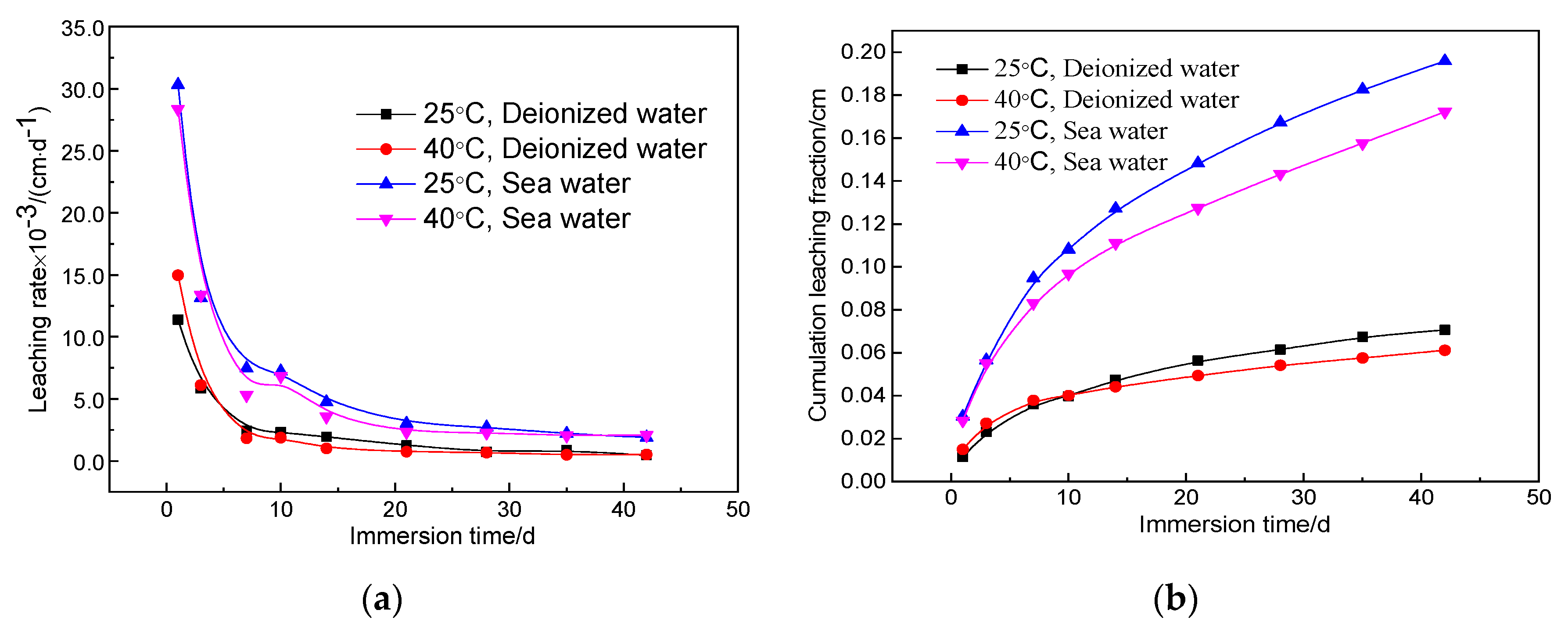

Figure 5 shows the leaching rate and cumulative fraction leached of magnesium silicate cement solidified samples with 1.6 wt.% strontium using a water–cement ratio of 0.65 under different leaching conditions. In the case of changes in temperature and leachant, the leaching rate and cumulative fraction leached of the solidified body during each leaching period were consistent with those tested at 25 °C using deionized water as leachant. In contrast, the effect of the leachant on the solidification of Sr²⁺ by the magnesium silicate cement was more significant than the ambient leaching temperature.

The leaching rate of the solidified body under simulated seawater conditions improved significantly compared with the results in deionized water. When the ambient leaching temperature was 25 °C, the 42-day leaching rates of the leachant for deionized water and simulated seawater were 4.64 × 10⁻⁴ cm/d and 1.89 × 10⁻³ cm/d, respectively; the corresponding values were 5.11 × 10⁻⁴ cm/d and 2.08 × 10⁻³ cm/d, respectively, when the temperature was increased to 40 °C. From the cumulative fraction leached curve, when the leaching temperature was 25 °C, the cumulative fraction leached after 42 days under simulated seawater conditions was 0.20 cm, which was 2.9 times that at the same temperature using deionized water (0.07 cm). When the leaching temperature was 40 °C, the 42-day cumulative fraction leached under simulated seawater was 0.17 cm, which was about twice that with deionized water (0.06 cm). These results show that the magnesium silicate cement reduces leaching of the radionuclide, particularly in the standard leaching environment (25 °C, deionized water). The 42-day leaching rate was <50% of the standard limit.

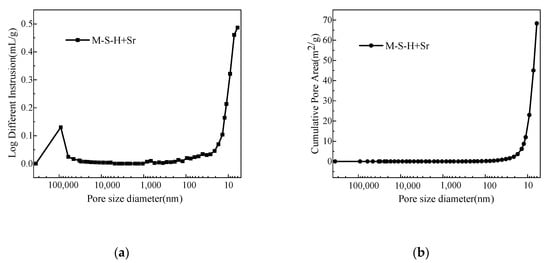

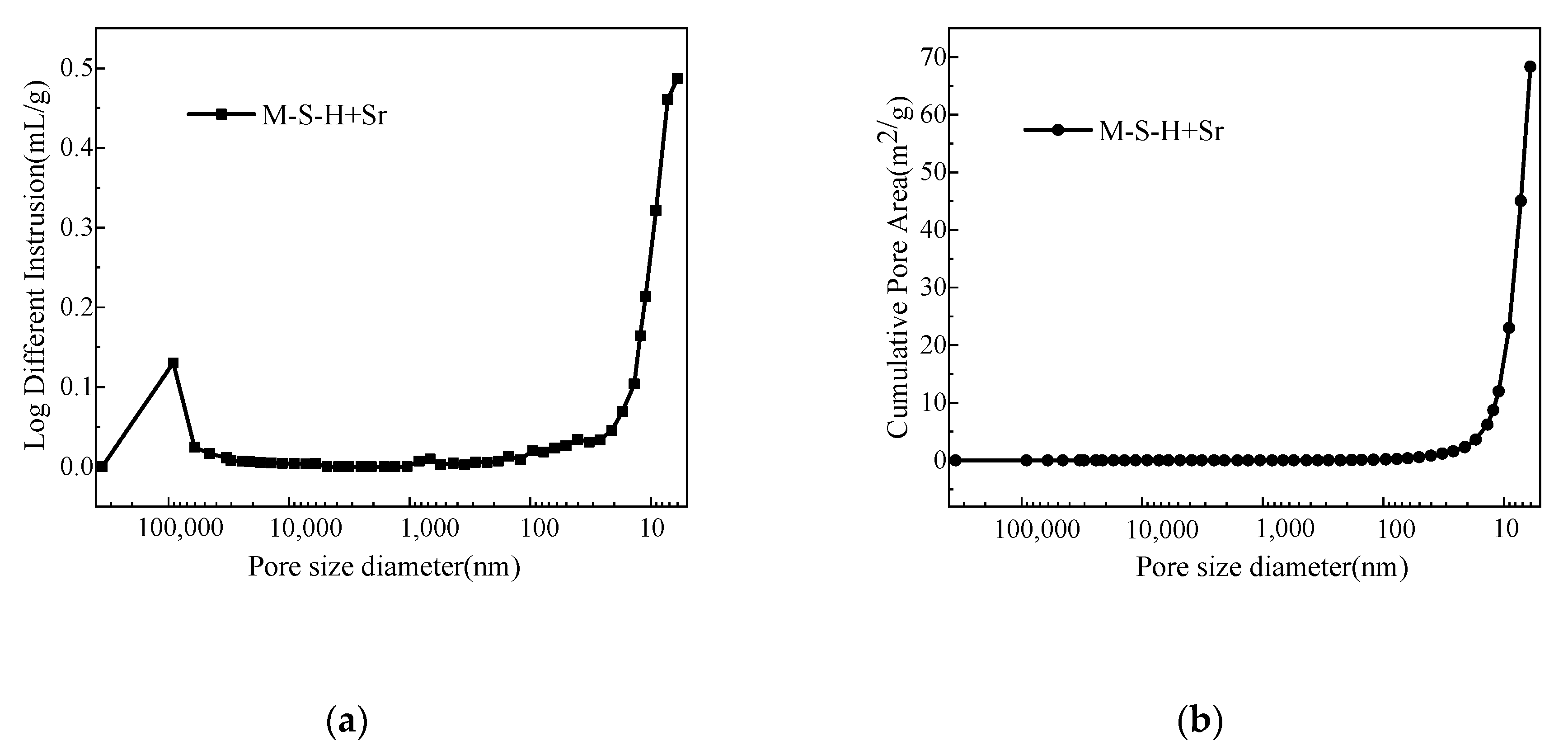

Mercury intrusion porosimetry (MIP) test results (Figure 6 and

Table 4. Mercury intrusion porosimetry (MIP) results of the MgO–SiO₂–H₂O solidified body with 1.6 wt.% Sr²⁺.

Average Pore Diameter/nm	Median Pore Diameter/nm	Total Pore Area/m2/g	Porosity/%
15.30	8.0	68.34	30.53

) show that most pores in the M–S–H solidified body are less than 10 nm and the total porosity is ~30.5%. This shows that the resistance of nuclide ion diffusion through the pore solution in the material is large, which reduces the leaching rate of the solidified body.

4. Discussion

Solidified bodies formed using cement as a substrate material for solidifying waste are a heterogeneous multiphase system composed of various solid products, including hydration products, residual clinkers, radioactive waste, and a small amount of liquid and air existing in the pores. The system solidifies radionuclide ions mainly by physical encapsulation, adsorption, and by forming a solid solution. Encapsulation relies on the density of the cement to retain the nuclide ions and spatially inhibits outward diffusion. Adsorption refers to the adsorption of a nuclide on the surface of the solidified body or hydration products. Forming a solid solution causes improved retention of the nuclide ion compared with the former methods. This is a chemical action that participates nuclides in the internal hydration products of the cement solidified body. According to the experimental results, the solidifying effect of MgO–SiO₂–H₂O on the radionuclide included the above ways, indicating that the system has good potential for encapsulating nuclear waste.

The encapsulation effect is mainly related to the pore size distribution of the solidified body, and the pore size distribution of the cement is mainly affected by the water–cement ratio, the admixture, and the curing age. These factors further affect physical properties of the solidified body, such as compressive strength and leaching rate. The presence of strontium changed the hydration environment of the magnesium silicate cement and the fluidity of the system decreased with increases in strontium content. The molding process becomes more difficult resulted in a decrease in the density of the solidified body, so the system does not have obvious advantages for physical inclusion of the nuclide. This is the reason that the compressive strength of the solidified body shown in Figure 1 decreased as the water–cement ratio increased. According to the XRD and SEM results, MgO and SiO₂ reacted slowly during the initial stage of hydration and the reaction product was prismatic crystalline Mg(OH)₂. As the reaction progresses, Mg(OH)₂ hydrates to form M–S–H gel. Previous work has shown that the M–S–H gel is the main strength source in MgO–SiO₂–H₂O cements [38] and the compressive strengths of magnesium silicate cement increase at later stages.

Adsorption involves chemical adsorption, which is caused by chemical bonds, mainly through the exchange of specific ions, and physical adsorption, which is generated by intermolecular forces, mainly through surface energy [39]. In addition, the molecular structure of M–S–H gel is close to the molecular structure of sepiolite with a specific surface area of ~200 m²/g, which has advantages for adsorbing heavy metal ions [40]. The leaching results in Figure 4 and Figure 5 are a good indication of the effect of MgO–SiO₂–H₂O cements on limiting the leaching of radionuclide ions.

At the beginning of the leaching tests, part of the Sr²⁺ adhering to the surface of the solidified body contacting the leachant is dissolved. The Sr²⁺ present in the connected pore solution also enters the leachate by liquid–liquid diffusion. The solution in closed pores is in equilibrium with the solid phase. As the leaching period extends, part of the Sr²⁺ encapsulated inside the solidified body was released gradually to the outer surface of the solidified body by solid phase diffusion, and this can also enter the leaching solution. In addition, the solidified body continues to hydrate during the leaching process, and more hydration products are formed to fill the pores, which reduces the diffusion rate of Sr²⁺. Therefore, the leaching rate of the magnesium silicate cement solidified body tends to be high during the early stage and low during the later stages. In addition, the SEM image in Figure 3 shows that Sr participates in the hydration process of the magnesium silicate cement, changing the final hydration product type, and existing in the solidified body in the form of strontium carbonate. Although this reduced the strength of the solidified body, the leaching resistance of the magnesium silicate cement solidified body was improved.

5. Conclusions

The effect of Sr²⁺ on the hydration process of MgO–SiO₂–H₂O cement was evaluated by assessing the mechanical properties, the phases, and by microstructural analysis. From results of strength, leaching tests and pore diameter distribution analysis, the stabilization performance of the M–S–H cement on Sr²⁺ was revealed and the following conclusions were drawn:

(1)

Incorporating the Sr nuclide reduced the working performance of the magnesium silicate cement and inhibited the development of compressive strength owing to the inhibition of hydration process.

(2)

The leaching rate and cumulative leaching fraction of the solidified body after immersion for 42 days in the standard environment (4.64 × 10⁻⁴ cm/d) and high temperature seawater (1.89 × 10⁻³ cm/d) were one order of magnitude lower than the limit value in the National Standard.

(3)

The presence of Sr affected the hydration reactions of the magnesium silicate cement and was encapsulated the interior of the matrix in the form of a strontium carbonate precipitate. This was beneficial to ensure low long-term leaching performance of the solidified body.
