Liquid Biphasic System: A Recent Bioseparation Technology

Department of Chemical and Environmental Engineering, Faculty of Science and Engineering, University of Nottingham Malaysia, Jalan Broga, Semenyih 43500, Malaysia
College of Chemical and Biological Engineering, Zhejiang University, Hangzhou 310027, China
School of Mathematical Sciences, Faculty of Science and Engineering, University of Nottingham Malaysia, Jalan Broga, Semenyih 43500, Malaysia
Department of Fundamental and Applied Sciences, Centre for Biofuel and Biochemical Research, Institute of Self-Sustainable Building, Universiti Teknologi PETRONAS, 32610 Seri Iskandar, Malaysia
Institute of Biological Sciences, Faculty of Science, University of Malaya, Kuala Lumpur 50603, Malaysia
Taipei Economic and Cultural Office, Prague, Czech Republic, Evropská 33C, 160 00 Praha 6, Czechia
Department of Chemical and Material Engineering, Tunghai University, Taiwan 407
Authors to whom correspondence should be addressed.
Processes 2020, 8(2), 149;
Received: 16 December 2019 / Revised: 16 January 2020 / Accepted: 17 January 2020 / Published: 23 January 2020
(This article belongs to the Special Issue Green Technologies: Bridging Conventional Practices and Industry 4.0)


A well-known bioseparation technique namely liquid biphasic system (LBS) has attracted many researchers’ interest for being an alternative bioseparation technology for various kinds of biomolecules. The present review begins with an in-depth discussion on the fundamental principle of LBS and this is followed by the discussion on further development of various phase-forming components in LBS. Additionally, the implementation of various advance technologies to the LBS that is beneficial towards the efficiency of LBS for the extraction, separation, and purification of biomolecules was discussed. The key parameters affecting the LBS were presented and evaluated. Moreover, future prospect and challenges were highlighted to be a useful guide for future development of LBS. The efforts presented in this review will provide an insight for future researches in liquid-liquid separation techniques.

Graphical Abstract

1. Introduction

The most trending research in the downstream biotechnology industries focuses on the production of various bio-based products from renewable sources. Examples of these sources are microalgae, fruit, lignocellulose biomass, secondary product, and crop waste. Separation and purification techniques for the recovery of biomolecules (e.g., proteins, carotenoids, and lipids) requires a precise operating condition to ensure high value end-products can be obtained [1,2]. Established extraction techniques such as membrane separation, chromatography-based method, ultrafiltration, and precipitation usually involve multiple step operations, complex pathways, time consuming operations, high energy inputs, and high cost for the recovery and extraction processes [3,4,5]. With that said, researchers are putting tremendous efforts in developing a new separation and purification techniques which can be performed in a one-step extraction process within a shorter period of time. On the other hand, the extraction solvents in a process that can be reused and recycled will lower the overall processing cost [6]. As for food and pharmaceutical applications, this requires an alternative non-toxic and environmentally friendly extraction solvents [7].
A well-established bioseparation technology namely liquid biphasic system (LBS) has attracted numerous researchers’ attentions in the separation and purification of biomolecules [8]. It is also known as liquid-liquid extraction technology in the downstream processing. The concerns associated from the conventional extraction method has been overcome by using liquid biphasic separation techniques. The liquid biphasic extraction technology is comprised of two liquids which is separated by an interfacial layer when the mixture of two incompatible liquids is beyond the critical condition. Generally, the characteristics of the phase-forming components creates a physico-chemical interaction which can easily acclimatize the target biomolecules to be partitioned to either the top or bottom phase depending on the selectivity of the components. Furthermore, various assisted technologies such as bubbling, ultrasound, and electrolysis have been incorporated into the LBS to enhance the effectiveness of biomolecules separation [9,10,11,12]. The application of the LBS has been applied for the extraction, separation, and purification of proteins, lipids, and carotenoids from microalgae [2,13].
This review article strives to summarize the cognitive knowledge and previous experimental research dealing with LBS for extraction and purification of various biomolecules. This review begins with the principles and fundamentals of LBS, followed by the various type of biphasic systems were presented. Recent works related with advance technologies such as bubble-, ultrasound, and electricity-assisted LBS were evaluated and assessed. Additional information regards to the quantification (i.e., partition coefficient, selectivity, separation efficiency, and recovery yield) and composition of LBS were tabulated with provided references in Section 2 and Section 3. Each section in this review would allow the readers to understand the development of LBS technologies. Moreover, the key parameters affecting the extraction efficiency in LBS, advantages and drawbacks of LBS were comprehensively discussed. In addition, future prospect and challenges associated with LBS were also discussed. This review article has a significant impact on the liquid-liquid extraction and purification for various biotechnological products, which serve as a resourceful tool for researchers dealing with extraction of biomolecules using LBS.

2. Liquid Biphasic System

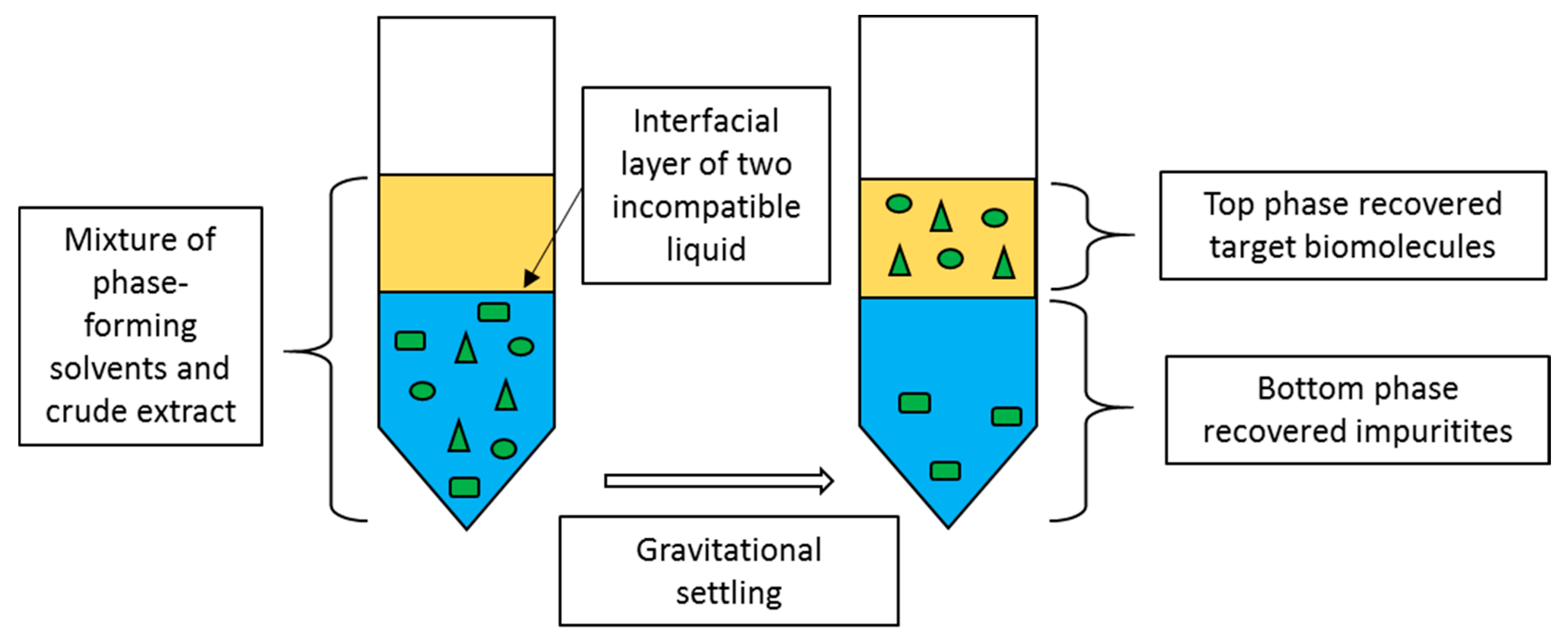

Liquid biphasic system (LBS) or commonly known as aqueous two-phase system (ATPS) has been long introduced for the separation, recovery, and purification of biomolecules, and it is the current research trend adopted in the separation and purification technology. It was started back in 1896 when Martinus Willem Beijerinck accidentally mixed an aqueous starch solution with gelatin and found that an immersible layer was formed between both the aqueous solutions [14,15]. This idea of LBS as an analytical separation technique was sparked by Per-Åke Albertsson in the 1960s who discovered the phenomenon by mixing two different polymers (e.g., polyethylene glycol and dextran) resulting in an aqueous medium containing two separable phases [14,16,17]. This application was then extended to several generations of scientists and engineers who have been working in the industrial biotechnology field. Figure 1 shows a schematic diagram of the principles of LBS.
The LBS is well-known for the extraction of different biotechnological materials such as proteins, lipids, and carotenoids [1,18,19]. The specialty of LBS compared to traditional organic solvent extraction techniques is the composition of the phase-forming components which contains large amount of water while maintaining a low interfacial layer that separates both phases. It can be either used to separate proteins from cellular debris or to purify targeted proteins from contaminated proteins. Likewise, LBS has the capability of directing the target biomolecules by partitioning them to the top phase for extraction [20]. Conventional polymer-based LBS which possess a low ionic system is generally used for the separation and purification of biomolecules which are sensitive toward ionic condition [16]. Nevertheless, polymer-based LBS was neglected due to lack of compatibility between high ionic strength biomolecules, expensive phase-forming components, and its high viscosity system. Further development in LBS using different phase-forming components such as alcohol-, ionic liquids-, deep-eutectic solvent- and surfactant-based was utilized to replace the conventional polymer-based LBS.
The selective partitioning of the LBS allows the extraction of biomolecules to be operated in a single-step process compared to traditional extraction techniques which require multiple operation steps. LBS possess an environmental-friendly, inexpensive, ease of scaling-up, rapid, and efficient techniques for recovery and purification of biomolecules. During the planning stage, it is crucial to understand the complexity of the physical and chemical interaction reaction throughout the partitioning process in the LBS [21]. The selection of various parameters which are compatible to the system properties are important to achieve an optimal extraction, recovery, and purification condition. It is also important to evaluate the interactions during the selection of various parameters (e.g., salt precipitation, crystallization, and absence of biphasic system) as it may affect the findings. Lastly, is to assess the effect of each process parameters on the product recovery and purity [21].
Fundamental principles for the formation of LBS requires a phase diagram or also called the binodal curve where these provide a set of information regarding the two-phase formation and their required concentration in the top and bottom phases [22]. A detailed study has been evaluated previously by Iqbal et al., (2016) on the tie line length (TLL) and slope tie line (STL) for the construction of phase diagrams [23]. Binodal curves can be constructed using three methods namely, turbidometric titration, cloud point, and node determination method for predetermined phase diagram [22,24,25]. Moreover, the partition coefficient (K) LBS is to evaluate the equilibrium relationship between the top and bottom phase in the LBS. However, there is still lack of studies reporting on the theory and chemistry of these phase forming mixtures in the LBS which is a gap to-be-filled. Apart from that, factors that affect the partition coefficient can be manipulated using electrical, hydrophobicity-phase forming components, bio-specific affinity, molecular size, and surface area to understand the physico-chemical properties of the partitioning mechanism in the LBS.

2.1. Polymer-Based LBS

The conventional polymer-based LBS is typically made up of two polymers (e.g., polyethylene glycol (PEG) and dextran) and PEG-salt combinations (e.g., phosphate-, sulphate-, and citrate-based) as the phase-forming components. The purpose of using polymer-based LBS is that the chemical composition of a non-ionic characteristics toward an ionic environment is compatible towards biomolecules having low ionic strength [16]. Aside from that, the phase forming component from polymer-based has the ability to be recycled and reused for subsequent extraction process and this reduces the cost of polymers phase-forming component [26]. Polymer-based LBS are commonly used for protein extraction due to its poor hydrophilic and hydrophobic interaction in polymer/salt-based LBS. However, it is important to maintain concentration of salt solution as high salt concentration may denature and damage the fragile protein in the system.
In most work, conventional polymer-based LBS has been replaced by using thermo-separating polymers as the phase-forming component to overwhelm the limitation of polymer-based LBS such as high viscosity and difficulties in recycling process [27,28]. Thermo-separating polymers are random, di-block, and tri-block co-polymers of ethylene oxide (EO) and propylene oxide (PO) [29]. Thermo-separating polymers have a low cloud point temperature (≤47 °C) which is suitable to achieve temperature-induced phase separation where a target protein can be recovered from the polymer [30]. Generally, a back-extraction process such as ultrafiltration, diafiltration, and crystallization is needed to separate the target protein from the polymer. However, an in-depth understanding on the mechanism by the polymer phase-forming component for the recovery of biomolecules is still poorly understood. This shows a gap for future researchers to further explore the fundamental principles of this LBS extraction technique.
Several studies have been conducted involving cyclodextrin glycosyltransferase (CGTase) from Bacillus cereus. Ng et al., (2012) reported that the TLL of 41.2% (w/w), volume ratio (VR) of 1.25, pH 7, and crude loading (w/w) of 20% were the optimal conditions to recover cyclodextrins using polymer-based LBS with ethylene oxide–propylene oxide (EOPO) 3900 and two phosphate salts [31]. This experiment showed that the highest CGTase was purified up to 13.1-fold with a yield of 87% recovered in the EOPO-rich top phase. However, this experiment did not discuss the time period in cyclodextrins recovery. Another research carried out by Lin et al. [32] with modified method using flotation technique and the combination of PEG 8000 and potassium phosphate salt. The optimum conditions in cyclodextrins (CDs) recovery was optimized at 18% (w/w) PEG 8000 and 7.0% (w/w) potassium phosphate with TLL of 27.2% (w/w), VR of 3.0, pH 7, and crude loading (w/w) of 20%. The experiment showed that the recovery of CDs was affected by alternating each of the parameters such as TLL, VR, and pH where the purification factor (PFT), which corresponded to the highest CGTase purity up to 21.8 with a yield of 97.1%, was recovered in the PEG-rich top phase within a short period [32].
A similar approach utilizing polymer-based LBS was employed for the recovery of lignin peroxidase from Amauroderma rugosum (Blume and T. Nees) [33]. However, this experiment used a lower molecular weight (PEG 600) for a high purification of lignin peroxidase. Generally, this approach showed that a higher molecular weight polymer reduces the purification factor of lignin peroxidase due to the interaction of PEG and hydrophobic enzyme. An optimal condition in lignin peroxidase recovery was optimized at 15% (w/w) PEG 600 and 16% (w/w) dipotassium phosphate with highest purification factor of 1.33 ± 0.62 and recovery yield of 72.18 ± 8.50%.

2.2. Organic Solvent-Based LBS

Organic solvent-based LBS consists of various water-miscible alcohols (e.g., methanol, ethanol, 1-propanol, and 2-propanol) and inorganic salts. This form of LBS has been utilized to overcome the limitation of polymer-based LBS to improve the recovery of biomolecules from the phase-forming component [7]. The use of alcohol as the phase-forming components can easily recover the biomolecules by evaporating the alcohol from the top phase. A recent study also showed a greener approach using food grade alcohol such as ethanol and 2-propanol compared to the conventional polymer-based LBS for the extraction and recovery of carotenoids from microalgae [7]. Additionally, the phase-forming component can reduce the cost of the process by recycling and reusing the alcohol using rotary evaporator for the next extraction process. Despite its advantages, the drawbacks of using alcohol, especially methanol, as the phase-forming component is the toxicity and hazardous effects towards the environment.
Ooi et al. (2009) reported a study on purification of lipase from Burkholderia pseudomallei using alcohol/salt-based LBS [19]. The best lipase recovery was achieved in LBS composed of 16% (w/w) of 2-propanol, 16% (w/w) of potassium phosphate and 4.5% (w/v) sodium chloride with a purification factor of 13.5 along with the yield of 99%. The presence of alcohol component in LBS also did not inhibit the enzymatic activity of purified lipase. The effect of NaCl on lipase partitioning was found to generate an electrical potential difference in the LBS [34]. An increase in the salt concentration could generate an electrostatic potential that strongly expelled the negatively charge biomolecules toward the water-miscible alcohol in top phase, thus resulting in a high recovery yield.
Lin et al., (2013) conducted a study using alcohol/salt-based LBS to recover the intracellular human recombinant interferon-α2b (IFN-α2b) from Escherichia coli [34]. A different variety of combinations between alcohol-based top phase (ethanol, 1-propanol and 2-propanol) and salt phase (ammonium sulfate, dipotassium hydrogen phosphate, and monosodium citrate) were conducted. LBS composed of 18% (w/w) of propanol and 22% (w/w) ammonium sulfate in 1% (w/w) sodium chloride was reported to be the optimal conditions for the purification of IFN-α2b achieving a purification factor of 16.2 with the yield of 74.6%. Ammonium sulfate salt was selected due to its high level of pH in the system which provided a high purification factor of IFN recovery. As the pH environment in LBS increased, the contaminant protein and IFN protein were partitioned toward water-miscible alcohol top phase. This is mainly due to the negatively charge protein which tends to partition to the top phase and repels from the salt-rich bottom phase [34].
A recent study conducted on a recyclability test utilizing 1-propanol and ammonium sulfate system for the phlorotannin recovery from Padina australis and Sargassum binderi [35]. The highest recovery of phlorotannin were 76.1% and 91.67% with purification factor of 2.49 and 1.59 from Padina australis and Sargassum binderi, respectively. A consistent recovery of phlorotannin was obtained after conducting two cycles of the system. This showed a feasible and eco-friendly approach of utilizing the alcohol-based LBS for biomolecules extraction.

2.3. Ionic Liquid-Based LBS

A new trend of research by using ionic liquids (ILs) have been an alternative organic compound and non-volatile green solvent in the downstream processes. Their remarkable properties such as negligible vapor pressure, low melting point and high thermal stability have received numerous attention from researchers [36,37]. ILs are composed with tuneable physico-chemical properties of cationic and anionic ions [38]. The cationic part of ILs usually consists of choline cation, ammonium cation, quaternary ammonium or phosphonium, and guanidium cation. As for the anionic part, it consists of environmentally friendly sources such as carboxylic acid, amino acid and biological buffers. Thus, replacing ILs as the phase-forming component in LBS would be beneficial for the extraction and purification of specific target biomolecules from complex crude extract [39]. Additionally, ILs have also been employed for various applications such as electrolytes (e.g., fuel cells, batteries and sensors), CO2 capture, lubricants, and fuel additives. The cost of reactant for the synthesis of ILs are expensive. Therefore, it is important for ILs to be recycle- and reuse-able to ensure that ILs-based LBS are more feasible and applicable in the bioprocessing industries for the next extraction processes. A review by Ostadjoo et al., (2017) revealed the green and environmentally friendly, 1-ethyl-3-methylimidazolium acetate ([C2mim][OAc]) for its potential features in the field of lignocellulose biomass dissolution and biopolymer processing [40,41,42]. Yet, there is still insufficient studies related to their toxicity and eco-friendliness on scaling up these ILs, especially imidazole- and pyridinium-based ILs. Here we recommended that these ILs need to be further fabricated by replacing environmentally-friendly anionic part such as carboxylic acid, amino acid and biological buffers in order to minimize their toxicity in various application.
Gutowski et al. (2003) reported that by mixing imidazole-based ILs and a kosmotropic salt (i.e., K3PO4) would lead to the formation of a biphasic system [43]. This research had gained interest investigating the phase separation behavior of IL-based LBS. The study on protein extraction using IL-based LBS in a single step was conducted by Du et al. (2007). The researchers had successfully extracted the protein from human urine into the IL-rich top phase with a distribution of 10 and enrichment factor of 5 [44]. Apart from that, Ng et al. (2014) investigated the purification of CGTase from Bacillus cereus fermentation broth in IL/salt LBS, composing of 35% (w/w) of (Emim)BF4 and 18% (w/w) of sodium carbonate with the addition of 3% (w/w) of NaCl [45]. The optimized operating conditions showed that the IL-based LBS was a promising approach for the purification and recovery of CGTase in a single step operation attaining a high purification factor of 13.86 and yield of 96.23%. Ng et al. (2014) also reported that it was crucial in the selection of salt such as citrate and carbonate ions as they played an important role in LBS formation and was able to attract water molecules toward them by forming strong intermolecular interaction [45].
Chang et al., (2018) used a series of alkyl bromide imidazole for the extraction of C-phycocyanin (CPC) from Spirulina platensis and found that the longer the alkyl chain, C8MIM-Br enhanced the extraction efficiency of CPC [46]. The results indicated that by using C8MIM-Br/salt LBS the maximum extraction efficiency, partition coefficient, and separation factor of CPC were 99.0%, 36.6, and 5.8 respectively. ILs-based LBS demonstrated an efficient and feasible separation technique for the extraction of various biomolecules from complex crude extract. This was supported by a recent study that evaluated the protein partitioning in ILs-based LBS composed of Iolilyte 221 PG and citrate salts was found to be feasible but complex depending on various factors such as concentration of phase-forming component, pH, temperature, ionic strength, and chemical nature of the target biomolecules [47]. Proteins are negatively charged particles therefore it favours a system pH (≥6.50) higher than the isoelectric point of protein. Moreover, the partition coefficient for tie-line length within 38–76% were reference points for specific protein (e.g., bovine serum albumin and rubisco) to be partitioned at the top phase.

2.4. Deep-Eutectic-Solvent-Based LBS

Deep-eutectic-solvents (DESs) are defined as a subclass from ILs because of their similarity in physical and chemical properties of ILs [48]. The behavior exhibited from DESs are contributed from hydrogen bonding, whereas ILs are dominated by ionic interactions [49]. DESs are more environmentally friendly as compared to ILs (e.g., imidazole- and pyridinium-based ILs) which are toxic and non-biodegradable. The synthesis of DESs is by combining hydrogen bond acceptors (e.g., quaternary ammonium and phosphonium salts) and hydrogen bond donors (e.g., alcohols, carboxylic acid, and amide). A major advantage from DESs are their charge delocalization properties which are responsible for the decrease in melting point of mixture relative to the raw material [50]. The bottleneck from using ILs such as high cost and complex synthesis route have been solved by these DESs. By having the similar characteristic as ILs and exhibiting some distinguishing features, including ease of synthesis, low cost, and valuable for industrial application, DESs have gained interest in many fields especially in LBS [51].
Choline chloride (ChCl) is a convention quaternary salt used to synthesize DESs. ChCl-based DESs have the same advantages with ILs besides showing excellent biodegradability and low toxicity [52]. Zeng et al. (2014) had performed the extraction of bovine serum albumin (BSA) using four different kind of DESs, namely, choline chloride (ChCl)-urea, tetramethylammonium chloride (TMACl)-urea, tetrapropylammonium bromide (TPMBr)-urea, and ChCl-methylurea [53]. The extraction efficiency of BSA under the optimum LBS conditions composed of 0.7 g mL−1 ChCl-urea and 2.0 mL dipotassium phosphate, K2HPO4 could reach up to 100.5% that collectively highlighted the advantages of the DES-based LBS for the extraction of protein. Unfortunately, this work was unable to back-extract the target protein free from the DES-LBS because of the hydrophilicity characteristic of DES in the aqueous solution.
A similar work with different DESs was investigated by Pang et al. (2017) using DES-based LBS which composed of choline chloride-polyethylene glycol (ChCl-PEG or DES) and sodium carbonate were applied for the extraction of specific protein (i.e., BSA and papain) [52]. ChCl-based DES was prepared by mixing two compounds, 0.68 g mL−1 ChCl and 0.1 g mL−1 PEG 2000 at the molar ratio of 20:1, stirring up to 100 °C until a homogenous colorless liquid was formed. The result showed that the DES-NasCO3 LBS under the optimum condition had successfully obtained a high extraction efficiency of BSA (95.16%) and papain (90.95%). Moreover, the back-extraction of target protein was performed by extracting 1 mL DES top phase followed by the addition of ammonium sulfate (NH4)2SO4 and 0.45 mL ethanol to form a new LBS. However, it was found that by increasing the concentration in the salt-rich bottom concentration would lower the efficiency of the back extraction.
A modified DES-based LBS using ultrasonic-assisted were employed for the extraction of ursolic acid from Cynomorium songaricum Rupr [54]. This approach was compared to the convention ultrasonic-extraction method. The recovery yield of ursolic acid was comparable. However, the presence of LBS promotes a higher purification of ursolic acid. The recovery yield of ursolic acid was 22.10 ± 0.44 mg/g with purification factor of 42.41 ± 0.84% as compared to conventional ultrasonic-extraction method where the recovery yield was only 20.9 ± 0.79 mg/g with a low purification factor of 20.17 ± 0.77%.

2.5. Surfactant/Detergent-Based LBS

Surfactant-based LBS is the transformation of phase-forming component from conventional polymer-based LBS. The surfactant-based LBS is formed when both cationic and anionic surfactants are separated into two immiscible liquid phases which consist of a high concentration than critical micelle concentration (CMC) and at certain molar ratio of cationic and anionic surfactant composition. This novel approach of surfactant-LBS has gained interest mainly due to the combination phase which exist in many different forms (i.e., spherical micelles, rod-like micelles, or vesicles) by simply alternating different composition and concentration of surfactants [55]. The principle of surfactant-based LBS used the cloud point extraction (CPE) system in which the non-ionic surfactant is heated above the cloud point temperature, causing dehydration of detergent for the phenomenon of phase separation to occur [56]. The surfactant-LBS consists of one surfactant-rich phase and the other is the surfactant-dilute phase. The organic contaminant will partition into the surfactant-rich phase and will then aggregate and concentrate at that phase. The presence of small amount of remediated water in the contaminant will remain in the surfactant-dilute phase. Surfactant-based LBS is commonly used to separate hydrophobic and amphiphilic molecules by solubilization and partitioning of membrane-bound substances.
Surfactant-based LBS composed of 24% (w/w) Triton X-100 and 20% (w/w) xylitol was used for the purification of lipase from pumpkin seeds [57]. The results showed that the surfactant-based LBS had the ability to partition the lipase into the top surfactant-rich phase and leave the impurities at the bottom xylitol-rich phase. The proposed optimized method had successfully recovered the enzyme with purification factor of 16.4 and yield of 97%. This study also demonstrated that the recovery phase component could be recycled up to five runs with a high percentage of recovery of 97%. However, it was noted that there was a significant decrease in recovery of the phase component after the fifth cycle in which could be mainly due to the accumulation of impurities present in the phase component.
An example of surfactant-based LBS extraction was conducted by Sankaran et al. (2018) using surfactant and xylitol under the optimum operation condition of 25% w/w of xylitol concentration, 15% (w/w) Triton X-100, 80% w/w of crude lipase, 4 mL of top phase, 35 mL of bottom phase, pH 7, and 15 min of flotation time showed the maximum lipase extraction and efficiency of 3.63 and 86.46% [58]. In addition, the recyclability of both components in surfactant-LBS extraction makes this an excellent process, as this innovative method was practical and feasible to be applied in the biotechnology industry for extraction of other biomolecules. Table 1 summarizes the extraction of biomolecules using various types of phase-forming component in LBS.

3. Advance Technologies Integrated with LBS

3.1. Bubble-Assisted LBS

Bubble-assisted LBS or known as liquid biphasic flotation (LBF) is the combination of LBS and solvent sublation (SS), in which the biphasic medium composed of organic solvent and aqueous salt solution is aerated by air bubbles (e.g., nitrogen and oxygen) in promoting the adsorption of target biomolecules during the separation process [8] (refer to Figure 2a). SS is an adsorptive bubble separation technique introduced by Sebba who suggested that the use of an immiscible thin organic solvent layer overlaid on top of the liquid bulk as a modification of ion flotation [59]. LBF has accommodated the ease for extraction of high value biomolecules such as protein, lipase, astaxanthin, and betacyanin [8,10,60,61]. The theory of LBF system is the phenomenon of surface-active biomolecules having a sorption mechanism between the air bubbles surfaces. The bubbles then arise and dissolve in an organic solvent phase on top of the aqueous solution in the system [11]. With the presence of bubble-assistance in LBS, this could intensively strengthen the adsorption mechanism produced by the bubble transportation; thus, this system is feasible for separation and extraction of biomolecules. Figure 2a illustrates the set-up of bubble-assisted LBS.
A pilot-scale LBF consisting of 0.9 L of 50% (w/w) of 1-propanol and 1.5 L of 250 g/L ammonium sulfate salt, (NH4)2SO4 had been developed for direct recovery of lipase derived from Burkholderia cepacian [62]. The purpose of this study was to conduct a comparison between the recovery of lipase on pilot-scale and small-scale LBF processes. Preshna et al., (2016) had reported that the pilot-scale alcohol/salt LBF system acquired a purification factor of 12.2, efficiency of 88%, and a recovery yield of 93.27% which was feasible for purification of lipase to be implemented into the industrial scale processes [62].
Leong et al. (2018) utilized LBF which composed of 10 mL of 100% ethanol, 20 mL of 200 g/L K2HPO4 salt solution, 1 g FE (peel or flesh of red-purple pitaya), and 15 min flotation time for betacyanins extraction [8]. The results under the optimum conditions of LBF revealed that the betacyanins extractions from 1 g FE of peel in alcohol-rich top phase was 95.989 ± 1.708% with separation efficiency and partition coefficient of 88.361 ± 1.708% and 24.168 ± 2.949%, respectively. The recovery from 1 g FE of flesh was 95.488 ± 0.213% with separation efficiency and partition coefficient of 94.886 ± 0.060% and 21.195 ± 1.030%, respectively [8]. The objective of this work showed that the LBF has a great potential in bioseparation technology as compared with other extraction techniques such as diffusion extraction, ultrafiltration, and reverse osmosis in which only able to recover 70–75% of betacyanins [63].
Rather than using alcohol-based LBS, a recent study had showed the extraction of α-Lactalbumin from whey used a different phase forming component (i.e., PEG 1000 and citrate salts) along with bubble-assisted technologies showed a separation efficiency and purification fold of 87.54% and 5.33 [64]. The advantages of this study had showed the feasibility of bubble-assisted technology compared to conventional liquid-liquid extraction providing a low processing cost, rapid, and good separation yield. However, a further study is required to fulfil the gaps in the bubble-assisted technology. This is to ensure a better understanding regarding the mass transfer and the development of kinetics model of LBF in the separation of biomolecules.

3.2. Ultrasound-Assisted LBS

In the biotechnology processes, cell disruption is considered as the most important process for higher extraction and recovery yield. Ultrasound-assisted LBS is an integrated technique which has been extensively acknowledged by researchers due to its effective properties of cell disruption [65,66]. The advantages of ultrasound-assisted LBS includes low operating cost, less energy consumption and short period of time requirement [67]. The fundamental of ultrasound irradiation is the high shear forces produced from cavitation bubbles of ultrasonic waves and mechanical shears which enhanced the cell disruption for effective biomolecules extraction [68]. Figure 2b shows a schematic set-up of ultrasound-assisted LBS.
A recent study conducted by Sankaran et al. (2018) utilized the application of ultrasound-assisted LBS for extraction of protein from Chlorella vulgaris FSP-E microalgae [12]. The authors found that the ultrasound-assisted LBS had the ability to break down the rigid cell wall, followed by the release of protein for extraction. The maximum efficiency and yield of protein were 75% and 65.4%, respectively [6]. An integrated system of ultrasound and LBF was used to compare the effectiveness recovery of the release protein into the solution for extraction [69]. It was reported that the ultrasound-assisted LBF had better advantages over the ultrasound-assisted LBS, driven by its higher concentration coefficient and a better separation efficiency. This was mainly due to the presence of air bubbles which enabled the adsorption of surface-active proteins from the bottom phase to the top phase. As a result, this led to a higher separation efficiency and recovery yield. This integrated sugaring-out ultrasound-assisted LBF under the optimum conditions composed of 100% (w/w) acetonitrile, 200 g/L glucose concentration, biomass concentration of 0.6% with 5 min of 5 s ON/10 s OFF pulse mode, and at a flow rate of 100 cc/min had given rise to the protein separation efficiency and recovery yield of 86.38% and 93.33%, respectively.
Aside from that, ultrasound-assisted extraction has also been widely employed for the cell disruption of lignocellulose biomass from plants [70]. The extraction of phenylethanoid glycosides (e.g., echinacoside and acteoside) from Cistanche deserticola stems using ultrasonic-assisted LBS successfully recovered 27.56 and 30.23 mg/g, respectively [71]. This approach showed that ultrasonic-assisted LBS were efficient, eco-friendly and cheap method for extracting and enriching biomolecules from lignocellulose biomass. However, it is crucial to monitor the process temperature when dealing with ultrasonic irradiation. The high shear forces produced from the cavitation bubbles of sonic wave would generate a high temperature process which will degrade or deform the target biomolecules resulting in an unfavorable low extraction yield. Another supporting research of using the application of ultrasound-assisted LBS was the extraction and separation of antioxidants such as xylooligosaccharides (sugar) and phenolic compound from wheat. In ultrasound-assisted LBS composed of 23.8% (w/w) ammonium sulfate, 24.3% (w/w) ethanol, 1.2% (w/w) biomass loading with ultrasound wave (30 Hz, 500 W, 10 min), extraction yielded the highest recovery of sugar and phenols were 16 mg/g and 2.67 mg/g dry material [72]. This showed that implementation of ultrasound improved the efficiency of extraction of wheat chaff in LBS yielding 1.3–2 times higher, respectively than those without ultrasound.

3.3. Electricity-Assisted LBS

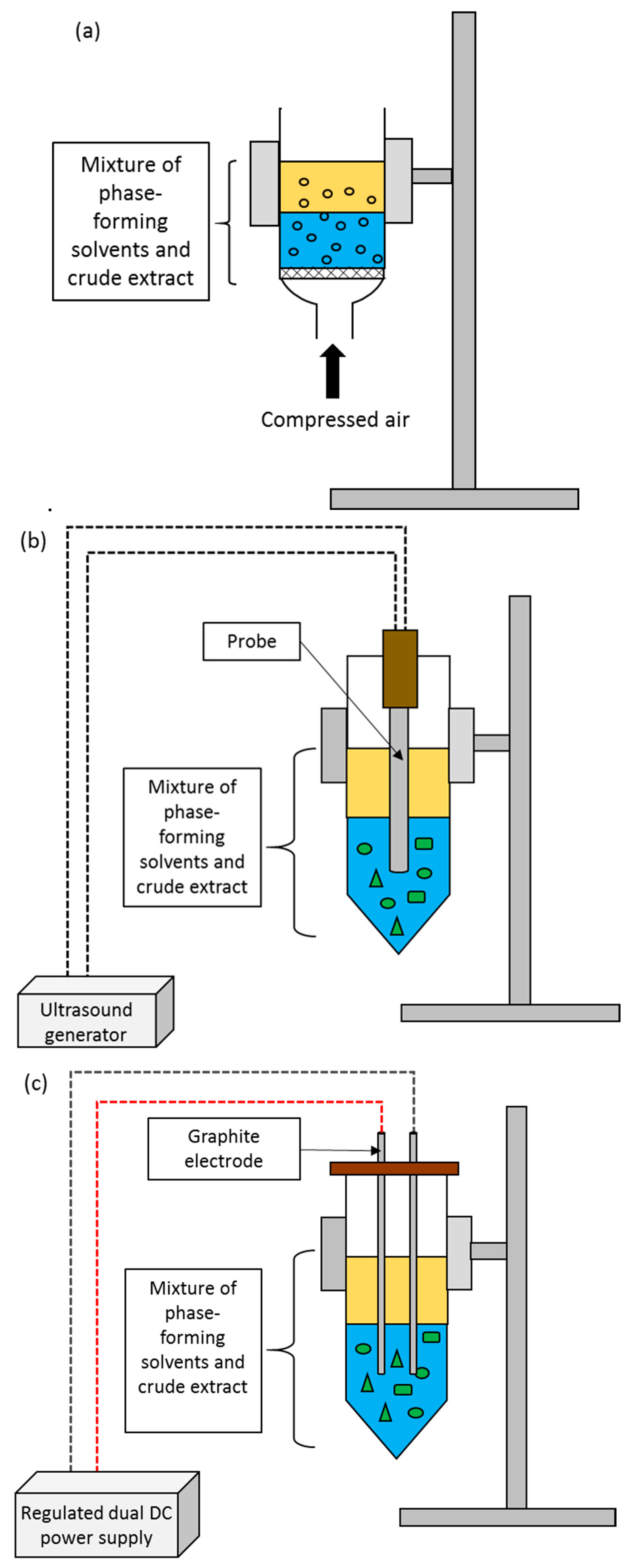

Electricity-assisted LBS (see Figure 2c) is a promising mild cell disintegration extraction technique for recovery of biomolecules. For instance, the electricity treatment such as pulsed electric field (PEF) demonstrates the conceptualization of the initiation of short electrical pulses in the order of magnitude of ms or µs subjecting the charge in the cell membrane which is sufficient to perform a rearrangement or disruption of membrane and lead to the pore formation. This process is also known as electroporation. However, an optimum condition is required as PEF is dependent on the intensity of the treatment and cell characteristics in which pore formation is reversible or irreversible [73,74,75]. PEF treatment also increased the mass transfer energy of the system. By combining both PEF and LBS would be an advantage for an efficient extraction of treated sample. This combination is known as an electropermeabilization where the presence of electric and extractive solvent improves the release of intracellular compound from treated sample [76]. Moreover, electricity treatment not only provides higher extraction efficiency of biomolecules but also a greener approach in the biotechnology industries.
Lam et al., (2017) investigated the operating condition required to release selective proteins from the cell wall of Chlamydomonas reinhardtii (cc-124) strain and the cell wall deficient mutant strain (cc-400) using PEF treatment without the presence of LBS [77]. The results showed that after PEF treatment, with operating condition of 5–7.5 kV/cm, 1–10 pulses, and a pulse length of 0.05–0.2 ms on the cell wall, deficient mutant (cc-400) was on average three times higher than cell wall strain (cc-124) with average protein yield of 31 ± 6% protein and 11 ± 3% protein. Additional experiments utilizing PEF treatment with low energy input (range between 0.01 and 0.5 kWh/kgDW) were also conducted on cell wall deficient mutant strain (cc-400) with a maximum recovery of 30% at 0.04 kWh/kgDW. Furthermore, the results obtained from PEF treatment with low energy input was compared with bead beating which only obtain an average of 34 ± 4.2% proteins.
A recent work conducted by Leong et al. (2019) on betacyanins extraction from peel and flesh of red-purple pitaya using the liquid biphasic electric flotation (LBEF) [76] had reported that this new integration process of electricity supplied in LBF system could cause an electropermeabilization of red-purple pitaya membrane structure and improve the betacyanins extraction from red-purple pitaya. An optimum system composed of 100% (w/w) ethanol, 200 g/L of dipotassium hydrogen phosphate (K2HPO4) with 15 min floatation time (flow rate of 20–30 cc/min), and applied up to 3 V of voltage using graphitic electrodes showed the highest separation efficiency of betacyanins concentration (98.383 ± 0.215% for peel and 96.576 ± 0.0083% for flesh, respectively) [76]. Table 2 summarizes the advance technologies integrated with LBS for the extraction of biomolecules.

4. Key Parameters Affecting LBS

4.1. Type and Molecular Weight of Polymer

In polymer-salt based LBS, the polymer phase component is crucial as it exhibits different degrees of hydrophobicity on target biomolecules partitioning. As the molecular weight of polymer increases, the hydrophobicity also increases due to the long hydrocarbon chain of monomers. This effect causes a reduction in free volume of the polymer-rich top phase, forcing the target biomolecules to be partitioned to the bottom phase. On the other hand, low molecular weight polymer will decrease the purification factor for target biomolecules as it will be partitioned together with contaminant proteins at the polymer-rich top phase [31,32]. Therefore, it is important in selecting an optimum condition for the hydrophobicity of polymers to obtain the maximum recovery of target compounds.
The effect of molecular weight has been discussed with the used of polymers such as PEG and potassium phosphate salt for the recovery of cyclodextringlycosyltransferase (CGTase) from Bacillus cereus [32]. In this work, the different molecular weights of PEG (e.g., PEG 4000, 6000, 8000, 10,000, and 20,000) were used in the LBF system for the CGTase extraction at a constant crude extract to volume ratio of 1.0:3.0. It was found that the maximum purification factor of 7.26 and 97.1% recovery of CGTase were achieved composed of 18.0% (w/w) PEG 8000 and 7.0% (w/w) potassium phosphates LBS. Well, as for the lowest molecular weight, PEG 4000 and highest molecular weight, PEG 20,000 showed a purification factor of 2.25 and 3.23, respectively. This indicated that the low molecular weight polymer (PEG 4000) withdraw contaminant biomolecules to the polymer-rich top phase and the high molecular weight (PEG 20,000) would engender a more viscous phase, resulting in the decrease of free volume of polymer-rich top phase caused by volume exclusion effect. In most cases, it is recommended to start with a low molecular weight, depending on the product compatibility while optimizing the partitioning condition.
In addition, one of the limitations of using PEG and salt as the phase-forming component in LBS is that most of them cannot be recycled for the next process. The non-recyclable phase-forming component makes the overall LBS in downstream processes to be unfavorable as it causes environmental pollution and increases cost operation [78]. To improve the recyclability of phase-forming component in the LBS process, another similar research replaced using thermo-separating polymer (EOPO) as the phase component for the purification and recovery of CGTase [31]. The recovery of EOPO after recyclability was more than 80% verifying the viability of recyclable characteristics. This simple, rapid and recyclable feature show that the LBS process is a promising and attractive approach for the recovery and purification of target biomolecules.

4.2. Type and Concentration of Alcohol

The use of different alcohols (e.g., methanol, ethanol, 1-propanol, and 2-propanol) with different concentrations in the LBS will affect the overall recovery yield of target biomolecules. The exposure of active site from the implementation of organic solvent helps to maintain the enzyme’s open conformation and bind the target compounds to the alcohol-rich top phase. A larger amount of alcohol is favorable as it will enhance the target biomolecules buoyancy and stability towards the interface layer.
Santos et al. (2016) conducted an experiment on extraction of caffeine from coffee bean and guaraná seed and reported the possibilities to manipulate the partitioning of caffeine to either the alcohol-rich top phase and salt-rich bottom phase [79]. For caffeine to be partitioned at alcohol-rich top phase, an increase in the concentration of 2-propanol caused the increment in the “caffeine-water” interaction. This effect will promote the biomolecules to be partitioned at the alcohol-rich top phase. Meanwhile, methanol was selected for caffeine to be partitioned at the salt-rich bottom phase. The purpose of selecting methanol was due to its low partition coefficient; therefore, increasing the tendency of caffeine to be partitioned at the salt-rich bottom phase.
A recent study on recovery of glycyrrhizic acid (GA) and liquiritin (LQ) from Chinese licorice root (Glycyrrhiza uralensis Fisch) reported that 87% GA and 94% LQ were successful obtained at alcohol-rich top phase under the optimum condition of 25% (w/w) ethanol and 30% (w/w) K2HPO4 in the LBS [80]. The effect of alcohol concentrations from 14 to 34% (w/w) and the extraction efficiency and partition coefficient were studied. By increasing the alcohol concentration to 26% in the system, the extraction efficiency and partition coefficient increased for both GA and LQ biomolecules. However, the extraction efficiency and partition coefficient decreased when the alcohol concentration was increased to 34%. This was due to the large amount of water-soluble alcohol in the alcohol-rich top phase interacting with the water molecules and causing the biomolecules to be partitioned to the salt-rich bottom phase [81]. This term was also referred as “volume exclusion” effect. In general, the selection of alcohol is mainly dependent on the target biomolecules from the complex crude extract. Each target biomolecule has their respective physico-chemical properties and therefore, it is difficult to govern a specific optimum condition for extraction and separation in LBS.

4.3. Type and Concentration of Salt

In the LBS, it is critical in selecting the type of salts as the phase-forming component since it can significantly affect the solubility and interaction of the target biomolecules. When the salt is added into a solution, the surface tension of water will increase which then leads to the increase of hydrophobic interaction between protein and water [82]. Few studies had shown that a high saturation level of salt concentration will cause a reduction in solubility of target biomolecules due to the higher salting-out ability of salt [20,36]. Lu et al., (2016) reported that the ability of salt solution and hydrophilic alcohol solution to form a biphasic system was mainly dependent on the Gibbs free energy of salt hydration [83]. The alteration in environmental phase system and behavior of biomolecules partitioning is utilized by the different salt components [84]. Different salts used for the LBS were based on their capability to support hydrophobic interaction between biomolecules [85]. According to the Hofmeister series, the salting-out ability of anions are arranged in the following order: SO42− > HPO42− > citrate3− > F > Cl > Br >I > NO−3 > ClO4− [25]. However, an optimum condition is required in order to obtain the maximum recovery of target biomolecules. It is also important to select a biodegradable and eco-friendly salt to ensure a more sustainable green approach in utilizing the LBS.
The effect of various salts used has been studied with the use of potassium dihydrogen phosphate (KH2PO4), magnesium sulfate (MgSO4) and ammonium sulfate ((NH4)2SO4) for the extraction of protein from Chlorella sorokiniana microalgae [10]. In this study, the salt concentration of 250 g/L were selected for each salt (KH2PO4, MgSO4, and (NH4)2SO4) as an optimum condition in the LBF. It was found that the KH2PO4, MgSO4, and (NH4)2SO4 exhibited high separation efficiency of 97.85%, 97.74%, and 97.74%, respectively. However, an observation was found using KH2PO4 solution where a white solid was formed and deposited around the interface at flotation time of 1.5 min, showing its incapability for the separation process. This formation happened when the properties of salt having a low solubility. Thus, an addition process is required to melt the solid salt solution. Another observation found using MgSO4 solution was the absence of interface in the LBF after a flotation time of 4 min. In contrast, it was observed that only (NH4)2SO4 solution could clearly render the highest recovery yield and purification values of 56.06% and 68.99%, respectively. The possible explanation was (NH4)2SO4 has a lower molecular weight as compared with KH2PO4 and MgSO4. As a conclusion, the extraction of protein is more favorable in the alcohol-rich top phase with increasing partitioning coefficient (K) when a low molecular weight salts is used [18,34]. However, the selection of various salts is still dependent on the compatibility of LBS and interaction among biomolecules.
The study of salt concentration was continued by using ammonium sulfate at the concentration range of 100 to 300 g/L. The effect of increasing salt concentration tends to increase the protein recovery yield. As supported by Phong et al. (2016), it was stated that the salting-out effect would occur at a higher salt concentration, the presence of ions tended to decrease the solubility of protein in the salt-rich bottom phase [9]. A further increase in salt concentration would decrease the protein recovery percentage. It was recommended to start with a minimum salt concentration of 20% (w/w) until the optimum condition was obtained rather introducing a high salt concentration abruptly.

4.4. pH System

The partitioning of target biomolecules can be affected by the pH system in LBS, due to a change in charges and solute properties of solute. The net charge of the target biomolecule becomes negative when the pH value is greater than the isoelectric point (pI) and positive when pH value is lower than the pI. If the net charge is equal to zero, both pH and pI values are equal [86]. Generally, it is found that in higher pH system would induce a positive dipole moment causing the partition coefficient to increase; therefore, favor the partitioning of negatively charge target biomolecules towards the polymer-rich top phase [87,88].
The partitioning of polyhydroxyalkanoate (PHA) from Cupriavidus necator H-16 in the thermoseparating-based LBS showed a good setup in altering the pH system as compared with conventional PEG-based LBS [89]. PHA showed a purification factor and recovery yield of 3.67% and 63.5%, respectively, at the pH 6 which was better than the conventional PEG-based LBS that had zero recovery of PHA in the top phase when pH was less than 7. However, there was a sudden drop in PHA recovery yield of 46.4% when the pH was adjusted to 8.0 to 8.8 in the system. Another study of extraction of BSA had shown that the different pH values could alter the net charge of targeted compound [90]. It was reported that the pH value increased from 6.0 to 9.0 which was larger than the isoelectric point of BSA (pI = 4.8) resulted in a maximum recovery yield of 84.32%. However, the high pH value is not favorable in the LBS since it can induce the protein denaturation.
Another experiment of antioxidants (i.e., xylooligosaccharides and phenol) extraction from wheat chaff explored the effect of pH on LBS [72]. The influence of pH value ranging from 2.5 to 7.0 was studied in the case of partitioning parameters of antioxidant such as recovery and partition coefficient. A maximum recovery of sugar ranging from 96% to 99% was obtained at pH 7.0 but the recovery of phenol decreased which could be explained by the phenol compound having a low pKa value of 4.5. In extend, at pH values near pKa such as pH 4.0 was reported that the partitioning of xylooligosaccharides was more towards the ethanol-rich top phase and phenol was more toward salt-rich bottom phase at the highest recovery of 75% and 77%, respectively. Hence, it is important to examine the effect of pH at the optimum condition to enhance the purification factor and recovery yield of the target biomolecules as it could be damaged or denatured by varying the sensitivity of pH conditions.

4.5. Temperature

The effect of temperature is dependent on the type of phase-forming components used in the LBS and stability of target biomolecules from denaturation. A change in temperature also affects the viscosity and density of the interface in the LBS. In most cases, the optimum temperature within the range of 20 to 40 °C was utilized for maximum recovery and partitioning of target biomolecules. The effect of temperature on the extraction efficiency of CPC from Spirulina platensis microalgae was studied and the maximum extraction efficiency up to 99.0% was achieved near the temperature range of 308 K [46]. It was found that lowering the temperature to 298 K caused the rate of CPC recovery to decrease, resulting in a low extraction efficiency. The influence of temperature on extraction efficiency study of BSA and papain was evaluated [52]. However, the studies showed that the extraction efficiency of both BSA and papain decreased when the temperature was increased. This phenomenon was due to the increasing temperature which could inhibit the interaction of amino acid and surface water of protein, resulting in less efficiency of protein extraction [89]. Hence, the effect of temperature should be taken into consideration as the extraction efficiency of the biomolecule is dependent on the range of temperature in the LBS.

5. Future Prospect and Challenges of LBS Application

The use of LBS is a promising separation technique for extraction of valuable biomolecules. The LBS can serve as an analytical tool to understand the chemical properties and behavior of target biomolecules. However, developing LBS as an alternative way for separation and purification for large-scale industrial application does encounter some key challenges that have to be re-addressed. One of the major concerns regarding the LBS is the partitioning coefficient (K) of the biomolecules into the top phase which is mainly dependent on the key parameters. It is time-consuming and crucial to investigate each of the key parameters in order to determine the optimum condition for maximum purification and recovery of biomolecules. The selection of phase-forming components should also be made concerning to their biocompatibility, hazards and biodegradability. Therefore, this favors an alternative phase-forming component which is more environmentally friendly and highly biodegradable in the aquatic environment.
Another challenge that needs to be addressed in the LBS is the extraction of biomolecules from natural sources. Regardless of various studies reporting the efficiency of LBS in the extraction of biomolecules from natural sources and microbial fermentation broths, it is still difficult to understand the biomolecules partition behavior, particularly when a complex crude feedstock is added into the LBS. Moreover, the contaminants might have the similar characteristics with the target biomolecules in the crude feedstock. This will cause lower extraction efficiency during the interaction with the extraction medium in the LBS. The lack of understanding on the partition behavior remains a challenge in utilizing the LBS for the recovery of biomolecules.
Furthermore, there is still some unexplored technologies such as magnetic and microwave approach which can be integrated with LBS for enhancing biomolecules extraction efficiency. The implementation of these new advanced technologies would be beneficial to enhance the knowledge in LBS. Moreover, it has been proven that the present assisted technologies using bubble-, ultrasound-, and electricity-assisted technologies showed a promising prospect in the recovery and purification of biomolecules. However, these assisted technologies required an in-depth study due to the lack of knowledge between its physico-chemical mechanism aligned with the LBS.
To maximize the large-scale use of LBS requires an ideal optimization technique at where the system can perform at its best desired performance for various application. A recent review by Torres-Acosta et al., (2019) has comprehensively evaluated the strategies to incorporate the LBS technologies in the industry [91]. One of the most frequent optimization techniques used is univariate optimization or known as one-factor-at-a-time (OFAT) analysis is where a single parameter at the time after the other is selected based on its best performance. Aside from that, response surface methodology (RSM) is another optimization technique found in most literature studies. This optimization technique composed of a statistical design that allows a simultaneous variation of several parameters compared to OFAT which depends on a single parameter at a time. Lastly, genetic algorithms (GA) is less frequently used compared to RSM however can deliver excellent results. The fundamental of GA involves the natural genetic inheritance (genotype) which relate specifically to the raw information of LBS components such as concentration of alcohol, salt, pH system, and temperature and then interprets the results (i.e., recovery yield, partition coefficient, and separation efficient) based on the characteristic of the LBS. The advantages of this GA compared to RSM is that GA does not require a regression or model tool as the optimizing approach, as the LBS is based on the previous results. In general, these optimization strategies are one of the best-selling points to make LBS to be implemented at industrial scales.
Aside from that, another strategy which could beneficial to the LBS is to study the recyclability and reusability of the phase-forming components in LBS. This is to ensure that the LBS not only can be employed as a separation and purification technique, but also promoting a sustainable low-cost process in the downstream processes. On top of that, the implementation of extractive technologies such as fermentation, cell disruption, bioconversion, crystallization, distillation, and metallurgy can be proposed along with the LBS to allow the production and purification tasks to occur in one-step process. The advantages of this extractive technologies prevent the inhibition of the product and enhance the stability of biomolecules in the production stage. These benefits from extraction technologies should be further explored for the future development of LBS.

6. Conclusions

LBS is a simple, selective, scalable, and efficient tool to be utilized in downstream processing for the purification and recovery of biomolecules. However, it is still yet favorable to be used at the commercial scale as the complexity of the partitioning mechanism is difficult to predict. The challenges associated with the LBS techniques such as economic feasibility and the understanding of partition behavior need to be addressed to ensure the applicability in biotechnology industries. It is believed that more development along with various kind of technologies integrated in LBS will be discovered in the future. Hence, promoting the LBS to be used in commercial applications in recovering various high value bio-based products.
