Article

Syngas Production from Combined Steam Gasification of Biochar and a Sorption-Enhanced Water–Gas Shift Reaction with the Utilization of CO2

1
Department of Chemical Engineering, Faculty of Engineering, King Mongkut’s University of Technology North Bangkok, Bangkok 10800, Thailand
2
Energy Research Institute, Chulalongkorn University, Phayathai Road, Wang Mai, Phatumwan, Bangkok 10330, Thailand
3
Department of Petrochemical and Environmental Engineering, Faculty of Engineering, Pathumwan Institute of Technology, Rama 1 Road, Wang Mai, Phatumwan, Bangkok 10330, Thailand
4
Department of Advanced Manufacturing Technology, Faculty of Engineering, Pathumwan Institute of Technology, 833 Rama 1 Road, Wangmai, Pathumwan, Bangkok 10330, Thailand
5
National Nanotechnology Center (NANOTEC), National Science and Technology Development Agency (NSTDA), Pathum Thani 12120, Thailand
6
Center of Excellence in Catalysis and Catalytic Reaction Engineering, Department of Chemical Engineering, Faculty of Engineering, Chulalongkorn University, Bangkok 10330, Thailand
*
Author to whom correspondence should be addressed.
Processes 2019, 7(6), 349; https://doi.org/10.3390/pr7060349
Submission received: 24 April 2019 / Revised: 30 May 2019 / Accepted: 1 June 2019 / Published: 7 June 2019
(This article belongs to the Special Issue Hydrogen Production Technologies)

Abstract

:
This research aims at evaluating the performance of a combined system of biochar gasification and a sorption-enhanced water–gas shift reaction (SEWGS) for synthesis gas production. The effects of mangrove-derived biochar gasification temperature, pattern of combined gasification and SEWGS, amount of steam and CO2 added as gasifying agent, and SEWGS temperature were studied in this work. The performances of the combined process were examined in terms of biochar conversion, gaseous product composition, and CO2 emission. The results revealed that the hybrid SEWGS using one-body multi-functional material offered a greater amount of H2 with a similar amount of CO2 emissions when compared with separated sorbent/catalyst material. The gasification temperature of 900 °C provided the highest biochar conversion of ca. 98.7%. Synthesis gas production was found to depend upon the amount of water and CO2 added and SEWGS temperature. Higher amounts of H2 were observed when increasing the amount of water and the temperature of the SEWGS system.

1. Introduction

Synthesis gas or syngas, which is composed mainly of H2 and CO, can be applied for various downstream processes, e.g., electricity generation or chemical production [1,2,3]. The conversion of biomass by thermochemical processes such as gasification or pyrolysis has been extensively used to produce syngas and is recognized as an environmental-friendly technique as it is carbon-neutral [4]. The thermochemical process can be performed using different operating conditions, i.e., gasifying agent, temperature, pressure, etc., which could yield different amounts and compositions of syngas [5,6,7]. In addition, strategic techniques have also been applied for upgrading syngas, i.e., integrated gas–solid simultaneous gasification and catalytic reforming [8], a two-stage pyrolysis-reforming system [9], a two-stage gasification-reforming system [10], catalytic pyrolysis of biomass in a two-stage fixed bed reactor system [11], etc. For example, Chaiwatanodom et al. [6] studied the production of syngas from biomass gasification using recycled CO2 from the process as a gasifying agent by process modelling using the Aspen Plus program. The authors showed that the ratio of syngas production was varied depending upon amount of CO2 fed into the system, gasification temperature, and pressure. Waheed et al. [12] studied the production of hydrogen from biochar derived from sugar cane bagasse pyrolysis via steam catalytic gasification. Type of catalyst, gasification temperature, and steam flow rate were found to affect hydrogen yield.
Although biomass gasification has been proven to be one of the most efficient techniques for syngas production, one drawback of this technique is the production of CO2 in the product stream [13,14,15,16]. As is known, the release of CO2 is a cause of the greenhouse gas effect; storage or utilization of CO2 has therefore attracted interest worldwide. In our previous work [7], utilization of the released CO2 as a co-gasifying agent has been investigated for combined gasification with the steam reforming process via thermodynamic analysis using the Aspen Plus program. The results showed that the use of CO2 recycled from a separation process as a co-gasifying agent could enhance coal gas efficiency and reduce CO2 emissions. However, syngas composition was obtained differently depending upon combination pattern as well as reforming temperature and feed ratio; separation of CO2 after gasification process offered a higher H2/CO ratio when compared with the system that extracted CO2 after the reforming process. Higher reforming temperature and H2O feed can lead to higher production of H2. In this work, the combination of biochar gasification and the reforming process for syngas production is experimentally investigated using a packed-bed reactor system. Effects of combination pattern, operating temperature, feed ratio of gasifying agent, and amount of catalyst on syngas production and CO2 emission are examined. In addition, we have applied the concept of sorption-enhanced steam reforming by using a one-body multi-functional material, which contains CO2 sorbent and catalyst, to the reforming system with the purpose on improving process efficiency.

2. Materials and Methods

2.1. Material Synthesis

In this work, 12.5 wt.% of Ni on a γ-Al2O3 support was used as reforming catalyst, as it has been proven that it is suitable for steam reforming [17]. The material was prepared by the wet impregnation method using Ni(NO3)2 6H2O as precursor. Firstly, 6.66 g of Ni(NO3)2 6H2O was dissolved in 80 mL of deionized water, then 17.87 g of γ-Al2O3 was added into aqueous nickel nitrate solution and stirred at 80 °C until the water was almost completely evaporated. The solid was dried at 120 °C overnight and calcined at 600 °C for 3 h in air.
CaO on Al2O3 support, named CaO/Ca12Al14O33, was used as CO2 adsorbent as it offers high CO2 sorption capacity in the temperature range of steam reforming [18]. In this work, CaO/Ca12Al14O33 was synthesized by the sol-gel method using Al(NO3)3 9H2O and Ca(NO3)2 4H2O as precursors. To prepare this sorbent, 4.22 g of Ca(NO3)2 4H2O was mixed with 2.31 g of Al(NO3)3 9H2O in DI (deionized) water. Then, 5.02 g of citric acid were added into the solution, which was stirred at 80 °C for 7 h. After that, the mixture was placed at ambient temperature for 18 h to form wet gel. Later, the wet gel was dried at 80 °C for 5 h and at 110 °C for 12 h, respectively, followed by calcination at 850 °C for 2 h under dried air. At this stage, CaO/Ca12Al14O33 containing CaO:Ca12Al14O33 = 70:30 wt.% was obtained.
One-body multi-functional sorbent/catalyst material, designated as xwt.% NiO/CaO-Ca12Al14O33, was prepared by sol-gel method following Changjun et al. [19]. In brief, 3.11 g of Ni(NO3)2 6H2O, 5.69 g of Al(NO3)3 9H2O, and 17.81 g of Ca(NO3)2 4H2O), were dissolved in 109 mL of DI water with the addition of citric acid using a molar ratio of citric acid to Al3+, Ni2+,Ca2+ equal to 1.2:1:1:1. The solution was adjusted to pH 1–2 by nitric acid. Then, the solution was heated up and stirred at 80 °C under reflux for 2 h. After that, ethylene glycol (mass ratio polyethylene glycol to citric acid of 0.5) was added into the solution, and stirred under reflux at 105 °C for 5 h. The solution was thereafter dried in an oven at 110 °C for 12 h and calcined at 850 °C for 2 h under dried air.

2.2. Material Characterization

Synthetic materials were characterized their compositions and crystallinity by the X-ray diffraction (XRD) technique; Bruker model D8 Advance (Bruker Crop., Billerica, MA, USA). Surface area, pore size, and pore volume were investigated by N2 adsorption/desorption isotherm by Brunauer–Emmett–Teller (BET) technique; Micromeritics model 3Flex (Micrometrics Instrument Corp., Norcross, GA, USA). Morphologies of the samples were determined by a scanning electron microscope (SEM); Hitachi model S-3400N (Hitachi High-Technologies Corp., Tokyo, Japan).

2.3. Syngas Production Test

Syngas production experiments were carried out by using two-connected fixed-bed reactors, one for biomass gasification and the other for reforming reaction (see Figure 1). Prior to running experiment, biochar was pretreated by Ar with a flow rate of 50 mL/min at 600 °C for 60 min. Sorbent and catalyst materials were pretreated by Ar with a flow rate of 50 mL/min at 850 °C for 30 min followed by the same flow rate of H2 at 850 °C for 30 min, respectively. In this work, gasification temperature was varied between 850 °C and 950 °C and that of reforming was varied between 500 °C and 650 °C under atmospheric pressure. The gasifying agent was fed at a fixed ratio of O2 and C, whereas CO2 and H2O were varied. The CO2/O2/H2O/C feed ratios were varied in the range of 0–0.5:0.125:0–1.5:1. All experiments were carried out by fixing total feed flow rate to yield gas hourly space velocity (GHSV) ca. 700 h−1.
Performances of the combined process were determined in terms of biochar conversion (%Biochar conversion), ratio of H2/CO in the produced syngas (H2/CO ratio), and CO2 emission ratio (CO2 EMR) as defined as follows:
%Biochar conversion:
% Biochar   conversion = mole   of   biochar in mole   of   biochar out mole   of   biochar in × 100
H2/CO ratio:
H 2 / CO   ratio = mole   of   H 2   produced mole   of   CO   produced
CO2 emission ratio, CO2 EMR:
CO 2   emission   ratio CO 2   EMR = mole   of   CO 2   emission   from   CO 2 outlets   mole   of   CO 2   total
where CO2 total is the amount of CO2 produced from the gasifier.

3. Results and Discussions

3.1. Effect of Gasification Temperature

Conversion of biochar was firstly investigated by studying the effect of gasification temperature using H2O and O2 as gasifying agents with a H2O:O2:C feed molar ratio of 0.25:0.25:1. As shown in Figure 2, high biochar conversions of 97.5%, 98.7%, and 98.1% could be obtained by gasification at temperatures of 850 °C, 900 °C, and 950 °C, respectively. The results confirm that this temperature range is suitable for biochar gasification.
Product compositions obtained from the gasifier at different temperatures are shown in Figure 3. For the range of gasification temperature investigated in this work, two main products, CO and CO2, are obtained. The obtained products could be due to the water–gas reaction (Equation (4)) and the partial oxidation reaction (Equation (5)).
Water gas reaction
C (s) + H2O (g) ⇌ CO (g) + H2 (g)  ∆H = 131 kJ/kmol
Partial oxidation reaction
2C (s) + O2 (g) ⇌ 2CO (g)    ∆H = −221 kJ/kmol
Increasing gasification temperature from 850 °C to 950 °C shows insignificant effects on the production of H2, whereas a gradual increase of CO production is observed with the reduction of CO2. This phenomenon could be attributed to the result of a favorable Boudouard reaction (Equation (6)) [12,20]:
Boudouard reaction
C (s) + CO2 (g) ⇌ 2CO (g)   ∆H = 172 kJ/kmol
As seen from the above results, very small amounts of hydrogen can be obtained with solely biochar gasification. As a consequence, upgrading hydrogen production would further investigated by combining with steam reforming reaction. For gasification reaction, it was shown that almost complete conversion of biochar can be obtained in the range of gasification temperature investigated in this work, 850 °C to 950 °C. For optimistic reasons, a gasification temperature of 900 °C was chosen for investigating other effects on syngas production.

3.2. Effect of Combined Gasification and Reforming Reaction

As shown in the previous section, biochar gasification can yield insignificant amount of H2, to enhance the production of H2, reforming reactor was introduced into the gasification system. In this investigation, to prove the concept of our simulation works [7] and to introduce process integration concept, three different packing patterns of sorbent and catalyst were studied, as shown in Figure 4. In Figure 4a, the catalyst and the sorbent were packed separately and the catalyst was packed on top of the sorbent, designated as the combined biomass gasifier and water-gas shift with Post-CO2 recycle (CBGR-PostCO2). In Figure 4b, the sorbent was placed on top of the catalyst, designated as the combined biomass gasifier and water-gas shift with Pre-CO2 recycle (CBGR-PreCO2), and in Figure 4c the developed one-body of combined catalyst with sorbent was introduced into the system, designated as the combined biomass gasifier and water-gas shift with multifunctional-CO2 recycle (CBGR-SimulCO2). In order to utilize CO2, in this section, CO2 was also used as co-gasifying agent together with H2O and O2. In this work, performances of each combined system were investigated in terms of syngas production and CO2 emission ratio at a fixed gasification temperature of 900 °C, reforming temperature of 600 °C, H2O:CO2:O2:C feed molar ratio of 0.5:0.5:0.125:1, and NiO content of 12.5 wt.%.
Prior to running experiments, compositions of biochar were determined by proximate and ultimate analysis (Table 1). Compositions and surface textural properties of the synthetic materials were examined by XRD (Figure 5) and BET surface area analysis (Table 2), respectively. The results show XRD peaks corresponding to CaO at 2θ = 32.204, 37.347, and 64.154, Ca12Al14O33 at 2θ = 18.052, 54.972, and 62.634, and NiO at 2θ = 37.249, 43.297, 62.934, and 67.271 [17,21]. Note that Ca(OH)2 peaks, which are assigned at 2θ = 28.672, 34.102, and 47.121, are observed in the XRD pattern due to the fact that CaO is a hygroscopic material. The BET surface area of 12.5 wt.% NiO/CaO-Ca12Al14O33 is 13.5 m2/g, that of CaO-Ca12Al14O33 is 5.91 m2/g, and that of 12.5 wt.% NiO/Al2O3 is 59.1 m2/g, respectively.
As shown in Figure 6, the addition of reforming system (regardless of combination pattern) can provide higher H2 production when compared with solely gasification reaction shown in Section 3.1. This could be due to the result of water–gas shift reaction (Equation (7)), where the main gasification product, CO, is further reacted with steam to form H2 and CO2 in the steam reforming reactor.
Water–gas shift reaction
CO (g) + H2O (g) ⇌ CO2 (g) + H2 (g)  ∆H = −41 kJ/kmol
Combining gasification with reforming system in different patterns shows the effect on syngas production and CO2 emission ratio as demonstrated in Figure 6. The CBGR-PreCO2 offers higher H2 than the CBGR-PostCO2, which is in good agreement with our simulation results proposed previously [7]. The enhancement of H2 is believed to be mainly due to the result of the water–gas shift reaction. For the CBGR-PreCO2 system, CO2 was removed from the system prior to the water–gas shift reaction, leading to a favorable forward water–gas shift reaction. On the other hand, the CO2 emission from CBGR-PreCO2 is higher than CBGR-PostCO2. This could be because the produced CO2 is partly adsorbed by CaO-based sorbent in the CBGR-PostCO2 system. Overall, the CBGR-SimulCO2 system offers the highest H2 production when compared with the CBGR-PreCO2 system and the CBGR-PostCO2 systems. This observation is due to the effect of the sorption-enhanced water–gas shift reaction; simultaneous removal of CO2 can overcome the limitation of water–gas shift reaction (SEWGS) by inducing the system to proceed forward according to Le Chatelier’s principle. More interestingly, the CO2 emission ratio of the CBGR-SimulCO2 system is found to be minimal, which could be attributed to greater CO2 sorption capacity as mass transfer is favorable in the case of using one-body multi-functional material.
CO2 adsorption
CaO (s) + CO2 (g) ⇌ CaCO3 (s)   ∆H = −178.2 kJ/kmol
As seen above, applying sorption-enhanced reaction (CBGR-SimulCO2) system by introducing one-body multi-functional material can slightly increase H2/CO with the reduction of the CO2 emission from the system when compared with other sorption systems. However, all patterns provide H2/CO ratios less than 0.18. This might be due to this biochar (H content is 2.83 wt.% from the ultimate analysis result, Table 1) not being favorable as feedstock for the production of syngas containing high hydrogen content. Nevertheless, the effect of operating conditions, including amount of catalyst, sorption-enhanced reaction temperature, and feed ratio of gasifying agent, were investigated for the combined gasification with SEWGS system.

3.3. Effect of Catalyst Amount

In this section, the effect of amount of catalyst on gaseous production, syngas H2/CO ratio, and CO2 emission ratio was studied. Figure 7 shows compositions of gaseous product for different wt.% of NiO. Comparative amounts of hydrogen production are obtained for all NiO contents, whereas the maximum of CO production is found with 12.5 wt.% Ni/CaO-Ca12Al14O33. This result could be because the 12.5 wt.% Ni/CaO-Ca12Al14O33 possesses the highest BET surface area, resulting in higher active surface exposure, as shown in Table 3. Large amount of NiO (17.5 wt.%) could block the small pores of the support, leading to the reduction of surface area as well as pore volume with an increase of average pore size diameter. For the 7.5 wt.% Ni/CaO-Ca12Al14O33, small amounts of Ni cannot help prevent the agglomeration of CaO particles, resulting in lower surface area (Table 3) and dense packing particles (Figure 8).
Figure 9 shows CO2 emission ratio of different NiO contents. The results show that the 12.5 wt.% Ni/CaO-Ca12Al14O33 provides minimum CO2 emission ratio, which could be due to the result of high performance of SEWGS reaction. Lower CO2 adsorption observed with the 7.5 wt.% Ni/CaO-Ca12Al14O33 and the 17.5 wt.% Ni/CaO-Ca12Al14O33 could be attributed to lower surface area as shown in Table 3.

3.4. Effect of Sorption-Enhanced Water–Gas Shift (SEWGS) Temperature

As seen from the previous section, combining gasification with SEWGS reaction with the use of 12.5 wt.% Ni/CaO-Ca12Al14O33 can provide greater H2/CO ratio with lower CO2 emission. In this section, the effect of SEWGS temperature on H2/CO ratio and CO2 emission ratio was investigated. Figure 10 shows product compositions obtained at different SEWGS temperatures. Increasing SEWGS temperature from 500 °C to 650 °C does not affect the production of hydrogen or the quality of syngas, as comparative values are observed. The reduction of CO could be due to the reactions between CO and H2O (Equation (7)) and CO and H2 (reversed Equation (9)) which lead to the formation of CH4. Increasing temperature results in the decrease of CH4 due to exothermic reaction of Equation (9). The CO2 emission is found to decrease with increasing SEWGS temperature from 500 to 650 °C (Figure 11). This observation could be due to the result of the suitable CO2 sorption condition of CaO sorbent at a high temperature of 650 °C [22,23].
CO2 reforming
CH4 (g) + CO2 (g) ⇌ 2CO (g) + 2H2 (g)  ∆H = 247 kJ/kmol

3.5. Effect of Gasifying Agent

As the gasifying agent is one factor that can affect gasification of biomass [24], in this work, we investigated the effect of introducing CO2 as co-gasifying agent in order to utilize the CO2. The feed molar ratio of co-feed gasifying agent was fixed at H2O:O2:C = 0.5:0.125:1, while the CO2/C molar ratio was varied between 0.1 and 0.5:1 using 12.5 wt.% Ni/CaO-Ca12Al14O33 at a gasification temperature of 900 °C and SEWGS temperature of 600 °C (Section 3.5.1). And effect of H2O feed as gasifying agent was investigated by varying the H2O:C ratio between 0.5–1.5:1 at a fixed CO2:O2:C feed molar ratio of 0.1:0.125:1, gasification temperature of 900 °C, and SEWGS temperature of 600 °C (Section 3.5.2).

3.5.1. Effect of CO2 Feed

Figure 12 presents product composition obtained from the reaction with different amounts of CO2 feed. The results show that CO increases with increasing CO2/C ratio parallel with an increase of CO2 emission ratio (Figure 13). This observed result could be attributed to the reverse Boudouard reaction (Equation (1)). It is noted that although higher amounts of H2 produced from the system could be obtained due to the result of water–gas shift reaction, negligible amounts of produced H2 are still observed. This result might be because of insufficient steam feed into the system, leading to a smaller contribution of the water–gas shift reaction. Our observation is consistent with the results obtained from a thermodynamic study of lignite coal gasification reported by Kale et al. [25], where an increase of CO2/C feed mole ratio from 0 to 1 led to a decrease of H2/CO ratio from 3.04 to 0.7. It is also noted that CH4 is observed in gaseous products, implying that reverse Boudouard reaction (Equation (1)) could occur due to the addition of CO2, resulting in higher production of CO which could further react with the produced H2 to form CH4 and CO2 (reversed Equation (9)).

3.5.2. Effect of H2O Feed

In Figure 14, increasing of H2O feed is expected to enhance the production of H2 due to a water gas reaction (Equation (4)) and water–gas shift reaction (Equation (7)); however, insignificant H2 production is observed. This result might be due to insufficient H2O feed as discussed previously. Nevertheless, quality of syngas (H2/CO ratio) is found to increase with increasing H2O feed (Figure 15). This observation could possibly be due to the produced CO reacting with the produced H2 via the reversed CO2 reforming reaction (reversed Equation (9)) as evidenced by the reduction of CO and the increase of CO2 shown in Figure 14.

4. Conclusions

Our studies investigated the production of syngas from biochar using the combined gasification and sorption-enhanced water–gas shift reaction. The optimum gasification temperature was 900 °C with a H2O:O2:C feed molar ratio of 0.25:0.25:1. The one-body material combining catalyst with sorbent (CBGR-SimulCO2) could provide the highest H2/CO ratio as well as the lowest CO2 emissions when compared to the other systems. In addition, the effect of sorption-enhanced water–gas shift temperature was shown to affect CO2 emissions. Increasing the operating temperature from 500 to 650 °C led to a decrease of the CO2 emission ratio. Increasing the CO2/C ratio from 0.1 to 0.5 resulted in an increase of CO production with a lower CO2 emission ratio. In addition, increasing the H2O/C ratio from 0.5 to 1.5 provided higher syngas production, with H2/CO ratios of 0.23 and 0.32, respectively.

Author Contributions

Conceptualization, Supawat Vivanpatarakij; Data curation, Supanida Chimpae, Suwimol Wongsakulphasatch, Supawat Vivanpatarakij and Fasai Wiwatwongwana; Formal analysis, Suwimol Wongsakulphasatch, Supawat Vivanpatarakij, Thongchai Glinrun and Weerakanya Maneeprakorn; Funding acquisition, Suttichai Assabumrungrat; Investigation, Supanida Chimpae and Thongchai Glinrun; Methodology, Supanida Chimpae, Suwimol Wongsakulphasatch and Supawat Vivanpatarakij; Project administration, Suttichai Assabumrungrat; Resources, Thongchai Glinrun, Fasai Wiwatwongwana and Weerakanya Maneeprakorn; Supervision, Suwimol Wongsakulphasatch, Supawat Vivanpatarakij and Suttichai Assabumrungrat; Validation, Thongchai Glinrun and Weerakanya Maneeprakorn; Writing—original draft, Supanida Chimpae, Suwimol Wongsakulphasatch, Supawat Vivanpatarakij and Suttichai Assabumrungrat.

Funding

The authors would like to acknowledge funding support from the Ratchadapisek Sompoch Endowment Fund 2016 of Chulalongkorn University (CU-59-003-IC), and King Mongkut’s University of Technology North Bangkok (contract no. KMUTNB-KNOW-61-029). S.W. and S.A. also wish to acknowledge the ‘‘Research Chair Grant” of the National Science and Technology Development Agency (NSTDA).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rodrigues, M.; Faaij, A.P.C.; Walter, A. Technol-economic analysis of co-fired biomass integrated gasification/combined cycle systems with inclusion of economies of scale. Energy 2003, 28, 1229–1258. [Google Scholar] [CrossRef]
  2. Hamelinck, C.N.; Faaij, A.P.C.; den Uil, H.; Boerrigter, H. Production of FT transportation fuels from biomass; technical options, process analysis and optimization, and development potential. Energy 2004, 29, 1743–1771. [Google Scholar] [CrossRef]
  3. Adams, T.A.; Hoseinzade, L.; Madabhushi, P.B.; Okeke, I.J. Comparison of CO2 capture approaches for fossil-based power generation: Review and Meta-study. Processes 2017, 5, 44. [Google Scholar] [CrossRef]
  4. Acharya, B.; Dutta, A.; Basu, P. Chemical-looping gasification of biomass for hydrogen-enriched gas production with in-process carbon dioxide capture. Energy Fuels 2009, 23, 5077–5083. [Google Scholar] [CrossRef]
  5. Pang, Y.; Hammer, T.; Müller, D.; Karl, J. Investigation of nonthermal plasma assisted charcoal gasification for production of hydrogen-rich syngas. Processes 2019, 7, 114. [Google Scholar] [CrossRef]
  6. Chaiwatanodom, P.; Vivanpatarakij, S.; Assabumrungrat, S. Thermodynamic analysis of biomass gasification with CO2 recycle for synthesis gas production. Appl. Energy 2014, 14, 10–17. [Google Scholar] [CrossRef]
  7. Kraisornkachit, P.; Vivanpatarakit, S.; Amornraksa, S.; Simasatitkul, L.; Assabumrungrat, S. Performance evaluation of different combined systems of biochar gasifier, reformer and CO2 capture unit for synthesis gas production. Int. J. Hydrog. Energy 2016, 41, 13408–13418. [Google Scholar] [CrossRef]
  8. Ma, Z.; Zhang, S.; Xie, D.; Yan, Y. A novel integrated process for hydrogen production from biomass. Int. J. Hydrog. Energy 2014, 39, 1274–1279. [Google Scholar] [CrossRef]
  9. Waheed, Q.M.K.; Williams, P.T. Hydrogen production from high temperature pyrolysis/steam reforming of waste biomass: Rice husk, sugar cane bagasse, and wheat straw. Energy Fuels 2013, 27, 6695–6704. [Google Scholar] [CrossRef]
  10. Gao, N.; Lia, A.; Quan, C.; Gao, F. Hydrogen-rich gas production from biomass steam gasification in an updraft fixed-bed gasifier combined with a porous ceramic reformer. Int. J. Hydrog. Energy 2008, 33, 5430–5438. [Google Scholar] [CrossRef]
  11. Liu, S.; Zhu, J.; Chen, M.; Xin, W.; Yang, Z.; Kong, L. Hydrogen production via catalytic pyrolysis of biomass in a two-stage fixed bed reactor system. Int. J. Hydrog. Energy 2014, 39, 13128–13135. [Google Scholar] [CrossRef]
  12. Waheed, Q.M.K.; Wu, C.; Williams, P.T. Hydrogen production from high temperature steam catalytic gasification of bio-char. J. Energy Inst. 2016, 89, 222–230. [Google Scholar] [CrossRef]
  13. Song, C.; Liu, Q.; Ji, N.; Deng, S.; Zhao, J.; Li, Y.; Song, Y. Alternative pathways for efficient CO2 capture by hybrid processes—A review. Renew. Sustain. Energy Rev. 2018, 82, 215–231. [Google Scholar] [CrossRef]
  14. La Villetta, M.; Costa, M.; Massarotti, N. Modelling approaches to biomass gasification: A review with emphasis on the stoichiometric method. Renew. Sustain. Energy Rev. 2017, 74, 71–88. [Google Scholar] [CrossRef]
  15. Indrawan, N.; Thapa, S.; Bhoi, P.R.; Huhnke, R.L.; Kumar, A. Engine power generation and emission performance of syngas generated from low-density biomass. Energy Convers. Manag. 2017, 148, 593–603. [Google Scholar] [CrossRef]
  16. Ruiz, J.A.; Juárez, M.C.; Morales, M.P.; Muñoz, P.; Mendívil, M.A. Biomass gasification for electricity generation: Review of current technology barriers. Renew. Sustain. Energy Rev. 2013, 18, 174–183. [Google Scholar] [CrossRef]
  17. Guohui, L.; Linjie, H.; Josephine, M.H. Comparison of reducibility and stability of alumina-supported Ni catalysts prepared by impregnation and co-precipitation. Appl. Catal. A 2006, 301, 16–24. [Google Scholar]
  18. Cong, L.; Ying, Z.; Ning, D.; Chuguang, Z. Enhanced cyclic stability of CO2 adsorption capacity of CaO-based sorbents using La2O3 or Ca12Al14O33 as additives. Korean J. Chem. Eng. 2011, 28, 1042–1046. [Google Scholar]
  19. Changjun, Z.; Zhiming, Z.; Cheng, Z.; Fang, X. Sol-gel-derived, CaZrO3-stabilized Ni/CaO-CaZrO3 bifunctional catalyst for sorption-enhanced steam methane reforming. Appl. Catal. B 2016, 196, 16–26. [Google Scholar]
  20. Howaniec, N.; Smolinski, A.; Stanczyk, K.; Pichlak, M. Steam co-gasification of coal and biomass derived chars with synergy effect as an innovative way of hydrogen-rich gas production. Int. J. Hydrog. Energy 2011, 36, 14455–14463. [Google Scholar] [CrossRef]
  21. Pan, X.; Miaomiao, X.; Zhenmin, C.; Zhiming, Z. CO2 capture performance of CaO-based sorbents prepared by a pol−gel method. Ind. Eng. Chem. Res. 2013, 52, 12161–12169. [Google Scholar]
  22. Lu, H.; Reddy, E.P.; Smirniotis, P.G. Calcium oxide based sorbents for capture of carbon dioxide at high temperatures. Ind. Eng. Chem. Res. 2006, 45, 3944–3949. [Google Scholar] [CrossRef]
  23. Yu, C.H.; Huang, C.H.; Tan, C.S. A review of CO2 capture by absorption and adsorption. Aerosol Air Qual. Res. 2012, 12, 745–769. [Google Scholar] [CrossRef]
  24. Butterman, H.C.; Castaldi, M.J. CO2 as a carbon neutral fuel source via enhanced biomass gasification. Environ. Sci. Technol. 2009, 43, 9030–9037. [Google Scholar] [CrossRef] [PubMed]
  25. Kale, G.R.; Kulkarni, B.D.; Chavan, R.N. Combined gasification of lignite coal: Thermodynamic and application study. J. Taiwan Inst. Chem. Eng. 2013, 45, 163–173. [Google Scholar] [CrossRef]

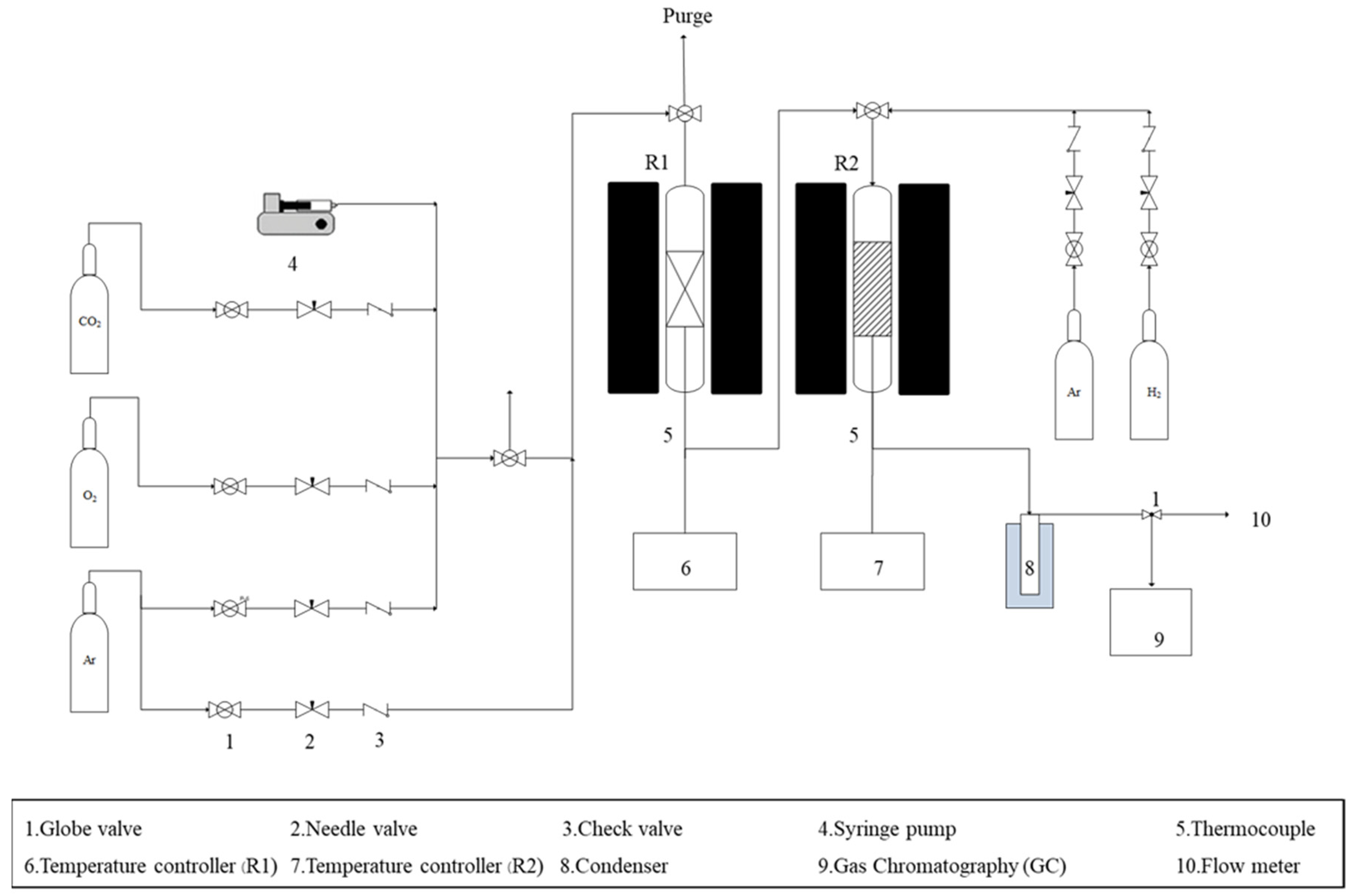

Figure 1. Schematic diagram of experimental setup for syngas production.
Figure 1. Schematic diagram of experimental setup for syngas production.
Processes 07 00349 g001

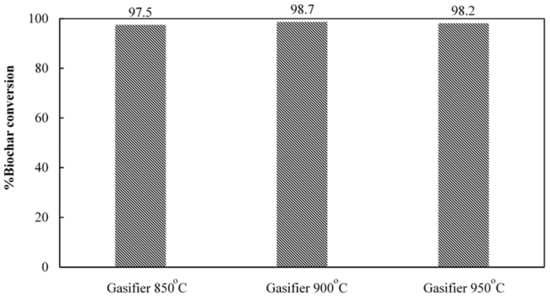

Figure 2. %Biochar conversion at different gasification temperatures using a H2O:O2:C feed molar ratio of 0.25:0.25:1.
Figure 2. %Biochar conversion at different gasification temperatures using a H2O:O2:C feed molar ratio of 0.25:0.25:1.
Processes 07 00349 g002

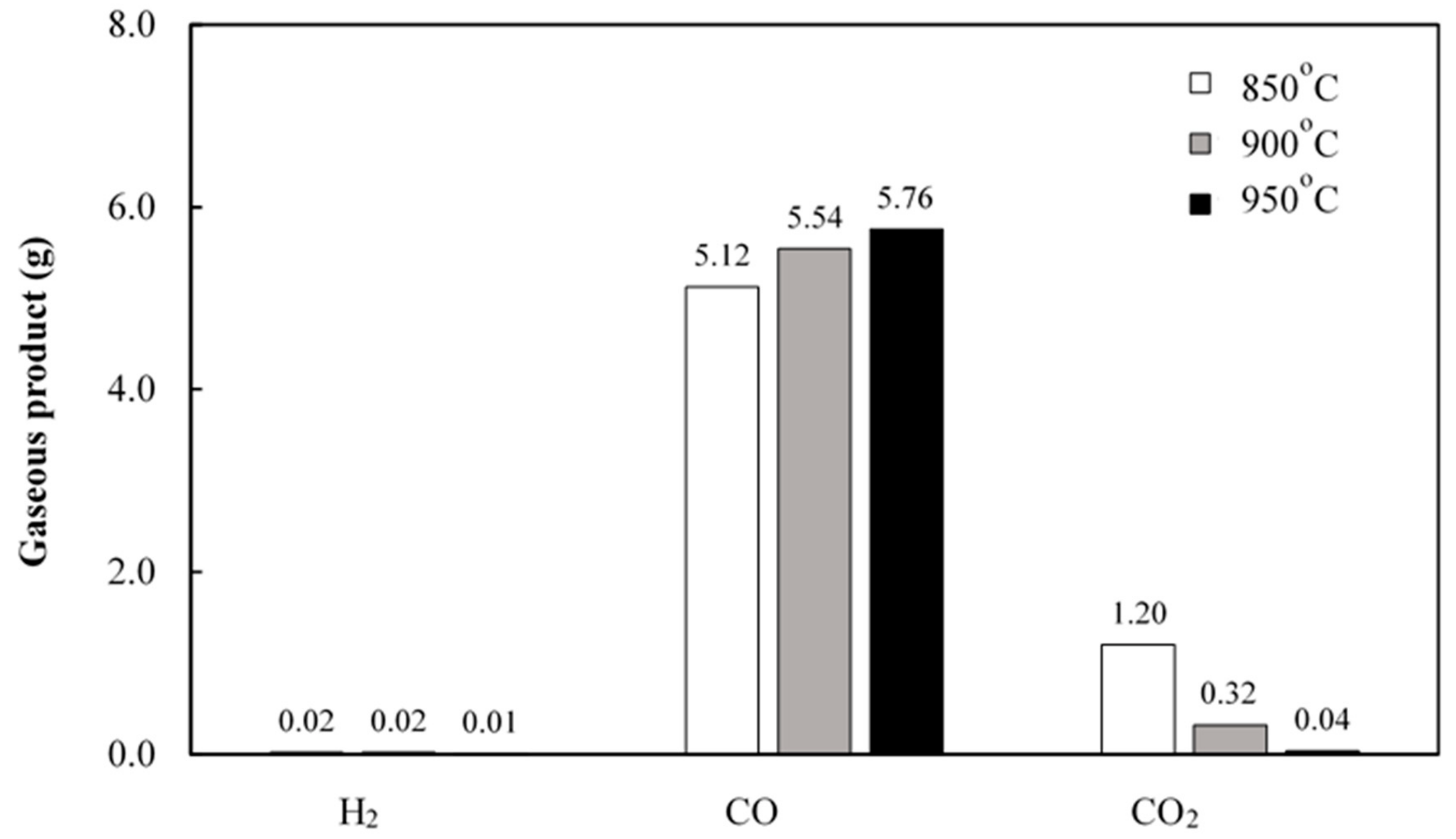

Figure 3. Gasification of biochar at different gasification temperatures (H2O:O2:C feed molar ratio of 0.25:0.25:1 under atmospheric pressure).
Figure 3. Gasification of biochar at different gasification temperatures (H2O:O2:C feed molar ratio of 0.25:0.25:1 under atmospheric pressure).
Processes 07 00349 g003

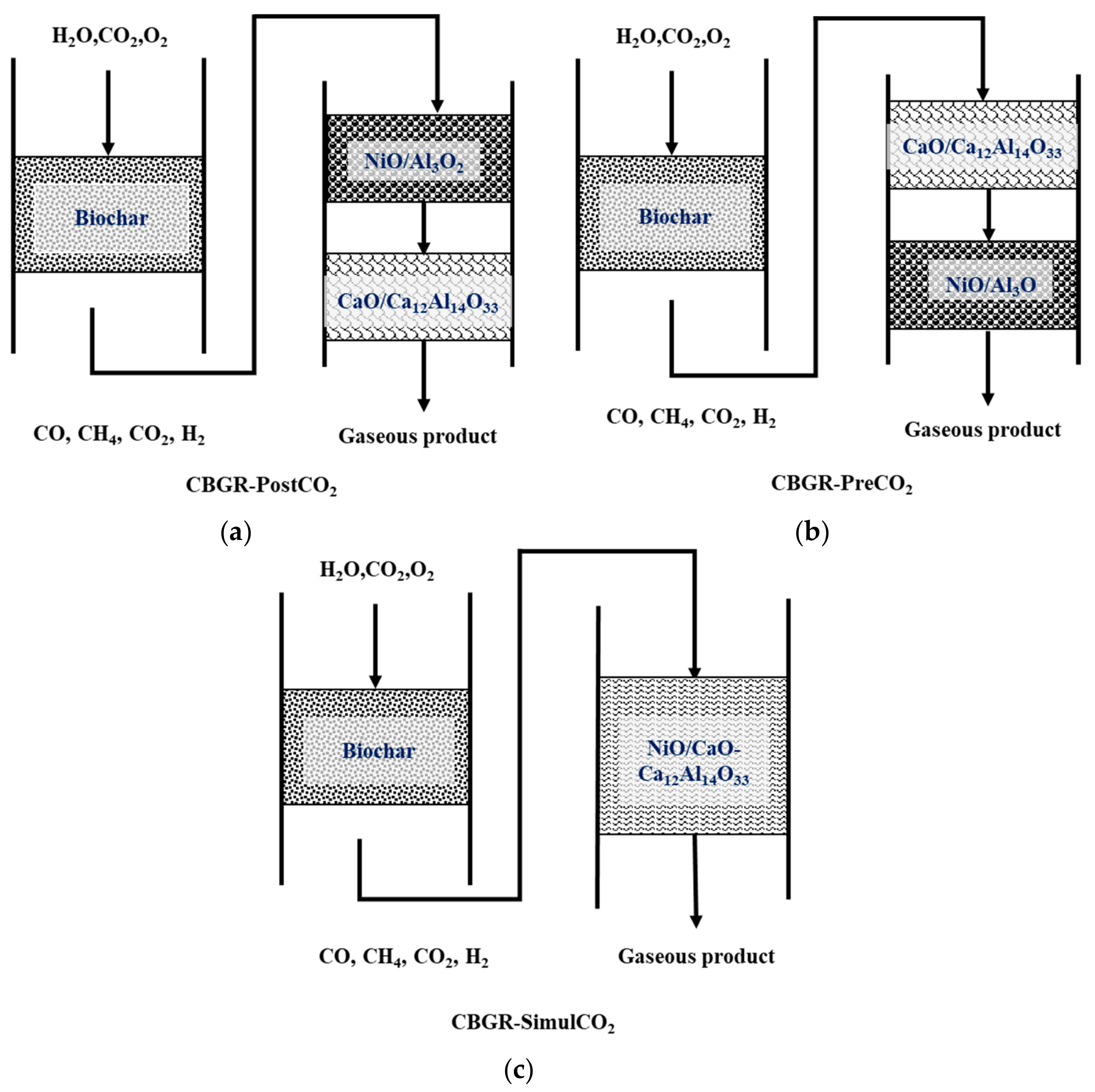

Figure 4. Patterns of sorbent and catalyst packing in the water–gas shift reactor (a) CBGR-PostCO2, (b) CBGR-PreCO2, and (c) CBGR-SimulCO2.
Figure 4. Patterns of sorbent and catalyst packing in the water–gas shift reactor (a) CBGR-PostCO2, (b) CBGR-PreCO2, and (c) CBGR-SimulCO2.
Processes 07 00349 g004

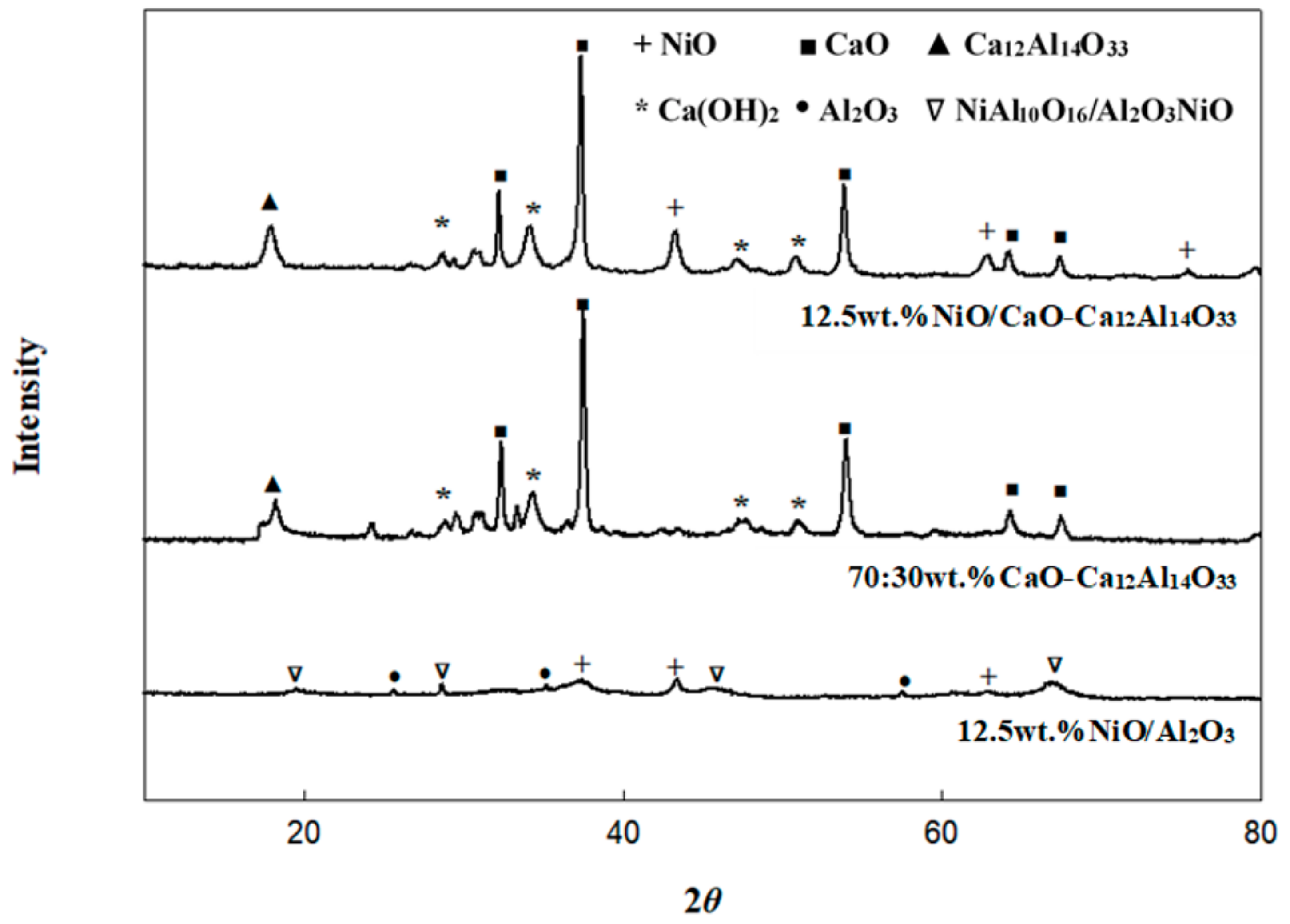

Figure 5. XRD patterns of NiO/Al2O3, CaO/Ca12Al14O33, and 12.5 wt.% Ni/CaO-Ca12Al14O33.
Figure 5. XRD patterns of NiO/Al2O3, CaO/Ca12Al14O33, and 12.5 wt.% Ni/CaO-Ca12Al14O33.
Processes 07 00349 g005
Figure 6. H2/CO and CO2 emission ratio from different proposed systems (H2O:CO2:O2:C feed molar ratio of 0.5:0.5:0.125:1, gasification at 900 °C, reforming at 600 °C and ambient pressure).
Figure 6. H2/CO and CO2 emission ratio from different proposed systems (H2O:CO2:O2:C feed molar ratio of 0.5:0.5:0.125:1, gasification at 900 °C, reforming at 600 °C and ambient pressure).
Processes 07 00349 g006

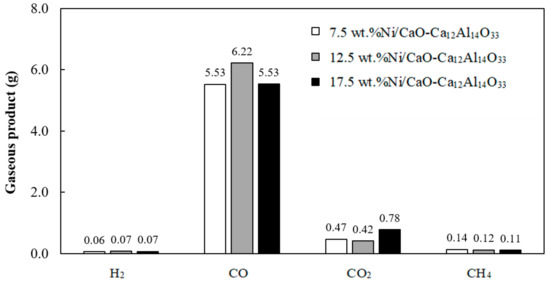

Figure 7. Product composition at different wt.% of Ni on Ni/CaO-Ca12Al14O33 using a H2O:CO2:O2:C feed molar ratio of 0.5:0.1:0.125:1, gasification at 900 °C, and sorption-enhanced water–gas shift reaction (SEWGS) at 600 °C.
Figure 7. Product composition at different wt.% of Ni on Ni/CaO-Ca12Al14O33 using a H2O:CO2:O2:C feed molar ratio of 0.5:0.1:0.125:1, gasification at 900 °C, and sorption-enhanced water–gas shift reaction (SEWGS) at 600 °C.
Processes 07 00349 g007

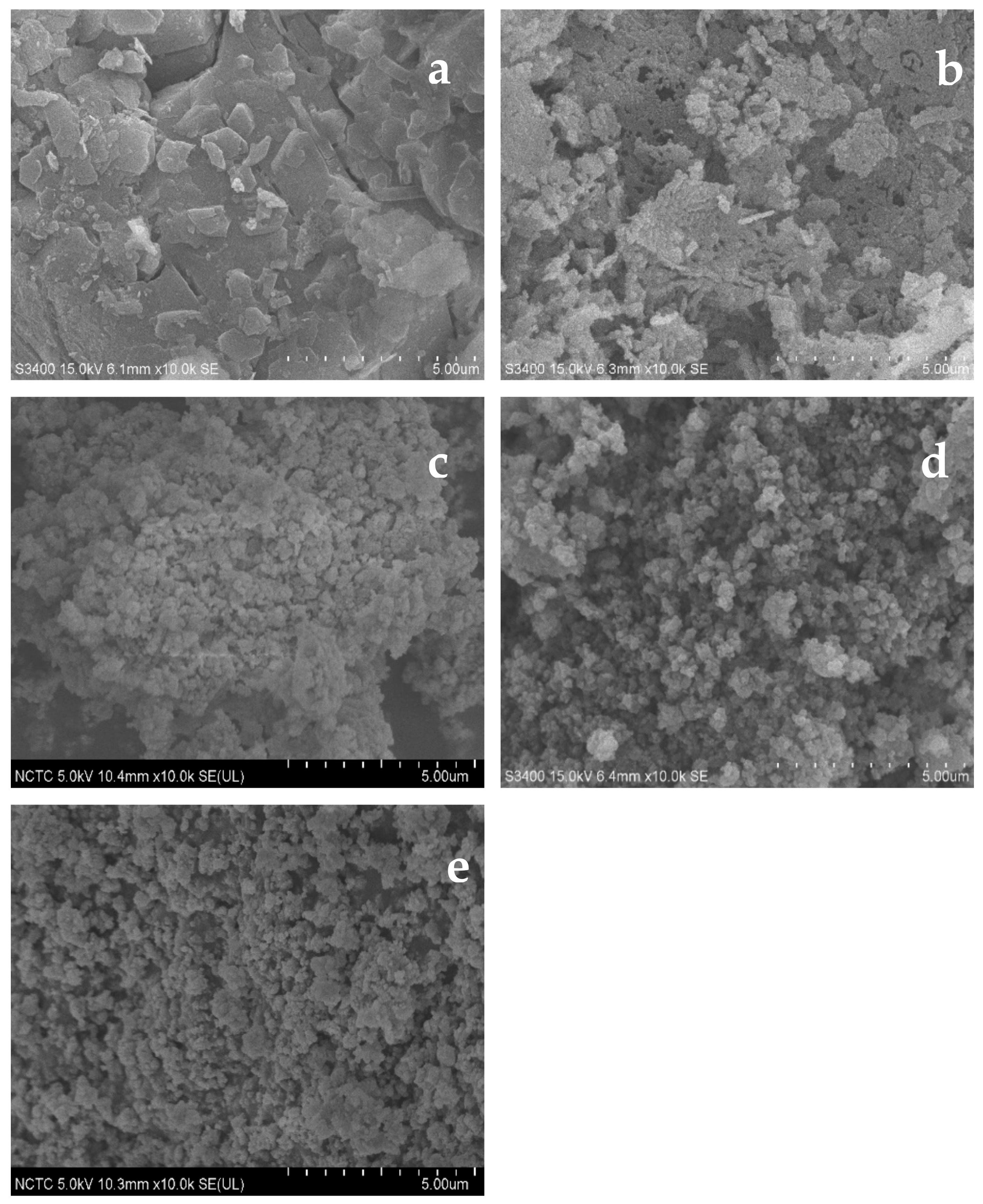

Figure 8. SEM images of fresh sample materials; (a) Ni/Al2O3, (b) CaO-Ca12Al14O33, (c) 7.5 wt.% Ni/CaO-Ca12Al14O33, (d) 12.5 wt.% Ni/CaO-Ca12Al14O33, and (e) 17.5 wt.% Ni/CaO-Ca12Al14O33.
Figure 8. SEM images of fresh sample materials; (a) Ni/Al2O3, (b) CaO-Ca12Al14O33, (c) 7.5 wt.% Ni/CaO-Ca12Al14O33, (d) 12.5 wt.% Ni/CaO-Ca12Al14O33, and (e) 17.5 wt.% Ni/CaO-Ca12Al14O33.
Processes 07 00349 g008

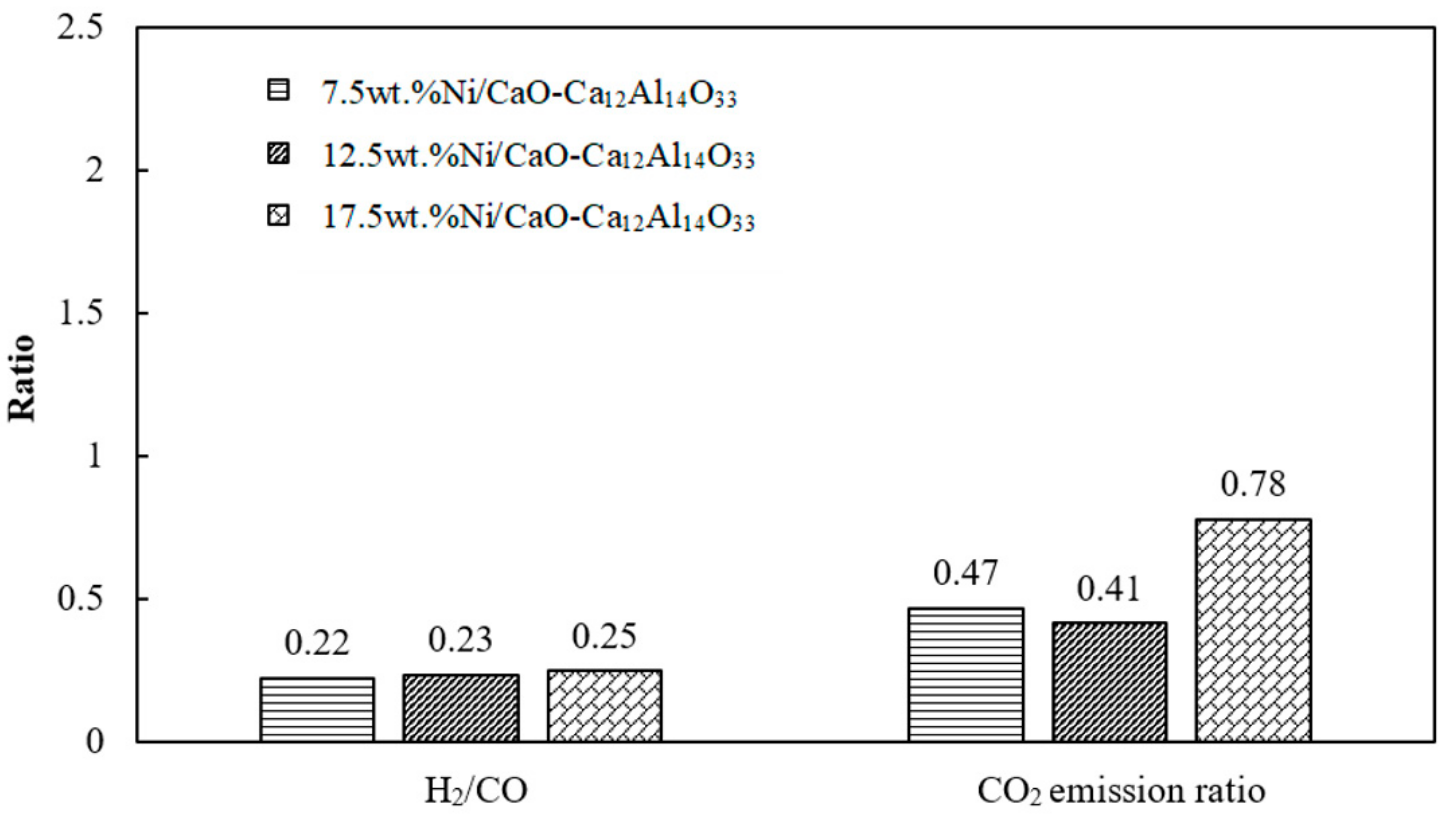

Figure 9. H2/CO and CO2 emission ratios at different wt.% of Ni of Ni/CaO-Ca12Al14O33 using a H2O:CO2:O2:C feed molar ratio of 0.5:0.1:0.125:1, gasification at 900 °C, and SEWGS at 600 °C.
Figure 9. H2/CO and CO2 emission ratios at different wt.% of Ni of Ni/CaO-Ca12Al14O33 using a H2O:CO2:O2:C feed molar ratio of 0.5:0.1:0.125:1, gasification at 900 °C, and SEWGS at 600 °C.
Processes 07 00349 g009

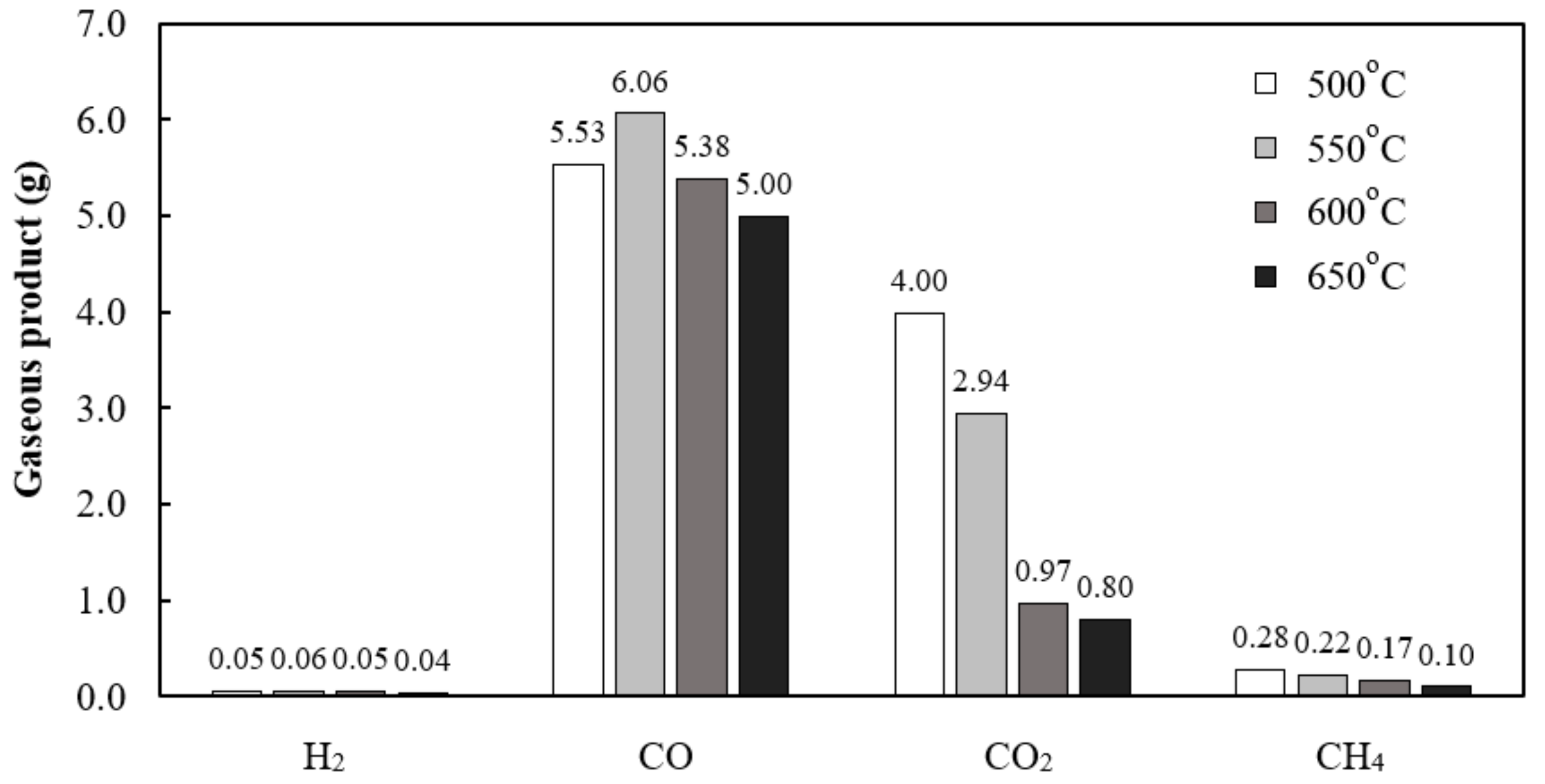

Figure 10. Product composition obtained from different SEWGS temperatures using a H2O:CO2:O2:C feed molar ratio of 0.5:0.5:0.125:1 and gasification at 900 °C.
Figure 10. Product composition obtained from different SEWGS temperatures using a H2O:CO2:O2:C feed molar ratio of 0.5:0.5:0.125:1 and gasification at 900 °C.
Processes 07 00349 g010

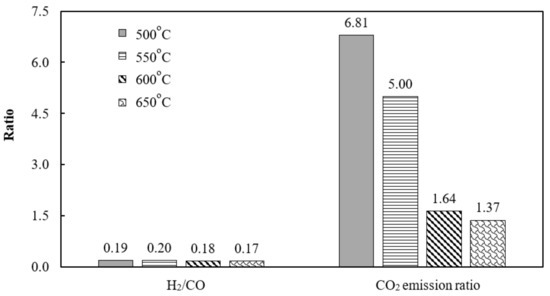

Figure 11. H2/CO and CO2 emission ratios at different SEWGS temperatures using a H2O:CO2:O2:C feed molar ratio of 0.5:0.5:0.125:1 and gasification at 900 °C.
Figure 11. H2/CO and CO2 emission ratios at different SEWGS temperatures using a H2O:CO2:O2:C feed molar ratio of 0.5:0.5:0.125:1 and gasification at 900 °C.
Processes 07 00349 g011

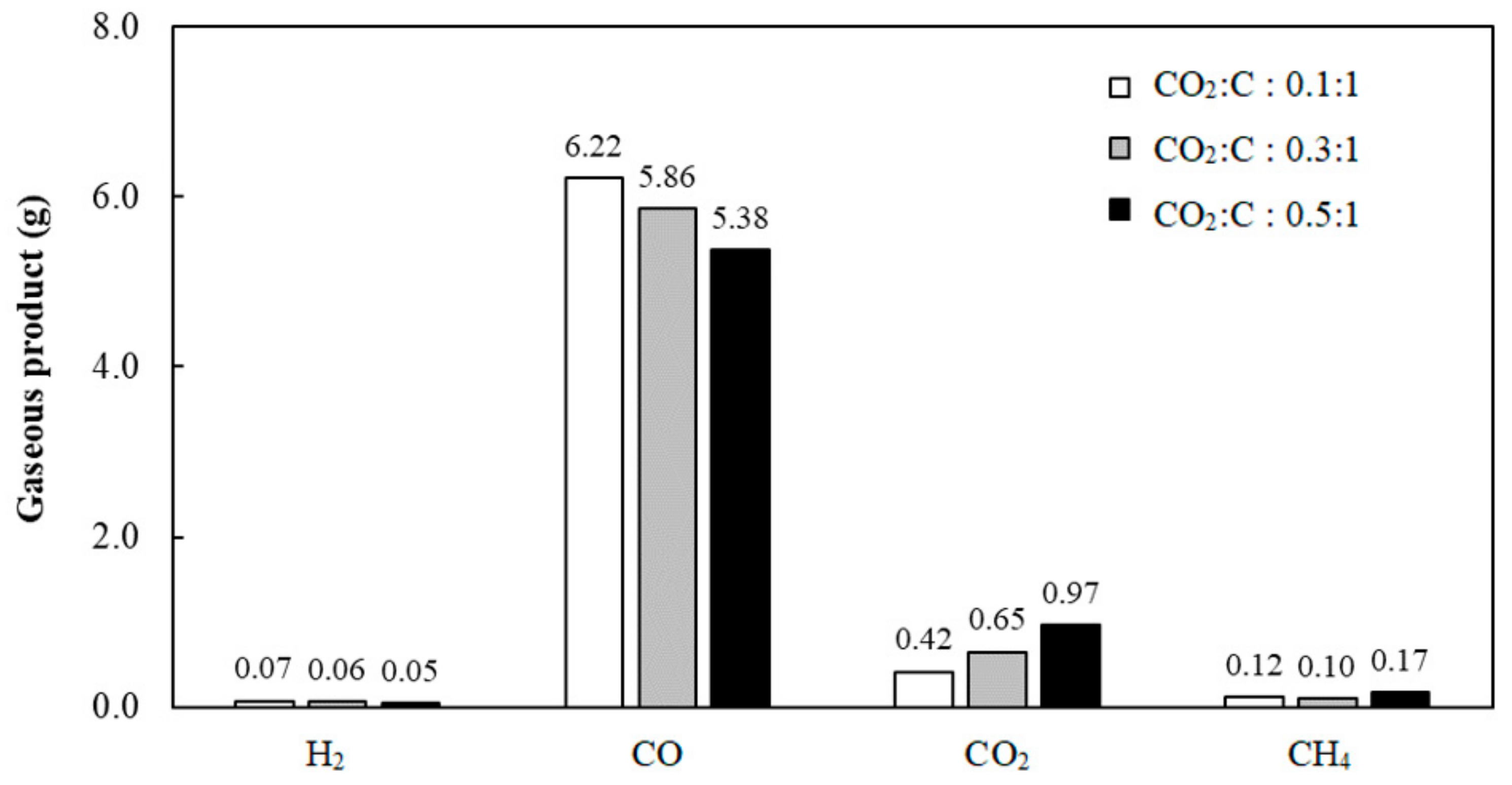

Figure 12. Product composition at different CO2:C ratios using a H2O:CO2:O2:C feed molar ratio of 0.5:0.1–0.5:0.125:1, gasification at 900 °C, and SEWGS at 600 °C.
Figure 12. Product composition at different CO2:C ratios using a H2O:CO2:O2:C feed molar ratio of 0.5:0.1–0.5:0.125:1, gasification at 900 °C, and SEWGS at 600 °C.
Processes 07 00349 g012

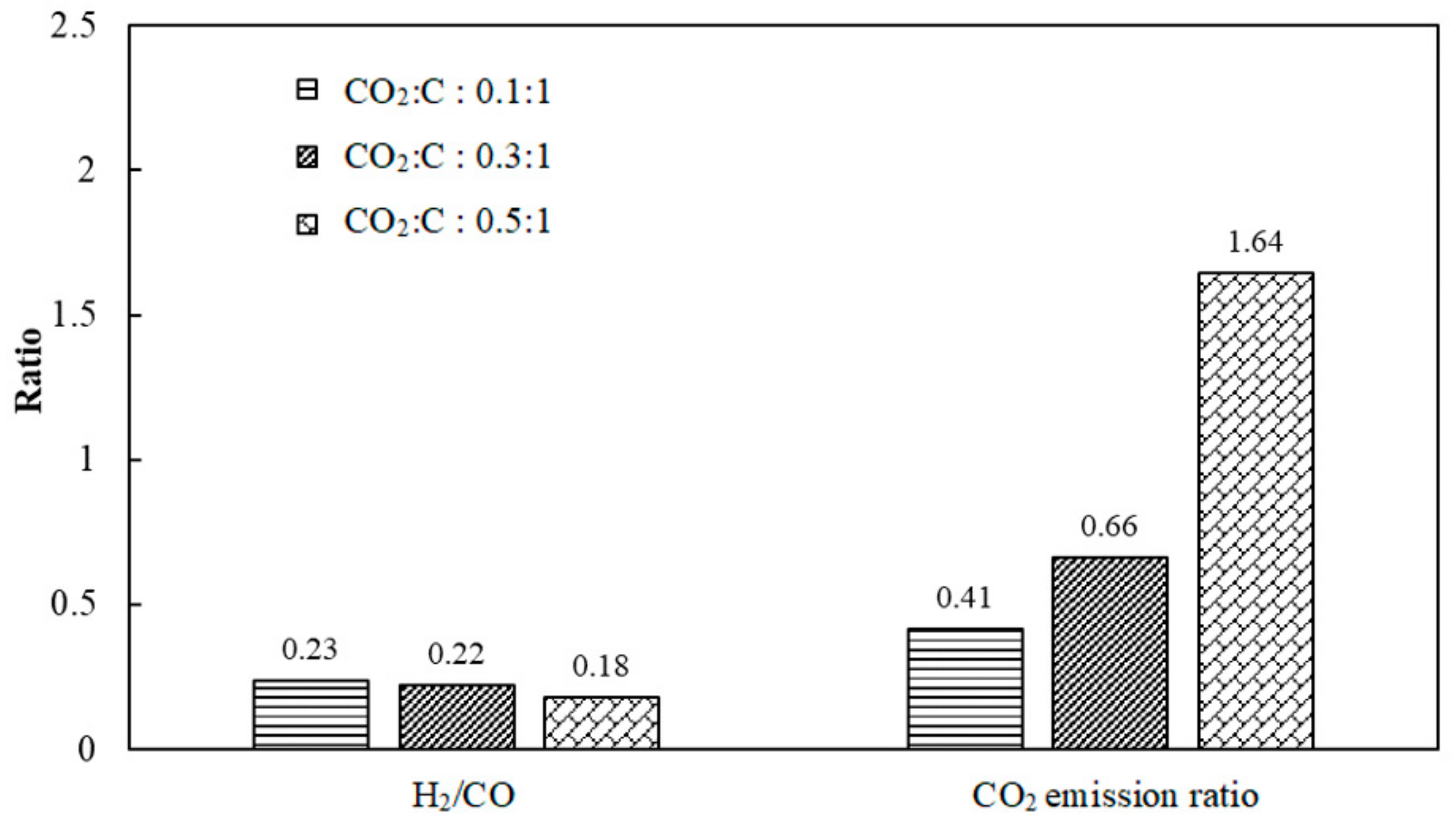

Figure 13. H2/CO and CO2 emission ratios at different CO2:C ratios using a H2O:CO2:O2:C feed molar ratio of 0.5:0.1–0.5:0.125:1, gasification at 900 °C, and SEWGS at 600 °C.
Figure 13. H2/CO and CO2 emission ratios at different CO2:C ratios using a H2O:CO2:O2:C feed molar ratio of 0.5:0.1–0.5:0.125:1, gasification at 900 °C, and SEWGS at 600 °C.
Processes 07 00349 g013

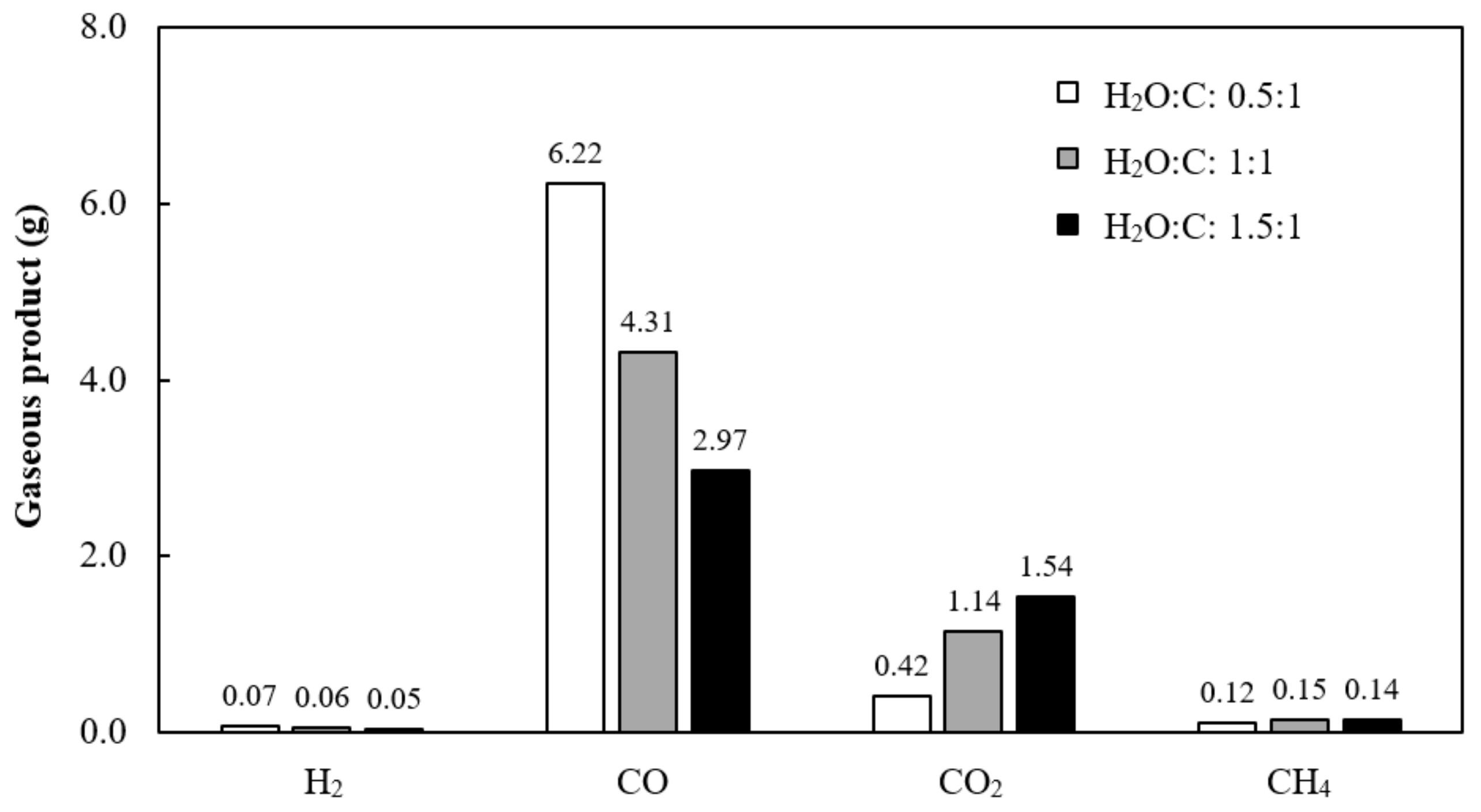

Figure 14. Product composition at different H2O:C ratios using a H2O:CO2:O2:C feed molar ratio of 0.5–1.5:0.1:0.125:1, gasification at 900 °C and SEWGS at 600 °C.
Figure 14. Product composition at different H2O:C ratios using a H2O:CO2:O2:C feed molar ratio of 0.5–1.5:0.1:0.125:1, gasification at 900 °C and SEWGS at 600 °C.
Processes 07 00349 g014

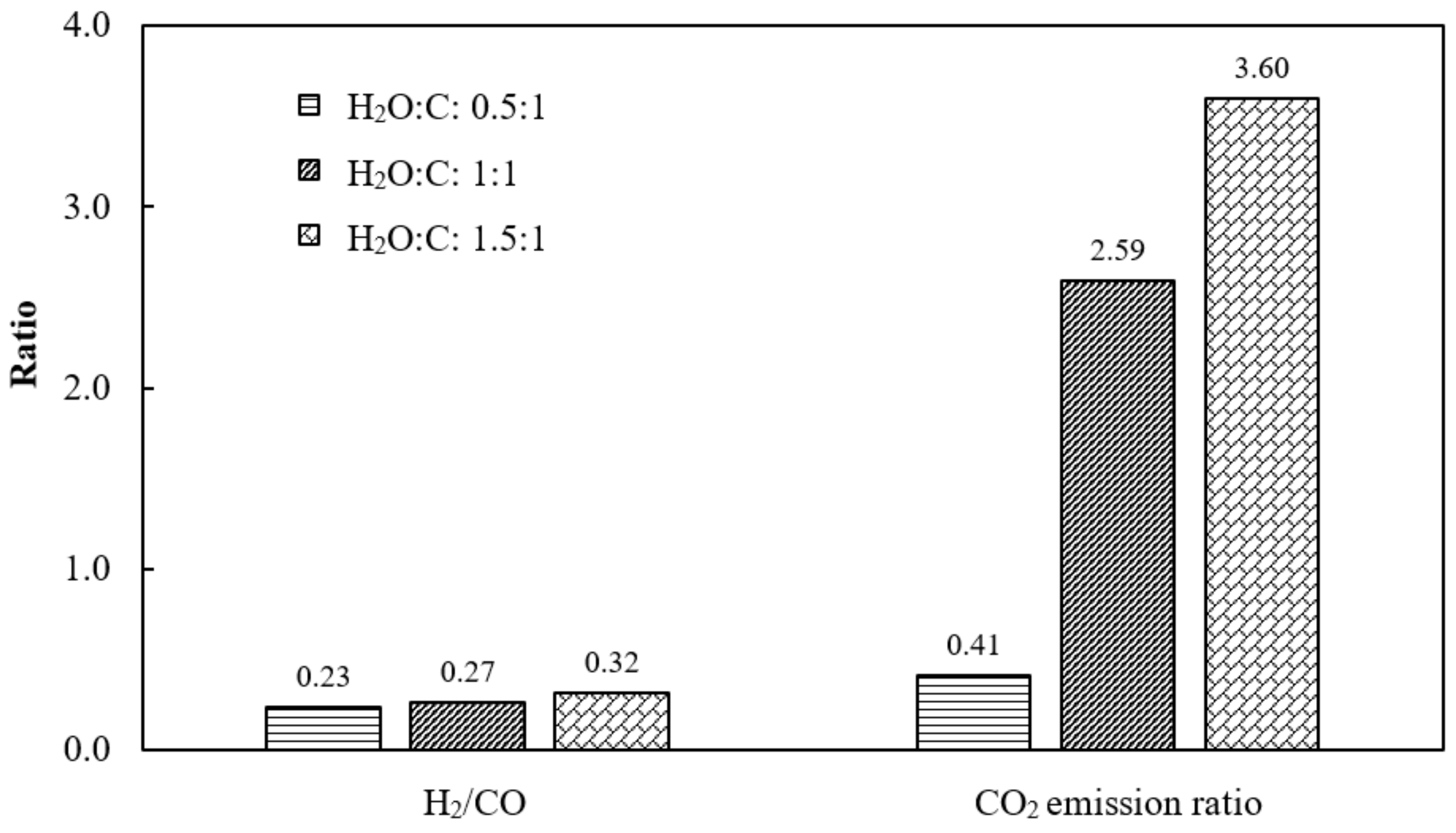

Figure 15. H2/CO and CO2 emission ratios at different H2O:C ratios using a H2O:CO2:O2:C feed molar ratio of 0.5–1.5:0.1:0.125:1, gasification at 900 °C, and SEWGS at 600 °C.
Figure 15. H2/CO and CO2 emission ratios at different H2O:C ratios using a H2O:CO2:O2:C feed molar ratio of 0.5–1.5:0.1:0.125:1, gasification at 900 °C, and SEWGS at 600 °C.
Processes 07 00349 g015
Table 1. Proximate and ultimate analysis results of biochar.
Table 1. Proximate and ultimate analysis results of biochar.
Proximate (wt.%)Ultimate (wt.%)
Moisture5.30C80.20
Volatile matters36.26H2.83
Fixed carbon56.40O (balance)16.39
Ash2.05N0.58
Table 2. Physical properties of materials from BET measurements.
Table 2. Physical properties of materials from BET measurements.
SampleSurface Area (m2/g)Pore Volume (cm3/g)Pore Size (nm)
12.5 wt.% NiO/Al2O359.10.1500.09
CaO-Ca12Al14O335.910.0090.13
12.5 wt.% NiO/CaO-Ca12Al14O3313.50.0160.16
Table 3. Physical properties of multi-functional materials for different NiO contents.
Table 3. Physical properties of multi-functional materials for different NiO contents.
SampleSurface Area (m2/g)Pore Volume (cm3/g)Pore Size (nm)
7.5 wt.% NiO/CaO-Ca12Al14O3311.700.0260.11
12.5 wt.% NiO/CaO-Ca12Al14O3313.500.0160.16
17.5 wt.% NiO/CaO-Ca12Al14O3312.450.0230.11
