Biomaterial Implants in Abdominal Wall Hernia Repair: A Review on the Importance of the Peritoneal Interface

Department of Surgery, Medical and Social Sciences, Faculty of Medicine and Health Sciences, University of Alcalá, C.P: 28871 Alcalá de Henares, Madrid, Spain
Networking Biomedical Research Centre on Bioengineering, Biomaterials and Nanomedicine (CIBER-BBN), 50001 Zaragoza, Spain
Department of Medicine and Medical Specialties, Faculty of Medicine and Health Sciences, University of Alcalá, C.P: 28871 Alcalá de Henares, Madrid, Spain
Ramón y Cajal Health Research Institute (IRYCIS), C.P: 28034 Madrid, Spain
Author to whom correspondence should be addressed.
Processes 2019, 7(2), 105;
Received: 1 January 2019 / Revised: 8 February 2019 / Accepted: 10 February 2019 / Published: 16 February 2019
(This article belongs to the Special Issue Biomaterials and Tissue Engineering)


Biomaterials have long been used to repair defects in the clinical setting, which has led to the development of a wide variety of new materials tailored to specific therapeutic purposes. The efficiency in the repair of the defect and the safety of the different materials employed are determined not only by the nature and structure of their components, but also by the anatomical site where they will be located. Biomaterial implantation into the abdominal cavity in the form of a surgical mesh, such as in the case of abdominal hernia repair, involves the contact between the foreign material and the peritoneum. This review summarizes the different biomaterials currently available in hernia mesh repair and provides insights into a series of peculiarities that must be addressed when designing the optimal mesh to be used in this interface.
Keywords: surgical mesh; hernia repair; peritoneum; peritoneal adhesions; omentum; polypropylene; hernia recurrence; abdominal wall surgical mesh; hernia repair; peritoneum; peritoneal adhesions; omentum; polypropylene; hernia recurrence; abdominal wall

1. Introduction

Biomaterials are being extensively used as scaffolds in the field of tissue engineering and reparative medicine. The term biomaterial defines a biological or synthetic material whose aim is to contribute to the repair or regeneration of a damaged tissue by its partial or total replacement [1]. For this reason, biomaterials find their widest range of application in surgical procedures, their design determined by the specific function for which they are intended.
The promising results that they provide in the repair of tissue defects have led to a spectacular increase of their use in current clinical practice, which has in turn contributed to the development and evolution of the surgical techniques performed in different medical specialties. Biomaterials turn out to be vital in solving important functional conditions such as orthopedic, vascular or ophthalmologic-related medical issues, among others. Thereby, an improvement in the patients’ quality of life due to biomaterials is not only positive from a clinical perspective, but also through the contribution to their psychological well-being.
The complexity of biomaterials and the great responsibility that their use implies requires that their design and development take up a multidisciplinary approach. Thus, the involvement of professionals from different fields (e.g., chemists, biologists, engineers, histopathologists and surgeons) is essential to achieve the expected outcomes that would benefit patients suffering from different pathologies.
One of the most frequent surgical application of biomaterials in recent years has been hernia repair. Every year around twenty million hernia repair procedures are performed around the world [2]. Inguinal hernia repair is the surgical procedure most often conducted by general surgeons [3]. The use of biomaterials for this purpose in the form of surgical meshes has drastically contributed to a decrease in the hernia recurrence rate [4], which is one of the most common complications that occur in patients undergoing this type of surgery.

2. Biomaterials in Abdominal Wall Repair

The repair of the abdominal wall is commonly required in the event of abdominal hernias or open wounds. Abdominal hernias require surgical intervention since they cause pain or discomfort and, more importantly, can produce the protrusion of intraabdominal organs through these defects, which could cause tissue strangulation. The incidence of ventral hernias is high; nearly 350,000 repairs are performed each year in the United States [5].
Abdominal wall reconstruction is a complex procedure that seeks to restore the abdominal wall structure by maintaining its natural strength and elasticity as much as possible while causing the least side effects. The traditional repair methods consisted of primary closure by open suture techniques. However, these techniques are no longer recommended since they are related to high recurrence and wound dehiscence rates [6,7] that could eventually lead to evisceration, especially in the event of large defects [7]. The placement of mesh as an alternative technique in abdominal wall repair offers some advantages over the suture closure [8]. Meshes confer an extra surface, avoiding the surgical approximation of the defect edges and the subsequent excessive tension in the area. This tension would be responsible for impaired tissue healing, tissue ischemia, and defective closure or reconstruction of the wall, that could result in wound dehiscence and herniation [6]. However, although superior to traditional suture closure, the use of meshes is not without complications. This underlies the complexity of the processes carried out during abdominal wall reconstruction and the large amount of factors involved.
The improved outcomes achieved by the use of surgical meshes have triggered the development of different biomaterials to be used in the abdominal location. Research on abdominal meshes has been traditionally based on comparative analyses of materials with different chemical or biological nature and/or the optimization of their physical and mechanical properties. Different reviews on the different biomaterials available from the point of view of their composition, bio-functionality or their structural and mechanical properties have been previously published [9,10,11,12,13]. In this review, we have specifically focused on their behavior at the peritoneal interface. The still high incidence of postsurgical peritoneal adhesions after intraperitoneal mesh implantation and the severe clinical complications that result make necessary a comprehensive understanding of the most relevant factors implied. Here, we provide a review on the abdominal cavity contents involved in adhesion formation, the host tissue, and cell response exerted by biomaterials in this cavity and the adhesiogenic process. An updated classification of biomaterials available for abdominal surgery is presented, targeting principally their performance in relation to adhesion formation.

Mesh Positioning in the Abdominal Wall

According to the position relative to the peritoneum, meshes can be implanted: extraperitoneally i.e., in a retromuscular plane and not in direct contact with the bowels; or intraperitoneally, between the peritoneum and the intraabdominal organs and bowels. In both alternatives, complications can arise. However, the intraperitoneal position poses an increased risk of dangerous events such as mesh migration [14,15,16,17,18,19], adhesions [20,21], intestinal obstruction [15,19] or fistulae [16,20,21,22,23,24], that can occur even several years after the mesh placement. Notwithstanding, the IPOM (intraperitoneal onlay mesh) technique is indicated in several patients who have undergone a previous laparoscopic repair, an infraumbilical surgery with violation of the preperitoneal space, or suffer from a recurrent inguinal hernia [25].

3. The Abdominal Cavity

The success of a biomaterial implant in the abdominal cavity is conditioned by the resolution of different processes characteristic of this anatomical site. The damage to intraabdominal tissues/organs like the peritoneum or the omentum provokes a specific cell and tissue response.

3.1. The Peritoneum

A key factor in the intraabdominal mesh implantation is the contact between the biomaterial and the peritoneum. The peritoneum is a serous membrane that consists of a basal lamina and a submesothelial stroma covered by a mesothelial cell monolayer [26]. This membrane covers the inner side of the abdominopelvic cavity—defined as parietal peritoneum—as well as the surface of the intraabdominal structures, known as visceral peritoneum. The contact of a biomaterial with the parietal and visceral peritoneum—when in the intraperitoneal position—or just with the visceral peritoneum—in total defects hernia repair which include the removal of the parietal peritoneum—requires some special considerations to be made when selecting the most appropriate mesh to be used. The peritoneum can be easily harmed during abdominal surgery. The first layer exposed in peritoneum is the mesothelium, which is a delicate structure. At the intercellular junctions in the mesothelium some openings—stomata—that provide direct access to the submesothelial lymphatic system are found [27,28]. This makes this layer highly permeable to the peritoneal fluid. Mesothelial cells (MCs) present numerous microvilli at their apical membrane surrounded by a lubricating glycocalyx [28]. This glycocalyx has an anti-inflammatory function and plays an important role in intercellular contacts and tissue remodeling [28,29]. Thus, the mesothelial layer confers a protective cover for the underlying tissue. MCs are supported by the basal lamina through weak bindings, which indicates that these cells can be easily detached in case of mechanical insult [30]. Considering the slight thickness of the basal lamina, less than 100 nm thick [26], when the peritoneum is injured during intraabdominal procedures, both the mesothelial monolayer and the basal lamina are usually removed leaving the submesothelial stroma underneath exposed. Besides collagen type I fibers, laminin, fibronectin, proteoglycans and glycosaminoglycans, also fibroblasts, adipocytes, nerves, blood and lymphatic vessels can be found in this layer [31]. The exposure of these cell types and components after trauma is of importance for the reparation of the zone and has an influence on the adhesion formation process [32]. In addition to disruption of the mesothelial layer, the mechanical injury and the peritoneal inflammation produce the release of cytokines and growth factors, such as TGF-β (transforming growth factor-β) [33], that provokes the epithelial-to-mesenchymal transition of MCs [34,35,36]. This process plays a pivotal role in peritoneal fibrosis through the conversion of MCs into migratory and invasive cells with a myofibroblastic phenotype [37,38]. These cells secrete—among other growth factors—VEGF (vascular endothelial growth factor), which is an inductor of angiogenesis [39,40]. Reparative macrophages also promote neoangiogenesis and release growth factors and matrix-remodeling enzymes [41]. These events, together with the release of other proangiogenic factors like b-FGF (basic fibroblastic growth factor) [42], can contribute to the stabilization of peritoneal adhesions as permanent structures between the biomaterial and the opposing intraabdominal organs.

3.2. The Omentum

The omentum is a highly vascularized tissue that lies posterior to the abdominal wall and serves as coverage and protection for the intraabdominal contents [43]. It is of greatest importance in adhesion formation, since it is involved in 92% of postsurgical adhesions and in 100% of spontaneous adhesions [44]. It exhibits a particular predisposition to attach to foreign materials like surgical meshes in the abdominal cavity [45,46], which is probably due to its particular cell composition that provides this tissue with an immunologic role [47,48] and tissue remodeling properties [43]. It is mainly composed of white adipose tissue in a lobular configuration septated by connective tissue and delineated by a mesothelial layer. It contains abundant blood and lymphatic vessels, especially in the submesothelial layer, and lymphoid bodies, so-called milky spots, in the outermost layer of the omentum or embedded in the adipose tissue [49]. The existence of this organ in the abdominal cavity largely conditions the host tissue response to a biomaterial implant in this location. The omentum shows a rapid response to abdominal injury, with the mobilization of cells comprising the milky spots that proliferate and spread over the omental tissue [49] and secrete growth factors and cytokines related to tissue repair and remodeling [43,49]. MCs (especially those near milky spots) have shown changes in their phenotype in response to injury, returning to normality only after tissue repair [50]. Besides, fibrocytes, pericytes and fibroblasts contained in the omentum provide an environment that supports tissue growth via angiogenic factors and cytokines that promote wound closure, vascular development and remodeling as well as collagen deposition [43]. A different progression of the omental tissue involved in adhesions to an adipose or fibrotic phenotype has been observed and correlated to the presence of different isoforms of TGF-β (TGF-β1 and TGF-β3) and the concomitant expression of the soluble or the membrane-bound form of betaglycan (type III TGF-β receptor) [49]. A similar role for the different isoforms of TGF-β and their receptors in the response of peritoneum to abdominal injury is still to be investigated.
Bearing all this in mind, it seems clear that the abdominal cavity represents an anatomical location with particular features that need to be considered when designing or selecting the mesh to be employed in order to minimize adverse medical outcomes.

3.3. Host Tissue and Cell Response

The presence of a foreign material into the abdominal cavity triggers a series of events influenced by the individual response of the patient and the surgical procedure performed. As part of the reparative process, an inflammatory response is exerted in an attempt to contribute to the restoration of the damaged area and to encapsulate the foreign biomaterial to separate it from the surrounding tissue [51]. The normal course of the reparative process requires a perfect orchestration of all the phases—hemostasis, inflammation, proliferation and remodeling—and every cell type involved. For this reason, the understanding of the events and signaling processes occurred during wound healing, and specifically in the presence of a foreign material, is crucial in abdominal wall repair.

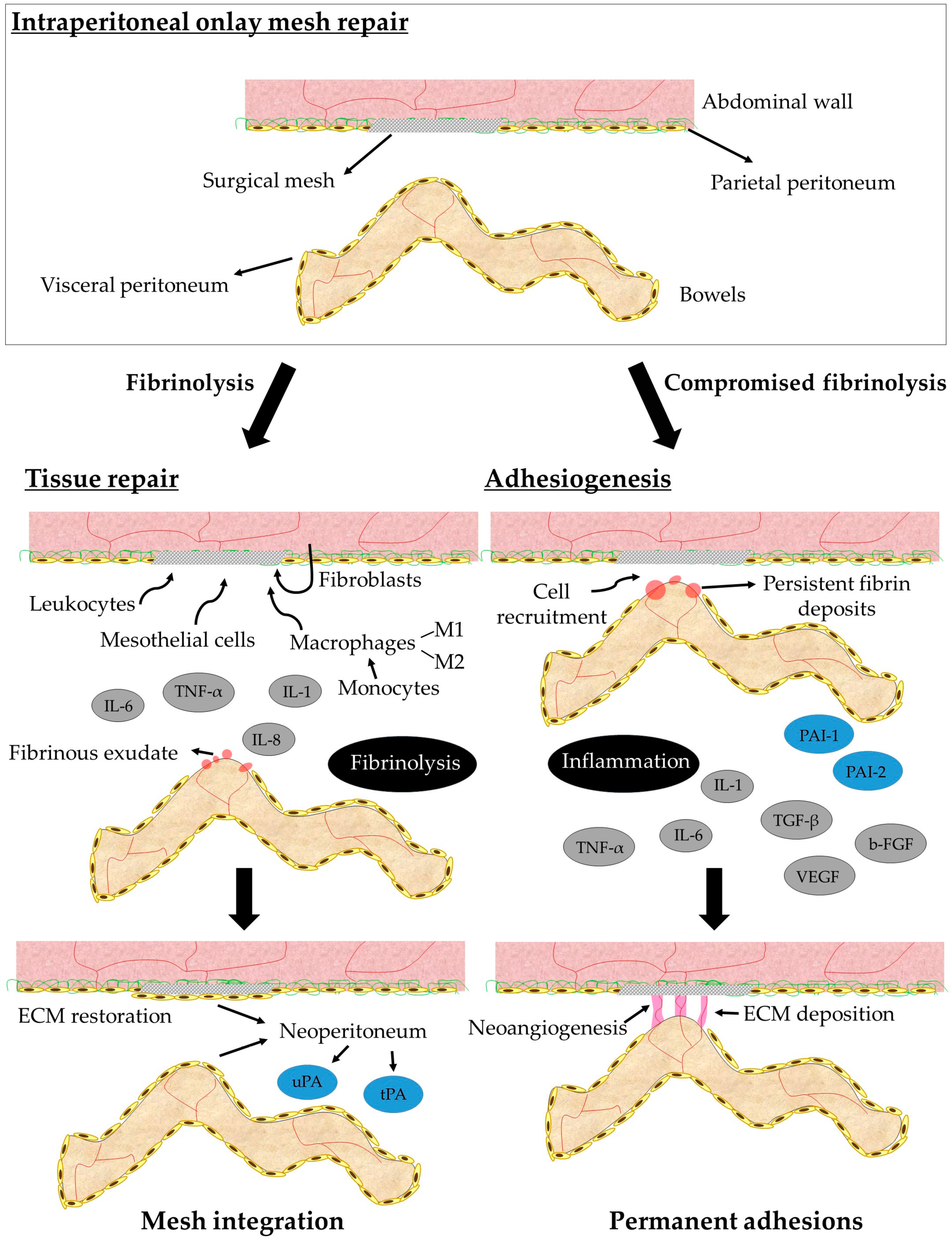

After peritoneal injury during a surgical procedure or mediated by the subsequent mechanical aggression of the implanted mesh, different substances like histamine or vasoactive quinines are released. Thereby, the permeability of the blood vessels is favored. A protein fibrinous exudate covers the damaged area (Figure 1) and is infiltrated by inflammatory cells. The first cell type attracted by chemokines that appear in the damaged area are polymorphonuclear neutrophils, which contribute to the ingestion of foreign particles or microorganisms. The following important event in the inflammatory phase is the appearance of monocytes that are attracted by the pro-inflammatory cytokines IL (interleukin) -1, IL-6, IL-8, and TNF-α (tumor necrosis factor alpha) released in the peritoneal fluid [52]. Monocytes differentiate into macrophages once in the tissue and adhere to the wound. There, they will release numerous cytokines that constitute the real effectors of the phagocytic defense system. Adherent macrophages attempt to phagocyte the biomaterial and fuse to form foreign body giant cells in a biomaterial-dependent process [51]. Macrophages can also prevent during the first 48 h and then stimulate from 48 to 54 h after damage the MCs proliferation. Also, MCs release different cytokines and growth factors to the peritoneal fluid to mediate the peritoneal healing. Two macrophage subpopulations are involved in the post-implantation response. M1 macrophages favor inflammatory reaction, while the M2 subpopulation has a role in tissue remodeling. Leukocytes in the early phases also promote the proliferation of the normally quiescent MCs [52]. Lymphocytes type T have been found in the macrophage infiltrates, developing the immune response. The secretory products of macrophages modulate the fibroblasts proliferation during the proliferative phase. Under the action of TGF-β, quiescent fibroblasts differentiate into myofibroblasts [51], a cell type that exerts an essential role into the reparative process by synthesizing collagen and restoring the extracellular matrix. Lately, type III collagen fibers are replaced by type I collagen during the remodeling phase. Fibrillar collagens provide the support and tensile strength that give the extracellular matrix its structural integrity. The third day after the lesion to the peritoneum, MCs cover the peritoneal macrophages present in the damaged area and proliferate during the following days, forming multiple cell islets. The confluence of these islets leads to the restoration of the mesothelium (Figure 1) which, as previously mentioned, represents the protective cover of the peritoneum and eventually the abdominal cavity. The neoperitoneum promotes fibrinolysis through the release of tissue-type (tPA) and urokinase-type (uPA) plasminogen activator (Figure 1), together with the inhibition of cell-cell and cell-tissue interactions through the release of hyaluronic acid from the MCs [53]. In this intricate and time-organized process, any imbalance or mismatch in the healing events or in the function of the cells involved due to the presence or degradation of the biomaterial could produce unexpected responses of the host tissue that could result in clinical complications.

4. Peritoneal Adhesions

Adhesiogenesis is the most common cause of long-term complications observed after abdominopelvic surgery [54], leading to serious consequences such as bowel obstruction, or chronic abdominal pain or infertility in women undergoing a gynaecological procedure [55,56]. In fact, 80–90% of patients develop adhesions after intraabdominal surgery [54,57], especially after surgical mesh implantation. Adhesions are responsible for the majority of bowel obstructions in the Western world [58]. For these reasons, postoperative adhesions remain one of the most challenging issues in surgical practice [59,60,61].
Adhesions are pathologic bands connecting adjacent structures [59]. Under normal conditions, the blood clot and the fibrinous connections formed after trauma to the peritoneal interface are lysed within a few days by fibrinolytic substances, resulting in the repair of the damaged area [32]. Inflammation at the site of injury can inhibit or delay this fibrinolytic activity through the release of plasminogen activator inhibitors (PAI-1 and PAI-2), leading to persistent fibrin deposits that become an insoluble network on which cells can migrate and proliferate [32,52] (Figure 1). This situation produces permanent connections of fibrous tissue between two previously unrelated surfaces [59,62], giving rise to adverse complications of varying severity [56]. Different types of adhesions have been observed, leading to different classifications [63,64,65,66,67]. A correlation between the macroscopic and/or microscopic characteristics—such as the resistance to traction, thickness, tissue composition or the degree of the vascularization of the adhesion—and the severity and clinical significance of adhesions can be established. Thus, loose adhesions, usually corresponding to an adipose or fibrinous content, are poorly vascularized, easily dissected, and do not lead to very serious complications. On the contrary, a fibrotic phenotype corresponding to firm—vascularized and difficult to dissect—or integrated adhesions that are highly vascularized and require sharp dissection, occasionally produce serosal damage of the organ involved, which can produce incarceration of intraabdominal organs and eventual bowel obstruction and enterocutaneous fistulae. Thus, the extent and clinical severity of the adhesions formed after the placement of a surgical mesh into the abdominal wall are highly influenced by the performance of the surgical procedure itself and the degree of peritoneal injury and inflammation that the specific biomaterial triggers. The required features for the most suitable biomaterial in this regard are still to be unequivocally established, while the individual response of the patient seems to play a crucial role.

5. Available Biomaterials for Abdominal Surgery

The difficulty in finding the proper equilibrium between the intended clinical effect and avoidance of collateral damage has resulted in a significant evolution in the number and types of prosthetic materials available for abdominal wall reconstruction. Currently, nearly 150 options for prosthetic materials with varying composition, weight, cost, and indications for use in the surgical field are available to the general surgeon [68,69], with the ongoing development of new additional meshes [9]. An in-depth knowledge of the advantages and disadvantages of the diverse materials currently available is needed when selecting the optimal mesh according to a specific situation.

5.1. Synthetic Meshes

5.1.1. Permanent Reticular Materials

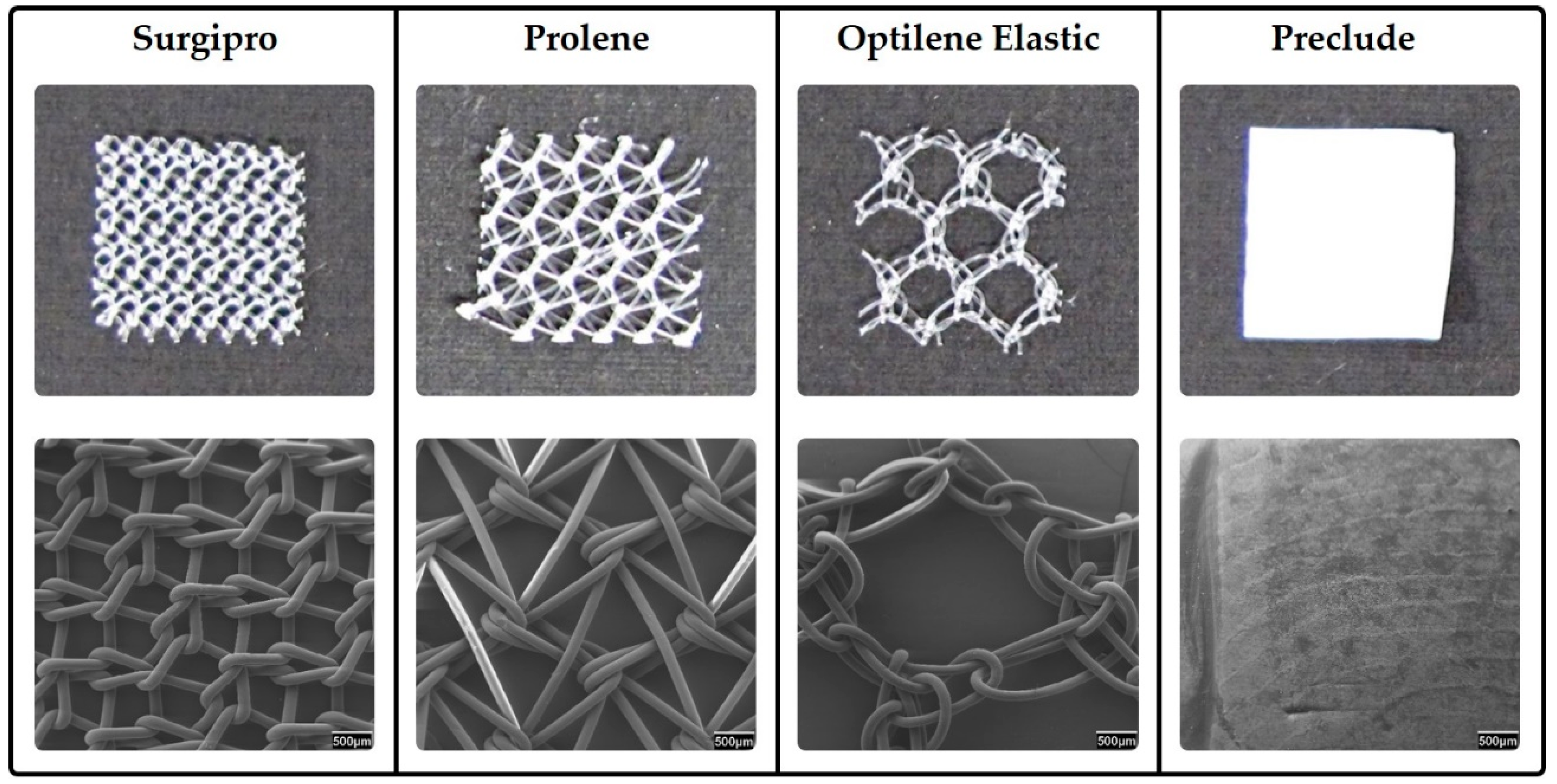

After the use of high-density polyethylene fiber (Marlex®) as the first synthetic mesh [70], polypropylene (PP) started to be used since it offered a more malleable and heat-resistant option that could be autoclaved [71]. Nowadays, PP still constitutes the most employed material in the abdominal location [10] even if other materials such as polyester (PS) were introduced [72]. Since these materials usually present a reticular disposition of the filaments (Figure 2), the damage to the peritoneum is a common event that gives rise to high adhesion formation rates. Infection is also a common adverse event in the use of synthetic materials [73]. Besides, PP shows shrinkage rates of 30–50% at 4-weeks, which could be responsible for secondary postimplantation folding in cases of poor elasticity and small pores [74]. Thus, the use of reticular meshes is discouraged in the intraperitoneal position. While the behavior at the biomaterial/parietal peritoneum interface is satisfactory (proper host tissue integration), several adverse complications can be found at the biomaterial/visceral peritoneum interface. Different modifications such as increasing the pore size (Figure 2) or coating the mesh with a second component have been developed to avoid these complications, with different results. The proper mesothelialization on the visceral side of the biomaterial is crucial since it enables a free of micro-traumas movement of the intraabdominal organs in contact with the mesh. Reticular materials have shown a delay in mesothelial reparation, which favors the appearance and permanence of fibrin deposits that constitute the scaffold for peritoneal adhesions.

5.1.2. Permanent Laminar Materials

Polypropylene and polyester remained the two dominant mesh options until 1985, when expanded polytetrafluorethylene (ePTFE) emerged as an option, with some initial reports of improvement in adhesion formation [75]. ePTFE is a laminar microporous material (Figure 2), which induces less damage in the intraabdominal organs and creates less adhesions [76]. Mesothelialization of the laminar meshes is much better and faster than in reticular structures [77]. A reduced inflammatory foreign reaction has also been noticed in laminar PTFE compared to PP filaments. Notwithstanding, although smaller pores show an advantage in adhesion prevention, they prevent tissue in-growth and therefore integration into the host tissue [78]. Also, higher rates of infection are shown in laminar meshes that can lead to its removal [79]. When a reticular prosthesis composed of ePTFE suture thread is implanted, the adhesion incidence significantly increases compared to a laminar ePTFE [80]. This indicates that it is the spatial structure of a biomaterial that modulates the behavior at the peritoneal interface, and that the composition of the material has a lower influence. The influence of structural features has also shown to be crucial on mesh mechanical behavior in relation to the abdominal wall biomechanics [10]. Different modifications have been included in PTFE meshes to improve tissue ingrowth, giving rise to products like MycroMesh®, DualMesh® or MotifMESHTM [81]. It is difficult to make any definitive statements about the clinical effectiveness of these meshes since clinical trials are not performed under identical conditions [82] and have shown very disparate results regarding adhesion formation [83,84].

5.1.3. Composites

Since reticular meshes offer proper host tissue integration that cannot be reached by laminar materials and laminar materials confer prevention against the adhesion formation frequently found with reticular meshes, composites were developed as the logical step in the evolution of materials to be used in abdominal wall hernia repair. Composites consist of the combination of two different components linked together whether by suturing, heat-sealing, vacuum pressing or polymer adhesion. They include a reticular mesh facing the abdominal wall with the aim to integrate into and reinforce the abdominal tissue. The second component is a laminar material facing the inner cavity that provides a smooth surface and avoids damage to the intraabdominal organs, allowing MC colonization to ensure an adequate contact with the visceral peritoneum. Thus, they acquire a bi- or multi-layered configuration that requires a careful handling to obtain the proper implantation of the device. While the reticular component on the parietal side is usually based on a permanent synthetic material, the layer facing the visceral peritoneum can take the form of a physical or chemical barrier [85]. Physical barriers consist of a nondegradable material, while chemical barriers are based on resorbable components or chemical solutions. In both cases, the laminar barrier must induce a minimal inflammatory response, allow a proper mesothelialization, and enhance neoperitoneal formation. The presence of a neoperitoneum in the visceral side of the mesh prevents the contact between the foreign material and adjacent organs and hence, avoids adhesiogenesis.

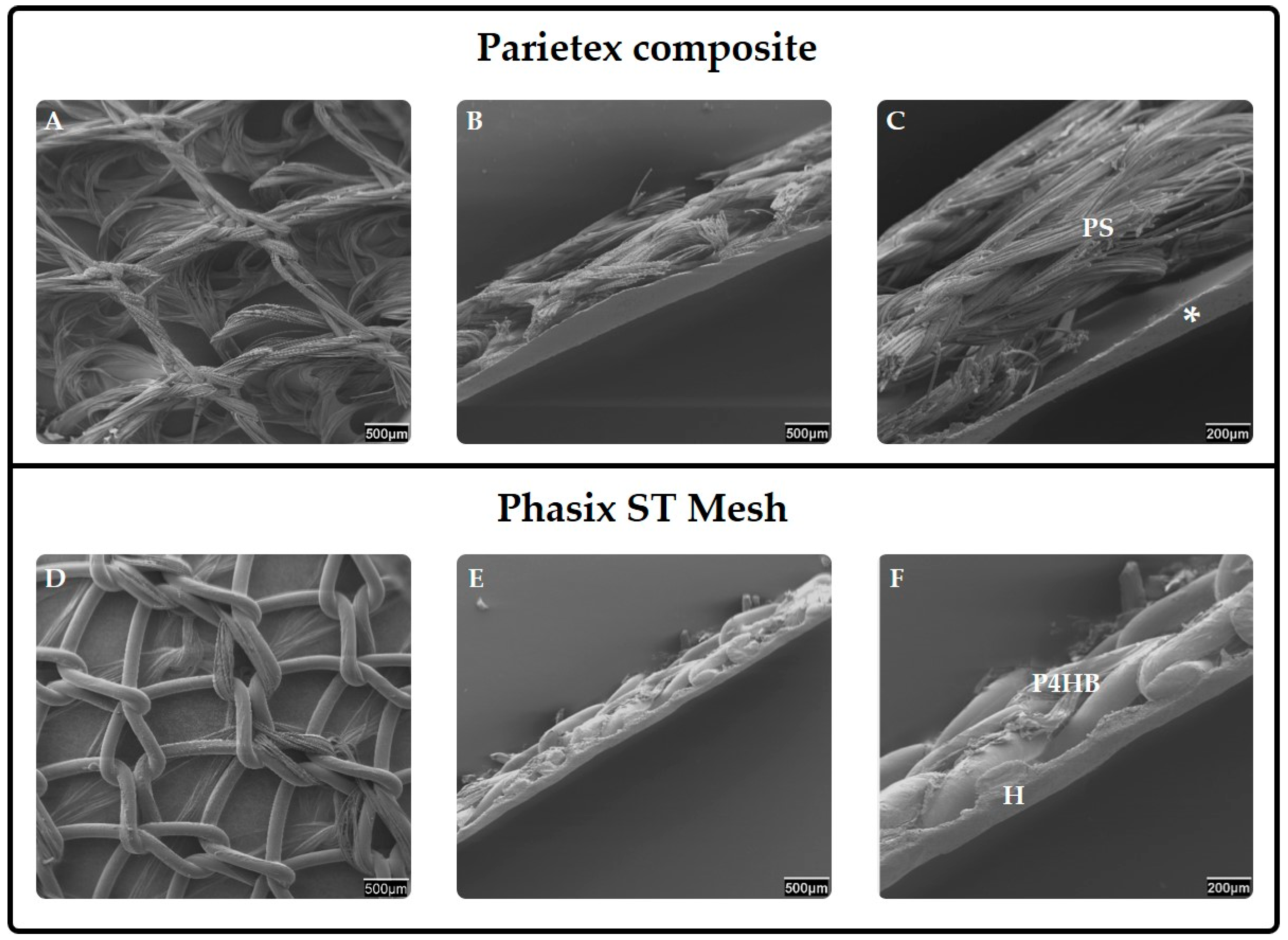

Some of these composites include added components as adhesion barriers or antimicrobial layers from a synthetic or biological origin. Among composite meshes with physical barriers, the combination of PP with ePTFE (ComposixTM) or PP with polyurethane (Combimesh Plus) can be found. Some of the composites containing chemical barriers include the following combinations: PP with omega-3 fatty acids (C-Qur); PP with polyglycolic acid and hydrogel (VentralightTM); PP with a film made of collagen, polyethylene glycol and glycerol (ParieteneTM Composite); PP with an absorbable barrier of polydioxanone and oxidized regenerated cellulose (Proceed®); PP with sodium hyaluronate and carboxymethylcellulose (Seprafilm®); PP and polydioxanone fibres with an absorbable poliglecaprone 25 film (PhysiomeshTM); PS with a type I collagen, polyethylene glycol and glycerol layer (ParietexTM Composite) (Figure 3); or a fully resorbable poly-4-hydroxybutyrate (P4HB) mesh combined with a hydrogel barrier (PhasixTM ST Mesh) (Figure 3) [82,86,87,88], among others. In clinical studies, composite devices have been associated with lower infection, lower recurrence rates and comparable hospital stays [78]. However, the use of PTFE alone has shown better results in relation to visceral peritoneum than these composites [53]. Moreover, there is evidence that most of the composites prevent adhesion formation just in the short term and that the effect is diminished after 30 days [86]. The separation of the layers integrating the composite or adhesion to the bowels are also undesired events observed with these devices [89]. Despite some possible complications after the use of composites, these materials have shown an appropriate behavior at different interfaces. Adhesion formation is minimal and usually restricted to the mesh margins. An important finding is that, in the event that adhesiogenesis occurs after a composite implantation, adhesions tenacity is lower, with a tendency to the loose type [82,90,91]. Loose adhesions pose less serious complications than firm or integrated adhesions since the movement of adhered organs is not so restricted. Furthermore, when a chemical barrier is employed, the sequential absorption of this layer could theoretically provoke the release of the tissue adhered to it while reducing the presence of foreign residues into the host.

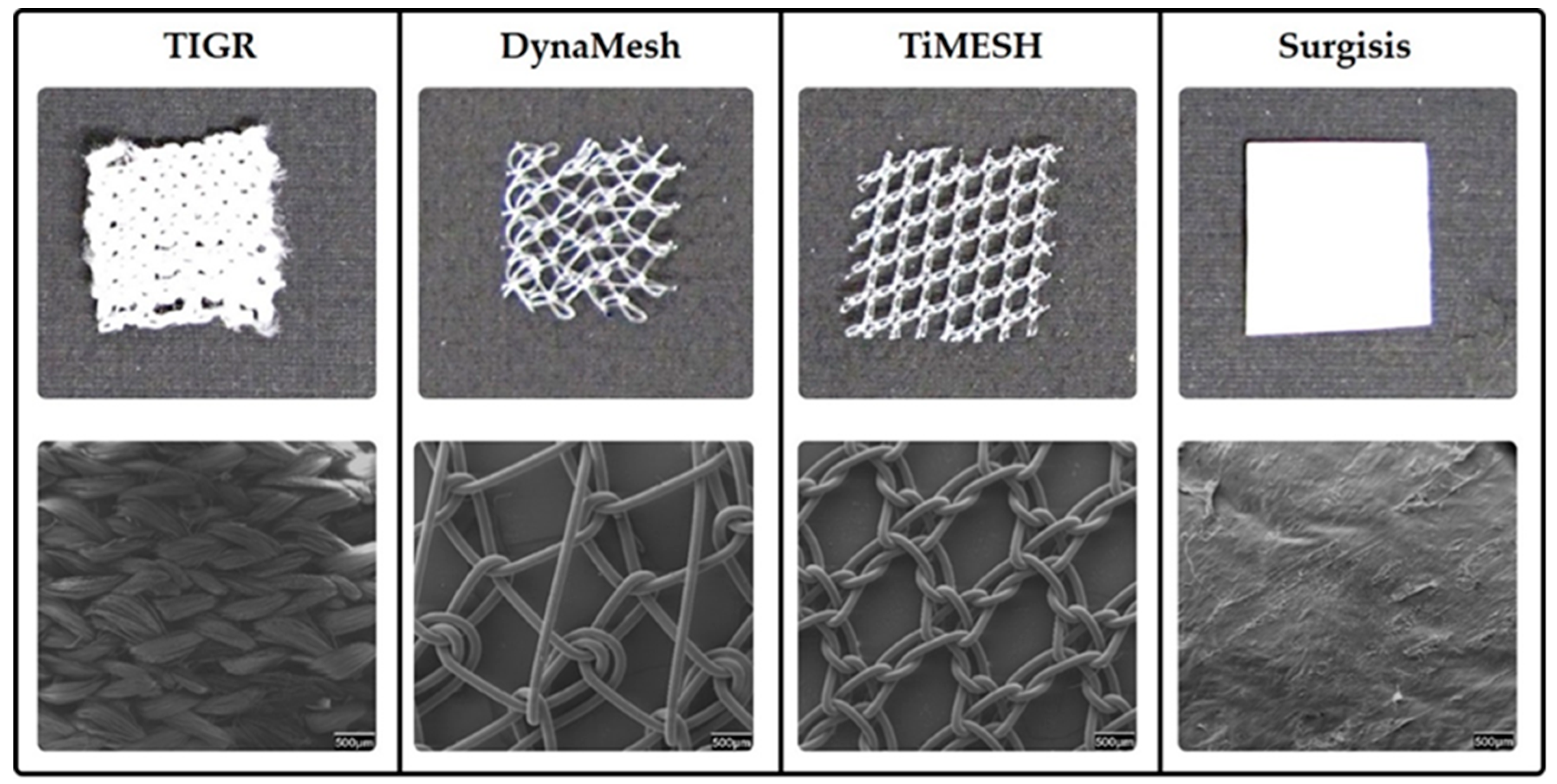

The combination of a permanent synthetic mesh and a biological graft —defined as hybrid mesh in the sense of bringing together materials from different nature—has also been considered, producing a device called ZenaproTM. It consists of a large pore, lightweight PP mesh sandwiched between layers of extracellular matrix of porcine small intestinal submucosa (SIS). A multicenter study has been recently published [92], in which acceptable short-term outcomes and recurrence rates for Zenapro in low and medium-risk patients with clean wounds out to 12 months are shown. However, further clinical trials to determine long-term outcomes and complications with these devices [9,92] as well as to elucidate the performance at the peritoneal level are needed. In summary, composites represent a valid solution for intraperitoneal implantation, since they can provide proper tissue integration, adequate performance at the peritoneal level and good postimplantation mechanical resistance.

5.1.4. Absorbable Materials

Absorbable materials, also known as biosynthetic or bioabsorbable, like polyglactin 910 (Vicryl®), polyglycolic acid (DexonTM), polyglycolic acid: Trimethylene carbonate (Bio A®) or a copolymer of glycolide lactide and trimethylene carbonate (TIGR®) (Figure 4) [93] were introduced based on the idea that full reabsorption of the material into the patients´ tissue would leave no foreign material behind. When the absorbable material is introduced as a barrier, separation is achieved between the implant and viscera until the mesh becomes covered by a neoperitoneum that prevents adhesion formation [94]. These devices are supposed to act as scaffolds providing an environment for tissue in-growth and the repopulation of host cells [95] under a limited inflammatory foreign body reaction. This should diminish adhesion formation. However, some studies [96] have demonstrated that the interposition of a resorbable mesh between a PP mesh and the abdominal viscera did not reduce adhesion formation but elicited a more evident early inflammatory response. One of the major drawbacks of these materials is, in addition, the lack of long-term tensile strength that can end in recurrence [97]. For this reason, they have been indicated just for temporary use [10].

5.1.5. Hybrid Meshes

Hybrid meshes also combine different components but follow a different strategy to composites. In these meshes, the term hybrid highlights that filaments of different composition are knitted or woven together to produce a single monolayer mesh structure, or that a second element is introduced as a coating over the reticular mesh. The latter differ from the layered coated meshes in that the coating element surrounds the polymer fibers while maintaining the original reticular structure of the mesh, which does not cover the mesh pores. Hybrid meshes, despite displaying a reticular structure, include highly inert materials in the visceral side—such as polyvinylidene fluoride (PVDF) [10] in the case of DynaMesh®—or around the filaments—such as titanium, in the case of TiMESH®—that induce very low inflammatory response and have poor adhesiogenic potential. They can also include an absorbable material in thread form knitted together with a synthetic reticular permanent mesh [98]. However, these meshes have not either showed an acceptable performance regarding adhesion formation [99,100,101,102] since the reticular/protruding profile of the mesh provokes peritoneal damage even when an inert material is employed. The injury to the peritoneum is the event that triggers the coagulation cascade and the genesis of adhesions in a case of persistent inflammation.

5.2. Biological Meshes

Biological meshes—usually referred to as grafts or biomeshes—consist of materials derived from animal (xenograft) tissue like Surgisis® [103], PermacolTM [104,105] CollaMendTM [106], Tutomesh® and Strattice® [12,107] or human (allograft) tissue like AllodermTM [87]. The first tissue-based implant composed of porcine intestinal submucosa for use in abdominal wall reconstruction (Surgisis®) was approved in 1998 [103]. These decellularized matrices allow soft tissue to infiltrate the mesh, which eventually becomes integrated into the body by a process of remodeling. Unfortunately, this process also appears to lead to a rapid reduction in their mechanical strength, which leads to a high degree of bulging and recurrence, especially with allografts [108]. Due to this, concerns regarding this issue have restricted their use to infected environments. The use of some chemically cross-linked meshes like PermacolTM (a porcine-derived acellular dermal sheet) contributed to an increase in graft stability and durability that led to lower hernia recurrence rates while still being incorporated successfully [12,104,105]. However, some authors [9] concluded that cross-linking does not significantly impact the tensile strength or stiffness of the graft-tissue composites in the long term. While cross-linking these materials slows down the material absorption [109], thus increasing the mesh stability, this process can also result in a similar foreign body reaction as seen in permanent synthetic meshes [110]. Thereby, the desired effect of the so-called biocompatibility would be reduced.
Although the general consensus has traditionally advised the use of permanent synthetic materials in clean non-infected fields and the use of biologic materials in infected environments, some lightweight, macroporous permanent synthetic meshes have shown good outcomes in contaminated fields [111]. Thus, further evidence supporting the superiority of biological meshes in contaminated fields is still lacking [13,112,113], with synthetic meshes proven to be superior to biologic reinforcement in some patient populations [9]. For this reason, even an antibacterial-coated biological graft has been developed for its use in contaminated fields (XenMatrix™ AB Surgical Graft). These facts, together with the possibility of an immunologic response to the mesh [88], high rate of seroma formation and the higher cost for biological than for synthetic materials [113,114], have led to a reduced use of this kind of meshes. Nevertheless, these biomeshes offer some advantages, such as a convenient behavior regarding the peritoneal interface. Collagen-based meshes have shown low rates of adhesion formation, similar or even lower (depending on crosslinking of the matrices) to those observed for PTFE [115].

5.3. Cell-Coated Meshes

The paramount importance of the interaction between the surgical mesh and the peritoneal membrane in the performance of the implant, together with the fact that the time for remesothelialization of the damaged area and the mesh surface is critical to avoid adhesion formation, supports the idea that coating the mesh with autologous cells is a very promising alternative. Both synthetic and biological meshes (e.g., ParietexTM, TIGR® or StratticeTM) have been coated with different cell populations such as fibroblasts or mesenchymal stem cells [116,117]. These studies focused mainly on tissue integration and found that cell-coating had a positive effect on integration with improvements in collagen deposition and ingrowth, particularly in the subcutaneous position [116]. Mesenchymal stem cells reduced mesh-induced inflammation and foreign body reaction [117], blunting the immunogenic effect. Regarding adhesions, Dolce et al. [118] showed that coating Vicryl® (polyglactin) with mesenchymal stem cells was successful in reducing the incidence of this postoperative complication, along with reduced inflammation. Also bone marrow-derived mesenchymal stem cells have shown a positive effect in reducing adhesions [119]. Recently, Cheng et al. [120] demonstrated that coating a PP mesh with adipose-derived stem cells reduced the tissue adhesion, fibrosis degree and the occurrence rate of mesh-related complications.
Despite the promising results shown by cell-coated meshes in abdominal hernia repair, the technical difficulties and added workload that the attachment of autologous stem cells to a scaffold material implies prior to implantation, and the possibility of cells detaching prematurely must be considered. Additionally, these devices must pass strict regulatory restrictions, which can make their use in clinics is not so widespread [121]. This results in a lower use of cell-coated meshes in abdominal hernia repair.

6. Conclusions

The evolution of the biomaterials for abdominal wall repair has followed a logical process in which the modifications included have tried to sort out the inherent drawbacks of the current materials being used at the time. However, when comparing the performance of different commercially available meshes, the influence of just one parameter (pore size, filament distribution, composition, e.g.,) is difficult to assess since more than just one single modification is usually included in new devices and differences in the mesh structure and the knitting pattern between the meshes compared usually exist.
Furthermore, the experience has shown that the reasoned design of a mesh from a theoretical point of view not always offers the expected outcomes when experimentally tested, showing even worse results in some cases than those found for the devices being previously employed. This fact underscores the intricacy of the reparative/regenerative process in the abdominal cavity, which requires full attention and a deep understanding to obtain satisfactory results. For this reason, experimental animal models have become vital in the evaluation of abdominal meshes for hernia repair. They allow the comparison between different meshes implanted with the same surgical technique and exactly in the same anatomical position, providing essential information about the most important parameters that determine the performance of an abdominal mesh such as the degree of integration into the host tissue, the recurrence rate, proneness to encapsulation, susceptibility to infection, capacity of remesothelialization or the adhesiogenic potential.
The surgical technique itself also represents a key point in the success of an abdominal implant, which makes necessary the use of easy-handling materials and experienced personnel that produce as little damage as possible to the peritoneal interface. Despite the major progress in the field of biomaterials for abdominal wall repair, there is no ideal mesh that can perform well in every situation. Nevertheless, composites have shown positive outcomes at every interface of the implant. The combination of two specifically oriented materials—one of them designed to offer proper host tissue infiltration, and the other one providing optimal behavior at the biomaterial/visceral peritoneum interface—are composites that represent a valuable solution that can be placed at any tissue interface. While providing an appropriate tissue integration and tensile strength in abdominal wall repair, composites also avoid the most important adverse effect in intraperitoneal mesh hernia repair, the adhesion formation.
