Sampling and Estimation of Pairwise Similarity in SpatioTemporal Data Based on Neural Networks
Abstract
:1. Introduction
2. Related Work
2.1. Visualization of SpatioTemporal Data
2.2. Similarity Matrices to Directly Visualize and Analyze Similarity Information
2.3. Machine Learning for Image Interpolation and Similarity Learning
3. Overview
3.1. Similarity Information from SpatioTemporal Data
3.2. Neural Networks Basics (for Time Series Similarity Estimation)
3.3. Approach Outline

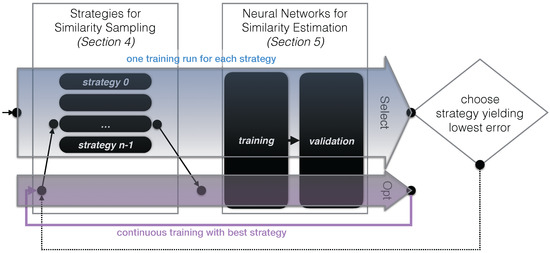

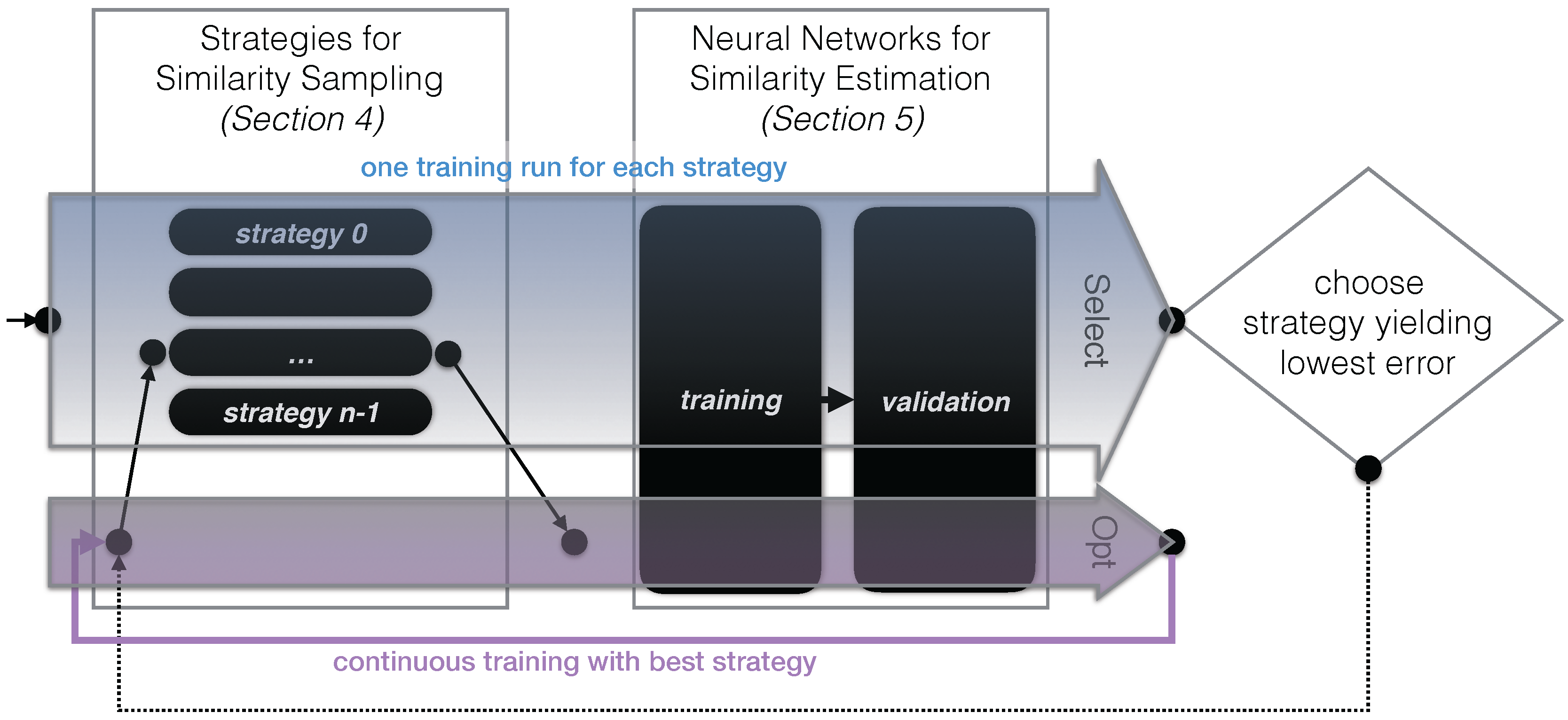

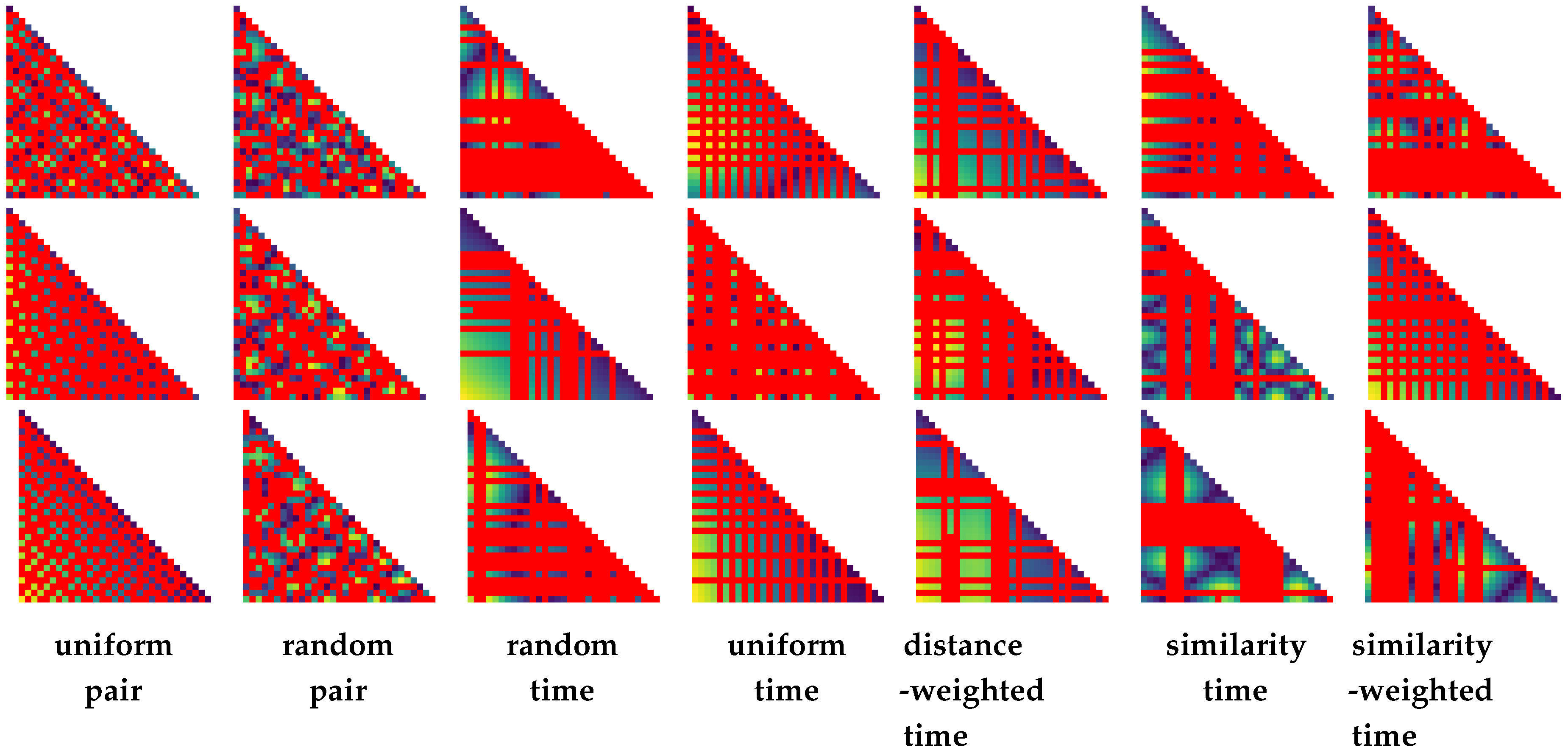

4. Strategies for Similarity Sampling
 (1)
 uniform pair. In this strategy, the goal is to distribute samples in the temporal space $T\times T$ as evenly as possible (in a progressive fashion). Doing this, we start out with a random sample pair $P=\left\{({t}_{0},{t}_{1})\right\}$ $({t}_{0}\in T$ and ${t}_{1}\in T)$. Subsequently, we then iteratively compute the new similarity pair $({t}_{0},{t}_{1})$ that has the maximum distance to any of the pairs $({t}_{0},{t}_{1})\in P$ (i.e., to any of the pairs that have been computed so far).
 (2)
 random pair. A time step pair—that has not been computed yet $(\notin P)$—is chosen randomly and processed next.
 (3)
 random time. A random time step is selected that has not yet been considered ($\notin {T}^{*}$). As described above, before adding a new time step, first all pairwise combinations of time steps $\in {T}^{*}$ are computed before proceeding further.
 (4)
 uniform time. Select the time step in between the largest interval range ${t}_{i+1}{t}_{i}$ in ${T}^{*}$ (with ${t}_{i}$ and ${t}_{i+1}$ denoting subsequent time steps $\in T$). In case there are multiple intervals with the same size, we choose one randomly.
 (5)
 distanceweighted time. Choose a time step randomly (similar to (3)), but the probability of selecting an interval is weighted by ${t}_{i+1}{t}_{i}1$ (akin to the selection criterion in (4)).
 (6)
 similarity time. Consider the distance between two subsequent time steps in T: $d({t}_{i},{t}_{i+1})$. Add a time step in the interval with the largest distance.
 (7)
 similarityweighted time. Select an interval randomly to add a new time step to ${T}^{*}$, with the probability being weighted by $d({t}_{i},{t}_{i+1})$.
5. Neural Networks for Similarity Estimation
5.1. Model Setup
 1.

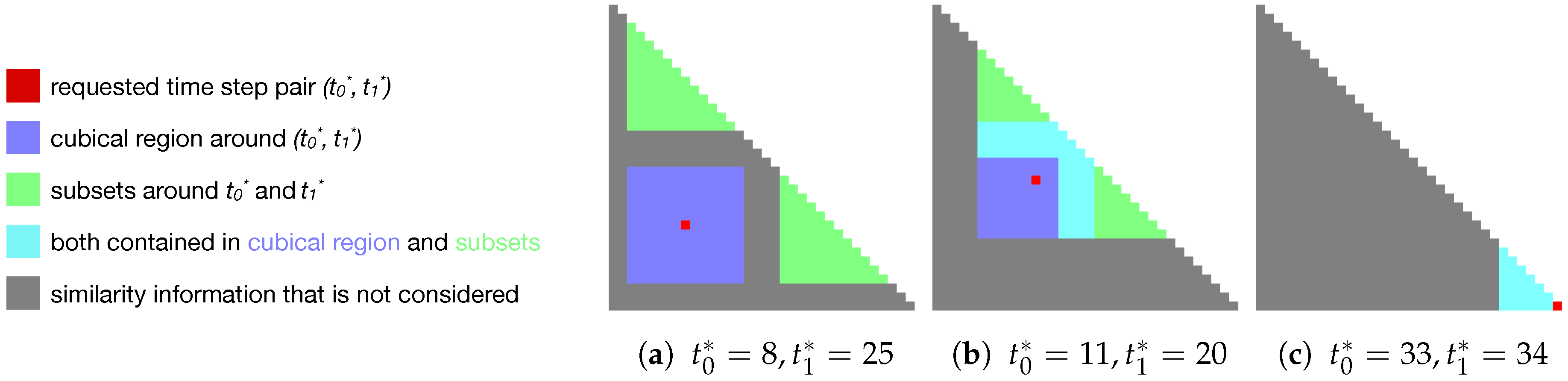

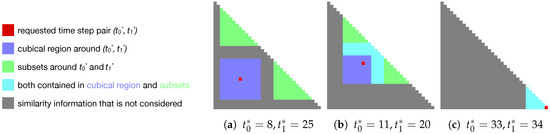

 The cubical region around $({t}_{0}^{*},{t}_{1}^{*})$, except for $({t}_{0}^{*},{t}_{1}^{*})$ itself (blue in Figure 5):$${T}_{\delta}({t}_{0}^{*},{t}_{1}^{*})={T}_{0}\times {T}_{1}\setminus ({t}_{0}^{*},{t}_{1}^{*}).$$This results in ${T}_{0}\left\right{T}_{1}1$ elements. This gives the similarity of close pairs in temporal space.
 2.
 Two subsets of the similarity matrix, one around ${t}_{0}$ and one around ${t}_{1}$ (i.e., containing all pairwise combinations of time steps ${T}_{0}$ and ${T}_{1}$, respectively) (green in Figure 5). This results in a total of $d\left({T}_{0}\right)+d\left({T}_{1}\right)$ (according to Equation (1)), and gives the similarity to close time steps for each component of the pair.
5.2. Training and Validation Data Preparation

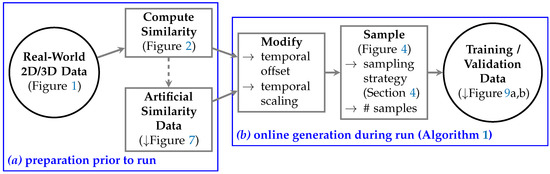

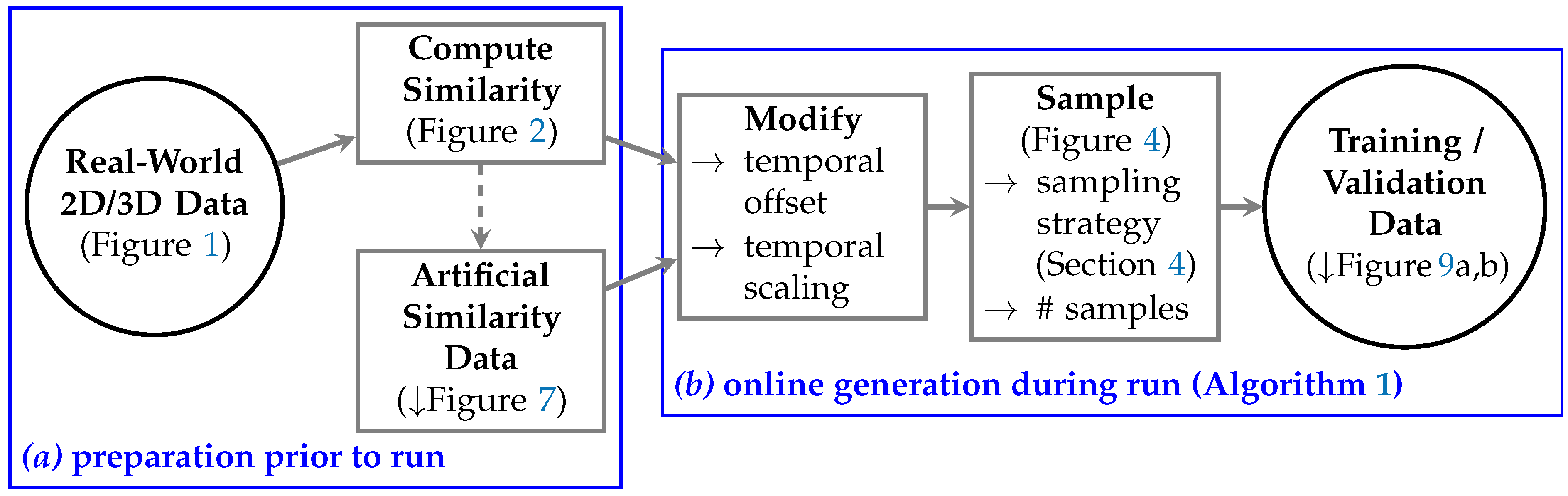

Algorithm 1 Generation of similarity data sets (for training, validation, and testing)

 Real–World 2D/3D Data.

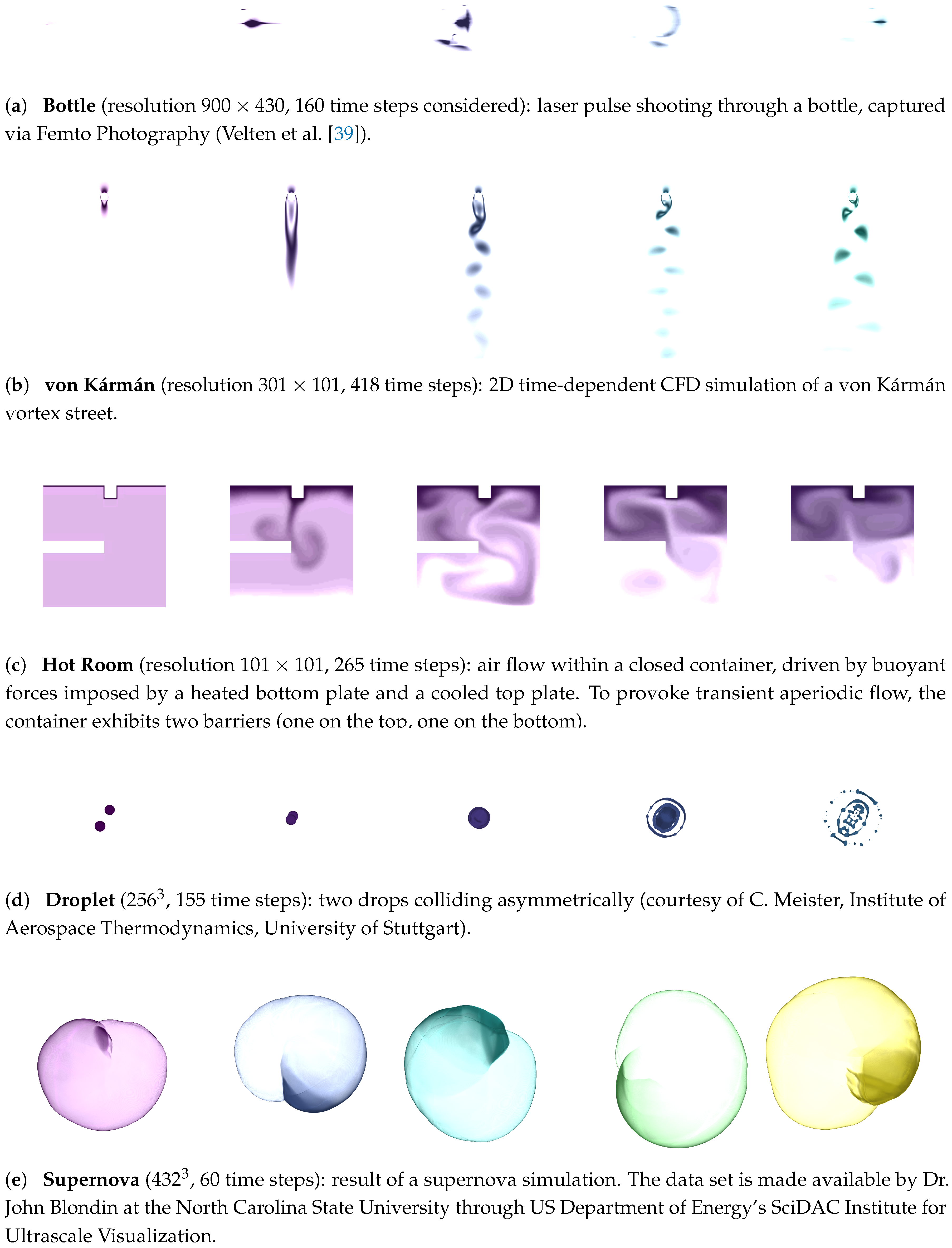

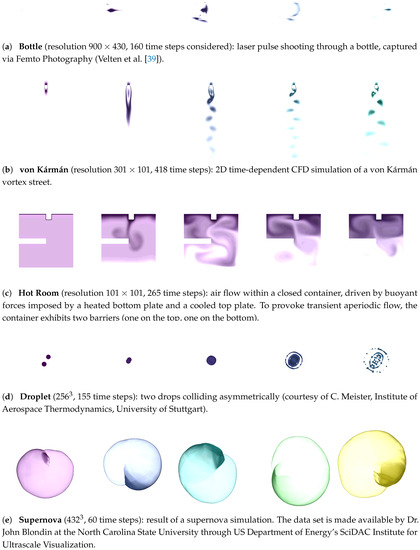

 As input, we use a set of typical realworld 2D/3D + time data sets (Figure 1).
 Compute Similarity.

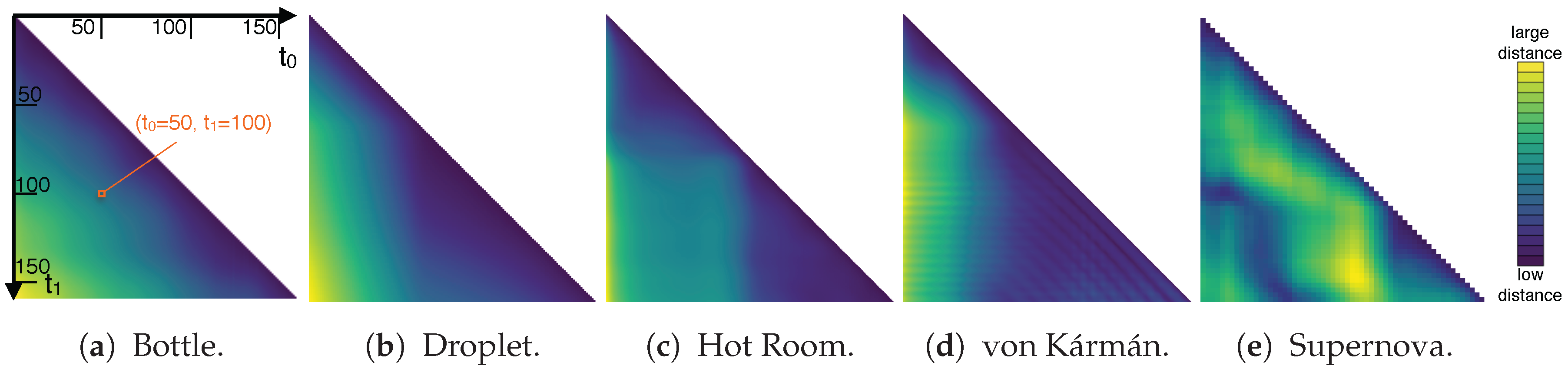

 To compute the pairwise distances between different time steps within each series, we use the approach proposed by Frey and Ertl [24,25]. It is used to make it computationally feasible to directly compute the similarity between highresolution field data sets. Conceptually, it starts with an initial random assignment of socalled source elements from one data set to socalled target elements of the other data set (each element refers to a (scalar) mass unit given at a certain cell/position in the data). Then, this assignment is improved iteratively in the following. In each iteration, source elements exchange respectively assigned target elements under the condition that this improves the assignment. For this, the quality of an assignment is quantified by d, that essentially computes the sum of weighted distances of the assignments. Here, assignments are weighted by the scalar quantity that is transported. We use this value d directly (on the basis of Euclidean distances) to quantify the distance between the respective time steps. The respective results are shown in Figure 2. Please refer to Frey and Ertl [24,25] for a more detailed discussion.
 Artificial Similarity Data.

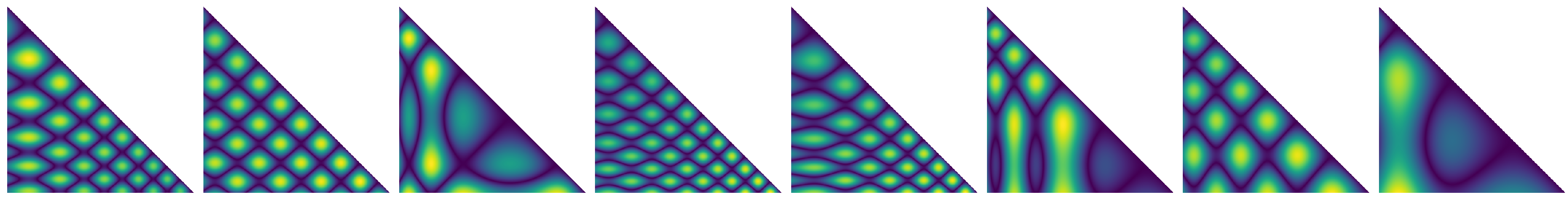

 Only using a small number of data sets is not sufficient to cover the large variety of typical patterns of similarity information in general, and might also be dangerous in terms of training the network regarding the concrete data rather than generalizing for similarity estimation. Therefore, we added further, syntheticallygenerated time series data to supplement this. Here, the idea is to mimic the typical patterns that we have seen occurring in the similarity data, yet providing a larger variety to yield better generalization characteristics after learning. For this, we used the following equation $\psi $ for $\overline{t}\in [0,1)$, and three random values ${\rho}_{0},{\rho}_{1},{\rho}_{2}\in [0,1)$:$$\psi \left(\overline{t}\right)=(\overline{t}{\rho}_{0}+0.5(1\overline{t}))sin(\overline{t}{\rho}_{1}+{\rho}_{2}(1\overline{t}))$$
 Modify.
 We do not use the obtained similarity information directly, but randomly offset and scale the time series to get numerous variations on the basis of the available data. We outline our approach to prepare the training data X by means of Algorithm 1 (validation data is generated accordingly). We randomly pick data sets from our collection of realworld and artificial data (Line 10). To modify the data, we randomly choose a scaling factor s, that basically defines the step size with which time steps are considered (Line 12). Then, we use a random offset, which basically determines the first time step that is considered in a time series (Line 14). Finally, we employ this information to generate a new training element ${P}_{i}^{*}$ (Lines 16–19), each one consisting of ${n}_{T}$ time steps (we use ${n}_{T}=35$ throughout this work).
 Sample.
 We then take a random number of samples s from the modified similarity data using the respective sampling strategy (cf. discussion in Figure 4, Line 21).
 Training / Validation Data.
 Finally, this yields the data that can be used for training and validation of the neural network. In more detail, each training / validation data element consists of a pair: (1) the original similarity data after Modify, and (2) the respective data after Sample. Each (1) and (2) contains pairwise similarity information between ${n}_{T}$ time steps (a portion of this information has been removed from (2)).
5.3. Similarity Estimation
Algorithm 2 Our approach to estimate missing similarity information based on neural networks (see Figure 3 for a conceptual overview).

6. Results
6.1. Evaluation Setup

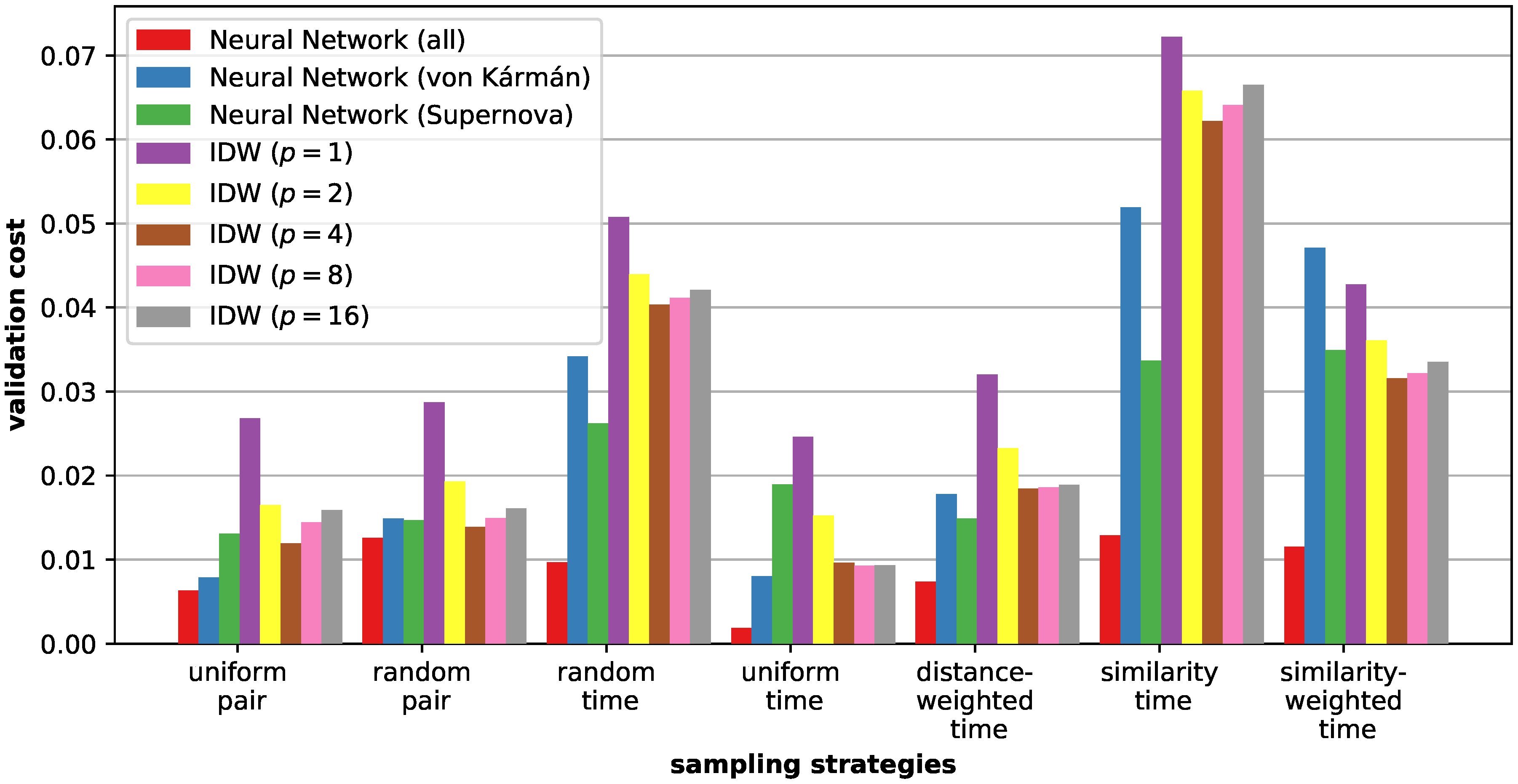

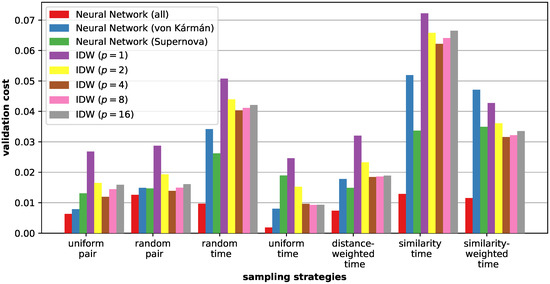

6.2. Sampling Strategies

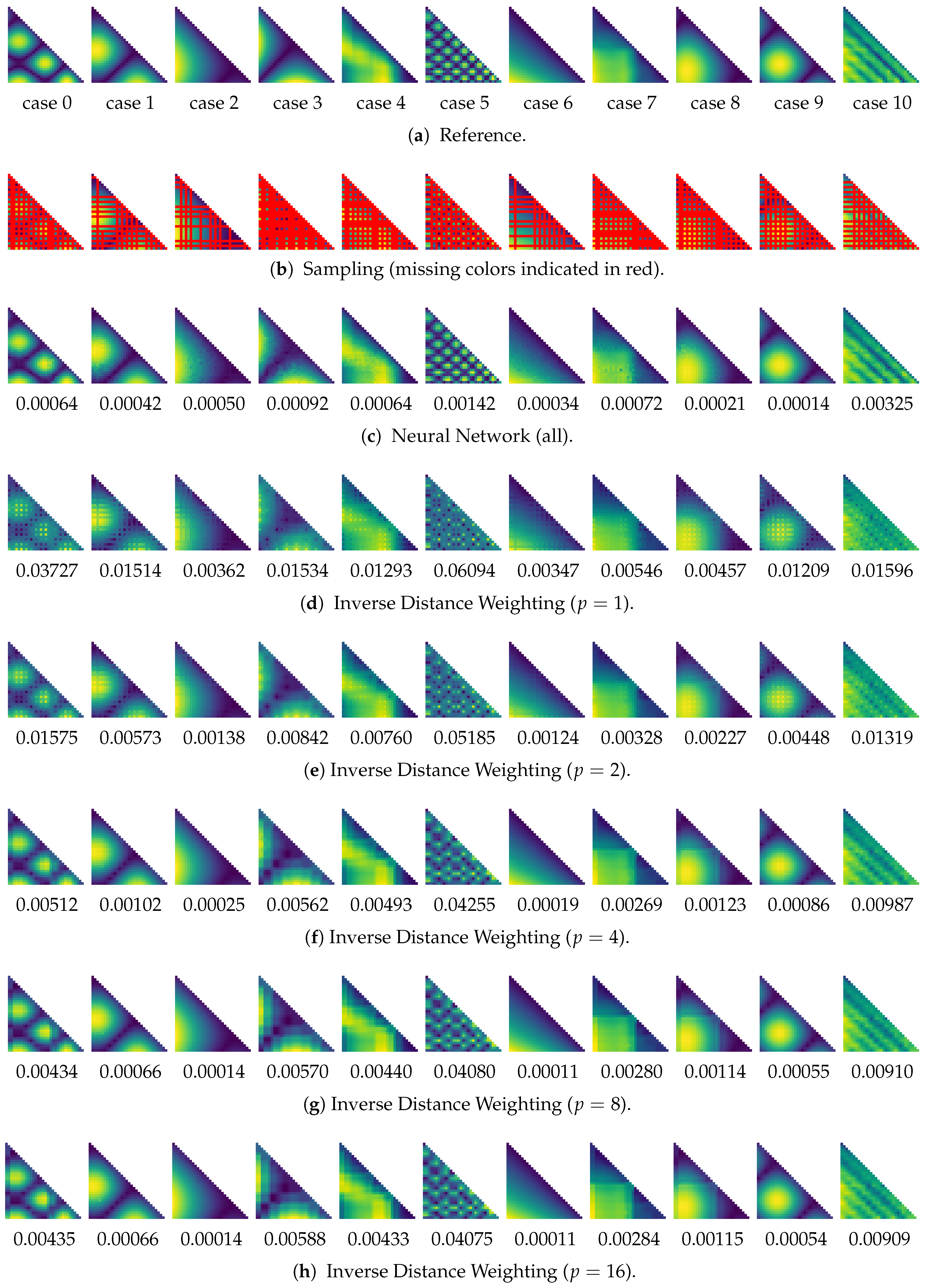

6.3. Similarity Estimation
6.4. Discussion
7. Conclusions
Acknowledgments
Conflicts of Interest
