Review

New Organic Materials Based on Multitask 2H-benzo[d]1,2,3-triazole Moiety

by
Iván Torres-Moya
*,
José Ramón Carrillo
,
Ángel Díaz-Ortiz
and
Pilar Prieto
Department of Inorganic, Organic Chemistry and Biochemistry, Faculty of Science and Chemical Technologies, University of Castilla-La Mancha, 13071 Ciudad Real, Spain
*
Author to whom correspondence should be addressed.
Chemosensors 2021, 9(9), 267; https://doi.org/10.3390/chemosensors9090267
Submission received: 16 August 2021 / Revised: 14 September 2021 / Accepted: 15 September 2021 / Published: 17 September 2021
(This article belongs to the Special Issue Selected Papers from Optical Materials: Synthesis and Biological Applications Symposium (XXXVIII Biennial Meeting RSEQ))
Browse Figures
Versions Notes

Abstract

:
Multifunctionality is a desirable aspect in materials science. Indeed, the development of multifunctional compounds is crucial for sustainable chemistry by saving resources and time. In this sense, 2H-benzo[d]1,2,3-triazole (BTz) is an excellent candidate with promising characteristics, including its ability to self-assemble; its acceptor character, which enables the synthesis of donor-acceptor structures; and its facile modulation using standard chemical methods. Thus, due to its interesting properties, it is possible to produce different derivatives with applications in different fields, as summarized in this article, with the correct substitution at the BTz cores. Optoelectronic or biomedical applications, amongst others, are highlighted.

Graphical Abstract

1. Introduction

Today, technological development requires the use of more sophisticated, complex and high-performance devices and technologies. This evolution would not have been possible without the parallel development of new materials with improved performance, among which organic compounds have played a very prominent role. However, over the past few decades, there has been a marked growth in the use of organic materials as a promising alternative to their inorganic counterparts [1]. Despite the fact that, in general, these materials offer poorer performances than inorganic ones, they nevertheless exhibit excellent properties that make them promising candidates for the near future, especially their greater flexibility (due to their plastic mechanical properties), better processability (it is possible to work with these materials in solution), reduced working costs, and better adaptability to the required properties as they are easier to modify than inorganic materials. Furthermore, it is possible to work with small quantities of material due to their excellent photophysical properties, especially their high rates of absorption and emission.
For the design of these new materials, organic chemistry offers an important advantage from a synthetic point of view. The ideal situation would be that cheap materials that can be applied in various fields simultaneously and can be obtained by way of simple procedures. This is known as multifunctionality and is an upcoming area of research in the field of materials science as it may form the basis of a much more sustainable future [2,3].
In an attempt to develop multifunctional organic materials, over the past few years, we have been working with the BTz moiety, a much less widely studied benzoazole than other analogues, such as 2,1,3-benzoxadiazole (BOD), 2,1,3-benzothiadiazole (BTD), and 2,1,3-benzoselendiazole (BSD), due to its interesting characteristics and its enormous potential.

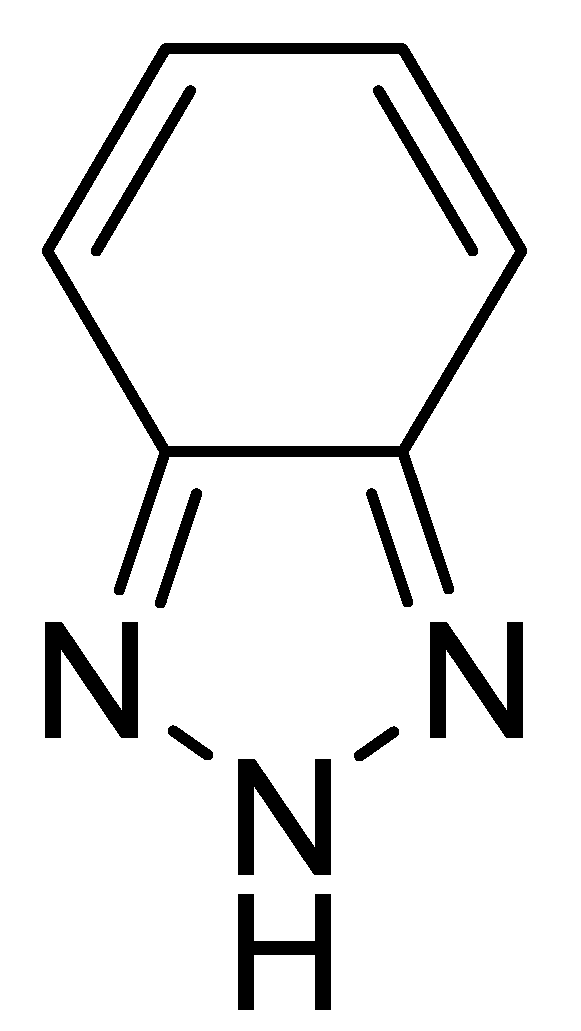

BTz (Figure 1) is a moderate electron acceptor moiety because of its polarizable imine unit (C=N) [4,5,6], which can be easily modified with the introduction of different substituents upon arylation or alkylation at the 2-position, thereby modulating the electron-acceptor properties. Furthermore, the benzene ring is very reactive, hence it is possible to introduce different groups to modulate the chemical structure and, as a consequence, its properties. In addition, its planar character and its marked ability to self-assemble make BTz a promising moiety in material sciences, with applications in different fields given the appropriate choice of substituents [7,8,9,10].
As an electron-acceptor moiety, BTz has been widely used to build medium or wide band-gap donor-acceptor (D-A) systems, thus allowing intramolecular charge transfer (ICT) [11], and BTz can be used for that purpose. In addition, it has been reported that, among the benzoazole derivatives containing different heteroatoms (N, O, S and Se), BTz exhibits the highest luminescence quantum yield [12].
It is noteworthy that BTz has found broad applications in industrial processes [13], in new technologies, and in everyday uses. Among them, it has been widely employed to build medium or wide band-gap D-A conjugated polymers for organic solar cells (OSCs) [14,15], or polymers with electroluminescent and electrochromic properties [16], and in the design of metal–organic frameworks (MOFs) [17]. In another sense, BTz is used as an anticorrosive agent in cooling, hydraulic, and antifreezing fluids [18]. Furthermore, BTz is used as a chemical intermediate in the synthesis of dyes, drugs, and fungicides. Finally, some BTz derivatives also have applications in biomedicine, so they can be considered to be a privileged structure given their various pharmacological activities, which explains why they have been used for the design of new pharmacologically active compounds [19] and have shown marked antiviral activity against many viruses [20,21].
All these excellent properties suggest the wide-ranging utility of the BTz unit. For these reasons, different modifications of the BTz moiety and their applications in different areas of material sciences are described herein, thus corroborating its multifunctional character and highlighting the versatility and enormous potential of the BTz core.

2. BTz as Optical Waveguides

Nanophotonics is an emergent field of research [22,23] that aims to control and manipulate photons and optical energy on a nanoscale. This fact, together with the ability of photons to transport information, has opened the door to their application in optical technology. Their great potential may result in the development of new optical devices that overcome the fundamental limitations of bandwidth and power dissipation in silicon-based electronic circuits. The key components in these new photonic devices are the optical waveguides [24,25,26], which are the analogues of wires in electronic circuits.
Optical waveguides are physical structures that are able to absorb and transmit incident light. They possess a higher refractive index than their surroundings and allow the confinement of light according to the principles of Snell’s law. Organic molecules with an ability to self-assemble have allowed production of the micro- or nanostructures with optical waveguiding behavior that are essential for such novel photonic devices.
We have experience with organic compounds with applications as optical waveguides. Thus, previous studies from our research group have shown the excellent behavior of 4H-1,2,4-triazole derivatives as optical waveguides [27,28]. For this reason, we proposed the synthesis of 2H-benzo[d]1,2,3-triazole derivatives (BTz), with the aim of studying the ability of these systems to self-assemble while varying their emissions, thus allowing us to establish a structure–property relationship. The previously studied triazoles had a V shape, whereas BTzs adopt a T shape. In this regard, it is well known that optoelectronic properties are highly dependent on chemical structure and supramolecular aggregation.

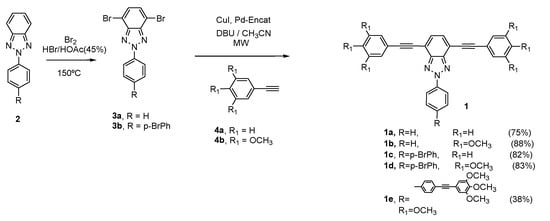

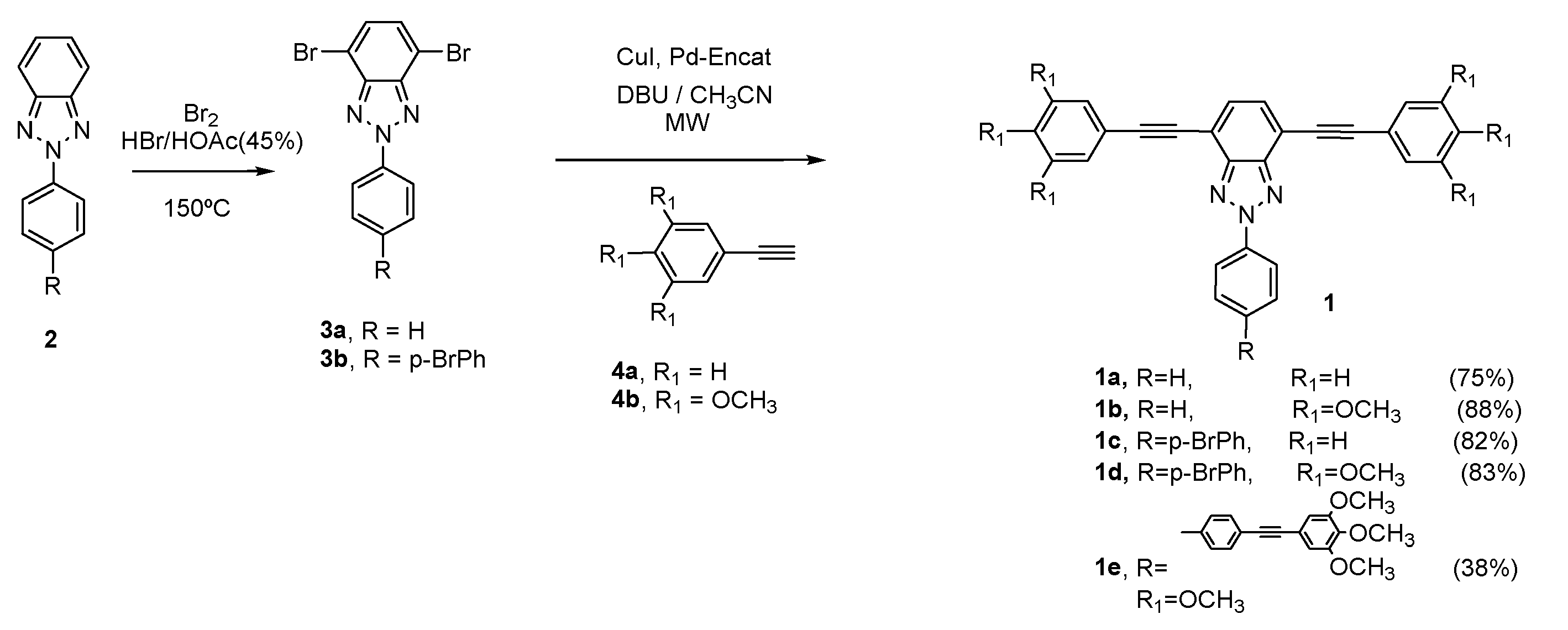

The synthesis of arylethynylbenzotriazoles (1) derivatives was performed according to the synthetic procedure described by Höger [29] (Scheme 1), with good yields, and all the synthetic procedures and experimental data are recorded in Supporting Information.
The formation of organized supramolecular aggregates from compound 1 was achieved using the slow diffusion technique, with CHCl3 as the good solvent and a variety of poor solvents, such as methanol, hexane, or acetonitrile. Only compounds 1b and 1d, with methoxy substituents, led to well-defined, needle-like aggregates, which were several hundred micrometers in length and around 10 μm in width. Benzotriazoles 1a and 1c, which lack of methoxy substituents, gave rise to amorphous solids, while compound 1e did not lead to well-defined aggregates either, probably due to interdigitation of the methoxy groups.
The light propagation and optical waveguide behaviors of as-prepared aggregates of compounds 1b and 1d were studied. These studies were carried out using a confocal light microscope, irradiating the aggregates with a laser beam and collecting fluorescence images using a camera. Only the aggregates formed using benzotriazole 1b showed properties of optical waveguides, with the incident light being conducted through the rod-like aggregates. Indeed, propagated light was observed at the ends of the 1b aggregates when light was directed at the center of these aggregates. In contrast, the aggregate formed from compound 1d did not show any optical waveguide behavior (Figure 2) [30].
With this target in mind, the next purpose was to tune the luminescent properties of organic materials by modifying their chemical structure. Most 1D organic waveguides are made from π-conjugated small molecules with a structure that allows electron delocalization [31]. These π-conjugated systems can be modulated by incorporating different electron donor (D) and acceptor (A) moieties to facilitate intramolecular charge transfer (ICT) [32,33,34,35,36,37,38,39]. In this way, band-gap levels and optical properties can be easily tuned by modifying these donor and acceptor groups. Similarly, modification of the substituents in conjugated structures provides strong ICT, modulates the self-assembly behavior, facilitates crystal packing, and contributes to their photoluminescent properties. Furthermore, it is known that changes in the structure of molecular aggregates have a marked influence on their fluorescence properties, as well as wavelength [40,41].

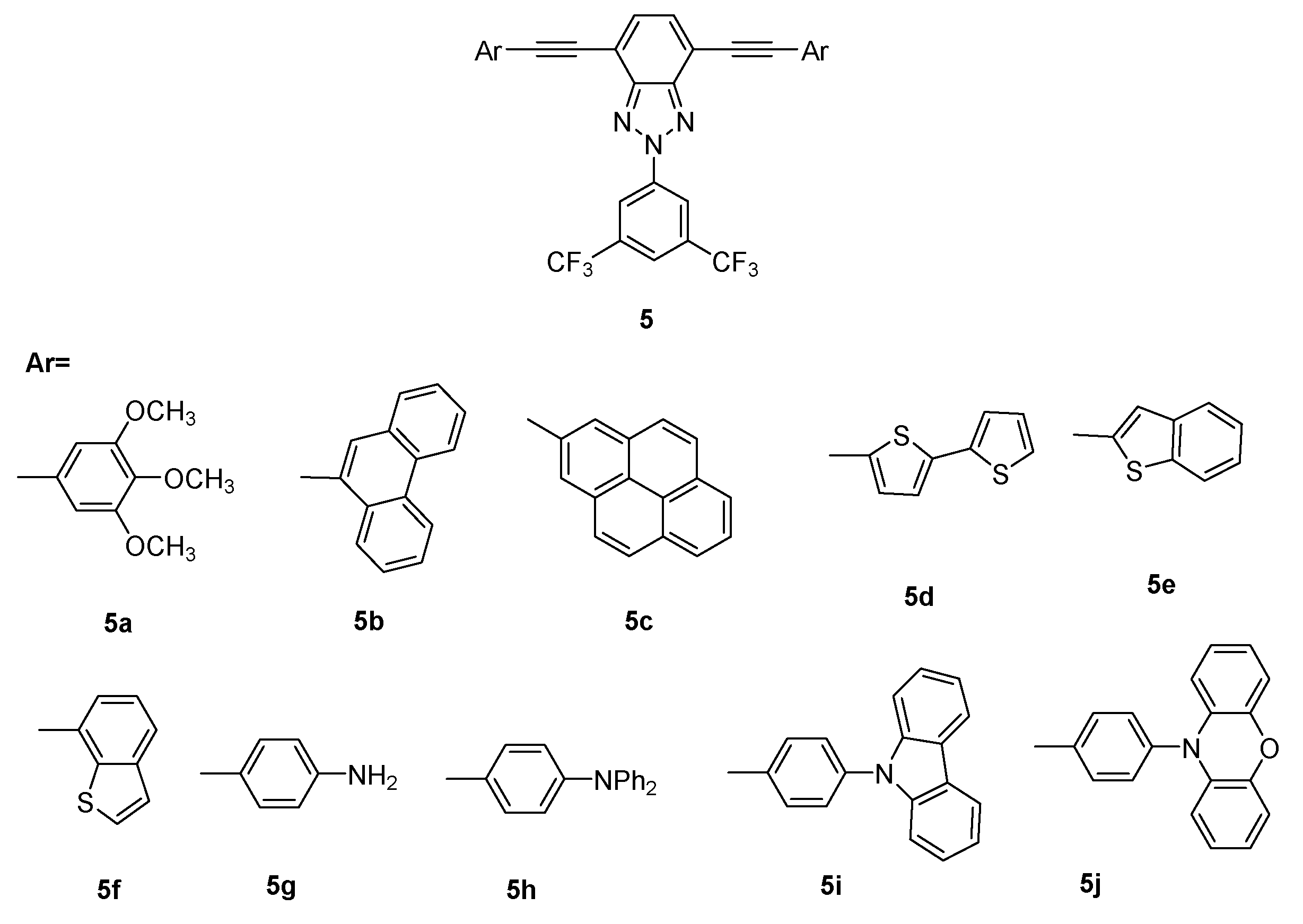

Taking these considerations into account, the initial structure of the alkynyl benzotriazole derivatives was modified by introducing electron-withdrawing groups in the central ring and different alkynyl acceptor groups in positions 4 and 7 of BTz (Scheme 2). Trifluoromethylphenyl groups were chosen because of their known ability to self-assemble via C–F…H-C and C–F…π interactions [42,43,44,45]. Furthermore, aromatic donor groups with different geometries were chosen: planar, to favor aggregation via π-π stacking, or voluminous and twisted, to decrease π-π interactions and avoid the low fluorescence quantum efficiency mainly resulting from π-π stacking of the planar backbones.
In order to evaluate how substitution at the benzotriazole core of the donor substituents affected the optical waveguide behavior, aggregates of all compounds 5a–j were produced using the slow diffusion technique with various solvent mixtures.

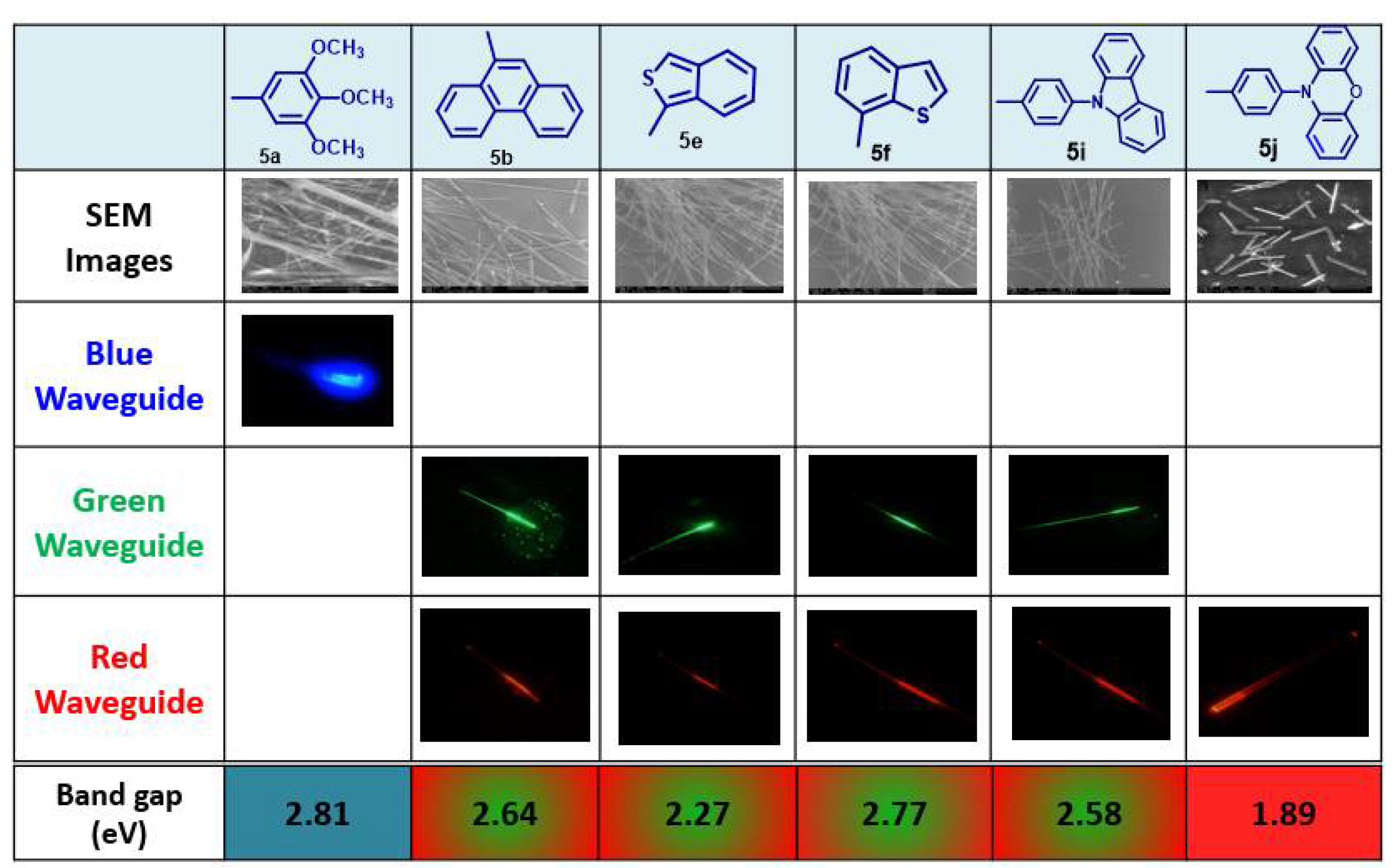

After analyzing the SEM images of all the aggregates formed, only those with a single-crystal structure, smooth surfaces, and flat end facets (5a, 5b, 5e, 5f, 5i and 5j) were selected to study their optical waveguide behavior. Photoluminescence (PL) and SEM images of the aggregates studied are shown in Figure 3 [46].
The band-gap of the different structures were calculated computationally at B3LYP/6-31g(d,p) theory level and were in good agreement with the experimental ones calculated from the onset of the lowest energy absorptions in the UV-vis spectra. The results indicated a relationship between the band-gap and the color emission of the optical waveguide. Thus, compound 5a, which had a higher band-gap, exhibited blue light emission, whereas compounds with a lower band-gap (5b, 5e, 5f, 5i), exhibited green–red light emission, and 5j exhibited red emissions with a bathochromic shift due to having the lowest band-gap value. Thus, the goal of modulating the band gap of BTzs to obtain aggregates that behave as optical waveguides with different emission wavelengths has been achieved.
Furthermore, it is well known that graphene has become a very promising material for new photonic and optoelectronic devices in the last few decades due to its interesting properties, such as its high carrier mobility and zero band-gap [47,48,49]. As such, in recent years, optical waveguides with embedded graphene have been studied because graphene can interact with localized photons in the waveguide [50,51,52].
In light of this, we doped BTzs with graphene with the aim of designing new optical waveguide structures with improved properties. Among the aggregates of synthesized BTzs 5, compound 5e showed very thick and well-defined fibers that acted as a waveguide for the colors green and red. The graphene used to form the aggregates was obtained by way of a solvent-free ball-milling process. [53,54,55] This low-layer (<4) powdered graphene (few-layer graphene, FLG) can be dispersed by sonication in polar solvents, which is essential for its interaction with BTz in the self-assembly process. This process was performed using the slow-diffusion technique, with tetrahydrofuran (THF) as a good solvent and CH3CN as a poor solvent. All processes were carried out with and without the addition of graphene. In both cases, well-defined needle aggregates were obtained (Figure 4), although bright spots were observed on the surface of the mixed aggregates (Figure 4-2c,d), thus indicating the presence of graphene.
Raman spectroscopy confirmed the presence of FLG in the structure of the crystallized aggregates, because in Raman spectra, the C≡C vibration referred to BTz derivative 5e and 2D band of graphene could be observed, corroborating the existence in the hybrid aggregate of BTz 5e and graphene. Moreover, a deep profile analysis at different points of the aggregate indicated that the FLG was only deposited in the surface.
The role that graphene plays in the optical waveguide behavior of the aggregates was evaluated by observing the propagation of light in aggregates of 5e with or without FLG.
The needles formed as a result of the self-assembly of compound 5e transmitted green and red light, while the aggregates formed in the presence of FLG only transmitted green light (Figure 5) [56].
The graphene attached to the surface of BTz aggregates behaves like a cut-off filter, thus allowing more selective behavior of the aggregate as an optical waveguide. These results could be explained by considering that graphene induces a different energetic overlap between light and the aggregate. Perhaps, the different intermolecular interactions existing in the hybrid aggregate as compared to the pristine BTz aggregate could induce the absorption of the lower energy (red light) and do not absorb the high energy (green light) which is emitted.
In summary, a more selective waveguide has been achieved by doping the chemical structure, a methodology that could be of great interest in photonic devices.

3. BTz as Semiconductor in Organic Field-Effect Transistors (OFETs)

Organic molecules have attracted research interest over the past few years due to their enormous potential as semiconductors in electronic devices like organic field-effect transistors (OFETs) [57,58]. These kinds of devices basically consist of a dielectric layer, an organic semiconductor layer, and three electrodes (gate, source, and drain), and are the key for the upcoming generations of low-cost and flexible organic circuits.
A wide range of organic molecules have been commonly used as organic semiconductors in OFETs, including donor-acceptor (D-A) derivatives, thus allowing the intramolecular charge transfer [11], which is a valuable property for this kind of device.
In that sense, the D-A-D-based BTz system 5 previously described in Scheme 2 could be provide an interesting architecture for use as the organic semiconductor layer in order to fabricate electronic devices.
The electrical properties of the D-A-D-based BTz derivatives 5 and their possible implementation as organic semiconductors in OFETs were tested by the fabrication of OFETs with a top-contact/bottom-gate field-effect transistor architecture through organic semiconductor vapor deposition by sublimation technique, in vacuum conditions, on substrates of Si/SiO2 previously treated with hexamethyldisilazane (HMDS) or octadecyltrichlorosilane (OTS). The process continued through the thermal gold deposition, employing shadow masks in order to define the electrode’s source and drain. The parameters that determine the efficiency of an OFET were extracted from the I-V plots, working with the saturation regime in Equation (1), and these were field-effect mobility (μ), ratio ION/IOFF, and threshold voltage (VT) [59,60]
(ID)sat = (W/2L)μC(VG − VT)2
In this equation, W is the width of the channel, L the length of the channel, C the capacitance per unit area or the insulator layer, and VG is the voltage applied in the gate.
The results of the parameters calculated for films of 5 using Equation (1) can be found in Table 1.
These results show that seven compounds exhibited hole-transport ability, thus indicating their behavior as p-type semiconductors [61]. These findings are in agreement with the values for the HOMO and LUMO frontier orbitals, calculated at the B3LYP/6-31g(d,p) level of theory. All the HOMO values for these derivatives 5 were about −5.0 eV, near the Fermi level for gold, which is the working electrode employed in these devices. However, the LUMO levels were far from the Fermi level for gold, thus hindering electron transport between this level and the LUMO, which could explain why these derivatives acted as p-type rather than n-type semiconductors.
The hole mobilities (λh) were around 10–4 to 10–5 cm2V–1s–1 in all cases. We observed that there was a relationship between the mobilities and the degree of π-conjugation obtained by Raman spectroscopy, focusing our attention on the C≡C stretching frequencies (Table 2). In general, a lower ring aromaticity leads to enhanced charge delocalization across the structure, thereby improving the behavior as organic semiconductor in OFETs. As a consequence, the charges injected into the device via the gate will be better stabilized in less-aromatic compounds. For this reason, compound 5e, which exhibited a lower ν(C≡C) frequency, was a better semiconductor than 5f, because thiophene was less aromatic than benzene and allowed a better charge delocalization in the structure, thus improving the semiconductor character. In this sense, 5b and 5c showed similar behaviors and a similar explanation can be applied to these derivatives.
This study demonstrated the applicability of BTz derivatives 5 in organic electronics as organic semiconductors in OFETs. Moreover, due to the high versatility of this moiety, possible future modifications of these derivatives could improve their mobility and applicability as n-type semiconductors or ambipolar systems.

4. BTz as Two Photon Absorption (TPA)

TPA spectroscopy has been promoted as a useful tool for studying the general properties of materials and interactions between matter and light. In recent years, materials displaying TPA have gained attention for the development of attractive applications like 2D microfabrication [62], optical data storage [63], and two-photon induced florescence (TPIF) imaging [64].
The most promising TPA properties have been observed in quadrupolar π-conjugated structures with terminal donor or acceptor substituents, and with symmetrical designs bearing peripheral donor groups, e.g., D-π-D or D-π-A-π-D systems [65,66,67,68,69,70]. Moreover, ICT is an essential requirement for high TPA cross-sections, which is the crucial parameter for evaluating TPA capacity.
Despite the fact that the 1,2,5-benzothiadiazole (BTD) moiety has been employed as an electron-withdrawing core in molecules with TPA properties [71,72,73], to the best of our knowledge the BTZ unit has not been employed in this aspect. In this regard, and with the idea in mind of gaining a more in-depth understanding of the relationship between structure and TPA properties, we studied three different conjugated benzoazole derivative families, including several alkynyl derivatives of BTz (5), alkenyl-BTz derivatives (6), and BTD derivatives (7) (Figure 6).

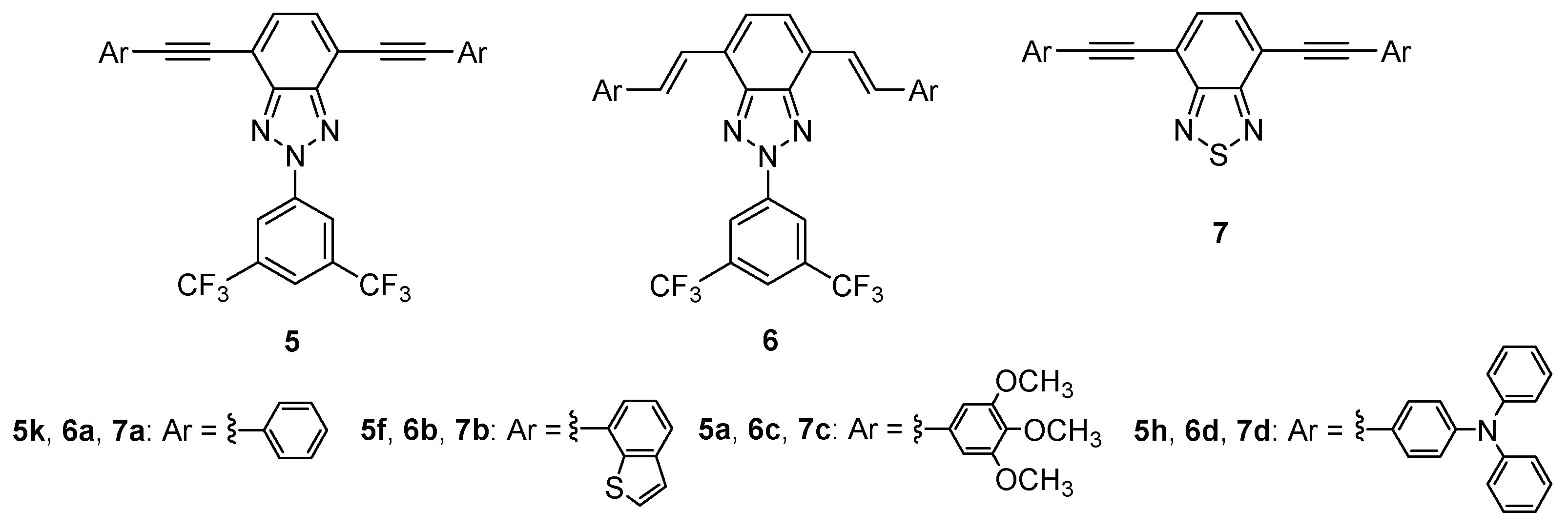

Compounds 5 and 7 were prepared by means of a Sonogashira C-C cross-coupling reaction under microwave irradiation from the dibromobenzoazole 3 and the corresponding arylalkynyl derivative [46,61,74,75]. Alkenyl benzoazoles 6 were obtained through a Heck C-C cross-coupling reaction between the dibromobenzoazole 8 and the corresponding arylalkene (compounds 6a,c,d, 41–86%) or upon partial reduction of 5f (in the case of 6b, 71%) [76]. The synthetical procedure and experimental data of these compounds can be found in Supporting Information.
Working under one-photon conditions (OP), the absorption spectra showed the longest wavelength bands between λ = 373 and 490 nm, which were associated with S1←S0 transitions. Greater conjugation in the compound, which is favored by the presence of a vinylene instead of an acetylene bridge, promotes electronic movement and the red-shifting of these bands. The fluorescence bands of compounds 5–7 localized around a large spectra region (λ = 450–625 nm), exhibiting Stokes shifts of up to 6415 cm−1. These dyes showed moderate to high florescence quantum yields (φfluo = 0.20–0.78). The lower values of the compounds 6a–d were a consequence of the photoisomerization processes.

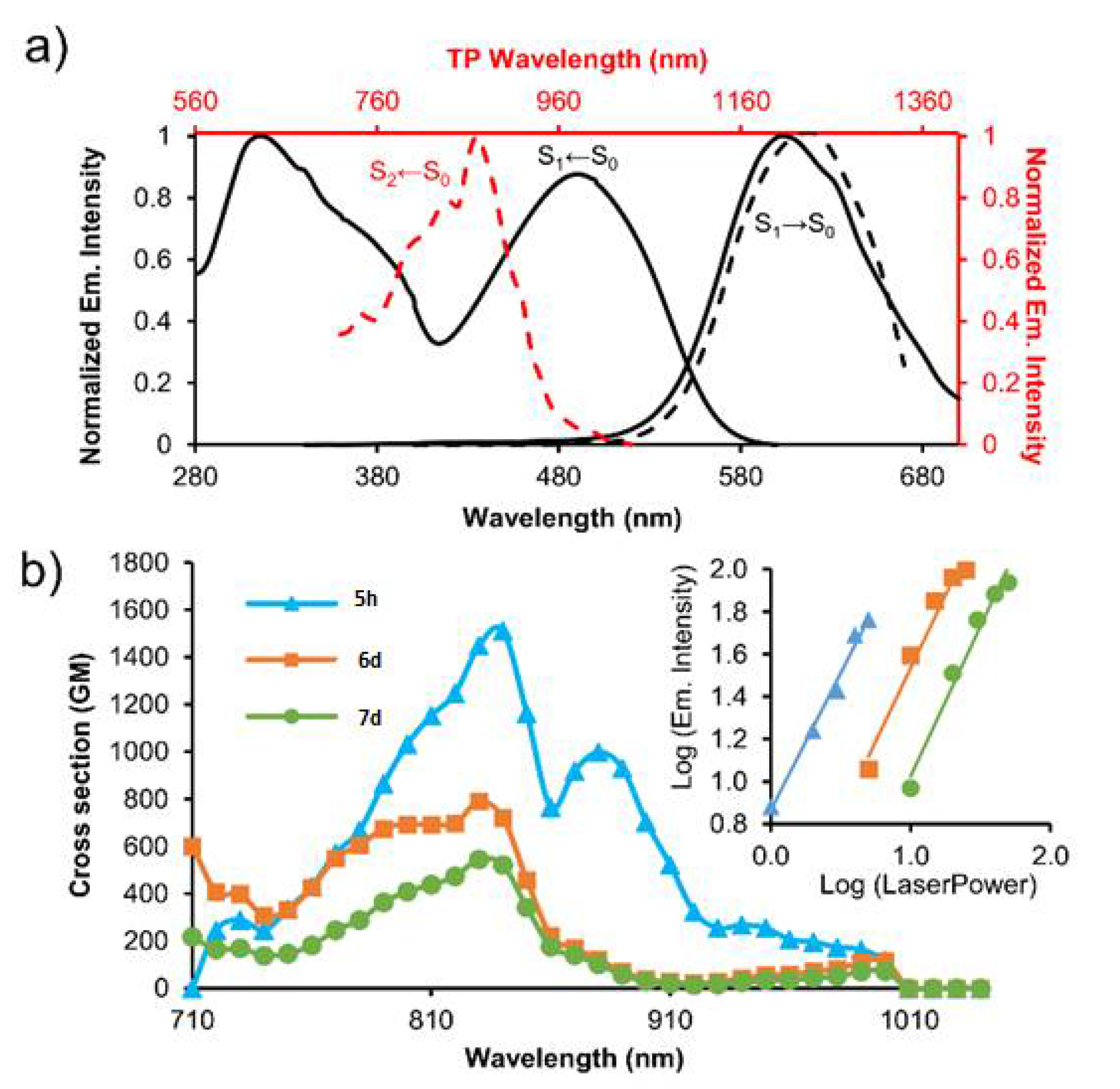

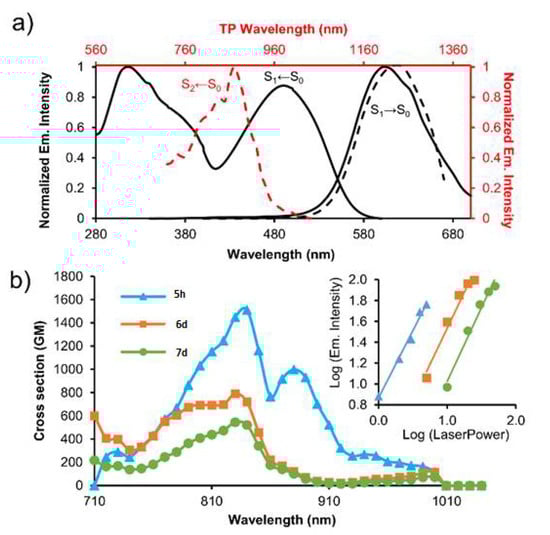

The TPA properties of these derivatives were studied by TPIF from λ = 700 to 1000 nm (Table 3). The results showed that the chromophores with the stronger electron-donor substituent, namely triphenylamino, had the highest cross-section values: 1510 GM at 840 nm for 5h, 790 GM at 830 nm for 6d, and 545 GM at 830 nm for 7d (Figure 7). Compounds bearing a C=C π-bridge (6a–d) had a higher conjugation than those bearing a C≡C π-bridge (5) and better TPA properties. The higher cross-section value of 5h in comparison with 6d can be explained by taking into account the movement of the electrons and the steric congestion. Finally, dyes bearing a BTz core exhibited similar or better cross-sections than the BTD counterparts. The presence of the 3,5-bis(trifluoromethyl)phenyl group increased the electron-withdrawing character of the BTz dyes under TP conditions. Additionally, these derivatives showed notable brightness values of up to 483 GM.

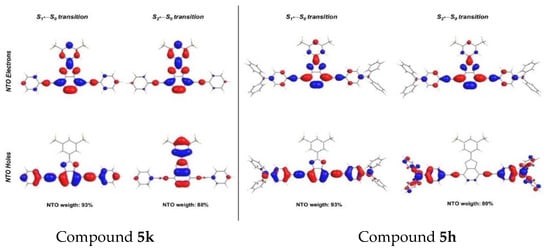

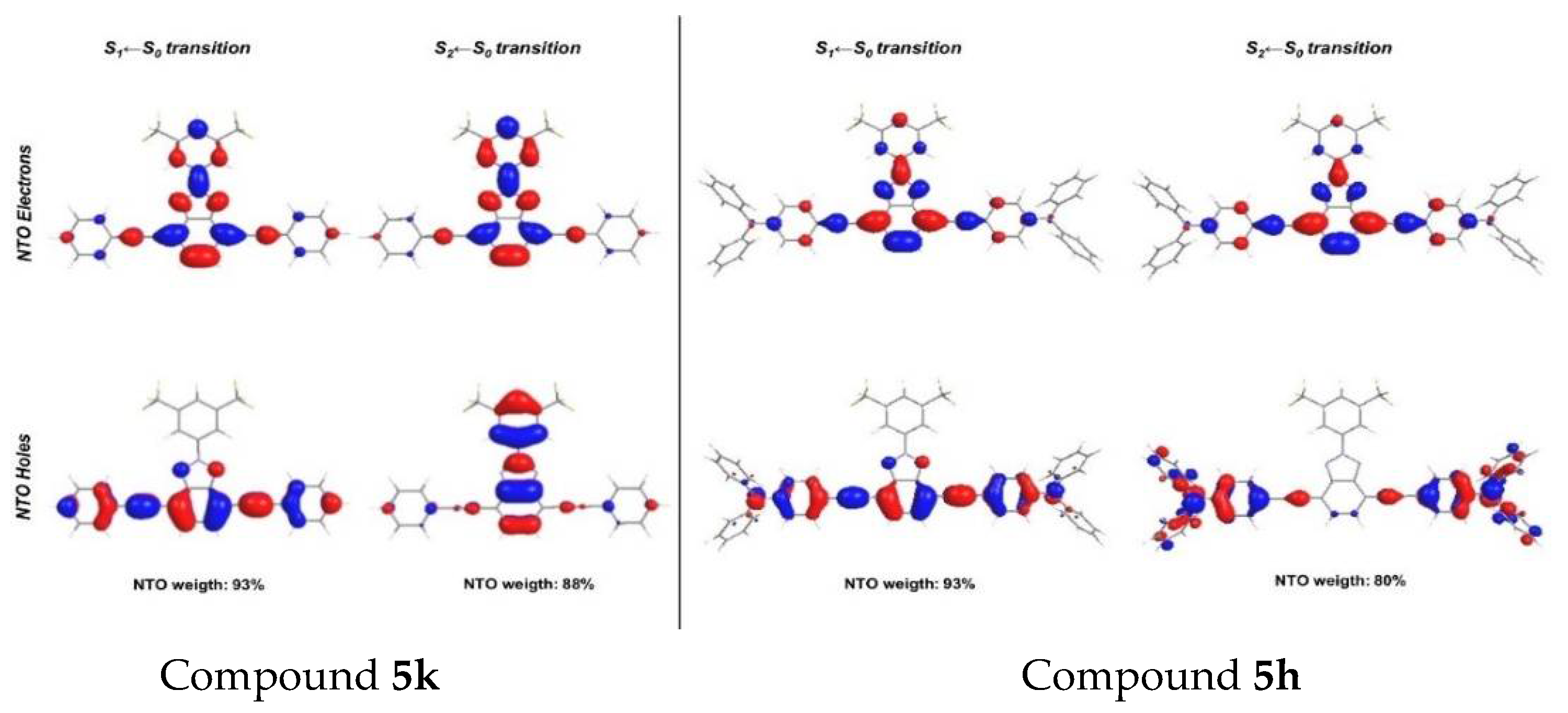

DFT calculations were performed for all compounds mentioned. A natural transition orbital (NTO) analysis for the transitions with the lowest energy (S1←S0) showed that the NTO holes were centered on the donor groups and the π-bridge. In contrast, NTO electrons were fully localized along the core of the molecules. This fact is related to an ICT process, in agreement with the experimental data.
The TPA properties were evaluated at the CAM-B3LYP/6-31G theory level. All the theoretical data showed that the active transition under TP conditions was S2←S0. NTO analysis for the later transition corroborated that the properties as a TP chromophore were closely related to the change in the electron density distribution. As an example, the S2←S0 transitions for the compounds that exhibited the lowest and highest experimental cross-section values, 5k and 5h, respectively, are indicated in Figure 8. In dye 5k the electron density was located on the acceptor core, where, independently, we considered the NTO hole or NTO electron. However, in dye 5h, the electron density dramatically moved from the donor groups in the NTO hole to the acceptor unit in the NTO electron.

5. BTz as Organogels

Organogels are characterized by their continuous organic phase and can be further subdivided based on the nature of the gelator molecule as polymers or low-molecular-weight (LMW) organogelators. The latter generally form gels due to the presence of self-assembled fibers via hydrogen bonds, van der Waals forces, and π-stacking.

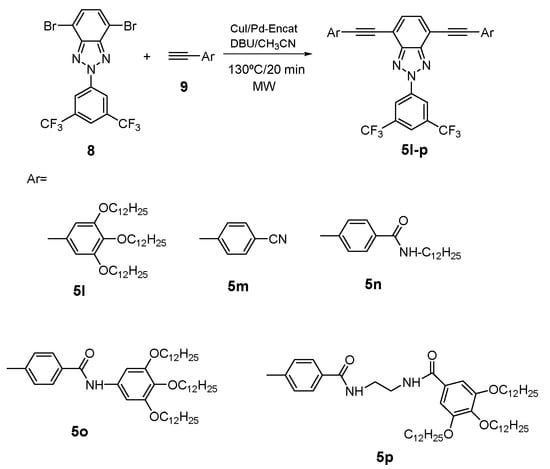

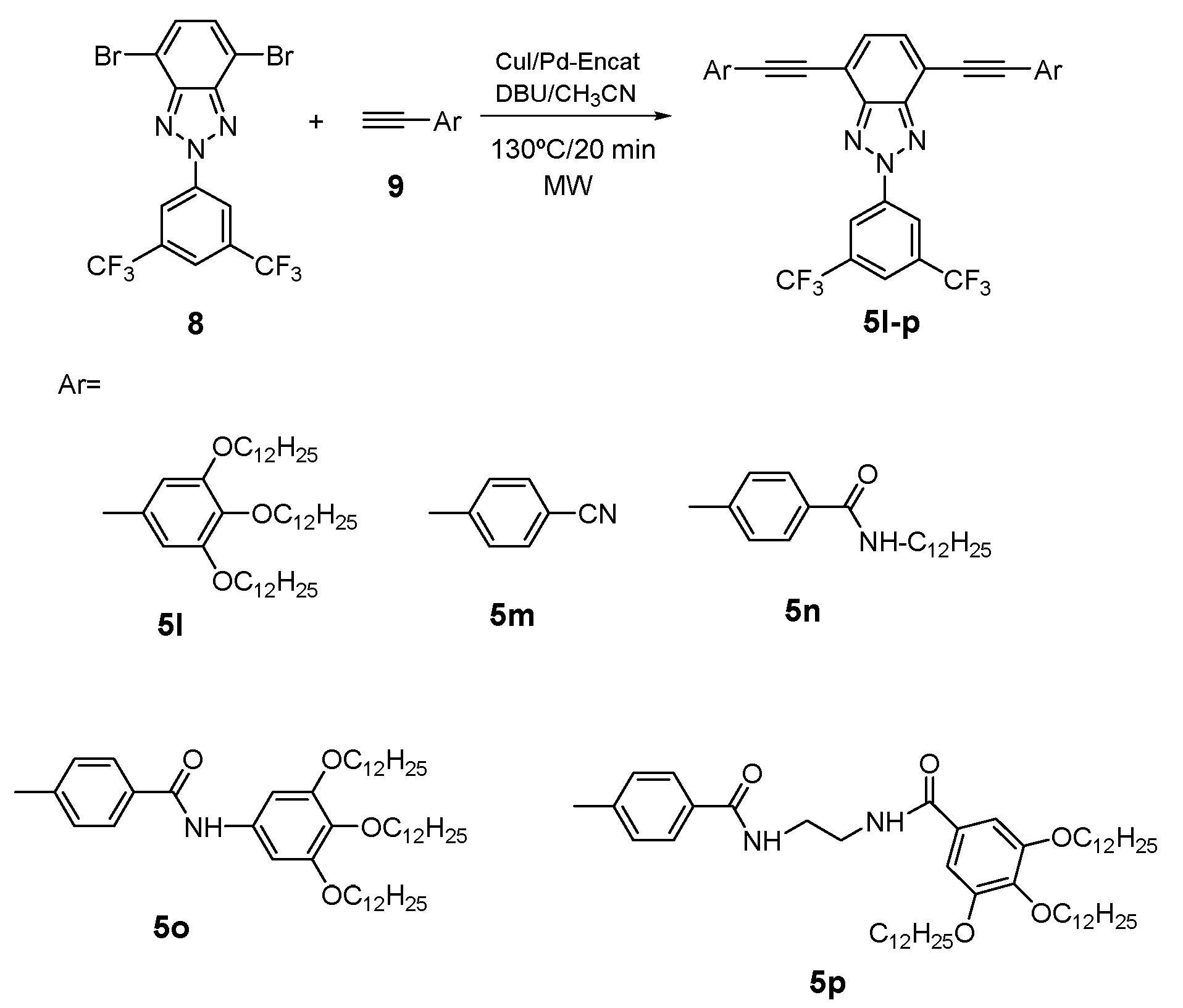

In this context, and with the aim of extending the applicability of 2H-benzo[d]1,2,3-triazole derivatives, promising gelators were synthesized via a C-C Sonogashira coupling reaction between the dibromobenzotriazole derivative (8) and different alkynyl fragments (9) (Scheme 3). It is well known that long chains [77] or amide groups [78], which can provide flexibility and allow hydrogen bonding, are promising functionalities in compounds to achieve gels. In addition, it has been also reported in the literature that the presence of a cyano group could allow the formation of promising gelators [79,80]. Hence, with this in mind, five different alkynyl derivatives with different promising functionalities were synthesized using the procedure described above. All the information about synthetic procedure and experimental data can be found in Supporting Information.

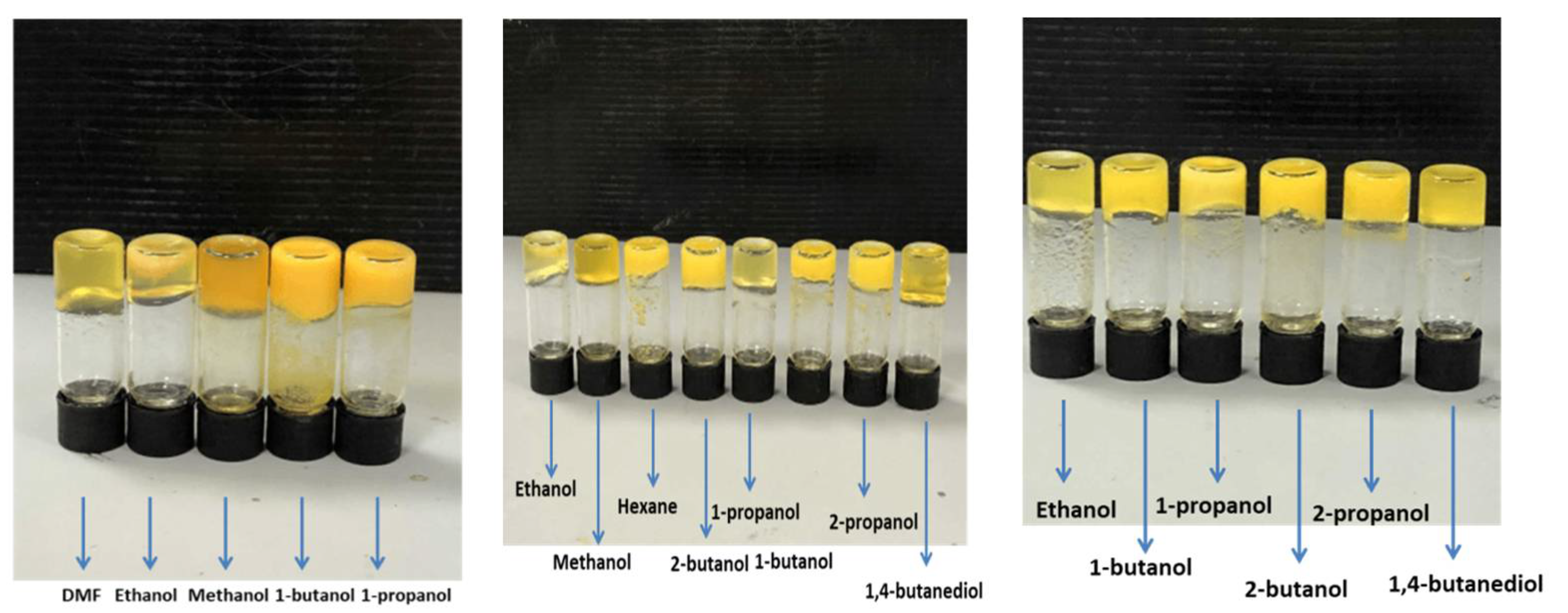

Once compounds 5l–p were characterized, their gel behavior was studied by performing gelation tests. Thus, they were dissolved in thirty different solvents, and at different concentrations (2 wt %, 1 wt %, and 0.5 wt %). The vials were then sonicated for 30 s until complete dissolution. Finally, the vials were heated and kept undisturbed while cooling until room temperature, then the inversion tube test was used to check the gelation behavior.
The CN derivative, 5m, did not form gels in any solvent, whereas 5l gave gels in four solvents (1-pentanol, 2-propanol, methanol, and 1,4-butanediol) at a concentration of 2 wt %. At lower concentrations, 5l lost its gel properties, as is usual. The gelator 5n gave only one gel in 1,4-butanediol and 5o gave gels in DMF and diethylene glycol at a concentration of 2 wt %.
Compound 5p showed the best tendency to form gels due to its enhanced ability to undergo supramolecular interactions. In this case, at a concentration of 2 wt %, this compound gave gels in different solvents (DMF, ethanol, methanol, 1-butanol, and 1-propanol) and partial gels in benzyl alcohol, 2-butanol, 2-propanol, and 1,4-butanediol. In this case, the gel behavior even increased with a decrease in concentration from 2 to 1 wt %. In this case, gels were formed in ethanol, methanol, hexane, 2-butanol, 1-propanol, 1-butanol, 2-propanol, and 1,4-butanediol, and partial gels were formed in benzyl alcohol and DMF. Finally, it should be noted that gels were even achieved at a low concentration of 0.5% in ethanol, 1-butanol, 1-propanol, 2-butanol, 2-propanol, and 1,4-butanediol (Figure 9).

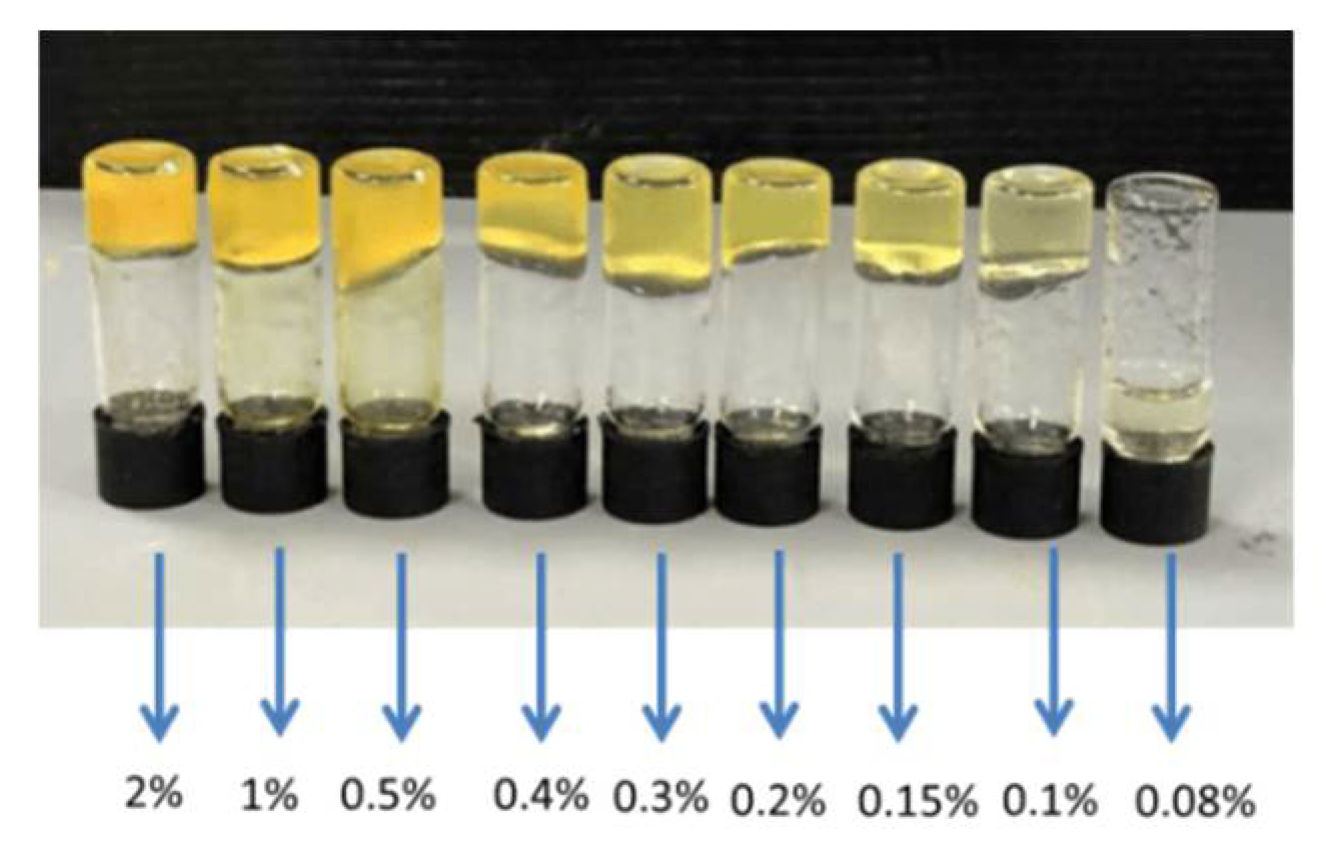

The CGCs (critical gelation concentration, the minimal amount of compound that is needed to obtain a gel) for 5p was very low, thus corroborating the high tendency to form gels. In ethanol, this gelator gave gels at a concentration of only 0.1 wt % (Figure 10) and can therefore be considered to be a “supergelator” [81,82], probably due to the strong aggregation between alcohol and amide groups via hydrogen bonds, an effect that has been described previously for tris(amide) derivatives [83].
The Tsol values (gel-to-sol phase transition temperature) for 5p were particularly remarkable, being very high irrespective of concentration. It is noteworthy that it is very difficult to find gels as stable as these. The strong hydrogen bonds between the protons in the N-H groups and interdigitation between the long alkyl chains may explain the strength of these gels and the high Tsol values.
Rheology stress experiments were performed to verify the strength of the organogels. The yield stress (σ) was calculated at the point where the gels broke down [84]. In general, high values of yield stress indicate a higher stability of the gel. Gels of 5p proved to be particularly robust, exhibiting σ values of more than 1000 Pa in 1,4-butanediol and 1-butanol.
The excellent properties of 5p gels, especially their low CGC, high Tsol, and high yield stress in rheology experiments, highlight the robustness and stability of the gels and these facts support the potential application of these organogelators in drug delivery systems or for drug crystallization. However, as they may be toxic for humans, given the use of organic solvents, drug crystallization applications were chosen and organogels of 5p were used as potential crystallization media for active pharmaceutical ingredients (APIs).
A diverse selection of different APIs (theophylline, sulfathiazole, sulfamerazine, and niflumic acid) were chosen based on their well-known polymorphism. For drug crystallization inside organogels of 5p, previously optimized gelation conditions of a 10 mg/mL drug concentration at a concentration of 0.1% of gelator were used. A mixture of the gelator and the different drugs in a specific solvent was heated, followed by sonication to give a gel of the API solution. The vials were then left undisturbed at room temperature to allow crystallization, which can take several weeks. The vials in which crystals were observed were analyzed by X-ray powder and single-crystal diffraction.
In the cases of theophylline, sulfamerazine, and niflumic acid, no significant differences between solution crystallization and the crystallization inside the gel were observed. Our findings showed that Form II was obtained in both cases of theophylline in ethanol [85,86], the Pna21 polymorph in the case of sulfamerazine [87], and P21/n form in the case of niflumic acid.
For theophylline and sulfathiazole, slightly larger needle-shaped crystals were obtained by gel crystallization in comparison with solution crystallization. In the case of niflumic acid, a change in crystal pattern was observed. Thus, block-shaped crystals were obtained inside the gels in methanol, compared with needle forms obtained upon solution crystallization.
The case of sulfathiazole, in which a change in polymorphism from polymorphic Form II after solution crystallization to kinetic Form I [88,89] inside the gel was observed, should be highlighted (Figure 11). This interesting outcome suggests that the 5p gelator either inhibits crystallization of Form II or increases the nucleation rate of Form I. These findings may be crucial for the pharmaceutical industry, thus opening the door to new applications of this drug [90].

6. BTz as Biomarker

Finally, biomarkers have become powerful tools in biology and biotechnology research since they can provide information on specific biological or molecular processes because of the labelling and imaging of biological systems that are not fluorescent [91,92]. In general, biomarkers should show different desirable characteristics, such as a high extinction coefficient and fluorescent quantum yield, high affinity for the biological target of interest, high water solubility, and photostability, and should also exhibit good biocompatibility and be easily adaptable to different experimental conditions. Moreover, they should not be affected by changes in different parameters, like ionic strength, pH, or temperature [93].
Conjugated polyelectrolytes (CPEs) with alkyl fluorene derivatives are very interesting in regards to the synthesis of potential biomarkers because of their interesting characteristics, especially their excellent chemical and thermal stability, photostability, high fluorescence efficiency, and good synthetic tunability due to the ease of substitution at C9 of the fluorene unit. Blue emission is the most usual in fluorene-based CPEs, whereas copolymerization with other aromatic units leads to a bathochromic shift [94,95,96,97]. As such, CPEs have been successfully employed as both blue and red biomarkers [98,99,100,101].
The use of green fluorescent biomarkers, a priori, seems to be less interesting due to the short penetration distance of these wavelengths in tissue. However, in the moment when the surface is being photographed, green biomarkers possess remarkable advantages instead of red ones due to their higher fluorescence emission efficiency and the ability to differentiate them from the auto-fluorescence of the background.
In this regard, given the photophysical properties of the BTz moiety, we focused on designing a green CPE with potential applications as a biomarker. Thus, we synthesized a CPE containing BTz and fluorene, as shown in Scheme 4 [98]. More details about synthetic procedure and experimental data can be found in Supporting Information.

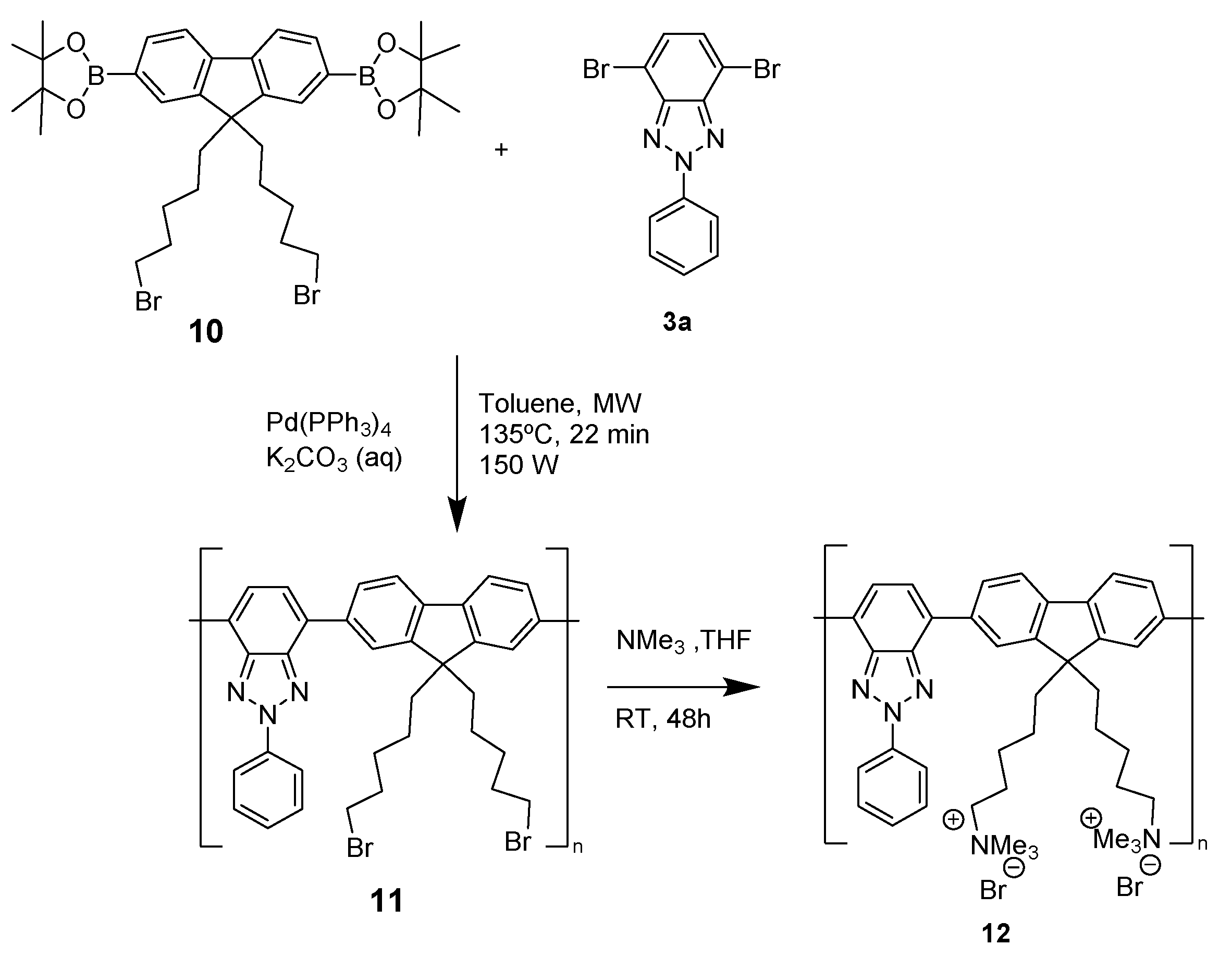

The CPE copolymer 12 was successfully synthesized in good yield by way of a two-step reaction. The first step involved a microwave-assisted Suzuki cross-coupling reaction between dibromobenzotriazole 3a and the diboronic derivative 10, followed by quaternization (Menschutkin reaction). The as-prepared copolymer 11 exhibited a maximum peak at around 490 nm, with a large Stokes shift. These results indicate that an effective conjugation took place between 2-phenylbenzotriazole and fluorene, thus leading to the green emission band observed at 500 nm. Subsequent derivatization of 11 to obtain the polyelectrolyte 12 resulted in a slight red-shift in the absorption and emission maxima due to changes in the conformation of the polymer chains upon incorporation of the cationic groups.
Furthermore, different photostability studies and studies with different stimuli have supported its potential application as a biomarker. These aspects were explored using model membranes comprising anionic and zwitterionic lipids together with vesicles of phosphatidylglycerol (PG), which has a marked anionic character, and phosphatidylcholine (PC), which is zwitterionic in nature.
The calculation of the partition coefficient in PG and PC vesicles showed the higher affinity of the copolymer 12 for anionic vesicles. These results suggest the potential use of 12 to specifically target anionic lipid head groups. With the idea in mind of checking this hypothesis, vesicles doped with 12 were first explored by phase-contrast and fluorescence microscopy.

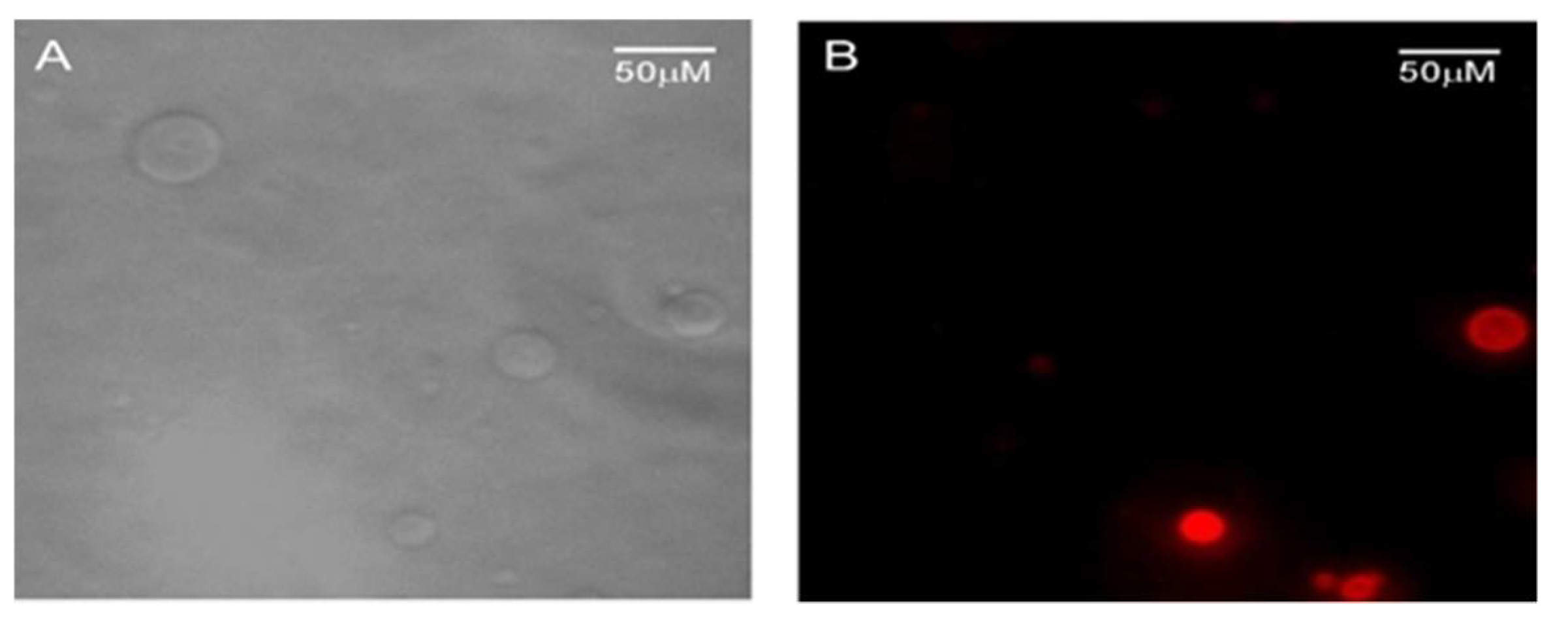

Figure 12 shows images of PG vesicles recorded before and after addition of the CPE 12. Without the presence of 12 (Figure 12A), vesicles were observed by phase-contrast microscopy and upon irradiating the samples with visible light, no fluorescence was registered. On the other hand, when the CPE 12 was added to the same sample, green fluorescence could clearly be visualized under visible light illumination (Figure 12B). Similar results were obtained when employing PC rather than PG vesicles. In addition, it can be seen that the morphology and size of the PG and PC vesicles remained the same before and after addition of the CPE, which is crucial for their application as biomarkers.
After the ability of the polyelectrolyte to image membrane structures had been confirmed, a comparative study was performed with two series of vesicles containing anionic (PG) or zwitterionic phospholipids (PC). The zwitterionic PC was marked with the fluorescent probe BODIPY 581/591 C11. The same volumes of both samples were placed on a well slide and microscopy images were recorded before and after CPE addition (Figure 13). As we might have expected, both types were observed in phase contrast in the absence of polyelectrolyte (Figure 13A), but the fluorescence of only some of them (the marked PC vesicles) was visualized upon excitation with the DsRed filter set (Figure 13B).

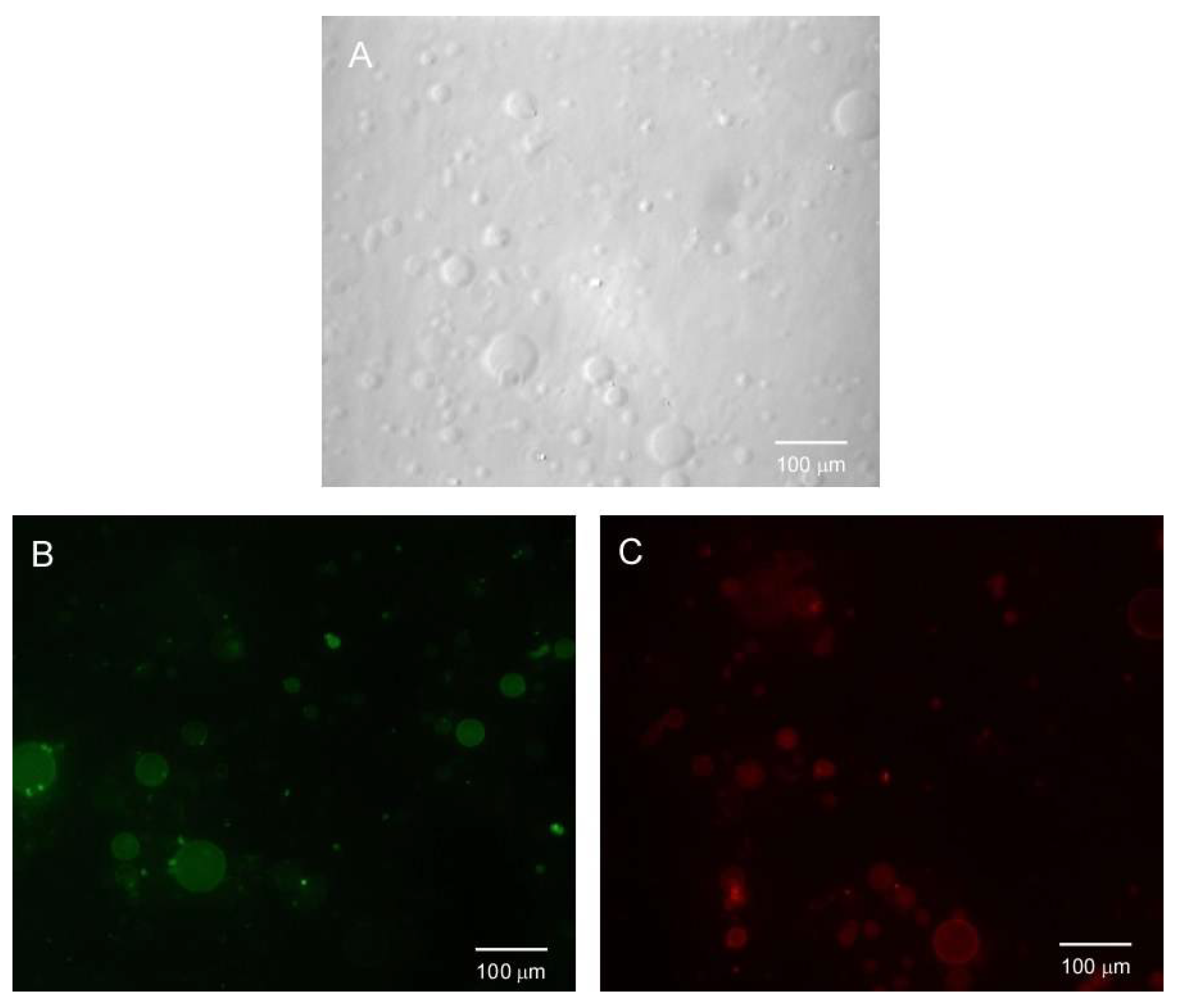

In Figure 14, the fluorescence microscopy images of the same field and obtained after the addition of CPE and upon excitation using either the FITR filter set (Figure 14B) or the DsRed filter set are shown (Figure 14C) (Figure 14A refers to the image in the visible light field). These images show that the vesicles exhibiting green fluorescence were different from those exhibiting red fluorescence. This result clearly shows that CPE selectively labelled the anionic vesicles. The bacterial membrane was rich in phospholipids with anionic head groups, hence this fact makes CPE an appropriate candidate for detecting bacterial cells by selectively targeting the bacterial membrane rather than mammalian cells, most of which have a zwitterionic membrane surface [102].

7. Conclusions

The research performed by our research group over the past few years, as discussed herein, shows the multifunctional nature of 2H-benzo[d]1,2,3-triazole derivatives. Their interesting properties and ready tunability make them an interesting multifunctional moiety in material sciences. Moreover, it has been demonstrated that, with the appropriate substitution, it is possible to synthesize organic compounds with applications in different fields, such as optical waveguides, organic field-effect transistors, TPA, organogels, and polymers in biomedicine.
The good modulation capacity of the BTz moiety and the high versatility thereof highlighted in this paper opens the door to new modifications for new applications or to improve their properties in the fields discussed in this article.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/chemosensors9090267/s1, The synthesis procedures and all the experimental data recorded in this article are available in Supporting Information.

Author Contributions

I.T.-M. synthetized all the compounds and performed all the studies reported. Furthermore, he took part in the writing draft elaboration and the work organization. J.R.C. helped with the interpretation of the results and also wrote part of the manuscript, Á.D.-O. helped with the interpretation of the synthetic results and also wrote part of the manuscript. P.P. planned and coordinated the work of the different groups and supervised and also wrote part of the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by JCCM-FEDER (project SBPLY/17/180501/000189) and MICINN (project PID2020-119636GB-I00 and RED2018-102331-T).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The data collected in this review are available at references [30,46,61,76,90,102] described in this article. All of them are works reported by our research group.

Acknowledgments

I. Torres-Moya is indebted to the Junta de Comunidades de Castilla-La Mancha for a post-doctoral grant. The authors would like to thank Pablo Fernández for his assistance in the purification of the products and the work lab. Technical support from the High-Performance Computing Service of the University of Castilla-La Mancha is also acknowledged.

Conflicts of Interest

The authors declare no conflict of interest.
