Noble Metal Nanoparticles-Based Colorimetric Biosensor for Visual Quantification: A Mini Review

Abstract

Nobel metal can be used to form a category of nanoparticles, termed noble metal nanoparticles (NMNPs), which are inert (resistant to oxidation/corrosion) and have unique physical and optical properties. NMNPs, particularly gold and silver nanoparticles (AuNPs and AgNPs), are highly accurate and sensitive visual biosensors for the analytical detection of a wide range of inorganic and organic compounds. The interaction between noble metal nanoparticles (NMNPs) and inorganic/organic molecules produces colorimetric shifts that enable the accurate and sensitive detection of toxins, heavy metal ions, nucleic acids, lipids, proteins, antibodies, and other molecules. Hydrogen bonding, electrostatic interactions, and steric effects of inorganic/organic molecules with NMNPs surface can react or displacing capping agents, inducing crosslinking and non-crosslinking, broadening, or shifting local surface plasmon resonance absorption. NMNPs-based biosensors have been widely applied to a series of simple, rapid, and low-cost diagnostic products using colorimetric readout or simple visual assessment. In this mini review, we introduce the concepts and properties of NMNPs with chemical reduction synthesis, tunable optical property, and surface modification technique that benefit the development of NMNPs-based colorimetric biosensors, especially for the visual quantification. The “aggregation strategy” based detection principle of NMNPs colorimetric biosensors with the mechanism of crosslinking and non-crosslinking have been discussed, particularly, the critical coagulation concentration-based salt titration methodology have been exhibited by derived equations to explain non-crosslinking strategy be applied to NMNPs based visual quantification. Among the broad categories of NMNPs based biosensor detection analyses, we typically focused on four types of molecules (melamine, single/double strand DNA, mercury ions, and proteins) with discussion from the standpoint of the interaction between NMNPs surface with molecules, and DNA engineered NMNPs-based biosensor applications. Taken together, NMNPs-based colorimetric biosensors have the potential to serve as a simple yet reliable technique to enable visual quantification.

1. Introduction

Noble metals include ruthenium, rhodium, palladium, silver, osmium, iridium, platinum, and gold. Key features of the metals are resistance to oxidation/corrosion and scarcity in the earth’s crust. The bulk of the noble metal nanoparticles (NMNPs) center around gold and silver nanoparticles (AuNPs and AgNPs) [1]. NMNPs have attracted interest from researchers due to their tunable and unique physical and biochemical properties [2,3]. By formulating noble metals into nanoscale materials, their shape, surface charge, composition, and chemical functionality impart unique capabilities in a variety of biological, engineering, and biomedical applications [4,5]. Their ease of synthesis, chemical durability, functional flexibility, biocompatibility, and low toxicity afford NMNPs a wide range of applications. The purpose of this mini-review is to analyze and interpret the development of NMNPs-based colorimetric biosensor for visual detection in recent years. The main idea throughout the mini-review is primarily focused on the NMNPs-based “aggregation strategy”, with the discussion of two main types (crosslink and non-crosslink). We primarily focus on four types of representative analyses (melamine, single/double strand DNA, mercury ions, and proteins) as typical examples of presenting the development of NMNPs-based colorimetric biosensor detection. For each type of analyses, the mini-review is focus on the interaction between NMNPs surface and molecules by electrostatic, hydrogen bonding, surface potential, and etc., and DNA engineered NMNPs as colorimetric biosensors for visual quantification. We also survey each type analyses with one or two reported classic sensing examples, followed with recent reported interesting results and discussed with benefits, challenges, and future directions.

1.1. NMNPs Synthesis

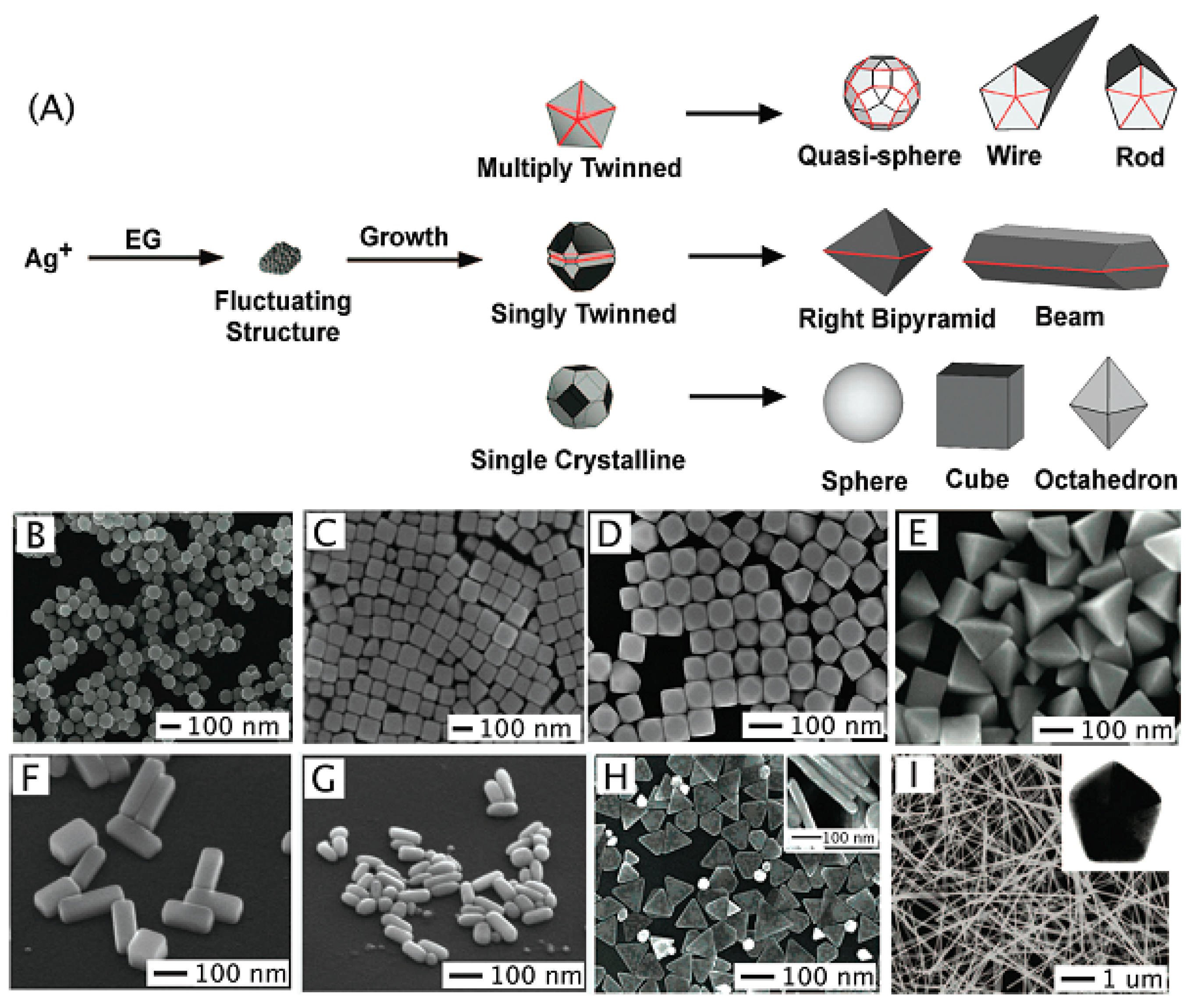

Recently, numerous strategies have been developed to enhance the functionality of NMNPs, particularly by precisely controlling size, shape, and monodisperse of the nanoparticles (Figure 1). The most common synthetic preparations of NMNPs follow the methods that were set forth by Turkevich and Frens [6,7,8,9,10,11]. The Turkevich method is based on a single-phase metal salt redox reaction with sodium citrate to produce spherical NMNPs. This redox reaction is carried out in a boiling aqueous citrate solution. In the reaction, citrate serves as a reducing agent, capping agent, and buffering agent. In a typical AuNPs preparation, the mole ratio of HAuCl₄ and sodium citrate are crucial in proper formulation. The amount of sodium citrate determines the pH in this reaction. As the hydrolysis of HAuCl₄ take place, different precursors would form at different pK_a value with components, such as (a) AuCl₃(OH)⁻, (b) AuCl₂(OH)₂⁻, (c) AuCl(OH)₃⁻, and (d) Au(OH)₃. The sodium citrate is oxidized to form sodium acetone dicarboxylate and it induces the reduction of several auric precursors to AuCl- during the pH dependent reaction process. Using this method, monodispersed spherical AuNPs can be synthesized, and, based on pH of the reaction, nanoparticle size can be tuned, resulting in particles with diameters that ranged from 10 nm to 100 nm [12]. The Turkevich method has also been utilized with Ag ions by using sodium citrate and silver nitrate to synthesize monodisperse quasi-spherical nanoparticles [13,14]. Again, pH is still the major consideration to control nanoparticle size. Sodium citrate acts as a reducing agent and stabilizer to induce a reduction of [(Ag)₂⁺-Citrate] ions, thereby playing a key role in reducing Ag ions to AgNPs with a kinetic growth behavior. Tannic acid has also been used as an effective stabilizer and reducer, and polyvinylpyrrolidone (PVP) have been used as co-surface stabilizer and growth modifier to further improve the spherical AgNPs synthesize with a monodispersed size of 5 nm [15]. Another common NMNP synthesis protocol implements the earlier work of Brust and Schriffin [16,17,18,19]. The Brust method involves a two-phase metal salt reduction by sodium borohydride (NaBH₄) in the presence of an alkanethiol stabilizer. In a typical AuNPs preparation, tetra-n-octylammonium bromide (TOAB) is utilized as a phase transfer catalyst of AuCl₄⁻ from the aqueous to organic phase. The phase transfer of AuCl₄^- forms AuNPs with a tunable size from 1 to 5 nm. This preparation of AuNPs enables their surface to be coated with a monolayer alkanethiol that can be modified with various functional groups. This alkanethiol monolayer also provides AuNPs much greater stability, eases drying, purification, and enhances the stability of the nanoparticle suspension. The procedure to synthesize AgNPs utilizes TOAB dissolved in toluene as a two-phase transfer system. For this method, aqueous AgNO₃ is dropped solution, followed by NaBH₄ as reducing agent and alkanethiol as a chemical stabilizer [20].

In addition to two optimal methodologies, other chemical reduction based NMNPs synthesis methods (sodium borohydride, seeding/growth, green synthesis, ionic liquids-based, and etc.) provided NMNPs as a versatile platform for NMNPs-based colorimetric biosensor development [20,21]. When comparing with two classic NMNPs synthesis strategies, seeding/growth is another most simple, efficient, and versatile method for preparing high quality NMNPs [22,23]. During the first stage of seeding/growth synthesis, metal precursor has been used to form nanoseeds by the reducing agent. Utilizing the cationic surfactants by adsorbing onto specific seed facets, the nanoseeds could further grow into NMNPs during the second stage of synthesis. A small concentration of additional ions has been used to control the NMNPs aspect ratio. By separating nucleation (first stage) and growth (second stage), NMNPs could be exactly prepared with uniform size and size distribution by this convenience method in a large reaction scale. Furthermore, the water-immiscible ionic liquid is another emerging method for preparing NMNPs in recent years. The ionic liquids (ILs) can be employed as a medium to transfer NMNPs from the aqueous phase to the organic phase. Unlike the Brust method, NMNPs synthesized by the ILs method could be preserved during the phase transfer without capping of thiols and amines. By tuning the size and shape, NMNPs could be obtained by large reaction scale, as the ILs play as reducing and capping agents [24,25,26]. In sum, all of the methods are extensively used in NMNPs synthesis, which offers NMNPs a fundamental breakthrough that has advanced research in the NMNPs-based biosensor technique.

1.2. Unique Optical Properties

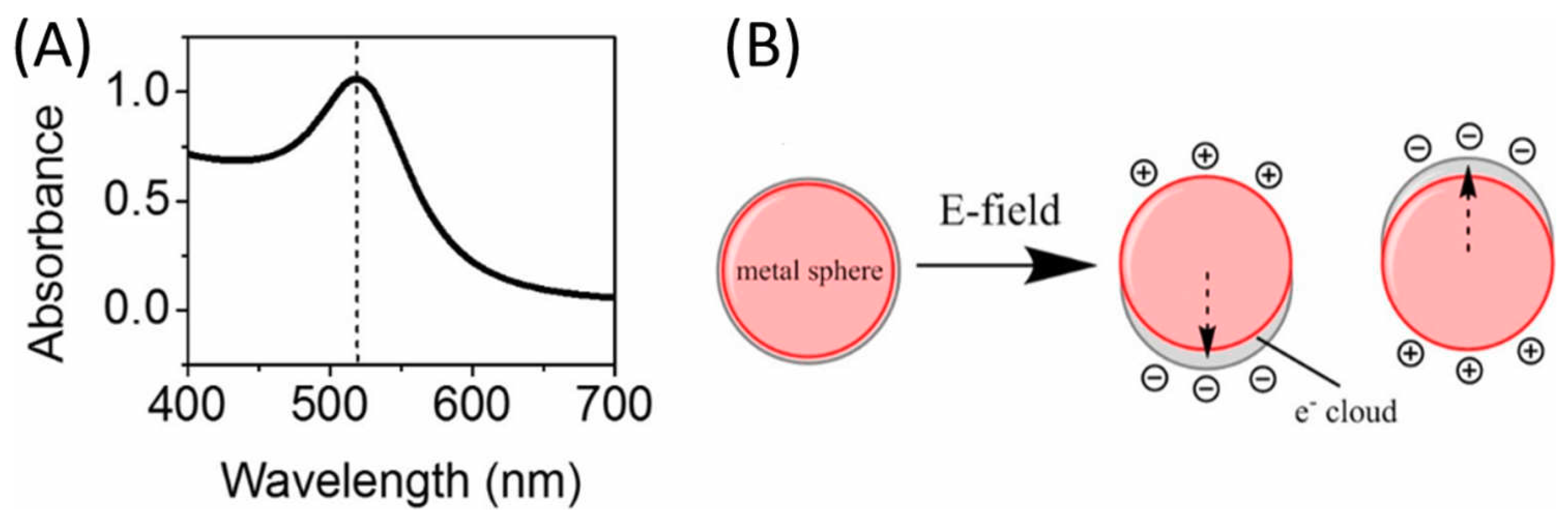

Colloidal solutions of NMNPs display bright intense reflected colors due to their unique interaction with visual light [27,28]. This optical enhancement arises from the NMNPs free electrons that endure as a collective coherent oscillation that produces a surface plasma state (Figure 2). NMNPs surface plasmas resonate at a particular frequency and this surface plasmonic resonance phenomenon is termed as the localized surface plasmon resonance (SPR) [29]. The SPR oscillation decays by radiating its energy converting this energy into scattered light. The particle shape, geometry, degree of interaction with adjacent particles, dielectric function of NMNPs, and the presence of nearby dielectric objects determine the light scattering. The quasi-static approximation framework has been used to analyze the influence of the factors (geometrical size and dielectric environment) with the SPR effect. The particle diameter (d) and an electromagnetic wavelength (λ) should be under the condition of d « λ for small particles. When d approaches the nanoscale with a homogenous state in medium with a dielectric constant, the oscillating dipole moment (p) could be described, as following:

$$\mathrm{p}(\mathrm{t})={\mathsf{\epsilon }}_0{\mathsf{\epsilon }}_{\mathrm{m}}\mathsf{\alpha }\mathsf{\psi }{\mathrm{E}}_0{\mathrm{e}}^{-\mathrm{i}\mathsf{\omega }\mathrm{t}}$$

(1)

with ε_m and ε₀ as dielectric constant, α as the complex polarizability, E₀ as applied field, and ω as the angular frequency (ω = 2π·c/λ).

All NMNPs have a characteristic extinction coefficient in visible light and AuNPs/AgNPs have particularly high molar extinction coefficients (1 × 10⁸ to 1 × 10¹⁰ M⁻¹ cm⁻¹). Therefore, AuNPs and AgNPs have superior optical properties to other metal nanoparticles as probes for visual detection. For instance, monodispersed spherical AuNPs have a red wine color. This color is from AuNPs absorption of light in the green-blue range (about 450 nm) and the reflection of red wavelengths (approximately 700 nm). As the AuNPs size, shape, interparticle distance, and dielectric environment vary, the boarding surface plasma absorption shifts localized SPR frequency by moving from visible to invisible (near infrared) wavelengths. This color shift is a key phenomenon that make it potential to develop colorimetric visual biosensors. AgNPs also share many interesting phenomena with AuNPs. They can absorb and scatter light via the SPR effect with an especially intense surface plasmon absorption band that peaks at 400 nm. AgNPs have a stronger extinction coefficient (1000×), the same size AuNPs, and the optical properties of AgNPs can also be tuned by controlling the size, shape, interparticle distance, and altering surface ligands [30]. Hence, AuNPs and AgNPs with physical and chemical properties, like higher extinction coefficient and strong surface plasmon resonance (SPR) absorption make them particularly suitable as visual detection probes.

1.3. Surface Modification

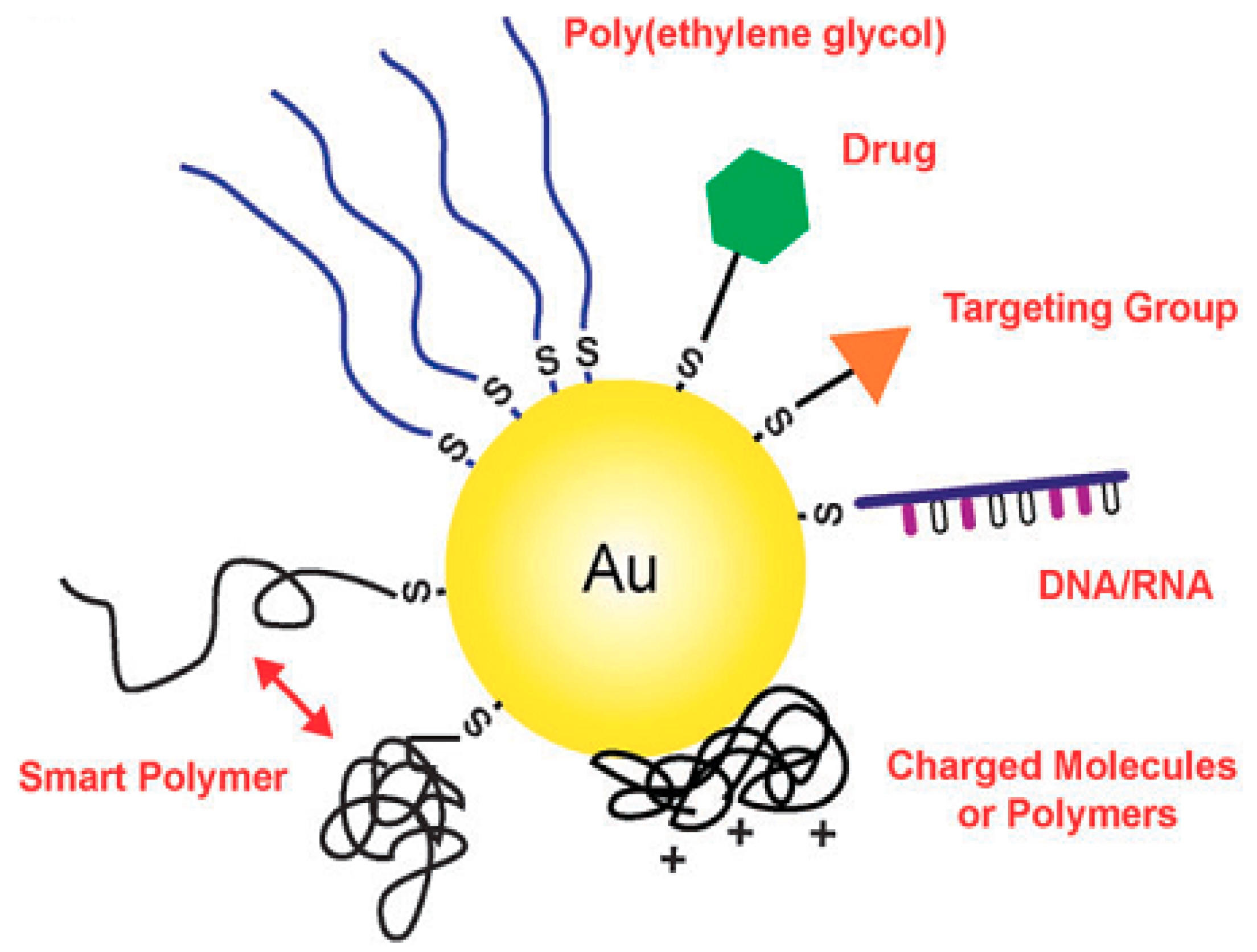

The NMNPs surface modification is important for controlling NMNPs size by increasing colloidal stability and providing new functionality to the NMNPs (Figure 3). Electrostatic, steric, or a combination of both force maintain colloid system stability [31,32]. The electrostatic repulsion, steric exclusion, and hydration layer on the NMNPs surface are three main repulsive forces that prevent NMNPs aggregation in aqueous solution. As a typical example of AuNPs that were prepared via the Turkevich method, electrostatic repulsion is the main force to maintain AuNPs stability. Ligands need to be attached to the AuNPs surface by stronger covalent bonds to improve repulsion force. As a typical example of Brust method prepared AuNPs, an alkanethiol stabilizer is produced with gold-thiol chemistry to provide AuNPs surface with a self-assembling monolayer (SAM) enhancing the hydrophobic effect to prevent aggregation with a much smaller monodispersed size than the Turkevich method.

Additionally, AuNPs can gain new functionality while using a ligand exchange reaction. Citrate groups can be exchanged with bifunctional ligand molecules (containing both carboxylic acid and thiol groups) through electrostatic interactions to attach new ligands onto the Turkevich prepared AuNPs. With the assistance of destabilizing salts, AuNPs can be precipitated and ligands can be exchanged onto the surface of AuNPs [33,34]. In the literature, interesting phenomena based on ligand exchange include sensing, imaging, and self-assembly of nanoparticles. Thiol groups showed great affinity with the NMNPs surface, especially in covalent bonds with gold. The degree of ligand exchange is related to the reaction time and ligand feed ratio with NMNPs. In addition to covalent thiol/metal interaction, non-covalent/physical adsorption is another way of providing conjugate ligands, such as bovine serum amino oxidase by aminic groups onto NMNPs surface [35]. Other conjugation methods, such as click chemistry based Cu(I)-catalysed azide–alkyne cycloaddition and carbohydrates using strain-promoted azide-alkyne cycloaddition (SPAAC), also provide NMNP surfaces with a wider functional activity [36,37].

2. Principle of NMNPs Visual Detection Strategies

NMNPs are ideal colorimetric probes for visual biosensor research. Utilizing their unique visual properties that are derived from their SPR and extinction characteristics, many biological and medical applications have been developed while using NMNPs, especially AuNPs and AgNPs as colorimetric probes [38,39,40,41,42]. AuNPs and AgNPs based “aggregation strategy” biosensors could be predominantly divided into two major types that are based on the mode of analyses induced nanoparticles aggregation mechanisms: crosslinking and non-crosslinking. Based on each type of aggregation mechanism, NMNPs produce a visible color change when molecules of interest reach a critical concentration threshold. The detecting molecules that induce NMNPs aggregation have a specific chemical group that can react or physically interact with the NMNPs surface ligand, or alter the NMNPs dielectric environment. The reactions and/or interactions produce a linear relationship between NMNPs colorimetric readout that corresponds to the detecting molecules concentration. Thereby, NMNPs provide a great platform for visual biosensor and many biosensors have been developed by using AuNPs or AgNPs as colorimetric probes for sensitive and selective detection of molecules. The strategy that is based on the analyses that can trigger the altering of NMNPs size, shape, and degree of interaction by the “non-aggregation” strategy (etching or the growth) is another branch of NMNPs colorimetric biosensor research field [43]. In this mini-review, we are particular focusing on the NMNPs-based “aggregation strategy” and its colorimetric biosensor applications.

2.1. Two Major Types of NMNPs-Based Colorimetric Biosensors

The principle of NMNP crosslinking-based colorimetric biosensors is predicated on the specific interaction between detecting molecules and surface modified ligands. The ligands have been designed with a functional group (amine- or thiol-) to covalently bond to the NMNPs surface and a second group designed with a specific chemical structure that could capture the detecting molecules by intermolecular interaction (e.g., electrostatic interactions, hydrogen bonding, hydrophobic interactions, van der Waals forces) [44]. Different types of functionalized ligands, such as short chain organic molecules, have been synthesized and modified onto NMNPs surfaces [45,46,47]. Thiol-gold chemistry is the most popular method for AuNPs modification [48,49,50]. The ligands with thiolate group could covalently attach to the AuNPs surface by a gold-thiol reaction. Different ligands, such as peptides, antibodies, single stranded oligonucleotides, and aptamers, have been modified onto the surface of AuNPs by gold-thiol reactions to improve sensitivity and selectivity [51,52,53,54,55]. Various molecules, such as toxic heavy ions, pesticide residues, drugs, proteins, and nucleic acids, have been accurately detected at extremely low concentrations while using the techniques [56,57,58]. When the concentration of the molecule(s) of interest reach a critical point, AuNPs crosslinking aggregation begins, and this, in turn, produces a spectrum of color change in the AuNPs corresponding to the concentration of the molecule(s) of interest. Herein, the amount of molecule(s) of interest could be determined by the AuNPs colorimetric readout and it is possible for the visual quantification by naked eyes without the assistance of a spectrophotometer.

For the NMNPs-based non-crosslinking, there is no requirement to label the functionalized ligand on NMNPs surface. For instance, the molecule(s) of interest can induce AuNPs into non-crosslinking aggregation by changing the surface potential, which, in turn, alters electrostatic double layer thickness and Debye length, ultimately determining the stability of the colloidal solution. Our group previously reported an unmodified AuNPs-based colorimetric biosensor for melamine detection [59]. The principle of this detection strategy utilizes the intrinsic interaction between melamine and the AuNPs surface by adjusting the surface potential to achieve detection. Similar strategies have been reported in other label-free AuNPs-based colorimetric biosensors that have been developed for the detection of various molecules [60,61,62,63]. The molecule(s) of interest have a common chemical structure with primary amine group or nitrogen atom on exocyclic ring, which can interact with the noble metal surface [64,65,66]. Single stranded DNA has been reported to attach to the surface of noble metals. Its base group, especially adenine, produces a very strong interaction with gold surface [67,68,69]. It is reported that oligonucleotides of different conformations could adsorb to AuNPs with a different binding strengths and produce AuNPs with differing degrees of aggregation [70,71]. Several label free colorimetric biosensors have been designed for specific detection of nucleic acid with an extreme accuracy even at low-concentrations based on this intrinsic interaction [72,73,74]. Herein, the unmodified AuNPs non-crosslinking aggregation strategy avoids the complications of AuNP surface modification. Additionally, this strategy has been used to develop assays that are comparable to the crosslinking biosensor strategy.

2.2. Critical Coagulation Concentration-Based Salt Titration Strategies

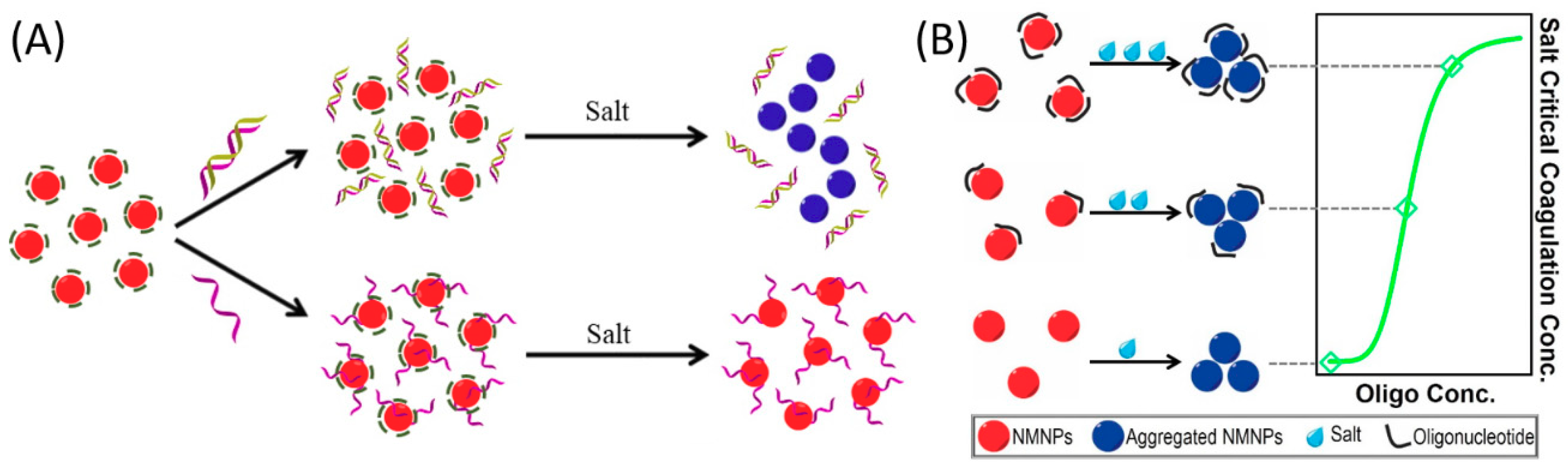

The critical coagulation concentration (CCC) strategy (Figure 4) as a visual biosensor was developed by Li et al. while using the NMNPs non-crosslinking strategy in 2014. Different from other NMNP-based strategies, the CCC depends on adjusting ion concentration or strength to determine the concentration of the molecule(s) of interest. Below, we have derived equations to explain this strategy principle. The Derjaguin and Ladau, Verwey and Overbeek (DLVO) theory is the classical explanation of the stability of a colloidal system. In the theory, two type forces: (a) the Van der Waals attraction and (b) the electrostatic double layer repulsion theoretically explains the stability of a colloidal solution. It was supposed that the interaction between two particles should be: (a) planar particle, (b) symmetric electrolyte, (c) high surface potential, and (d) two particles far enough apart [75]. The total interaction energy in DLVO theory is the summation of the above two forces, which is defined by:

$${\mathrm{V}}_{\mathrm{T}}={\mathrm{V}}_{\mathrm{A}}+{\mathrm{V}}_{\mathrm{R}}=-\frac{\mathrm{Aa}}{12\mathrm{h}}+\mathrm{2}\mathsf{\pi }{\mathsf{\epsilon }}_{\mathrm{r}}{\mathsf{\epsilon }}_0\mathsf{\alpha }{\mathsf{\psi }}_0^2\ln [1+\exp (-\mathsf{\kappa }\mathrm{h})]$$

(2)

where V_T is the total interaction energy, V_A is Van der Waals attraction energy, V_R is electrostatic double layer repulsion energy, A is the Hamaker constant, h is the smallest distance between surfaces of two particles, a is particle radius, ε_r is the dielectric constant of water, ε₀ is electric permittivity of free space, ψ₀ is surface potential, and κ is the inverse Debye length, which is defined by

$$\mathsf{\kappa }={\left[\frac{1000{\mathrm{e}}^2{\mathrm{N}}_{\mathrm{A}}(2\mathrm{I})}{{\mathsf{\epsilon }}_{\mathrm{r}}{\mathsf{\epsilon }}_0\mathrm{kT}}\right]}^{\frac{1}{2}}$$

(3)

e is electric charge of electron, N_A is Avogadro number, I is ionic strength, k is Boltzmann constant, and T is temperature.

The CCC is defined as the minimum concentration of counter ions to induce colloid system rapid coagulation [76,77]. The condition of the CCC is based on the total interaction energy

$${\mathrm{V}}_{\mathrm{T}}=0,\frac{\mathrm{d}{\mathrm{V}}_{\mathrm{T}}}{\mathrm{dh}}=0$$

(4)

as we solve the Equation (4), we get

$${\mathrm{V}}_{\mathrm{T}}=-\frac{\mathrm{Aa}}{12{\mathrm{h}}^2}+\frac{2\mathsf{\pi }{\mathsf{\epsilon }}_{\mathrm{r}}{\mathsf{\epsilon }}_0\alpha {\mathsf{\psi }}_0^2}{\mathrm{h}}\mathrm{l}\mathrm{n}[\mathrm{1}+\exp (-\mathsf{\kappa }\mathrm{h})]=0$$

(5)

$$\frac{\mathrm{d}{\mathrm{V}}_{\mathsf{{\rm T}}}}{\mathrm{dh}}=\frac{\mathsf{{\rm A}}\mathrm{a}}{12{\mathrm{h}}^2}-\mathsf{\kappa }2\mathsf{\pi }{\mathsf{\epsilon }}_{\mathrm{r}}{\mathsf{\epsilon }}_0\mathsf{\alpha }{\mathsf{\psi }}_0^2\ln [1+\exp (-\mathsf{\kappa }\mathrm{h})]=0$$

(6)

by solving h and κ, we could get

$$\mathsf{\kappa }\mathrm{h}=2$$

(7)

by substituting κ equation into Equation (5), we could get

$${\mathrm{V}}_{\mathrm{T}}=-\frac{\mathrm{Aa}}{24}{\left[\frac{1000{\mathrm{e}}^2{\mathrm{N}}_{\mathrm{A}}(2\mathrm{I})}{{\mathsf{\epsilon }}_{\mathrm{r}}{\mathsf{\epsilon }}_0\mathrm{kT}}\right]}^{\frac{1}{2}}+2\mathsf{\pi }{\mathsf{\epsilon }}_{\mathrm{r}}{\mathsf{\epsilon }}_0\alpha {\mathsf{\psi }}_0^2\ln [1+\exp (-2)]=0$$

(8)

by solving the Equation (8), the CCC could be obtained,

$$\mathrm{CCC}=\frac{0.039{\mathsf{\pi }}^2{\mathsf{\epsilon }}_{\mathrm{r}}^3{\mathsf{\epsilon }}_0^3{\mathsf{\psi }}_0^4\mathrm{kT}}{{\mathrm{A}}^2{\mathrm{e}}^2{\mathrm{N}}_{\mathrm{A}}}$$

(9)

From the derived Equation (9), we find that the CCC is proportional to the fourth power of the surface potential. According to the Schulze-Hardy rule, CCC is proportional to the inverse sixth power of the counter ion valence [77,78,79]. This power relationship between CCC and surface potential indicates that CCC could be used as a very sensitive amplify read-out signal that increases detection accuracy to present the degree of surface potential change. As we know, the surface potential strength directly determines the colloidal solution stability. We assume that we could control the salt concentration by adjusting the electrostatic repulsive barrier to influence the colloid stability. As we see from the Equation (9), many other physical factors could also affect the colloidal stability. However, when compared to other factors, the ion concentration and strength is a simple and convenient method to analyze colloidal stability. Hence, we want to utilize the CCC-based salt titration strategy to develop a reliable way to visually quantify melamine concentration. CCC salt titration could be an elegant and sensitive detection method when compared to surface potential-based visual detection. Our group reported a salt titration method that is based upon the addition of an appropriate amount of salts to induce a small change of surface potential to detect melamine [65,80]. The analyses (melamine and nucleic acid) concentration corresponds to the CCC and they could be quantified by this strategy with high accuracy, even at extremely low concentrations.

3. NMNPs Visual Detection Applications

Utilizing NMNPs unique optical properties, NMNPs-based colorimetric biosensors have been widely reported to detect small organic molecules, toxic metal ions, oligonucleotides, and proteins in aqueous and physiological media [81,82,83]. Probes have been physically or chemically attached to the NMNPs surface to improve the sensitivity and specificity of detection performance. Currently, studies on the “aggregation strategy” of controlled nanostructures with other NMNPs geometries, such as rods and triangles, are in progress. In this mini-review, we are particularly focusing on spherical NMNPs-based (AuNPs and AgNPs with a small part of platinum nanoparticles (PtNPs)) biosensor applications by the “aggregation strategy”. Melamine, single and double stranded DNA, Hg²⁺, and proteins have been selected as four types of analyses to exhibit NMNPs-based colorimetric biosensor performance by selectively and sensitively detecting molecules at an extremely low concentration (limited of detection (LOD)). Detailed discussion of other analyses (metal ions, anions, and small organic molecules) detected by NMNPs based biosensor has been suggested in other relative comprehensive reviews [81,82,83].

3.1. Melamine Detection

Melamine (C₃H₆N₆) is a nitrogen rich chemical with a 1,3,5-triazine skeleton. It is widely used in industry to produce millions of tons of plastic resins per year. Melamine has been illegally added to food products in order to increase the apparent protein content (nitrogen content) because of the cheap price and high nitrogen content (66%). Melamine has been reported to cause kidney failure by the formation of insoluble crystallized complexes. As a hot topic of food safety discussion, melamine has caused the deaths of thousands of pets, and thousands of Chinese babies to develop kidney stones. Undoubtedly, there is great need to develop reliable and highly sensitive sensors that can be used to detect melamine residues for food safety [84,85]. Conventional analytical instrument (e.g., chromatography spectrometry, mass spectrometry, capillary electrophoresis, infrared spectrometry, Raman spectrometry, and ELISA methods) have been reported as approaches for melamine detection [86]. The analytical techniques are sensitive, specific, and reliable; however, they are time consuming and require expensive instruments and complicated experimental protocols. An ideal analytical technique for melamine detection should be rapid, reliable, cost-effective, and it should not require expensive instrumentations or advanced training to perform the test. AuNPs and AgNPs as colorimetric probes for visual detection meet the criteria. The two main strategies for AuNPs/AgNPs-based colorimetric probes are surface ligand functionalized nanoparticles and unmodified nanoparticles. Based on the two strategies, AuNPs/AgNPs-based melamine detection methods have been widely reported for their specificity and sensitivity [87,88,89,90]. AuNPs/AgNPs-based colorimetric approaches with a high sensitivity and selectivity detection performance have been recently reported in the literatures (

Table 1. Recent reported AuNPs/AgNPs-based colorimetric biosensors for melamine detection.

Nanomaterials	Detection Probe	Instruments Employed	Interaction	Detection Limit	Ref
AuNPs	Cyanuric acid	Naked eyes UV-vis	Hydrogen bonding	0.3 µM	[59]
AuNPs	Salt	Naked eyes UV-vis	Surface Potential	3.9 µM	[65]
AuNPs	Dithiothreitol	Naked eyes UV-vis	Hydrogen bonding	24 nM	[91]
AuNPs	H2O2	Naked eyes UV-vis	Hydrogen bonding	0.4 µM	[92]
AuNPs	Melamine	Optical fiber	Surface Potential	33 nM	[93]
AuNPs	Aptamer	Naked eyes UV-vis	Electrostatic	0.4 nM	[94]
AuNPs	Size	UV-vis	Surface Potential	1.1 nM	[95]
AuNPs	Aptamer/Salt	UV-vis	Hydrogen bonding/Surface Potential	22 nM	[96]
AgNPs	Dopamine	Naked eyes UV-vis	Hydrogen bonding	9.5 µM	[97]
AgNPs	Cyclodextrin	Naked eyes UV-vis	Hydrogen bonding	5 µM	[98]
AgNPs	Ascorbic acid	Naked eyes UV-vis	Hydrogen bonding	0.8 µM	[99]
AgNPs	Gallic acid	UV-vis	Hydrogen bonding	3.6 nM	[100]
AgNPs	Succinic	UV-vis	Hydrogen bonding	10 nM	[101]
AgNPs	Tannic acid	UV-vis	Hydrogen bonding	10 nM	[102]
AgNPs	Unmodified	UV-vis	Surface Potential	0.3 µM	[103]

).

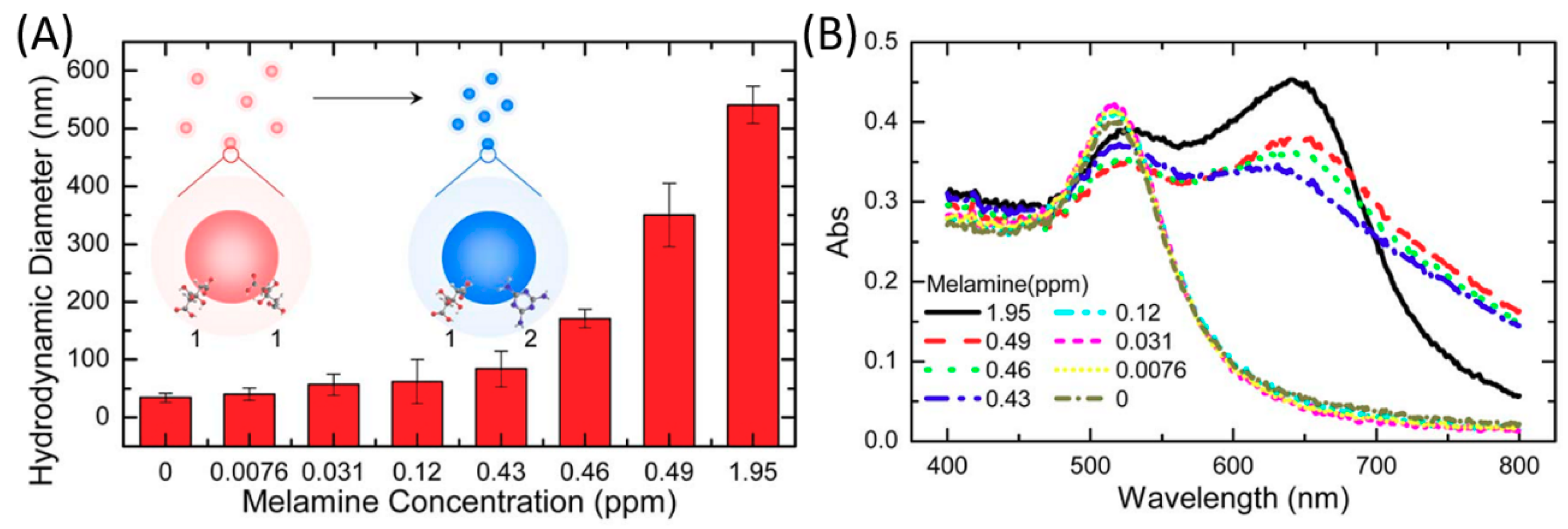

Utilizing the ligand functionalized approach, cyanuric acid derivatives can be conjugated onto the AuNPs surface [104]. As the cyanuric acid derivative could form a stable complex with melamine via hydrogen bonding, melamine could induce cyanuric acid derivative functionalized AuNPs to perform a self-assembly behavior. The self-assembly aggregation is a colorimetric phenomenon and it has to be utilized as a specific and sensitive method to detect melamine at an extremely low concentration. Similar ligands, such as 3-mercapto-1-propanesulfonate, 18-crown-6 ether, 4-amino-3-hydrazino-5-mercapto-1,2,4-triazol, and other molecules that form hydrogen bonds with melamine, have been attached to AuNPs and AgNPs for detection purpose [90,105]. Due to the complexity of the surface functionalization technique, unmodified AuNPs offer another attractive pathway for melamine detection. Li et al. reported an unmodified AuNPs-based colorimetric readout for the visual quantification of melamine [59]. The amine group and nitrogen atom on melamine exocyclic skeleton have an intrinsic interaction with the unmodified AuNPs surface. The surface attached melamine disturbs the stability of AuNPs colloid system by lowing the surface potential. Additionally, melamine reacts with cyanuric acid and forms a stable complex that produces turbid metric signal. With the dual signal readouts of colorimetric and turbid metrics, melamine could be quantitatively detected with great sensitivity by this strategy (Figure 5). Similar modified AuNPs platforms, such as chitosan, citrate capped, DNA, and bared surface surfactant strategies, have been reported as reliable detection approaches [61,62,63].

Insights into the mechanism by understanding the intrinsic interaction between melamine and the AuNPs surface would promote the development of unmodified AuNPs-based melamine detection strategy [59]. Primary amine groups and nitrogen atoms on the exocyclic ring skeleton of melamine could have a stronger interaction with AuNPs surface. Recent investigations have suggested that a surfactant of citrate ions on the AuNPs surface could be replaced by ligand exchange with multiple nitrogen sites of melamine [89]. Although no direct evidence has been reported to show how melamine is adsorbed on the AuNPs surface, related interaction studies give important hints to understand this key thermodynamic property. It has been reported that primary amine groups can be strongly bound to electron deficient surface sites of metal nanoparticles [106,107,108]. Two modes of bonding of amine molecules with AuNPs were identified: (a) weak electrostatic complex involving the protonated amine molecules with chloroaurate ions and (b) covalent bond of [AuCl(NH₂R)] complexes [108]. The AuCl₂⁻ is one of several precursors during the sodium citrate induced reduction reaction of AuCl₄⁻. The AuNPs surface would have many binding sites for molecules containing amine groups on either AuCl₄⁻ to AuCl₂⁻. The sites provide coordination binding between melamine and the AuNPs surface. Furthermore, the nitrogen atoms on the exocyclic ring skeleton of adenine have a similar chemical structure, as melamine and nitrogen atoms have been demonstrated to coordinate with AuNPs surface. Hence, we suppose that three nitrogen atoms on the melamine exocyclic ring structure could bind to AuNPs surface, and three exocyclic primary amine groups would promote the formation of AuNP aggregation [59]. Several physical interaction factors influence melamine surface adsorption (e.g., surface charge density, Deby length, and thickness of electrical double layer). Thus, a more in depth understanding of the surface adsorption of melamine to AuNPs offers novel strategies to further develop the unmodified AuNPs-based colorimetric biosensor detection technique.

3.2. DNA Detection

A sequence specific approach for detecting DNA without the use of the lab complicated analytical equipment would be revolutionary for the diagnosis of genetic disorders and infectious pathogenic diseases. The use of unmodified or surface engineered AuNPs/AgNPs have been widely reported for visual DNA detection. AuNP and AgNP platforms provide nucleic acid detection system advantages with similar performances as other traditional diagnostic methods (fluorescence probe, RT-PCR, ELISA, and microarray assay). AuNPs/AgNPs/PtNPs-based colorimetric approaches with a high sensitivity and selectivity detection performance have been reported in literature in recent times (

Table 2. Recent reported AuNPs-based colorimetric biosensors for DNA detection.

Nanomaterials	Detection Probe	Instruments Employed	Interaction	Detection Limit	Ref
AuNPs	ssDNA/salt	PCR	Electrostatic	N/A	[109]
AuNPs	ssDNA/dsDNA	Naked eyes	Hybridization	100 fM	[110]
AuNPs	K+ aptamer	Naked eyes UV-vis	Hybridization	N/A	[74]
AuNPs	Hairpin	UV-vis	PCR Amplification	5 pM	[111]
AuNPs	ssDNA	UV-vis	Hybridization	N/A	[112]
AuNPs	ssDNA	UV-vis	Hybridization Salt	2.94 fM	[113]
AuNPs	Unmodified	UV-vis	Hybridization	N/A	[114]
PtNPs	Graphene oxide	UV-vis	Peroxidase mimetic	0.4 nM	[115]

).

Elghanian et al. reported an approach to detect DNA while using DNA engineered AuNPs [51]. In the approach, single stranded thiolate mercaptoalkyl-oligonucleotides were conjugated onto AuNPs surface via thiol-gold interactions. The DNA engineered AuNPs have be used as colorimetric detection probes for nucleic acid detection. The conjugated single stranded DNA on the AuNPs surface could hybridize to 30 bases target DNA sequence via “Watson and Crick” A-T, G-C base pairing. Induced by the target DNA, the DNA engineered AuNPs could cross-link together by the complementary probes decorated on the AuNPs surface under the hybridization condition and form the AuNPs network. The colloidal AuNPs solution would have a distinguishable color shift (i.g., red to purple) as the AuNPs interparticle distance decrease. By transferring aggregation products to a reverse phase silica plate, the colorimetric changing degree could be used as a signal to achieve visual sensing. As a result, this revolutionary detection strategy provides a DNA LOD as low as 10 femtomoles. To further develop this strategy, the AuNPs surface was capped with 3′- and 5′-(alkanethiol) oligonucleotides, to complex a 24-based DNA target molecule [116]. This strategy could distinguish the target sequence with a probe tail, or a sequence with a single base pair deletion (a base pair insertion). Otherwise, Li et al. demonstrated utilizing unmodified AuNPs to detect single and double stranded DNA (Figure 6). The work reported on electrostatic interaction between single or double strand DNA and AuNPs. The results pointed out that the single strand DNA could adsorb onto the surface of citrate capped AuNPs with a rate that depends on the DNA sequence. After attaching to the unmodified AuNPs, the phosphate backbone of single strand DNA would promote colloid stabilization against the salt induced surface potential change. Based on this observation, label free AuNPs have been demonstrated for specific sequence detection without any surface functionalization chemistry. This strategy has been practiced on a clinical sample of genomic DNA for single nucleotide polymorphisms (SNPs) associated with a fatal arrhythmia known as long QT syndrome. The detecting result is visually determined and it does not need any analytical equipment.

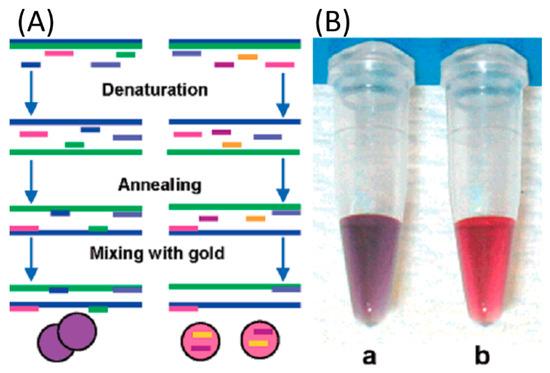

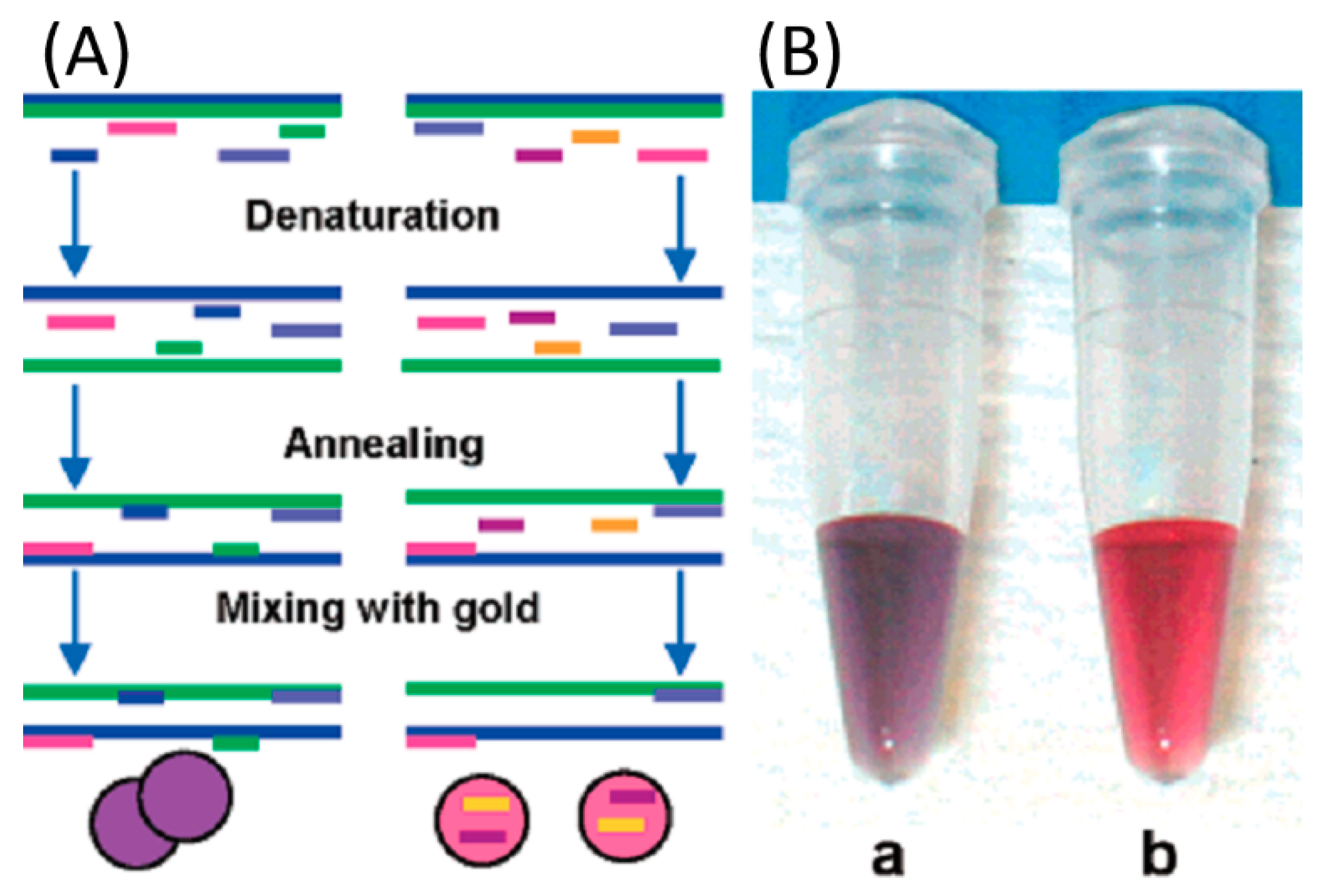

Li et al. reported a critical coagulation concentration (CCC)-based salt titration method and used on unmodified AuNPs for visual detection and quantification of DNA concentration [65]. Single and double stranded DNA have a different surface binding strength with AuNPs. The colloid stability is directly dependent on the sequence length and temperature. Based on this intrinsic interaction between AuNPs and single or double strand DNA, Li et al. explored the possibility of utilizing CCC-based salt titration for single and double stranded DNA concentration quantitative detection. Visual quantification of DNA with the critical coagulation concentration-based salt titration and the effects of salt type, titration concentration, and volume interval have been studied and compared by titration step, volume, final CCC, and degree of color change. Unlike spectrometer-based DNA detection approaches, the CCC-based salt titration provides a visual quantification approach without sophisticated analytical equipment. CCC-based salt titration could be used as a highly suitable detection tool in situations of low setting resources without sacrificing sensitivity and accuracy.

3.3. Hg²⁺ Detection

AuNPs and AgNPs have been widely used for the visual detection of toxic metals ions (i.g., Hg²⁺) [117]. Hg²⁺ have a strong interaction with sulfur and nitrogen atoms, and forms S-Hg²⁺-S and N-Hg²⁺-N compounds. Therefore, it provides a pathway for colorimetric biosensor detecting Hg²⁺ by the interaction between Hg²⁺ and NMNPs surface specific ligands with sulfur and nitrogen atoms. A number of ligands (i.g., dithioerythritol, cysteine, peptides, proteins, and DNA) with specific sulfur and nitrogen atoms have been decorated onto AuNPs and AgNPs for detecting Hg²⁺. The ligands interact with Hg²⁺ by a metal-ligand interaction and they cause the AuNPs and AgNPs a degree of aggregation with a rapid color change [118,119,120]. AuNPs/AgNPs/PtNPs-based colorimetric approaches with a high accuracy and selectivity detection performance have been reported in literature in recent times (

Table 3. Recent reported AuNPs/AgNPs/PtNPs-based colorimetric biosensors for Hg²⁺ detection.

Nanomaterials	Detection Probe	Instruments Employed	Interaction	Detection Limit	Ref
AuNPs	DNA	UV-vis	Nitrogen Interaction	10 nM	[119]
AgNPs	Oligonucleotides	UV-vis	Nitrogen Interaction	17 nM	[121]
AuNPs	Citrate/Tween 20	UV-vis	Redox reaction	100 nM	[123]
AuNPs	Hexadecyl trimethyl ammonium bromide (CTAB)	UV-vis	Anti-aggregation	11.9 nM	[124]
AuNPs	Thymine	UV-vis	Nitrogen Interaction	10 nM	[125]
AuNPs	Thymine	UV-vis	Nitrogen Interaction	3.6 pM	[126]
AuNPs	Hydrogen peroxide	UV-vis	Redox reaction	8.9 pM	[127]
AgNPs	Alginate	Naked eyes	Redox reaction	5.3 nM	[128]
AgNPs	Thiamine	Naked eyes UV-vis	Nitrogen/Sulfur Interaction	5 nM	[129]
AgNPs	Sodium cholate	Naked eyes UV-vis	Redox reaction	12 nM	[130]
AgNPs	Melamine	Naked eyes UV-vis	Nitrogen Interaction	1.8 pM	[131]
PtNPs	Citrate	UV-vis	Inhibition peroxidase	8.5 pM	[132]
PtNPs	Organic frameworks	UV-vis	Inhibition peroxidase	0.35 nM	[133]

).

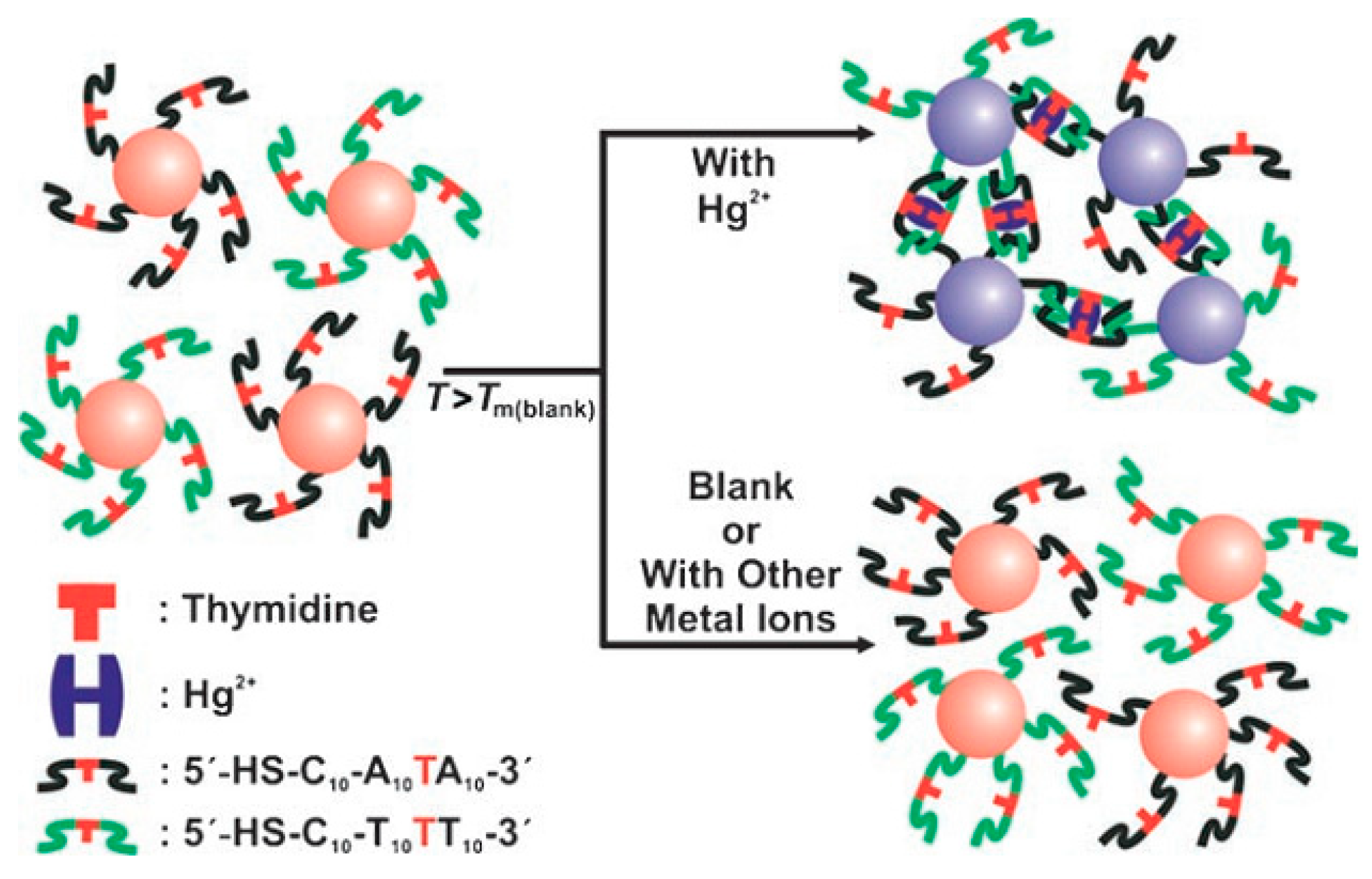

In 2007, Lee et al. reported DNA engineered AuNPs for Hg²⁺ detection (Figure 7). A highly sensitive and selective DNA engineered AuNPs based on the thymidine/Hg²⁺/thymidine coordination chemistry was reported. This novel biosensor could be capable of selectively detecting Hg²⁺ in a nanomolar concentration range. Hg-thymidine dimers have been extensively investigated due their high toxicity and denature of double stranded DNA [118]. The thermodynamic results indicated that (A)₁₀T(A)₁₀-(T)₂₁ exhibit a much higher transition profile in the presence of Hg²⁺ than in its absence. When comparing with A-T pair interaction, Hg mediates T-Hg-T dimers have been recognized as a much higher bonding energy. It is reported that there is no notable transition profile in the presence of other metal ions (i.g., Ag⁺, Cu²⁺, Ni²⁺, Pd²⁺, Co²⁺, Mn²⁺, Zn²⁺, Pb²⁺, Cd²⁺, Mg²⁺, Ca²⁺, Fe²⁺, Fe³⁺, and Ru²⁺). Therefore, this thermal transition evidence provide DNA engineered AuNPs with an excellent mean for selective and sensitive detection of Hg²⁺ ions. For instance, two complementary DNA sequence have been designed and modified onto AuNPs surface for detecting purpose. They are 5′HS-C₁₀-A₁₀-T-A₁₀3′ and 5′HS-C₁₀-T₁₀-T-T₁₀3′ with only one mismatch of T in the sequence. The mismatch pair could form a stable bond in the presence of Hg²⁺ by thymidine/Hg²⁺/thymidine complex. When comparing with the matched pair, two engineered AuNPs with mismatch probes exhibit a rapid color shift in the presence of Hg²⁺ [119]. Hence, this approach could be used as an idea tool to selectively detect Hg²⁺ in an aqueous environment. Otherwise, unmodified AuNPs with mercury specific oligonucleotides have been developed for Hg²⁺ colorimetric detection [121]. The approach is based on the interaction between single stranded DNA with AuNPs surface in the presence of NaClO₄. The single stranded DNA has be sequence designed with a strong interaction with AuNPs surface by its nucleosides groups. Preventing by electrostatic repulsion force, the single stranded DNA on AuNPs surface could utilize its phosphate backbone to prevent AuNPs from the surface potential induced aggregation. When comparing with single stranded DNA, the double stranded DNA could not influence the AuNPs colloid stability. Double stranded DNA does not have free nucleoside groups, as single stranded DNA attach AuNPs surface and perform as surface electrostatic stabilizer. Hg²⁺ could induce single strand DNA folding into hairpin structure by the thymidine/Hg²⁺ interaction. By removing the surface attached single stranded DNA, the method could be used as an idea tool to selectively detect Hg²⁺ as the DNA engineered AuNPs. Unmodified AgNPs exhibit a similar trend as DNA engineered AuNPs and achieved the Hg²⁺ LOD of 17 nM [122]. Although AgNPs is unmodified, the specific single stranded DNA with reasonable T design showed a selective targeting behavior and it excludes the disturbance of other metal ions Ag⁺, Cu²⁺, Ni²⁺, Pd²⁺, Co²⁺, Mn²⁺, Zn²⁺, Pb²⁺, Cd²⁺, Mg²⁺, Ca²⁺, Fe²⁺, Fe³⁺, and Ru²⁺.

3.4. Protein Detection

AuNPs and AgNPs based colorimetric biosensors for protein detection is a major research interdisciplinary area between chemistry, biology, and nanotechnology. The development of protein detection methodologies are extensively required, as the target protein is considered as an important index involved in medical diagnostics, pathogen detection, and proteomics. AuNPs/AgNPs based colorimetric approaches with high accuracy and selectivity performance have been reported in literature in recent times (

Table 4. Recent reported AuNPs/AgNPs-based colorimetric biosensors for protein detection.

Nanomaterials	Detection Probe	Analyses	Instruments Employed	Interaction	Detection Limit	Ref
AuNPs	ssDNA/polyelectrolyte	Proteins	UV-vis	DNA folding	Pico molar	[134]
AuNPs/AgNPs	Unmodified	Bacteria proteins	Naked eyes UV-vis	Non-specific	0.5 μM	[135]
AuNPs	Unmodified	Thrombin	Naked eyes UV-vis	DNA folding	0.83 nM	[136]
AgNPs	Aptamer	Thrombin	Naked eyes UV-vis	Microfluid chip	20 pM	[137]
AuNPs	Polymer/aptmer	Lysozyme	UV-vis	Crosslinking	4.4 nM	[138]
AuNPs	Aptamer	PDGFs	UV-vis	Specific binding	3.2 nM	[139]
AuNPs	Peptide	MMP-7	UV-vis	Peptide interaction	5 nM	[140]

).

The most extensively protein detection methods are mass spectrometry with electrospray ionization (ESI) and matrix-assisted laser desorption ionization (MALDI), and enzyme-linked immunosorbent assay (ELISA), which have been widely used in research and clinical labs for precise protein quantitation. However, the high accuracy analytical equipment suffer from some drawbacks (i.g., complex protocols, high cost, time consuming, large test sample requirements). To further satisfy the convenient methodologies for protein detection requirement, NMNPs based biosensor have been develop and seen progress in the colorimetric and visual detection of a various proteins (i.g., thrombin, lysozyme, platelet derived growth factors (PDGFs), and matrix metalloproteinase-7 (MMP-7)) [141,142]. Based on the “aggregation strategy”, AuNPs have been functionalized with carbohydrate probes as “glyconanometarials” and are used as excellent colorimetric biosensor platforms for protein detection. Carbohydrate and protein have an intermolecular and intramolecular interaction between protein and carbohydrate moieties. Otsuka et al. reported PEGylated AuNPs with distal end decorated with lactose (Lac) to selectively detect Recinus Communis Agglutinin (RCA₁₂₀) [143]. RCA₁₂₀ is a bivalent lectin that could interact with the galactose residue. RCA₁₂₀ induces the Lac-AuNPs aggregation with a pinkish-red to purple color shift and this aggregation state is reversible by adding galactose to achieve Lac-AuNPs recycling function with a LOD of 1 ppm. Takae et al. further develop this idea by processing various functionalities of lactose ligand on the PEG (0 to 65%) to study the ligand density influencing the binding affinity with lectin [144]. The PEGylated AuNPs with 40% and 65% lactose show a time dependent kinetic aggregation behavior and it indicates that the optimization of ligand surface density could prevent nonspecific interactions by the PEG layer to promote the AuNPs-based biosensor sensitivity. Wang et al. undertake the fundamental study and reported using dissociation constant (K_d) to evaluate the binding affinity between glyconanoparticles and proteins [145]. Lectin has been used as the protein mode and AuNPs have been decorated with mono-, oligo-, and polysaccharides with different linker type, spacer length, and ligand density. The results indicate that the longer spacer would provide a highest binding strength with ligand density increase, as AuNPs would enhance this interaction by decreasing the size. Aptamer-based protein detection strategy is another interesting strategy that has been applied on AuNPs/AgNPs-based colorimetric biosensors for protein detection [146,147]. Aptamers (single stranded DNA oligonucleotides) can interact with targeting molecules by their specific secondary structure and they provide a new bio-recognition platform. Based on the specific interaction with protein, aptamers have been decorated onto AuNPs surface or used as label free to achieve the protein detection goal. For instance, Huang et al. developed aptamer modified AuNPs as a highly specific sensing system for three PDGFs detection [139]. Aptamer used to conjugate onto AuNPs surface in a three-way helix junction with a conserved single stranded loop at the branch point. The aptamer has a high binding affinity with PDGFs (AA) with a K_d value of 10 nM and 0.1 nM with PDGFs (BB and AB). After decorating onto AuNPs surface by thiol-gold reaction, the sensitivity of Apt-AuNPs have a salt dependent behavior, with an optimum condition of 200 mM NaCl with LODs at nanomolar level. Aptamer-based unmodified AuNPs have been reported as a colorimetric method for protein detection. Wei et al. reported a simple and sensitive method for thrombin detection by aptamer label free AuNPs [136]. This method avoid the conjugating technique causing the problems (i.g., complex protocols, weakened affinity). It is reported that thrombin and its corresponding 29-mer binding aptamer have been used as model to study the AuNPs based colorimetric detection. Thrombin could competitively bind with 29-mer aptamer and induced AuNPs surface attached 29-mer aptamers forming G-quadruplex/duplex. AuNPs would lose the stability after the interaction occurred and the AuNPs aggregation would be promoted by a high salt concentration environment. The result indicate that the thrombin induced colorimetric degree is linear correlated to the thrombin concentration with LOD of 0.83 nM. Besides two classic strategies, Xia et al. reported “universal” unmodified AuNPs based biosensor to detect small molecules, proteins, and ions by the interaction between free single/double stranded DNA with the cationic polyelectrolyte in the presence of thrombin with LOD 10 nM [134]. Chen et al. have reported peptide functionalized AuNPs by the thiol group of cysteine residue for matrix metalloproteinase-7 (MMP-7) with a LOD of 5 nM [140]. Li et al. reported utilizing the AuNPs and AgNPs for the naked eye detection of proteins by the colorimetric sensor array [135]. Thomas et al. have reported the interaction of AuNPs with protein cationic regions for the potential development of AuNPs based analytical assay [148]. All of the interesting works demonstrate the AuNPs and AgNPs have the practical potential to be developed as a rapid, sensitive, cost-effective and reliable biosensors for the future protein detection.

4. Conclusions and Outlook

NMNPs based biosensor would be an ideal detection tool for the future visual quantification. The SPR effect and high extinction coefficient of NMNPs make them ideal visual probes for colorimetric based analytical applications, including visual detection and spectrometry. The NMNPs intrinsic merits would promote researchers continuing develop NMNPs as a sensitive and selective biosensor. However, NMNPs based colorimetric biosensors are developed under laboratory settings. Transferring them into “on-shelf” products need to overcome the main difficulties: (1) reproducible of NMNPs large scale synthesis; (2) consistent NMNPs shape and size by batch; (3) stability and denaturation of NMNPs surface conjugated biomolecule ligands; and, (4) interferences causes sensitivity/selectivity problems by the cellular components, tissues, and etc. [149]. To avoid the shortcomings, the development of NMNPs surface conjugation techniques and the understanding of interaction between NMNPs surface and analyses provide two suggestions for advancing the development of NMNPs based colorimetric biosensors. As the development of NMNPs surface conjugation technique, bimolecular ligand candidates could be decorated onto NMNPs surface with a high biostability and yield, low time cost, and less complexity protocols. DNA engineered NMNPs would directly benefit from the technique by conjugating biological molecules (i.g., aptamers, peptides, and oligonucleotides) utilizing the specific interaction with analyses to achieve high detection performance. With the further understanding of the interaction between NMNPs surface and analyses, the non-crosslinking strategy provides NMNPs based colorimetric biosensors another pathway by easy controlling physical factors to improve the performance of sensing assay. Inspired by this idea, the CCC salt titration approach has been developed and it is comparable to other sensing assays by optimizing condition to achieve a more sensitive detection goal. In collusion, NMNPs colorimetric biosensors are user friendly, adaptable, inexpensive, and do not require complex analytical instruments. They would offer a wide range of potential applications, including environmental testing, food safety, and biomedical industries in the future.
