The Electronic Nose Coupled with Chemometric Tools for Discriminating the Quality of Black Tea Samples In Situ

by
Shidiq Nur Hidayat
1,
Kuwat Triyana
1,2,*,
Inggrit Fauzan
3,
Trisna Julian
1,
Danang Lelono
3,
Yusril Yusuf
1,
N. Ngadiman
4,5,
Ana C.A. Veloso
6,7 and
António M. Peres
8,9
1
Department of Physics, Universitas Gadjah Mada, Yogyakarta 55281, Indonesia
2
Institute of Halal Industry and System (IHIS), Universitas Gadjah Mada, Sekip Utara, Yogyakarta 55281, Indonesia
3
Computer and Electronic Department, Universitas Gadjah Mada, Sekip Utara, Yogyakarta 55281, Indonesia
4
Agricultural Microbiology Department, Universitas Gadjah Mada, Bulaksumur, Yogyakarta 55281, Indonesia
5
PT. Pagilaran, Jl. Faridan M. Noto. 11 Kotabaru, Yogyakarta 55281, Indonesia
6
Instituto Politécnico de Coimbra, ISEC, DEQB, Rua Pedro Nunes, Quinta da Nora, 3030-199 Coimbra, Portugal
7
CEB—Centre of Biological Engineering, University of Minho, Campus de Gualtar, 4710-057 Braga, Portugal
8
Centro de Investigação de Montanha (CIMO), ESA, Instituto Politécnico de Bragança, Campus Sta Apolónia, 5300-253 Bragança, Portugal
9
Laboratory of Separation and Reaction Engineering—Laboratory of Catalysis and Materials (LSRE-LCM), ESA, Instituto Politécnico de Bragança, Campus Santa Apolónia, 5300-253 Bragança, Portugal
*
Author to whom correspondence should be addressed.
Chemosensors 2019, 7(3), 29; https://doi.org/10.3390/chemosensors7030029
Submission received: 4 June 2019 / Revised: 1 July 2019 / Accepted: 6 July 2019 / Published: 9 July 2019
(This article belongs to the Special Issue Advanced Electronic Noses and Chemical Detection Systems)
Browse Figures
Review Reports Versions Notes

Abstract

:
An electronic nose (E-nose), comprising eight metal oxide semiconductor (MOS) gas sensors, was used in situ for real-time classification of black tea according to its quality level. Principal component analysis (PCA) coupled with signal preprocessing techniques (i.e., time set value preprocessing, F1; area under curve preprocessing, F2; and maximum value preprocessing, F3), allowed grouping the samples from seven brands according to the quality level. The E-nose performance was further checked using multivariate supervised statistical methods, namely, the linear and quadratic discriminant analysis, support vector machine together with linear or radial kernels (SVM-linear and SVM-radial, respectively). For this purpose, the experimental dataset was split into two subsets, one used for model training and internal validation using a repeated K-fold cross-validation procedure (containing the samples collected during the first three days of tea production); and the other, for external validation purpose (i.e., test dataset, containing the samples collected during the 4th and 5th production days). The results pointed out that the E-nose-SVM-linear model together with the F3 signal preprocessing method was the most accurate, allowing 100% of correct predictive classifications (external-validation data subset) of the samples according to their quality levels. So, the E-nose-chemometric approach could be foreseen has a practical and feasible classification tool for assessing the black tea quality level, even when applied in-situ, at the harsh industrial environment, requiring a minimum and simple sample preparation. The proposed approach is a cost-effective and fast, green procedure that could be implemented in the near future by the tea industry.

1. Introduction

Tea (Camellia sinensis) is the most consumed non-alcoholic beverage in the world, after water [1,2,3,4,5,6,7,8,9,10]. Tea can be made from leaf and bud of Camellia sinensis through a series of production, fixation, withering, rolling, fermentation, polling and drying processes [4,8,9]. Tea contains a complex chemical composition, depending on its quality from several parameters, like climate, agronomic practices and post-harvest treatment and storage conditions [7]. The phenotype for determining quality levels of black tea in this factory refer to the Indonesian National Standard SNI 1902:2016 that consist of general quality requirements (physical and organoleptic) and specific quality requirements. The organoleptic requirements include color, shape, size and aroma of the tea samples. Meanwhile, the second requirements include the level of polyphenol, ash content and contamination of heavy metals and microbes. For routine and rapid application, the experts usually use only the physical and organoleptic. Consequently, the assessment of tea quality is a hard task that must take into account visual, aroma and taste attributes, which usually are evaluated by trained experts of sensory panels following strict regulations [11]. Nevertheless, quality assessment of tea is a key factor in strengthening confidence between tea producers and consumers.
In tea production, the factory that following a standard of the Indonesian National Standards (SNI 1902:2016). This standard adopts and harmonizes the International Organization for Standardization (ISO 3720)—Black Tea Definition and Basic Requirements [12]. The mandatory control of the implementation in the national markets is performed by Indonesia National Agency of Drug and Food Control (BPOM). The quality level is commonly assessed by trained panelists. However, this analysis, although being the official method, tends to be subjective and depends on the experience of the panelists. Furthermore, the low number of samples that can be evaluated per day poses an additional limitation. Consequently, this procedure, besides being expensive and time-consuming, may lead to inaccurate tea quality classifications [1,2,13,14]. On the other hand, several analytical techniques may be used for tea analysis such as, gas chromatography (GC), capillary electrophoresis (CE), high-performance liquid chromatography (HPLC) and plasma atomic emission spectrometry. These procedures give wide-ranging and accurate information about tea chemical composition, but they exhibit costly instrumental and operation conditions, require skilled technicians to perform the analysis, and are usually time-consuming techniques that may require complex sample pre-treatments [13,15].
Alternatively, infrared spectroscopy, FTIR spectroscopy and colorimetric sensor arrays for have been applied to identify tea variety [13], the quality of Chinese green teas [5] or to assess dry matter content of tea [4]. One of the tea quality test parameters is through testing of volatile organic compounds (VOCs). Brenet et al. used surface plasmon resonance imaging for sensing VOCs that has become a high-selective sensing device [16]. Also, electronic noses (E-nose), that utilize an array of gas sensors to give a fingerprint response to a given odor [17,18,19,20,21], combined with different multivariate statistical tools have been used for tea quality assessment and tea aroma evaluation of green or black teas from different geographical origins [1,2,22,23,24,25,26,27,28,29,30,31,32,33]. Recently, the possibility of merging different electronic devices (E-nose, E-tongue and/or E-eye), have been studied aiming to improve the overall classification performances of the single devices [3,34,35,36,37,38]. Similarly, E-nose devices, comprising metal oxide semiconductor (MOS) gas sensors have been successfully applied for assessing black tea flavor grade [39] and quality level [1,2,40]. E-Nose have advantages that rapid non-destructive analysis, adequate sensitivity and relatively low cost [41,42] but E-Nose with MOS sensors have disadvantages that sensor drift, susceptible to poisoning, high power consumption, humidity-dependent signal [41]. Therefore, in the above-mentioned works, the E-nose assays were not carried out at the industrial facilities, thus not allowing for a real-time assessment.
In this study, a lab-made E-nose with eight different MOS gas sensors was developed and used in situ in a harsh industrial environment for real-time classification of black tea samples (from seven brands) according to their quality levels. Unsupervised (principal component analysis, PCA) and supervised (linear and quadratic discriminant analysis, LDA and QDA, respectively; and support vector machines, SVM) pattern recognition statistical tools were used together with feature extraction (preprocessing) methods. Static preprocessing methods were chosen, namely, the time set value (F1), area under curve (F2), and maximum value (F3) methods. To establish the best supervised multivariate classification models, the dataset was split into a training data subset (for learning and internal validation purposes using a repeated K-fold cross-validation (CV) procedure (with 10-folds and 10 repeats)) and a test data subset (for external validation). The objective of this study is to investigate the ability of the E-nose for classifying the quality of tea in the harsh industrial environment with simple feature extraction method and the best classification model performance that could be implemented in the near future of the tea industry.

2. Materials and Methods

2.1. Tea Sample Preparation

The dried black tea samples, made from fermented leaves or combination of leaves and buds depending on the brand, were obtained from a tea plantation and factory in Pekalongan area (7°11′26.8″ S, 109°37′35.4″ E), Central Java, Indonesia. Details regarding the samples, including sample codes, quality level, sample visual aspect, as well as the sample lots (i.e., referring to the production date) included in the training and testing datasets for evaluating the supervised statistical E-nose models established are provided in Table 1.
As can be seen, tea samples from BOP, BOPF and PF brands belonged to the first (highest) quality level (Q1), while the second (medium) quality level (Q2) included samples from PFF and FF brands. Finally, the third (lowest) quality level (Q3) included the tea samples from BOHEA and PLUFF brands. It should be remarked that the price of the dried tea with a quality level of Q1 is almost twice and four times higher compared to that of Q2 and Q3, respectively.
The tea qualities were determined following the Indonesian National Standards (SNI 1902:2016) and certified by the Rainforest Alliance USA (certificate registration code: RA-F-02638). The first set of samples was obtained in five consecutive days (D1 to D5). For replication purpose, the second to the fifth set of tea samples were collected during the following five days in different weeks. Thus, in total, 175 independent tea samples were collected and further analyzed (7 brands × 5 days × 5 sample independent replicas). For each assay, 2 g of dried tea sample was placed into a 10-mL beaker (sample container) and measured using the E-nose.

2.2. Electronic Nose Apparatus and Analysis

A lab-made E-nose with eight MOS gas sensors (Taguchi gas sensor, TGS, series), obtained from Figaro Engineering, Inc. (Osaka, Japan), was used, for the first time, in-situ (at the production line of the tea factory), for real-time analysis of tea samples. The environment temperature and relative humidity during the measurements were 21 ± 2 °C and 85 ± 10%, respectively. Details regarding each MOS gas sensor comprised in the sensor device as well as the targeted gases that may be detected are given in Table 2. From Table 2, some sensors present cross sensitivity to some chemical compounds that can increase the range of the potential applications of the device in the case of E-nose. Besides the gas sensor array, the built E-nose device comprised a sampling system, a data acquisition unit (DAQ), and a signal-processing framework, as shown in Figure 1. The sampling system comprises two electronic valves (three-way system) for airflow control.
During the sampling step, airflow (a reference gas) from reference connector to valve 1 pass through the sample container to valve 2 and entering the gas sensor array setup. Meanwhile, during the delay or purging phase, the airflow from the reference gas directly passes through the gas sensor array. A 16-bit analog-to-digital converter (ADC) in an Arduino Mega microcontroller was used for the data acquisition system. Every second, a dataset with 10 signal values is sent from the microcontroller unit to the data logger using RS-232 serial communication.
Prior to measuring, the E-nose was turned for about 30 min to ensure that a steady state response is obtained. Afterward, the configuration of the phase time was set as: 10 s delay phase, 60 s sampling phase, and 300 s for purging phase. The assays were performed in situ, at the factory facilities located in the tea plantation area, without any special conditioning of room were the measurements were carried out, simulating a real application of the E-nose at an industrial level. Before each assay, the headspace equilibrium time was set equal to 5 min. The typical of sensor signal characteristics of the E-nose sensors is illustrated in Figure 2, representing the three stages of the E-nose analysis (the delay phase, the sampling phase, and the purging phase) of the i-gas sensor for a j sample.

2.3. E-nose Raw Signal Profiles and Data Preprocessing

The data matrix used for the statistical multivariate analysis included the E-nose signal profiles gathered by the eight MOS gas sensors during the tea samples analysis. The matrix data of each tea sample contained 8 sensors × 3700-row data. Each sensor i of the E-nose, an electrical signal profile was generated over the analysis time-period, for each j sample (Vij(t)). The time-dynamic response of each sensor depends on several physical parameters, such as flow rate in the sampling system, the sample’s headspace, the reaction time between the sample volatile compounds and the sensing material, and the environmental conditions like pressure, temperature and humidity [51]. In this work, three types of data preprocessing techniques were applied namely the time set value (F1), the area under the curve (F2, as illustrated a shading area in Figure 2, as described in Equation (1)), and the maximum value (F3, as described in Equation (2)) preprocessing tools [52]. When required, a time period of 70 s was used, corresponding to the time delay and the sampling analysis time as illustrated in Figure 2.
X i , j = ∫ t 0 t 1 V i , j ( t ) d t
X i , j = max ( V i , j ( t ) )

2.4. Statistical Analysis Using Unsupervised and Supervised Pattern Recognition Tools

The dataset included the preprocessed signals gathered by the eight MOS gas sensors comprised in the E-nose during the 175 assays corresponding to 175 independent samples evaluated (7 brands × 5 days × 5 sample repetitions). Principal component analysis (PCA) was used as an unsupervised pattern recognition method aiming to reduce experimental data dimension [15]. So, PCA would allow a preliminary evaluation of the capability of the E-nose to be used as unsupervised classification model of the tea samples according to their quality level.
The E-nose performance for tea quality assessment, was further evaluated by applying four supervised statistical methods, namely LDA, QDA and SVM with linear and radial kernels (RBF kernel) [53]. Previously to the statistical analysis, the data matrix was subjected to a normalization procedure (scaling and centering techniques). After this normalization step, the initial database was split into two groups, the training data subset and the testing data subset. The training data subset was used to establish the classification model, being selected the one that allowed achieving the best classification performance for the repeated K-fold cross-validation (CV) procedure (10 repeats × 10 folds, which ensured that at each validation run, 10% of the training data was left for internal validation purposes), while the testing data subset was used for the external-validation (full prediction) of the classification model previously established. For SVM, the cost and gamma parameters were tuned to get the best classification performance. The training data subset included the samples collected during the first three days of tea production (i.e., D1, D2, and D3 sets), while the testing data subset included the samples produced during the 4th and 5th production days (i.e., D4 and D5 sets) as shown in Table 1. The overall modeling development and analysis were performed using the open-source statistical software R (version 3.5.1) and using the caret [54], MASS [55], and Kernlab [56] libraries.

3. Results and Discussion

3.1. Principal Component Analysis: E-nose Performance for Tea Quality Classification

Three PCA models were established, one for each of the E-nose preprocessed data methods used (F1, F2, and F3 data preprocessing techniques). The first five principal components (PCs) functions explained more than 99% of the data variance, accounting the first three PCs of each model for 94.43%, 92.24% and 94.27% of the data variability, for F1, F2 and F3 procedures, respectively. As can be inferred from the 3D plots of the first three PCs (Figure 3, Figure 4 and Figure 5), the tea samples could be satisfactorily grouped according to the quality level (Q1, Q2 and Q3 grades), showing that the E-nose signals enabled the unsupervised sample classification. The results also pointed out the E-nose signal profiles allowed to closely group tea samples of the same brand (25 samples per brand), although a slight brand overlapping was observed between BOP and BOPF brands with PF brand, FF with PFF brand, and BOHEA with PLUFF brands. This overlapping could indicate that the aroma profiles recorded by the E-nose can be used as a tea quality fingerprint rather than a tea brand fingerprint, meaning that the olfaction device could be a tool for quality assessment tool rather than a brand classifier.
Finally, the reported quality assessment achieved with the E-nose and PCA, is in agreement with the assessment of the tea factory sensory panelists, which classified samples of BOP, BOPF and PF brands as the highest tea quality level (Q1 grade), those of PFF and FF brands as the medium tea quality level (Q2 grade), and finally, the samples from BOHEA and PLUFF brands as the lowest tea quality level (Q3 grade). Thus, the E-nose showed the potential to be used as a preliminary tool for tea quality assessment. Furthermore, from the PCA results it is also possible to infer that the F3 data preprocessing method allowed achieving the best-unsupervised discrimination performance.

3.2. Supervised Multivariate Classification Methods

Supervised multivariate classification methods, including LDA, QDA, SVM linear, and SVM radial, were further used to verify the capability of the E-nose to correctly predict, in a real-time basis and using data collected in-situ, the quality grade of tea samples. First, the multicollinearity between the E-nose preprocessed signals (after applying the F1, F2 and F3 techniques) gathered by the 8 MOS gas sensors was evaluated. The magnitude of the R-Pearson coefficients (data not shown) showed that the preprocessed signals of some E-nose sensors (S1, S3, S4, S6 and S7) were collinear (0.81 ≤ R-Pearson ≤ 0.98), being the preprocessed signals of sensors S2, S5 and S8 not collinear (R-Pearson ≤ 0.69). The collinearity found is often reported for E-noses [27] and so, different linear and non-linear supervised chemometric tools were used in this study since they can differently deal with collinearity issues [28].
For evaluating the predictive performance of the E-nose coupled with LDA, QDA, SVM linear or SVM radial models, each of the three initial datasets comprising the preprocessing signals (F1, F2 and F3 techniques) were firstly split into two groups. As mentioned, one group (105 tea samples of the seven different brands and three quality levels, collected during the three consecutive production days: D1, D2 and D3), was used for training and internal validation purposes. For the internal validation, the repeated K-fold-CV variant (10 repeats × 10 folds, leading to the 100 classification runs) was used for resampling purposes (ensuring that in each run, 10% of the training data were kept aside for internal validation), allowing estimating, in a more realistic manner (in comparison with the usual leave-one-out CV variant), the potential predictive performance of each model. The second data subset (70 tea samples of the seven different brands and three quality levels, collected during the two other consecutive production days: D4 and D5) was used for testing the predictive capabilities of each model previously established (external validation). It should be remarked that for the SVM-linear model the cost value was set equal to 1, for all the data preprocessing methods. In contrary, for the SVM-radial approach the best values of the two tuning parameters (the cost and the sigma values) were optimized (cost values of 16, 16, and 2, for F1, F2, and F3 methods, respectively; and sigma value equal to 0.2596189, 0.2934098, and 0.2246985, for F1, F2, and F3 methods respectively).
The results (Figure 6) showed that based on the training and internal validation (repeated K-fold-CV) procedures the four supervised pattern recognition tools allowed establishing satisfactory tea quality classification models, based on the signals gathered by the MOS gas sensors of the E-nose with sensitivities (i.e., percentages of correctly classified samples) greater than 90%. The SVM-linear approach was the one that showed a better agreement between the classification performances for the training and internal validation procedures, pointing out that this technique could be less prone to noise effects. Moreover, the results (Figure 6) also allowed inferring that the F3 data preprocessing technique allowed achieving the best discrimination rates, independently of the supervised classification technique used. Finally, the full predictive performance of each E-nose-supervised classification model was further evaluated using the external validation data subset, using the best model established for each of the four methods studied (LDA, QDA, SVM-linear and SVM-radial).
As can be inferred from Figure 6, the predictive classification performance of the E-nose-LDA, E-nose-QDA and E-nose-SVM-radial models significantly decreased compared to the performances previously achieved for the internal validation procedure, even if the more robust repeated K-fold-CV variant was applied. In fact, the correct classification rates decreased from values greater than 0.95 to values ranging from 0.80 to 0.93 (external validation). On the contrary, the E-nose-SVM-linear approach enabled obtaining the best predictive performance, with overall correct classification rates of 95% and 100% for F2 and F3 data preprocessing methods, respectively. These findings pointed out the relevance of selecting the adequate pattern-recognition multivariate model/data preprocessing technique for achieving the best E-nose classification performance. The sensitivity and specificity values obtained for the external-validation data for each individual tea quality group evaluated, are listed in Table 3 and Table 4. The results clearly showed the overall superior performance of the SVM-linear models and the enhanced results achieved by applying the F3 preprocessing technique. The satisfactory results clearly demonstrated the capability of using, in-situ on a real-time basis, an E-nose with MOS gas sensors, together with the SVM-linear model coupled with the maximum value signal preprocessing method (F3 technique), as a practical and potential routine analytical tool for correctly assessing tea quality level (Q1, Q2 or Q3 grades), for the seven tea brands studied (BOP, BOPF, PF, FF, PFF, BOHEA, and PLUFF). Furthermore, it should be remarked that, the satisfactory E-nose performance is in line with the discrimination performances previously reported by other researchers (sensitivities ranging from 80 to 100%) using E-nose devices for tea quality classification [1,3,24,26,27,29,32,33,34,39]. However, it should also be noticed that, contrary to the present study, the majority of these results were obtained for training or internal validation datasets, and only is few cases a test dataset was used to verify the predictive E-nose performances. Moreover, and contrary to this study, in the previous works, the E-nose devices were not tested at the usual harsh industrial conditions located in the tea plantation area.

4. Conclusions

This study demonstrates the versatility and practical potential of using a lab-made E-nose, with MOS gas sensors, coupled with signal preprocessing methods and chemometric tools for assessing the quality grade of black tea samples, from different brands and different production lots (i.e., production days). The black tea samples were obtained from tea factories in the Pekalongan region of Central Java, Indonesia, being the assays performed in situ, showing for the first time, that an E-nose could be used as a tea quality assessment tool, even in the usual harsh factory environments. The results showed that the maximum value preprocessing method allowed for the best unsupervised and supervised overall correct classification rates. Also, the E-nose-SVM-linear model enabled achieving 100% of correct full predictive classifications (external-validation dataset containing 70 independent tea samples of three quality levels from the seven brands, collected during two production days). Hopefully, the reported satisfactory predictive performance may contribute to the future implementation of this type of E-nose device/chemometric approach by tea factories as well as by governmental agencies, for black tea quality assessment. The E-nose could be used in situ and on a real-time basis as a preliminary fast and cost-effective tea quality assessment tool, reducing the number of samples to be evaluated by expert sensory panelists, overcoming the scarcity of official sensory panels, minimizing the human subjectivity on the tea evaluation, and increasing the limited number of samples panelists can evaluate per day.

Author Contributions

Conceptualization, K.T. and A.M.P.; Data curation, I.F., D.L., and N.N.; Formal analysis, S.N.H., K.T., A.C.A.V. and A.M.P.; Funding acquisition, K.T.; Investigation, I.F.; Methodology, K.T., T.J., A.C.A.V.; Project administration, T.J.; Resources, Y.Y. and N.N.; Software, S.N.H., A.C.A.V. and A.M.P.; Supervision, K.T. and N.N.; Validation, K.T., T.J., Y.Y.; Visualization, D.L. and A.M.P.; Writing—original draft, S.N.H., D.L.; Writing—review & editing, K.T., A.C.A.V., A.M.P.

Funding

This research and APC were funded by the Ministry of Research, Technology and Higher Education of the Republic of Indonesia through a research scheme of PTUPT 2019 (Contract No. 2688/UN1.DITLIT/DIT-LIT/LT/2019). This work was also financially supported by strategic project UID/EQU/50020/2019—Associate Laboratory LSRE-LCM, strategic project PEst-OE/AGR/UI0690/2014–CIMO, strategic funding UID/BIO/04469/2019-CEB and BioTecNorte operation (NORTE-01-0145-FEDER-000004), all funded by European Regional Development Fund (ERDF) through COMPETE2020—Programa Operacional Competitividade e Internacionalização (POCI)—and by national funds through FCT—Fundação para a Ciência e a Tecnologia I.P.

Acknowledgments

The authors would like also to thank PT Pagilaran (tea plantation and factory in Pekalongan area, Central Java, Indonesia) for providing all tea samples.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Lelono, D.; Triyana, K.; Hartati, S.; Istiyanto, J.E. Development of Electronic Nose with High Stable Sample Heater to Classify Quality Levels of Local Black Tea. Int. J. Adv. Sci. Eng. Inf. Technol. 2017, 7, 352–358. [Google Scholar] [CrossRef]
  2. Lelono, D.; Triyana, K.; Hartati, S.; Istiyanto, J.E. Classification of Indonesia black teas based on quality by using electronic nose and principal component analysis. In AIP Conference Proceedings; AIP Publishing: Melville, NY, USA, 2016; Volume 1755, p. 020003. [Google Scholar]
  3. Zhi, R.; Zhao, L.; Zhang, D. A Framework for the Multi-Level Fusion of Electronic Nose and Electronic Tongue for Tea Quality Assessment. Sensors 2017, 17, 1007. [Google Scholar] [CrossRef] [PubMed]
  4. Li, X.; Luo, L.; He, Y.; Xu, N. Determination of dry matter content of tea by near and middle infrared spectroscopy coupled with wavelet-based data mining algorithms. Comput. Electron. Agric. 2013, 98, 46–53. [Google Scholar] [CrossRef]
  5. Li, L.; Xie, S.; Zhu, F.; Ning, J.; Chen, Q.; Zhang, Z. Colorimetric sensor array-based artificial olfactory system for sensing Chinese green tea’s quality: A method of fabrication. Int. J. Food Prop. 2017, 20, 1–12. [Google Scholar] [CrossRef]
  6. Loutfi, A.; Coradeschi, S.; Mani, G.K.; Shankar, P.; Rayappan, J.B.B. Electronic noses for food quality: A review. J. Food Eng. 2015, 144, 103–111. [Google Scholar] [CrossRef]
  7. Gong, X.; Han, Y.; Zhu, J.; Hong, L.; Zhu, D.; Liu, J.; Zhang, X.; Niu, Y.; Xiao, Z. Identification of the aroma-active compounds in Longjing tea characterized by odor activity value, gas chromatography-olfactometry, and aroma recombination. Int. J. Food Prop. 2017, 20, S1107–S1121. [Google Scholar] [CrossRef]
  8. Li, H.; Zhang, B.; Hu, W.; Liu, Y.; Dong, C.; Chen, Q. Monitoring black tea fermentation using a colorimetric sensor array-based artificial olfaction system. J. Food Process. Preserv. 2018, 42, e13348. [Google Scholar] [CrossRef]
  9. Alcázar, A.; Ballesteros, O.; Jurado, J.M.; Pablos, F.; Martín, M.J.; Vilches, J.L.; Navalón, A. Differentiation of Green, White, Black, Oolong, and Pu-erh Teas According to Their Free Amino Acids Content. J. Agric. Food Chem. 2007, 55, 5960–5965. [Google Scholar] [CrossRef]
  10. Sun, Y.; Wang, J.; Cheng, S. Discrimination among tea plants either with different invasive severities or different invasive times using MOS electronic nose combined with a new feature extraction method. Comput. Electron. Agric. 2017, 143, 293–301. [Google Scholar] [CrossRef]
  11. GB/T 23776-2009. Methodology of Sensory Evaluation of Tea. Available online: https://webstore.ansi.org/standards/spc/gb237762009 (accessed on 8 July 2019).
  12. Badan Standarisasi Nasional SNI: 1902:2016. Available online: https://www.scribd.com/document/322613336/SNI-1902-2016 (accessed on 8 July 2019).
  13. Li, X.; Sun, C.; Luo, L.; He, Y. Determination of tea polyphenols content by infrared spectroscopy coupled with iPLS and random frog techniques. Comput. Electron. Agric. 2015, 112, 28–35. [Google Scholar] [CrossRef]
  14. Ghosh, S.; Tudu, B.; Bhattacharyya, N.; Bandyopadhyay, R. A recurrent Elman network in conjunction with an electronic nose for fast prediction of optimum fermentation time of black tea. Neural Comput. Appl. 2017, 31, 1–7. [Google Scholar] [CrossRef]
  15. Tazi, I.; Triyana, K.; Siswanta, D.; Veloso, A.C.A.; Peres, A.M.; Dias, L.G. Dairy products discrimination according to the milk type using an electrochemical multisensor device coupled with chemometric tools. J. Food Meas. Charact. 2018, 12, 2385–2393. [Google Scholar] [CrossRef] [Green Version]
  16. Brenet, S.; John-Herpin, A.; Gallat, F.X.; Musnier, B.; Buhot, A.; Herrier, C.; Rousselle, T.; Livache, T.; Hou, Y. Highly-Selective Optoelectronic Nose Based on Surface Plasmon Resonance Imaging for Sensing Volatile Organic Compounds. Anal. Chem. 2018, 90, 9879–9887. [Google Scholar] [CrossRef]
  17. Hidayat, S.N.; Triyana, K. Optimized back-propagation combined with radial basic neural network for improving performance of the electronic nose: Case study on the fermentation process of tempeh. In AIP Conference Proceedings; AIP Publishing: Melville, NY, USA, 2016; Volume 1755. [Google Scholar]
  18. Triyana, K.; Taukhid Subekti, M.; Aji, P.; Nur Hidayat, S.; Rohman, A. Development of Electronic Nose with Low-Cost Dynamic Headspace for Classifying Vegetable Oils and Animal Fats. Appl. Mech. Mater. 2015, 771, 50–54. [Google Scholar] [CrossRef]
  19. Hidayat, S.N.; Nuringtyas, T.R.; Triyana, K. Electronic Nose Coupled with Chemometrics for Monitoring of Tempeh Fermentation Process. In Proceedings of the 4th International Conference on Science and Technology (ICST), Yogyakarta, Indonesia, 7–8 August 2018; Volume 1, pp. 1–6. [Google Scholar]
  20. Julian, T.; Hidayat, S.N.; Triyana, K. Metal Oxide Semiconductor Based Electronic Nose as Classification and Prediction Instrument for Nicotine Concentration in Unflavoured Electronic Juice. In Proceedings of the 4th International Conference on Science and Technology (ICST), Yogyakarta, Indonesia, 7–8 August 2018; Volume 1, pp. 1–5. [Google Scholar]
  21. Arshak, K.; Moore, E.; Lyons, G.M.; Harris, J.; Clifford, S. A Review of Gas Sensors Employed in Electronic Nose Applications; Emerald Group Publishing: Bingley, UK, 2004; Volume 24, ISBN 0260228001. [Google Scholar]
  22. Biswas, P.; Chatterjee, S.; Kumar, N.; Singh, M.; Basu Majumder, A.; Bera, B. Integrated Determination of Tea Quality Based on Taster’s Evaluation, Biochemical Characterization and Use of Electronics. In Smart Sensors, Measurement and Instrumentation; Springer: Berlin, Germany, 2014; pp. 95–117. [Google Scholar]
  23. Saha, P.; Ghorai, S.; Tudu, B.; Bandyopadhyay, R.; Bhattacharyya, N. Multiclass Kernel Classifiers for Quality Estimation of Black Tea Using Electronic Nose. In Smart Sensors, Measurement and Instrumentation; Springer: Berlin, Germany, 2014; pp. 141–160. [Google Scholar]
  24. Saha, P.; Ghorai, S.; Tudu, B.; Bandyopadhyay, R.; Bhattacharyya, N. Optimization of Sensor Array in Electronic Nose by Combinational Feature Selection Method. In Smart Sensors, Measurement and Instrumentation; Springer: Berlin, Germany, 2014; pp. 189–205. [Google Scholar]
  25. Chen, Q.; Liu, A.; Zhao, J.; Ouyang, Q. Classification of tea category using a portable electronic nose based on an odor imaging sensor array. J. Pharm. Biomed. Anal. 2013, 84, 77–83. [Google Scholar] [CrossRef] [PubMed]
  26. Chen, Q.; Zhao, J.; Chen, Z.; Lin, H.; Zhao, D.-A. Discrimination of green tea quality using the electronic nose technique and the human panel test, comparison of linear and nonlinear classification tools. Sensors Actuators B Chem. 2011, 159, 294–300. [Google Scholar] [CrossRef]
  27. Yu, H.; Wang, J.; Xiao, H.; Liu, M. Quality grade identification of green tea using the eigenvalues of PCA based on the E-nose signals. Sens. Actuators B Chem. 2009, 140, 378–382. [Google Scholar] [CrossRef]
  28. Yu, H.; Wang, J.; Zhang, H.; Yu, Y.; Yao, C. Identification of green tea grade using different feature of response signal from E-nose sensors. Sens. Actuators B Chem. 2008, 128, 455–461. [Google Scholar] [CrossRef]
  29. Yu, H.; Wang, J. Discrimination of LongJing green-tea grade by electronic nose. Sensors Actuators B Chem. 2007, 122, 134–140. [Google Scholar] [CrossRef]
  30. Dai, Y.; Zhi, R.; Zhao, L.; Gao, H.; Shi, B.; Wang, H. Longjing tea quality classification by fusion of features collected from E-nose. Chemom. Intell. Lab. Syst. 2015, 144, 63–70. [Google Scholar] [CrossRef]
  31. Ralisnawati, D.; Sukartiko, A.C.; Suryandono, A.; Triyana, K. Detecting aroma changes of local flavored green tea (Camellia sinensis) using electronic nose. IOP Conf. Ser. Earth Environ. Sci. 2018, 131, 012004. [Google Scholar] [CrossRef] [Green Version]
  32. Banerjee(Roy), R.; Tudu, B.; Shaw, L.; Jana, A.; Bhattacharyya, N.; Bandyopadhyay, R. Instrumental testing of tea by combining the responses of electronic nose and tongue. J. Food Eng. 2012, 110, 356–363. [Google Scholar] [CrossRef]
  33. Kaur, R.; Kumar, R.; Gulati, A.; Ghanshyam, C.; Kapur, P.; Bhondekar, A.P. Enhancing electronic nose performance: A novel feature selection approach using dynamic social impact theory and moving window time slicing for classification of Kangra orthodox black tea (Camellia sinensis (L.) O. Kuntze). Sens. Actuators B Chem. 2012, 166–167, 309–319. [Google Scholar] [CrossRef]
  34. Banerjee(Roy), R.; Chattopadhyay, P.; Tudu, B.; Bhattacharyya, N.; Bandyopadhyay, R. Artificial flavor perception of black tea using fusion of electronic nose and tongue response: A Bayesian statistical approach. J. Food Eng. 2014, 142, 87–93. [Google Scholar] [CrossRef]
  35. Zakaria, N.; Masnan, M.; Zakaria, A.; Shakaff, A. A Bio-Inspired Herbal Tea Flavour Assessment Technique. Sensors 2014, 14, 12233–12255. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Banerjee, M.B.; Roy, R.B.; Tudu, B.; Bandyopadhyay, R.; Bhattacharyya, N. Cross-Perception Fusion Model of Electronic Nose and Electronic Tongue for Black Tea Classification. In Communications in Computer and Information Science; Springer: Berlin, Germany, 2017; pp. 407–415. [Google Scholar]
  37. Xu, M.; Wang, J.; Gu, S. Rapid identification of tea quality by E-nose and computer vision combining with a synergetic data fusion strategy. J. Food Eng. 2019, 241, 10–17. [Google Scholar] [CrossRef]
  38. Banerjee, M.B.; Roy, R.B.; Tudu, B.; Bandyopadhyay, R.; Bhattacharyya, N. Black tea classification employing feature fusion of E-Nose and E-Tongue responses. J. Food Eng. 2019, 244, 55–63. [Google Scholar] [CrossRef]
  39. Dutta, L.; Talukdar, C.; Hazarika, A.; Bhuyan, M. A Novel Low-Cost Hand-Held Tea Flavor Estimation System. IEEE Trans. Ind. Electron. 2018, 65, 4983–4990. [Google Scholar] [CrossRef]
  40. Modak, A.; Roy, R.B.; Tudu, B.; Bandyopadhyay, R.; Bhattacharyya, N. A novel fuzzy based signal analysis technique in electronic nose and electronic tongue for black tea quality analysis. In Proceedings of the 2016 IEEE First International Conference on Control, Measurement and Instrumentation (CMI), Kolkata, India, 8–10 January 2016; pp. 279–283. [Google Scholar]
  41. Majchrzak, T.; Wojnowski, W.; Dymerski, T.; Gębicki, J.; Namieśnik, J. Electronic noses in classification and quality control of edible oils: A review. Food Chem. 2018, 246, 192–201. [Google Scholar] [CrossRef]
  42. Wojnowski, W.; Majchrzak, T.; Dymerski, T.; Gębicki, J.; Namieśnik, J. Portable electronic nose based on electrochemical sensors for food quality assessment. Sensors 2017, 17, 2715. [Google Scholar] [CrossRef]
  43. Figaro Engineering Inc. TGS 2620 for the Detection of Solvent Vapors; Figaro Engineering Inc.: Osaka, Japan, 2014. [Google Scholar]
  44. Figaro Engineering Inc. TGS 2612-for the Detection of Methane and LP Gas; Figaro Engineering Inc.: Osaka, Japan, 2014. [Google Scholar]
  45. Figaro Engineering Inc. TGS 832-A00-for the Detection of Chlorofluorocarbons; Figaro Engineering Inc.: Osaka, Japan, 2012. [Google Scholar]
  46. Figaro Engineering Inc. TGS 822-for the Detection of Organic Solvent Vapors; Figaro Engineering Inc.: Osaka, Japan, 2002; Volume 1. [Google Scholar]
  47. Figaro Engineering Inc. TGS 2603-for Detection of Odor and Air Contaminants; Figaro Engineering Inc.: Osaka, Japan, 2014. [Google Scholar]
  48. Figaro Engineering Inc. TGS 2600-for the Detection of Air Contaminants; Figaro Engineering Inc.: Osaka, Japan, 2015; ISBN 8478321705. [Google Scholar]
  49. Figaro Engineering Inc. TGS 813-for the Detection of Combustible Gases; Figaro Engineering Inc.: Osaka, Japan, 2002. [Google Scholar]
  50. Figaro Engineering Inc. TGS 826-Ammonia Sensor-MOX Sensor; Figaro Engineering Inc.: Osaka, Japan, 2014. [Google Scholar]
  51. Hines, E.L.; Llobet, E.; Gardner, J.W. Electronic noses: A review of signal processing techniques. IEE Proc. Circuits Devices Syst. 1999, 146, 297–310. [Google Scholar] [CrossRef]
  52. Yan, J.; Guo, X.; Duan, S.; Jia, P.; Wang, L.; Peng, C.; Zhang, S. Electronic Nose Feature Extraction Methods: A Review. Sensors 2015, 15, 27804–27831. [Google Scholar] [CrossRef] [PubMed]
  53. Hastie, T.; Tibshirani, R.; Friedman, J. The Elements of Statistical Learning; Springer Series in Statistics; Springer: New York, NY, USA, 2009; Volume 1, ISBN 978-0-387-84857-0. [Google Scholar]
  54. Kuhn, M. Others Caret package. J. Stat. Softw. 2008, 28, 1–26. [Google Scholar]
  55. Package ‘MASS’. Available online: https://cran.r-project.org/web/packages/MASS/MASS.pdf (accessed on 8 July 2019).
  56. Karatzoglou, A.; Smola, A.; Hornik, K.; Zeileis, A. Kernlab-an S4 package for kernel methods in R. J. Stat. Softw. 2004, 11, 1–20. [Google Scholar] [CrossRef]
Chemosensors 07 00029 g001 550

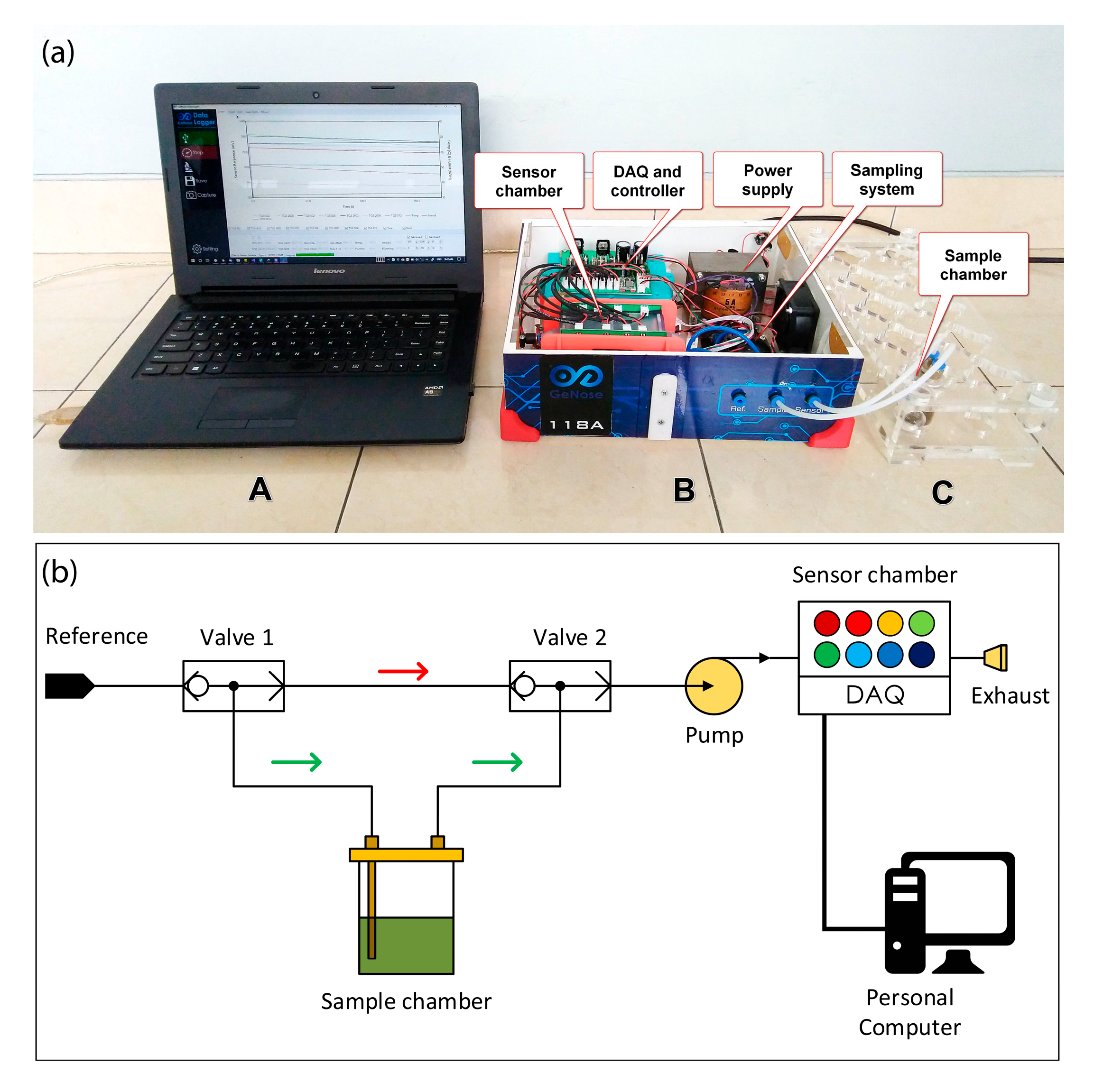

Figure 1. (a) Photograph the E-nose device used in this study (A: computer with chemometric tools, B: main part of the E-nose devices, and C: chamber of sample); (b) Schematic diagram of the E-nose device (DAQ: data acquisition system).
Figure 1. (a) Photograph the E-nose device used in this study (A: computer with chemometric tools, B: main part of the E-nose devices, and C: chamber of sample); (b) Schematic diagram of the E-nose device (DAQ: data acquisition system).
Chemosensors 07 00029 g001
Chemosensors 07 00029 g002 550

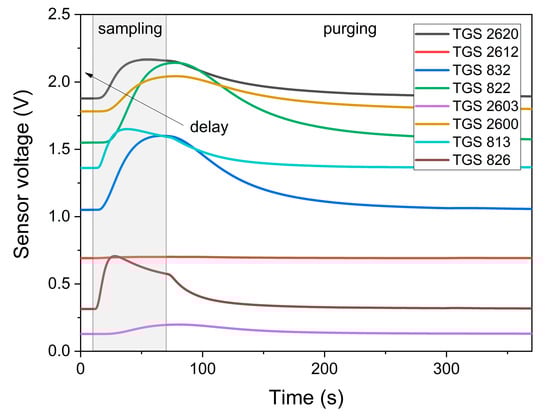

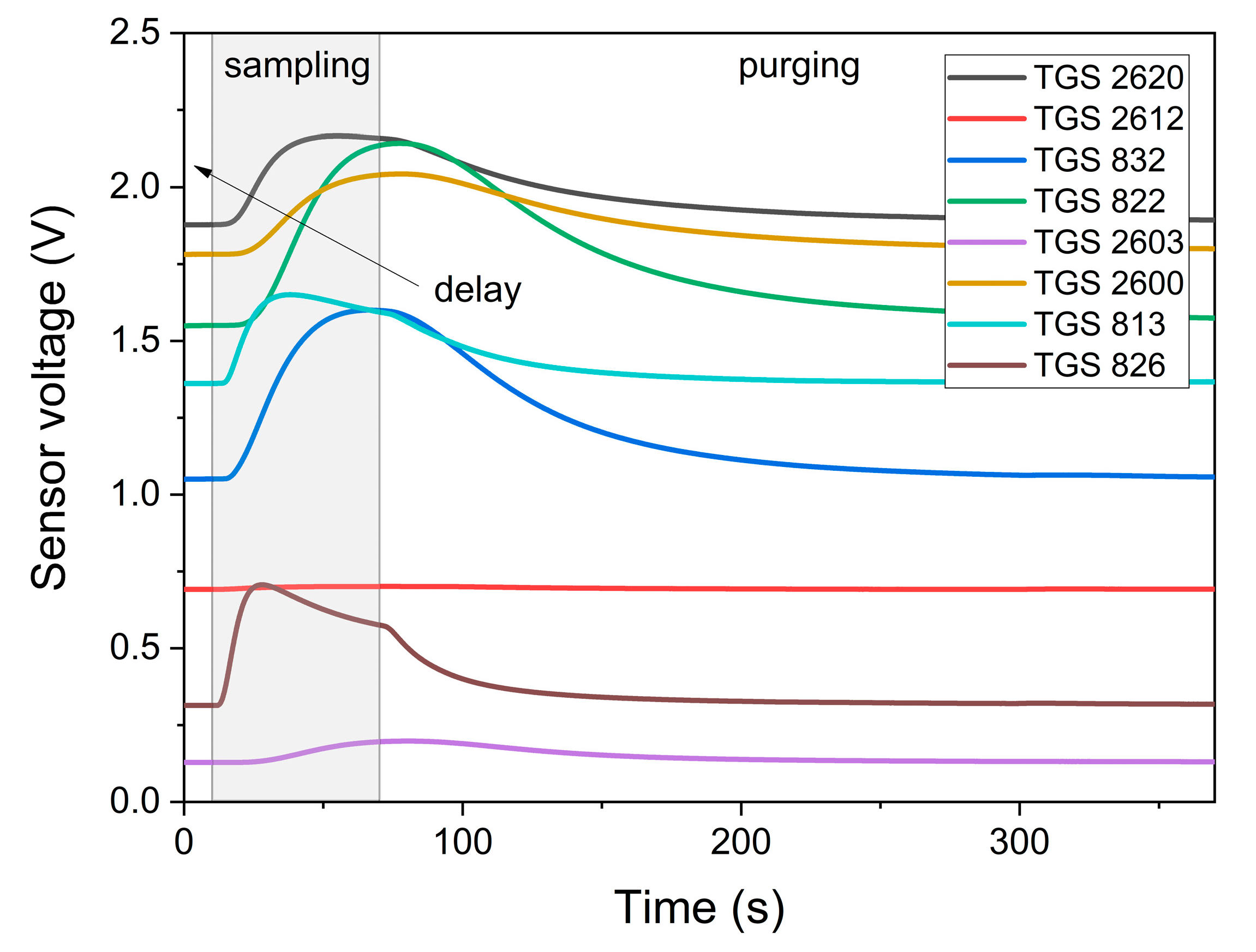

Figure 2. An example of the real e-nose responses when detecting a BOP tea sample.
Figure 2. An example of the real e-nose responses when detecting a BOP tea sample.
Chemosensors 07 00029 g002
Chemosensors 07 00029 g003 550

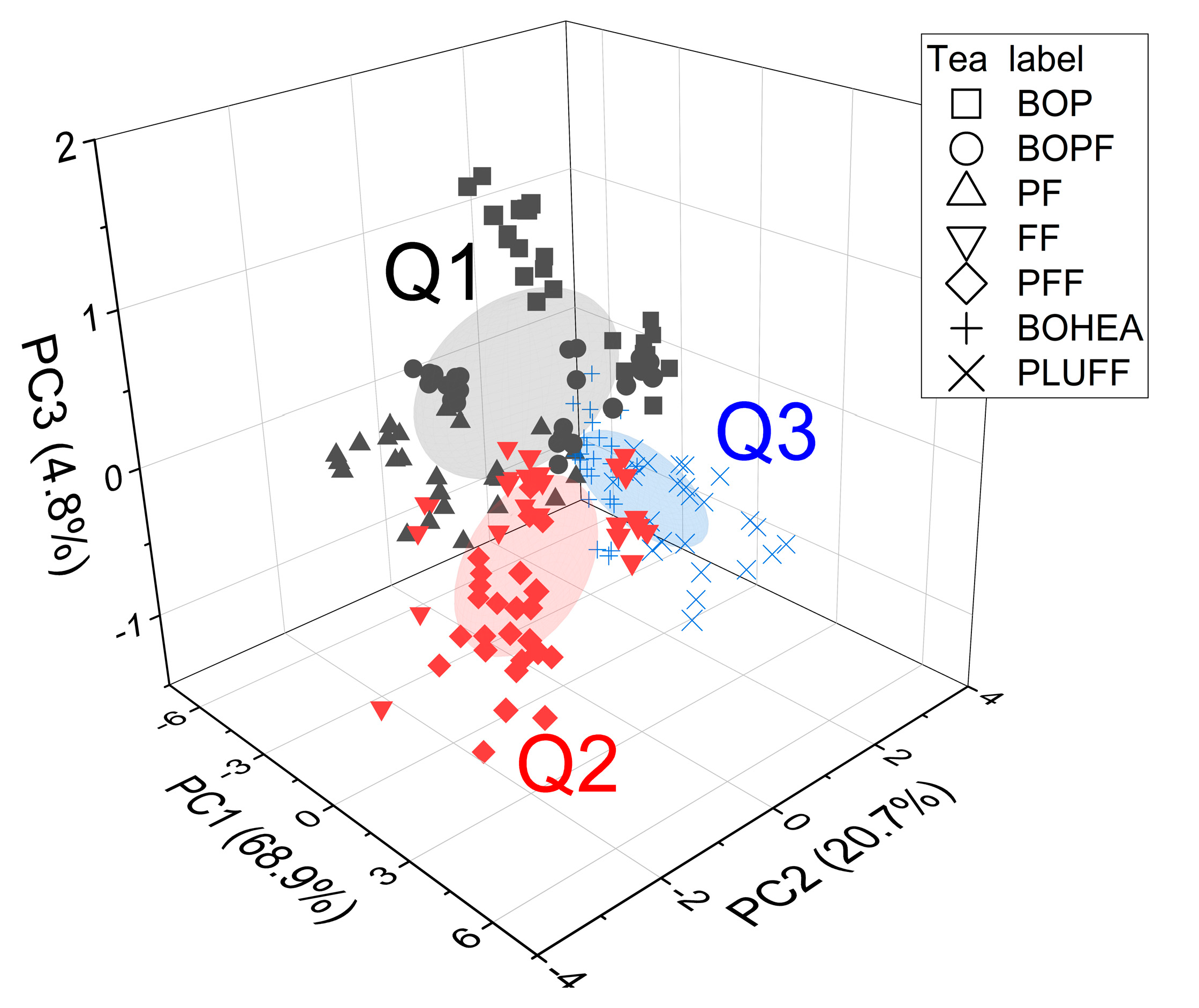

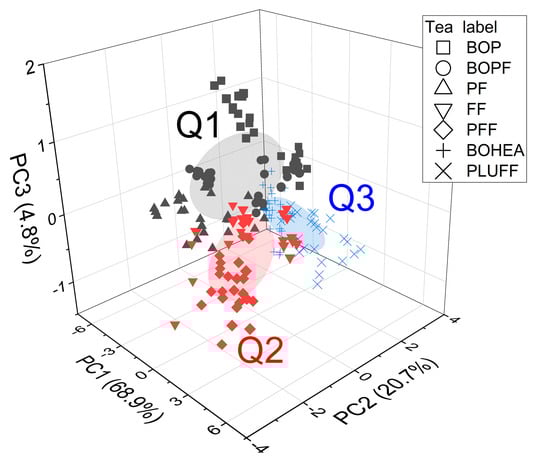

Figure 3. PCA 3D plots with confident level 50% regarding the unsupervised classification of tea samples from different brands (BOHEA, BOP, BOPF, FF, PF and PLUFF as listed in Table 1) according to their quality grades (Q1, Q2 and Q3) based on the E-nose profiles after signal preprocessing data treatment using F1 procedure.
Figure 3. PCA 3D plots with confident level 50% regarding the unsupervised classification of tea samples from different brands (BOHEA, BOP, BOPF, FF, PF and PLUFF as listed in Table 1) according to their quality grades (Q1, Q2 and Q3) based on the E-nose profiles after signal preprocessing data treatment using F1 procedure.
Chemosensors 07 00029 g003
Chemosensors 07 00029 g004 550

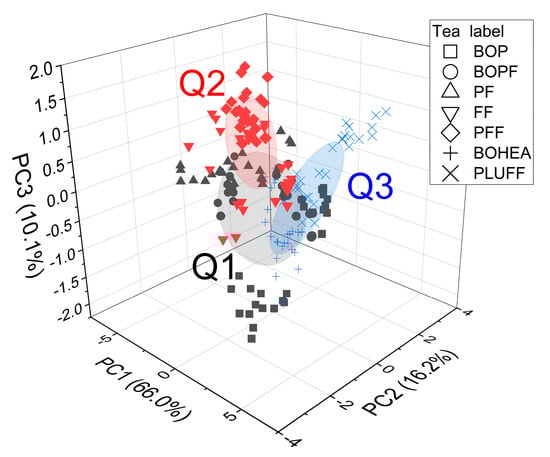

Figure 4. PCA 3D plots with confident level 50% regarding the unsupervised classification of tea samples from different brands (BOHEA, BOP, BOPF, FF, PF and PLUFF, as listed in Table 1) according to their quality grades (Q1, Q2 and Q3) based on the E-nose profiles after signal preprocessing data treatment using F2 procedure. PC1, PC2 and PC3 are the 1st, 2nd and 3rd principal component functions.
Figure 4. PCA 3D plots with confident level 50% regarding the unsupervised classification of tea samples from different brands (BOHEA, BOP, BOPF, FF, PF and PLUFF, as listed in Table 1) according to their quality grades (Q1, Q2 and Q3) based on the E-nose profiles after signal preprocessing data treatment using F2 procedure. PC1, PC2 and PC3 are the 1st, 2nd and 3rd principal component functions.
Chemosensors 07 00029 g004
Chemosensors 07 00029 g005 550

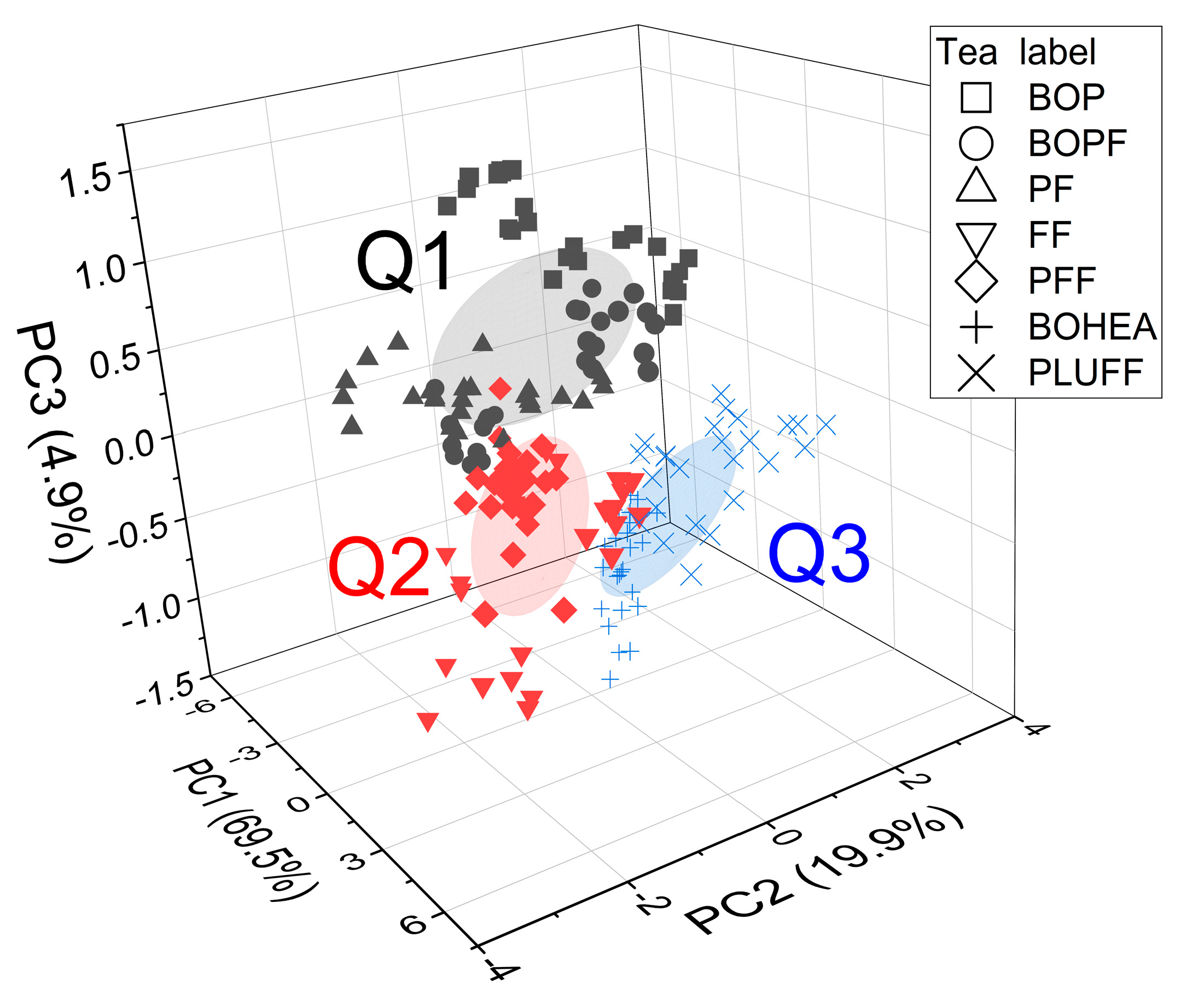

Figure 5. PCA 3D plots with confident level 50% regarding the unsupervised classification of tea samples from different brands (BOHEA, BOP, BOPF, FF, PF and PLUFF, as listed in Table 1) according to their quality grades (Q1, Q2 and Q3) based on the E-nose profiles after signal preprocessing data treatment using F3 procedure. PC1, PC2 and PC3 are the 1st, 2nd and 3rd principal component functions.
Figure 5. PCA 3D plots with confident level 50% regarding the unsupervised classification of tea samples from different brands (BOHEA, BOP, BOPF, FF, PF and PLUFF, as listed in Table 1) according to their quality grades (Q1, Q2 and Q3) based on the E-nose profiles after signal preprocessing data treatment using F3 procedure. PC1, PC2 and PC3 are the 1st, 2nd and 3rd principal component functions.
Chemosensors 07 00029 g005
Chemosensors 07 00029 g006 550

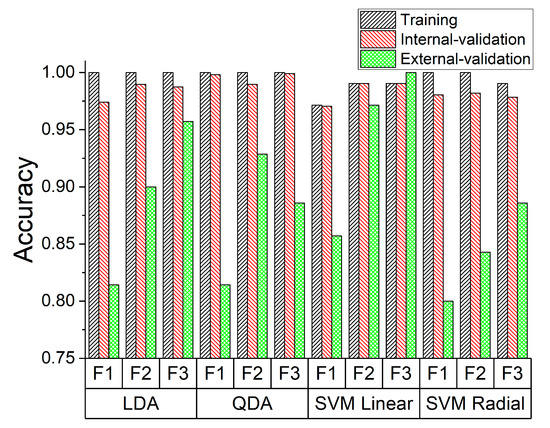

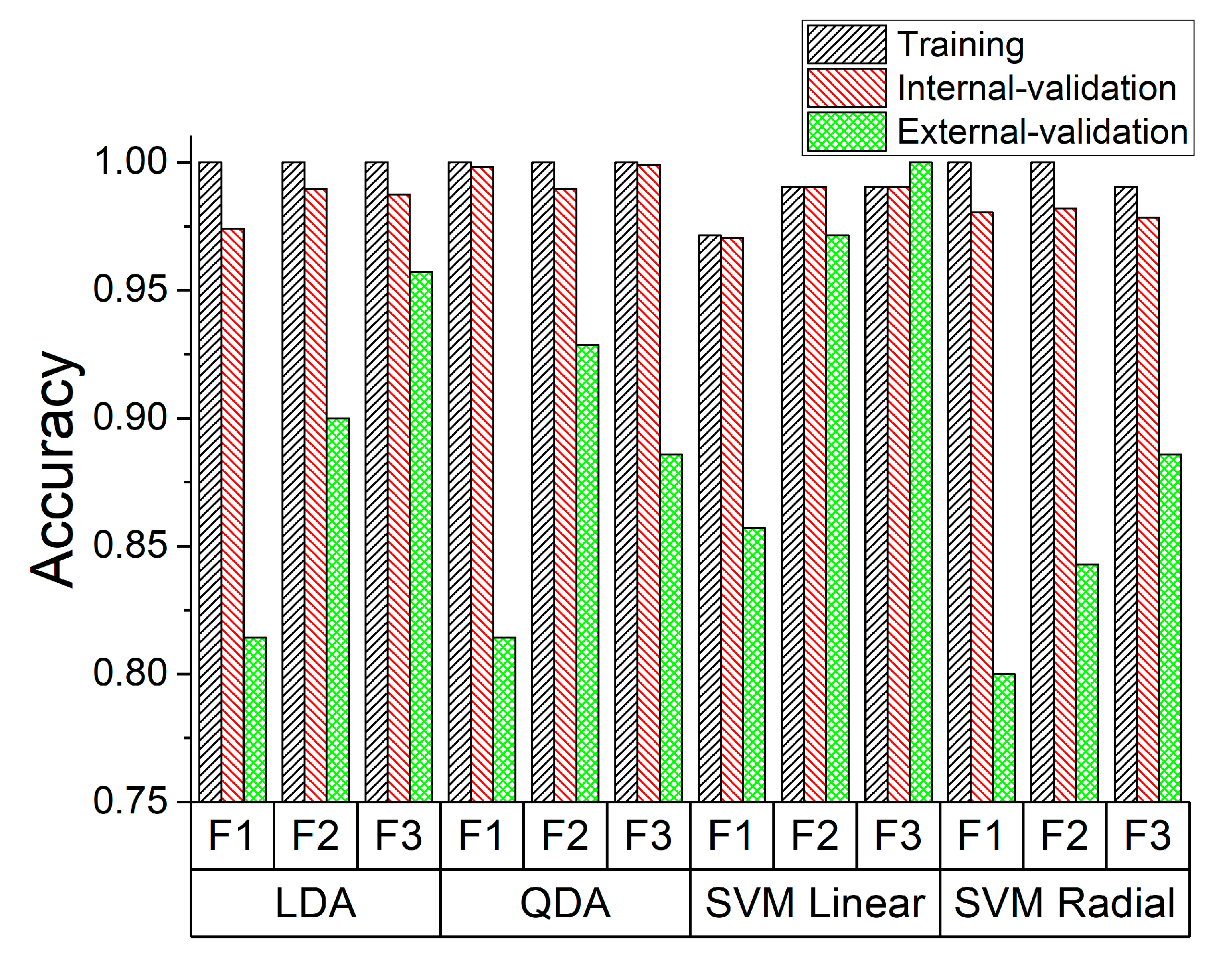

Figure 6. Accuracy achieved for training (black bars), internal validation using the repeated K-fold-CV procedure (10 repeats and 10 folds, red bars), and external-validation (testing dataset, green bars) for the combinations of supervised pattern recognition tool (LDA, QDA, SVM-linear or SVM-radial) and data preprocessing method (F1, F2 or F3).
Figure 6. Accuracy achieved for training (black bars), internal validation using the repeated K-fold-CV procedure (10 repeats and 10 folds, red bars), and external-validation (testing dataset, green bars) for the combinations of supervised pattern recognition tool (LDA, QDA, SVM-linear or SVM-radial) and data preprocessing method (F1, F2 or F3).
Chemosensors 07 00029 g006
Table
Table 1. List of dried black tea samples.
Table 1. List of dried black tea samples.
Samples CodesQuality LevelBrandSample Visual AspectTrain DatasetTesting Dataset
A1Q1Broken Orange Pekoe (BOP) Chemosensors 07 00029 i001D1
D2
D3		D4
D5
A2Q1Broken Orange Pekoe Fannings (BOPF) Chemosensors 07 00029 i002D1
D2
D3		D4
D5
A3Q1Pekeo Fanings (PF) Chemosensors 07 00029 i003D1
D2
D3		D4
D5
B1Q2Pekoe Fanning II (PFF) Chemosensors 07 00029 i004D1
D2
D3		D4
D5
B2Q2Fanning II (FF) Chemosensors 07 00029 i005D1
D2
D3		D4
D5
C1Q3BOHEA Chemosensors 07 00029 i006D1
D2
D3		D4
D5
C2Q3PLUFF Chemosensors 07 00029 i007D1
D2
D3		D4
D5
Table
Table 2. List of sensors used in the E-nose.
Table 2. List of sensors used in the E-nose.
Main Targeted AnalytesSensor SeriesMeasurement RangeSensitivity (Change Ratio of Rs)Limit of Detection (LoD), ppmCross-Sensitivity
Alcohol, Solvent Vapors [43]TGS 262050 to 5000 ppm ethanol0.3 to 0.5 in ethanol50Methane, carbon monoxide, iso-butane, hydrogen, ethanol
Methane, Propane, Iso-Butane [44]TGS 26121 to 25% Lower Explosive Limits (LEL) of each gas0.50 to 0.65300Ethanol, methane, iso-butane, propane
Chlorofluorocarbons [45]TGS 8324 to 40 kΩ in 1,1,1,2-Tetrafluoroethane (R-134a) at 100 ppm/air0.50 to 0.6510Chlorofluorocarbons, hydrofluorocarbons refrigerant gas, ethanol
Organic Solvent Vapors [46]TGS 8221 to 10 kΩ in ethanol at 300 ppm/air0.40 ± 0.1050Methane, carbon monoxide, isobutane, n-hexane, benzene, ethanol, acetone
Air Contaminants (Trimethylamine, Methyl Mercaptan, etc.) [47]TGS 26031 to 10 ppm ethanol<0.50.3Hydrogen, hydrogen sulfide, methyl mercaptan, trimethylamine, ethanol
Air Contaminants (Hydrogen, Ethanol, etc.) [48]TGS 26001 to 30 ppm of H20.3 to 0.61Methane, carbon monoxide, iso-butane, ethanol, hydrogen
Combustible Gases [49]TGS 8135 to 15 kΩ in methane at 1000 ppm/Air0.60 ± 0.05500Carbon monoxide, methane, ethanol, propane, isobutane, hydrogen
Ammonia [50]TGS 82630 to 300 ppm0.55 ± 0.1530Iso-butane, hydrogen, ammonia, ethanol
Table
Table 3. Sensitivity values (correct classification rate, i.e., true positive rate) achieved for the external validation dataset (testing dataset), per grouping class.
Table 3. Sensitivity values (correct classification rate, i.e., true positive rate) achieved for the external validation dataset (testing dataset), per grouping class.
Data PreprocessingClassLDAQDASVM-LinearSVM-Radial
F1Q10.801.001.000.83
Q20.650.350.500.55
Q31.001.001.001.00
F2Q10.901.000.970.90
Q20.800.750.950.60
Q31.001.001.001.00
F3Q11.001.001.001.00
Q20.850.601.000.60
Q31.001.001.001.00
Table
Table 4. Specificity values (i.e., true negative rate) achieved for the external validation dataset (testing dataset), per grouping class.
Table 4. Specificity values (i.e., true negative rate) achieved for the external validation dataset (testing dataset), per grouping class.
Data PreprocessingClassLDAQDASVM-LinearSVM-Radial
F1Q10.850.680.750.78
Q20.961.001.000.96
Q30.901.001.000.94
F2Q10.900.880.980.80
Q20.981.000.980.98
Q30.961.001.000.96
F3Q10.950.801.000.80
Q21.001.001.001.00
Q30.981.001.001.00

Share and Cite

MDPI and ACS Style

Hidayat, S.N.; Triyana, K.; Fauzan, I.; Julian, T.; Lelono, D.; Yusuf, Y.; Ngadiman, N.; Veloso, A.C.A.; Peres, A.M. The Electronic Nose Coupled with Chemometric Tools for Discriminating the Quality of Black Tea Samples In Situ. Chemosensors 2019, 7, 29. https://doi.org/10.3390/chemosensors7030029

AMA Style

Hidayat SN, Triyana K, Fauzan I, Julian T, Lelono D, Yusuf Y, Ngadiman N, Veloso ACA, Peres AM. The Electronic Nose Coupled with Chemometric Tools for Discriminating the Quality of Black Tea Samples In Situ. Chemosensors. 2019; 7(3):29. https://doi.org/10.3390/chemosensors7030029

Chicago/Turabian Style

Hidayat, Shidiq Nur, Kuwat Triyana, Inggrit Fauzan, Trisna Julian, Danang Lelono, Yusril Yusuf, N. Ngadiman, Ana C.A. Veloso, and António M. Peres. 2019. "The Electronic Nose Coupled with Chemometric Tools for Discriminating the Quality of Black Tea Samples In Situ" Chemosensors 7, no. 3: 29. https://doi.org/10.3390/chemosensors7030029

APA Style

Hidayat, S. N., Triyana, K., Fauzan, I., Julian, T., Lelono, D., Yusuf, Y., Ngadiman, N., Veloso, A. C. A., & Peres, A. M. (2019). The Electronic Nose Coupled with Chemometric Tools for Discriminating the Quality of Black Tea Samples In Situ. Chemosensors, 7(3), 29. https://doi.org/10.3390/chemosensors7030029

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
