Exploring Co-Occurring Clinical and Treatment Characteristics Associated with In Vitro Fertilization Failure in Polycystic Ovary Syndrome: An Association Rule Mining Approach

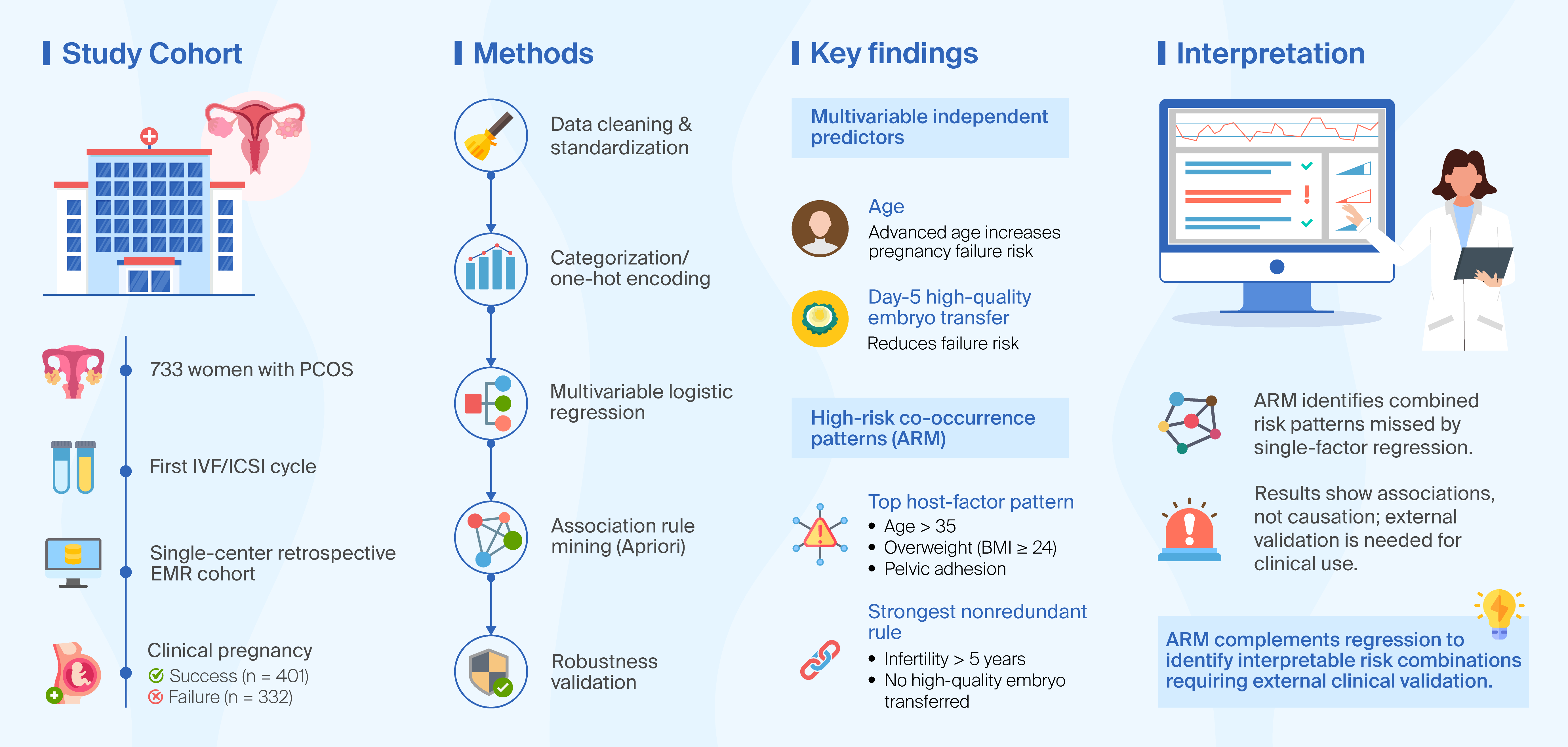

Abstract
1. Introduction

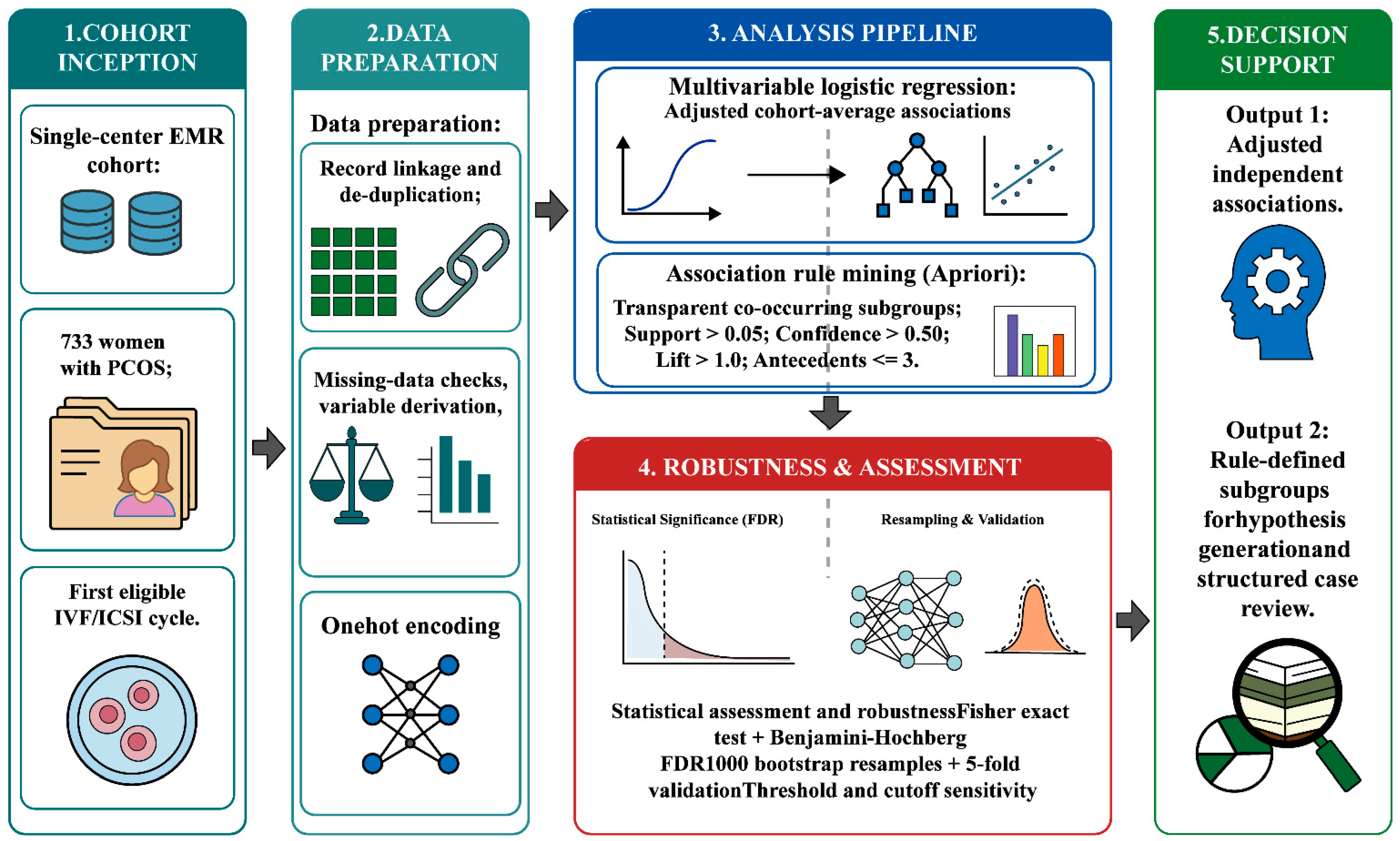

2. Methods and Materials
2.1. Data Sources

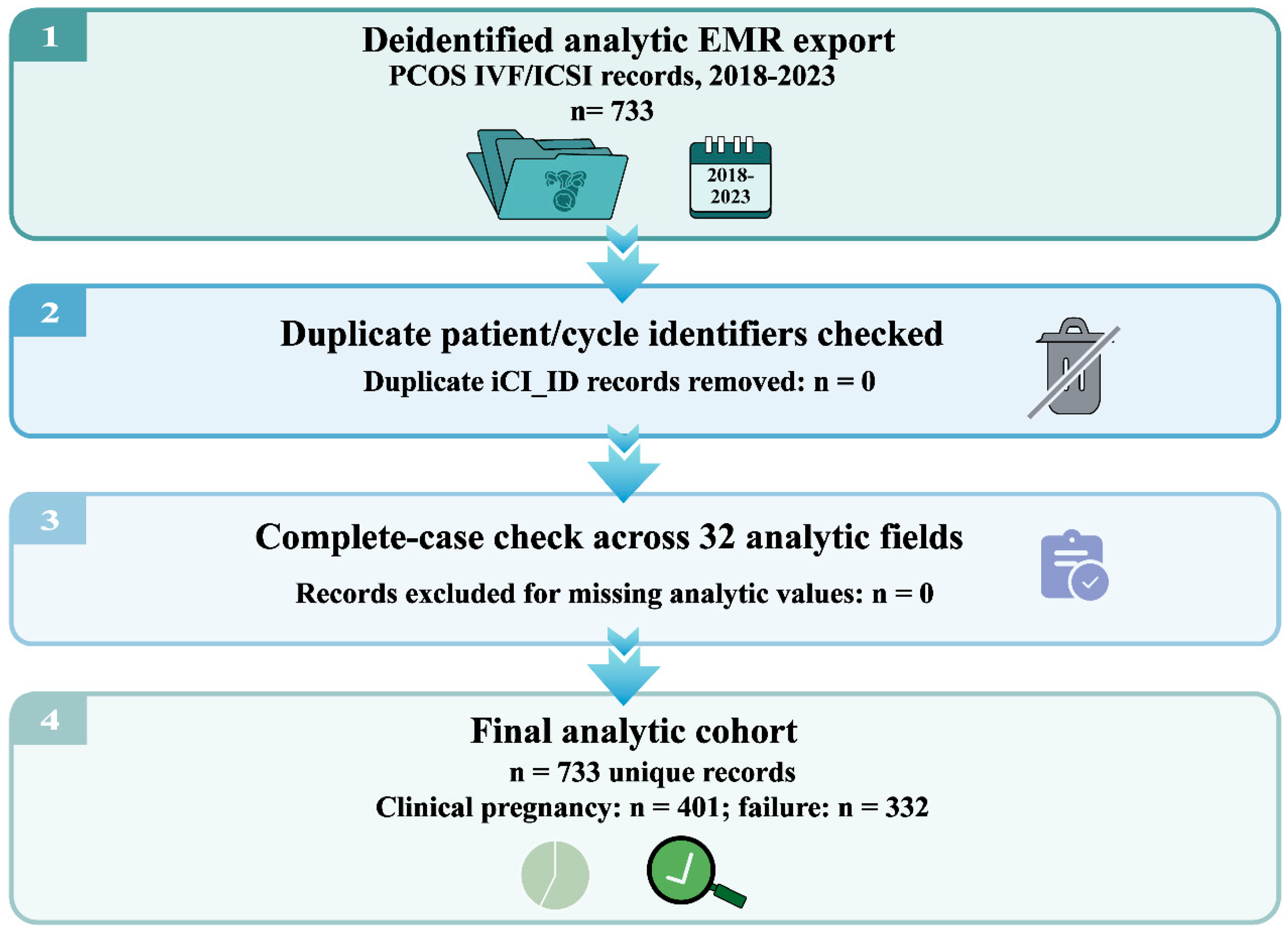

2.2. Data Preprocessing
- (1)
- Terminology standardization: Clinical descriptions and diagnoses were normalized to a consistent vocabulary. Identical concepts appeared under different terms or abbreviations in the raw records. For example, “polycystic ovary syndrome” was recorded as “polycystic ovarian syndrome”, “PCOS”, or “poly-ovary syndrome”. Synonyms and abbreviations were harmonized to a single descriptor so that each clinical concept was represented consistently across records.
- (2)
- Record filtering, de-duplication, and missing-data handling: The analysis file was checked for duplicate patient/cycle identifiers and missing values before statistical modeling. Duplicate detection was performed using the iCI_ID, and no duplicate records were found (n = 0). Complete-case checking across the 32 original analytic columns found no missing cells (n = 0); therefore, no additional records were removed during the present re-analysis. The final cohort contained 733 records. Because the uploaded file represented the cleaned analytic extract, source-level counts before EMR export (e.g., total registrations screened and exclusions before deidentification) were verified against the hospital extraction log if required for the final submission.
- (3)
- Continuous variables, one-hot encoding, and treatment-variable derivation: The original analytic file contained one-hot-encoded clinical items, whereas the Supplemental File provided continuous age, BMI, infertility duration, gonadotropin dose, anti-Müllerian hormone, and embryo-transfer variables. Age and BMI were analyzed continuously in multivariable regression. For ARM and sensitivity analyses, the primary cutoffs were age > 35 years, BMI ≥ 24 kg/m2 (the Chinese adult overweight threshold), and infertility duration > 5 years; alternative cutoffs were examined in sensitivity analyses. D3 embryos were classified as high quality when they were grade 1–2 with 7–9 cells. Blastocysts were classified as high quality when expansion was ≥3 and both inner-cell-mass and trophectoderm grades were A or B. Ambiguous or compacted notations were conservatively classified as not meeting the high-quality definition unless another transferred embryo in the same record met the criteria.
2.3. Feature Selection
2.4. ARM
2.5. Multivariable Regression and ARM Robustness Assessment
2.6. Computational Environment
3. Results

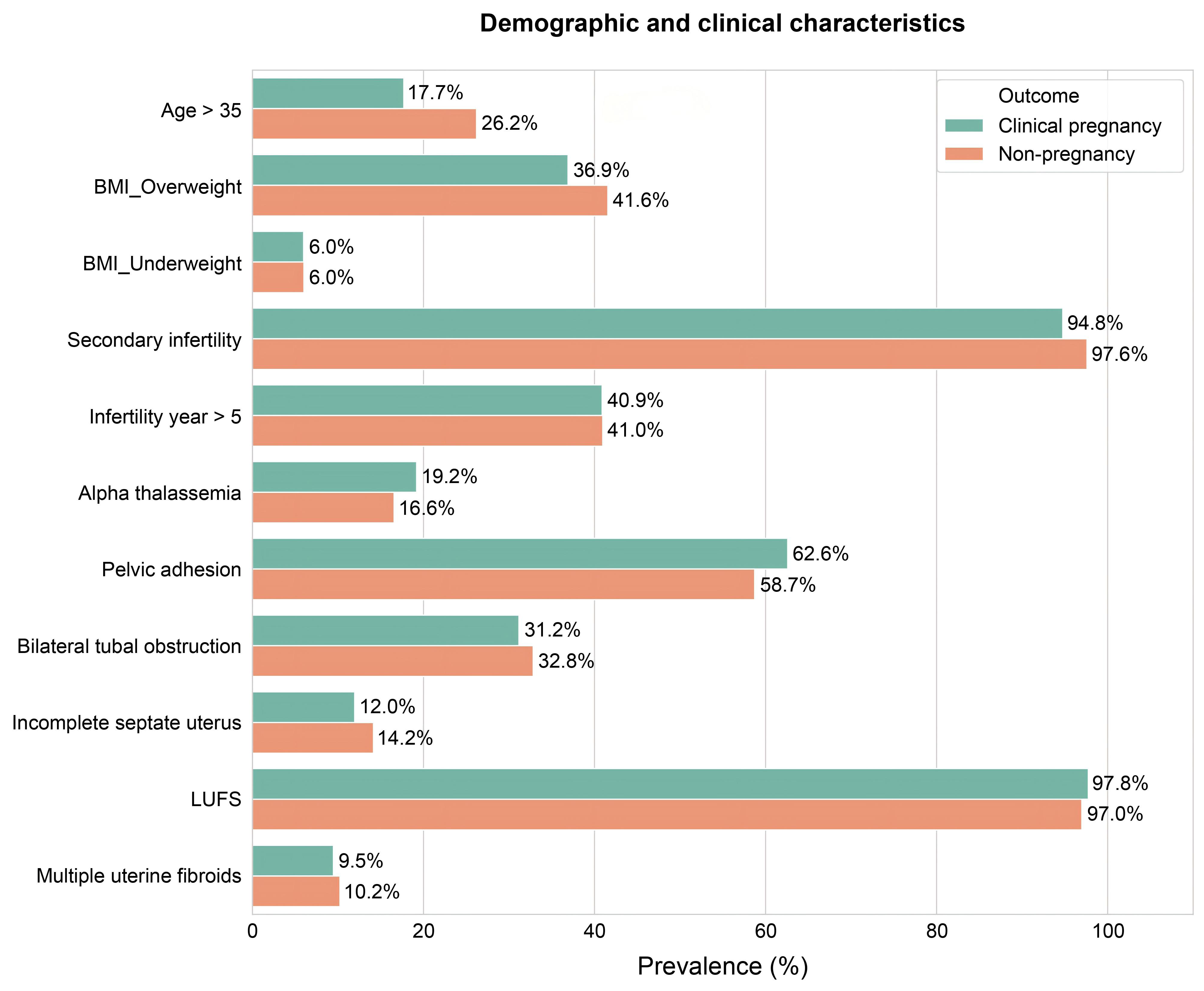

3.1. Demographic and Clinical Characteristics
3.2. Multivariable Logistic Regression Results

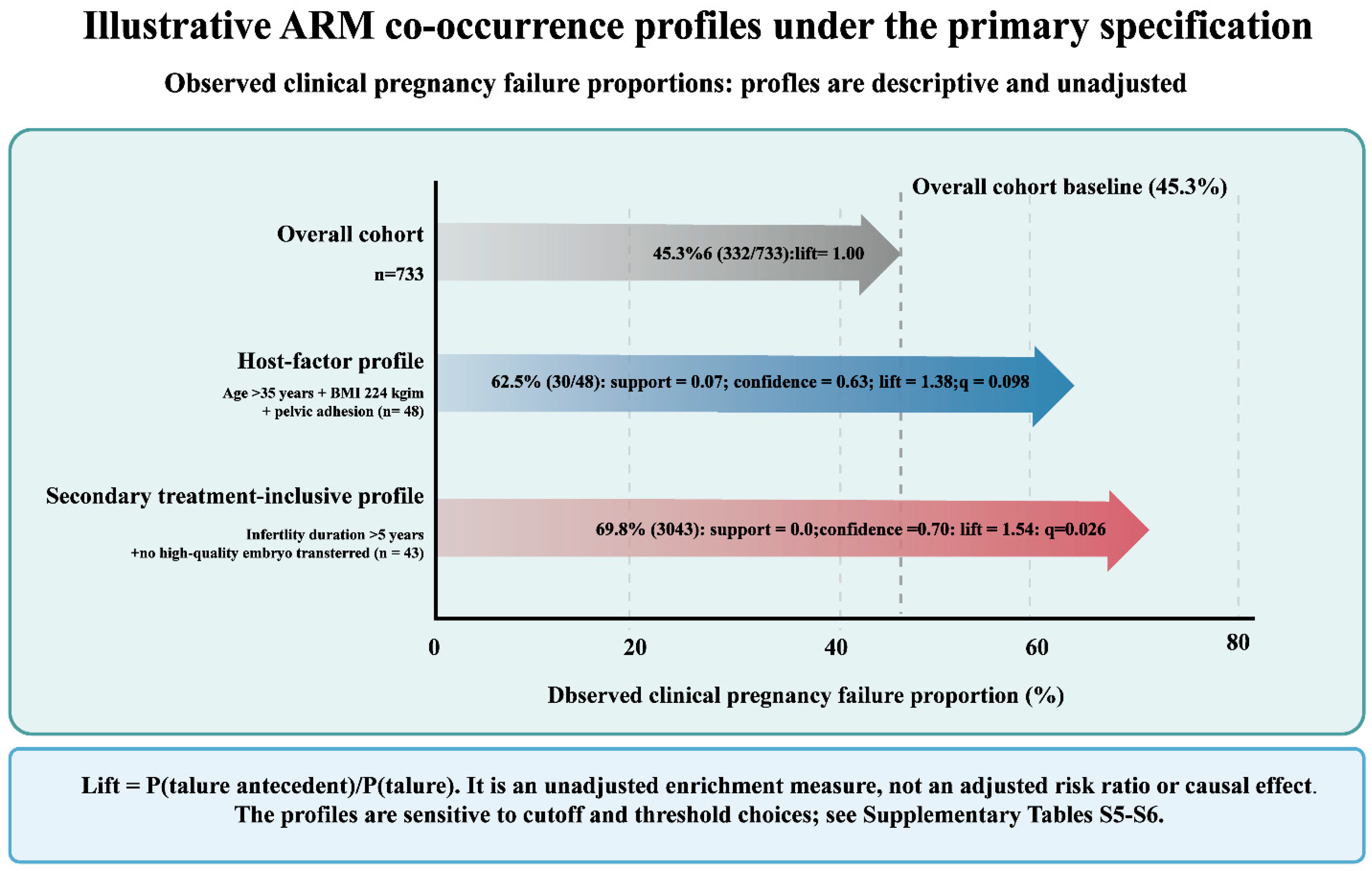

3.3. Illustrative Association-Rule Findings Under the Primary Specification
3.4. Sensitivity and Secondary ARM Findings
4. Discussion
4.1. Principal Findings and Relation to Conventional Regression
4.2. Current Clinical Interpretability and Potential Future Use
4.3. Interpretation of the Secondary Treatment-Inclusive ARM
4.4. Unmeasured Confounding and Generalizability
4.5. Strengths and Limitations
5. Conclusions
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
Abbreviations
| ART | assisted reproductive technology |
| BMI | body mass index |
| COS | controlled ovarian stimulation |
| EMR | electronic medical record |
| ICSI | intracytoplasmic sperm injection |
| IDE | integrated development environment |
| IVF | in vitro fertilization |
| LTS | long-term support |
| LUFS | luteinized unruptured follicle syndrome |
| PCOS | polycystic ovary syndrome |
| RAM | random access memory |
References
- Azziz, R.; Carmina, E.; Chen, Z.; Dunaif, A.; Laven, J.S.E.; Legro, R.S.; Lizneva, D.; Natterson-Horowtiz, B.; Teede, H.J.; Yildiz, B.O. Polycystic ovary syndrome. Nat. Rev. Dis. Primers 2016, 2, 16057. [Google Scholar] [CrossRef]
- Kotlyar, A.M.; Seifer, D.B. Women with PCOS who undergo IVF: A comprehensive review of therapeutic strategies for successful outcomes. Reprod. Biol. Endocrinol. 2023, 21, 70. [Google Scholar] [CrossRef] [PubMed]
- Tan, X.; Wen, Y.; Chen, H.; Zhang, L.; Wang, B.; Wen, H.; Zhang, F.; Wu, Q.; Du, J. Follicular output rate tends to improve clinical pregnancy outcomes in patients with polycystic ovary syndrome undergoing in vitro fertilization-embryo transfer treatment. J. Int. Med. Res. 2019, 47, 5146–5154. [Google Scholar] [CrossRef] [PubMed]
- Wang, X.; Tian, P.-Z.; Zhao, Y.-J.; Lu, J.; Dong, C.-Y.; Zhang, C.-L. The association between female age and pregnancy outcomes in patients receiving first elective single embryo transfer cycle: A retrospective cohort study. Sci. Rep. 2024, 14, 19216. [Google Scholar] [CrossRef] [PubMed]
- Wang, L.; Yu, X.; Xiong, D.; Leng, M.; Liang, M.; Li, R.; He, L.; Yan, H.; Zhou, X.; Jike, E.; et al. Hormonal and metabolic influences on outcomes in PCOS undergoing assisted reproduction: The role of BMI in fresh embryo transfers. BMC Pregnancy Childbirth 2025, 25, 368. [Google Scholar] [CrossRef] [PubMed]
- Zhang, L.; Cai, H.; Li, W.; Tian, L.; Shi, J. Duration of infertility and assisted reproductive outcomes in non-male factor infertility: Can use of ICSI turn the tide? BMC Women’s Health 2022, 22, 480. [Google Scholar] [CrossRef] [PubMed]
- Huang, C.; Shi, Q.; Xing, J.; Yan, Y.; Shen, X.; Shan, H.; Sun, H.; Mei, J. The relationship between duration of infertility and clinical outcomes of intrauterine insemination for younger women: A retrospective clinical study. BMC Pregnancy Childbirth 2024, 24, 199. [Google Scholar] [CrossRef] [PubMed]
- Herman, T.; Csehely, S.; Orosz, M.; Bhattoa, H.P.; Deli, T.; Torok, P.; Lagana, A.S.; Chiantera, V.; Jakab, A. Impact of endocrine disorders on IVF outcomes: Results from a large, single-centre, prospective study. Reprod. Sci. 2023, 30, 1878–1890. [Google Scholar] [CrossRef] [PubMed]
- Vannuccini, S.; Clifton, V.L.; Fraser, I.S.; Taylor, H.S.; Critchley, H.; Giudice, L.C.; Petraglia, F. Infertility and reproductive disorders: Impact of hormonal and inflammatory mechanisms on pregnancy outcome. Hum. Reprod. Update 2016, 22, 104–115. [Google Scholar] [CrossRef] [PubMed]
- Palagiano, A.; Cozzolino, M.; Ubaldi, F.M.; Palagiano, C.; Coccia, M.E. Effects of hydrosalpinx on endometrial implantation failures: Evaluating salpingectomy in women undergoing in vitro fertilization. Rev. Bras. Ginecol. Obstet. 2021, 43, 304–310. [Google Scholar] [CrossRef] [PubMed]
- Ozgur, K.; Bulut, H.; Berkkanoglu, M.; Coetzee, K.; Kaya, G. ICSI pregnancy outcomes following hysteroscopic placement of Essure devices for hydrosalpinx in laparoscopic contraindicated patients. Reprod. Biomed. Online 2014, 29, 113–118. [Google Scholar] [CrossRef] [PubMed]
- Qiu, J.; Du, T.; Chen, C.; Lyu, Q.; Mol, B.W.; Zhao, M.; Kuang, Y. Impact of uterine malformations on pregnancy and neonatal outcomes of IVF/ICSI–frozen embryo transfer. Hum. Reprod. 2022, 37, 428–446. [Google Scholar] [CrossRef] [PubMed]
- Kicińska, A.M.; Maksym, R.B.; Zabielska-Kaczorowska, M.A.; Stachowska, A.; Babińska, A. Immunological and metabolic causes of infertility in polycystic ovary syndrome. Biomedicines 2023, 11, 1567. [Google Scholar] [CrossRef] [PubMed]
- Fu, K.; Li, Y.; Lv, H.; Wu, W.; Song, J.; Xu, J. Development of a model predicting the outcome of in vitro fertilization cycles by a robust decision tree method. Front. Endocrinol. 2022, 13, 877518. [Google Scholar] [CrossRef] [PubMed]
- Lantzi, M.A.; Papakonstantinou, E.; Vlachakis, D. Bioinformatic analysis of complex in vitro fertilization data and predictive model design based on machine learning: The age paradox in reproductive health. Biology 2025, 14, 556. [Google Scholar] [CrossRef] [PubMed]
- Liu, R.; Bai, S.; Jiang, X.; Luo, L.; Tong, X.; Zheng, S.; Wang, Y.; Xu, B. Multifactor prediction of embryo transfer outcomes based on a machine learning algorithm. Front. Endocrinol. 2021, 12, 745039. [Google Scholar] [CrossRef] [PubMed]
- Veroneze, R.; Cruz Tfaile Corbi, S.; Roque da Silva, B.; de S. Rocha, C.; V. Maurer-Morelli, C.; Perez Orrico, S.R.; Cirelli, J.A.; Von Zuben, F.J.; Mantuaneli Scarel-Caminaga, R. Using association rule mining to jointly detect clinical features and differentially expressed genes related to chronic inflammatory diseases. PLoS ONE 2020, 15, e0240269. [Google Scholar] [CrossRef] [PubMed]
- Stilou, S.; Bamidis, P.D.; Maglaveras, N.; Pappas, C. Mining association rules from clinical databases: An intelligent diagnostic process in healthcare. Stud. Health Technol. Inform. 2001, 84, 1399–1403. [Google Scholar] [CrossRef]
- Samuels, J.I. One-hot encoding and two-hot encoding: An introduction. ResearchGate 2024. [Google Scholar] [CrossRef]
- World Health Organization. Standards for Maternal and Neonatal Care. Available online: https://www.who.int/publications/i/item/standards-for-maternal-and-neonatal-care (accessed on 26 February 2026).
- World Health Organization. WHO Recommendations on Antenatal Care for a Positive Pregnancy Experience. Available online: https://www.who.int/publications/i/item/9789241549912 (accessed on 26 February 2026).
- Ombelet, W. WHO fact sheet on infertility gives hope to millions of infertile couples worldwide. Facts Views Vis. ObGyn 2020, 12, 249. [Google Scholar] [PubMed]
- World Health Organization. Infertility Prevalence Estimates, 1990–2021; World Health Organization: Geneva, Switzerland, 2023. [Google Scholar]
- Coussa, A.; Hasan, H.A.; Barber, T.M. Impact of contraception and IVF hormones on metabolic, endocrine, and inflammatory status. J. Assist. Reprod. Genet. 2020, 37, 1267–1272. [Google Scholar] [CrossRef] [PubMed]
- Harrison, R.F.; Bonnar, J.; Thompson, W. Diagnosis and Management of Tubo-Uterine Factors in Infertility; Springer Science & Business Media: Heidelberg, Germany, 2012. [Google Scholar]
- Tournaye, H. Male factor infertility and ART. Asian J. Androl. 2011, 14, 103–108. [Google Scholar] [CrossRef] [PubMed]
- Kavakiotis, I.; Tsave, O.; Salifoglou, A.; Maglaveras, N.; Vlahavas, I.; Chouvarda, I. Machine learning and data mining methods in diabetes research. Comput. Struct. Biotechnol. J. 2017, 15, 104–116. [Google Scholar] [CrossRef] [PubMed]
- Genga, L.; Allodi, L.; Zannone, N. Association rule mining meets regression analysis: An automated approach to unveil systematic biases in decision-making processes. J. Cybersecur. Priv. 2022, 2, 191–219. [Google Scholar] [CrossRef]
- Pradhan, G.N.; Prabhakaran, B. Association rule mining in multiple, multidimensional time series medical data. J. Healthc. Inf. Res. 2017, 1, 92–118. [Google Scholar] [CrossRef] [PubMed]
- Haakova, L.; Cibula, D.; Rezabek, K.; Hill, M.; Fanta, M.; Zivny, J. Pregnancy outcome in women with PCOS and in controls matched by age and weight. Hum. Reprod. 2003, 18, 1438–1441. [Google Scholar] [CrossRef] [PubMed]
- Leal, C.R.V.; Zanolla, K.; Spritzer, P.M.; Reis, F.M. Assisted reproductive technology in the presence of polycystic ovary syndrome: Current evidence and knowledge gaps. Endocr. Pract. 2024, 30, 64–69. [Google Scholar] [CrossRef] [PubMed]
- Chen, H.; Zeng, R.; Zeng, X.; Qin, L. Cluster analysis reveals a homogeneous subgroup of PCOS women with metabolic disturbance associated with adverse reproductive outcomes. Chin. Med. J. 2023, 137, 604–612. [Google Scholar] [CrossRef] [PubMed]
- Zhao, R.; Yang, X.; Cui, L.; Wang, L.; Ye, Y. Overweight and obesity determined by body mass index criteria for Asian populations adversely affect assisted reproductive outcomes among Chinese women with polycystic ovary syndrome. Int. J. Obes. 2024, 48, 394–402. [Google Scholar] [CrossRef] [PubMed]
- Vale-Fernandes, E.; Moreira, M.V.; Bernardino, R.L.; Sousa, D.; Brandão, R.; Leal, C.; Barreiro, M.; Monteiro, M.P. Polycystic ovary syndrome and excessive body weight impact independently and synergically on fertility treatment outcomes. Reprod. Biol. Endocrinol. 2025, 23, 97. [Google Scholar] [CrossRef] [PubMed]
- Özelçi, R.; Aldemir, O.; Dilbaz, S.; Dilbaz, B.; Başer, E.; Kahyaoğlu, İ.; Üstün, Y.E. Impact of metabolic syndrome on female fertility and in vitro fertilization outcomes in PCOS women. Reprod. BioMed. Online 2023, 47, 103462. [Google Scholar] [CrossRef]
- Shi, D.; Du, J.; Kang, H.; Feng, L.; Liu, F. The effect of subclinical hypothyroidism on hormonal and metabolic profiles and ovarian morphology in patients with polycystic ovary syndrome: A cross-sectional study. Gynecol. Endocrinol. 2024, 40, 2358219. [Google Scholar] [CrossRef] [PubMed]
- Borght, M.V.; Wyns, C. Fertility and infertility: Definition and epidemiology. Clin. Biochem. 2018, 62, 2–10. [Google Scholar] [CrossRef] [PubMed]
- Borumandnia, N.; Majd, H.A.; Khadembashi, N.; Alaii, H. Worldwide trend analysis of primary and secondary infertility rates over past decades: A cross-sectional study. Int. J. Reprod. BioMed. 2022, 20, 37–46. [Google Scholar] [CrossRef] [PubMed]




| Domain | Extracted Variables | References |
|---|---|---|
| Demographics | Female age (continuous); primary ARM cutoff > 35 years; alternative cutoffs assessed in sensitivity analyses | [19,20,21] |
| Anthropometry | BMI (continuous); primary ARM cutoff ≥ 24 kg/m2; alternative cutoffs ≥ 25 and ≥28 kg/m2 assessed in sensitivity analyses | |
| Reproductive history | Infertility duration (continuous); primary ARM cutoff > 5 years; alternative cutoffs > 7 and >10 years; infertility type, primary/secondary | [22,23] |
| Hormonal and metabolic disorders | Hyperprolactinemia, subclinical hypothyroidism, insulin resistance | [5,8,9,24] |
| Tubo-uterotubal factors | Unilateral tubal obstruction, bilateral tubal obstruction, hydrosalpinx, pelvic adhesion, intrauterine adhesion | [11,25] |
| Ovarian and endocrine factors | Luteinized unruptured follicle syndrome (LUFS), ovarian cysts | [11,25] |
| Uterine malformations | Incomplete septate uterus and multiple uterine fibroids | [12] |
| ART treatment data | Fertilization method (conventional IVF versus ICSI), total gonadotropin dose, embryo-transfer day (D3, D5, or D6), number of embryos transferred (one or two), and derived high-quality-embryo status | [26] |
| Outcome | Clinical pregnancy, 1 = success, 0 = failure |
| Category | Specification | Purpose |
|---|---|---|
| Programming language | Python 3.12 | Core scripting/analysis |
| Interactive IDE | Jupyter Notebook v7.0.0 | Reproducible, stepwise workflow |
| Key libraries | Pandas 2.3.1, NumPy 2.2.3, SciPy 1.16.3, statsmodels 0.14.5, MLxtend 0.23.4, matplotlib 3.10.3 | Data handling, logistic regression, ARM, validation, and visualization |
| Plotting | matplotlib, seaborn | Descriptive and network visualization |
| Hardware | 2 × Intel Xeon (48 physical cores), 128 GB RAM | Parallel support-counting and rule filtering |
| Operating system | Ubuntu 22.04 LTS | Stable Linux environment for multithreaded tasks |
| Variable | Adjusted OR | 95% CI | p-Value | Note |
|---|---|---|---|---|
| Age, per year | 1.04 | 1.00–1.08 | 0.031 | Primary continuous predictor |
| BMI, per kg/m2 | 1.00 | 0.96–1.05 | 0.860 | Continuous BMI |
| Infertility duration, per year | 0.96 | 0.92–1.01 | 0.140 | |
| Secondary infertility | 2.30 | 0.95–5.61 | 0.066 | |
| Incomplete septate uterus | 0.97 | 0.61–1.55 | 0.895 | |
| Multiple uterine fibroids | 0.93 | 0.56–1.57 | 0.798 | |
| Bilateral tubal obstruction | 1.13 | 0.80–1.62 | 0.484 | |
| Pelvic adhesion | 0.95 | 0.67–1.33 | 0.759 | |
| LUFS | 0.63 | 0.25–1.61 | 0.334 | |
| Insulin resistance | 1.38 | 0.53–3.60 | 0.510 | |
| Subclinical hypothyroidism | 1.20 | 0.51–2.82 | 0.675 | |
| ICSI versus conventional IVF | 1.56 | 1.02–2.38 | 0.039 | |
| Gonadotropin dose, per 1000 IU | 1.00 | 0.81–1.24 | 0.998 | |
| Two embryos transferred versus one | 0.55 | 0.35–0.85 | 0.008 | |
| D5 blastocyst transfer versus D3/D6 | 0.49 | 0.32–0.75 | 0.001 | Treatment/transfer variable |
| At least one high-quality embryo transferred | 0.63 | 0.43–0.93 | 0.020 | Derived from embryo score |
