1. Introduction
The development of an innovative heat transfer fluid is significant for achieving the cooling rate standards in the current industries. Nanofluid is an engineered colloid consisting of solid nanoparticles (1–100 nm) suspended in a conventional fluid, for instance, ethylene glycol, water or engine oil. The conventional fluid has limited heat transfer capability owing to the low thermal conductivity. Therefore, the dispersion of metallic nanoparticles in the fluid is implemented to boost the thermal conductivity of the conventional fluid. Eastman et al. [
1] stated that the addition of copper nanoparticles increases the thermal conductivity of ethylene glycol up to 40% because the suspended nanoparticles enhance the ability of energy exchange in the flow. Nanofluid has been used in many industrial applications, such as nanodrug delivery, lowering fuel in electric power plants and vehicle cooling. Wong and De Leon [
2] reported that nanofluid coolants contribute to better energy savings and emission reductions. The analysis on seven slip mechanisms, which generate a relative velocity amongst nanoparticles and base fluid, was carried out by Buongiorno [
3]. It was discovered that only Brownian motion and thermophoresis are substantial for improving the heat transfer process in nanofluid. Later, Buongiorno’s model was employed by many scientists to explore the convective flow of nanofluid [
4,
5,
6].
Squeezing flow is caused by the motion of two parallel plates or boundaries with normal external stress. The idea of squeeze flow has been investigated extensively due to its engineering and industrial applications, for example, moving pistons, lubrication systems, hydraulic lifts and injection molding. Stefan [
7] began the study on the behavior of lubricant within two squeezing plates using lubrication theory. Based on the pioneer works of Stefan, the study on squeezing flow is explored for various geometries. Reynolds [
8] and Archibald [
9] continued Stefan’s work by considering elliptical and rectangular geometries, respectively. Reynolds equation was used as the governing equations of the mathematical model in the previous studies. However, Jackson [
10] and Ishizawa [
11] reviewed that the Reynolds equation is inappropriate when applied in the squeezing flow with high velocity and porous thrust bearings. Hence, several renewed studies were done to revise the fundamental model of squeezing flow mathematically [
12,
13,
14,
15,
16,
17].
Jeffrey fluid is categorized as non-Newtonian fluid based on the flow behavior, which correlated with the relationship of shear stress and strain. It is shear thinning flow with yield stress and high shear viscosity. The fluid acts as a solid if the applied stress exerted is lower than the yield stress, whereas the fluid begins to flow if the applied stress exerted is more than yield stress [
18]. Jeffrey fluid is a simple linear model where time derivatives are used as a substitute for convective derivatives. The viscoelastic properties in the polymer industry are described by the relaxation and retardation times parameter [
19]. Furthermore, the blood flow in narrow arteries is treated as Jeffrey fluid because of the rheological characteristics [
20].
The studies of MHD boundary layer flow has received great interest in engineering application involving MHD pump and generator. The induction of Lorentz force occurs when a magnetic field is imposed on the electrically conducting fluid. The Lorentz forces are useful in regulating momentum and heat transfer flow in the boundary region [
21]. The influence of suction and injection on an unsteady MHD squeeze flow of Jeffrey fluid across a permeable channel was analyzed by Hayat et al. [
22]. The series solution is obtained via the homotopy analysis method (HAM). Then, Muhammad et al. [
23] extended Hayat et al. [
22] research with magnetic field on squeezing flow of Jeffrey fluid with stretching lower plate. The numerical solution of mixed convection of Jeffrey fluid at a stagnation point was presented by Ahmad and Ishak [
24] using Keller-box technique. The flow is produced by a stretched vertical plate with a transverse magnetic field. Further, Hayat et al. [
25] investigated the squeezing flow of Jeffrey nanofluid through two disks with a magnetic field effect.
Viscous dissipation is known as the irreversible process of mechanical energy converted to thermal energy due to internal friction in the viscous flow. It is only significant for the fluid with high velocity and viscosity. The presence of viscous dissipation on an unsteady squeeze flow of nanofluid within two plates was examined by Sheikholeslami et al. [
26], Pourmehran et al. [
27] and Gorgani et al. [
28]. They used Tiwari and Das model with different types of methods to obtain the solution. Acharya et al. [
29] reported the squeezing nanofluid flow with the combined impacts of viscous dissipation and magnetic field via the Tiwari and Das model. Meanwhile, Azimi and Riazi [
30] solved the same problem via Buongiorno’s model. Later, Sheikholeslami et al. [
31] extended Acharya et al. [
29] work by considering thermal radiation impact. Madaki et al. [
32] explored the influences of viscous dissipation and thermal radiation on the squeezing flow of the nanofluid via the Tiwari and Das model.
All the above-mentioned studies involved with no slip condition at the plate. How-ever, the momentum slip at the wall is important for the fluid that exhibits elastic characteristics. The physical situations that possess slip conditions are the flow in the micro devices, polishing of internal cavities and artificial heart valves [
33]. The momentum slip occurs when the velocity of the wall is no longer the same as the fluid velocity adjacent to the wall. Khan et al. [
34] discovered the impact of velocity slip on the squeeze flow of the nanofluid in two plates with viscous dissipation. Furthermore, Singh et al. [
35] extended Khan et al.’s [
34] studies by including a magnetic field. The research on an unsteady MHD nanofluid flow caused by the squeezing of two parallel disks with a velocity slip was discussed by Sobamowo and Jayesimi [
36]. Further, Sobamowo et al. [
37] continued the study of Sobamowo and Jayesimi [
36] by considering squeezing nanofluid flow over permeable medium with suction and injection under the influence of a velocity and temperature slip.
Another significant characteristic that affects the flow behavior is mass transfer involving a chemical reaction. Several examples of chemical reaction applications are solar collectors, nuclear reactor safety, damage of crop equipment and the design of the chemical process [
38]. Many researchers have explored the chemical reaction impacts on nanofluid flow for various geometries. Ullah et al. [
39] analyzed the influences of a chemical reaction and thermal radiation on the MHD squeeze flow of a nanofluid in the two disks with suction and injection. The analytical solution of MHD squeeze flow of nanofluid over two plates across permeable medium with chemical reaction, thermal radiation, viscous dissipation and heat source or sink was studied by Mohamed et al. [
40]. In non-Newtonian fluid, Raju et al. [
41] discussed the presence of a chemical reaction, magnetic field and thermal radiation on a mixed convection flow of a Jeffrey nanofluid across a permeable cone. Further, the squeeze flow of Casson nanofluid within two plates with the effects of MHD, joule heating, viscous dissipation and a chemical reaction was examined by Shankar and Naduvinamani [
42]. Later, Noor et al. [
43] extended Shankar and Naduvinamani’s [
42] work by considering the squeeze flow of a Casson nanofluid over a permeable medium with a heat source or sink.
The literature discussion above reveals that most of the previous studies on an unsteady squeeze flow within two plates are done for nanofluid. The study involving Jeffrey nanofluid is limited. Furthermore, the combined impacts of viscous dissipation and chemical reaction on squeeze flow of the Jeffrey nanofluid have not yet been considered. Hence, the present research concentrates on an unsteady squeeze flow of MHD Jeffrey nanofluid through a permeable medium under the effects of viscous dissipation and chemical reaction. The velocity slip boundary condition is considered. Similarity transformations are imposed to convert the partial differential equations into the non-dimensional form and are solved by the Keller-box technique. The results computed from MATLAB are compared with existing outputs from the literature. The velocity, temperature and nanoparticle concentration fields are observed with different related parameters.
The present work is mostly implemented in the modeling of nuclear reactor safety. It is designed to terminate the nuclear reaction automatically when hazards occur. The flow with a chemical reaction is suitable to be used as a model for the nuclear reactor protection system [
38]. Furthermore, the electricity generated by a nuclear reactor increases when a magnetic field is imposed on the system [
44]. The presence of nanofluid is important in a nuclear power plant to improve the heat transfer process. Heat transfer capacity in a nuclear reactor is a thousand times larger than conventional fluids due to the high thermal conductivity of the nanofluid. It increases the efficiency of the nuclear reactor and reduces the thermal hydraulic problems. A new gateway for the high energy optimization has been discovered with nanofluid [
45].
2. Mathematical Formulation
The unsteady MHD flow of Jeffrey nanofluid through a permeable medium with a chemical reaction and viscous dissipation impacts. The velocity slip is located at the upper plate. The compression of two plates generates the fluid flow. The distance of two plates is
. The upper and lower plates approach closer with velocity
. The two plates are separated as
, and the plates are squeezed as
until
. The magnetic field
is applied to the electrically conducting fluid through the lower plate.

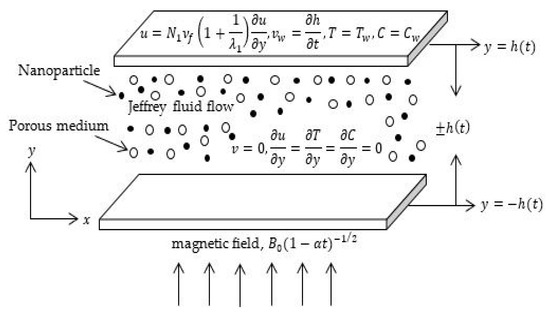

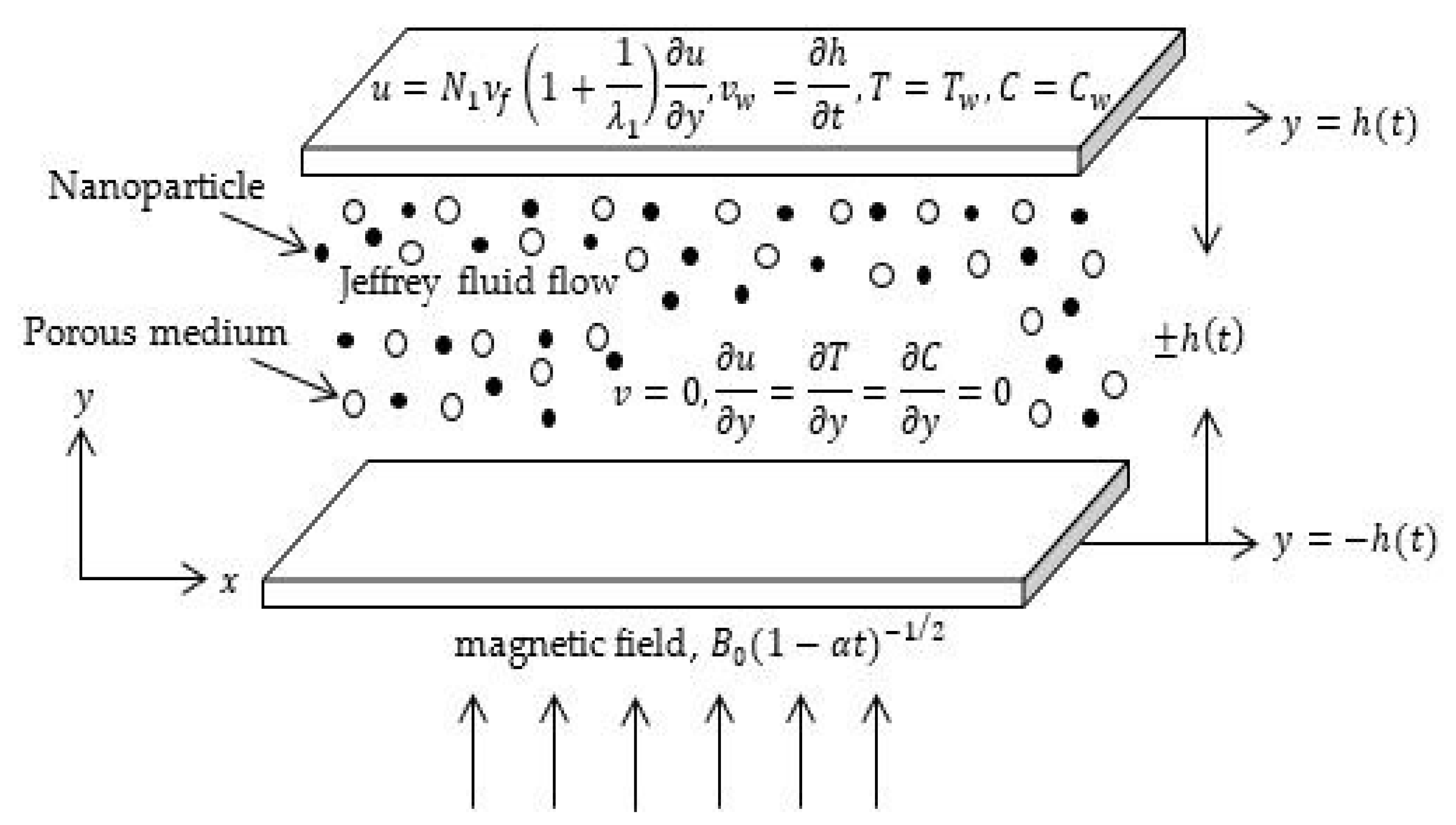

Figure 1 illustrates the coordinate system and geometrical model for the squeeze flow of the Jeffrey nanofluid.
Based on the boundary layer approximations, the continuity, momentum, energy and concentration equations of Jeffrey nanofluid are
Here, is the permeability of porous medium, is the thermal diffusivity of the Jeffrey fluid, is the ratio of the heat capacities of nanoparticles and fluid and is the chemical reaction rate.
The corresponded boundary conditions are
where
represents the momentum slip.
The non-dimensional variables are implemented to reduce the partial differential equations into ordinary differential equations [
46];
Substituting the dimensionless variables of Equation (
7) into Equations (
2)–(
4) yields
with the non-dimensional boundary conditions
The significant parameters in the non-dimensional equations are defined as
Physically, the movement of the channel is portrayed by a squeezing number, where shows the plates moving nearer and shows the plates moving further. Deborah, Hartmann and Darcy numbers are used to manage the fluid velocity. Moreover, Prandtl and Eckert numbers are significant in regulating fluid temperature. The nanoparticle concentration is discovered by a chemical reaction parameter. Furthermore, the flow at the simultaneous momentum and mass diffusion is described by the Lewis number.
3. Results and Discussion
The ordinary differential Equations (
8)–(
10) with corresponding boundary conditions (
11) and (
12) are solved using the Keller-box scheme. The numerical and graphical results are attained via MATLAB software. A proper guess of the step size
and boundary layer thickness
is considered to achieve precise results. The difference between the previous and present outputs of velocity, temperature and concentration is known as convergence criteria. The iteration is stopped for all the values when it converged to [
43].
The computations are discovered for
S,
,
,
,
,
,
,
,
,
,
and
R to examine the physical behavior of the velocity, temperature and nanoparticle concentration.
Table 1,
Table 2 and
Table 3 portray that the present results are compared with the reported outputs of the journals as limiting cases.
The numerical results of the skin friction coefficient for
S are compared with Wang [
14] and Khan et al. [
17] in
Table 1. The comparison of skin friction coefficient, Nusselt and Sherwood numbers for
S are presented in
Table 2 with Naduvinamani and Shankar [
47].
Table 3 depicts that the Nusselt number is compared with Mustafa et al. [
48], Gupta and Ray [
49] and Celik [
50] for
and
values. Good agreement is noticed from the numerical results shown in
Table 1,
Table 2 and
Table 3.
Figure 2,
Figure 3,
Figure 4 and
Figure 5 present the variation of
S on velocity, temperature, and concentration. The movement of plates closer to each other is represented by
, and the separation of plates from each other is represented by

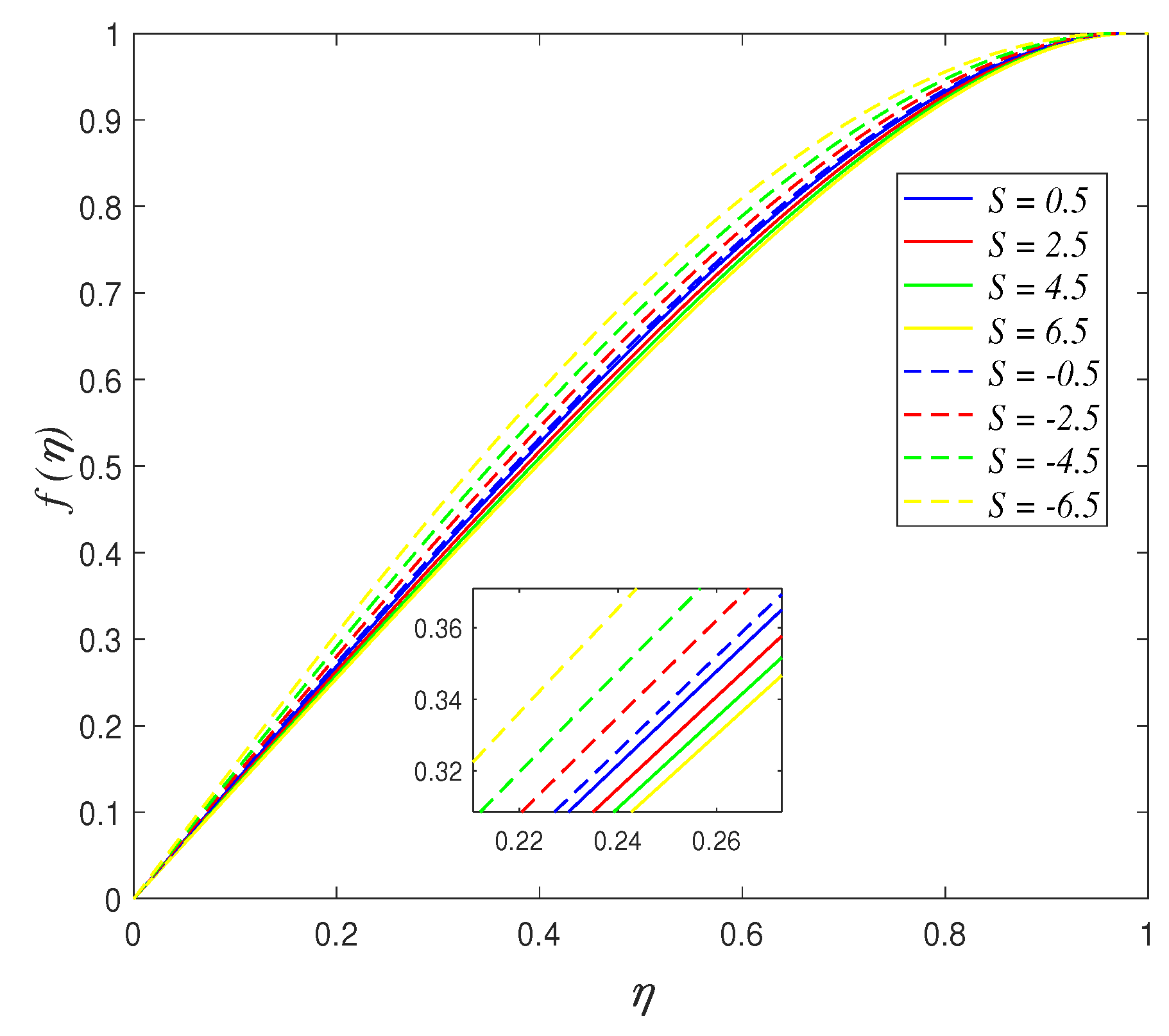

. The normal velocity displayed in
Figure 2 decreases as
, whereas the velocity increases as
in the vicinity
. It is discovered that the fluid is squeezed into the channel as the surfaces move further, which results in enhancing the flow velocity. In contrast, the reduction of velocity caused by the fluid is squeezed out from the channel as the plates move nearer. The impact of

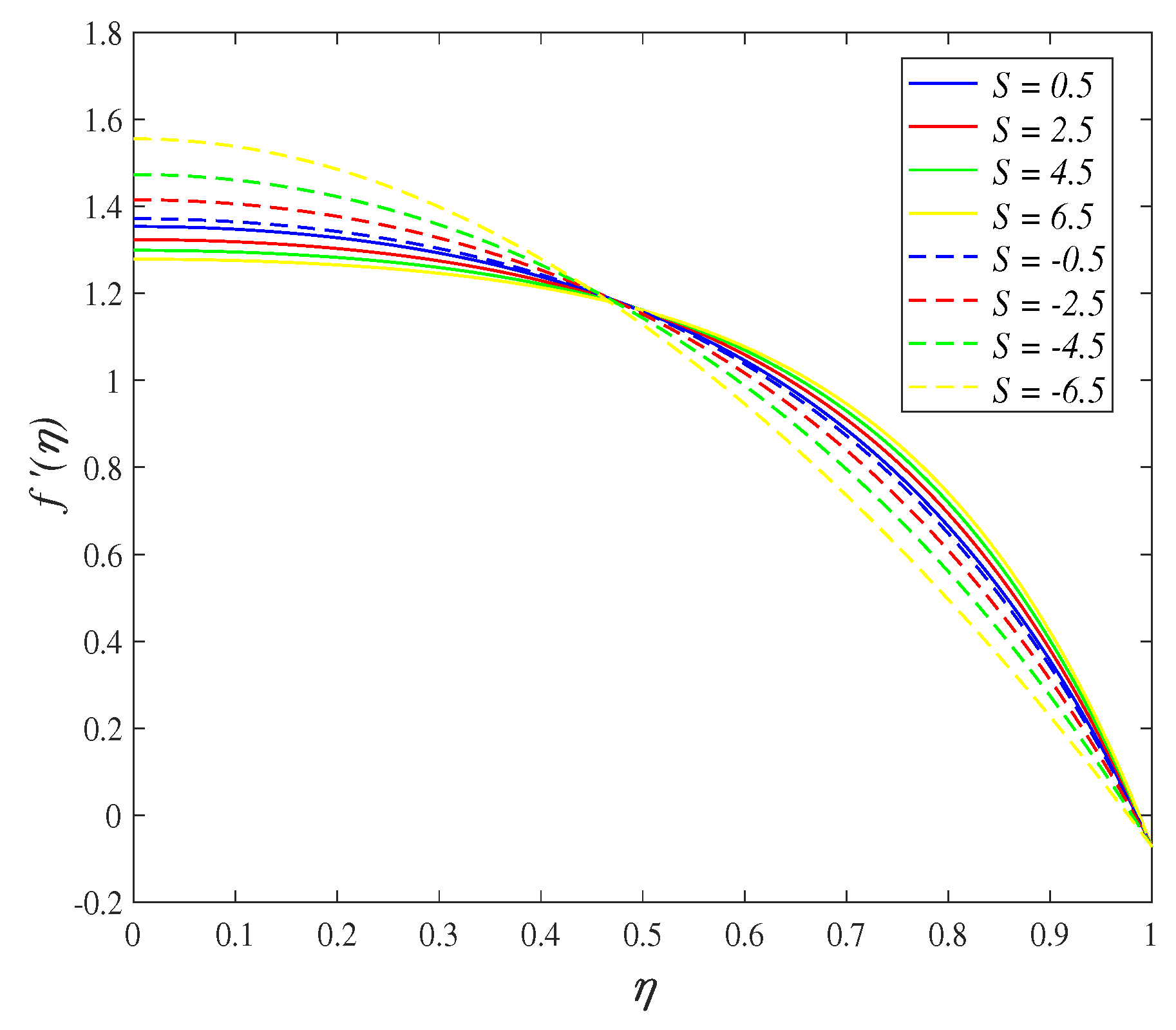

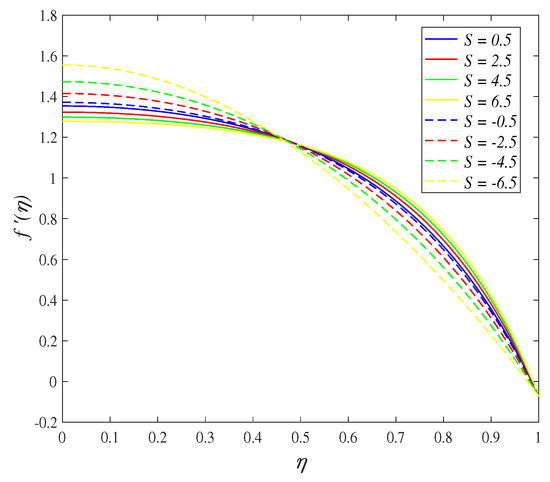

S on axial velocity is exhibited in
Figure 3. The vicinity adjacent to the lower wall is
, and the vicinity adjacent to the upper wall is
. The velocity is shown decelerating for
, and it accelerates for
when
. In contrast, the velocity elevating for
and it declines for
when
. It is discovered that the squeeze of plates leads to the flow over the narrow channel at a fast rate. Meanwhile, the fluid velocity slows down due to the flow encounters high opposition in the wider channel. It is explored that the crossflow arises at the center of the channel. It is found that for the velocity profile at
, the critical point is not affected when varying the squeeze parameter. The variation of

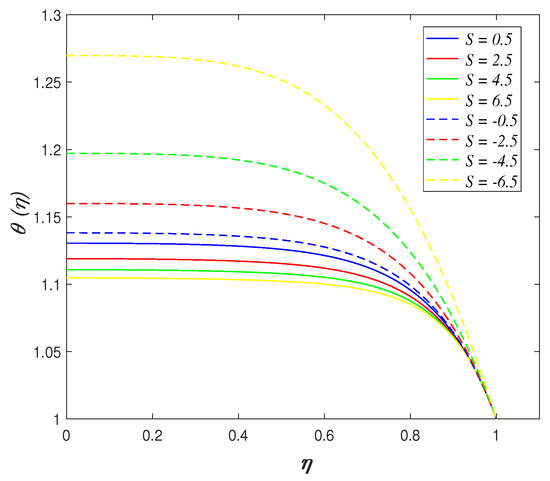

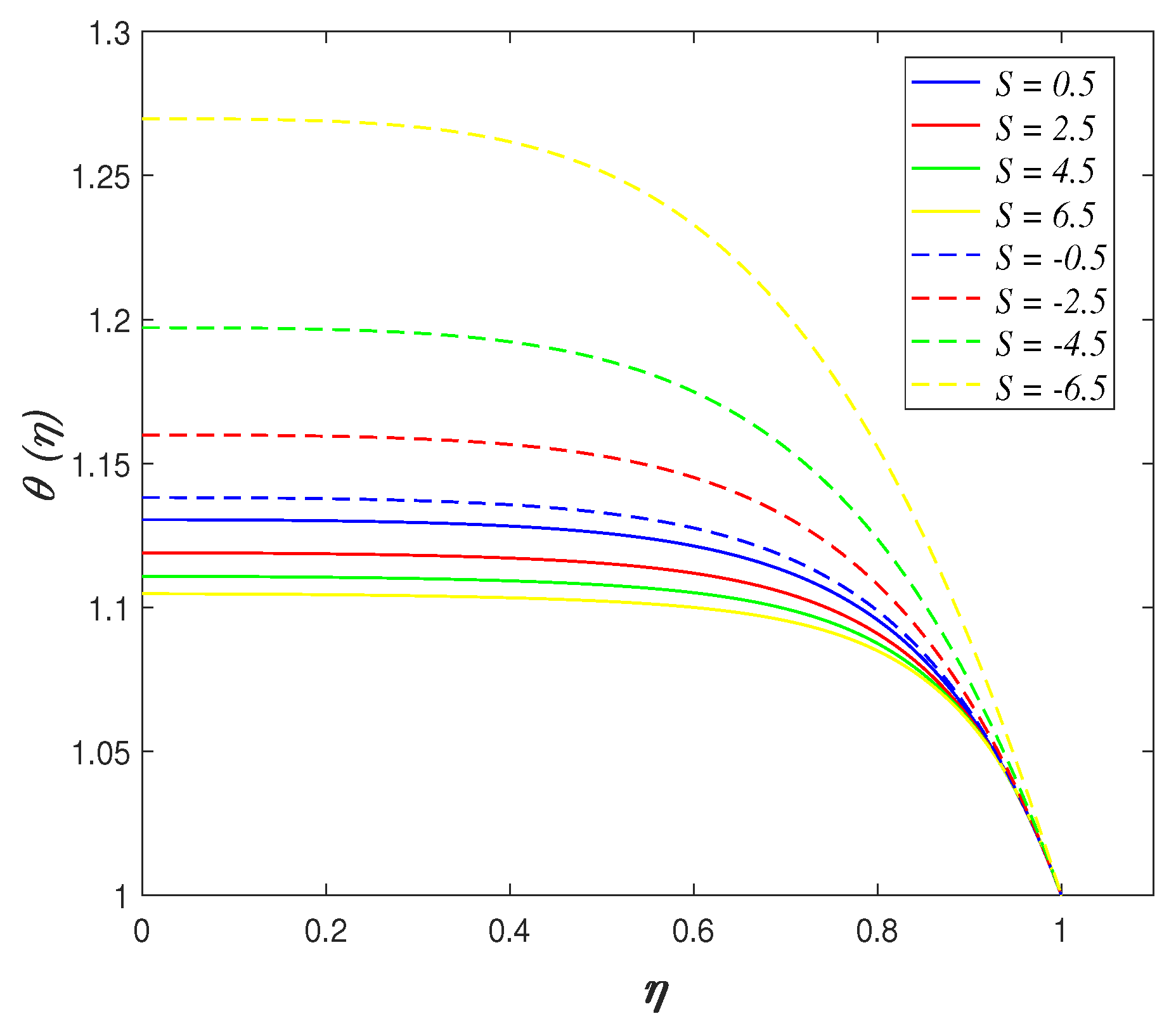

S on the temperature field is portrayed in
Figure 4. The temperature profile drops when the plates move closer
because the smaller volume of the channel reduces the kinetic energy of fluid particles. Furthermore, the movement of plates further from one another
promotes the kinetic energy and, therefore, elevates the temperature in the flow. The kinetic energy is directly proportional to temperature. It is noticed that the fluid temperature is constant adjacent to the upper wall.

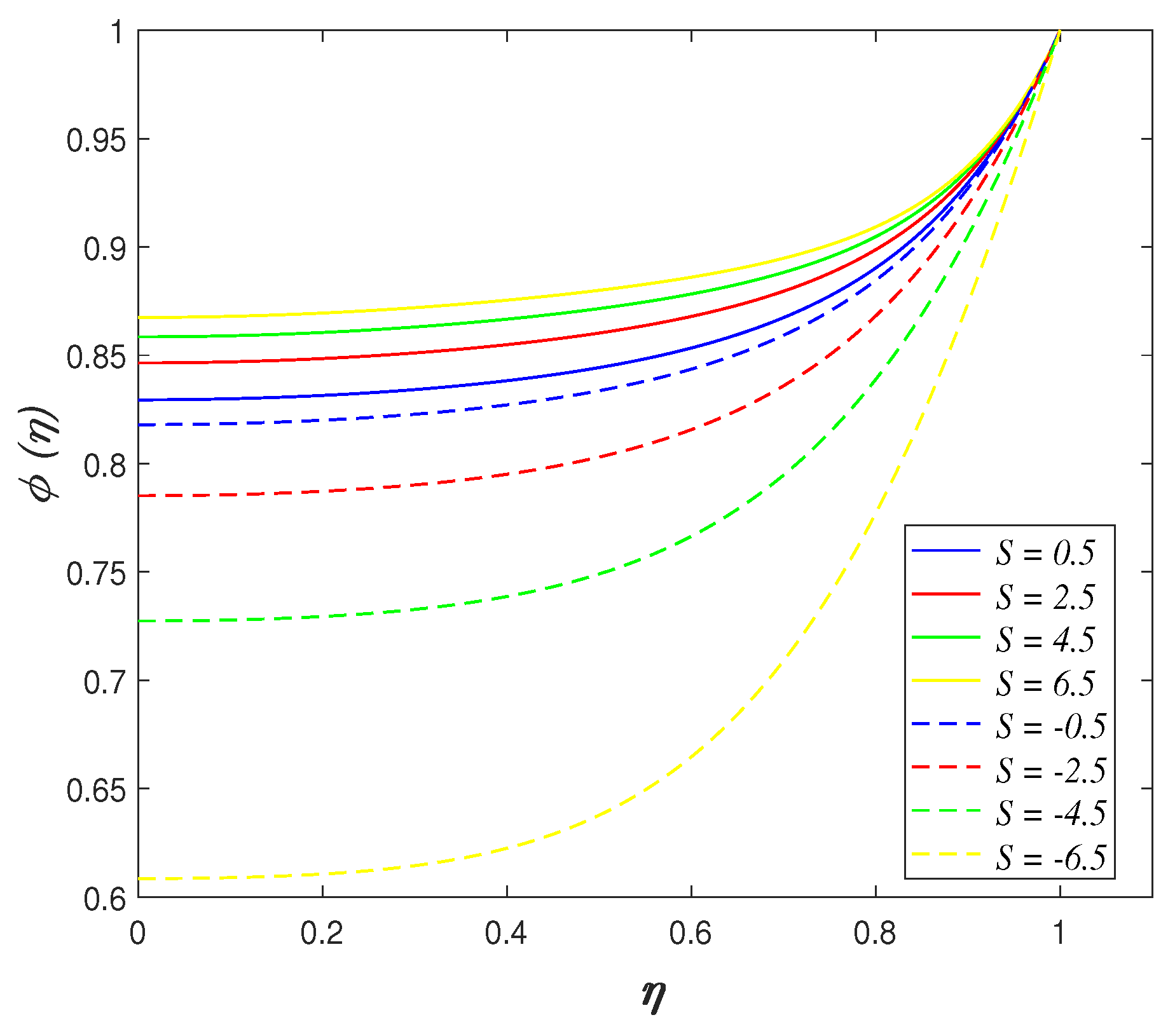

Figure 5 depicts the influence of
S on nanoparticle concentration. The concentration profile rises when
and it declines when
.
The influences of
on velocity, temperature, and concentration are exhibited in
Figure 6,
Figure 7,
Figure 8 and
Figure 9. The radial velocity in
Figure 6 decelerating with a rise in
. The reason is that an increase in
enhances the intermolecular forces within fluid particles, which increases the viscosity of the fluid. The axial velocity presented in

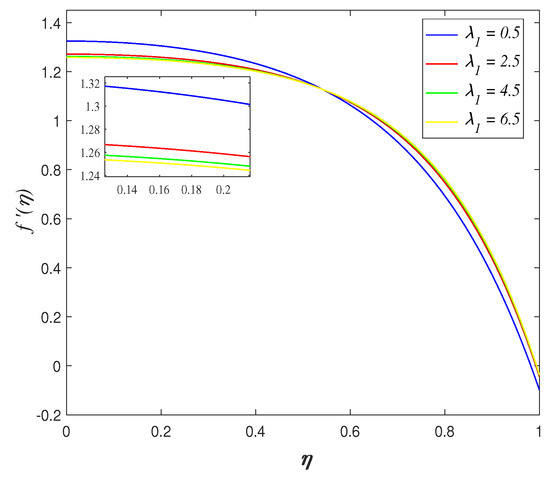

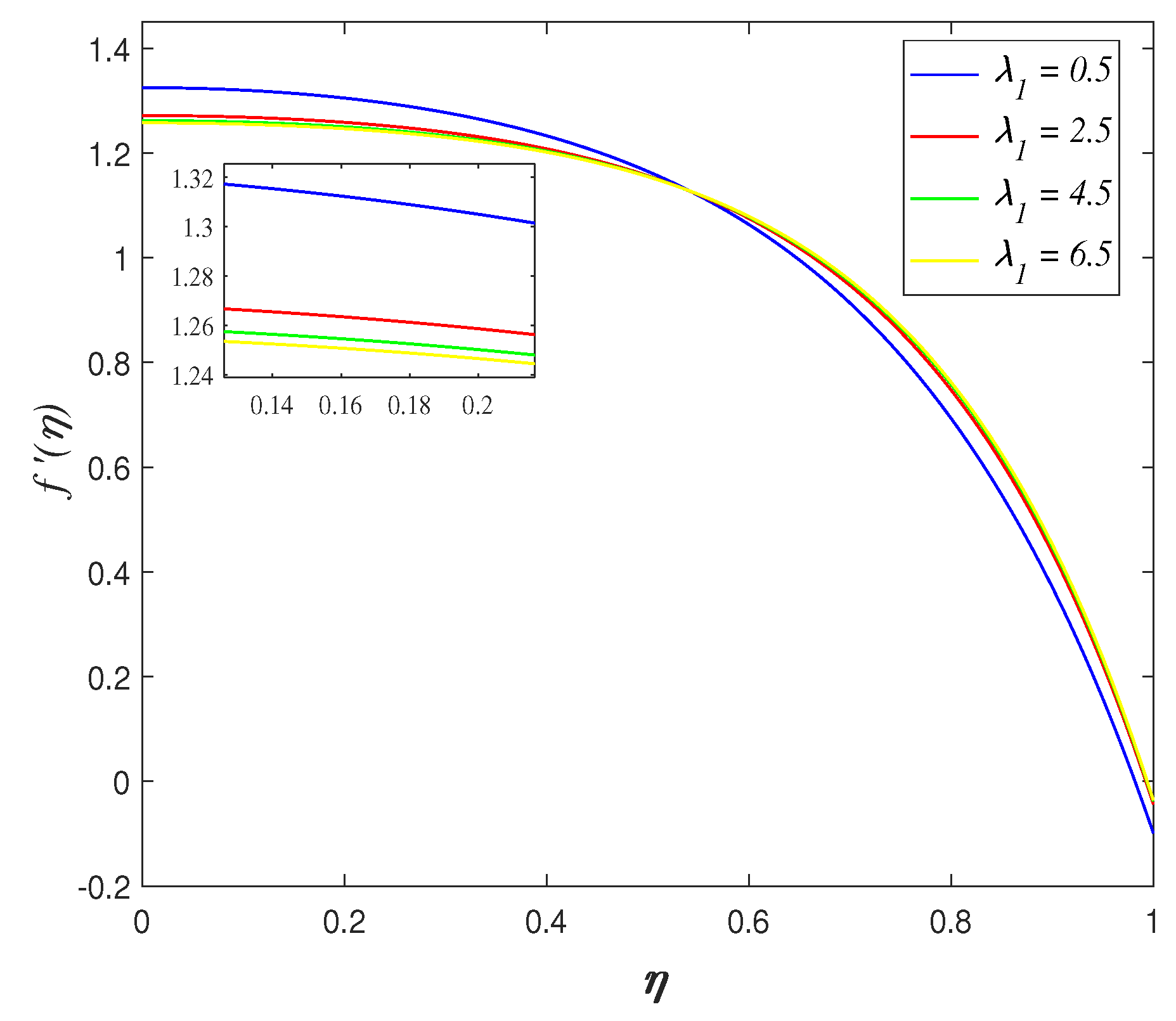

Figure 7 decreases for
and it increases for
when
rises. The cross behavior of flow occurs at the middle of the boundary layer.

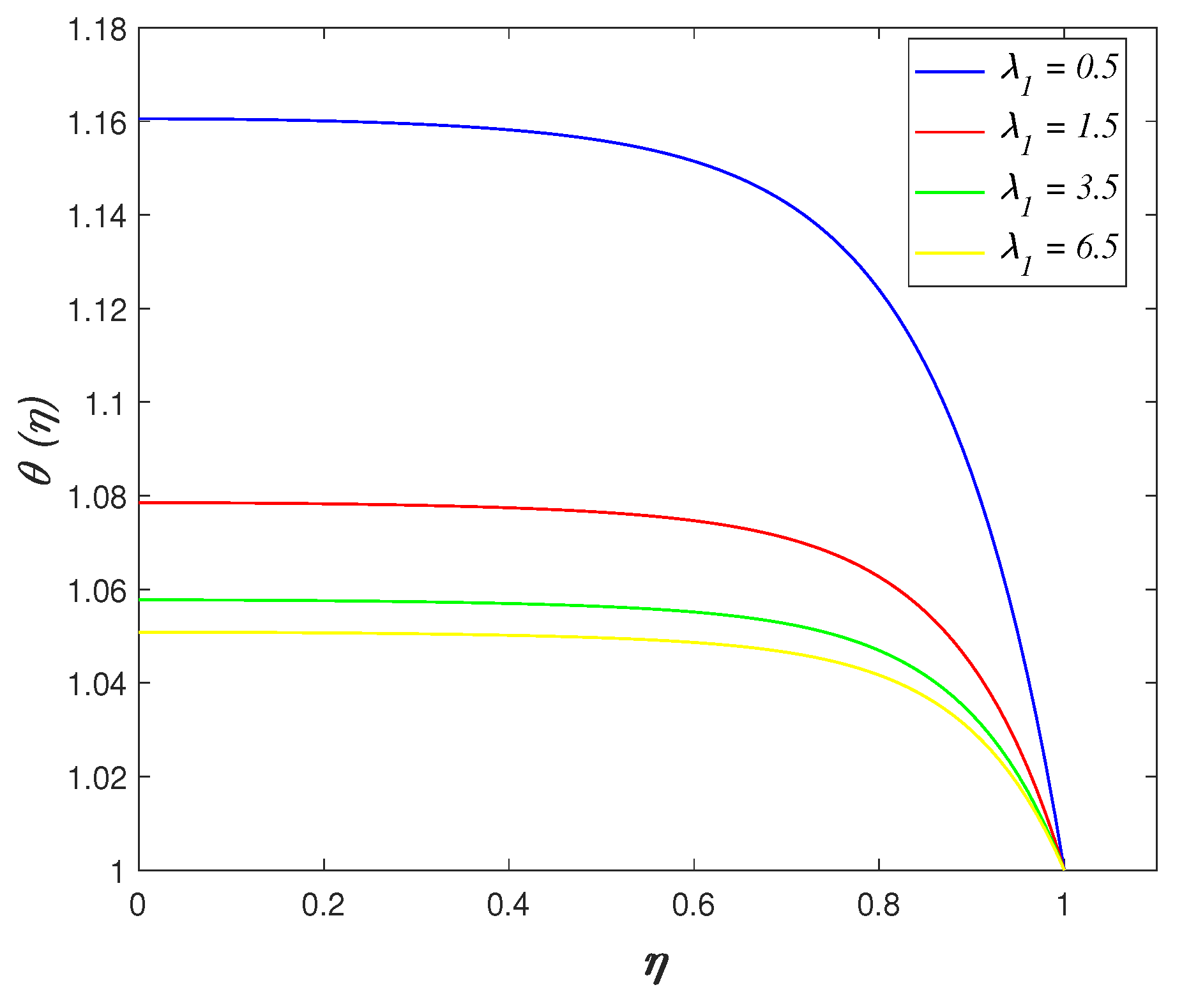

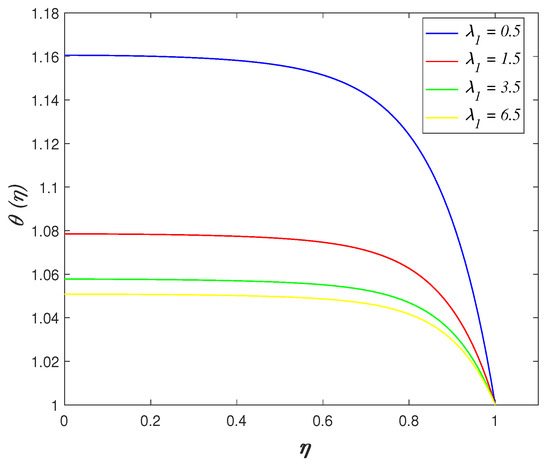

Figure 8 depicts the effect of
on the temperature field. The flow temperature declines as
rises. The increase in fluid viscosity implies stronger intermolecular forces and, consequently, reduces the kinetic energy of fluid particles.

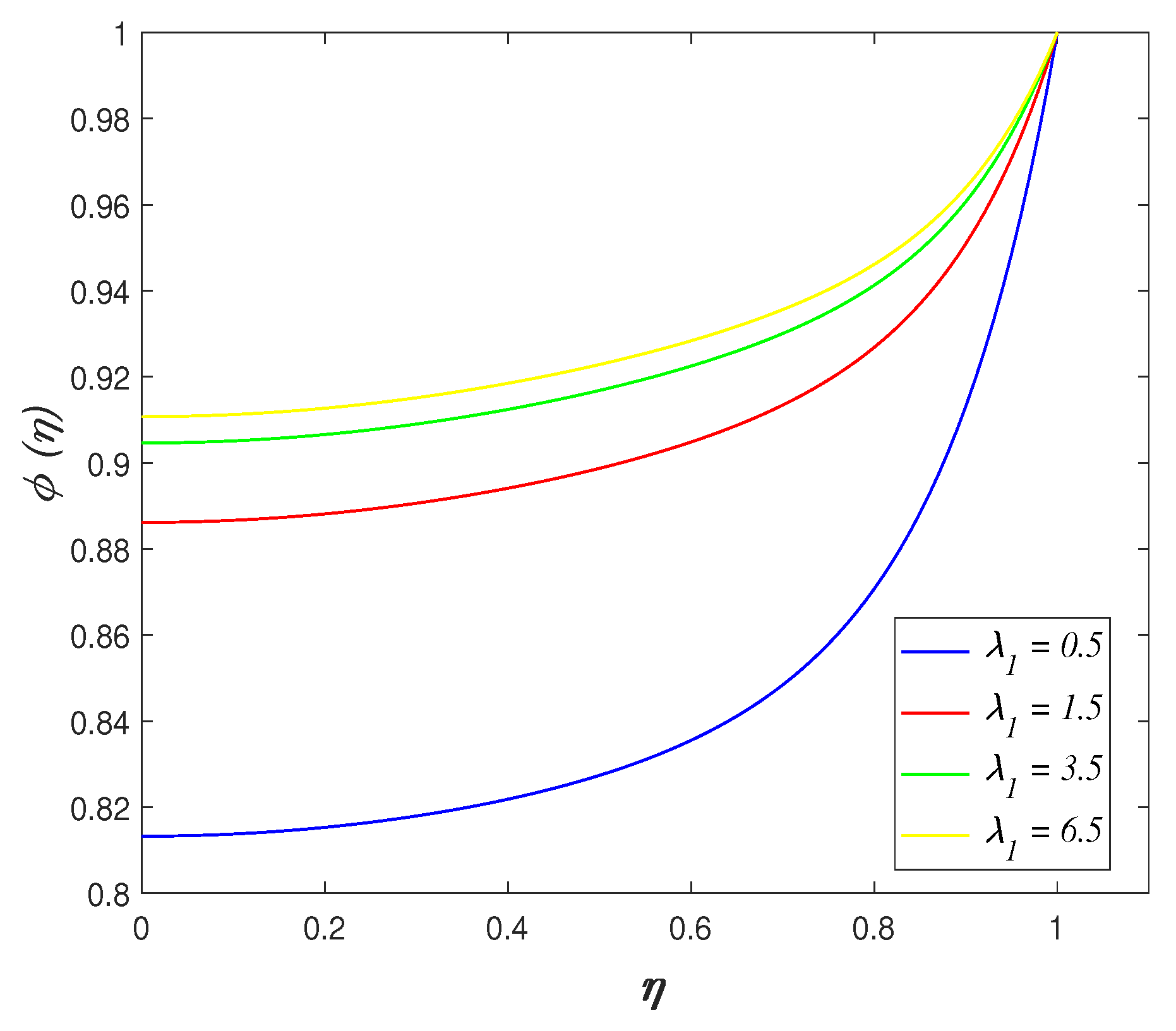

Figure 9 demonstrates the influence of
on the concentration field. The increment of
elevates the nanoparticle concentration.

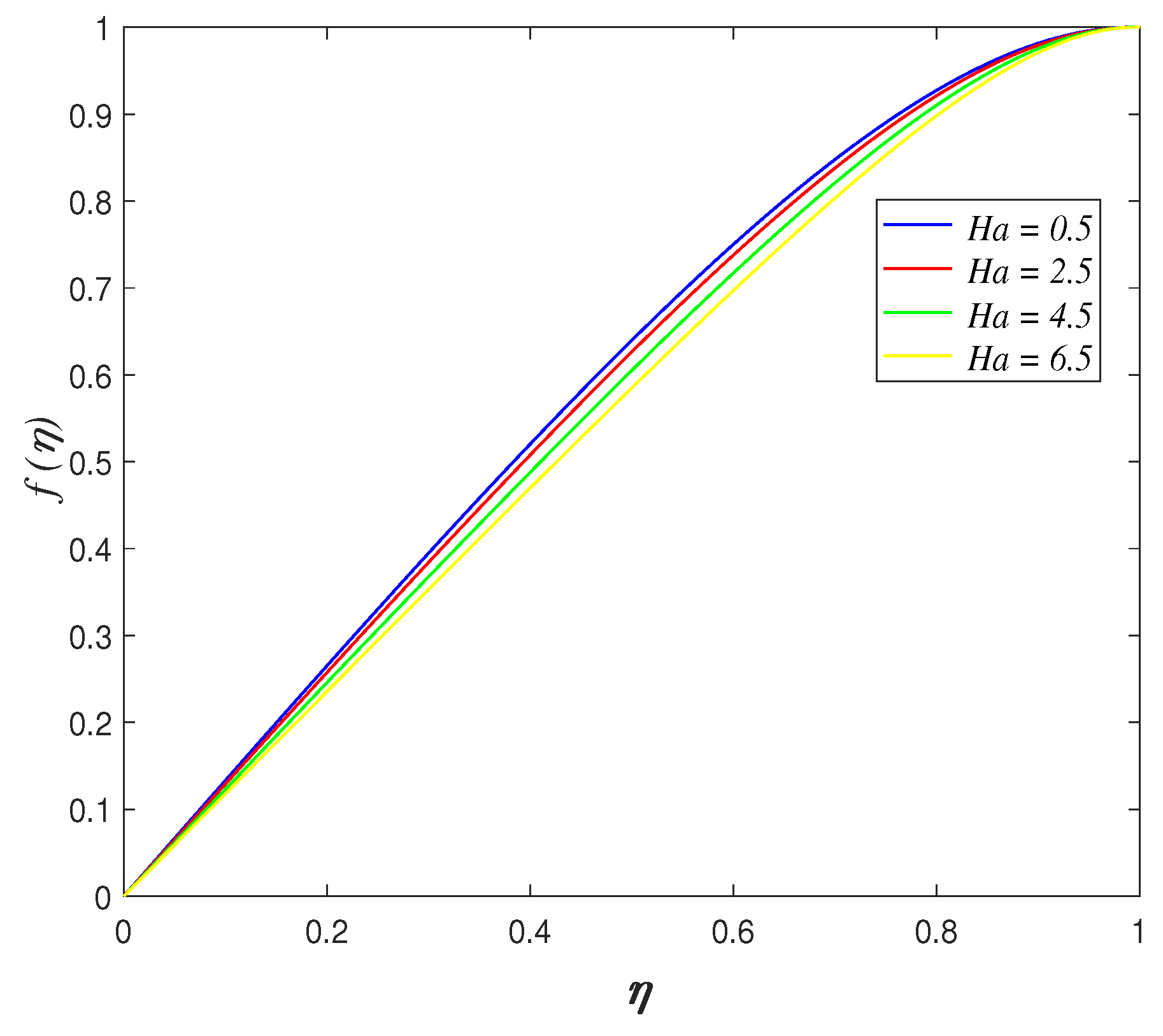

The impacts of
on velocity, temperature and concentration are displayed in
Figure 10,
Figure 11,
Figure 12 and
Figure 13. The radial velocity slows down with an increase in
. The Lorentz force is produced by the induction of a magnetic field in the flow. It raises the resistance towards the flow in the channel. The axial velocity, as shown in

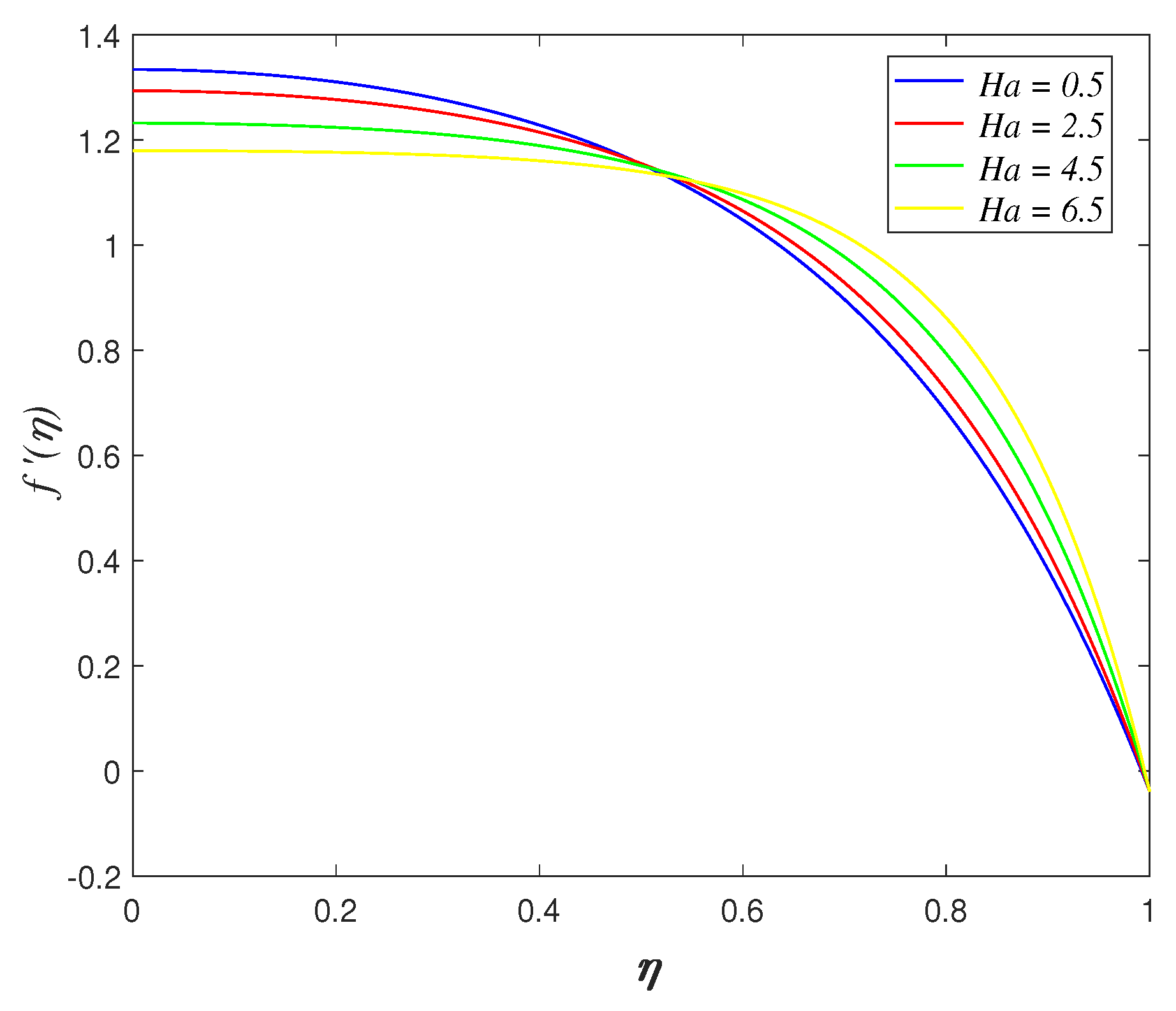

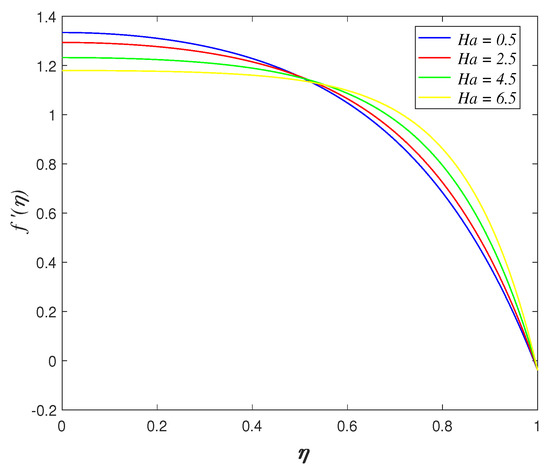

Figure 11, decreases for
, and it accelerates for
when
increases. The crossflow is observed at the center of the boundary layer. The effect of

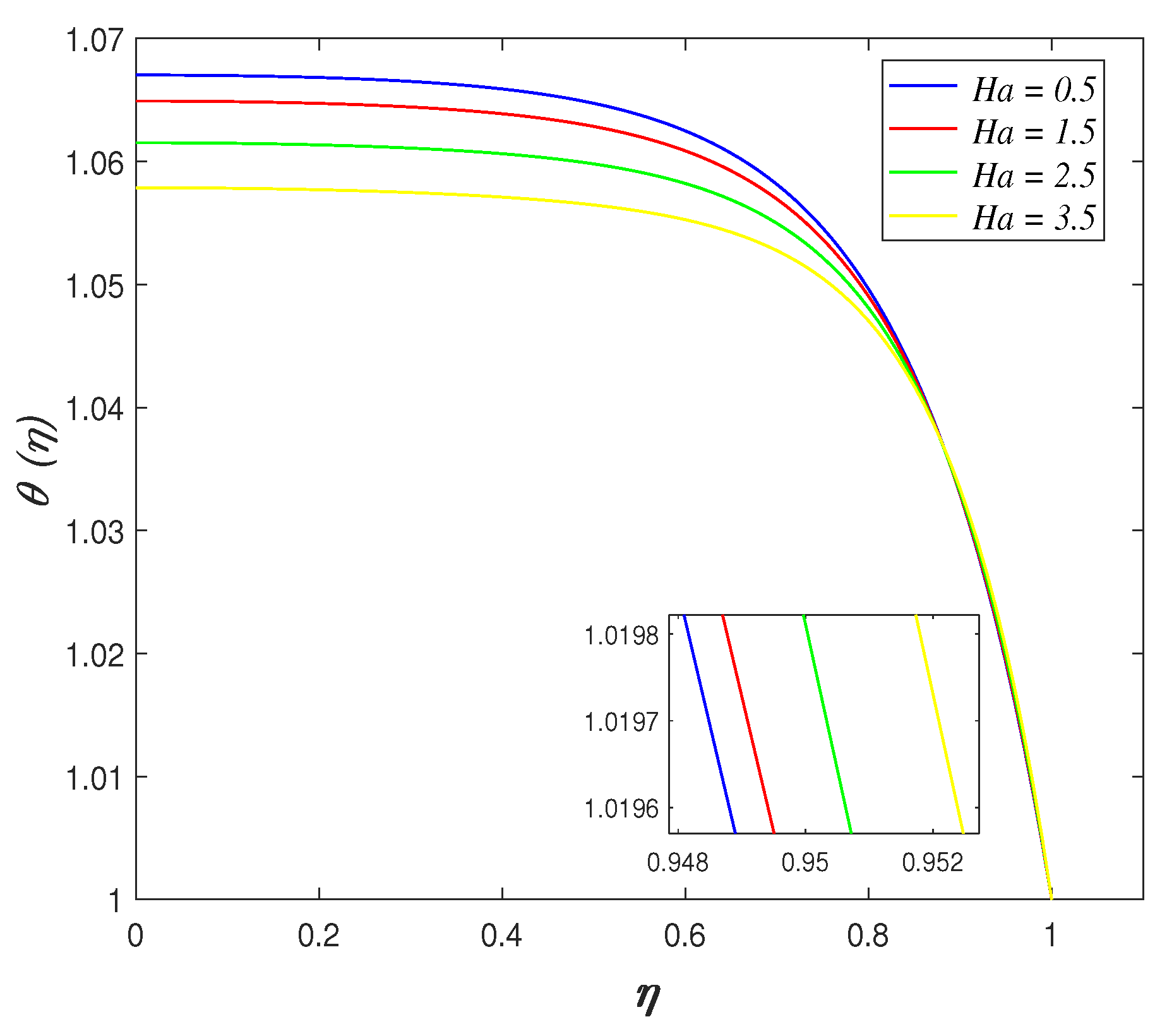

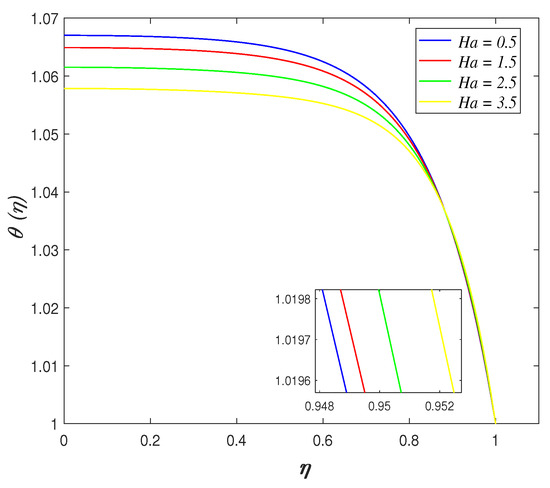

on the temperature field is presented in
Figure 12. It is found that the flow temperature reduces for
, and it increases for
for a rise of
.

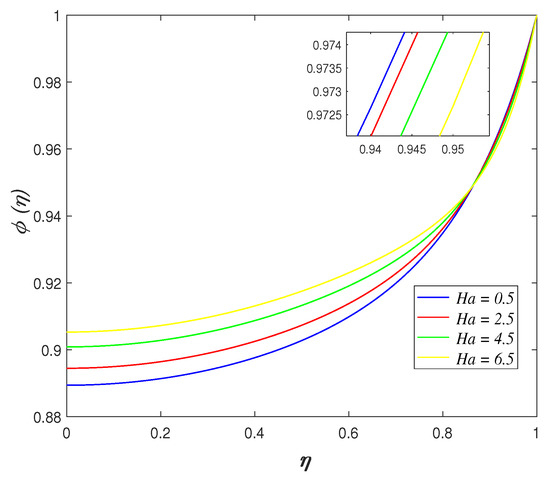

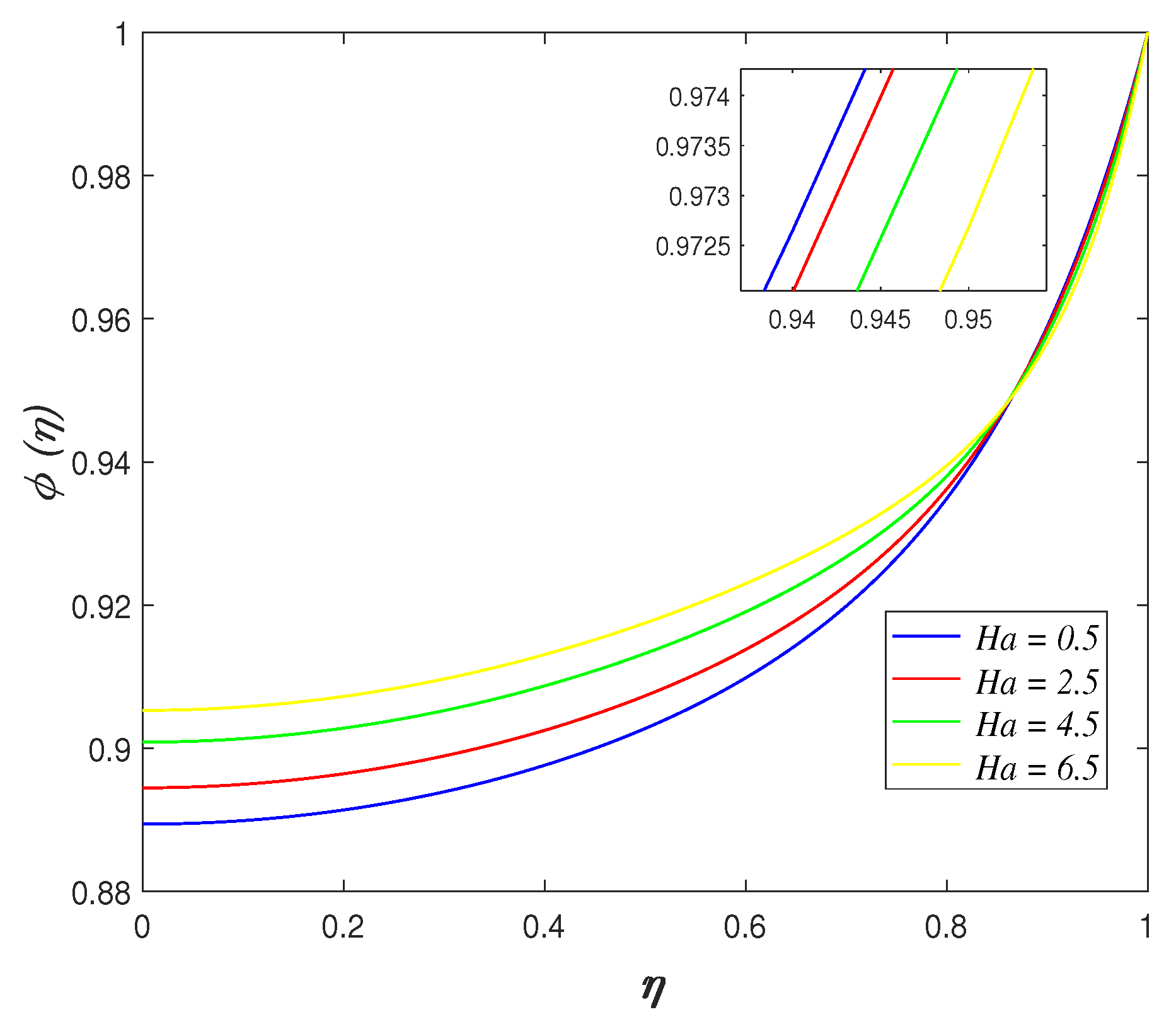

Figure 13 describes the variation of Ha on nanoparticle concentration. The concentration profile rises on
, and it drops on
with a rise in Ha.

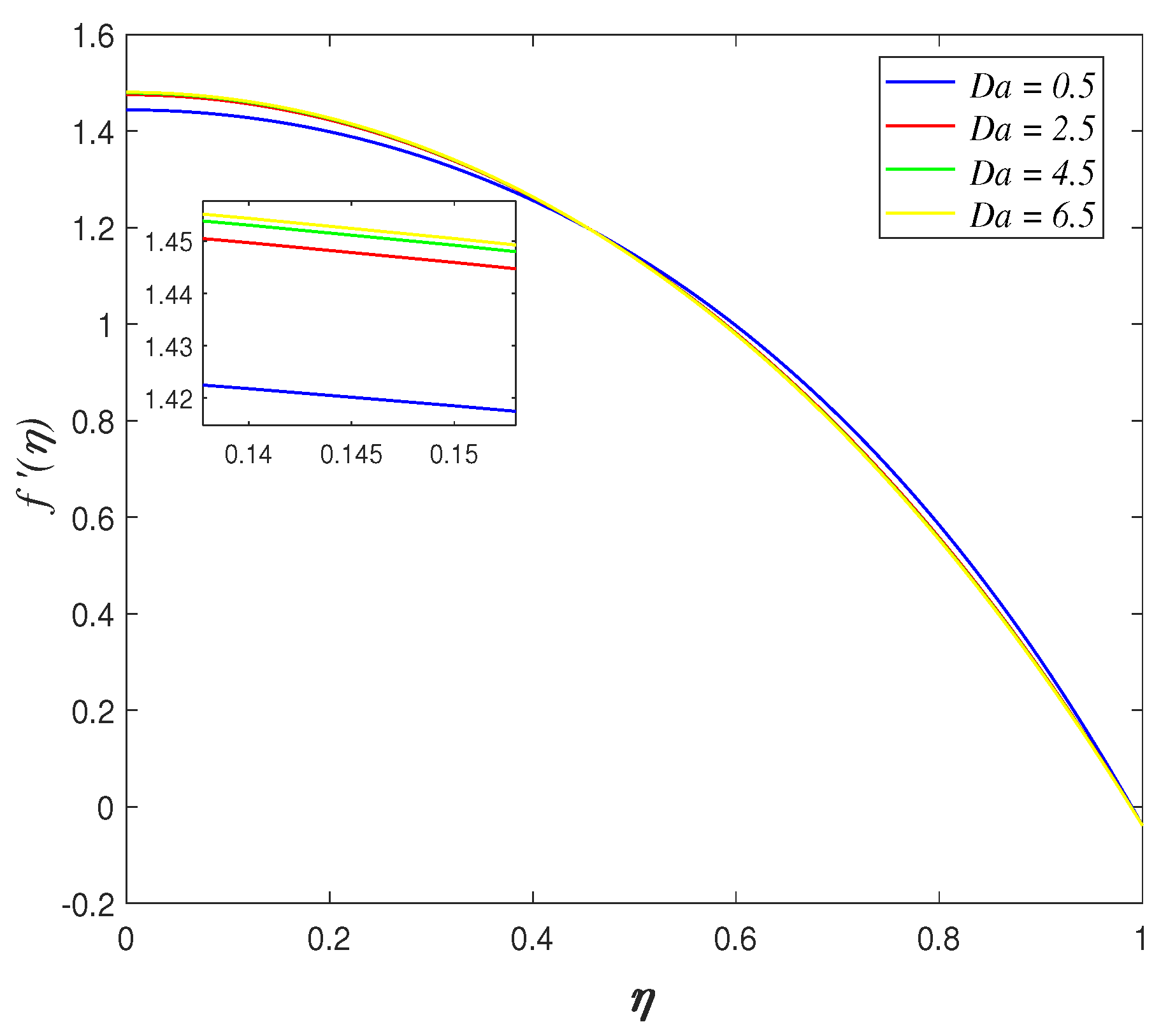

The variation of
on axial velocity is demonstrated in
Figure 14. The velocity enhances for
, and it declines for
when
increases. The flow across porous medium accelerates with the rise of permeability of the porous medium. The impact of
on axial velocity is portrayed in

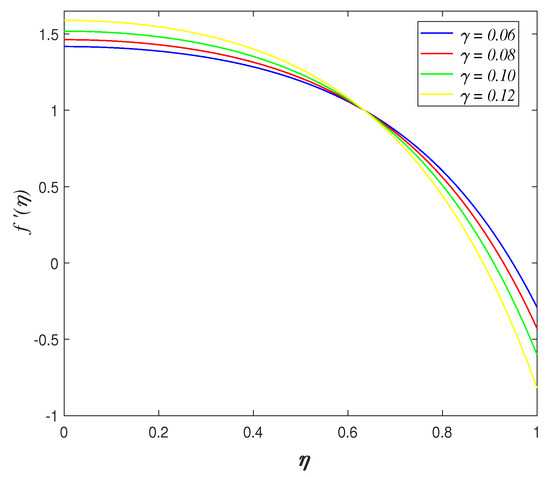

Figure 15. Physically, the slip condition at the upper plate is considered when the velocity at the plate and the fluid velocity nearer the plate is different. The velocity increases for
, and it decreases for
for a rise in
values. The reduction of flow nearer the upper wall is due to the reason that more fluid is able to slip over the wall as

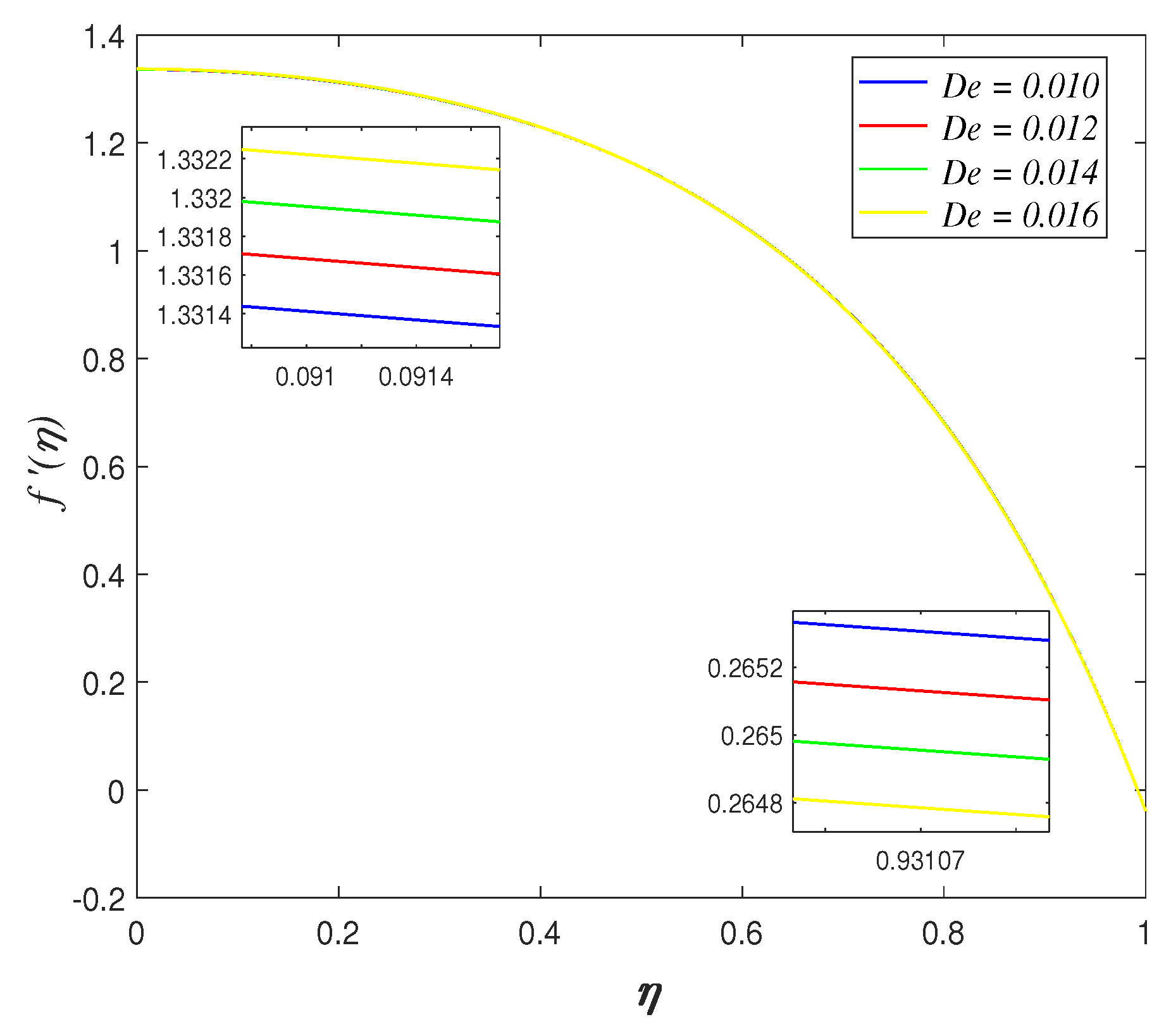

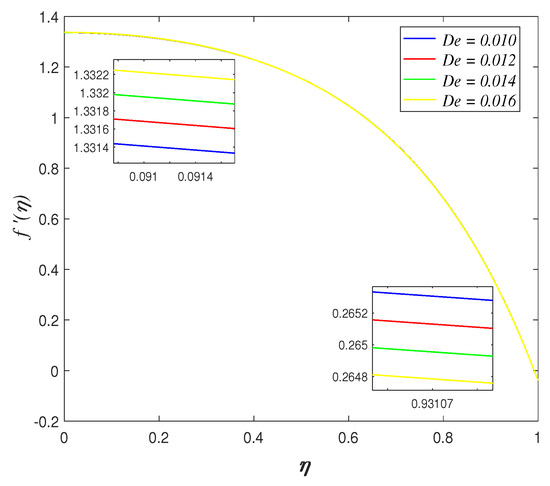

rises. The influence of
on axial velocity is presented in
Figure 16. It is noticed that the velocity accelerates nearby the lower wall, and it decelerates nearby the upper wall with a rise in
. The ratio of retardation time and observation time is defined as the Deborah number. The slow reaction to an applied stress or ‘delay of elasticity’ is called retardation time. It is found that the rise in
implies that the fluid exhibits a longer retardation time, which causes the viscosity of the fluid to increase. Hence, the intermolecular forces of fluid particles strengthen, which leads to the flow close to the upper wall slowing down.

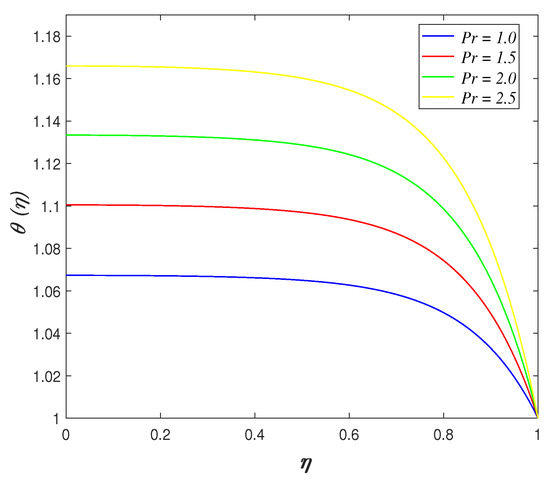

The influence of
on the temperature field is demonstrated in
Figure 17. The flow temperature elevates with a rise in
. The Prandtl number is the ratio of momentum diffusivity and thermal diffusivity. It is discovered that the enhancement of
promotes the specific heat capacity of the fluid. It has improved the fluid capability to absorb heat, which results in elevation of the flow temperature.

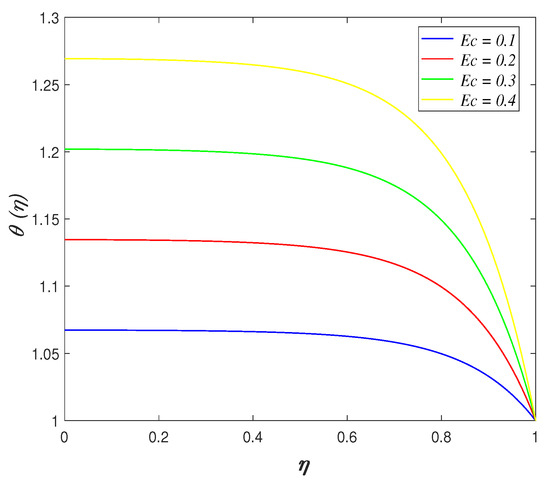

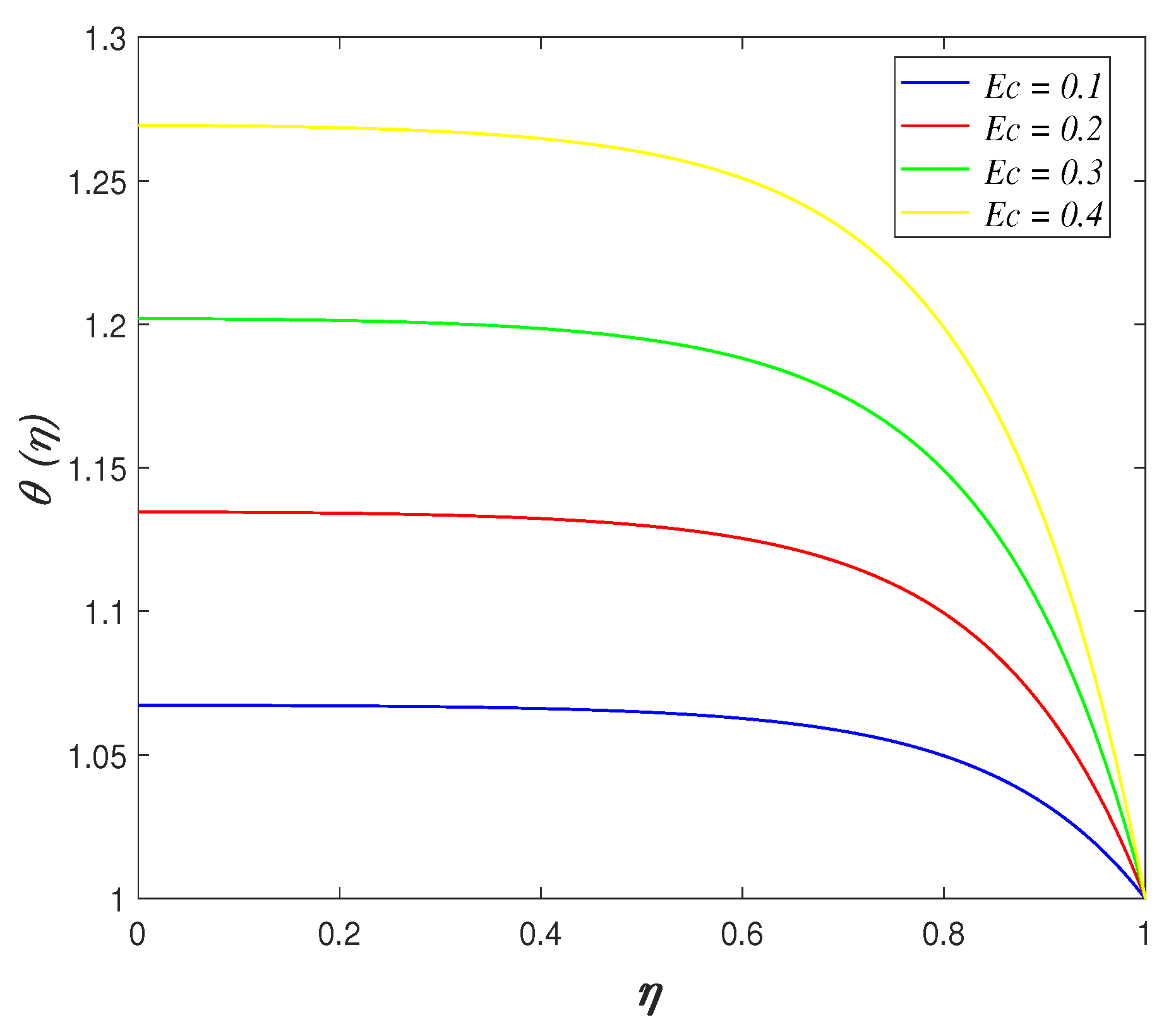

Figure 18 portrays the effect of
on the temperature field. It is shown that the flow temperature elevates as
rises. The presence of viscous dissipation is denoted by the Eckert parameter. High values of
accelerate the kinetic energy in the fluid particles. It is converted to heat energy and thus, causes a rise in the temperature profile at the flow boundary. The impact of

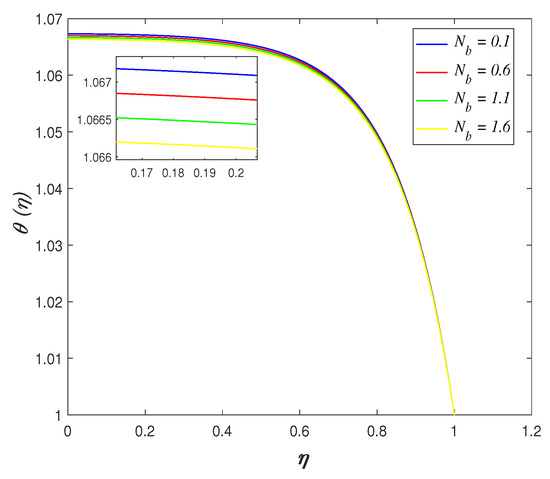

on the temperature field is described in

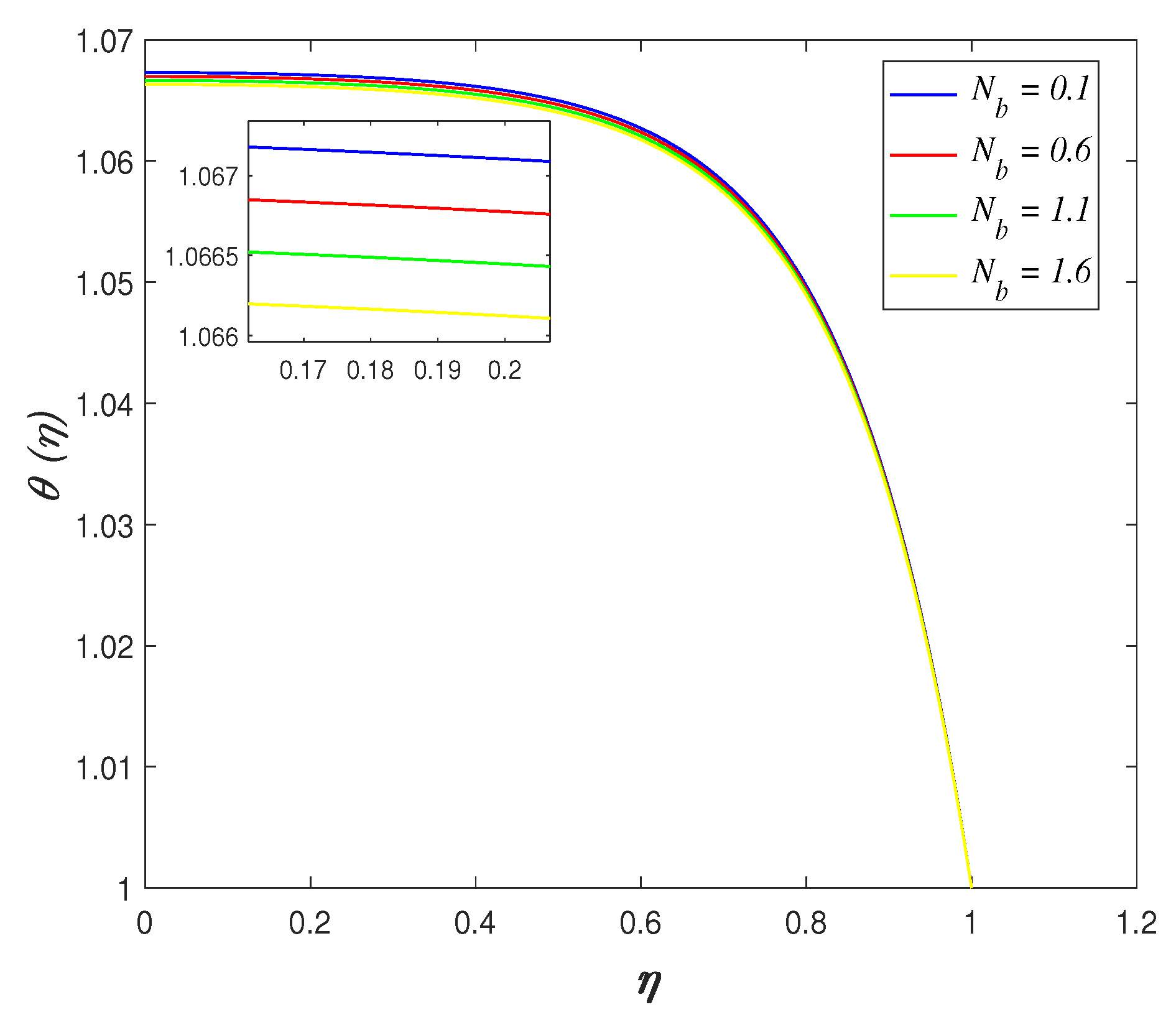

Figure 19. It is found that the temperature decreases when
rises. The movement of nanoparticles suspended in the fluid is known as Brownian motion. It is a key factor that promotes the thermal conductivity of nanofluid. The temperature in the flow decreases because of the high efficiency of heat transfer.

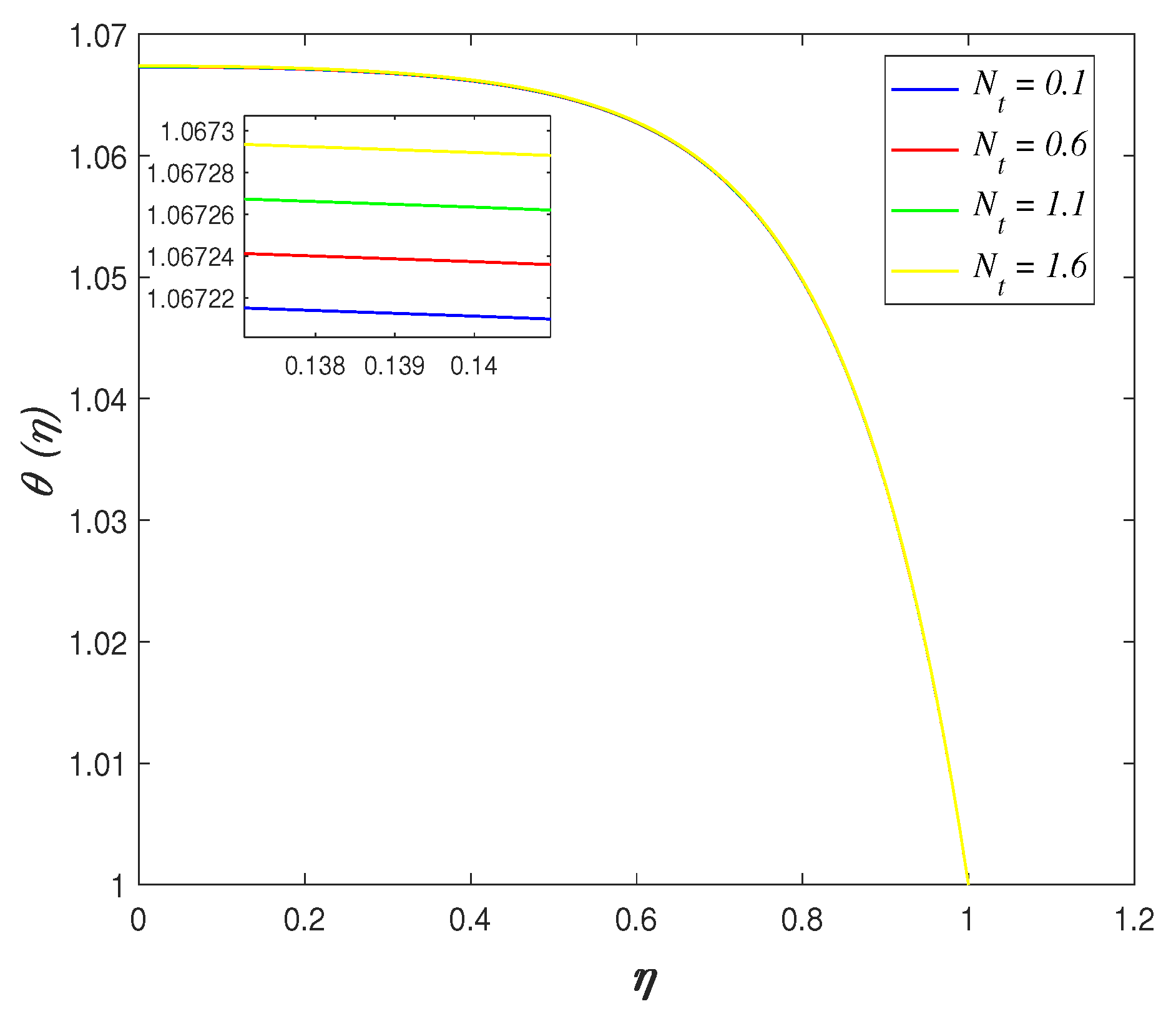

Figure 20 discovers the variation of
on the temperature field. The flow temperature is enhanced with increments of
. The thermophoretic force is imposed on nanoparticles when there is a temperature difference within the flow and the upper boundary. The kinetic energy of nanoparticles increases due to the thermophoretic force. This phenomenon elevates the temperature profile.

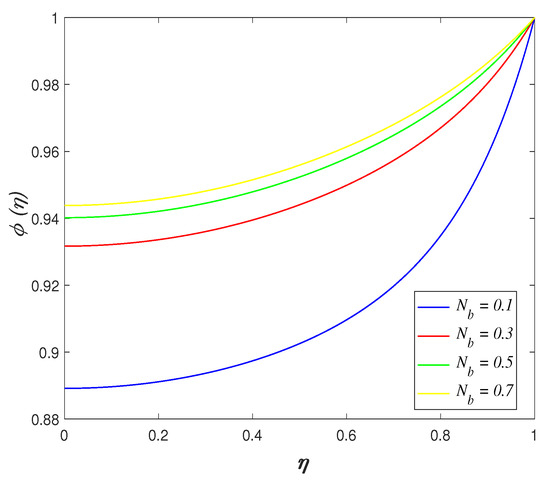

Figure 21 presents the variation of
on nanoparticle concentration. The concentration profile rises when
increases. Physically, the existence of Brownian motion enhances the kinetic energy of nanoparticles. The nanoparticles move from the upper wall to the flow region effectively and, thus, increase the concentration field. The influence of
on nanoparticle concentration is exhibited in

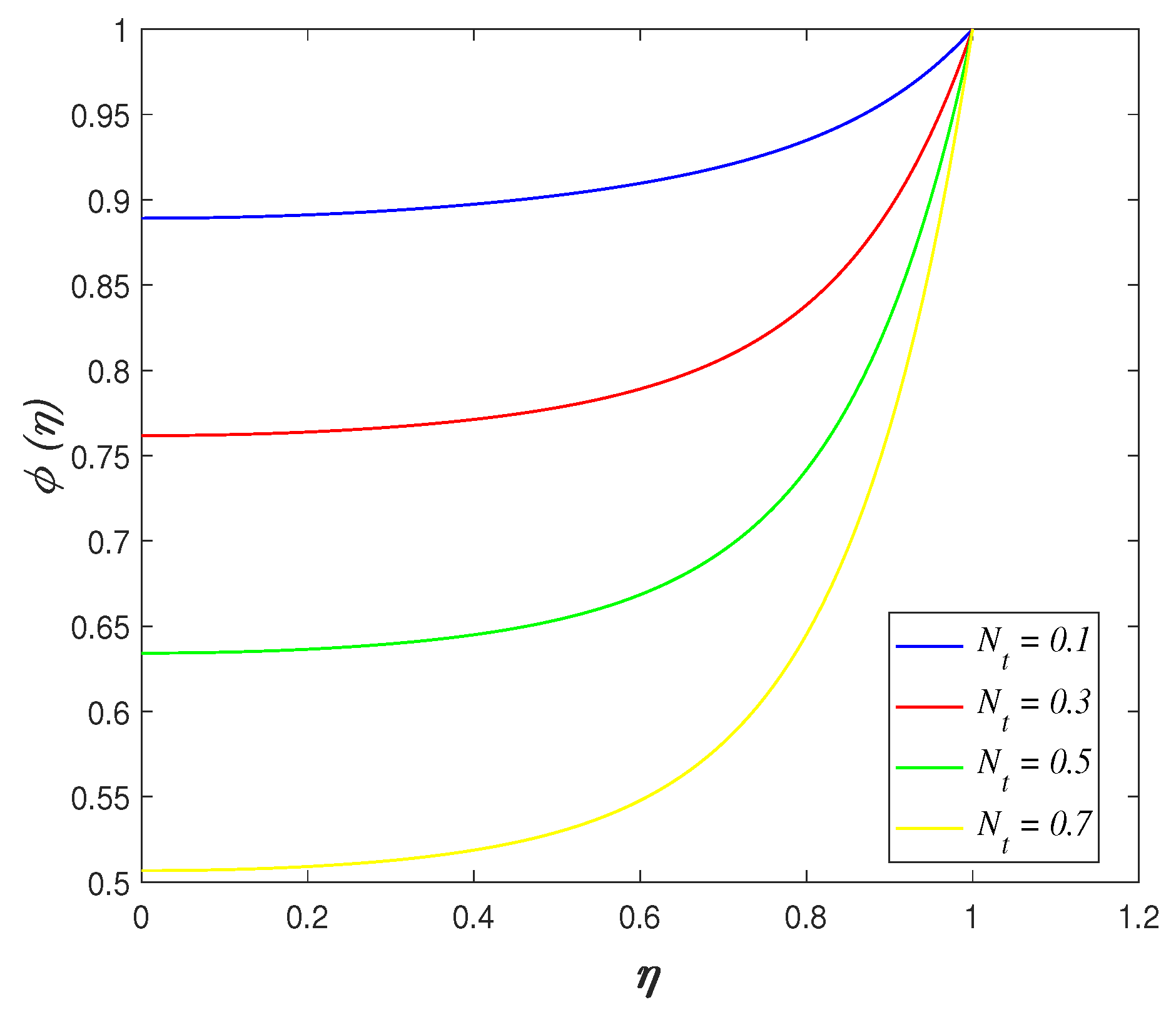

Figure 22. It is noted that fluid concentration decreases when
rises. The movement of nanoparticles from the flow region to the upper wall increases due to the thermophoretic force, which causes a reduction of the concentration profile.

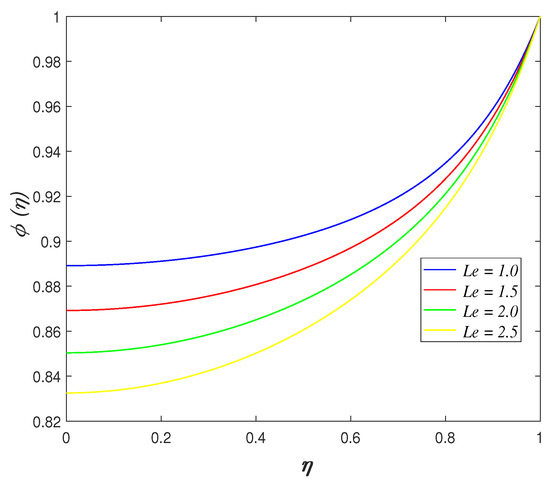

Figure 23 describes the variation of
on nanoparticle concentration. The nanoparticle concentration drops with an increase in
. It is stated that the Lewis number is inversely proportional to the Brownian motion. The motion of nanoparticles from the upper boundary to the flow region slows down as the Brownian motion decelerates. This phenomenon reduces the concentration in the fluid flow. The impacts of

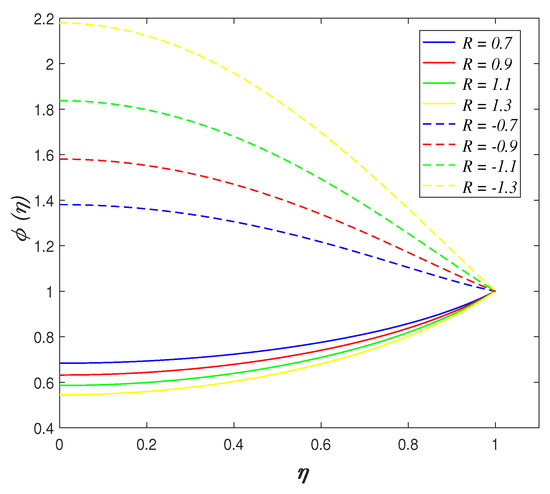

R on the concentration field are demonstrated in
Figure 24. The influences of a chemical reaction are categorized as destructive and constructive. It is shown that nanoparticle concentration elevates in a constructive chemical reaction
, and it declines in a destructive chemical reaction
. The constructive chemical reaction increases the rate of reaction in the flow and, consequently, increases the fluid concentration.
4. Physical Quantities of Interest
Skin friction coefficient, Nusselt and Sherwood numbers are the physical quantities in the flow. The friction of the fluid near the wall against the wall boundary is known as the skin friction parameter. Moreover, Nusselt and Sherwood parameters are the non-dimensional parameters that describe the rate of heat and mass transfer of fluid adjacent to the wall. The definitions of the skin friction coefficient
, Nusselt number
and Sherwood number
are denoted by [
51]
where
,
and
are the skin friction, heat and mass flux on the plate. The expressions of
,
and
are given as
The non-dimensional forms of
,
and
are
Numerical results of the physical quantities when varying the dimensionless parameters are illustrated in
Table 4,
Table 5,
Table 6 and
Table 7. The impact of
S on the skin friction coefficient, Nusselt and Sherwood numbers is presented in
Table 4. The wall shear stress elevates as
S rises, whereas the reverse impact is noted in the rate of heat and mass transfer. It is found that the frictional force on the fluid and the wall boundary enhances because the fluid accelerates as the plates move closer. In contrast, the reduction of the mass and heat transfer rate is owed to the kinetic energy of nanoparticles decreases in the narrow channel.
Table 5 reveals the effect of
S,
,
,
,
and
on the skin friction coefficient. The wall shear stress rises with an increase in
S,
and
, whereas it slows down for increasing
,
and
. The Lorentz force and slip condition increases the friction force near the wall surface. Meanwhile, the rise in
and
enhances the viscosity of Jeffrey fluid, which results in a decline in the velocity profile. The flow nearby the upper wall also decelerates as
increases. Therefore, the decline in the fluid velocity causes the wall shear stress to decrease. The variation of
,
,
and
on the Nusselt number is portrayed in
Table 6. The Nusselt number is the ratio of thermal transfer by convection and thermal transfer by diffusion. It is noticed that
,
and
raise the heat transfer rate, while
reduces the heat transfer rate. Based on
Figure 17,
Figure 18 and
Figure 20, the flow temperature elevates with increasing
,
and
. It has caused the kinetic energy of nanoparticles to become stronger and, therefore, enhance the rate of the heat transfer. In contrast, Brownian motion reduces the temperature profile, as exhibited in
Figure 19. The deceleration of kinetic energy of nanoparticles causes the rate of the heat transfer to decrease.
Table 7 demonstrates the impact of
,
R,
and
on the Sherwood number. It is discovered that the rate of mass transfer elevates with an enhancement of
,
R and
, whereas it drops when
rises. The Sherwood number is the ratio of convective mass transfer and the diffusive mass transfer. Physically, the increment of Brownian motion enhances the diffusive mass transfer, which causes the nanoparticle concentration in the flow to elevate, as displayed in
Figure 21. The Sherwood number is inversely proportional to the diffusive mass transfer. Hence, this phenomenon causes a decrease in the Sherwood number. The reverse behavior is found for increments of
,
R and
. A high Sherwood number implies that the presence of
,
R and
increases the mass transfer due to convection.
