# Series Solution-Based Approach for the Interlaminar Stress Analysis of Smart Composites under Thermo-Electro-Mechanical Loading

^{*}

## Abstract

**:**

## 1. Introduction

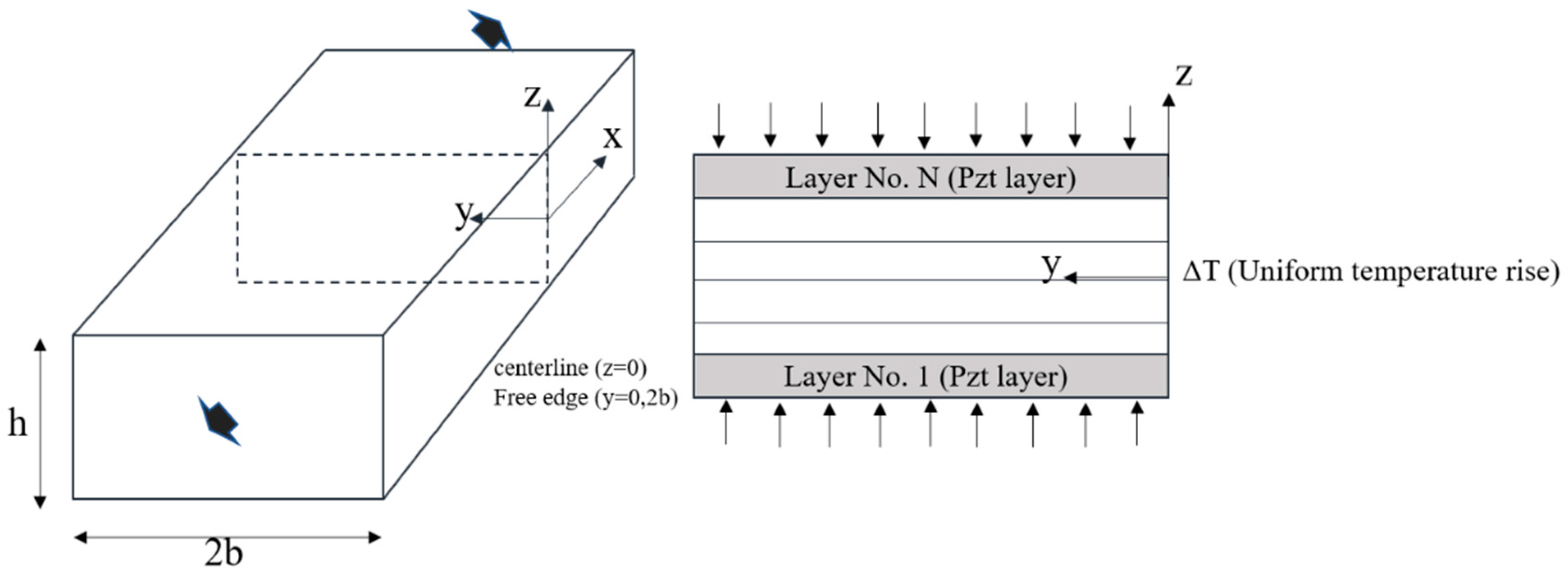

## 2. Theoretical Formulation

_{4}and σ

_{6}are employed, which leads to:

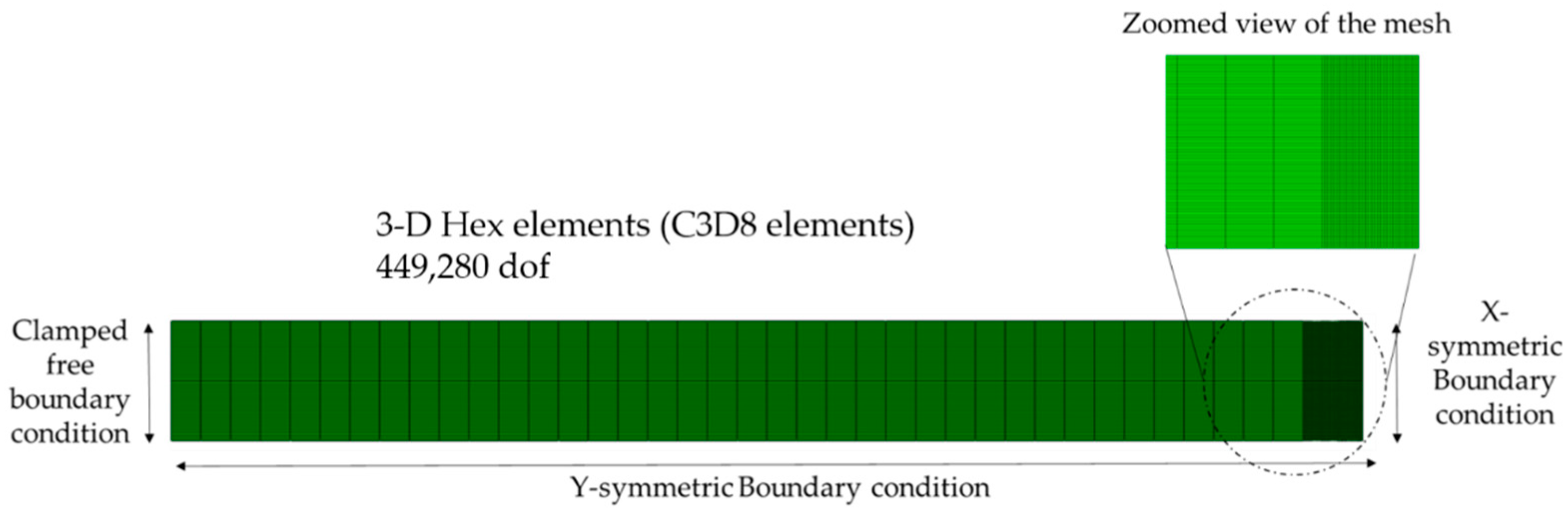

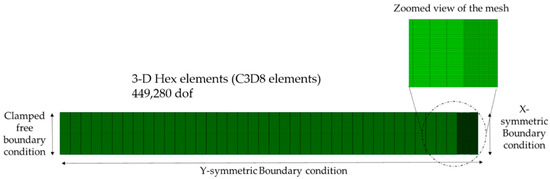

## 3. Computational Results

#### 3.1. Uniaxial Extension and Thermal Loading

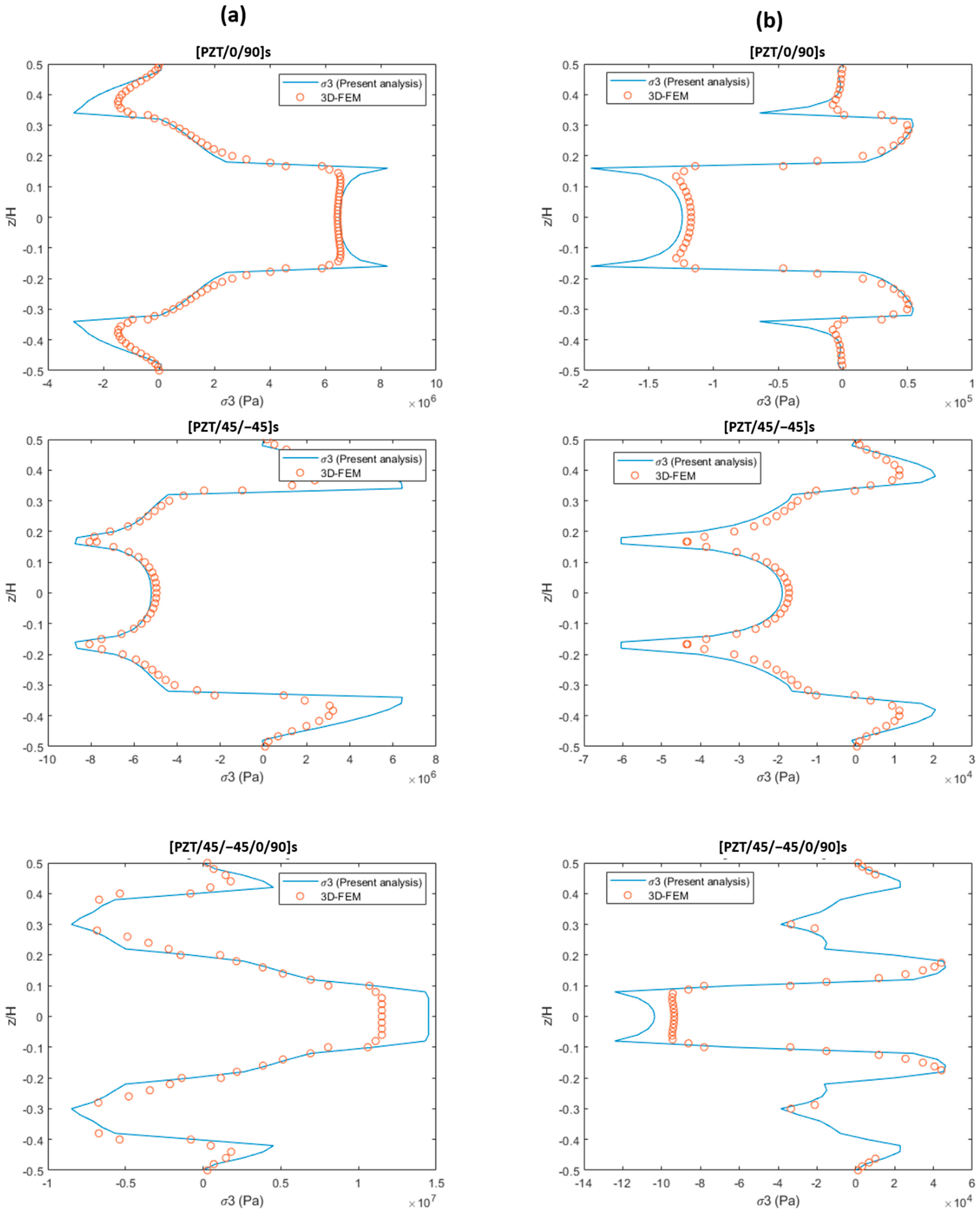

_{3}) distribution under tensile and thermal loadings. Stress concentrations occurred at the interfaces of the layers. The result of the present method correlates well with the 3D finite element result, but the FE-based solution underestimates the stress concentrations at the free edge. All the graphs show that the present method’s solutions are greater than the 3D finite element solution, because the 3D solid elements popularly used in FE analysis are based on the displacement field; the solution cannot guarantee the statically admissible stress field, even though the displacement field is exact.

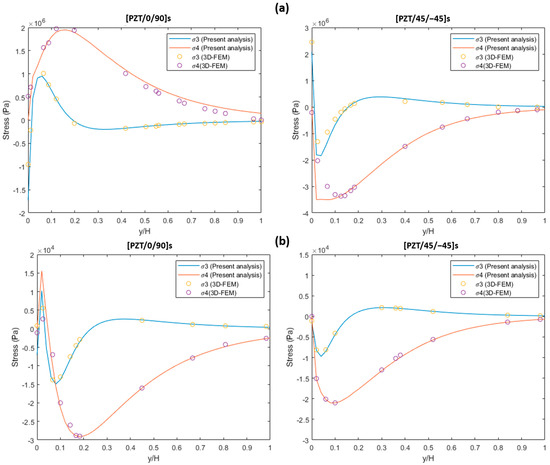

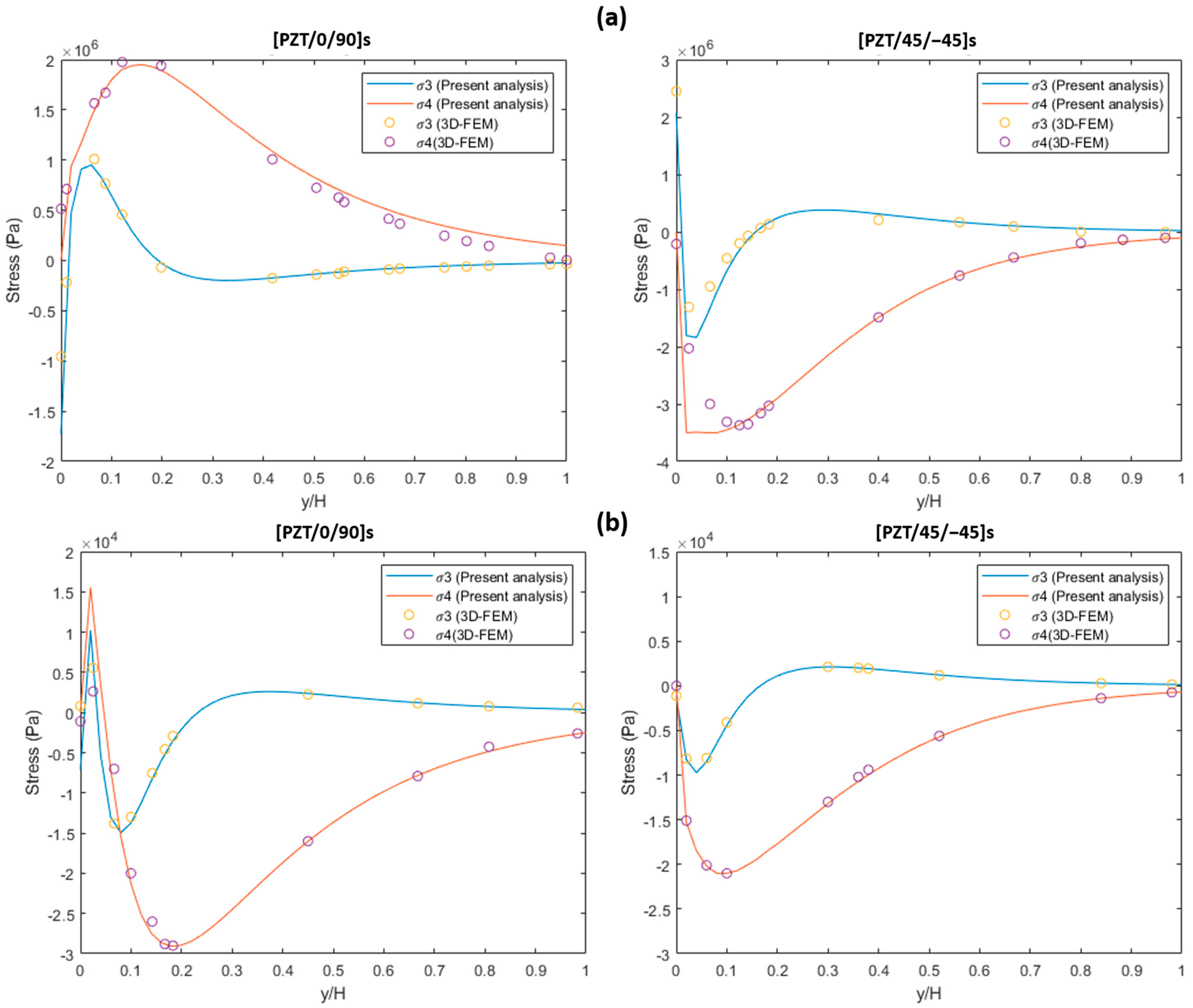

_{3}) and shear stresses (σ

_{4}) at the PZT/0 and PZT/45 interfaces of the laminates under 0.1% uniaxial extension and unit thermal loading (ΔT = 1). The maximum normal stress (σ

_{3}) concentration in both cross-ply and angle-ply laminates occurs at the free edge that can cause the PZT layer’s delamination failure. The present analysis results of free-edge of cross-ply and angle-ply indicate that the large shear stress (σ

_{4}) represents the satisfaction of the traction-free boundary condition and becomes null at the interior region. The results of the 3D-FEM solution show good agreement with the present analysis results.

#### 3.2. Reduction of Interlaminar Stress by Combined Thermo-Mechanical Loading

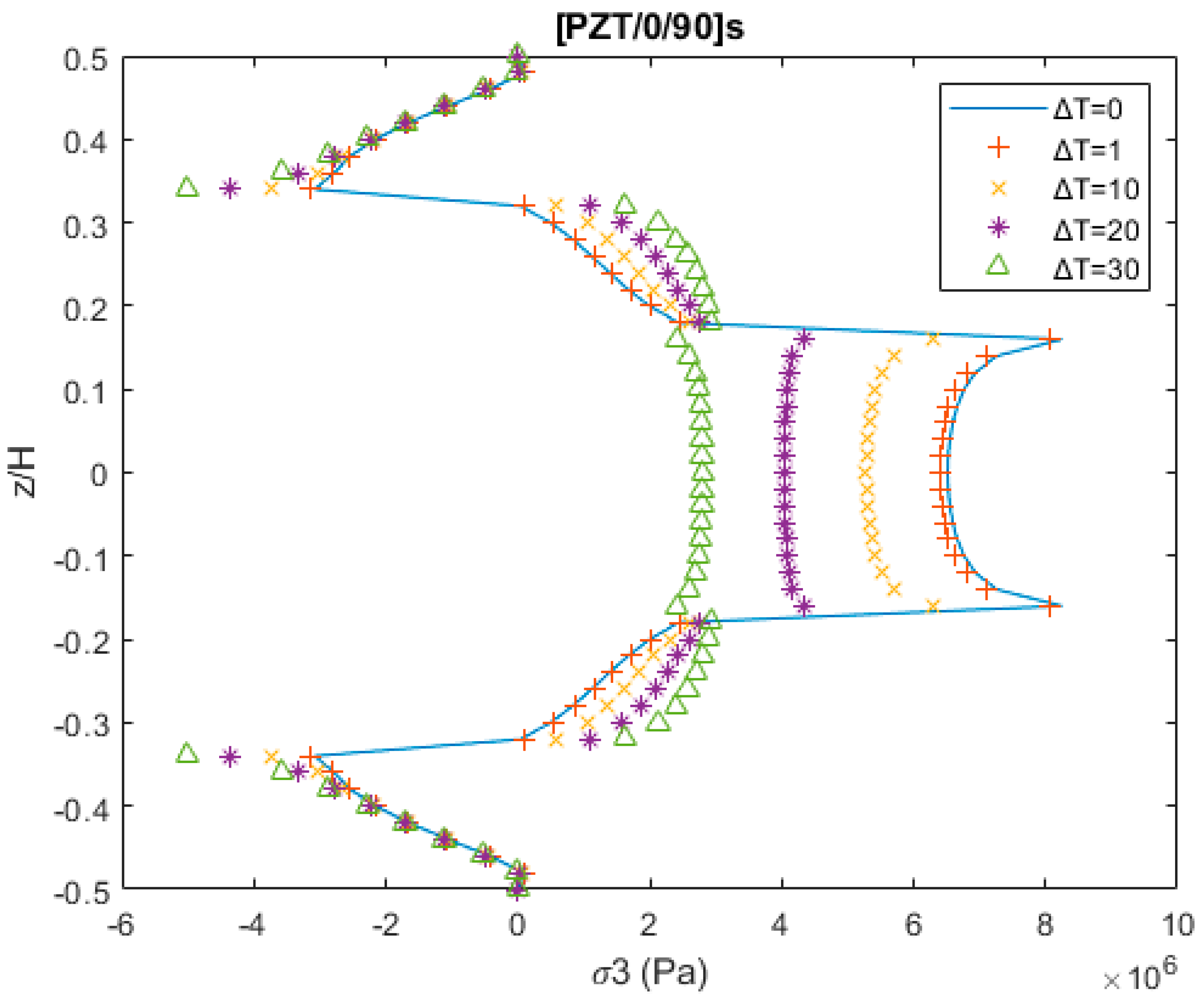

_{3}of cross-ply laminate under the combined 0.1% uniaxial extension loading, and the variable rise in the thermal loading throughout the laminate. The interlaminar stress distribution’s magnitude is reduced at the PZT/0 layer and 0/90 layer interface by increasing the laminate’s temperature. Without the thermal loading, the magnitude of peeling stress is 8.3 MPa; however, as the temperature loading of ΔT = 30 is applied, peeling stress is reduced to 2.9 MPa.

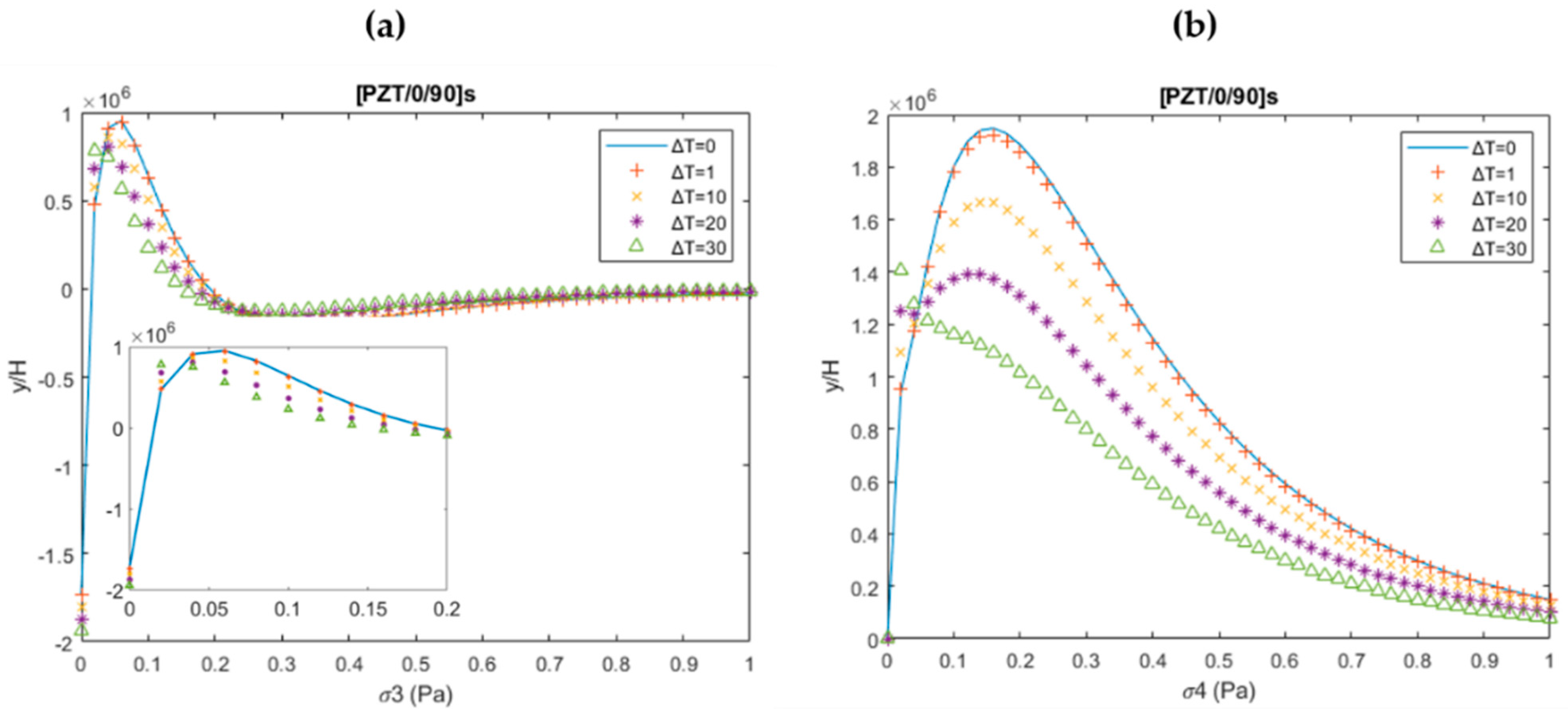

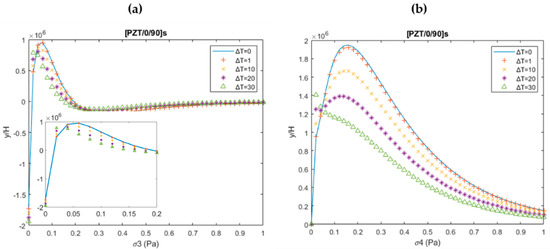

_{3}) and (σ

_{4}) distribution through the in-plane direction at the PZT/0 interface. The magnitude of the peeling stresses decreased significantly with the increase in thermal loading:

#### 3.3. Piezoelectric Excitation

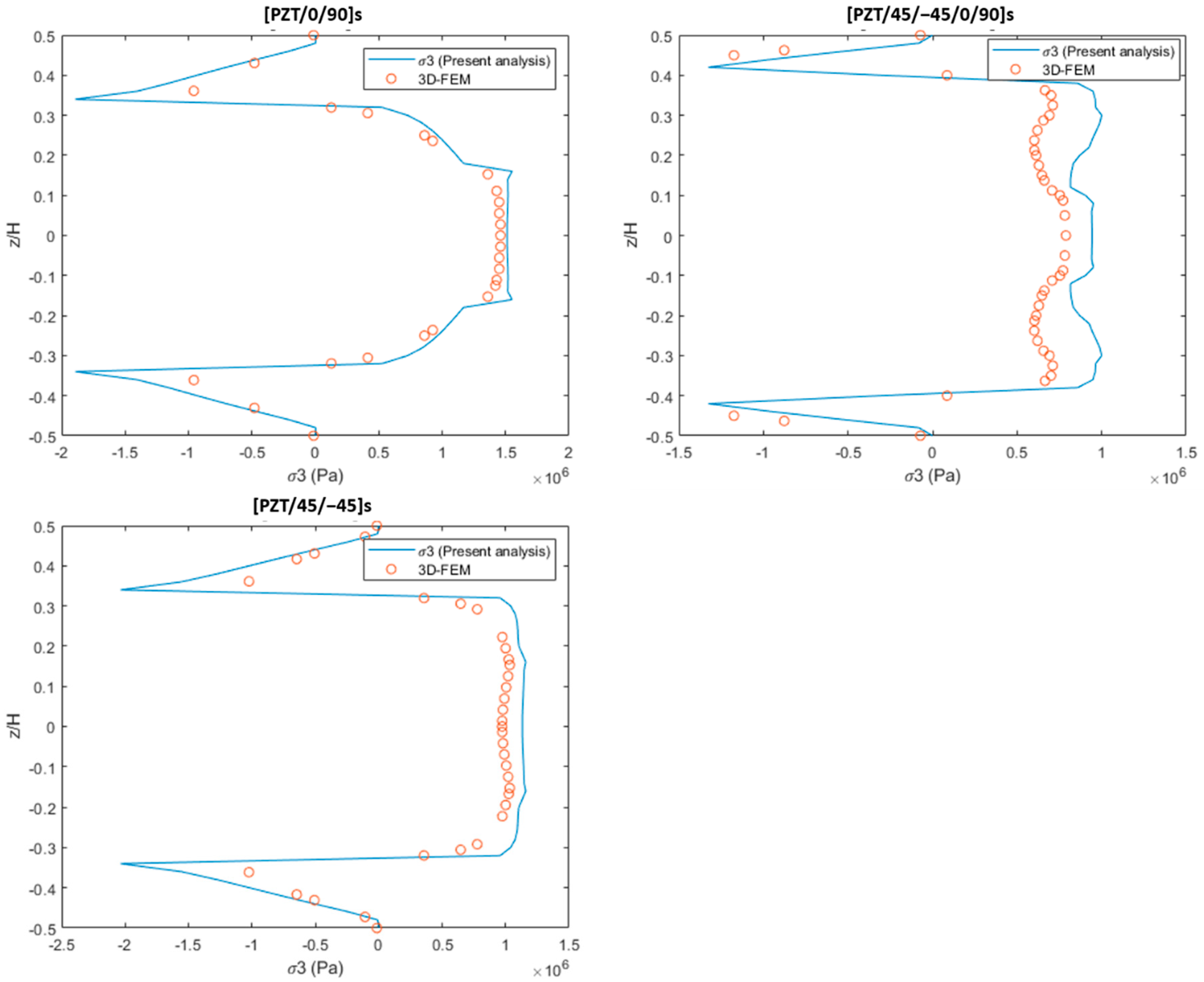

^{5}V/m of electric excitation is applied on both surfaces of the piezoelectric actuators. Figure 7 shows the free edge σ

_{3}distribution. The maximum stress concentration occurs at the PZT/0 and PZT/45 layer interfaces. The FEM results show a good correlation with the present analysis results.

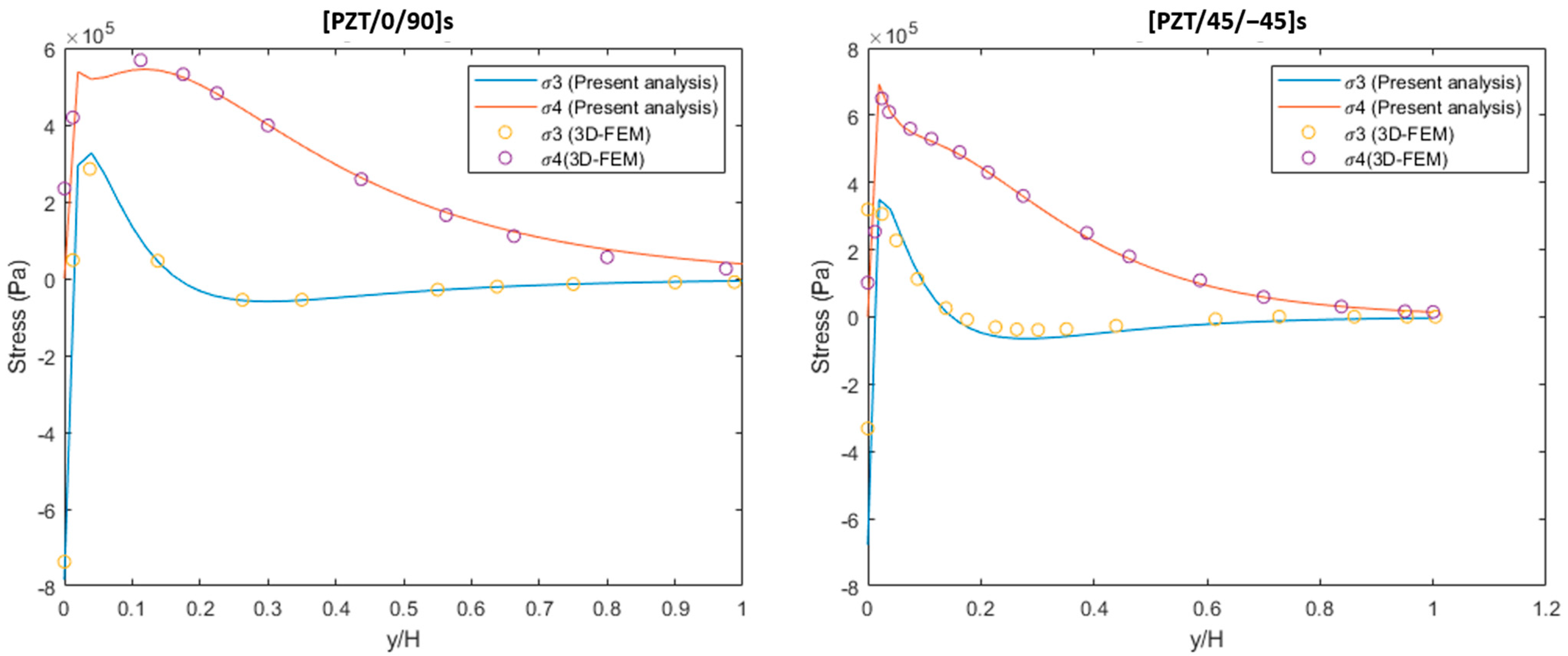

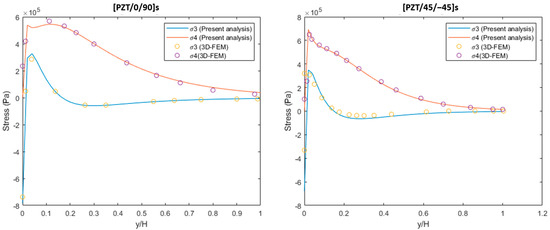

_{3}) and the shear stresses (σ

_{4}) at the PZT/0 and PZT/45 interfaces of the studied laminates. For all laminates the maximum normal stress (σ

_{3}) concentration appears at the free edge that can cause the PZT layer’s delamination failure. On the other hand, FEM results indicate that the traction-free boundary conditions are not satisfied as the FEM follows the displacement-based approach. Therefore, the present analysis results provide more accurate results as compared to the FEM-based results.

#### 3.4. Reduction in Interlaminar Stress by Combined Thermo-Electro-Mechanical Loading

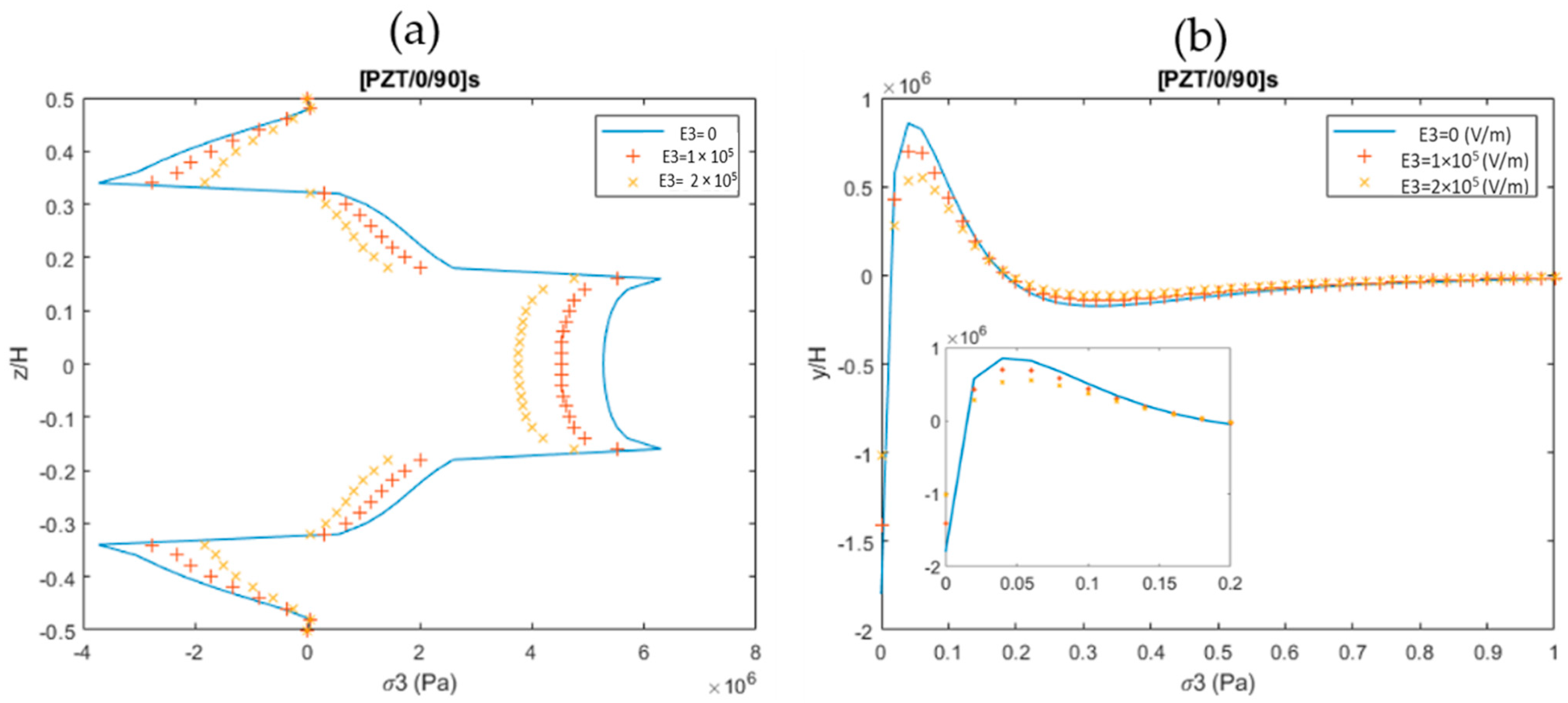

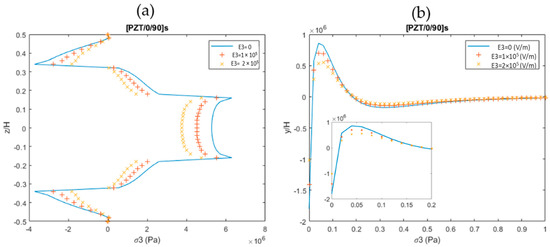

_{3}of the free edge of the cross-ply laminate under the combined thermo-electro-mechanical loading with 0.1% uniaxial tension, temperature loading of ΔT = 10, and the variable electric field of (E3 = 0 V/m, E3 = 1 × 10

^{5}V/m, and E3 = 2 × 10

^{5}V/m). It can be observed that, without applying the electric field, the concentration of peeling stress is 6.3 MPa, and upon applying the excitation of 2 × 10

^{5}V/m, it is reduced to 4.7 MPa (up to 25.3% reduction). Similarly, at the PZT/0 layer in the in-plane direction, the peak value of the concentrated peeling stress drops with increased electric field loading.

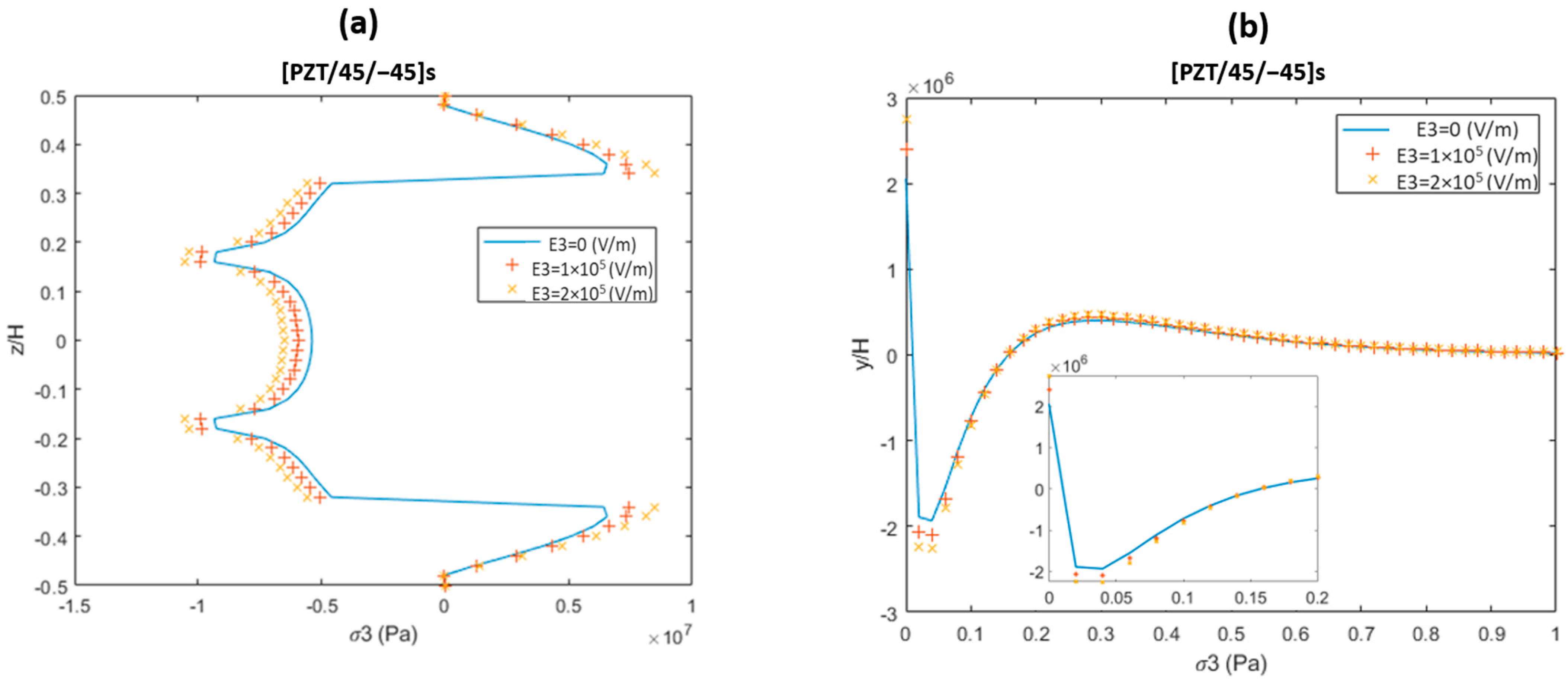

_{3}at the free edge under the combined thermo-electro-mechanical loading with 0.1% uniaxial tension, temperature loading of ΔT = 10, and the variable electric field of (E3 = 0 V/m, E3 = 1 × 10

^{5}V/m, and E3 = 2 × 10

^{5}V/m). Large stress concentrations can be seen to occur on the free edge of the 45/−45 layer interface. When an electric excitation at the piezoelectric layer is applied, the peeling stress in angle-ply laminate could be significantly reduced.
