Article

A Novel Multi-Channel Image Encryption Algorithm Leveraging Pixel Reorganization and Hyperchaotic Maps

1
School of Mathematics and Computer Science, Panzhihua University, Panzhihua 617000, China
2
School of Electrical and Information Engineering, Panzhihua University, Panzhihua 617000, China
3
School of Electronic Information, Zhongshan Institute, University of Electronic Science and Technology of China, Zhongshan 528402, China
4
Key Laboratory of Hunan Province on Information Photonics and Freespace Optical Communications, Hunan Institute of Science and Technology, Yueyang 414006, China
5
College of Physics and Electronics, Hunan Institute of Science and Technology, Yueyang 414006, China
*
Author to whom correspondence should be addressed.
Mathematics 2024, 12(24), 3917; https://doi.org/10.3390/math12243917
Submission received: 18 November 2024 / Revised: 5 December 2024 / Accepted: 11 December 2024 / Published: 12 December 2024
(This article belongs to the Special Issue Chaos-Based Secure Communication and Cryptography, 2nd Edition)

Abstract

:
Chaos-based encryption is promising for safeguarding digital images. Nonetheless, existing chaos-based encryption algorithms still exhibit certain shortcomings. Given this, we propose a novel multi-channel image encryption algorithm that leverages pixel reorganization and hyperchaotic maps (MIEA-PRHM). Our MIEA-PRHM algorithm employs two hyperchaotic maps to jointly generate chaotic sequences, ensuring a larger key space and better randomness. During the encryption process, we first convert input images into two fused matrices through pixel reorganization. Then, we apply two rounds of scrambling and diffusion operations, coupled with one round of substitution operations, to the high 4-bit matrix. For the low 4-bit matrix, we conduct one round of substitution and diffusion operations. Extensive experiments and comparisons demonstrate that MIEA-PRHM outperforms many recent encryption algorithms in various aspects, especially in encryption efficiency.

1. Introduction

With the advent of the digital era and the rapid evolution of emerging technologies such as artificial intelligence (AI), cloud computing, and big data, digital images have found increasingly widespread use across diverse industries. Constantly, a vast number of digital images are generated, originating from a multitude of sensors, smartphones, and other terminal devices. These images are then distributed and stored through various channels, including intranets and the Internet [1]. During their transmission and storage, digital images face a growing spectrum of security threats, encompassing data breaches and unauthorized access. These threats not only jeopardize personal privacy but also pose significant risks to the information security of diverse industries. As a result, the challenge of ensuring the efficient and secure safeguarding of image data has risen to the forefront as a critical issue requiring immediate attention [2].
As an effective means of safeguarding image data, image encryption technology is gaining increasing favor. This technology transforms digital images into unrecognizable, quasi-noise images, rendering it impossible for unauthorized parties to obtain meaningful information, thereby effectively ensuring the security of image data [3]. Notably, digital images are characterized by strong pixel correlation, significant data redundancy, and vast data volume. This renders text-oriented traditional algorithms, such as advanced encryption standard (AES), inappropriate for encrypting image data [4]. Thus, to achieve higher encryption efficiency and security, researchers are continually exploring various techniques and methodologies to devise image encryption algorithms. Among these are chaotic systems [5,6,7,8,9,10], quantum computing [11,12,13], deoxyribonucleic acid (DNA) sequence operations [14,15,16], compressed sensing [17,18,19], neural networks [20,21,22,23,24,25], optical transformations [26,27], and numerous others [28,29,30,31]. Additionally, a notable trend in the field of image encryption is that chaotic systems are increasingly adopted [2,32].
In fact, this trend is by no means accidental. Chaotic systems are highly regarded because of their remarkable characteristics, which are extremely suitable for developing cryptographic systems. Specifically, chaotic systems have the characteristics of ergodicity, unpredictability, randomness, and extreme sensitivity to initial conditions. In recent years, the academic community has continued to deepen and advance the research on chaos-based image encryption. There is a large number of image encryption algorithms that have been proposed in the past few years [5,6,7,8,9,33,34,35,36,37]. However, many recently reported encryption algorithms still exhibit certain weaknesses in terms of practicality or security [38,39,40].
With a 2D hyperchaotic map formed by coupling multiple seed maps, Nan et al. [33] presented an encryption algorithm based on compressed sensing and S-box. The algorithm exhibits commendable encryption results due to the inherent randomness of chaotic sequences. Nevertheless, the complex structure of their map leads to poor encryption efficiency. Furthermore, their algorithm brings data loss, rendering it impractical for encrypting images with intricate details.
Wang et al. [34] devised an encryption algorithm based on a 1D chaotic map, which employs a common permutation and diffusion framework. To bolster the algorithm’s ability to resist plaintext attacks, they utilized the image’s hash value directly to obtain the initial inputs of the adopted chaotic map. Such a design poses practical challenges in terms of key management. Furthermore, given that the chaotic map employed features just a single control parameter, the algorithm’s effective key space is actually small.
Employing a 2D combined hyperchaotic map, Etoundi et al. [35] built an efficient encryption algorithm. This algorithm achieves the encryption of the input image by conducting substitution and scrambling operations. Since no diffusion mechanism is introduced, it is actually unable to effectively resist various differential attacks.
In [36], Liu et al. introduced an encryption algorithm that leverages a spatiotemporal chaotic system and DNA sequence operations. Due to its dual-bit encryption approach, the algorithm’s encryption efficiency fails to satisfy the demands of practical applications. In addition, the algorithm exploits hash values to generate the initial inputs of the chaotic system, which also leads to the dilemma of key management.
To address the deficiencies in existing algorithms and achieve higher encryption efficiency and security, we propose a novel multi-channel image encryption algorithm that leverages hyperchaotic maps and pixel reorganization (MIEA-PRHM). Distinct from numerous encryption algorithms reported in recent years [3,4,5,7,8,9,14,15,16,17,23,29,31,33,34,35,41,42,43,44,45,46,47,48,49,50,51,52,53,54], our MIEA-PRHM incorporates several novel designs aimed at enhancing encryption efficiency and bolstering security.
Firstly, we adopt two recently reported robust hyperchaotic maps, the 2D sinusoidally constrained polynomial hyperchaotic map (2D-SCPM) [46] and the 2D enhanced logistic modular map (2D-ELMM) [47]. These two hyperchaotic maps are used to jointly generate chaotic sequences. This not only expands the key space but also helps to enhance the non-periodicity and randomness of the generated chaotic sequences.
Secondly, we optimize the utilization of hash values. In our MIEA-PRHM algorithm, rather than being employed as secret keys, hash values are utilized solely to bolster the dynamism of the encryption process. This optimization not only enhances the sensitivity to plaintext, but also addresses the practical issues related to key management.
Thirdly, we apply pixel reorganization to encrypt the high 4-bit and low 4-bit components of image pixels with varying intensities. By leveraging pixel fusion and differentiated encryption, this design can reduce the computational overhead of subsequent encryption operations by roughly three-quarters.
Lastly, the encryption process of MIEA-PRHM encompasses multiple rounds of vector-level scrambling, diffusion, and substitution operations, which are not only computationally efficient but also exhibit dynamic characteristics.
In summary, our research contributes in the following aspects:
  • Utilizing two robust hyperchaotic maps, 2D-SCPM and 2D-ELMM, we propose a novel multi-channel image encryption algorithm called MIEA-PRHM.
  • Our proposed MIEA-PRHM algorithm utilizes 2D-SCPM and 2D-ELMM to jointly generate chaotic sequences, which can not only expand the key space but also enhance the randomness of chaotic sequences.
  • Pixel reorganization achieves differentiated encryption by splitting and fusing image pixels. This can significantly reduce the computational amount in the entire encryption process and thus improve encryption efficiency.
  • Dynamic vector-level encryption operations guarantee that MIEA-PRHM delivers exceptional security and encryption efficiency. Experimental results and performance analyses demonstrate that MIEA-PRHM possesses notable advantages in various aspects, particularly in terms of encryption efficiency.
We organize the remainder of this paper as follows: Section 2 briefly describes the two hyperchaotic maps and the SHA-256 hash function. Section 3 provides a detailed introduction to the entire encryption process of MIEA-PRHM. Section 4 evaluates and analyzes the performance of MIEA-PRHM through a series of experiments and comparisons. In the final section, we conclude the paper.

2. Preliminaries

Herein, we will first introduce two recently reported hyperchaotic maps employed in MIEA-PRHM, followed by a concise overview of the SHA-256 hash function.

2.1. The 2D-SCPM and 2D-ELMM

At present, chaotic maps are extensively employed in image encryption. For image encryption algorithms, the chaotic performance of the employed chaotic maps, alongside their efficiency in generating chaotic sequences, holds significant importance. Consequently, we opt for two recently introduced robust 2D hyperchaotic maps, distinguished by their simplicity, ease of implementation, and remarkable efficiency in generating chaotic sequences. Furthermore, these maps exhibit exceptional chaotic behavior, characterized by uniformly distributed state values, consistently high Lyapunov exponents, and broad, continuous hyperchaotic ranges. Notably, they surpass most counterparts in common chaotic performance metrics, and the chaotic sequences they produce meet the rigorous standards of randomness tests.
Among the two robust hyperchaotic maps mentioned above, we first introduce 2D-SCPM [46]. It is a polynomial map constrained by the sine function, and its specific definition is as follows:
x k = sin ( 10 α x k 1 y k 1 + 10 β y k 1 ) , y k = sin ( 10 β x k 1 y k 1 + 10 α x k 1 ) ,
where k = 1 , 2 , 3 , represents the iteration number of 2D-SCPM, ( x k 1 , y k 1 ) is the input of each iteration, and ( x k , y k ) represents the corresponding output. α and β are the two control parameters of 2D-SCPM. When ( a , b ) [ 1 , 12 ] , 2D-SCPM is always in a hyperchaotic state.
Another hyperchaotic map employed in our study is 2D-ELMM [47]. This hyperchaotic map also boasts a straightforward structure and outstanding chaotic performance. In detail, its definition is articulated as follows:
x i = e γ x i 1 ( e θ y i 1 1 ) mod 1 , y i = e θ y i 1 ( e γ x i 1 1 ) mod 1 ,
where i = 1 , 2 , 3 , is the iteration number of 2D-ELMM, ( x i 1 , y i 1 ) represents the input of each iteration, and ( x i , y i ) denotes the corresponding output. γ and θ stand for the two control parameters of 2D-ELMM. When ( γ , θ ) [ 1 , 10 ] , 2D-ELMM is always in a hyperchaotic state.

2.2. Mathematical Features of Hyperchaotic Maps

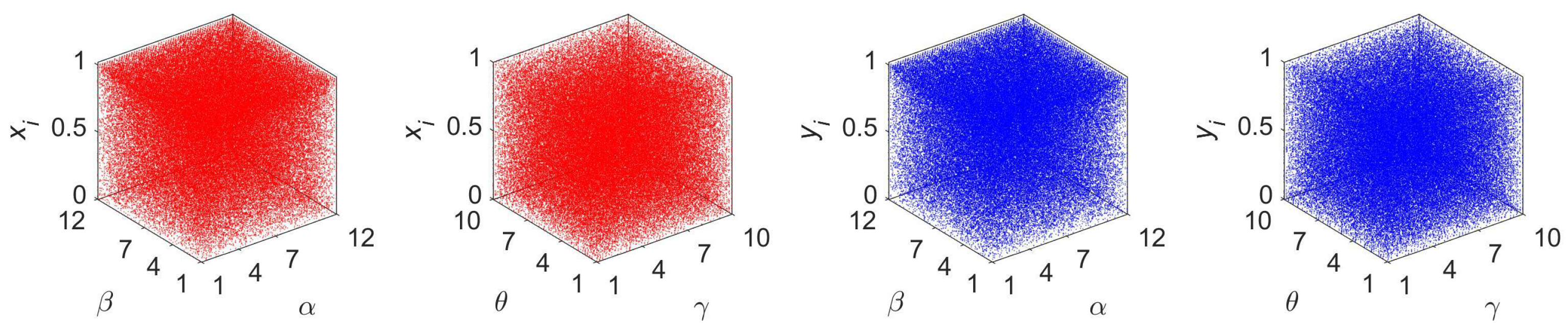

The two hyperchaotic maps utilized in our MIEA-PRHM possess mathematical features that perfectly align with the demands of image encryption. Firstly, their state value distributions are exceptionally uniform, characterized by boundedness and ergodicity. Encrypting digital images with their state values helps eliminate the prominent distribution characteristics of plaintext pixels as shown in Figure 1 and Section 4.7. Secondly, they exhibit extreme sensitivity to minute variations in their initial state values and control parameters. Utilizing these initial state values and control parameters as components of the secret key ensures exceptionally high key sensitivity as demonstrated in Section 4.2. Furthermore, they possess favorable intrinsic randomness and complexity. Employing them for designing image encryption algorithms not only generates highly random noise-like ciphertext images but also effectively resists numerous attacks targeting the secret key or statistical characteristics. Lastly, their complex and random chaotic behaviors are deterministic. Anyone possessing the correct secret key can losslessly decrypt indistinguishable noise-like ciphertext images back to original plaintext images. For more information on the mathematical features of these two hyperchaotic maps, please refer to [46,47].

2.3. NIST SP-800 Randomness Test

The NIST SP-800 randomness test constitutes a widely adopted collection of statistical methodologies aimed at assessing the quality of random and pseudorandom number generations [46]. To showcase the superiority of our chaotic sequence generation strategy, we subject the chaotic sequences employed within our MIEA-PRHM to the NIST SP-800 randomness test. Additionally, we conduct tests on chaotic sequences generated exclusively using either 2D-SCPM or 2D-ELMM. Given that the NIST SP-800 randomness test is tailored for binary sequences, we convert the resulting floating-point chaotic sequences into integers and then into binary form, following the method described in Equation (8).
According to the requirements of the NIST SP-800 randomness test, we utilize random inputs to generate a total of 60 sets of binary sequences, each with a length of 1,000,000 bits. For each test item, if the obtained p-value exceeds the threshold of 0.01, the test item is deemed to have been passed. Our final test results are presented in Table 1. It can be observed that when generating binary sequences using 2D-SCPM or 2D-ELMM alone, a small number of sequences fail to pass all the test items. In contrast, all binary sequences generated by the joint generation strategy of MIEA-PRHM pass the test. This shows that our design is effective and can better ensure the randomness of chaotic sequences.

2.4. SHA-256 Hash Function

The SHA-256 hash function is devised by the National Security Agency (NSA) of the United States [54]. It processes input data in chunks, generating a 256-bit hash value through a series of mathematical operations. SHA-256 is characterized by its irreversibility, uniqueness, high security, and input sensitivity. No one can deduce the original data from the hash value. Different inputs yield nearly unique hash values, exhibiting high collision resistance. Any minor modification to the input data results in significant changes to the hash value. SHA-256 is extensively utilized in digital signatures, password storage, data integrity verification, blockchain, and other fields.
Currently, many image encryption algorithms utilize plaintext hash values to boost their sensitivity to plaintext. However, most of their methods for leveraging the hash values are impractical, posing significant challenges in key management. As a result, in our MIEA-PRHM, we solely utilize plaintext hash values to enhance the encryption process’s dynamism, rather than using them directly as secret keys or to create chaotic sequences. Specifically, we initially input two fused pixel matrices, F ( 1 ) and F ( 2 ) , into the SHA-256 algorithm to obtain a 256-bit hash value h ˜ . For further details regarding F ( 1 ) and F ( 2 ) , please refer to Section 3.1. Subsequently, we convert the hash value h ˜ into a byte vector v of size 1 × 32 . Ultimately, these hash value bytes are transformed into a plaintext-related vector V of size 1 × 8 , which is utilized in the encryption process:
V = v 4 × i 3 × v 4 × i 2 × v 4 × i 1 × v 4 × i ,
where i = 1 , 2 , , 8 .

3. Proposed MIEA-PRHM

This section introduces the encryption steps and the complete encryption process of our proposed MIEA-PRHM algorithm. In this novel chaotic image encryption algorithm, there are five distinct encryption steps, which are pixel reorganization, generating chaotic sequences, row–column joint scrambling, vector-level dynamic rotational diffusion, and dual-operation dynamic partition substitution. As shown in Figure 2, some of these encryption steps are performed once, while others are performed twice or three times. Next, we introduce these encryption steps in detail one by one.

3.1. Pixel Reorganization

In this encryption step, we split the image pixels that require encryption into high 4-bit and low 4-bit components. Subsequently, separate pixel fusion operations are conducted on these components. The purpose of pixel splitting is to facilitate the application of different encryption intensities to the high 4-bit and low 4-bit components in subsequent encryption steps. Meanwhile, pixel fusion aims to more fully exploit the computational capabilities of the processor. Consequently, both approaches contribute to improving the encryption efficiency of MIEA-PRHM. Specifically, pixel reorganization encompasses the following steps:
  • Step 1: For one or multiple input images that require encryption, aggregate them into a 3D pixel matrix T ( 1 ) with dimensions of H ^ × W ^ × N . Here H ^ × W ^ signifies the channel dimensions of these images, and N signifies the total number of channels across these input images. In this context, a grayscale image is deemed a single channel image, whereas a color image is considered a three channel image, comprising the red (R), green (G), and blue (B) channels.
  • Step 2: Reshape T ( 1 ) into a 3D pixel matrix T ( 2 ) with dimensions of H × W × 8 , where H = H ^ / 2 and W = ( W ^ × N ) / 4 . If H ^ / 2 or W ^ / 4 is not an integer, T ( 1 ) is filled with zero-value pixels to ensure that H / 2 or W ^ / 4 becomes the smallest integer greater than itself.
  • Step 3: Mathematically split T ( 2 ) into a high 4-bit component T ( 3 ) , and a low 4-bit component T ( 4 ) :
    T ( 3 ) = T ( 2 ) / 16 , T ( 4 ) = T ( 2 ) mod 16 ,
    where yields the largest integer that does not exceed its operand.
  • Step 4: Sequentially superimpose each of the eight planes within T ( 3 ) to obtain a fused 2D pixel matrix F ( 1 ) with dimensions H × W :
    F ( 1 ) = k = 1 8 ( T ( 3 ) ( : , : , k ) × 16 8 k ) .
  • Step 5: Analogously, each plane of size H × W within T ( 4 ) is accumulated to yield another fused 2D pixel matrix F ( 2 ) .
    F ( 2 ) = k = 1 8 ( T ( 4 ) ( : , : , k ) × 16 8 k ) .

3.2. Generating Chaotic Matrices

In our proposed MIEA-PRHM, the secret key comprises eight components, denoted as K = { x 0 ( 1 ) , y 0 ( 1 ) , α , β , x 0 ( 2 ) , y 0 ( 2 ) , γ , θ } . Among these eight components, the first four serve as inputs for 2D-SCPM, while the latter four are utilized as inputs for 2D-ELMM. In our proposed MIEA-PRHM, the chaotic sequences Q ˜ ( 1 ) and Q ˜ ( 2 ) generated by these two hyperchaotic maps are first superimposed to ensure that the resultant chaotic sequence Q ˜ ( 3 ) exhibits enhanced aperiodicity and randomness. Subsequently, Q ˜ ( 3 ) is further partitioned and transformed into four chaotic matrices R ( 1 ) , R ( 2 ) , R ( 3 ) , and R ( 4 ) , which are utilized in the subsequent encryption steps. Specifically, the generation processes of R ( 1 ) , R ( 2 ) , R ( 3 ) , and R ( 4 ) are as follows:
  • Step 1: Input x 0 ( 1 ) , y 0 ( 1 ) , α , and β into 2D-SCPM and subsequently perform iterations on it. The two chaotic state values obtained in each iteration are sequentially appended to Q ˜ ( 1 ) , continuing this process until the length of Q ˜ ( 1 ) reaches 2 × H × ( H + W 1 ) . Here, H and W are the height and width, respectively, of the two fused pixel matrices F ( 1 ) and F ( 2 ) .
  • Step 2: Input x 0 ( 2 ) , y 0 ( 2 ) , γ , and θ into 2D-ELMM and perform iterations on it. The two chaotic state values obtained in each iteration are sequentially appended to Q ˜ ( 2 ) , continuing this process until the length of Q ˜ ( 2 ) reaches 2 × H × ( H + W 1 ) .
  • Step 3: Conduct a mathematical superposition on Q ˜ ( 1 ) and Q ˜ ( 2 ) to derive Q ˜ ( 3 ) :
    Q ˜ ( 3 ) = ( Q ˜ ( 1 ) + Q ˜ ( 2 ) ) mod 1 .
  • Step 4: Conduct the following partitioning and transformation operations on Q ˜ ( 3 ) to obtain the required four chaotic matrices:
    R ( 1 ) = r e s h a p e ( Q ^ ( 3 ) ( 1 : H × L ) , H , L ) , R ( 2 ) = r e s h a p e ( f l o o r ( Q ^ ( 3 ) ( H × L + 1 : H × L + H × W ) × 2 32 ) , H , W ) , R ( 3 ) = r e s h a p e ( Q ^ ( 3 ) ( H × L + 1 : 2 × H × L ) , H , L ) , R ( 4 ) = r e s h a p e ( f l o o r ( Q ^ ( 3 ) ( 1 : H × W ) × 2 32 ) , H , W ) ,
    where L = H + W 1 .

3.3. Row–Column Joint Scrambling

Scrambling or permutation operations constitute a pivotal component in modern cryptographic systems. In the context of image encryption algorithms, scrambling not only aids in reducing the correlation between adjacent pixels but also obscures the relationship between plaintext and ciphertext pixels, thereby enhancing the key sensitivity of image encryption algorithms [49]. Consequently, within our proposed MIEA-PRHM, we have devised an encryption step termed row–column joint scrambling. Below, we introduce this novel scrambling operation with a simple illustrative example as depicted in Figure 3.

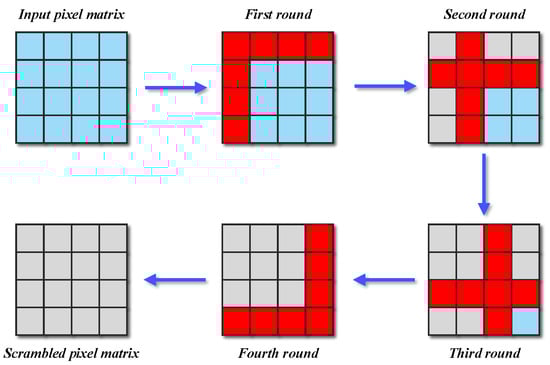

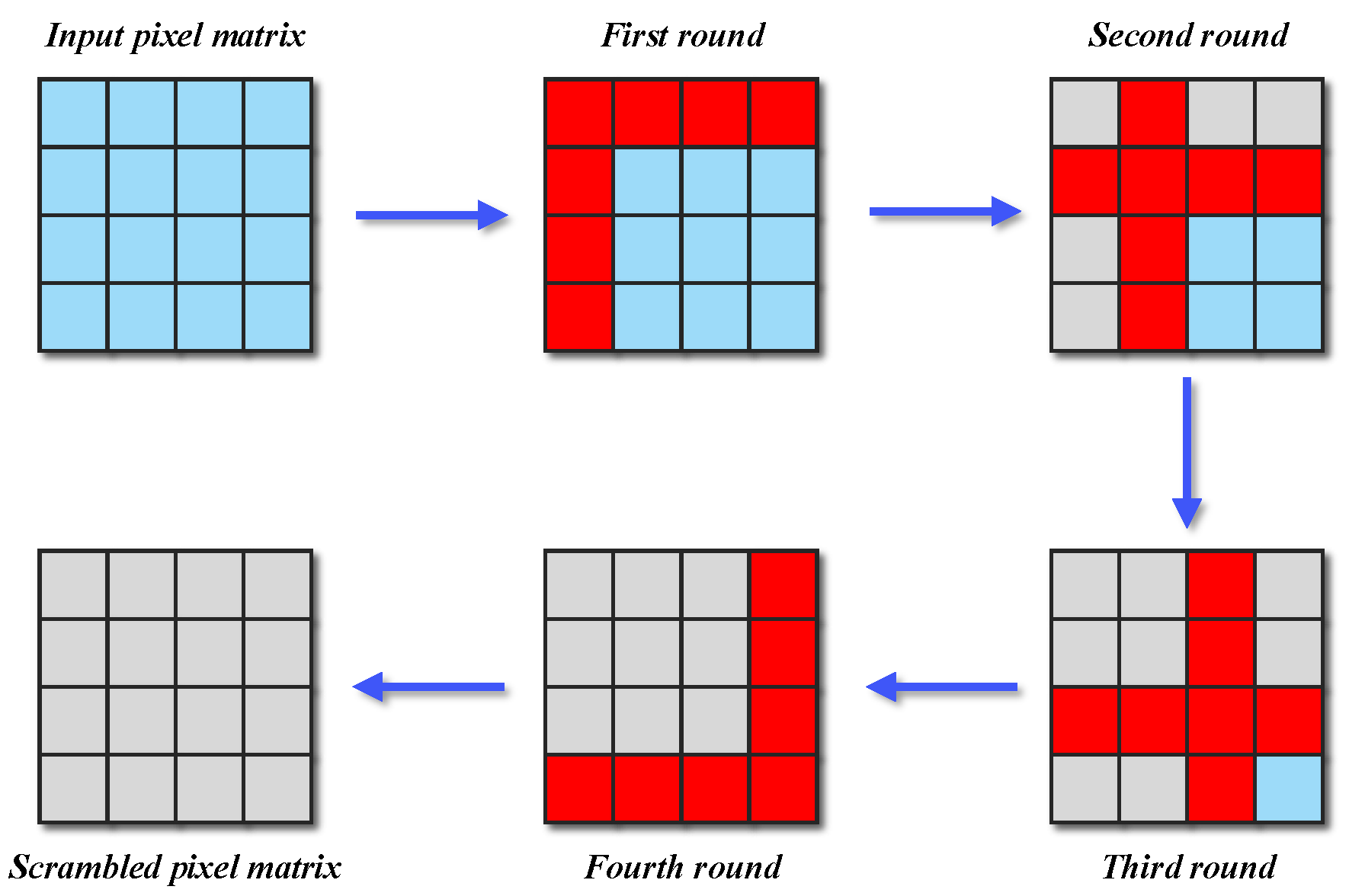

This example demonstrates the row–column joint scrambling process for a 4 × 4 input pixel matrix. It can be observed that the scrambling process consists of a total of four rounds. Initially, the pixels in the first row and first column are scrambled together. These seven pixels undergo permutation collectively. Subsequently, the seven pixels in the second row and second column are scrambled. Immediately thereafter, the pixels in the third row and third column are scrambled as well. Finally, the pixels in the fourth row and fourth column undergo scrambling. As shown in Figure 2, our proposed MIEA-PRHM performs row–column joint scrambling twice during the encryption process. Apart from the difference in input, there are no actual distinctions between these two scrambling steps. Therefore, we only provide the pseudocode for the first scrambling here as presented in Algorithm 1.
Algorithm 1 Row–column joint scrambling of MIEA-PRHM.
Input:
The fused pixel matrix F ( 1 ) of size H × W and the chaotic matrix R ( 1 ) of size H × ( H + W 1 ) .
  1:
i t e r _ n u m = m i n ( H , W ) ;
  2:
for  i = 1 to i t e r _ n u m  do
  3:
    l e f t _ p a r t = F ( 1 ) ( i , 1 : i 1 ) ;
  4:
    m i d _ p a r t = F ( 1 ) ( : , i ) ;
  5:
    r i g h t _ p a r t = F ( 1 ) ( i , i + 1 : W ) ;
  6:
    t m p _ p x 1 = [ l e f t _ p a r t m i d _ p a r t r i g h t _ p a r t ] ;
  7:
    [ , s o r t _ i d x ] = s o r t ( R ( 1 ) ( i , : ) ) ;
  8:
    t m p _ p x 2 = t m p _ p x 1 ( s o r t _ i d x ) ;
  9:
     F ( 1 ) ( i , 1 : i 1 ) = t m p _ p x 2 ( 1 : i 1 ) ;
10:
     F ( 1 ) ( : , i ) = t m p _ p x 2 ( i : i + H 1 ) ;
11:
     F ( 1 ) ( i , i + 1 : c o l ) = t m p _ p x 2 ( i + H : H + W 1 ) ;
12:
end for
13:
C ( 1 ) = F ( 1 ) ;
Output:
The scrambled pixel matrix C ( 1 ) .

3.4. Vector-Level Dynamic Rotational Diffusion

Similarly to confusion, diffusion is one of the two fundamental principles advocated by Shannon for the design of cryptographic systems. Consequently, diffusion operations are indispensable in the design of image encryption algorithms. A well-designed diffusion operation will enhance the plaintext sensitivity and key sensitivity of the image encryption algorithm [49]. In light of this, we have devised an encryption step named vector-level dynamic rotational diffusion within our MIEA-PRHM. In comparison to the diffusion operations employed in some recent image encryption algorithms, our diffusion operation has several notable advantages. Firstly, it operates at the vector level, facilitating a more efficient pixel diffusion process, thereby enhancing encryption efficiency. Secondly, the dynamism of it, which is contingent upon image sizes, plaintext-related parameters, and chaotic sequence values, significantly increases the difficulty for attackers to launch successful differential attacks. Lastly, during the rotational diffusion of pixels, the mathematical operations employed vary depending on the diffusion directions. This design fosters a more complex nonlinear relationship between ciphertext and plaintext pixels, which similarly facilitates the thwarting of various differential attacks, including plaintext attacks.

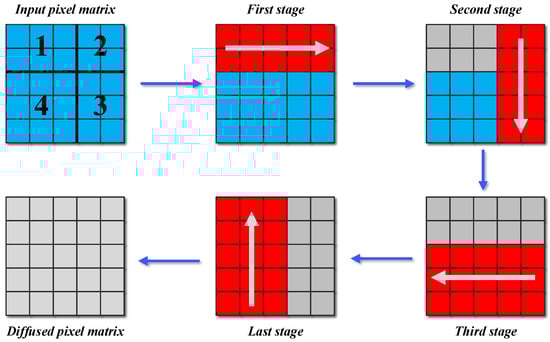

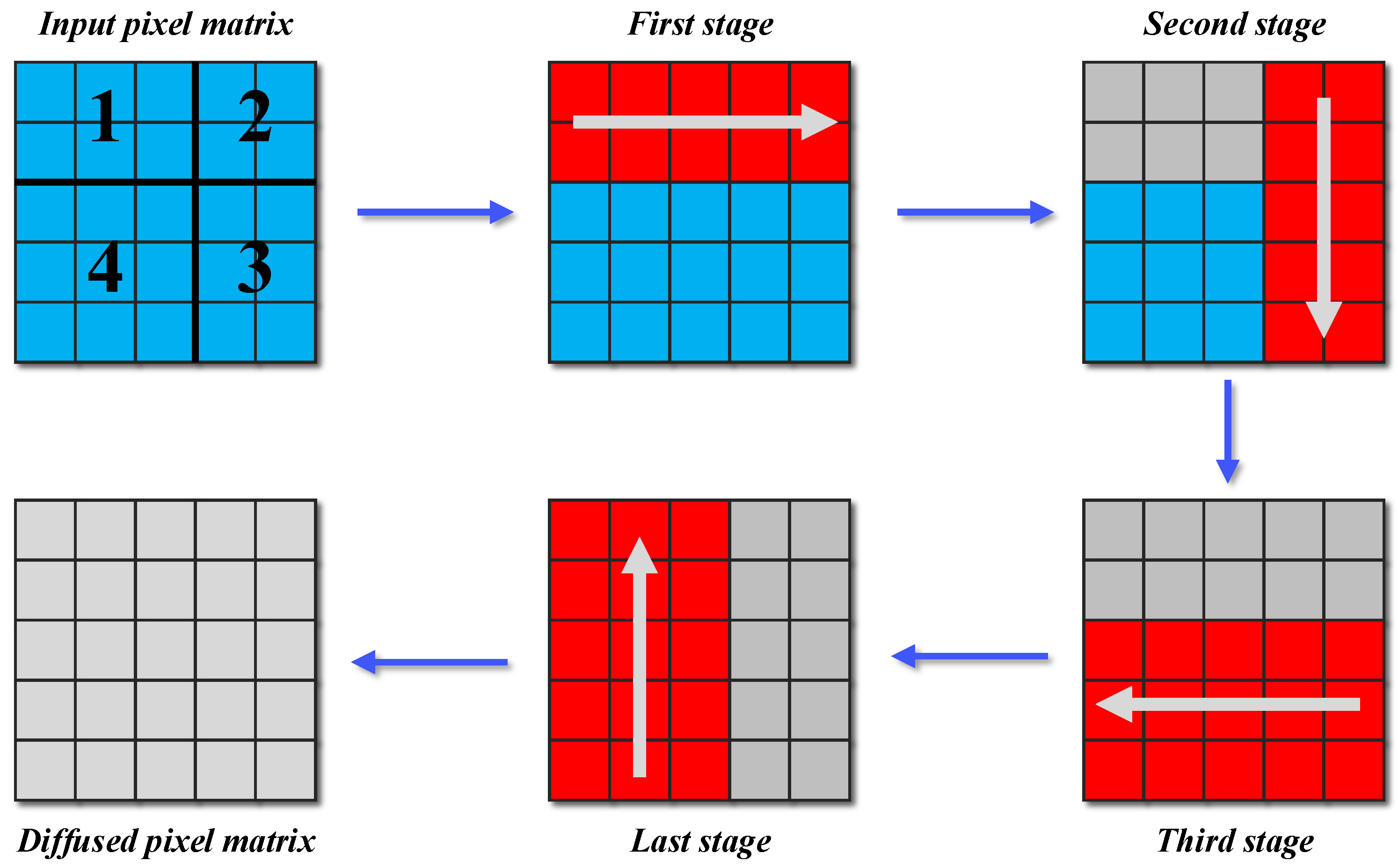

In Figure 4, we provide a straightforward example to demonstrate the proposed vector-level dynamic rotational diffusion. Before initiating the diffusion process, we first determine a partitioning coordinate based on the input pixel matrix’s size, plaintext-related parameters, and chaotic sequence values. Specifically, in this example, the partitioning coordinate is ( 2 , 3 ) . Consequently, the input pixel matrix can be logically partitioned into four sub-blocks, named for convenience as logical sub-block 1, logical sub-block 2, logical sub-block 3, and logical sub-block 4. Subsequently, the diffusion of all pixels proceeds in four phases. In the first phase, the pixels within logical sub-blocks 1 and 2 are initially diffused. These pixels undergo horizontal diffusion from left to right in the form of column vectors. During the second phase, diffusion occurs in the regions occupied by logical sub-blocks 2 and 3, where pixels are vertically diffused from top to bottom in the form of row vectors. In the third phase, the pixels in logical sub-blocks 3 and 4 undergo diffusion in a manner similar to the first phase but with the opposite direction. During the final stage, the pixels within logical sub-blocks 1 and 4 are diffused in a bottom-to-top manner. As shown in Figure 2, our proposed MIEA-PRHM algorithm performs row–column joint scrambling third times during the encryption process.

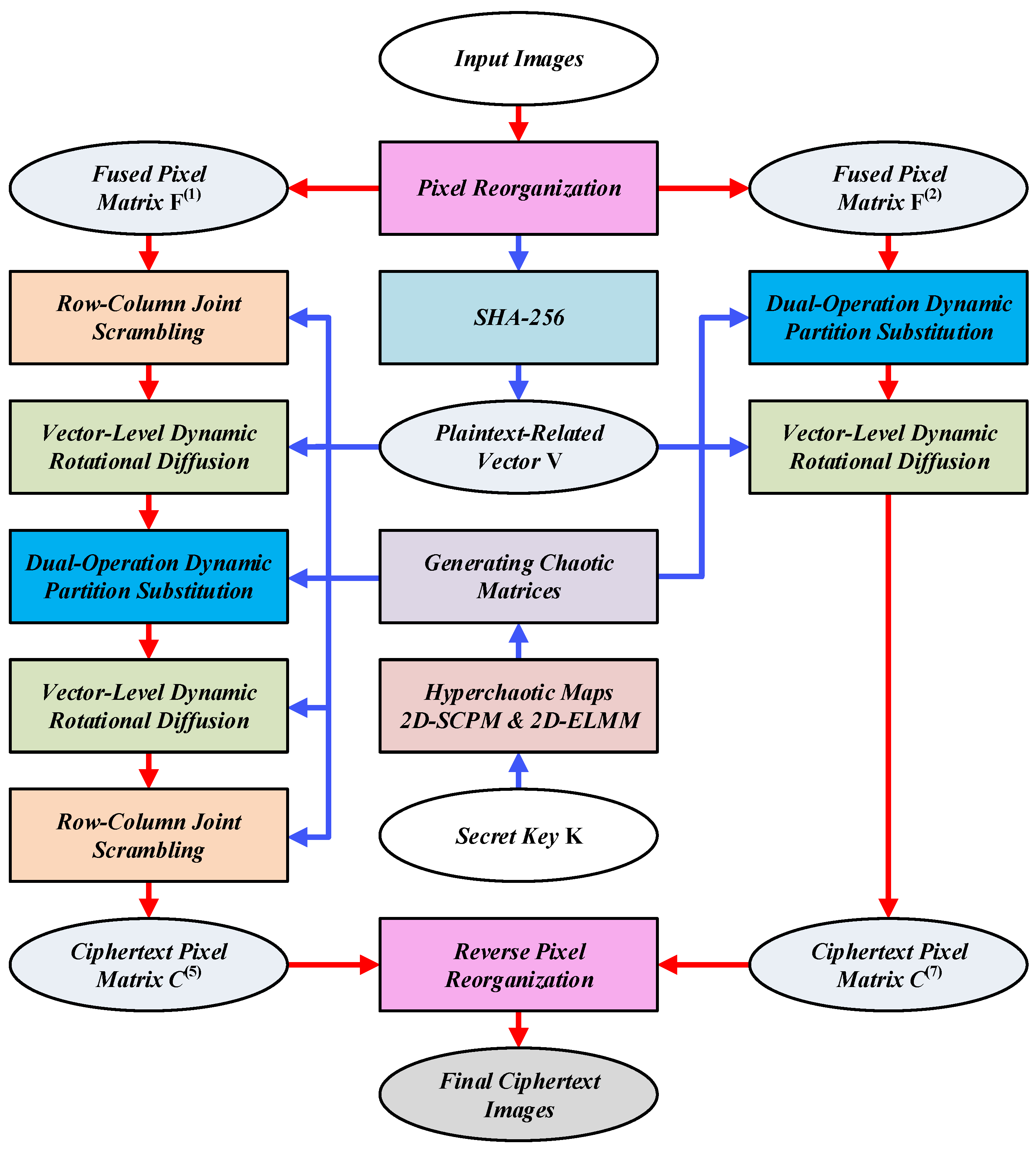

As can be seen in Figure 2, our MIEA-PRHM algorithm incorporates three identical vector-level dynamic rotational diffusion steps in the encryption process, differing only in their input. Hence, we provide only the pseudocode for the initial diffusion step here, which is presented in Algorithm 2.
Algorithm 2 Vector-level dynamic rotational diffusion of MIEA-PRHM.
Input:
The scrambled pixel matrix C ( 1 ) of size H × W , the chaotic matrix R ( 2 ) of size H × W , and the plaintext-related vector V of size 1 × 8 .
  1:
Perform XOR operations on all elements of V and save the result to h _ x o r ;
  2:
h _ i d x = m o d ( h _ x o r , W 1 ) + 1 ;
  3:
x ˜ = f l o o r ( H / 2 ) + m o d ( R ( 2 ) ( 1 , h _ i d x ) + h _ x o r , f l o o r ( H / 8 ) ) ;
  4:
y ˜ = f l o o r ( W / 2 ) + m o d ( R ( 2 ) ( 1 , h _ i d x + 1 ) + h _ x o r , f l o o r ( W / 8 ) ) ;
  5:
M ( 1 ) ( 1 : x ˜ , 1 ) = m o d ( C ( 1 ) ( 1 : x ˜ , 1 ) + C ( 1 ) ( 1 : x ˜ , W ) + C ( 1 ) ( 1 : x ˜ , W 1 ) , 2 32 ) ;
  6:
M ( 1 ) ( 1 : x ˜ , 2 ) = m o d ( C ( 1 ) ( 1 : x ˜ , 2 ) + M ( 1 ) ( 1 : x ˜ , 1 ) + C ( 1 ) ( 1 : x ˜ , W ) , 2 32 ) ;
  7:
for  i = 3 to W do
  8:
    M ( 1 ) ( 1 : x ˜ , i ) = m o d ( C ( 1 ) ( 1 : x ˜ , i ) + M ( 1 ) ( 1 : x ˜ , i 1 ) + M ( 1 ) ( 1 : x ˜ , i 2 ) , 2 32 ) ;
  9:
end for
10:
M ( 2 ) ( 1 , y ˜ + 1 : W ) = b i t x o r ( M ( 1 ) ( 1 , y ˜ + 1 : W ) , M ( 1 ) ( H , y ˜ + 1 : W ) ) ;
11:
for  i = 2 to H do
12:
    M ( 2 ) ( i , y ˜ + 1 : W ) = b i t x o r ( M ( 1 ) ( i , y ˜ + 1 : W ) , M ( 2 ) ( i 1 , y ˜ + 1 : W ) ) ;
13:
end for
14:
M ( 3 ) ( x ˜ + 1 : H , W ) = m o d ( M ( 2 ) ( x ˜ + 1 : H , W ) + M ( 2 ) ( x ˜ + 1 : H , 1 ) + M ( 2 ) ( x ˜ + 1 : H , 2 ) , 2 32 ) ;
15:
M ( 3 ) ( x ˜ + 1 : H , W 1 ) = m o d ( M ( 3 ) ( x ˜ + 1 : H , W ) + M ( 2 ) ( x ˜ + 1 : H , W 1 ) + M ( 2 ) ( x ˜ + 1 : H , 1 ) , 2 32 ) ;
16:
for  i = W 2 to 1 do
17:
    M ( 3 ) ( x ˜ + 1 : H , i ) = m o d ( M ( 2 ) ( x ˜ + 1 : H , i ) + M ( 3 ) ( x ˜ + 1 : H , i + 1 ) + M ( 3 ) ( x ˜ + 1 : H , i + 2 ) , 2 32 ) ;
18:
end for
19:
C ( 2 ) ( H , 1 : y ˜ ) = b i t x o r ( M ( 3 ) ( H , 1 : y ˜ ) , M ( 3 ) ( 1 , 1 : y ˜ ) ) ;
20:
for  i = H 1 to 1 do
21:
    C ( 2 ) ( i , 1 : y ˜ ) = b i t x o r ( M ( 3 ) ( i , 1 : y ˜ ) , C ( 2 ) ( i + 1 , 1 : y ˜ ) ) ;
22:
end for
Output:
The diffused pixel matrix C ( 2 ) .

3.5. Dual-Operation Dynamic Partition Substitution

Like permutation and diffusion operations, substitution operations play a crucial role in the construction of modern cryptographic systems. They significantly contribute to enhancing the nonlinearity of the encryption process [49]. In numerous image encryption algorithms that rely on chaotic systems, substitution operations are typically carried out using single fixed mathematical operations. According to current cryptanalysis studies, such designs are vulnerable to plaintext attacks launched by attackers. Therefore, to further bolster the nonlinearity and security of the encryption process, we introduce an encryption step named dual-operation dynamic partition substitution in our MIEA-PRHM. Unlike some existing substitution operations, this encryption step possesses dynamic behavior that depends on both the plaintext and chaotic sequences. Additionally, it operates on partitioned sub-blocks while incorporating two mathematical operations. These features collectively reinforce the security of MIEA-PRHM, effectively safeguarding it against various potential attacks, especially the most threatening plaintext attacks.

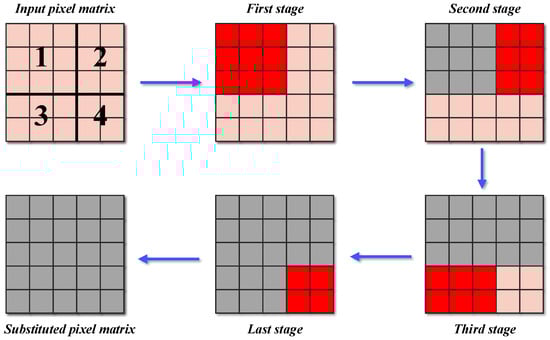

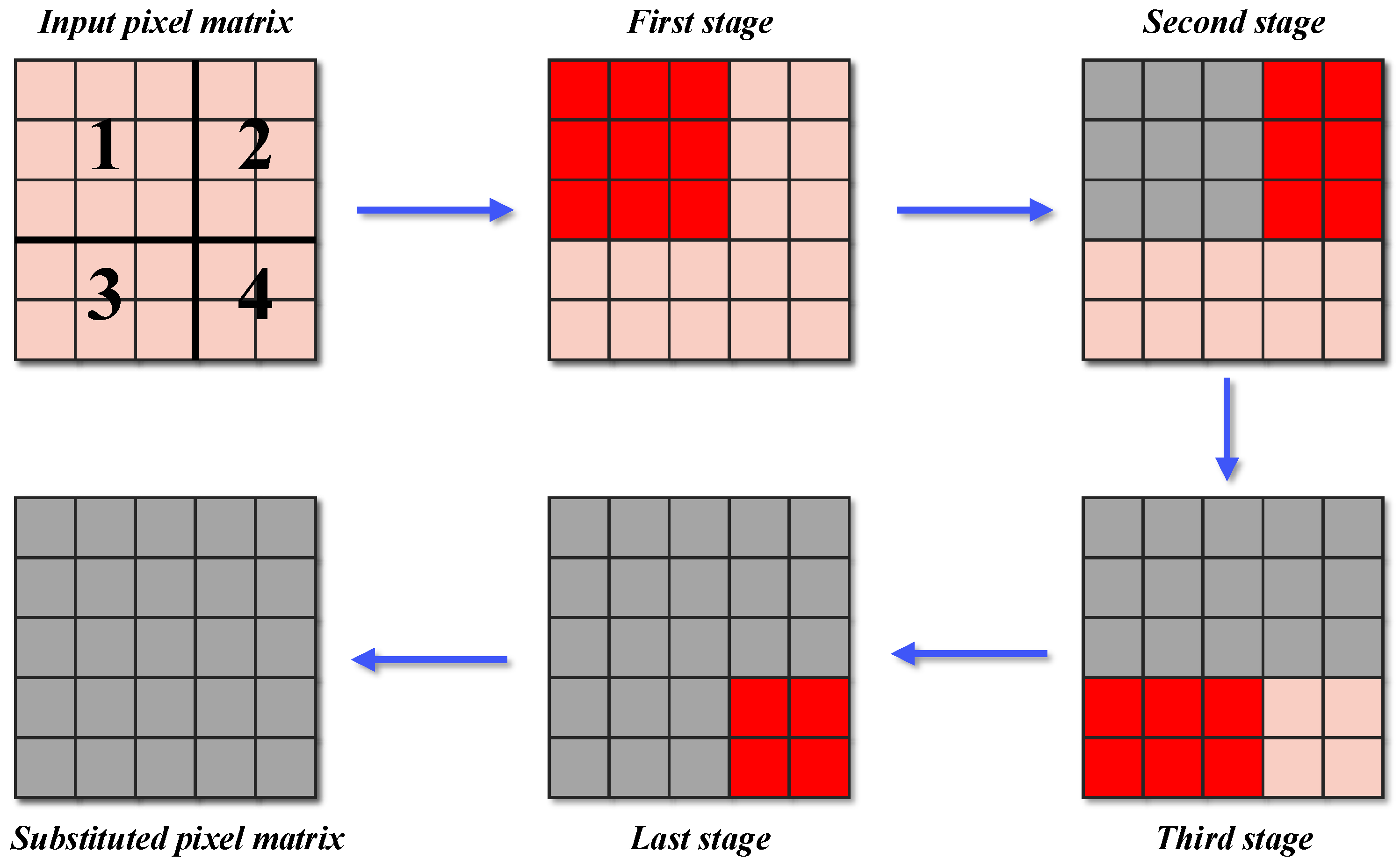

Similarly, we illustrate our dual-operation dynamic partition substitution with a simple example as depicted in Figure 5. First, we determine a partitioning coordinate based on the input chaotic sequence values and plaintext parameters. Utilizing this coordinate, the input pixel matrix is logically divided into four sub-blocks. Subsequently, these four sub-blocks will undergo substitution in distinct phases and manners. In our proposed MIEA-PRHM, we perform a total of two dual-operation dynamic partition substitutions as demonstrated in Figure 2. Since the only distinction between these two substitution operations is the input parameters, we only provide the pseudocode for the substitution operation on C ( 2 ) in Algorithm 3.
Algorithm 3 Dual-operation dynamic partition substitution of MIEA-PRHM.
Input:
The diffused pixel matrix C ( 2 ) of size H × W , the chaotic matrix R ( 2 ) of size H × W , and the plaintext-related vector V of size 1 × 8 .
  1:
h _ s u m = s u m ( V ( : ) ) ;
  2:
h _ i d x = m o d ( h _ s u m , H 1 ) + 1 ;
  3:
x ˜ = f l o o r ( H / 2 ) + m o d ( R ( 2 ) ( h _ i d x , 1 ) + h _ s u m , f l o o r ( H / 8 ) ) ;
  4:
y ˜ = f l o o r ( W / 2 ) + m o d ( R ( 2 ) ( h _ i d x + 1 , 1 ) + h _ s u m , f l o o r ( W / 8 ) ) ;
  5:
C ( 3 ) ( 1 : x ˜ , 1 : y ˜ ) = m o d ( C ( 2 ) ( 1 : x ˜ , 1 : y ˜ ) + R ( 2 ) ( 1 : x ˜ , 1 : y ˜ ) + h _ s u m , 2 32 ) ;
  6:
C ( 3 ) ( 1 : x ˜ , y ˜ + 1 : W ) = b i t x o r ( b i t x o r ( C ( 2 ) ( 1 : x ˜ , y ˜ + 1 : W ) , R ( 2 ) ( 1 : x ˜ , y ˜ + 1 : W ) ) , h _ s u m ) ;
  7:
C ( 3 ) ( x ˜ + 1 : H , 1 : y ˜ ) = m o d ( C ( 2 ) ( x ˜ + 1 : H , 1 : y ˜ ) + R ( 2 ) ( x ˜ + 1 : H , 1 : y ˜ ) + h _ s u m , 2 32 ) ;
  8:
C ( 3 ) ( x ˜ + 1 : H , y ˜ + 1 : W ) = b i t x o r ( b i t x o r ( C ( 2 ) ( x ˜ + 1 : H , y ˜ + 1 : W ) , R ( 2 ) ( x ˜ + 1 : H , y ˜ + 1 : W ) ) , h _ s u m ) ;
Output:
The substituted pixel matrix C ( 3 ) .

3.6. Entire Encryption and Decryption Process of MIEA-PRHM

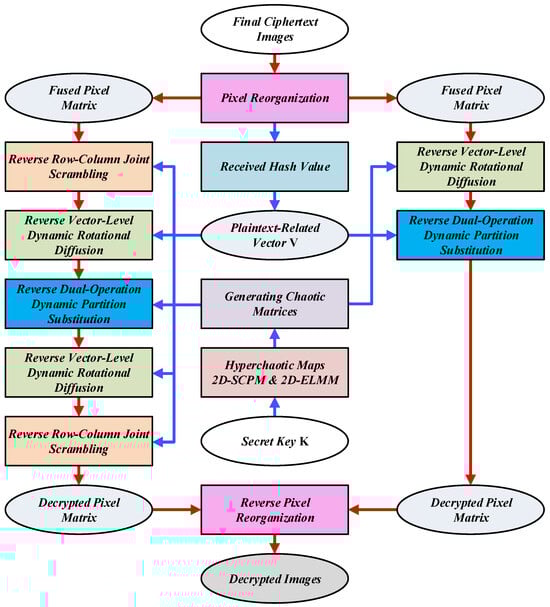

Below, we provide a concise description of the entire encryption and decryption process, aiming to clearly illustrate the execution sequence for all encryption steps, along with their corresponding input and output. Let us consider a scenario where Alice (the sender) and Bob (the receiver) wish to transmit a batch of images over an insecure communication channel. The secret key that they have mutually agreed upon is K = { x 0 ( 1 ) , y 0 ( 1 ) , α , β , x 0 ( 2 ) , y 0 ( 2 ) , γ , θ } . Initially, Alice proceeds with the encryption of the images as follows:
  • Step 1: Perform pixel reorganization on the input images to obtain two fused 2D pixel matrices F ( 1 ) and F ( 2 ) . For more information about pixel reorganization, please refer to Section 3.1.
  • Step 2: Input the fused pixel matrices F ( 1 ) and F ( 2 ) into the SHA-256 algorithm to generate a 256-bit hash value h ˜ . Then, convert the hash value h ˜ into a plaintext-related vector V . More details on generating the plaintext-related vector V can be found in Section 2.4.
  • Step 3: Utilize the secret key K to generate the four chaotic matrices R ( 1 ) , R ( 2 ) , R ( 3 ) , and R ( 4 ) . For more information about generating chaotic matrices, please refer to Section 3.2.
  • Step 4: Employ the chaotic matrix R ( 1 ) to perform row–column joint scrambling on the fused pixel matrix F ( 1 ) to obtain the scrambled pixel matrix C ( 1 ) . More details on row–column joint scrambling can be found in Section 3.3.
  • Step 5: Utilize the plaintext-related vector V and the chaotic matrix R ( 2 ) to perform vector-level dynamic rotational diffusion on the scrambled pixel matrix C ( 1 ) . The output obtained is the diffused pixel matrix C ( 2 ) . For more information about vector-level dynamic rotational diffusion, please refer to Section 3.4.
  • Step 6: Employ the plaintext-related vector V and the chaotic matrix R ( 2 ) to perform dual-operation dynamic partition substitution on the diffused pixel matrix C ( 2 ) . The output obtained is the substituted pixel matrix C ( 3 ) . More details on perform dual-operation dynamic partition substitution can be found in Section 3.5.
  • Step 7: Utilize the plaintext-related vector V and the chaotic matrix R ( 2 ) to perform vector-level dynamic rotational diffusion on the substituted pixel matrix C ( 3 ) . The output obtained is the diffused pixel matrix C ( 4 ) .
  • Step 8: Employ the chaotic matrix R ( 3 ) to perform row–column joint scrambling on the diffused pixel matrix C ( 4 ) to obtain the scrambled pixel matrix C ( 5 ) .
  • Step 9: Utilize the plaintext-related vector V and the chaotic matrix R ( 4 ) to perform dual-operation dynamic partition substitution on the fused pixel matrix F ( 1 ) . The output obtained is the substituted pixel matrix C ( 6 ) .
  • Step 10: Employ the plaintext-related vector V and the chaotic matrix R ( 4 ) to perform vector-level dynamic rotational diffusion on the substituted pixel matrix C ( 6 ) . The output obtained is the diffused pixel matrix C ( 7 ) .
  • Step 11: Perform inverse pixel reorganization on the two ciphertext pixel matrices C ( 5 ) and C ( 7 ) to obtain the final ciphertext images.
Subsequently, Alice sends the final ciphertext images, along with the hash value h ˜ , to Bob via the insecure communication channel. Upon receiving them, Bob proceeds to decrypt the ciphertext images according to the decryption process depicted in Figure 6, ultimately acquiring the necessary decrypted images. By examining Figure 6, one can clearly see that the decryption process of MIEA-PRHM is the mirror image of its encryption process. Each decryption step corresponds directly to an encryption step, and is essentially the reverse of its counterpart. Since there are no significant differences, we will, for brevity’s sake, omit the redundant description of these decryption steps here.

4. Experiments and Performance Analyses

This section will demonstrate and analyze the performance of MIEA-PRHM in terms of security and efficiency. These analyses cover ten aspects, including visual assessment, key space, key sensitivity, plaintext sensitivity, and so on. The employed test images are sourced from common benchmark databases, which are USC-SIPI (http://sipi.usc.edu/database/, accessed on 1 November 2024) and CVG-UGR (https://ccia.ugr.es/cvg/dbimagenes/index.php, accessed on 1 November 2024). The hardware platform is a PC with an Intel CPU E3-1231 v3 and 8 GB of RAM. MATLAB R2017a serves as the simulation software. Unless specified, randomly generated secret keys are adopted to ensure the generality and objectivity of our performance analyses.

4.1. Visual Assessment

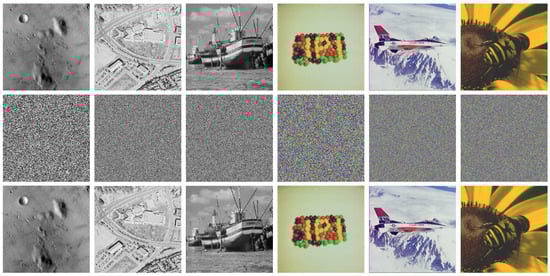

To ensure the robust safeguarding of various digital images, a proposed image encryption algorithm must possess the capacity to transform them into unrecognizable forms akin to random noise [51]. In this subsection, three grayscale images (5.1.09, 5.2.09, and boat.512) and three color images (4.1.07, avion, and beeflowr) undergo encryption and subsequent decryption processes utilizing our MIEA-PRHM algorithm. Notably, all twelve images undergo concurrent encryption and decryption, thereby demonstrating the exceptional multi-image encryption and decryption capabilities of our MIEA-PRHM. Inspection of Figure 7 reveals a compelling transformation: upon application of MIEA-PRHM, six images that were originally rich in detail are encrypted into indistinguishable, noise-like patterns. Crucially, upon decryption, these unrecognizable images are successfully restored to their pristine states without any loss of detail. This outcome underscores the exceptional encryption and decryption proficiency of MIEA-PRHM, thereby affirming its potential as an effective measure for safeguarding digital images.

4.2. Key Space

Brute-force attack is a prevalent attack methodology favored by adversaries. Its foundation lies in the exhaustive search paradigm, where every possible secret key within the key space is systematically scrutinized until the correct one is found. Consequently, the dimension of the key space is indispensable for thwarting brute-force attacks. Presently, the prevailing consensus believes that a suggested image encryption algorithm must possess a key space of at least 2 128 [55,56]. A failure to meet this criterion would render the algorithm susceptible to brute-force attacks, thereby compromising its security.
The secret key K of MIEA-PRHM is comprised of eight constituents: x 0 ( 1 ) , y 0 ( 1 ) , α , β , x 0 ( 2 ) , y 0 ( 2 ) , γ , and θ . We delineate their respective permissible value ranges as x 0 ( 1 ) ( 0 , 1 ) , y 0 ( 1 ) ( 0 , 1 ) , α [ 1 , 12 ] , β [ 1 , 12 ] , x 0 ( 2 ) ( 0 , 1 ) , y 0 ( 2 ) ( 0 , 1 ) , γ [ 1 , 10 ] , and θ [ 1 , 10 ] . Moreover, we establish a minimum precision for each constituent, which is 10 15 . Given these stipulations, we can readily ascertain the size of K for MIEA-PRHM as follows:
S ( K ) = S x 0 ( 1 ) × S y 0 ( 1 ) × S α × S β × S x 0 ( 2 ) × S y 0 ( 2 ) × S γ × S θ = 9.8010 × 10 123 2 412 .
Apparently, S ( K ) far surpasses the minimal threshold 2 128 typically mandated for the size of the key space. Consequently, it is evident that our proposed MIEA-PRHM possesses an exceedingly vast key space, thereby rendering it highly efficacious in resisting brute-force attacks.

4.3. Key Sensitivity

Key sensitivity constitutes a pivotal attribute of image encryption algorithms, necessitating that minute variations in the secret key elicit substantial disparities in the resultant ciphertext [56]. An image encryption algorithm that possesses exceptionally high key sensitivity signifies its formidable resilience against various statistical or analytical attacks pertinent to the secret key. To ascertain the key sensitivity of MIEA-PRHM, we initially encrypt the test image 5.2.08 using a randomly generated secret key
b f K ^ = x ^ 0 ( 1 ) = 0.360017466884543 , y ^ 0 ( 1 ) = 0.322741310342732 , α ^ = 10.638285158199237 , β ^ = 8.385277595506832 , x ^ 0 ( 2 ) = 0.540588294762065 , y ^ 0 ( 2 ) = 0.105110255236755 , γ ^ = 4.901907916370962 , θ ^ = 9.782868288753209 .

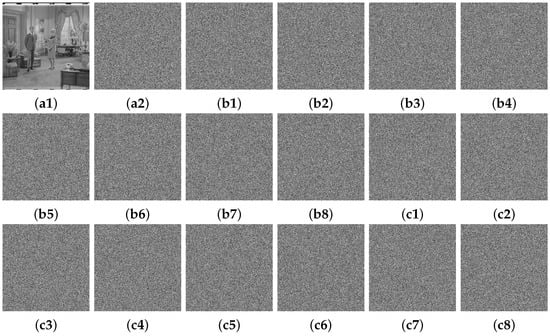

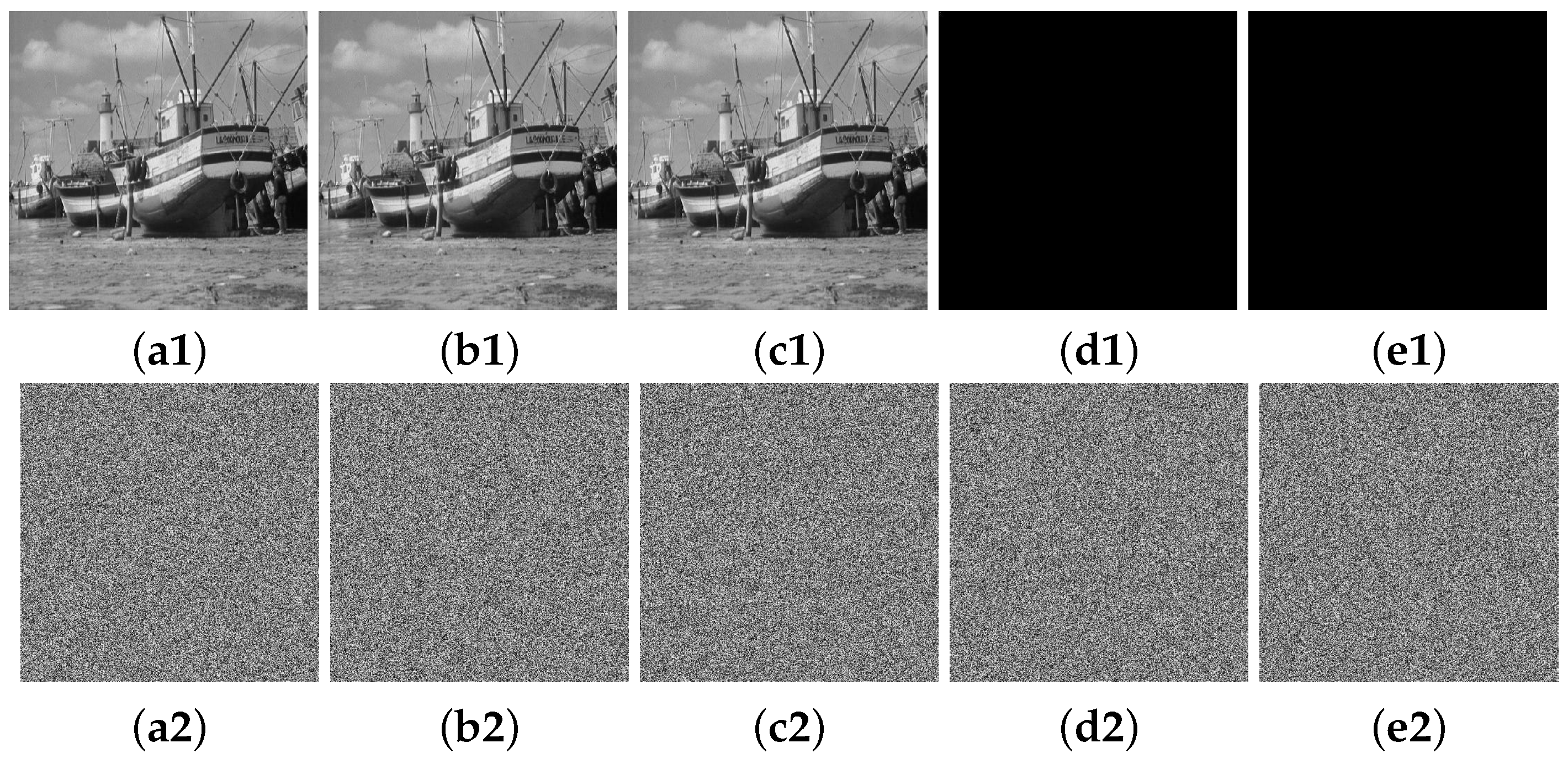

Subsequently, we introduce single minimal alterations to each component of K ^ (incrementing each by 10 15 ) and utilize these modified secret keys to encrypt the identical image. Ultimately, we compute the differential images between these newly generated ciphertext images and the original one. Figure 8 delineates the pertinent experimental results. It is evident that even a minimal variation in the secret key elicits an exceedingly comprehensive ciphertext change. More crucially, all differential images display a strong resemblance to noise images, possessing a high degree of randomness. Consequently, our proposed MIEA-PRHM algorithm possesses exceptional key sensitivity, rendering it highly resilient against various statistical or analytical attacks pertinent to the secret key.

4.4. Plaintext Sensitivity

Differential attacks generally exploit the ciphertext disparities resulting from minimal plaintext changes to launch targeted attacks. Hence, to effectively withstand various differential attacks, suggested image encryption algorithms must possess exceptionally high plaintext sensitivity [52]. This entails any pixel bit change in the input digital image eliciting extremely noticeable ciphertext changes. To showcase the sensitivity of MIEA-PRHM to minimal plaintext alterations, we deliberately modify two pixel bits in the test image 2.1.05, positioned at its top-left and bottom-right corners. The second and third columns of the first row of Figure 9 show the two modified images. Visually, no discernible differences can be observed among the three plaintext images. Subsequently, we encrypt these three images using MIEA-PRHM and compute the differential images between the resultant ciphertext images. Observing Figure 9, one can ascertain that all encrypted images and differential images resemble noise patterns. This underscores that the single pixel bit variations, upon processing by MIEA-PRHM, elicit thorough, near-random ciphertext transformations. Consequently, MIEA-PRHM possesses extremely high plaintext sensitivity.
To rigorously and precisely validate the performance of MIEA-PRHM in plaintext sensitivity, we conduct pertinent quantitative analyses. There are two indices for quantifying plaintext sensitivity [52]. The first one is the normalized pixel change rate (NPCR), which can measure the proportion of pixels that differ between two images. The second is the unified average changing intensity (UACI), which can assess the average magnitude of pixel changes. Given two images I ( 1 ) and I ( 2 ) with dimensions M × N , we can quantitatively evaluate the pixel changes between them using the following two equations:
N P C R ( I ( 1 ) , I ( 2 ) ) = α = 1 M β = 1 N D ( α , β ) / ( M × N ) × 100 % ,
U A C I ( I ( 1 ) , I ( 2 ) ) = α = 1 M β = 1 N I ( 1 ) ( α , β ) I ( 2 ) ( α , β ) / ( 255 × M × N ) × 100 % .
In the aforementioned equation defining NPCR, D ( α , β ) takes a value of either 0 or 1. This depends on whether the pixel values at the identical coordinates are the same. If the pixel values match, D ( α , β ) is assigned a value of 1. Table 2 and Table 3 present the NPCR and UACI assessment results obtained through our extensive experiments. In these experiments, each test image also undergoes only a single bit alteration. Notably, the experimental results achieved by MIEA-PRHM are remarkably close to the ideal values of 99.6094% and 33.4635% for NPCR and UACI, respectively. Furthermore, compared to the five recently reported image encryption algorithms, MIEA-PRHM not only demonstrates closer proximity to the ideal values but also exhibits superior stability. This underscores the exceptionally superior plaintext sensitivity of our proposed MIEA-PRHM algorithm.

4.5. Pixel Correlation

Within natural digital images, there are obvious discernible correlations among neighboring pixels. Consequently, to mitigate the potential security risks stemming from these correlations, robust image encryption algorithms must efficiently eradicate them [51]. To evaluate the capability of MIEA-PRHM in this regard, we encrypt two test images, which are 2.1.02 and 4.2.03. Thereafter, we generate twelve correlation analysis plots for these images, furnishing a vivid and intuitive depiction of the ability of MIEA-PRHM to disrupt the correlations and thereby bolster image security.

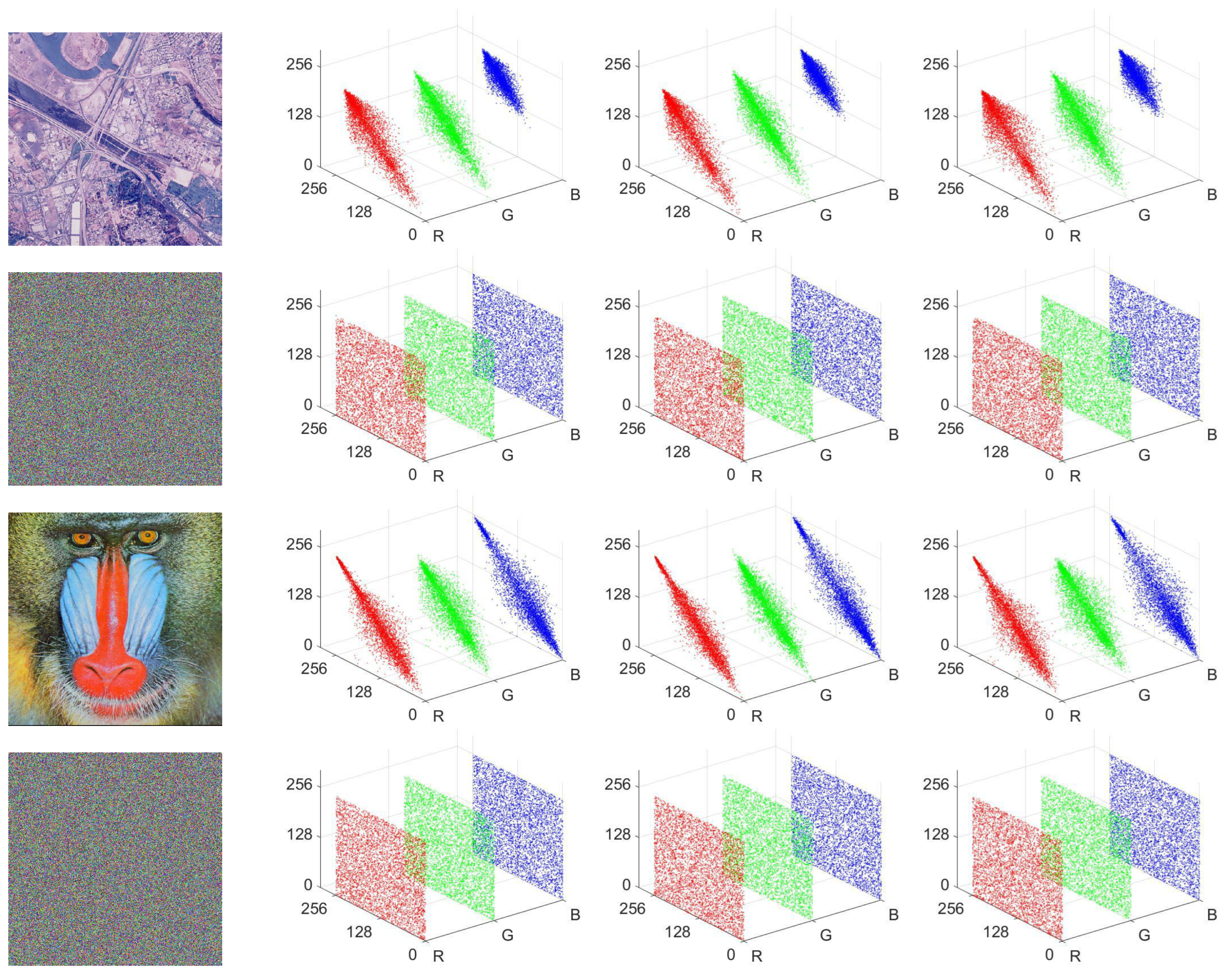

Figure 10 demonstrates the significant changes in pixel correlations across horizontal, vertical, and diagonal orientations. These analysis plots reveal an initially high degree of pixel correlations in all three orientations. However, upon application of MIEA-PRHM, there are no discernible pixel correlations across all orientations in encrypted images. This substantiates the superior capability of MIEA-PRHM in effectively removing the correlations among neighboring pixels.
Furthermore, we conduct a more objective numerical analysis of the capacity of MIEA-PRHM to eliminate the pixel correlation in all orientations. The evaluation metric employed here is the correlation coefficient (CC) [52]. Mathematically, one can compute the CC value for digital images using the following equation:
C C = E ( ( ν α E ( ν β ) ) × ( ν α E ( ν β ) ) ) / D ( ν α ) × D ( ν β ) .
In the aforementioned equation, ν α and ν β denote pixel values. E ( ν α ) and E ( ν β ) represent expectations, while D ( ν α ) and D ( ν β ) indicate variances.
Table 4 presents the experimental outcomes obtained. Notably, all images demonstrate high CC values across various directions and channels. Nevertheless, subsequent to encryption using MIEA-PRHM, these CC values significantly diminish to exceptionally low levels. This underscores the MIEA-PRHM algorithm’s exceptional capability in eliminating pixel correlations.

4.6. Information Entropy

Owing to its capacity to gauge the overall randomness of pixels, information entropy is commonly invoked to scrutinize the security performance of proposed image encryption algorithms. Typically, a larger entropy value signifies that the ciphertext pixels exhibit a heightened level of randomness, accompanied by a more consistent distribution [54]. Mathematically, the determination of the entropy value can be achieved through the following definition:
ξ ( v ) = α = 1 Q p ( v α ) × log 2 p ( v α ) ,
where Q signifies the quantity of pixel values denoted as v , and p ( v α ) embodies the probabilistic measure of v α . According to the formulation stipulated in Equation (14), for an 8-bit ciphertext image, the zenith of its entropy attains a value of 8.
Utilizing our MIEA-PRHM, we encrypt twelve common test images and proceed to compute the entropy outputs pertaining to these test images. An examination of the data presented in Table 5 elucidates that the entropy outputs associated with the original test images are comparatively modest. Conversely, subsequent to the encryption process, the entropy outputs corresponding to the resultant ciphertext images manifest a proximity to the ideal value of 8, indicating a significant enhancement in the informational randomness. From this observation, it is manifest that the ciphertext images outputted by our MIEA-PRHM possess exceptional randomness of a preeminent nature.
As detailed in Table 6, we conduct a comparative analysis of our MIEA-PRHM against a selection of recently prominent image encryption algorithms. Upon scrutinizing the results, it becomes apparent that the information entropy metric attained by MIEA-PRHM approximates the optimal value of 8 with remarkable proximity. Consequently, MIEA-PRHM exhibits distinct advantages in terms of the randomness and uniformity of distribution pertaining to the ciphertext pixels, thereby affirming its superiority.

4.7. Pixel Distribution

The pixel distribution within natural digital images typically exhibits considerable heterogeneity with prominent features as depicted in the first and third rows of Figure 11. It is unequivocally evident that a secure and trustworthy image encryption algorithm must effectively nullify these distinctive attributes to robustly withstand diverse pixel-distribution-based attacks [53]. To validate the performance of our MIEA-PRHM in this context, we concurrently encrypt two color test images, which are 4.2.06 and 4.2.07. Subsequently, we generate 3D pixel distribution plots for the resultant images. It is manifest that the pixels, which are initially unevenly distributed across any of the three color channels (red, green, and blue), become remarkably uniform following encryption with MIEA-PRHM. This underscores the exceptional proficiency of MIEA-PRHM in eradicating the distribution characteristics of input pixels, thereby effectively mitigating various attacks that capitalize on such characteristics.
To achieve a more granular evaluation of the pixel distribution performance, we conduct an additional analysis by encrypting twelve test images and subsequently subject the resultant ciphertext images to a chi-square test. The chi-square statistic for a given ciphertext image can be mathematically formulated as delineated below:
χ 2 = α = 1 Q γ α M × N × θ M × N × θ .
In the equation presented above, γ α signifies the quantity of ciphertext pixels possessing a value of α 1 . The variable Q denotes the maximal quantity of pixel values. For an 8-bit image, Q = 2 8 and θ = 1 / Q . Furthermore, M and N represent the vertical and horizontal dimensions of the encrypted image, respectively. Subsequently, one can ascertain the threshold value χ 0.05 2 ( 255 ) of the chi-square test at a significance level of 0.05, which computes to 293.2478 [46]. Should the chi-square metric of an encrypted image fall beneath this threshold, it may be deemed to have successfully passed the test. This signifies that the pixel distribution within the encrypted image approximates a uniform distribution in a statistically significant manner. Table 7 delineates the results of our chi-square test on the proposed MIEA-PRHM. Inspection reveals that all twelve encrypted images successfully meet the criteria of the chi-square test. This further substantiates that the encrypted images generated by MIEA-PRHM exhibit an exceptionally uniform pixel distribution.

4.8. Robustness Analysis

It is conceivable that during the transmission or storage of encrypted images, their ciphertext pixels may be subject to loss or corruption. Consequently, a robust image encryption algorithm ought to possess the capability to withstand a certain degree of ciphertext pixel loss or corruption [54]. To verify the robustness of the MIEA-PRHM, we conduct an array of evaluation experiments on the encrypted images it generates.
To emulate scenarios where ciphertext pixels are subjected to noise corruption, we introduce various intensities of salt and pepper noise (SPN) into an encrypted image of the test image 4.2.07 as depicted in the top row of Figure 12. Subsequently, we decrypt these corrupt images. The bottom row of Figure 12 displays the resultant decrypted images. Upon visual inspection, it becomes evident that, at relatively low noise intensities, the decrypted images exhibit no significant visual divergence from the original image. As the noise intensity escalates, the decrypted images progressively degrade in sharpness. Even so, when the noise intensity attains a magnitude as high as 0.05, a preponderance of meaningful visual information remains discernible within the decrypted images. This observation underscores the commendable robustness of the MIEA-PRHM in defending against noise attacks.
Analogously, we simulate scenarios of data loss by removing some pixels from an encrypted image of the test image 4.2.03. The first row of Figure 13 displays these ciphertext images with partially missing pixels. Their corresponding decrypted images are enumerated in the second row of Figure 13. It is observable that the quality of the decrypted images correlates with the number of missing pixels. When the number of missing pixels is relatively small, the decrypted images closely resemble the test image 4.2.03. As the number of missing pixels increases, the decrypted images progressively degrade in sharpness. Notably, even with the loss of up to 160 × 160 × 3 pixels, a substantial amount of meaningful visual information remains discernible in the decrypted images. Consequently, MIEA-PRHM features excellent robustness against data loss.

4.9. Efficiency Analysis

Considering the prominent features of current digital image communications, including substantial data volume and high throughput, a practical image encryption algorithm must demonstrate exceptional encryption efficiency. Failure to do so renders a suggested image encryption algorithm unsuitable for practical application requirements [56]. During the design of MIEA-PRHM, various strategies are employed to enhance encryption efficiency. Firstly, plaintext pixels are split into high 4-bit and low 4-bit components. Given that most image information resides in the high 4-bit, the encryption process for the low 4-bit is simplified without compromising security. Secondly, pixel fusion is applied to both high and low 4-bit encryptions, reducing the overall computational load. Furthermore, the two hyperchaotic maps adopted possess relatively simple structures, enabling the efficient generation of chaotic sequences. Lastly, the extensive use of vector-level operations during encryption further contributes to improved efficiency.
We conduct an extensive array of experiments to validate and showcase the efficiency advantages of MIEA-PRHM. Cognizant of the potential disparities in efficiency that may arise from variations in hardware and software configurations, we opt to conduct these experiments on MIEA-PRHM and other recently reported image encryption algorithms under identical experimental conditions. Table 8 presents the experimental results we obtain, while Table 9 enumerates the corresponding throughput values. It is evident from the results that, across various input sizes, MIEA-PRHM exhibits strikingly apparent efficiency advantages. Specifically, MIEA-PRHM requires merely 0.8152 s to encrypt image data with dimensions of 1024 × 1024 × 6 , which equates to six 1024 × 1024 grayscale images or two color images of the same size. Moreover, the average throughput achieved by MIEA-PRHM is an impressive 60.9447 Mbps. This outstanding performance is ample to satisfy the real-time encryption requirements of various practical applications.

5. Conclusions

To address the security concerns, efficiency issues, and practical limitations identified in some recently reported encryption algorithms, we have meticulously designed a novel multi-channel image encryption algorithm called MIEA-PRHM. This encryption algorithm utilizes two robust hyperchaotic maps, 2D-SCPM and 2D-ELMM, to jointly generate chaotic sequences. This design enables MIEA-PRHM to possess a larger key space and better output randomness. Subsequently, a series of dynamic vector-level encryption steps, including row–column joint scrambling, vector-level dynamic rotational diffusion, and dual-operation dynamic partition substitution, further transform these matrices into indistinguishable noise-like ciphertext images.
We have conducted extensive experiments and analyses to evaluate the encryption performance of MIEA-PRHM. Our proposed MIEA-PRHM exhibits outstanding performance across a range of performance evaluation metrics, including key space ( 2 412 ), plaintext sensitivity (99.6096% and 33.4641%), pixel correlation (<0.002), information entropy (>7.999), pixel distribution (<293.2478), and encryption efficiency (60.9447 Mbps). Numerous experimental results and comparative analyses demonstrate that MIEA-PRHM outperforms many recently reported encryption algorithms, offering higher security and excellent encryption efficiency.
In the future, we will continue to optimize MIEA-PRHM and introduce more new techniques and methodologies to make it more secure and efficient. Furthermore, we will also endeavor to apply MIEA-PRHM to other multimedia data requiring protection, such as audio and video.

Author Contributions

Conceptualization, W.F. and X.Z.; methodology, W.F., X.Z. and Z.Z.; software, W.F. and J.Y.; validation, W.F., X.Z., H.W. and K.Q.; formal analysis, W.F. and Z.Q.; writing—original draft preparation, W.F. and J.Y.; writing—review and editing, W.F., J.Y. and X.Z.; supervision, Z.Q. and J.Z.; project administration, J.Y. and X.Z.; funding acquisition, W.F., J.Z., H.W. and K.Q. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Scientific Research Foundation of Hunan Provincial Education Department (Grant No. 23B0638), the Guangdong Basic and Applied Basic Research Foundation (Grant No. 2023A1515011717), the Special Projects for Key Fields of the Education Department of Guangdong Province (Grant No. 2023ZDZX1041), the Innovation and Entrepreneurship Project for Chinese University Students (Grant Nos. 202411360027 and S202411360061), the Project of Sichuan Provincial Engineering and Technology Center for Vanadium and Titanium Materials (Grant No. 2022ftgc05), and the Project for Zhongshan Science and Technology (Grant No. 2021B2062).

Data Availability Statement

The data presented in this study are openly available in USC-SIPI (http://sipi.usc.edu/database/, accessed on 1 November 2024) and CVG-UGR (https://ccia.ugr.es/cvg/dbimagenes/index.php, accessed on 1 November 2024).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. SaberiKamarposhti, M.; Ghorbani, A.; Yadollahi, M. A comprehensive survey on image encryption: Taxonomy, challenges, and future directions. Chaos Solitons Fractals 2024, 178, 114361. [Google Scholar] [CrossRef]
  2. Zhang, B.; Liu, L. Chaos-Based Image Encryption: Review, Application, and Challenges. Mathematics 2023, 11, 2585. [Google Scholar] [CrossRef]
  3. Kocak, O.; Erkan, U.; Toktas, A.; Gao, S. PSO-based image encryption scheme using modular integrated logistic exponential map. Expert Syst. Appl. 2024, 237, 121452. [Google Scholar] [CrossRef]
  4. Erkan, U.; Toktas, A.; Memiş, S.; Lai, Q.; Hu, G. An image encryption method based on multi-space confusion using hyperchaotic 2D Vincent map derived from optimization benchmark function. Nonlinear Dyn. 2023, 111, 20377–20405. [Google Scholar] [CrossRef]
  5. Erkan, U.; Toktas, A.; Lai, Q. Design of two dimensional hyperchaotic system through optimization benchmark function. Chaos Solitons Fractals 2023, 167, 113032. [Google Scholar] [CrossRef]
  6. Chang, H.; Wang, E.; Liu, J. Research on Image Encryption Based on Fractional Seed Chaos Generator and Fractal Theory. Fractal Fract. 2023, 7, 221. [Google Scholar] [CrossRef]
  7. Lai, Q.; Hu, G.; Erkan, U.; Toktas, A. A novel pixel-split image encryption scheme based on 2D Salomon map. Expert Syst. Appl. 2023, 213, 118845. [Google Scholar] [CrossRef]
  8. Shi, L.; Li, X.; Jin, B.; Li, Y. A Chaos-Based Encryption Algorithm to Protect the Security of Digital Artwork Images. Mathematics 2024, 12, 3162. [Google Scholar] [CrossRef]
  9. Lai, Q.; Liu, Y. A cross-channel color image encryption algorithm using two-dimensional hyperchaotic map. Expert Syst. Appl. 2023, 223, 119923. [Google Scholar] [CrossRef]
  10. Ma, X.; Wang, Z.; Wang, C. An Image Encryption Algorithm Based on Tabu Search and Hyperchaos. Int. J. Bifurc. Chaos 2024, 34, 2450170. [Google Scholar] [CrossRef]
  11. Hao, W.; Zhang, T.; Chen, X.; Zhou, X. A hybrid NEQR image encryption cryptosystem using two-dimensional quantum walks and quantum coding. Signal Process. 2023, 205, 108890. [Google Scholar] [CrossRef]
  12. Mohamed, N.A.E.S.; El-Sayed, H.; Youssif, A. Mixed Multi-Chaos Quantum Image Encryption Scheme Based on Quantum Cellular Automata (QCA). Fractal Fract. 2023, 7, 734. [Google Scholar] [CrossRef]
  13. Rehman, M.U. Quantum-enhanced Chaotic Image Encryption: Strengthening Digital Data Security With 1-D Sine-based Chaotic Maps and Quantum Coding. J. King Saud Univ.-Comput. Inf. Sci. 2024, 36, 101980. [Google Scholar] [CrossRef]
  14. Meng, F.; Gu, Z. A Color Image-Encryption Algorithm Using Extended DNA Coding and Zig-Zag Transform Based on a Fractional-Order Laser System. Fractal Fract. 2023, 7, 795. [Google Scholar] [CrossRef]
  15. Zhu, S.; Deng, X.; Zhang, W.; Zhu, C. Image Encryption Scheme Based on Newly Designed Chaotic Map and Parallel DNA Coding. Mathematics 2023, 11, 231. [Google Scholar] [CrossRef]
  16. Alawida, M.; Teh, J.S.; Alshoura, W.H. A New Image Encryption Algorithm Based on DNA State Machine for UAV Data Encryption. Drones 2023, 7, 38. [Google Scholar] [CrossRef]
  17. Zhu, L.; Jiang, D.; Ni, J.; Wang, X.; Rong, X.; Ahmad, M.; Chen, Y. A stable meaningful image encryption scheme using the newly-designed 2D discrete fractional-order chaotic map and Bayesian compressive sensing. Signal Process. 2022, 195, 108489. [Google Scholar] [CrossRef]
  18. Li, Y.; Li, C.; Li, Y.; Moroz, I.; Yang, Y. A joint image encryption based on a memristive Rulkov neuron with controllable multistability and compressive sensing. Chaos Solitons Fractals 2024, 182, 114800. [Google Scholar] [CrossRef]
  19. Yuan, Z.; Huang, S.; Huang, L.; Du, Y.; Cai, S.; Xiong, X. Safe-LBP: A visually meaningful image encryption scheme based on LBP and compressive sensing. J. Inf. Secur. Appl. 2023, 78, 103591. [Google Scholar] [CrossRef]
  20. Li, J.; Wang, C.; Deng, Q. Symmetric multi-double-scroll attractors in Hopfield neural network under pulse controlled memristor. Nonlinear Dyn. 2024, 112, 14463–14477. [Google Scholar] [CrossRef]
  21. Ren, L.; Mou, J.; Banerjee, S.; Zhang, Y. A hyperchaotic map with a new discrete memristor model: Design, dynamical analysis, implementation and application. Chaos Solitons Fractals 2023, 167, 113024. [Google Scholar] [CrossRef]
  22. Deng, Q.; Wang, C.; Sun, Y.; Deng, Z.; Yang, G. Memristive Tabu Learning Neuron Generated Multi-Wing Attractor With FPGA Implementation and Application in Encryption. In IEEE Transactions on Circuits and Systems I: Regular Papers; IEEE: Piscataway, NJ, USA, 2024; pp. 1–12. [Google Scholar] [CrossRef]
  23. Lai, Q.; Lai, C.; Zhang, H.; Li, C. Hidden coexisting hyperchaos of new memristive neuron model and its application in image encryption. Chaos Solitons Fractals 2022, 158, 112017. [Google Scholar] [CrossRef]
  24. Wang, C.; Luo, D.; Deng, Q.; Yang, G. Dynamics analysis and FPGA implementation of discrete memristive cellular neural network with heterogeneous activation functions. Chaos Solitons Fractals 2024, 187, 115471. [Google Scholar] [CrossRef]
  25. Kong, X.; Yu, F.; Yao, W.; Cai, S.; Zhang, J.; Lin, H. Memristor-induced hyperchaos, multiscroll and extreme multistability in fractional-order HNN: Image encryption and FPGA implementation. Neural Netw. 2024, 171, 85–103. [Google Scholar] [CrossRef]
  26. Zhou, Q.; Wang, X.; Jin, M.; Zhang, L.; Xu, B. Optical image encryption based on two-channel detection and deep learning. Opt. Lasers Eng. 2023, 162, 107415. [Google Scholar] [CrossRef]
  27. Jiang, X.; Xie, Y.; Liu, B.; Chai, J.; Ye, Y.; Song, T.; Feng, M.; Yuan, H. Image encryption based on actual chaotic mapping using optical reservoir computing. Nonlinear Dyn. 2023, 111, 15531–15555. [Google Scholar] [CrossRef]
  28. Al Themairi, A.; Mahmoud, G.M.; Farghaly, A.A.; Abed-Elhameed, T.M. Complex Rayleigh–van-der-Pol–Duffing Oscillators: Dynamics, Phase, Antiphase Synchronization, and Image Encryption. Fractal Fract. 2023, 7, 886. [Google Scholar] [CrossRef]
  29. Toktas, F.; Erkan, U.; Yetgin, Z. Cross-channel color image encryption through 2D hyperchaotic hybrid map of optimization test functions. Expert Syst. Appl. 2024, 249, 123583. [Google Scholar] [CrossRef]
  30. An, D.; Hao, D.; Zhao, R.; Zhang, S.; Lu, J.; Zhang, Y. Visually semantic-preserving and people-oriented color image encryption based on cross-plane thumbnail preservation. Expert Syst. Appl. 2023, 233, 120931. [Google Scholar] [CrossRef]
  31. Zhang, Y.; Chen, A.; Chen, W. The unified image cryptography algorithm based on finite group. Expert Syst. Appl. 2023, 212, 118655. [Google Scholar] [CrossRef]
  32. Ghadirli, H.M.; Nodehi, A.; Enayatifar, R. An overview of encryption algorithms in color images. Signal Process. 2019, 164, 163–185. [Google Scholar] [CrossRef]
  33. Nan, S.; Feng, X.; Wu, Y.; Zhang, H. Remote sensing image compression and encryption based on block compressive sensing and 2D-LCCCM. Nonlinear Dyn. 2022, 108, 2705–2729. [Google Scholar] [CrossRef]
  34. Wang, X.; Liu, H. Cross-plane multi-image encryption using chaos and blurred pixels. Chaos Solitons Fractals 2022, 164, 112586. [Google Scholar] [CrossRef]
  35. Etoundi, C.M.L.; Nkapkop, J.D.D.; Tsafack, N.; Ngono, J.M.; Ele, P.; Wozniak, M.; Shafi, J.; Ijaz, M.F. A Novel Compound-Coupled Hyperchaotic Map for Image Encryption. Symmetry 2022, 14, 493. [Google Scholar] [CrossRef]
  36. Liu, H.; Teng, L.; Zhang, Y.; Si, R.; Liu, P. Mutil-medical image encryption by a new spatiotemporal chaos model and DNA new computing for information security. Expert Syst. Appl. 2024, 235, 121090. [Google Scholar] [CrossRef]
  37. Yu, F.; Lin, Y.; Yao, W.; Cai, S.; Lin, H.; Li, Y. Multiscroll hopfield neural network with extreme multistability and its application in video encryption for IIoT. Neural Netw. 2025, 182, 106904. [Google Scholar] [CrossRef]
  38. Zhang, C.; Chen, J.; Chen, D. Cryptanalysis of an Image Encryption Algorithm Based on a 2D Hyperchaotic Map. Entropy 2022, 24, 1551. [Google Scholar] [CrossRef]
  39. Li, C.; Shen, X.; Liu, S. Cryptanalyzing an Image Encryption Algorithm Underpinned by 2-D Lag-Complex Logistic Map. IEEE Multimed. 2024, 31, 99–109. [Google Scholar] [CrossRef]
  40. You, K.; Chen, P.; Li, C. Cryptanalyzing an Image Encryption Algorithm Underpinned by 3D-BCNN. IEEE Multimed. 2024, 1–8. [Google Scholar] [CrossRef]
  41. Venkatesh, J.; Pchelintsev, A.N.; Karthikeyan, A.; Parastesh, F.; Jafari, S. A Fractional-Order Memristive Two-Neuron-Based Hopfield Neuron Network: Dynamical Analysis and Application for Image Encryption. Mathematics 2023, 11, 4470. [Google Scholar] [CrossRef]
  42. Qian, K.; Xiao, Y.; Wei, Y.; Liu, D.; Wang, Q.; Feng, W. A Robust Memristor-Enhanced Polynomial Hyper-Chaotic Map and Its Multi-Channel Image Encryption Application. Micromachines 2023, 14, 2090. [Google Scholar] [CrossRef] [PubMed]
  43. Zefreh, E.Z. An image encryption scheme based on a hybrid model of DNA computing, chaotic systems and hash functions. Multimed. Tools Appl. 2020, 79, 24993–25022. [Google Scholar] [CrossRef]
  44. Liu, H.; Zhao, B.; Huang, L. A remote-sensing image encryption scheme using DNA bases probability and two-dimensional logistic map. IEEE Access 2019, 7, 65450–65459. [Google Scholar] [CrossRef]
  45. Hua, Z.; Zhu, Z.; Chen, Y.; Li, Y. Color image encryption using orthogonal Latin squares and a new 2D chaotic system. Nonlinear Dyn. 2021, 104, 4505–4522. [Google Scholar] [CrossRef]
  46. Feng, W.; Wang, Q.; Liu, H.; Ren, Y.; Zhang, J.; Zhang, S.; Qian, K.; Wen, H. Exploiting Newly Designed Fractional-Order 3D Lorenz Chaotic System and 2D Discrete Polynomial Hyper-Chaotic Map for High-Performance Multi-Image Encryption. Fractal Fract. 2023, 7, 887. [Google Scholar] [CrossRef]
  47. Li, H.; Yu, S.; Feng, W.; Chen, Y.; Zhang, J.; Qin, Z.; Zhu, Z.; Wozniak, M. Exploiting Dynamic Vector-Level Operations and a 2D-Enhanced Logistic Modular Map for Efficient Chaotic Image Encryption. Entropy 2023, 25, 1147. [Google Scholar] [CrossRef]
  48. Wang, X.; Liu, L.; Song, M. Remote sensing image and multi-type image joint encryption based on NCCS. Nonlinear Dyn. 2023, 111, 14537–14563. [Google Scholar] [CrossRef]
  49. Feng, W.; Zhang, J.; Chen, Y.; Qin, Z.; Zhang, Y.; Ahmad, M.; Woźniak, M. Exploiting robust quadratic polynomial hyperchaotic map and pixel fusion strategy for efficient image encryption. Expert Syst. Appl. 2024, 246, 123190. [Google Scholar] [CrossRef]
  50. Zarei Zefreh, E. PSDCLS: Parallel simultaneous diffusion–confusion image cryptosystem based on Latin square. J. Inf. Secur. Appl. 2024, 83, 103785. [Google Scholar] [CrossRef]
  51. Hua, Z.; Zhou, Y.; Huang, H. Cosine-transform-based chaotic system for image encryption. Inf. Sci. 2019, 480, 403–419. [Google Scholar] [CrossRef]
  52. Li, H.; Li, T.; Feng, W.; Zhang, J.; Zhang, J.; Gan, L.; Li, C. A novel image encryption scheme based on non-adjacent parallelable permutation and dynamic DNA-level two-way diffusion. J. Inf. Secur. Appl. 2021, 61, 102844. [Google Scholar] [CrossRef]
  53. Hua, Z.; Zhu, Z.; Yi, S.; Zhang, Z.; Huang, H. Cross-plane colour image encryption using a two-dimensional logistic tent modular map. Inf. Sci. 2021, 546, 1063–1083. [Google Scholar] [CrossRef]
  54. Feng, W.; Zhao, X.; Zhang, J.; Qin, Z.; Zhang, J.; He, Y. Image Encryption Algorithm Based on Plane-Level Image Filtering and Discrete Logarithmic Transform. Mathematics 2022, 10, 2751. [Google Scholar] [CrossRef]
  55. Alvarez, G.; Li, S. Some basic cryptographic requirements for chaos-based cryptosystems. Int. J. Bifurc. Chaos 2006, 16, 2129–2151. [Google Scholar] [CrossRef]
  56. Özkaynak, F. Brief review on application of nonlinear dynamics in image encryption. Nonlinear Dyn. 2018, 92, 305–313. [Google Scholar] [CrossRef]
Figure 1. State value distributions of 2D-SCPM and 2D-ECHM: the first two 3D bifurcation diagrams illustrate the distributions of x i for two hyperchaotic maps, whereas the subsequent two 3D bifurcation diagrams depict the distributions of y i .
Figure 1. State value distributions of 2D-SCPM and 2D-ECHM: the first two 3D bifurcation diagrams illustrate the distributions of x i for two hyperchaotic maps, whereas the subsequent two 3D bifurcation diagrams depict the distributions of y i .
Mathematics 12 03917 g001
Figure 2. Encryption process of our proposed MIEA-PRHM.
Figure 2. Encryption process of our proposed MIEA-PRHM.
Mathematics 12 03917 g002
Figure 3. Simple example of row–column joint scrambling: The blue squares represent the pixels of the input pixel matrix, the red squares denote the pixels currently being scrambled, and the gray squares indicate the scrambled pixels.
Figure 3. Simple example of row–column joint scrambling: The blue squares represent the pixels of the input pixel matrix, the red squares denote the pixels currently being scrambled, and the gray squares indicate the scrambled pixels.
Mathematics 12 03917 g003
Figure 4. Simple example of vector-level dynamic rotational diffusion: The blue squares represent the pixels of the input pixel matrix, the red squares denote the pixel regions currently undergoing diffusion, and the gray squares signify the diffused pixels. The bold gray arrows indicate the diffusion direction at each stage.
Figure 4. Simple example of vector-level dynamic rotational diffusion: The blue squares represent the pixels of the input pixel matrix, the red squares denote the pixel regions currently undergoing diffusion, and the gray squares signify the diffused pixels. The bold gray arrows indicate the diffusion direction at each stage.
Mathematics 12 03917 g004
Figure 5. Simple example of dual-operation dynamic partition substitution: The pink squares represent the pixels of the input pixel matrix, the red squares denote the pixels currently undergoing substitution, and the gray squares signify the substituted pixels.
Figure 5. Simple example of dual-operation dynamic partition substitution: The pink squares represent the pixels of the input pixel matrix, the red squares denote the pixels currently undergoing substitution, and the gray squares signify the substituted pixels.
Mathematics 12 03917 g005
Figure 6. Decryption process of our proposed MIEA-PRHM.
Figure 6. Decryption process of our proposed MIEA-PRHM.
Mathematics 12 03917 g006
Figure 7. Visual assessment results for MIEA-PRHM: in the first row, six original test images, denoted as 5.1.09, 5.2.09, boat.512, 4.1.07, avion, and beeflowr, are concurrently input; the second row presents the corresponding encrypted images obtained simultaneously; and the final row exhibits the respective decrypted images.
Figure 7. Visual assessment results for MIEA-PRHM: in the first row, six original test images, denoted as 5.1.09, 5.2.09, boat.512, 4.1.07, avion, and beeflowr, are concurrently input; the second row presents the corresponding encrypted images obtained simultaneously; and the final row exhibits the respective decrypted images.
Mathematics 12 03917 g007
Figure 8. Key sensitivity experimental results for MIEA-PRHM: (a1) test image 5.2.08; (a2) ciphertext of 5.2.08 obtained with K ^ ; (b1) ciphertext obtained with x ^ 0 ( 1 ) = x ^ 0 ( 1 ) + 10 15 ; (b2) obtained with y ^ 0 ( 1 ) = y ^ 0 ( 1 ) + 10 15 ; (b3) obtained with α ^ = α ^ + 10 15 ; (b4) obtained with β ^ = β ^ + 10 15 ; (b5) obtained with x ^ 0 ( 2 ) = x ^ 0 ( 2 ) + 10 15 ; (b6) obtained with y ^ 0 ( 2 ) = y ^ 0 ( 2 ) + 10 15 ; (b7) obtained with γ ^ = γ ^ + 10 15 ; (b8) obtained with θ ^ = θ ^ + 10 15 ; (c1) difference between (a2) and (b1); (c2) difference between (a2) and (b2); (c3) difference between (a2) and (b3); (c4) difference between (a2) and (b4); (c5) difference between (a2) and (b5); (c6) difference between (a2) and (b6); (c7) difference between (a2) and (b7); (c8) difference between (a2) and (b8).
Figure 8. Key sensitivity experimental results for MIEA-PRHM: (a1) test image 5.2.08; (a2) ciphertext of 5.2.08 obtained with K ^ ; (b1) ciphertext obtained with x ^ 0 ( 1 ) = x ^ 0 ( 1 ) + 10 15 ; (b2) obtained with y ^ 0 ( 1 ) = y ^ 0 ( 1 ) + 10 15 ; (b3) obtained with α ^ = α ^ + 10 15 ; (b4) obtained with β ^ = β ^ + 10 15 ; (b5) obtained with x ^ 0 ( 2 ) = x ^ 0 ( 2 ) + 10 15 ; (b6) obtained with y ^ 0 ( 2 ) = y ^ 0 ( 2 ) + 10 15 ; (b7) obtained with γ ^ = γ ^ + 10 15 ; (b8) obtained with θ ^ = θ ^ + 10 15 ; (c1) difference between (a2) and (b1); (c2) difference between (a2) and (b2); (c3) difference between (a2) and (b3); (c4) difference between (a2) and (b4); (c5) difference between (a2) and (b5); (c6) difference between (a2) and (b6); (c7) difference between (a2) and (b7); (c8) difference between (a2) and (b8).
Mathematics 12 03917 g008
Figure 9. Visual assessment of plaintext sensitivity for MIEA-PRHM: (a1) test image 2.1.05; (b1) the least significant pixel bit at (2,3) was modified; (c1) the least significant bit at (511,512) was modified; (d1) difference between (a1) and (b1); (e1) difference between (a1) and (c1); (a2) encrypted image of (a1); (b2) encrypted image of (b1); (c2) encrypted image of (c1); (d2) difference between (a2) and (b2); and (e2) difference between (a2) and (c2).
Figure 9. Visual assessment of plaintext sensitivity for MIEA-PRHM: (a1) test image 2.1.05; (b1) the least significant pixel bit at (2,3) was modified; (c1) the least significant bit at (511,512) was modified; (d1) difference between (a1) and (b1); (e1) difference between (a1) and (c1); (a2) encrypted image of (a1); (b2) encrypted image of (b1); (c2) encrypted image of (c1); (d2) difference between (a2) and (b2); and (e2) difference between (a2) and (c2).
Mathematics 12 03917 g009
Figure 10. Experimental results of pixel correlation assessment for MIEA-PRHM: in the first column, the test images 2.1.02 and 4.2.03, along with their encrypted images, are presented; the second column exhibits the 3D correlation analysis plots of the horizontal orientation for the images displayed in the first column; the third column showcases the correlation analysis plots of the vertical orientation; and the final column depicts the correlation analysis plots of the diagonal orientation.
Figure 10. Experimental results of pixel correlation assessment for MIEA-PRHM: in the first column, the test images 2.1.02 and 4.2.03, along with their encrypted images, are presented; the second column exhibits the 3D correlation analysis plots of the horizontal orientation for the images displayed in the first column; the third column showcases the correlation analysis plots of the vertical orientation; and the final column depicts the correlation analysis plots of the diagonal orientation.
Mathematics 12 03917 g010

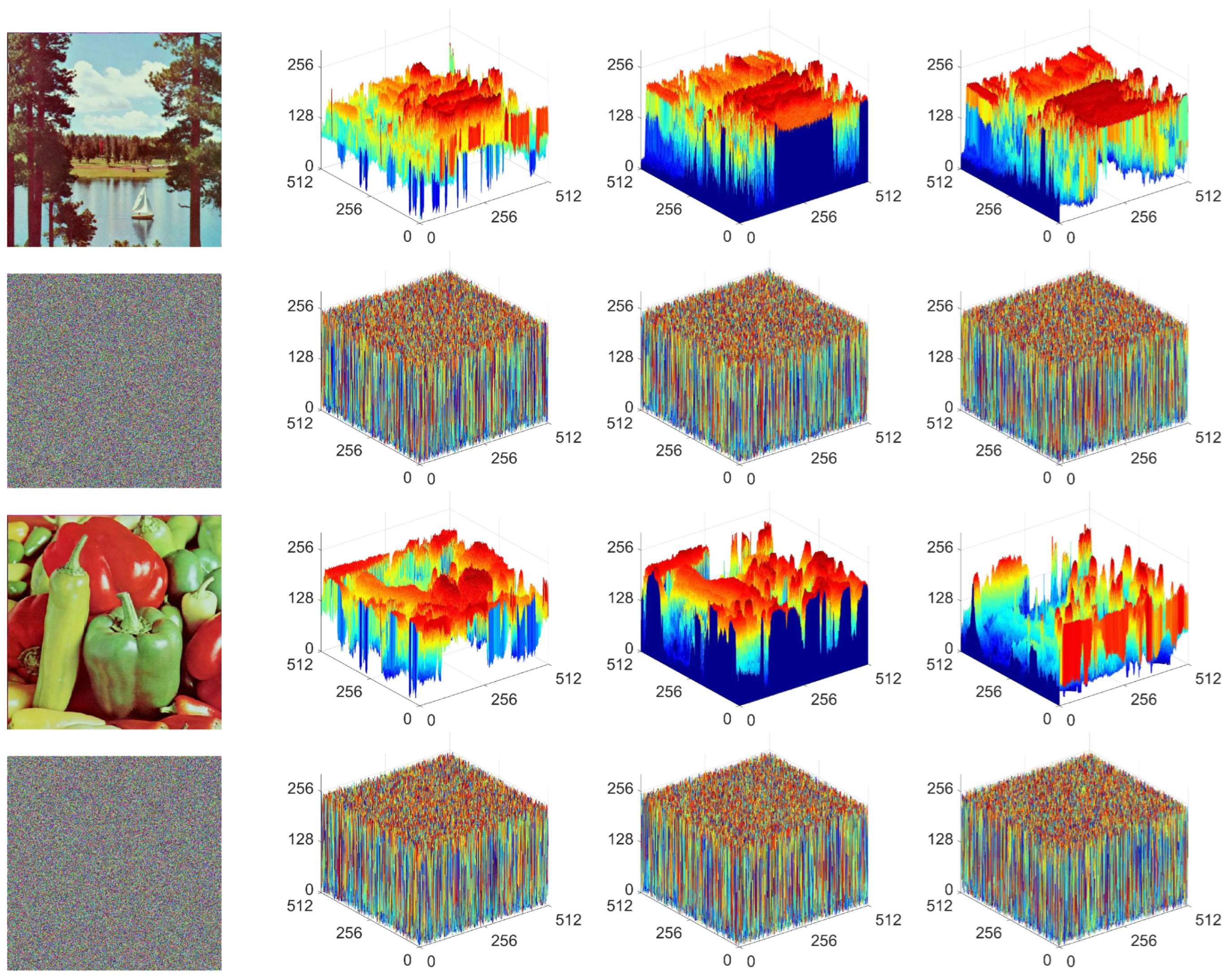

Figure 11. Experimental results of pixel distribution assessment for MIEA-PRHM: in the first column, the test images 4.2.06 and 4.2.07, along with their encrypted images, are presented; the second column exhibits the 3D pixel distribution plots of the red channels for the images displayed in the first column; the third column showcases the pixel distribution plots of green channels; and the final column depicts the pixel distribution plots of blue channels.
Figure 11. Experimental results of pixel distribution assessment for MIEA-PRHM: in the first column, the test images 4.2.06 and 4.2.07, along with their encrypted images, are presented; the second column exhibits the 3D pixel distribution plots of the red channels for the images displayed in the first column; the third column showcases the pixel distribution plots of green channels; and the final column depicts the pixel distribution plots of blue channels.
Mathematics 12 03917 g011

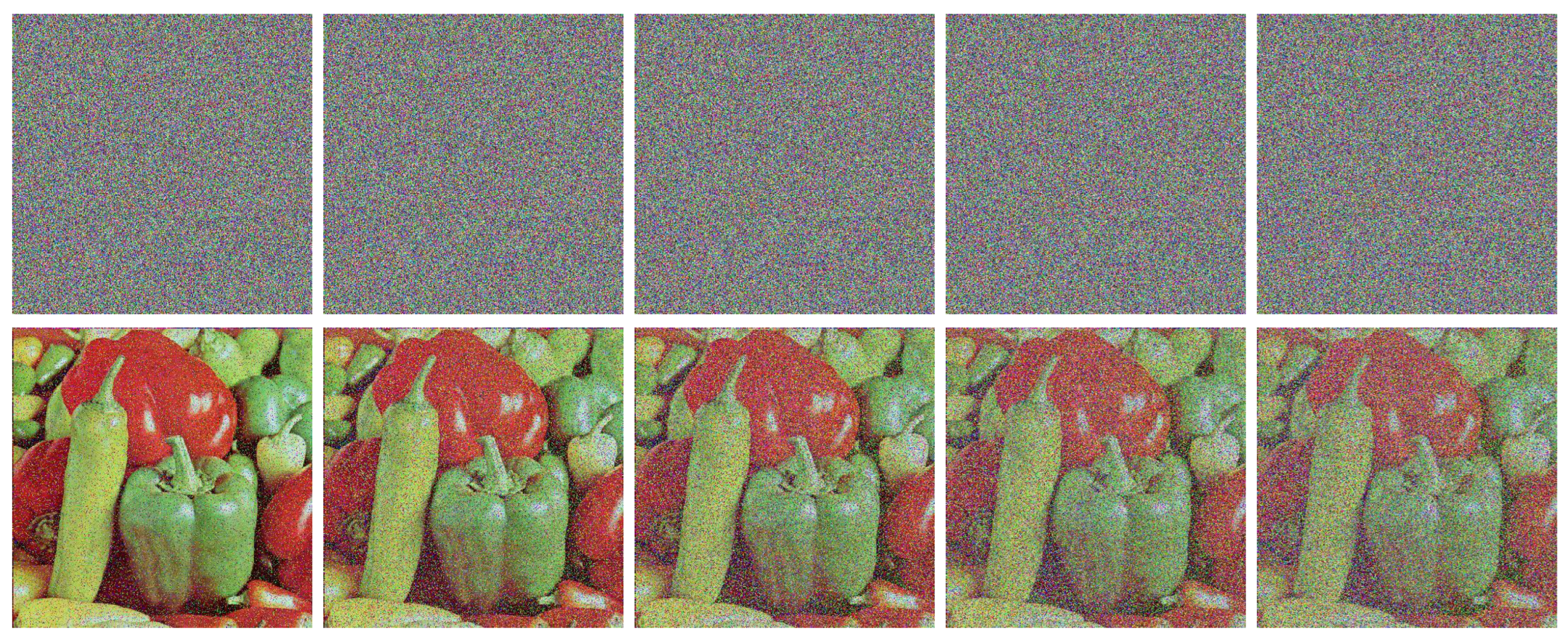

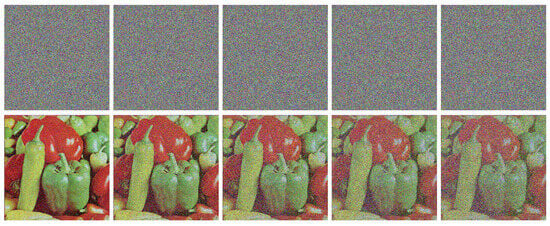

Figure 12. Experimental results of MIEA-PRHM against noise attacks: the first row presents five contaminated ciphertext images, with salt-and-pepper noise intensities of 0.01, 0.02, 0.03, 0.04, and 0.05, respectively, added to each; the second row shows the corresponding decrypted images.
Figure 12. Experimental results of MIEA-PRHM against noise attacks: the first row presents five contaminated ciphertext images, with salt-and-pepper noise intensities of 0.01, 0.02, 0.03, 0.04, and 0.05, respectively, added to each; the second row shows the corresponding decrypted images.
Mathematics 12 03917 g012

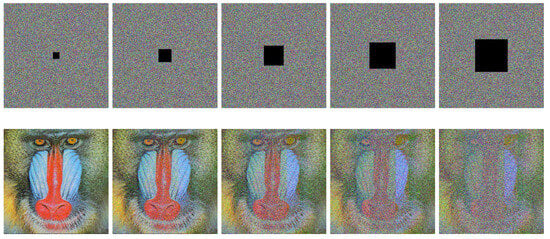

Figure 13. Experimental results of MIEA-PRHM against data loss: The first row presents five ciphertext images with some pixels missing. The numbers of their missing pixels are 32 × 32 × 3 , 64 × 64 × 3 , 96 × 96 × 3 , 128 × 128 × 3 , and 160 × 160 × 3 , respectively. The second row shows the corresponding decrypted images.
Figure 13. Experimental results of MIEA-PRHM against data loss: The first row presents five ciphertext images with some pixels missing. The numbers of their missing pixels are 32 × 32 × 3 , 64 × 64 × 3 , 96 × 96 × 3 , 128 × 128 × 3 , and 160 × 160 × 3 , respectively. The second row shows the corresponding decrypted images.
Mathematics 12 03917 g013
Table 1. Results of the NIST SP-800 randomness test.
Table 1. Results of the NIST SP-800 randomness test.
Test Item2D-SCPM2D-ELMMOurs
Pass/All % Pass/All % Pass/All %
Frequency (Bit)20/20100%20/20100%20/20100%
Frequency (Block)19/2095%20/20100%20/20100%
Run20/20100%20/20100%20/20100%
Longest Run20/20100%20/20100%20/20100%
Binary Matrix Rank20/20100%18/2090%20/20100%
Discrete Fourier Transform20/20100%20/20100%20/20100%
Non-Overlapping Temp.19/2095%20/20100%20/20100%
Overlapping Temp.20/20100%20/20100%20/20100%
Universal Statistical20/20100%20/20100%20/20100%
Linear Complexity20/20100%20/20100%20/20100%
Serial 120/20100%19/2095%20/20100%
Serial 219/2095%20/20100%20/20100%
Appr. Entropy20/20100%20/20100%20/20100%
Cummu. Sums Forward20/20100%20/20100%20/20100%
Cummu. Sums Reverse20/20100%20/20100%20/20100%
Random Excur. ( x = 1 )20/20100%20/20100%20/20100%
Random Excur. ( x = + 1 )20/20100%20/20100%20/20100%
Random Excur. Var. ( x = 1 )20/20100%19/2095%20/20100%
Random Excur. Var. ( x = + 1 )20/20100%20/20100%20/20100%
Table 2. NPCR experimental results (%) of six image encryption algorithms.
Table 2. NPCR experimental results (%) of six image encryption algorithms.
Image SizeTest ImageMIEA-PRHM[53][45][49][47][50]
256 × 256 5.1.0999.612499.589599.633899.608299.624699.6078
5.1.1199.596099.592699.614099.629899.585099.5819
5.1.1399.615599.574399.604899.610199.603399.6047
5.1.1499.601099.586599.585099.588499.597299.6292
512 × 512 5.2.0999.597299.629299.610999.597599.615599.6170
7.1.0199.626299.635399.642999.607899.629299.6109
7.1.0399.606399.583499.569799.615599.585099.6032
boat.51299.615599.644599.575899.623999.600299.6078
1024 × 1024 5.3.0199.623199.615599.618599.618199.609499.6262
5.3.0299.594199.624699.635399.611799.615599.6078
7.2.0199.609499.618599.600299.607199.592699.5864
testpat.1k99.618199.589599.615599.600699.629299.6139
Avg99.609699.607099.608999.609999.607299.6081
Std. Dev.0.01080.02350.02320.01130.01590.0138
Table 3. UACI experimental results (%) of six image encryption algorithms.
Table 3. UACI experimental results (%) of six image encryption algorithms.
Image SizeTest ImageMIEA-PRHM[53][45][49][47][50]
256 × 256 5.1.0933.484533.368533.422333.451833.484733.3783
5.1.1133.495533.511133.339833.432933.413733.5601
5.1.1333.422433.441933.438833.517733.452533.4732
5.1.1433.452533.588533.400933.371433.442433.4905
512 × 512 5.2.0933.499733.593233.568833.458333.463133.4716
7.1.0133.496533.507133.441833.575833.515733.3701
7.1.0333.456833.475533.516833.542233.391433.3884
boat.51233.505133.379833.525333.460333.405333.3365
1024 × 1024 5.3.0133.462533.400933.367233.491533.458333.5294
5.3.0233.447833.338833.513433.453833.524833.3473
7.2.0133.448033.456933.404033.352933.421833.5224
testpat.1k33.398433.524233.523133.440433.512133.5067
Avg33.464133.465533.455233.462433.457233.4479
Std. Dev.0.03330.08330.07250.06390.04490.0788
Table 4. CC values of twelve test images and their ciphertext images.
Table 4. CC values of twelve test images and their ciphertext images.
Image SizeTest ImageCC Values (Plaintext)CC Values (Ciphertext)
Horizontal Vertical Diagonal Horizontal Vertical Diagonal
256 × 256 5.1.090.93980.90530.9115−0.0006−0.0011−0.0008
5.1.110.94540.95550.89910.0016−0.0013−0.0011
5.1.130.85670.87140.78950.0008−0.00130.0007
5.1.140.90350.94630.86210.0013−0.00190.0003
512 × 512 5.2.090.86650.89750.79370.00190.00110.0005
7.1.010.91730.96100.90260.0009−0.00180.0002
7.1.030.92880.94560.90210.00140.0010−0.0012
boat.5120.96880.94110.9191−0.0003−0.00140.0006
1024 × 1024 5.3.010.98250.97730.96650.0017−0.0004−0.0002
5.3.020.90200.91370.8632−0.0011−0.00050.0015
7.2.010.94980.96390.9462−0.00190.0005−0.0008
testpat.1k0.81280.78400.70150.00020.00190.0001
Table 5. Information entropy assessment results for MIEA-PRHM.
Table 5. Information entropy assessment results for MIEA-PRHM.
Image SizeTest ImageEntropy (Plaintext)Entropy (Ciphertext)
512 × 512 5.2.096.99407.9994
7.1.046.10747.9993
7.1.085.05347.9993
boat.5127.19147.9994
avion6.57687.9993
beeflowr3.07207.9994
1024 × 1024 2.2.017.35087.9998
2.2.035.66277.9998
2.2.057.08967.9998
2.2.075.91997.9998
5.3.017.52377.9998
testpat.1k4.40777.9999
Table 6. Comparative outcomes of information entropy for six image encryption algorithms.
Table 6. Comparative outcomes of information entropy for six image encryption algorithms.
AlgorithmEntropy
MIEA-PRHM7.9994
[43]7.9976
[44]7.9984
[45]7.9992
[47]7.9993
[54]7.9993
[48]7.9993
Table 7. Results of the chi-square test obtained for MIEA-PRHM.
Table 7. Results of the chi-square test obtained for MIEA-PRHM.
Image SizeTest Image χ 2 ValuePassed or Not
Threshold (293.2478)
256 × 256 5.1.09268.8516Yes
5.1.11219.4766Yes
5.1.13265.6875Yes
5.1.14264.7734Yes
512 × 512 5.2.09241.1348Yes
7.1.01214.6758Yes
7.1.03247.2500Yes
boat.512243.1680Yes
1024 × 1024 5.3.01226.1406Yes
5.3.02251.3809Yes
7.2.01244.5845Yes
testpat.1k265.4116Yes
Table 8. Average times (Sec.) required by seven image encryption algorithms to encrypt one or more images.
Table 8. Average times (Sec.) required by seven image encryption algorithms to encrypt one or more images.
Algorithm 256 × 256 × 3 256 × 256 × 6 512 × 512 × 3 512 × 512 × 6 1024 × 1024 × 3 1024 × 1024 × 6
[51]0.24520.50141.16342.38614.779210.1742
[52]0.21970.46770.94171.89293.87128.0234
[43]0.44970.90571.89273.84687.680515.4763
[53]0.12230.25760.56841.24042.67345.4156
[47]0.06220.13320.27670.56361.14612.4245
[54]0.12530.25790.49321.03532.13634.4000
MIEA-PRHM0.02400.04850.09770.19700.39930.8152
Table 9. Corresponding throughputs (Mbps) achieved by seven image encryption algorithms.
Table 9. Corresponding throughputs (Mbps) achieved by seven image encryption algorithms.
Algorithm 256 × 256 × 3 256 × 256 × 6 512 × 512 × 3 512 × 512 × 6 1024 × 1024 × 3 1024 × 1024 × 6 Average
[51]6.11755.98325.15735.02915.02184.71785.3378
[52]6.82756.41446.37156.33956.19965.98256.3558
[43]3.33563.31243.17013.11953.12483.10153.1940
[53]12.264911.646010.55599.67438.97738.863310.3303
[47]24.115822.522521.684121.291720.940619.797921.7254
[54]11.971311.632412.165511.590811.234410.909111.5839
MIEA-PRHM62.500061.855761.412560.913760.105258.881360.9447
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Feng, W.; Yang, J.; Zhao, X.; Qin, Z.; Zhang, J.; Zhu, Z.; Wen, H.; Qian, K. A Novel Multi-Channel Image Encryption Algorithm Leveraging Pixel Reorganization and Hyperchaotic Maps. Mathematics 2024, 12, 3917. https://doi.org/10.3390/math12243917

AMA Style

Feng W, Yang J, Zhao X, Qin Z, Zhang J, Zhu Z, Wen H, Qian K. A Novel Multi-Channel Image Encryption Algorithm Leveraging Pixel Reorganization and Hyperchaotic Maps. Mathematics. 2024; 12(24):3917. https://doi.org/10.3390/math12243917

Chicago/Turabian Style

Feng, Wei, Jiaxin Yang, Xiangyu Zhao, Zhentao Qin, Jing Zhang, Zhengguo Zhu, Heping Wen, and Kun Qian. 2024. "A Novel Multi-Channel Image Encryption Algorithm Leveraging Pixel Reorganization and Hyperchaotic Maps" Mathematics 12, no. 24: 3917. https://doi.org/10.3390/math12243917

APA Style

Feng, W., Yang, J., Zhao, X., Qin, Z., Zhang, J., Zhu, Z., Wen, H., & Qian, K. (2024). A Novel Multi-Channel Image Encryption Algorithm Leveraging Pixel Reorganization and Hyperchaotic Maps. Mathematics, 12(24), 3917. https://doi.org/10.3390/math12243917

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
