High-Order Approximation to Generalized Caputo Derivatives and Generalized Fractional Advection–Diffusion Equations

Abstract

In this article, a high-order time-stepping scheme based on the cubic interpolation formula is considered to approximate the generalized Caputo fractional derivative (GCFD). Convergence order for this scheme is $(4-\alpha )$, where $\alpha (0<\alpha <1)$ is the order of the GCFD. The local truncation error is also provided. Then, we adopt the developed scheme to establish a difference scheme for the solution of the generalized fractional advection–diffusion equation with Dirichlet boundary conditions. Furthermore, we discuss the stability and convergence of the difference scheme. Numerical examples are presented to examine the theoretical claims. The convergence order of the difference scheme is analyzed numerically, which is $(4-\alpha )$ in time and second-order in space.

1. Introduction

This work includes the numerical solution of the following generalized fractional advection–diffusion equation,

$$\begin{array}{c}\hfill \left\{\begin{array}{cc}\hfill & {}_0^C{\mathcal{D}}_{t;\left[\zeta \right(t),\omega (t\left)\right]}^{\alpha }U(x,t)=D\frac{{\partial }^{2}U(x,t)}{\partial x^2}-A\frac{\partial U(x,t)}{\partial x}+g(x,t),x\in \Omega ,t\in (0,T],\hfill \\ \hfill & U(x,0)=U_0\left(x\right),x\in \overline{\Omega }=\Omega \cup \partial \Omega ,\hfill \\ \hfill & U(0,t)={\rho }_1\left(t\right),U(a,t)={\rho }_2\left(t\right),t\in (0,T],\hfill \end{array}\right.\end{array}$$

(1)

where $\Omega =(0,a)$ is a bounded domain with boundary $\partial \Omega$ and the notation ${}_0^C{\mathcal{D}}_{t,\left[\zeta \right(t),\omega (t\left)\right]}^{\alpha }$ denotes the GCFD (defined in [1] and related references therein) with respect to t of order $\alpha$:

$$\begin{array}{c}\hfill {}_0^C{\mathcal{D}}_{t;\left[\zeta \right(t),\omega (t\left)\right]}^{\alpha }U\left(t\right)=\frac{{\left[\omega \left(t\right)\right]}^{-1}}{\Gamma (1-\alpha )}{\int }_0^t\frac{{\left[\omega \left(s\right)U\left(s\right)\right]}^{\prime }}{{[\zeta \left(t\right)-\zeta \left(s\right)]}^{\alpha }}ds,0<\alpha <1,\end{array}$$

(2)

where ${\partial }_s=\frac{\partial }{\partial s}$, parameter $D>0$ is the diffusivity, $A>0$ is the advection constant and U is the solute concentration; g, $U_0$, ${\rho }_1$ and ${\rho }_2$ are continuous functions on their respective domains with $U_0\left(0\right)={\rho }_1\left(0\right)$ and $U_0\left(a\right)={\rho }_2\left(0\right)$. Here scale and weight are sufficiently regular functions and our model (1) reduces to the diffusion problem when $A=0$. The advection–diffusion equation is basically a transport problem that transports a passive scalar quantity in a fluid flow. Due to diffusion and advection, this model represents the physical phenomenon of species concentration for mass transfer and temperature in heat transfer; for more details, refer to [2,3,4,5,6], and [7,8,9,10,11] for further history and significance of the advection–diffusion equation in physics, chemistry and biology.

The most used fractional derivatives in the problem formulation are the Riemann–Liouville and the Caputo derivatives [12]. In the year 2012, the generalizations of fractional integrals and derivatives were discussed by Agrawal [1]. Two functions, scale $\zeta \left(t\right)$ and weight $\omega \left(t\right)$ in one parameter, appear in the definition of the generalized fractional derivative of a function $\mathcal{V}\left(t\right)$. If $\omega \left(t\right)=1$ and $\zeta \left(t\right)=t$ then the generalized fractional derivative reduces to the Riemann–Liouville (R-L) and the Caputo derivative; whereas if $\omega \left(t\right)=1$, $\zeta \left(t\right)=ln\left(t\right)$, and $\omega \left(t\right)=t^{\sigma \eta }$, $\zeta \left(t\right)=t^{\sigma }$ then it will convert to Hadamard [13], and modified Erdélyi–Kober fractional derivatives, respectively. The authors of [14] studied the generalized form of R-L and the Hadamard fractional integrals, which is a special case of the Erdélyi–Kober generalized fractional derivative, and some properties of this operator. Atangana and Baleanu [15] discussed a new fractional derivative with a non-singular kernel and used this derivative in the formation of a fractional heat transfer model. Therefore, we obtain different types of fractional derivatives for different choices of weight and scale functions. In the generalized derivative, the scale function $\zeta \left(t\right)$ manages the considered time domain; it can stretch or contract accordingly to capture the phenomena accurately over the desired time range. The weight function $\omega \left(t\right)$ allows the events to be estimated differently at different times.

Over the last decade, many numerical methods were investigated to approximate the Caputo fractional derivative. For example, Mustapha [16] presented an $L1$ approximation formula to solve a fractional reaction–diffusion equation and second-order error bound discussed on non-uniform time meshes. Alikhanov [17] constructed an $L2-1_{\sigma }$ formula to approximate the Caputo fractional time derivative and then used this derived scheme in solving the time fractional diffusion equation with variable coefficients. Abu Arqub [18] considered reproducing a kernel algorithm for approximate solution of the nonlinear time-fractional PDEs with initial and Robin boundary conditions. Li and Yan [19] discussed the idea of [20] (i.e., $L_2$ approximation formula for time discretization), and also derived a new time discretization method with accuracy order $\mathcal{O}\left({\tau }^{3-\alpha }\right)$ and finite element method for spatial discretization. Cao et al. [21] presented a high-order approximation formula based on the cubic interpolation to approximate the Caputo derivative for the time fractional advection–diffusion equation. Xu and Agrawal [22] used the finite difference method (FDM) to approximate the GCFD for solving the generalized fractional Burgers equation. Kumar et al. [23] presented $L1$ and $L2$ methods to approximate the generalized time fractional derivative which are defined as follows, respectively

$$\begin{array}{cc}\hfill & {}_0^C{\mathcal{D}}_{t;\left[\zeta \right(t),\omega (t\left)\right]}^{\alpha }{\mathcal{V}\left(t\right)|}_{t=t_n}=\frac{{\left[\omega \left(t\right)\right]}^{-1}}{\Gamma (1-\alpha )}\sum _{l=1}^n\left(\frac{{\omega }_l{\mathcal{V}}_l-{\omega }_{l-1}{\mathcal{V}}_{l-1}}{{\zeta }_l-{\zeta }_{l-1}}\right){\int }_{t_{l-1}}^{t_l}{[\zeta \left(t\right)-\zeta \left(s\right)]}^{-\alpha }\left({\partial }_s\zeta \left(s\right)\right)ds+r_1^n,\hfill \end{array}$$

(3)

$$\begin{array}{cc}\hfill & {}_0^C{\mathcal{D}}_{t;\left[\zeta \right(t),\omega (t\left)\right]}^{\alpha }{\mathcal{V}\left(t\right)|}_{t=t_n}=\frac{{\left[\omega \left(t\right)\right]}^{-1}}{\Gamma (1-\alpha )}\sum _{l=1}^n{\int }_{t_{l-1}}^{t_l}{[\zeta \left(t\right)-\zeta \left(s\right)]}^{-\alpha }{\partial }_s\left({\Pi }_l\omega \left(s\right)\mathcal{V}\left(s\right)\right)ds+r_2^n,\hfill \end{array}$$

(4)

where,

$$\begin{array}{cc}\hfill {\Pi }_l^{\prime }\left(\omega \left(t\right)\mathcal{V}\left(t\right)\right)={\zeta }^{\prime }\left(t\right)\left\{\right[& \frac{2\zeta \left(t\right)-{\zeta }_l-{\zeta }_{l-1}}{({\zeta }_{l-2}-{\zeta }_{l-1})({\zeta }_{l-2}-{\zeta }_{l-1})}]{\omega }_{l-2}{\mathcal{V}}_{l-2}+\left[\frac{2\zeta \left(t\right)-{\zeta }_l-{\zeta }_{l-2}}{({\zeta }_{l-1}-{\zeta }_{l-2})({\zeta }_{l-1}-{\zeta }_l)}\right]\hfill \\ & {\omega }_{l-1}{\mathcal{V}}_{l-1}+\left[\frac{2\zeta \left(t\right)-{\zeta }_{l-1}-{\zeta }_{l-2}}{({\zeta }_l-{\zeta }_{l-2})({\zeta }_l-{\zeta }_{l-1})}\right]{\omega }_l{\mathcal{V}}_l\},\hfill \end{array}$$

where the domain $[0,T]$ was discretized into n equal subintervals, i.e., $0=t_0<t_1<\dots <t_N=T$ with step-size $\tau =\frac{T}{N}$, and errors $r_1^n=\mathcal{O}\left({\tau }^{2-\alpha }\right),r_2^n=\mathcal{O}\left({\tau }^{3-\alpha }\right)$ were shown in [23]. In this work, we discuss the numerical scheme for GCFD with convergence rate $(4-\alpha )$; for this accuracy we have to assume that ${\mathcal{V}}^{\prime }\left(t_0\right)=0$, ${\mathcal{V}}^{″}\left(t_0\right)=0$, ${\mathcal{V}}^{\prime ″}\left(t_0\right)=0$. This idea is discussed in [21] for Caputo derivative approximation, but the error bound was discussed directly.

Due to the non-local property of the fractional derivatives, the numerical solution of the fractional partial differential equations is a very difficult task [24]. Several authors have presented some precise and efficient numerical methods for the fractional advection–diffusion equation. For examples, Zheng et al. [25] used the finite element method (FEM) for space fractional advection–diffusion equation. Mardani et al. [26] discussed meshless moving least square method for solving the time-fractional advection–diffusion equation with variable coefficients. Cao et al. [21] proposed the higher-order approximation of the Caputo derivatives and further applied it in solving the fractional advection–diffusion equation. They used the Lagrange interpolation method to discretize the time derivative and second-order central difference for the spatial derivatives. Li and Cai [27] considered a three-step process for the Caputo fractional derivative approximation; the first two steps include the shifted Lubich formula derivation for infinite interval then for finite interval, and after that it is generalized to the Caputo derivative. Yadav et al. [28] discussed the Taylor expansion for the approximation of the generalized time-fractional derivative to solve the generalized fractional advection–diffusion equation. Tian et al. [29] presented a polynomial spectral collocation method for the space fractional advection–diffusion equation. In [30], the authors developed explicit and implicit Euler approximations to solve a variable-order fractional advection–diffusion equation on a finite domain. Singh et al. [31] investigated the numerical approximation of the Caputo–Prabhakar derivative and then used this approximation to solve the fractional advection–diffusion equation. Kannan et al. [32] used a variant of the local discontinuous Galerkin (LDG2) flux formulation to discuss the high accuracy of the 1D and 2D diffusion equations. In [33], the authors discussed three approaches, penalty approach, BR2 (Bassi and Rebay) method and LDG method, to study the 2D diffusion equation.

1.1. Motivation and Literature Review for Approximation of the GCFD

Up to now, there are only limited works available in the literature to approximate the GCFD. These works include the finite difference method, $L1$-method, $L1-2$-method and collocation method used to approximate GCFD. In this article, we present the approximation of the GCFD based on cubic interpolation polynomials (say $L1-2-3$-method).

• Xu and Agrawal [22] considered the FDM for approximation of the GCFD for the generalized fractional Burgers equation.
• Kumar et al. [34] presented a numerical scheme for the generalized fractional telegraph equation in time.
• Cao et al. [35] worked on the generalized time-fractional Kdv equation. They used the collocation method which is constructed using Jacobi–Gauss–Lobatto (JGL) nodes.
• Xu et al. [36] considered the FDM to approximate the GCFD of order $0<\alpha <1$ and discussed the analytical and numerical solutions of the generalized fractional diffusion equation.
• In [37], the authors used the generalized weighted and shifted Grünwald–Letnikov difference operator to approximate the GCFD and then adopt it to solve the generalized fractional diffusion equation.
• Yadav et al. [28] discussed the Taylor expansion and finite difference approach to approximate the GCFD and then presented the numerical solution of the generalized fractional advection–diffusion equation.
• Sultana et al. [38] presented a numerical scheme based on non-uniform meshes for solution of the generalized time-fractional telegraph equation using quadratic interpolation and compact finite difference approximations for temporal and spatial directions respectively.

Motivated by all these works, the main focus of this paper is to present a much higher-order numerical scheme to approximate the GCFD, and also establish the error analysis in both time and space discretization. To the best of our knowledge, no work has been done yet for a third-order error bound of cubic interpolation formula to approximate the GCFD.

1.2. The Main Contributions of This Work Are as Follows

(1) We extend the approximation method of Cao et al. [21] for approximating the GCFD and obtain the convergence order $(4-\alpha )$. Further, we show that the obtained scheme reduces to the approximation scheme discussed by Cao et al. [21] for choice of the scale and the weight functions as $\zeta \left(t\right)=t$ and $\omega \left(t\right)=1$.

(2) We establish the full error analysis of the presented higher-order numerical scheme for the generalized time fractional derivative by using the Lagrange interpolation formula.

(3) We introduce some numerical results for different choices of scale and weight functions for the high-order time discretization scheme with convergence order $\mathcal{O}\left({\tau }^{4-\alpha }\right)$ for all $\alpha \in (0,1)$ which achieves higher accuracy than the numerical methods developed in Gao et al. [39] for $\zeta \left(t\right)=t$ and $\omega \left(t\right)=1$.

The remaining sections of the paper are arranged as follows: In Section 2, we discuss the $(4-\alpha )$-th order scheme to approximate the GCFD of order $\alpha$ of the function $\mathcal{V}$. In Section 3, a higher-order difference scheme to solve the generalized fractional advection–diffusion equation is presented. Stability and convergence analysis are also discussed in this section. We present three numerical examples which illustrate the error and convergence order of our established numerical scheme in Section 4. Finally, Section 5 concludes with some remarks.

2. Numerical Scheme for the Generalized Caputo Fractional Derivative

Motivated by the research carried out in [21,23], this section is devoted to presenting a high-order approximation formula for the generalized Caputo-type fractional derivative using cubic interpolation polynomials.

Suppose that $\mathcal{V}\left(t\right)\in C^4[0,T]$ and grid points $0=t_0<t_1<\dots <t_N=T$ with step length $\tau =t_n-t_{n-1}$ for $1\le n\le N$. For simplicity, we use $g\left(s\right)=\omega \left(s\right)\mathcal{V}\left(s\right),$$\mathcal{V}\left(t_l\right)={\mathcal{V}}_l$, $\omega \left(t_l\right)={\omega }_l$ and $\zeta \left(t_l\right)={\zeta }_l$. The generalized Caputo fractional derivative of order $\alpha$ of the function $\mathcal{V}\left(t\right)$ at grid point $t_n$ is given by,

$$\begin{array}{c}\hfill {}_0^C{\mathcal{D}}_{t;\left[\zeta \right(t),\omega (t\left)\right]}^{\alpha }{\mathcal{V}}_n=\frac{{\left[{\omega }_n\right]}^{-1}}{\Gamma (1-\alpha )}\sum _{l=1}^n{\int }_{t_{l-1}}^{t_l}\frac{g^{\prime }\left(s\right)}{{[\zeta \left(t_n\right)-\zeta \left(s\right)]}^{\alpha }}ds.\end{array}$$

(5)

On the first interval $[0,t_1]$ of the domain, we use continuous linear polynomial ${\Pi }_{1}g\left(t\right)$ to approximate the function $g\left(t\right)(=\omega (t\left)\mathcal{V}\right(t\left)\right)$. Let $g\left(t_l\right)=g_l$ and the difference operator ${\nabla }_{\tau }{g}_l=g_l-g_{l-1}$ for $l\ge 1$. Then, we have

$$\begin{array}{c}\hfill {\left({\Pi }_{1}g\left(t\right)\right)}^{\prime }=\frac{(g_1-g_0)}{\tau }=\frac{\left({\nabla }_{\tau }{g}_1\right)}{\tau }.\end{array}$$

Thus, Equation (5) yields,

$$\begin{array}{ccc}\hfill \frac{{\left[{\omega }_n\right]}^{-1}}{\Gamma (1-\alpha )}{\int }_0^{t_1}{[\zeta \left(t_n\right)-\zeta \left(s\right)]}^{-\alpha }{g}^{\prime }\left(s\right)ds& =\frac{{\left[{\omega }_n\right]}^{-1}}{\Gamma (1-\alpha )}\frac{\left({\nabla }_{\tau }{g}_1\right)}{\tau }{\int }_0^{t_1}{[\zeta \left(t_n\right)-\zeta \left(s\right)]}^{-\alpha }ds+E_{\tau }^1\hfill & \hfill \\ \hfill & =a_{n-1}\left({\nabla }_{\tau }{g}_1\right)+E_{\tau }^1,\hfill \end{array}$$

(6)

where $E_{\tau }^1$ is the truncation error on the first interval and coefficients for this approximation are

$$\begin{array}{c}\hfill a_{n-l}=\frac{{\left[{\omega }_n\right]}^{-1}}{\Gamma (2-\alpha )}\left\{\frac{{[\zeta \left(t_n\right)-\zeta \left(t_{l-1}\right)]}^{1-\alpha }-{[\zeta \left(t_n\right)-\zeta \left(t_l\right)]}^{1-\alpha }}{[\zeta \left(t_l\right)-\zeta \left(t_{l-1}\right)]}\right\}.\end{array}$$

Here, we denote notation ${\alpha }_0^{\left(n\right)}=\frac{{\left[{\omega }_n\right]}^{-1}}{\Gamma (2-\alpha )},1\le n\le N$. Then

$$\begin{array}{c}\hfill a_{n-l}={\alpha }_0^{\left(n\right)}\left\{\frac{{[\zeta \left(t_n\right)-\zeta \left(t_{l-1}\right)]}^{1-\alpha }-{[\zeta \left(t_n\right)-\zeta \left(t_l\right)]}^{1-\alpha }}{[\zeta \left(t_l\right)-\zeta \left(t_{l-1}\right)]}\right\},1\le l\le n.\end{array}$$

(7)

Remark 1.

If the scale function ζ is a positive strictly increasing function on the domain $[0,T]$, then the following inequality holds

$$\begin{array}{c}\hfill 0<{[\zeta \left(t_n\right)-\zeta \left(t_l\right)]}^{1-\alpha }-{[\zeta \left(t_n\right)-\zeta \left(t_{l-1}\right)]}^{1-\alpha },1\le l\le n.\end{array}$$

(8)

Since $t_l>t_{l-1},$ then it implies $\zeta \left(t_l\right)>\zeta \left(t_{l-1}\right)$ for $1\le l\le n,$ also $(1-\alpha )>0$.

Remark 2.

To estimate $a_{n-1}$, suppose that

$$\Theta =[\zeta \left(t_n\right)-\zeta \left(s\right)]\Rightarrow d\Theta =-{\zeta }^{\prime }\left(s\right)ds=-\left(\frac{\zeta \left(t_l\right)-\zeta \left(t_{l-1}\right)}{\tau }\right)ds,s\in (t_{l-1},t_l),$$

therefore,

$$\int {[\zeta \left(t_n\right)-\zeta \left(s\right)]}^{-\alpha }ds=\frac{-\tau }{\zeta \left(t_l\right)-\zeta \left(t_{l-1}\right)}\frac{{[\zeta \left(t_n\right)-\zeta \left(s\right)]}^{1-\alpha }}{(1-\alpha )}.$$

On the second interval $[t_1,t_2]$, we use the continuous quadratic polynomial ${\Pi }_{2}g\left(t\right)$ to approximate the function $g\left(t\right)$, then we get

$$\begin{array}{c}\hfill {\left({\Pi }_{2}g\left(t\right)\right)}^{\prime }=\frac{(2t-t_0-t_1)}{2{\tau }^2}{g}_2-\frac{(2t-t_0-t_2)}{{\tau }^2}{g}_1+\frac{(2t-t_1-t_2)}{2{\tau }^2}{g}_0.\end{array}$$

Thus from Equation (5), we get,

$$\begin{array}{cc}\hfill \frac{{\left[{\omega }_n\right]}^{-1}}{\Gamma (1-\alpha )}{\int }_{t_1}^{t_2}{[\zeta \left(t_n\right)-\zeta \left(s\right)]}^{-\alpha }{g}^{\prime }\left(s\right)ds& =\frac{{\left[{\omega }_n\right]}^{-1}}{\Gamma (1-\alpha )}{\int }_{t_1}^{t_2}{[\zeta \left(t_n\right)-\zeta \left(s\right)]}^{-\alpha }{\left({\Pi }_{2}g\left(s\right)\right)}^{\prime }ds+E_{\tau }^2\hfill \\ \hfill & =a_{n-2}(g_2-g_1)+b_{n-2}(g_2-2g_1+g_0)+E_{\tau }^2\hfill \\ \hfill & =a_{n-2}\left({\nabla }_{\tau }{g}_2\right)+b_{n-2}\left({\nabla }_{\tau }^2{g}_2\right)+E_{\tau }^2.\hfill \end{array}$$

(9)

Here, the truncation error on the second interval is $E_{\tau }^2,$ and

$$\begin{array}{cc}\hfill b_{n-l}={\alpha }_0^{\left(n\right)}\{& \frac{1}{(2-\alpha )}\left[\frac{{[\zeta \left(t_n\right)-\zeta \left(t_{l-1}\right)]}^{2-\alpha }-{[\zeta \left(t_n\right)-\zeta \left(t_l\right)]}^{2-\alpha }}{{[\zeta \left(t_l\right)-\zeta \left(t_{l-1}\right)]}^2}\right]\hfill \\ & -\frac{1}{2}\left[\frac{{[\zeta \left(t_n\right)-\zeta \left(t_{l-1}\right)]}^{1-\alpha }+{[\zeta \left(t_n\right)-\zeta \left(t_l\right)]}^{1-\alpha }}{[\zeta \left(t_l\right)-\zeta \left(t_{l-1}\right)]}\right]\},2\le l\le n.\hfill \end{array}$$

(10)

On the other subdomains $(l\ge 3)$, we use the cubic interpolation polynomial ${\Pi }_{l}g\left(t\right)$ to approximate the function $g\left(t\right)$ using four points $(t_{l-3},g_{l-3}),(t_{l-2},g_{l-2}),(t_{l-1},g_{l-1}),(t_l,g_l)$.

As we know the cubic interpolation polynomial is defined as:

$$\begin{array}{c}\hfill {\Pi }_{l}g\left(t\right)=\sum _{r=0}^3{g}_{l-r}\prod _{s=0,s\ne r}^3\left(\frac{t-t_{l-s}}{t_{l-r}-t_{l-s}}\right),\end{array}$$

then we get,

$$\begin{array}{cc}\hfill {\left({\Pi }_{l}g\left(t\right)\right)}^{\prime }& =g_{l-3}\frac{(t-t_{l-2})(t_l+t_{l-1}-2t)+(t-t_{l-1})(t_l-t)}{6{\tau }^3}\hfill \\ \hfill & +g_{l-2}\frac{(t-t_{l-3})(2t-t_{l-1}-t_l)+(t-t_l)(t-t_{l-1})}{2{\tau }^3}\hfill \\ \hfill & +g_{l-1}\frac{(t-t_{l-2})(t_{l-3}+t_l-2t)+(t-t_{l-3})(t_l-t)}{2{\tau }^3}\hfill \\ \hfill & +g_l\frac{(t-t_{l-2})(2t-t_{l-3}-t_{l-1})+(t-t_{l-1})(t-t_{l-3})}{6{\tau }^3}.\hfill \end{array}$$

Therefore, from Equation (5), we have,

$$\begin{array}{cc}\hfill & \frac{{\left[{\omega }_n\right]}^{-1}}{\Gamma (1-\alpha )}\sum _{l=3}^n{\int }_{t_{l-1}}^{t_l}{[\zeta \left(t_n\right)-\zeta \left(s\right)]}^{-\alpha }{g}^{\prime }\left(s\right)ds\hfill \\ \hfill & =\frac{{\left[{\omega }_n\right]}^{-1}}{\Gamma (1-\alpha )}\sum _{l=3}^n{\int }_{t_{l-1}}^{t_l}{[\zeta \left(t_n\right)-\zeta \left(s\right)]}^{-\alpha }{\left({\Pi }_{l}g\left(s\right)\right)}^{\prime }ds+E_{\tau }^n\hfill \\ \hfill & =\sum _{l=3}^n\left[A_{1,n-l}{g}_l+A_{2,n-l}{g}_{l-1}+A_{3,n-l}{g}_{l-2}+A_{4,n-l}{g}_{l-3}\right]+E_{\tau }^n,\hfill \end{array}$$

(11)

where $E_{\tau }^n(3\le n\le N)$ is the truncation error, and

$$\begin{array}{cc}\hfill A_{1,n-l}=& {\alpha }_0^{\left(n\right)}\{\frac{1}{6}\left[\frac{2{[\zeta \left(t_n\right)-\zeta \left(t_{l-1}\right)]}^{1-\alpha }-11{[\zeta \left(t_n\right)-\zeta \left(t_l\right)]}^{1-\alpha }}{[\zeta \left(t_l\right)-\zeta \left(t_{l-1}\right)]}\right]\hfill \\ \hfill & +\frac{1}{(2-\alpha )}\left[\frac{{[\zeta \left(t_n\right)-\zeta \left(t_{l-1}\right)]}^{2-\alpha }-2{[\zeta \left(t_n\right)-\zeta \left(t_l\right)]}^{2-\alpha }}{{[\zeta \left(t_l\right)-\zeta \left(t_{l-1}\right)]}^2}\right]\hfill \\ \hfill & +\frac{1}{(2-\alpha )(3-\alpha )}\left[\frac{{[\zeta \left(t_n\right)-\zeta \left(t_{l-1}\right)]}^{3-\alpha }-{[\zeta \left(t_n\right)-\zeta \left(t_l\right)]}^{3-\alpha }}{{[\zeta \left(t_l\right)-\zeta \left(t_{l-1}\right)]}^3}\right]\},\hfill \end{array}$$

(12)

$$\begin{array}{cc}\hfill A_{2,n-l}=& {\alpha }_0^{\left(n\right)}\{\frac{1}{2}\left[\frac{6{[\zeta \left(t_n\right)-\zeta \left(t_l\right)]}^{1-\alpha }+{[\zeta \left(t_n\right)-\zeta \left(t_{l-1}\right)]}^{1-\alpha }}{[\zeta \left(t_l\right)-\zeta \left(t_{l-1}\right)]}\right]\hfill \\ \hfill & +\frac{1}{(2-\alpha )}\left[\frac{5{[\zeta \left(t_n\right)-\zeta \left(t_l\right)]}^{2-\alpha }-2{[\zeta \left(t_n\right)-\zeta \left(t_{l-1}\right)]}^{2-\alpha }}{{[\zeta \left(t_l\right)-\zeta \left(t_{l-1}\right)]}^2}\right]\hfill \\ \hfill & +\frac{3}{(2-\alpha )(3-\alpha )}\left[\frac{{[\zeta \left(t_n\right)-\zeta \left(t_l\right)]}^{3-\alpha }-{[\zeta \left(t_n\right)-\zeta \left(t_{l-1}\right)]}^{3-\alpha }}{{[\zeta \left(t_l\right)-\zeta \left(t_{l-1}\right)]}^3}\right]\},\hfill \end{array}$$

(13)

$$\begin{array}{cc}\hfill A_{3,n-l}=& {\alpha }_0^{\left(n\right)}\{-\frac{1}{2}\left[\frac{2{[\zeta \left(t_n\right)-\zeta \left(t_{l-1}\right)]}^{1-\alpha }+3{[\zeta \left(t_n\right)-\zeta \left(t_l\right)]}^{1-\alpha }}{[\zeta \left(t_l\right)-\zeta \left(t_{l-1}\right)]}\right]\hfill \\ \hfill & +\frac{1}{(2-\alpha )}\left[\frac{{[\zeta \left(t_n\right)-\zeta \left(t_{l-1}\right)]}^{2-\alpha }-4{[\zeta \left(t_n\right)-\zeta \left(t_l\right)]}^{2-\alpha }}{{[\zeta \left(t_l\right)-\zeta \left(t_{l-1}\right)]}^2}\right]\hfill \\ \hfill & +\frac{3}{(2-\alpha )(3-\alpha )}\left[\frac{{[\zeta \left(t_n\right)-\zeta \left(t_{l-1}\right)]}^{3-\alpha }-{[\zeta \left(t_n\right)-\zeta \left(t_l\right)]}^{3-\alpha }}{{[\zeta \left(t_l\right)-\zeta \left(t_{l-1}\right)]}^3}\right]\},\hfill \end{array}$$

(14)

$$\begin{array}{cc}\hfill A_{4,n-l}=& {\alpha }_0^{\left(n\right)}\{\frac{1}{6}\left[\frac{{[\zeta \left(t_n\right)-\zeta \left(t_{l-1}\right)]}^{1-\alpha }+2{[\zeta \left(t_n\right)-\zeta \left(t_l\right)]}^{1-\alpha }}{[\zeta \left(t_l\right)-\zeta \left(t_{l-1}\right)]}\right]\hfill \\ \hfill & +\frac{1}{(2-\alpha )}\left[\frac{{[\zeta \left(t_n\right)-\zeta \left(t_l\right)]}^{2-\alpha }}{{[\zeta \left(t_l\right)-\zeta \left(t_{l-1}\right)]}^2}\right]\hfill \\ \hfill & +\frac{1}{(2-\alpha )(3-\alpha )}\left[\frac{{[\zeta \left(t_n\right)-\zeta \left(t_l\right)]}^{3-\alpha }-{[\zeta \left(t_n\right)-\zeta \left(t_{l-1}\right)]}^{3-\alpha }}{{[\zeta \left(t_l\right)-\zeta \left(t_{l-1}\right)]}^3}\right]\},\hfill \end{array}$$

(15)

where $3\le l\le n$. After simplifying Equation (11), we obtain the following form

$$\begin{array}{cc}\hfill & \frac{{\left[{\omega }_n\right]}^{-1}}{\Gamma (1-\alpha )}\sum _{l=3}^n{\int }_{t_{l-1}}^{t_l}{[\zeta \left(t_n\right)-\zeta \left(s\right)]}^{-\alpha }{g}^{\prime }\left(s\right)ds\hfill \\ & =\sum _{l=3}^n[a_{n-l}(g_l-g_{l-1})+b_{n-l}(g_l-2g_{l-1}+g_{l-2})\hfill \\ & +c_{n-l}(g_l-3g_{l-1}+3g_{l-2}-g_{l-3})]+E_{\tau }^n\hfill \\ \hfill & =\sum _{l=3}^n\left[a_{n-l}\left({\nabla }_{\tau }{g}_l\right)+b_{n-l}\left({\nabla }_{\tau }^2{g}_l\right)+c_{n-l}\left({\nabla }_{\tau }^3{g}_l\right)\right]+E_{\tau }^n.\hfill \end{array}$$

(16)

Here, we introduce another coefficient $c_{n-l},$ which is defined as

$$\begin{array}{cc}\hfill c_{n-l}={\alpha }_0^{\left(n\right)}\{& \frac{1}{(2-\alpha )(3-\alpha )}\left[\frac{{[\zeta \left(t_n\right)-\zeta \left(t_{l-1}\right)]}^{3-\alpha }-{[\zeta \left(t_n\right)-\zeta \left(t_l\right)]}^{3-\alpha }}{{[\zeta \left(t_l\right)-\zeta \left(t_{l-1}\right)]}^3}\right]\hfill \\ \hfill & -\frac{1}{(2-\alpha )}\left[\frac{{[\zeta \left(t_n\right)-\zeta \left(t_l\right)]}^{2-\alpha }}{{[\zeta \left(t_l\right)-\zeta \left(t_{l-1}\right)]}^2}\right]\hfill \\ & -\frac{1}{6}\left[\frac{{[\zeta \left(t_n\right)-\zeta \left(t_{l-1}\right)]}^{1-\alpha }+2{[\zeta \left(t_n\right)-\zeta \left(t_l\right)]}^{1-\alpha }}{[\zeta \left(t_l\right)-\zeta \left(t_{l-1}\right)]}\right]\},3\le l\le n,\hfill \end{array}$$

(17)

and coefficients $a_{n-l},$$b_{n-l}$ are defined in Equations (7) and (10), respectively, and Equation (16) gives a more compact form of Equation (11). Such forms of coefficients were missing in [21]. From this we can easily discuss properties of coefficients.

Motivated by [21] (developed for Caputo derivative), a new numerical scheme for the generalized Caputo-type fractional derivative of order $\alpha$ of the function $\mathcal{V}\left(t\right)$ at grid point $t_n$, with the help of Equations (6), (9) and (11), is defined by

$$\begin{array}{cc}\hfill {}^{\mathcal{H}}{\mathcal{D}}_{t;\left[\zeta \right(t),\omega (t\left)\right]}^{\alpha }\mathcal{V}\left(t\right){|}_{t=t_n}& =\frac{{\left[{\omega }_n\right]}^{-1}}{\Gamma (1-\alpha )}{\int }_0^{t_n}\frac{g^{\prime }\left(s\right)}{{[\zeta \left(t_n\right)-\zeta \left(s\right)]}^{\alpha }}ds\hfill \\ \hfill & =\frac{{\left[{\omega }_n\right]}^{-1}}{\Gamma (1-\alpha )}[{\int }_0^{t_1}\frac{g^{\prime }\left(s\right)}{{[\zeta \left(t_n\right)-\zeta \left(s\right)]}^{\alpha }}ds+{\int }_{t_1}^{t_2}\frac{g^{\prime }\left(s\right)}{{[\zeta \left(t_n\right)-\zeta \left(s\right)]}^{\alpha }}ds\hfill \\ & +\sum _{l=3}^n{\int }_{l-1}^{t_l}\frac{g^{\prime }\left(s\right)}{{[\zeta \left(t_n\right)-\zeta \left(s\right)]}^{\alpha }}ds]\hfill \\ \hfill & =\sum _{l=0}^n{\lambda }_l{\omega }_{n-l}{\mathcal{V}}_{n-l},\hfill \end{array}$$

(18)

with $g\left(s\right)=\omega \left(s\right)\mathcal{V}\left(s\right)$.

Lemma 1.

For any $\alpha \in (0,1)$ and $\mathcal{V}\left(t\right)\in {\mathcal{C}}^4[0,T],$ then

$$\begin{array}{c}\hfill {}_0^C{\mathcal{D}}_{t;\left[\zeta \right(t),\omega (t\left)\right]}^{\alpha }{\mathcal{V}}_n{=}^{\mathcal{H}}{\mathcal{D}}_{t;\left[\zeta \right(t),\omega (t\left)\right]}^{\alpha }{\mathcal{V}}_n+E_{\tau }^n,n=1,2,\dots ,N,\end{array}$$

where, ${}^{\mathcal{H}}{\mathcal{D}}_{t;\left[\zeta \right(t),\omega (t\left)\right]}^{\alpha }$ is the approximation of GCFD and $|E_{\tau }^n|=\mathcal{O}\left({\tau }^{4-\alpha }\right)$.

For distinct values of n, the coefficients in (18) can be expressed as below.

For $n=1$,

$$\left\{\begin{array}{c}{\lambda }_0=a_0,\hfill \\ {\lambda }_1=-a_0.\hfill \end{array}\right.$$

For $n=2$,

$$\left\{\begin{array}{c}{\lambda }_0=a_0+b_0,\hfill \\ {\lambda }_1=a_1-a_0-2b_0,\hfill \\ {\lambda }_2=-a_1+b_0.\hfill \end{array}\right.$$

For $n=3$,

$$\left\{\begin{array}{c}{\lambda }_0=A_{1,0},\hfill \\ {\lambda }_1=A_{2,0}+a_1+b_1,\hfill \\ {\lambda }_2=A_{3,0}+a_2-a_1-2b_1,\hfill \\ {\lambda }_3=A_{4,0}-a_2+b_1.\hfill \end{array}\right.$$

For $n=4$,

$$\left\{\begin{array}{c}{\lambda }_0=A_{1,0},\hfill \\ {\lambda }_1=A_{1,1}+A_{2,0},\hfill \\ {\lambda }_2=A_{2,1}+A_{3,0}+a_2+b_2,\hfill \\ {\lambda }_3=A_{3,1}+A_{4,0}+a_3-a_2-2b_2,\hfill \\ {\lambda }_4=A_{4,1}-a_3+b_2.\hfill \end{array}\right.$$

For $n=5$,

$$\left\{\begin{array}{c}{\lambda }_0=A_{1,0},\hfill \\ {\lambda }_1=A_{1,1}+A_{2,0},\hfill \\ {\lambda }_2=A_{1,2}+A_{2,1}+A_{3,0},\hfill \\ {\lambda }_3=A_{2,2}+A_{3,1}+A_{4,0}+a_3+b_3,\hfill \\ {\lambda }_4=A_{3,2}+A_{4,1}+a_4-a_3-2b_3,\hfill \\ {\lambda }_5=A_{4,2}-a_4+b_3.\hfill \end{array}\right.$$

For $n\ge 6$,

$$\begin{array}{c}\hfill \left\{\begin{array}{c}{\lambda }_0=A_{1,0},\hfill \\ {\lambda }_1=A_{1,1}+A_{2,0},\hfill \\ {\lambda }_2=A_{1,2}+A_{2,1}+A_{3,0},\hfill \\ {\lambda }_l=A_{1,l}+A_{2,l-1}+A_{3,l-2}+A_{4,l-3}(3\le l\le n-3),\hfill \\ {\lambda }_{n-2}=a_{n-2}+b_{n-2}+A_{2,n-3}+A_{3,n-4}+A_{4,n-5},\hfill \\ {\lambda }_{n-1}=a_{n-1}-a_{n-2}-2b_{n-2}+A_{3,n-3}+A_{4,n-4},\hfill \\ {\lambda }_n=-a_{n-1}+b_{n-2}+A_{4,n-3}.\hfill \end{array}\right.\end{array}$$

(19)

Lemma 2.

If the scale function ζ fulfills (8), and the weight function ω is non-negative and non-decreasing on uniform time grids, then

(i)

Ref. [35] The linear approximation coefficient satisfies, $1\le l\le n,$

$$\begin{array}{c}\hfill 0<a_{n-1}<\dots <a_{n-l}<a_{n-l-1}<\dots <a_1<a_0.\end{array}$$

(ii)

The quadratic approximation coefficient satisfies, $2\le l\le n,$

$$\begin{array}{c}\hfill 0<b_{n-2}<\dots <b_{n-l}<b_{n-l-1}<\dots <b_1<b_0.\end{array}$$

Proof.

(i) If scale function $\zeta$ is continuous on its respective domain then, by using mean-value theorem, there exist ${\widehat{x}}_l\in (t_{l-1},t_l)$ such that

$$\begin{array}{c}\hfill \frac{1}{\tau }{\int }_{t_{l-1}}^{t_l}{[\zeta \left(t_n\right)-\zeta \left(s\right)]}^{-\alpha }ds={[\zeta \left(t_n\right)-\zeta \left({\widehat{x}}_l\right)]}^{-\alpha },1\le l\le n.\end{array}$$

(20)

Since ${[\zeta \left(t_n\right)-\zeta \left(s\right)]}^{-\alpha }$ is a monotone increasing function, we easily get our required result.

(ii) Let $\eta \left(s\right)={[\zeta \left(t_n\right)-\zeta \left(s\right)]}^{1-\alpha }$; suppose scale function $\zeta$ is sufficiently smooth on domain $[0,T]$ then mean-value theorem yields

$$\begin{array}{cc}\hfill 2{\int }_{t_{l-1}}^{t_l}\eta \left(s\right)ds-\left(\eta \left(t_{l-1}\right)+\eta \left(t_l\right)\right)& =2\eta \left({\tilde{x}}_l\right)-\left(\eta \left(t_{l-1}\right)+\eta \left(t_l\right)\right),\widetilde{x_l}\in (t_{l-1},t_l),\hfill \\ \hfill & =-\theta \left({\eta }^{\prime }\left(t_l\right)-{\eta }^{\prime }\left(t_{l-1}\right)\right),0<\theta <1\hfill \\ \hfill & =-\theta \tau {\eta }^{\prime \prime }\left({\nu }_l\right),{\nu }_l\in (t_{l-1},t_l),\hfill \\ \hfill & =\frac{\theta \alpha (1-\alpha )}{\tau }{[\zeta \left(t_l\right)-\zeta \left(t_{l-1}\right)]}^2{[\zeta \left(t_n\right)-\zeta \left({\nu }_l\right)]}^{-\alpha -1}>0.\hfill \end{array}$$

(21)

Using (21), we can easily get that $b_{n-l}>0$ for positive strictly increasing weight function $\omega \left(t\right)$. Since ${[\zeta \left(t_n\right)-\zeta \left(s\right)]}^{-\alpha -1}$ is a monotone increasing function on temporal domain $[0,T]$, so we get the desired result. □

Lemma 3.

Suppose that the scale function ζ is positive and strictly increasing, and the weight function ω is non-negative and non-decreasing, then, for each $\alpha \in (0,1)$, the following conditions hold for coefficients in (19)

(1)

${\lambda }_0>0$, $\forall n\ge 1$,

(2)

${\sum }_{l=0}^n{\lambda }_l=0$.

Proof.

(1) If $n=1$, then

$$\begin{array}{cc}& {\lambda }_0=a_0={\alpha }_0^{\left(n\right)}{[{\zeta }_1-{\zeta }_0]}^{-\alpha },\hfill \end{array}$$

as the scale function is strictly increasing, therefore ${\zeta }_{n-1}<{\zeta }_n$, for $n\ge 1$. This implies that ${\lambda }_0=a_0>0$.

If $n=2$, then ${\lambda }_0=a_0+b_0,$

since

$$\begin{array}{c}\hfill b_0={\alpha }_0^{\left(n\right)}\left\{\left(\frac{1}{2-\alpha }-\frac{1}{2}\right){[{\zeta }_2-{\zeta }_1]}^{-\alpha }\right\}>0,\end{array}$$

and we have already shown that $a_0>0$, therefore ${\lambda }_0=a_0+b_0>0$.

If $n\ge 3$ then, for $0<\alpha <1$,

$$\begin{array}{c}\hfill {\lambda }_0=A_{1,0}={\alpha }_0^{\left(n\right)}\left\{\left(\frac{1}{3}+\frac{1}{(2-\alpha )}+\frac{1}{(2-\alpha )(3-\alpha )}\right){[{\zeta }_n-{\zeta }_{n-1}]}^{-\alpha }\right\}>0.\end{array}$$

(2) If $n=1$, then ${\lambda }_0=-{\lambda }_1=a_0>0,$ for $0<\alpha <1$. This implies that ${\lambda }_0+{\lambda }_1=0$.

If $n=2$, then there exists an $\alpha \in (0,1)$, by numerical analysis

$${\lambda }_0+{\lambda }_1+{\lambda }_2=(a_0+b_0)+(a_1-a_0+2b_0)+(-a_1+b_0)=0.$$

If $n\ge 3$, then

$$\begin{array}{cc}\hfill \sum _{l=0}^n{\lambda }_l& =A_{1,0}+A_{1,1}+A_{2,0}+A_{1,2}+A_{2,1}+A_{3,0}\hfill \\ \hfill & +\sum _{l=3}^{n-3}(A_{1,l}+A_{2,l-1}+A_{3,l-2}+A_{4,l-3})+a_{n-2}+b_{n-2}\hfill \\ & +A_{2,n-3}+A_{3,n-4}+A_{4,n-5}+a_{n-1}-a_{n-2}-2b_{n-2}+A_{3,n-3}\hfill \\ & +A_{4,n-4}-a_{n-1}+b_{n-2}+A_{4,n-3}\hfill \\ \hfill & =\sum _{j=0}^{n-3}(A_{1,j}+A_{2,j}+A_{3,j}+A_{4,j})=0.\hfill \end{array}$$

□

Lemma 4.

If scale function ζ is a Lipschitz function on interval $[t_{l-1},t_l]$ with Lipschitz constant L, then

$$\begin{array}{c}\hfill |{\zeta }_l-{\zeta }_{l-1}|\le L\tau ,1\le l\le n.\end{array}$$

Truncation Error for Generalized Caputo Derivative Term

For truncation error of approximation of the generalized Caputo derivative defined in (18), for simplicity, suppose that function $g\left(t\right)=\omega \left(t\right)\mathcal{V}\left(t\right)$ such that $g\left(t\right)\in C^4\left((0,T]\right)$ and $\zeta \left(t\right)=v$; this implies $t={\zeta }^{-1}\left(v\right)$. Therefore, $g\left(v\right)=\omega \left({\zeta }^{-1}\left(v\right)\right)\mathcal{V}\left({\zeta }^{-1}\left(v\right)\right)$.

Theorem 1.

A triangle inequality gives the bound

$$\begin{array}{c}\hfill {|}_0^C{\mathcal{D}}_{t;\left[\zeta \right(t),\omega (t\left)\right]}^{\alpha }{g}_n{-}^{\mathcal{H}}{\mathcal{D}}_{t;\left[\zeta \right(t),\omega (t\left)\right]}^{\alpha }{g}_n|\le \sum _{n=1}^N\left|E_{\tau }^n\right|,\end{array}$$

with

$$\begin{array}{c}\hfill E_{\tau }^n=\frac{{\left[{\omega }_n\right]}^{-1}}{\Gamma (1-\alpha )}{\int }_{{\zeta }_{l-1}}^{{\zeta }_l}{[{\zeta }_n-v]}^{-\alpha }{[g\left(v\right)-{\Pi }_{l}g\left(v\right)]}^{\prime }dv,1\le l\le n.\end{array}$$

$$\begin{array}{cc}\hfill \left(1\right)|E_{\tau }^1|& \le \frac{\alpha {\left[{\omega }_n\right]}^{-1}}{\Gamma (1-\alpha )}\left[\frac{1}{8\alpha }+\frac{1}{2(1-\alpha )(2-\alpha )}\right]\underset{t_0\le vs.\le t_1}{max}\left|g^{\left(2\right)}\left(v\right)\right|L^{2-\alpha }{\left(\tau \right)}^{2-\alpha },n=1,\hfill \\ \hfill \\ \hfill \left(2\right)|E_{\tau }^2|& \le \frac{\alpha {\left[{\omega }_n\right]}^{-1}}{\Gamma (1-\alpha )}\{\frac{1}{12}\underset{t_0\le vs.\le t_1}{max}\left|g^{\left(2\right)}\left(v\right)\right|{(t_2-t_1)}^{-\alpha -1}{L}^{2-\alpha }{\left(\tau \right)}^3+[\frac{1}{12}\hfill \\ & +\frac{1}{3(1-\alpha )(2-\alpha )}\left(\frac{1}{2}+\frac{1}{(3-\alpha )}\right)\left]\underset{t_0\le vs.\le t_2}{max}\left|g^{\left(3\right)}\left(v\right)\right|L^{3-\alpha }{\left(\tau \right)}^{3-\alpha }\right\},n=2,\hfill \\ \hfill \\ \hfill \left(3\right)|E_{\tau }^n|& \le \frac{\alpha {\left[{\omega }_n\right]}^{-1}}{\Gamma (1-\alpha )}\{\frac{1}{72}\underset{t_0\le x\le t_2}{max}\left|g^{\left(3\right)}\left(x\right)\right|{(t_n-t_2)}^{-\alpha -1}{L}^{3-\alpha }{\left(\tau \right)}^4+[\frac{3}{128\alpha }\hfill \\ & +\frac{1}{12(1-\alpha )(2-\alpha )}\left(1+\frac{3}{(3-\alpha )}+\frac{3}{(3-\alpha )(4-\alpha )}\right)\left]\underset{t_0\le x_1\le t_n}{max}\left|g^{\left(4\right)}\left(x_1\right)\right|L^{4-\alpha }{\left(\tau \right)}^{4-\alpha }\right\},\hfill \\ \hfill & n\ge 3.\hfill \end{array}$$

Proof.

$\left(1\right)$ Ref. [23] For $n=1,$ the scheme (18) is a linear approximation of the GCFD and the convergence order for this approximation formula is $\mathcal{O}\left({\tau }^{2-\alpha }\right)$.

$\left(2\right)$ Ref. [23] For $n=2,$ the scheme (18) is a quadratic approximation of GCFD and here the convergence order of the approximation formula is $\mathcal{O}\left({\tau }^{3-\alpha }\right)$.

$\left(3\right)$ For $n\ge 3,$ by the Lagrange interpolation remainder theorem, we use quadratic interpolation function ${\Pi }_{2}g\left(v\right)$ to interpolate $g\left(v\right)$ using node points $({\zeta }_0,g_0)$, $({\zeta }_1,g_1)$, $({\zeta }_2,g_2)$ on interval $[{\zeta }_0,{\zeta }_2]$ and cubic interpolation function ${\Pi }_{l}g\left(v\right)$ depends on $({\zeta }_{l-3},g_{l-3})$, $({\zeta }_{l-2},g_{l-2})$, $({\zeta }_{l-1},g_{l-1})$, $({\zeta }_l,g_l)$ to interpolate $g\left(v\right)$ on $[{\zeta }_{l-3},{\zeta }_l]$ as follows

$$\begin{array}{cc}\hfill & g\left(v\right)-{\Pi }_{2}g\left(v\right)=\frac{g^{\left(3\right)}\left({\eta }_1\right)}{3!}(v-{\zeta }_0)(v-{\zeta }_1)(v-{\zeta }_2),vs.\in [{\zeta }_0,{\zeta }_2],{\eta }_1\in ({\zeta }_0,{\zeta }_2),\hfill \end{array}$$

(22)

$$\begin{array}{cc}\hfill & g\left(v\right)-{\Pi }_{l}g\left(v\right)=\frac{g^{\left(4\right)}\left({\eta }_l\right)}{4!}(v-{\zeta }_{l-3})(v-{\zeta }_{l-2})(v-{\zeta }_{l-1})(v-{\zeta }_l),vs.\in [{\zeta }_{l-3},{\zeta }_l],{\eta }_l\in ({\zeta }_{l-3},{\zeta }_l),\hfill \end{array}$$

(23)

where $3\le l\le n$.

Now,

$$\begin{array}{cc}\hfill E_{\tau }^n=\frac{{\left[{\omega }_n\right]}^{-1}}{\Gamma (1-\alpha )}& [{\int }_{{\zeta }_0}^{{\zeta }_2}{[g\left(v\right)-{\Pi }_{2}g\left(v\right)]}^{\prime }{[{\zeta }_n-v]}^{-\alpha }dv\hfill \\ & +\sum _{l=3}^n{\int }_{{\zeta }_{l-1}}^{{\zeta }_l}{[g\left(v\right)-{\Pi }_{l}g\left(v\right)]}^{\prime }{[{\zeta }_n-v]}^{-\alpha }dv]\hfill \\ \hfill =\frac{{\left[{\omega }_n\right]}^{-1}}{\Gamma (1-\alpha )}& \{[g\left(v\right)-{\Pi }_{2}g\left(v\right)]{[{\zeta }_n-v]}^{-\alpha }{|}_{{\zeta }_0}^{{\zeta }_2}\hfill \\ & -\alpha {\int }_{{\zeta }_0}^{{\zeta }_2}[g\left(v\right)-{\Pi }_{2}g\left(v\right)]{[{\zeta }_n-v]}^{-\alpha -1}dv\hfill \\ \hfill & +\sum _{l=3}^n[g\left(v\right)-{\Pi }_{l}g\left(v\right)]{[{\zeta }_n-v]}^{-\alpha }{|}_{{\zeta }_{l-1}}^{{\zeta }_l}\hfill \\ & -\alpha {\int }_{{\zeta }_{l-1}}^{{\zeta }_l}[g\left(v\right)-{\Pi }_{l}g\left(v\right)]{[{\zeta }_n-v]}^{-\alpha -1}dv\left]\right\}\hfill \\ \hfill =-\frac{\alpha {\left[{\omega }_n\right]}^{-1}}{\Gamma (1-\alpha )}& \{{\int }_{{\zeta }_0}^{{\zeta }_2}[g\left(v\right)-{\Pi }_{2}g\left(v\right)]{[{\zeta }_n-v]}^{-\alpha -1}dv\hfill \\ & +\sum _{l=3}^n{\int }_{{\zeta }_{l-1}}^{{\zeta }_l}[g\left(v\right)-{\Pi }_{l}g\left(v\right)]{[{\zeta }_n-v]}^{-\alpha -1}dv\}\hfill \end{array}$$

(24)

Since, from (22) and (23),

$$\begin{array}{cc}\hfill & [g\left(v\right)-{\Pi }_{2}g\left(v\right)]{[{\zeta }_n-v]}^{-\alpha }{|}_{{\zeta }_0}^{{\zeta }_2}=\frac{g^{\left(3\right)}\left({\eta }_1\right)}{3!}(v-{\zeta }_0)(v-{\zeta }_1)(v-{\zeta }_2){[{\zeta }_n-v]}^{-\alpha }{|}_{{\zeta }_0}^{{\zeta }_2}=0,\hfill \\ \hfill & [g\left(v\right)-{\Pi }_{l}g\left(v\right)]{[{\zeta }_n-v]}^{-\alpha }{|}_{{\zeta }_{l-1}}^{{\zeta }_l}=\frac{g^{\left(4\right)}\left({\eta }_l\right)}{4!}(v-{\zeta }_{l-3})(v-{\zeta }_{l-2})(v-{\zeta }_{l-1})(v-{\zeta }_l){|}_{{\zeta }_{l-1}}^{{\zeta }_l}=0.\hfill \end{array}$$

Consider the first integration of Equation (24)

$$\begin{array}{cc}\hfill & \left|{\int }_{{\zeta }_0}^{{\zeta }_2}[g\left(v\right)-{\Pi }_2\left(v\right)]{[{\zeta }_n-v]}^{-\alpha -1}dv\right|\hfill \\ & =\left|{\int }_{{\zeta }_0}^{{\zeta }_2}\frac{g^{\left(3\right)}\left({\eta }_1\right)}{3!}(v-{\zeta }_0)(v-{\zeta }_1)(v-{\zeta }_2){[{\zeta }_n-v]}^{-\alpha -1}dv\right|\hfill \\ \hfill & \le \frac{1}{6}\underset{{\zeta }_0\le {\eta }_1\le {\zeta }_2}{max}\left|g^{\left(3\right)}\left({\eta }_1\right)\right|{({\zeta }_n-{\zeta }_2)}^{-\alpha -1}\frac{{({\zeta }_0-{\zeta }_2)}^3({\zeta }_0-2{\zeta }_1+{\zeta }_2)}{12}\hfill \\ \hfill & \le \frac{1}{6}\underset{{\zeta }_0\le {\eta }_1\le {\zeta }_2}{max}\left|g^{\left(3\right)}\left({\eta }_1\right)\right|{({\zeta }_n-{\zeta }_2)}^{-\alpha -1}\frac{{({\zeta }_0-{\zeta }_2)}^3({\zeta }_0-{\zeta }_1)}{12}.\hfill \end{array}$$

Using Lemma (4), we have the following inequality

$$\begin{array}{c}\hfill \left|{\int }_{{\zeta }_0}^{{\zeta }_2}[g\left(v\right)-{\Pi }_{2}g\left(v\right)]{[{\zeta }_n-v]}^{-\alpha -1}dv\right|\le \frac{1}{72}\underset{t_0\le x\le t_2}{max}\left|g^{\left(3\right)}\left(x\right)\right|{(t_n-t_2)}^{-\alpha -1}{L}^{3-\alpha }{\left(\tau \right)}^4.\end{array}$$

(25)

Consider the second integration of Equation (24)

$$\begin{array}{cc}\hfill |& \sum _{l=3}^n{\int }_{{\zeta }_{l-1}}^{{\zeta }_l}[g\left(v\right)-{\Pi }_{l}g\left(v\right)]{[{\zeta }_n-v]}^{-\alpha -1}dv|\hfill \\ \hfill & \le \left|\sum _{l=3}^{n-1}{\int }_{{\zeta }_{l-1}}^{{\zeta }_l}\frac{g^{\left(4\right)}\left({\eta }_l\right)}{4!}(v-{\zeta }_{l-3})(v-{\zeta }_{l-2})(v-{\zeta }_{l-1})(v-{\zeta }_l){[{\zeta }_n-v]}^{-\alpha -1}dv\right|\hfill \\ & +\left|{\int }_{{\zeta }_{n-1}}^{{\zeta }_n}\frac{g^{\left(4\right)}\left({\eta }_n\right)}{4!}(v-{\zeta }_{n-3})(v-{\zeta }_{n-2})(v-{\zeta }_{n-1})(v-{\zeta }_n){[{\zeta }_n-v]}^{-\alpha -1}dv\right|.\hfill \end{array}$$

(26)

Consider the first part of the RHS of Equation (26)

$$\begin{array}{cc}\hfill |& \sum _{l=3}^{n-1}{\int }_{{\zeta }_{l-1}}^{{\zeta }_l}\frac{g^{\left(4\right)}\left({\eta }_l\right)}{4!}(v-{\zeta }_{l-3})(v-{\zeta }_{l-2})(v-{\zeta }_{l-1})(v-{\zeta }_l){[{\zeta }_n-v]}^{-\alpha -1}dv|\hfill \\ \hfill & \le \frac{1}{24}\underset{{\zeta }_2\le {\eta }_2\le {\zeta }_{n-1}}{max}\left|g^{\left(4\right)}\left({\eta }_2\right)\right|\tilde{f}({\zeta }_{l-3},{\zeta }_{l-2},{\zeta }_{l-1},{\zeta }_l){\int }_{{\zeta }_2}^{{\zeta }_{n-1}}{[{\zeta }_n-v]}^{-\alpha -1}dv\hfill \\ \hfill & \le \frac{1}{24\alpha }\underset{{\zeta }_2\le {\eta }_2\le {\zeta }_{n-1}}{max}\left|g^{\left(4\right)}\left({\eta }_2\right)\right|\tilde{f}({\zeta }_{l-3},{\zeta }_{l-2},{\zeta }_{l-1},{\zeta }_l){({\zeta }_n-{\zeta }_{n-1})}^{-\alpha }.\hfill \end{array}$$

Here, $\tilde{f}({\zeta }_{l-3},{\zeta }_{l-2},{\zeta }_{l-1},{\zeta }_l)$ is the ${max}_{{\zeta }_2\le vs.\le {\zeta }_{n-1}}\left[(v-{\zeta }_{l-3})(v-{\zeta }_{l-2})(v-{\zeta }_{l-1})(v-{\zeta }_l)\right]$. Using Lemma 4, we get the following inequality

$$\begin{array}{cc}\hfill |& \sum _{l=3}^{n-1}{\int }_{{\zeta }_{l-1}}^{{\zeta }_l}\frac{g^{\left(4\right)}\left({\eta }_l\right)}{4!}(v-{\zeta }_{l-3})(v-{\zeta }_{l-2})(v-{\zeta }_{l-1})(v-{\zeta }_l){[{\zeta }_n-v]}^{-\alpha -1}dv|\hfill \\ \hfill & \le \frac{3}{128\alpha }\underset{t_2\le x_1\le t_{n-1}}{max}\left|g^{\left(4\right)}\left(x_1\right)\right|L^{4-\alpha }{\left(\tau \right)}^{4-\alpha }.\hfill \end{array}$$

(27)

Remark 3.

If scale function ζ fulfills the condition of the Lipschitz function such that $|{\zeta }_l-{\zeta }_{l-1}|\le L\tau$, then ${max}_{{\zeta }_2\le vs.\le {\zeta }_{n-1}}\left|(v-{\zeta }_{l-3})(v-{\zeta }_{l-2})(v-{\zeta }_{l-1})(v-{\zeta }_l)\right|$ is obtained at $v={\zeta }_{l-2}+\frac{L\tau }{2}$, therefore

$$\begin{array}{cc}\hfill \tilde{f}({\zeta }_{l-3},{\zeta }_{l-2},{\zeta }_{l-1},{\zeta }_l)& =\underset{{\zeta }_2\le vs.\le {\zeta }_{n-1}}{max}\left[(v-{\zeta }_{l-3})(v-{\zeta }_{l-2})(v-{\zeta }_{l-1})(v-{\zeta }_l)\right]\le \frac{9}{16}{L}^4{\left(\tau \right)}^4.\hfill \end{array}$$

Consider the second part of the RHS of Equation (26)

$$\begin{array}{cc}\hfill & \left|{\int }_{{\zeta }_{n-1}}^{{\zeta }_n}\frac{g^{\left(4\right)}\left({\eta }_n\right)}{4!}(v-{\zeta }_{n-3})(v-{\zeta }_{n-2})(v-{\zeta }_{n-1})(v-{\zeta }_n){[{\zeta }_n-v]}^{-\alpha -1}dv\right|\hfill \\ \hfill & \le \frac{1}{24}\underset{{\zeta }_{n-1}\le {\eta }_3\le {\zeta }_n}{max}\left|g^{\left(4\right)}\left({\eta }_3\right)\right|\left|{\int }_{{\zeta }_{n-1}}^{{\zeta }_n}(v-{\zeta }_{n-3})(v-{\zeta }_{n-2})(v-{\zeta }_{n-1}){[{\zeta }_n-v]}^{-\alpha }dv\right|\hfill \\ \hfill & \le \frac{1}{12(1-\alpha )(2-\alpha )}\left(1+\frac{3}{(3-\alpha )}+\frac{3}{(3-\alpha )(4-\alpha )}\right)\underset{{\zeta }_{n-1}\le {\eta }_3\le {\zeta }_n}{max}\left|g^{\left(4\right)}\left({\eta }_3\right)\right|{({\zeta }_n-{\zeta }_{n-1})}^{4-\alpha }\hfill \\ \hfill & \le \frac{1}{12(1-\alpha )(2-\alpha )}\left(1+\frac{3}{(3-\alpha )}+\frac{3}{(3-\alpha )(4-\alpha )}\right)\underset{t_{n-1}\le x_2\le t_n}{max}\left|g^{\left(4\right)}\left(x_2\right)\right|L^{4-\alpha }{\left(\tau \right)}^{4-\alpha }.\hfill \end{array}$$

(28)

Now combining (25), (27) and (28), then the error bound is

$$\begin{array}{cc}\hfill |E_{\tau }^n|\le \frac{\alpha {\left[{\omega }_n\right]}^{-1}}{\Gamma (1-\alpha )}& \{\frac{1}{72}\underset{t_0\le x\le t_2}{max}\left|g^{\left(3\right)}\left(x\right)\right|{(t_n-t_2)}^{-\alpha -1}{L}^{3-\alpha }{\left(\tau \right)}^4\hfill \\ & +[\frac{3}{128\alpha }+\frac{1}{12(1-\alpha )(2-\alpha )}(1+\frac{3}{(3-\alpha )}\hfill \\ & +\frac{3}{(3-\alpha )(4-\alpha )}\left)\right]\underset{t_0\le x_1\le t_n}{max}\left|g^{\left(4\right)}\left(x_1\right)\right|L^{4-\alpha }{\left(\tau \right)}^{4-\alpha }\}.\hfill \end{array}$$

(29)

□

3. Numerical Scheme for the Generalized Fractional Advection–Diffusion Equation

In this section, we study the numerical scheme for solving the generalized fractional advection–diffusion equation defined by (1).

Let $u(x,t)=\omega \left(t\right)U(x,t)-\omega \left(0\right)U_0\left(x\right)$. We rewrite Equation (1) to a similar equation using a unity weight function and the same scale function $\zeta \left(t\right)$. Then, Equation (1) converts into the following form:

$$\begin{array}{c}\hfill \left\{\begin{array}{cc}\hfill & {}_0^C{\mathcal{D}}_{t;\left[\zeta \right(t),1]}^{\alpha }u(x,t)=D\frac{{\partial }^{2}u(x,t)}{\partial x^2}-A\frac{\partial u(x,t)}{\partial x}+f(x,t),x\in \Omega ,t\in (0,T],\hfill \\ \hfill & u(x,0)=0,x\in \overline{\Omega }=\Omega \cup \partial \Omega ,\hfill \\ \hfill & u(0,t)={\varphi }_1\left(t\right),u(a,t)={\varphi }_2\left(t\right),t\in (0,T],\hfill \end{array}\right.\end{array}$$

(30)

where ${\varphi }_1\left(t\right)=\omega \left(t\right){\rho }_1\left(t\right)-\omega \left(0\right){\rho }_1\left(0\right)$, ${\varphi }_2\left(t\right)=\omega \left(t\right){\rho }_2\left(t\right)-\omega \left(0\right){\rho }_2\left(0\right)$, and $f(x,t)=D\omega \left(0\right)U_0^{\prime \prime }\left(x\right)-A\omega \left(0\right)U_0^{\prime }\left(x\right)+\omega \left(t\right)g(x,t)$.

For the uniform spatial mesh, let $0=x_0<x_1<\dots <x_M=a$ of the interval $[0,a]$ with step size $h=\frac{a}{M}$ where M denotes number of subintervals, the grid points $x_0+ih(0\le i\le M),$ and $\tau =\frac{T}{N}$ be the step size in the temporal direction with grids $t_n=n\tau (0=t_0<t_1<\dots <t_n=T)$.

Now, we discretize our problem (30) at $(x_i,t_n)$, then we get

$$\begin{array}{c}\hfill {}_0^C{\mathcal{D}}_{t;\left[\zeta \right(t),1]}^{\alpha }u(x_i,t_n)=D{u}_{xx}(x_i,t_n)-A{u}_x(x_i,t_n)+f(x_i,t_n).\end{array}$$

(31)

In Equation (31), for fixed $t_n$ and $1\le i\le M-1$, the first- and second-order spatial derivatives are discretized by using the following central difference approximations:

$$\begin{array}{c}\hfill \frac{\partial u(x_i,t_n)}{\partial x}=\frac{u_n^{i+1}-u_n^{i-1}}{2h}+\mathcal{O}\left(h^2\right),\end{array}$$

(32)

$$\begin{array}{c}\hfill \frac{{\partial }^{2}u(x_i,t_n)}{\partial x^2}=\frac{u_n^{i+1}-2u_n^i+u_n^{i-1}}{h^2}+\mathcal{O}\left(h^2\right).\end{array}$$

(33)

With the help of Equation (18), we get an approximation of the generalized Caputo-type fractional derivative term in (31) as follows:

$$\begin{array}{cc}\hfill {}^{\mathcal{H}}{\mathcal{D}}_{t;\left[\zeta \right(t),1]}^{\alpha }u(x_i,t_n)=& {\lambda }_{0}u(x_i,t_n)+{\lambda }_{1}u(x_i,t_{n-1})+{\lambda }_{2}u(x_i,t_{n-2})+\sum _{l=3}^{n-3}{\lambda }_{n-l}u(x_i,t_l)\hfill \\ & +{\lambda }_{n-2}u(x_i,t_2)+{\lambda }_{n-1}u(x_i,t_1)+{\lambda }_{n}u(x_i,t_0)+\mathcal{O}\left({\tau }^{4-\alpha }\right).\hfill \end{array}$$

(34)

where ${\lambda }_l$ is defined in Equation (19). Next, we use Equations (32)–(34) in discretized Equation (31), yielding

$$\begin{array}{c}\hfill \sum _{l=0}^n{\lambda }_{n-l}u(x_i,t_l)=D{u}_{xx}(x_i,t_n)-A{u}_x(x_i,t_n)+f_n^i+e_n^i.\end{array}$$

(35)

where $|e_n^i|\le \tilde{c}({\tau }^{4-\alpha }+h^2)$ for some constant $\tilde{c}$.

Now, we use a numerical approximation $u_n^i$ of $u(x_i,t_n)$ to neglect the truncation error term in Equation (35), then we determine the following finite difference scheme:

$$\begin{array}{cc}\hfill {\lambda }_0{u}_n^i+{\lambda }_1{u}_{n-1}^i+\sum _{l=3}^{n-2}{\lambda }_{n-l}{u}_l^i+{\lambda }_{n-2}{u}_2^i+{\lambda }_{n-1}{u}_1^i+{\lambda }_n{u}_0^i& =D\frac{u_n^{i+1}-2u_n^i+u_n^{i-1}}{h^2}\hfill \\ & -A\frac{u_n^{i+1}-u_n^{i-1}}{2h}+f_n^i,\hfill \end{array}$$

(36)

where $1\le n\le N$, $1\le i\le M-1$. That is,

$$\begin{array}{c}\hfill \left\{\begin{array}{cc}(\frac{D}{h^2}+\frac{A}{2h})u_1^{i-1}-({\lambda }_0+\frac{2D}{h^2})u_1^i+(\frac{D}{h^2}-\frac{A}{2h})u_1^{i+1}=\hfill & {\lambda }_1{u}_0^i-f_1^i,n=1,\hfill \\ (\frac{D}{h^2}+\frac{A}{2h})u_2^{i-1}-({\lambda }_0+\frac{2D}{h^2})u_2^i+(\frac{D}{h^2}-\frac{A}{2h})u_2^{i+1}=\hfill & {\lambda }_1{u}_1^i+{\lambda }_2{u}_0^i-f_2^i,n=2,\hfill \\ (\frac{D}{h^2}+\frac{A}{2h})u_n^{i-1}-({\lambda }_0+\frac{2D}{h^2})u_n^i+(\frac{D}{h^2}-\frac{A}{2h})u_n^{i+1}=\hfill & {\lambda }_1{u}_{n-1}^i+\sum _{l=0}^{n-2}{\lambda }_{n-l}{u}_l^i-f_n^i,n\ge 3.\hfill \\ u_0^i=0,0\le i\le M,\hfill \\ u_n^0={\varphi }_1\left(t_n\right),u_n^M={\varphi }_2\left(t_n\right),0\le n\le N.\hfill \end{array}\right.\end{array}$$

(37)

We rewrite the matrix form of the above equation as follows:

$$\begin{array}{c}\hfill \left\{\begin{array}{c}K{U}_1={\lambda }_1{U}_0-F_1+H_1,n=1,\hfill \\ K{U}_2={\lambda }_1{U}_1+{\lambda }_2{U}_0-F_2+H_2,n=2,\hfill \\ K{U}_n={\lambda }_1{U}_{n-1}+\sum _{l=0}^{n-2}{\lambda }_{n-l}{U}_l-F_n+H_n,n\ge 3,\hfill \end{array}\right.\end{array}$$

(38)

where the matrix as well as vectors of Equation (38) are defined as follows:

• $K=tri{\left[\frac{D}{h^2}+\frac{A}{2h},-{\lambda }_0-\frac{2D}{h^2},\frac{D}{h^2}-\frac{A}{2h}\right]}_{(M-1)\times (M-1)},$
• $U_n={(u_n^1,u_n^2,\dots ,u_n^{M-1})}^T,$
• $F_n={(f_n^1,f_n^2,\dots ,f_n^{M-1})}^T,$
• $H_n={\left((-\frac{D}{h^2}-\frac{A}{2h})u_n^0,0,\dots ,0,(-\frac{D}{h^2}+\frac{A}{2h})u_n^M\right)}^T,1\le n\le N$.

Remark 4.

Since the coefficient matrix A is a tridiagonal and strictly diagonally dominant then $det\left(A\right)\ne 0$ (Levy–Desplanques theorem). Therefore, at each time level $t_n,$ the proposed scheme (37) has a unique solution for $1\le n\le N$.

Theorem 2.

The local truncation error of difference scheme (36) at $(x_i,t_n),1\le i\le M-1,1\le n\le N$, is

$$\begin{array}{c}\hfill |e_n^i|\le C(h^2+{\tau }^{4-\alpha }),\end{array}$$

(39)

where C is the positive constant independent of the time and space step sizes.

Proof.

From Equations (4.7) the LTE of difference scheme (36) is

$$\begin{array}{cc}\hfill e_n^i& ={\lambda }_{0}u(x_i,t_n)+{\lambda }_{1}u(x_i,t_{n-1})+{\lambda }_{2}u(x_i,t_{n-2})+\sum _{l=3}^{n-3}{\lambda }_{n-l}u(x_i,t_l)+{\lambda }_{n-2}u(x_i,t_2)\hfill \\ & +{\lambda }_{n-1}u(x_i,t_1)+{\lambda }_{n}u(x_i,t_0)-D\frac{u_n^{i+1}-2u_n^i+u_n^{i-1}}{h^2}+A\frac{u_n^{i+1}-u_n^{i-1}}{2h}-f_n^i\hfill \\ \hfill & =[{\lambda }_{0}u(x_i,t_n)+{\lambda }_{1}u(x_i,t_{n-1})+{\lambda }_{2}u(x_i,t_{n-2})+\sum _{l=2}^{n-3}{\lambda }_{n-l}u(x_i,t_l)+{\lambda }_{n-1}u(x_i,t_1)\hfill \\ & +{\lambda }_{n}u(x_i,t_0){-}^{\mathcal{H}}{\mathcal{D}}_{t;\left[\zeta \right(t),1]}^{\alpha }u(x_i,t_n)]-D\left[\frac{u_n^{i+1}-2u_n^i+u_n^{i-1}}{h^2}-\frac{{\partial }^{2}u(x_i,t_n)}{\partial x^2}\right]\hfill \\ & +A\left[\frac{u_n^{i+1}-u_n^{i-1}}{2h}-\frac{\partial u(x_i,t_n)}{\partial x}\right]\hfill \\ \hfill & =\mathcal{O}\left({\tau }^{4-\alpha }\right)-D\mathcal{O}\left(h^2\right)+A\mathcal{O}\left(h^2\right)=\mathcal{O}({\tau }^{4-\alpha }+h^2).\hfill \end{array}$$

□

In the next theorem, we use $L^2(\Omega )$-space with the norm ${\parallel .\parallel }_2$ and the inner product $⟨.,.⟩$.

Theorem 3.

(see [22]) If the tridiagonal matrix elements satisfy the inequality

$$\begin{array}{c}\hfill {\lambda }_1\le {\left({\lambda }_0\right)}^{M-3}\left({\lambda }_0+\frac{D}{h^2}-\frac{A}{2h}\right)\left({\lambda }_0+\frac{D}{h^2}+\frac{A}{2h}\right),\end{array}$$

(40)

then the finite difference scheme is stable.

Proof.

Equation (38) can be rewritten as follows, for $1\le n\le N$

$$\begin{array}{c}\hfill K{U}_n={\lambda }_1{U}_{n-1}+\sum _{l=0}^{n-2}{\lambda }_{n-l}{U}_l-F_n+H_n,\end{array}$$

let,         $V_n={\sum }_{l=0}^{n-2}{\lambda }_{n-l}{U}_l-F_n+H_n$.

Since matrix K is invertible then the above equation can be rewritten as

$$\begin{array}{c}\hfill U_n={\lambda }_1{K}^{-1}{U}_{n-1}+K^{-1}{V}_n.\end{array}$$

Using the recurrence relation, we get the following equation

$$\begin{array}{cc}\hfill U_n=& {\left({\lambda }_1{K}^{-1}\right)}^2{U}_{n-2}+\left({\lambda }_1{K}^{-1}\right)K^{-1}{V}_{n-1}+K^{-1}{V}_n\hfill \\ \hfill =& {\left({\lambda }_1{K}^{-1}\right)}^n{U}_0+{\left({\lambda }_1{K}^{-1}\right)}^{n-1}{K}^{-1}{V}_1+{\left({\lambda }_1{K}^{-1}\right)}^{n-2}{K}^{-1}{V}_2+\dots +K^{-1}{V}_n.\hfill \end{array}$$

(41)

Let ${\tilde{U}}_n$ be the approximate solution of Equation (38), then we define the error at grid point $t_n=n\tau$

$$e_n=U_n-{\tilde{U}}_n,0\le n\le N.$$

Then, we obtain

$$e_n={\left({\lambda }_1{K}^{-1}\right)}^n{e}_0,1\le n\le N.$$

From the definition of the compatible matrix norm

$$\parallel e_n\parallel \le \parallel {\left({\lambda }_1{K}^{-1}\right)}^n\parallel \parallel e_0\parallel .$$

Since

$$\begin{array}{c}\hfill \parallel {\left({\lambda }_1{K}^{-1}\right)}^n\parallel \le \parallel \left({\lambda }_1{K}^{-1}\right)\parallel \parallel {\left({\lambda }_1{K}^{-1}\right)}^{n-1}\parallel \le \dots \le \parallel \left({\lambda }_1{K}^{-1}\right){\parallel }^n.\end{array}$$

According to the Ostrowski therorem ([40], Theorem 3.1), let $K={\left[a_{i,j}\right]}_{M-1\times M-1}$, then the determinant of K satisfies

$$\begin{array}{cc}\hfill \left|det\right(K\left)\right|& \ge \prod _{i=1}^{M-1}\left(|a_{i,i}|-\sum _{j=1,j\ne i}^{M-1}\left|a_{i,j}\right|\right)\hfill \\ & ={\left({\lambda }_0\right)}^{M-3}\left({\lambda }_0+\frac{D}{h^2}-\frac{A}{2h}\right)\left({\lambda }_0+\frac{D}{h^2}+\frac{A}{2h}\right).\hfill \end{array}$$

(42)

Using assumed inequality (40) into (42), we get $|det\left(K^{-1}\right)|\le \frac{1}{{\lambda }_1};$

this implies that

$$|{\lambda }_1|\parallel K^{-1}\parallel \le 1.$$

Therefore,          $|e_n|\le |e_0|$.

Thus, the numerical scheme is stable. □

Theorem 4.

The solution $U_n^i$ of the difference scheme (36) satisfies

$$\begin{array}{c}\hfill \underset{i,n}{max}|U(x_i,t_n)-\tilde{U}(x_i,t_n)|\le C(h^2+{\tau }^{4-\alpha })\end{array}$$

(43)

for some constant $C$.

Proof.

The truncation error for the difference scheme at $(x_i,t_n)\in [0,a]\times [0,T]$ is

$$|e_n^i|\le C(h^2+{\tau }^{4-\alpha })$$

by Theorem 2. Now, using the theorem of stability, it implies

$$\begin{array}{c}\hfill \underset{i,n}{max}|U(x_i,t_n)-\tilde{U}(x_i,t_n)|\le C|U(x_i,t_0)-\tilde{U}(x_i,t_0)|\end{array}$$

(44)

We obtain the desired result easily after using the truncation error as discussed in Theorem 2. □

4. Numerical Results

In this section, we will check the numerical accuracy of the proposed schemes (18) and difference scheme (37), and also verify the theoretical convergence order discussed in Theorem 4. Here, we provide three examples to numerically support our theory; in the first example we check the convergence order and absolute error of approximation for the GCFD, while the last two problems get the form (30) to describe the accuracy and maximum absolute error of the difference scheme. All numerical results are implemented in MATLAB R2018b.

To calculate the maximum absolute error $E_{\infty }$ and error $E_2$ corresponding to the $L_2$-norm, we use the following formulas [19,21,39], respectively, due to the fact that the exact solutions of the considered test problems are known.

$$\begin{array}{c}\hfill E_{\infty }(M,N)=\underset{1\le i\le M-1}{max}|U_N^i-u_N^i|,\end{array}$$

(45)

$$\begin{array}{c}\hfill E_2(M,N)={\left(h\sum _{i=1}^{M-1}{|U_N^i-u_N^i|}^2\right)}^{1/2},\end{array}$$

(46)

where $\left\{U_n^i\right\}$ is the exact solution of advection diffusion equation and $\left\{u_n^i\right\}$ is the approximate solution at the point $(x_i,t_n)$.

Moreover, the convergence order in the space and time directions for the described difference scheme corresponding to $L_{\infty }$-norm can be evaluated using the following formulas. $R_x$ is the order of convergence on the space side and $R_t$ on the temporal side.

$$R_x=\frac{log\left(E\right(2M,N\left)\right)-log\left(E\right(M,N\left)\right)}{log\left(2\right)},$$

and

$$R_t=\frac{log\left(E\right(M,2N\left)\right)-log\left(E\right(M,N\left)\right)}{log\left(2\right)}.$$

Example 1.

Ref. [39] Take function $u\left(t\right)=t^{4+\alpha }$, $t\in [0,1],$ for $0<\alpha <1$. Determine the α-th order GCFD for $u\left(t\right)$ at $T=1$ numerically.

The maximum absolute error and rate of convergence for the scheme (18) to approximate the GCFD of function $u\left(t\right)$ for $\alpha =0.2,0.5,0.8$ with uniform time steps $1/10$, $1/20$, $1/40$, $1/80$, $1/160$ are calculated and shown in the following tables.

Table 1 shows the errors with respect to $L_{\infty }$-norm and convergence rates in time, and these data are found after calculating the classical Caputo derivative (i.e., taking $\zeta \left(t\right)=t,$$\omega \left(t\right)=1$) of function $u\left(t\right)$ with the help of scheme (18). From this table, we can see that the errors of our scheme (18) obtained from the GCFD approximation are lesser compared to the scheme developed in Gao et al. [39] for approximation of the Caputo derivative and the convergence rate of our scheme is $(4-\alpha ),$ while accuracy for the time derivative in [39] is $(3-\alpha )$. In Table 2, to compute the maximum errors $E_{\infty }$ and order of convergence in the time direction, we take $\omega \left(t\right)=e^t$ while the scale function is fixed with t. From Table 3, we validate the convergence for $\zeta \left(t\right)=t,$ $\omega \left(t\right)=t+1$ and the CPU time in seconds for $\alpha =0.8$ are discussed. Table 4 shows maximum errors and order of convergence for different choices of weight $\omega \left(t\right)=t^{0.5},t,t^4$, $e^{2t}$; scale is $\zeta \left(t\right)=t$ and $\alpha =1/3$. In all cases, accuracy in time is obtained as $(4-\alpha )$ for scheme (18), which is higher than [28,40].

Table 1. $E_{\infty }$ errors and convergence rates $R_t$ for Example 1, when $\zeta \left(t\right)=t,$$\omega \left(t\right)=1$, with different $\alpha$s.

	$\mathit{\alpha }=0.2$		$\mathit{\alpha }=0.5$		$\mathit{\alpha }=0.5$ [39]
$\mathit{N}$	${\mathit{E}}_{\infty }$Error	${\mathit{R}}_{\mathit{t}}$	${\mathit{E}}_{\infty }$Error	${\mathit{R}}_{\mathit{t}}$	${\mathit{E}}_{\infty }$Error	${\mathit{R}}_{\mathit{t}}$
10	1.6978 $\times {10}^{-4}$		1.5401 $\times {10}^{-3}$		1.3507 $\times {10}^{-2}$
20	1.3130 $\times {10}^{-5}$	3.6928	1.4383 $\times {10}^{-4}$	3.4206	2.6121 $\times {10}^{-3}$	2.3704
40	9.9792 $\times {10}^{-7}$	3.7178	1.3116 $\times {10}^{-5}$	3.4550	4.8618 $\times {10}^{-4}$	2.4256
80	7.4966 $\times {10}^{-8}$	3.7346	1.1811 $\times {10}^{-6}$	3.4731	8.8645 $\times {10}^{-5}$	2.4554
160	5.5944 $\times {10}^{-9}$	3.7442	1.0560 $\times {10}^{-7}$	3.4835	1.5975 $\times {10}^{-5}$	2.4722

Table 2. $E_{\infty }$ errors and convergence rates $R_t$ for Example 1, when $\zeta \left(t\right)=t,$$\omega \left(t\right)=e^t$, with different $\alpha$s.

	$\mathit{\alpha }=0.2$		$\mathit{\alpha }=0.5$		$\mathit{\alpha }=0.8$		$\mathit{\alpha }=0.8$
N	${\mathit{E}}_{\mathit{\infty }}$ Error	${\mathit{R}}_{\mathit{t}}$	${\mathit{E}}_{\mathit{\infty }}$ Error	${\mathit{R}}_{\mathit{t}}$	${\mathit{E}}_{\mathit{\infty }}$ Error	${\mathit{R}}_{\mathit{t}}$	CPU Time (s)
10	7.5552 $\times {10}^{-4}$		6.3075 $\times {10}^{-3}$		3.2184 $\times {10}^{-2}$		11.354861
20	7.1075 $\times {10}^{-5}$	3.4101	6.7873 $\times {10}^{-4}$	3.2162	4.2148 $\times {10}^{-3}$	2.9328	33.306962
40	5.9370 $\times {10}^{-6}$	3.5815	6.6677 $\times {10}^{-5}$	3.3476	5.0375 $\times {10}^{-4}$	3.0647	82.772072
80	4.6934 $\times {10}^{-7}$	3.6610	6.2491 $\times {10}^{-6}$	3.4155	5.7497 $\times {10}^{-5}$	3.1312	180.064565
160	3.5650 $\times {10}^{-8}$	3.7186	5.7027 $\times {10}^{-7}$	3.4539	6.4090 $\times {10}^{-6}$	3.1653	419.978865

Table 3. $E_{\infty }$ errors and convergence rates $R_t$ for Example 1, when $\zeta \left(t\right)=t,$$\omega \left(t\right)=t+1$, with different $\alpha$s.

	$\mathit{\alpha }=0.2$		$\mathit{\alpha }=0.5$		$\mathit{\alpha }=0.8$		$\mathit{\alpha }=0.8$
N	${\mathit{E}}_{\mathit{\infty }}$ Error	${\mathit{R}}_{\mathit{t}}$	${\mathit{E}}_{\mathit{\infty }}$ Error	${\mathit{R}}_{\mathit{t}}$	${\mathit{E}}_{\mathit{\infty }}$ Error	${\mathit{R}}_{\mathit{t}}$	CPU Time (s)
10	3.5019 $\times {10}^{-4}$		3.1752 $\times {10}^{-3}$		1.7251 $\times {10}^{-2}$		10.194270
20	3.0621 $\times {10}^{-5}$	3.5155	3.1426 $\times {10}^{-4}$	3.3368	2.0904 $\times {10}^{-3}$	3.0448	25.931157
40	2.4466 $\times {10}^{-6}$	3.6457	2.9499 $\times {10}^{-5}$	3.4132	2.3982 $\times {10}^{-4}$	3.1238	65.689186
80	1.8844 $\times {10}^{-7}$	3.6986	2.6976 $\times {10}^{-6}$	3.4509	2.6799 $\times {10}^{-5}$	3.1617	155.623905
160	1.4248 $\times {10}^{-8}$	3.7252	2.4326 $\times {10}^{-7}$	3.4711	2.9560 $\times {10}^{-6}$	3.1805	384.953845

Table 4. $E_{\infty }$ errors and convergence rates $R_t$ for Example 1, when $\zeta \left(t\right)=t,$$\alpha =\frac{1}{3}$, with different weight functions.

	$\mathit{\omega }\left(\mathit{t}\right)={\mathit{t}}^{0.5}$		$\mathit{\omega }\left(\mathit{t}\right)=\mathit{t}$		$\mathit{\omega }\left(\mathit{t}\right)={\mathit{t}}^4$		$\mathit{\omega }\left(\mathit{t}\right)={\mathit{e}}^{2\mathit{t}}$
N	${\mathit{E}}_{\mathit{\infty }}$ Error	${\mathit{R}}_{\mathit{t}}$	${\mathit{E}}_{\mathit{\infty }}$ Error	${\mathit{R}}_{\mathit{t}}$	${\mathit{E}}_{\mathit{\infty }}$ Error	${\mathit{R}}_{\mathit{t}}$	${\mathit{R}}_{\mathit{t}}$
10	9.5450 $\times {10}^{-4}$		1.7465 $\times {10}^{-3}$		3.2557 $\times {10}^{-2}$
20	8.4374 $\times {10}^{-5}$	3.4999	1.5027 $\times {10}^{-4}$	3.5388	2.0348 $\times {10}^{-3}$	4.0000	3.2332
40	7.0877 $\times {10}^{-6}$	3.5734	1.2845 $\times {10}^{-5}$	3.5483	1.2749 $\times {10}^{-4}$	3.9964	3.4225
80	5.8166 $\times {10}^{-7}$	3.6071	1.0650 $\times {10}^{-6}$	3.5923	1.1169 $\times {10}^{-5}$	3.5129	3.5220
160	4.7123 $\times {10}^{-8}$	3.6257	8.6813 $\times {10}^{-8}$	3.6167	9.3941 $\times {10}^{-7}$	3.5716	3.5764

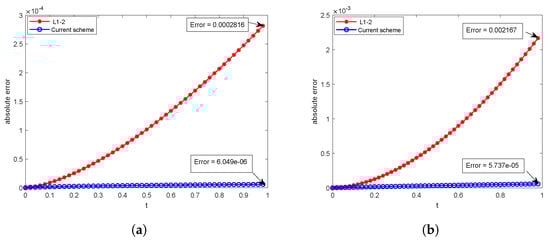

Figure 1a,b show that the comparison of absolute error for the scheme defined in [39] and the current scheme (18) for $\alpha =0.5$ and $\alpha =0.8$, respectively.

Figure 1. Error plot of the numerical results for Example 1 at final time $T=1$ for different values of $\alpha$ (left side (a) for $\alpha =0.5$; right side (b) for $\alpha =0.8$).

Example 2.

Ref. [21] We take the following generalized fractional advection–diffusion equation:

$$\begin{array}{c}\hfill \left\{\begin{array}{c}{}_0^C{\mathcal{D}}_{t;\left[\zeta \right(t),\omega (t\left)\right]}^{\alpha }u(x,t)=\frac{{\partial }^{2}u(x,t)}{\partial x^2}-\frac{\partial u(x,t)}{\partial x}+f(x,t),(x,t)\in (0,1)\times (0,1),\hfill \\ u(x,0)=0,x\in (0,1),\hfill \\ u(0,t)=t^{6+\alpha },u(1,t)=e{t}^{6+\alpha },t\in (0,1],\hfill \end{array}\right.\end{array}$$

(47)

where $f(x,t)=e^x{t}^6\frac{\Gamma (7+\alpha )}{720}$. When $\zeta \left(t\right)=t$ and $\omega \left(t\right)=1$, then $u(x,t)=e^x{t}^{6+\alpha }$ is the exact solution.

To solve this example, we use the numerical scheme defined in (37). The maximum errors at time $t=1$ for different values of $\alpha$ with different step sizes, and rate of convergence in time direction and space direction are displayed in Table 5 and Table 6. In Table 5, we set $h=\frac{1}{2000}$ and describe the numerical errors and convergence rates in time $R_t$ for different values of N. In Table 6, we fix $\tau =\frac{1}{500}$ and present the numerical errors and spatial convergence rates $R_x$ for different values of M. It is shown that our scheme (37) gives $(4-\alpha )$-order convergence in the temporal direction and second-order convergence in the spatial direction.

Table 5. Errors $E_{\infty }$ and $E_2$ with convergence rates in time for Example 2, when $h=1/2000$ with different $\alpha$s.

$\mathit{\alpha }$		N				${\mathit{E}}_{\mathit{\infty }}$ Error		${\mathit{R}}_{\mathit{t}}$			${\mathit{E}}_2$ Error		${\mathit{R}}_{\mathit{t}}$
0.8		8				1.6385 $\times {10}^{-2}$					7.4195 $\times {10}^{-3}$
		16				2.2920 $\times {10}^{-3}$		2.8377			1.3514 $\times {10}^{-3}$		2.4569
		32				2.8191 $\times {10}^{-4}$		3.0233			1.8556 $\times {10}^{-4}$		2.8645
		64				3.2609 $\times {10}^{-5}$		3.1119			2.2573 $\times {10}^{-5}$		3.0392
		128				3.6574 $\times {10}^{-6}$		3.1564			2.5937 $\times {10}^{-6}$		3.1215
		256				4.0176 $\times {10}^{-7}$		3.1864			1.2919 $\times {10}^{-7}$		3.1721
0.5		8				3.7940 $\times {10}^{-3}$					1.8168 $\times {10}^{-3}$
		16				4.2889 $\times {10}^{-4}$		3.1451			2.5900 $\times {10}^{-4}$		2.8104
		32				4.3064 $\times {10}^{-5}$		3.3160			2.8647 $\times {10}^{-5}$		3.1765
		64				4.0768 $\times {10}^{-6}$		3.4010			2.8348 $\times {10}^{-6}$		3.3371
		128				3.7173 $\times {10}^{-7}$		3.4551			2.6407 $\times {10}^{-7}$		3.4243
		256				3.0470 $\times {10}^{-8}$		3.6088			9.8124 $\times {10}^{-8}$		3.5948
0.2		8				5.4498 $\times {10}^{-4}$					2.7293 $\times {10}^{-4}$
		16				5.1093 $\times {10}^{-5}$		3.4150			3.1455 $\times {10}^{-5}$		3.1172
		32				4.2949 $\times {10}^{-6}$		3.5724			2.8822 $\times {10}^{-6}$		3.4480
		64				3.3828 $\times {10}^{-7}$		3.6663			2.3627 $\times {10}^{-7}$		3.6087
		128				2.2628 $\times {10}^{-8}$		3.9020			1.6173 $\times {10}^{-8}$		3.8687
		256				1.8462 $\times {10}^{-9}$		3.6155			5.7547 $\times {10}^{-9}$		3.6574

Table 6. The maximum errors and convergence rates $R_x$ for Example 2, when $\tau =1/500$ with different $\alpha$s.

	$\mathit{\alpha }=0.2$		$\mathit{\alpha }=0.5$		$\mathit{\alpha }=0.8$
M	${\mathit{E}}_{\mathit{\infty }}$ Error	${\mathit{R}}_{\mathit{x}}$	${\mathit{E}}_{\mathit{\infty }}$ Error	${\mathit{R}}_{\mathit{x}}$	${\mathit{E}}_{\mathit{\infty }}$ Error	${\mathit{R}}_{\mathit{x}}$
8	2.3437 $\times {10}^{-4}$		2.1275 $\times {10}^{-4}$		1.8078 $\times {10}^{-4}$
16	5.8814 $\times {10}^{-5}$	1.9945	5.3334 $\times {10}^{-5}$	1.9960	4.5242 $\times {10}^{-5}$	1.9985
32	1.4733 $\times {10}^{-5}$	1.9971	1.3373 $\times {10}^{-5}$	1.9958	1.1319 $\times {10}^{-5}$	1.9990
64	3.6832 $\times {10}^{-6}$	2.0001	3.3408 $\times {10}^{-6}$	2.0010	2.7940 $\times {10}^{-6}$	2.0183
128	9.2088 $\times {10}^{-7}$	1.9999	8.3276 $\times {10}^{-7}$	2.0042	6.6258 $\times {10}^{-7}$	2.0762

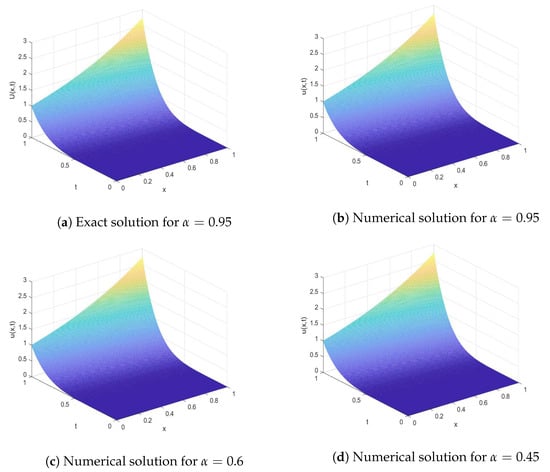

Figure 2 represents the exact and numerical solution of the Example 2 for different values of $\alpha$.

Figure 2. Exact and approximate solutions of Example 2 for different $\alpha$’s with $M=N=200$, $\omega \left(t\right)=1$, $\zeta \left(t\right)=t$.

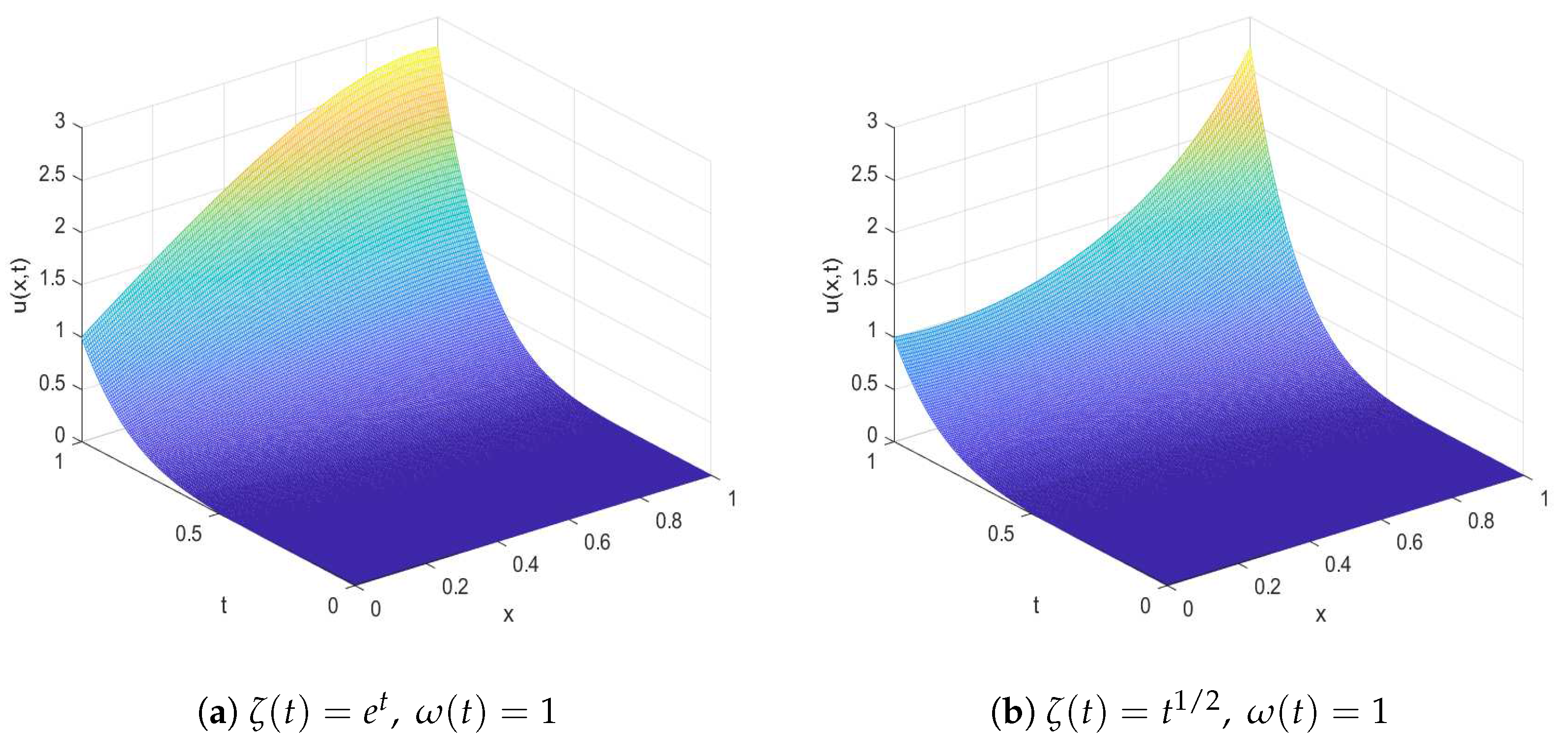

It is clearly visible from the above Figure 3a,b that scale function $\zeta \left(t\right)$ can stretch or contract the domain.

Figure 3. Numerical solutions of Example 2 with different choices of weight functions $\omega \left(t\right)$ and scale functions $\zeta \left(t\right)$, and $M=N=200$ with $\alpha =0.9$.

In Table 7, we compare our scheme (37) with Gao et al. ([39], Example 4.1) in temporal direction to fix $M=2000$ for particular choices of scale $\zeta \left(t\right)=t$ and weight function $\omega \left(t\right)=1$.

Table 7. The maximum errors and convergence rates $R_t$ of Example 4.1 in [39] (page no 43) for different values of $\alpha$ with $h=1/2000$.

		Current Scheme		L1−2 [39]
$\mathit{\alpha }$	$\mathit{N}$	${\mathit{E}}_{\infty }$	${\mathit{R}}_{\mathit{t}}$	${\mathit{E}}_{\infty }$	${\mathit{R}}_{\mathit{t}}$
0.9	10	2.2536 $\times {10}^{-3}$		1.8600 $\times {10}^{-2}$
	20	3.2727 $\times {10}^{-4}$	2.7837	4.7228 $\times {10}^{-3}$	1.9776
	40	4.1906 $\times {10}^{-5}$	2.9653	1.1488 $\times {10}^{-3}$	2.0395
	80	5.1072 $\times {10}^{-6}$	3.0366	2.7367 $\times {10}^{-4}$	2.0697
	160	6.1092 $\times {10}^{-7}$	3.0635	6.4520 $\times {10}^{-5}$	2.0846
0.5	10	2.5470 $\times {10}^{-4}$		2.4936 $\times {10}^{-3}$
	20	2.6005 $\times {10}^{-5}$	3.2919	4.8366 $\times {10}^{-4}$	2.3662
	40	2.4615 $\times {10}^{-6}$	3.4012	9.0163 $\times {10}^{-5}$	2.4234
	80	2.2827 $\times {10}^{-7}$	3.4307	1.6457 $\times {10}^{-5}$	2.4539
	160	2.3662 $\times {10}^{-8}$	3.2701	2.9700 $\times {10}^{-6}$	2.4701

Example 3.

Take the following fractional advection–diffusion equation:

$$\begin{array}{c}\hfill \left\{\begin{array}{c}{}_0^C{\mathcal{D}}_{t,\left[\zeta \right(t),\omega (t\left)\right]}^{\alpha }u(x,t)=\frac{{\partial }^{2}u(x,t)}{\partial x^2}-\frac{\partial u(x,t)}{\partial x}+f(x,t),(x,t)\in (0,1)\times (0,1),\hfill \\ u(x,0)=0,x\in (0,1),\hfill \\ u(0,t)=0,\hfill \\ u(1,t)=t^7\left(sin1\right),t\in (0,1],\hfill \end{array}\right.\end{array}$$

(48)

where $f(x,t)=\frac{\Gamma 8}{\Gamma (8-\alpha )}{t}^{7-\alpha }sin\left(x\right)+t^7(sin\left(x\right)+cos\left(x\right))$. When $\zeta \left(t\right)=t$ and $\omega \left(t\right)=1$, the exact solution is $u(x,t)=t^{7}sin\left(x\right)$.

To solve this PDE, we use our difference scheme (37). Here, two Table 8 and Table 9 are given in support of the numerical results. In Table 8, we take fixed space step size $h=1/12000$ and display maximum absolute errors and errors $E_2$ with respect to norm $L_2$, and also the rate of convergence for the temporal direction with different time steps $N=8,16,32,64,128,256$. In Table 9, we express maximum errors and convergence order in the space direction to set time steps fixed with $\tau =1/500$ and taking different $M=8,16,32,64,128$.

Table 8. Errors $E_{\infty }$ and $E_2$ with convergence rates in time for Example 3, when $h=1/12000$ with different $\alpha$s.

$\mathit{\alpha }$		N				${\mathit{E}}_{\mathit{\infty }}$ Error		${\mathit{R}}_{\mathit{t}}$			${\mathit{E}}_2$ Error		${\mathit{R}}_{\mathit{t}}$
0.8		8				5.2117 $\times {10}^{-3}$					4.1672 $\times {10}^{-1}$
		16				7.4158 $\times {10}^{-4}$		2.8159			5.9162 $\times {10}^{-2}$		2.8163
		32				9.1750 $\times {10}^{-5}$		3.0148			7.2113 $\times {10}^{-3}$		3.0364
		64				1.0655 $\times {10}^{-5}$		3.1062			8.3111 $\times {10}^{-4}$		3.1171
		128				1.1991 $\times {10}^{-6}$		3.1515			9.3172 $\times {10}^{-5}$		3.1571
		256				1.3228 $\times {10}^{-7}$		3.1803			1.0259 $\times {10}^{-5}$		3.1830
0.5		8				1.5442 $\times {10}^{-3}$					1.2679 $\times {10}^{-1}$
		16				1.7157 $\times {10}^{-4}$		3.1700			1.3692 $\times {10}^{-2}$		3.2111
		32				1.7543 $\times {10}^{-5}$		3.2898			1.3792 $\times {10}^{-3}$		3.3113
		64				1.6788 $\times {10}^{-6}$		3.3854			1.3099 $\times {10}^{-4}$		3.3964
		128				1.5678 $\times {10}^{-7}$		3.4207			1.2186 $\times {10}^{-5}$		3.4262
		256				1.4942 $\times {10}^{-8}$		3.3913			1.1596 $\times {10}^{-6}$		3.3935
0.2		8				2.8743 $\times {10}^{-4}$					2.3613 $\times {10}^{-2}$
		16				2.5557 $\times {10}^{-5}$		3.4914			2.0399 $\times {10}^{-3}$		3.5330
		32				2.2185 $\times {10}^{-6}$		3.5261			1.7445 $\times {10}^{-4}$		3.5476
		64				1.7950 $\times {10}^{-7}$		3.6275			1.4008 $\times {10}^{-5}$		3.6385
		128				1.5668 $\times {10}^{-8}$		3.5181			1.2186 $\times {10}^{-6}$		3.5230
		256				2.2811 $\times {10}^{-9}$		2.7800			1.7738 $\times {10}^{-7}$		2.7803

Table 9. The maximum errors and convergence rates $R_x$ for Example 3, when $\tau =1/500$ with different $\alpha$s.

	$\mathit{\alpha }=0.2$		$\mathit{\alpha }=0.5$		$\mathit{\alpha }=0.8$
M	${\mathit{E}}_{\mathit{\infty }}$ Error	${\mathit{R}}_{\mathit{x}}$	${\mathit{E}}_{\mathit{\infty }}$ Error	${\mathit{R}}_{\mathit{x}}$	${\mathit{E}}_{\mathit{\infty }}$ Error	${\mathit{R}}_{\mathit{x}}$
8	3.0308 $\times {10}^{-4}$		2.7311 $\times {10}^{-4}$		2.3102 $\times {10}^{-4}$
16	7.6029 $\times {10}^{-5}$	1.9951	6.8533 $\times {10}^{-5}$	1.9946	5.8003 $\times {10}^{-5}$	1.9938
32	1.9050 $\times {10}^{-5}$	1.9968	1.7180 $\times {10}^{-5}$	1.9961	1.4560 $\times {10}^{-5}$	1.9941
64	4.7625 $\times {10}^{-6}$	2.0000	4.2962 $\times {10}^{-6}$	1.9996	3.6518 $\times {10}^{-6}$	1.9953
128	1.1909 $\times {10}^{-6}$	1.9997	1.0752 $\times {10}^{-6}$	1.9985	9.2444 $\times {10}^{-7}$	1.9820

In Table 10, we validate the proposed scheme with [21] (Example 5.1). Firstly, we present the max error, the convergence order with fixed $h=\frac{1}{6000}$ and varying N with 8, 16, 32, 64, 128 for $\alpha =0.368$. It is noted that the convergence order of our scheme (37) for the temporal direction is almost the same as [21]. After that, we express maximum error and convergence rate for the spatial dimension to set $\tau =1/200$ and changing $M=4,8,16,32,64$ for the same value of $\alpha$; we observe that the spatial convergence order of our numerical scheme is same as [21]. Thus, the scheme presented in [21] becomes a particular case of the proposed scheme (37) for $\zeta \left(t\right)=t$ and $\omega \left(t\right)=1$. Furthermore, we can compute numerical results for different suitable choices of scale and weight functions.

Table 10. The maximum errors and convergence rates $R_t$ for Example 5.1 in [21], when $h=1/6000$, and spatial convergence rates $R_x$, when $\tau =1/200$.

	$\mathit{\alpha }=0.368$		Cao et al. [21]		$\mathit{\alpha }=0.368$		Cao et al. [21]
N	${\mathit{E}}_{\mathit{\infty }}$ Error	${\mathit{R}}_{\mathit{t}}$	${\mathit{R}}_{\mathit{t}}$	M	${\mathit{E}}_{\mathit{\infty }}$ Error	${\mathit{R}}_{\mathit{x}}$	${\mathit{R}}_{\mathit{x}}$
8	8.1539 $\times {10}^{-4}$			4	8.8034 $\times {10}^{-4}$
16	7.7720 $\times {10}^{-5}$	3.3911	3.4031	8	2.2559 $\times {10}^{-4}$	1.9643	1.9643
32	6.8845 $\times {10}^{-6}$	3.4969	3.4972	16	5.6583 $\times {10}^{-5}$	1.9953	1.9953
64	5.8739 $\times {10}^{-7}$	3.5510	3.5528	32	1.4173 $\times {10}^{-5}$	1.9972	1.9972
128	4.9904 $\times {10}^{-8}$	3.5571	3.5836	64	3.5359 $\times {10}^{-6}$	2.0030	2.0030

5. Conclusions

A high-order numerical scheme based on cubic interpolation formula is discussed for approximation of GCFD of $\alpha$-th order. Properties of discretized coefficients are analyzed and local truncation error in approximation of GCFD is also discussed. Further, we establish a difference scheme for the generalized fractional advection–diffusion equation using the developed approximation formula for GCFD. The stability and convergence of this established scheme to approximate the time fractional generalized advection–diffusion equation are studied. Order of accuracy for the difference scheme is $\mathcal{O}({\tau }^{4-\alpha }+h^2),$ with step sizes $\tau$ in time and h in space directions. The convergence order of the difference scheme is described by some numerical experiments.

Numerical calculations reveal that the proposed difference scheme has $(4-\alpha )$-th order convergence in time; and, in the space direction, it has second-order convergence. The temporal rate of convergence of the scheme for the generalized fractional advection–diffusion equation has the highest accuracy to date. In addition, the developed scheme can be directly used to get other Caputo-type time fractional advection–diffusion equations by selecting suitable scale $\zeta \left(t\right)$ and weight $\omega \left(t\right)$ functions in the generalized Caputo-type fractional derivative. The developed scheme is tested for the cases having smooth solutions of the considered fractional advection–diffusion equation. However, the case of the nonsmooth solutions will be presented in our future works.
