Prototype of 3D Reliability Assessment Tool Based on Deep Learning for Edge OSS Computing

Abstract

We focus on an estimation method based on deep learning in terms of fault correction time for the operation reliability assessment of open-source software (OSS) under the environment of an edge computing service. Then, we discuss fault severity levels in order to consider the difficulty of fault correction. We use a deep feedforward neural network in order to estimate fault correction times. In particular, we consider the characteristics of fault trends by using three-dimensional graphs. Therefore, we can increase the recognizability of the proposed method based on deep learning for large-scale fault data from the standpoint of fault severity levels under edge OSS operation.

1. Introduction

Several researchers have discussed open-source software (OSS) reliability assessment methods [1]. Many of them are based on software reliability growth models [2,3,4,5]. Various software reliability growth models have been proposed for the reliability assessment of the system testing phase in software development. Recently, software development style has caused a paradigm shift, such as in OSS development. In particular, the development style of OSS is one of the successful examples. On the other hand, there is a quality problem in OSS development because there is no specific testing phase. In the development and operation phases of OSS, the bug-tracking system is used in most cases.

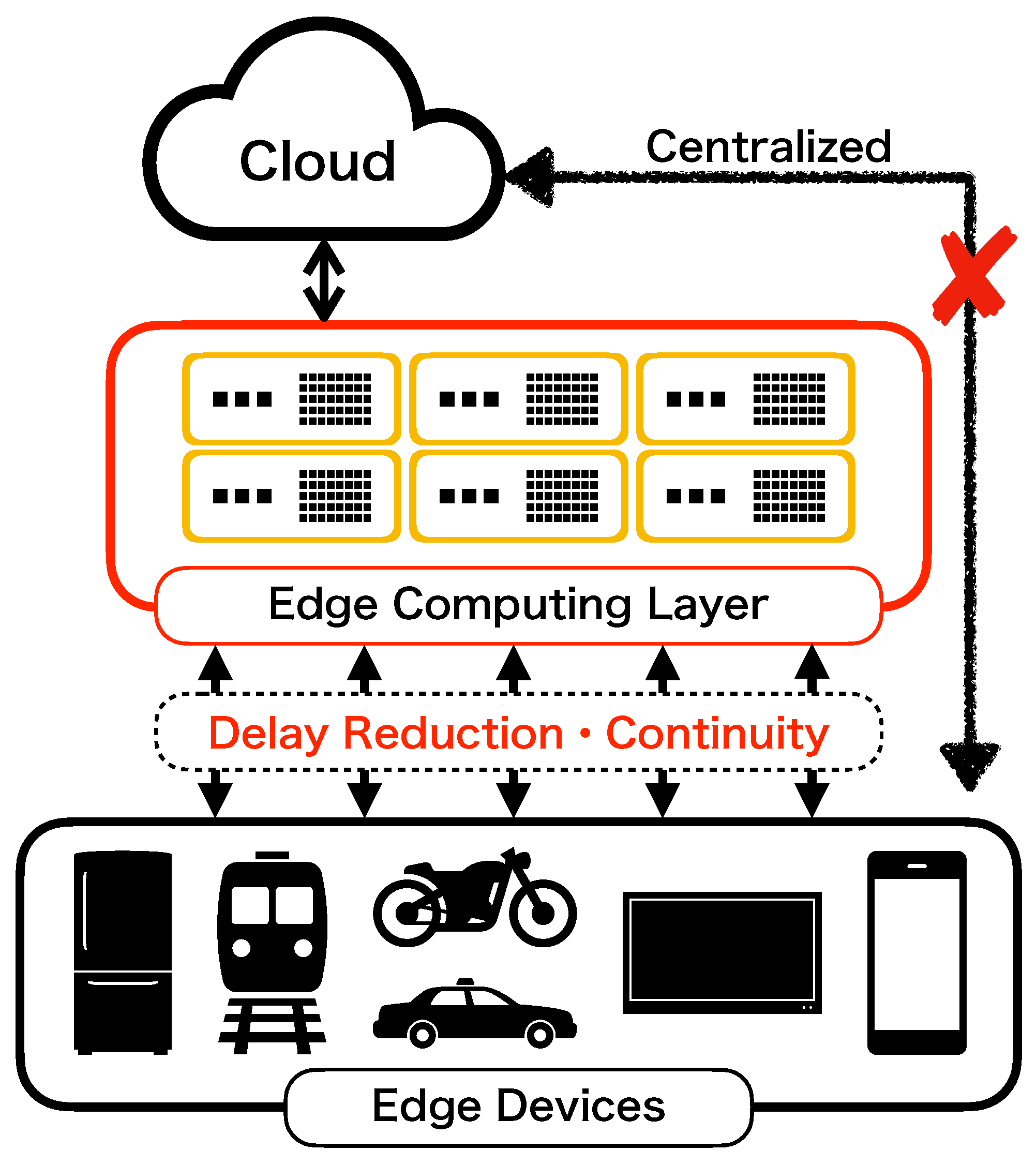

Moreover, cloud computing as a software service is supported by many users. At present, the cloud service is changing to a service based on edge computing. Edge computing will grow exponentially in the future. In addition, OSS is used in edge computing. For example, there is OpenStack as a major example of OSS in cloud computing. Recently, the edge OSS component was embedded in cloud OSS. In this situation, it is very important to assess operation reliability under edge OSS computing.

Considering software reliability assessment, there are many research papers based on stochastic models. On the other hand, there are several papers in terms of AHP, fuzzy logic, and neural networks [6,7,8,9,10,11,12].

This paper discusses software fault correction time in the OSS component under the edge computing service. In particular, this paper analyzes fault correction time based on the fault severity levels for actual data sets. Then, we make a visualization based on a three-dimensional graph by using an estimation method based on deep learning. Moreover, we discuss the estimation results obtained from the three-dimensional graph based on two kinds of fault severity levels. Furthermore, we develop a prototype of a 3D reliability assessment tool based on deep learning for the edge OSS computing service. Finally, we show several numerical illustrations based on the developed prototype of the 3D reliability assessment tool by using actual fault big data.

The organization of this paper is as follows:

Section 2 proposes an estimation method based on deep learning. Then, two fault severity levels are assumed in the proposed method considering the operation of edge OSS computing. Section 3 shows the estimation method based on deep learning. Section 4 shows several numerical illustrations based on the proposed model by using actual data sets. Section 5 discusses the proposed method.

2. Data Preprocessing for Large-Scale OSS Fault Data

2.1. Related Work

Generally, the number of data is used as the degree of freedom in the statistics. In the case of big data, it is very difficult to estimate the number of faults by using stochastic models because the number of data has a huge volume. In past research, the conventional methods of reliability assessment used the number of software faults only. For example, there are many software reliability growth models, hazard rate models, stochastic differential equation models, etc. Then, we focus on all the data sets recorded on the bug-tracking system. Therefore, we can analyze OSS reliability from the following various standpoints.

• The software fault is caused as the result of a cause-and-effect relationship. Various data sets in terms of the cause-and-effect relationship are recorded on the bug-tracking system.
• We can comprehend the cause-and-effect relationship by using the big data on the bug-tracking system.
• The typical stochastic models are difficult to use, and the fault big data include many explanatory variables because of the problem of local minimum in terms of model parameters.
• The state of the art beyond the existing work in our method is to be able to use the fault big data. Moreover, our method is able to make an automatic feature extraction from the fault big data.

We make a critical discussion for the typical OSS reliability assessment. Many software reliability assessment models have been proposed by several researchers [2,3,4,5]. Most of them have used fault data only. There is no reliability assessment method based on the stochastic model by using the large-scale data recorded on the bug-tracking system of OSS. As a comparison of the proposed model with the other approaches, there are differences in data types. Therefore, the proposed method can comprehensively judge reliability from the standpoint of a multifaceted perspective.

Furthermore, considering cloud computing, several research papers have been published [13,14]. These research papers have contents in terms of the scalability of hardware such as cloud storage services and cloud scalability. On the other hand, we focus on edge computing, software, and reliability. For the background of edge computing, we show the structure of edge computing in Figure 1. There are several research papers in terms of the debugging method, system architecture, and stochastic models for edge computing [15,16,17]. However, there is no method of reliability assessment in the environment of edge OSS computing.

2.2. OSS Data Set

There are several approaches for software reliability based on neural networks. Traditionally, comparison research based on software reliability growth models and the method of neural networks has been proposed in the past [18,19]. Past research papers based on the neural networks method especially have used fault data only. In most cases, the methods by machine learning are based on time-series analysis. On the other hand, we use many types of different data depending on software reliability analysis in the proposed method. The unique future of our research is to use two kinds of fault levels as the output data sets.

Several researchers have proposed deep learning algorithms. For example, the application research based on deep learning for the min-cut theorem is shown in [20]. In addition, deep learning is used for automatic recognition in the area of sound recognition [21,22]. Moreover, many deep learning algorithms have been proposed in the areas of image recognition [23,24,25]. In particular, optimized algorithms based on deep learning for each research area have been developed by many researchers. Many methods based on deep learning have been applied to many research areas, such as the various above-mentioned research papers based on deep learning. Then, we focus on the deep learning approach for edge OSS reliability area. We will be able to apply deep learning as the discrete time model to the reliability of the edge OSS operation by using the fault correction time.

In this paper, we apply the deep feedforward neural network to learn the large-scale fault data on bug-tracking systems of OSS projects. Then, we apply the following amount of information to estimate the weight parameters for fault correction time. All data on each explanatory variable are converted from the character data to numerical values by using the count encoding and frequency encoding.

• Opened: $T^o$ is converted to the difference from the previous day, and this unit is day;
• Changed: $T^c$ is converted to the difference from the previous day, and this unit is day;
• Product: $F^p$ is converted to the values of the occurrence ratio for the product name by using the frequency encoding;
• Component: $F^c$ is converted to the values of the occurrence ratio for the component name by using the frequency encoding;
• Version: $F^v$ is converted to the frequency values of appearance for the same version number by using the frequency encoding;
• Reporter: $F^r$ is converted to the frequency values of appearance for the same nickname of reporter by using the frequency encoding;
• Assignee: $F^a$ is converted to the frequency values of appearance for the same nickname of assignee by using the frequency encoding;
• Severity: $F^l$ is converted to the values based on the same numbers of count for fault level by the frequency encoding;
• Status: $F^s$ is converted to the occurrence ratio of the status name by using the frequency encoding;
• Resolution: $F^w$, as with what happened to the bugs, is converted to the occurrence ratio of the status name by using the frequency encoding;
• Hardware: $F^h$ is converted to numerical values in terms of hardware by the frequency encoding;
• OS: $F^o$ is also converted to numerical values in terms of the operating system by the frequency encoding;
• Summary: $C^s$ is converted to the number of words by using the count encoding;

where $T^{*}$ is the unit of time, $F^{*}$ is the values converted by using the frequency encoding, and $C^{*}$ is the values converted by using the count encoding.

2.3. Data Preprocessing

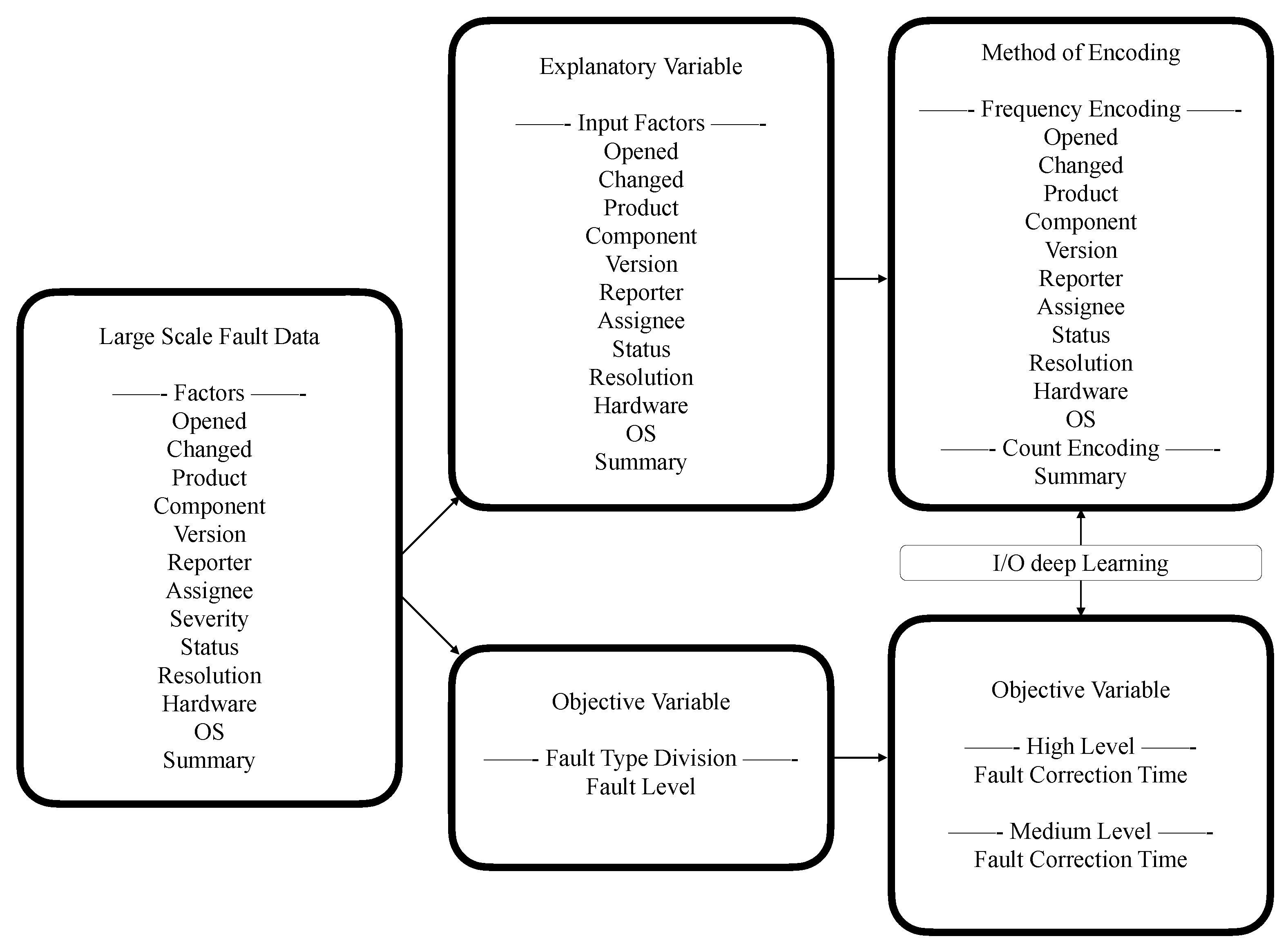

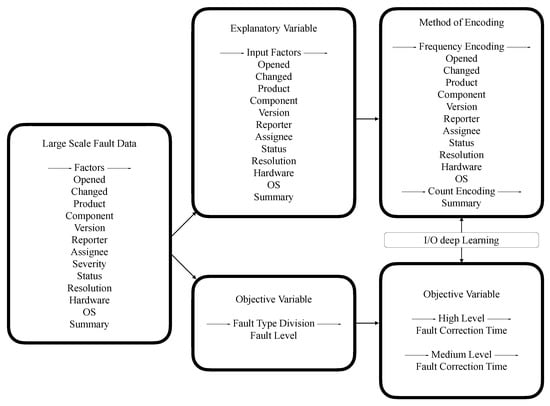

We convert all the above items from the character data to numerical values by using the frequency and count encodings. In particular, we use the correction time of the detected faults as the output data for the learning data. The correction time of software faults will be useful to the measure of software stability. Then, we define the instantaneous correction time of software faults as follows:

$$\begin{array}{c}\hfill O_k=T_k^c-T_k^o.\end{array}$$

(1)

where $O_k$ is the k-th instantaneous correction time of software faults. In addition, $T_k^c$ is the k-th changed date of the OSS fault. Similarly, $T_k^o$ is the k-th opened date of the OSS fault. We define $O_k$ as the explanatory variable of deep learning, i.e., the output value for the learning data. $O_k$ means the output values as the instantaneous correction times of the detected faults.

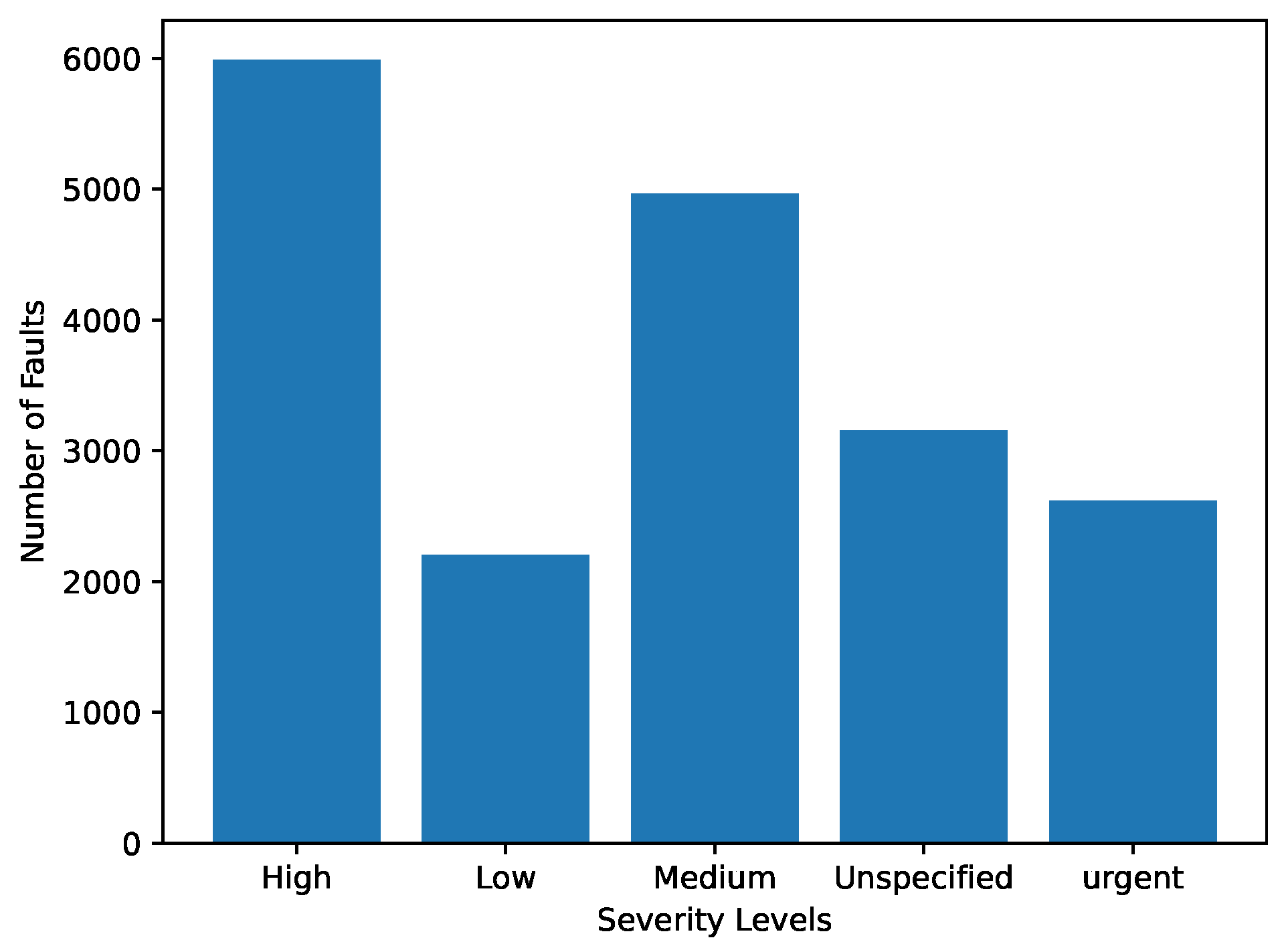

As shown in Figure 2, the characteristics of edge OSS computing are the fault levels. “High” and “Medium” class faults are the remarkable numbers. Therefore, we focus on the fault detection phenomenon in terms of severity levels. Then, the “Medium” class means the fault of medium level, i.e., this is categorized as the low level. The fault classified as “High” is difficult to remove from the source code. Moreover, the “High” class faults have a large impact on the OSS system. Therefore, the high-level fault greatly depends on the software reliability. Considering the “High” fault, we define the following:

$$\begin{array}{ccc}\hfill & & O_k^h\Leftarrow F_k^{hl},\hfill \\ & & \mathrm{subject}\mathrm{to}{F}_k^{hl}\subseteq F_k^l.\hfill \end{array}$$

(2)

where $F_k^{hl}$ means the k-th high-level fault. Similarly, focusing on the “Medium”fault, we consider that $O_k^m$ is the k-th instantaneous correction time of the detected faults in the case of the medium level. Then, we define the following:

$$\begin{array}{ccc}\hfill & & O_k^m\Leftarrow F_k^{ml},\hfill \\ & & \mathrm{subject}\mathrm{to}{F}_k^{ml}\subseteq F_k^l.\hfill \end{array}$$

(3)

Similarly, $F_k^{ml}$ means the k-th “Medium” fault.

3. Development of Prototype Tool

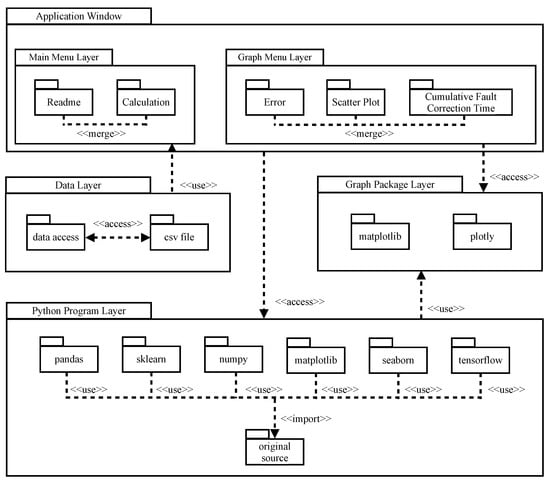

Our research group has proposed several reliability assessment tools. In particular, we have developed a three-dimensional tool for OSS reliability assessment. It is useful to easily understand the trend of reliability from various points of view by using three-dimensional modeling. We show the cumulative number of detected faults $M_{*}\left(t\right)$ at time t of our three-dimensional model proposed in the past as follows [26]:

$$\begin{array}{ccc}\hfill M_1\left(t\right)& =& R_1\left(t\right)\left[1-\frac{1+c}{1+c·exp(-bt)}·\exp \left\{-bt-{\sigma }_1{\omega }_1\left(t\right)\right\}\right],\hfill \end{array}$$

(4)

$$\begin{array}{ccc}\hfill M_2\left(t\right)& =& R_2\left(t\right)\left[1-\frac{1+c}{1+c·exp(-bt)}·\exp \left\{-bt-{\sigma }_2{\omega }_2\left(t\right)\right\}\right],\hfill \end{array}$$

(5)

$$\begin{array}{ccc}\hfill M_3\left(t\right)& =& R_3\left(t\right)\left[1-\frac{1+c}{1+c·exp(-bt)}·\exp \left\{-bt-{\sigma }_3{\omega }_3\left(t\right)\right\}\right],\hfill \end{array}$$

(6)

where $R_i\left(t\right)(i=1,2,3)$ is the amount of changes in terms of specification according to each version of OSS. In addition, $R_i\left(t\right)(i=1,2,3)$ is defined as ${\alpha }_i{e}^{-{\beta }_{i}t}$, where ${\alpha }_i(i=1,2,3)$ is the number of latent faults in the OSS used in cloud computing and ${\beta }_i(i=1,2,3)$ is the changing rate in terms of specification according to each version of OSS. Then, we assume that the fault-prone specification for each version of OSS grows exponentially according to time t. On the other hand, the OSS will show a regression trend of reliability if ${\beta }_i(i=1,2,3)$ is a negative value. Conversely, the OSS will show a reliability growth trend if ${\beta }_i(i=1,2,3)$ is a positive value. Moreover, ${\sigma }_1$, ${\sigma }_2$, and ${\sigma }_3$ are noisy factors in terms of the magnitude of noisy fluctuation. ${\omega }_i\left(t\right)$ is the i-th Wiener process. Furthermore, b is the detection rate per fault and c is defined as the parameter of fault factor.

In addition, the integrated equation is as follows:

$$\begin{array}{c}\hfill M\left(t\right)=R\left(t\right)\left[1-\frac{1+c}{1+c·exp(-bt)}·\exp \left\{-bt-{\sigma }_1{\omega }_1\left(t\right)-{\sigma }_2{\omega }_2\left(t\right)-{\sigma }_3{\omega }_3\left(t\right)\right\}\right].\end{array}$$

(7)

In the proposed model, by considering the independence of each noise, we can assume that the parameter ${\sigma }_1$ means the failure-occurrence phenomenon due to inherent faults. The parameter ${\sigma }_2$ means the network changing rate per unit time resulting from OSS cloud computing. The parameter ${\sigma }_3$ means the renewal rate per unit time resulting from big data.

Considering our model in Equation (7), the effort and fault data sets are only used as reliability data. On the other hand, various data sets are recorded in the bug-tracking system. Moreover, the amount of data in the bug-tracking system is huge. By using all the data recorded on the bug-tracking system, we take advantage of the amount of information in terms of many fault factors.

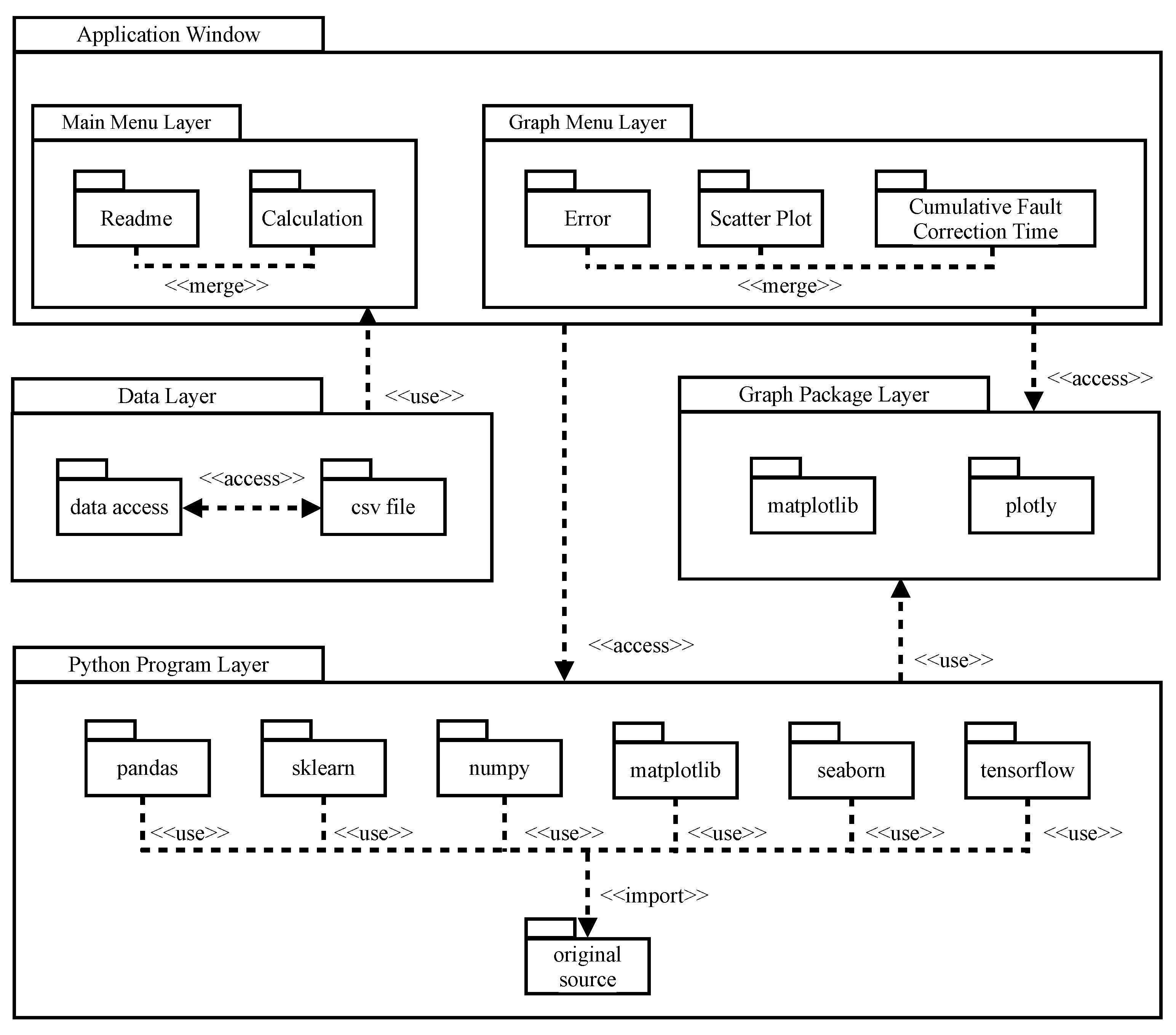

In this paper, we will be able to understand edge OSS reliability by using three-dimensional modeling from the standpoint of fault levels. The procedure of deep learning in this paper is shown in Figure 3. Moreover, we show the steps of the proposed prototype as follows:

• The user of the prototype starts from the main menu by running our application. In addition, the user completes data preprocessing.
• The user selects the calculation button. Then, the application window calls the Python program. In addition, the Python program imports the tensorflow package. Moreover, the proposed deep learning algorithm is executed by using Figure 3.

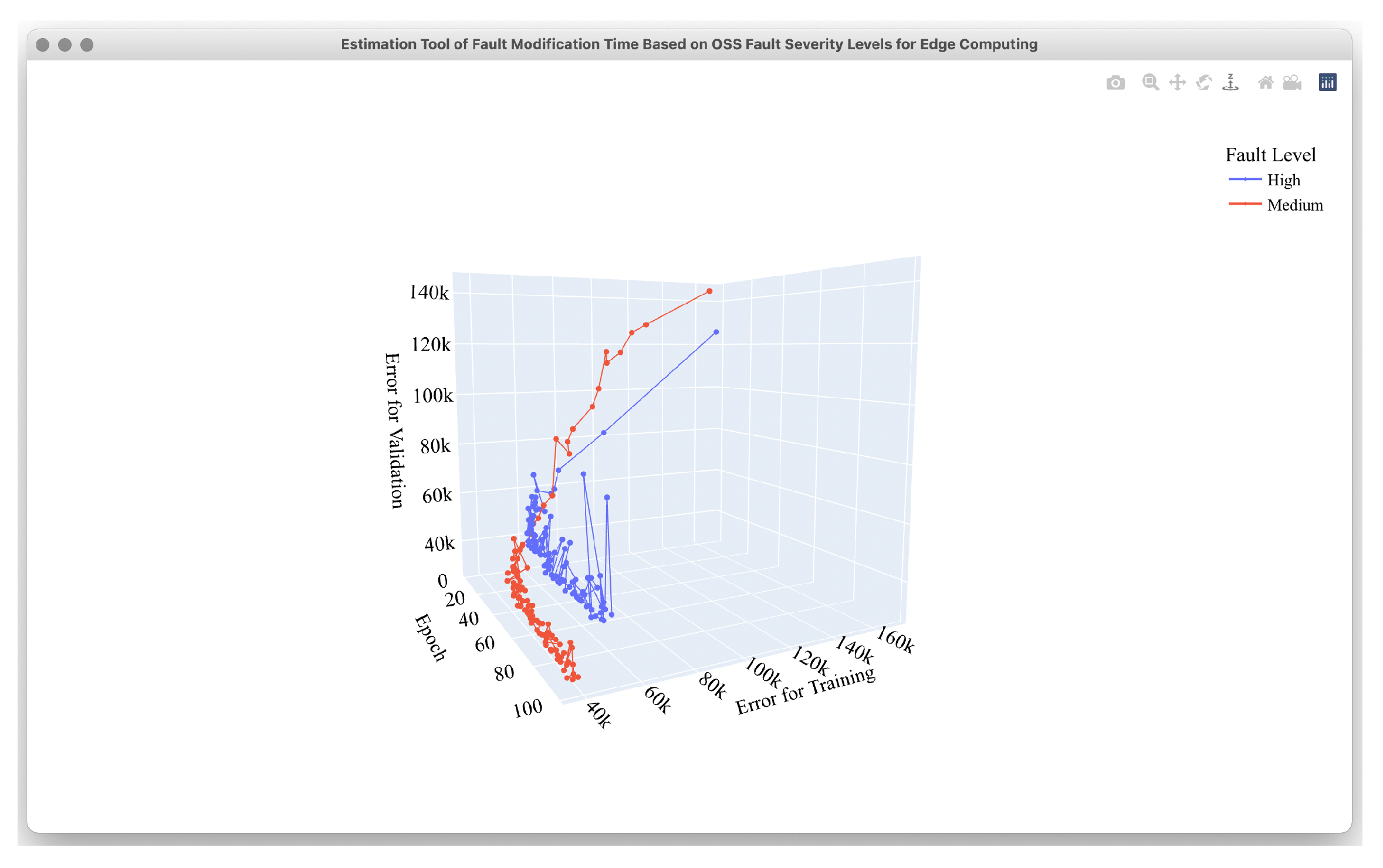

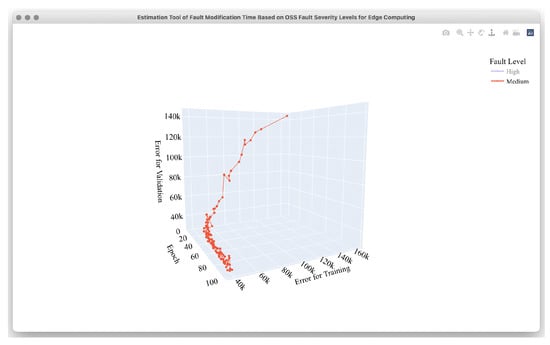

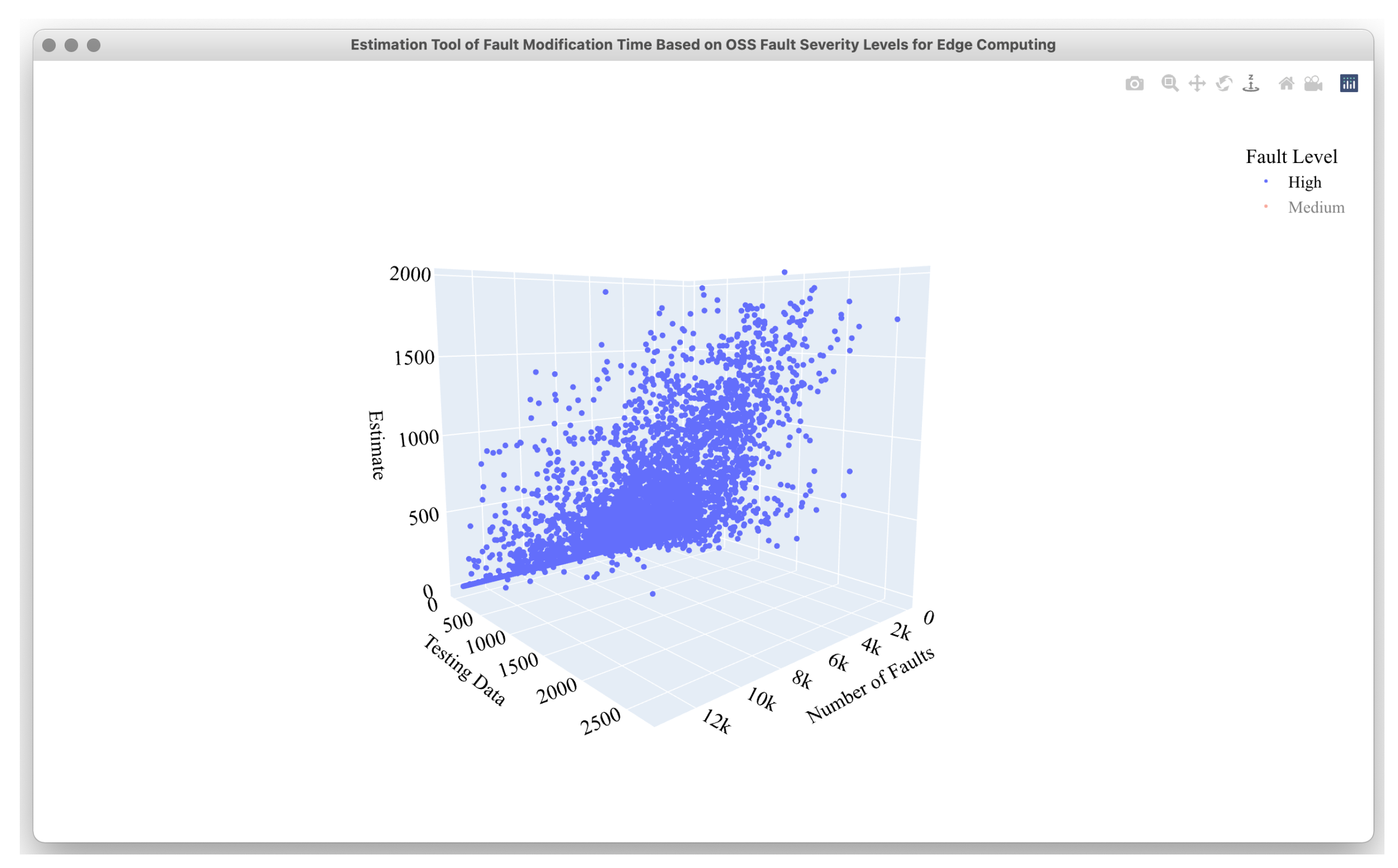

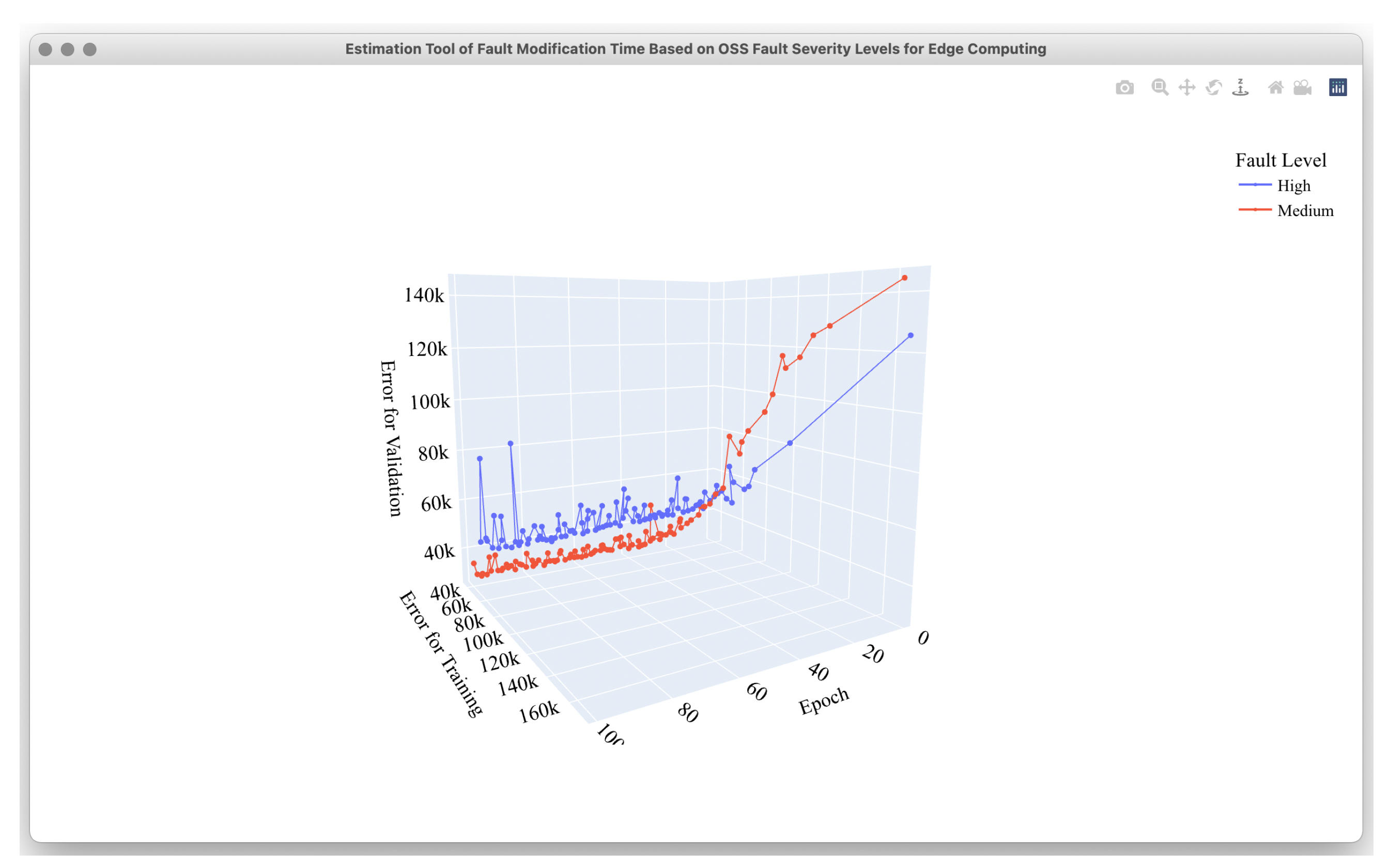

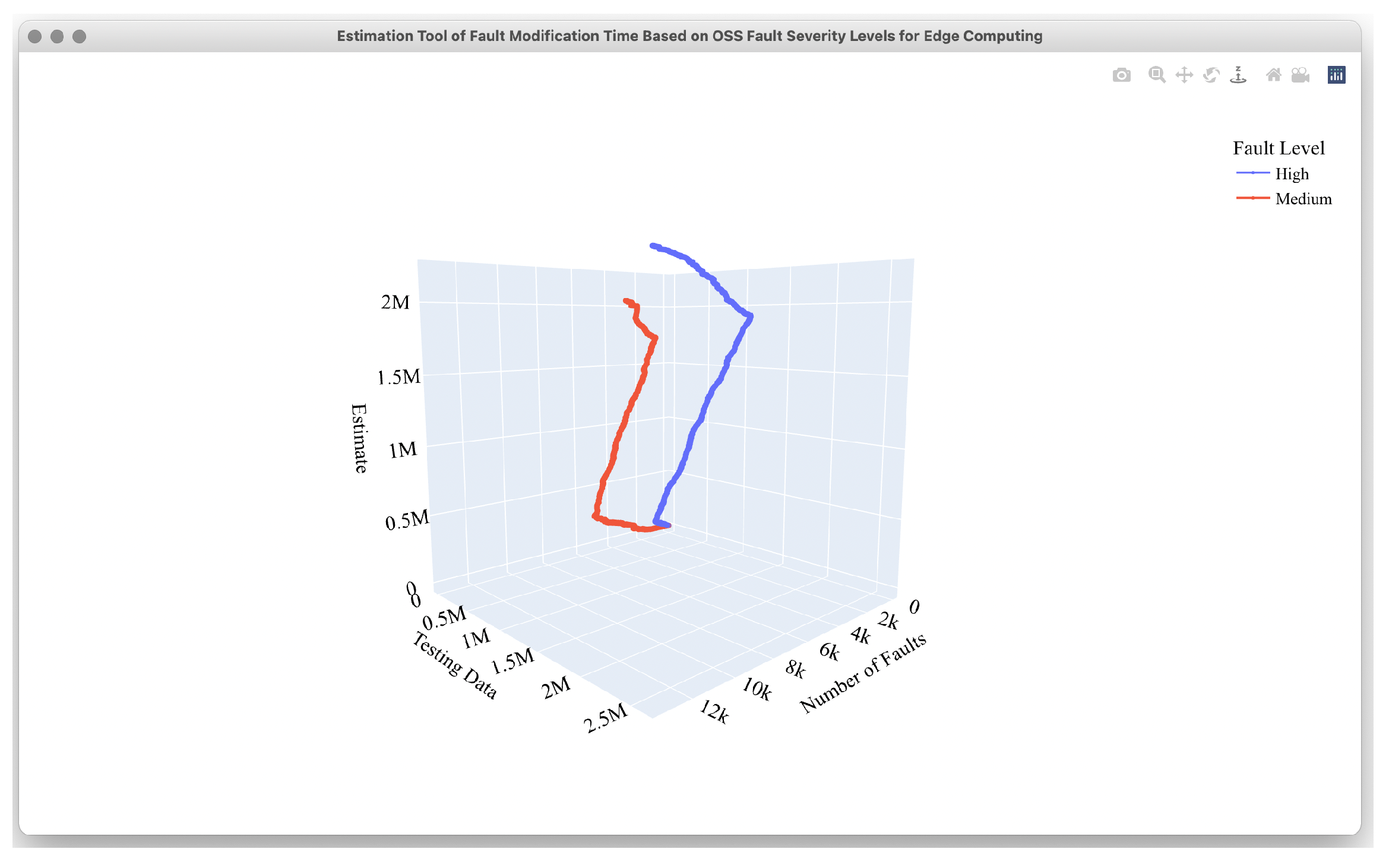

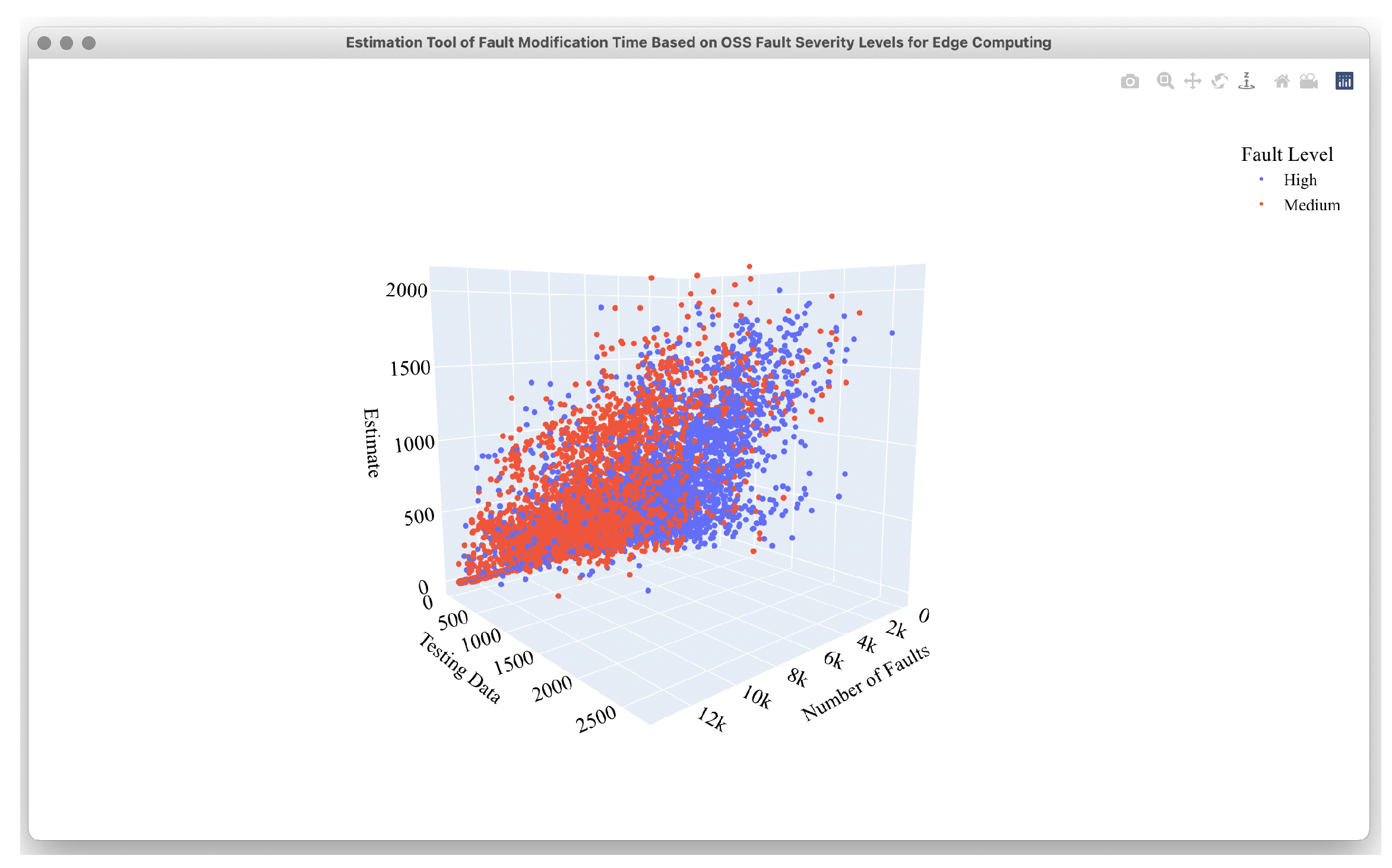

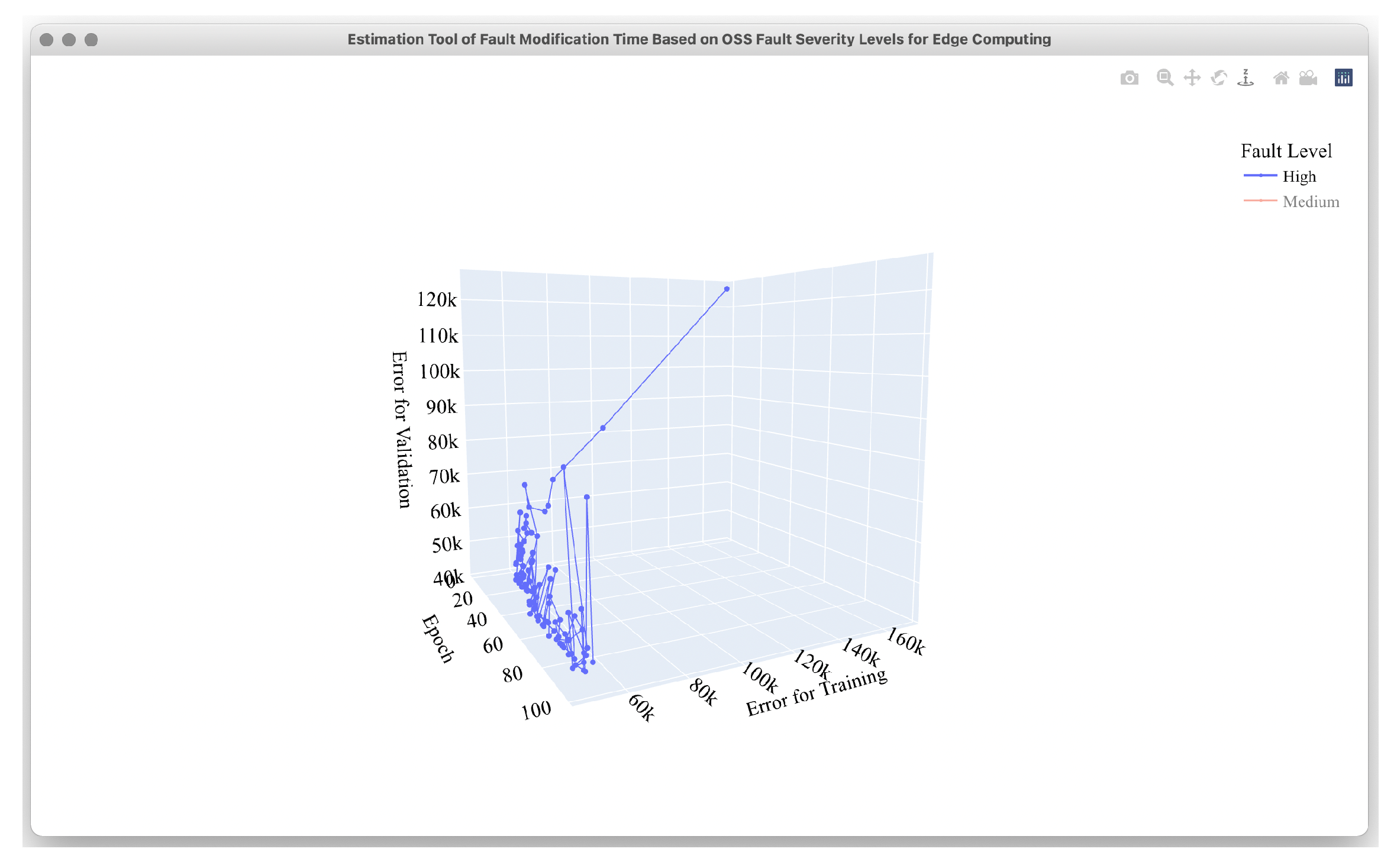

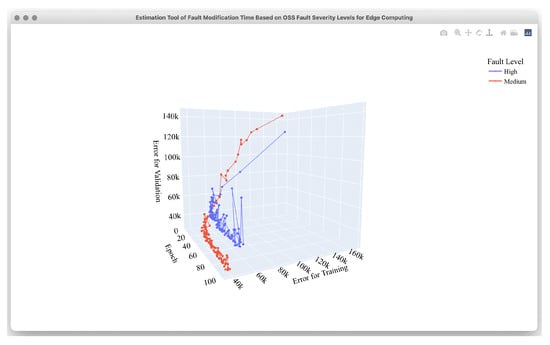

• After the completion of the learning phase, several reliability assessment measures are illustrated by selecting the graph button.

We use the data preprocessing method proposed in Section 5. For example, all data sets have been converted from

Table 1. A part of raw data logged on the bug-tracking system.

Bug ID	Opened	Changed	Reporter	Product	Component	Status	Resolution	Hardware	OS	Severity	Version
985361	2013/7/17 10:56	2014/1/9 19:40	Jaroslav Henner	Red Hat OpenStack	openstack-packstack	CLOSED	ERRATA	x86_64	Linux	medium	3
1146938	2014/9/26 11:50	2016/4/26 13:26	Sunil Thaha	Red Hat OpenStack	openstack-glance	CLOSED	CURRENTRELEASE	Unspecified	All	unspecified	5.0 (RHEL 7)
1155592	2014/10/22 12:52	2016/4/26 13:50	Marian Krcmarik	Red Hat OpenStack	openstack-cinder	CLOSED	ERRATA	Unspecified	Unspecified	unspecified	5.0 (RHEL 7)
1157619	2014/10/27 11:31	2016/4/26 13:35	Marko Myllynen	Red Hat OpenStack	openstack-cinder	CLOSED	CURRENTRELEASE	Unspecified	Unspecified	unspecified	5.0 (RHEL 7)
1163421	2014/11/12 16:42	2015/9/10 11:45	Lon Hohberger	Red Hat OpenStack	openstack-trove	CLOSED	ERRATA	Unspecified	Unspecified	unspecified	5.0 (RHEL 7)
1169145	2014/11/30 17:56	2016/4/27 2:17	bkopilov	Red Hat OpenStack	openstack-glance	CLOSED	CURRENTRELEASE	x86_64	Linux	high	6.0 (Juno)
1170343	2014/12/3 21:01	2016/4/26 22:06	Lon Hohberger	Red Hat OpenStack	openstack-glance	CLOSED	ERRATA	Unspecified	Unspecified	unspecified	6.0 (Juno)
1174760	2014/12/16 12:37	2016/4/26 22:58	Dafna Ron	Red Hat OpenStack	openstack-cinder	CLOSED	DUPLICATE	x86_64	Linux	urgent	6.0 (Juno)
1184349	2015/1/21 7:35	2016/4/26 18:02	bkopilov	Red Hat OpenStack	openstack-cinder	CLOSED	NOTABUG	x86_64	Linux	high	6.0 (Juno)
1186395	2015/1/27 15:36	2016/4/26 15:16		Red Hat OpenStack	openstack-cinder	CLOSED	WONTFIX	Unspecified	Unspecified	unspecified	5.0 (RHEL 7)
1209584	2015/4/7 17:13	2015/5/12 4:04	Luigi Toscano	Red Hat OpenStack	openstack-trove	CLOSED	ERRATA	Unspecified	Unspecified	unspecified	6.0 (Juno)
1254711	2015/8/18 17:29	2016/4/26 17:48	Lon Hohberger	Red Hat OpenStack	openstack-glance	CLOSED	ERRATA	Unspecified	Unspecified	unspecified	5.0 (RHEL 7)
1254718	2015/8/18 17:31	2016/4/26 14:59	Lon Hohberger	Red Hat OpenStack	openstack-glance	CLOSED	ERRATA	Unspecified	Unspecified	unspecified	5.0 (RHEL 6)
1304111	2016/2/2 22:17	2016/12/14 15:22	Dustin Schoenbrun	Red Hat OpenStack	openstack-manila-ui	CLOSED	ERRATA	Unspecified	Unspecified	high	8.0 (Liberty)
1314821	2016/3/4 15:45	2016/4/26 15:10	Flavio Percoco	Red Hat OpenStack	openstack-glance	CLOSED	ERRATA	Unspecified	Unspecified	unspecified	8.0 (Liberty)
1333884	2016/5/6 14:37	2016/8/11 12:19	Harry Rybacki	Red Hat OpenStack	openstack-tempest	CLOSED	ERRATA	Unspecified	Unspecified	unspecified	9.0 (Mitaka)
1346749	2016/6/15 9:54	2016/8/11 12:25	Anshul Behl	Red Hat OpenStack	openstack-ironic	CLOSED	ERRATA	Unspecified	Unspecified	unspecified	9.0 (Mitaka)
1441796	2017/4/12 18:12	2017/4/12 18:13		Red Hat OpenStack	openstack-ironic-inspector	CLOSED	NOTABUG	Unspecified	Unspecified	unspecified	7.0 (Kilo)
1455490	2017/5/25 10:24	2020/7/16 9:39	Eduard Barrera	Red Hat OpenStack	openstack-tripleo	CLOSED	DUPLICATE	Unspecified	Unspecified	unspecified	10.0 (Newton)
1544713	2018/2/13 11:14	2019/9/9 16:48	Punit Kundal	Red Hat OpenStack	openstack-nova	CLOSED	INSUFFICIENT_DATA	Unspecified	Unspecified	medium	10.0 (Newton)
1545722	2018/2/15 14:26	2021/3/11 17:11	David Vallee Delisle	Red Hat OpenStack	openstack-nova	CLOSED	WONTFIX	Unspecified	Unspecified	unspecified	10.0 (Newton)
1545809	2018/2/15 15:38	2021/3/11 17:12	KOSAL RAJ I	Red Hat OpenStack	openstack-nova	CLOSED	INSUFFICIENT_DATA	Unspecified	Unspecified	high	10.0 (Newton)
1547969	2018/2/22 12:38	2019/9/9 13:10	Madhur Gupta	Red Hat OpenStack	openstack-nova	CLOSED	DUPLICATE	x86_64	Linux	medium	10.0 (Newton)
1551911	2018/3/6 7:09	2019/9/9 15:56	Petersingh Anburaj	Red Hat OpenStack	openstack-nova	CLOSED	WONTFIX	Unspecified	Unspecified	high	11.0 (Ocata)
1552761	2018/3/7 16:47	2019/9/9 13:22	Stephen Gordon	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	unspecified	10.0 (Newton)
1554341	2018/3/12 13:42	2019/9/9 14:42	Carlos Camacho	Red Hat OpenStack	openstack-nova	CLOSED	WONTFIX	All	All	high	10.0 (Newton)
1557383	2018/3/16 14:02	2019/9/9 15:05	David Vallee Delisle	Red Hat OpenStack	openstack-nova	CLOSED	INSUFFICIENT_DATA	Unspecified	Unspecified	low	12.0 (Pike)
1561008	2018/3/27 12:37	2019/9/9 17:08	Maxim Babushkin	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	urgent	13.0 (Queens)
1561636	2018/3/28 15:52	2019/9/9 16:19	Alexander Chuzhoy	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	unspecified	13.0 (Queens)
1562154	2018/3/29 16:06	2019/9/9 16:17	Dariusz Wojewdzki	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	high	10.0 (Newton)
1563646	2018/4/4 11:45	2019/9/9 14:37	Gurenko Alex	Red Hat OpenStack	openstack-nova	CLOSED	DUPLICATE	Unspecified	Unspecified	medium	13.0 (Queens)
1565532	2018/4/10 8:56	2019/9/9 15:43	Arie Bregman	Red Hat OpenStack	openstack-nova	CLOSED	DUPLICATE	Unspecified	Unspecified	high	12.0 (Pike)
1565533	2018/4/10 8:58	2019/9/9 15:30	Arie Bregman	Red Hat OpenStack	openstack-nova	CLOSED	DUPLICATE	Unspecified	Unspecified	high	11.0 (Ocata)
1567601	2018/4/15 9:54	2019/9/9 13:31	Noam Manos	Red Hat OpenStack	openstack-nova	CLOSED	INSUFFICIENT_DATA	Unspecified	Unspecified	unspecified	13.0 (Queens)
1568262	2018/4/17 4:51	2019/10/16 0:49	Pradipta Kumar Sahoo	Red Hat OpenStack	openstack-nova	CLOSED	WONTFIX	x86_64	Linux	medium	12.0 (Pike)
1569107	2018/4/18 15:43	2020/12/21 19:40	David Hill	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	unspecified	10.0 (Newton)
1569238	2018/4/18 20:53	2020/12/21 19:33	Siggy Sigwald	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	x86_64	Linux	high	10.0 (Newton)
1571499	2018/4/25 2:20	2019/9/9 13:50	Sai Sindhur Malleni	Red Hat OpenStack	openstack-nova	CLOSED	INSUFFICIENT_DATA	Unspecified	Unspecified	unspecified	13.0 (Queens)
1572547	2018/4/27 9:58	2020/12/21 19:38		Red Hat OpenStack	openstack-nova	CLOSED	WONTFIX	Unspecified	Linux	high	10.0 (Newton)
1572833	2018/4/28 2:16	2019/9/9 15:57	Lars Kellogg-Stedman	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	unspecified	12.0 (Pike)
1573269	2018/4/30 17:20	2019/9/9 13:54	Lars Kellogg-Stedman	Red Hat OpenStack	openstack-nova	CLOSED	DUPLICATE	Unspecified	Unspecified	unspecified	12.0 (Pike)
1574465	2018/5/3 11:30	2020/12/21 19:36		Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	x86_64	Linux	urgent	13.0 (Queens)
1575753	2018/5/7 19:47	2020/12/21 19:36	bigswitch	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	unspecified	10.0 (Newton)
1579136	2018/5/17 4:06	2020/12/21 19:36		Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	high	13.0 (Queens)
1582845	2018/5/27 11:33	2019/9/9 13:22		Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	unspecified	13.0 (Queens)
1584118	2018/5/30 10:33	2020/12/21 19:36	Andre	Red Hat OpenStack	openstack-nova	CLOSED	WONTFIX	Unspecified	Unspecified	unspecified	unspecified
1584268	2018/5/30 15:21	2019/9/9 16:21	Dan Smith	Red Hat OpenStack	openstack-nova	CLOSED	DUPLICATE	Unspecified	Unspecified	unspecified	15.0 (Stein)
1586267	2018/6/5 20:19	2019/9/9 15:29	Tim Quinlan	Red Hat OpenStack	openstack-nova	CLOSED	INSUFFICIENT_DATA	x86_64	Linux	low	10.0 (Newton)
1591091	2018/6/14 4:18	2019/9/9 14:17	Anil Dhingra	Red Hat OpenStack	openstack-nova	CLOSED	WONTFIX	All	Linux	medium	10.0 (Newton)
1592123	2018/6/17 13:43	2019/9/9 14:00	Arkady Shtempler	Red Hat OpenStack	openstack-nova	CLOSED	WONTFIX	Unspecified	Unspecified	unspecified	13.0 (Queens)
1593751	2018/6/21 14:07	2020/12/21 19:45	Artom Lifshitz	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	unspecified	13.0 (Queens)
1594454	2018/6/23 5:25	2019/9/9 14:26	Cody Swanson	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	x86_64	Linux	medium	10.0 (Newton)
1596706	2018/6/29 13:52	2019/9/9 13:26	Mikel Olasagasti	Red Hat OpenStack	openstack-nova	CLOSED	WONTFIX	Unspecified	Unspecified	unspecified	10.0 (Newton)
1598624	2018/7/6 2:56	2019/9/9 17:05	Meiyan Zheng	Red Hat OpenStack	openstack-nova	CLOSED	WONTFIX	Unspecified	Unspecified	unspecified	10.0 (Newton)
1600641	2018/7/12 16:37	2019/9/9 16:16	Rajini Karthik	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	urgent	13.0 (Queens)
1601123	2018/7/14 0:18	2019/9/9 14:09	Stan Toporek	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	urgent	7.0 (Kilo)
1607467	2018/7/23 15:31	2019/9/9 16:50	Masaki Furuta ( RH )	Red Hat OpenStack	openstack-nova	CLOSED	INSUFFICIENT_DATA	Unspecified	Unspecified	unspecified	12.0 (Pike)
1608487	2018/7/25 15:48	2019/9/9 13:41	David Gurtner	Red Hat OpenStack	openstack-nova	CLOSED	INSUFFICIENT_DATA	Unspecified	Unspecified	unspecified	13.0 (Queens)
1608531	2018/7/25 17:57	2019/9/9 15:52	Jeya ganesh babu J	Red Hat OpenStack	openstack-nova	CLOSED	DUPLICATE	Unspecified	Linux	high	13.0 (Queens)
1615736	2018/8/14 7:03	2019/9/9 15:28	Gyanendra Kumar	Red Hat OpenStack	openstack-nova	CLOSED	WONTFIX	Unspecified	All	high	13.0 (Queens)
1616398	2018/8/15 19:30	2019/9/9 15:28	Andreas Karis	Red Hat OpenStack	openstack-nova	CLOSED	CANTFIX	Unspecified	Unspecified	unspecified	10.0 (Newton)
1620195	2018/8/22 16:15	2019/9/9 15:33	Federico Iezzi	Red Hat OpenStack	openstack-nova	CLOSED	DUPLICATE	Unspecified	Unspecified	unspecified	13.0 (Queens)
1622950	2018/8/28 8:48	2019/11/20 14:19	Anil Dhingra	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	high	10.0 (Newton)
1624262	2018/8/31 6:50	2019/9/9 13:09	Yurii Prokulevych	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	unspecified	8.0 (Liberty)
1624266	2018/8/31 7:02	2020/12/21 19:33	Yurii Prokulevych	Red Hat OpenStack	openstack-nova	CLOSED	DUPLICATE	Unspecified	Unspecified	unspecified	8.0 (Liberty)
1624521	2018/8/31 21:51	2019/9/9 13:06	Archit Modi	Red Hat OpenStack	openstack-nova	CLOSED	DUPLICATE	Unspecified	Unspecified	unspecified	13.0 (Queens)
1625319	2018/9/4 16:06	2019/9/9 14:00	Andreas Karis	Red Hat OpenStack	openstack-nova	CLOSED	INSUFFICIENT_DATA	Unspecified	Unspecified	unspecified	12.0 (Pike)
1632028	2018/9/23 13:17	2019/9/9 16:17	David Hill	Red Hat OpenStack	openstack-nova	CLOSED	INSUFFICIENT_DATA	x86_64	All	low	10.0 (Newton)
1633804	2018/9/27 19:04	2019/9/9 15:38	Danylo Kholodov	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	medium	14.0 (Rocky)
1635568	2018/10/3 9:29	2019/9/9 14:10	Vadim Khitrin	Red Hat OpenStack	openstack-nova	CLOSED	DUPLICATE	Unspecified	Unspecified	urgent	13.0 (Queens)
1635666	2018/10/3 13:03	2019/9/9 14:33	Archit Modi	Red Hat OpenStack	openstack-nova	CLOSED	WONTFIX	Unspecified	Unspecified	unspecified	11.0 (Ocata)
1638095	2018/10/10 16:26	2019/9/9 13:18		Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	unspecified	14.0 (Rocky)
1638368	2018/10/11 12:03	2019/9/9 16:08		Red Hat OpenStack	openstack-nova	CLOSED	WONTFIX	Unspecified	Unspecified	urgent	10.0 (Newton)
1638923	2018/10/12 20:15	2020/12/21 19:33		Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	high	13.0 (Queens)
1639334	2018/10/15 13:43	2019/9/9 13:30	Sasha Smolyak	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	unspecified	14.0 (Rocky)
1639423	2018/10/15 17:02	2019/9/9 13:17	Sai Sindhur Malleni	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	unspecified	13.0 (Queens)
1641597	2018/10/22 10:00	2019/9/9 14:25	Mike Abrams	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	x86_64	Linux	unspecified	14.0 (Rocky)
1641610	2018/10/22 10:50	2019/9/9 15:53	Mike Abrams	Red Hat OpenStack	openstack-nova	CLOSED	DUPLICATE	x86_64	Linux	unspecified	14.0 (Rocky)
1642047	2018/10/23 13:17	2020/6/5 4:13	Eduard Barrera	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	unspecified	12.0 (Pike)
1642070	2018/10/23 14:11	2020/12/21 19:38	Noam Manos	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	high	13.0 (Queens)
1643147	2018/10/25 15:17	2019/9/9 15:21	Raoul Scarazzini	Red Hat OpenStack	openstack-nova	CLOSED	DUPLICATE	Unspecified	Unspecified	unspecified	14.0 (Rocky)
1643419	2018/10/26 8:20	2019/12/3 20:16	Alex Stupnikov	Red Hat OpenStack	openstack-nova	CLOSED	WONTFIX	Unspecified	Unspecified	high	13.0 (Queens)
1643420	2018/10/26 8:22	2019/9/9 14:54	Alex Stupnikov	Red Hat OpenStack	openstack-nova	CLOSED	WONTFIX	Unspecified	Unspecified	high	12.0 (Pike)
1643784	2018/10/28 17:26	2019/9/9 15:07	Alex Stupnikov	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	x86_64	Linux	medium	10.0 (Newton)
1644549	2018/10/31 6:25	2020/12/21 19:36	Prasad Mukhedkar	Red Hat OpenStack	openstack-nova	CLOSED	INSUFFICIENT_DATA	x86_64	Linux	high	12.0 (Pike)
1646447	2018/11/5 14:58	2019/9/9 13:10	Archit Modi	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	unspecified	14.0 (Rocky)
1646457	2018/11/5 15:08	2019/9/9 13:11	Archit Modi	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	unspecified	14.0 (Rocky)
1649937	2018/11/14 20:58	2020/12/21 19:35	Alexander Chuzhoy	Red Hat OpenStack	openstack-nova	CLOSED	WORKSFORME	Unspecified	Unspecified	unspecified	14.0 (Rocky)
1650192	2018/11/15 14:56	2019/9/9 15:49	Lars Kellogg-Stedman	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	unspecified	13.0 (Queens)
1652197	2018/11/21 16:33	2019/9/9 13:44	Vadim Khitrin	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	unspecified	14.0 (Rocky)
1654288	2018/11/28 12:06	2018/12/13 12:38		Red Hat OpenStack	openstack-tripleo-common	CLOSED	NOTABUG	Unspecified	Unspecified	high	14.0 (Rocky)
1655476	2018/12/3 9:19	2019/9/9 15:48	Eduard Barrera	Red Hat OpenStack	openstack-nova	CLOSED	WONTFIX	Unspecified	Unspecified	unspecified	15.0 (Stein)
1655480	2018/12/3 9:32	2019/9/9 13:18	Yurii Prokulevych	Red Hat OpenStack	openstack-nova	CLOSED	DUPLICATE	Unspecified	Unspecified	unspecified	14.0 (Rocky)
1655510	2018/12/3 10:40	2019/9/9 16:54	Eduard Barrera	Red Hat OpenStack	openstack-nova	CLOSED	INSUFFICIENT_DATA	Unspecified	Unspecified	unspecified	13.0 (Queens)
1655989	2018/12/4 11:39	2019/9/9 13:51		Red Hat OpenStack	openstack-nova	CLOSED	INSUFFICIENT_DATA	x86_64	Linux	medium	10.0 (Newton)
1657391	2018/12/7 21:18	2019/9/9 17:07		Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	unspecified	14.0 (Rocky)
1658105	2018/12/11 9:28	2019/9/9 13:22	Arkady Shtempler	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Linux	medium	14.0 (Rocky)
1658151	2018/12/11 11:55	2020/12/21 19:38	Noam Manos	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	urgent	14.0 (Rocky)
1659539	2018/12/14 16:02	2019/9/9 13:11	Krish Raghuram	Red Hat OpenStack	openstack-nova	CLOSED	DEFERRED	x86_64	Linux	high	16.0 (Train)
1661190	2018/12/20 10:50	2019/9/9 13:59	Noam Manos	Red Hat OpenStack	openstack-nova	CLOSED	NOTABUG	Unspecified	Unspecified	medium	14.0 (Rocky)

to

Table 2. A part of the numeric values converted from the raw data.

Bug ID	Opened	Changed	Reporter	Product	Component	Status	Resolution	Hardware	OS	Severity	Version	Summary
985361			0.005716067	1	0.0463	1	0.4148	0.1595	0.2304	0.1164	0.0204	60
1146938	436.0377315	837.7402662	0.000103928	1	0.0249	1	0.0892	0.7671	0.0292	0.2721	0.0567	53
1155592	26.04289352	0.016435185	0.001974641	1	0.0806	1	0.4148	0.7671	0.7401	0.2721	0.0567	65
1157619	4.943796296	0	0.001870713	1	0.0806	1	0.0892	0.7671	0.7401	0.2721	0.0567	47
1163421	16.21612269	0	0.014446061	1	0.0024	1	0.4148	0.7671	0.7401	0.2721	0.0567	50
1169145	18.05128472	229.605544	0.006027853	1	0.0249	1	0.0892	0.1595	0.2304	0.3469	0.0469	55
1170343	3.128715278	0	0.014446061	1	0.0249	1	0.4148	0.7671	0.7401	0.2721	0.0469	35
1174760	12.64994213	0.03587963	0.010600707	1	0.0806	1	0.134	0.1595	0.2304	0.2311	0.0469	130
1184349	35.78974537	0	0.006027853	1	0.0806	1	0.1728	0.1595	0.2304	0.3469	0.0469	68
1186395	6.334305556	0	0	1	0.0806	1	0.0752	0.7671	0.7401	0.2721	0.0567	96
1209584	70.06747685	0	0.003325712	1	0.0024	1	0.4148	0.7671	0.7401	0.2721	0.0469	78
1254711	133.0113194	350.5725579	0.014446061	1	0.0249	1	0.4148	0.7671	0.7401	0.2721	0.0567	35
1254718	0.001238426	0	0.014446061	1	0.0249	1	0.4148	0.7671	0.7401	0.2721	0.0174	35
1304111	168.1981829	232.0158218	0.001662856	1	0.0009	1	0.4148	0.7671	0.7401	0.3469	0.0685	63
1314821	30.72837963	0	0.001870713	1	0.0249	1	0.4148	0.7671	0.7401	0.2721	0.0685	32
1333884	62.9521412	106.8807755	0.002702141	1	0.0097	1	0.4148	0.7671	0.7401	0.2721	0.0399	107
1346749	39.80396991	0.00443287	0.000831428	1	0.0263	1	0.4148	0.7671	0.7401	0.2721	0.0399	68
1441796	301.3458333	244.2415972	0	1	0.0062	1	0.1728	0.7671	0.7401	0.2721	0.0824	8
1455490	42.67511574	1190.643229	0.012783205	1	0.0397	1	0.134	0.7671	0.7401	0.2721	0.1183	101
1544713	264.0345718	0	0.001870713	1	0.1365	1	0.0409	0.7671	0.7401	0.1164	0.1183	75
1545722	2.132893519	549.0164583	0.003741426	1	0.1365	1	0.0752	0.7671	0.7401	0.2721	0.1183	110
1545809	0.05056713	6.94444E-05	0.002286427	1	0.1365	1	0.0409	0.7671	0.7401	0.3469	0.1183	41
1547969	6.874780093	0	0.000727499	1	0.1365	1	0.134	0.1595	0.2304	0.1164	0.1183	59
1551911	11.77181713	0.114930556	0.000207857	1	0.1365	1	0.0752	0.7671	0.7401	0.3469	0.0419	37
1552761	1.401342593	0	0.007482852	1	0.1365	1	0.1728	0.7671	0.7401	0.2721	0.1183	38
1554341	4.870891204	0.055185185	0.001039285	1	0.1365	1	0.0752	0.0724	0.0292	0.3469	0.1183	31
1557383	4.014224537	0.016006944	0.003741426	1	0.1365	1	0.0409	0.7671	0.7401	0.0335	0.0611	50
1561008	10.94109954	0.085821759	0.00207857	1	0.1365	1	0.1728	0.7671	0.7401	0.2311	0.1391	59
1561636	1.135023148	0	0.019746414	1	0.1365	1	0.1728	0.7671	0.7401	0.2721	0.1391	126
1562154	1.010023148	0	0.000727499	1	0.1365	1	0.1728	0.7671	0.7401	0.3469	0.1183	28
1563646	5.818923611	0	0.003013926	1	0.1365	1	0.134	0.7671	0.7401	0.1164	0.1391	55
1565532	5.882407407	0.045810185	0.008626065	1	0.1365	1	0.134	0.7671	0.7401	0.3469	0.0611	189
1565533	0.001759259	0	0.008626065	1	0.1365	1	0.134	0.7671	0.7401	0.3469	0.0419	189
1567601	5.038449074	0	0.001558927	1	0.1365	1	0.0409	0.7671	0.7401	0.2721	0.1391	56
1568262	1.789571759	36.47054398	0.002390355	1	0.1365	1	0.0752	0.1595	0.2304	0.1164	0.0611	39
1569107	1.453032407	432.7852546	0.014030347	1	0.1365	1	0.1728	0.7671	0.7401	0.2721	0.1183	126
1569238	0.214930556	0	0.004261068	1	0.1365	1	0.1728	0.1595	0.2304	0.3469	0.1183	70
1571499	6.22755787	0	0.003845354	1	0.1365	1	0.0409	0.7671	0.7401	0.2721	0.1391	42
1572547	2.317615741	469.2414699	0	1	0.1365	1	0.0752	0.7671	0.2304	0.3469	0.1183	54
1572833	0.679189815	0	0.004884639	1	0.1365	1	0.1728	0.7671	0.7401	0.2721	0.0611	65
1573269	2.62775463	0	0.004884639	1	0.1365	1	0.134	0.7671	0.7401	0.2721	0.0611	77
1574465	2.757268519	469.2371875	0	1	0.1365	1	0.1728	0.1595	0.2304	0.2311	0.1391	35
1575753	4.344849537	0.000428241	0.003221783	1	0.1365	1	0.1728	0.7671	0.7401	0.2721	0.1183	80
1579136	9.346736111	0	0	1	0.1365	1	0.1728	0.7671	0.7401	0.3469	0.1391	55
1582845	10.31016204	0	0	1	0.1365	1	0.1728	0.7671	0.7401	0.2721	0.1391	28
1584118	2.958611111	469.2595023	0.001662856	1	0.1365	1	0.0752	0.7671	0.7401	0.2721	0.0471	44
1584268	0.200104167	0	0.000727499	1	0.1365	1	0.134	0.7671	0.7401	0.2721	0.0417	64
1586267	6.206446759	0	0.000519642	1	0.1365	1	0.0409	0.1595	0.2304	0.0335	0.1183	52
1591091	8.333009259	0	0.00135107	1	0.1365	1	0.0752	0.0724	0.2304	0.1164	0.1183	81
1592123	3.392222222	0	0.000935356	1	0.1365	1	0.0752	0.7671	0.7401	0.2721	0.1391	73
1593751	4.016793981	469.2395602	0.001974641	1	0.1365	1	0.1728	0.7671	0.7401	0.2721	0.1391	23
1594454	1.637523148	0	0.000415714	1	0.1365	1	0.1728	0.1595	0.2304	0.1164	0.1183	56
1596706	6.351828704	0	0.000623571	1	0.1365	1	0.0752	0.7671	0.7401	0.2721	0.1183	81
1598624	6.544340278	0.151666667	0.001662856	1	0.1365	1	0.0752	0.7671	0.7401	0.2721	0.1183	124
1600641	6.570659722	0	0.003741426	1	0.1365	1	0.1728	0.7671	0.7401	0.2311	0.1391	60
1601123	1.320127315	0	0.000935356	1	0.1365	1	0.1728	0.7671	0.7401	0.2311	0.0824	40
1607467	9.633449074	0.111770833	0.001039285	1	0.1365	1	0.0409	0.7671	0.7401	0.2721	0.0611	47
1608487	2.012071759	0	0.000519642	1	0.1365	1	0.0409	0.7671	0.7401	0.2721	0.1391	94
1608531	0.089618056	0.091030093	0.000103928	1	0.1365	1	0.134	0.7671	0.2304	0.3469	0.1391	64
1615736	19.54592593	0	0.001143213	1	0.1365	1	0.0752	0.7671	0.0292	0.3469	0.1391	82
1616398	1.518356481	0	0.012991062	1	0.1365	1	0.0048	0.7671	0.7401	0.2721	0.1183	87
1620195	6.865219907	0.003831019	0.000831428	1	0.1365	1	0.134	0.7671	0.7401	0.2721	0.1391	59
1622950	5.689363426	71.94840278	0.00135107	1	0.1365	1	0.1728	0.7671	0.7401	0.3469	0.1183	41
1624262	2.917986111	0	0.016420703	1	0.1365	1	0.1728	0.7671	0.7401	0.2721	0.0685	79
1624266	0.008032407	469.266331	0.016420703	1	0.1365	1	0.134	0.7671	0.7401	0.2721	0.0685	72
1624521	0.617905093	0	0.005404282	1	0.1365	1	0.134	0.7671	0.7401	0.2721	0.1391	67
1625319	3.759837963	0.037256944	0.012991062	1	0.1365	1	0.0409	0.7671	0.7401	0.2721	0.0611	113
1632028	18.88309028	0.095555556	0.014030347	1	0.1365	1	0.0409	0.1595	0.0292	0.0335	0.1183	63
1633804	4.240555556	0	0.000103928	1	0.1365	1	0.1728	0.7671	0.7401	0.1164	0.051	57
1635568	5.600960648	0	0.001870713	1	0.1365	1	0.134	0.7671	0.7401	0.2311	0.1391	71
1635666	0.148738426	0.016469907	0.005404282	1	0.1365	1	0.0752	0.7671	0.7401	0.2721	0.0419	63
1638095	7.140706019	0	0	1	0.1365	1	0.1728	0.7671	0.7401	0.2721	0.051	55
1638368	0.817847222	0.118148148	0	1	0.1365	1	0.0752	0.7671	0.7401	0.2311	0.1183	175
1638923	1.341018519	469.1426389	0	1	0.1365	1	0.1728	0.7671	0.7401	0.3469	0.1391	56
1639334	2.728402778	0	0.003637497	1	0.1365	1	0.1728	0.7671	0.7401	0.2721	0.051	92
1639423	0.137685185	0	0.003845354	1	0.1365	1	0.1728	0.7671	0.7401	0.2721	0.1391	40
1641597	6.706840278	0.047384259	0.003325712	1	0.1365	1	0.1728	0.1595	0.2304	0.2721	0.051	106
1641610	0.034861111	0.060983796	0.003325712	1	0.1365	1	0.134	0.1595	0.2304	0.2721	0.051	64
1642047	1.102013889	269.5134144	0.012783205	1	0.1365	1	0.1728	0.7671	0.7401	0.2721	0.0611	61
1642070	0.037928241	199.6425694	0.001558927	1	0.1365	1	0.1728	0.7671	0.7401	0.3469	0.1391	67
1643147	2.045821759	0	0.000831428	1	0.1365	1	0.134	0.7671	0.7401	0.2721	0.051	71
1643419	0.710335648	85.20469907	0.003949283	1	0.1365	1	0.0752	0.7671	0.7401	0.3469	0.1391	100
1643420	0.001585648	0	0.003949283	1	0.1365	1	0.0752	0.7671	0.7401	0.3469	0.0611	100
1643784	2.377222222	0.009259259	0.003949283	1	0.1365	1	0.1728	0.1595	0.2304	0.1164	0.1183	90
1644549	2.541446759	469.1866088	0.000207857	1	0.1365	1	0.0409	0.1595	0.2304	0.3469	0.0611	45
1646447	5.355775463	0	0.005404282	1	0.1365	1	0.1728	0.7671	0.7401	0.2721	0.051	73
1646457	0.007094907	0.001331019	0.005404282	1	0.1365	1	0.1728	0.7671	0.7401	0.2721	0.051	68
1649937	9.242893519	469.266412	0.019746414	1	0.1365	1	0.0267	0.7671	0.7401	0.2721	0.051	144
1650192	0.748969907	0	0.004884639	1	0.1365	1	0.1728	0.7671	0.7401	0.2721	0.1391	53
1652197	6.067291667	0	0.001870713	1	0.1365	1	0.1728	0.7671	0.7401	0.2721	0.051	61
1654288	6.814525463	0	0	1	0.0333	1	0.1728	0.7671	0.7401	0.3469	0.051	131
1655476	4.884351852	270.1323611	0.012783205	1	0.1365	1	0.0752	0.7671	0.7401	0.2721	0.0417	63
1655480	0.009027778	0	0.016420703	1	0.1365	1	0.134	0.7671	0.7401	0.2721	0.051	75
1655510	0.047222222	0.15	0.012783205	1	0.1365	1	0.0409	0.7671	0.7401	0.2721	0.1391	50
1655989	1.040590278	0	0	1	0.1365	1	0.0409	0.1595	0.2304	0.1164	0.1183	64
1657391	3.401863426	0.136076389	0	1	0.1365	1	0.1728	0.7671	0.7401	0.2721	0.051	80
1658105	3.5071875	0	0.000935356	1	0.1365	1	0.1728	0.7671	0.2304	0.1164	0.051	110
1658151	0.10193287	469.260787	0.001558927	1	0.1365	1	0.1728	0.7671	0.7401	0.2311	0.051	73
1659539	3.172071759	0	0.000831428	1	0.1365	1	0.005	0.1595	0.2304	0.3469	0.0346	67
1661190	5.782743056	0.03318287	0.001558927	1	0.1365	1	0.1728	0.7671	0.7401	0.1164	0.051	67

. As reference information, Table 1 and Table 2 will be helpful for the readers to understand the proposed method. However, the factor of “Summary” is eliminated from Table 1 because the words are very long. By using the data sets such as those in Table 1 and Table 2, we apply the data in the above-mentioned step 1 to deep learning. From Table 1 and Table 2, the conventional methods of reliability assessment make use of all data sets because the conventional reliability assessment methods use only the number of fault data.

Considering the structure of the software tool, there are several visualization tools, such as the class diagram, object diagram, component diagram, activity diagram, use case diagram, and sequence diagram, in terms of UML. Generally, in many cases, UML has been used in the case where software is developed from scratch by a software manufacturer. However, our tool is implemented by using the package-based development style. This is the characteristic of our research. In the case of package-based development, we can show the structure of our prototype by using the package diagram in UML. The reasons are as follows:

⦾

Different programming languages (HTML, CSS, JavaScript, and Python).

⦾

Dynamic links based on Node.js and the file system of OS, such as macOS, Windows, Linux, etc.

⦾

There is a difference in the scale and language of the packages.

From the above-mentioned characteristics, we show the structure of our tool by using the package diagram. Then, Figure 4 shows the package diagram of the prototype developed by using UML. Furthermore, we show the structure of data preprocessing in Figure 5.

Our tool is developed as a prototype. We believe that the task of researchers only provides to the point of a prototype. In addition, researchers should propose the application framework of the proposed method. Therefore, we show the framework based on the proposed method in this paper. The completed tool will be able to be easily developed by software developers and business people. Our prototype will be helpful for users and developers to assess reliability in the operation of the edge OSS service. In particular, several activation functions and dropout values are set always the same in this paper. The reason for this is that there are many OSS projects, i.e., many hyper-parameters and functions will be changed according to various situations under OSS computing. Therefore, we have set the activation function and dropout value always as the same value, considering the standardization for OSS projects.

4. Performance Illustrations of the Developed 3D Application

4.1. Data Set for Edge OSS Computing

We focus on the OpenStack Project [27] that included several edge components. In this paper, we show numerical examples by using data sets on the assumption of the edge OSS service. The data used in this paper are collected from the bug-tracking system.

The demonstration of our prototype tool is available at the following URL; however, the function of calculation cannot execute considering the security: http://www.tam.eee.yamaguchi-u.ac.jp/js/ec/, accessed on 24 February 2022.

Our prototype tool has been released as the OSS based on GNU General Public License (GPL) in March 2022. The source code of our tool is available from “SOFTWARE” at the following URL: http://www.tam.eee.yamaguchi-u.ac.jp/, accessed on 24 February 2022.

Table 1 and Table 2 are parts of all the data sets. The total number of lines of data is about 20,000 lines. Then, the data consist of about 140,000 data items total. These are the specified version data. Actually, the users can obtain a greater number of data according to various OSS projects.

4.2. Estimation Results

We analyze the fault big data in terms of fault correction time in the OSS component of edge computing included under cloud computing such as OpenStack [27]. We can obtain the fault correction times from the “Opened” and “Changed” factors in the bug-tracking system. In this paper, we discuss two kinds of fault severity levels such as “High” and “Medium”.

First, we show the main screen of our tool in Figure 6. In addition, Figure 7 shows the menu of our tool. Moreover, Figure 8 is the simplified readme screen of our tool. Our tool is structured by using the dynamic link based on NW.js and Python. Therefore, we can program the simple menu by using the HTML and javascript codes shown in Figure 6, Figure 7 and Figure 8.

Figure 9 and Figure 10 show the overall pictures of the estimated errors between validation and training in the case of 30% testing data, respectively. From Figure 9 and Figure 10, we find that the errors of validation and training fit better in the case of 30%. In particular, the error of the “Medium” class fits better than that of the “High” one. Similarly, Figure 11 and Figure 12 show the estimated error between validation and training in the cases of the high and medium levels for 30% testing data, respectively. From Figure 11 and Figure 12, we find that there is no possibility of overfitting.

Moreover, Figure 13 and Figure 14 show the overall pictures of the estimated fault correction times in the case of 30% testing data, respectively. From Figure 13 and Figure 14, we can confirm the scattered condition of the estimated fault correction time for each fault level. We find that there are many faults of the “High” class in the early stage of operation from Figure 13 and Figure 14. On the other hand, there are many faults of the “Medium” class in the later stage of operation. Similarly, Figure 15 and Figure 16 show the estimated fault correction times in the cases of the high and medium levels for 30% testing data, respectively. From Figure 15 and Figure 16, we find that the variations of the “High” and “Medium” classes are almost the same value.

Furthermore, the overall pictures of the estimated cumulative fault correction times in the case of 30% testing data are shown in Figure 17 and Figure 18, respectively. From Figure 9, Figure 10, Figure 11, Figure 12, Figure 13, Figure 14, Figure 15, Figure 16, Figure 17 and Figure 18, we find that the condition of learning is stable on the whole. In particular, the number of faults in the “High” class becomes large in the early stage of operation.

As for the above-mentioned results, we confirm that the developed prototype tool for reliability assessment based on deep learning is useful for estimating reliability in the near future. In particular, the advantage of our method is that it can make use of all the data on the bug-tracking system.

4.3. Comparison Results

As shown in Section 2, our method is different from the reliability assessment method based on many typical stochastic models. However, we can compare our method with the method based on the typical neural network as machine learning. We show the estimated error between validation and training as the comparison results in the case of 30% testing data in Figure 19. From Figure 19, we find that the error becomes a large value in the case of the “Medium” class.

5. Concluding Remarks

In the operation of the cloud service, several edge OSS components are embedded in cloud OSS computing. In the bug-tracking system in OSS, there are several severity levels of software faults in OSS. As the characteristics of edge OSS, the “High” and “Medium” classes have influential impacts as fault severity levels. The reliability of edge OSS becomes large if we can understand the trend of software fault correction times. Then, we discussed the estimation method of fault correction times.

In this paper, we have proposed the estimation method of fault correction times for two kinds of fault severity levels. It will be useful to assess OSS reliability under the environment of an edge computing service if the OSS managers can estimate the fault correction time. In addition, the proposed method based on deep learning considering the fault severity levels has been discussed in this paper. In particular, the proposed method can comprehend the reliability trend based on the fault correction times for mainly fault severity levels.

Finally, this paper has discussed the trend of OSS faults for edge computing. In addition, we have developed the prototype of a software tool based on the proposed method by using actual edge OSS data as follows:

⦾

The comprehension of the trend of large-scale OSS fault levels as data preprocessing.

⦾

The estimation of fault correction time based on two-stage deep learning.

⦾

The development of a prototype as a reliability assessment tool based on deep learning that can be used by users who are not familiar with deep learning.

The proposed method and prototype will be helpful as assessment measures of reliability control for an edge OSS service in the operation phase.
