A Method for Expanding Predicates and Rules in Automated Geometry Reasoning System
Abstract
:1. Introduction
2. Knowledge Representation

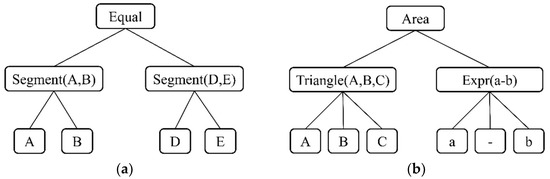

3. Predicate Expansion
3.1. Algorithm for Generating Knowledge Tree
Algorithm 1 generateKT (G, PE) |
Input: geometry unit set G; predicate example PE Output: predicate tree KT 1: KT. root = PE.na 2: for do 3: guList = Regex. Matches (PE.ds, g) 4: for do 5: node = KT. root. addChild (gu) 6: for . points do 7: node. addChild (p) 8: end for 9: end for 10: end for 11: expr = Regex. Matches (PE.ds, [A-Za-z] |\*|/| [0-9] |\ (|\) |\+|\^|-) +) 12: node = KT. root. addChild (expr) 13: for me expr do 14: node. addChild ((me. ToString ()) 15: end for 16: return KT |
3.2. Algorithm for Generating Predicate Code
Algorithm 2 generatePredicateCode (KT, Ptemplate) |
Input: predicate Tree KT; predicate template Ptemplate Output: PCode 1: Ptemplate. className = KT.root 2: Ptemplate. funcName = KT. root 3: nodeList = KT. root. children 4: for do 5: Ptemplate. funcParams. addParams (node) 6: end for 7: Ptemplate. NormalizeFunc = Normalize (nodeList) 8: PCode = Ptemplate. generateCode () 9: return PCode |
3.3. Predicate Expansion Example
- Inputting the name (PE.na): Perpendicular;
- Inputting the description (PE.ds): segment AB is perpendicular to plane DEF.
- Obtaining “Perpendicular” and configuring it as root node;
- Finding formal representations of geometry units “segment AB” and “plane DEF” contained in PE.ds by traversing the geometry unit set of the system based on the formal representation; configuring formal representations of “segment AB” and “plane DEF”, i.e., “Segment (A,B)” and “Plane (D,E,F)”, as child nodes of the root node;
- Respectively obtaining point sets of geometry units “Segment (A,B)” and “Plane (D,E,F)”, and sequentially configuring points in the point set as leaf nodes;

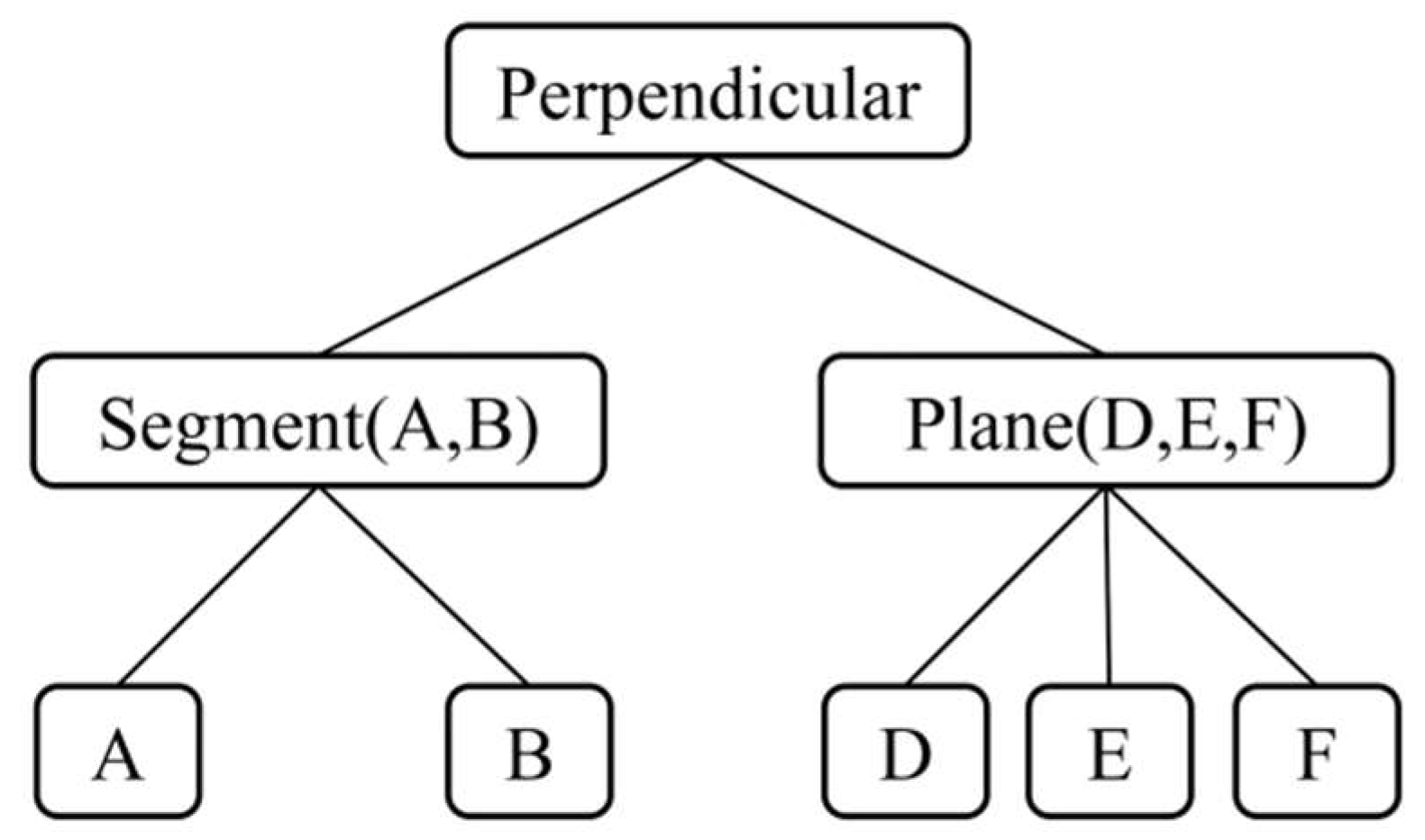

- Generating a predicate knowledge tree, as shown in Figure 2.
- Obtaining the root node “Perpendicular” and configuring it as the name of a class and the name of a constructor;
- Obtaining child nodes “Segment (A,B)” and “Plane (D,E,F)” and configuring them as parameters;
- Performing normalization—since child nodes “Segment (A,B)” and “Plane (D,E,F)” are different types, there is no need for normalization;

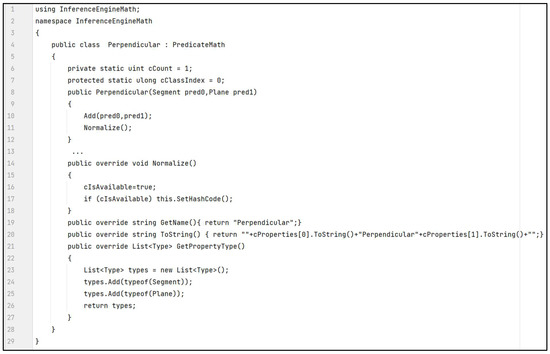

- Generating executable predicate code as shown in Figure 3.
4. Rule Expansion
4.1. Algorithm for Generating a Knowledge Forest
Algorithm 3 generateKF (RE) |
Input: rule example RE Output: KF 1: match=Regex.Match(RE.rd, “if ([\s\S]+) then ([\s\S]+)”) 2: if match.Success == true 3: cons = separateCondition (RE.rd) 4: clus = separateConclusion (RE.rd) 5: end if 6: cdp = extractPredicate (cons) 7: ccp = extractPredicate (clus) 8: cdf = {} 9: for do 10: contionalTree=generateKT (G, con) 11: cdf. Add (conditionalTree) 12: end for 13: cdf = enCoding(cdf) 14: ccf = {} 15: for clu ccp do 16: conclusiveTree= generateKT (G, clu) 17: ccf. Add (conclusiveTree) 18: end for 19: KF. add (cdf, ccf) 20: return KF |
4.2. Algorithm for Generating Executable Rule Code

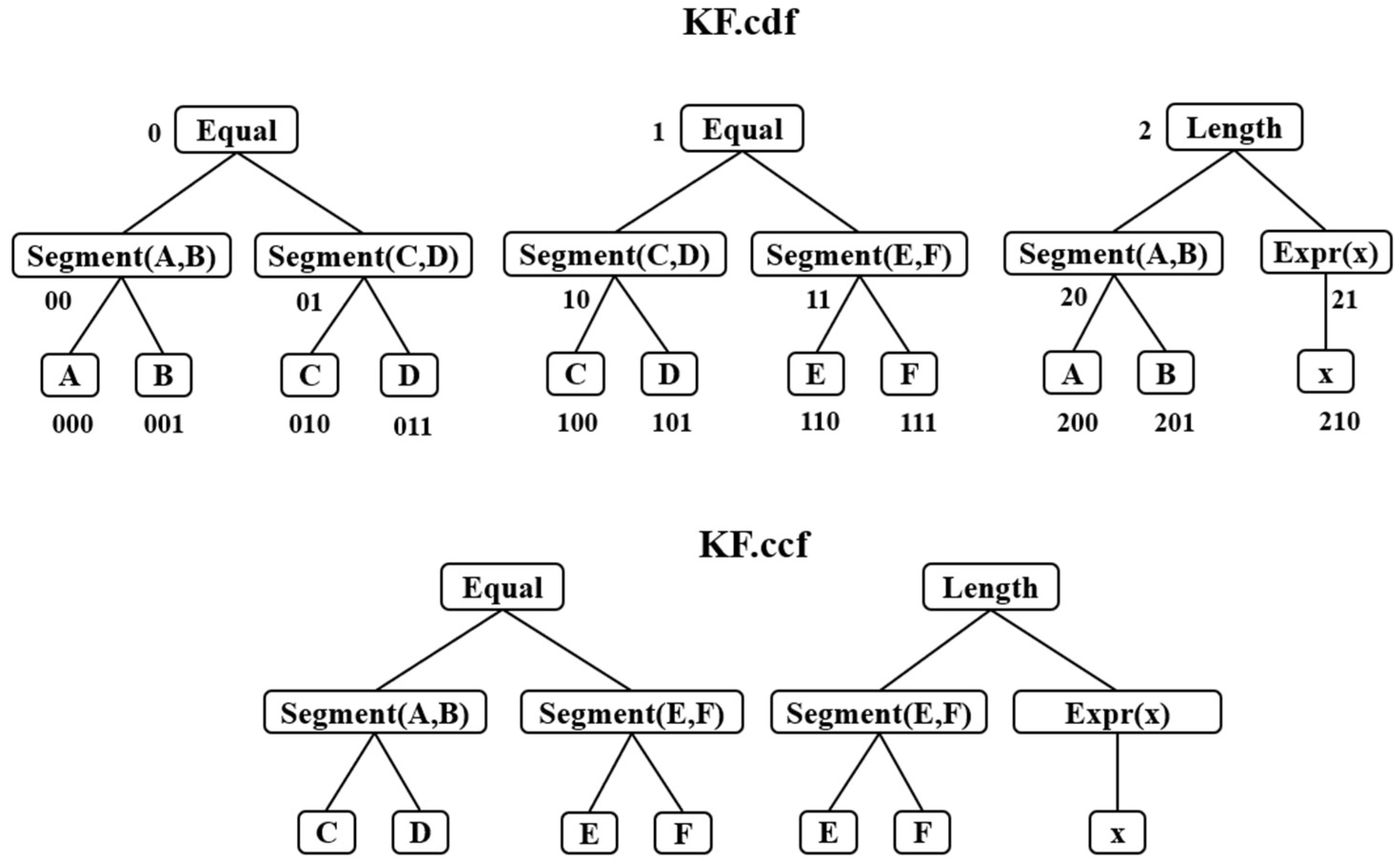

Algorithm 4 enCoding(cdf) |
Input: conditionForest cdf Output: conditioncodeForest 1: i = 0 2: for do 3: conditionTree. root. code = i 4: nodeList = conditionTree. root. children 5: j = 0 6: for do 7: node. Code = ij 8: k = 0 9: for do 10: nodeleaf. Code = ijk 11: k = k + 1 12: end for 13: j = j + 1 14: end for 15: i = i + 1 16: end for 17: conditioncodeForest = cdf 18: return conditioncodeForest |
Algorithm 5 generateruleCode(KF, Ruletemplate,RE) |
Input: rule forest KF; rule template Ruletemplate Output: RuleCode 1: Ruletemplate. RuleName = RE. rn 2: for do 3: Ruletemplate. RuleParams. addParams (kt. root) 4: end for 5: Ruletemplate. Judgementcondition = Judgement (KF. cdf) 6: Ruletemplate. GenerateNewKnowledge = generateConclusion (KF) 7: RuleCode = Ruletemplate 8: return RuleCode |
4.3. Rule Expansion Example
- Inputting the name (RE.na)—PyramidVolume;
- Inputting the description (RE.ds)—for a pyramid O, if the bottom area is S and the height is h, then the volume is 1/3∗S∗h.
- By invoking the Separate () method, separating “for a pyramid O, if the bottom area is S and the height is h, then the volume is 1/3∗S∗h” into a condition statement “for a pyramid O, if the bottom area is S and the height is h” and a conclusion statement “then the volume is 1/3∗S∗h”;
- By invoking the extractPredicate() method, extracting predicate examples, cdp, “bottom area is S”, and “height is h” from the condition statement, and the predicate example ccp “volume is 1/3∗S∗h” from the conclusion statement;
- Creating a condition forest, cdf, by generating knowledge trees with condition predicates in item ii, and creating a conclusion forest, ccf, by generating a conclusion tree with the conclusion predicate;

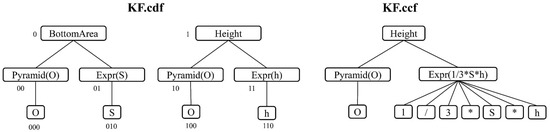

- Coding cdf, and integrating the two forests to form a rule knowledge forest, KF, as shown in Figure 5.
- Obtaining the “PyramidVolume” from RE.na and configuring it as the function name;
- Obtaining the root node of each knowledge tree from KF.cdf: “BottomArea” and “Height”, and configuring them as parameters;
- Generating executable code to confirm whether the pyramids are the same instance;
- Generating executable code for constructing the conclusion “new Volume (...)” by means of the coding number;

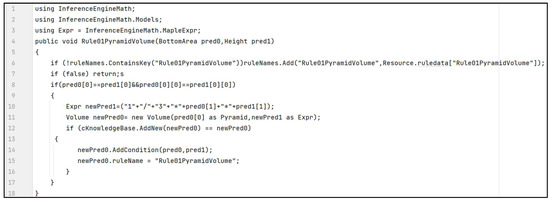

- Returning the whole executable rule code, as shown in Figure 6.
5. Implementation

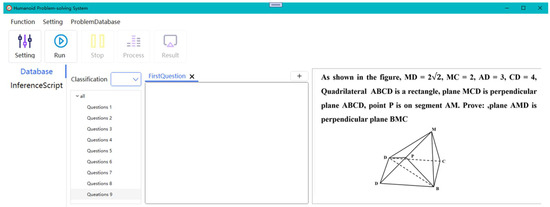

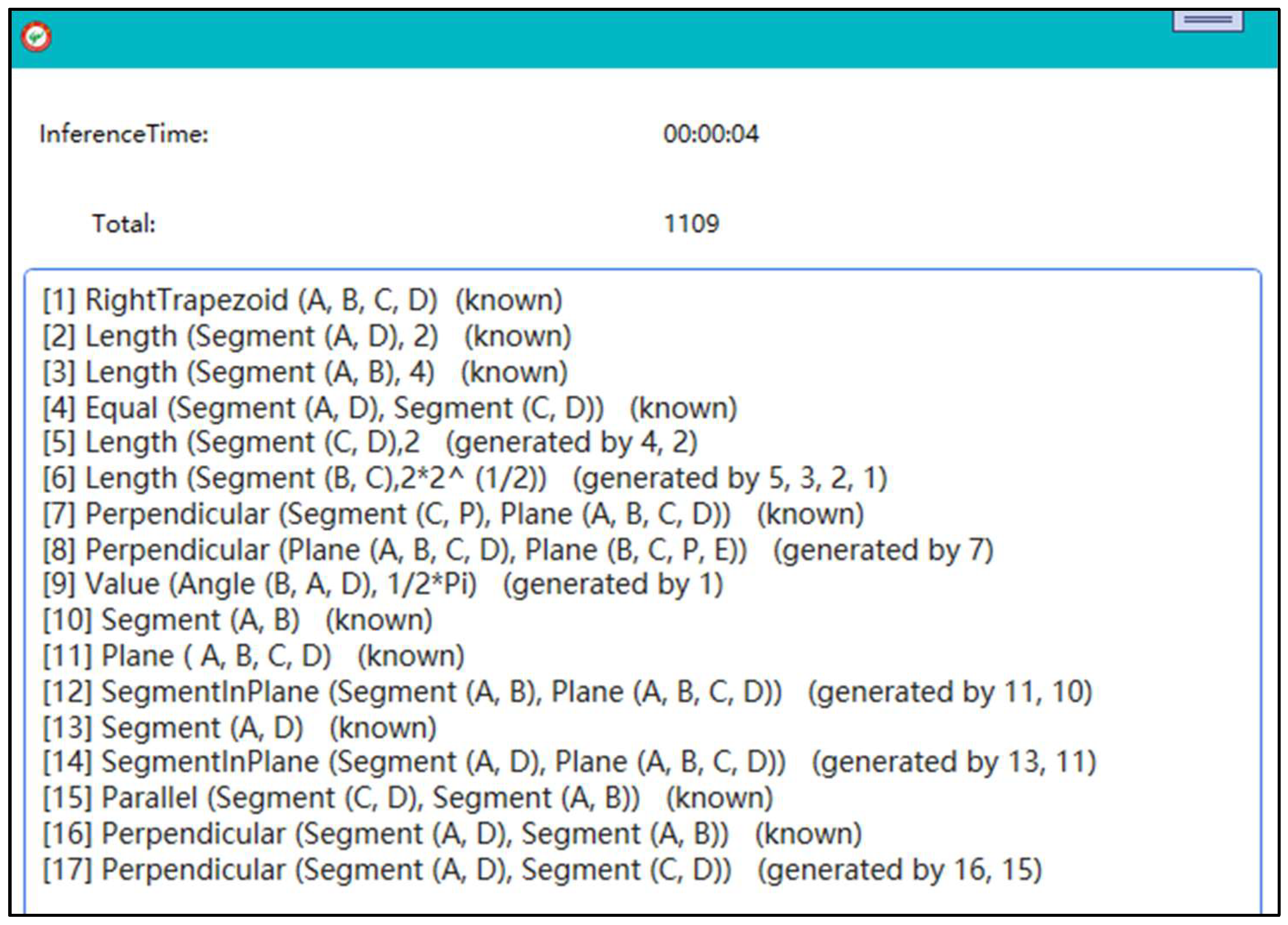

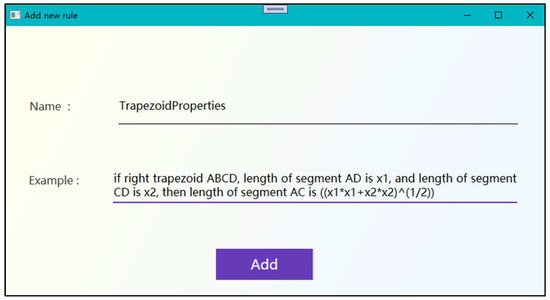

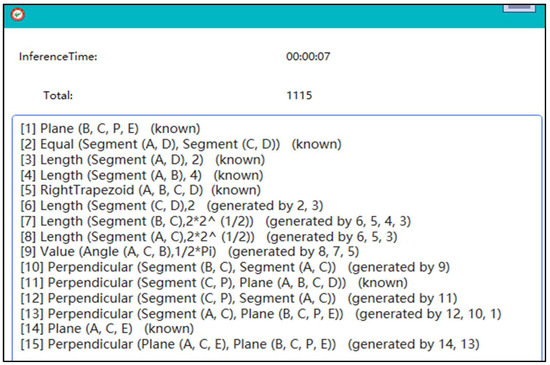

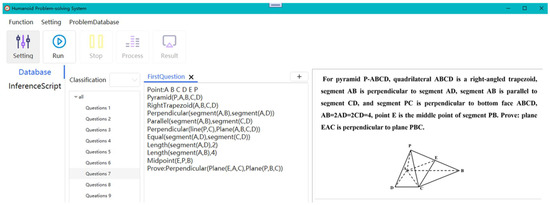

6. Applications
