# Relationship of Time-Dependent Parameters from Destructive and Non-Destructive Tests of Structural Concrete

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Properties of Concrete

#### 2.2. Destructive Testing Methods

#### 2.3. Non-Destructive Testing Methods

#### 2.4. Correlation and Regression Analysis

^{2}are varied. For example, a value of 0.82 to 1 is reported to indicate a very strong fit, a value of 0.5 to 0.81 is a strong fit, and lower values are moderate or weak fits [39]. Therefore, the value of 0.8 was chosen as the boundary where linear correlation is sufficient, and there is no need to look for a quadratic equation.

## 3. Results

^{2}. Further analysis of the results was performed at the level of application of linear regression and best-fit analysis using the coefficient of determination. In case of low agreement, quadratic regression was applied.

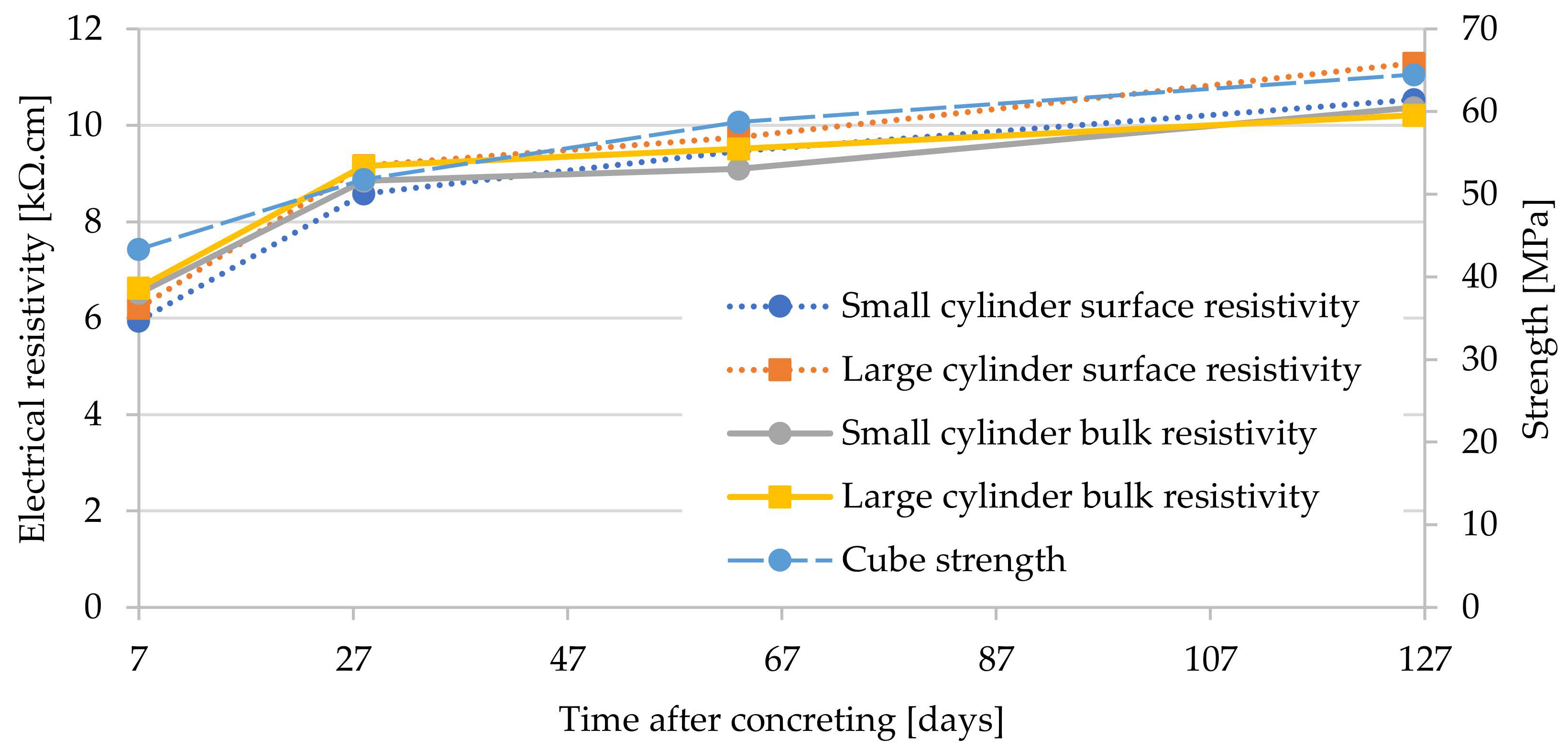

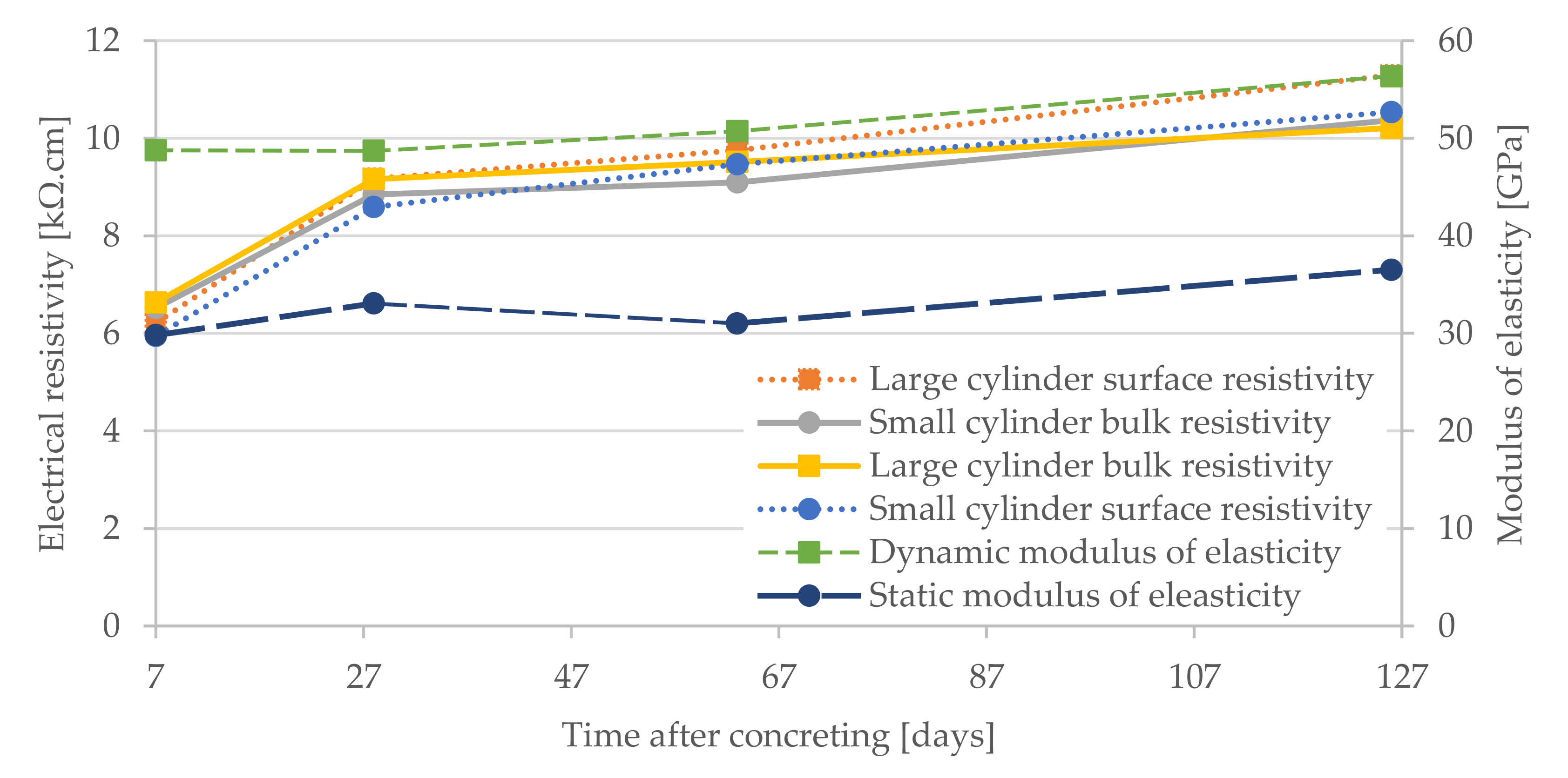

#### 3.1. Time-Dependent Results

#### 3.2. Bulk and Surface Electrical Resistivity

#### 3.3. Compressive Strength vs. Electrical Resistivity

#### 3.4. Compressive Strength vs. Modulus of Elasticity

#### 3.5. Dynamic Modulus of Elasticity vs. Electrical Resistivity

#### 3.6. Static Modulus of Elasticity vs. Electrical Resistivity

#### 3.7. Summary of Results

## 4. Discussion

## 5. Conclusions

- NDT methods generally correlate well linearly with compressive strength;
- In case of further comparisons, a quadratic curve had to be applied;
- The quadratic regression between the dynamic modulus and the electrical resistivity showed a highly significant agreement;
- The worst values were observed between static modulus and both non-destructive methods.

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Acknowledgments

## Conflicts of Interest

## References

- Huet, B.; L’Hostis, V.; Idrissi, H.; Tovena, I. A Review on Corrosion Mechanisms of Reinforced Concrete Degradation. In Proceedings of the Environmental Degradation of Engineering Materials, Bordeaux, France, 29 June–1 July 2003. [Google Scholar]
- Matesová, D.; Teplý, B.; Chromá, M.; Rovnaník, P. Stochastic Degradation Models for Durability Limit State Evaluation: Sara—Part Vi. In Proceedings of the 3rd International Conference on Structural Health Monitoring of Intelligent Infrastructure (SHMII-3 2007), Vancouver, BC, Canada, 13–16 November 2007; pp. 1–10. [Google Scholar]
- Cerezo-Narváez, A.; Pastor-Fernández, A.; Otero-Mateo, M.; Ballesteros-Pérez, P. The Relationship between Building Agents in the Context of Integrated Project Management: A Prospective Analysis. Buildings
**2021**, 11, 184. [Google Scholar] [CrossRef] - Schabowicz, K. Non-Destructive Testing of Materials in Civil Engineering. Materials
**2019**, 12, 3237. [Google Scholar] [CrossRef] [PubMed][Green Version] - İnel, M.; Çaycı, B.T.; Özmen, H.B. Investigation of Concrete Compressive Strength of Existing Buildings Depending on Number of Core Samples. Pamukkale Univ. J. Eng. Sci.
**2019**, 25, 621–626. [Google Scholar] [CrossRef] - NDT-7 COMMITTEE. Recommendations for Testing Concrete by Hardness Methods. Matériaux Constr.
**1977**, 10, 313–316. [Google Scholar] [CrossRef] - Determination of Ultrasonic Pulse Velocity; EN 12504-4; British Standards Institution: London, UK, 2004; Volume 3, p. 18.
- Stawiski, B.; Kania, T. Tests of Concrete Strength across the Thickness of Industrial Floor Using the Ultrasonic Method with Exponential Spot Heads. Materials
**2020**, 13, 2118. [Google Scholar] [CrossRef] - Qurashi, M.A.; Shah, S.A.R.; Farhan, M.; Taufiq, M.; Khalid, W.; Arshad, H.; Tayyab, M.; Shahzadi, G.; Waseem, M. Sustainable Design and Engineering: A Relationship Analysis between Digital Destructive and Non-Destructive Testing Process for Lightweight Concrete. Processes
**2019**, 7, 791. [Google Scholar] [CrossRef][Green Version] - Wang, B.; Zhong, S.; Lee, T.L.; Fancey, K.S.; Mi, J. Non-Destructive Testing and Evaluation of Composite Materials/Structures: A State-of-the-Art Review. Adv. Mech. Eng.
**2020**, 12. [Google Scholar] [CrossRef][Green Version] - Sobuz, M.H.R.; Datta, S.D.; Rahman, M. Evaluating the Properties of Demolished Aggregate Concrete with Non-Destructive Assessment. In Advances in Civil Engineering; Springer: Singapore, 2022; Volume 184. [Google Scholar]
- Abdallah, W.; Sbartaï, Z.M.; Saliba, J.; Elachachi, S.M.; Hage Chehade, F.; Sadek, M. Assessment of the Reliability of Concrete Evaluation by Multi-Physical Inversion of NDT Measurements—A Probabilistic Approach. Constr. Build. Mater.
**2021**, 300, 124371. [Google Scholar] [CrossRef] - Trykoz, L.; Kamchatnaya, S.; Lyuty, V.; Borodin, D.; Atynian, A. Non-Destructive Control Method of the State of Objects Operating Long Time. Diagnostyka
**2018**, 19, 11–17. [Google Scholar] [CrossRef] - Xiao, J.; Ying, J.; Shen, L. FEM Simulation of Chloride Diffusion in Modeled Recycled Aggregate Concrete. Constr. Build. Mater.
**2012**, 29, 12–23. [Google Scholar] [CrossRef] - Zhang, M.; Ye, G. Modelling of Time Dependency of Chloride Diffusion Coefficient in Cement Paste. J. Wuhan Univ. Technol. Mater. Sci. Ed.
**2010**, 25, 687–691. [Google Scholar] [CrossRef] - Tran, Q.; Ghosh, P.; Lehner, P.; Konečný, P. Determination of Time Dependent Diffusion Coefficient Aging Factor of HPC Mixtures. In Key Engineering Materials; Trans Tech Publications Ltd.: Freienbach, Switzerland, 2020; Volume 832. [Google Scholar]
- Han, S.-H. Influence of Diffusion Coefficient on Chloride Ion Penetration of Concrete Structure. Constr. Build. Mater.
**2007**, 21, 370–378. [Google Scholar] [CrossRef] - Nilsen, A.; Aitcin, P.-C. Static Modulus of Elasticity of High-Strength Concrete from Pulse Velocity Tests. Cem. Concr. Aggreg.
**1992**, 14, 64–66. [Google Scholar] [CrossRef] - Malkin, R.E.; Franklin, A.C.; Bevan, R.L.T.; Kikura, H.; Drinkwater, B.W. Surface Reconstruction Accuracy Using Ultrasonic Arrays: Application to Non-Destructive Testing. NDT E Int.
**2018**, 96, 26–34. [Google Scholar] [CrossRef][Green Version] - Layssi, H.; Ghods, P.; Alizadeh, A.R.; Salehi, M. Electrical Resistivity of Concrete. Concr. Int.
**2015**, 37, 41–46. [Google Scholar] - Cosoli, G.; Mobili, A.; Tittarelli, F.; Revel, G.M.; Chiariotti, P. Electrical Resistivity and Electrical Impedance Measurement in Mortar and Concrete Elements: A Systematic Review. Appl. Sci.
**2020**, 10, 9152. [Google Scholar] [CrossRef] - Abad Zapico, L. Experimental Investigation on Electrical Resistivity of SFRC. Master’s Thesis, Chalmers University of Technology, Gothenburg, Sweden, 2015. [Google Scholar]
- Luping, T.; Nilsson, L.O. Rapid Determination of the Chloride Diffusivity in Concrete by Applying an Electrical Field. ACI Mater. J.
**1993**, 89, 49–53. [Google Scholar] - Ab Manaf, M.B.H.; Yahya, Z.; Abd Razak, R.; Mustafa Al Bakri, A.M.; Ariffin, N.F.; Ahmad, M.M.; Chong, Y.C. Surface Resistivity and Ultrasonic Pulse Velocity Evaluation of Reinforced OPC Concrete and Reinforced Geopolymer Concrete in Marine Environment. In Advances in Mechatronics, Manufacturing, and Mechanical Engineering; Springer: Singapore, 2021; pp. 292–298. [Google Scholar]
- Veselý, V.; Konečný, P.; Lehner, P.; Pařenica, P.; Hurta, J.; Žídek, L. Investigation of Fracture and Electrical Resistivity Parameters of Cementitious Composite for Their Utilization in Deterioration Models. In Key Engineering Materials; Trans Tech Publications Ltd.: Freienbach, Switzerland, 2014; Volume 577–578, ISBN 9783037858301. [Google Scholar]
- Vu, K.A.T.; Stewart, M.G. Structural Reliability of Concrete Bridges Including Improved Chloride-Induced Corrosion Models. Struct. Saf.
**2000**, 22, 313–333. [Google Scholar] [CrossRef] - European Committee for Standardization. Concrete—Part 1: Specification, Performance, Production and Conformity; EN 206-1; European Committee for Standardization: Brussels, Belgium, 2000. [Google Scholar]
- European Committee for Standardization. Testing Hardened Concrete Part 3: Compressive Strength of Test Specimens; EN 12390-3; European Committee for Standardization: Brussels, Belgium, 2002. [Google Scholar]
- Misák, P.; Vymazal, T.; Kocáb, D.; Kucharczyková, B. Repeatability and Reproducibility of the Static Elastic Modulus of Concrete Measurement. In Solid State Phenomena; Trans Tech Publications Ltd.: Freienbach, Switzerland, 2018; Volume 272. [Google Scholar]
- European Committee for Standardization. Testing Hardened Concrete—Part 13: Determination of Secant Modulus of Elasticity in Compression; EN 12390-13; European Committee for Standardization: Brussels, Belgium, 2013. [Google Scholar]
- Lehner, P.; Turicová, M.; Konečnỳ, P. Comparison of Selected Methods for Measurement of the Concrete Electrical Resistance to Chloride Penetration. ARPN J. Eng. Appl. Sci.
**2017**, 12, 937–944. [Google Scholar] - AASHTO T358; Standard Method of Test for Surface Resistivity Indication of Concrete’s Ability to Resist Chloride Ion Penetration. American Association of State Highway and Transportation Officials: Washington, DC, USA, 2013.
- Morris, W.; Moreno, E.I.; Sagüés, A.A. Practical Evaluation of Resistivity of Concrete in Test Cylinders Using a Wenner Array Probe. Cem. Concr. Res.
**1996**, 26, 1779–1787. [Google Scholar] [CrossRef] - Manual for RCON Giatec Scientific. Available online: https://www.giatecscientific.com/products/concrete-ndt-devices/rcon-bulk-resistivity/ (accessed on 20 June 2021).
- ASTM C1876; Standard Test Method for Bulk Electrical Resistivity or Bulk Conductivity of Concrete. ASTM International: West Conshohocken, PA, USA, 2012; pp. 1–5.
- Schober, P.; Boer, C.; Schwarte, L.A. Correlation Coefficients. Anesth. Analg.
**2018**, 126, 1763–1768. [Google Scholar] [CrossRef] - Zou, K.H.; Tuncali, K.; Silverman, S.G. Correlation and Simple Linear Regression. Radiology
**2003**, 227, 617–628. [Google Scholar] [CrossRef] [PubMed] - Nagelkerke, N.J.D. A Note on a General Definition of the Coefficient of Determination. Biometrika
**1991**, 78, 691–692. [Google Scholar] [CrossRef] - Latuni, F. Development of Road and Bridge Infrastructure to Enhance Economic Growth in the Coastal Communities of Tuminting District in Manado City. Int. J. Multicult. Multireligious Underst.
**2019**, 6, 780–791. [Google Scholar] [CrossRef] - Park, J.Y.; Sim, S.H.; Yoon, Y.G.; Oh, T.K. Prediction of Static Modulus and Compressive Strength of Concrete from Dynamic Modulus Associated with Wave Velocity and Resonance Frequency Using Machine Learning Techniques. Materials
**2020**, 13, 2886. [Google Scholar] [CrossRef] [PubMed] - Ghosh, P.; Tran, Q. Correlation Between Bulk and Surface Resistivity of Concrete. Int. J. Concr. Struct. Mater.
**2015**, 9, 119–132. [Google Scholar] [CrossRef] - Whiting, D.A.; Nagi, M.A. Electrical Resistivity of Concrete—A Literature Review. Portland Cem. Assoc.
**2003**, 2457, 1078. [Google Scholar] - Suseno, H.; Wijaya, M.N.; Firdausy, A.I. Correlation between Destructive and Non-Destructive Characteristics of Pumice and Scoria Lightweight Concretes. Eng. J.
**2021**, 25, 113–126. [Google Scholar] [CrossRef] - Nalon, G.H.; Alves, M.A.; Pedroti, L.G.; Lopes Ribeiro, J.C.; Hilarino Fernandes, W.E.; Silva de Oliveira, D. Compressive Strength, Dynamic, and Static Modulus of Cement-Lime Laying Mortars Obtained from Samples of Various Geometries. J. Build. Eng.
**2021**, 44, 102626. [Google Scholar] [CrossRef] - Lehner, P.; Gołaszewski, J. Relationship of Different Properties from Non-Destructive Testing of Heavy Concrete from Magnetite and Serpentinite. Materials
**2021**, 14, 4288. [Google Scholar] [CrossRef]

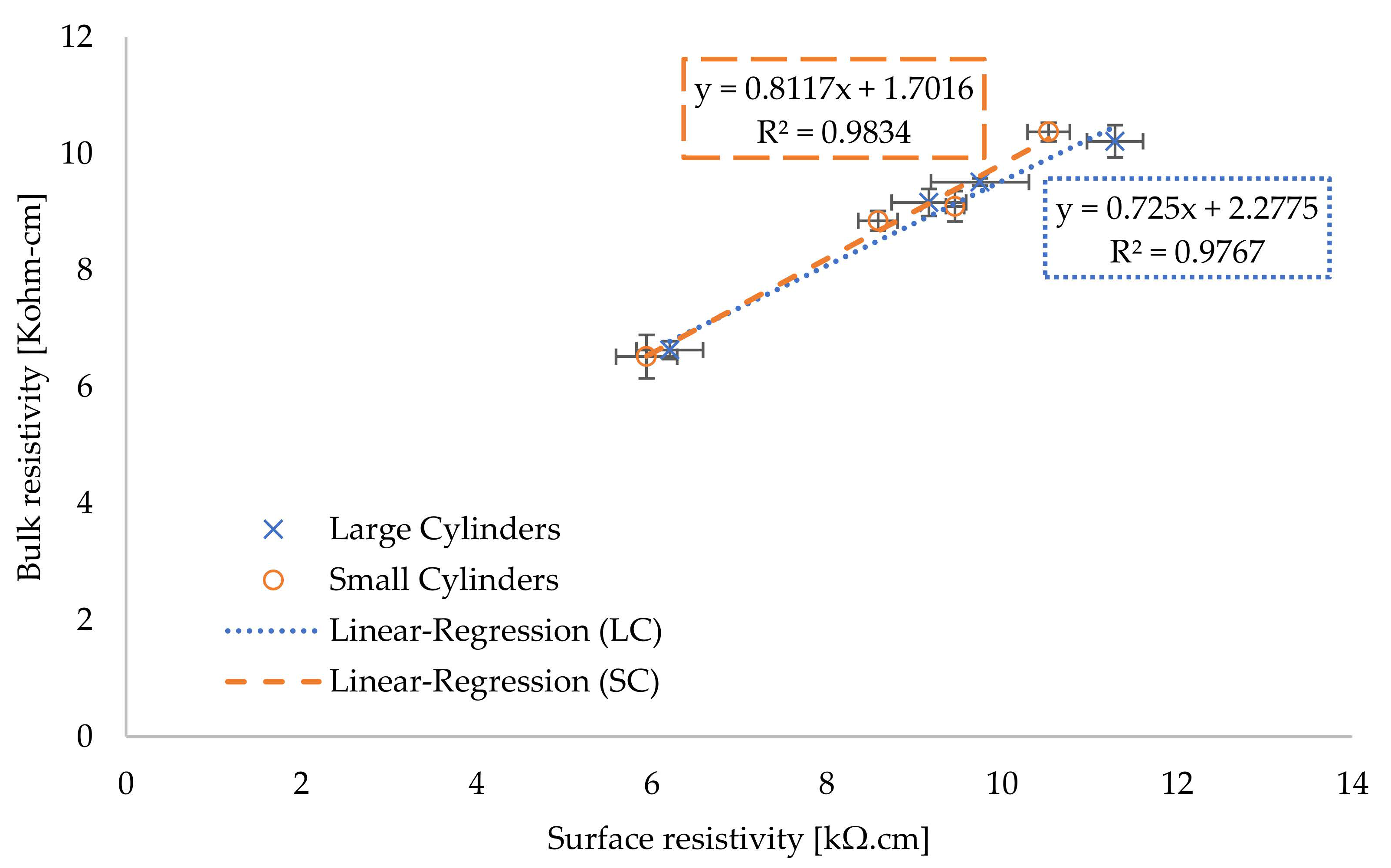

**Figure 5.**Linear regression analysis of the relationship between surface and bulk electrical resistivity on large and small cylindrical samples (LC = Large Cylinders, SC = Small Cylinders).

**Figure 6.**Linear regression analysis of the relationship between bulk electrical resistivity and compressive strength (LC = Large Cylinders, SC = Small Cylinders).

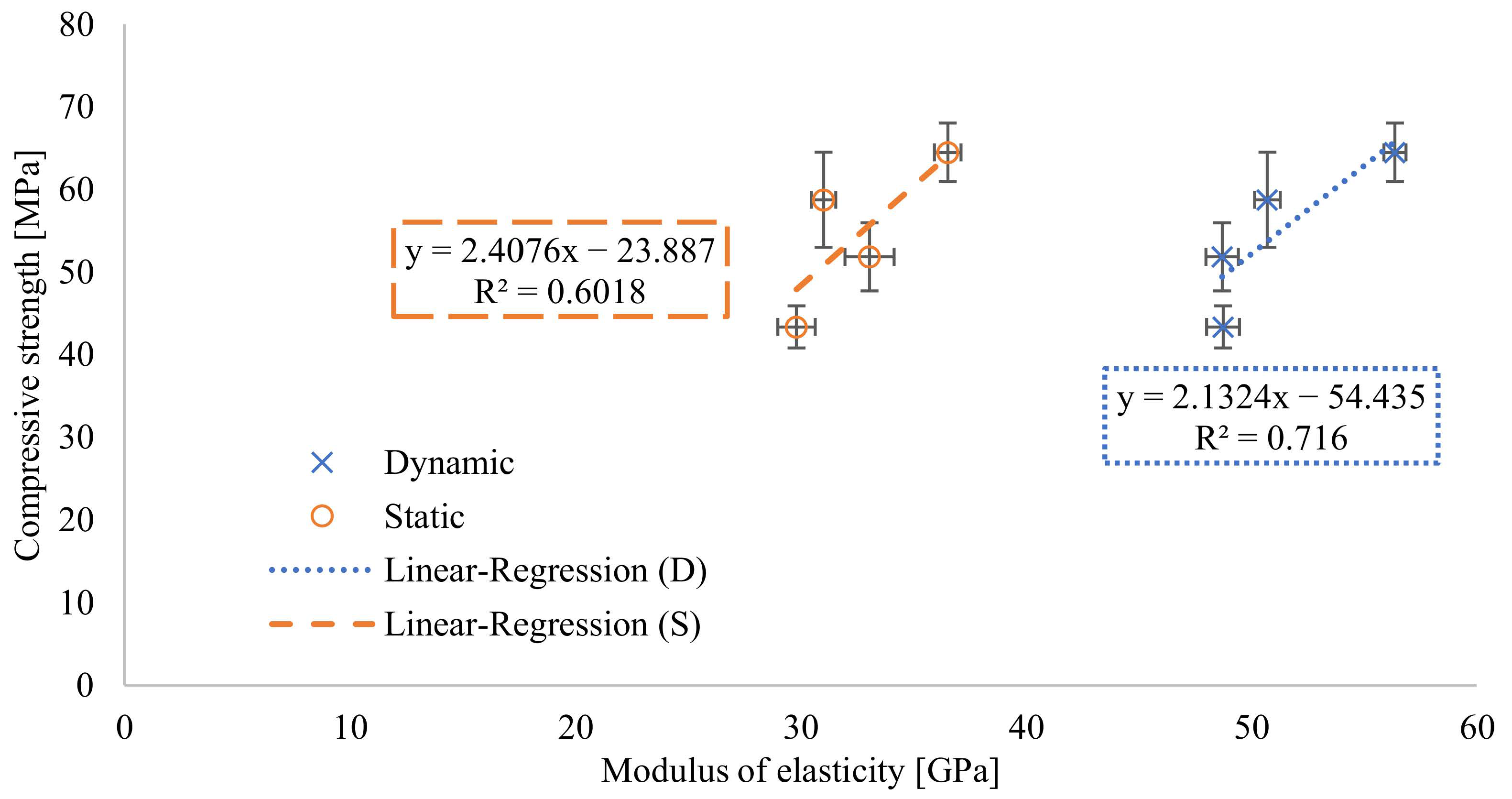

**Figure 7.**Linear regression analysis of the relationship between modulus of elasticity and compressive strength (D = Dynamic, S = Static).

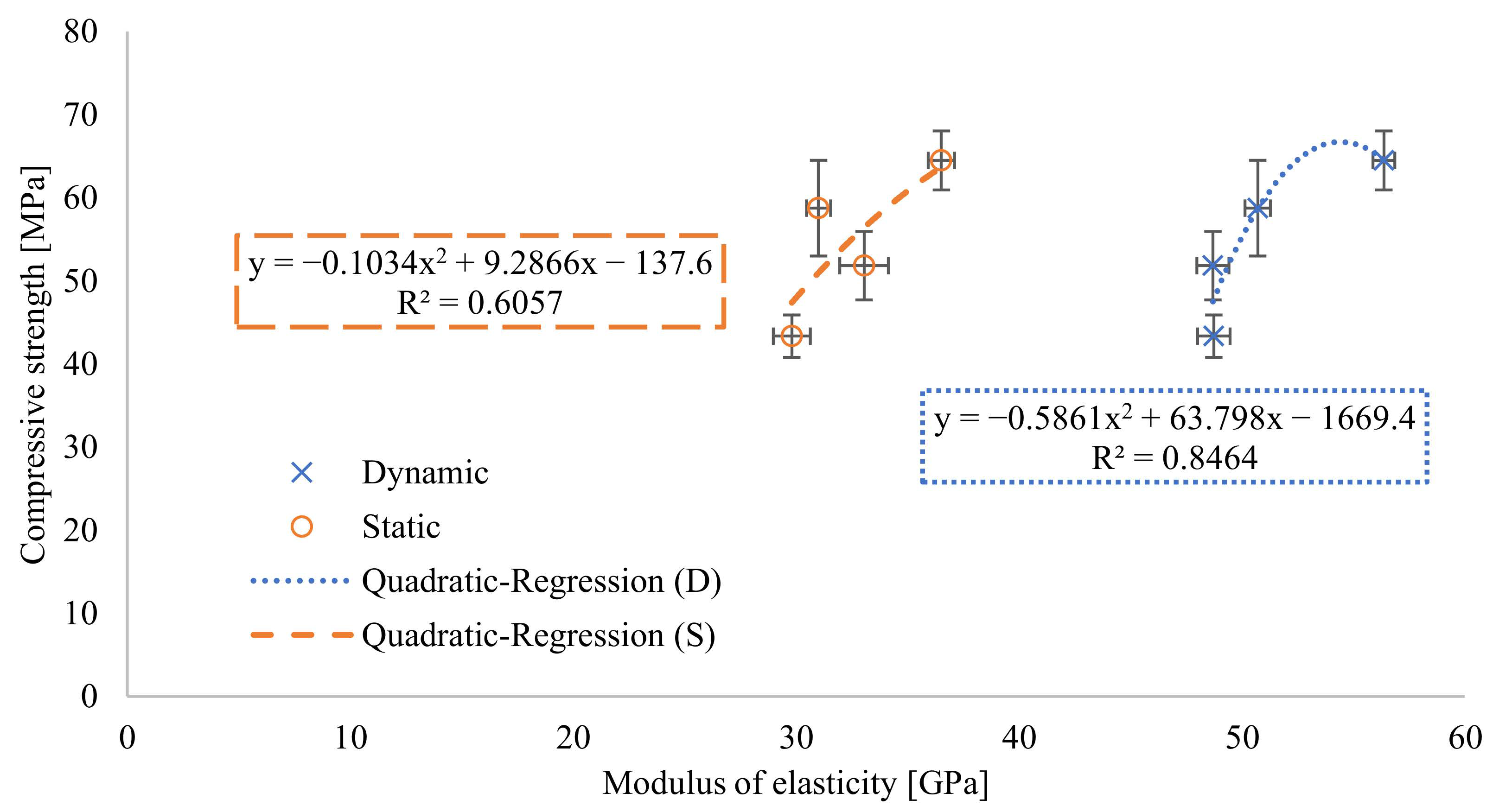

**Figure 8.**Quadratic regression analysis of the relationship between modulus of elasticity and compressive strength (D = Dynamic, S = Static).

**Figure 9.**Linear regression analysis of the relationship between bulk electrical resistivity and dynamic modulus of elasticity (LC = Large Cylinders, SC = Small Cylinders).

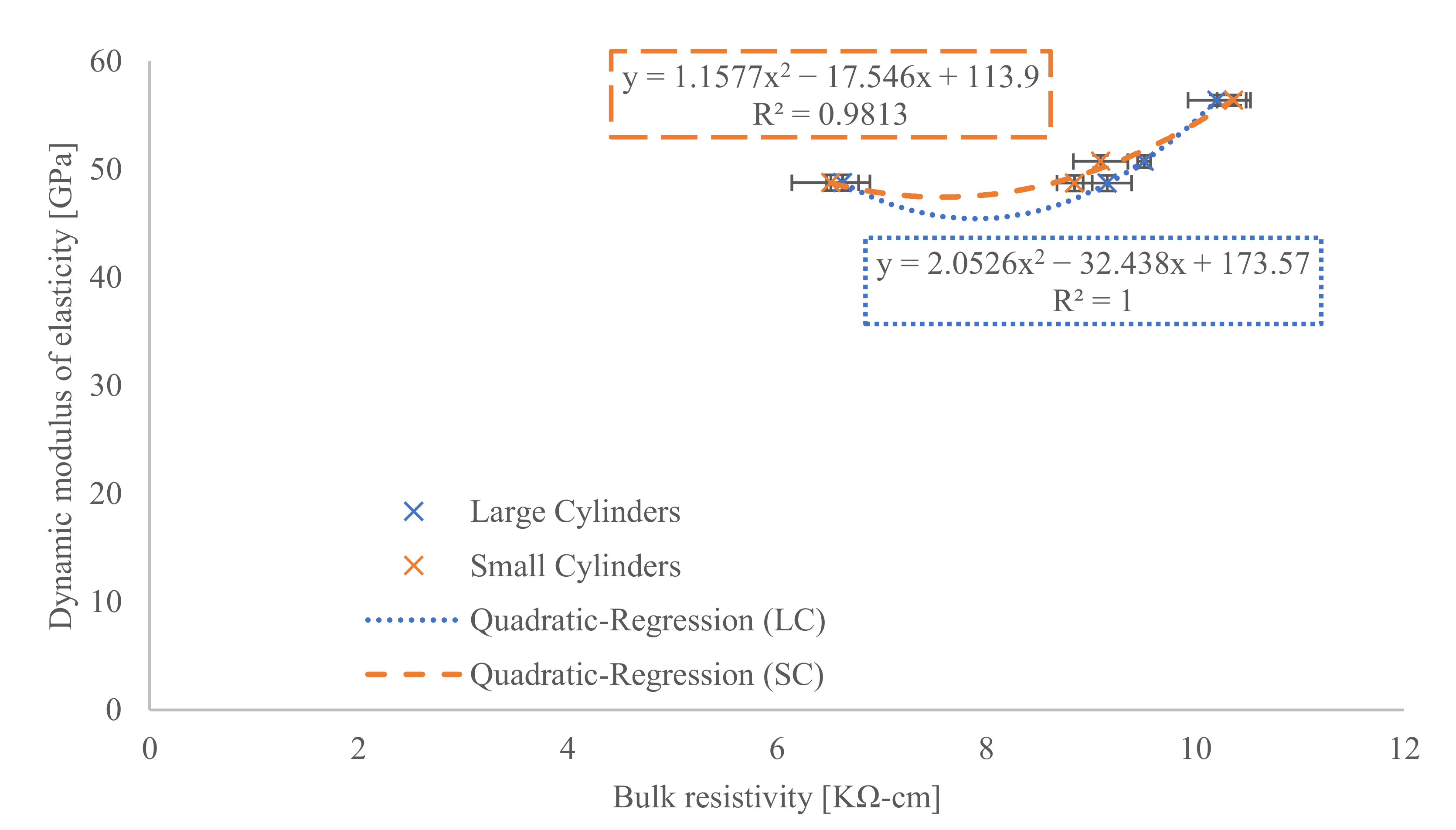

**Figure 10.**Quadratic regression analysis of the relationship between bulk electrical resistivity and dynamic modulus of elasticity (LC = Large Cylinders, SC = Small Cylinders).

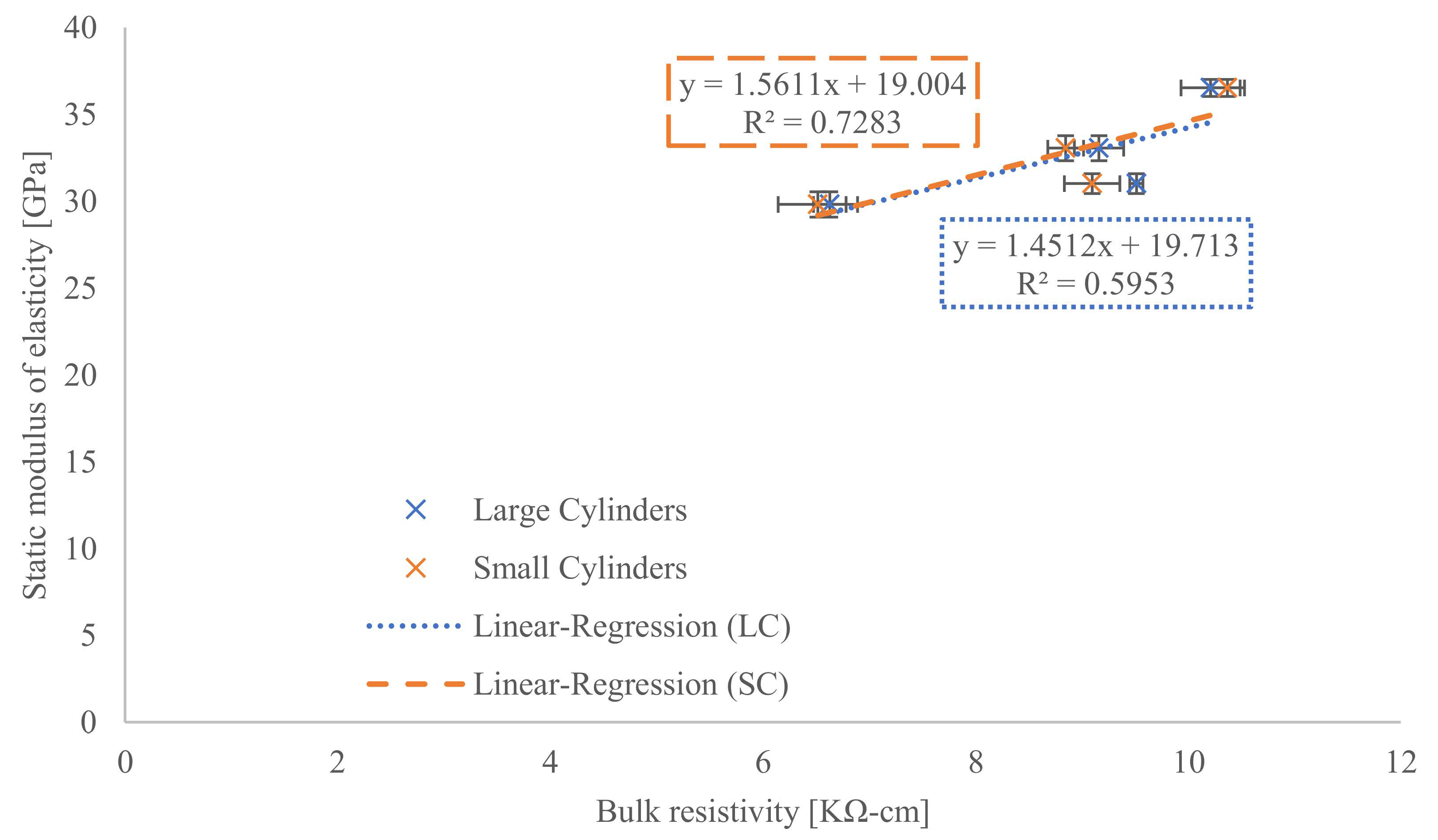

**Figure 11.**Linear regression analysis of the relationship between bulk electrical resistivity and dynamic modulus of elasticity (LC = Large Cylinders, SC = Small Cylinders).

**Figure 12.**Quadratic regression analysis of the relationship between bulk electrical resistivity and dynamic modulus of elasticity (LC = Large Cylinders, SC = Small Cylinders).

First Parameter | Second Parameter | PCC |
---|---|---|

Small cylinder surface electrical resistivity | Small cylinder bulk electrical resistivity | 0.99 |

Large cylinder surface electrical resistivity | Large cylinder bulk electrical resistivity | 0.99 |

Compressive strength | Small cylinder bulk electrical resistivity | 0.96 |

Compressive strength | Large cylinder bulk electrical resistivity | 0.94 |

Compressive strength | Dynamic modulus of elasticity | 0.85 |

Compressive strength | Static modulus of elasticity | 0.78 |

Dynamic modulus of elasticity | Small cylinder bulk electrical resistivity | 0.77 |

Dynamic modulus of elasticity | Large cylinder bulk electrical resistivity | 0.68 |

Static modulus of elasticity | Small cylinder bulk electrical resistivity | 0.75 |

Static modulus of elasticity | Large cylinder bulk electrical resistivity | 0.65 |

**Table 2.**The value of the regression analysis results (not app. means that quadratic regression was not necessary).

First Parameter | Second Parameter | R^{2} from Linear Regression | R^{2} from Quadratic Regression |
---|---|---|---|

Small cylinder surface electrical resistivity | Small cylinder bulk electrical resistivity | 0.983 | not app. |

Large cylinder surface electrical resistivity | Large cylinder bulk electrical resistivity | 0.977 | not app. |

Compressive strength | Small cylinder bulk electrical resistivity | 0.928 | not app. |

Compressive strength | Large cylinder bulk electrical resistivity | 0.892 | not app. |

Compressive strength | Dynamic modulus of elasticity | 0.716 | 0.857 |

Compressive strength | Static modulus of elasticity | 0.602 | 0.606 |

Dynamic modulus of elasticity | Small cylinder bulk electrical resistivity | 0.595 | 0.981 |

Dynamic modulus of elasticity | Large cylinder bulk electrical resistivity | 0.453 | 1.000 |

Static modulus of elasticity | Small cylinder bulk electrical resistivity | 0.728 | 0.867 |

Static modulus of elasticity | Large cylinder bulk electrical resistivity | 0.595 | 0.780 |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Lehner, P.; Hrabová, K. Relationship of Time-Dependent Parameters from Destructive and Non-Destructive Tests of Structural Concrete. *Mathematics* **2022**, *10*, 460.
https://doi.org/10.3390/math10030460

**AMA Style**

Lehner P, Hrabová K. Relationship of Time-Dependent Parameters from Destructive and Non-Destructive Tests of Structural Concrete. *Mathematics*. 2022; 10(3):460.
https://doi.org/10.3390/math10030460

**Chicago/Turabian Style**

Lehner, Petr, and Kristýna Hrabová. 2022. "Relationship of Time-Dependent Parameters from Destructive and Non-Destructive Tests of Structural Concrete" *Mathematics* 10, no. 3: 460.
https://doi.org/10.3390/math10030460
